Technical Specifications

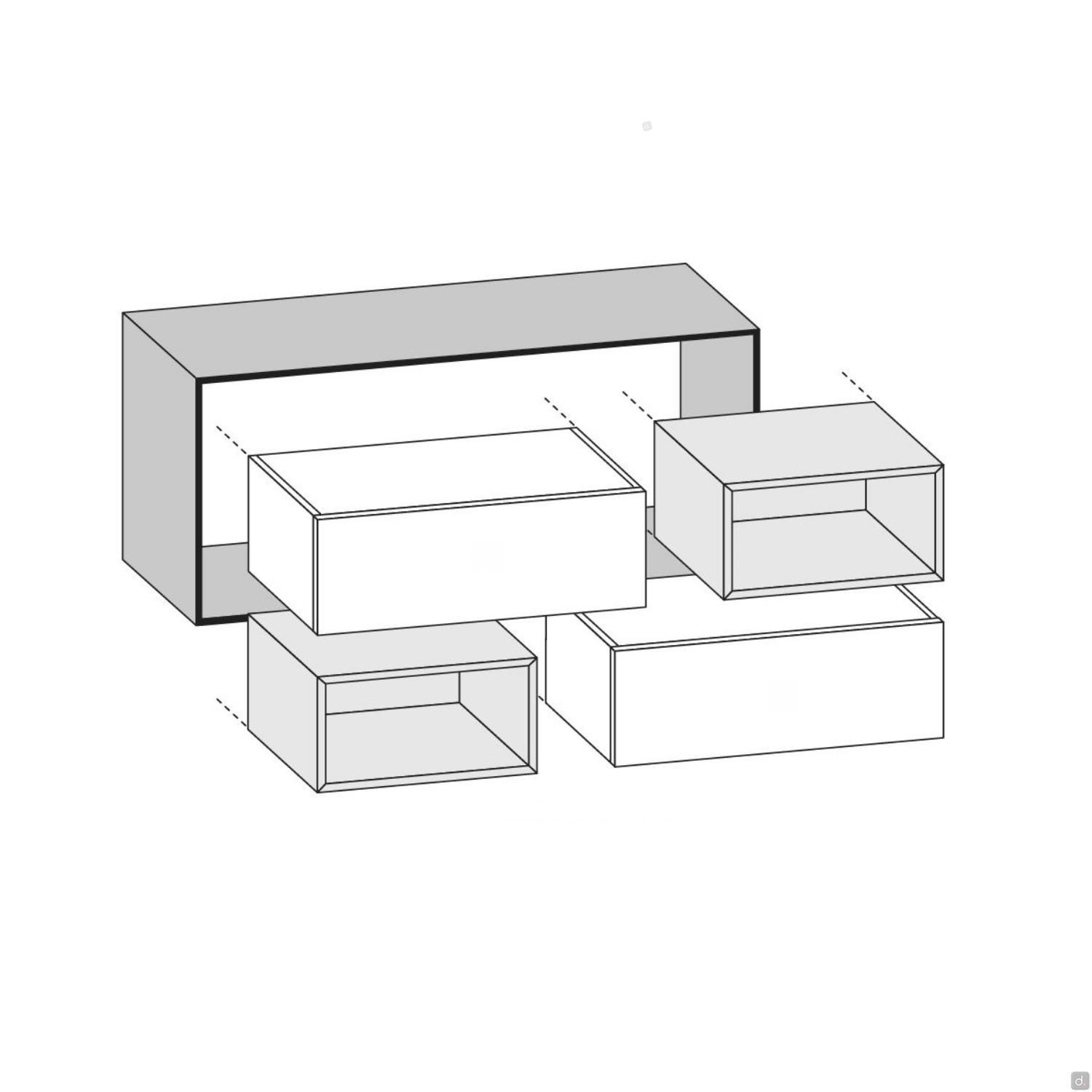

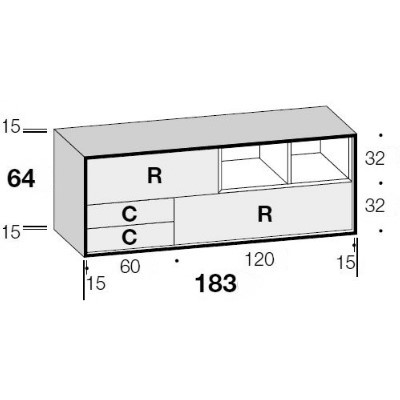

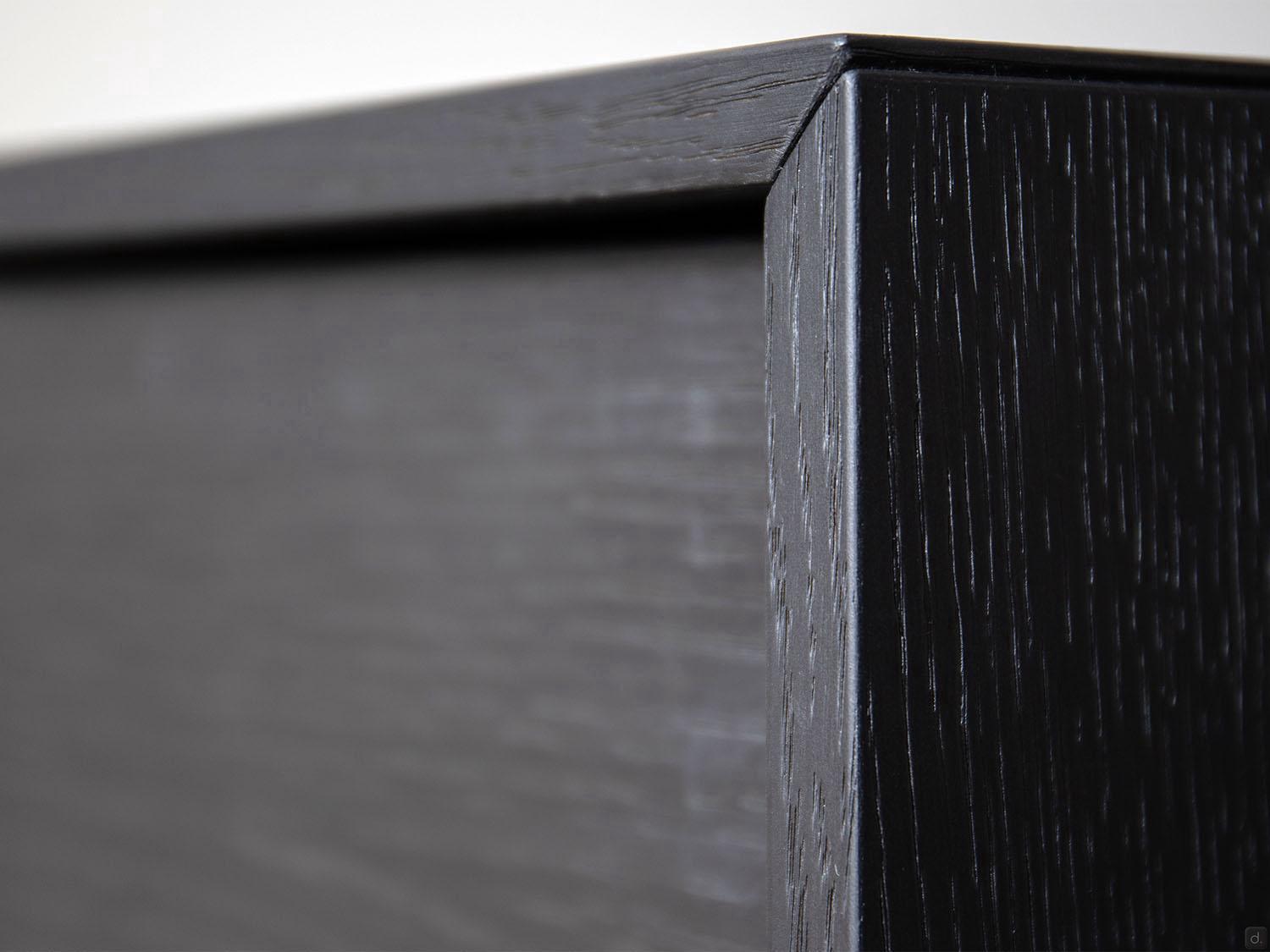

Perimetral Structure: thickness cm 1,5. The upper top is joined to the side vertical elements with a junction at 45° with a mm 2x2 gap. The lower top is, instead, joined to the side vertical elements to make it easier the position close to the other elements.

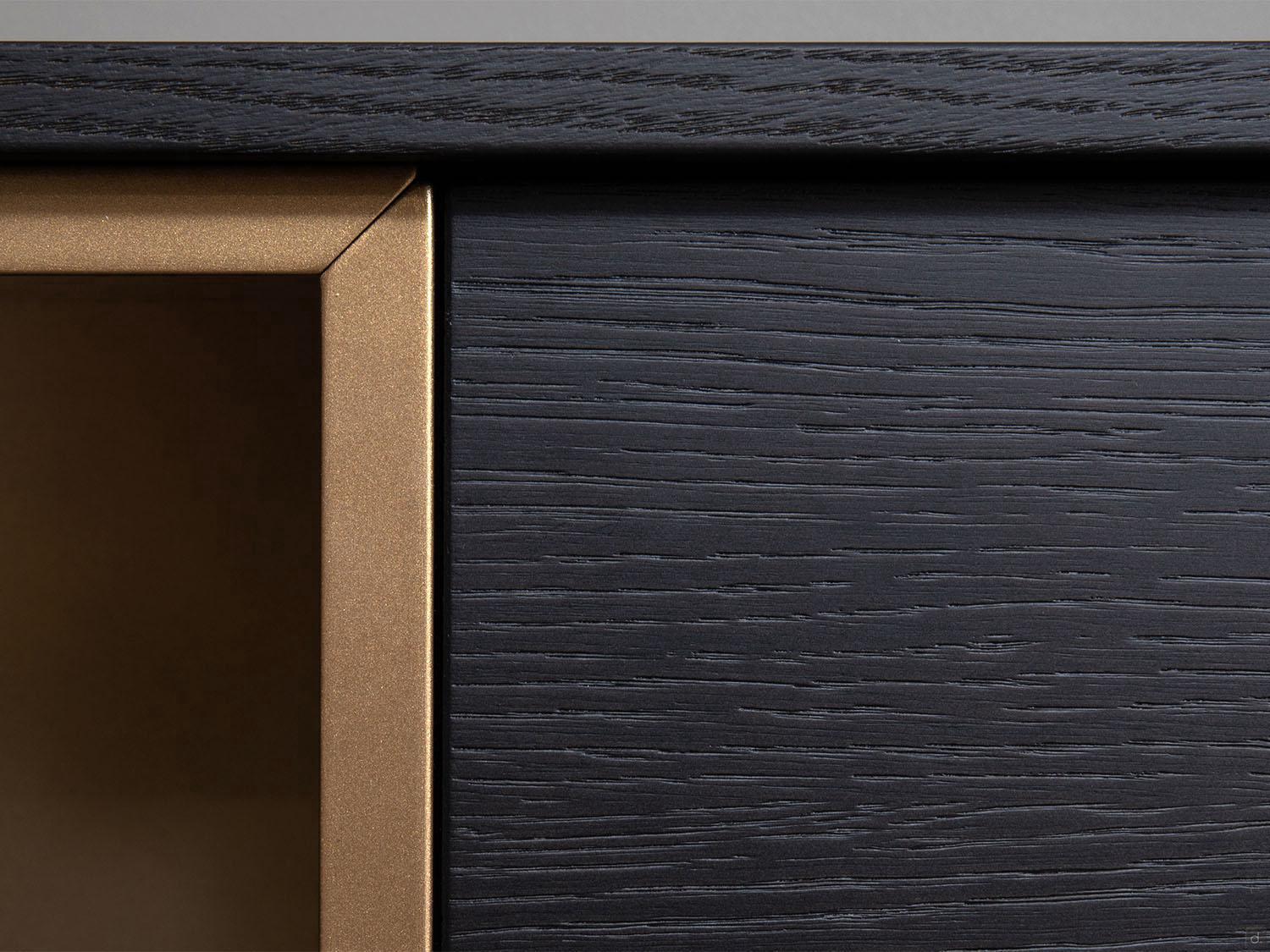

Fronts: thickness cm 2. As the compartments, the fronts are recessed of cm 1,5 compared to the perimetral structure.

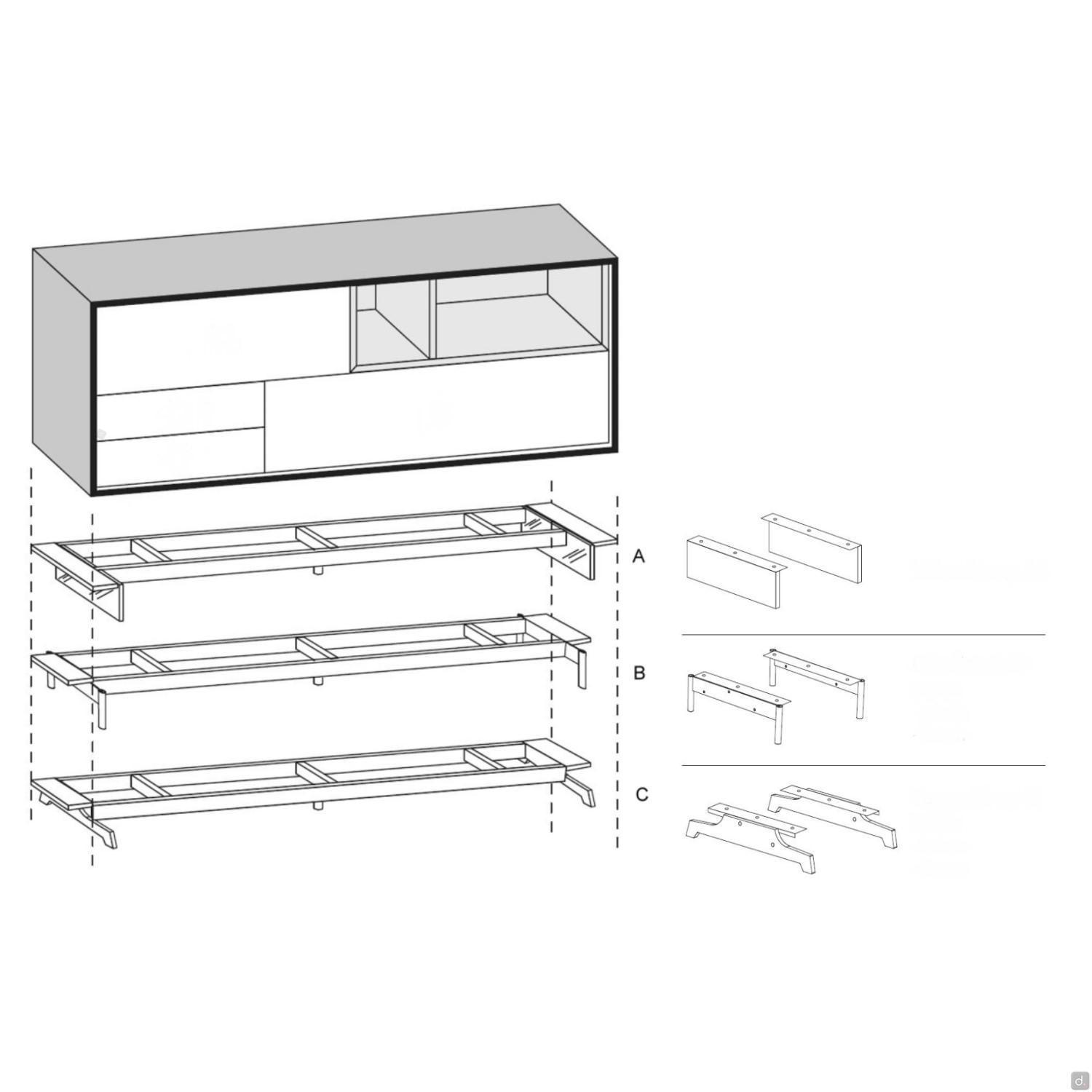

Feet:

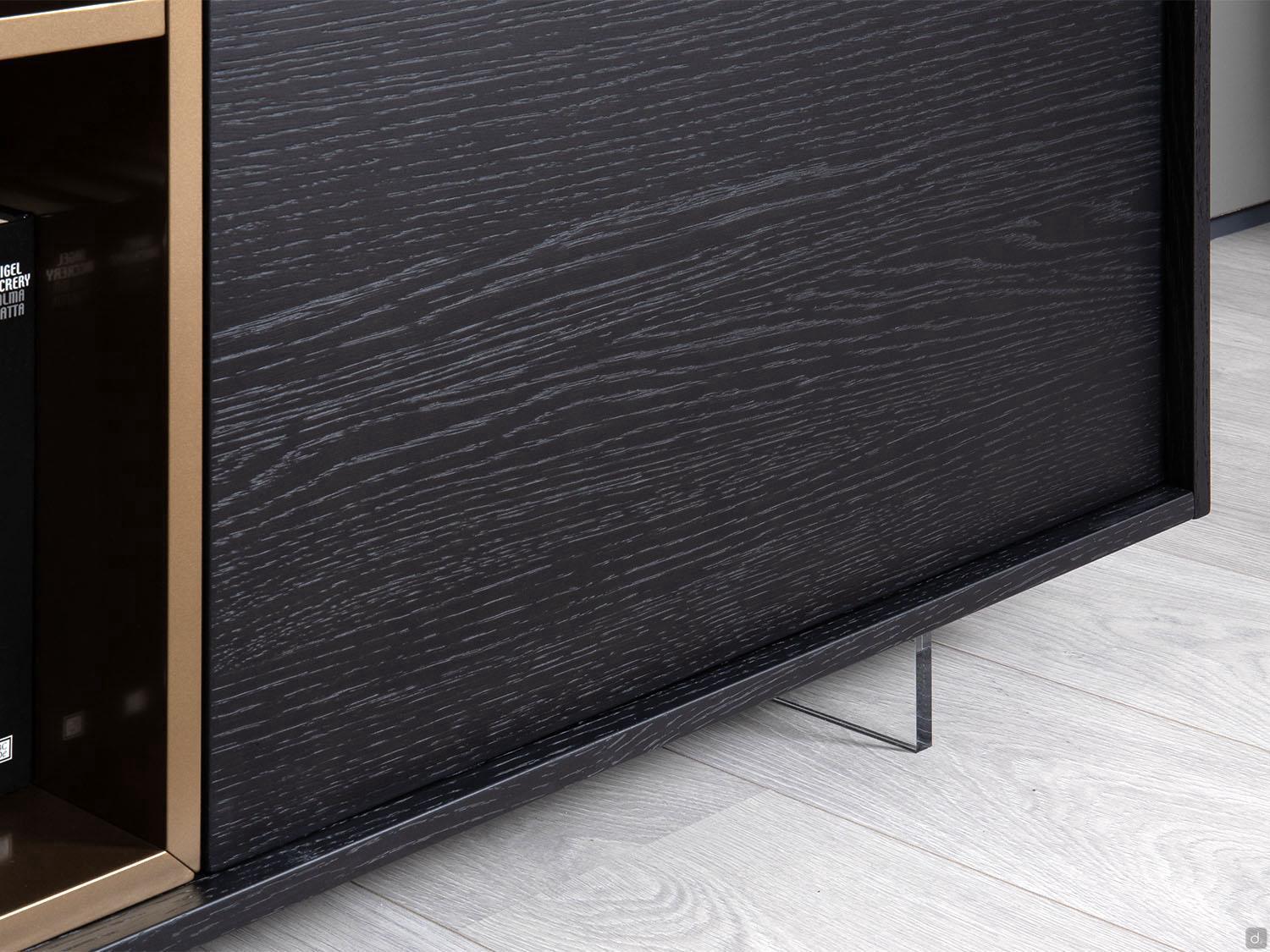

- methacrylate / shaped th. mm 15
- cylindrical th. ø mm 20
Opening system:

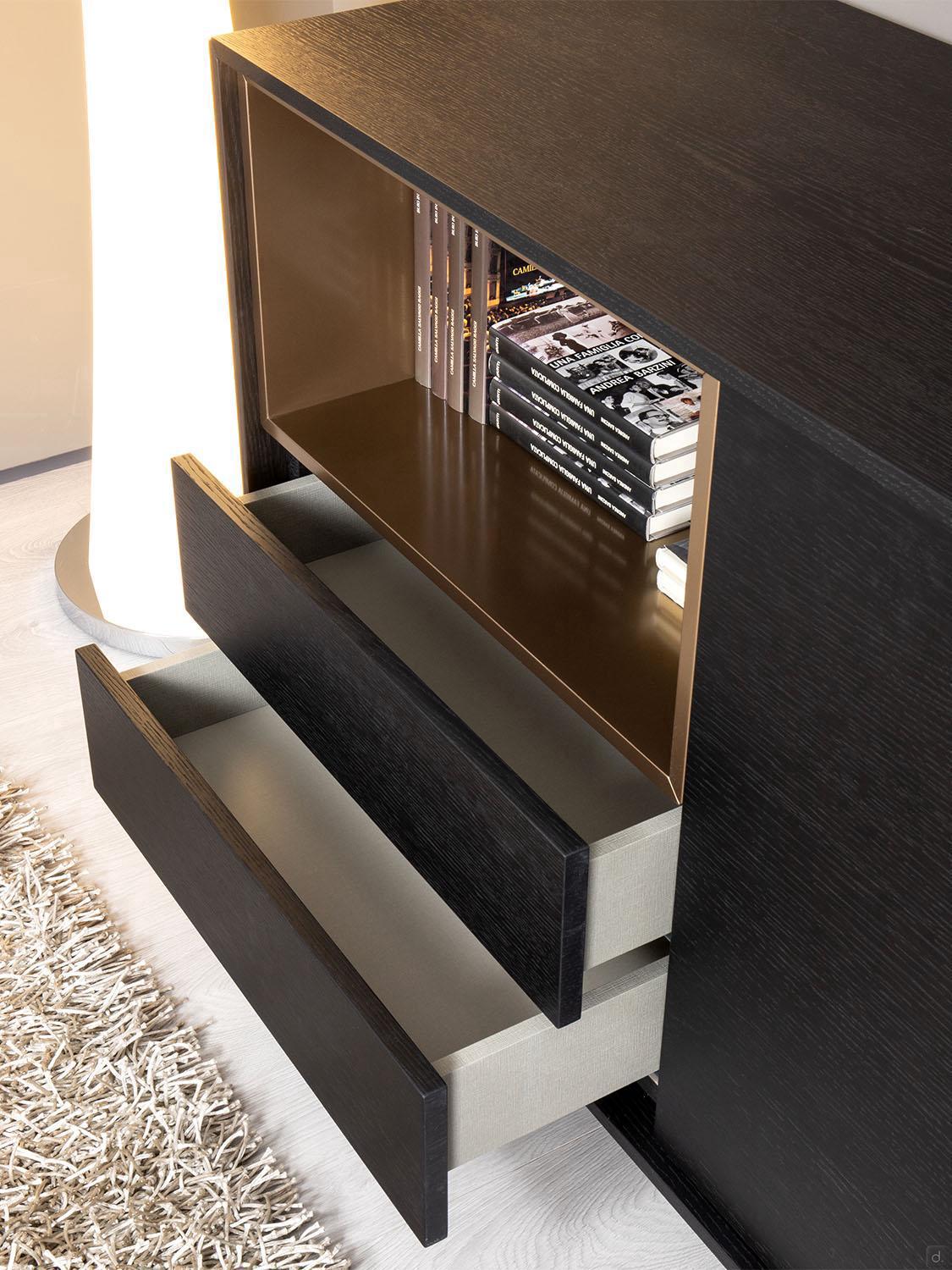

- push pull: metal runners with full extension and end of the line stop, dynamic load of 30 kg. Built-in synchronised sliding system in all drawer runners when bigger than 45 cm. Anti-hook pin and vertical front tilt adjustment integrated in all system runners. 120 and 150 cm wide drawers equipped with "Movento" runners and front side adjustment. Opening of the drawers through push-pull for the elements with drop down door (from top to bottom). For drawers this is placed in the middle top side, while for the hinged doors it is on the corner top side.
Veins Directions: for the perimetral structure and wooden compartments, the direction of the veins follows the direction of the frame. For the fronts, instead, the veins are horizontal.
Internal Drawers Finish: jute textured

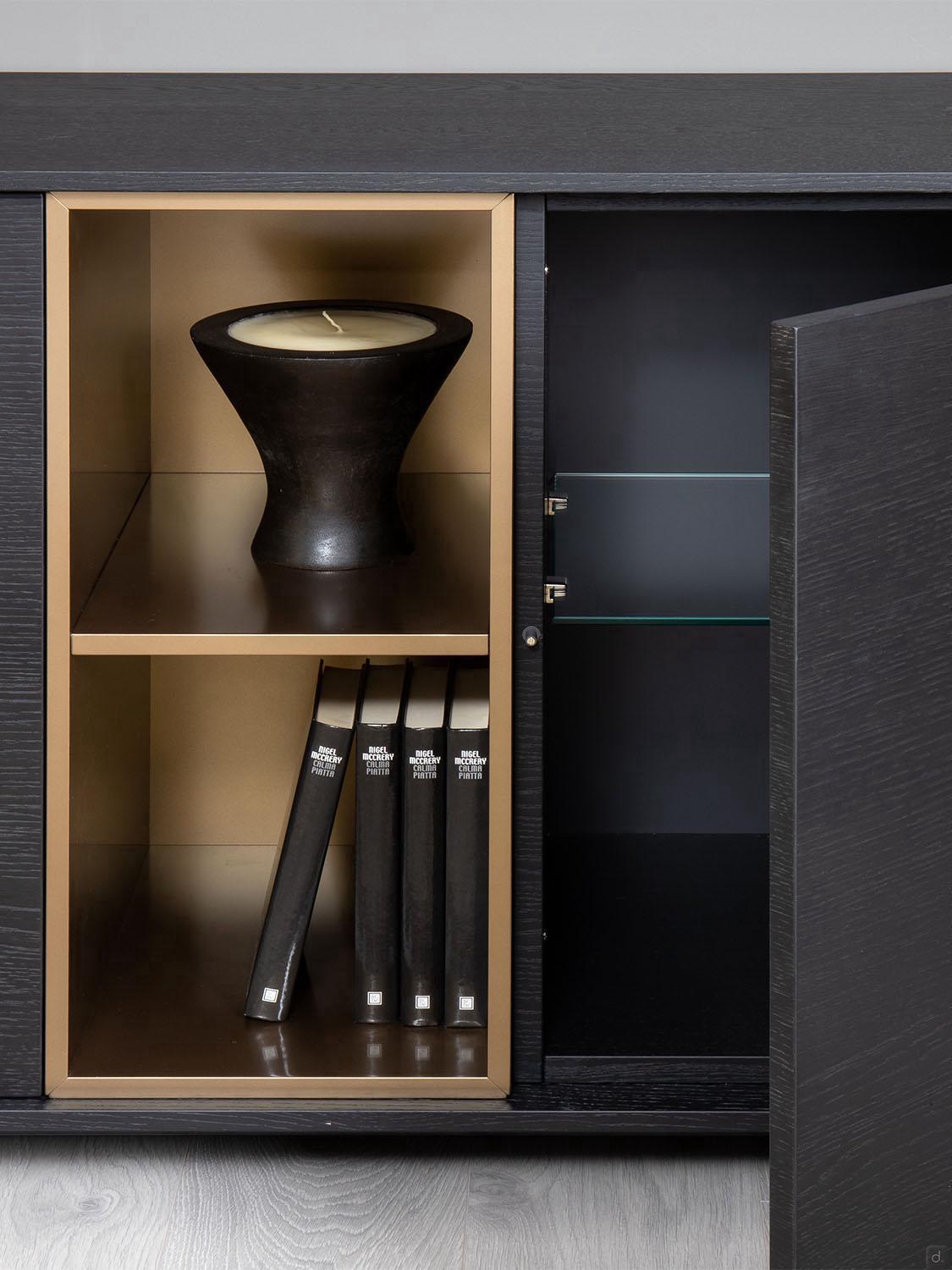

Internal Shelves: glass thickness cm 0,8
Handles:
- Segno: cm 8 h.0,5 - d.1,4
- Assisa: cm 24 h.1,1 - d.2,1 (cm 12,8 pitch)
- Star: (width according to the base) cm h.1,1 - d.2,1
Chart for the matching between front finishes and Segno handle finishes
Fronts Finish
|
Segno Handle
|
| Clay Oak |
Matte Terranova |
| Avana Oak |
Matte Brown |
| Coal Oak |
Matte Brown |
| Cuba Oak |
Matte Brown |
| Natural knotty Oak |
Matte Brown |
| Caramel knotty Oak |
Matte Brown |
| Heat-treated Oak |
Matte Brown |
|
| Grey Oak |
Matte Brown |
|
| Canaletto walnut |
Matte Brown |
|
| Matte Lacquer |
Matte Lacquer |
|
| Glossy Lacquer |
Glossy Lacquer |
|
| Metallic Lacquer |
Metallic Lacquer |
|
| Ecowalnut textured melamine |
Matte Brown |
|
| Medium Elm textured melamine |
Matte Gunmetal |
| Dark Elm textured melamine |
Matte Brown |
| Lotus Nature melamine |
Matte Rope Grey |
| Dove Grey Lotus melamine |
Matte Rope Grey |
| Terra Lotus melamine |
Matte Terranova |
| Sketch Sand textured melamine |
Matte Canvas |
| Sketch Rock textured melamine |
Matte Silica |
| Sketch Tobacco textured melamine |
Matte Beaver |
Optional
Lighting: external under-base with LED bars of 4000K including power supply and remote.
Read more...
Laminate: this is a wood-effect coating usually applied to various materials, such as melamine panels. This coating consists of sheets obtained by pressing together several layers of paper sheets soaked in melamine or phenolic resins. There are different types and aesthetically it can present different aspects, such as a wooden appearance.
Cleaning and Maintenance
The surfaces must not be placed in contact with water, liquids in general, excessive heat and humidity.
Cleaning should only be carried out with a damp cloth and neutral detergents, drying immediately with a soft cloth; the use of alkaline products, solvents and abrasives is not recommended. The products are not suitable for outdoor use.
