Material Specifications
Sides, partitions, bottom, top, back: made with E1 class particle wood panel with low formaldehyde emission.
Door: made with E1 class particle wood panels with low formaldehyde emission (with melamine finish or matt lacquer on ashwood laminate), with honeycomb panel (with lacquered or wood veneer finish), with melamine paper, cm 2.1 thick + cm 0.4 thick coated panel / glass, internal matt coloured lacquer in same shade of colour as the glass. Matt or high gloss lacquered finish made with polyurethane paints

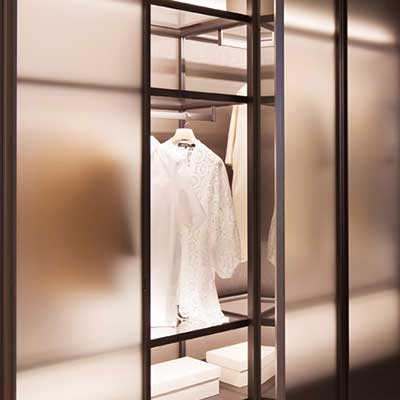

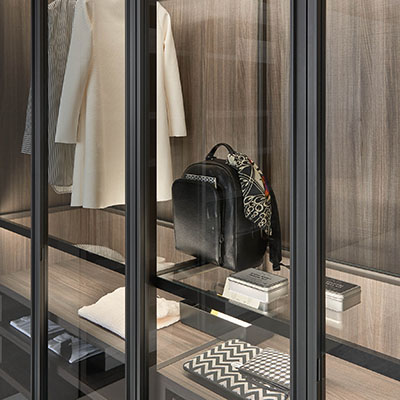

Also in clear or frosted smoked tempered glass with frame and integrated handles in aluminium.
Technical Specifications and Equipment
Sides and partitions: cm 2,5 thick. Sides: ABS edge for textured finishes and lacquers, in wood for veneers. Partitions: ABS edge matching the internal finish. Included adjustable feet, adjustable by cm 1,2.
Top and bottom: cm 3,5 thick. ABS edge matching the internal finish.
Back: cm 0,8 thick.
Level shelves: cm 3,5 thick. ABS edge matching the internal finish.

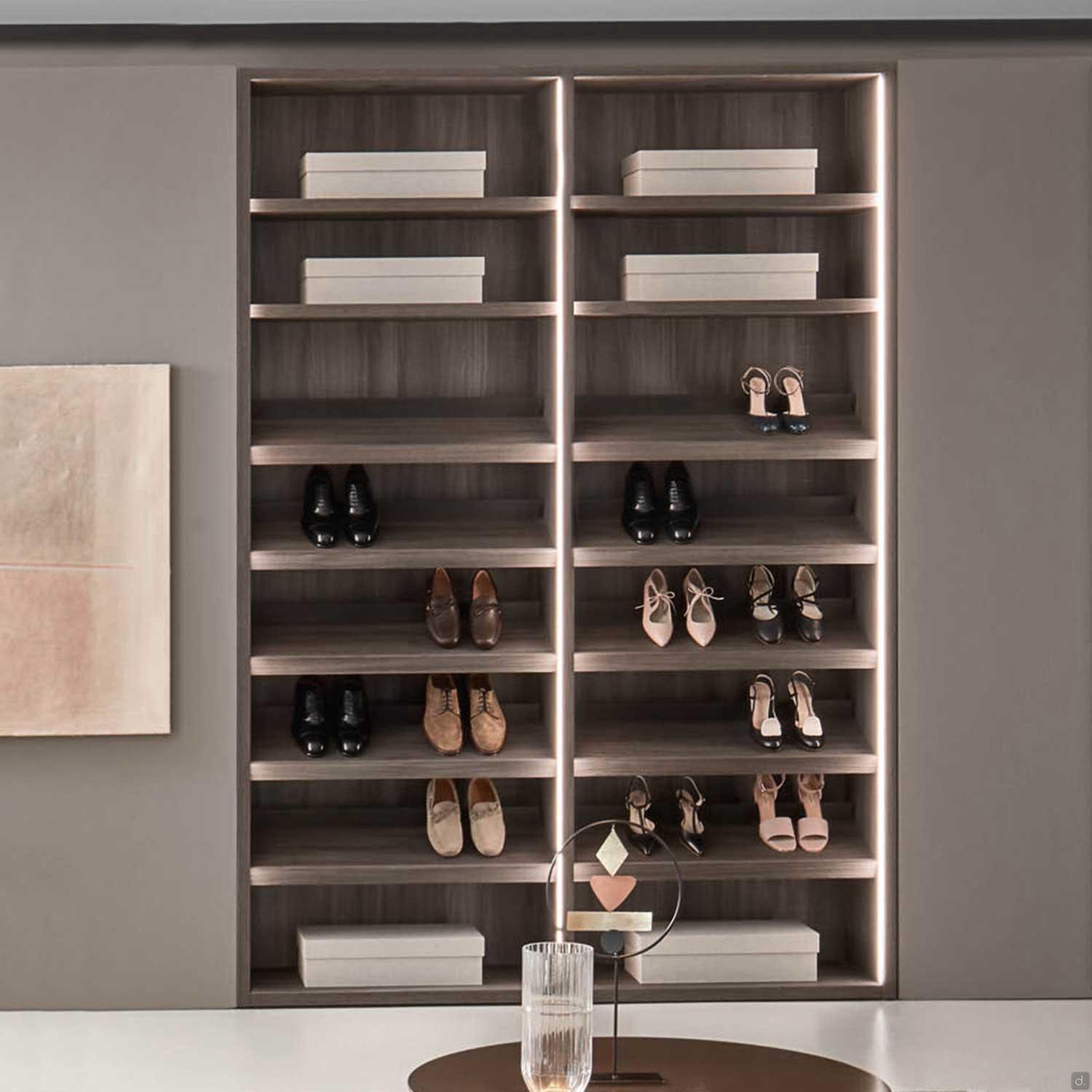

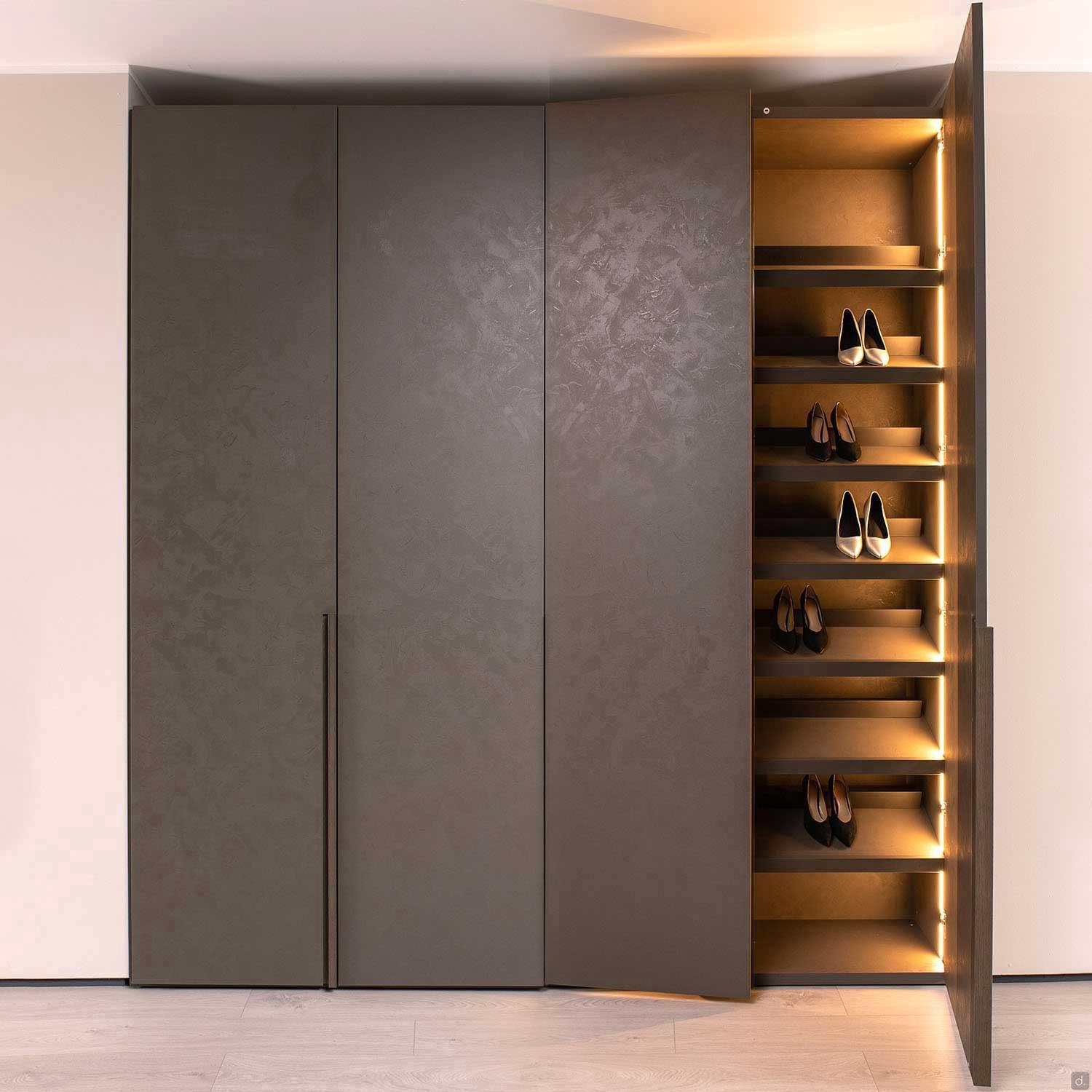

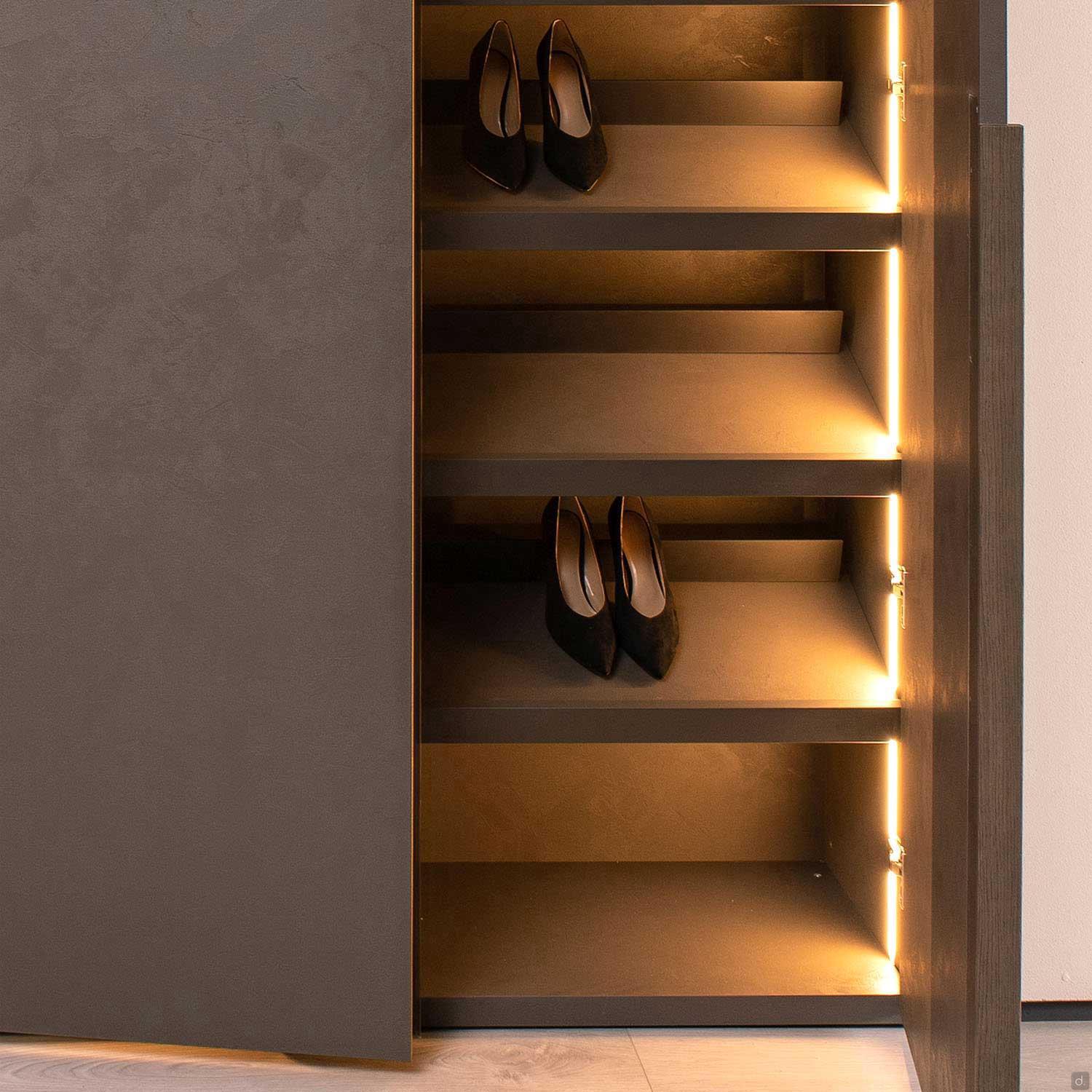

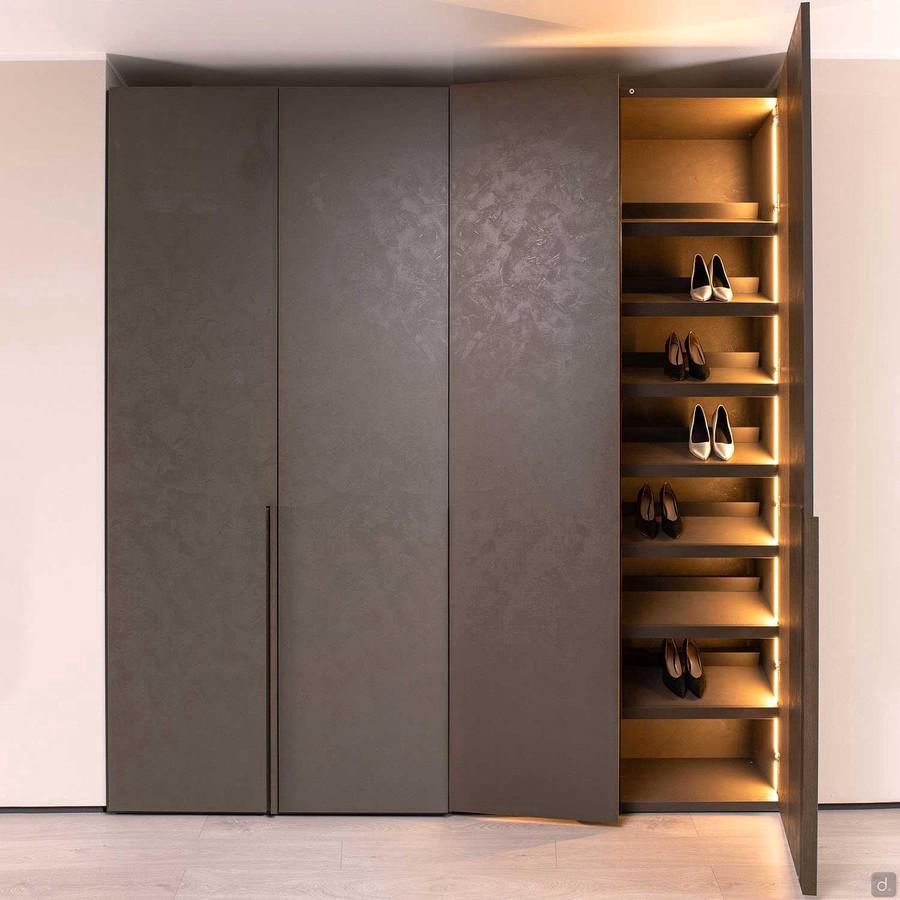

Sloped shoe-rack shelves: cm 3,5 thick. Varnished metal heel-stop in titanium or brown.

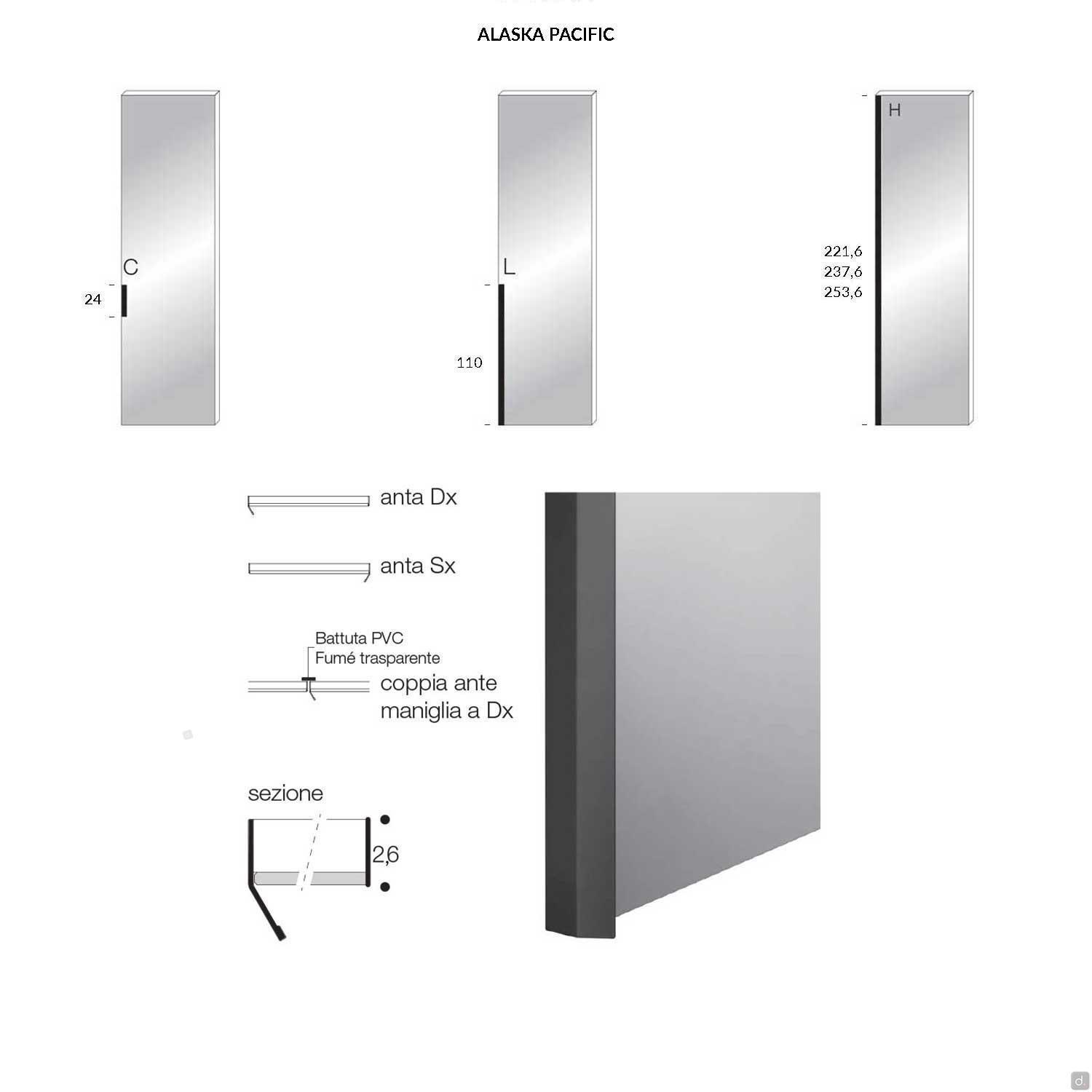

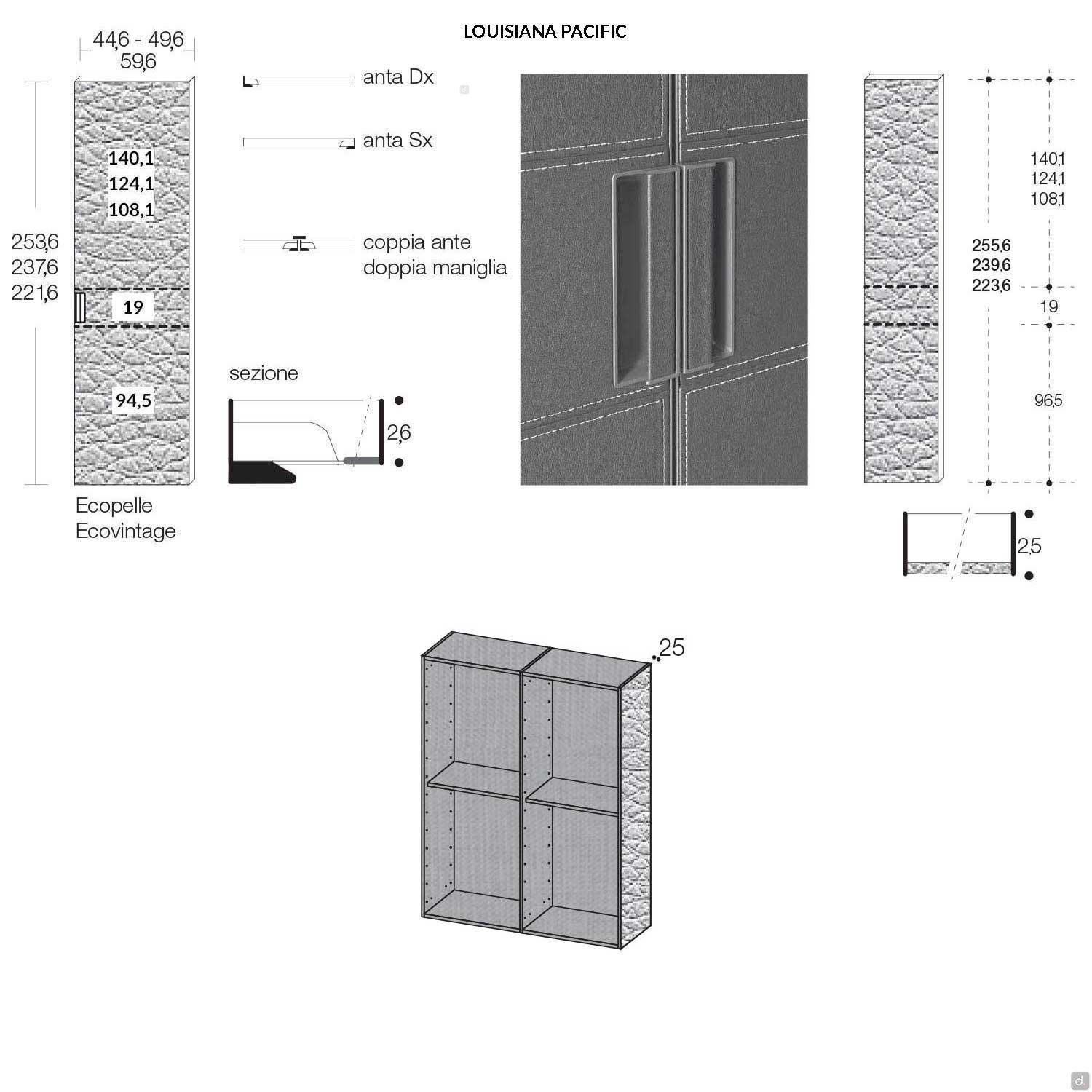

Door: cm 2,6. ABS edge matching the door for textured melamine and lacquer, or in wood for veneer wood doors. Clear or frosted smoked glass (4 mm thick) with brown or titanium lacquered metal frame. The handle is always positioned on the door on the right-hand-side; where there are two doors, the door on the left is equipped with a pvc edge in a smoked, transparent colour (metal matching the frame for the Virginia door).
Hinges: Each door comes with a soft closing system and 94° opening, integrated into the top and bottom of the wardrobe. For doors with height cm 239.6, 255.6 and 287.6 there will be 6 hinges whereas for doors with height cm 223.6 there will be 4 hinges.

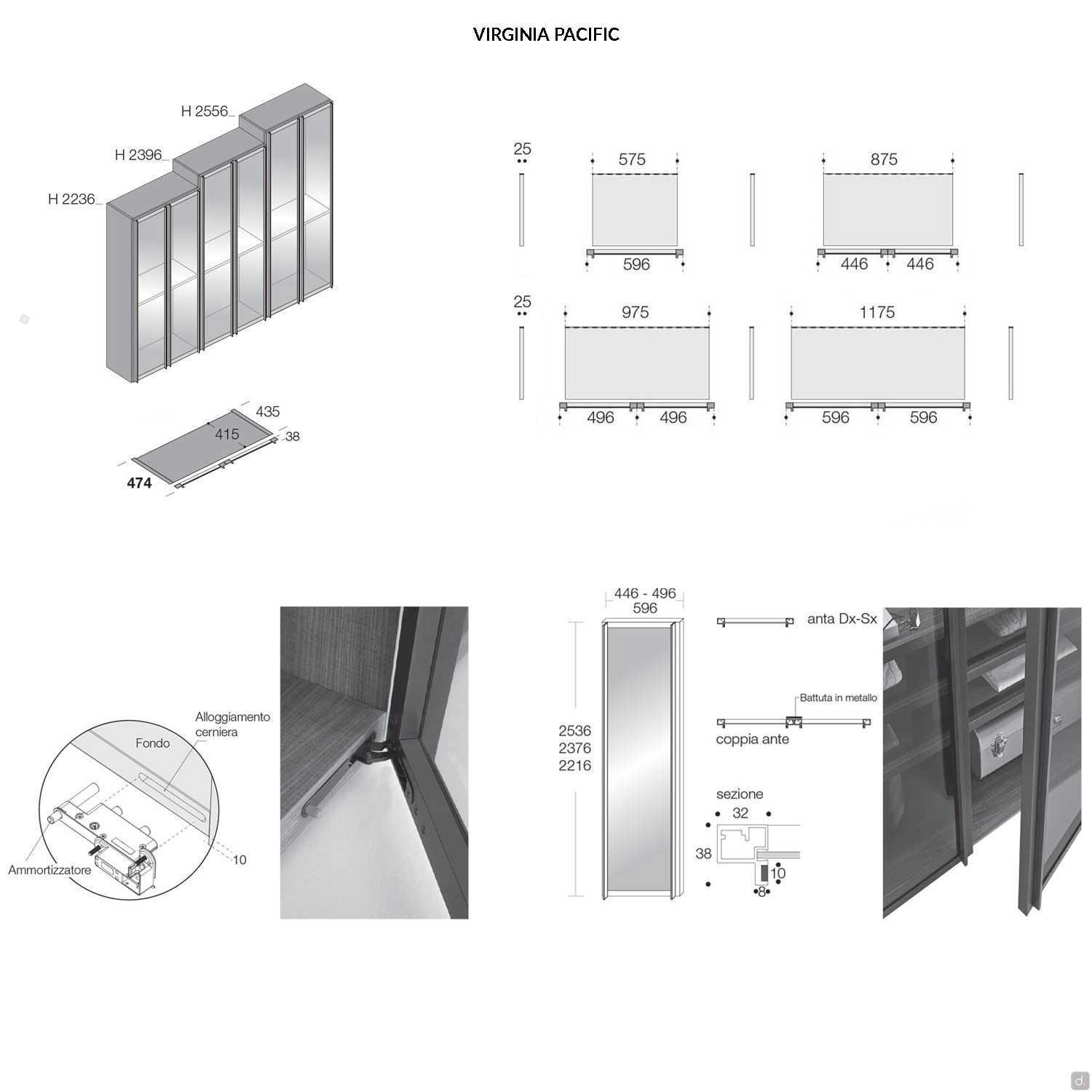

The hinges on the Virginia door are not visible and allow you to position the shelves wherever you want. They are equipped with a shock-absorbing return spring, adjustable in 3 directions: height, width and depth.

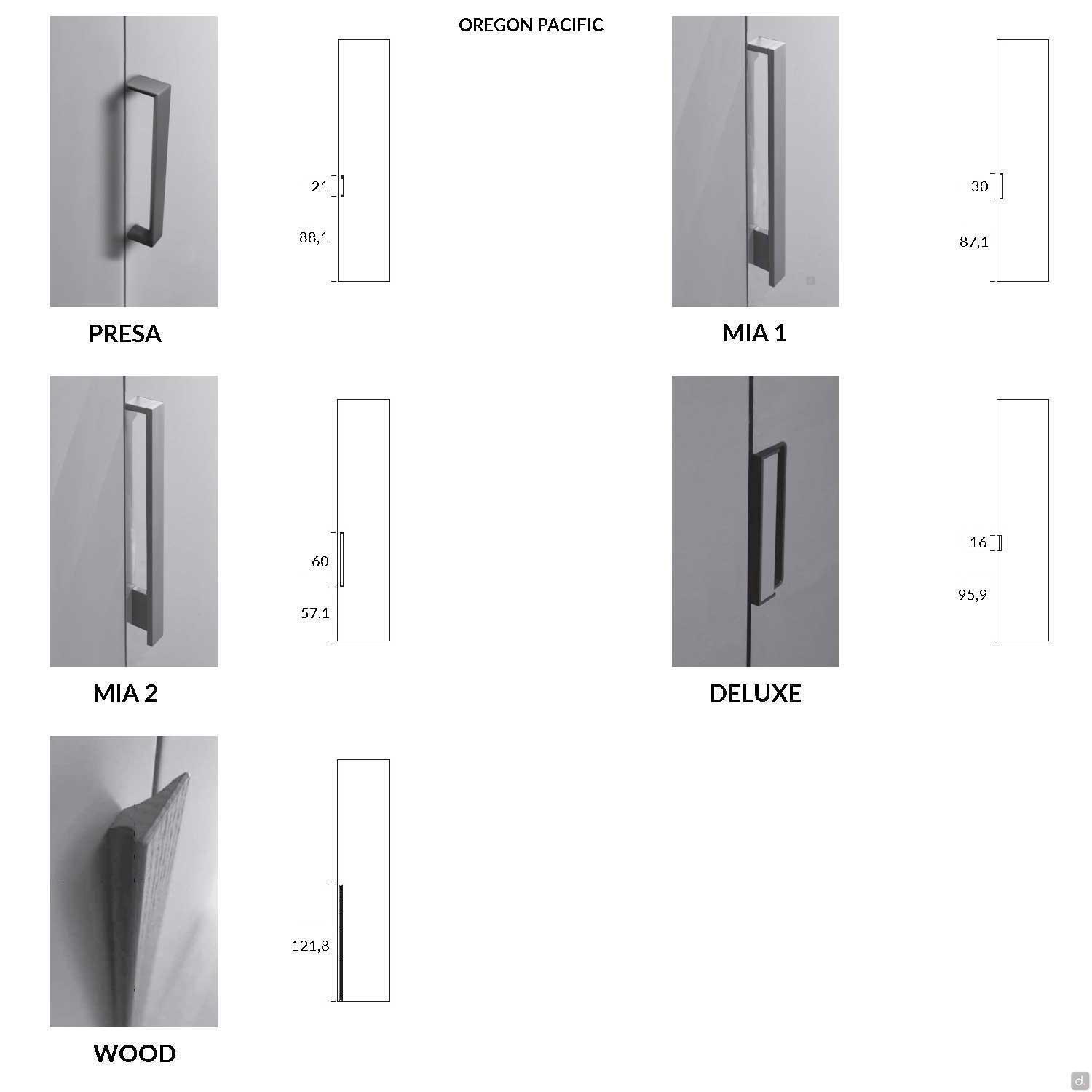

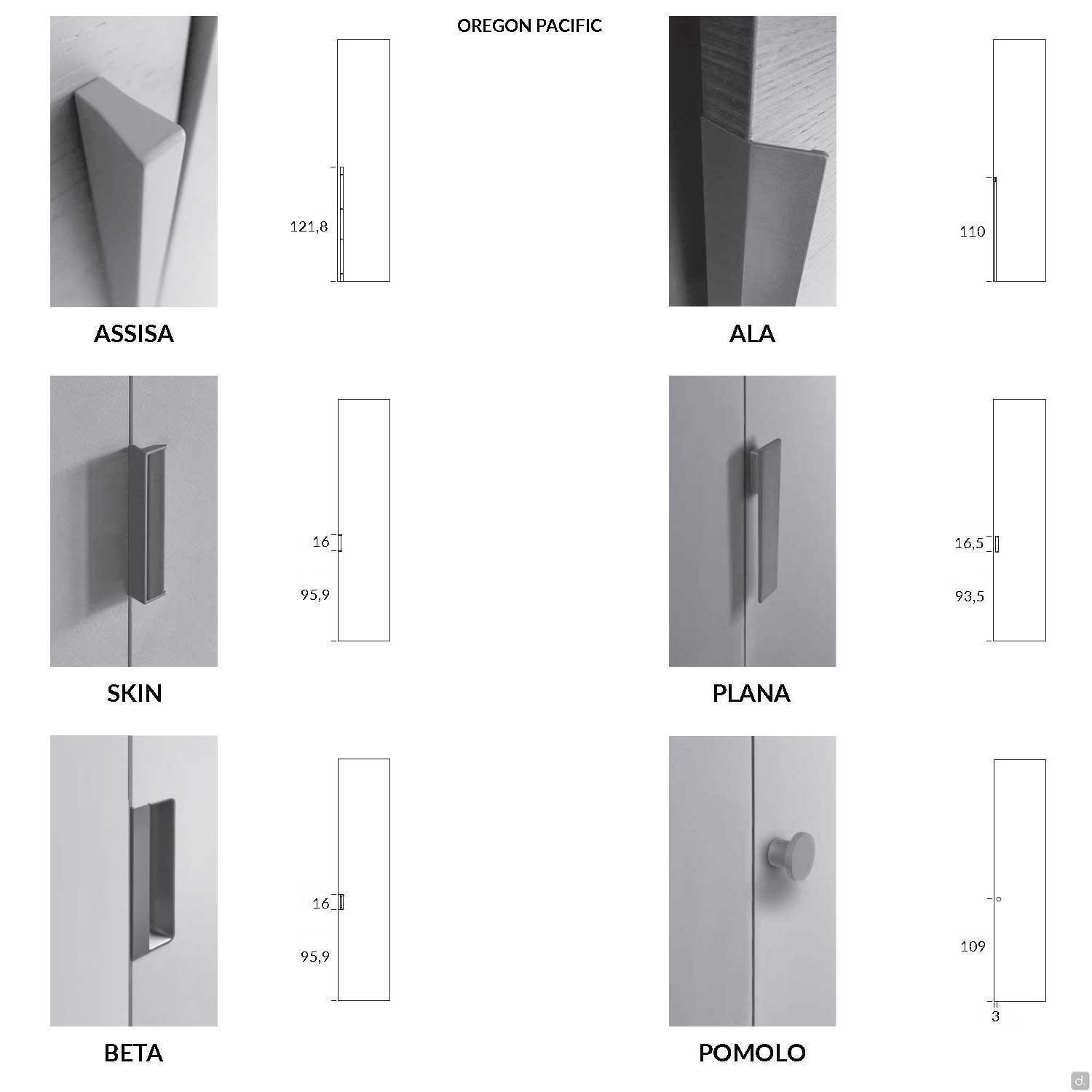

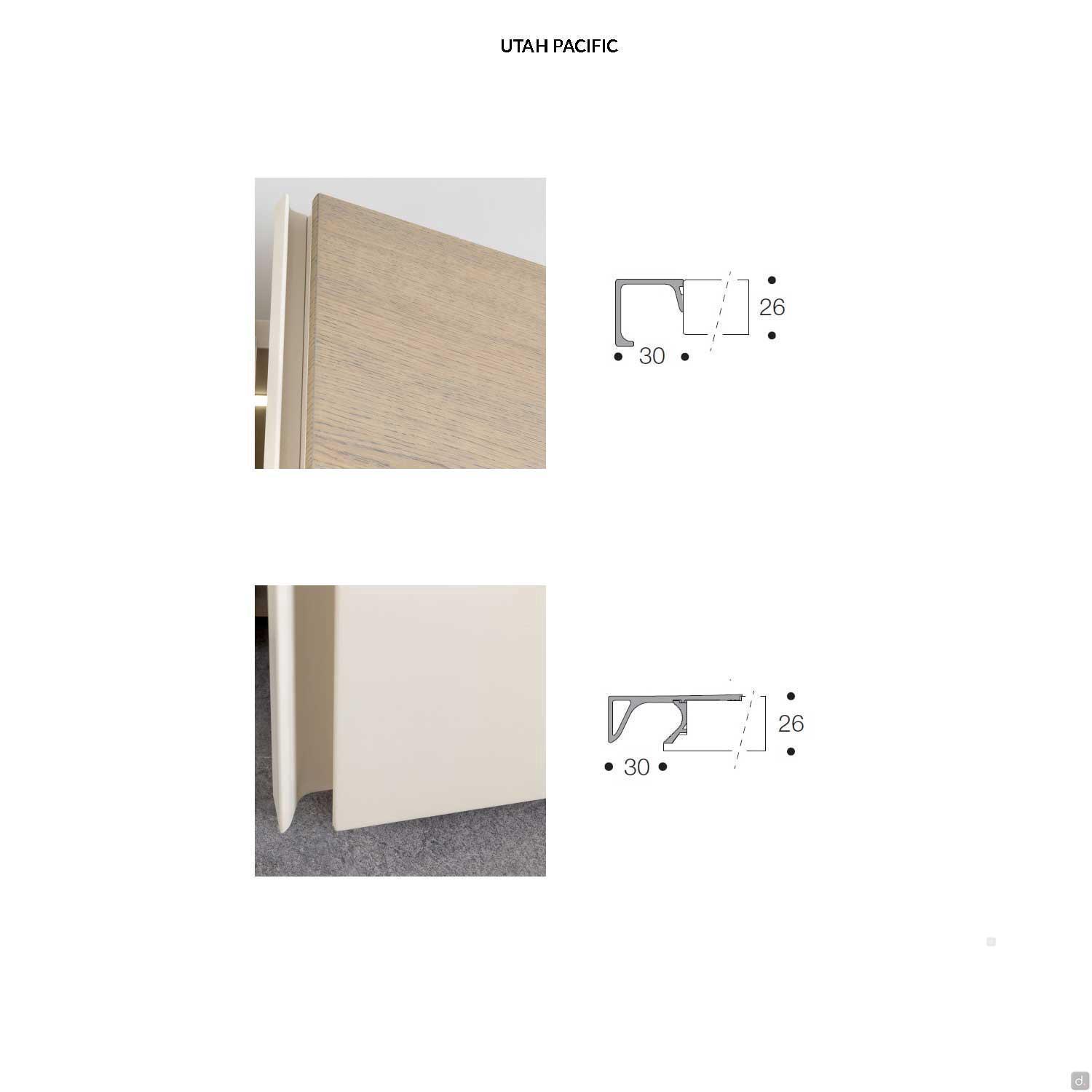

Handles (Oregon door):
- Assisa: cm h.121,8, in matt lacquered metal
- Ala: cm h.110, in matt lacquered metal

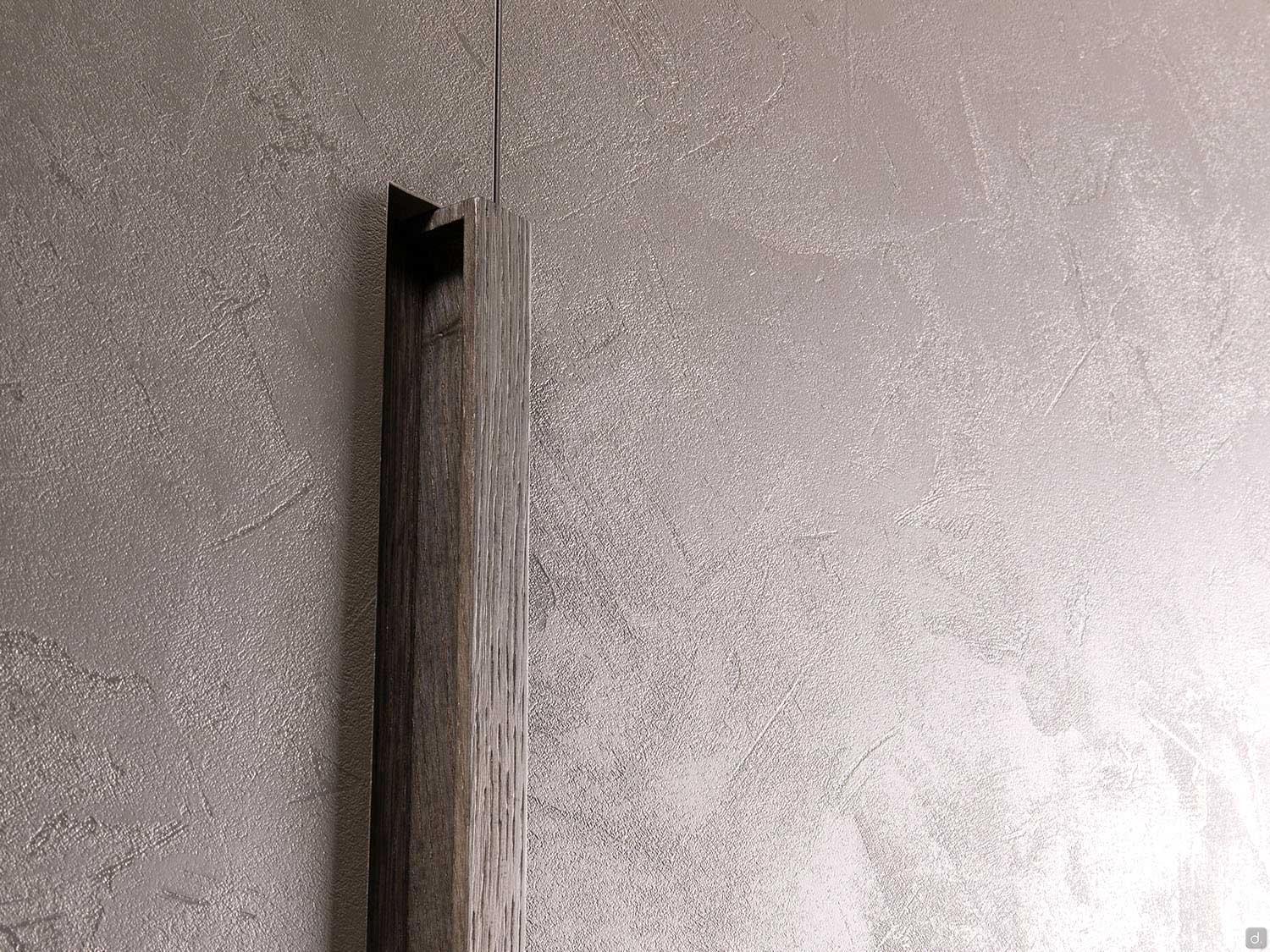

- Wood: cm h.121,8, in painted, solid ash wood
- Mia 1: cm h.30, in matt lacquered metal
- Mia 2: cm h.60, in matt lacquered metal
- Plana: cm h.16,5, positioned cm 93,5 from the bottom of the door, in matt lacquered metal
- Presa: cm h.16,6, positioned cm 88,1 from the bottom of the door, in matt lacquered metal
- Skin: cm h.16, positioned cm 95,9 from the bottom of the door, in matt lacquered metal
- Beta: cm h.16, positioned cm 95,9 from the bottom of the door, in matt lacquered metal
- Deluxe: cm h.16, positioned cm 95,9 from the bottom of the door, in matt lacquered metal with faux-leather grip
- Pomolo: cm Ø 2,5, positioned cm 109 from the bottom of the door, in matt lacquered metal

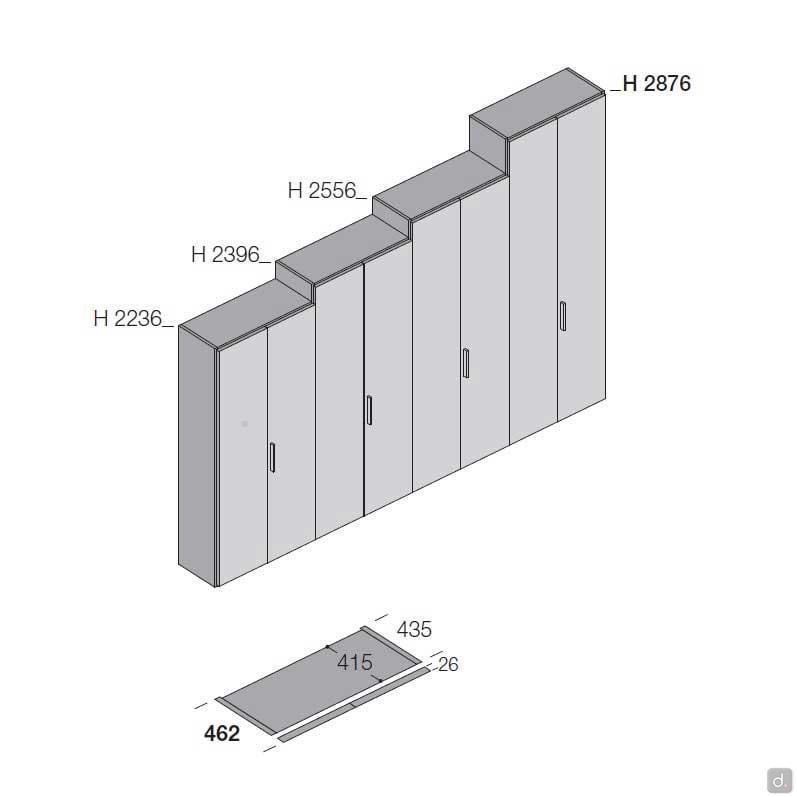

Internal usable height:
- for cm h.223,6 wardrobe: cm 216,6
- for cm h.239,6 wardrobe: cm 232,6
- for cm h.255,6 wardrobe: cm 248,6
- for cm h.287,6 wardrobe: cm 280,6
Optional

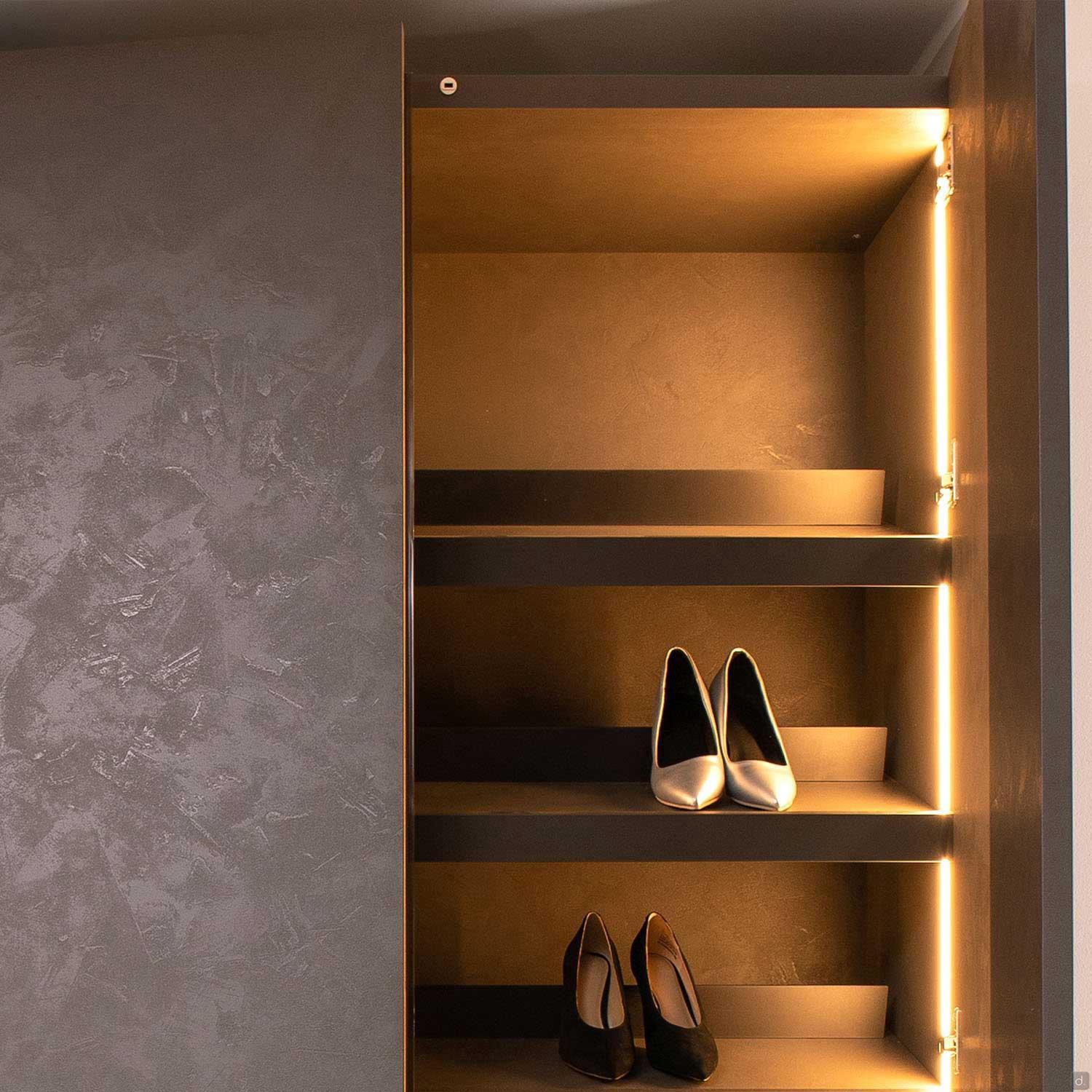

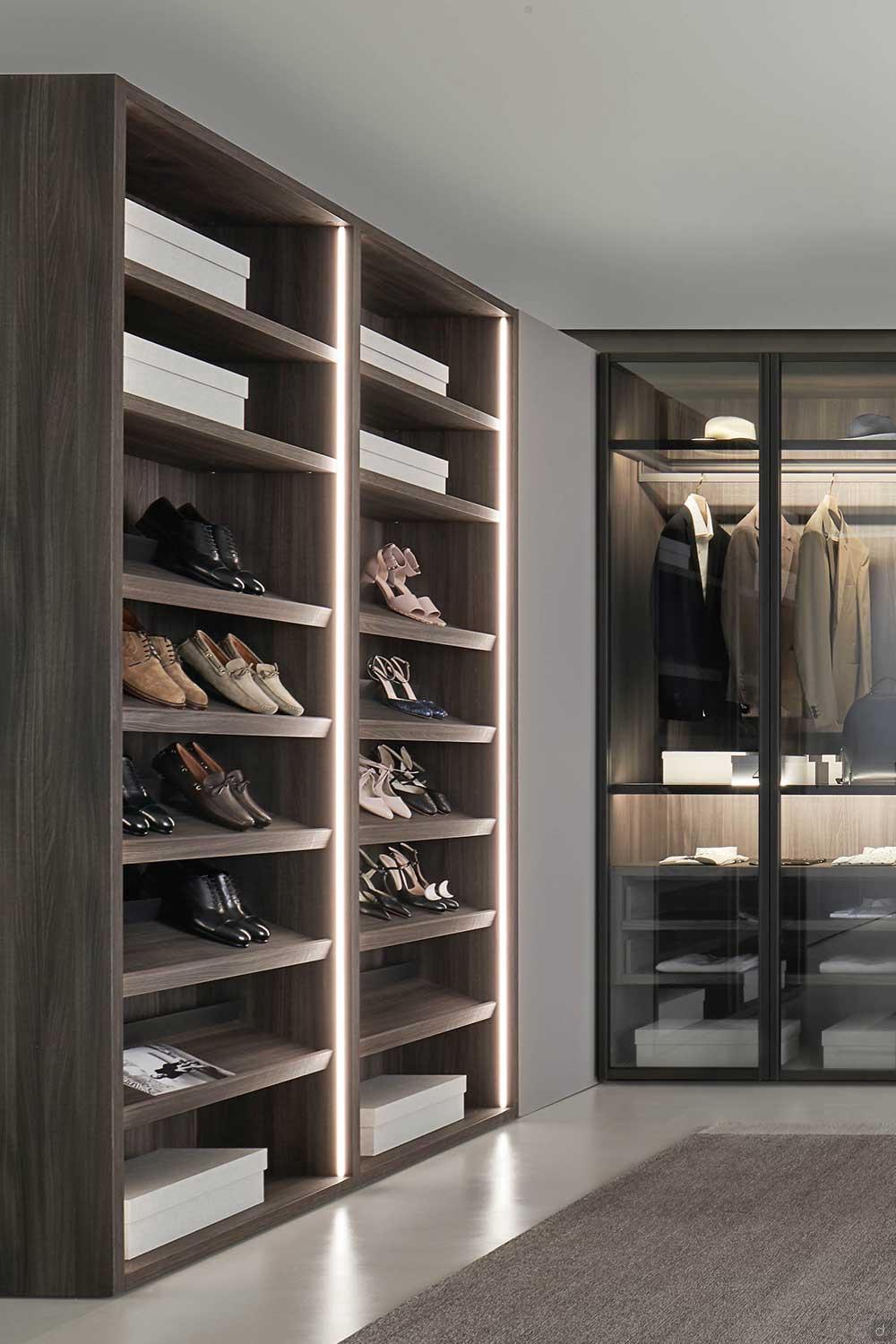

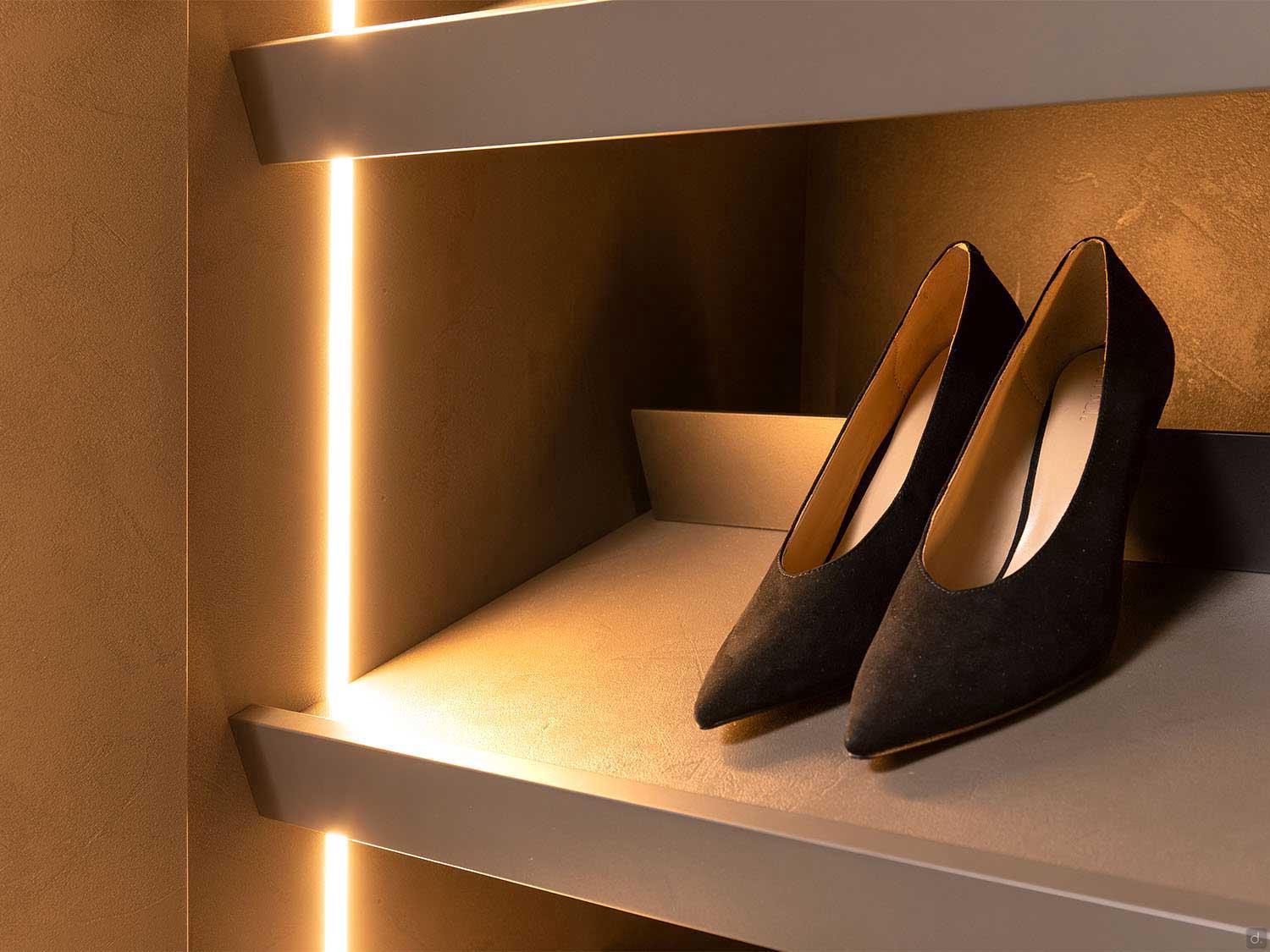

LED bars: The lights are turned on by a motion-sensor system, which is activated when the doors are opened, and is mounted at the top of the wardrobe. The cable for the vertical bars comes out directly above the top of the wardrobe. The power supply, positioned on top of the wardrobe, is equipped with a 5 metre long cable to facilitate the connection. The strength of the vertical LED bars is:
- 24 W for cm h.223,6 wardrobe
- 26 W for cm h.239,6 wardrobe
- 28 W for cm h.255,6 wardrobe
- 31 W for cm h.287,6 wardrobe
Remote control kit (optional): kit with radio frequency receiver, for switching on. Supports power supplies for LED up to a maximum of 300W. Can be used on all lighting systems on the power supply (in cases where there is more than one power supply, please use a multi-socket extension cable)
Side Holes

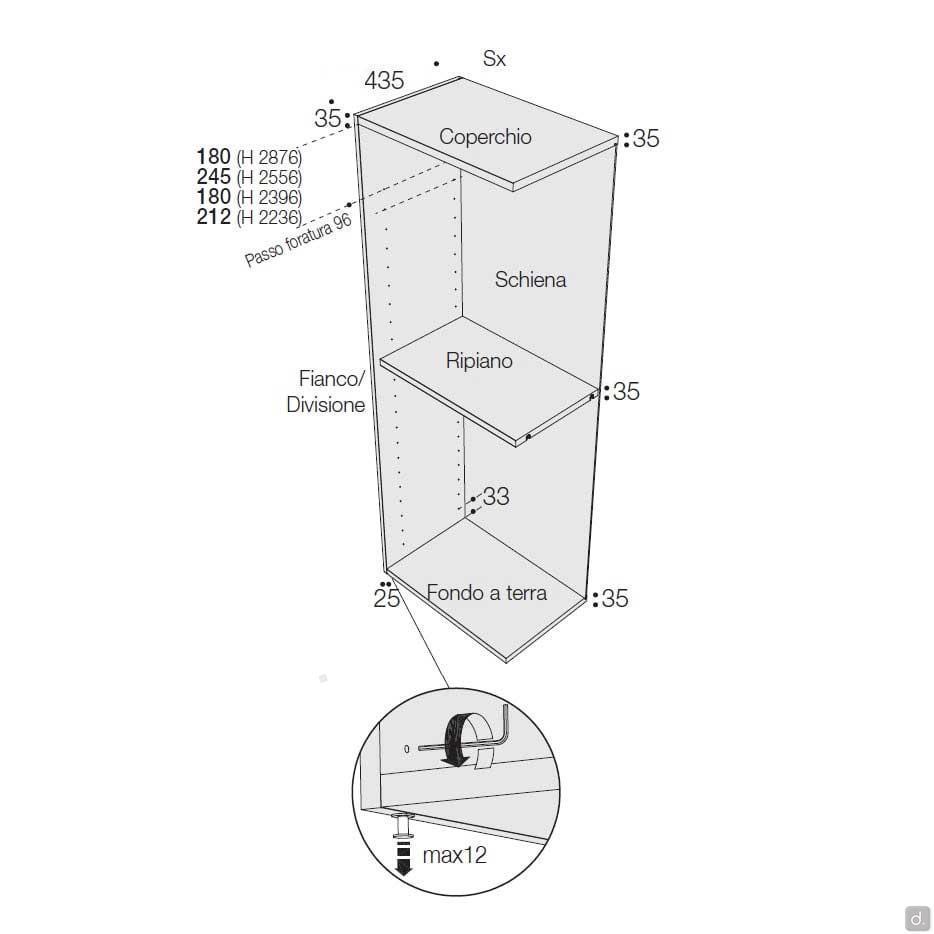

Sides and partitions come with fixed holes every 9,6 cm. For detailed measurements, please see the scheme inside the picture gallery.
Assembly Tips
To assemble the structure you need:
- cm 3.5 in width
-cm 2 in height (cm 5 in case you add LED bars, in order to place the power supply on the top)
In cm 46,2 deep wardrobes, at least 2 compartments come with anti-tipping brackets to be fixed to the wall. The anti-tipping bracket comes with a spacer which allows you to use it even if you have a skirting board (max 15 mm thick).
