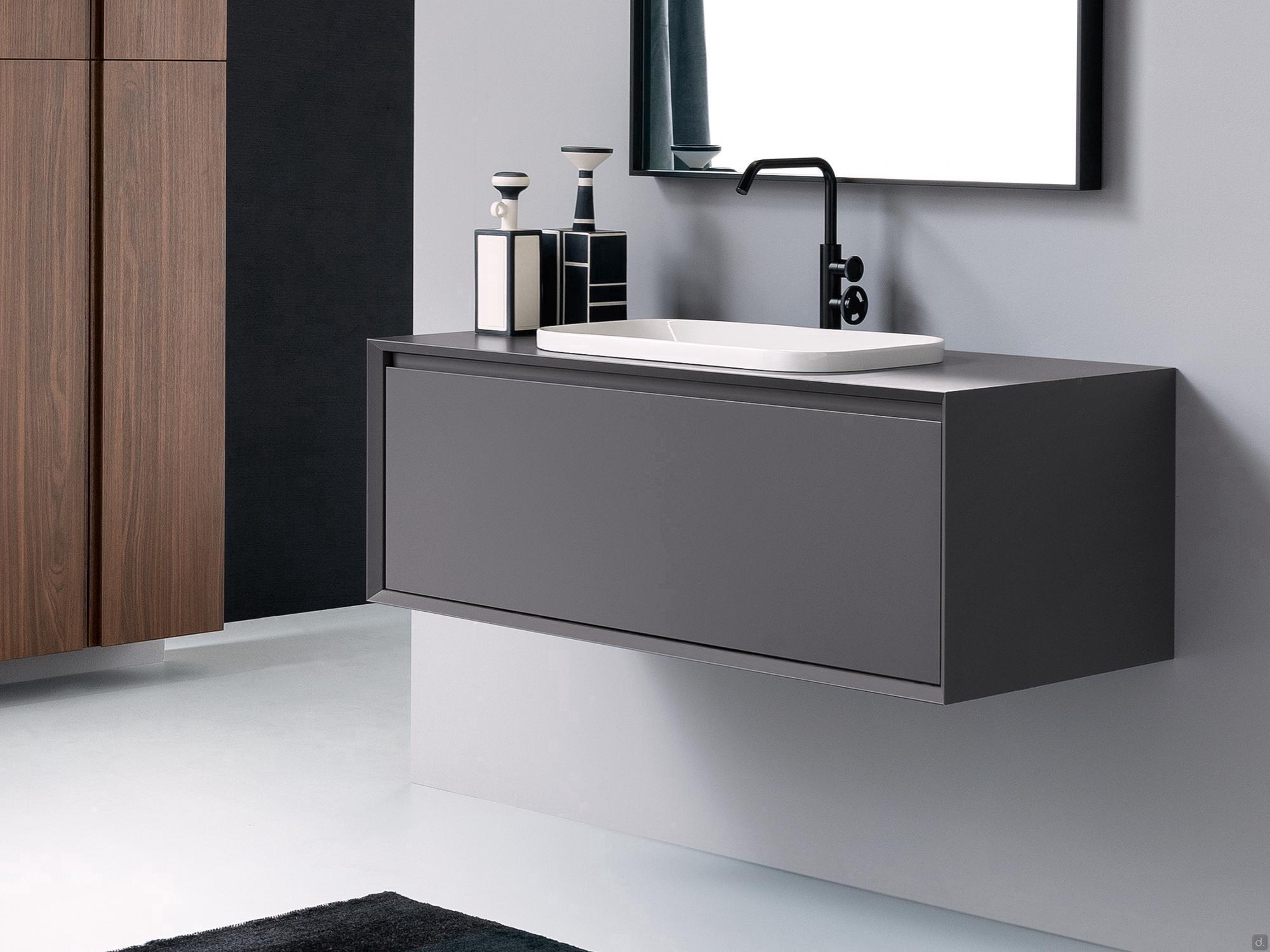

Atlantic recessed d.45
Bathroom Vanity

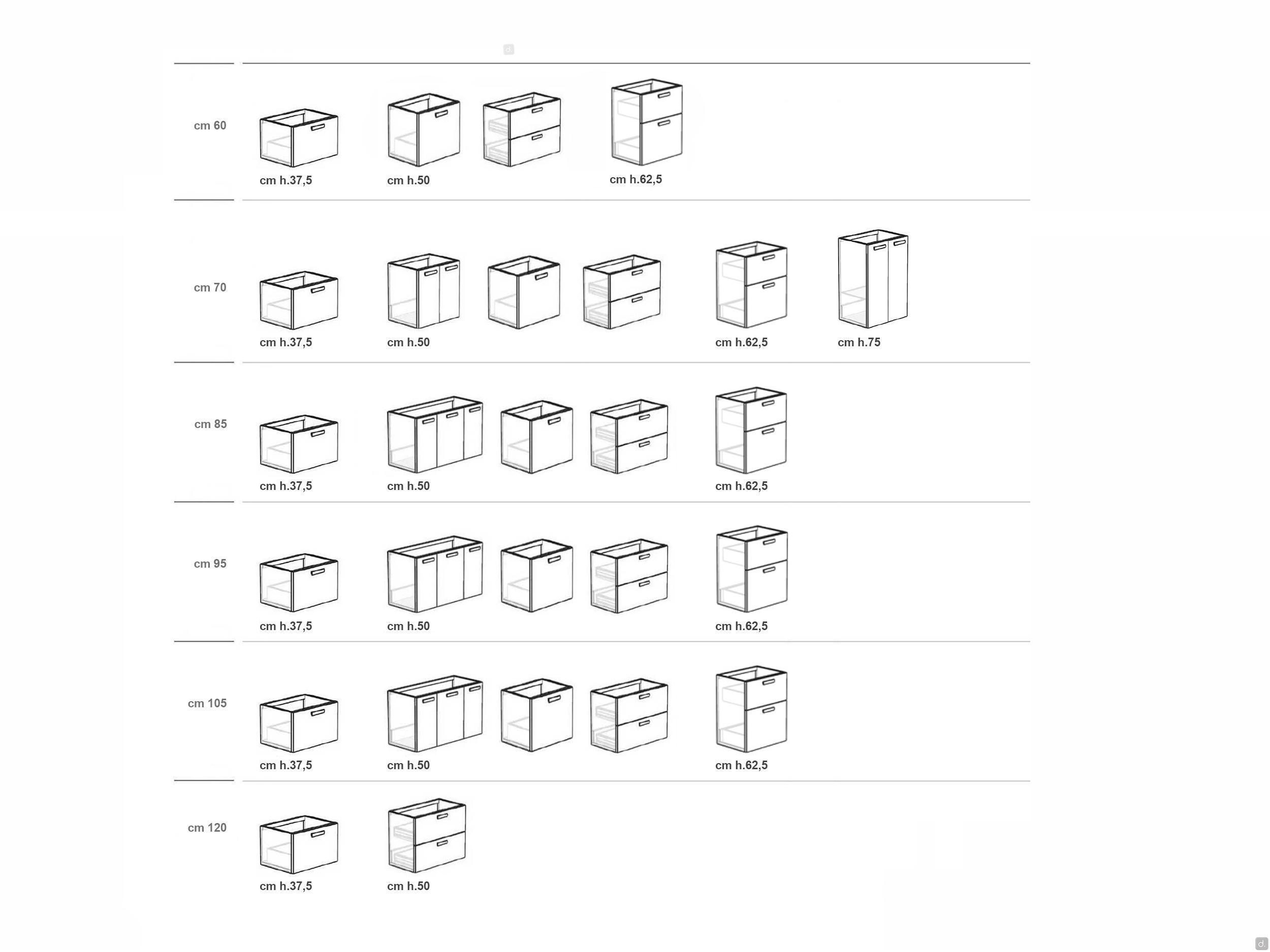

Spefific Measurements

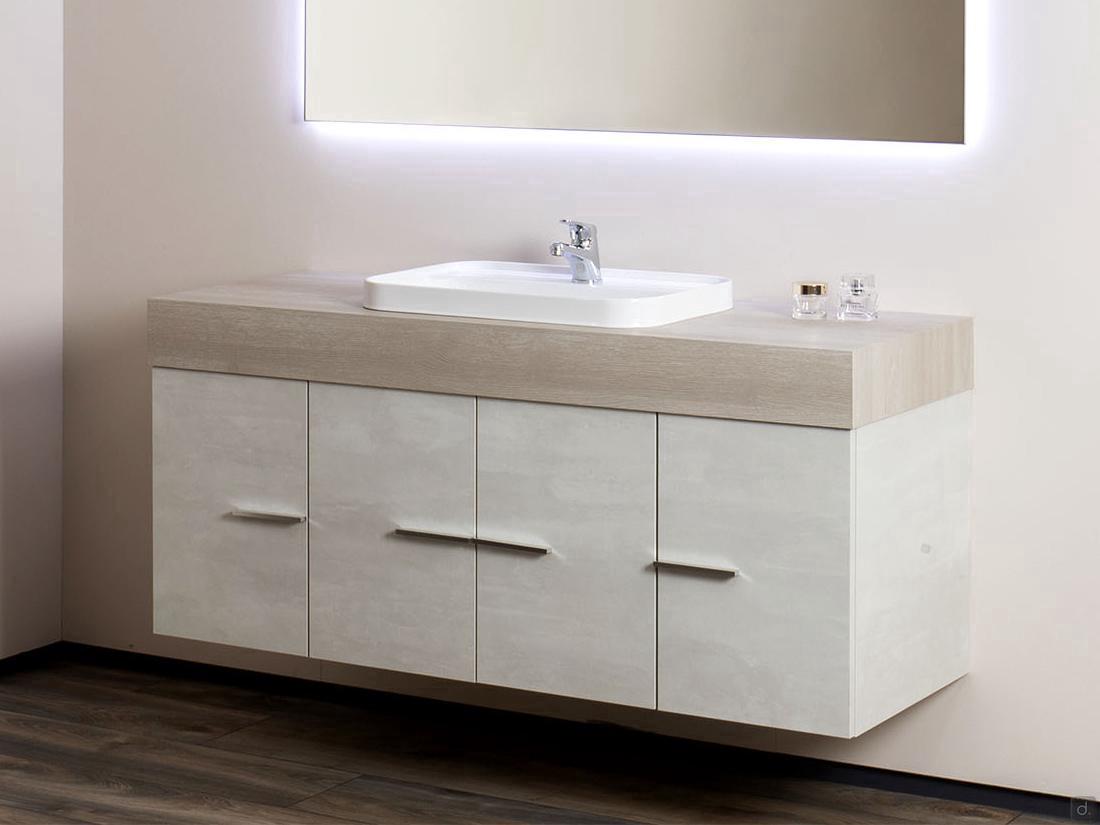

Base with 3 doors cm 85: n.1 central door cm 35 + n.2 lateral doors cm 25.
Base with 3 doors cm 95: n.2 doors cm 35 + n.1 lateral door cm 25.
Base with 3 doors cm 105: n.3 doors cm 35.

Specific Materials
Structure: cm th.1,8 made of wood particle panels.
Fronts: doors, drawers and deep drawer made of wood particle panels cm th.1,8. With smooth lacquered fronts made from MDF with a thickness of cm 1,9.

Technical Specifications and Equipment
Structure: characterised by an open back creating space for the tubes.

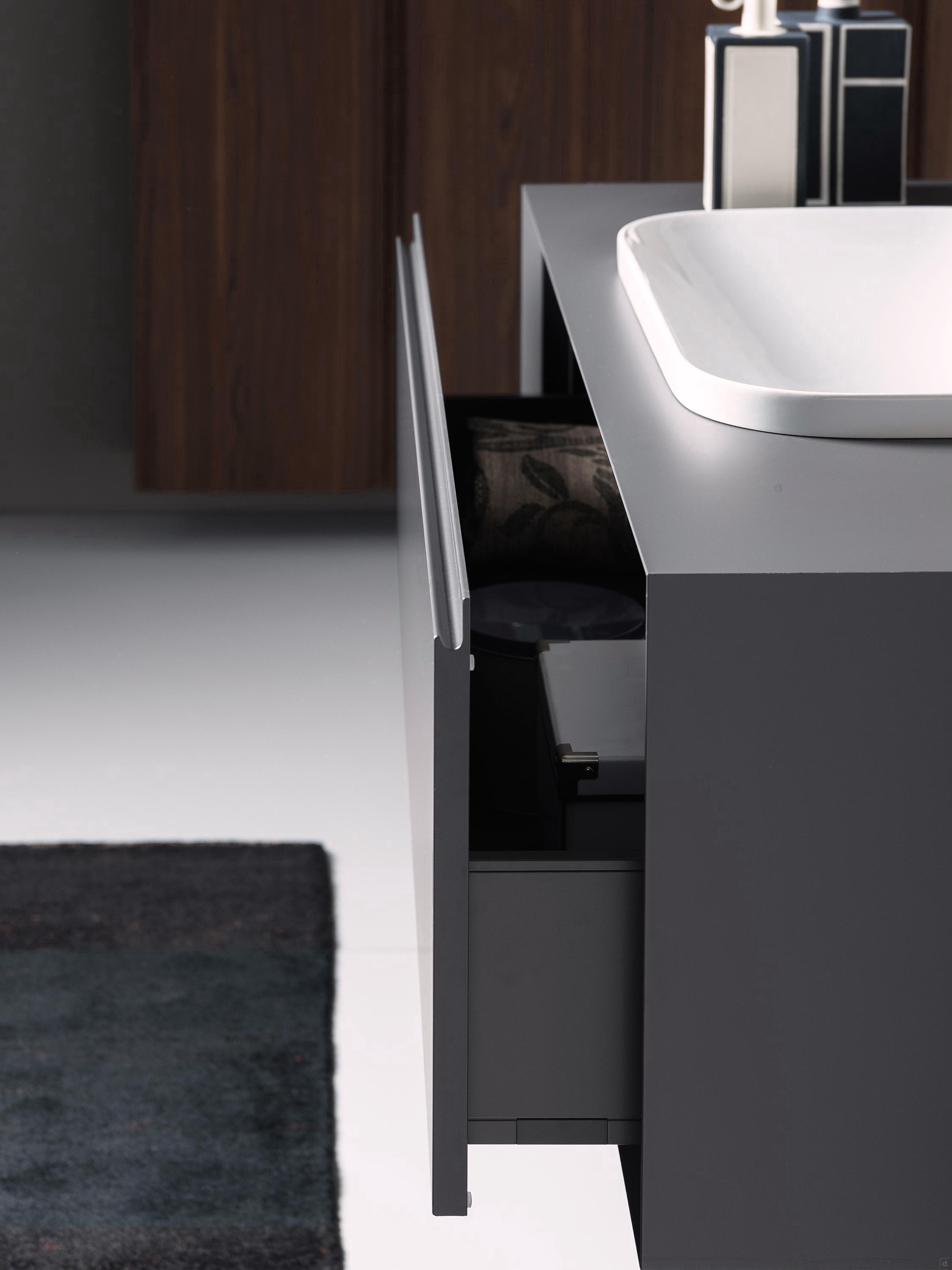

Legrabox Drawers / deep Drawer: equipped with a metal body featuring straight sides both internally and externally, with a thickness of only 1,28 cm. Fully extractable guides and slow closing.
Doors: equipped with a series of Smoove hinges for slow closure.

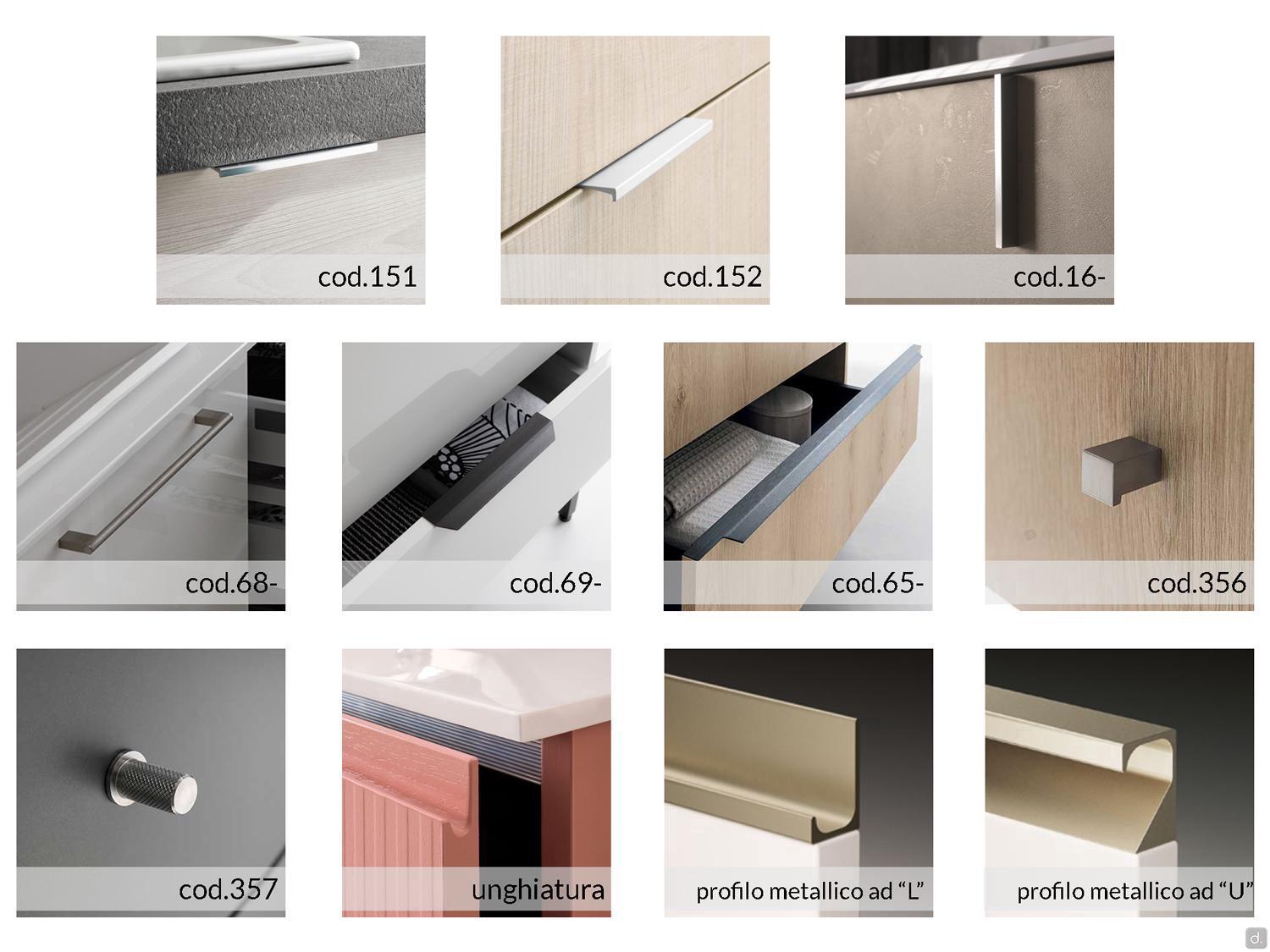

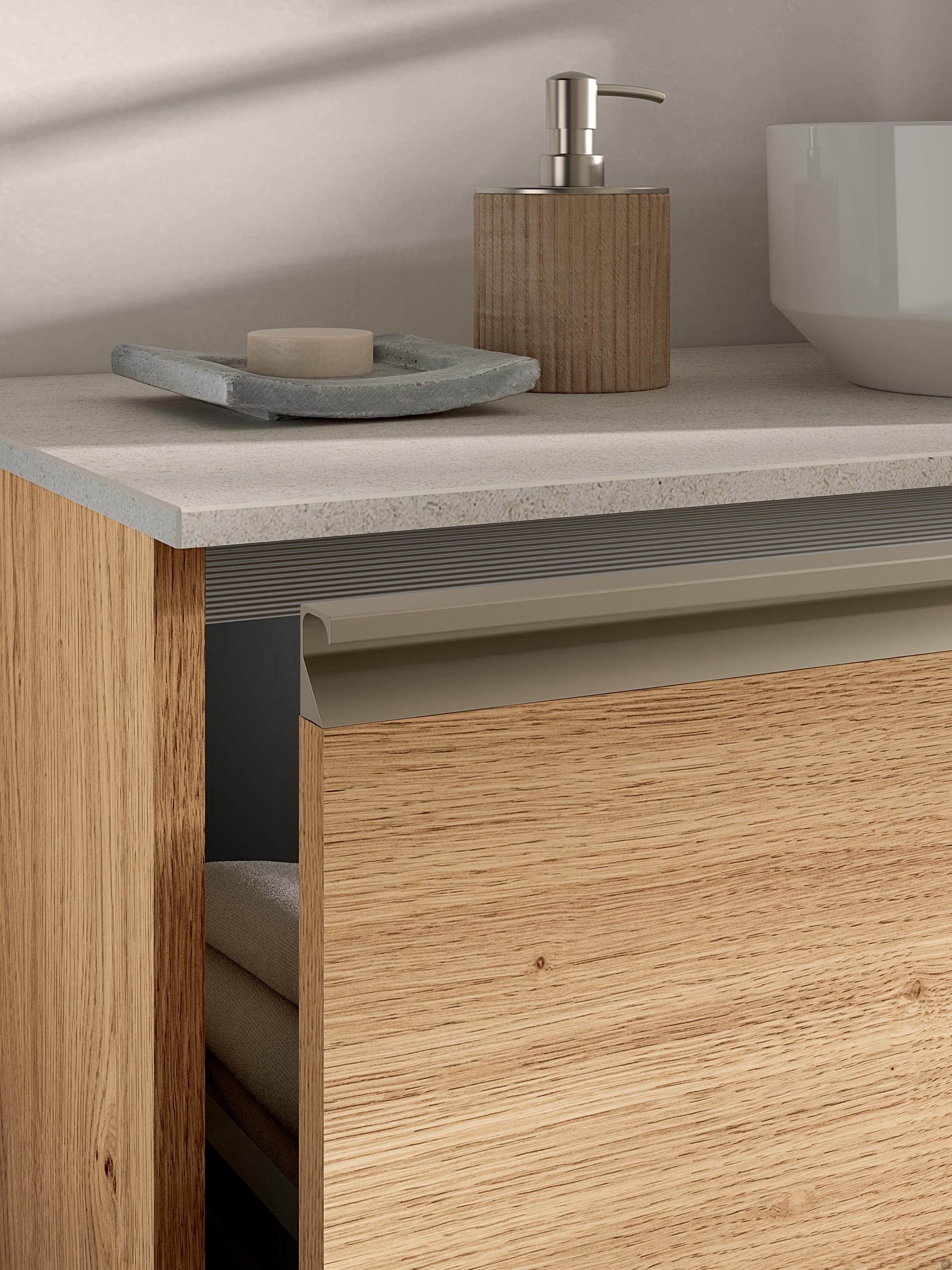

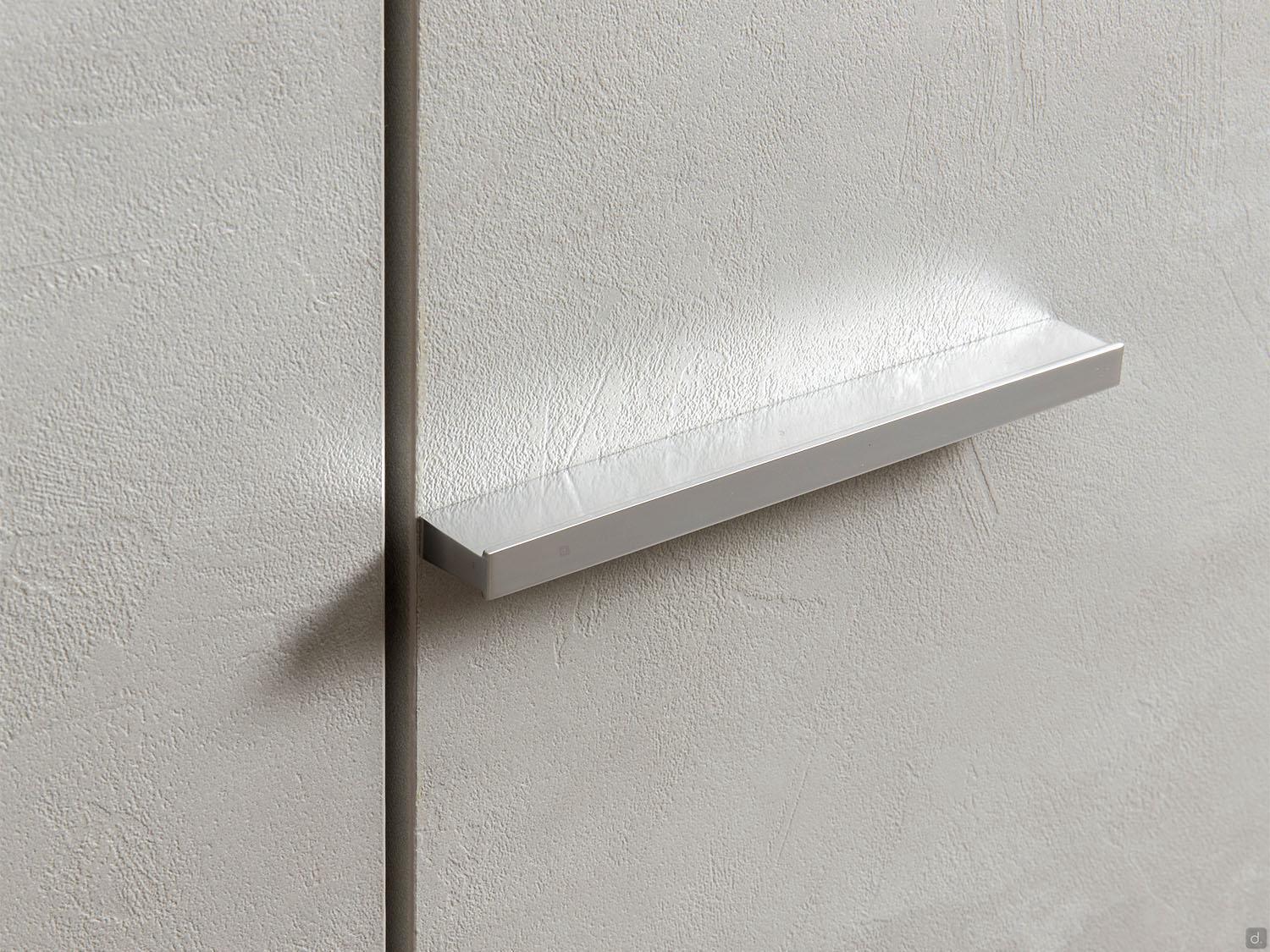

Handles: it is possible to choose different handle models other than push-pull. The handles cod.152, cod.16- and both metal profiles are available in a matte lacquered finish in all the colours of the sample book.
Handles mod. 68- protrude 4 cm from the door surface.

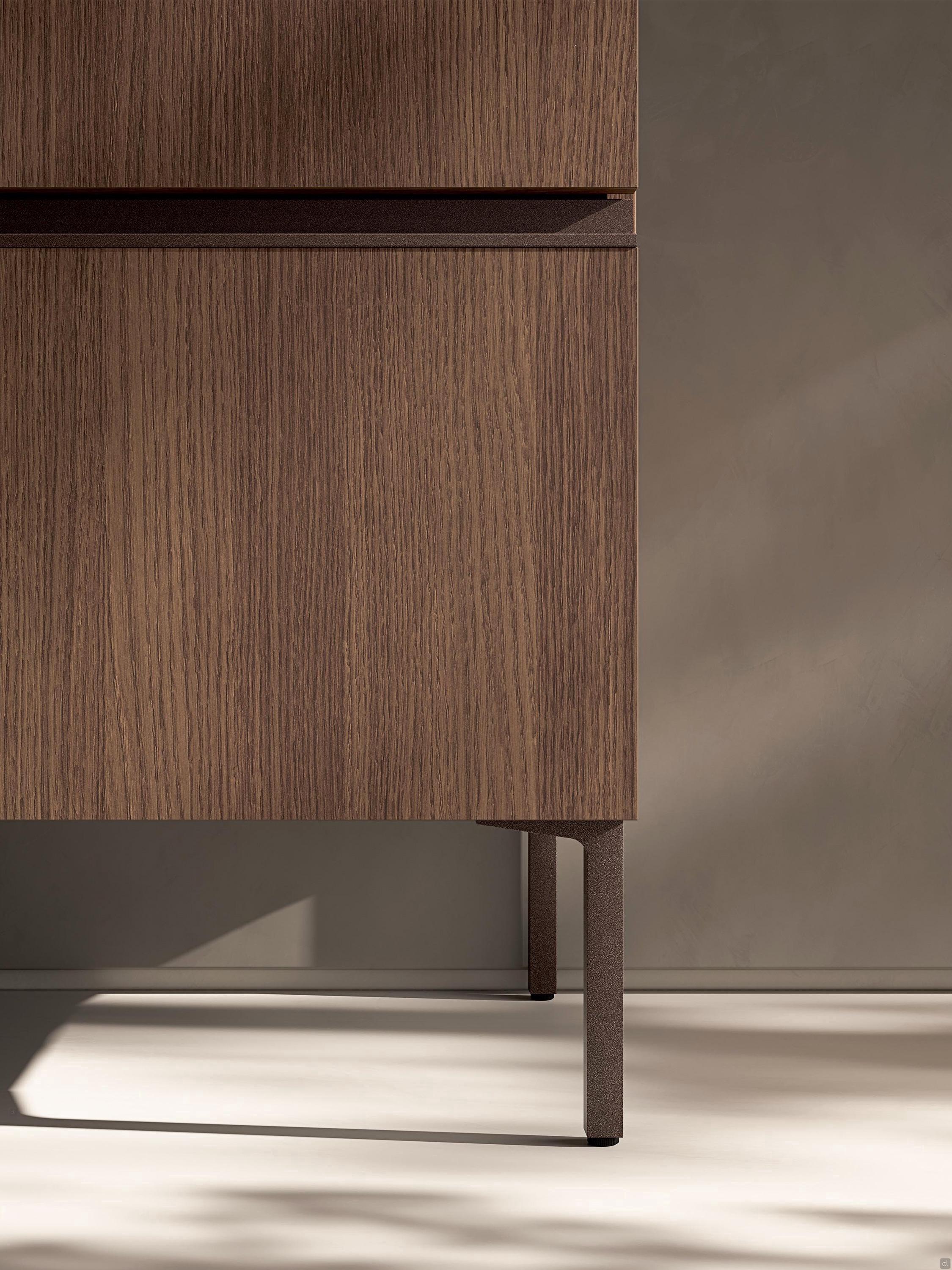

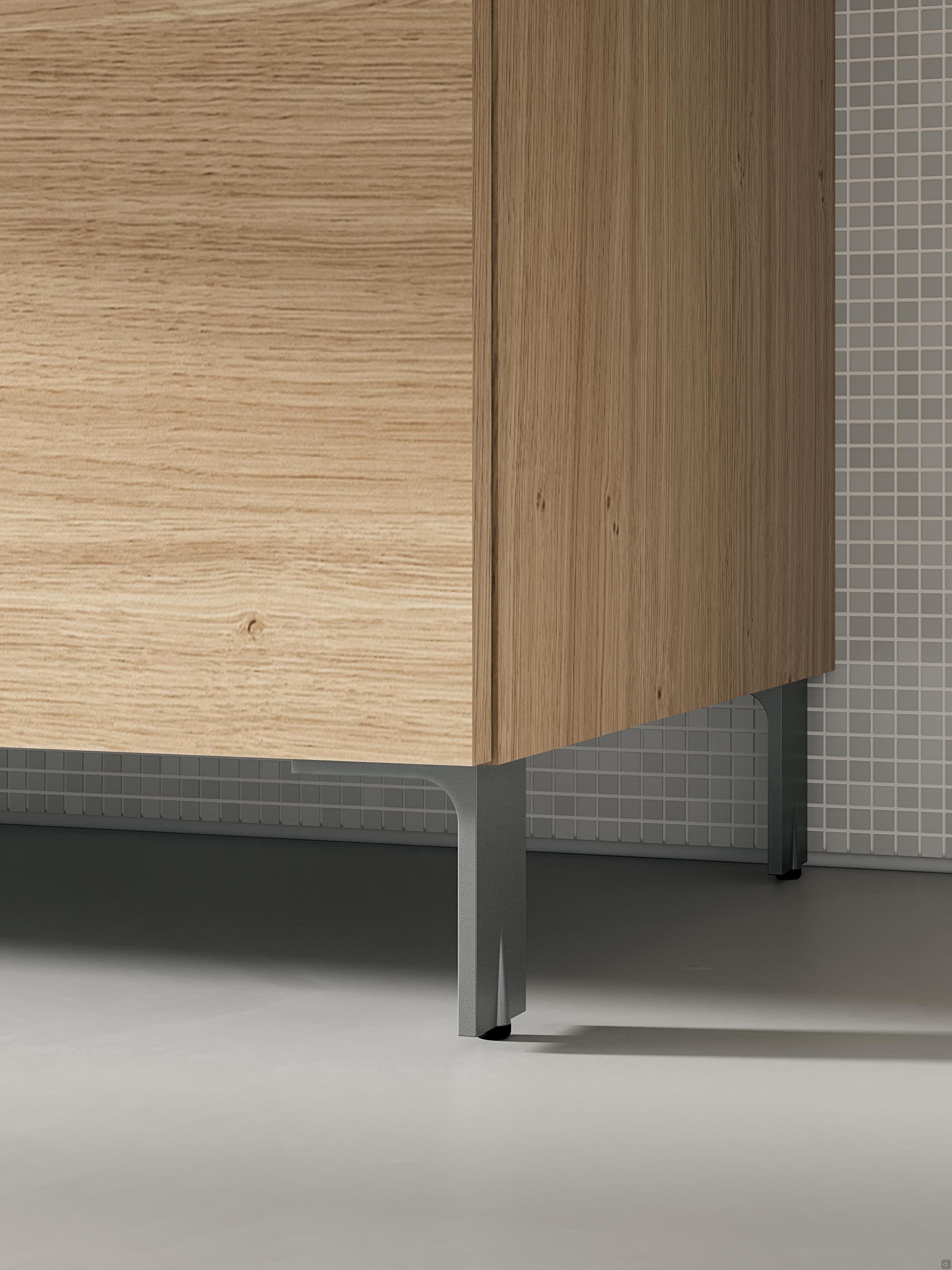

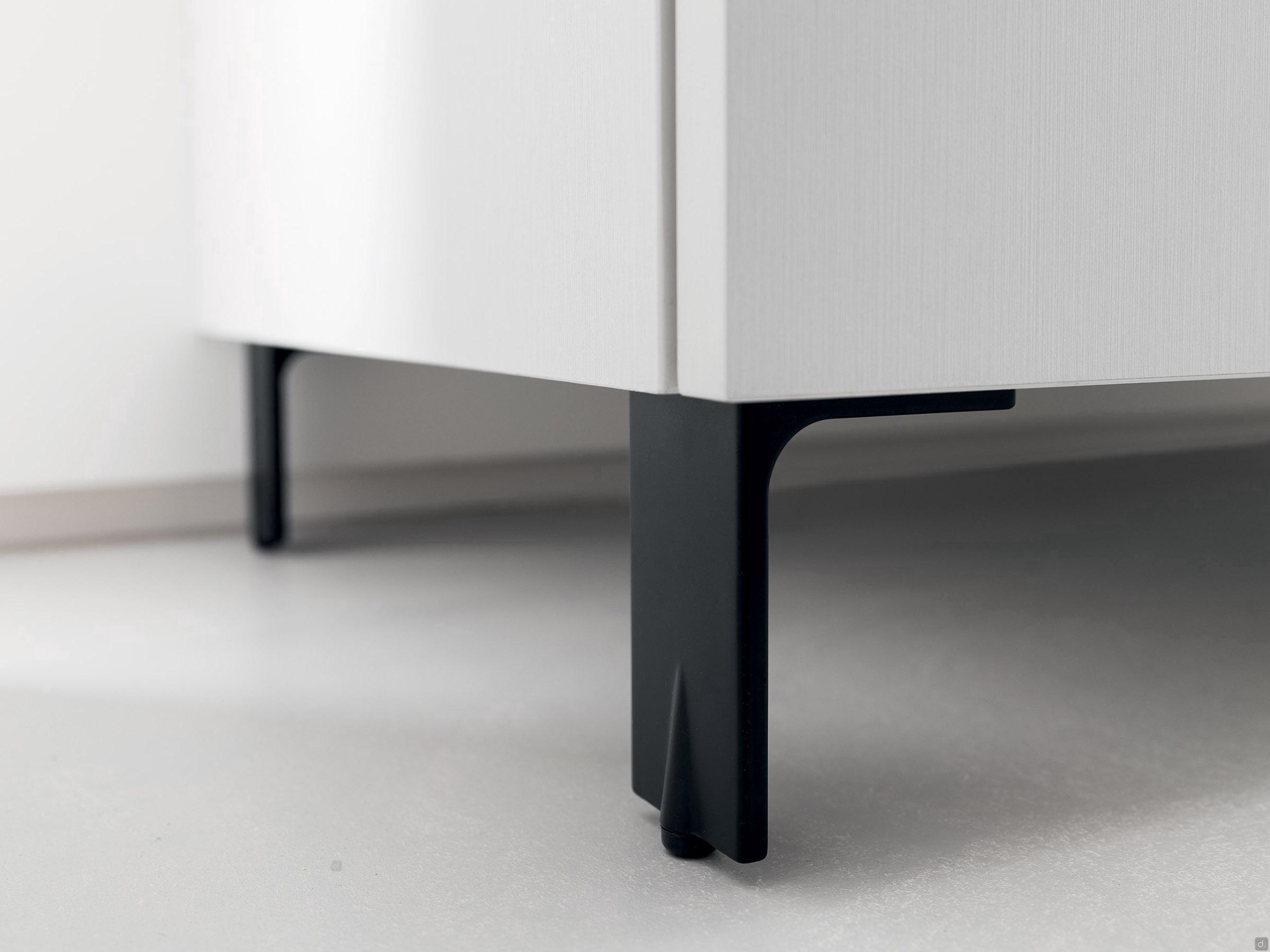

Feet cm h.10: with rectangular or shaped form available in chrome, satin nickel, black painted, matte lacquered or sandblasted lacquered metal in all the colours of the sample book; the suspended base cm h.75 thus becomes a floor-standing unit cm high 85 (excluding the height of the washbasin and the thickness of the top).

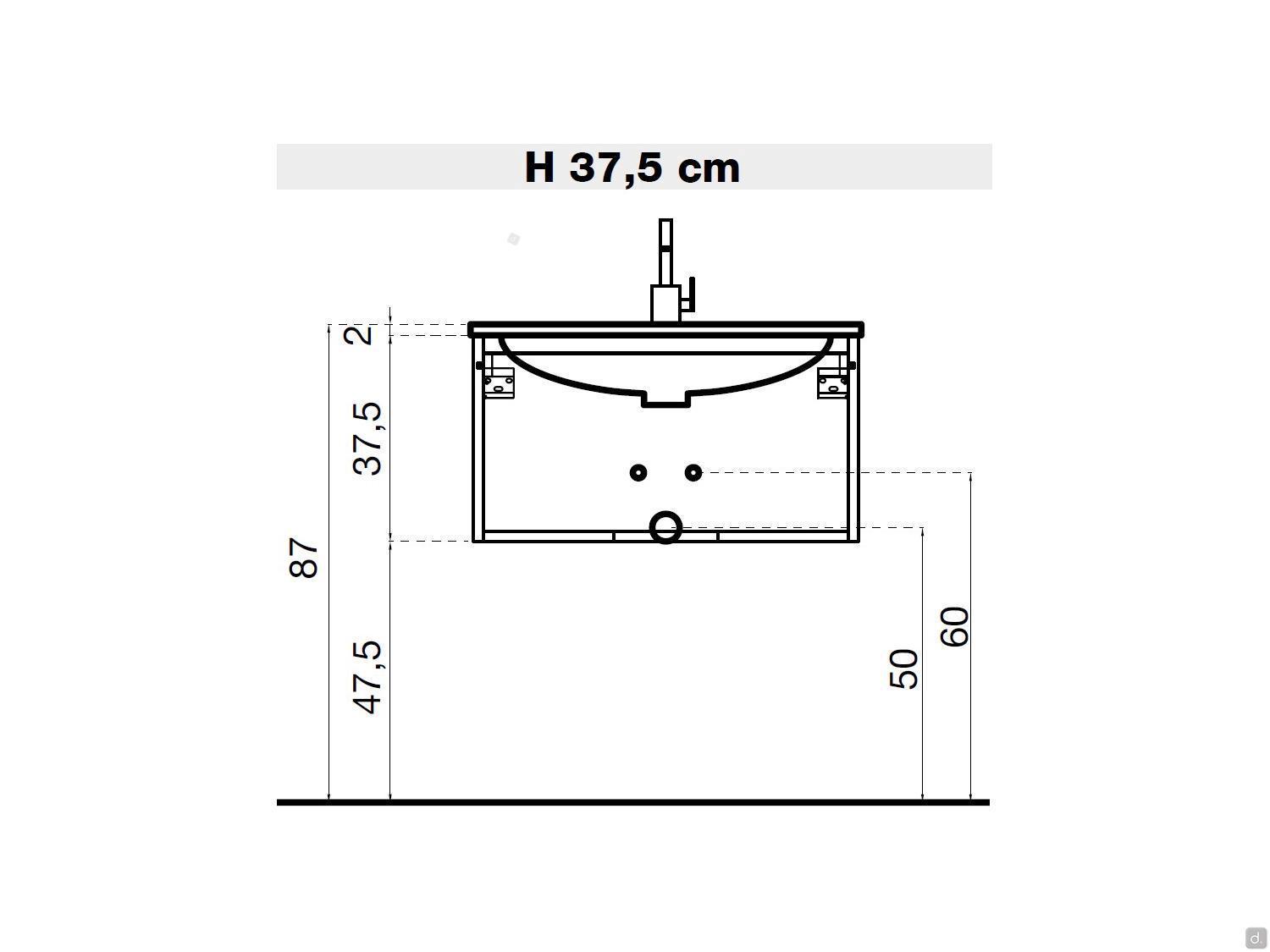

Feet cm h.12: with a square shape, available in satin nickel metal, matte lacquer of sandblasted lacquer in all colours of the sample book; the suspended base cm h.75 therefore becomes a floor-standing unit wit ha height of cm 87 (excluding the washbasin height and thickness of the top).
Feet cm h.20: with a square shape, available in satin nickel metal, matte lacquer of sandblasted lacquer in all colours of the sample book; the suspended base cm h.62,5 therefore becomes a floor-staning model with a height of cm 82,5 (excluding the washbasin height and thickness of the top).
Plinth cm h.6 / 10 / 15: in aluminium or matte lacquered in all colours of the sample book; the suspended base cm h.75 therefore becomes a floor-standing unit with a height of cm 81 / 85 / 90 (excluding the washbasin height and thickness of the top).

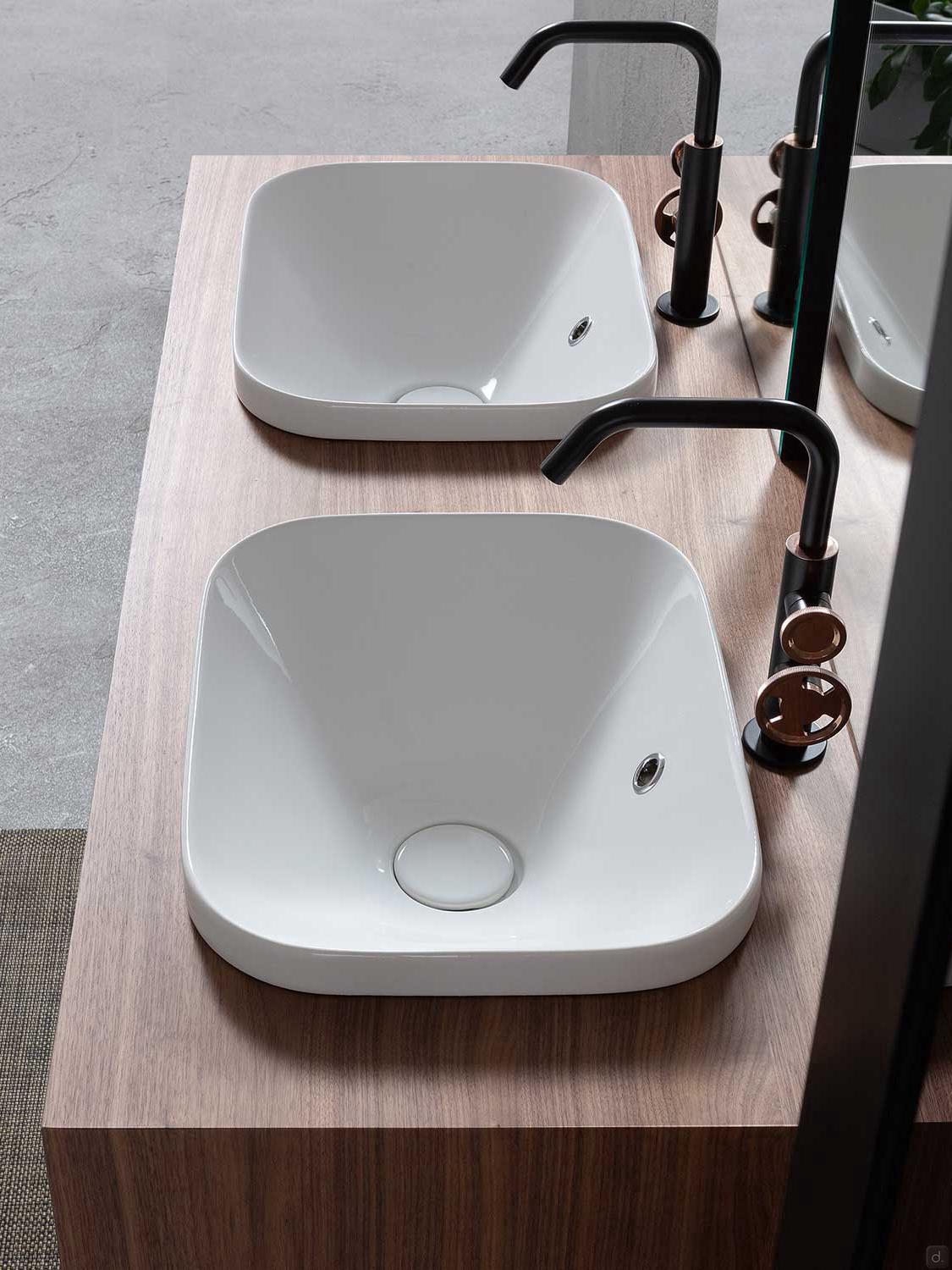

N.B. The mixer hole has a standard diameter of 3,5 cm. For sinks without an overflow hole, we recommend using a continuous drain.

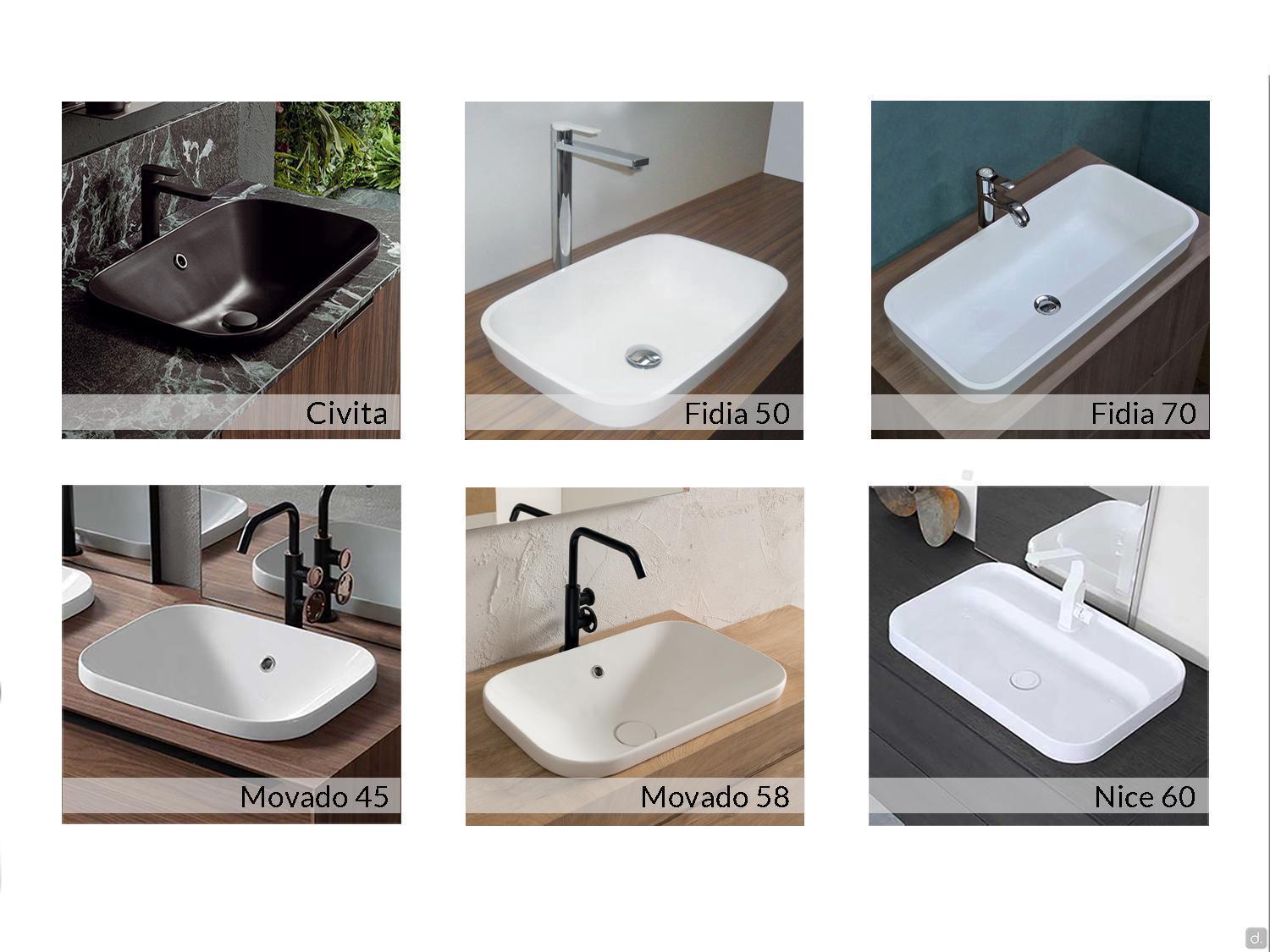

The indicated measurements of all ceramic sinks may undergo a dimensional variation (specifically of approximately 0.8%) due to wear of the moulds or small variations in the technical characteristics relating to the materials that make up the mixture.

Optional

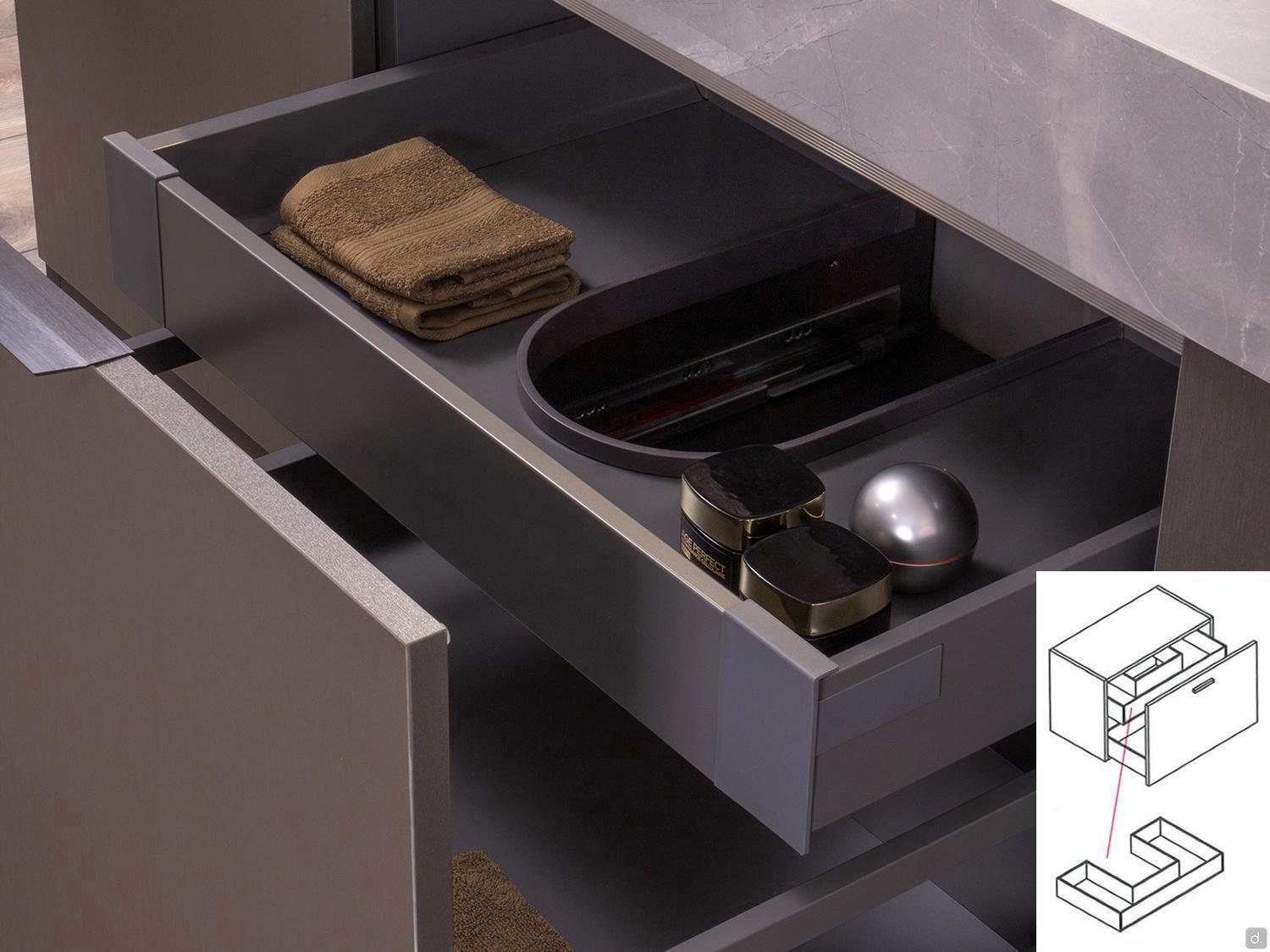

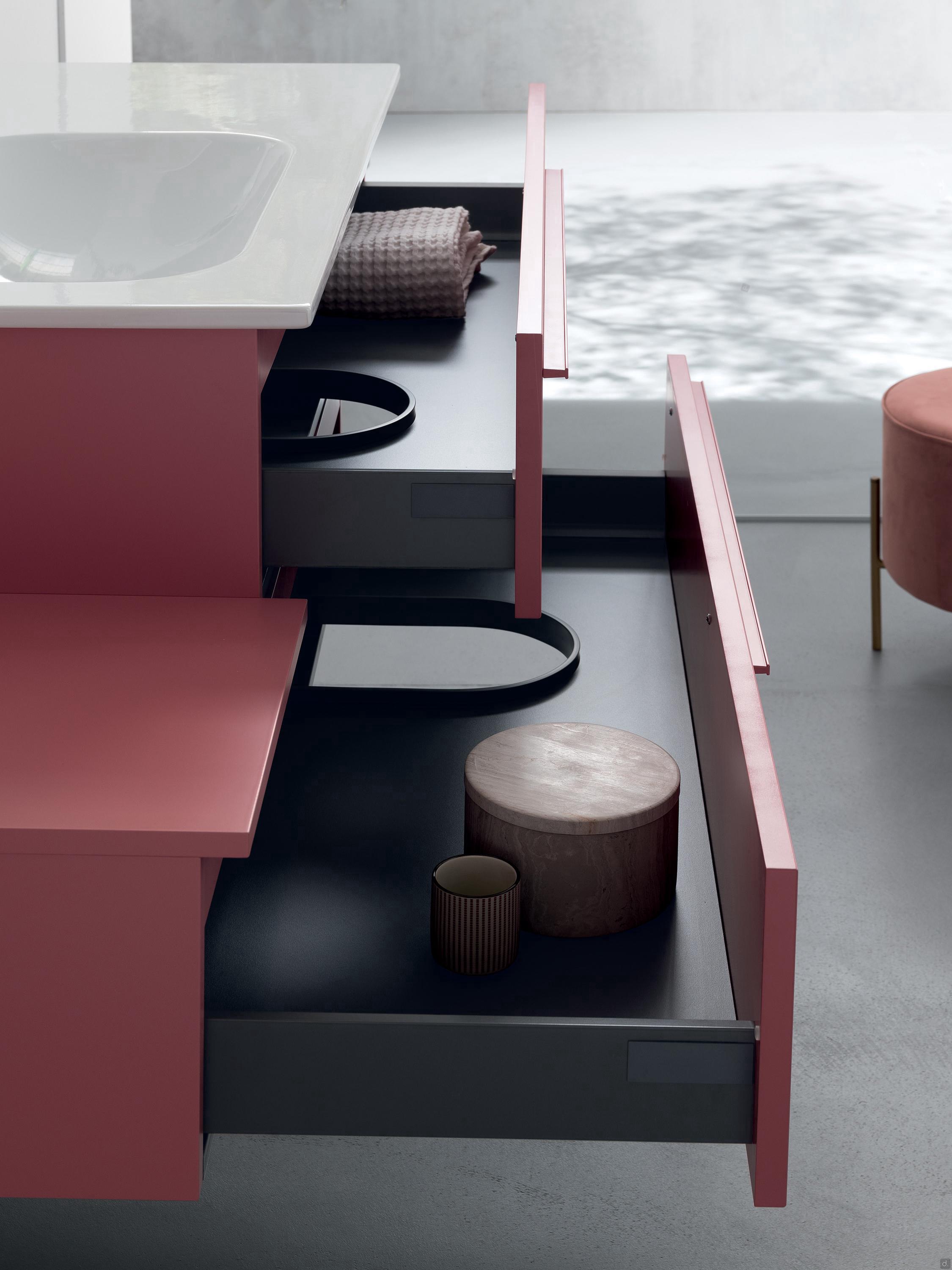

Shaped internal metal drawer: available for all models with metal deep drawer; the drawer is positioned approximately halfway up the sink base and is shaped to accommodate the drains.
Splashback: designed to complete bathroom units with stone, Qtop, stoneware, HPL or resin tops; particularly suitable for walls that are not perfectly square and for combining with free-standing mirrors.

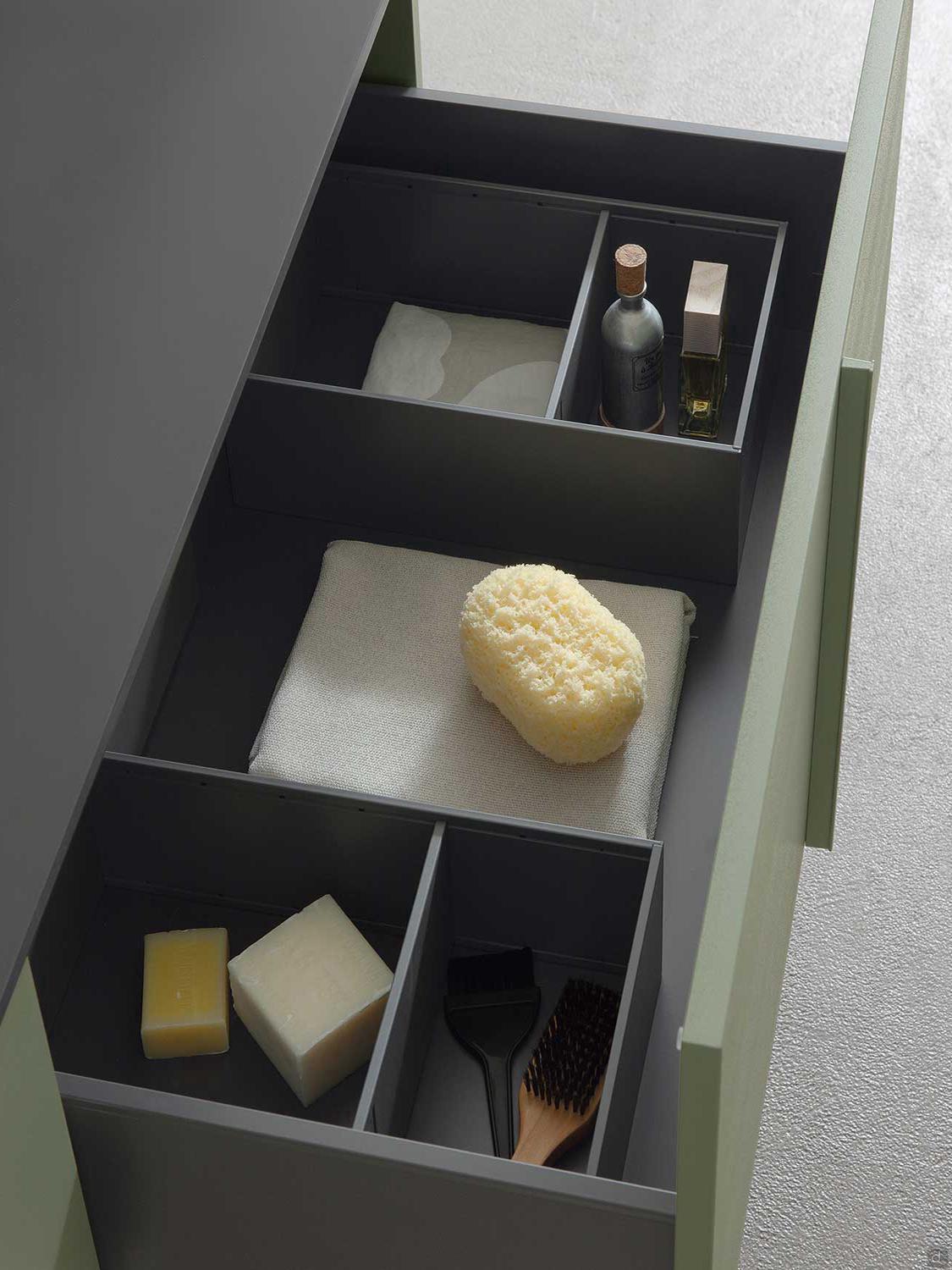

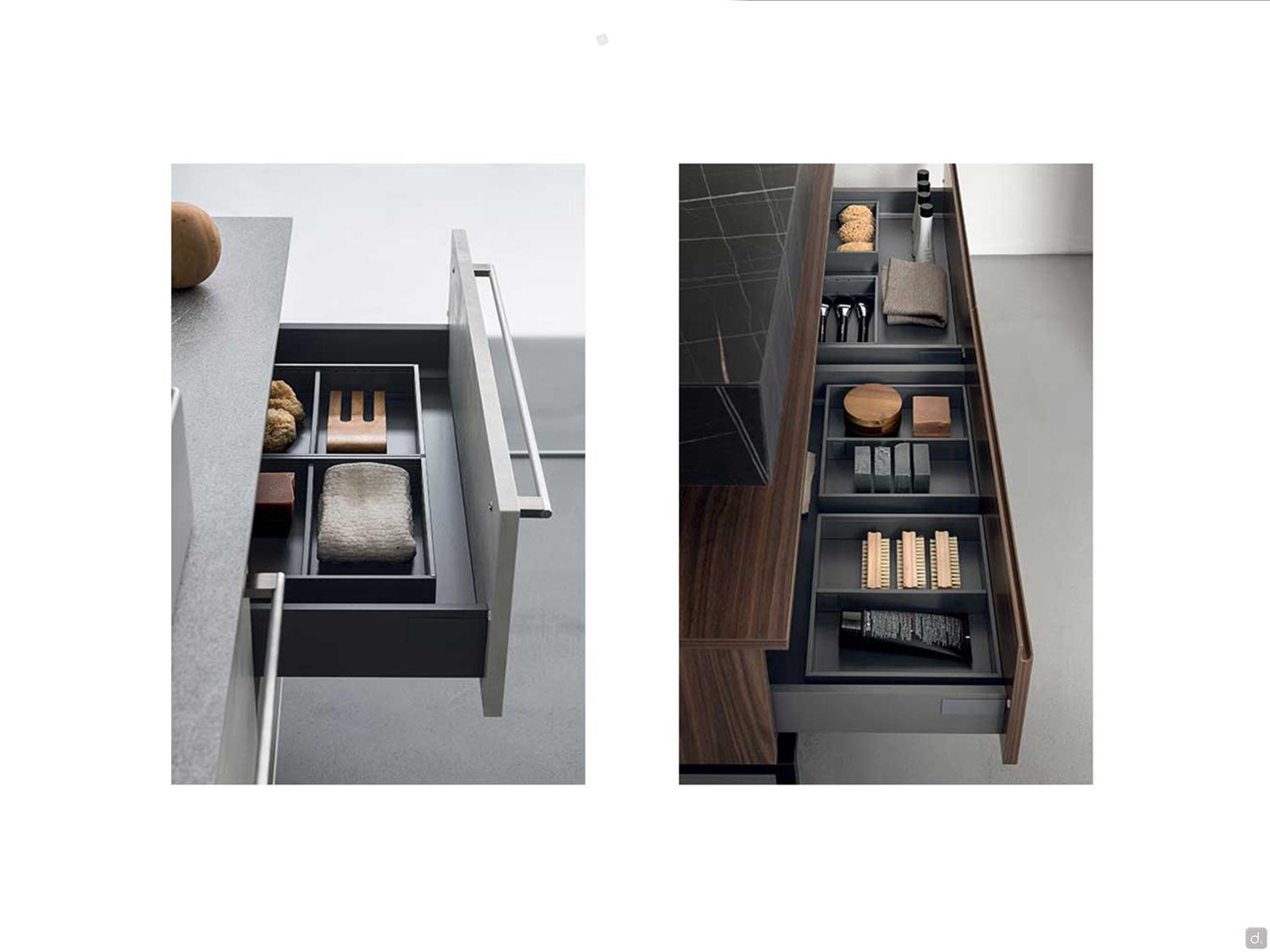

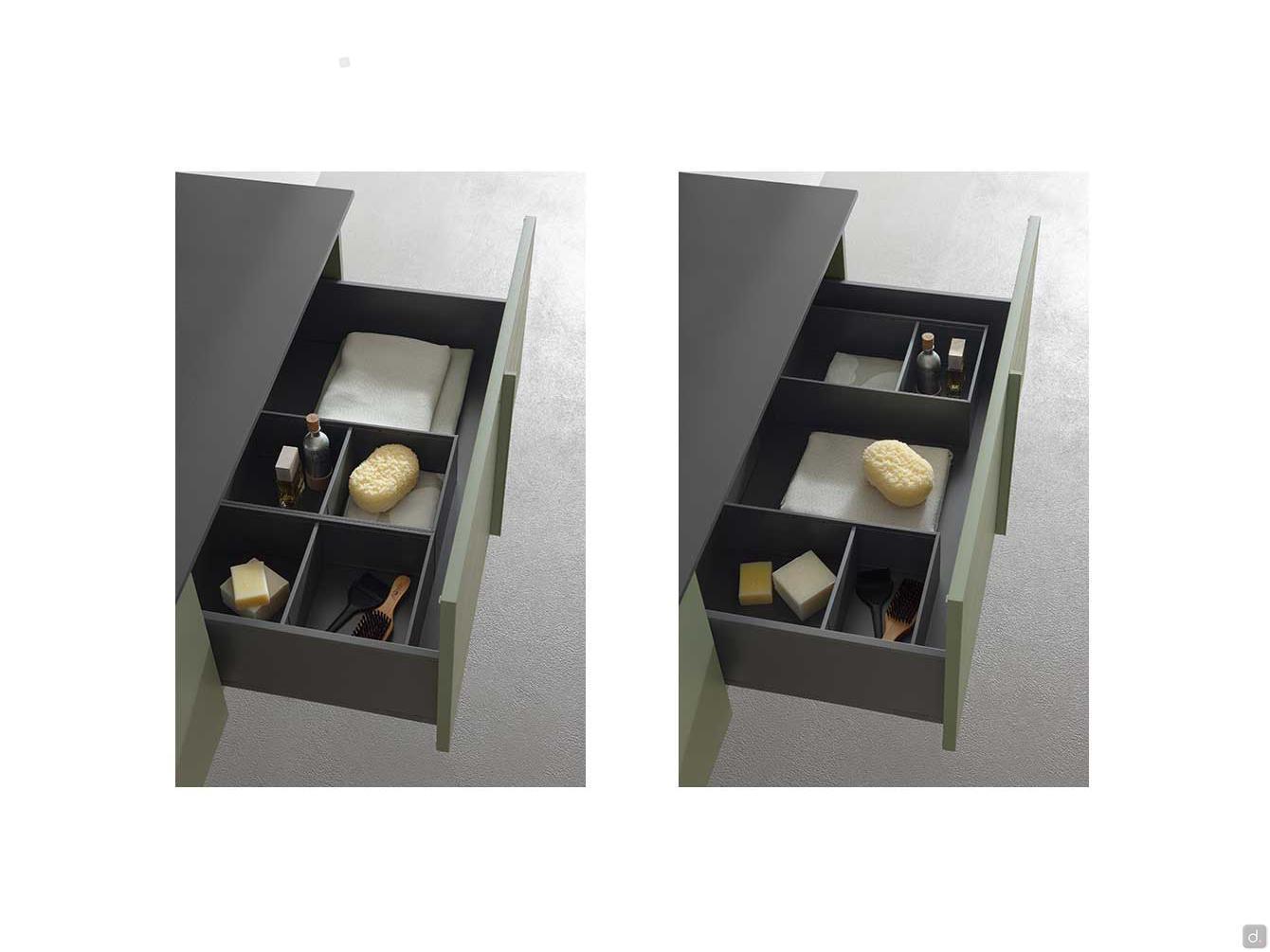

Organizer: internal division system for Legrabox drawers and deep drawers. Available in the Orion Grey finish.

Maintenance Tips
Melamine: for cleaning, simply use neutral liquid detergents. To remove limescale stains, wipe the top with a sponge soaked in vinegar or limescale remover, then rinse and dry. Do not use acids, abrasive products or powders; do not leave limescale removers in contact with the top for a long time, as they may create halos.
Stratified HPL: for maintenance it is necessary to clean the top with a soft, damp cloth, without rubbing to avoid scratching or abrading the top. We recommend using neutral detergents. Do not use abrasive or scratching substances, acids or highly acidic salts, metal detergents and concentrated limescale removers. Avoid contact with boiling water, avoid using steam cleaners.
Lacquer: for cleaning, use soft, non-abrasive cloths to avoid damaging the surface. Do not use products containing solvents, acetone or abrasives, or products based on wax, alcohol or silicone.
Wood: "living" material protected on the surface by paint; for cleaning it is necessary to use a soft, non-abrasive, damp and well-wrung cloth. It is recommended to clean the top in the direction of the grain and dry carefully.
Tekor: for maintenance, it is sufficient to use soapy water or common slightly abrasive detergents with a cotton cloth or slightly abrasive sponge, taking care to rinse the surface well. Avoid placing very hot objects, very aggressive acids or combinations of solvents. Any damage can however be repaired by a specialized craftsman.
Mineralguss: for cleaning use a sponge with water and a normal cream detergent. The surface of the top must not come into contact with solvents and alkaline lotions such as ammonia. Hair dye products must not stagnate in the tub and must be rinsed immediately. Never fill the sink with hot water above 60°C.
Corian®: for maintenance, it is sufficient to use soapy water or common ammonia-based detergents, taking care to rinse the surface well. Avoid contact with chemicals or solvents; in this case, please rinse the surface immediately with running water. Nail polish should be removed with a non-acetone-based nail cleaner and then rinsed with water. Minor damage, including scratches, stains, even chemical stains, burns and small impact notches, can be repaired directly using the Scotch Brite abrasive sponge.
QTOP: unlike marble-resin, the mineral charge is not chemically attacked by acids. the products recommended for cleaning must not have a high alkalinity (basic pH) which could alter, mainly from an aesthetic point of view, the binding resin. The best way to prevent stains is to promptly eliminate the dirt with a damp cloth or neutral detergents before they harden.
Minera-Kolor: to remove most dirt and stains, a powder detergent combined with an abrasive sponge or a common detergent based on chlorine or bleach is sufficient. To remove stains caused by limescale, the use of a common limescale remover is recommended. To maintain the original opacity of the product, clean occasionally with amuchina or with a 1/20 solution of bleach diluted in water. To enhance the typical opalescent satin finish, occasionally pass with an abrasive sponge, applying a circular motion.

To know more...
Gres: porcelain gres is obtained from a mixture of water and clay that is transformed, through the raw extrusion process, into a sheet with extraordinary mechanical properties. Vitrification closes the pores, ensuring maximum resistance to water absorption and stains.
Tekor: mineral compound coated with a resin film that provides both physical and chemical resistance.
Mineralguss: it is a material composed of calcium carbonates and aluminum trihydrates, bound by a low percentage of polyester resin. The surface is covered with a gelcoat film that offers excellent physical-chemical resistance. The compound is ductile and heat resistant. Any colour variations, caused by high temperatures, can be eliminated by cleaning with a slightly abrasive sponge and subsequent polishing.
Corian®: non-porous and homogeneous material, inert and non-toxic, available in a thickness of 12 mm, composed of approximately 1/3 acrylic resin (also known as polymethyl methacrylate or PMMA) and approximately 2/3 natural mineral substances. The main mineral is aluminum trihydrate (ATH) derived from bauxite, a mineral from which aluminum is also obtained. Being non-porous, Corian® surfaces are particularly hygienic: for this reason it is used to make kitchen worktops, sink tops, bathroom and shower walls, coverings and counters for public spaces, such as healthcare facilities, shops, hotels, restaurants and offices.
QTOP: QTOP is a resin-quartz product, made up of natural materials (quartz and granits) and a high-quality binding agent, integrated with colour pigments and granules of glass and mirror.
Minera-Kolor: Minera-Kolor is composed of natural mineral fillers (calcium carbonates and aluminium trihydrates) bound by a low percentage of polyester resin: a material that is therefore elegant to the touch, hygienic and suitable for bathroom furnishings. The technical enamel that covers the surface of the material is opaque in colour, with excellent physical and chemical resistance. It is resistant to boiling water and temperature changes. Any colour variations that arise due to use can be easily eliminated by simply cleaning, using a slightly abrasive sponge and applying a circular motion.
