Material Specifications
Drawer Structure, Raster, Pull-out Trays, Shelves: made of class E1 particleboard panels with low formaldehyde emission finished in melamine or matt lacquered melamine.
Technical Specifications and Equipment
Shelf (cm d.43,8 / 61,2): cm thickness 3,5 max capacity per linear metre 25 Kg.

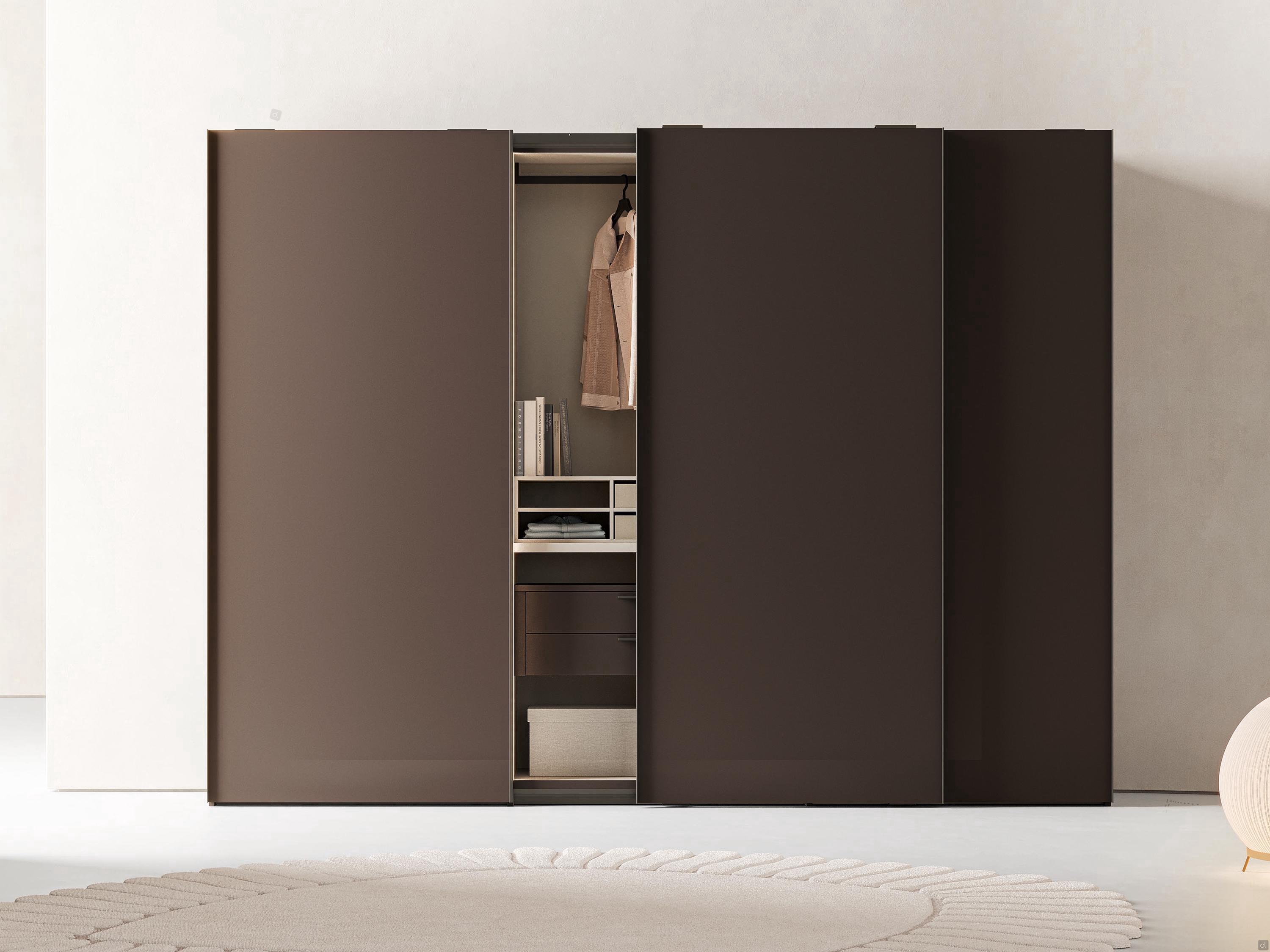

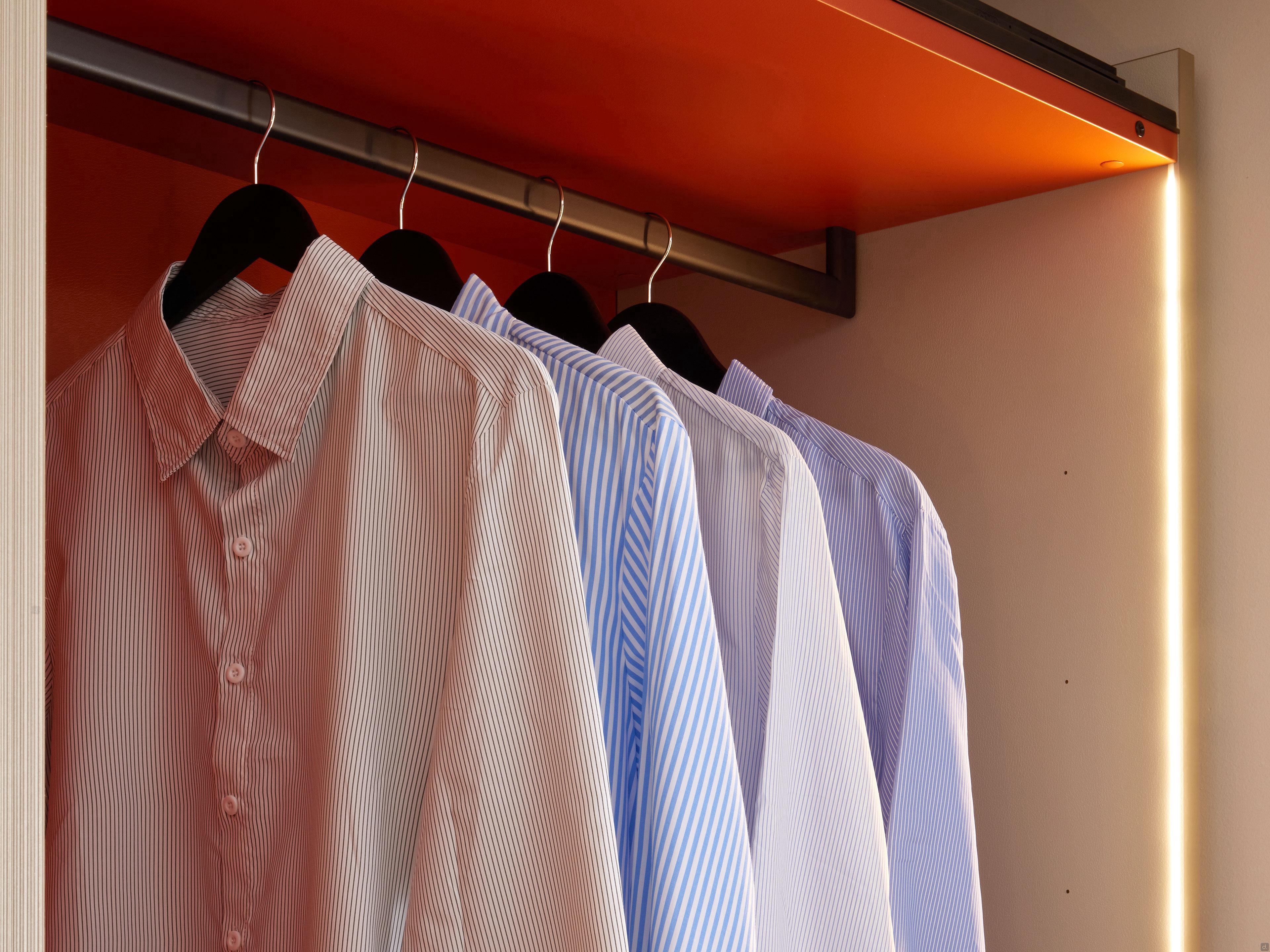

Hanging tube: single tube supplied for depth cm d.61,2 and n.2 cross tubes for depth cm d. 43,8. Umber shine painted metal finish. It is possible to choose between clothes hanger tubes in the Standard version or in the Premium version, with a squarer profile.
Servetto" coat stand: available in brown painted metal in the 95.2 / 110.6 cm modules. Please note: can be installed in modules with a minimum height of 90 cm.

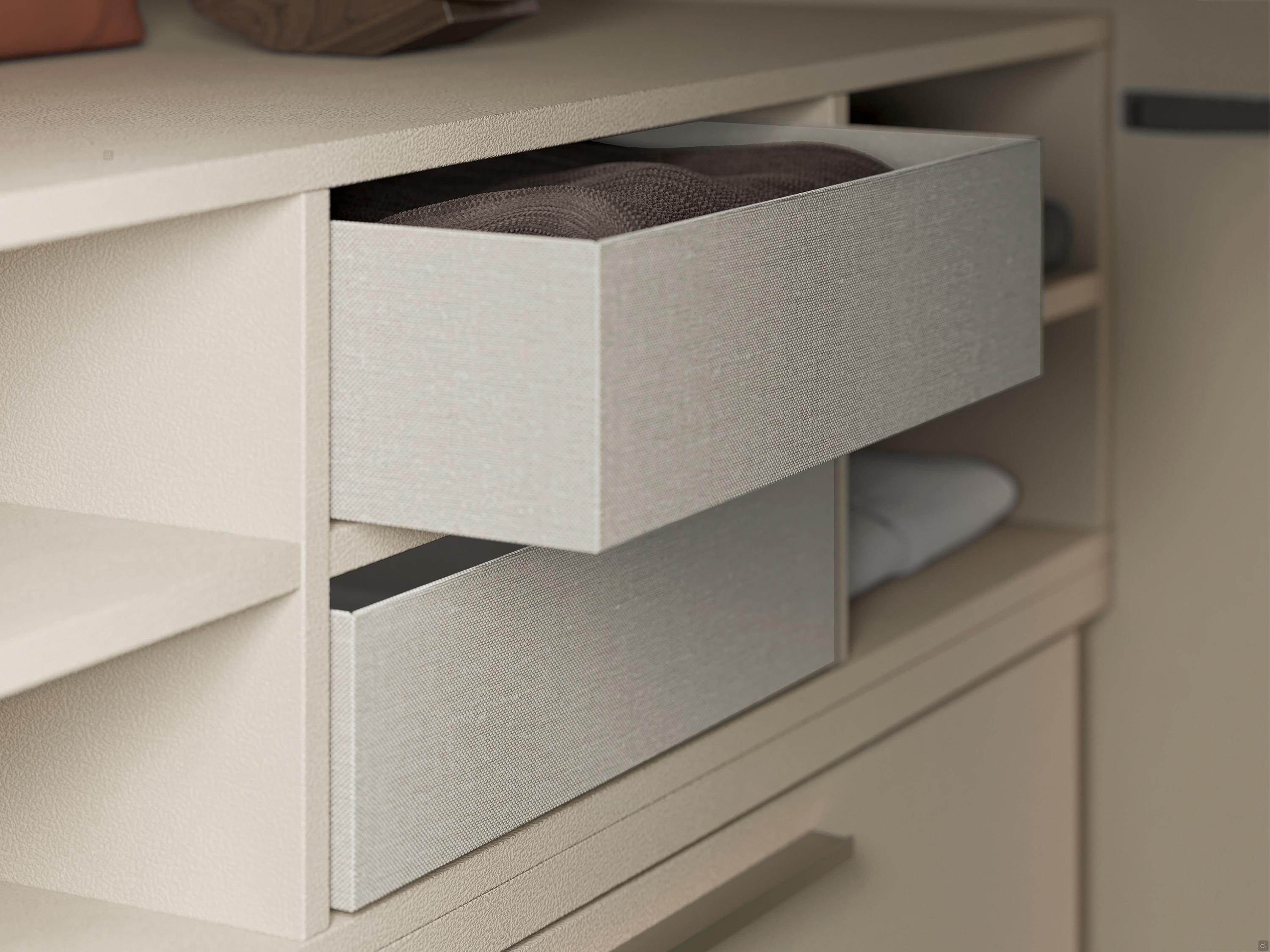

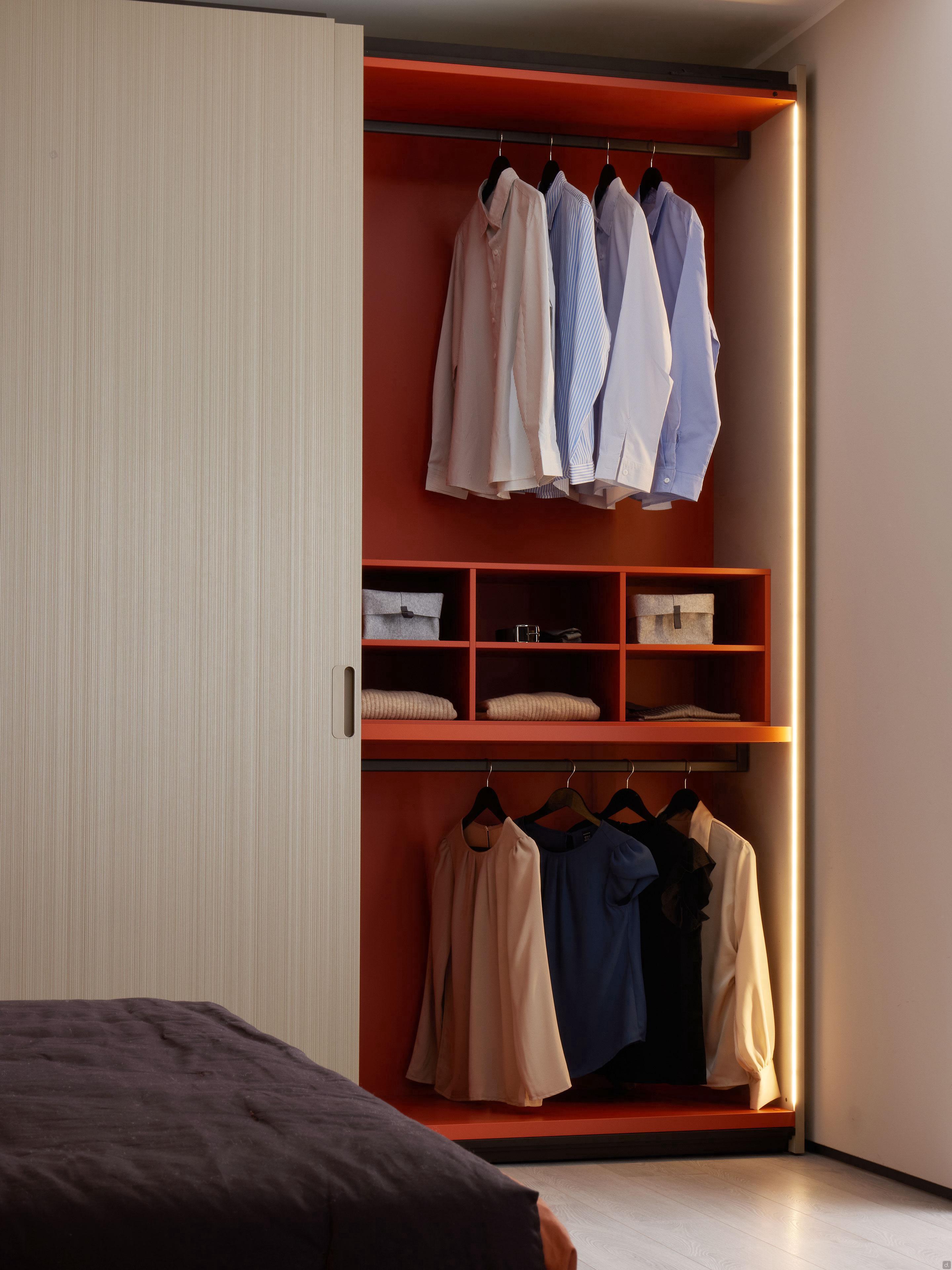

Raster (cm d.40): available only for depth cm 61,2 in the 95,2 / 110,6 cm modules with 1,4 cm thick particle board structure. Central open compartments that can be fitted with storage units covered in linen grey fabric cm 33,9 d.36,8 h.8,3 / 14,7. Maximum load capacity per linear metre 30 Kg.

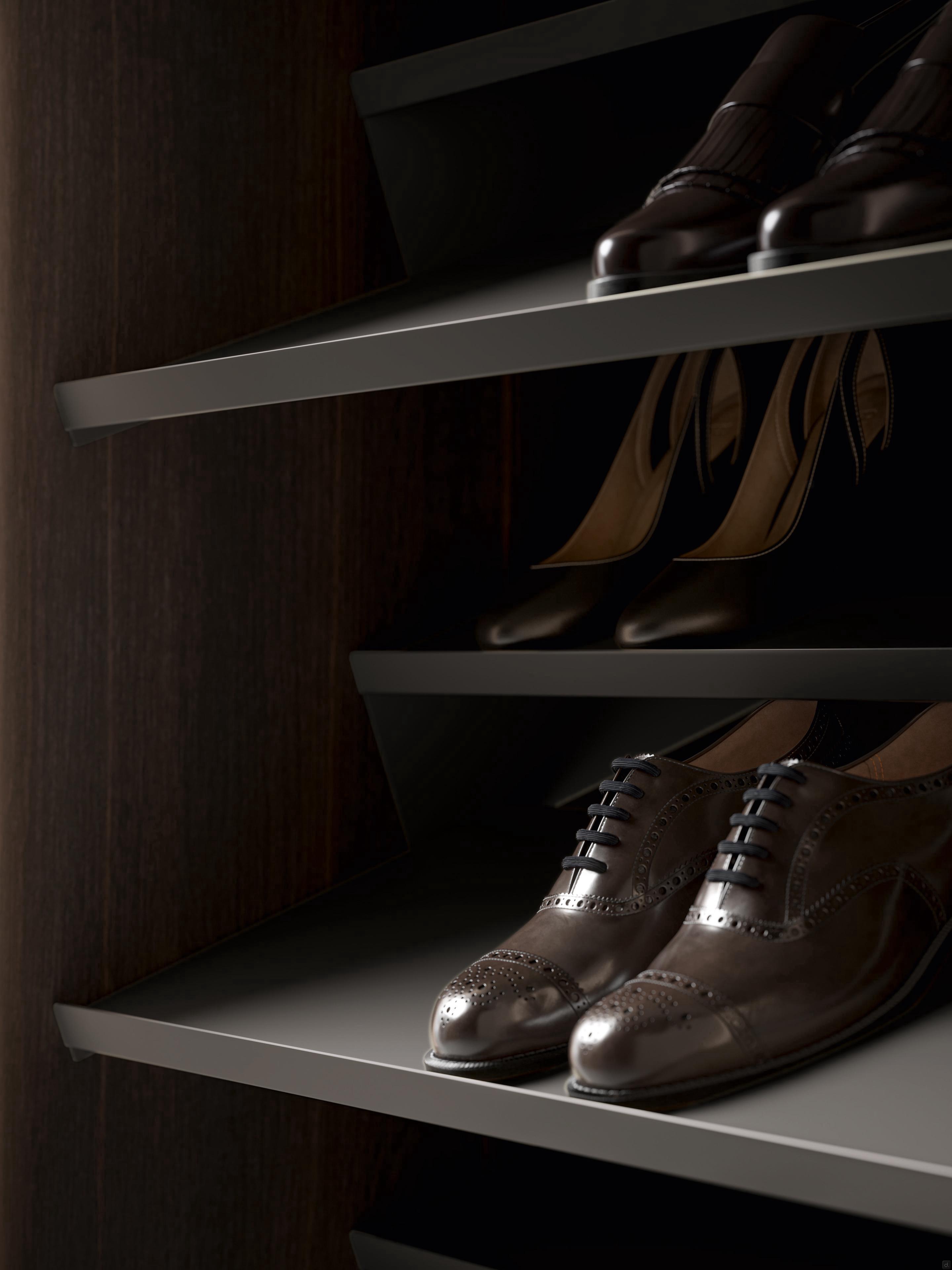

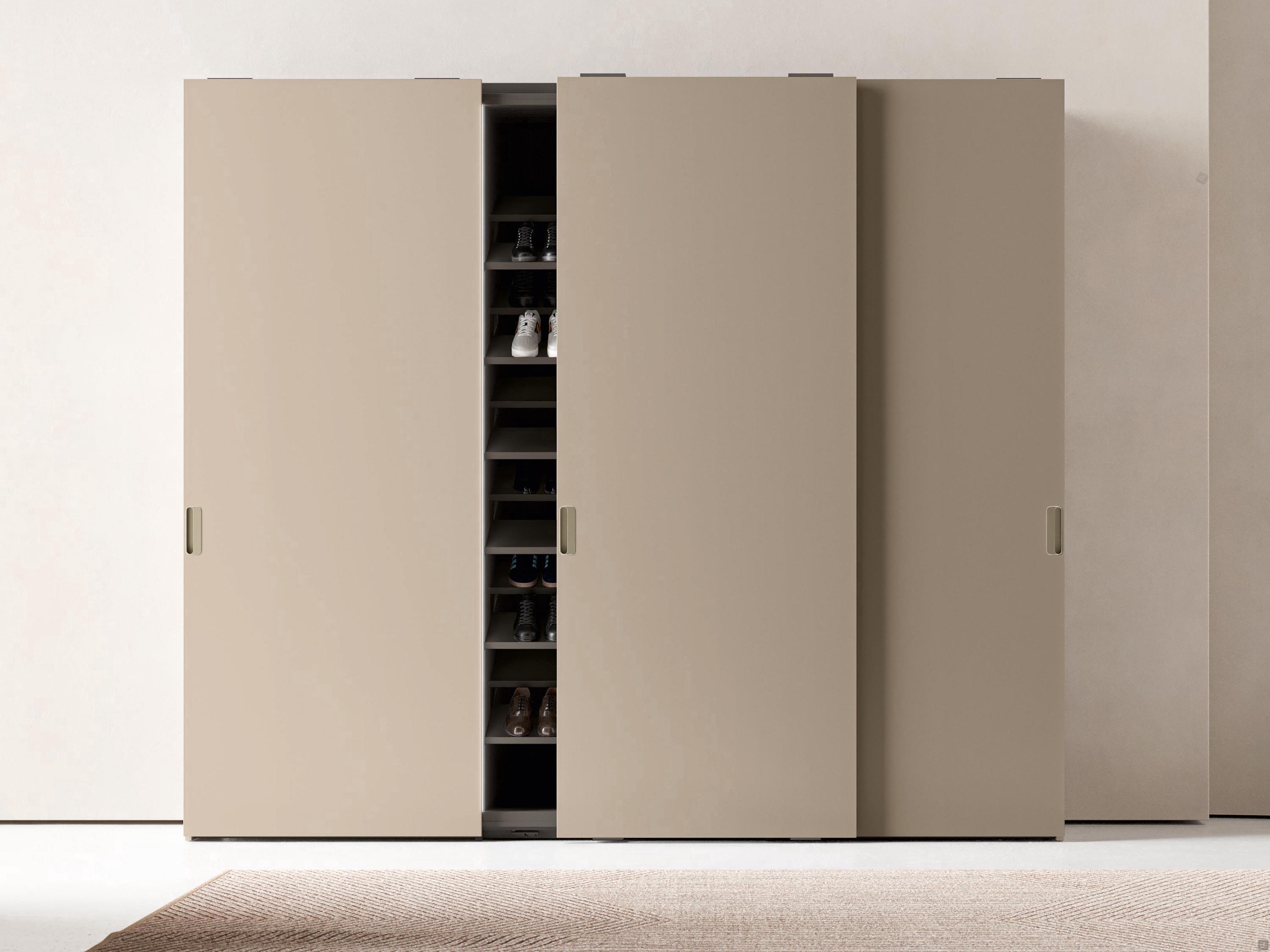

Shoe rack: consists of two inclined metal shelves connected together.
Storage rack: model cm 35 p.8 h.6 (max. load capacity 6 Kg). Made of umber shine painted metal, applied to matching magnetic bar.

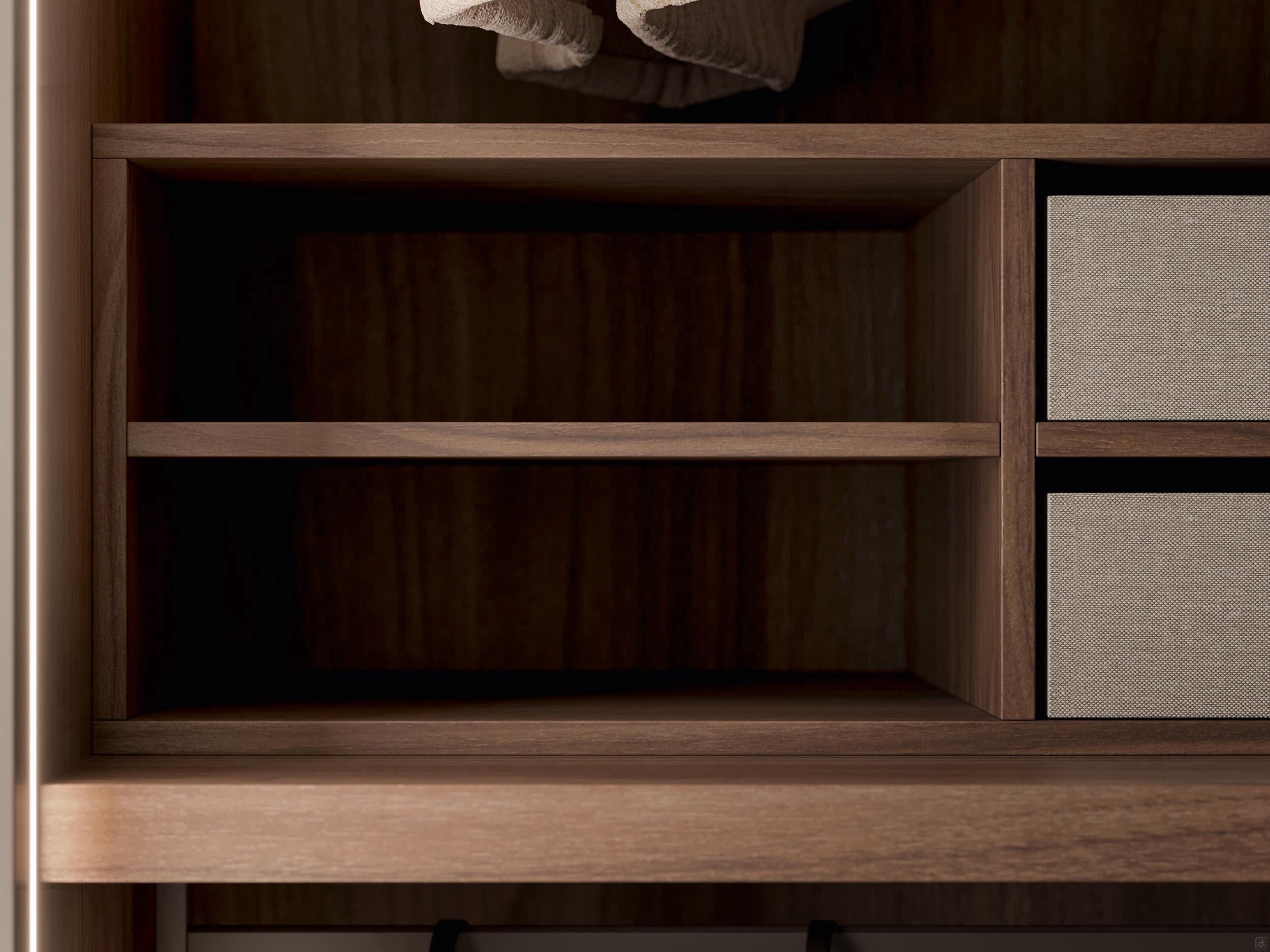

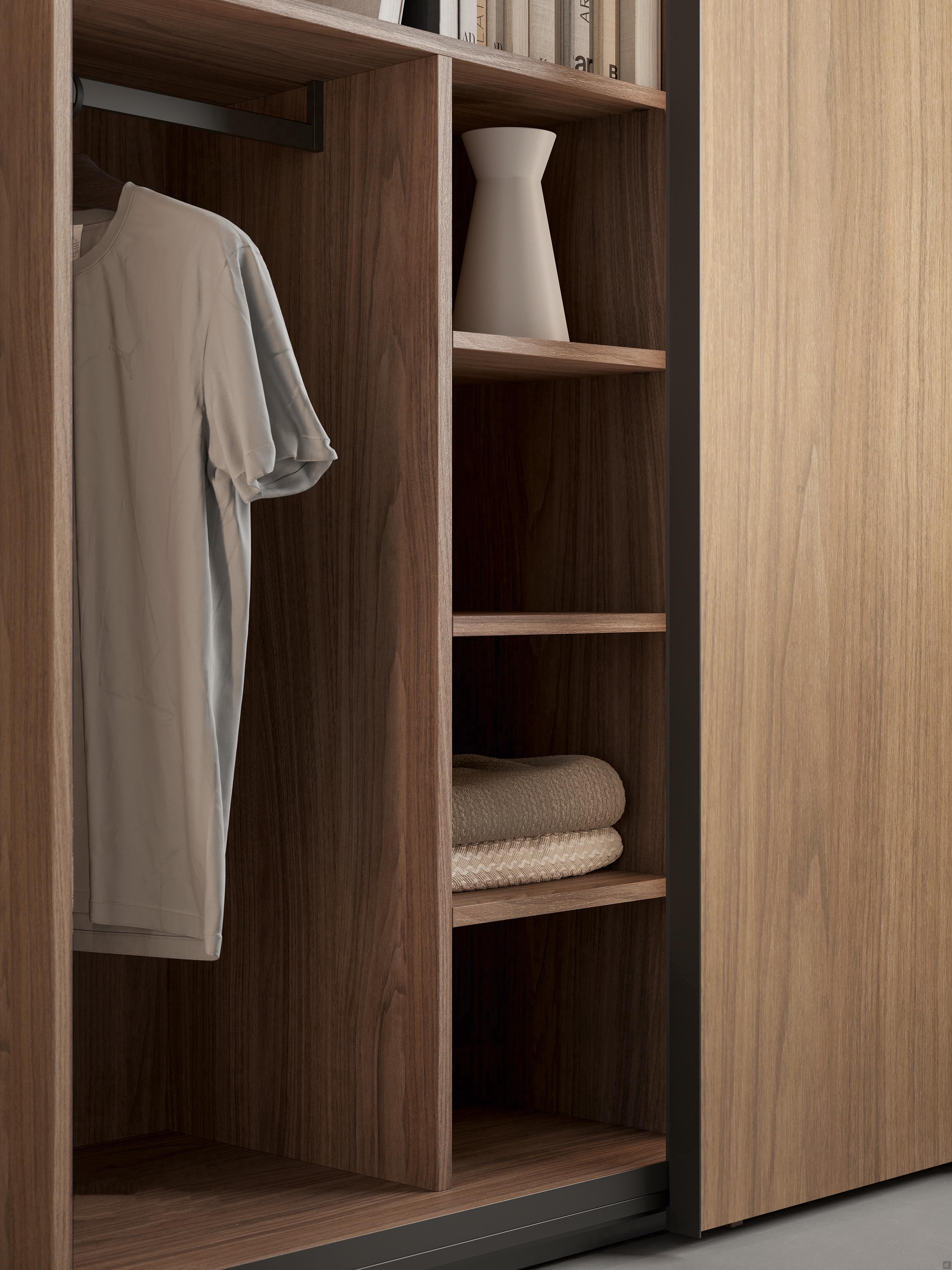

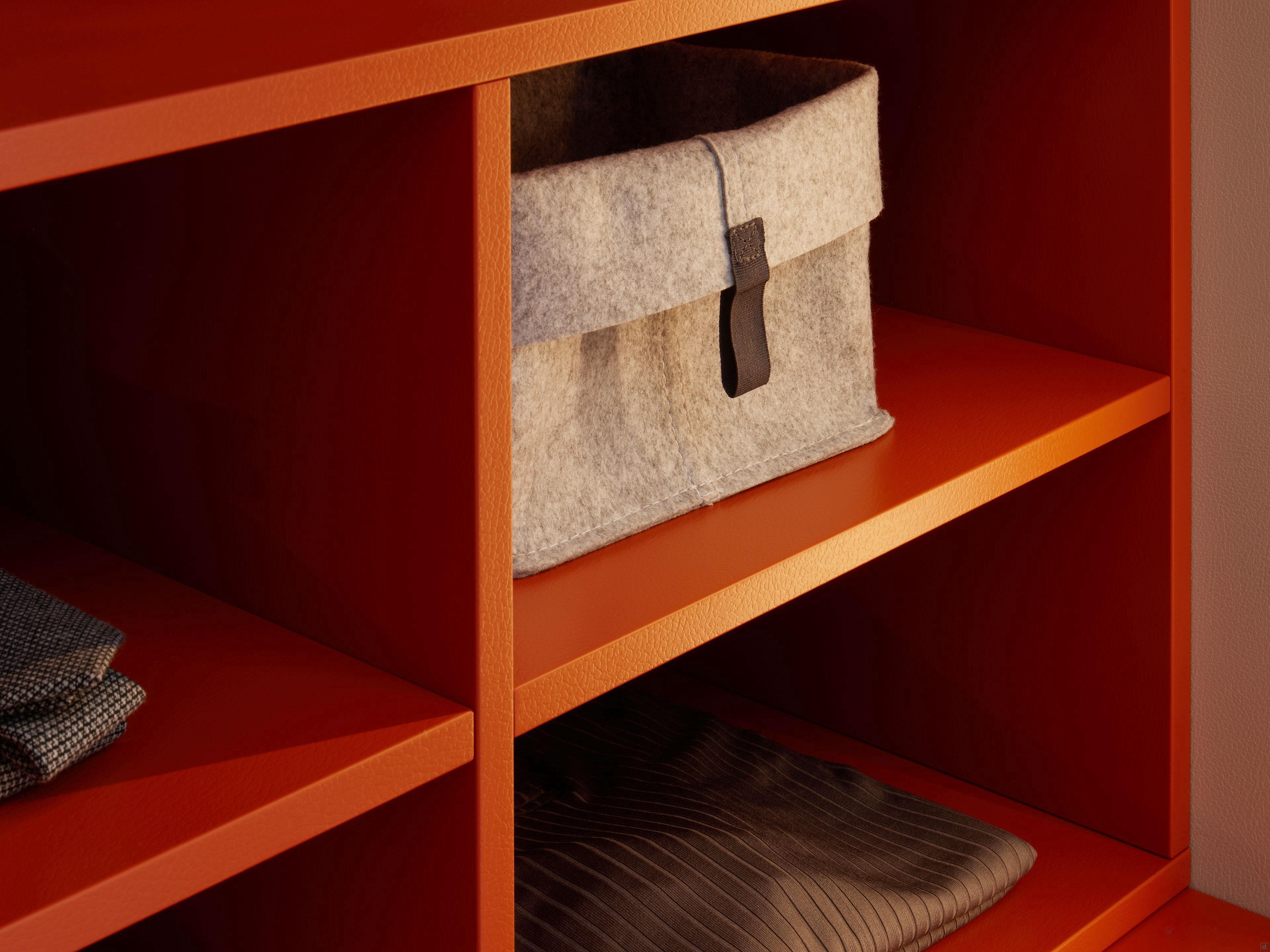

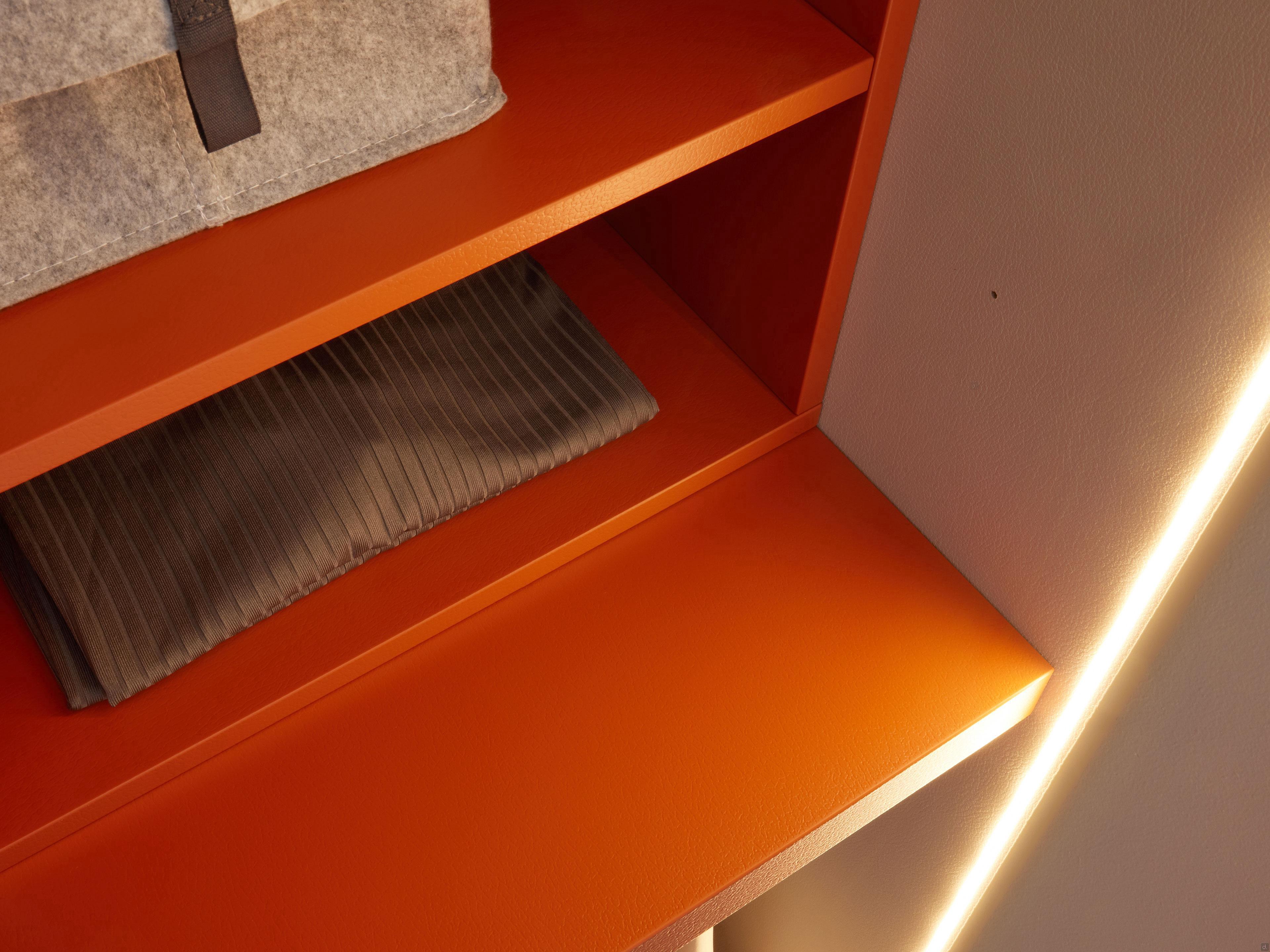

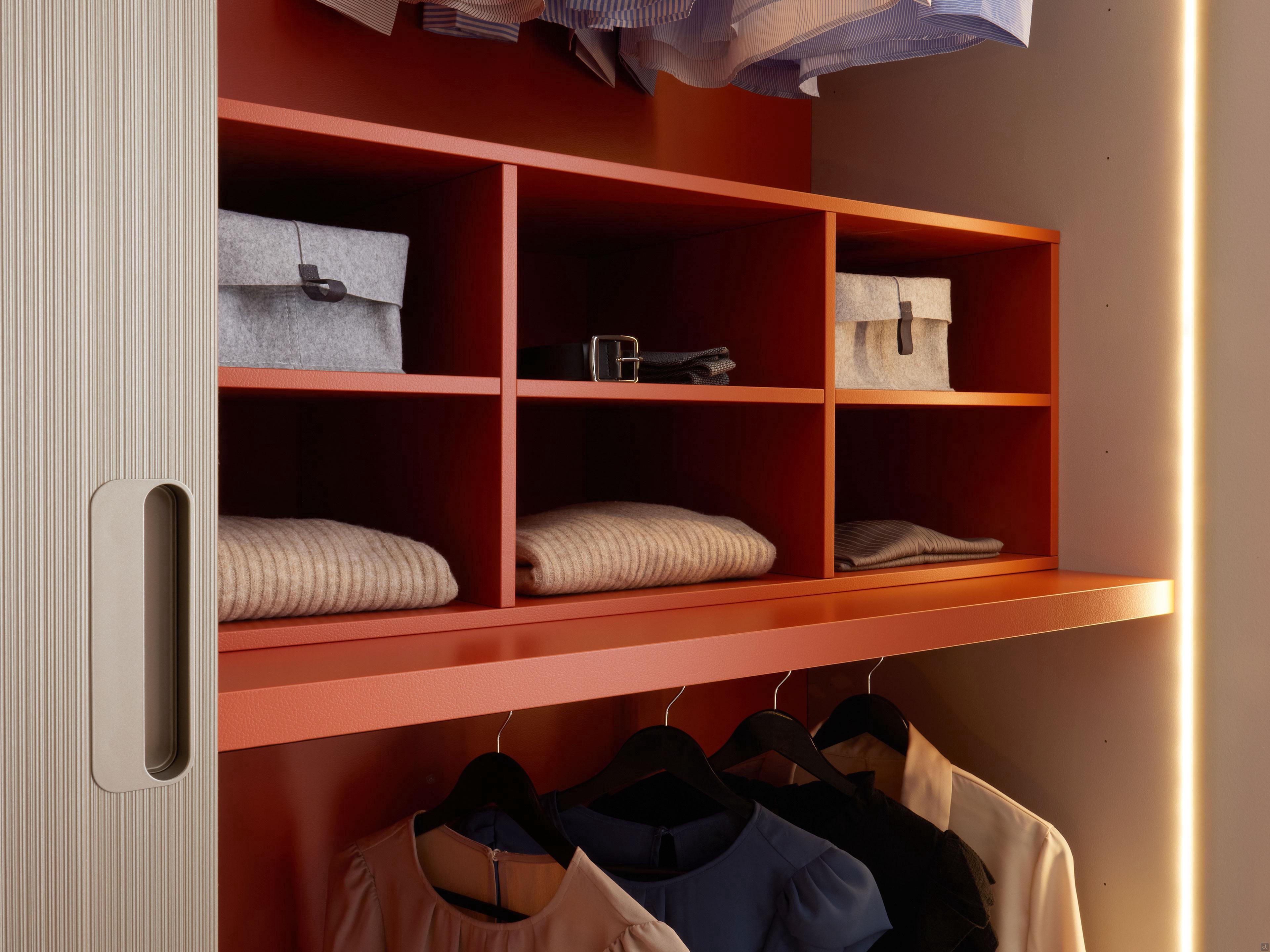

Partition with side shelves: available for 95.2 cm and 110.6 cm wide modules; respectively for 95.2 cm module side shelves cm 38.8 and open compartment cm 54.1; for 110.6 cm module side shelves cm 33.2 and open compartment cm 75.1.
Useful height of side shelves:
- divider cm h.82,5 - shelf height cm h.25,3
- divider cm h.112,3 - shelf height cm h.25,8
- divider cm h.144,3 - shelf height cm h.26,6.

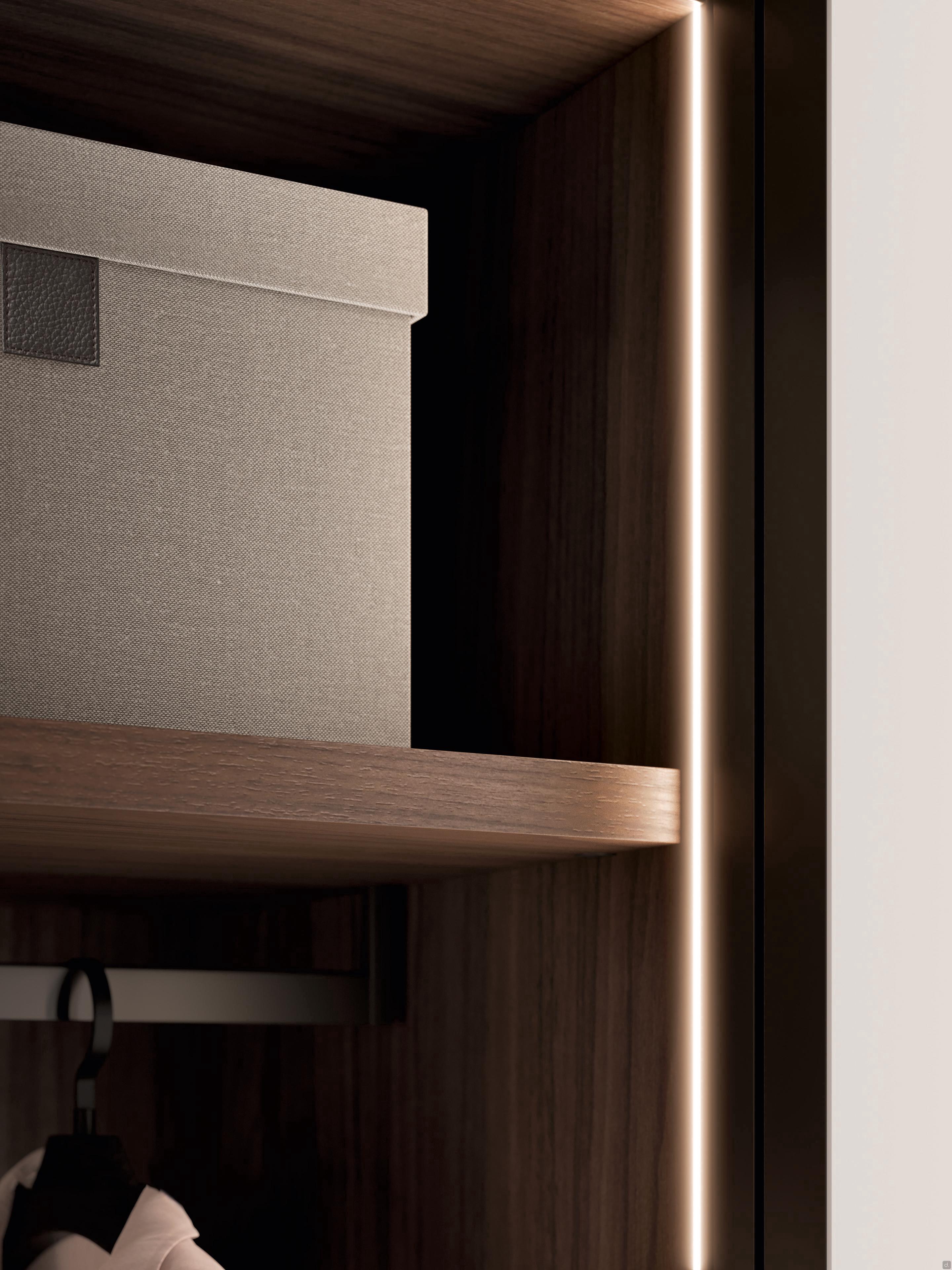

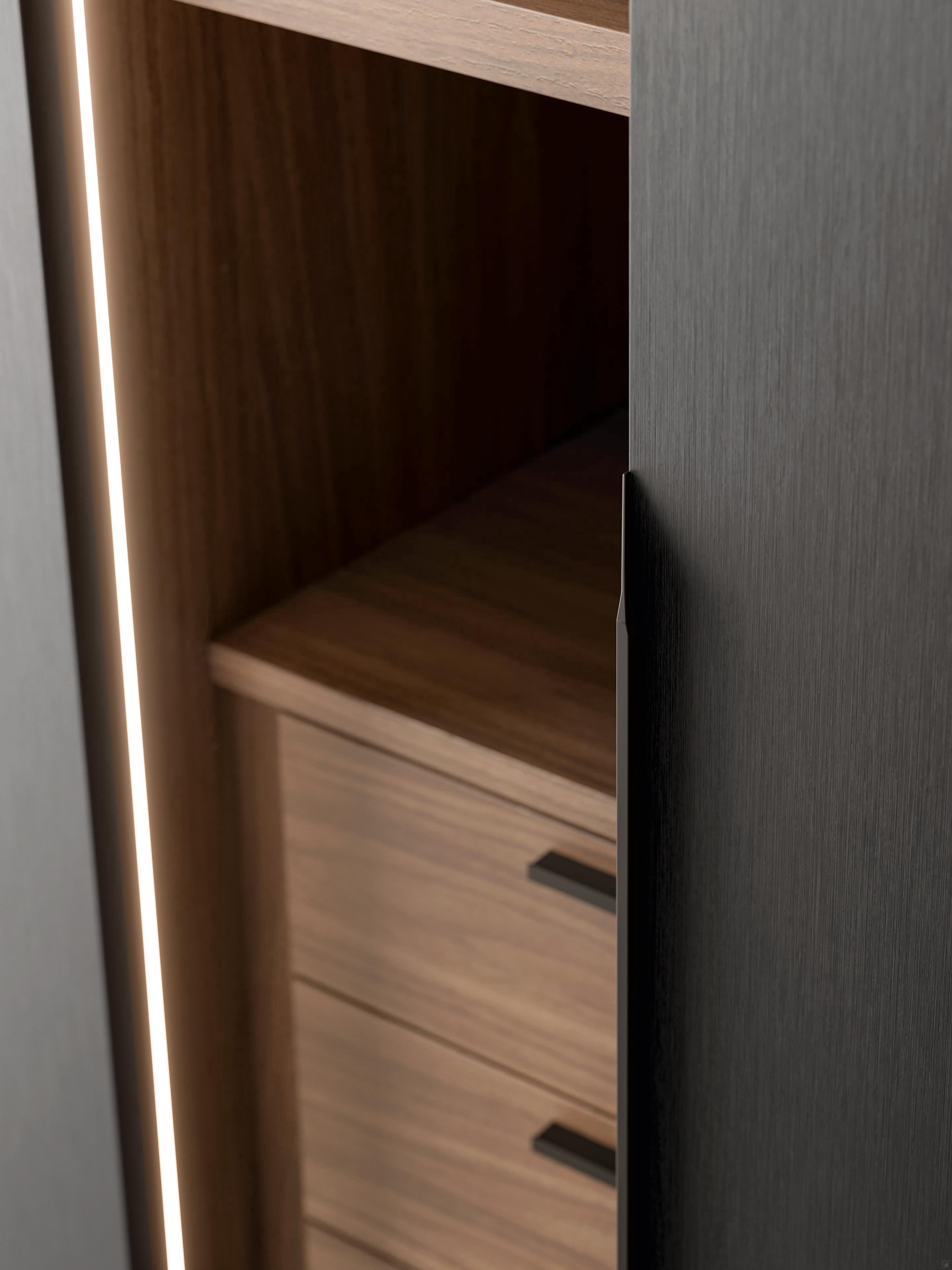

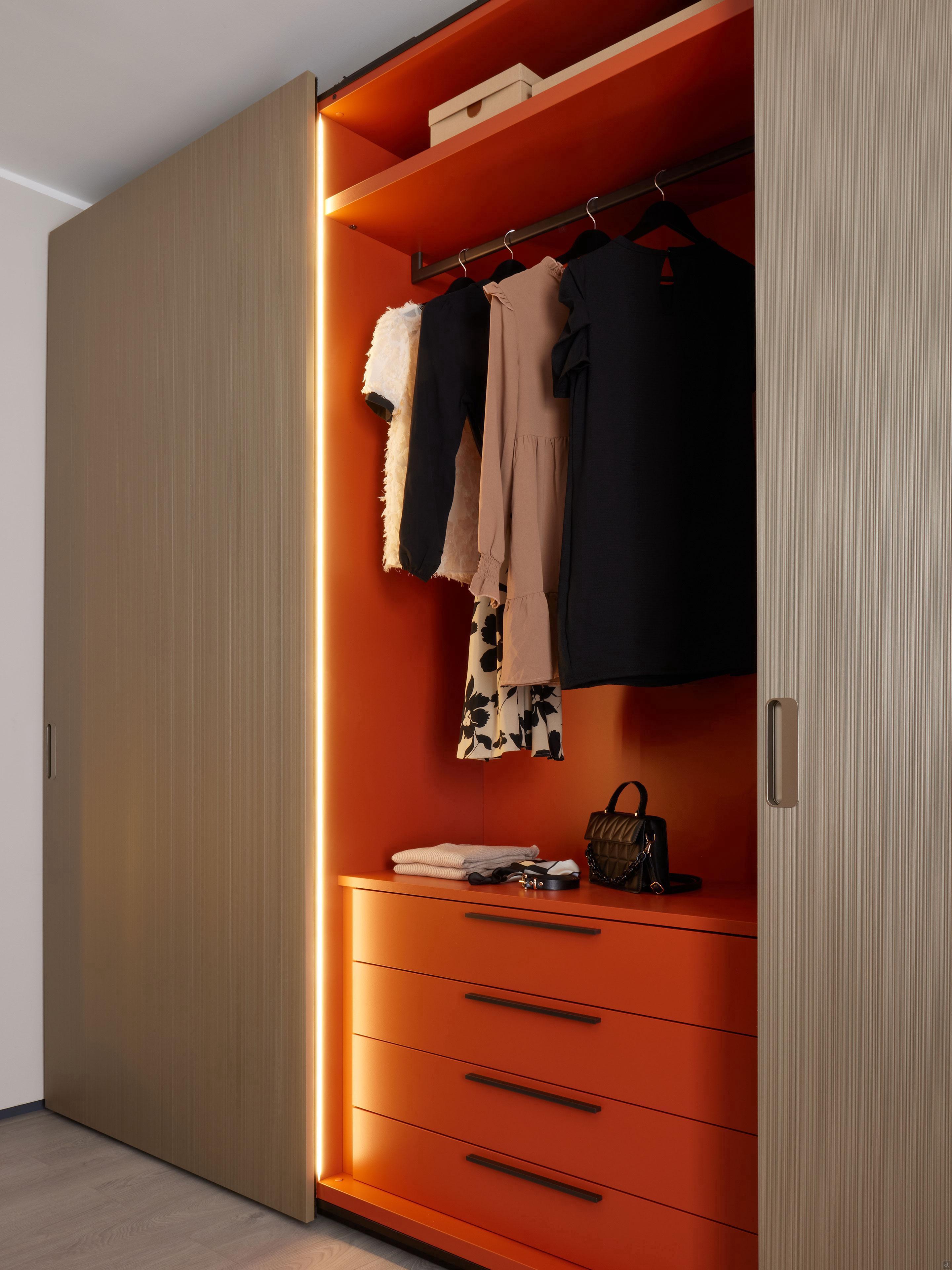

Vertical LED bar for side: warm light at 3000 K recessed in milled front of side. Power supply included: switch-on via sensor.
Horizontal LED bar for top or shelf: warm light at 3000 K recessed in milled into bottom part of top or shelf. Power supply included: switch on via sensor.

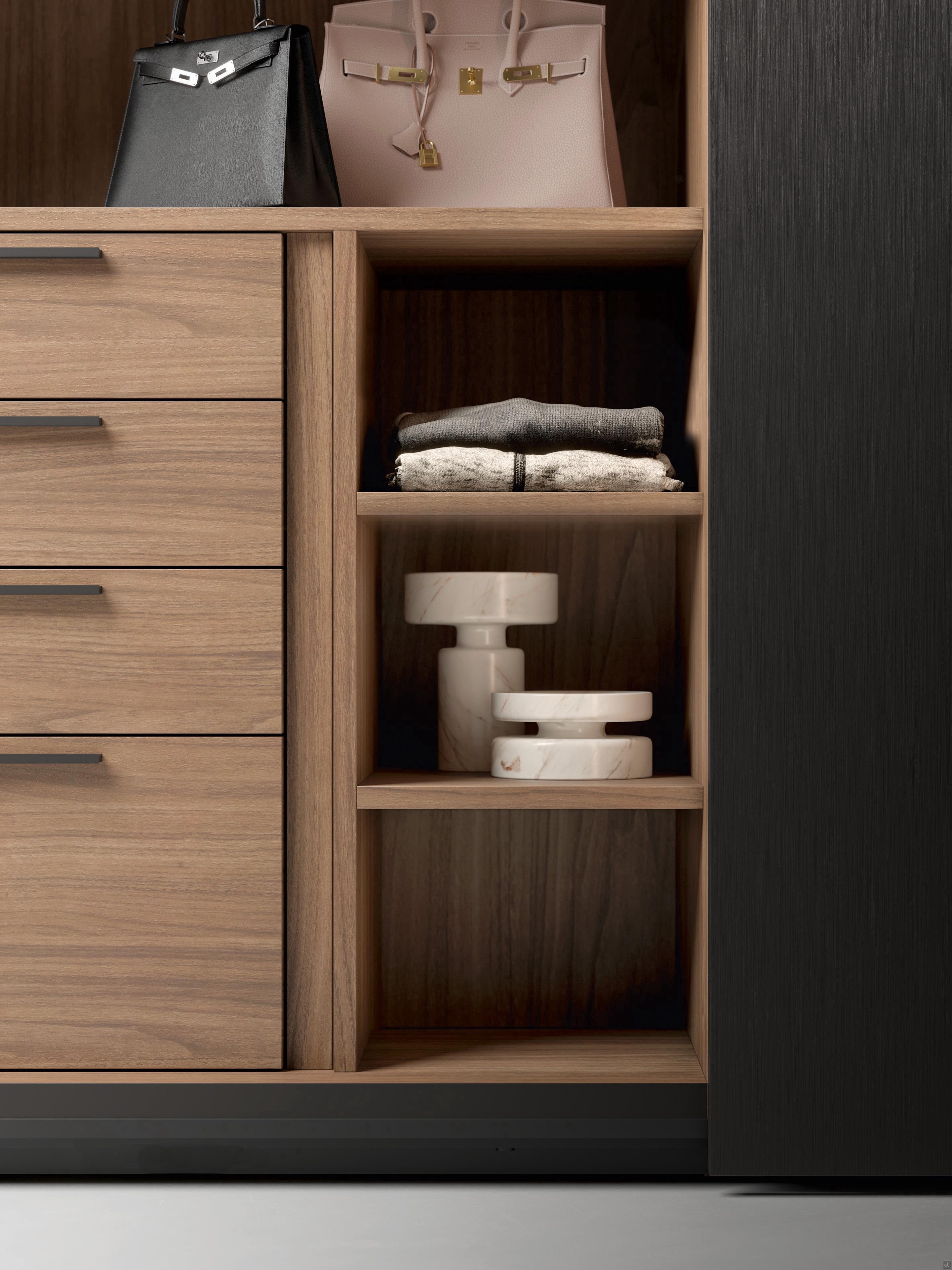

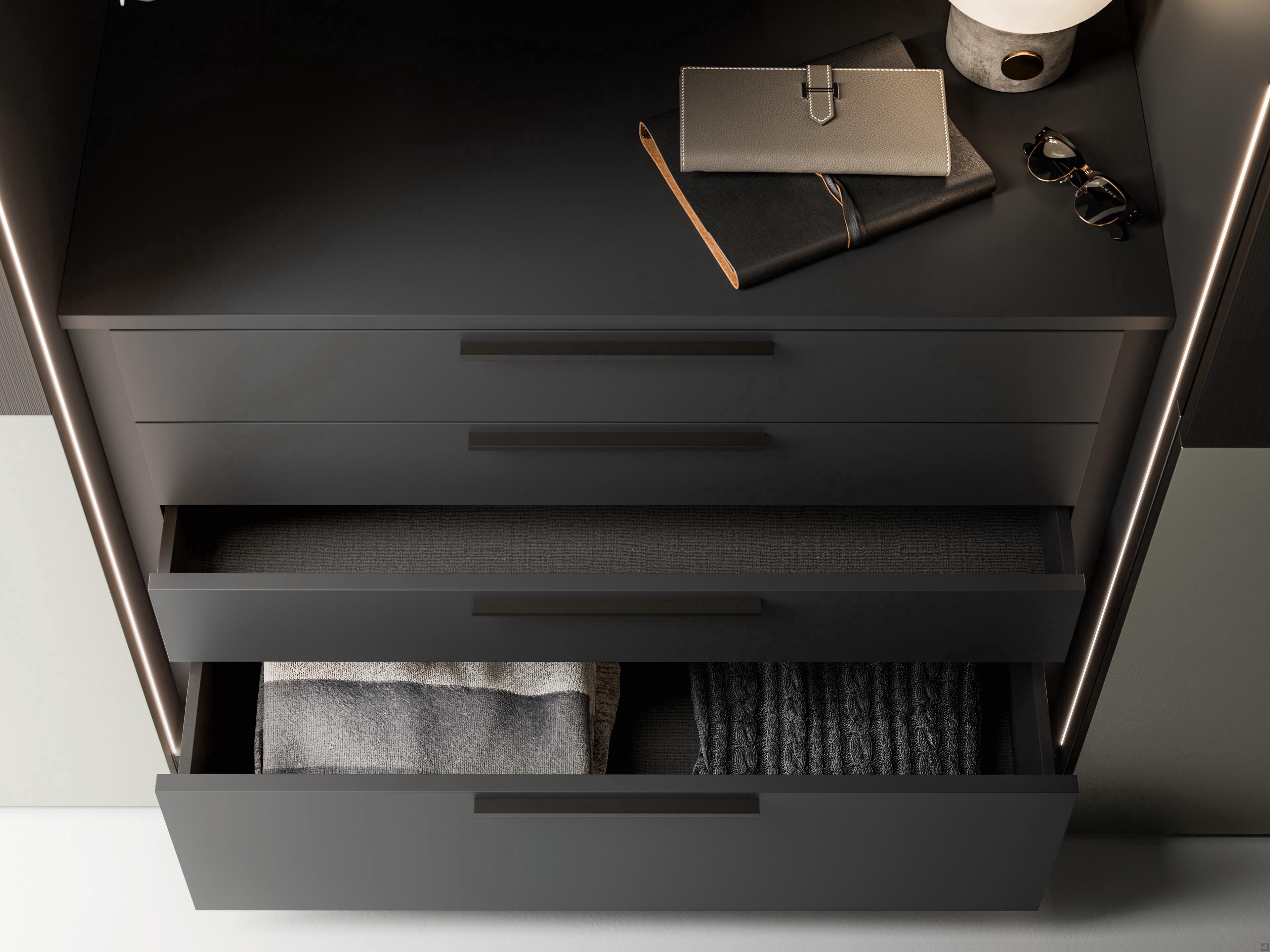

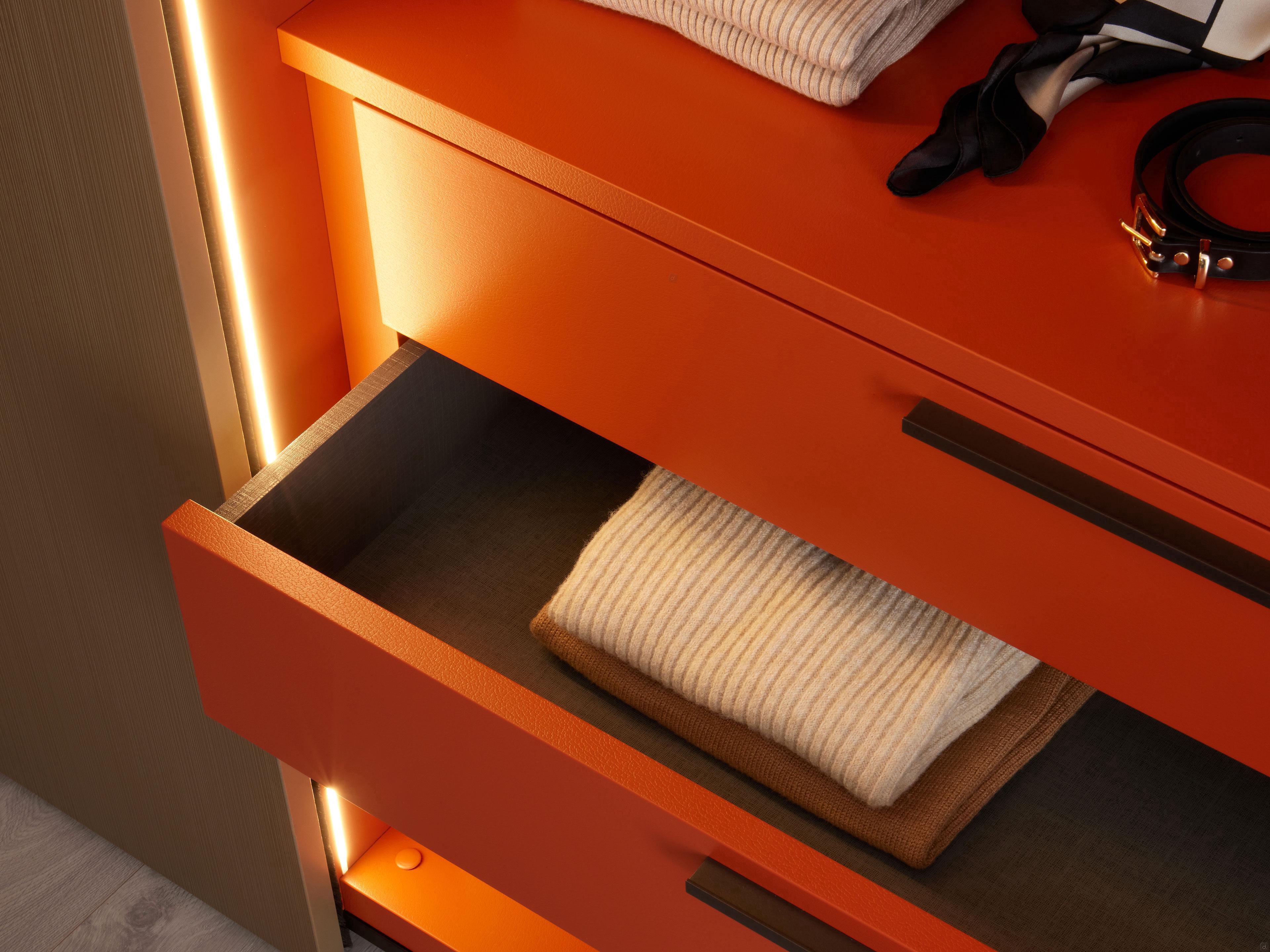

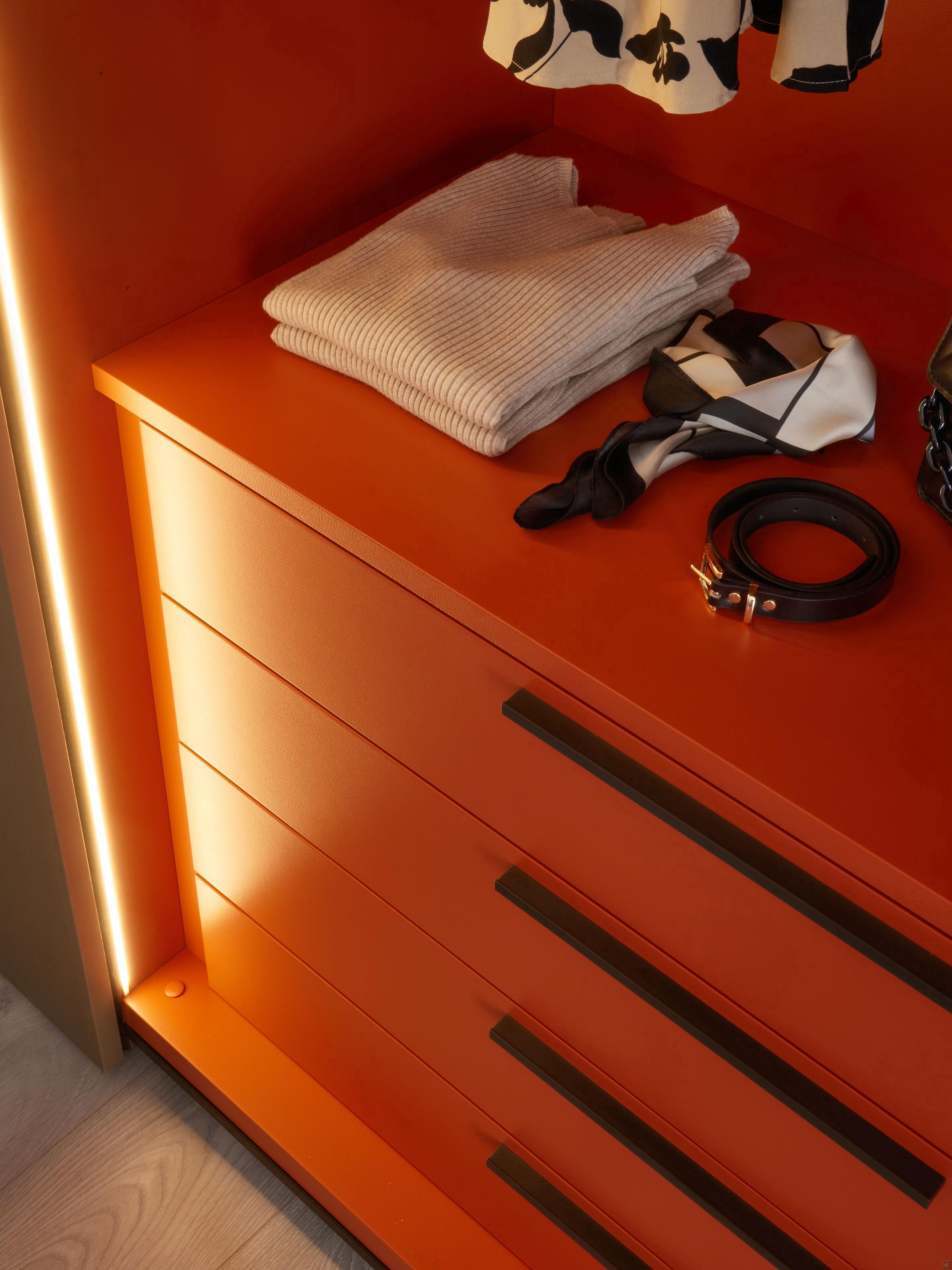

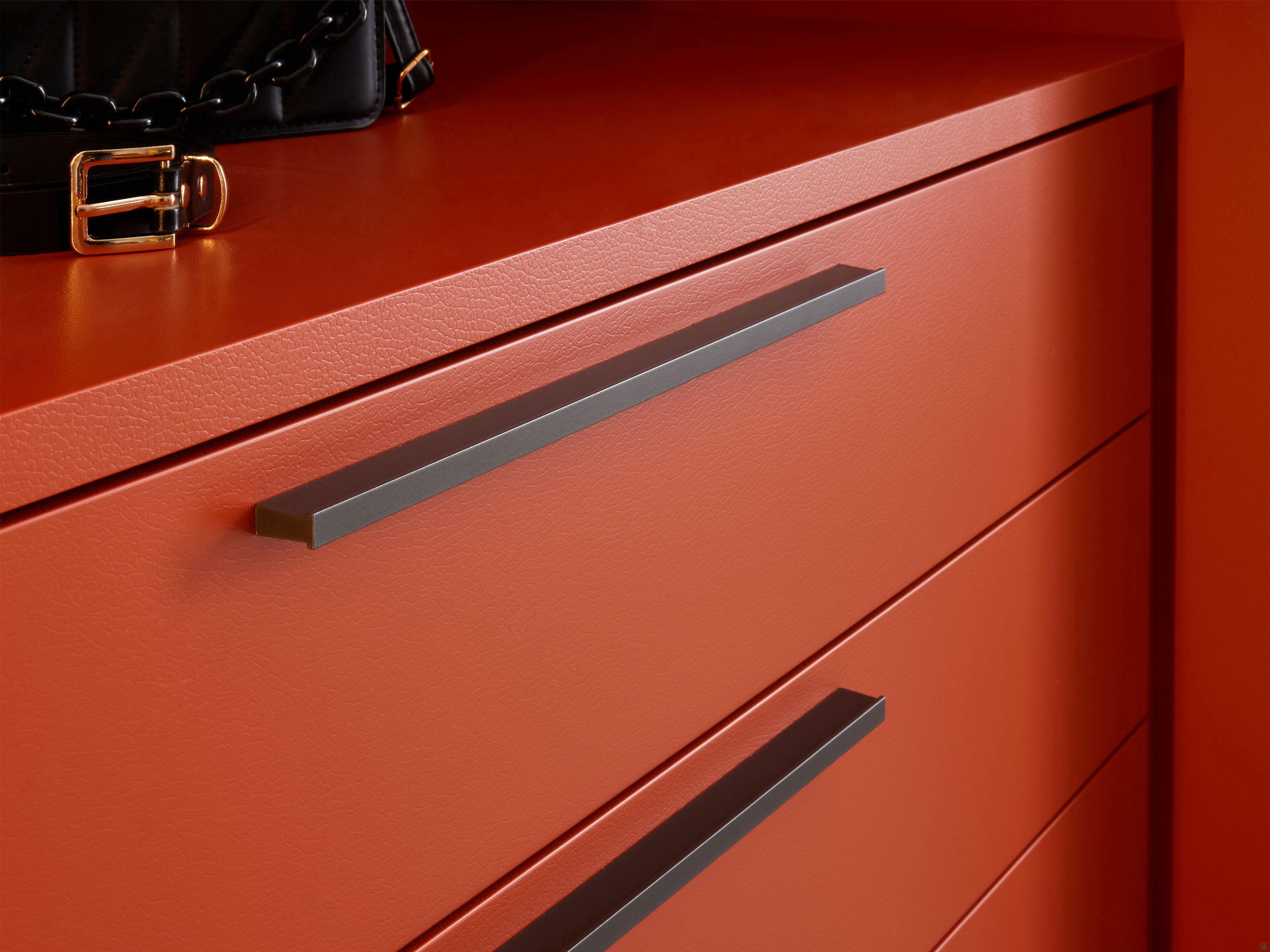

Drawer units and pull-out accessories: drawers are fitted with metal runners (in the p.43,8 cm they are full-extension) with concealed vertical adjustment integrated in the coupling; dynamic load capacity of the runners of 30 kg and cushioned assisted closing system. Front and top with a thickness of 2.2 cm, sides with a thickness of 3.5 cm. Handles model "Z" cm 31,3 d.1,8 h.0,9 in umber shine or matt lacquered metal. Drawer sides and bottom are always in linen grey melamine.

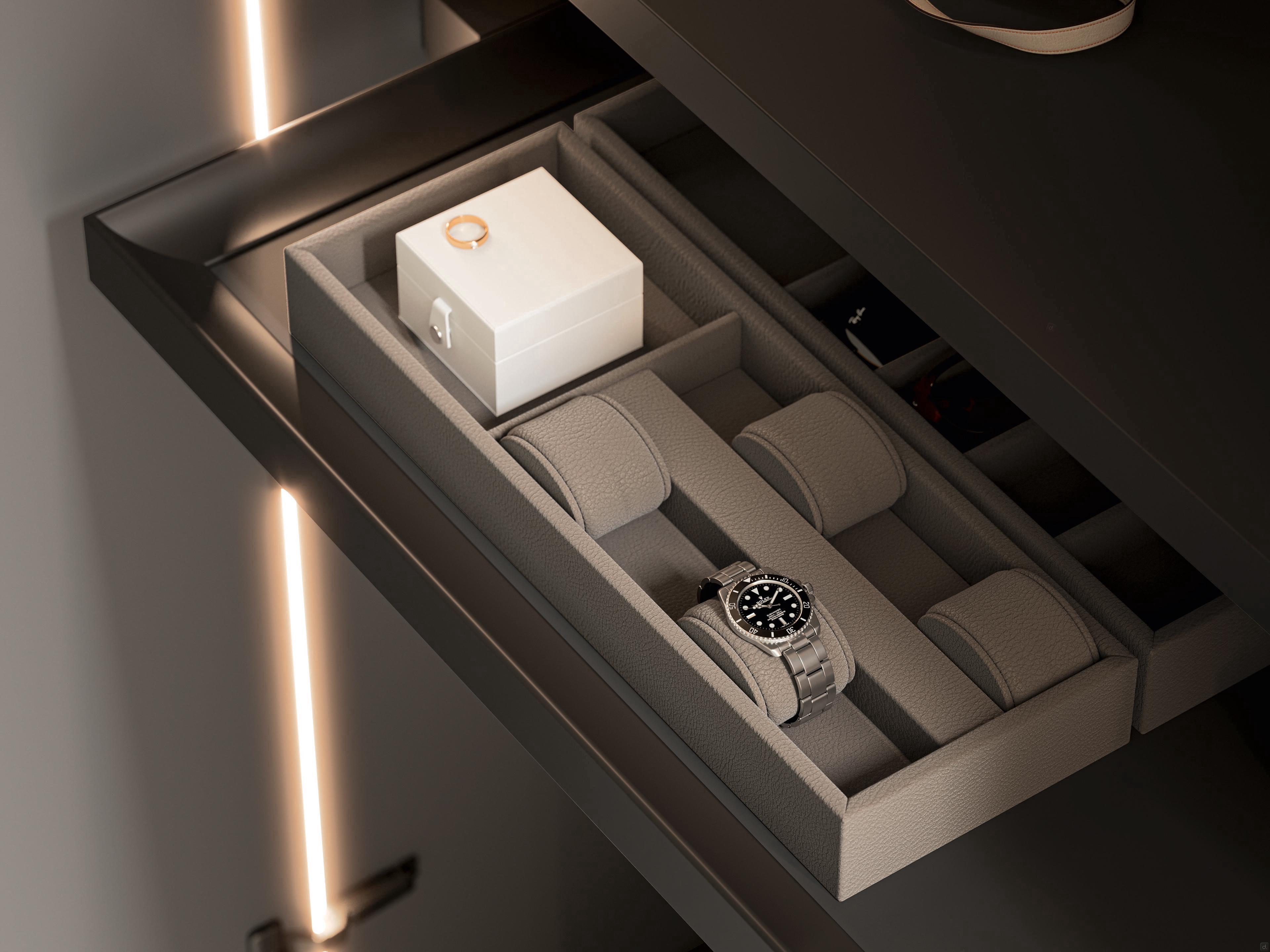

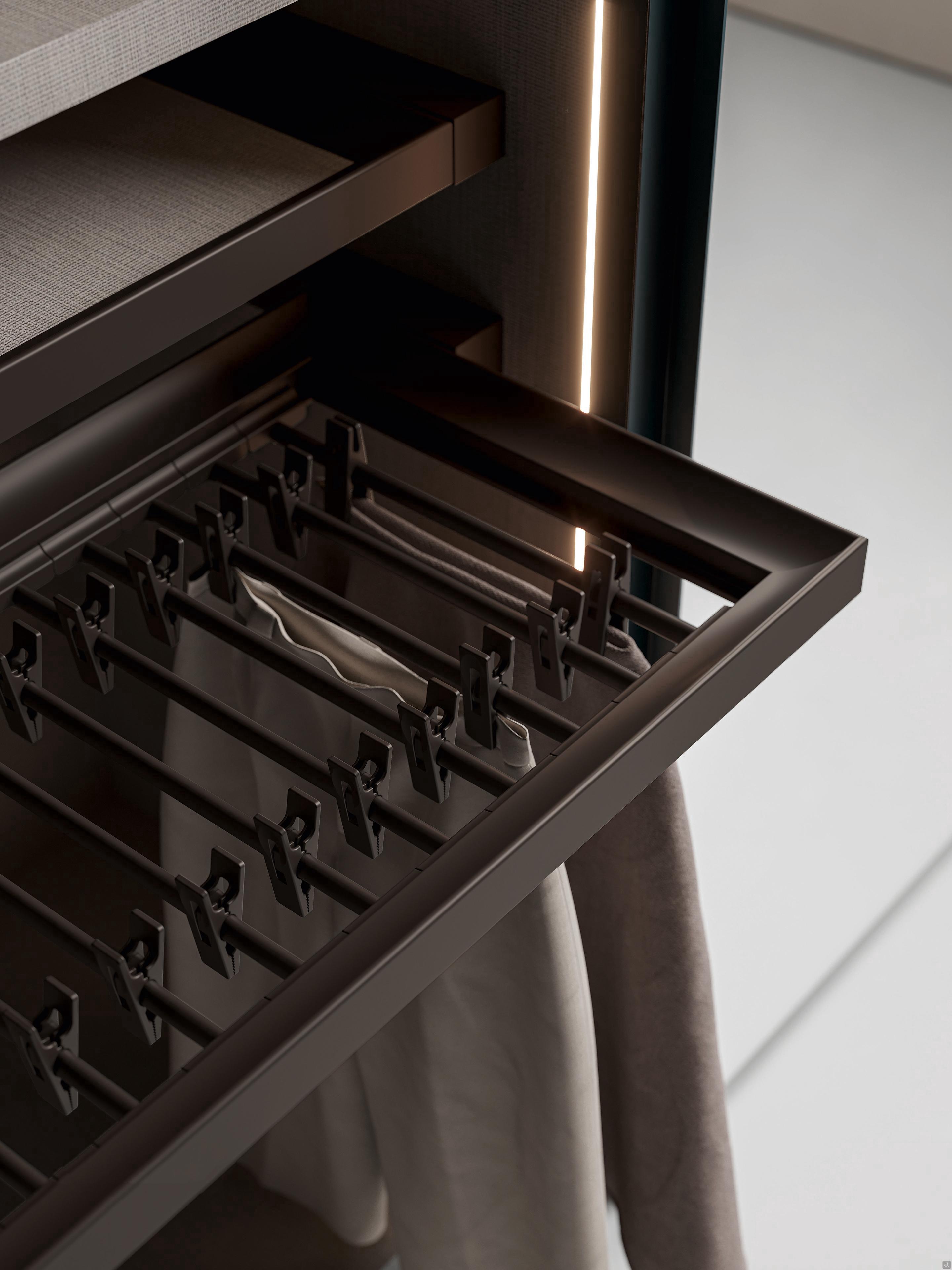

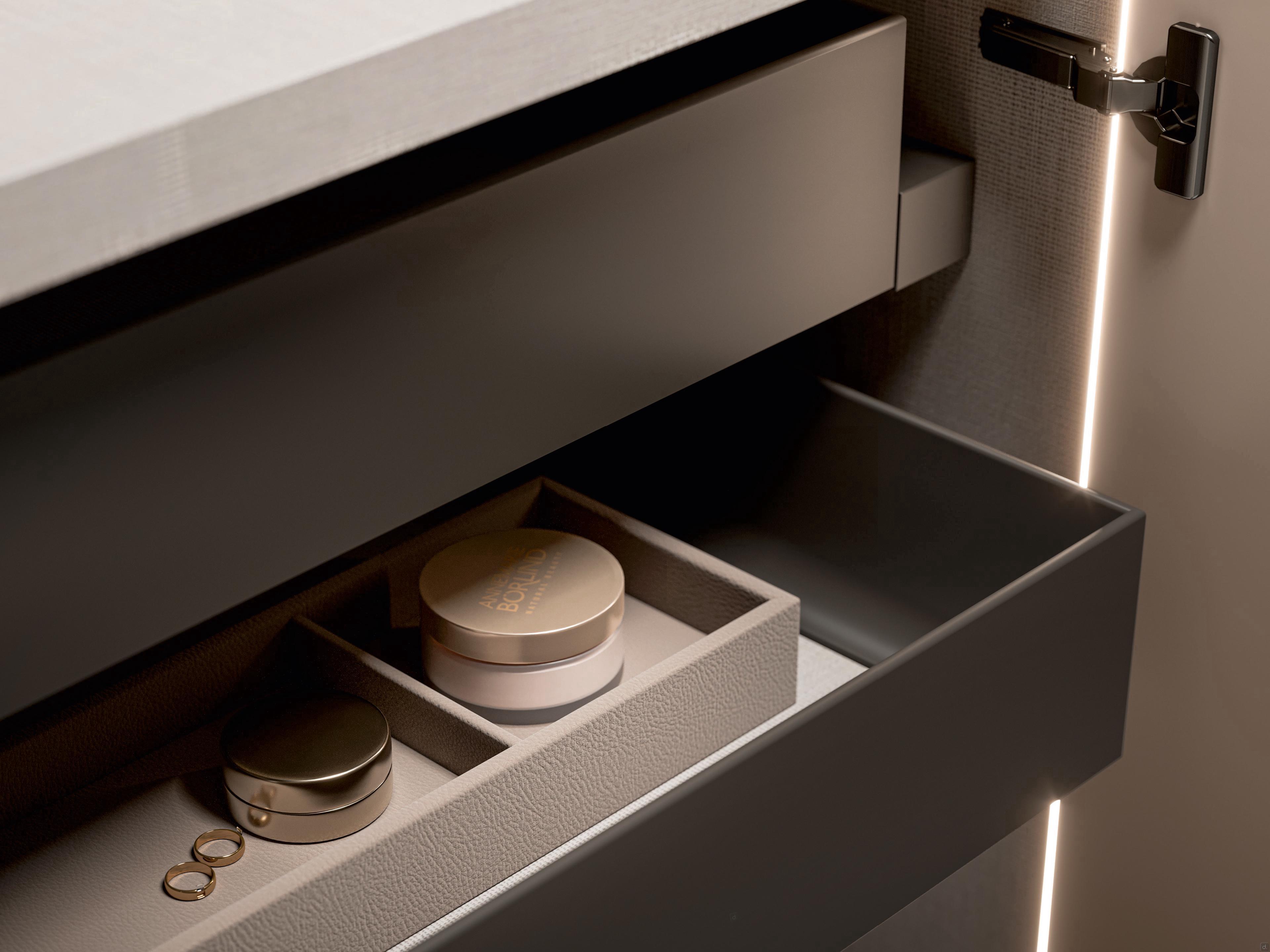

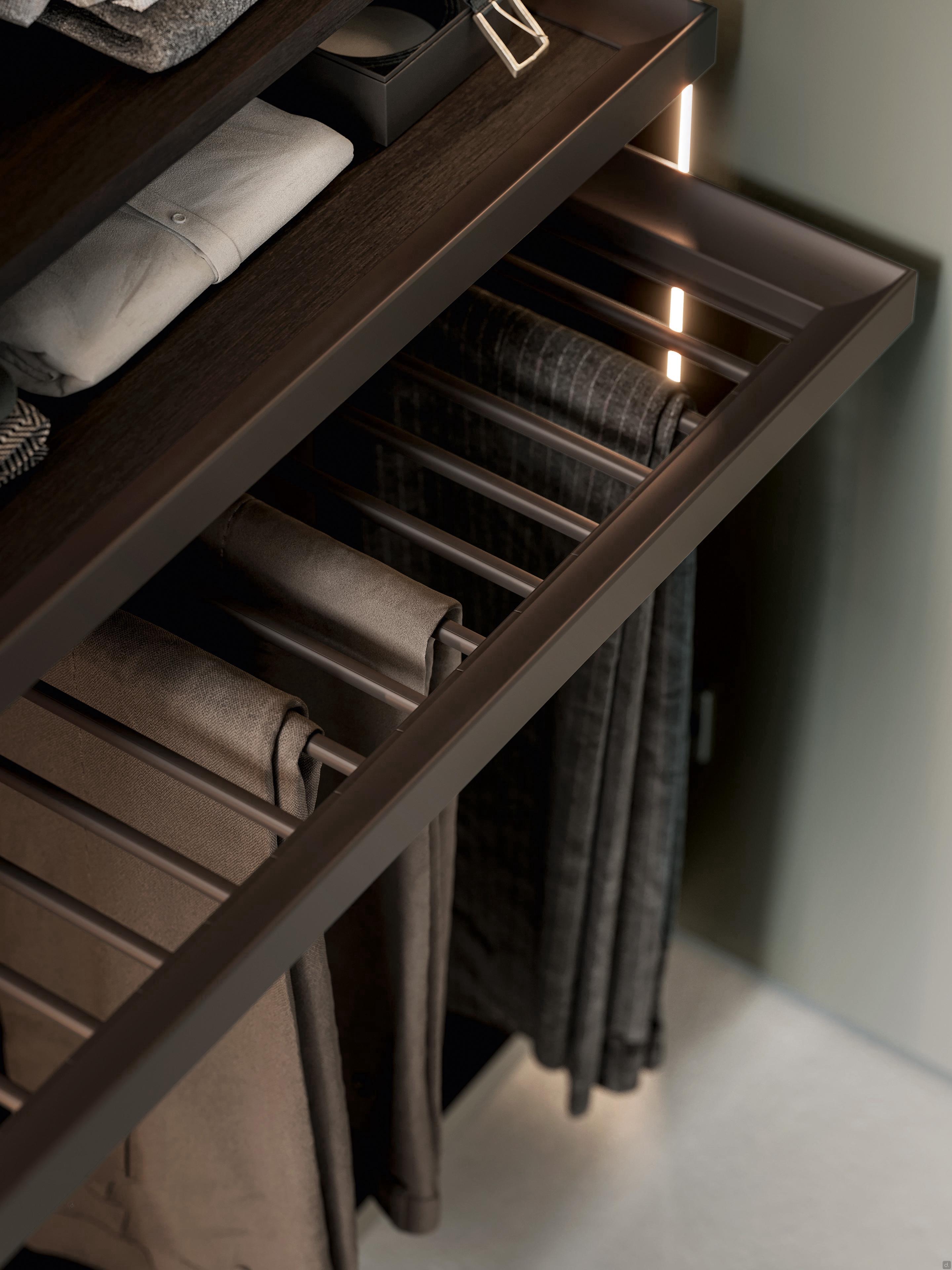

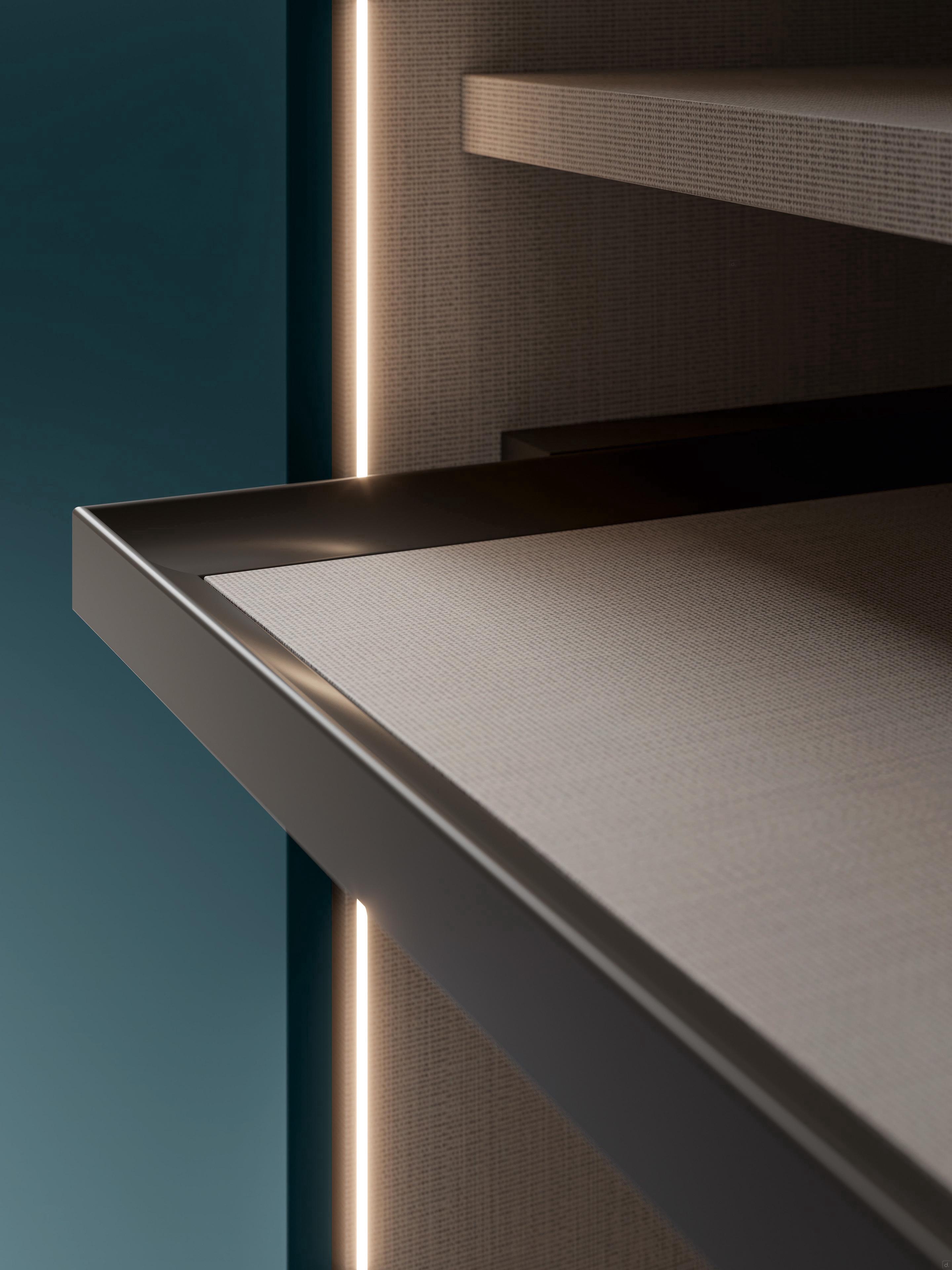

With regard to the Pull-out Accessories, these are only available for the depth of cm 61.2 in the 95.2 / 110.6 cm modules: frame and shoe trays are in umber shine painted metal. The trays are equipped with a soft-assisted closing system and can be fitted with storage boxes cm 41 d.15 h.5 containing optional dividers and clock holders: all elements are upholstered in imitation leather.
