Material specifications
Structure, Fronts and Upper Panels: made of 2 cm thick wood particle panels covered in melamine with a matte or glossy lacquered finish or metal with painted wood veneer. By glossy front we mean the external side and its edges, while the interior is supplied with the corresponding matte lacquered colour.
Back Panels: made from 0,8 cm thick medium density wood particles with synthetic finishing.
Drawer: 1,4 cm thick with 0,8 cm thick bottom panel in wood particle panels, interior in Jute textured finish. The external transparent glass shelf has a thickness of 1,2 cm.
Perimeter Structure: made of medium density wood particles with a thickness of 1 cm covered in melamine in a matte lacquered, metallic or painted wood veneer finish.
Feet:
- black ABS Ø cm 5 and height cm 2,7, internal adjustment cm 1,2.
- methacrylate / shaped th. cm 1,5
- cylindrical th. Ø cm 2

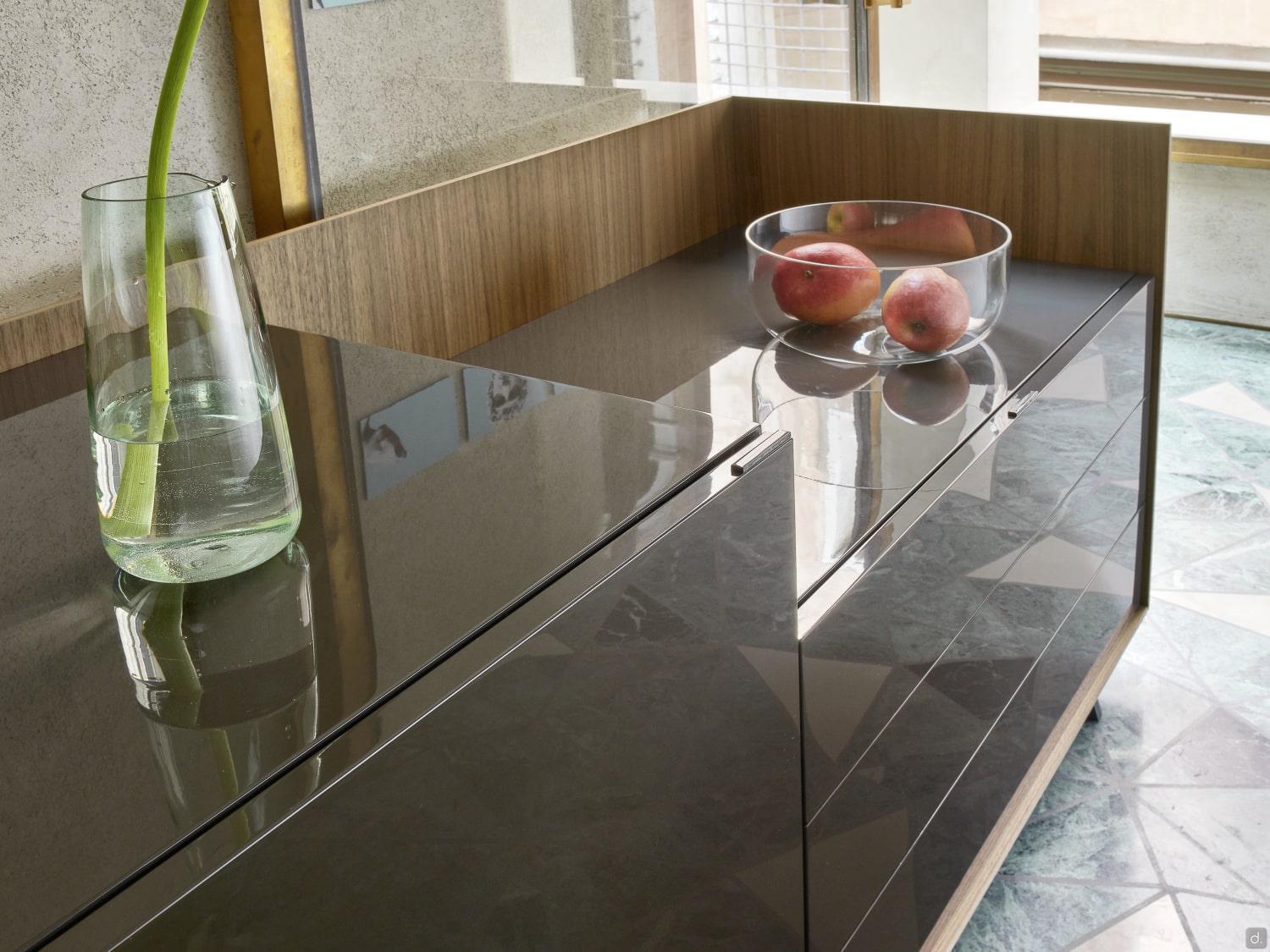

Top: made from ceramic cut from slabs measuring cm 162 x 324 with a thickness of cm 1,2. Cut randomly respecting the dimensions and direction of the slab design. Very resistant, they are an eco-compatible product.
Technical Specifications and Equipment
Drawer Opening: the fronts with a visible upper profile feature a minimal handle, normally positioned in the centre of the front flush with the outside; for all the others there is push-pull opening.
Drawer Guides:
- opening with Minimal profile: high-sliding metal guides with total extraction, end stop block and dynamic load capacity of 30 kg. "Blumotion" cushioned return mechanism integrated into the guide for a smooth and silent closing. Anti-release pin and vertical adjustment of the inclination of the fronts integrated in all the guides of the system. Stabilizing bar added for drawers with a width of 90 cm and "Movento" guides with built-in stabilizer and also lateral adjustment of the fronts for drawers with a width of 120 and 150 cm.
- push-pull opening: high-sliding metal guides with total extraction, limit switch block and dynamic load capacity of 30 kg. Sliding synchronizer integrated in the guides of drawers with a width greater than 45 cm. Anti-release pin and vertical adjustment of the inclination of the fronts integrated in all the guides of the system.
Drawers with a width of cm 120 and 150 with "Movento" guides and side adjustment of the fronts.
Combination Table for Minimal/Segno Handle with the Structure
Structure |
Handles
|
Clay Oak |
matte terranova |
Havana Oak |
matte brown |
Charcoal Oak |
matte brown |
Cuba Oak |
matte brown |
Heat-treated oak | matte brown |
Grey Oak |
matte brown |
Canaletto walnut |
matte brown |
matte lacquer |
matte lacquer |
glossy lacquer |
glossy lacquer |
metallic lacquer |
metallic lacquer |
Nature Loto melamine |
matte rope grey |
Taupe Loto melamine |
matte rope grey |
Earth Loto melamine |
matte terranova |
Sand Sketch melamine |
matte canvas |
Rock Sketch melamine |
matte silica |
Tobacco Sketch melamine |
matte beaver |
Optional
Lighting: LED frame at the top and sides or on four sides with 3000K LED light from 39,4 to 72,6 W with power supply included.
Upper glass surface: upper surface in clear glass with a thickness of cm 1,2 equipped with side supports which match the structure.
To know more..
Heat-treated Oak: this particular oak finish is characterised by the contrast between the light grains and the dark, full-bodied background of the wood. This effect is created by the high temperature to which the veneer is subjected, determining a different colour between the harder and softer parts of the wood, with a pleasant and randomised chiaroscuro.
