Specific Measurements

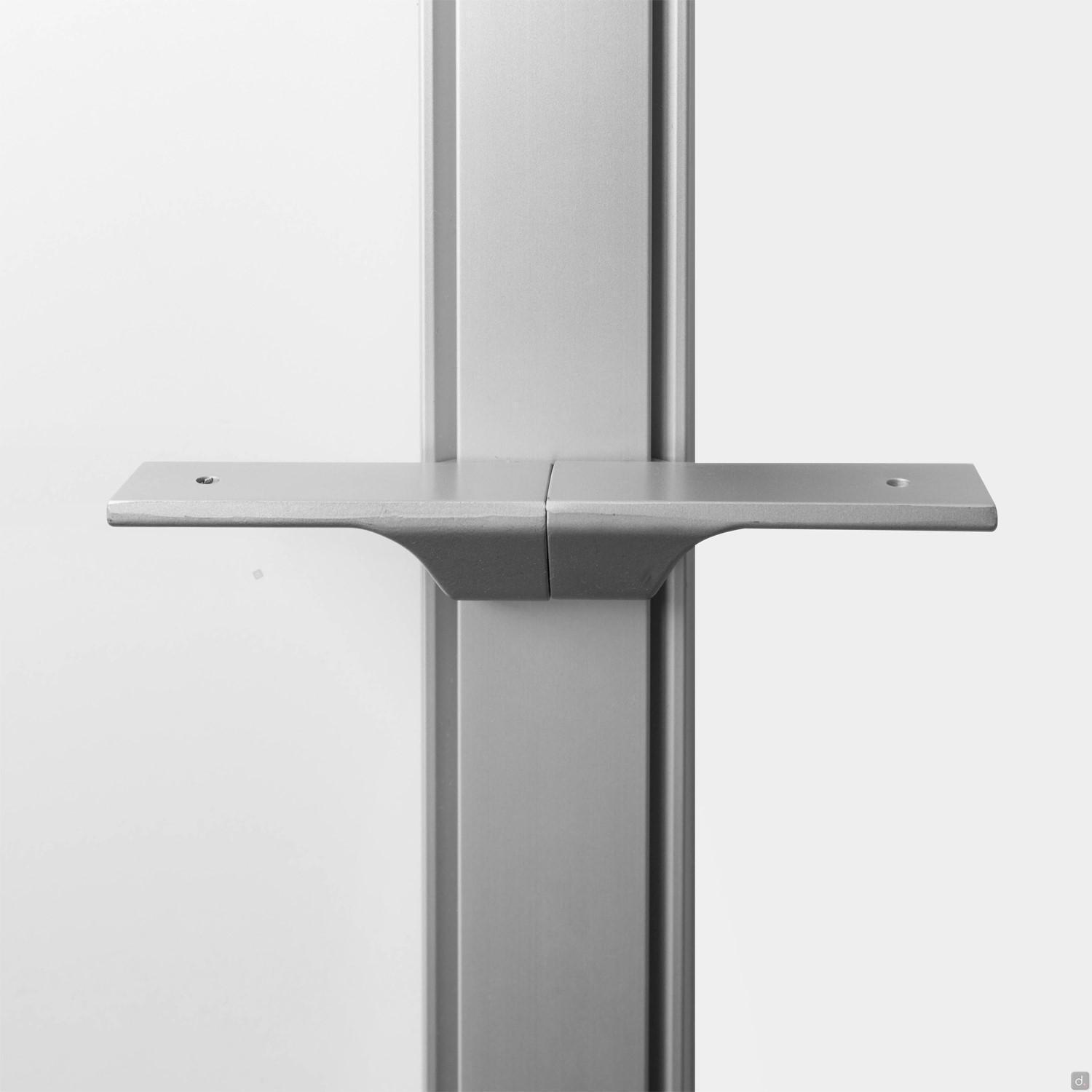

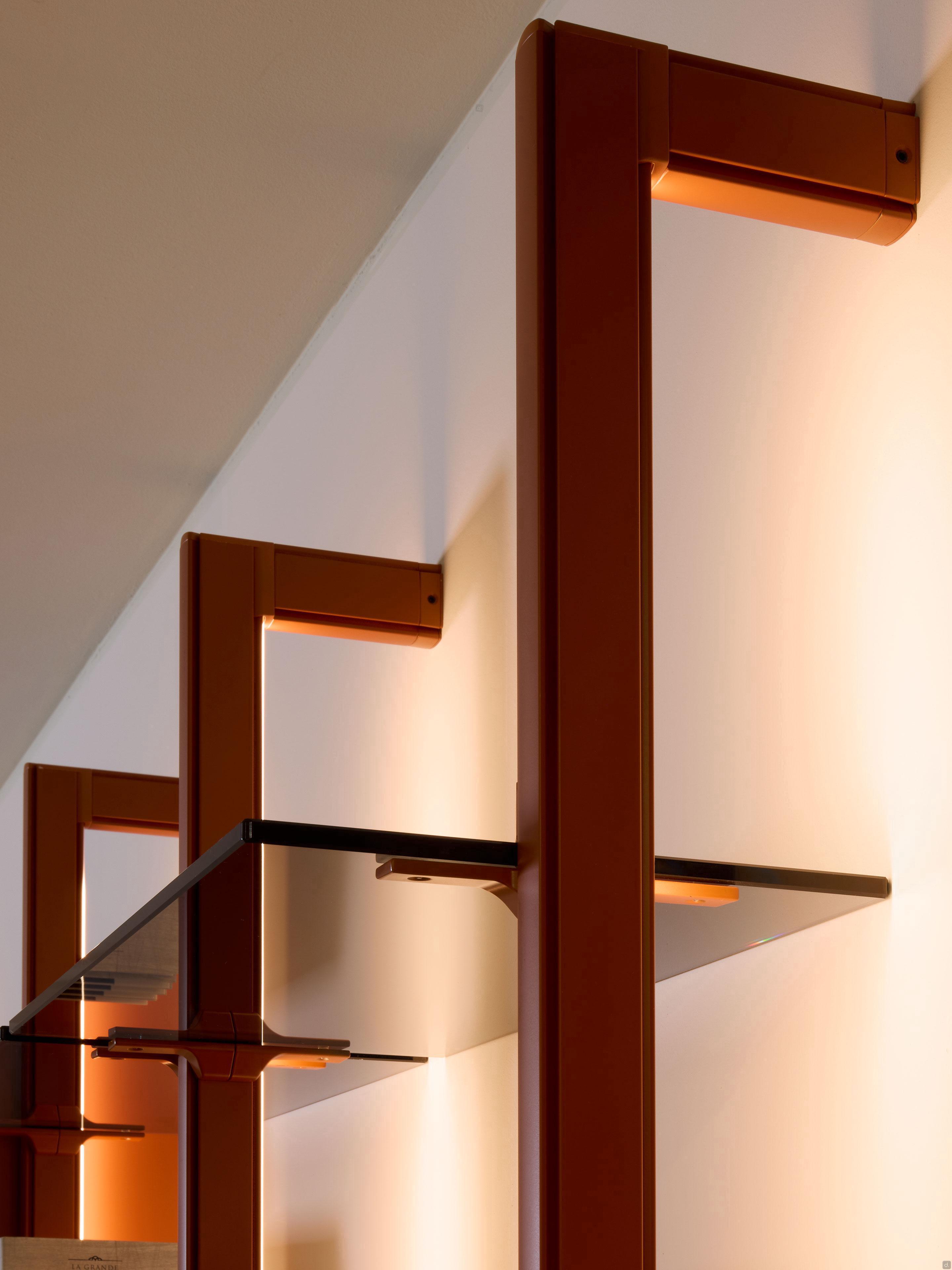

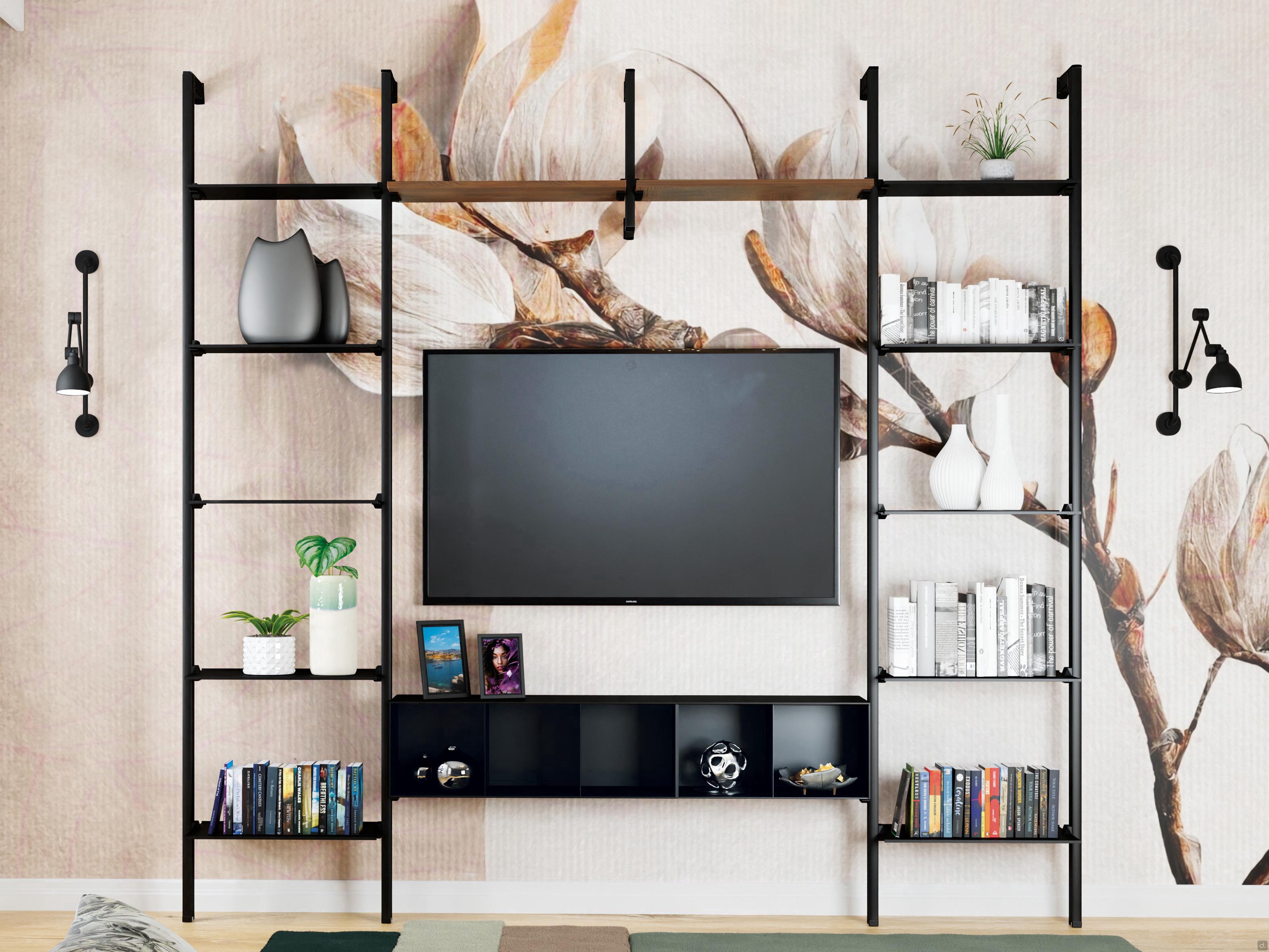

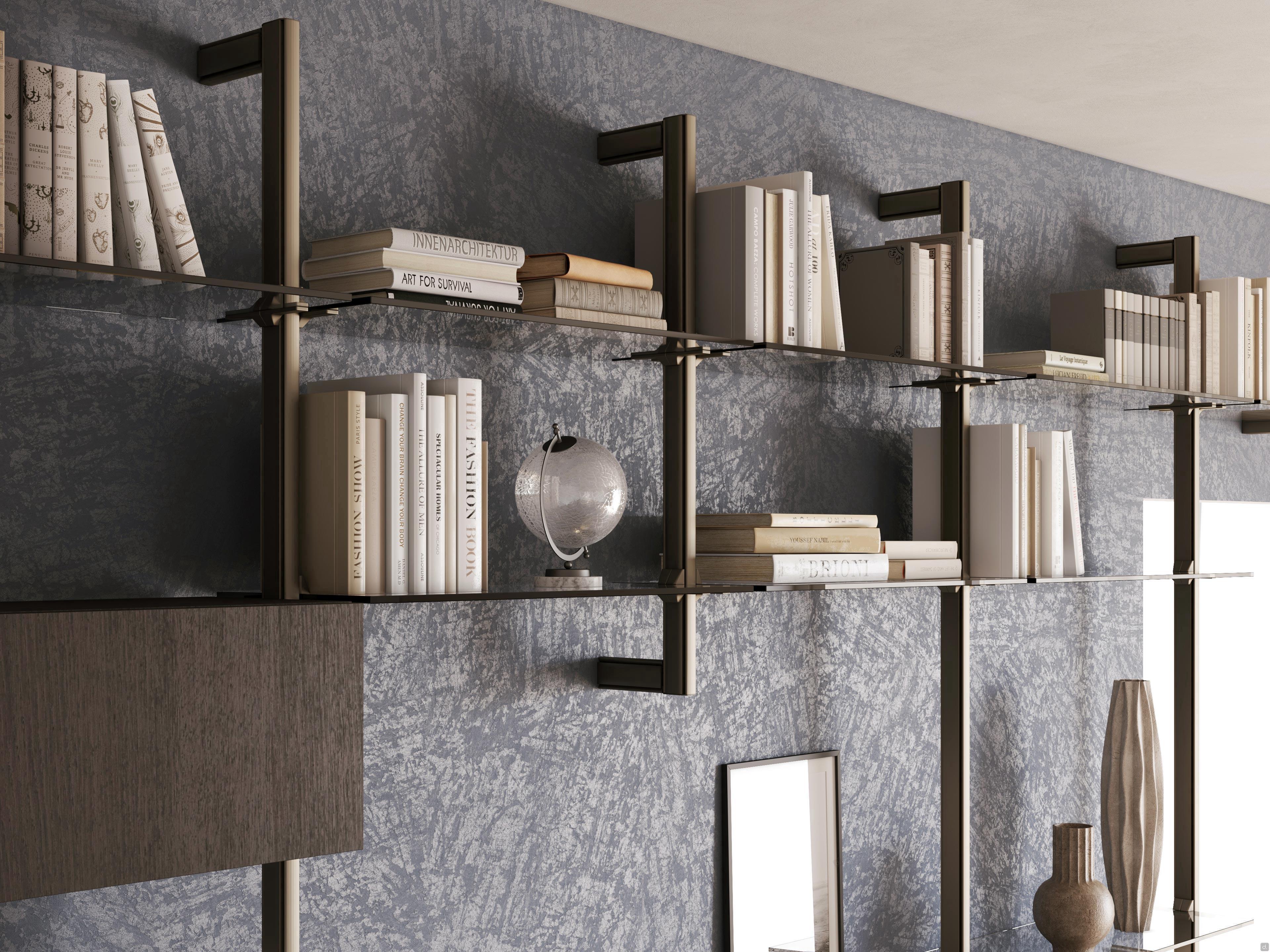

Floor / Wall Rods: cm 3 d.5,4 h. up to cm 300. The crosspiece for wall attachment has a variable depth depending on the depth of the shelves.
Floor / Ceiling Rods: cm 3 d.5,4 h. up to cm 307.
Suspended "C" shaped Support: cm 3 d.5,4 h. up to cm 150. The suspended fixing allows you to create entire wall compositions, or to place two shelves side by side to give the effect of a single large support surface.
Shelves:
- width: customised, up to cm 130 max
- depth: customised, between cm 25 and 36
- thickness: cm 1
Technical Specifications and Equipment

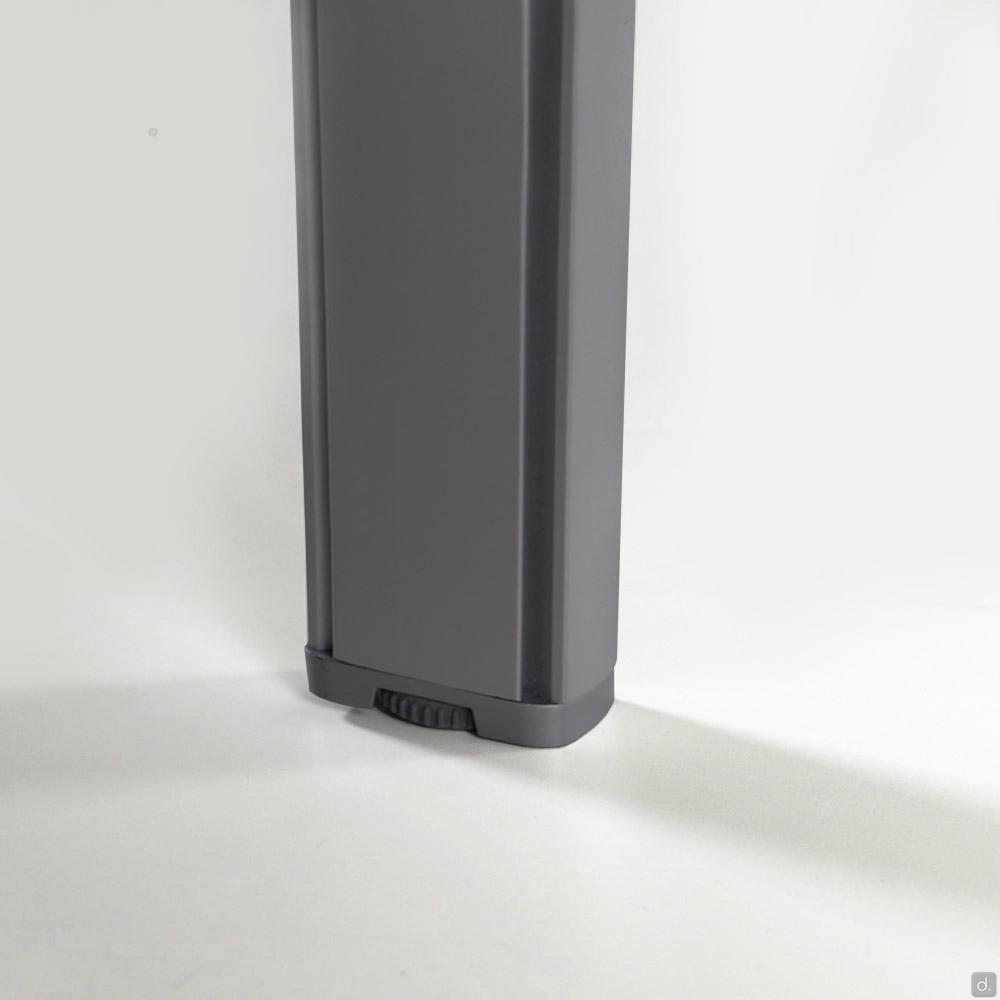

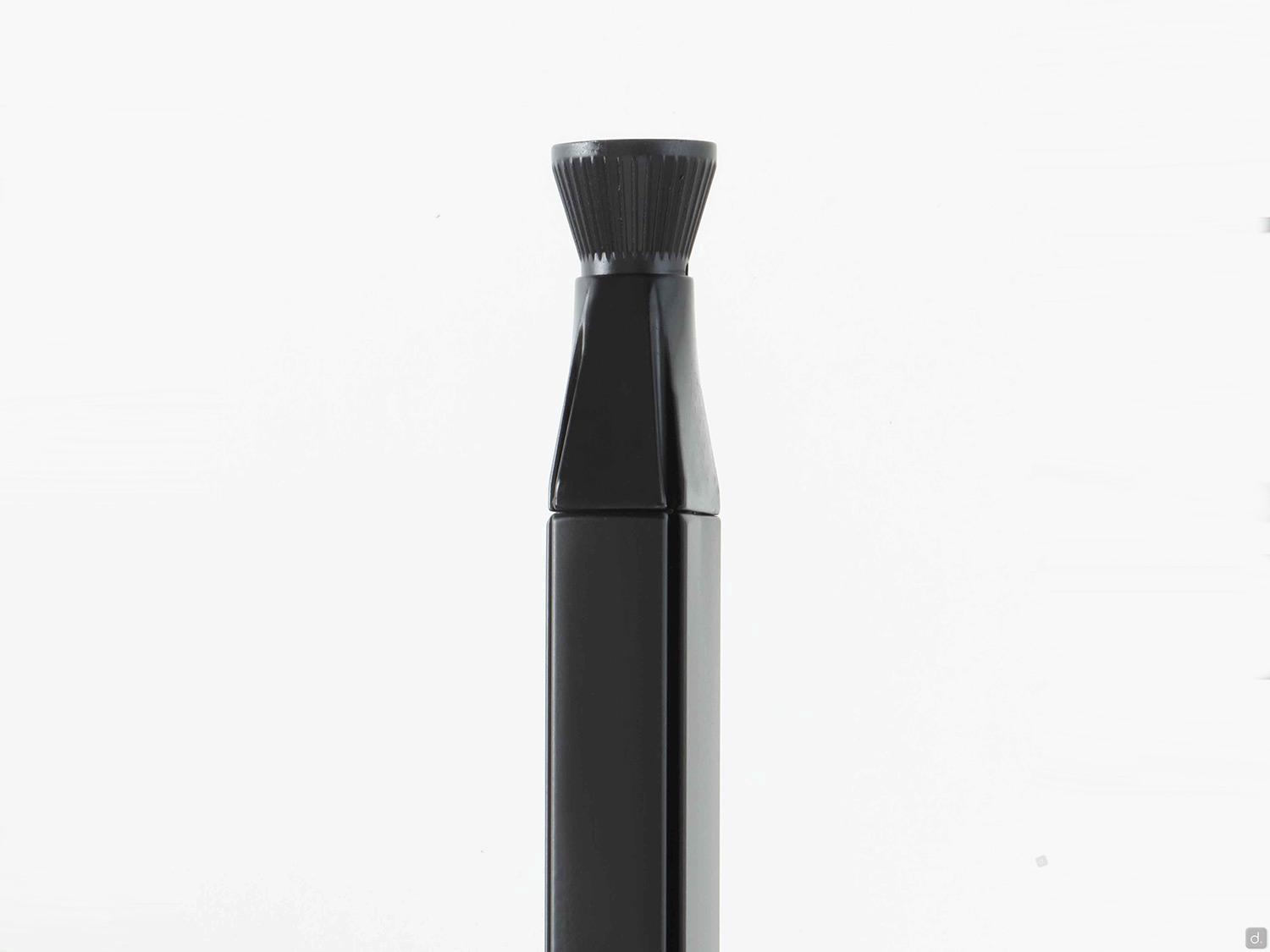

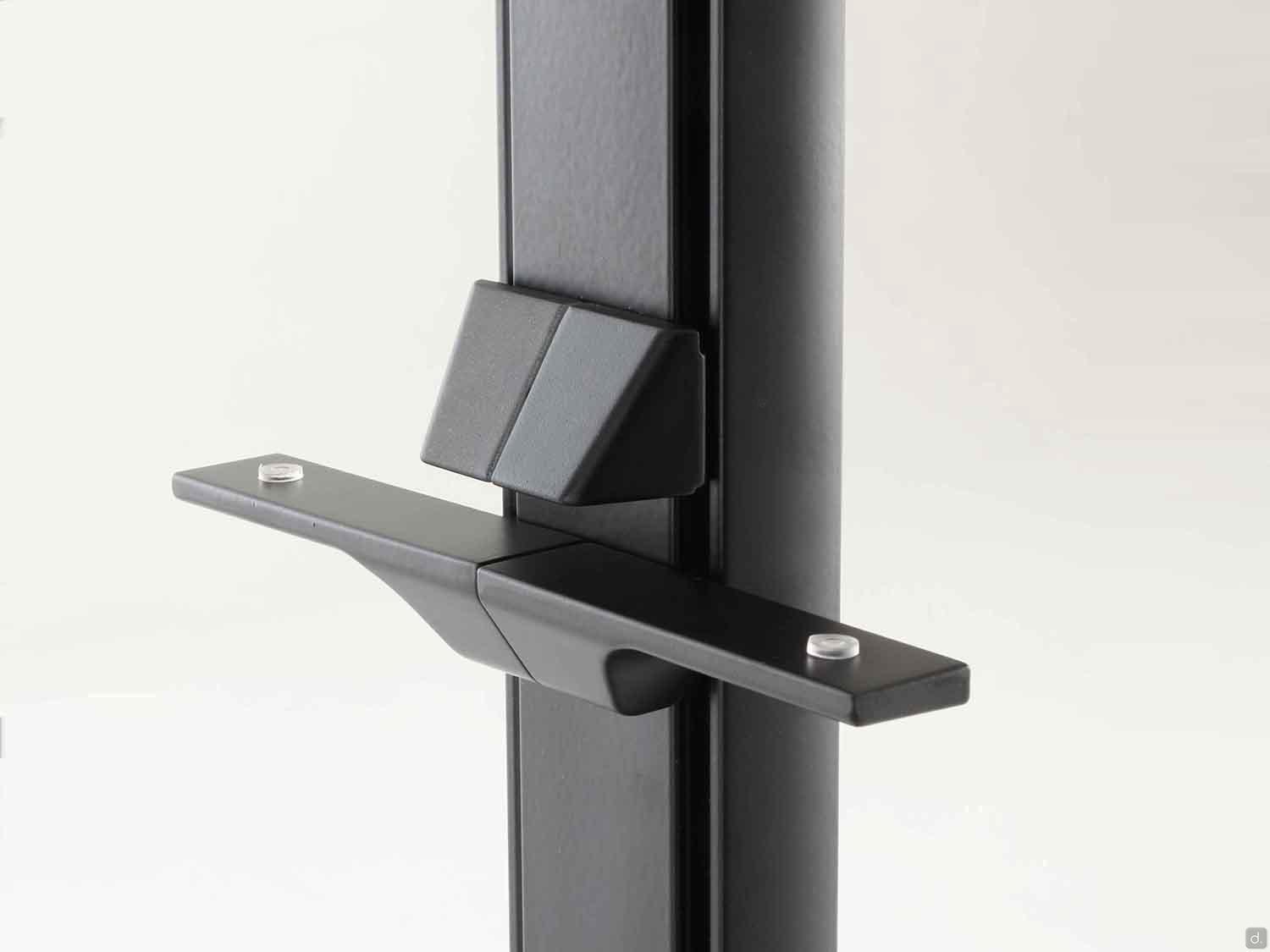

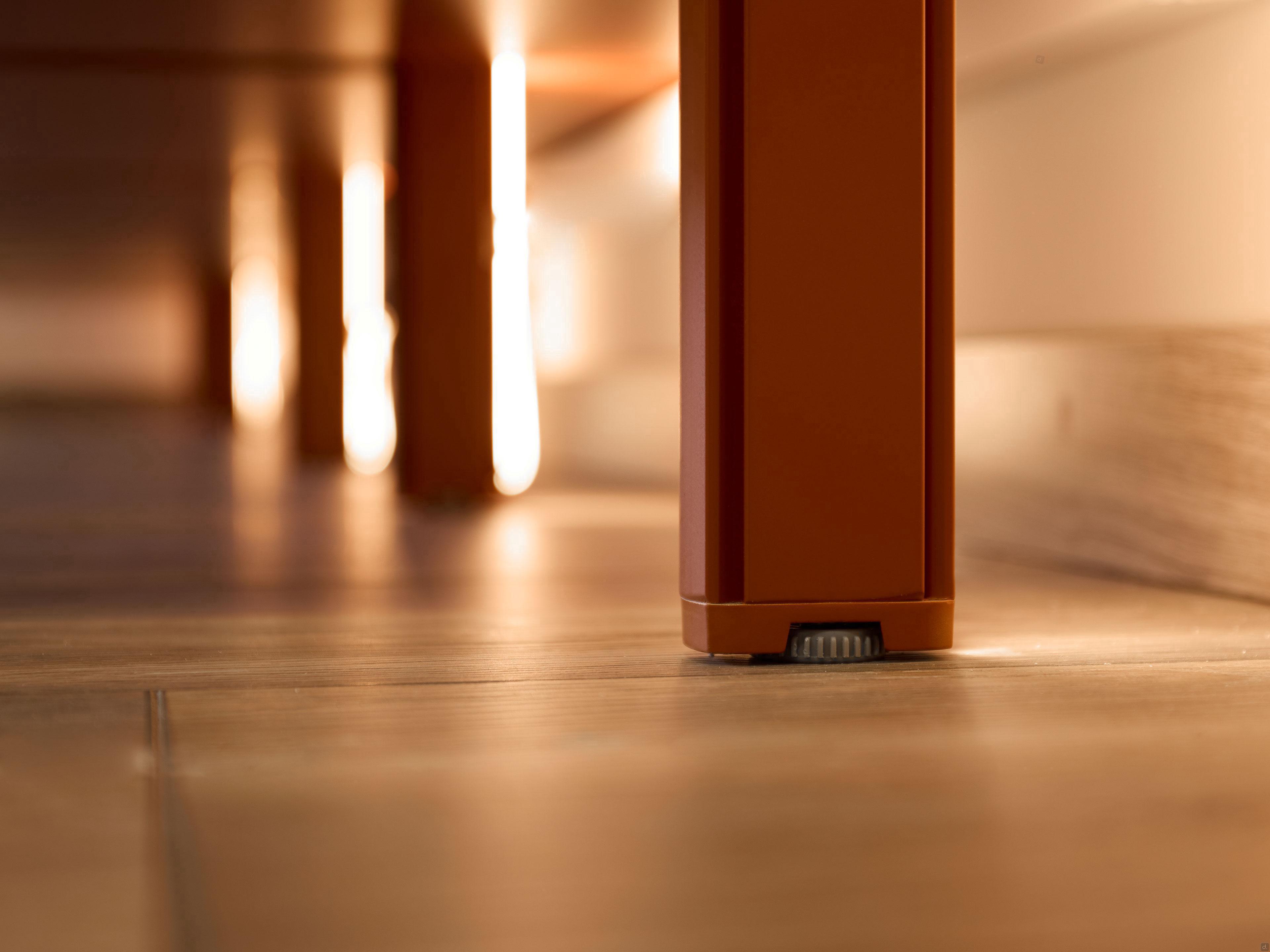

Rods: made of silver anodised or painted aluminium, also RAL lacquered. The side is shaped and has no holes, and is suitable for inserting zamak shelf supports for fixing shelves and drawers. They are complete with adjustable feet: the range is 1 cm.
In the floor/ceiling version, the rod is supplied with a height approximately 0.5 cm lower than the ceiling height indicated in the Configurator. The adjustment range of the feet (+1 cm for the lower foot, +1 cm for the upper foot) allows you to adjust the height for a perfect installation. For this reason, it is advisable to measure the height of your ceiling precisely at the point where the rod will be installed and enter the correct measurement in the Configurator. Example: for a ceiling height of 270 cm, the rod will be supplied with a height of approximately 269.5 cm, with height adjustment up to +2 cm.

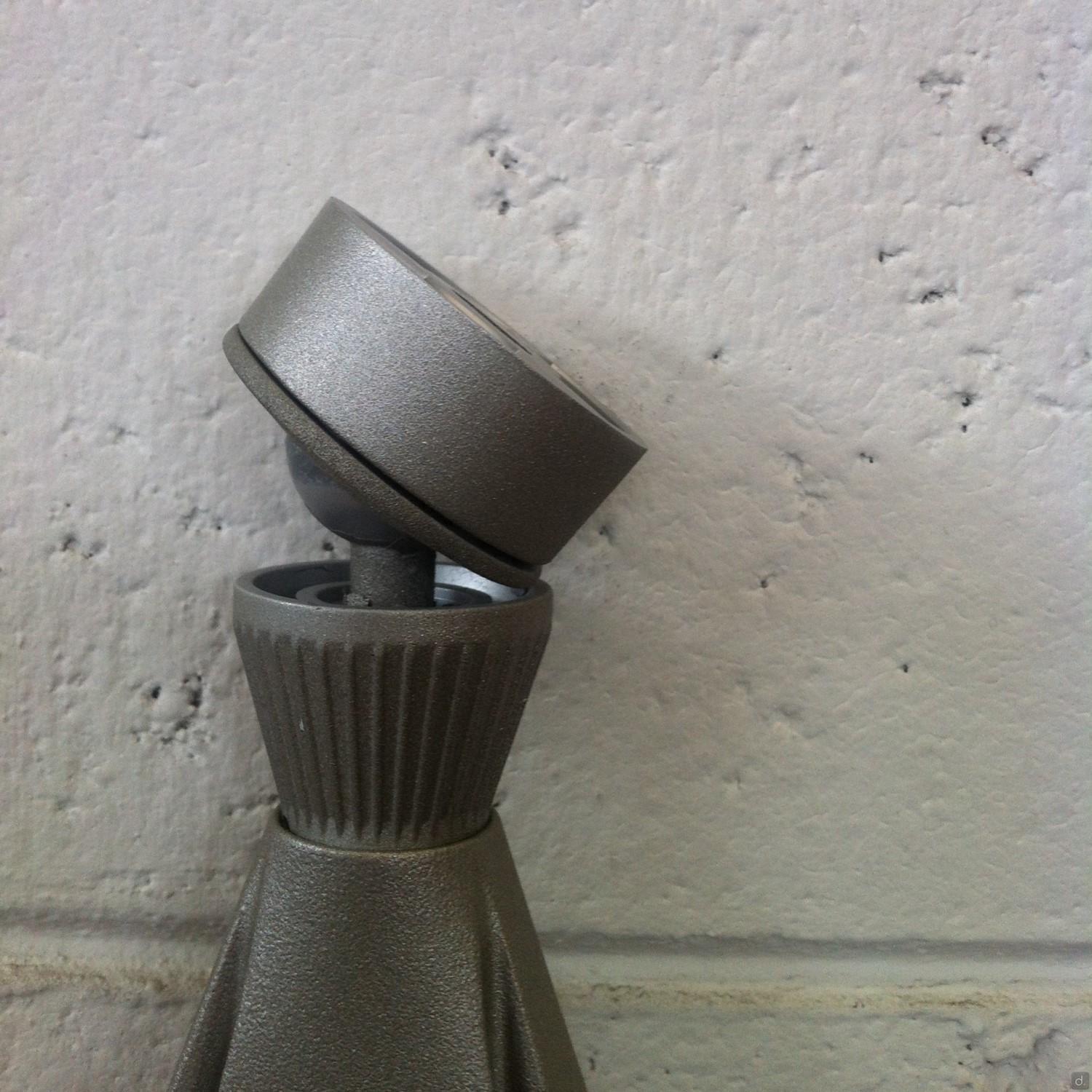

The rods are equipped with a safe and invisible wall / wall attachment. They are fixed to the wall or ceiling while they remain resting on the floor. In the floor / sloping ceiling version they are also equipped with an adapter: its inclination can be adjusted via a wheel and the rod can thus be adapted to any ceiling.

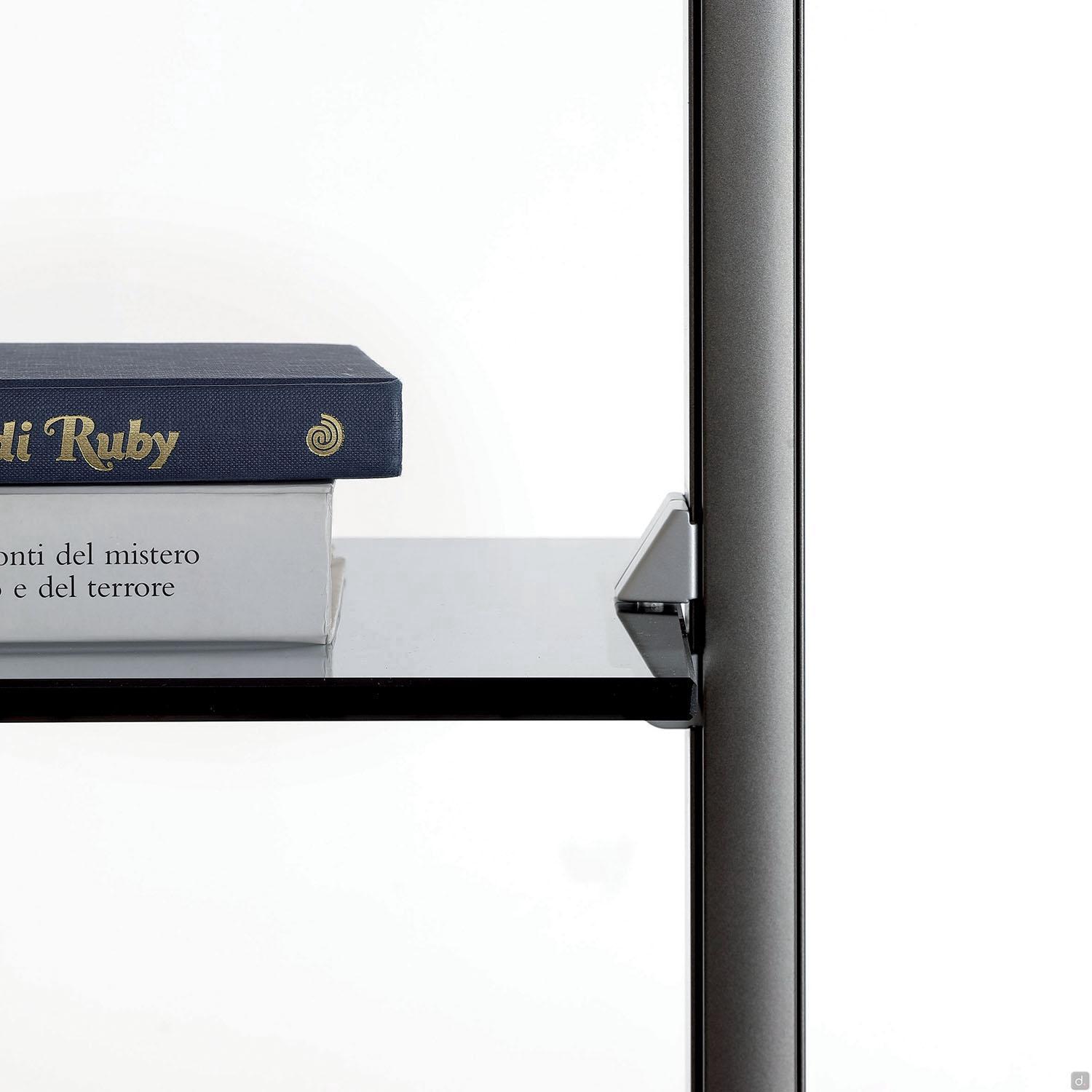

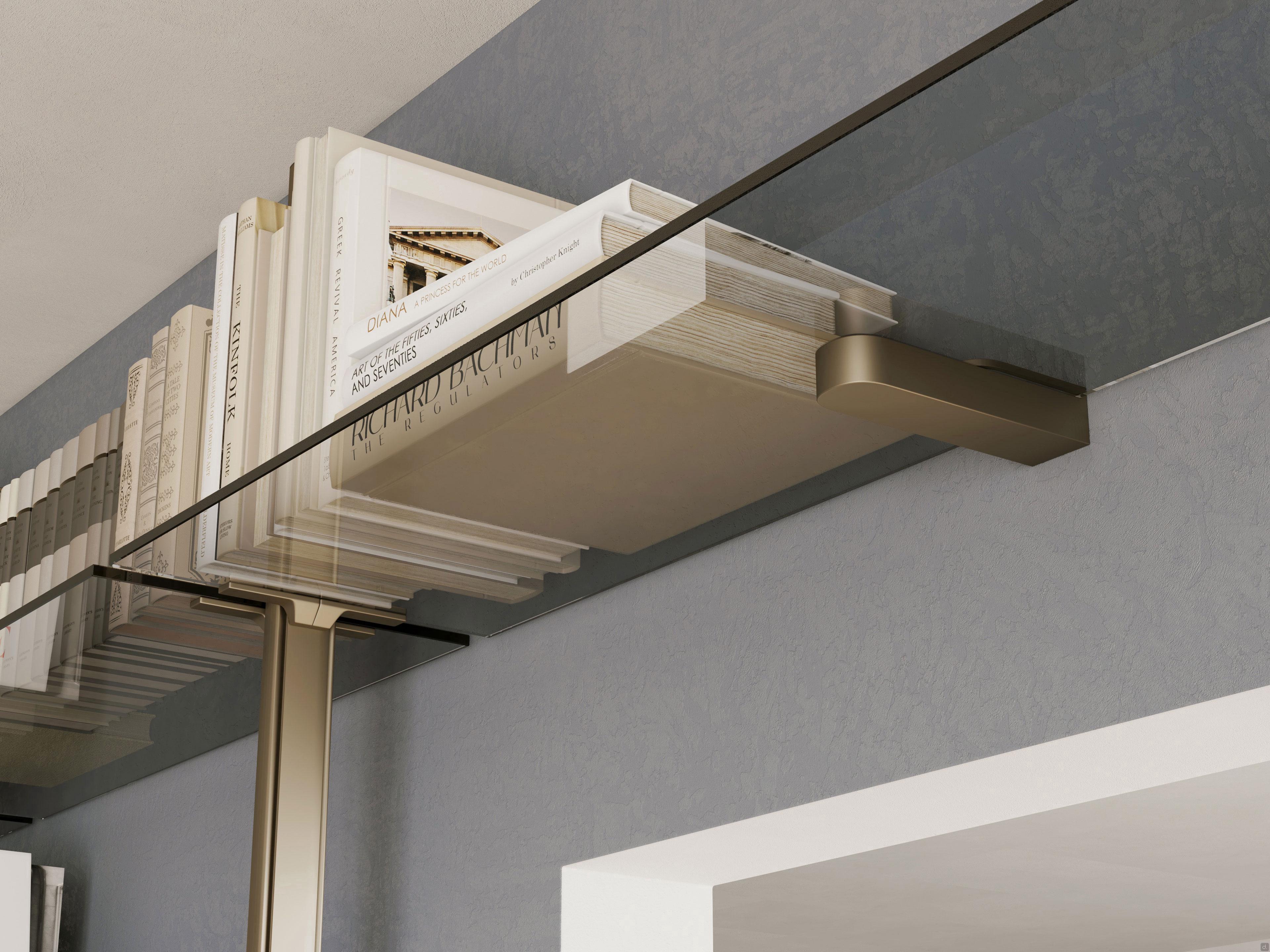

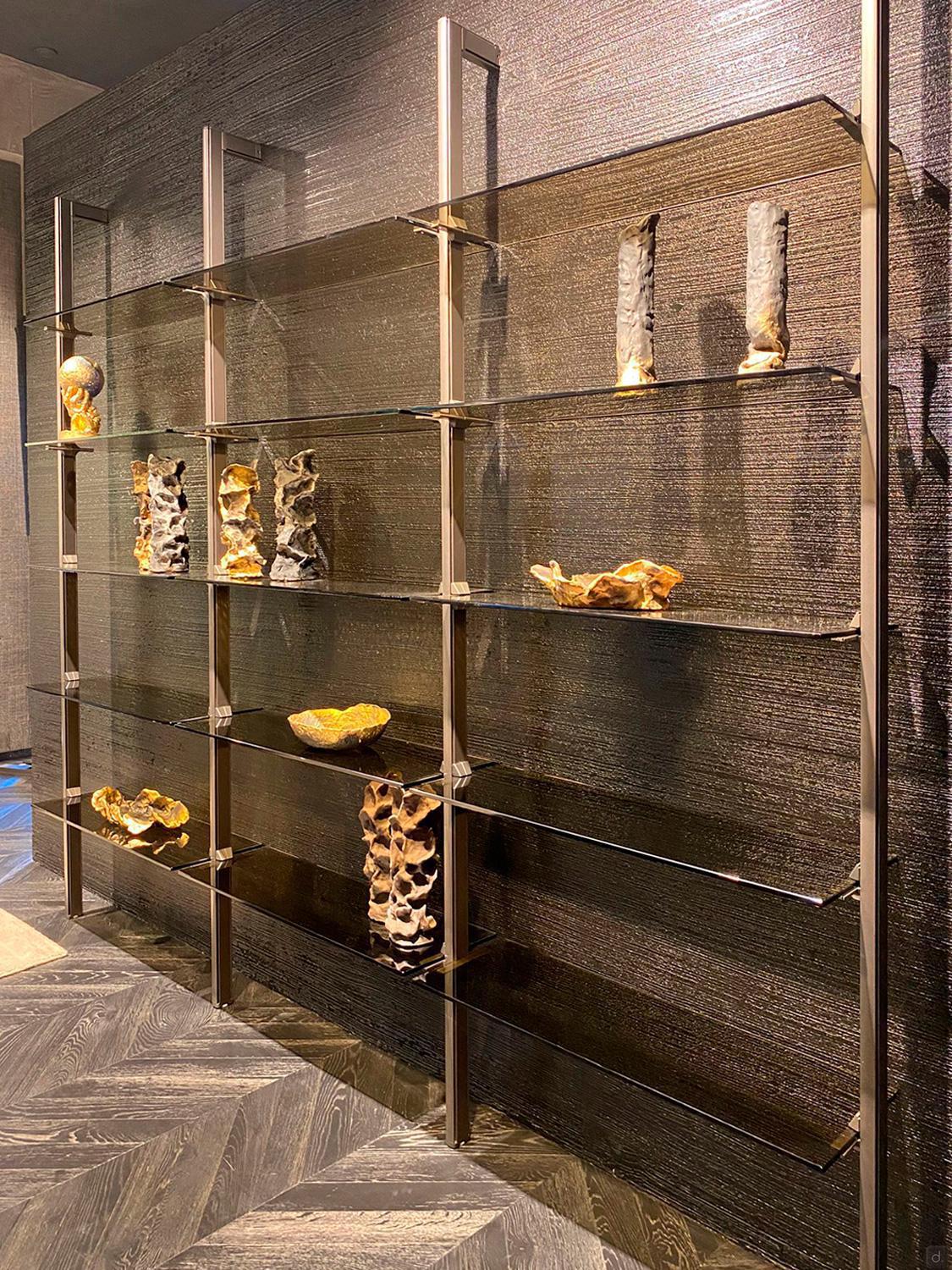

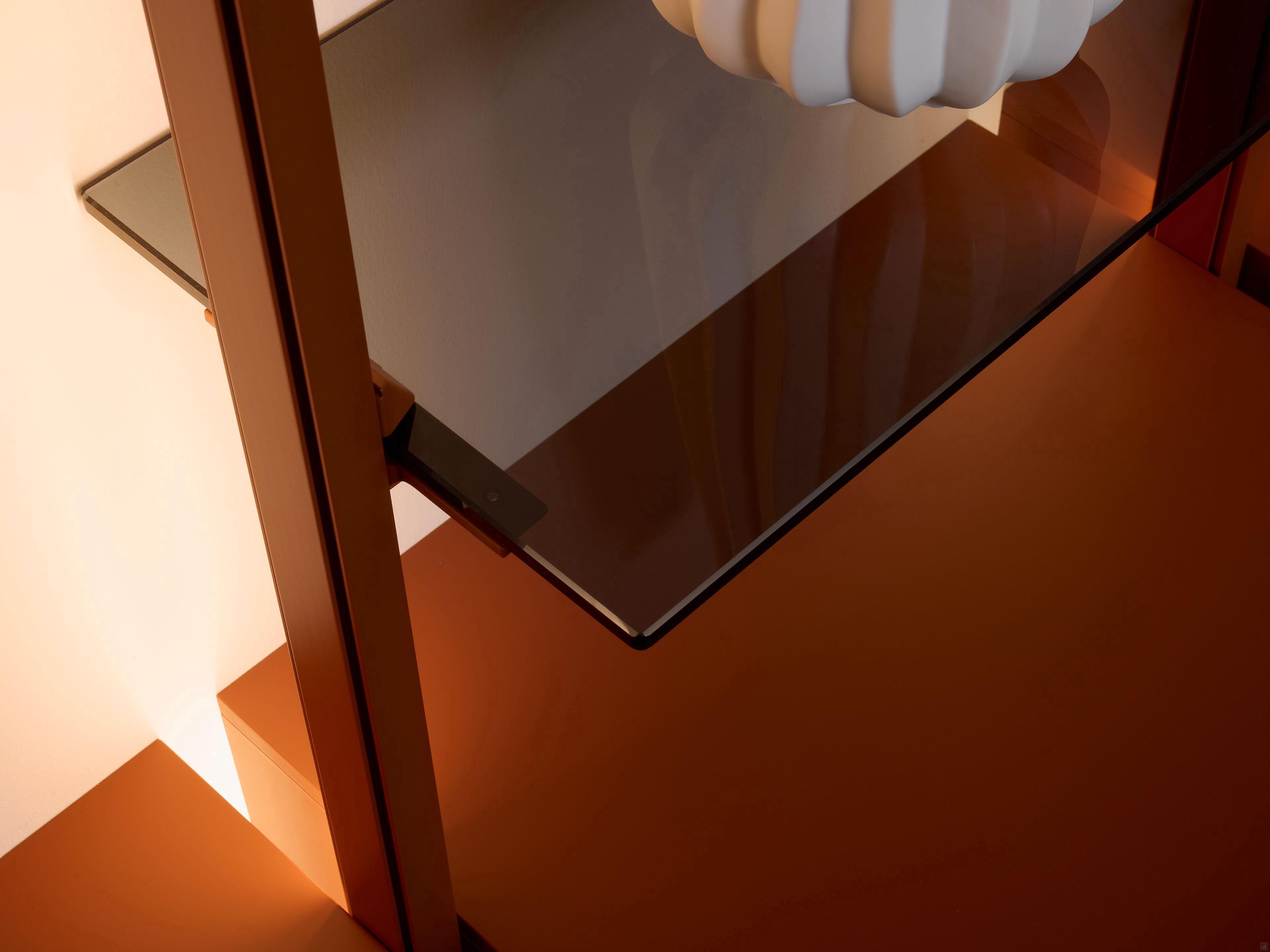

Linear Shelves: Linear shelves: made of transparent, coloured or back-lacquered glass (also in RAL colours); they are equipped with two metal supports matching the supporting rods.

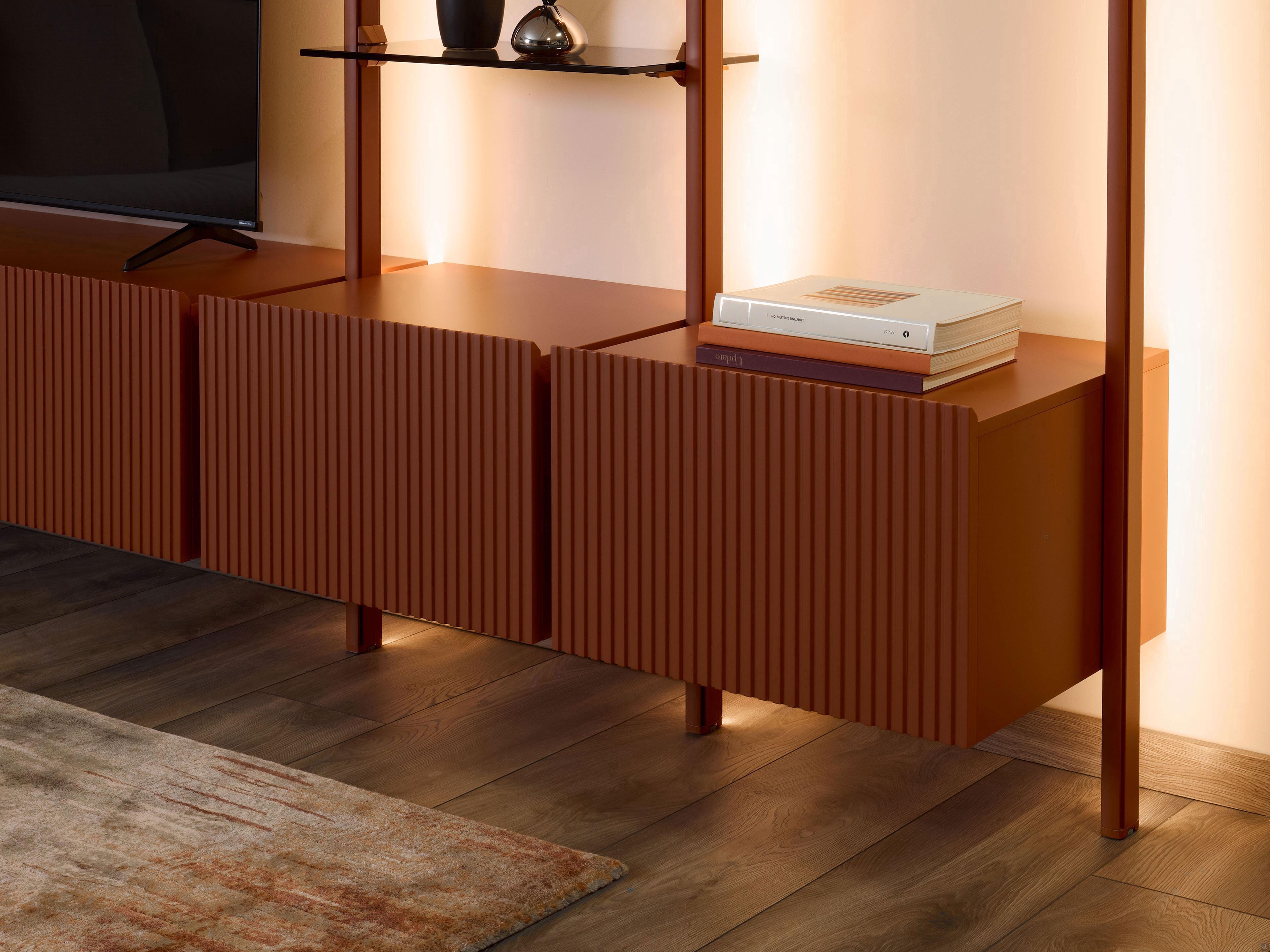

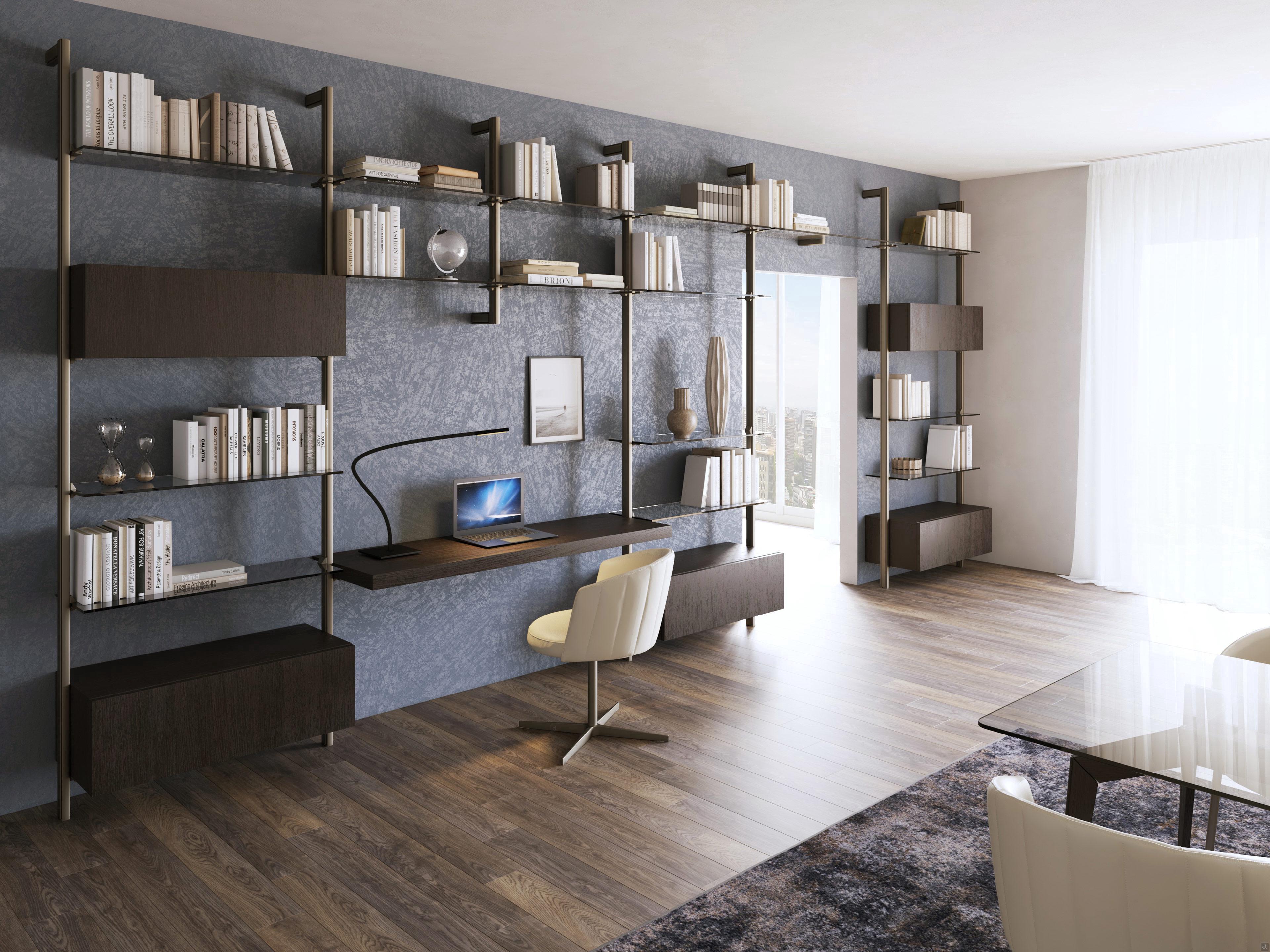

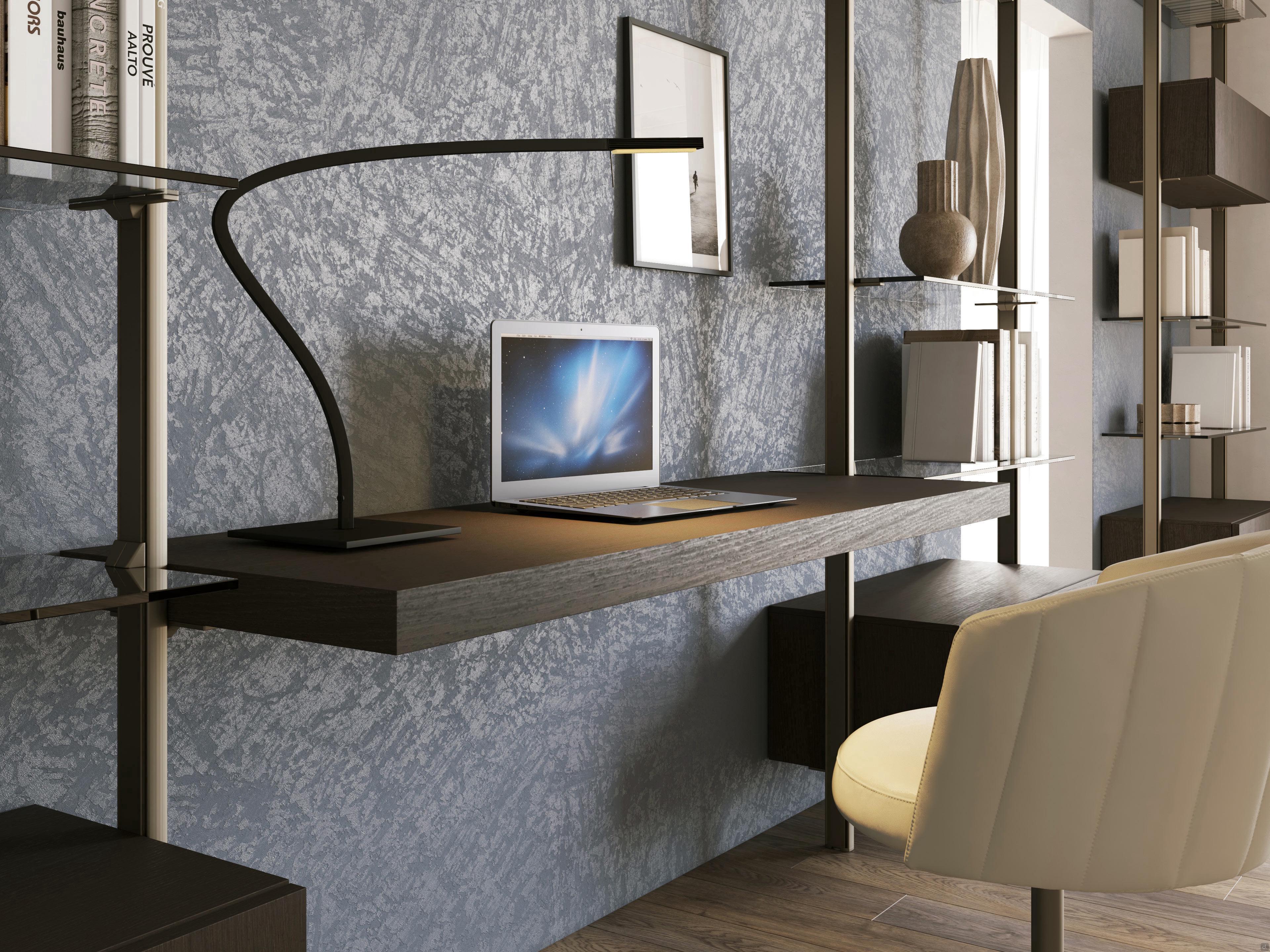

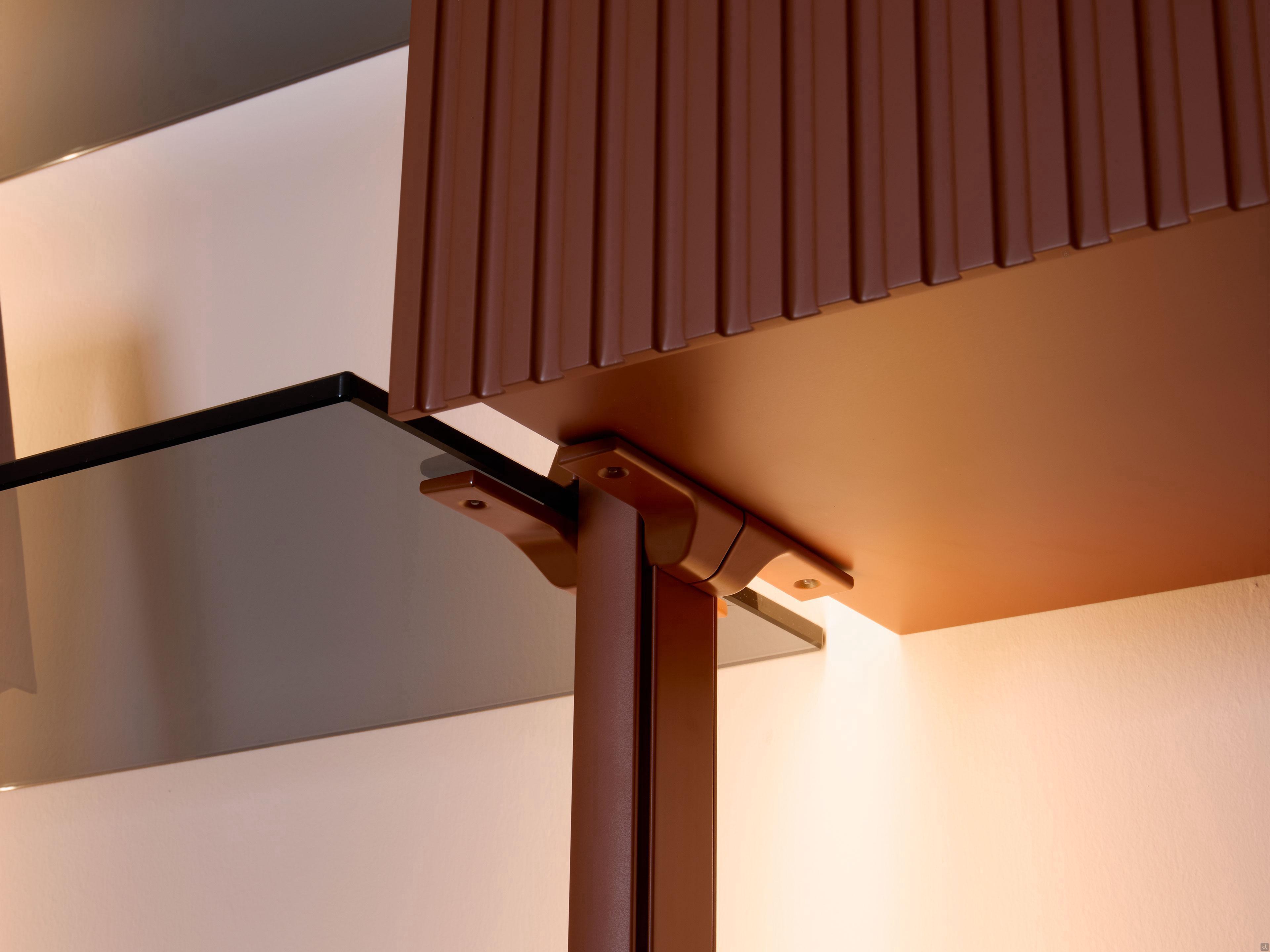

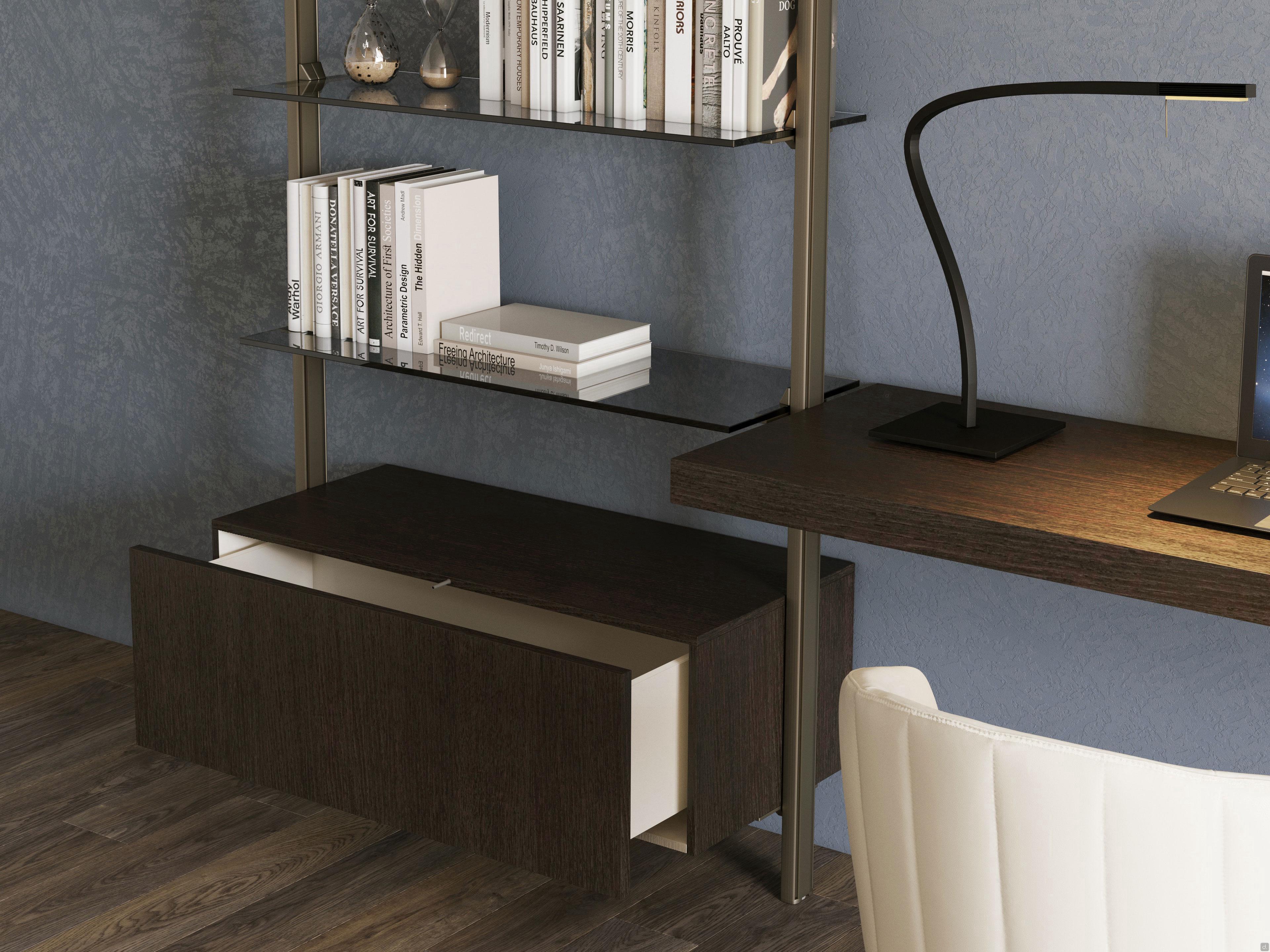

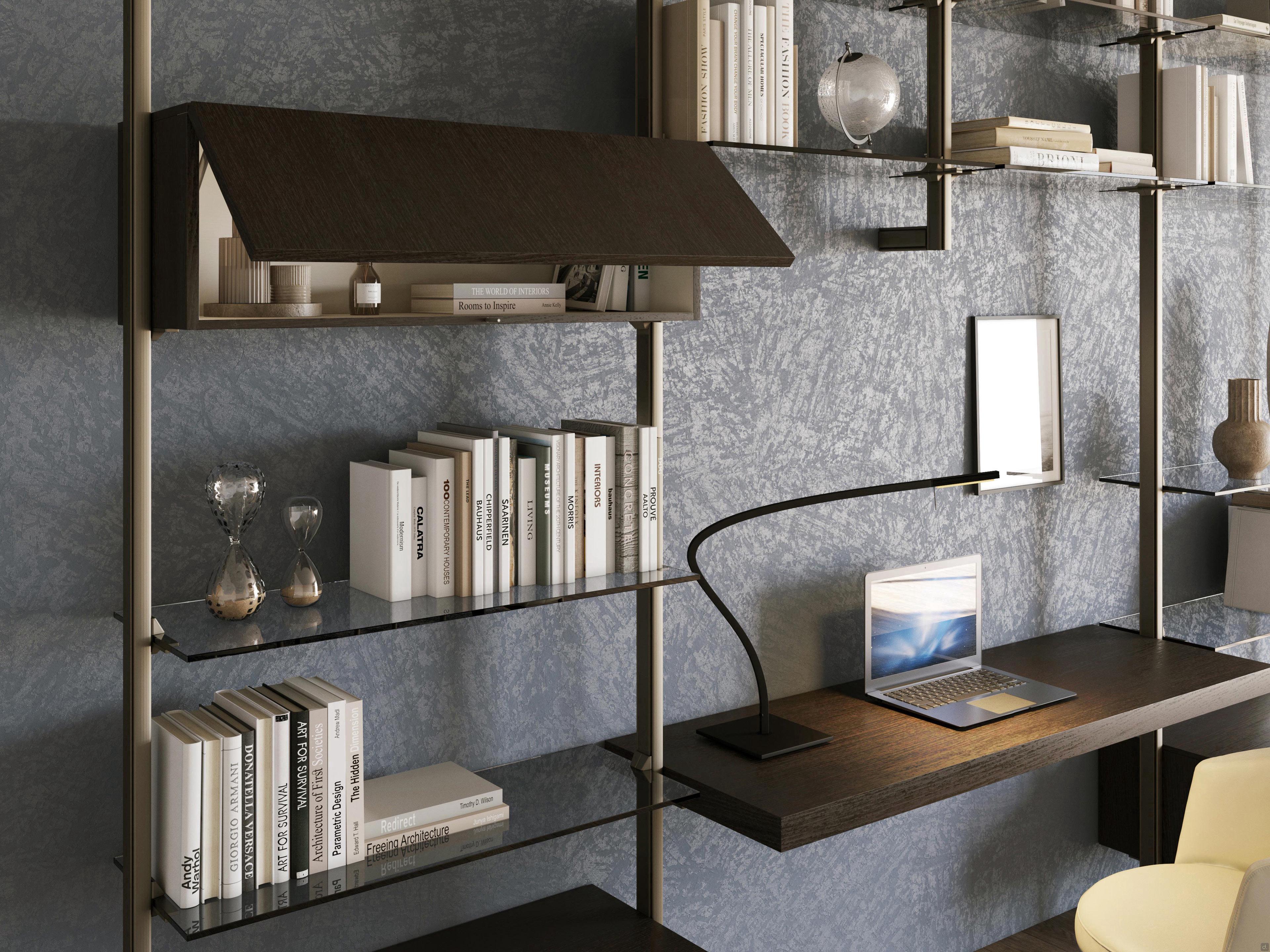

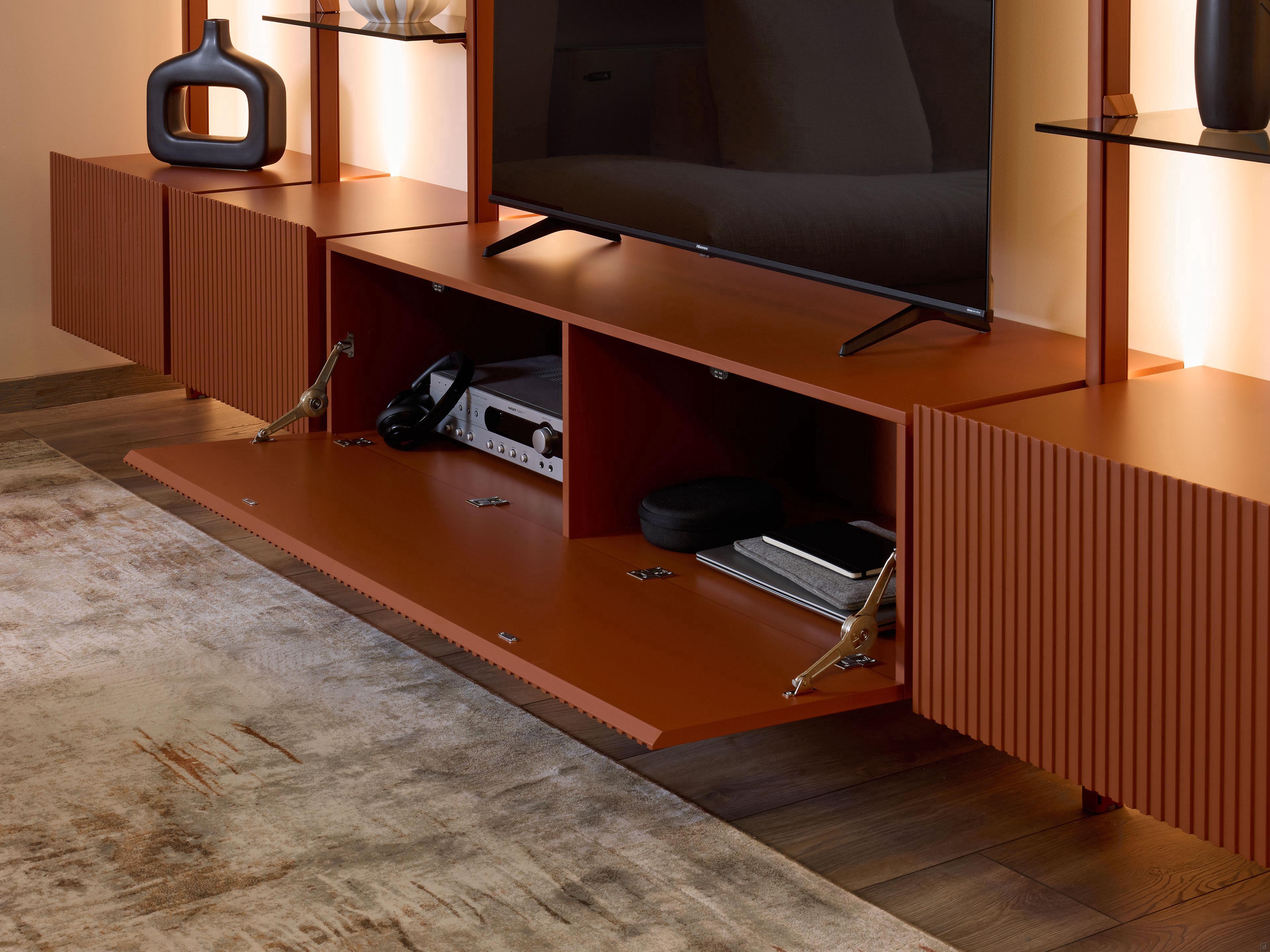

Cabinets / Desk Elements: the technical characteristics of each element are available on the dedicated product page. The cabinets and the desk must be fixed to the wall (with the appropriate hardware included) as well as to the bookcase rods. For this last operation, it is necessary to purchase the appropriate supports matching the rods (one pair for each container/desk included in the composition).
Optional

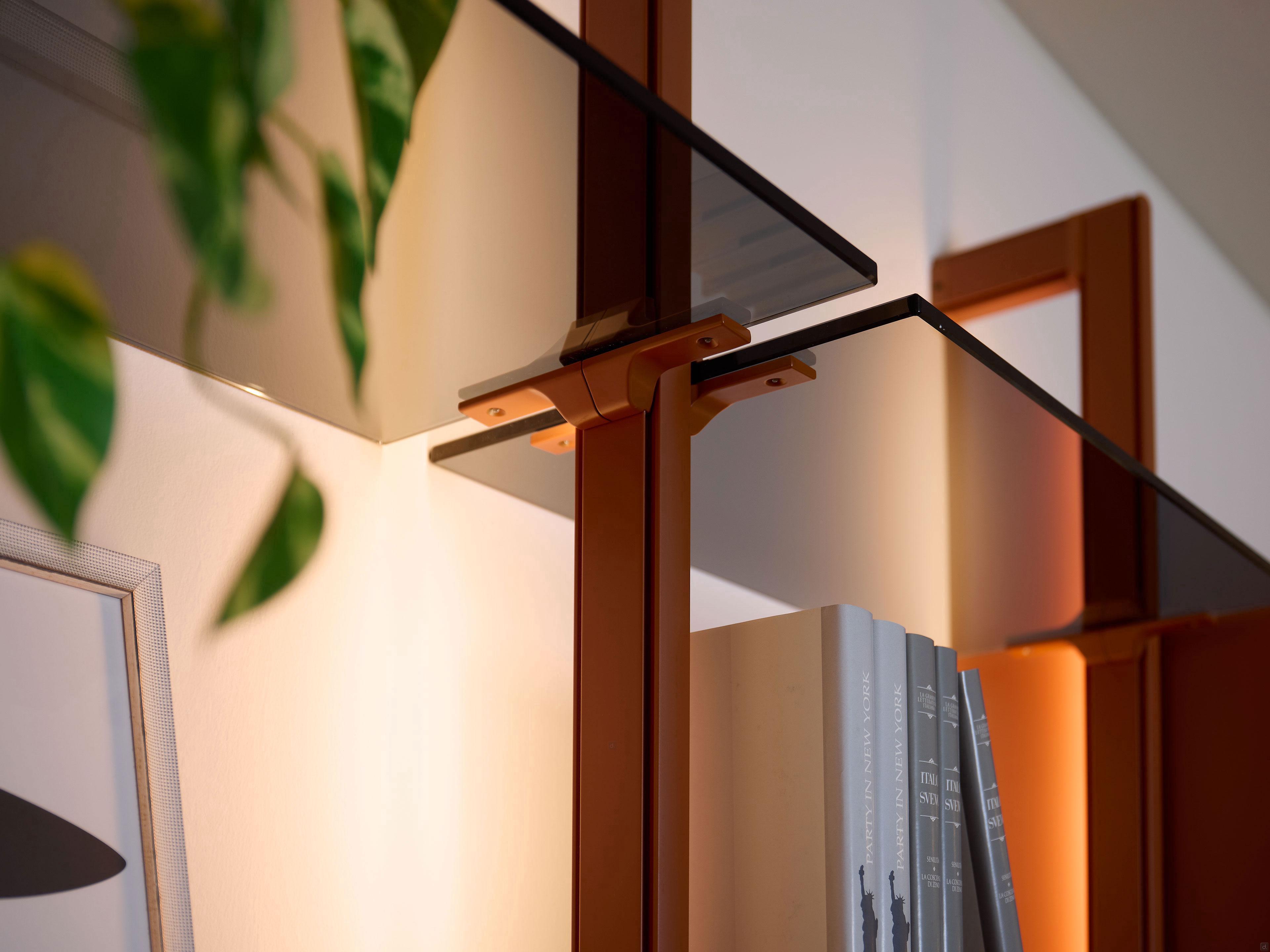

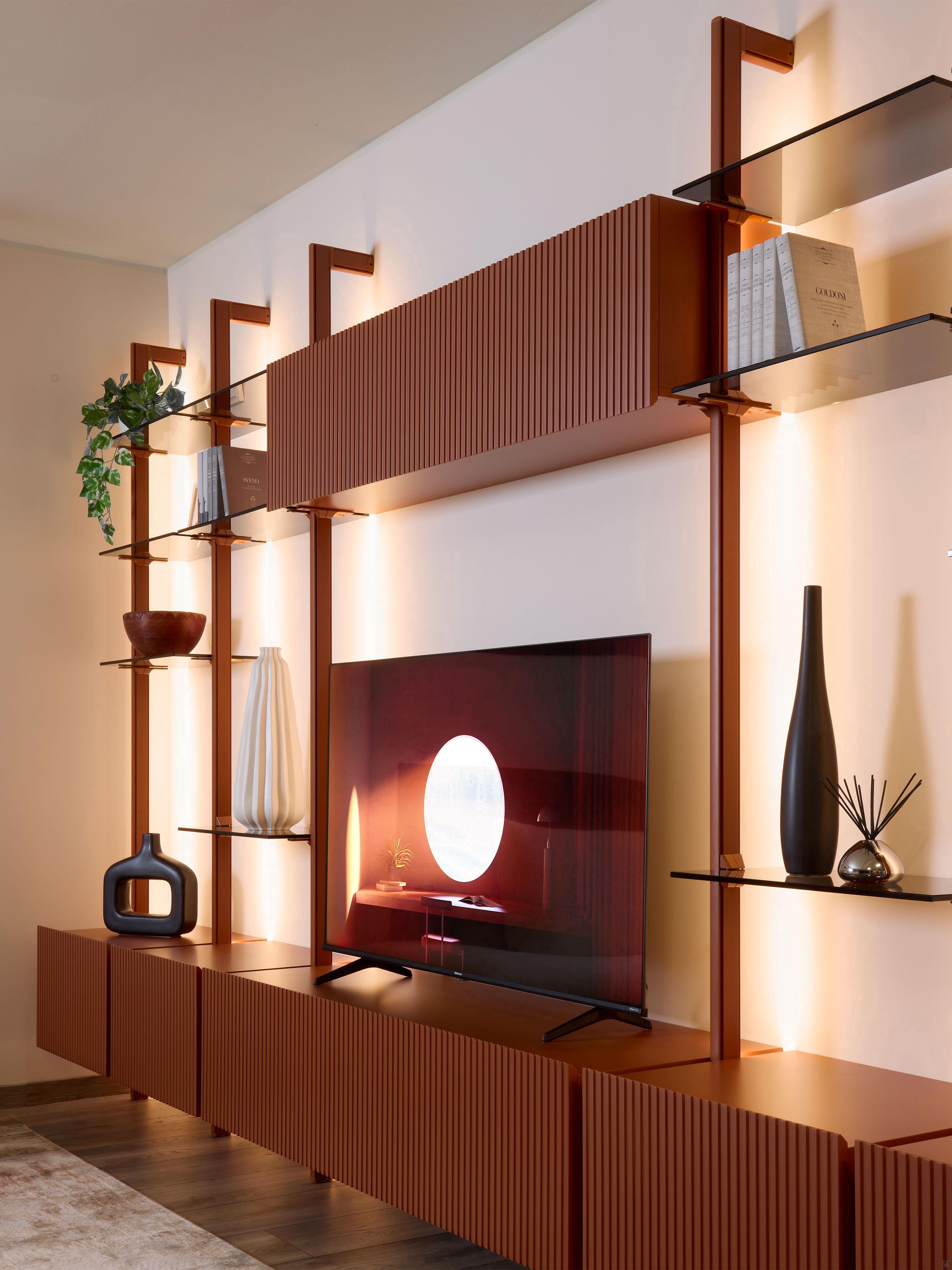

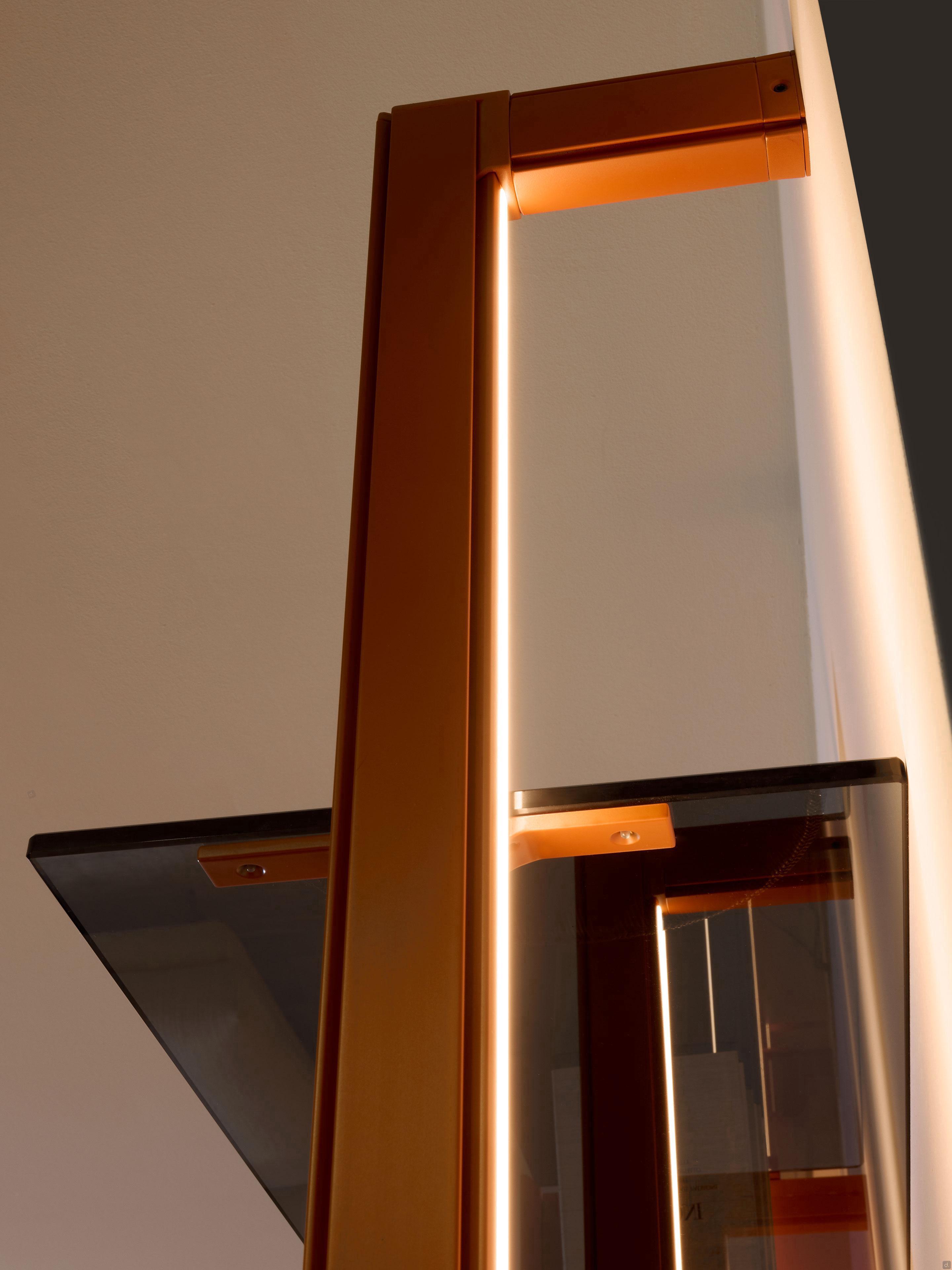

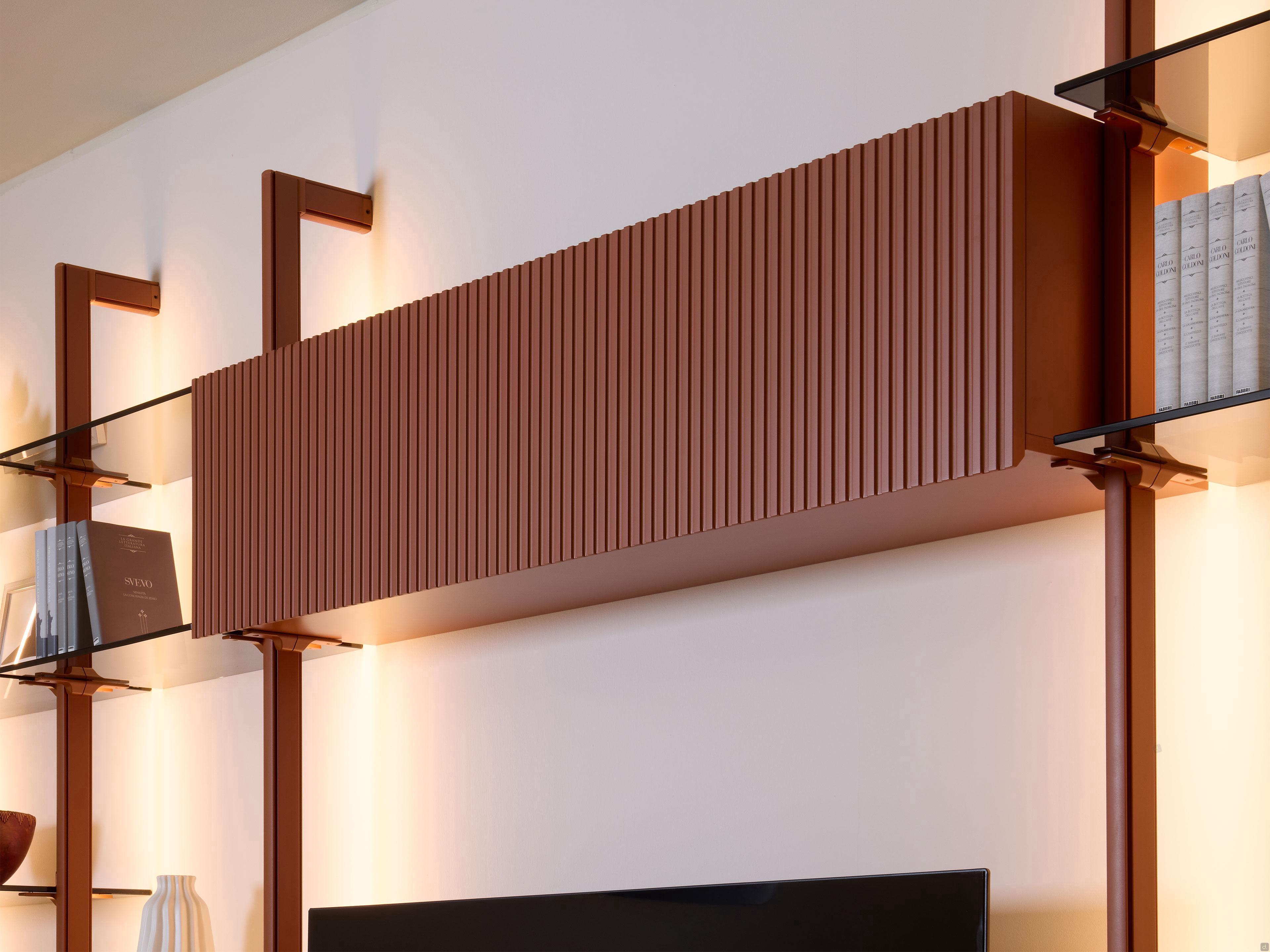

LED lighting: LED bar positioned vertically on the internal profile of the rod. The bars are supplied including a power supply unit: switching on and off is managed directly with the electrical system wall socket. 3000K-12V gradation LED. The LED power supply cables exit the rod at a height of 18 cm from the ground, with a transformer to be fixed to a container base or wooden shelf.
Assembly Tips
The rods are fixed to masonry walls or ceilings using screws and plugs included in the packages. They can also be fixed to plasterboard walls: in this case the appropriate hardware must be purchased separately.
For fixing the floor/wall rods, 10 cm in height is required to easily use the screwdriver.
