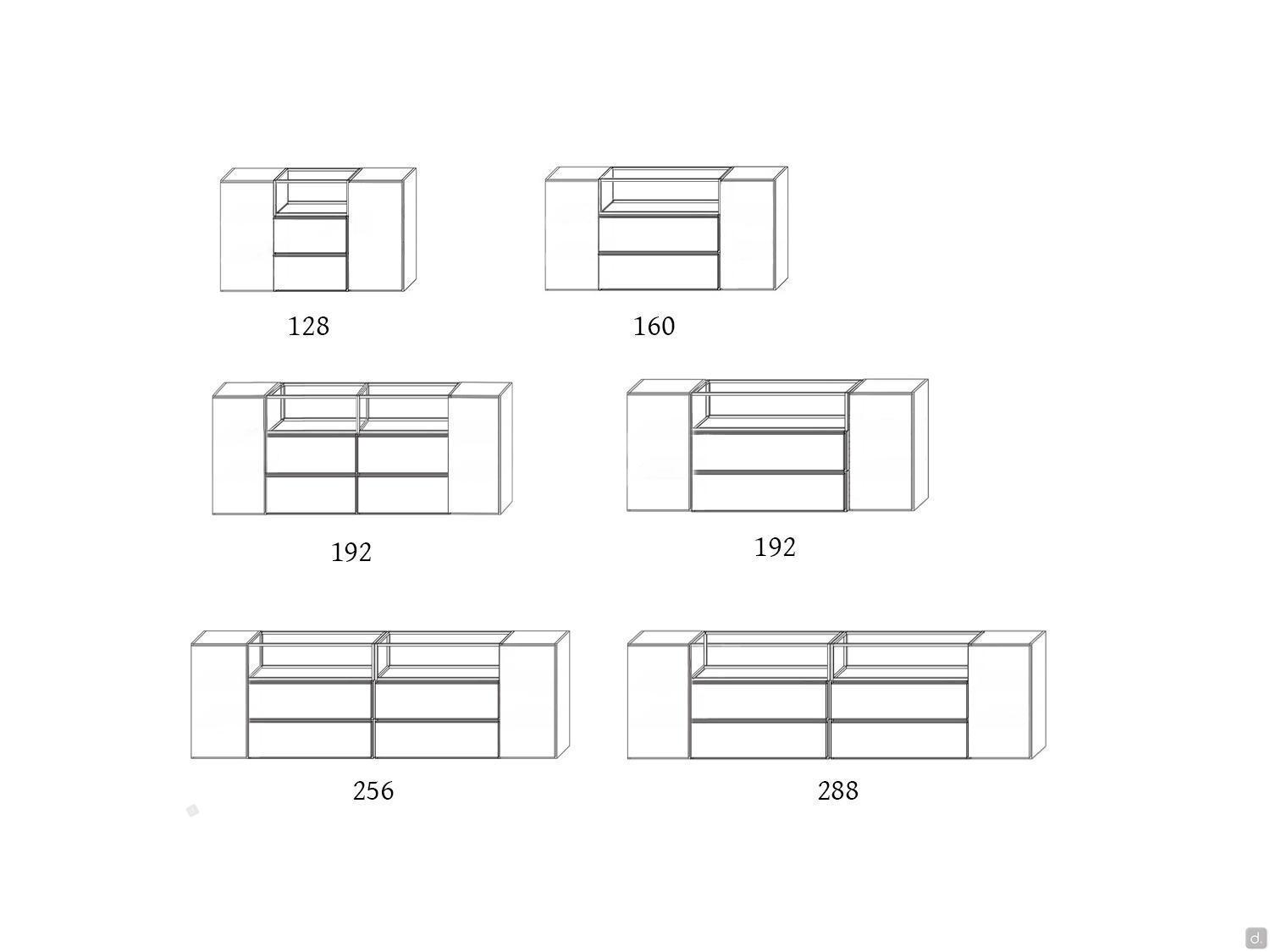

Measurement Specifications
128 h.96 d.44,2 cm:
- n.2 wooden wall units cm 32 h.96 d.32,6 with hinged door
- n.1 base unit cm 64 h.64 d.44,2 with drawers
- n.1 open wall unit cm 64 h.32 d.32 with metal frame and glass top
cm 160 h.96 d.44,2:
- n.2 wooden wall units cm 32 h.96 d.32,6 with hinged door
- n.1 base unit cm 96 h.64 d.44,2 with drawers
- n.1 open wall unit cm 96 h.32 d.32 with metal frame and glass top

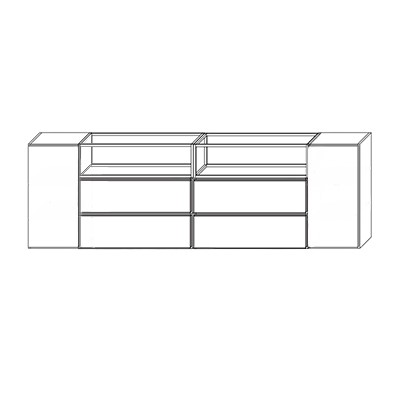

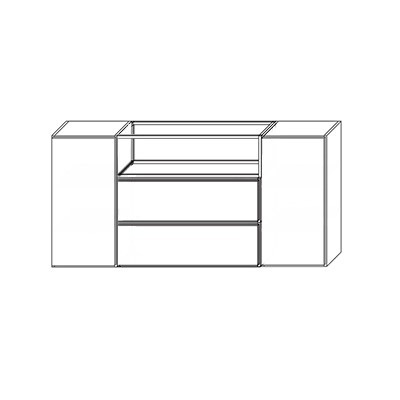

cm 192 h.96 d.44,2 with doors cm 32
- n.2 wooden wall units cm 32 h.96 d.32,6 with hinged door
- n.1 base unit cm 96 h.64 d.44,2 with drawers
- n.2 open wall units cm 64 h.32 d.32 with metal frame and glass top
cm 192 h.96 d.44,2 with doors cm 48
- n.2 wall units in wood cm 48 h.96 d.32,6 with hinged door
- n.2 wooden base units cm 64 h.64 d.44,2 with drawers
- n.1 open wall unit cm 96 h.32 d.32 with metal frame and glass top
cm 256 h.96 d.44,2:
- n.2 wall units in wood cm 32 h.96 d.32,6 with hinged door
- n.2 wooden base units cm 96 h.64 d.44,2 with drawers
- n.2 open wall units cm 96 h.32 d.32 with metal frame and glass top
cm 288 h.96 d.44,2:
- n.2 wall units in wood cm 48 h.96 d.32,6 with hinged door
- n.2 wooden base units cm 96 h.64 d.44,2 with drawers
- n.2 open wall units cm 96 h.32 d.32 with metal frame and glass top
Technical Specifications and Equipment
Base and wall unit structure: extralight E1 particle board panel veneered with real wood veneer or coated with polyester resin and lacquered. Visible edges in real wood veneer, thickness 0.1 cm, or lacquered polyester resin, thickness 0.1 cm. The Compact mdf containers are made of recycled eucalyptus microparticle panel coloured with organic E1 water-repellent colours. The backs are made of slate lacquered mdf.

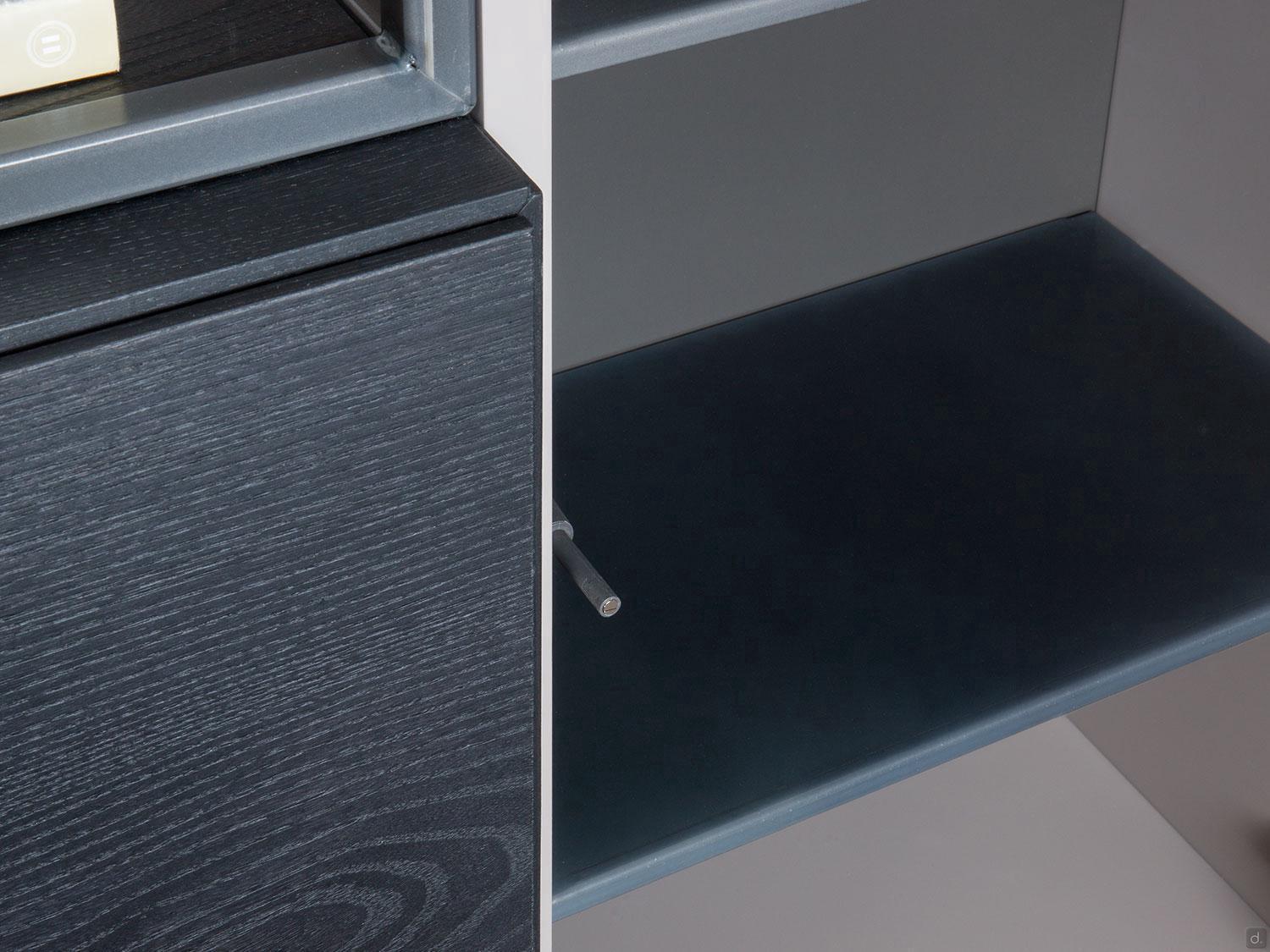

Internal shelves Wall units with Door: in 0.8 cm thick glass (internal shelves in sheet metal not available).

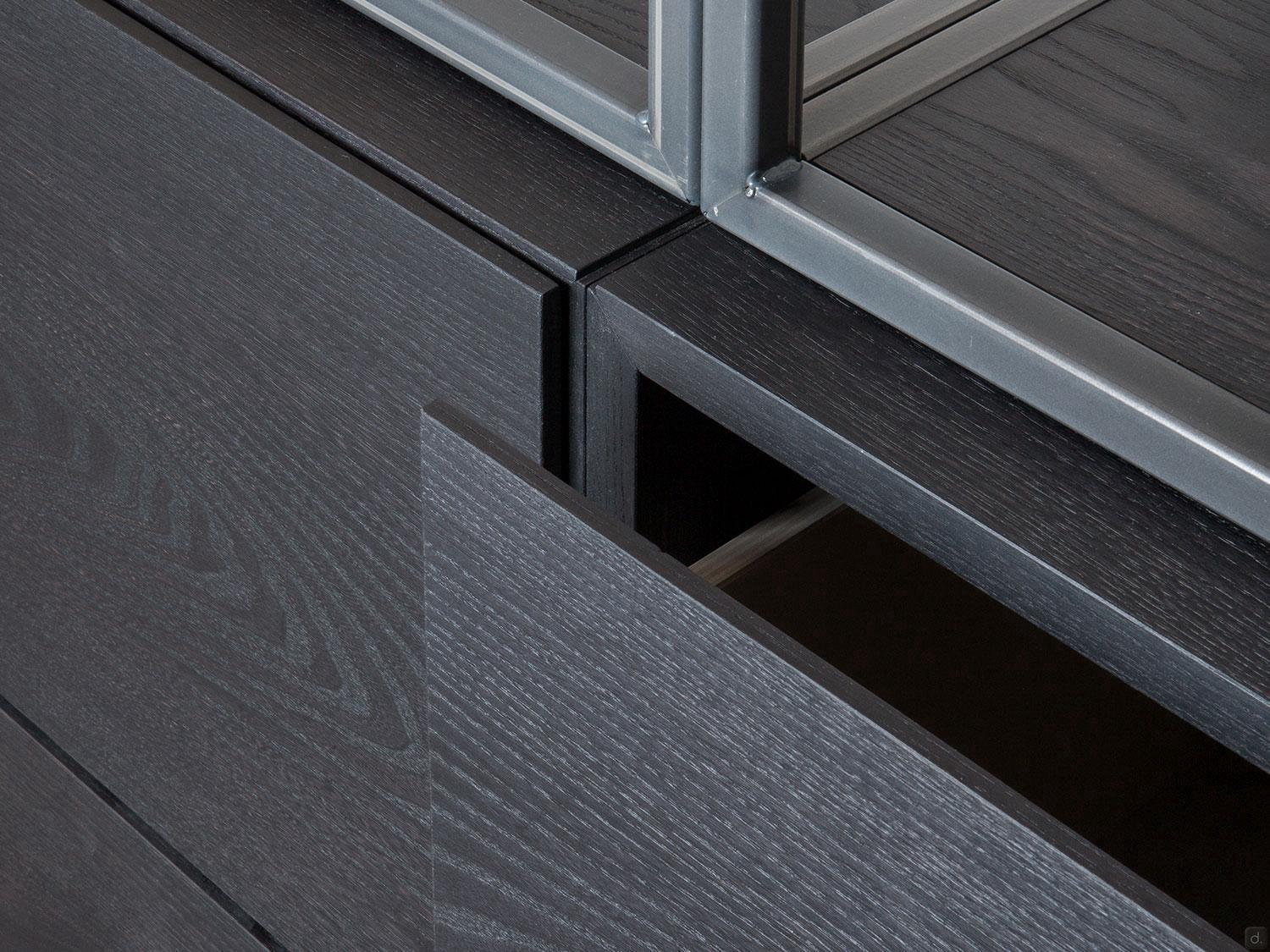

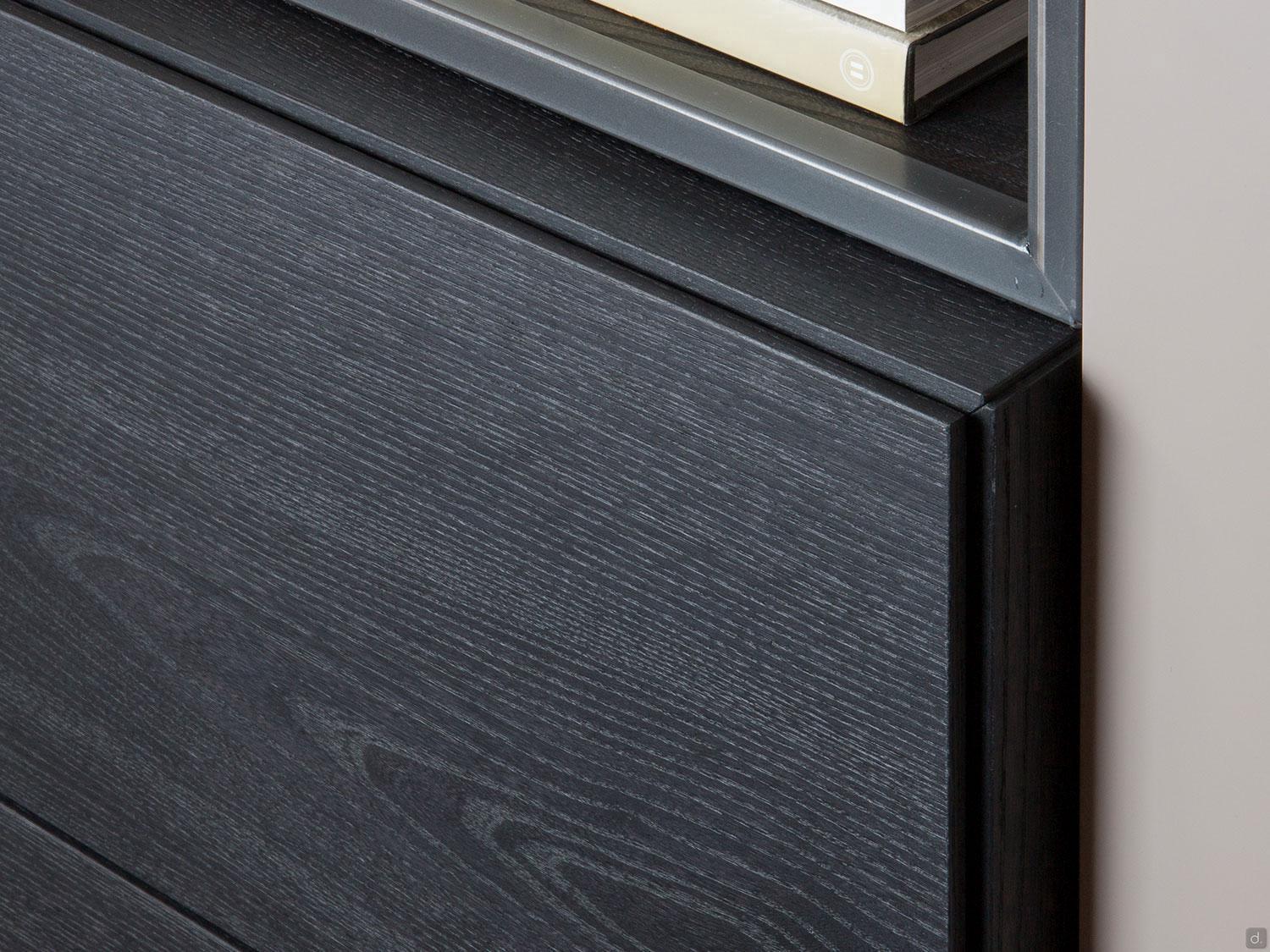

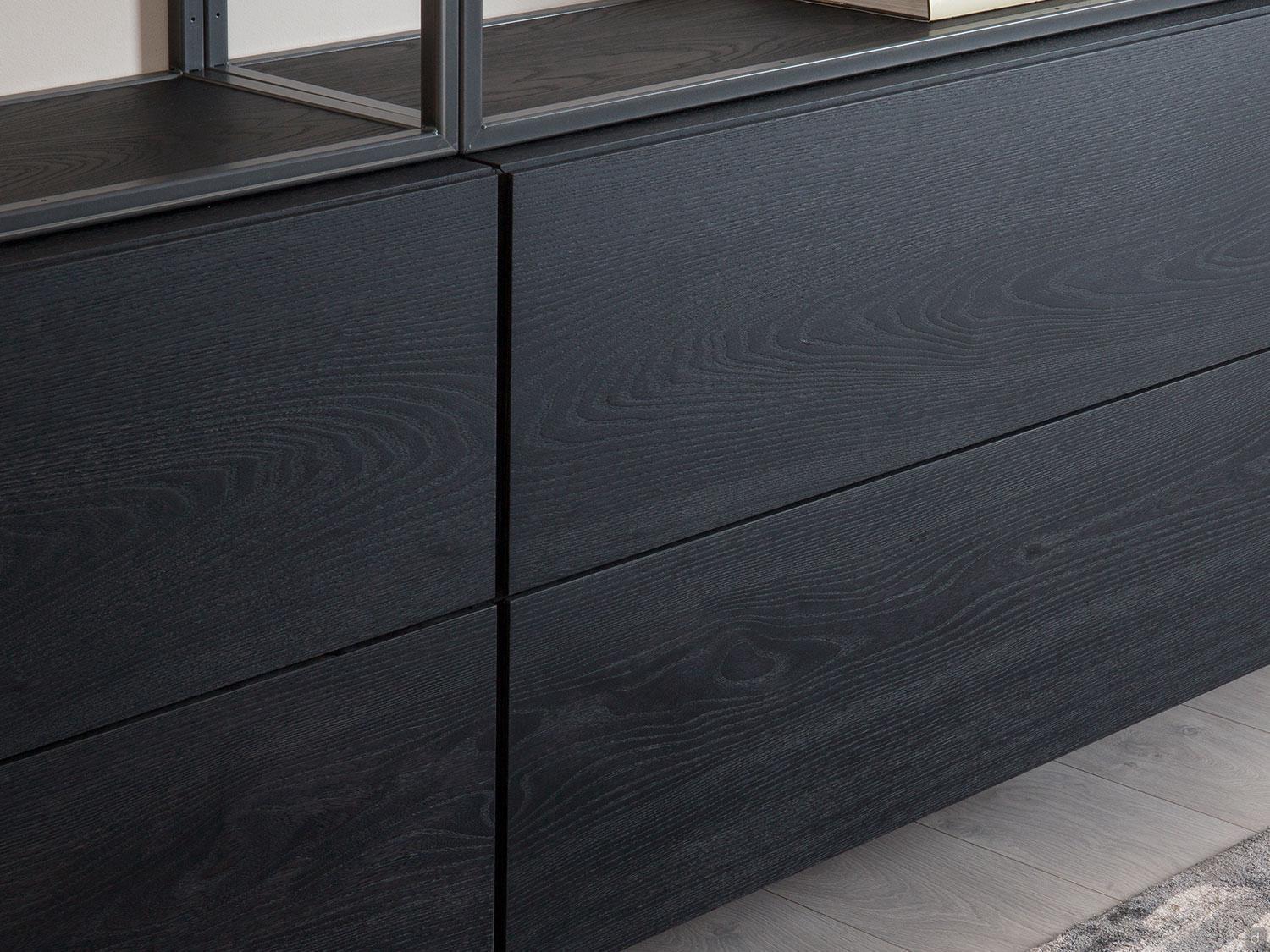

Doors and fronts: the wood veneer fronts are made of Compact mdf, i.e. recycled eucalyptus microparticle panel coloured with organic dark grey E1 water-repellent colour and veneered with real wood veneer. The edges with perimeter rebate on the fronts are exposed Compact. The matt lacquered fronts are made of HD mdf coated with polyester resin and matt lacquered in 4 coats. Edges with perimeter stop on fronts are lacquered. The doors have a cm 1.4 perimeter rebate so that the closed front is thin (only cm 0.6), with a total thickness of cm 2. Perimetrically the front is reduced by 0.5 cm per side compared to the containers. Push-Pull opening system.

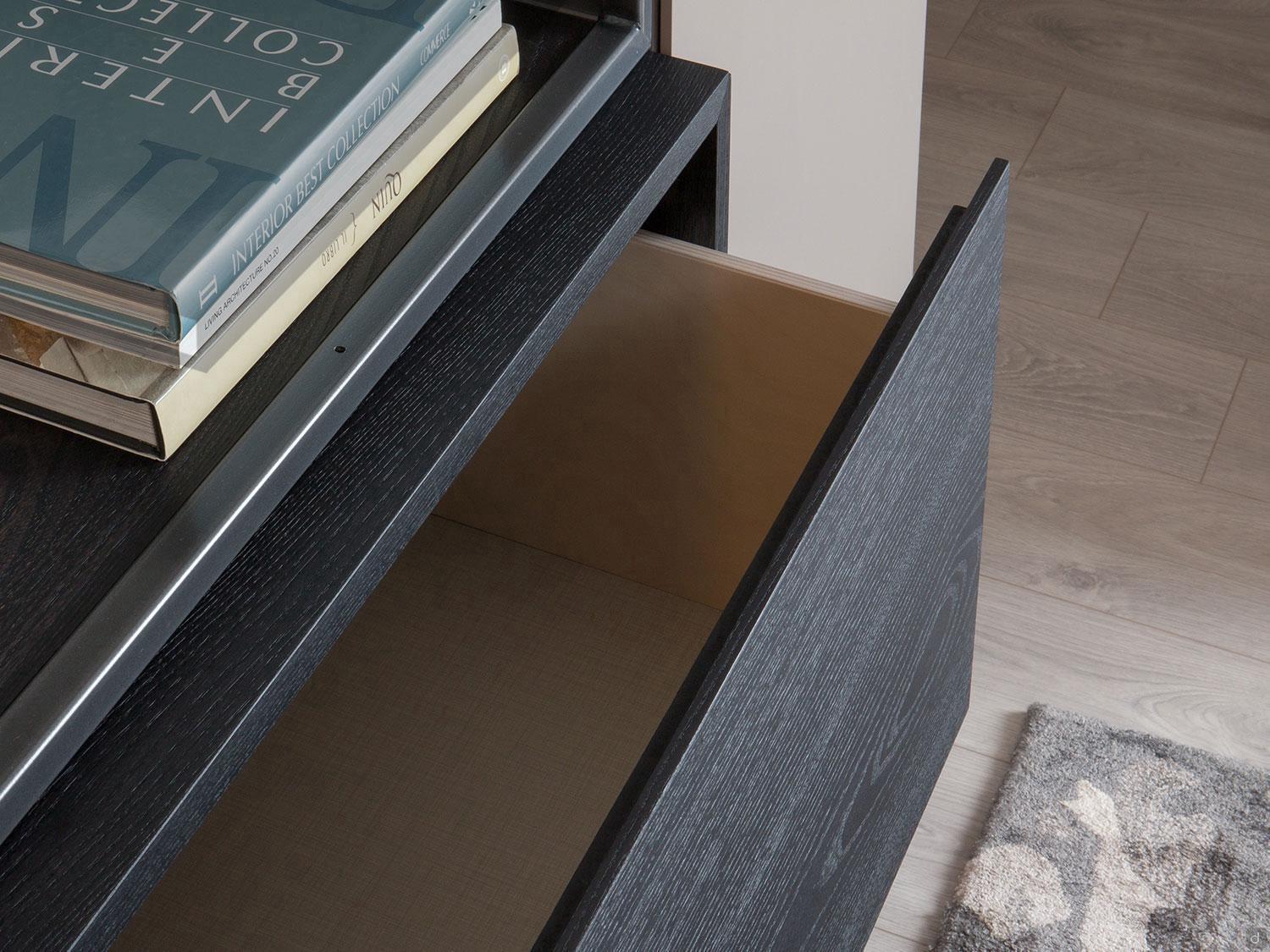

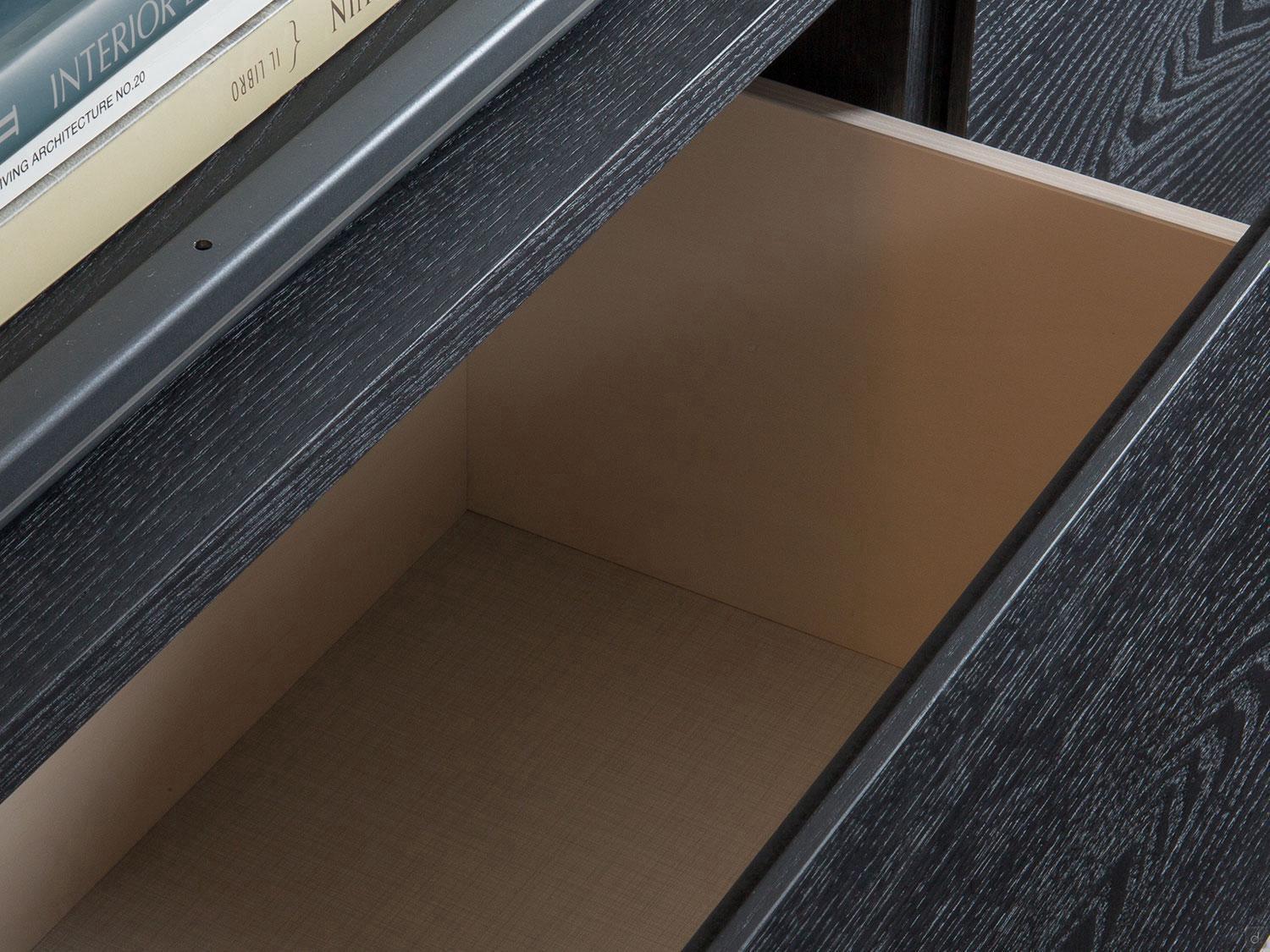

Drawers: the perimeter structure is made of 1.2 cm thick dark grey textured melamine, while the bottom is made of 1 cm thick fabric-effect grey melamine panel. The basket is constructed "4-sided" with a screwed front, giving greater solidity to the entire structure. Blum invisible runners with ball-bearing partial extension and push-pull opening.

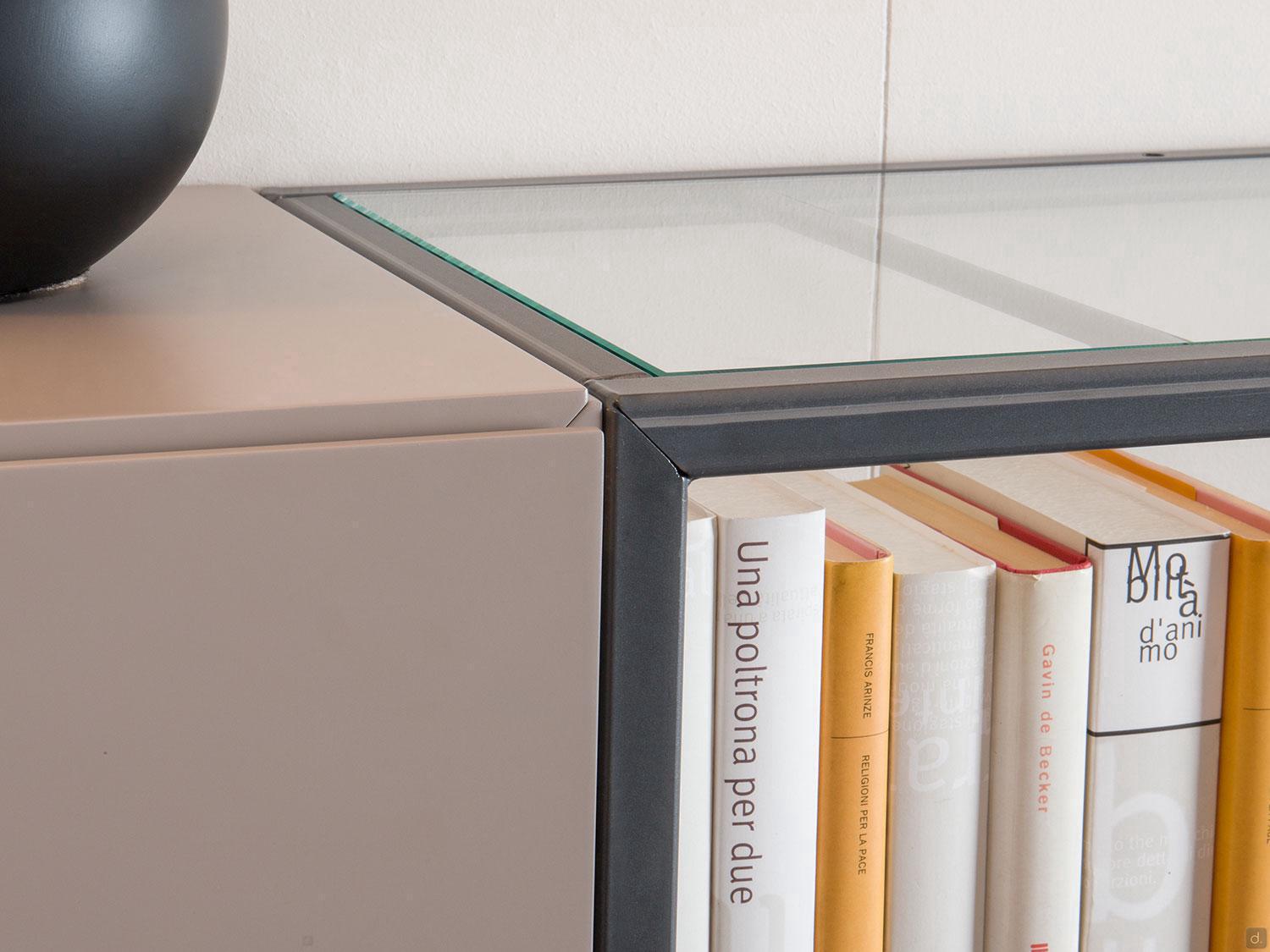

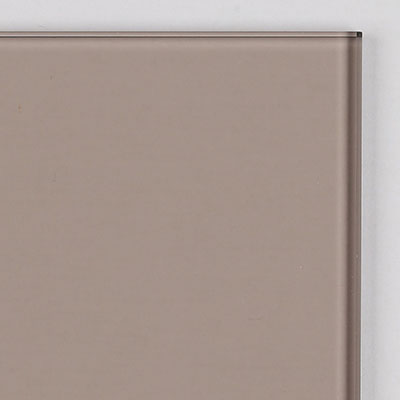

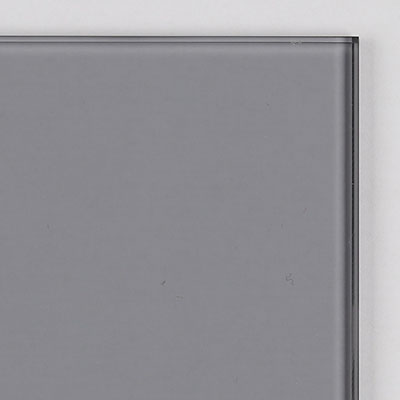

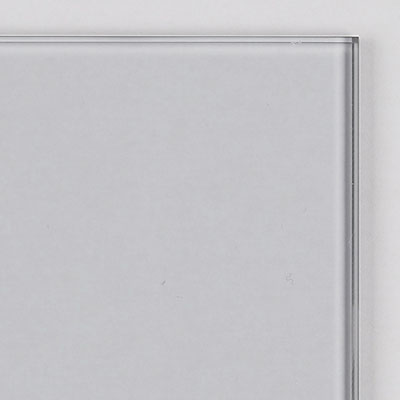

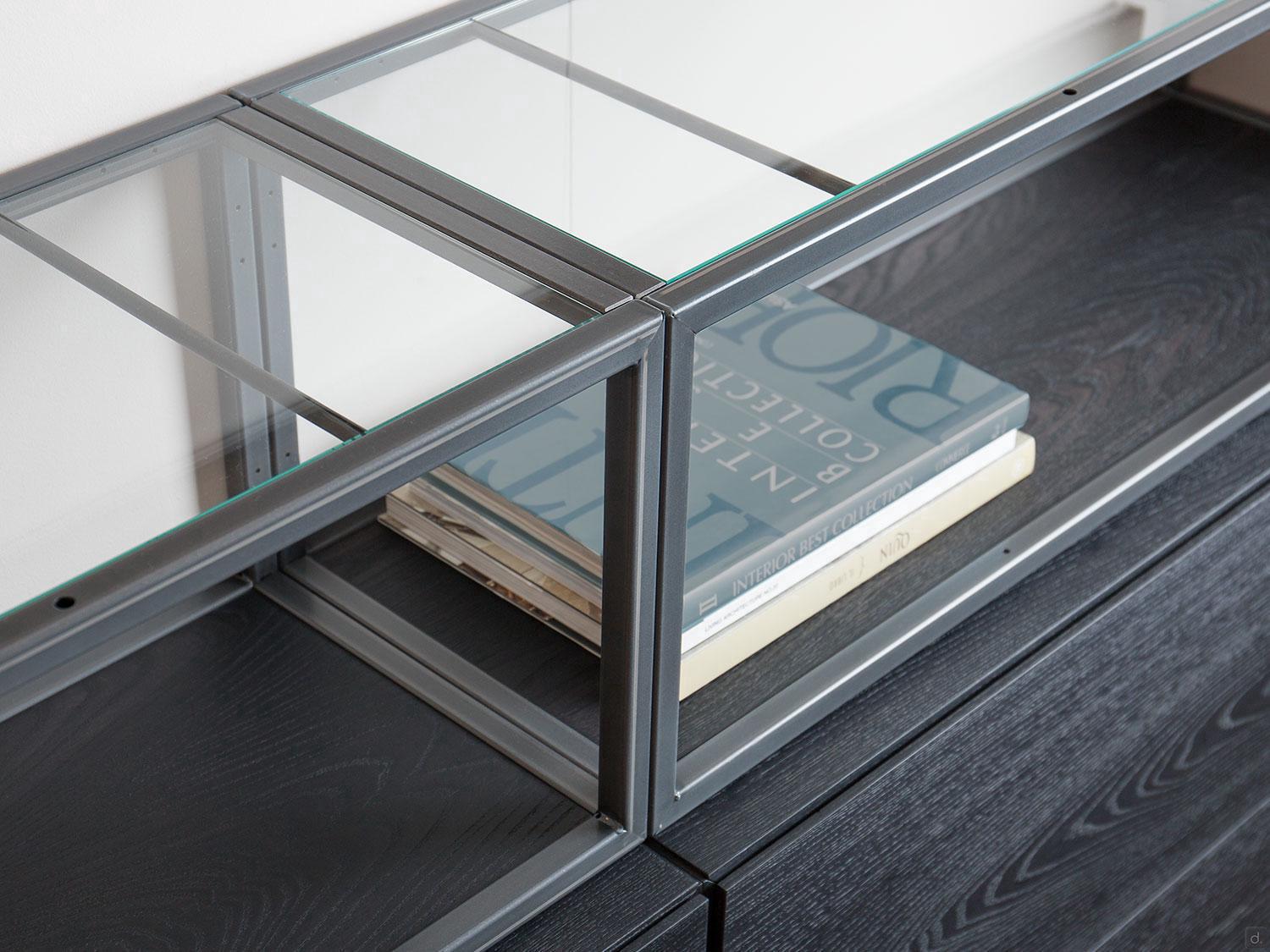

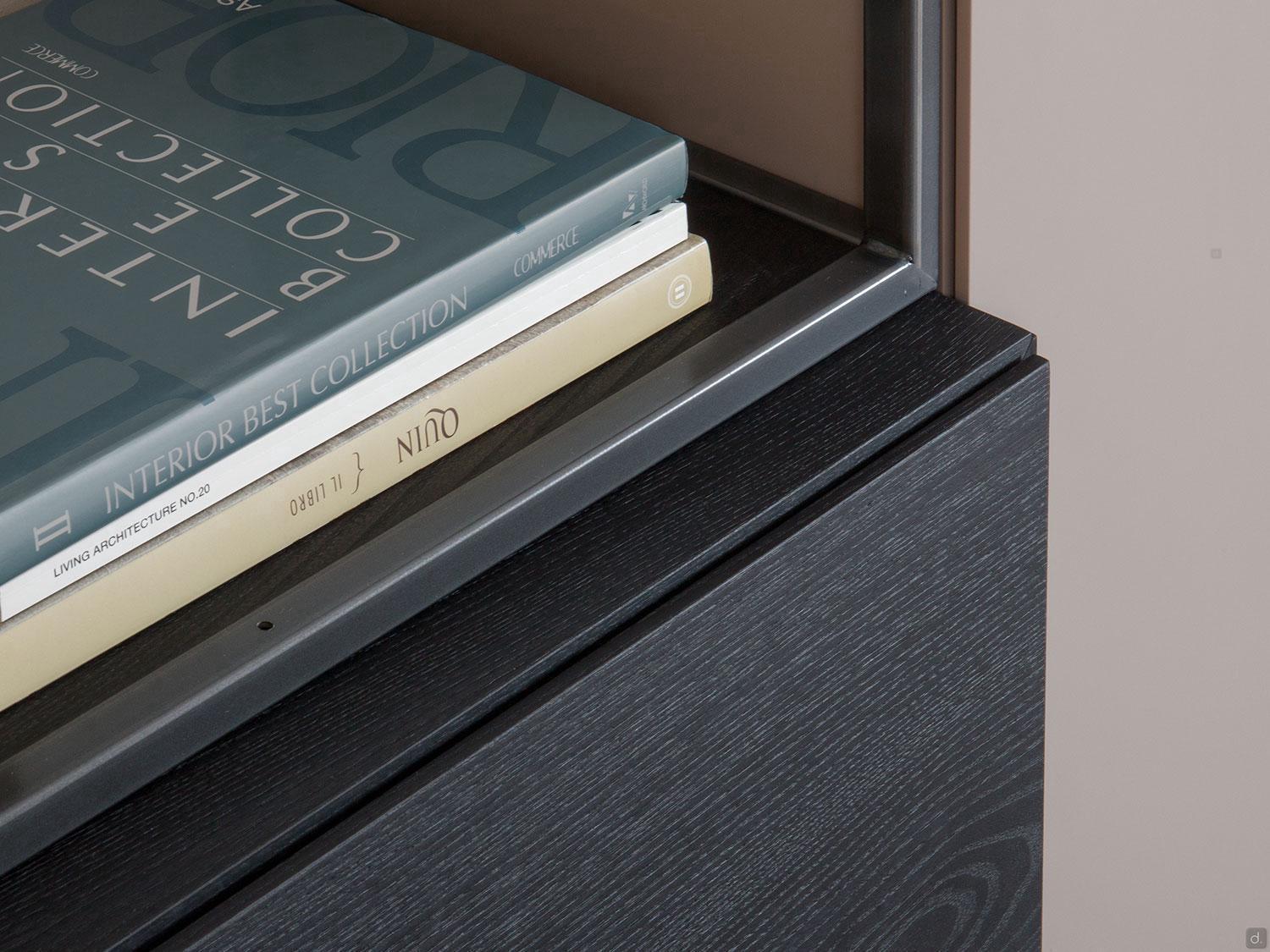

Open wall units: the structure is made of tubular section cm 2 x 2 in waxed iron or matt lacquered finish. Glass top cm 0,5 thick with bottom cm 1,6 thick.
