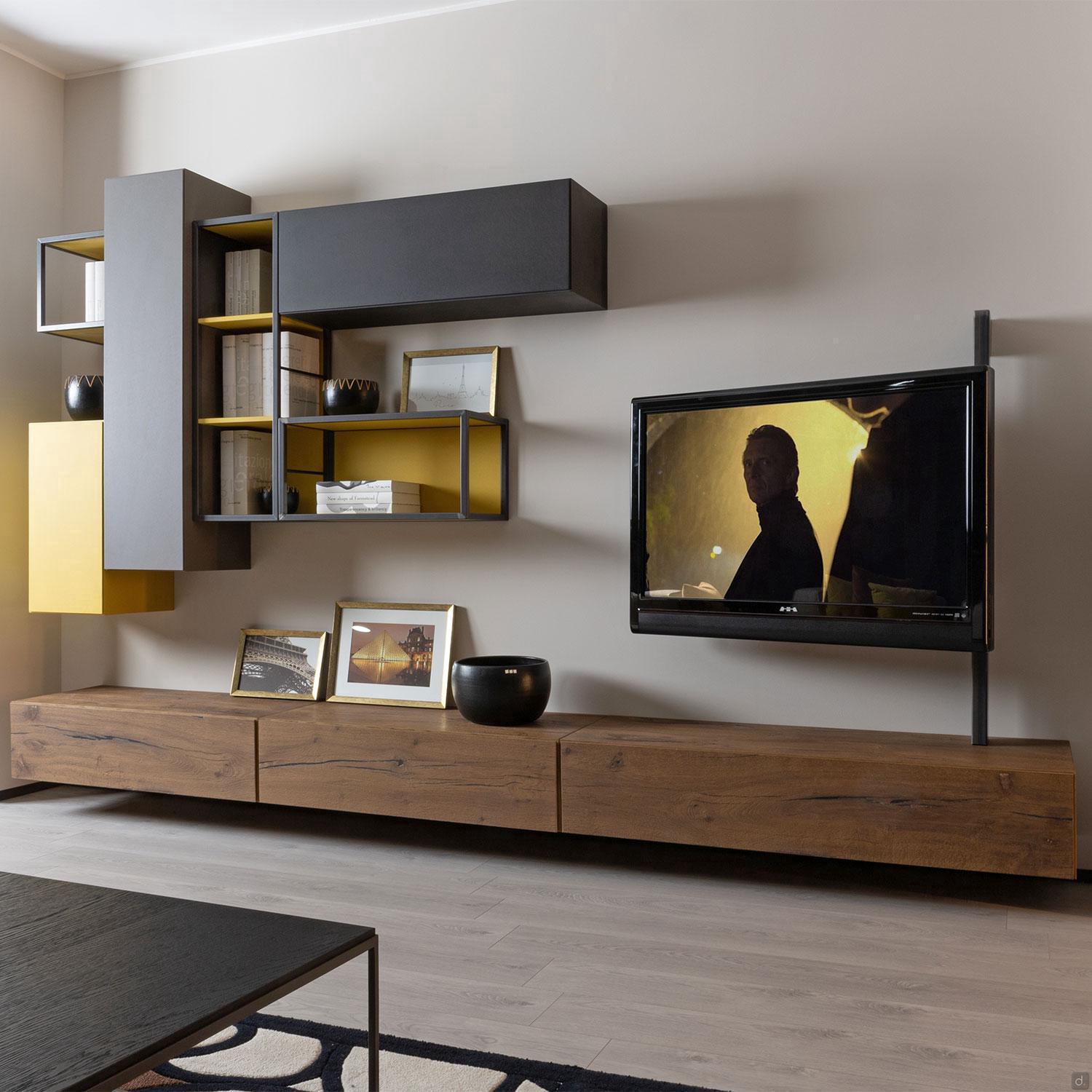

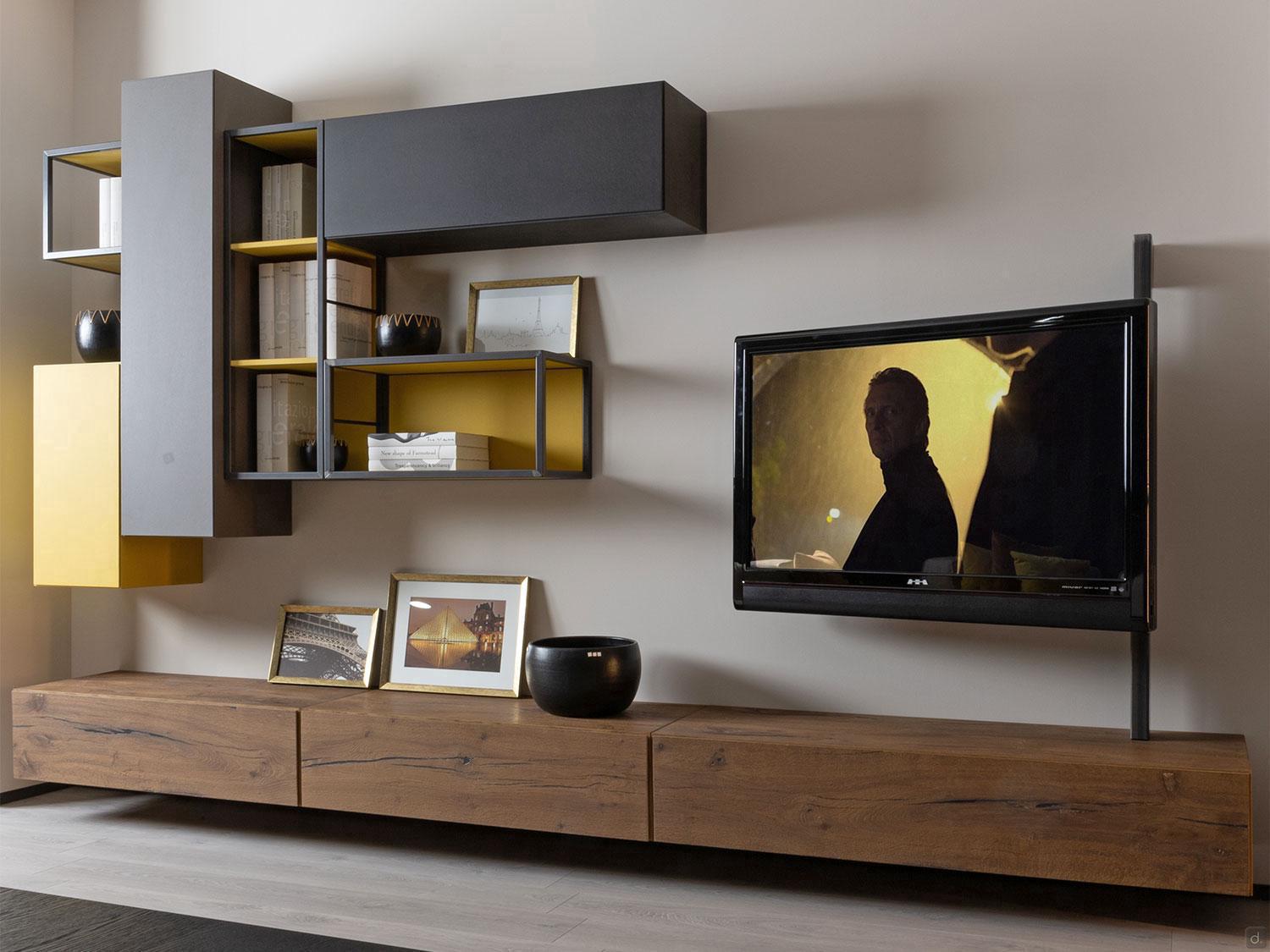

Modern living room wall system with TV shaft FreeHand 09 with numerous container spaces. Ideal for walls at least 320 cm long.

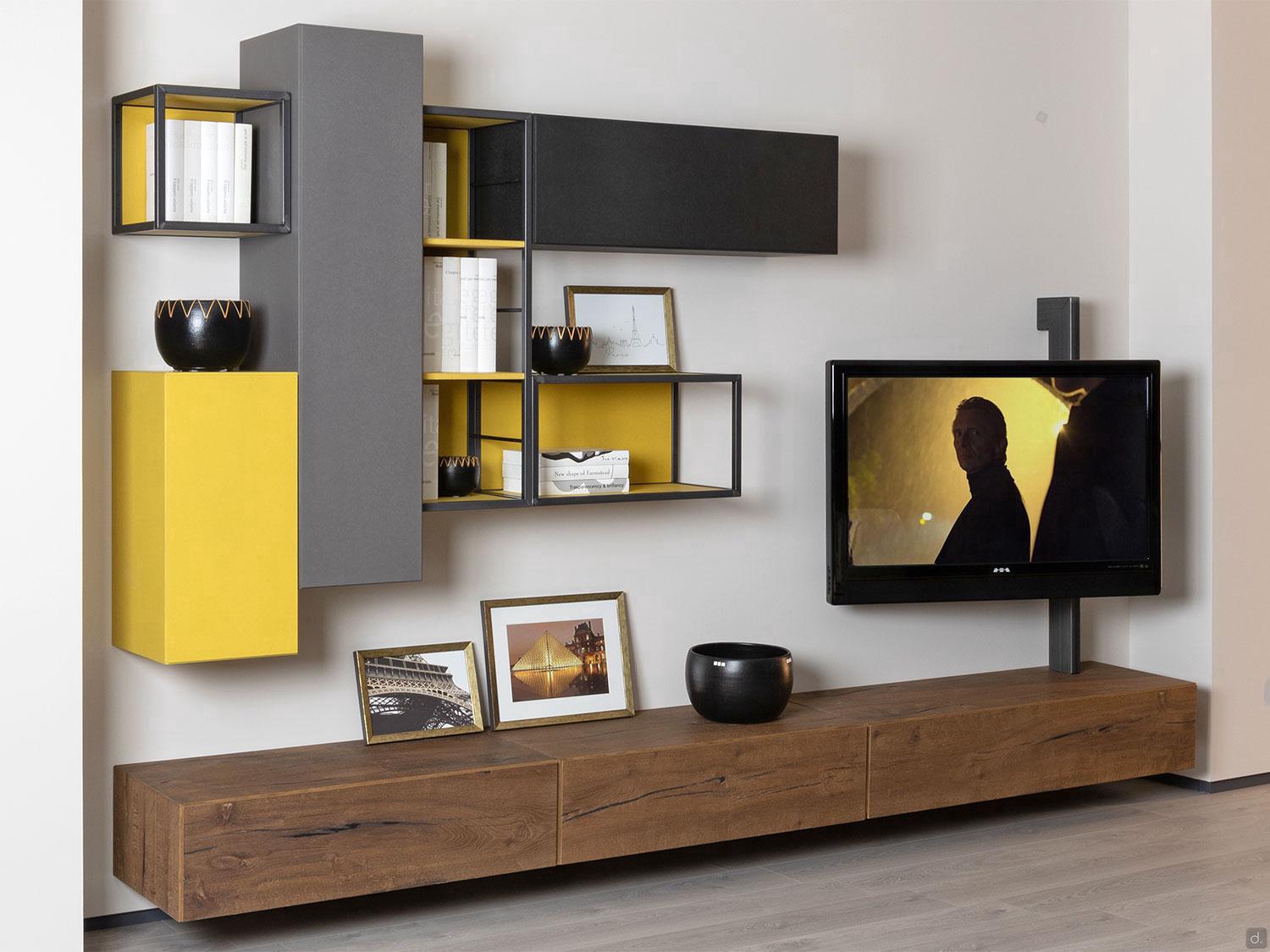

Living room wall system with orientable TV adjustable in height

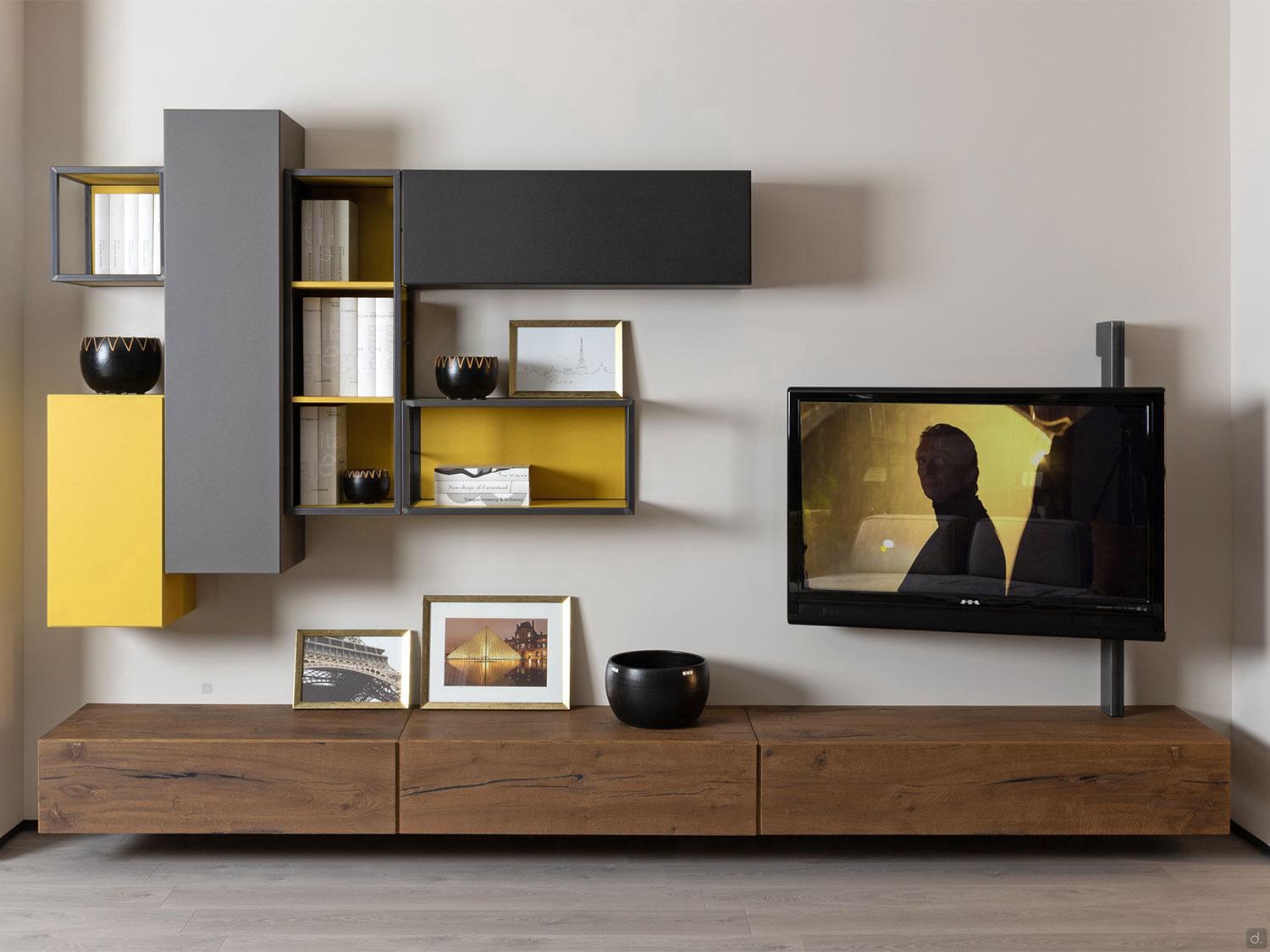

320 cm wall system perfect for modern and elegant living rooms

The deep drawer base are made in solid Oak wood 100N, also available in wood veneer elm, canaletto walnut and eucalyptus

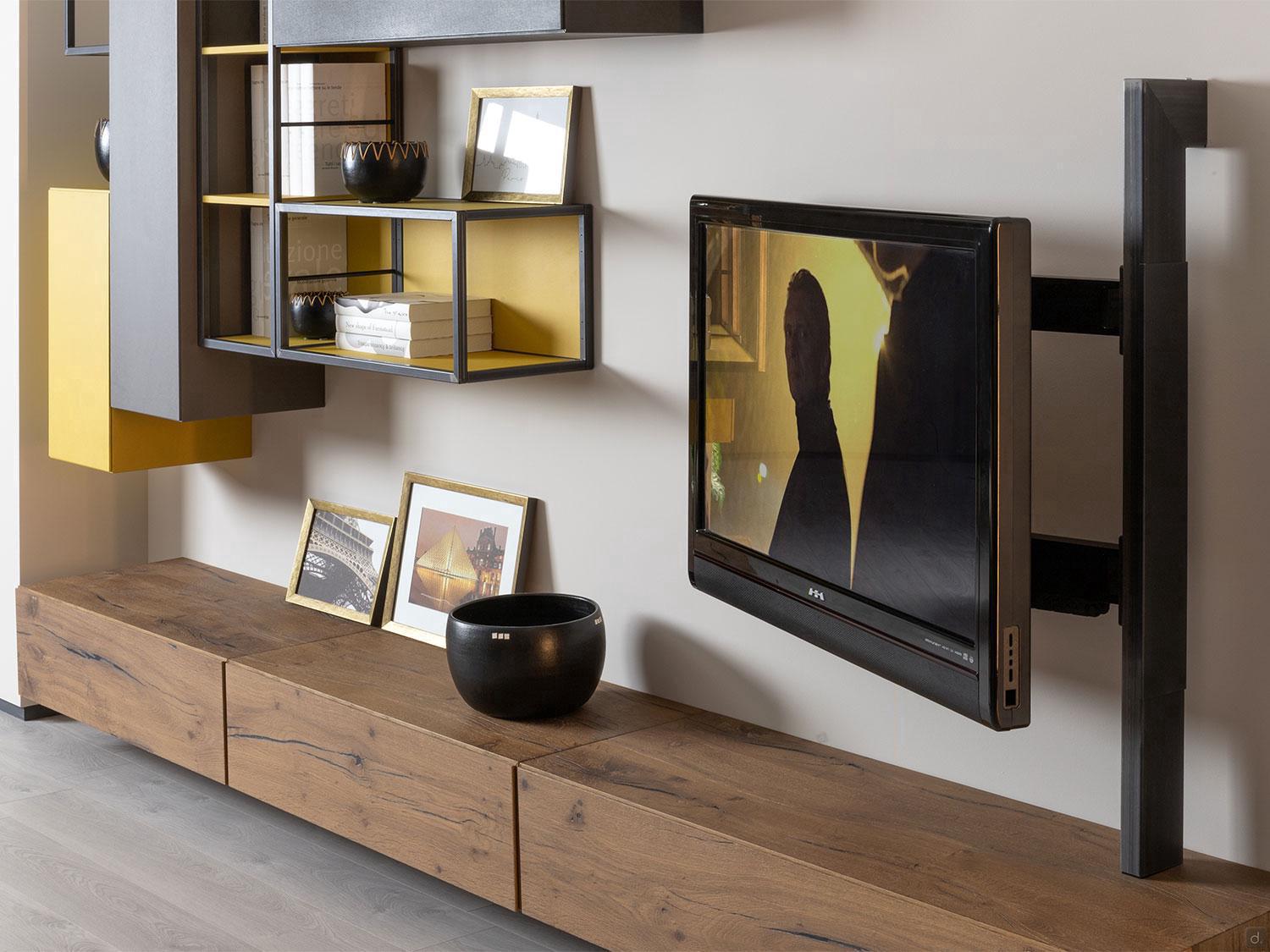

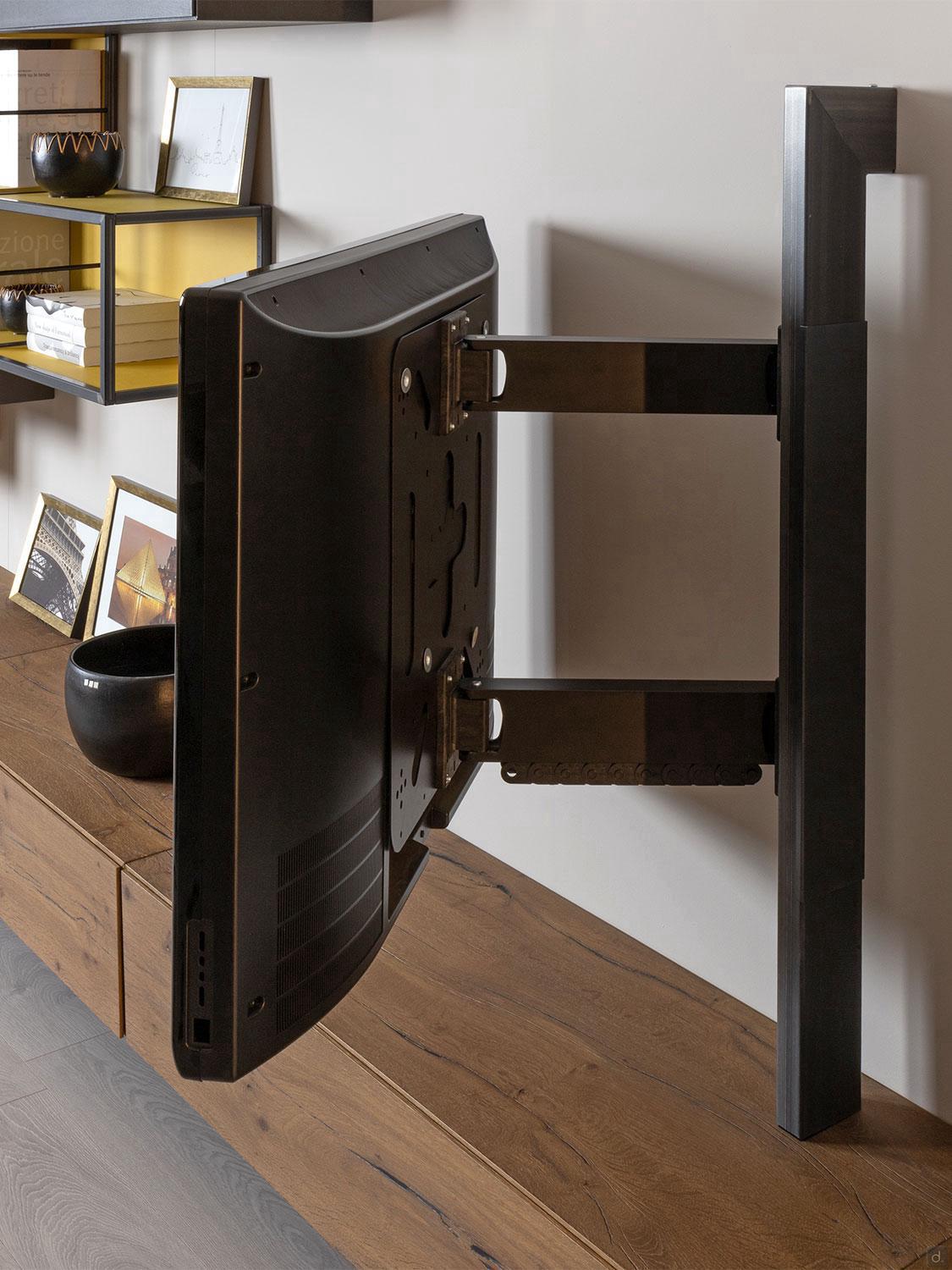

Later view of the flat-screen TV mounter on the adjustable shaft

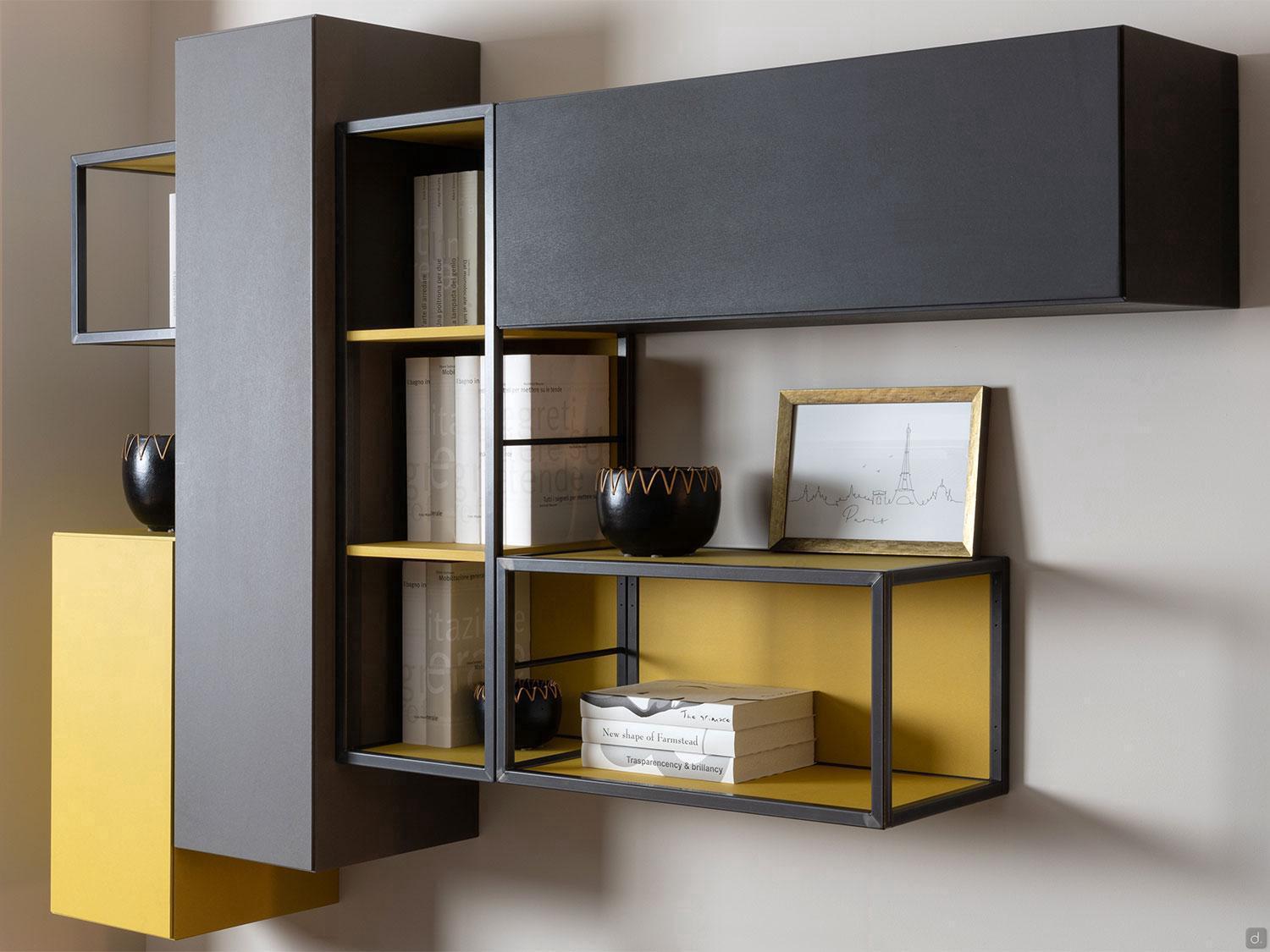

Suspended containers zone: horizontal wall unit in mdf Compact Blackboard, vertical wall units in mdf Compact Sulphur and Concrete, container shelves in iron Wax and mdf Compact Sulphur.

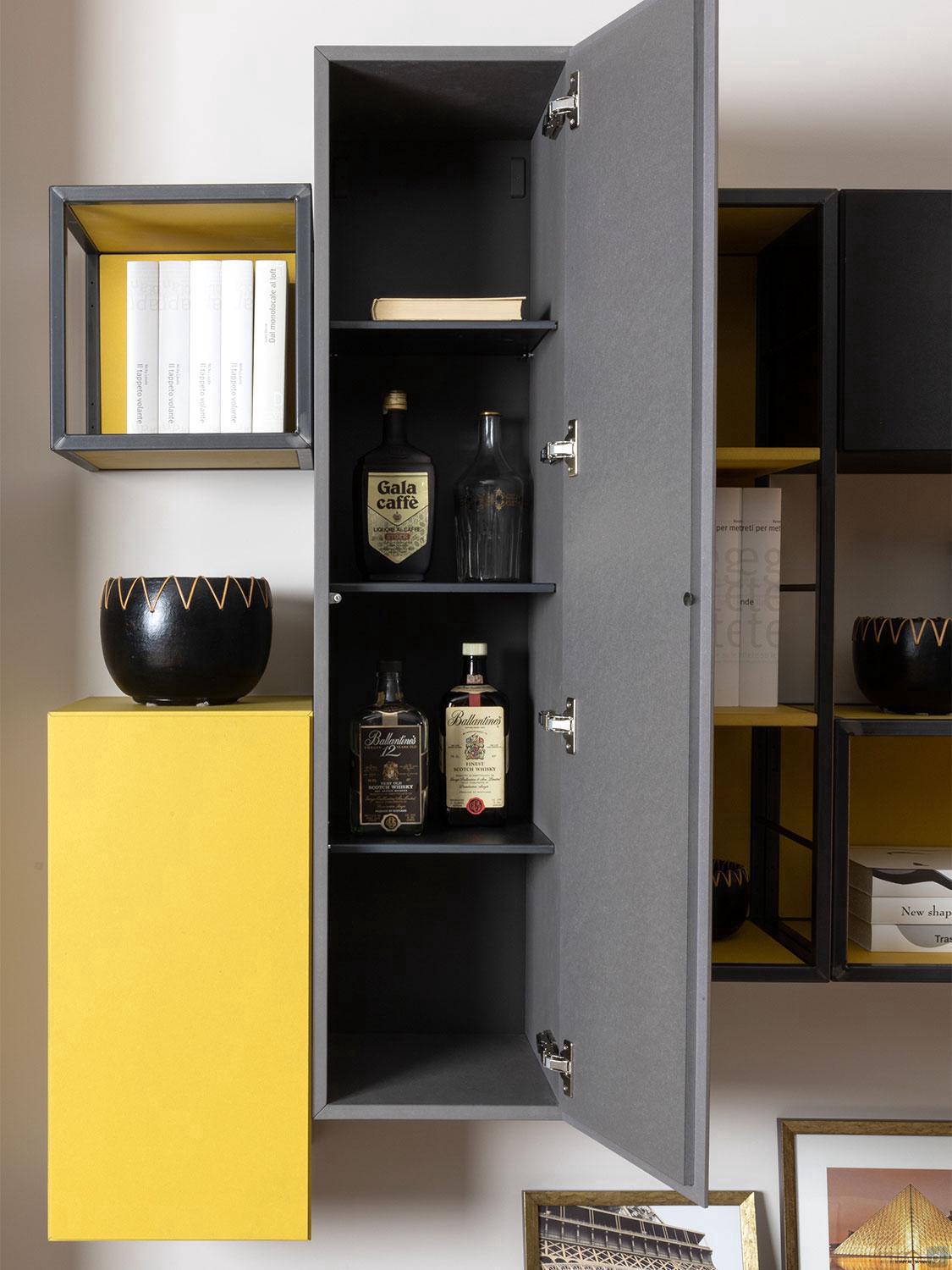

Wall unit with hinged doors, hinged adjustable in height. Internal metal shelves are no longer available, the supplied ones will be in clear glass.

TV shaft wall mounted on the top and on the base. Matt black finish, is completed by Vesa plate for hooking TVs from 42" to 56"

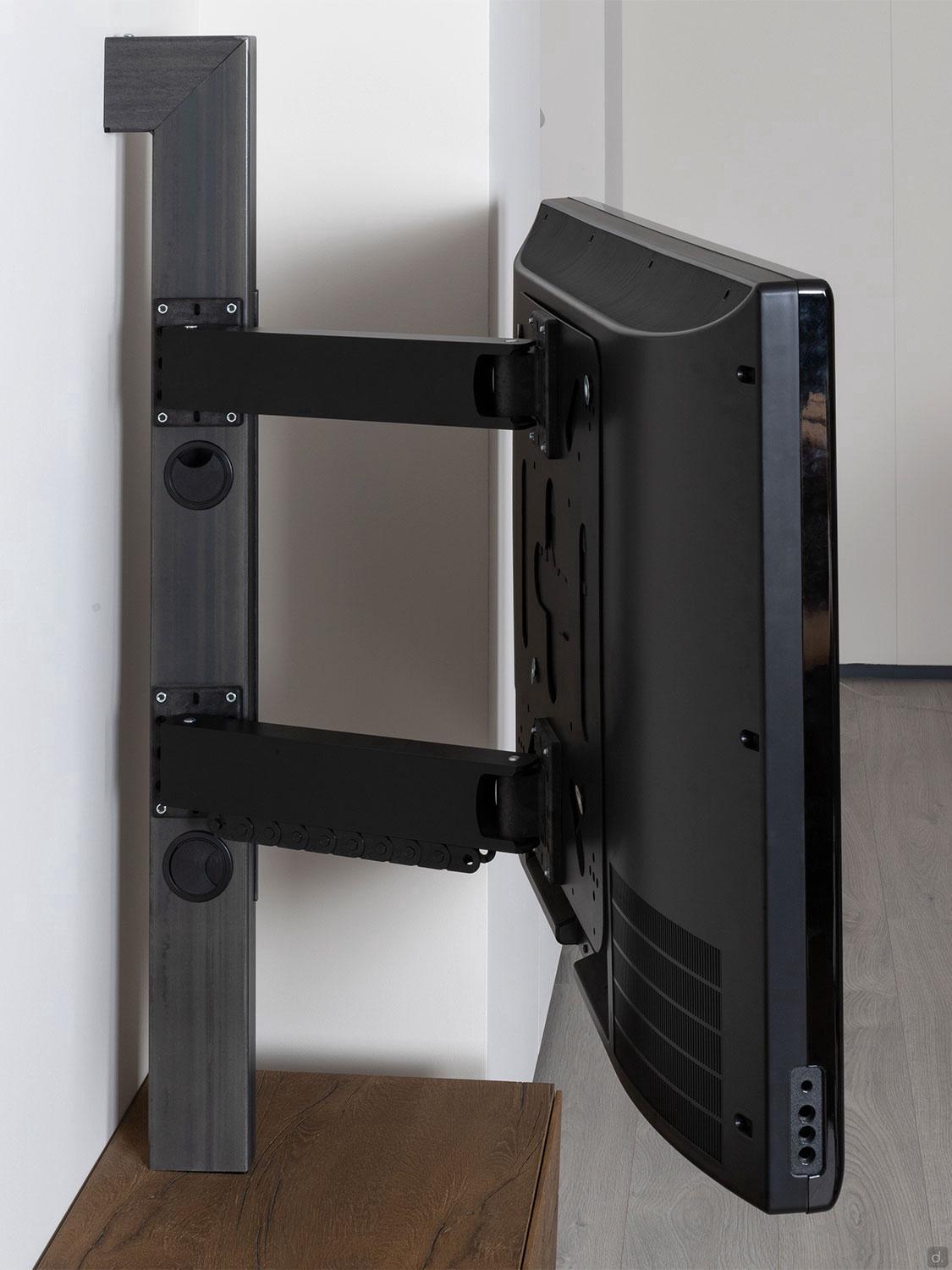

Lateral view of the TV shaft with double bud and integrated grommets

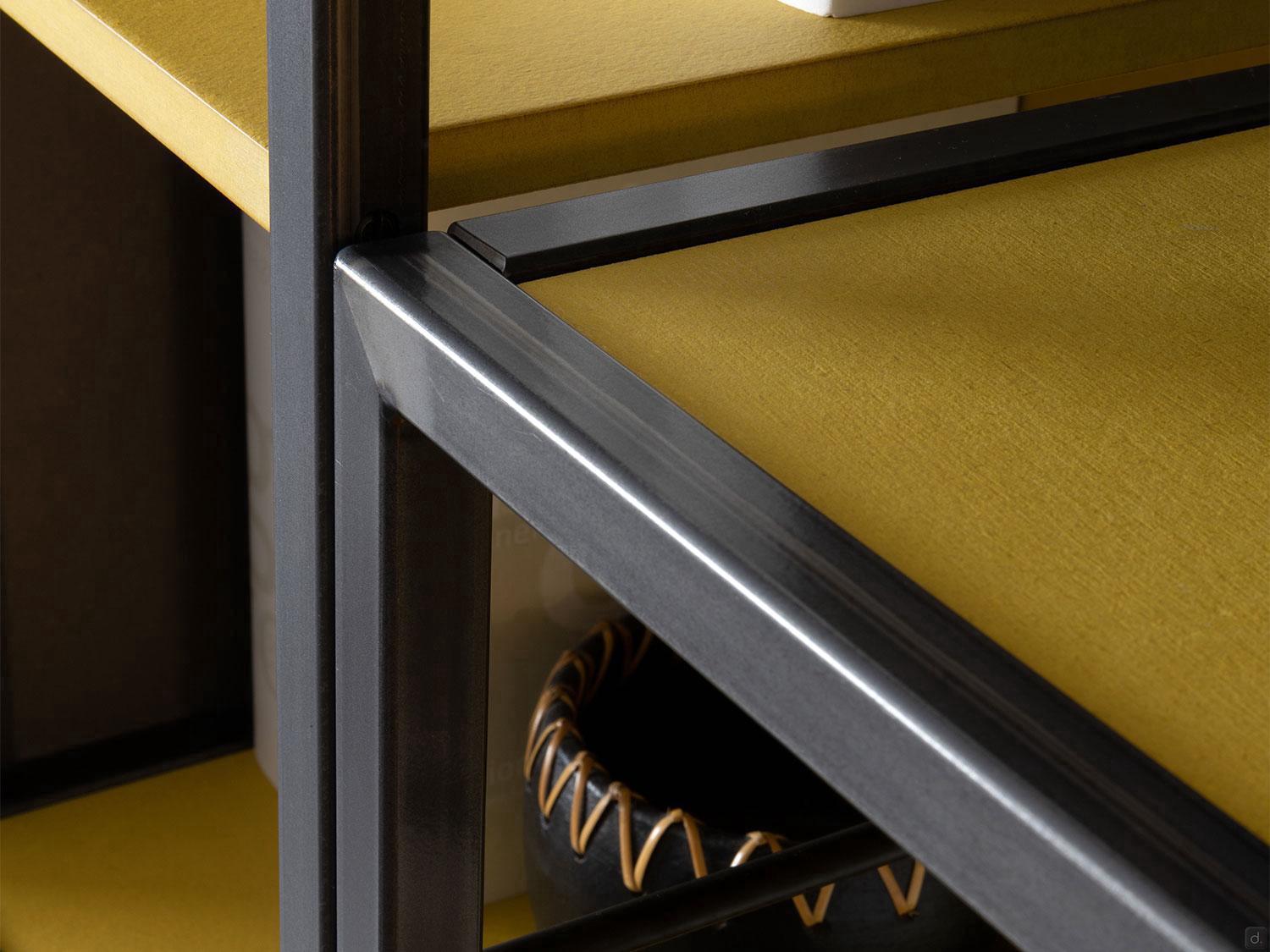

Detail of the open compartment with iron frame finish Wax with panels and shelves in mdf Compact Sulphur.

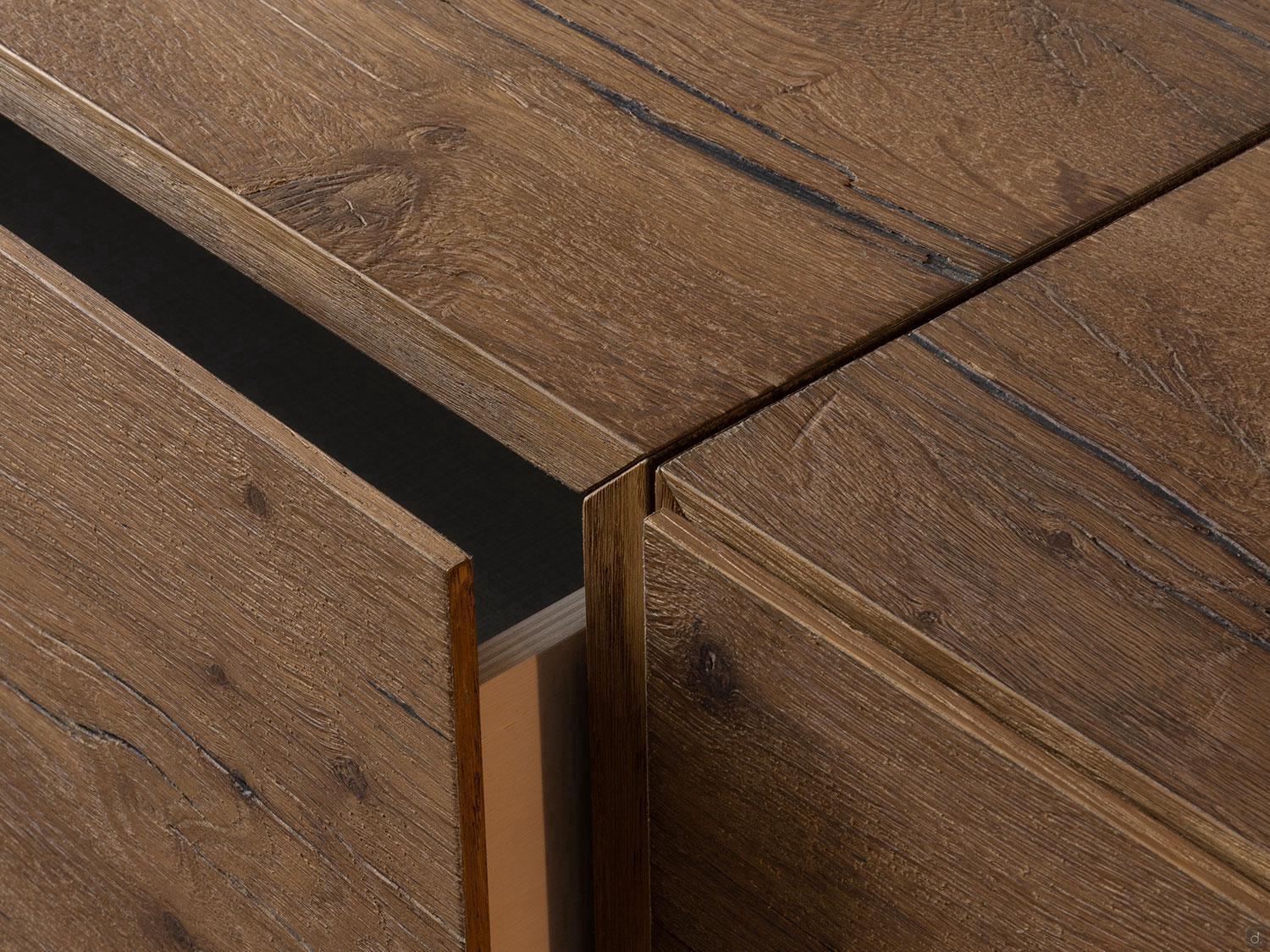

Detail of the drawer structure: 45° joint edge with 3 mm joint to strengthen the edge and prevent it from being sharp. (Drawer structure in plywood not available. Now in dark grey textured melamine)

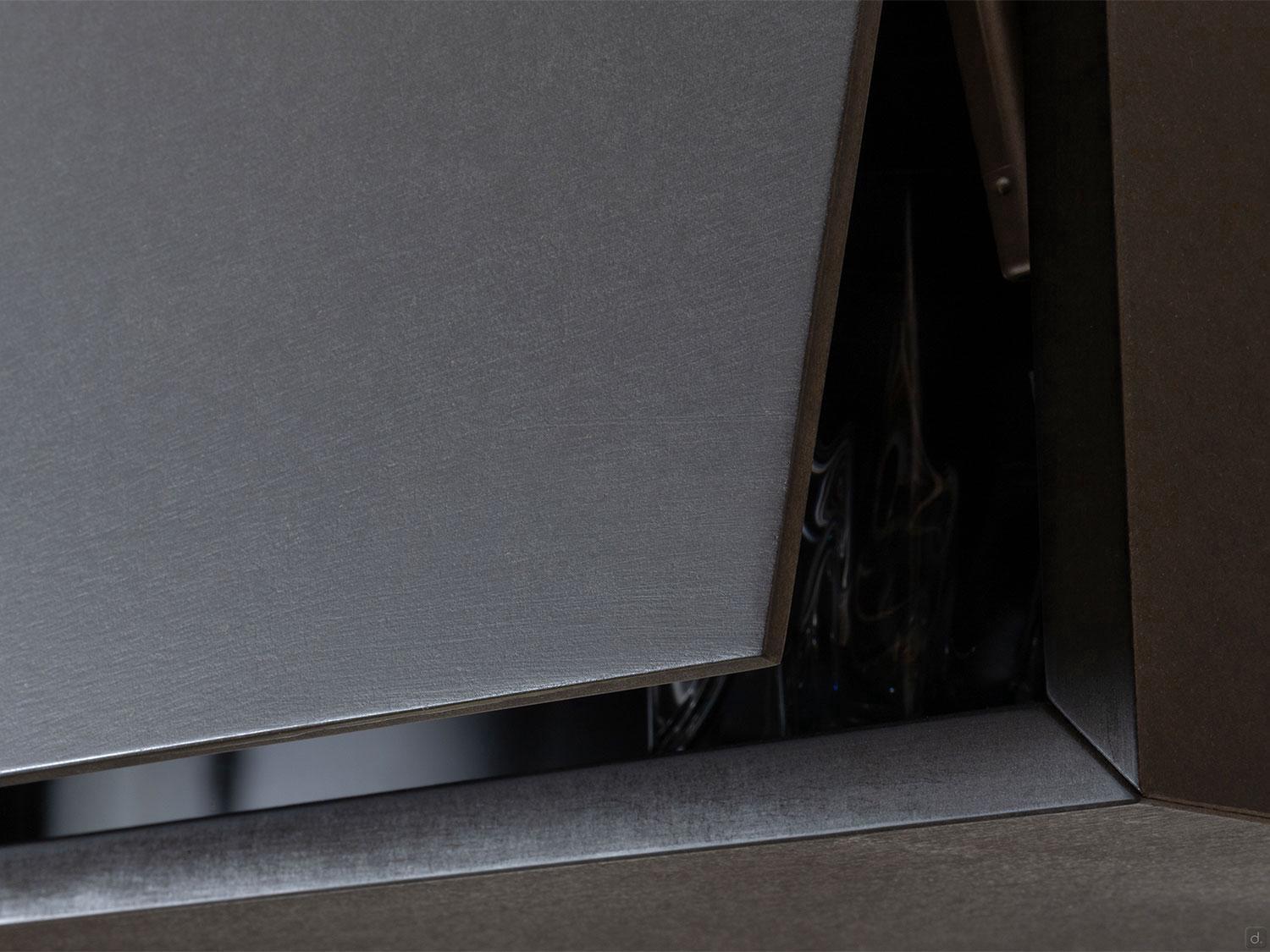

Detail of the drop-down door of the horizontal wall unit. Finish mdf Compact Blackboard

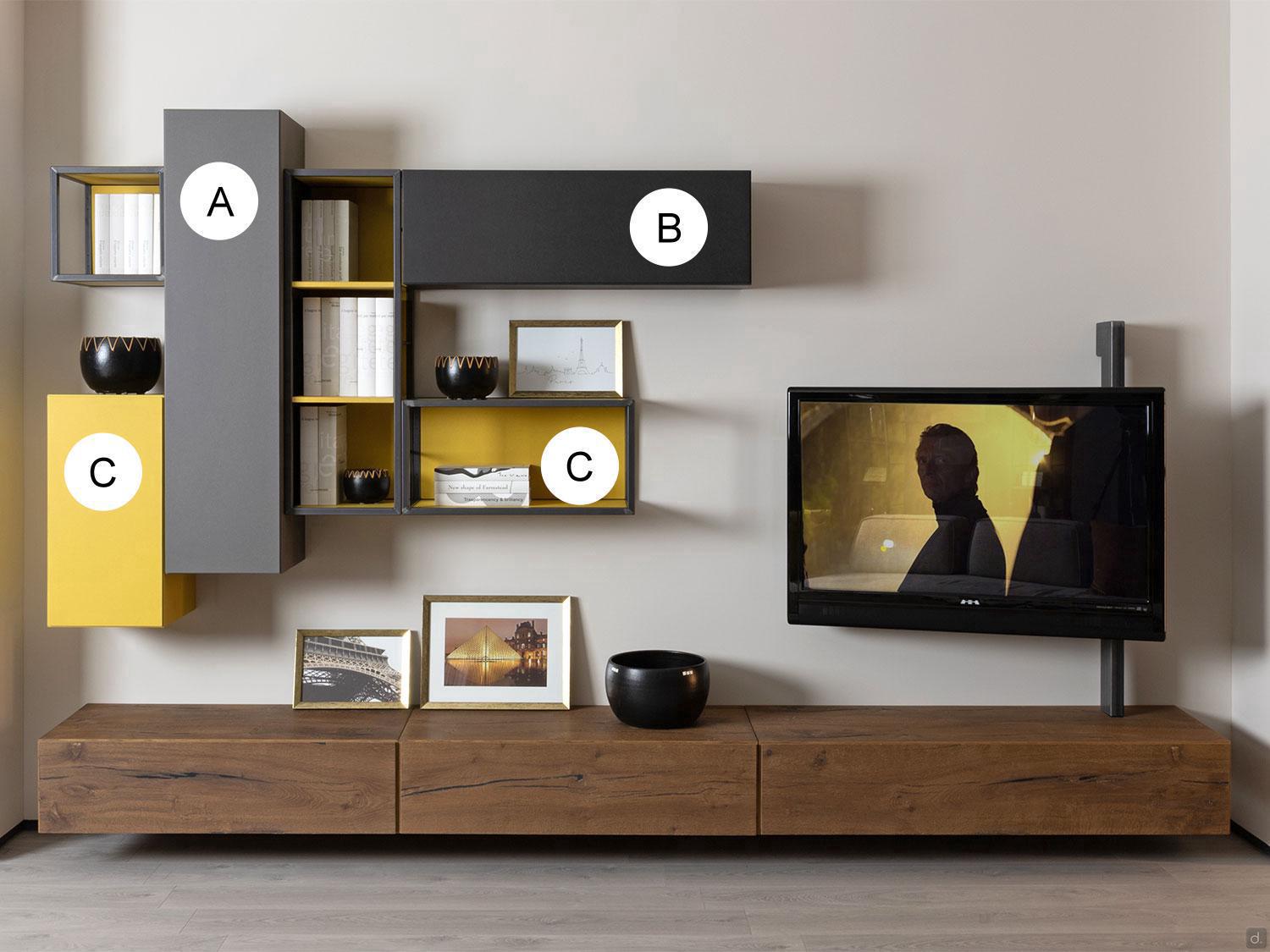

Detail for your choice of colours of the wall units in the FreeHand 09 composition

+ 10

MORE IMAGES

FreeHand 09
Wall Mounted Wall System

Modern living room wall system with TV shaft FreeHand 09 with numerous container spaces. Ideal for walls at least 320 cm long.

* Required Fields

Measurements *

cm 320 d.44,2 h.210

Base Finish *

Close Wall Units, Backs, Open Compartment Shelves Finish *

Open Compartments and TV Shaft Structure Finish *

Composition Side *

Quantity

From €7,054.67

View Samples

Wishlist

Description

FreeHand 09 is an elegant and modern living room wall system with TV shaft , suspended container base, wall units with doors and open wall units. An asymmetrical composition with lots of open and closed spaces and an area dedicated to the TV. FreeHand 09 has in fact spacious deep drawers for your CDs and DVDs, documents and TV accessories; wall units for glasses and silverware; container shelves for books and knick-knacks. The TV can be mounted on the TV shaft attached to the wall: this system appears extremely simple but has an incredible practicality: the TV can be turned left and right and it is adjustable in height.
This picture show us a suspended living room system with neutral and dark tones of oak wood, Concrete and Blackboard mdf laminate with some touches of Sulphur Yellow to spice it all up. This elegant combination can be completely customisable using more brighter tones or tending towards grey with reddish veins.

Characteristics
bespoke wall system completely customisable and 100% Made in Italy
TV shaft with double hub and plate to attach flat-screen TVs from 42" to 56"
containers with robust and non cutting borders with 45° angle
floor standing base drawers with push-pull opening and retracting runners
internal wall units shelves made of clear glass
container shelves always with iron frame; wall panels and dividing elements in different colours and finishes

Materials and Finishes
- matt / metal lacquered
- mdf compact
- wood veneer
- matt lacquered metal

Info for your Purchase
The overall measurements of the wall unit in these pictures is cm 320 d.44,2 h.210; the overall measurements might change depending on the positioning of its elements.

Technical study

Measurement Specifications
n.2 base units with drawer: 96 d.44 h.25,6 cm, complete with brackets for hanging
n.1 drop-down base unit: 128 d.44 h.25,6 cm, complete with brackets for hanging
n.1 hinged wall unit: cm 32 d.36,6 h.64
n.1 hinged wall unit: cm 32 d.36,6 h.128
n.1 hinged wall unit: cm 96 d.32 h.32
n.1 open compartment: cm 32 d.32 h.32
n.1 open compartment: cm 32 d.32 h.96
n.1 open compartment: cm 64 d.32 h.32
n.1 adjustable TV stand: cm 4 d.15 h.116,5

Technical Specifications and Equipment
Base and wall unit structure: extralight E1 particle board panel veneered with real wood veneer or coated with polyester resin and lacquered. Visible edges in real wood veneer, thickness 0.1 cm, or lacquered polyester resin, thickness 0.1 cm. Compact mdf containers are made of recycled eucalyptus microparticle panel coloured with organic E1 water-repellent colours. Backs are in slate lacquered mdf.
Internal shelves: made of 0.8 cm thick, transparent crystal glass.
Doors and fronts: the wood veneer fronts are made of Compact mdf, i.e. recycled eucalyptus microparticle panel coloured with organic dark grey E1 water repellent colour and veneered with real wood veneer. The edges with perimeter rebate on the fronts are exposed Compact. The matt lacquered fronts are made of HD mdf coated with polyester resin and matt lacquered in 4 coats. Edges with perimeter stop on fronts are lacquered. The doors have a 1.4 cm drop/ perimeter rebate so that the closed front is thin (only 0.6 cm), with a total thickness of 2 cm. Perimetrically the front is reduced by 0.5 cm per side compared to the containers.
Drawers: perimeter structure made of 1.2 cm thick dark grey textured melamine, while the bottom is made of 1 cm thick grey fabric-effect melamine panel. The drawer is constructed "4-sided" with a screwed-in front, giving greater solidity. Blum invisible runners with partial-extension ball-bearing slide and push-pull opening.
Open compartments: the structure is made of 2 x 2 cm section tubing in waxed iron or matt lacquered finish. Backs and shelves 1.6 cm thick.

Additional Information

Area of Production
Italy

Approximate Time
9-10 working weeks for production

Assembling
Medium Assembling

Cubic Metres
1,3 m³
