Dimensions Specifications

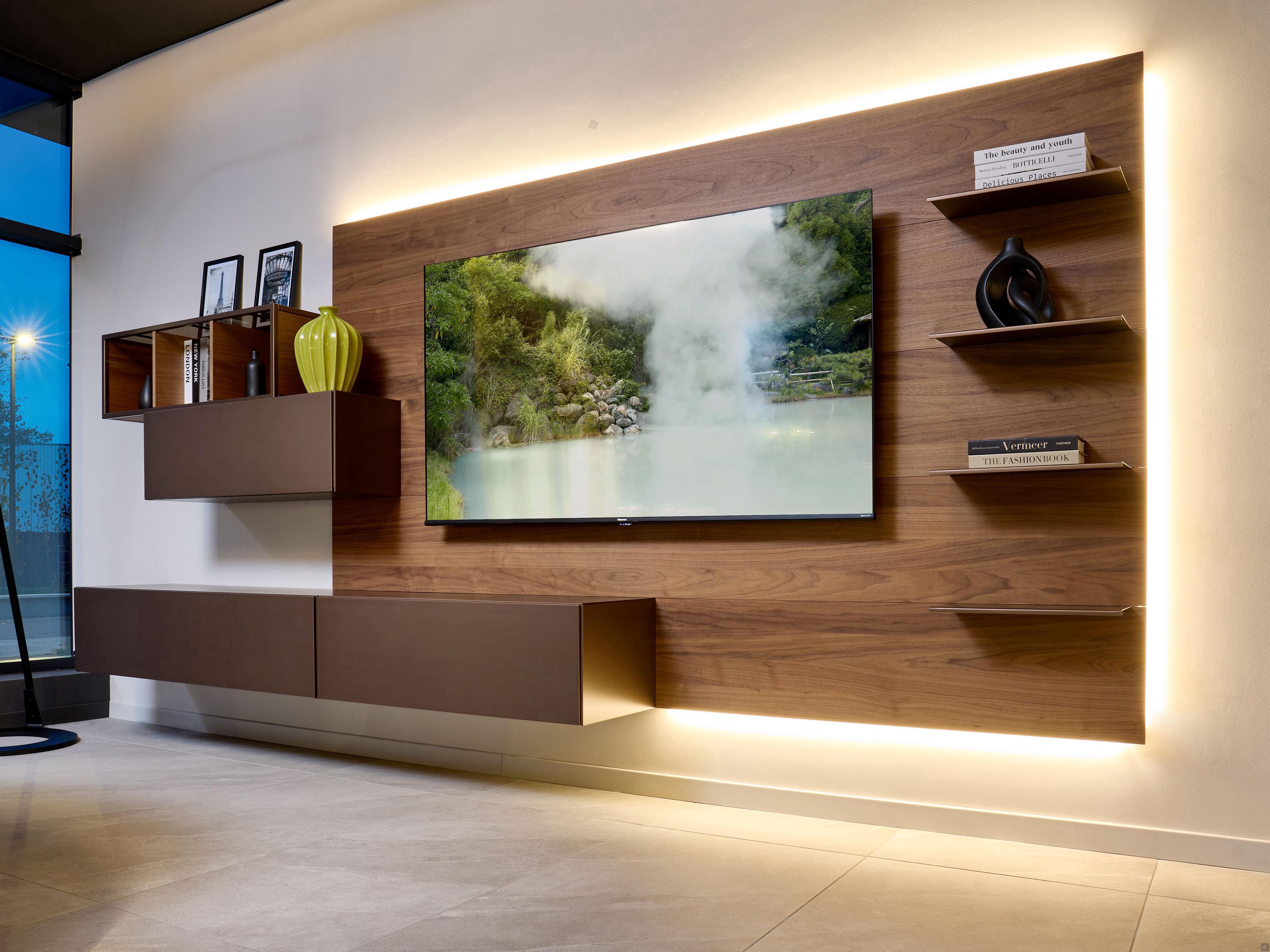

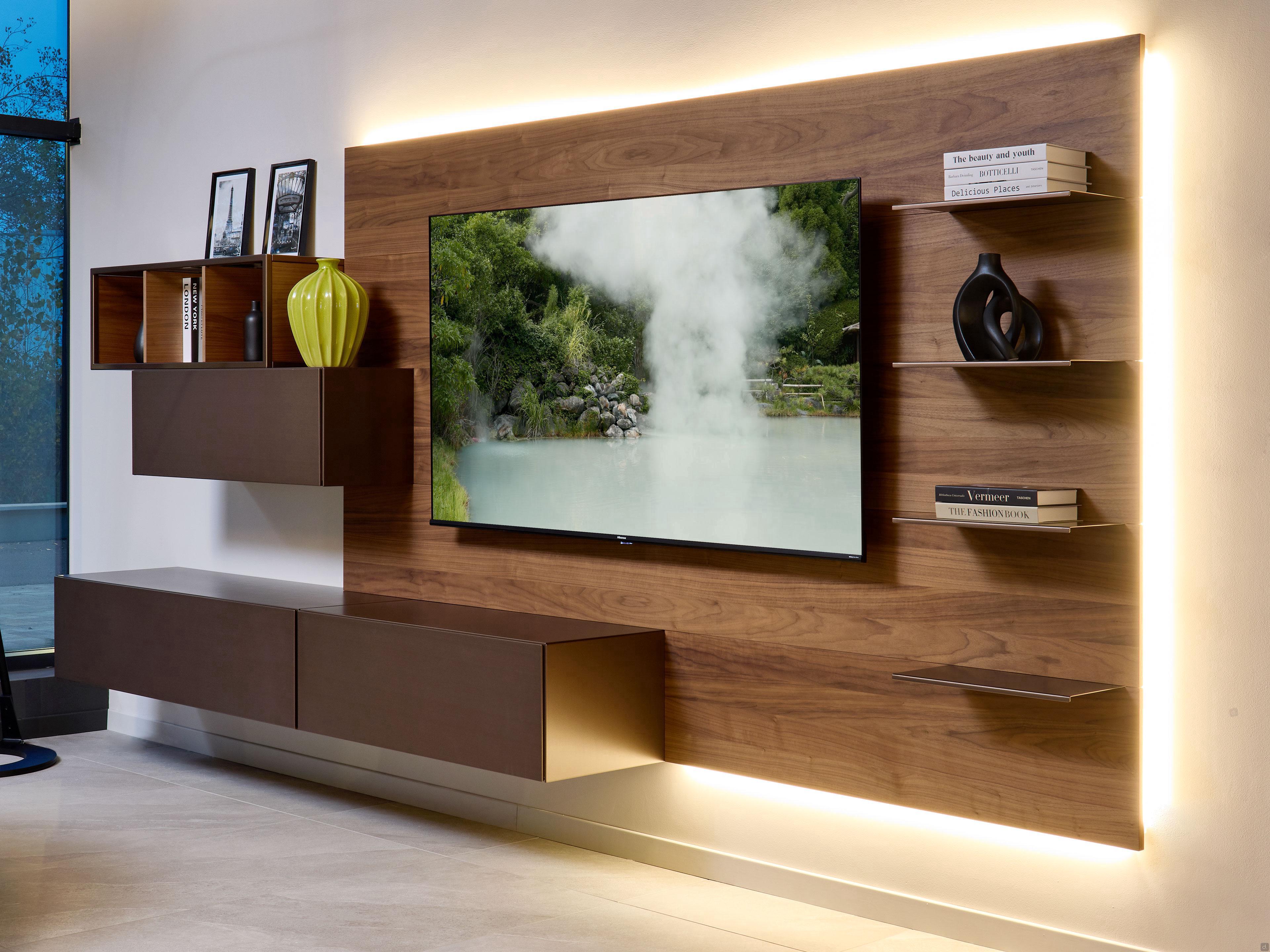

- Model with windowed panelling and wall-hung TV

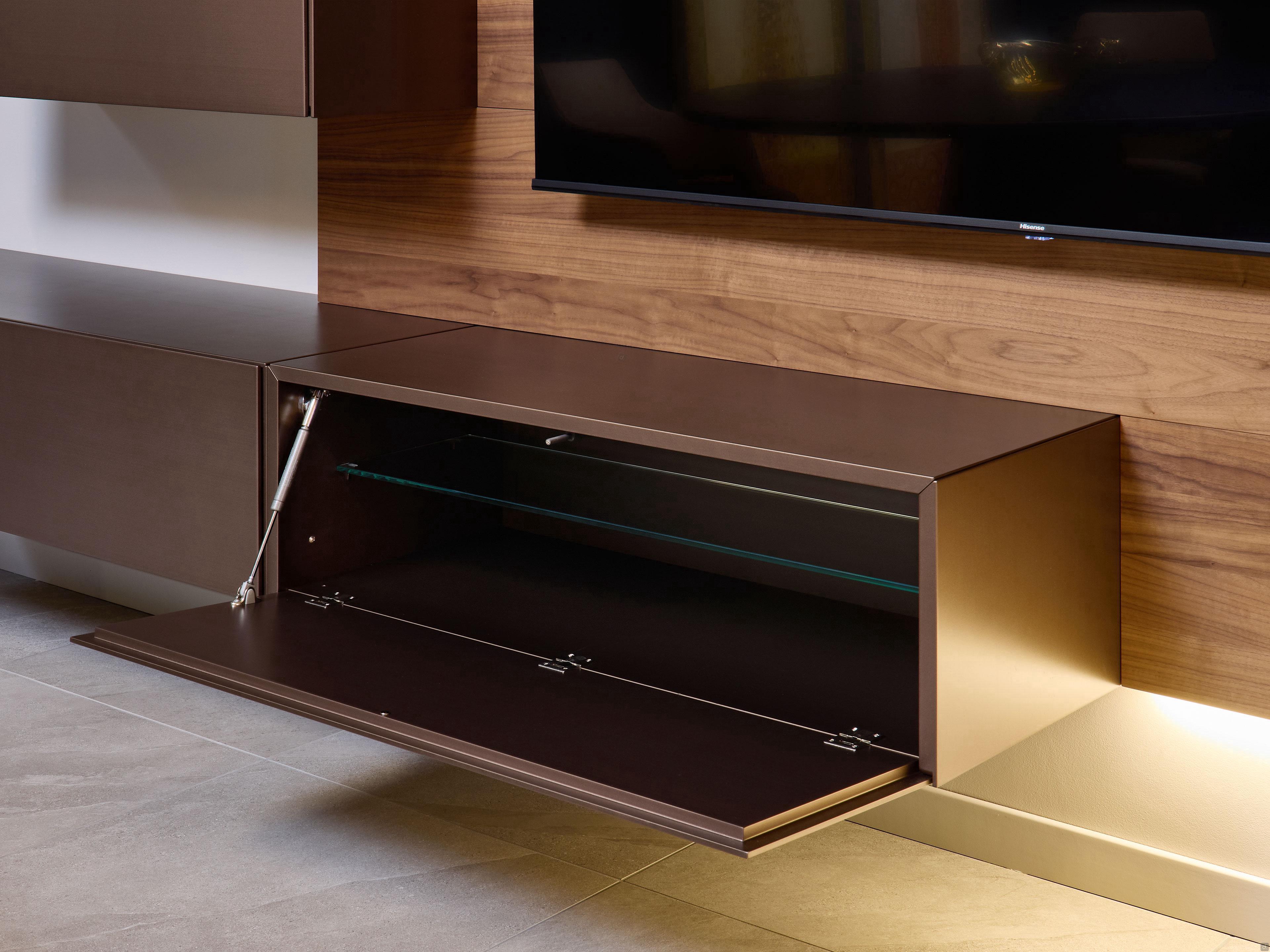

n.1 drop-down base unit: cm 96 d.44,2 h.32
n.1 base unit with drawer: cm 128 d.44 h.32

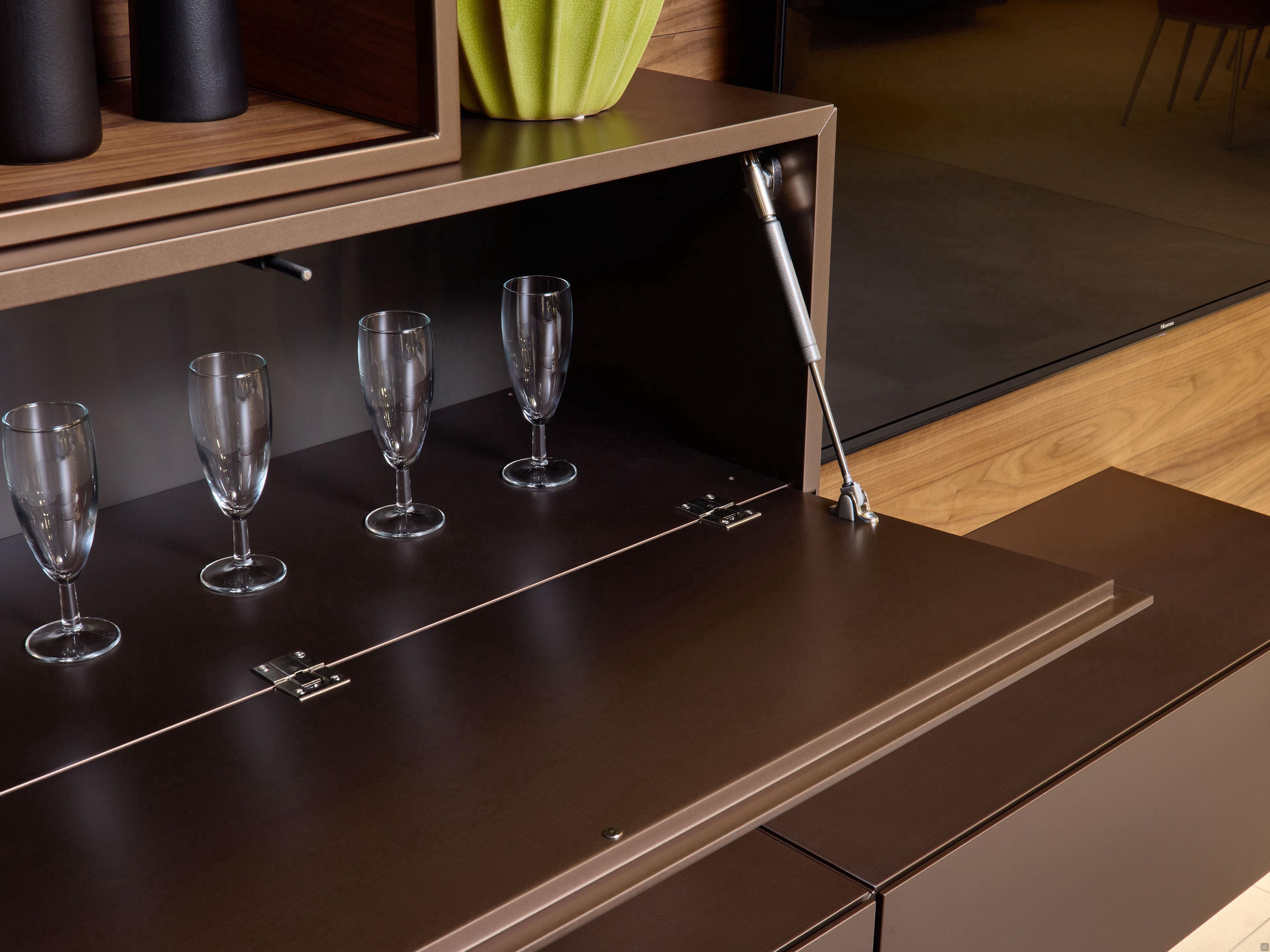

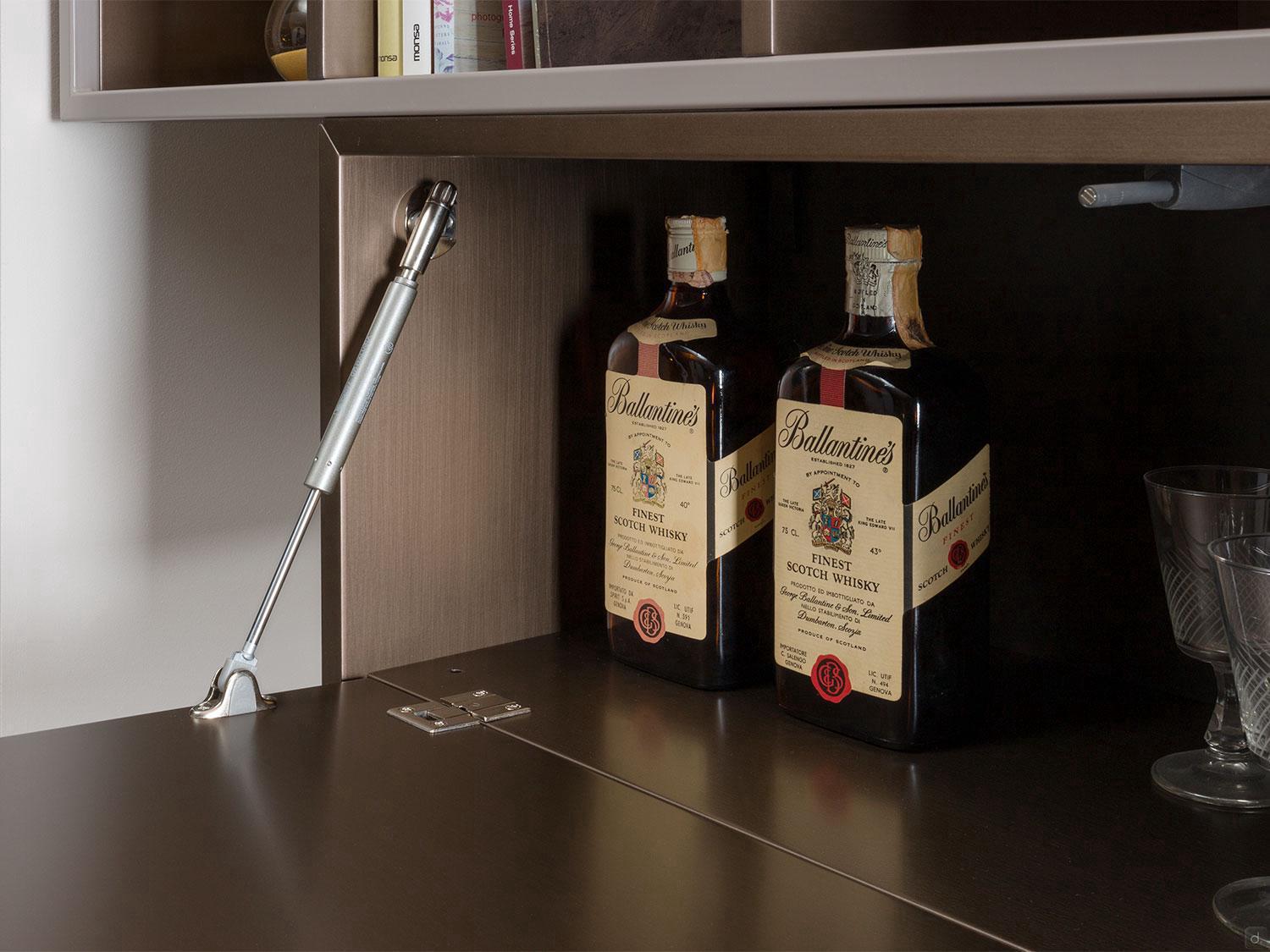

n.1 flap wall unit: cm 96 d.32,6 h.32
n.4 metal shelves: cm 41,6 d.22 cm sp.0,3
n.1 open wall unit: 96 d.32 h.32 cm

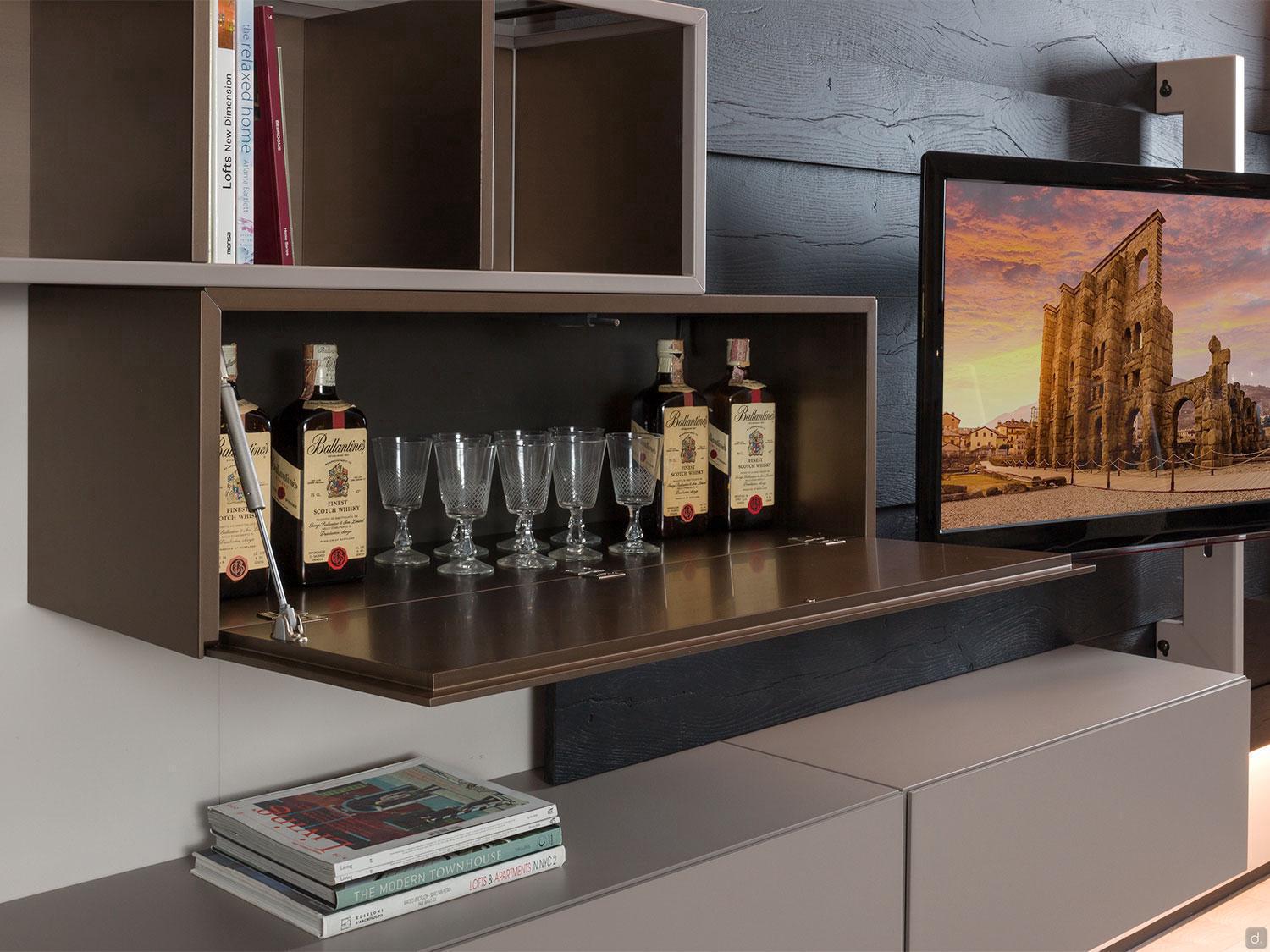

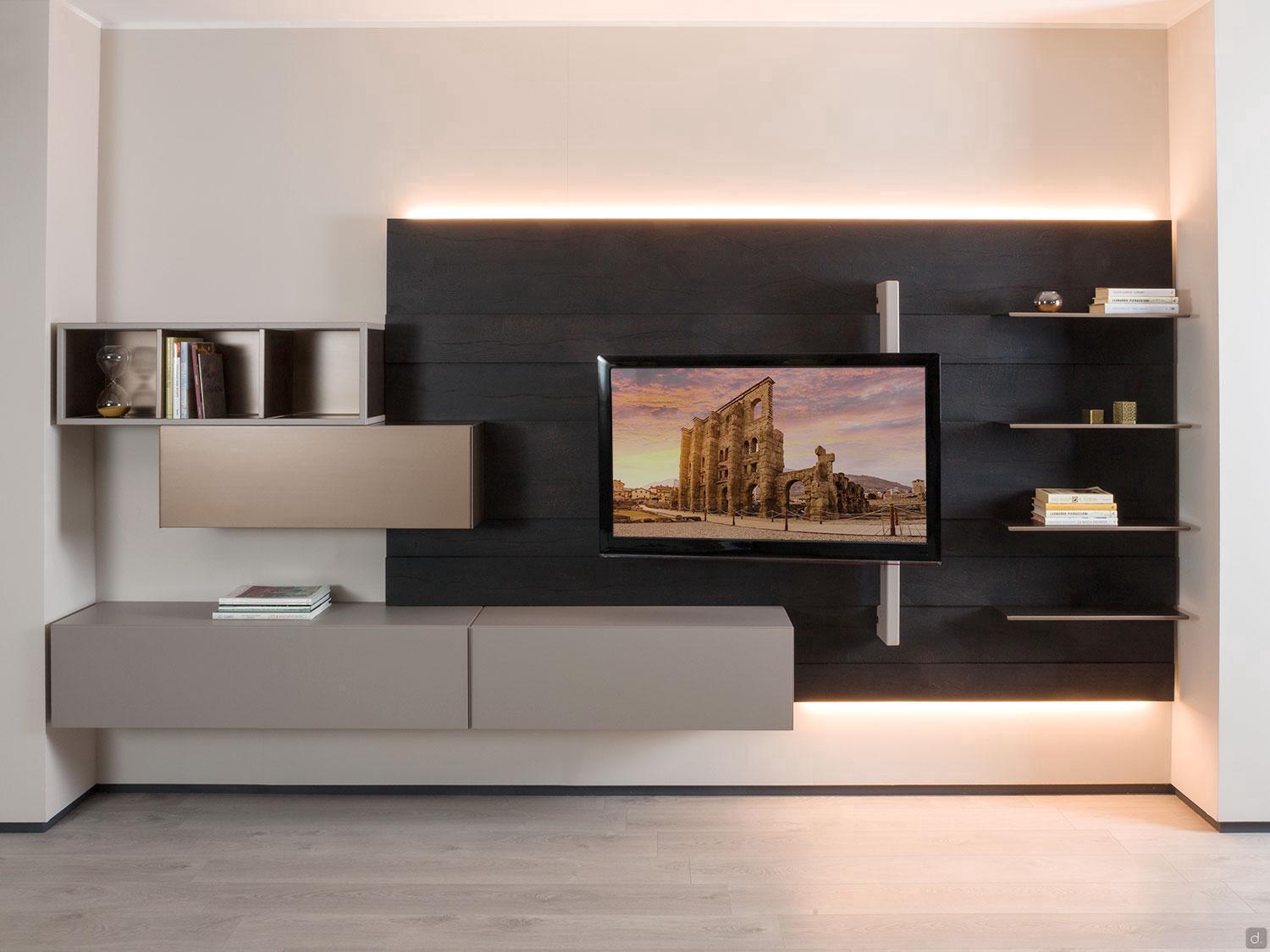

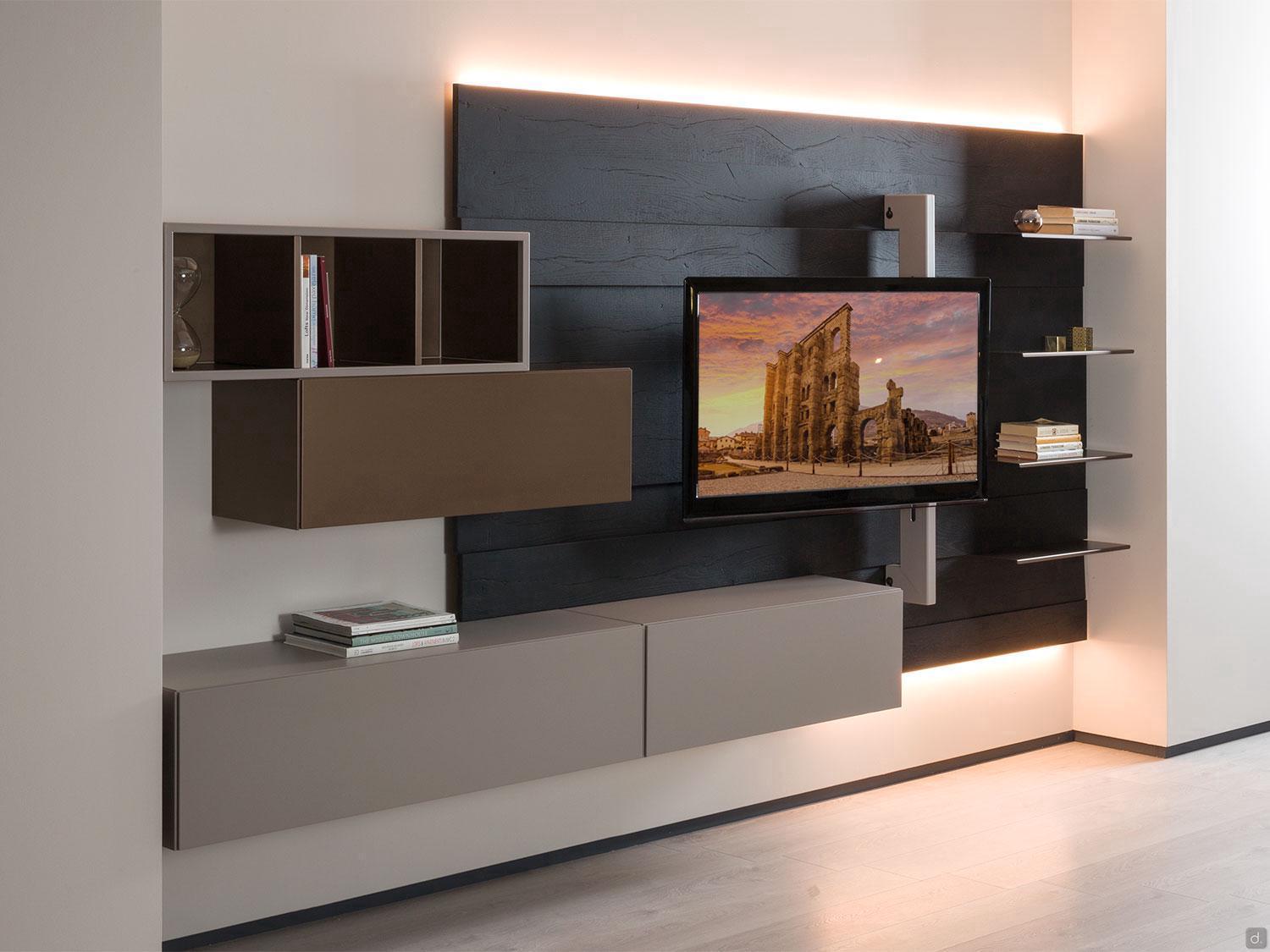

- Model with adjustable TV-holder arm
n.1 base unit with drawer: 128 d.44 h.32 cm
n.1 base unit with drawer: 96 d.44 h.32 cm
n.1 flap wall unit: cm 96 d.32,6 h.32
n.4 metal shelves: cm 57,6 d.22 cm sp.0,3
n.1 open wall unit: 96 d.32 h.32 cm
n.1 adjustable TV stand: cm 4 d.15 h.116,5
Technical Specifications and Equipment
Base and wall unit structure: extralight E1 particle board panel veneered with real wood veneer or coated with polyester resin and lacquered. Visible edges in real wood veneer, thickness 0.1 cm, or lacquered polyester resin, thickness 0.1 cm. Compact mdf containers are made of recycled eucalyptus microparticle panel coloured with organic E1 water-repellent colours. Backs are in slate lacquered mdf.

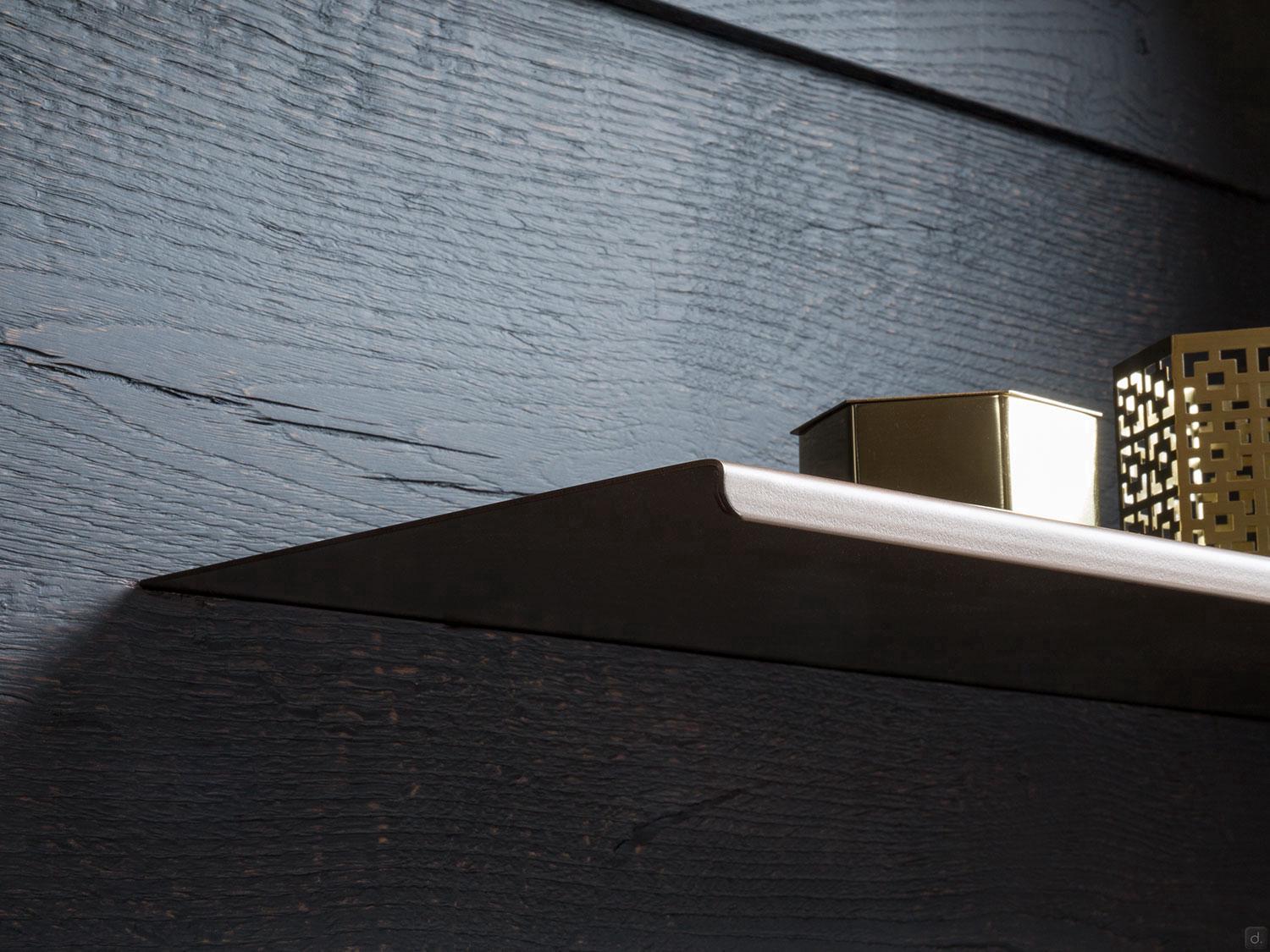

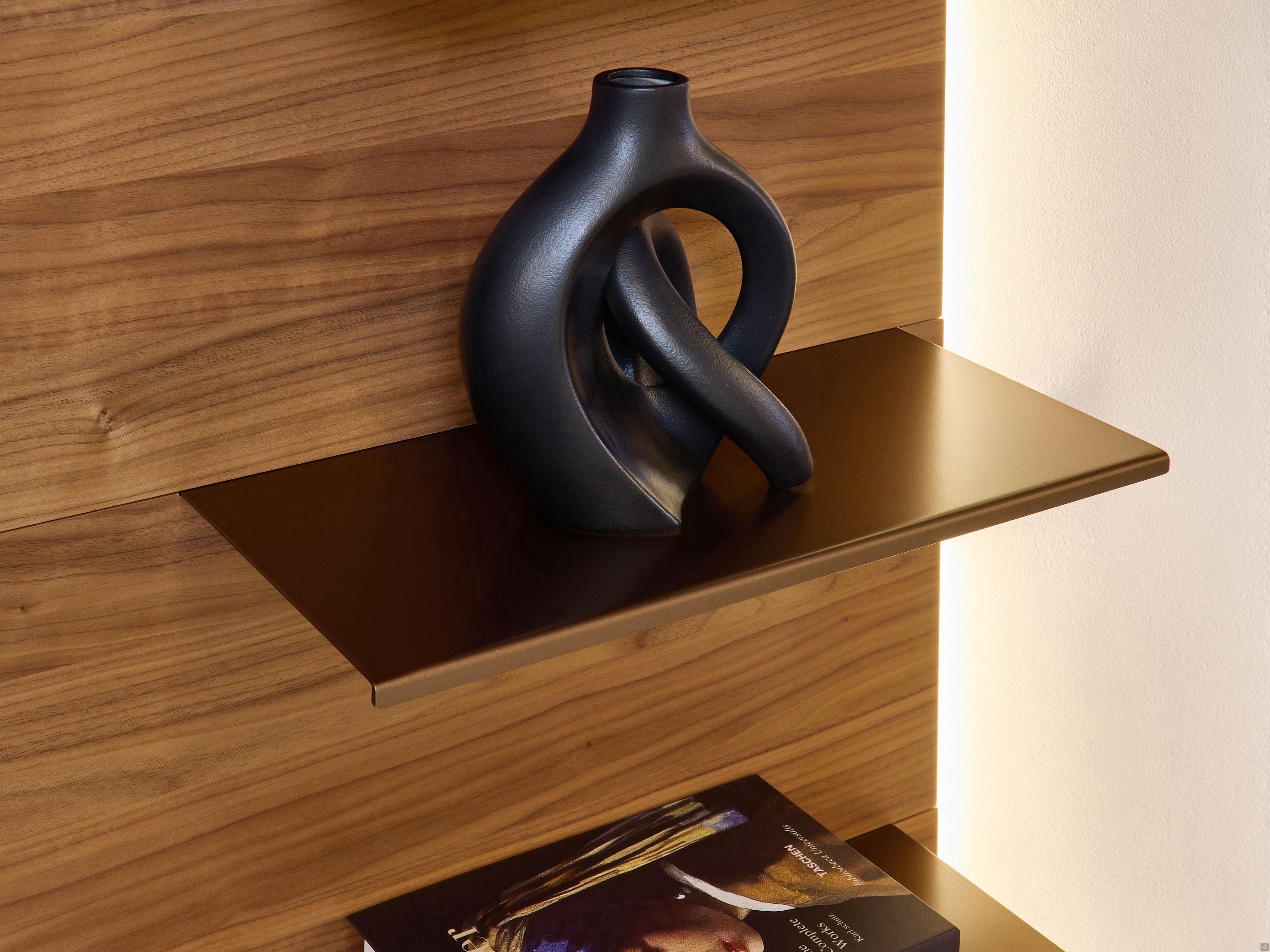

Shelves: in metal with Iron Wax finish or lacquered cm d.22 cm sp 0.3.

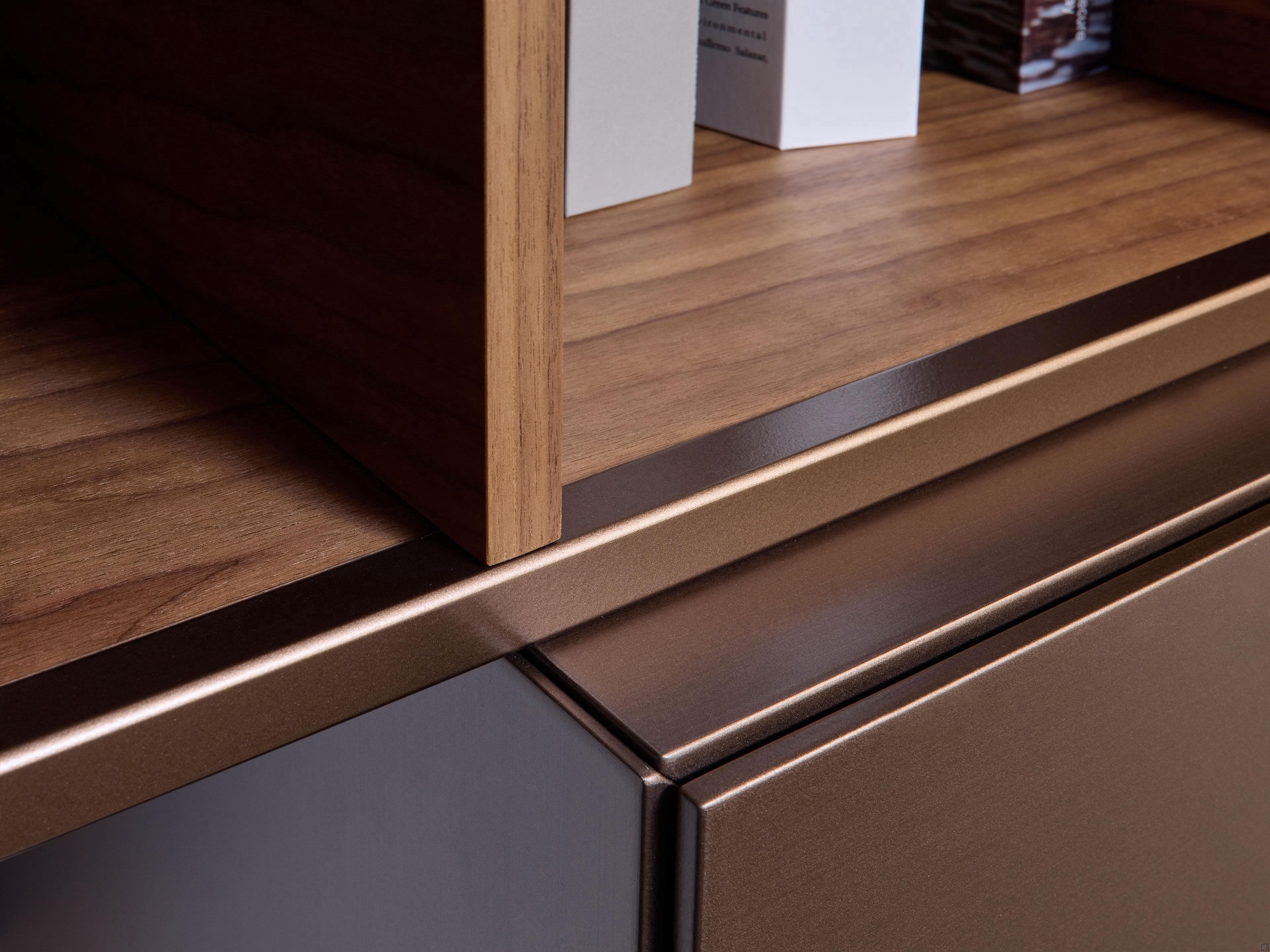

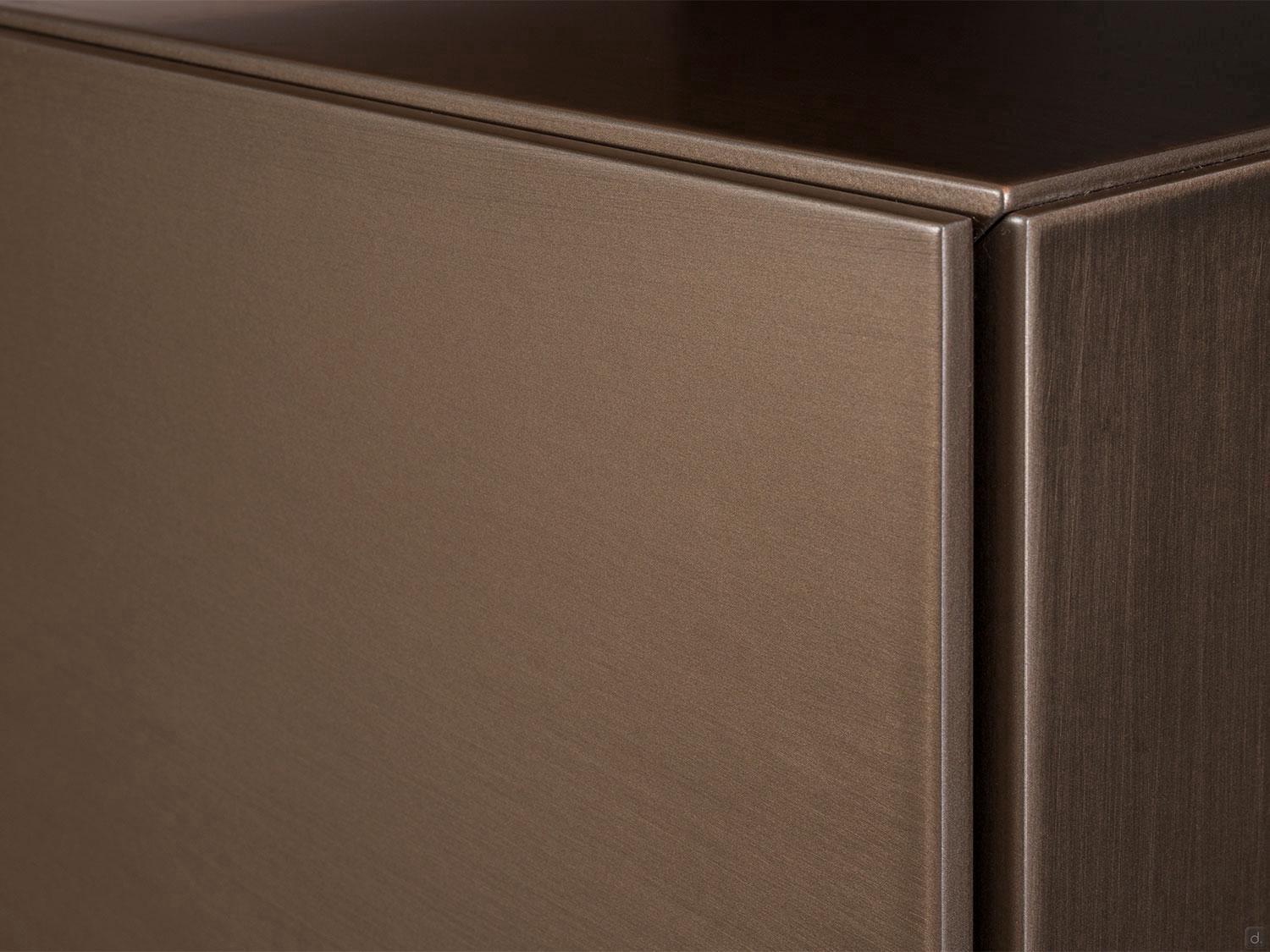

Doors and fronts: the wood veneer fronts are made of Compact mdf, i.e. recycled eucalyptus microparticle panel coloured with organic dark grey E1 water-repellent colour and veneered with real wood veneer. The edges with perimeter rebate on the fronts are exposed Compact. The matt lacquered fronts are made of HD mdf coated with polyester resin and matt lacquered in 4 coats. Edges with perimeter stop on fronts are lacquered. The doors have a cm 1.4 perimeter rebate so that the closed front is thin (only cm 0.6), with a total thickness of cm 2. Perimetrically the front is reduced by cm 0.5 per side compared to the storage units.
Internal shelves: hinged wall units (including display cabinets) include an internal shelf made of 0.8 cm thick clear glass.

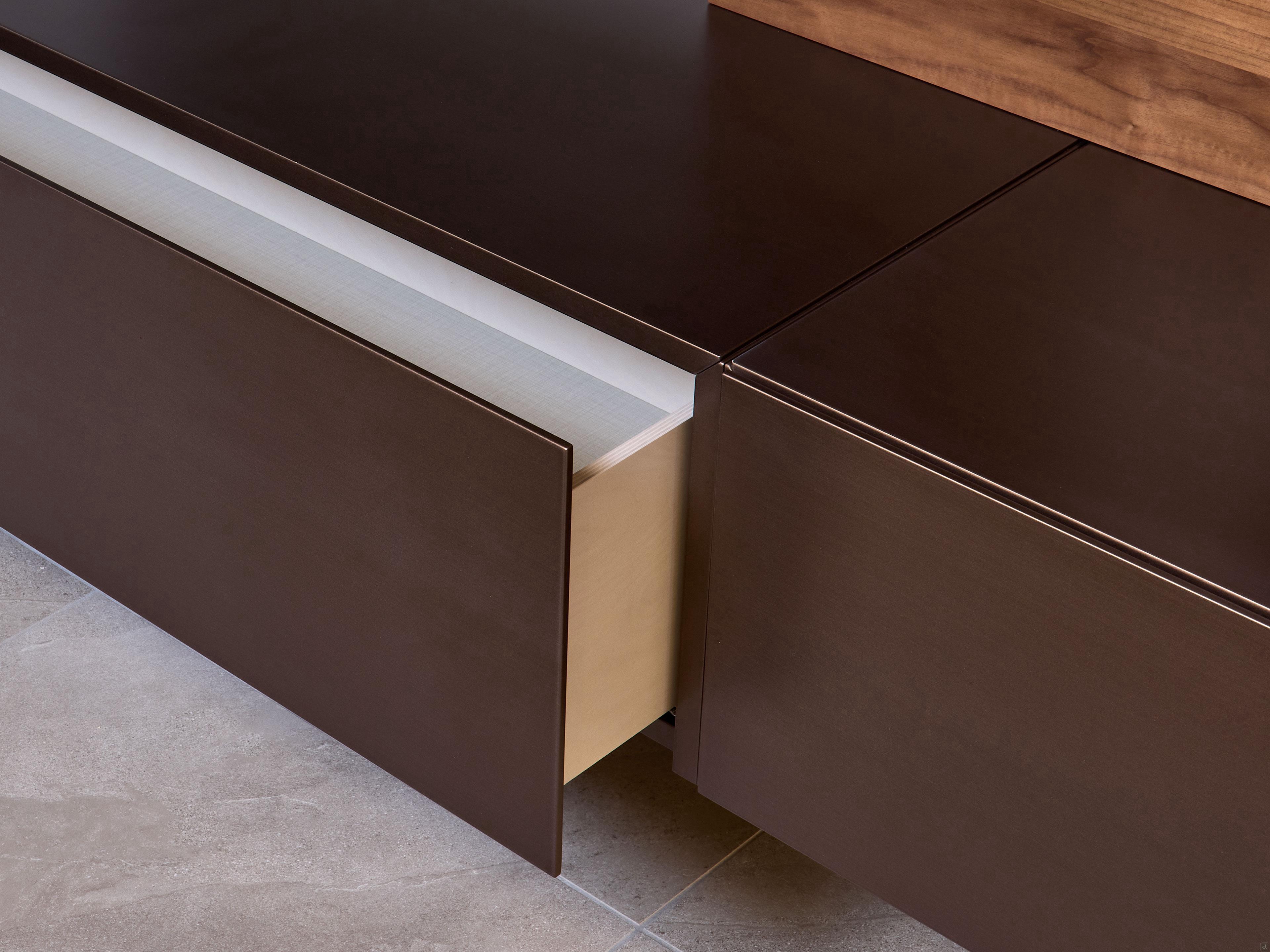

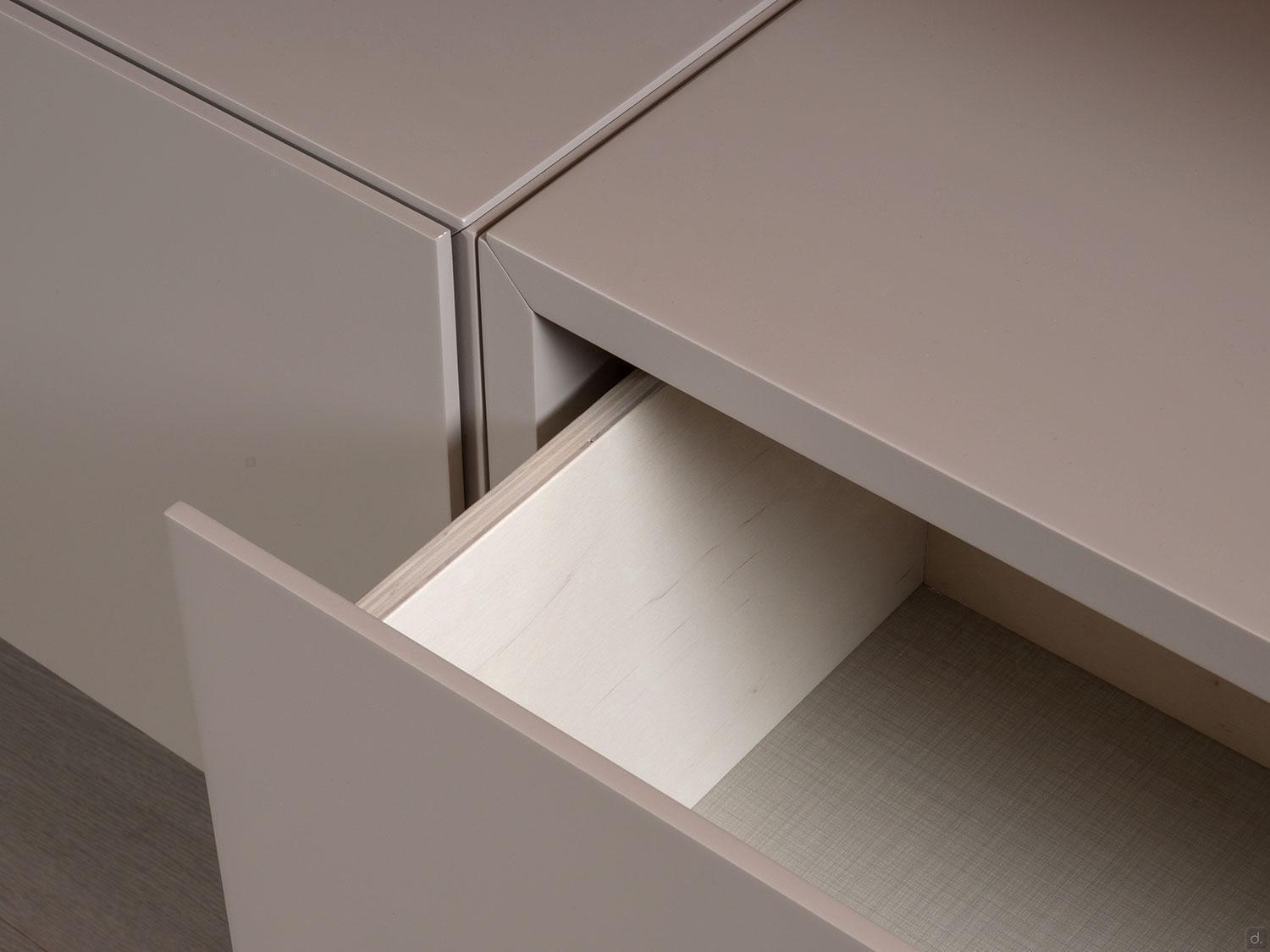

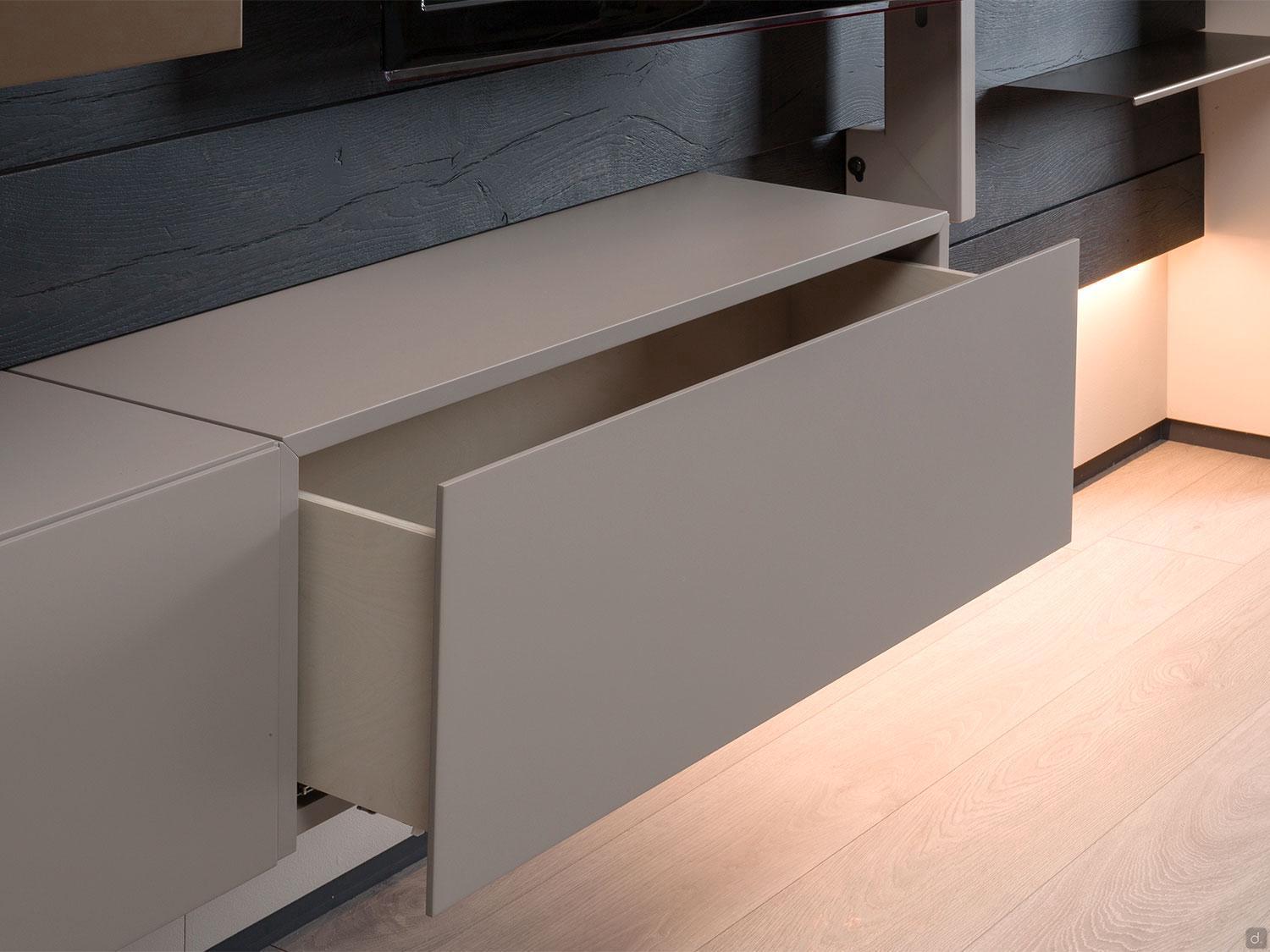

Drawers / Baskets: perimeter structure made of 1.2 cm thick dark grey textured melamine, while the bottom is made of 1 cm thick grey fabric-effect melamine panel. The basket is constructed "4-sided" with a screwed front, giving greater solidity to the entire structure. Blum invisible runners with partial-extension ball-bearing slide and push-pull opening.

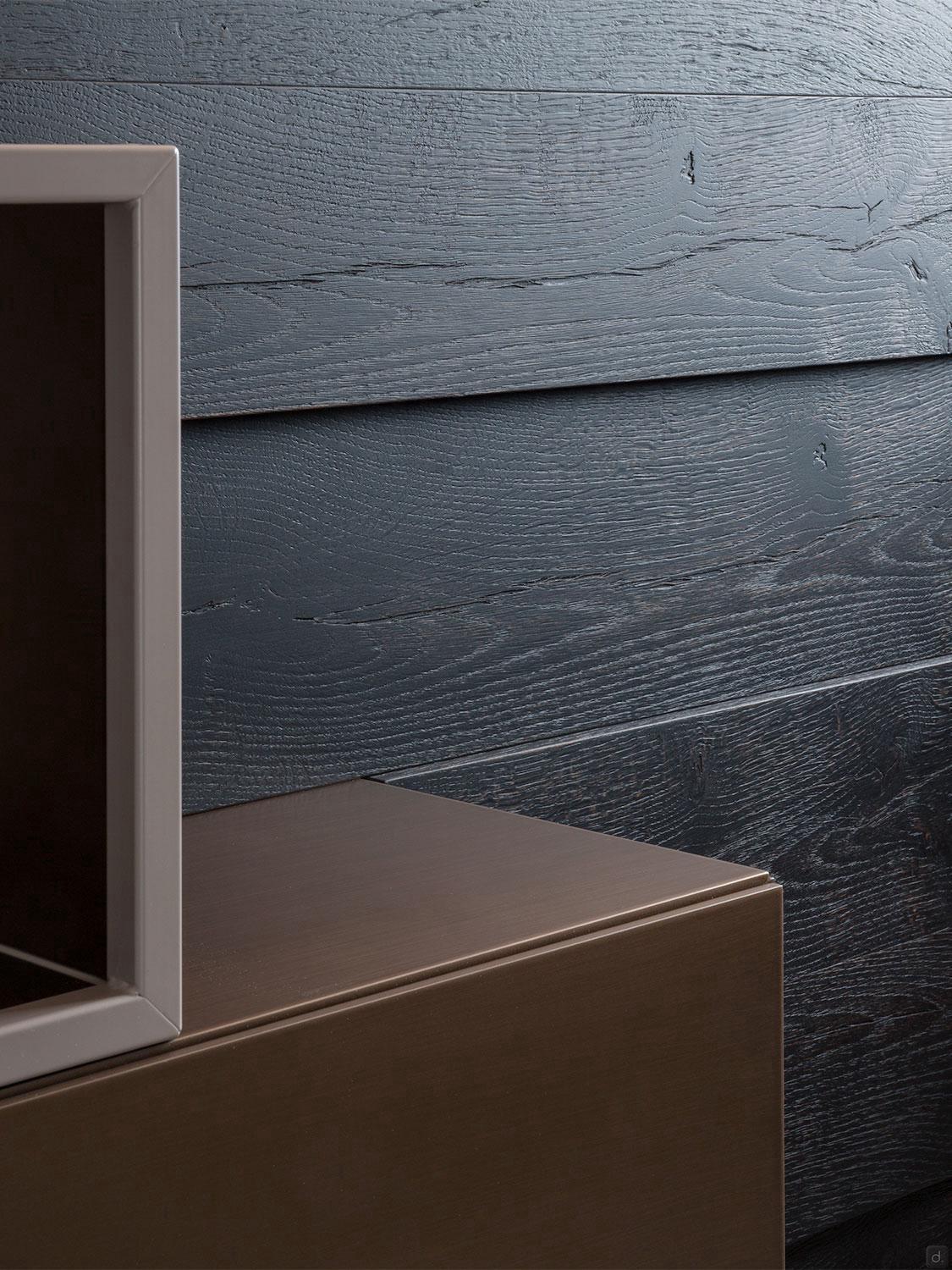

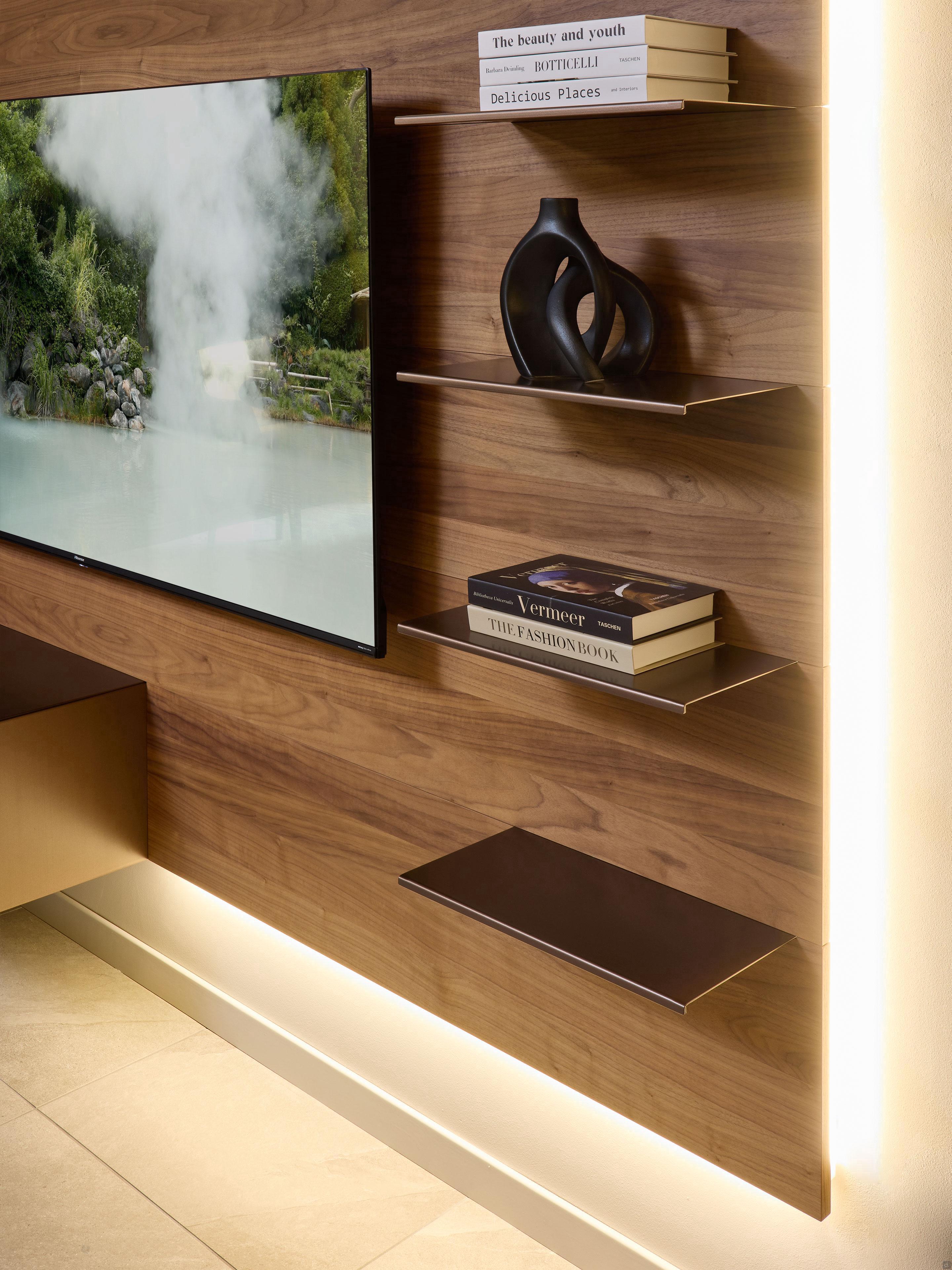

Boiserie: patented 3D boiserie composed of slats positioned horizontally 2 cm thick, fixed to the wall by means of a rack. The technical space between panel and wall (and the consequent depth of the entire composition with respect to the wall behind) is adjustable in three positions: 5.5 cm, 6 cm and 6.5 cm. This feature also makes it possible to have a "dynamic" wall with individual slats placed side by side but with different depths from each other.

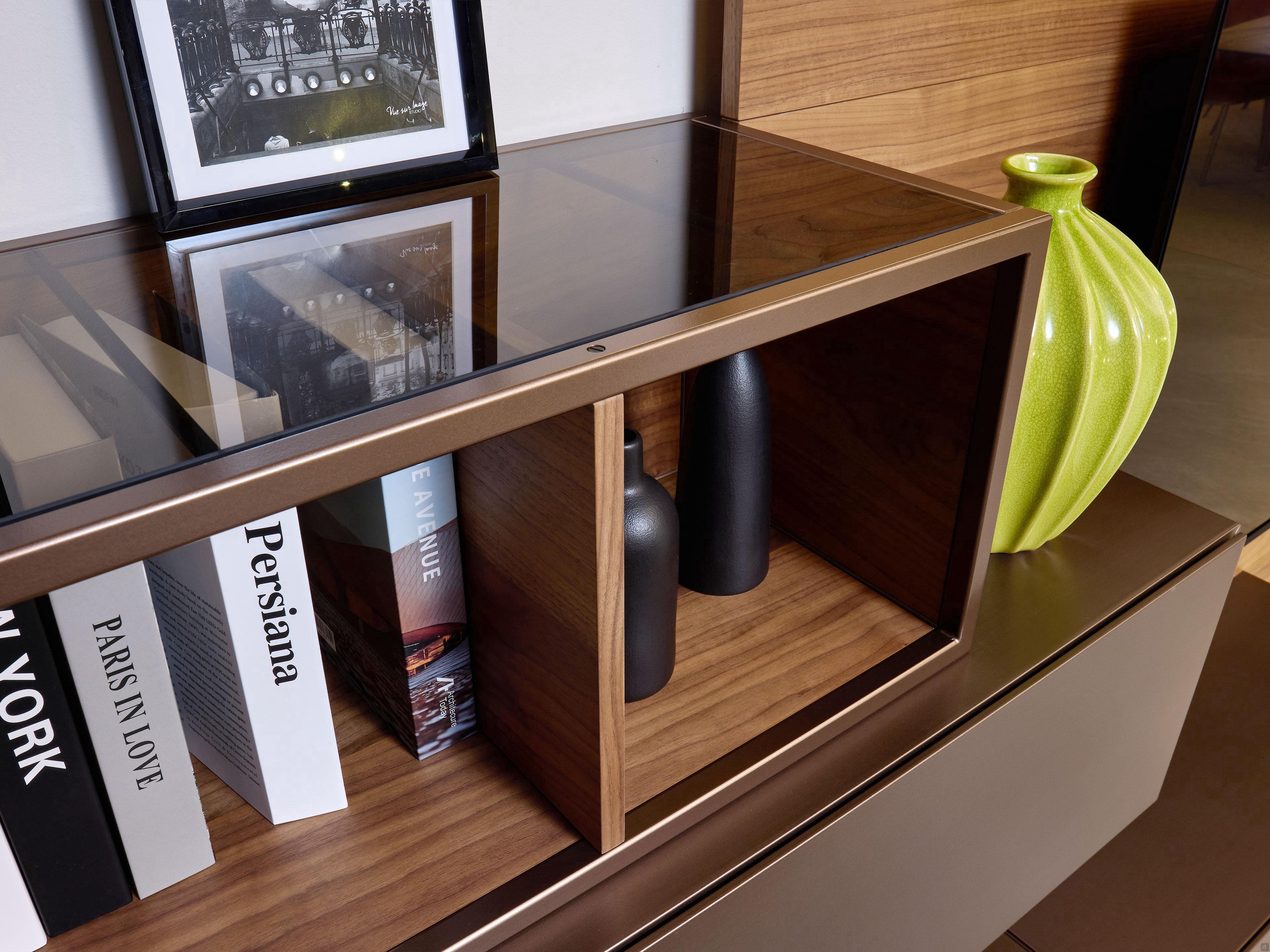

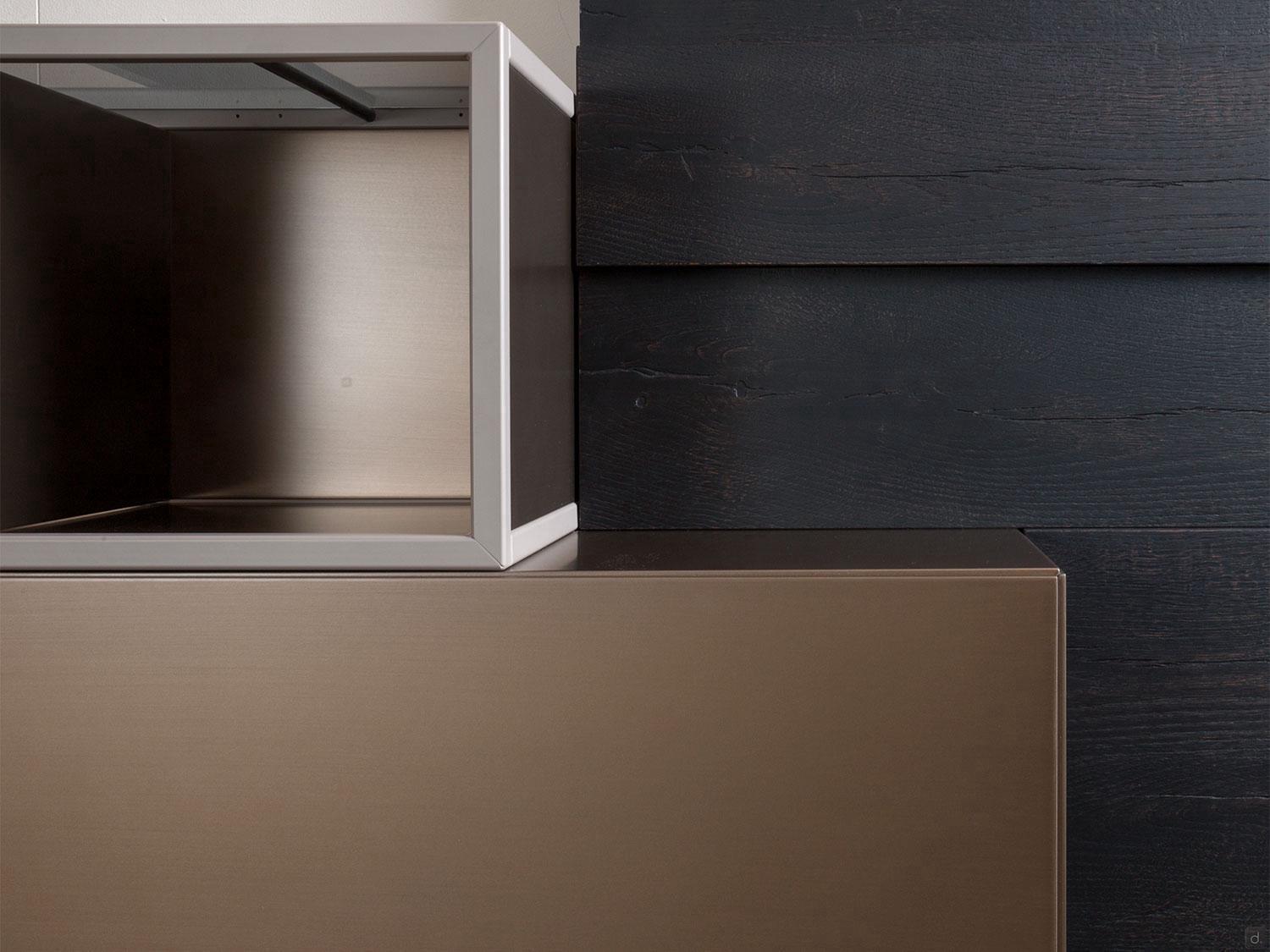

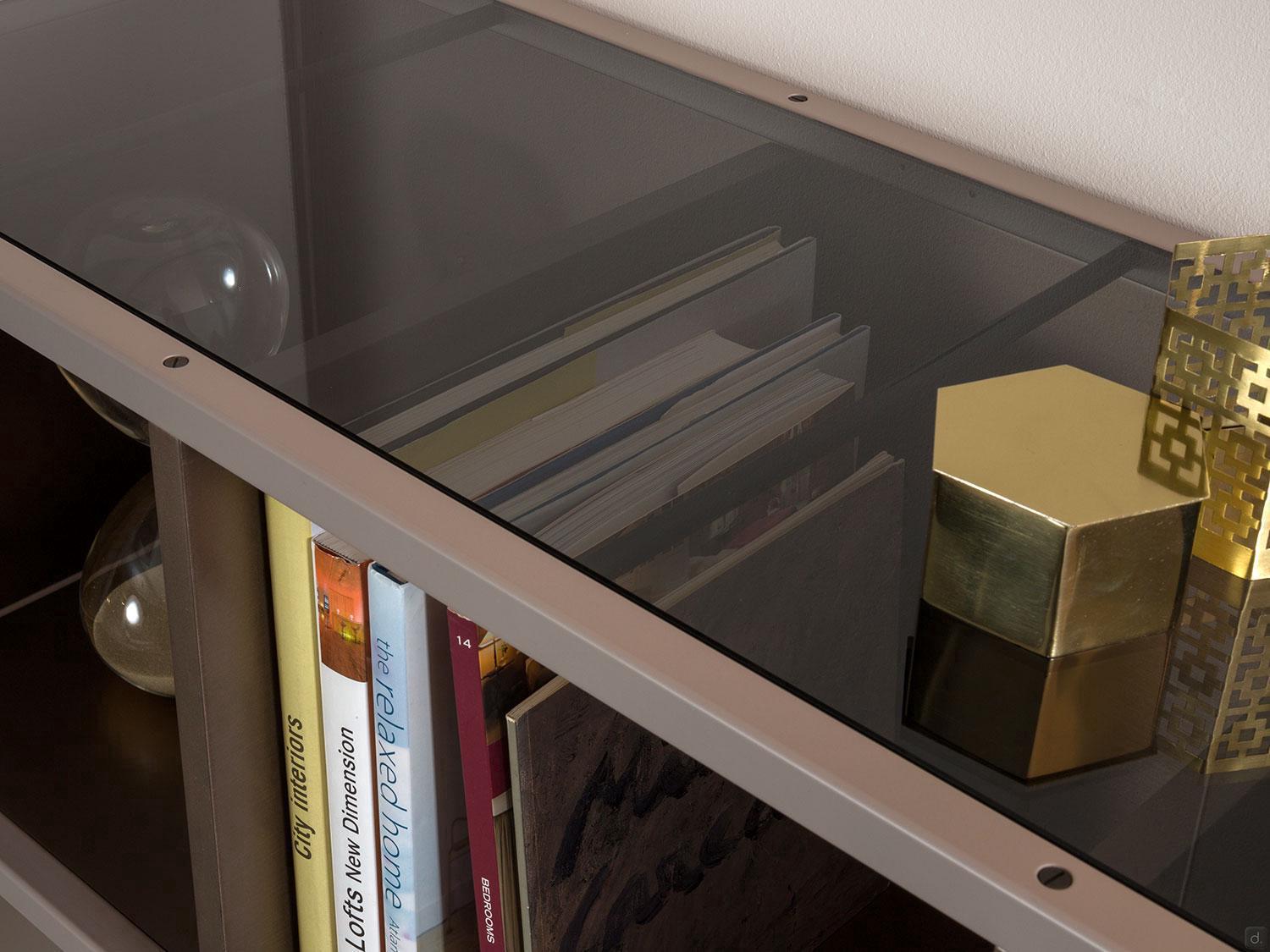

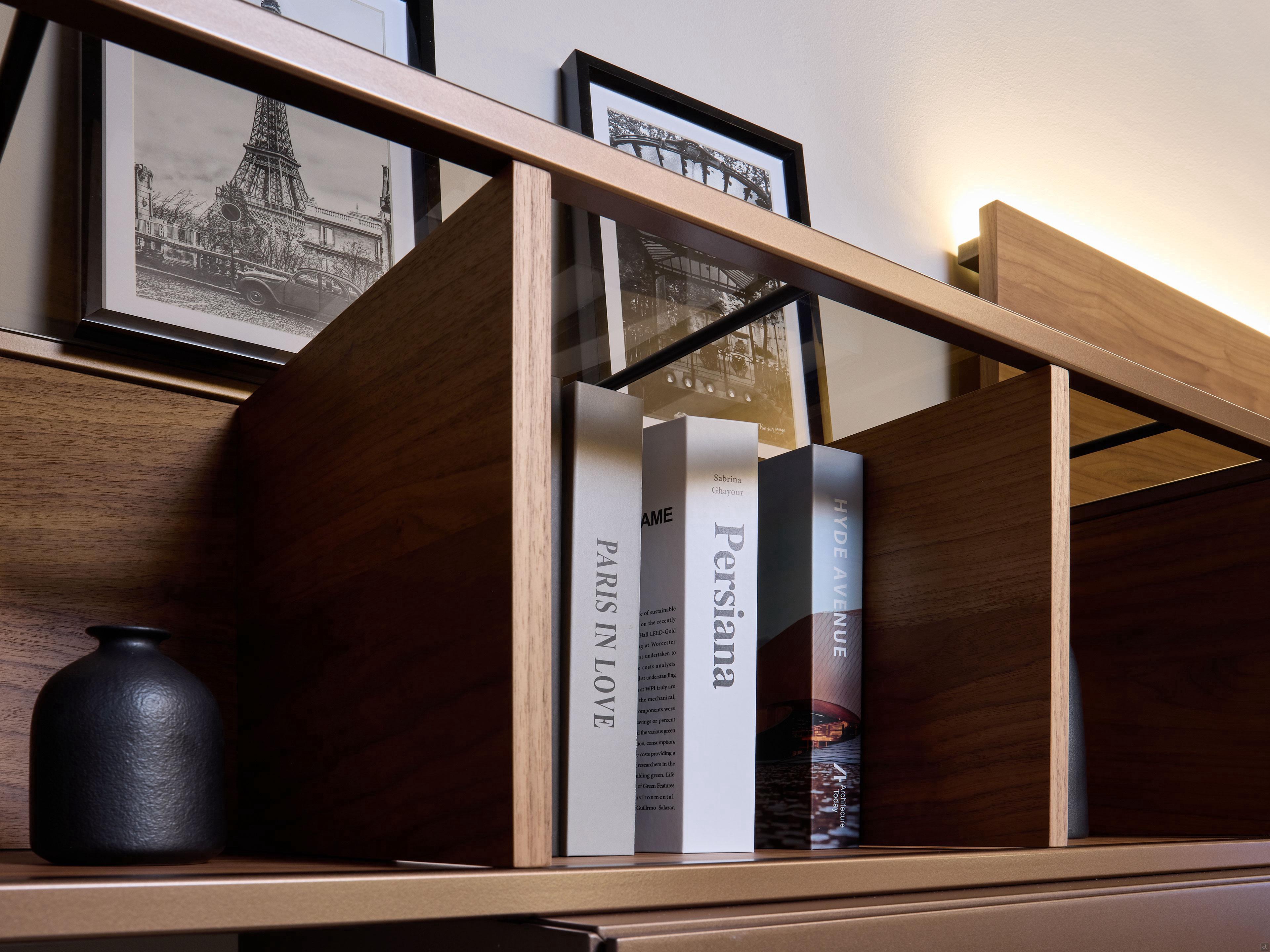

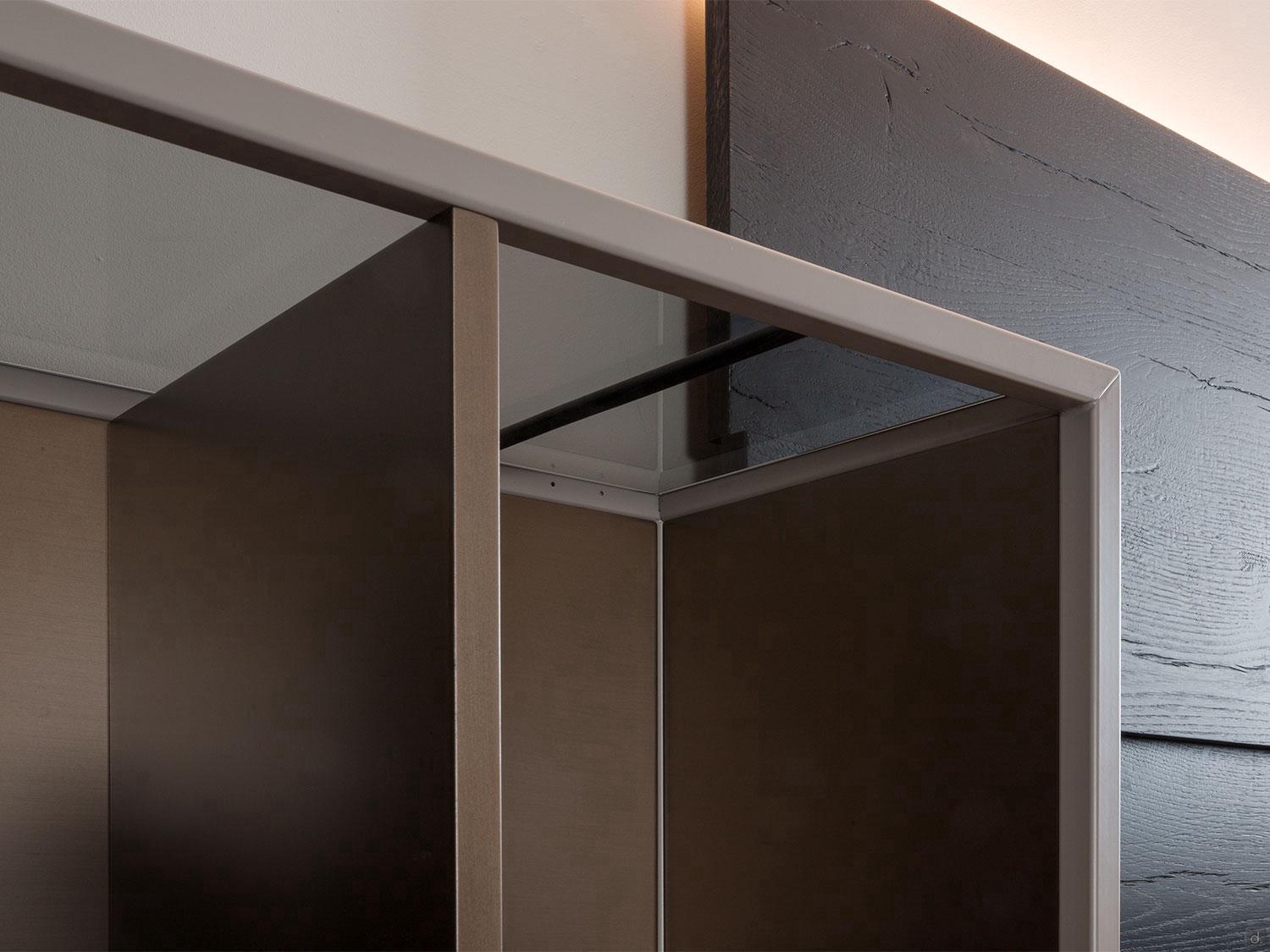

Open compartment and showcase structure: the structure is made of 2 x 2 cm section tubing in a waxed iron or matt lacquered finish. Shelves and dividers, cm 1.6 thick.

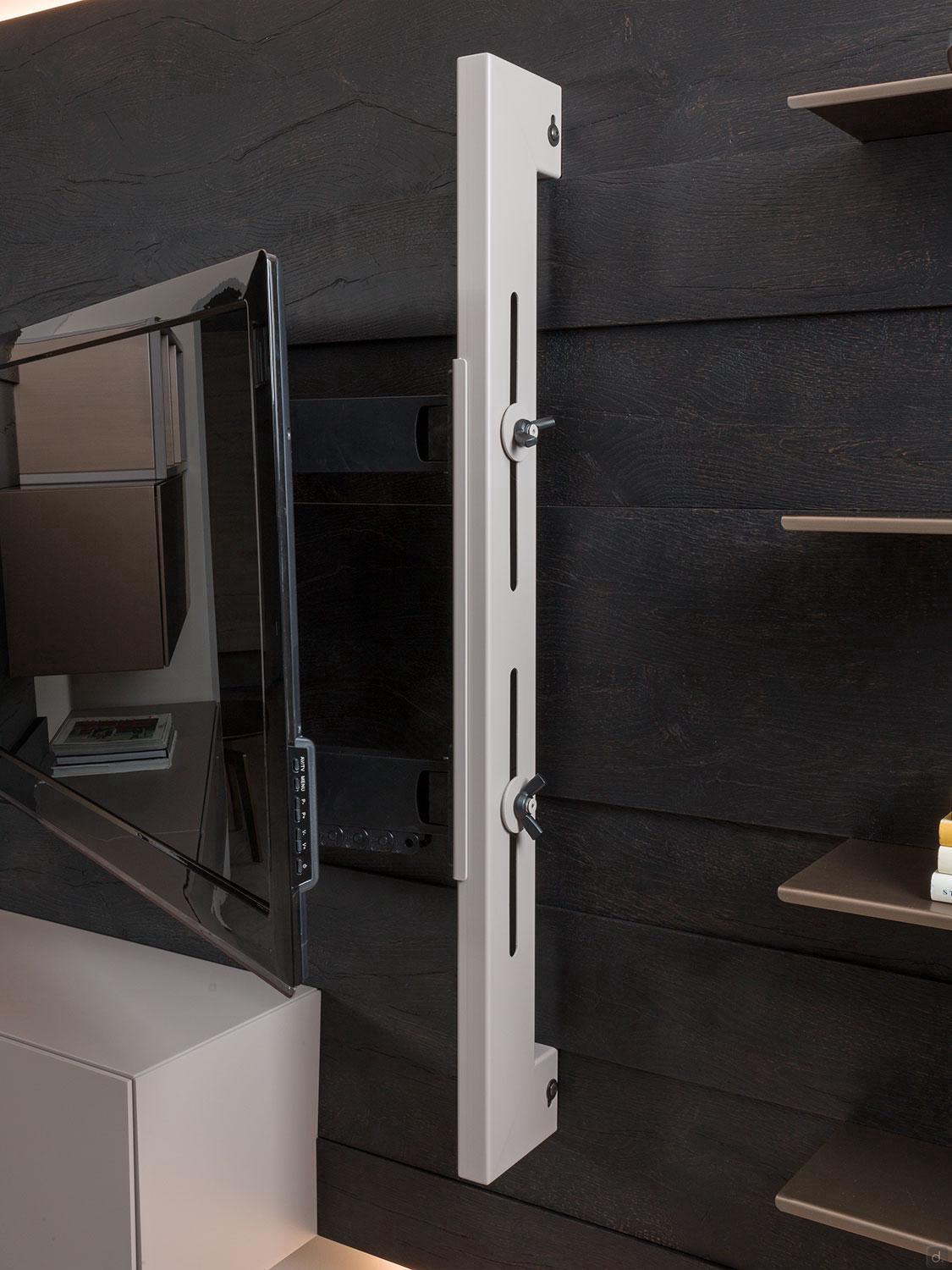

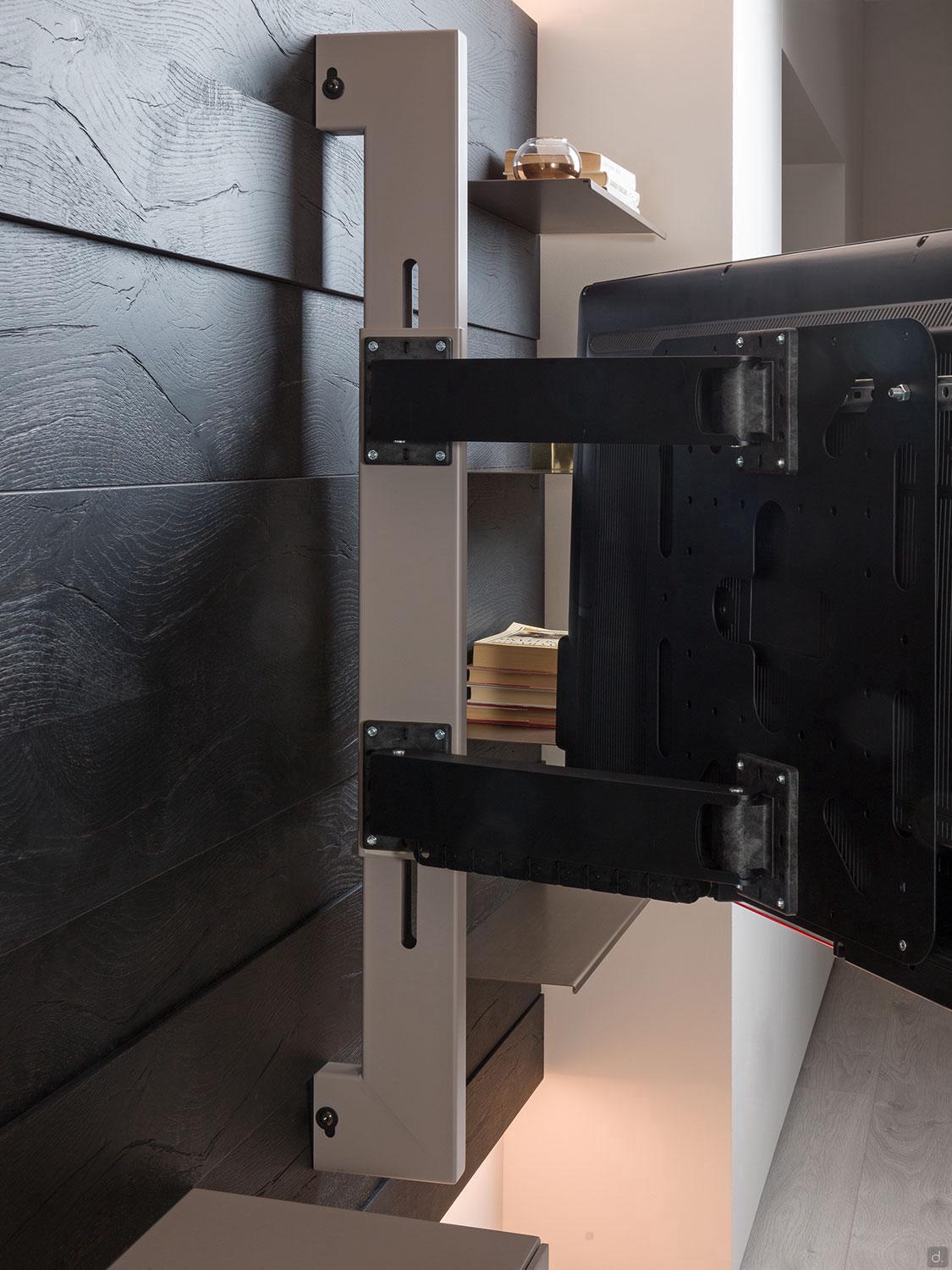

TV stand: equipped with swivelling arm with double joint and Vesa plate for attaching TV from 42" to 56". Complete with rack coupling for paneling. TV position is adjustable in height.
Optional

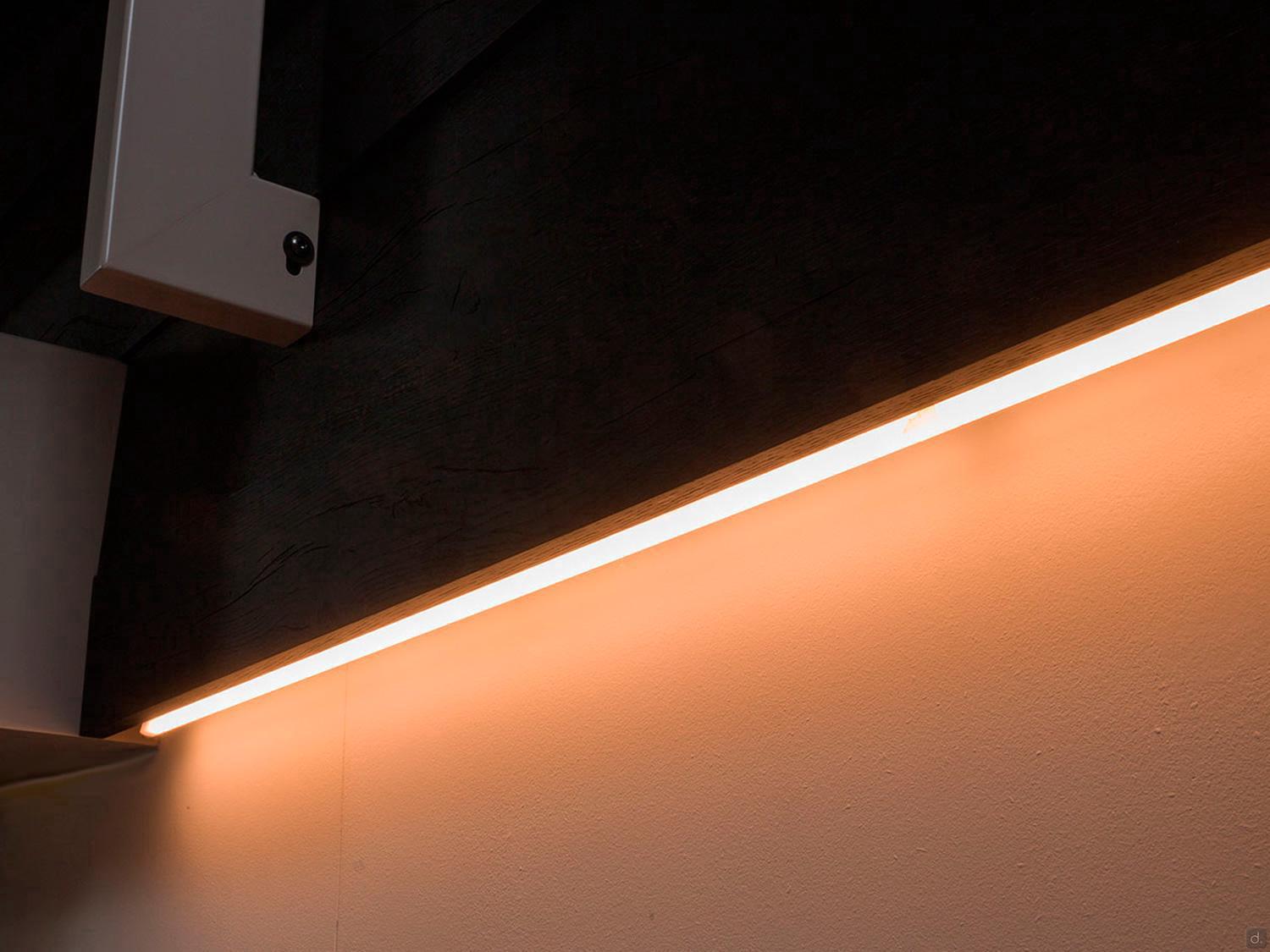

LED lighting: recessed LED bars with 1.1 x 1.1 cm section positioned on the sides of the boiserie, made of opal polycarbonate with uniform diffusion - 3000K - 36W (total) including power supply with optional remote control.
