Models and Measurement Specifications

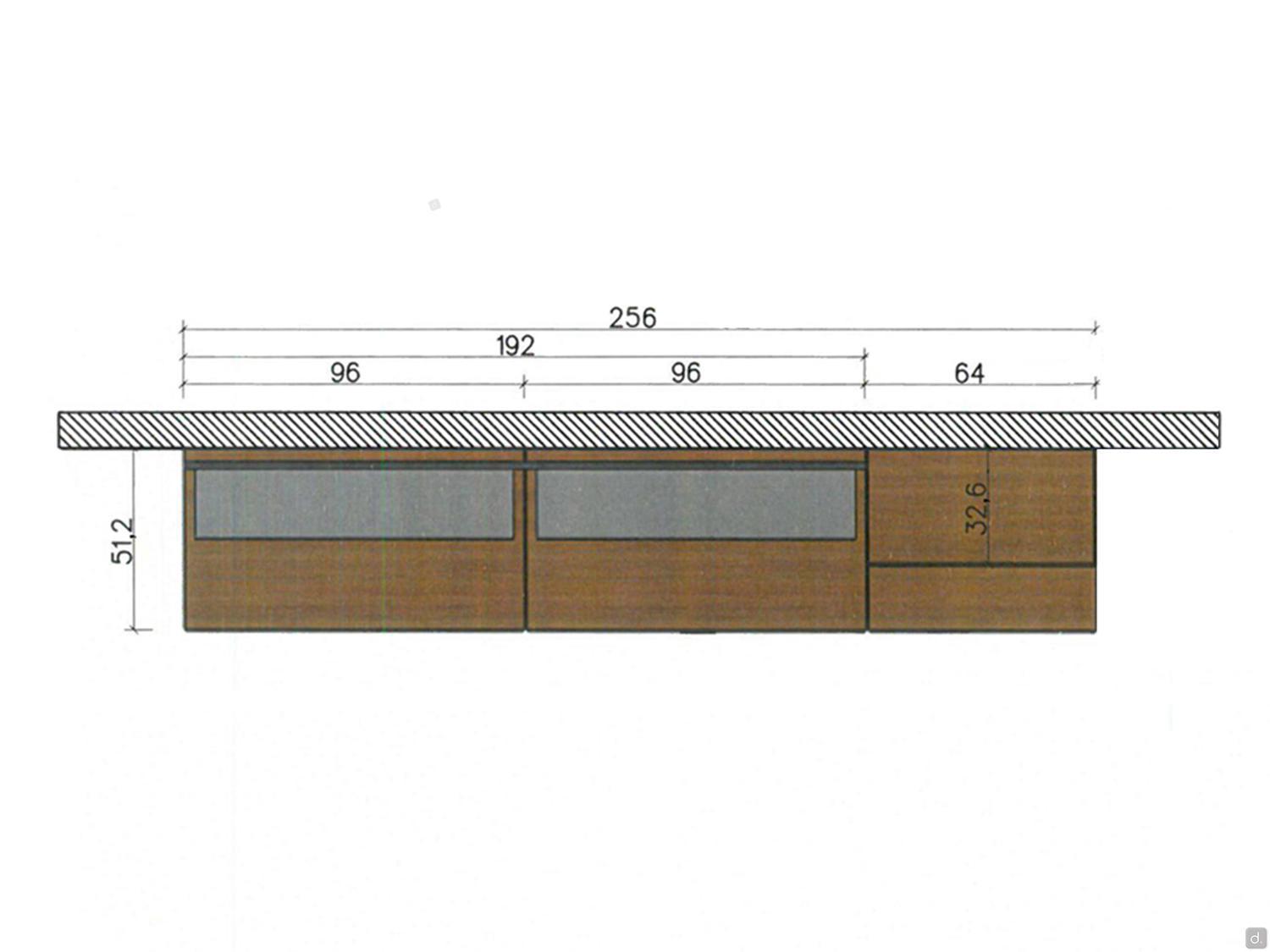

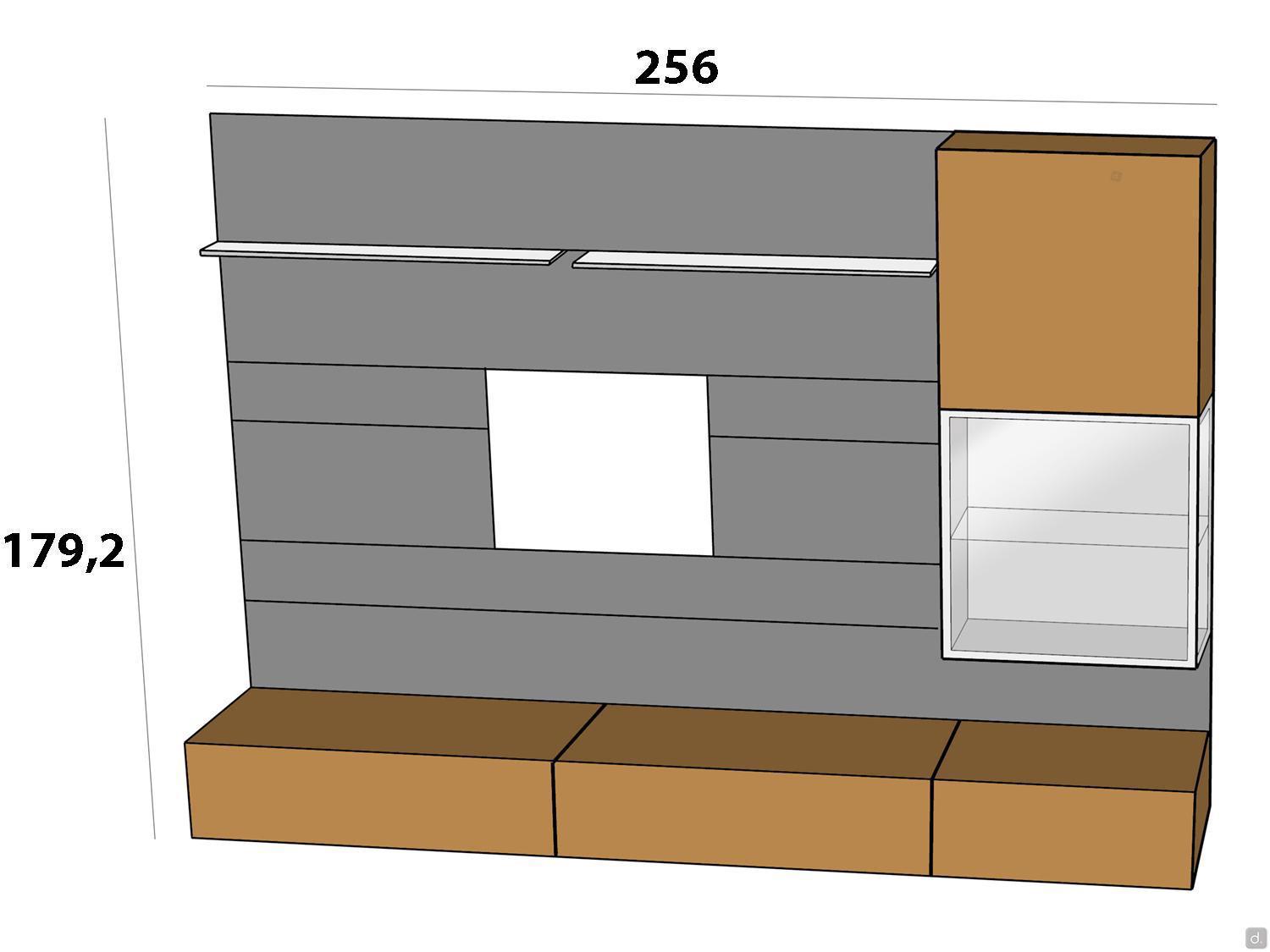

Model with single display (width: cm 256)

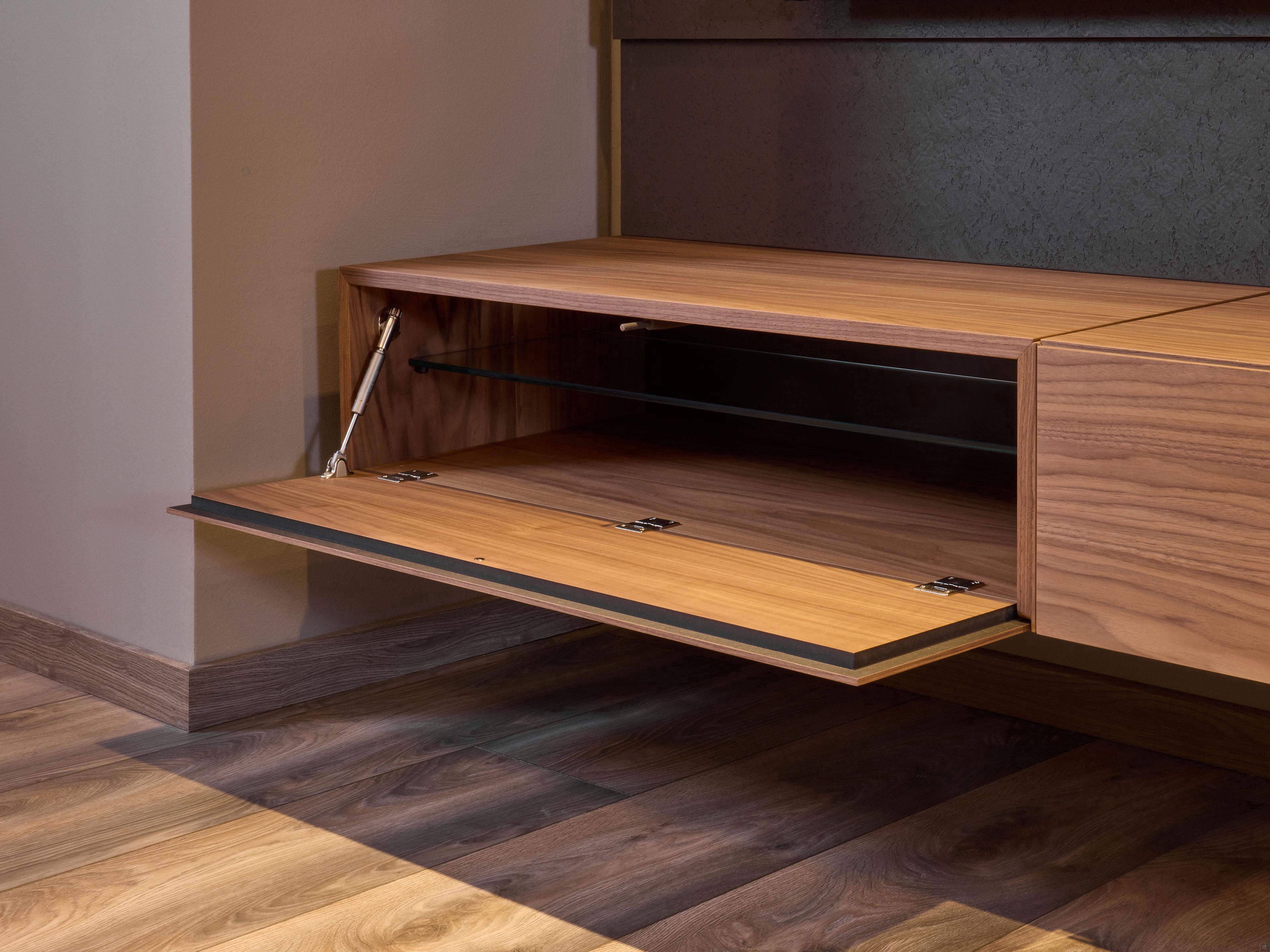

n.2 base units with drop-down and drawer: cm 96 h.25,6 d.51,2

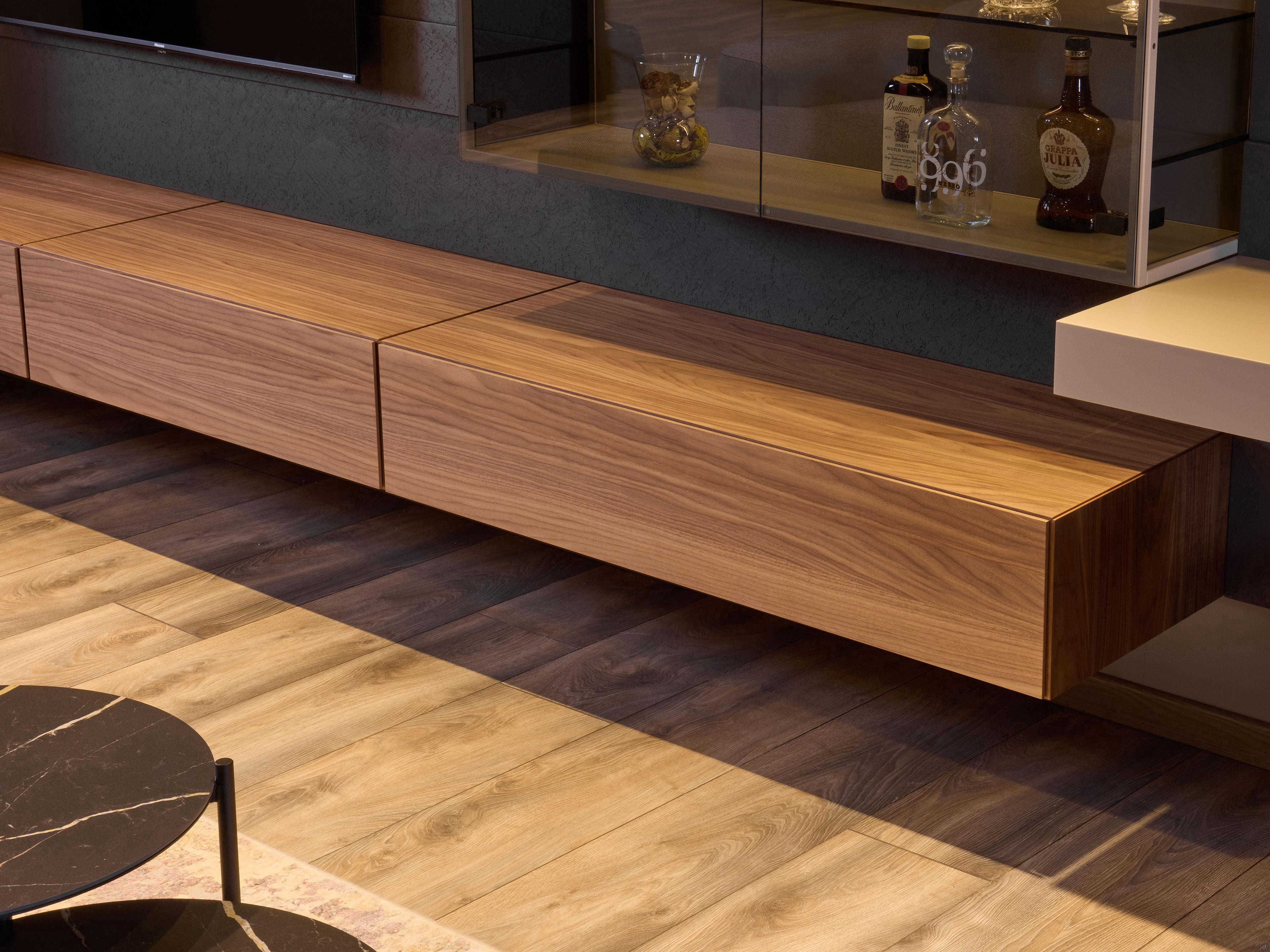

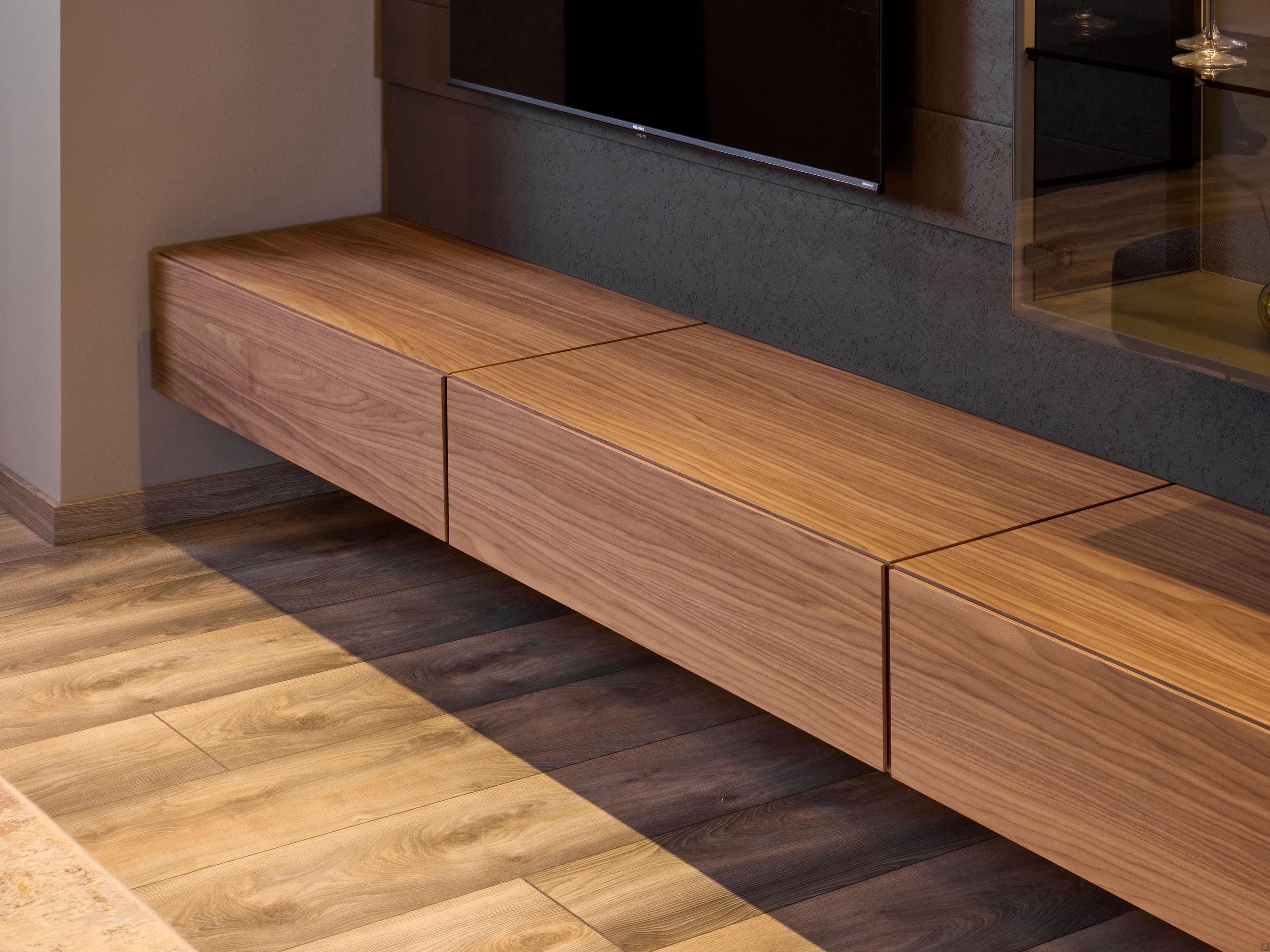

base unit with drawer: cm 64 h.25,6 d.51,2
hinged wall unit: cm 64 h.64 d.32,6
showcase with metal structure: cm 64 h.64 d.32
n.2 shelves: cm 89,6 p.22 th.0,1

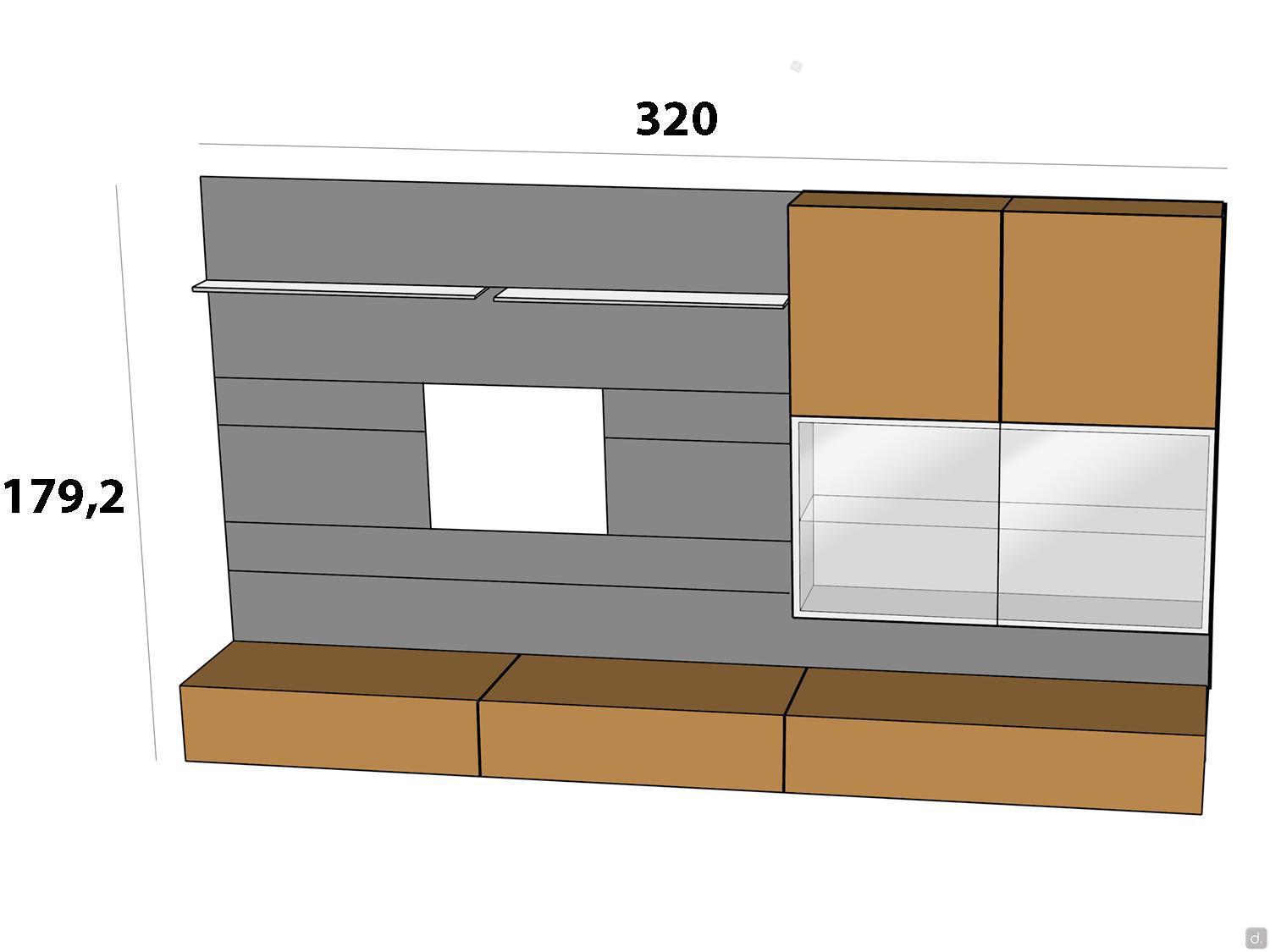

Model with double showcase (width: cm 320)
n.2 base units with drop-down and drawer: cm 96 h.25,6 d.51,2
base unit with drawer: cm 128 h.25,6 d.51,2
n.2 hinged wall units: cm 64 h.64 d.32,6
display with metal structure: cm 128 h.64 d.32
n.2 shelves: cm 89,6 d.22 th.0,1

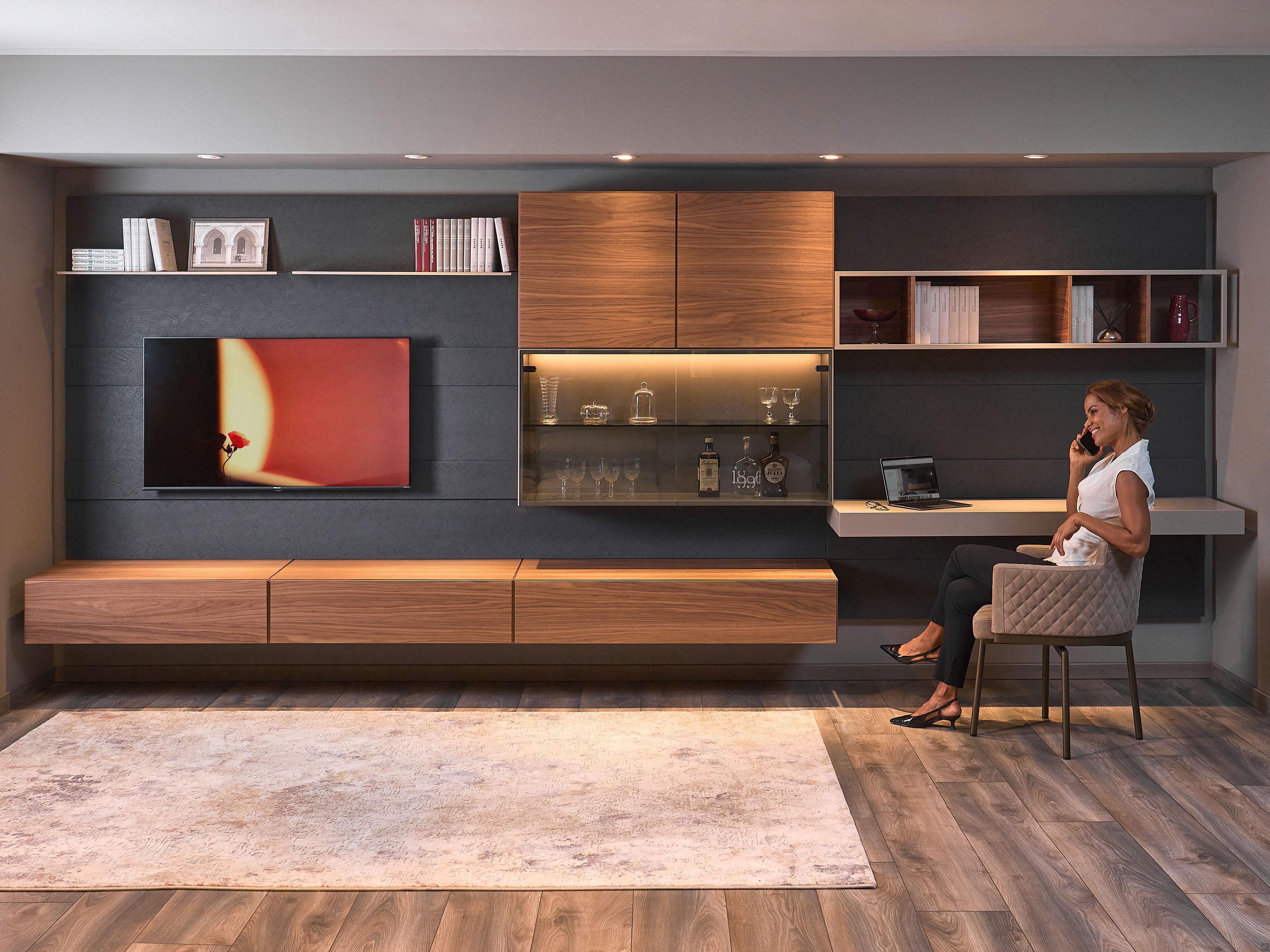

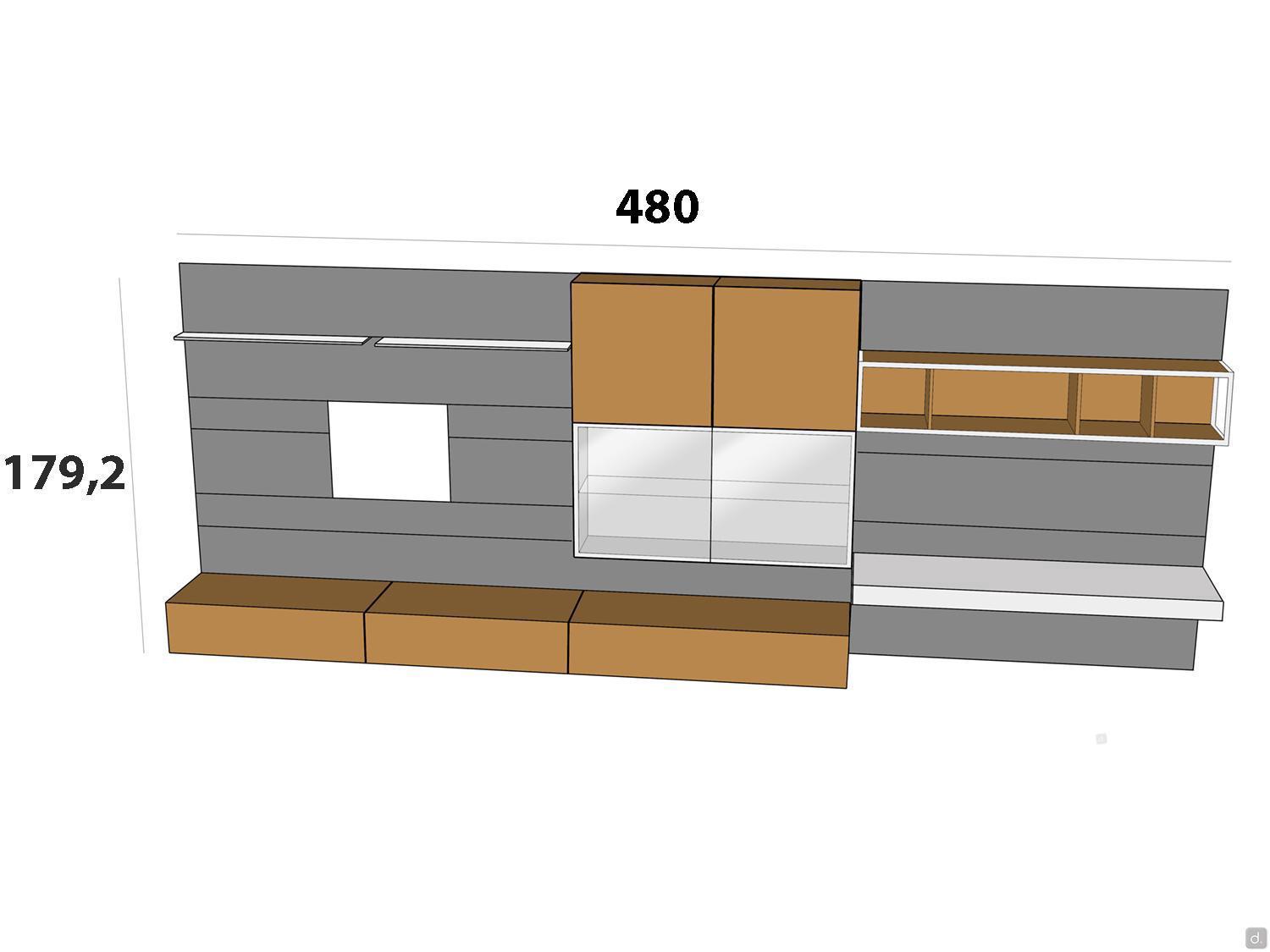

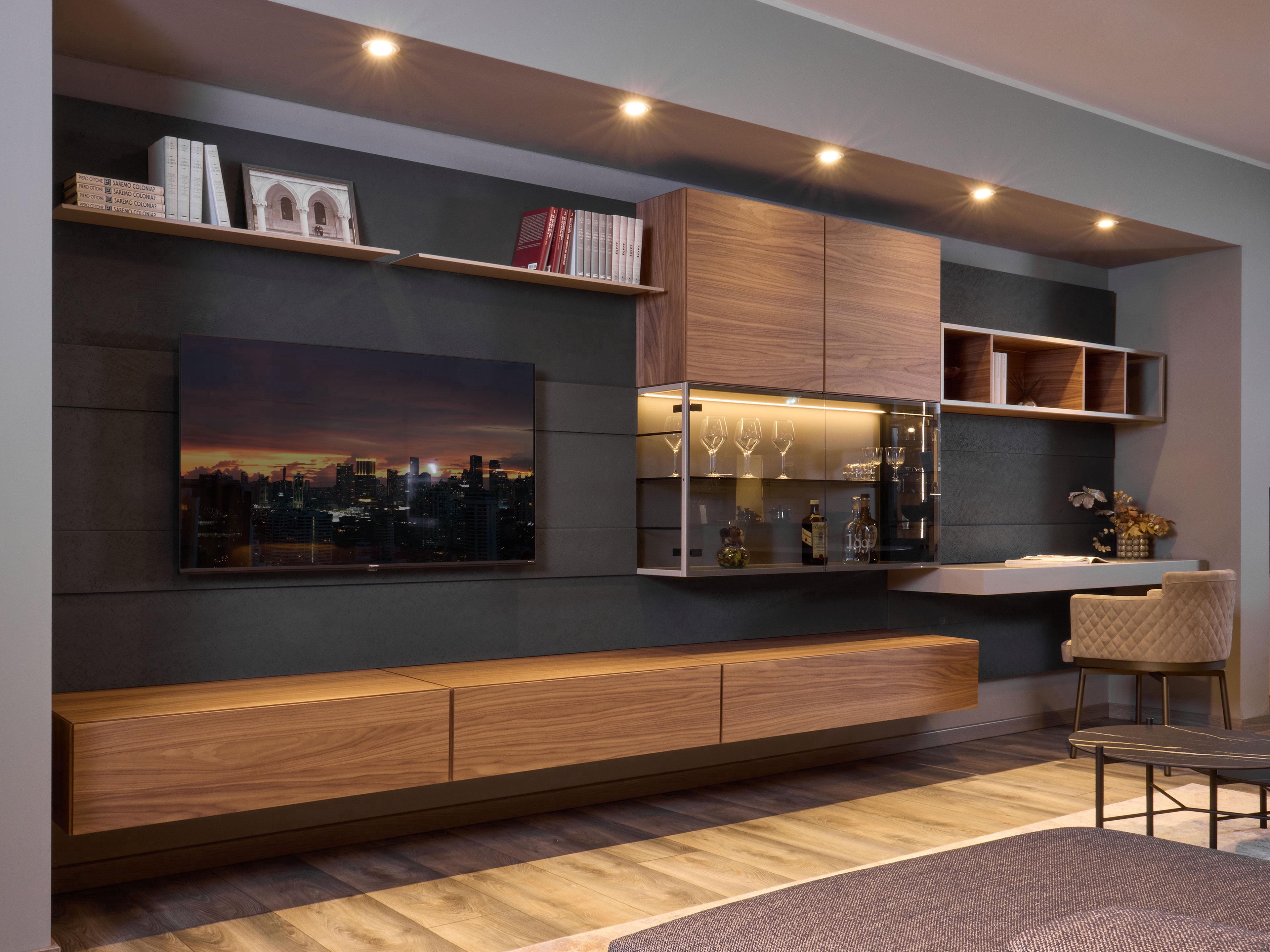

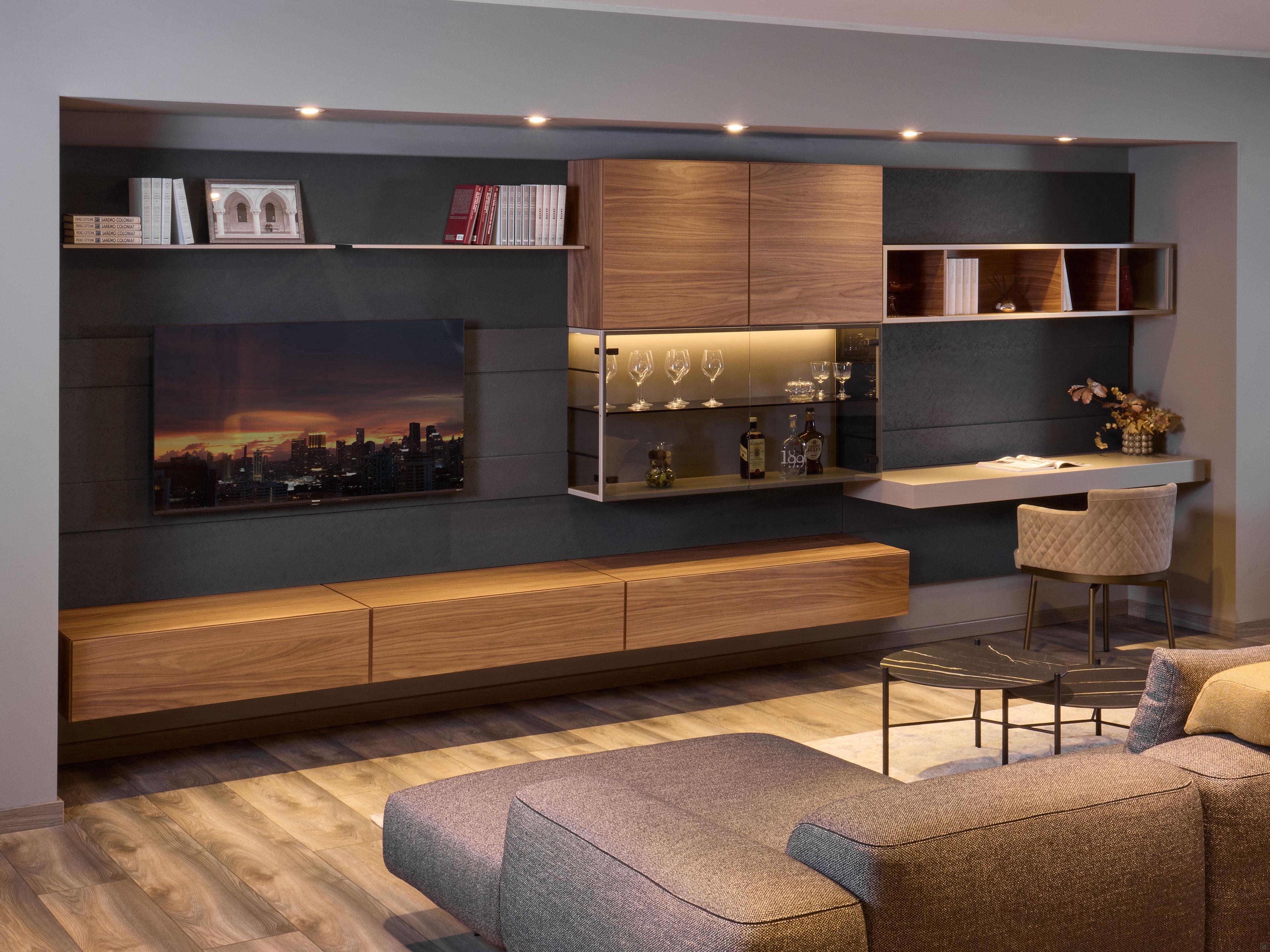

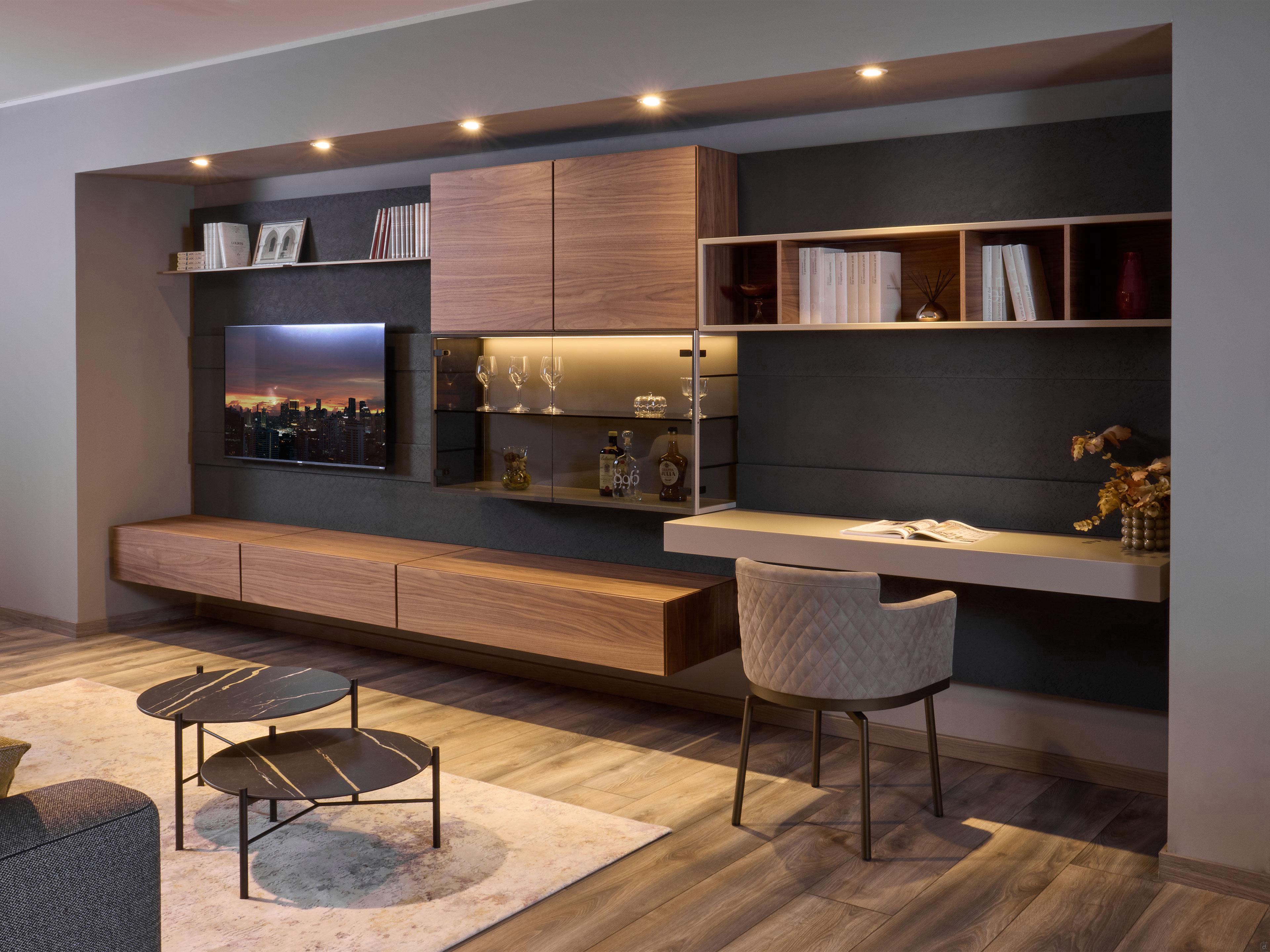

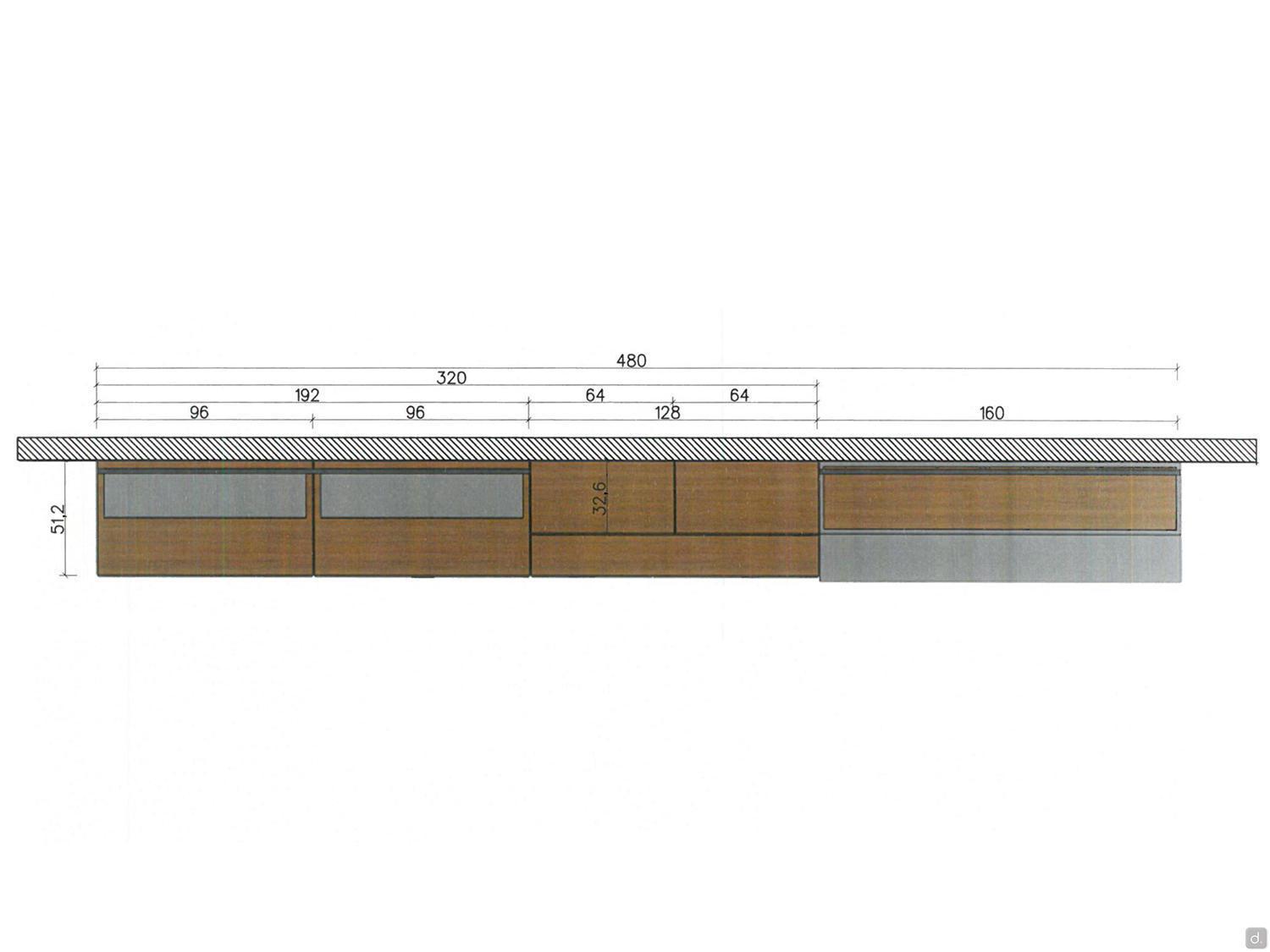

Model with double showcase and writing desk (width: cm 480)
n.2 drop-down base units and drawer: cm 96 h.25,6 d.51,2
base unit with drawer: cm 128 h.25,6 d.51,2
n.2 hinged wall units: cm 64 h.64 d.32,6
showcase with metal structure: cm 128 h.64 d.32
n.2 shelves: cm 89,6 d.22 th.0,1

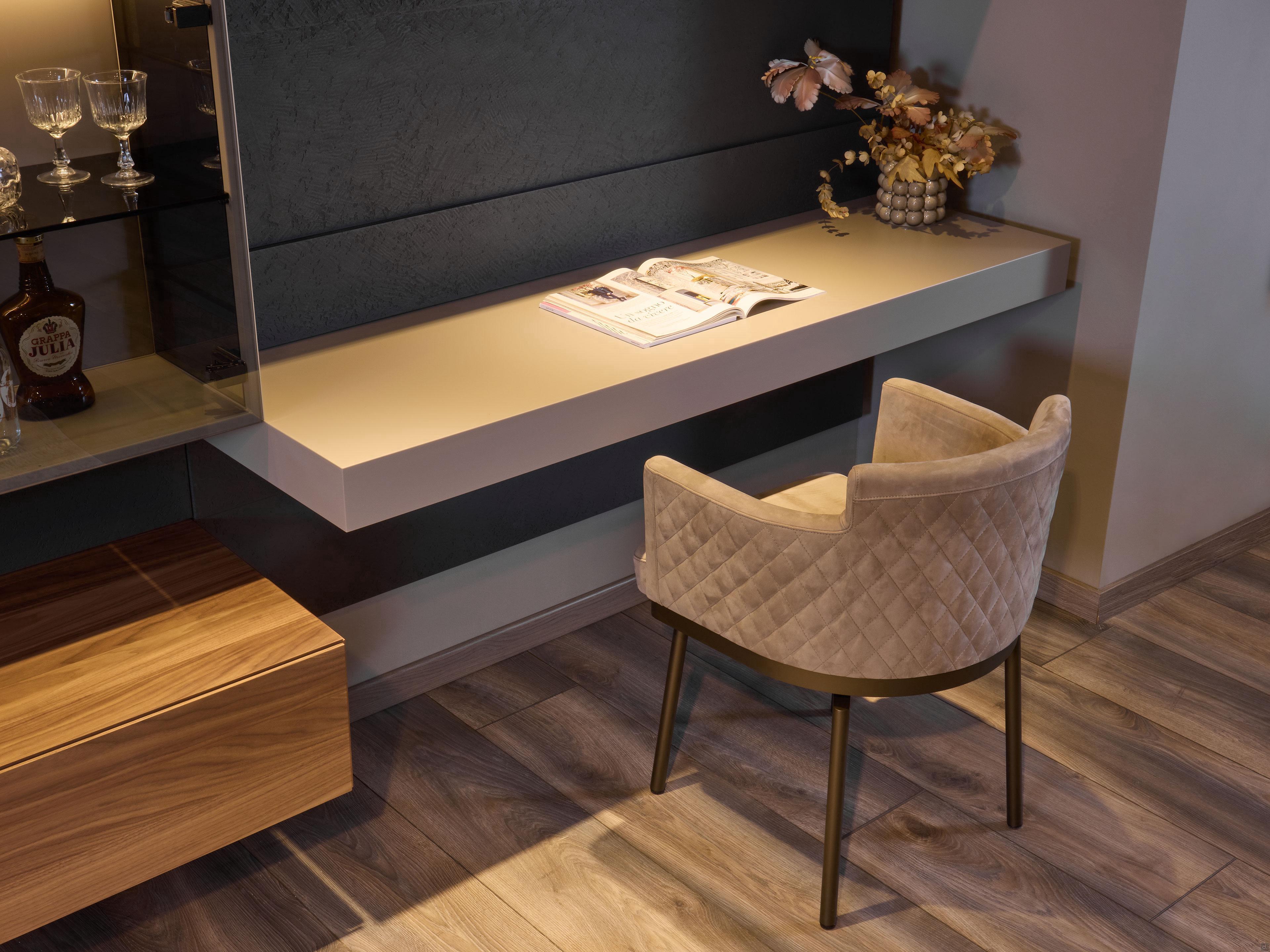

writing desk: cm 160 d.53 h.9,6
open element: cm 160 d.32 h.32
Technical Specifications and Equipment
Base and Wall Unit Structure: extralight E1 particle board panel veneered with real wood veneer or coated with polyester resin and lacquered. Visible edges in real wood veneer, thickness 0.1 cm or lacquered polyester resin, thickness 0.1 cm. The Compact MDF containers are made of recycled eucalyptus microparticle panel coloured with organic E1 water-repellent colours. The bacrests are made of slate lacqeured MDF.

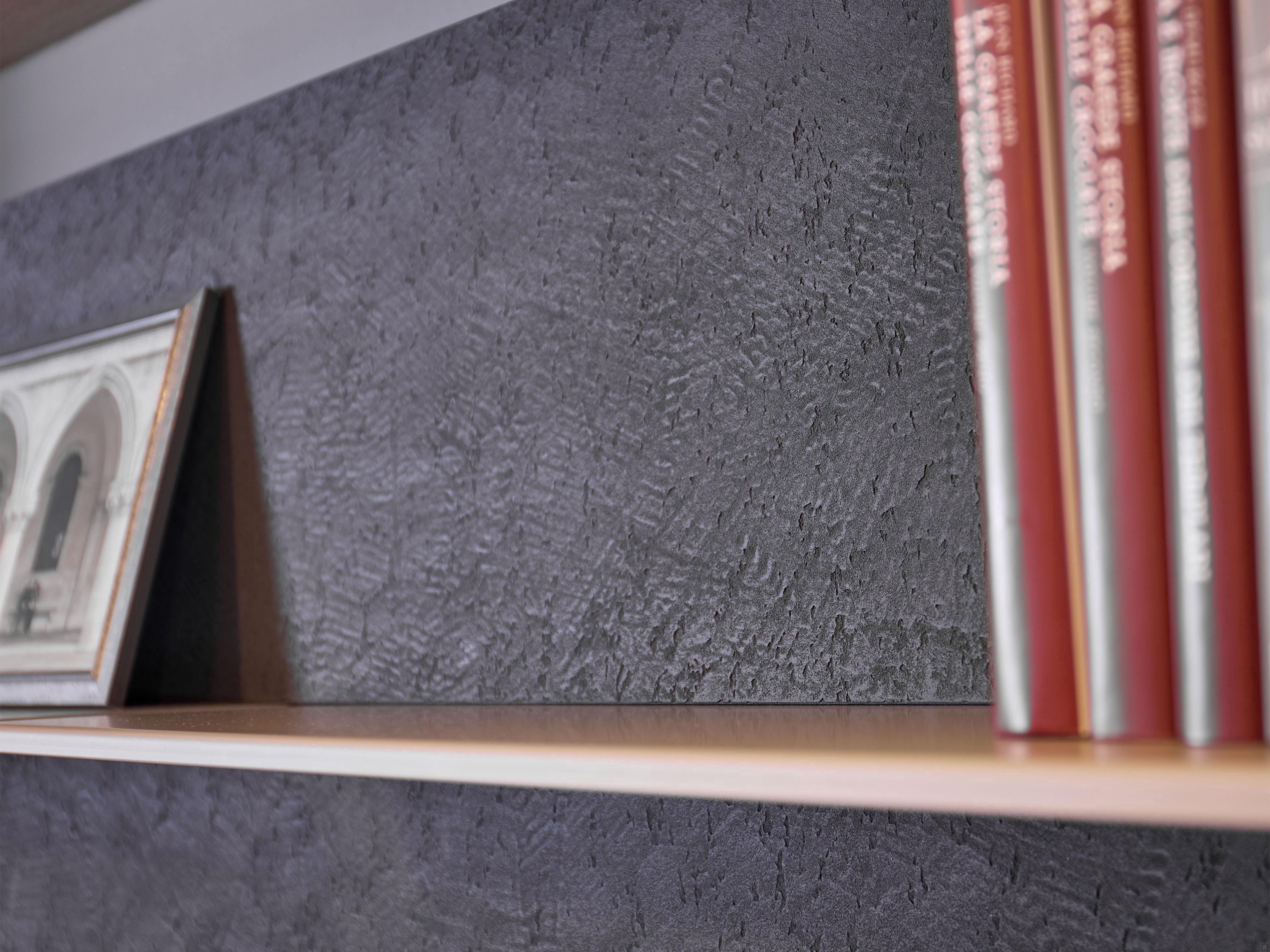

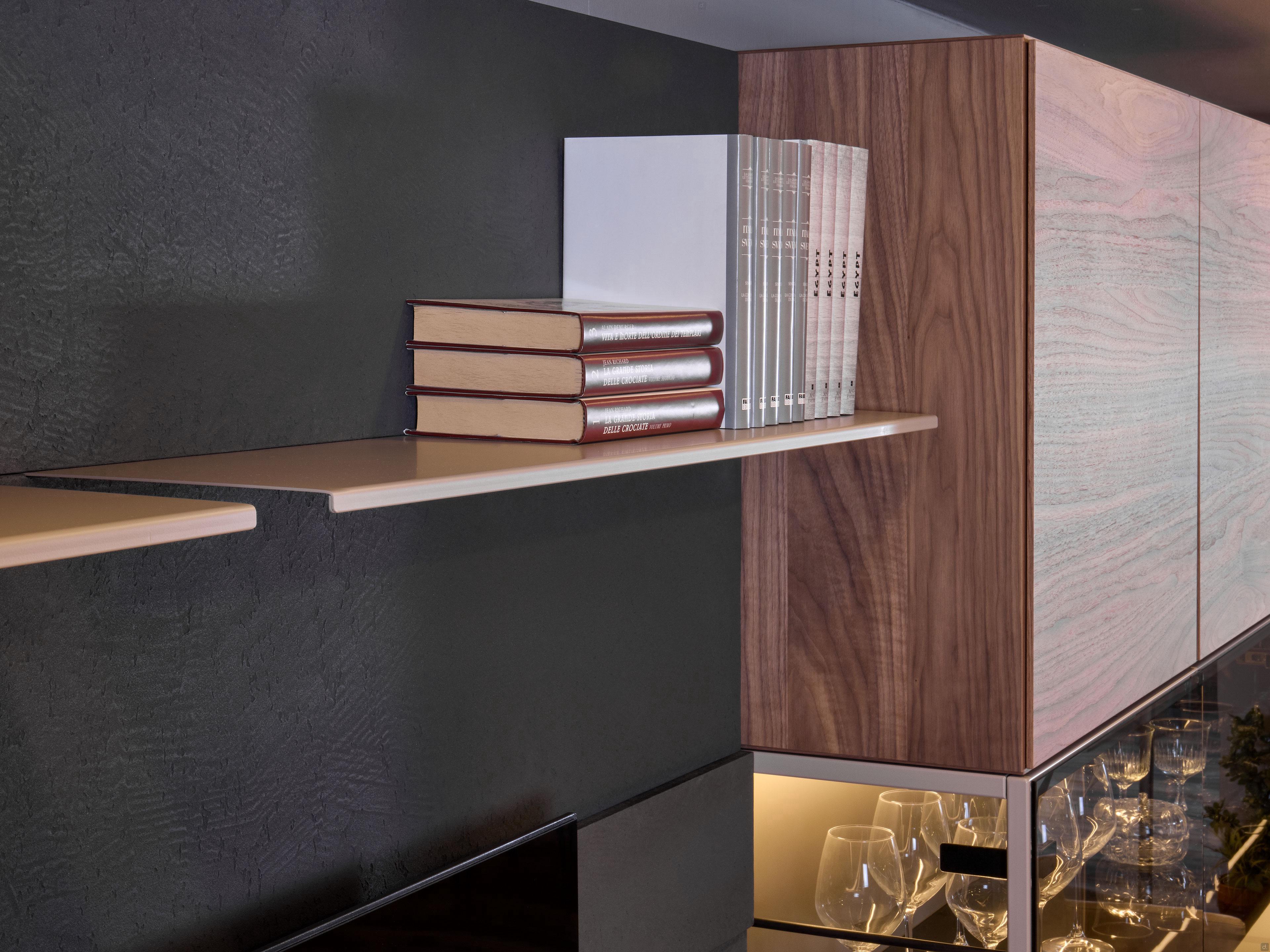

Shelves: in metal with iron wax finish or lacquered cm 57,6 d.22 cm th 0.3.

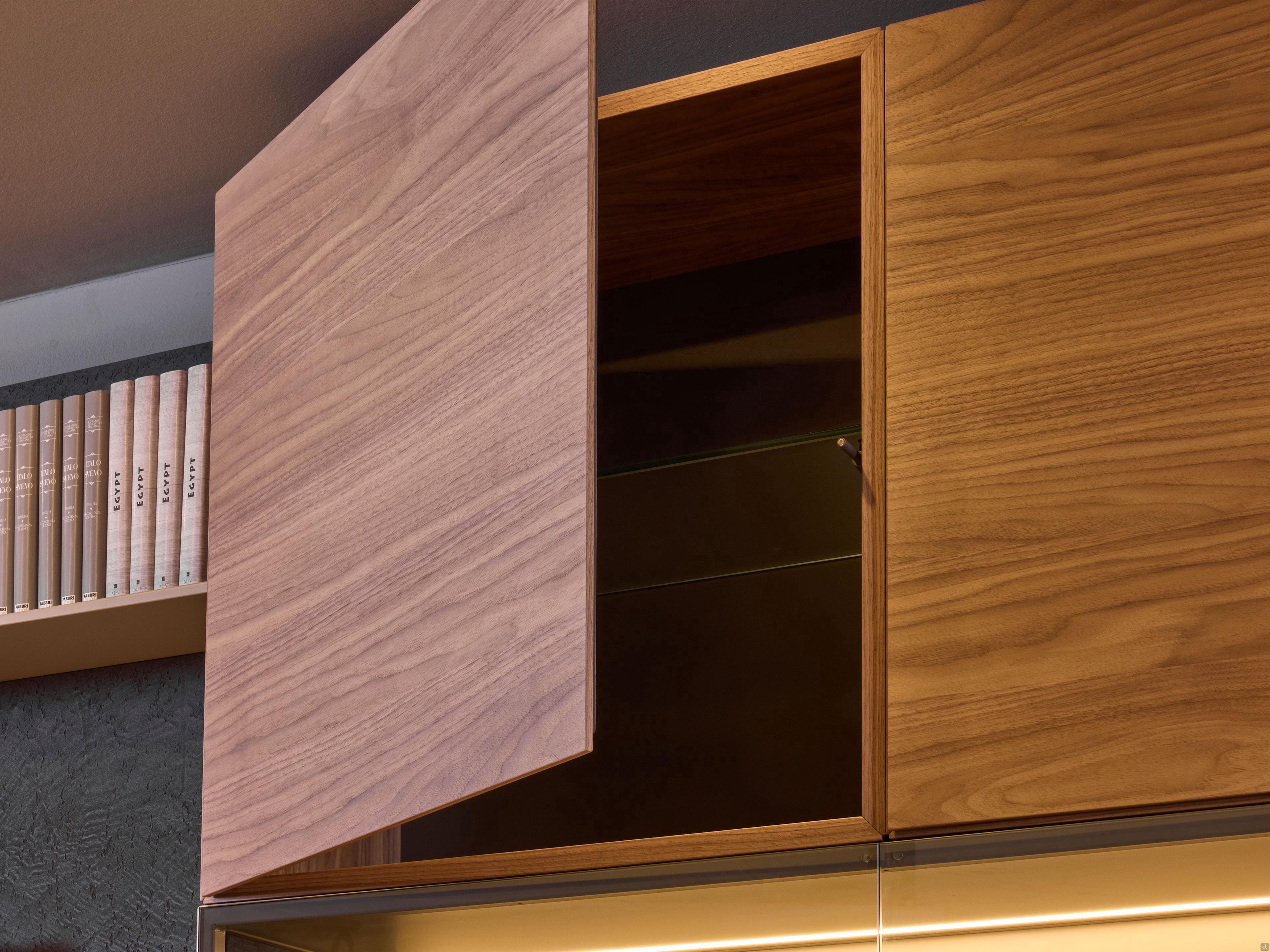

Doors and Fronts: the wood veneer fronts are made of Compact MDF, i.e. recycled eucalyptus micro-particle board coloured with organic dark grey E1 water-repellent and veneered with real wood. The edges with perimeter rebate on the fronts are exposed Compact. The matte lacquered fronts are made of HD MDF coated with polyester resin and matte lacquered in 4 coats. Edges with perimeter stop on fronts are lacquered. The doors have a 1.4 cm perimeter rebate so that the closed front is thin (only 0.6 cm), with a total thickness of 2 cm. Perimetrically the front is reduced by 0.5 cm per side compared to the cabinets.

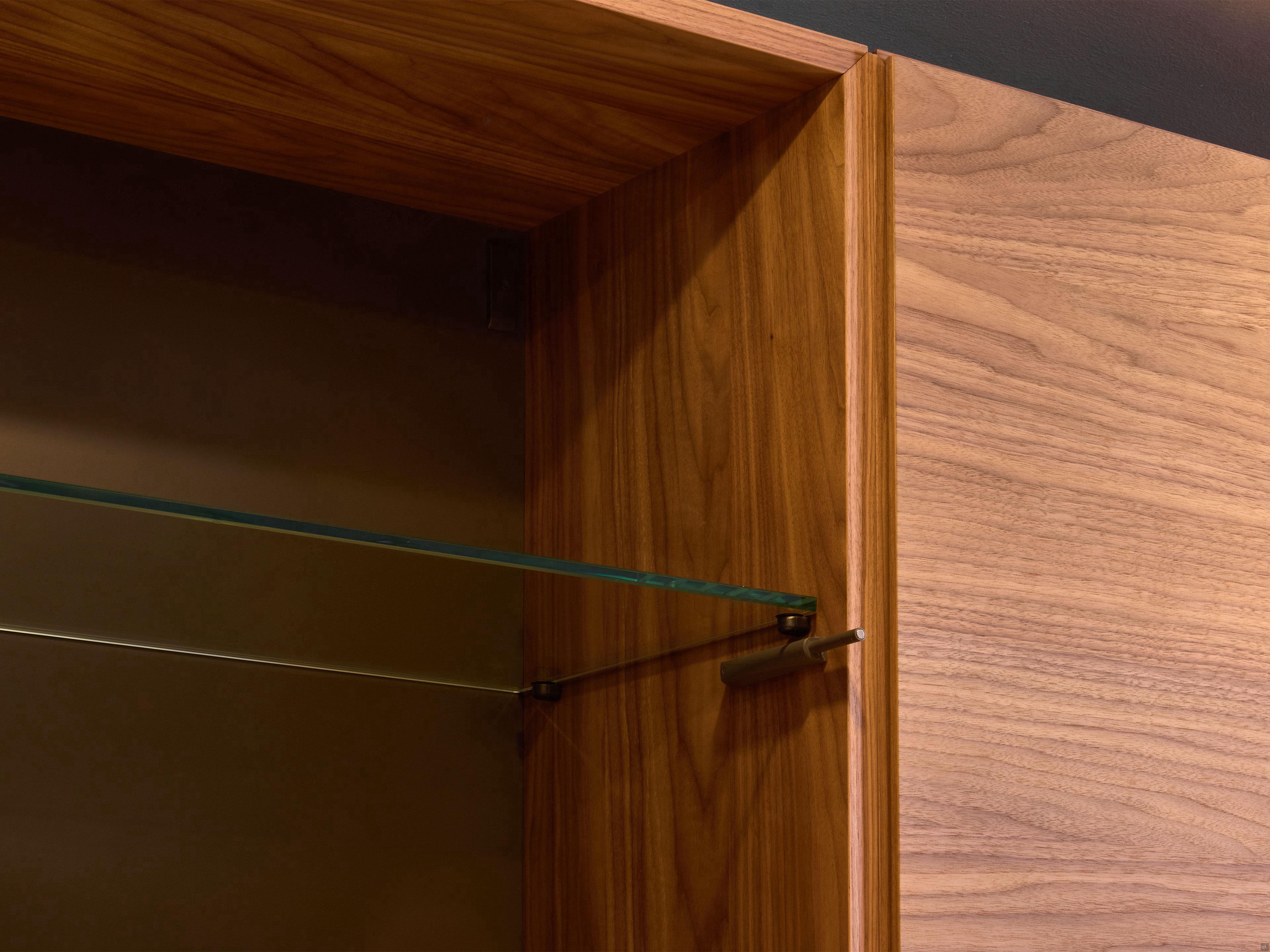

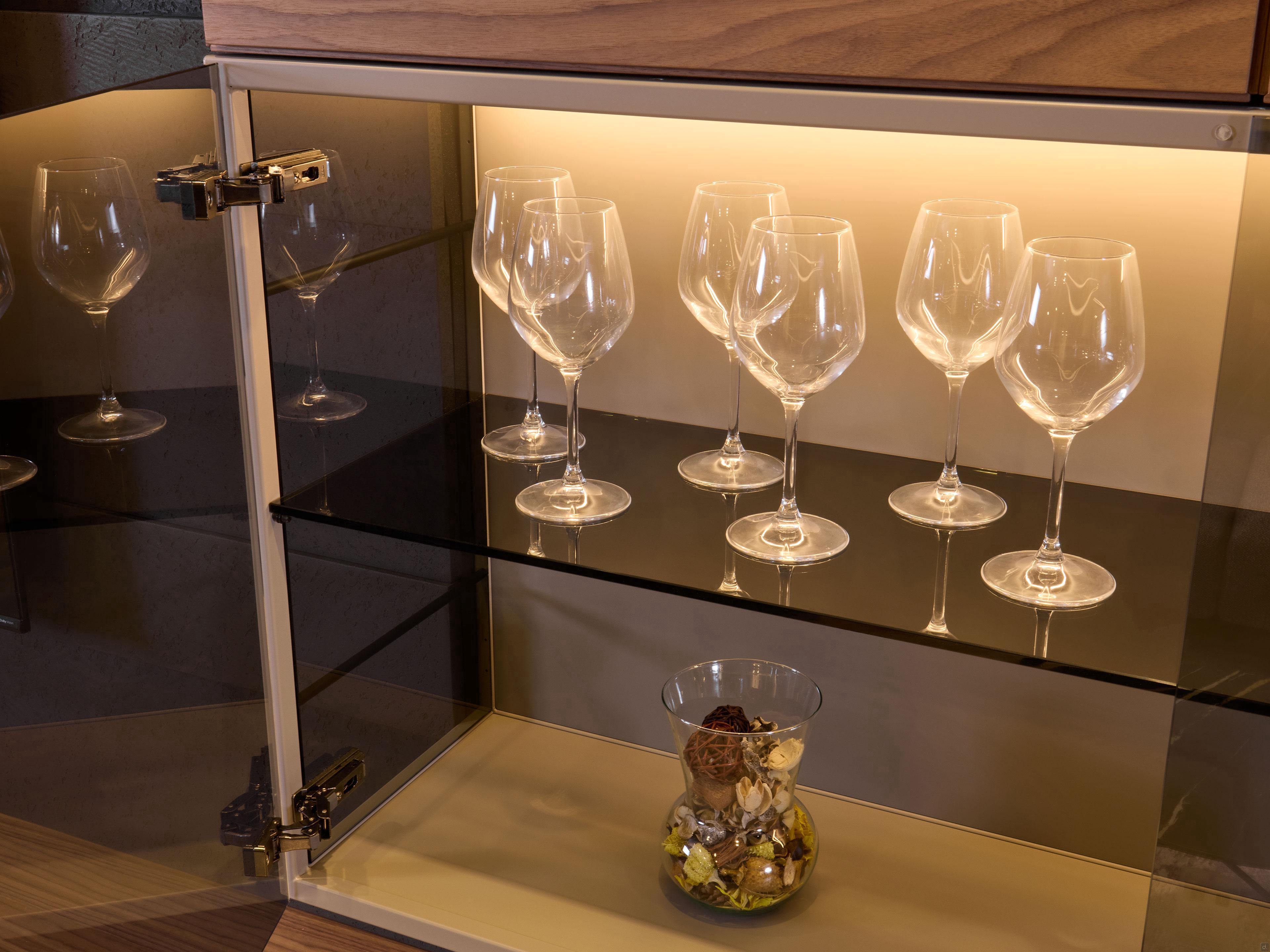

Internal Shelves: the hinged wall units (including display cabinets) include an inner shelf made of 0.8 cm thick clear glass.

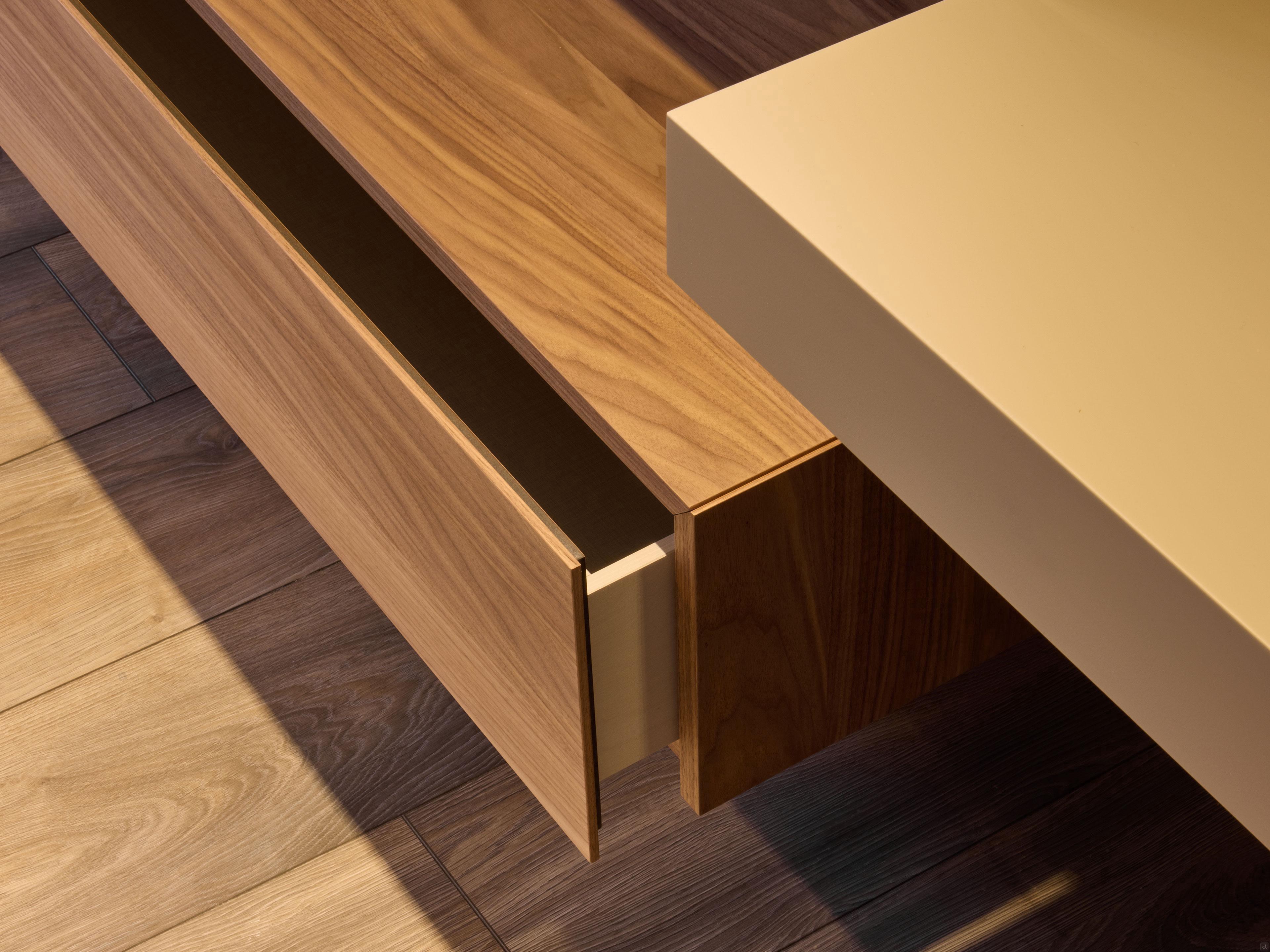

Drawers / Baskets: 4-sided perimeter box made of birch plywood stained grey, thickness 1.2 cm. Bottom in MDF or E1 wood particle board covered with fabric-effect melamine material, thickness 1 cm. Blum invisible runners with ball-bearing partial extension and push-pull opening.

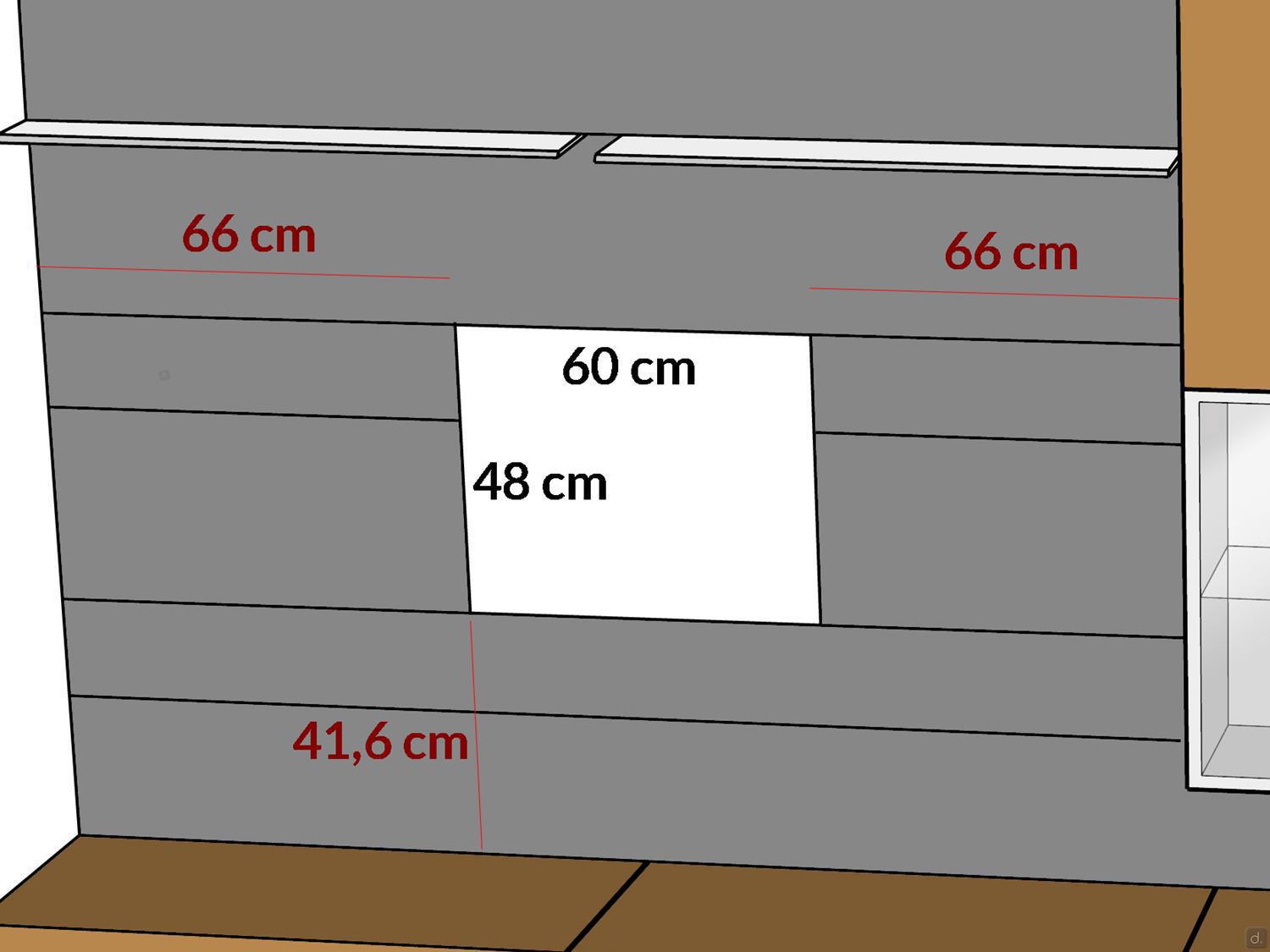

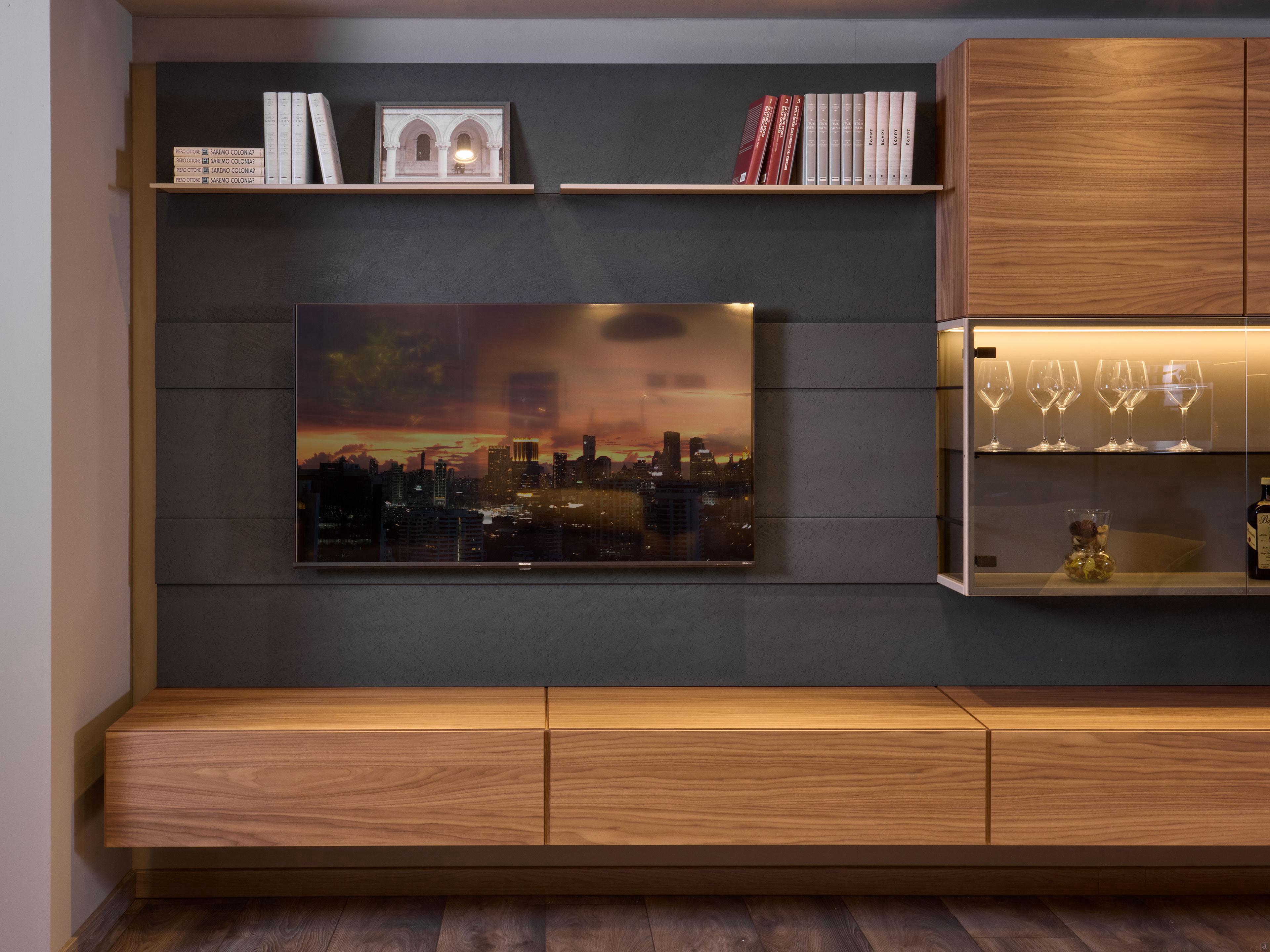

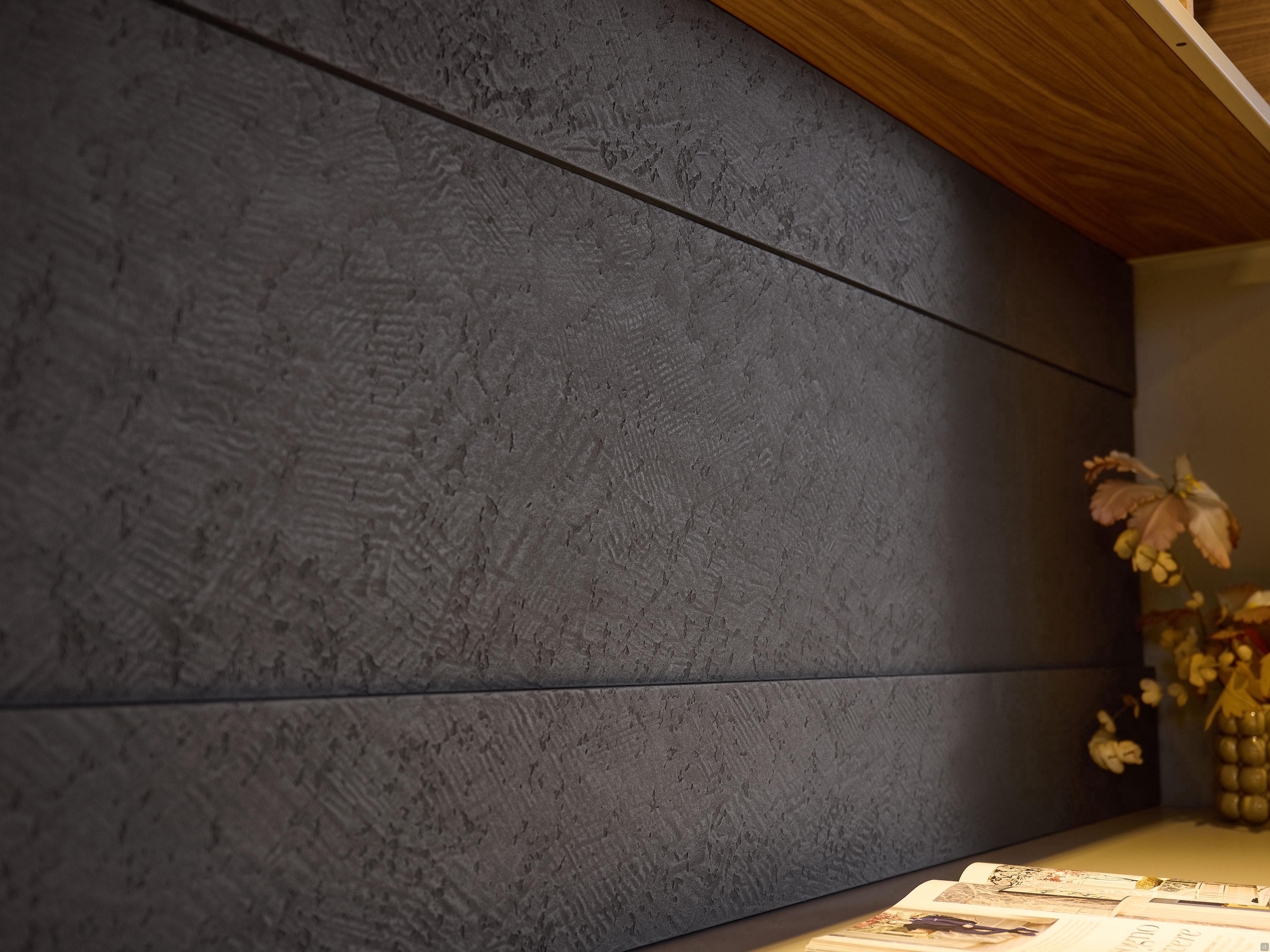

Boiserie: A patented 3D boiserie composed of horizontally positioned 2 cm thick slats, fixed to the wall by means of a rack. The technical space between panel and wall (and the consequent depth of the entire composition with respect to the wall behind) is adjustable in three positions: 5.5 cm, 6 cm and 6.5 cm. This feature also makes it possible to have a "dynamic" wall with individual slats placed side by side but with different depths between them.

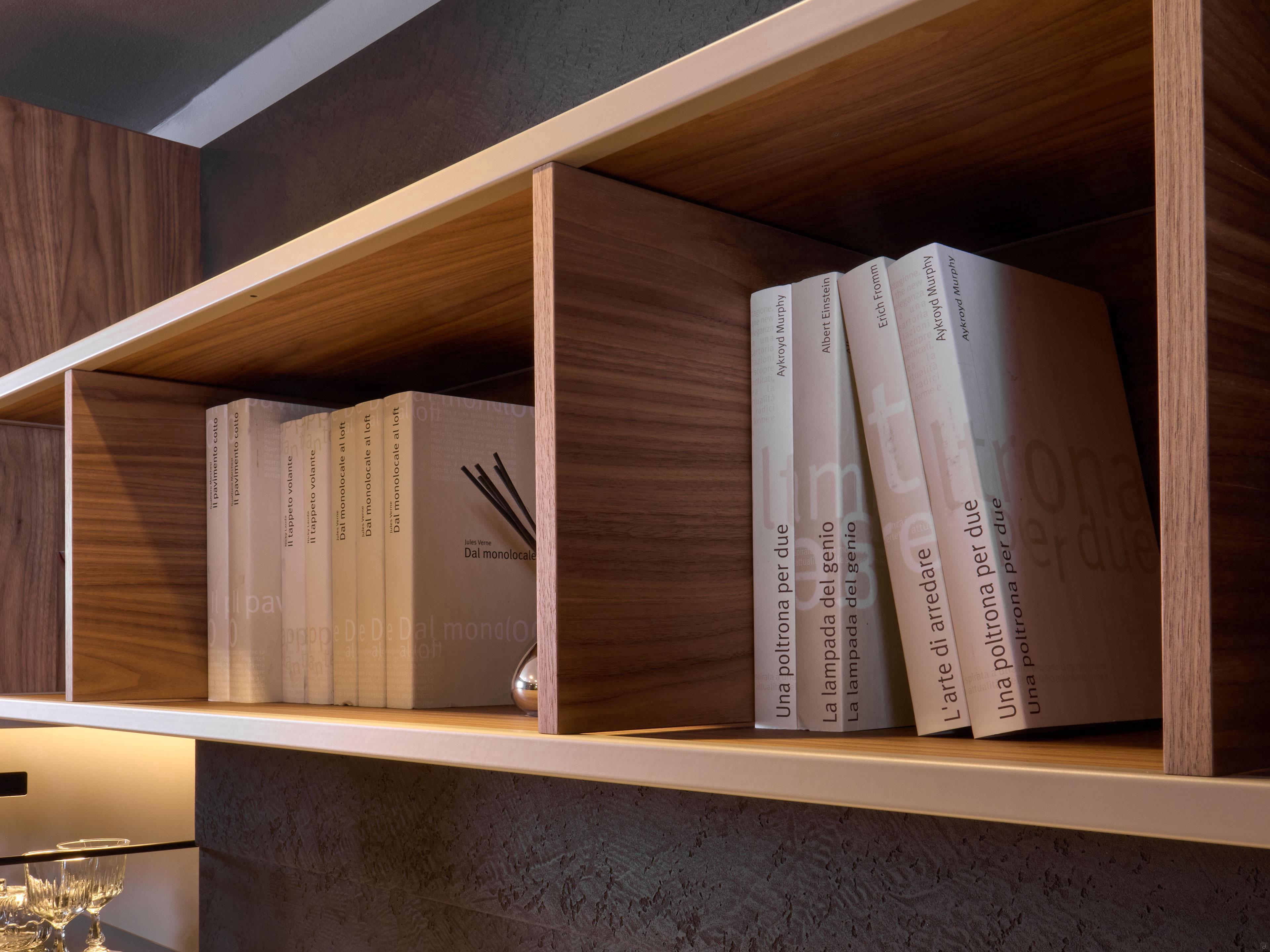

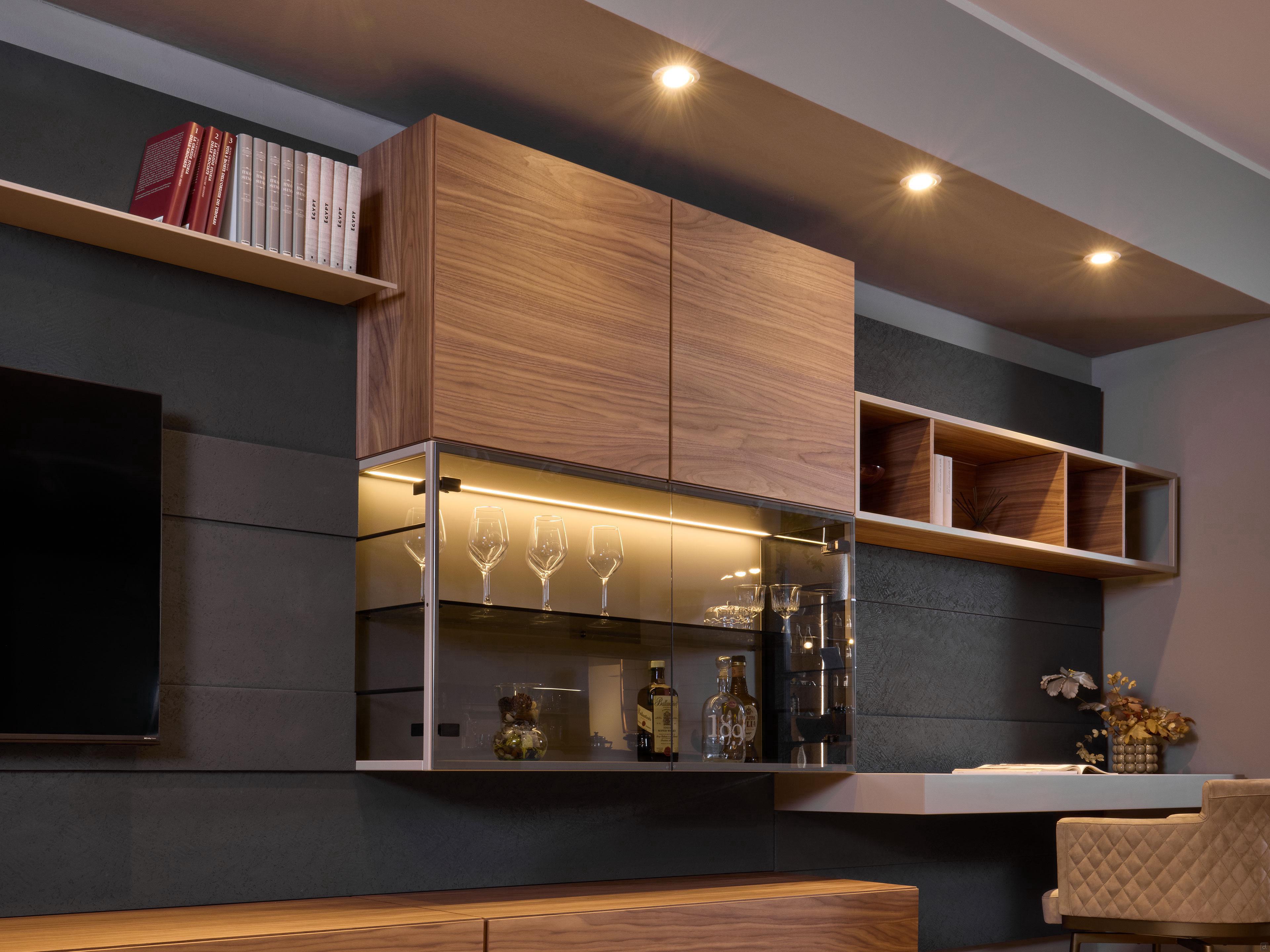

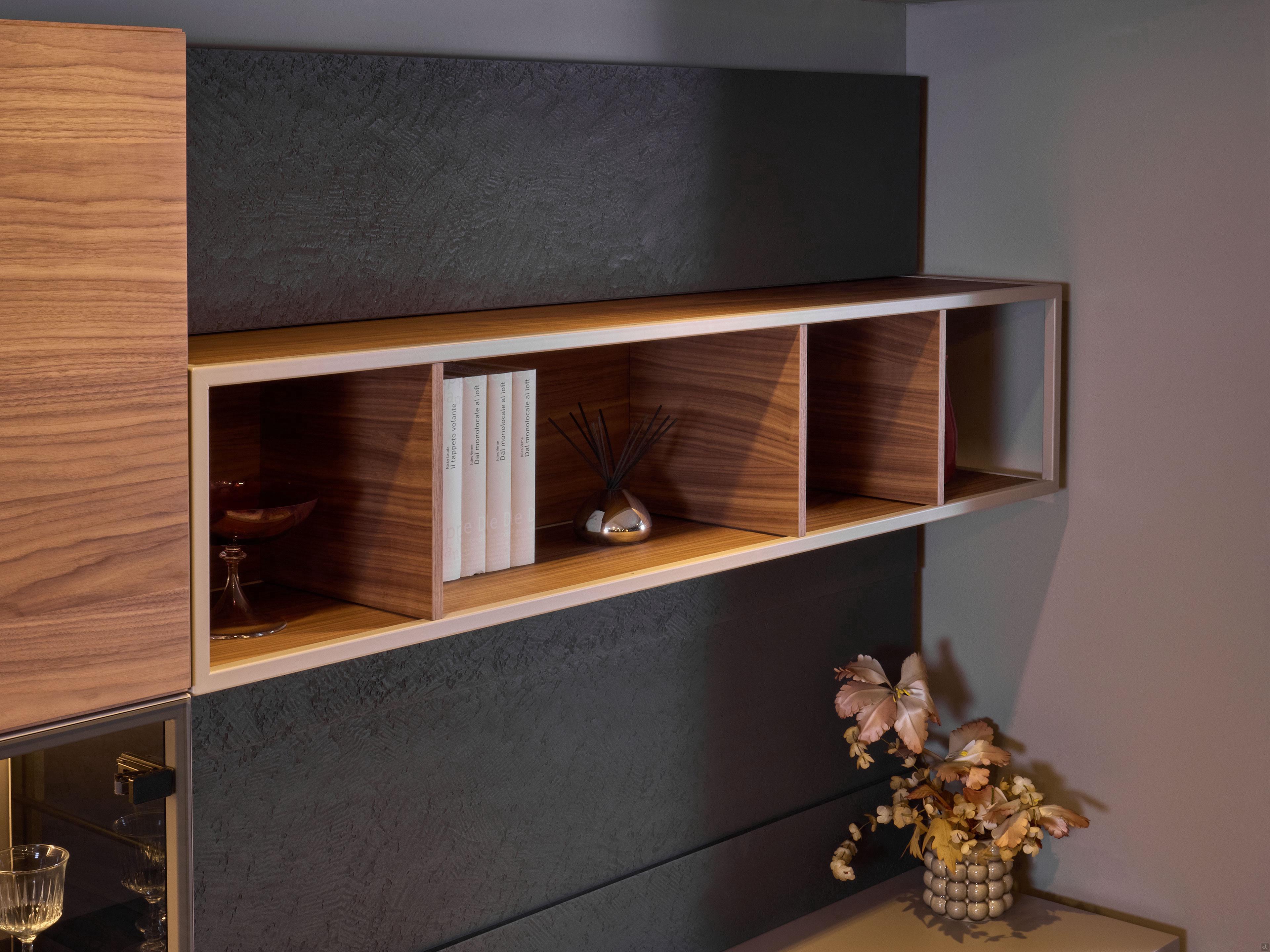

Open Compartment and Display Structure: the structure is made of 2 x 2 cm section tubing in a waxed iron or matte lacquered finish. Shelves and dividers, 1.6 cm thick.
Optional

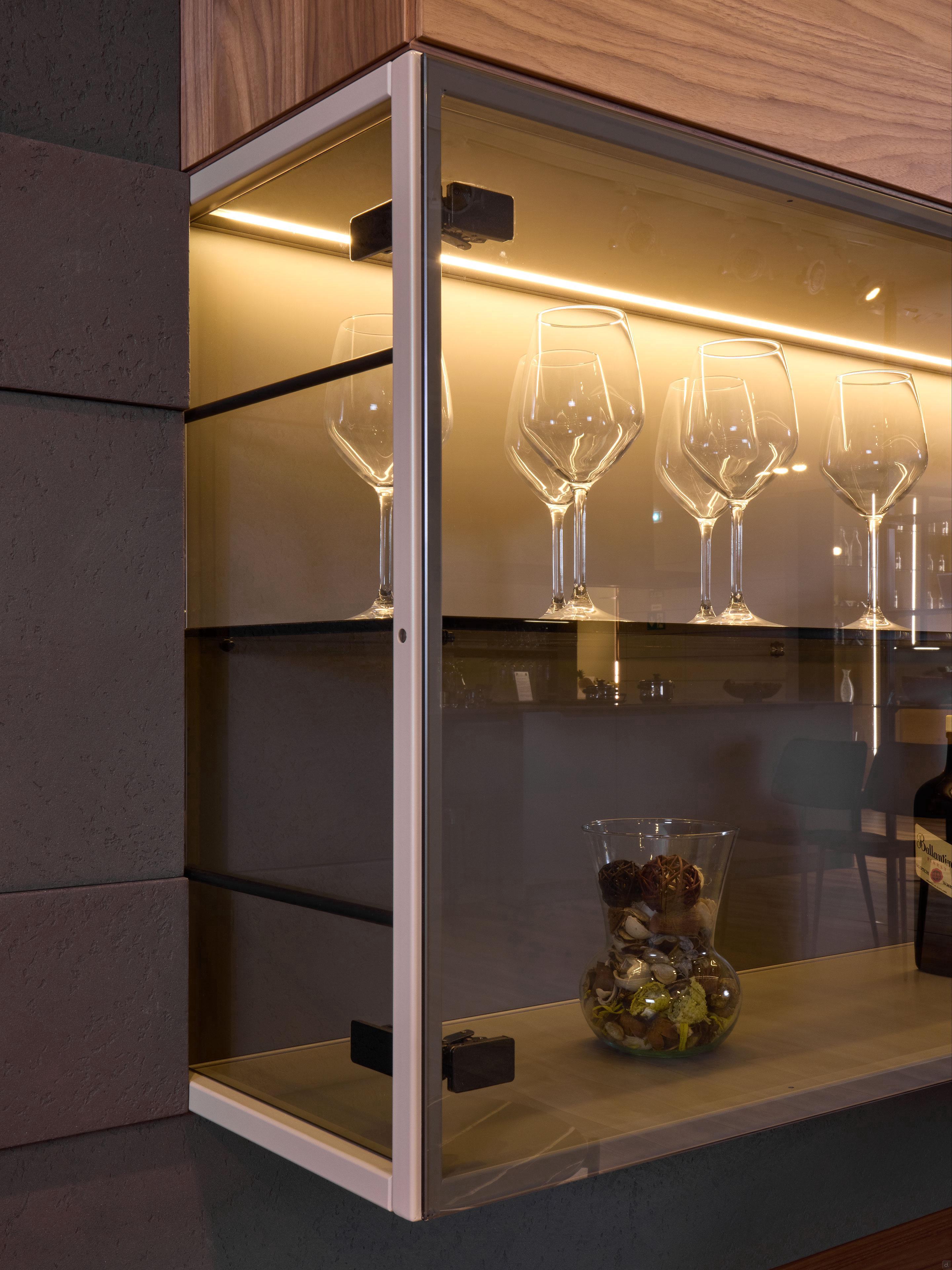

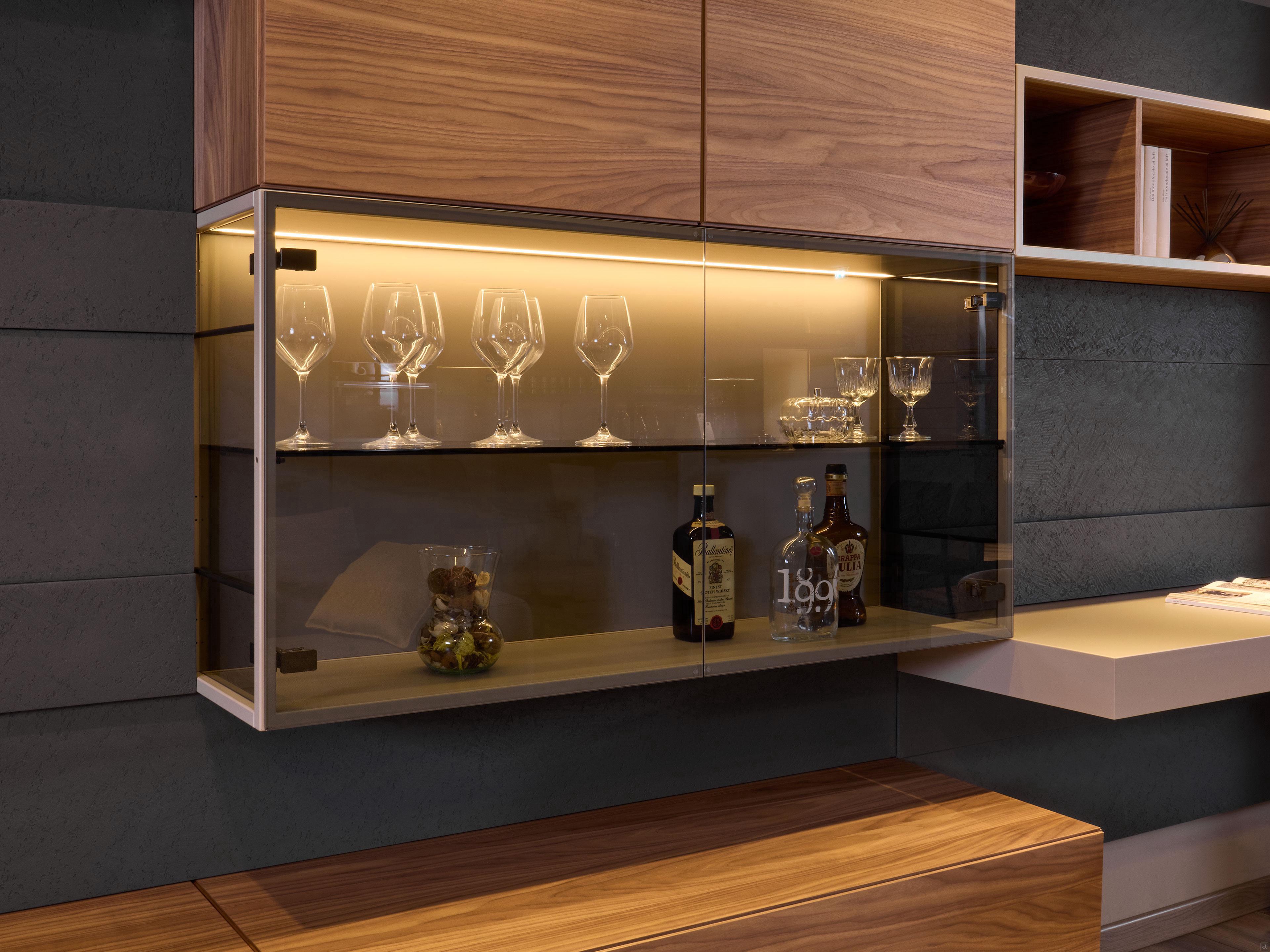

LED Lighting: recessed LED bar with a 1.1 x 1.1 cm section positioned on the upper side of the showcase, to illuminate its interior. Made of opal polycarbonate with uniform diffusion - 3000K - 10W per metre - including power supply unit with connection to the home network.
