Royal Panel with Shelves

Royal wall panelling with shelves and LED backlighting. Shelves and dividers matching the back panel or in contrast. Available as a single unit or modular composition.

* Required Fields

  • mod. A: cm 64 d.34 h.64
  • mod. B: cm 64 d.34 h.128 - +€408.62
  • mod. C: cm 64 d.34 h.192 - +€1,112.35
  • mod. D: cm 96 d.34 h.96 - +€431.32
  • mod. E: cm 128 d.34 h.64 - +€238.90
  • mod. F: cm 128 d.34 h.128 - +€930.74
  • mod. G: cm 192 d.34 h.64 - +€624.82

From €544.82
Wishlist

Description

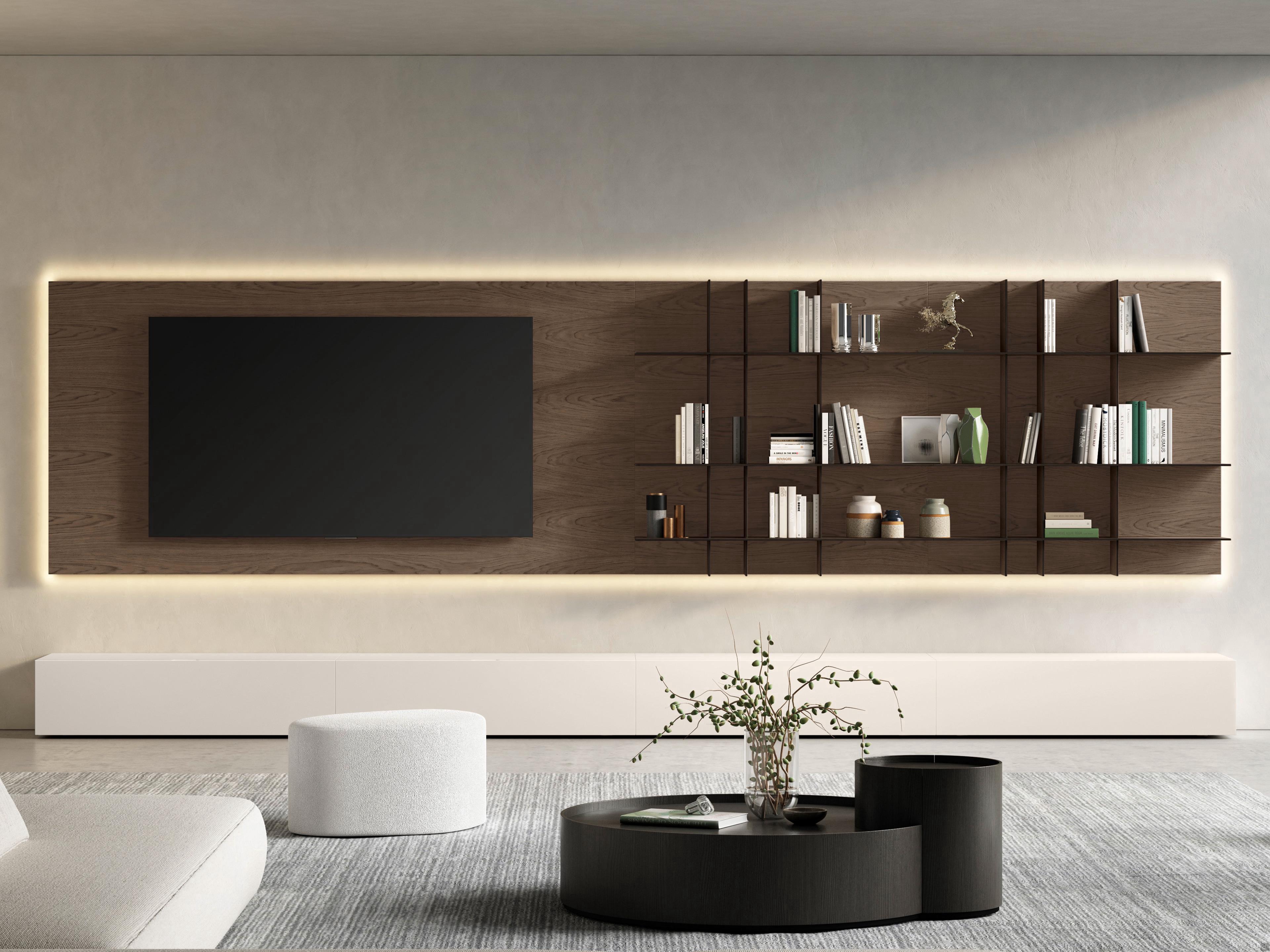

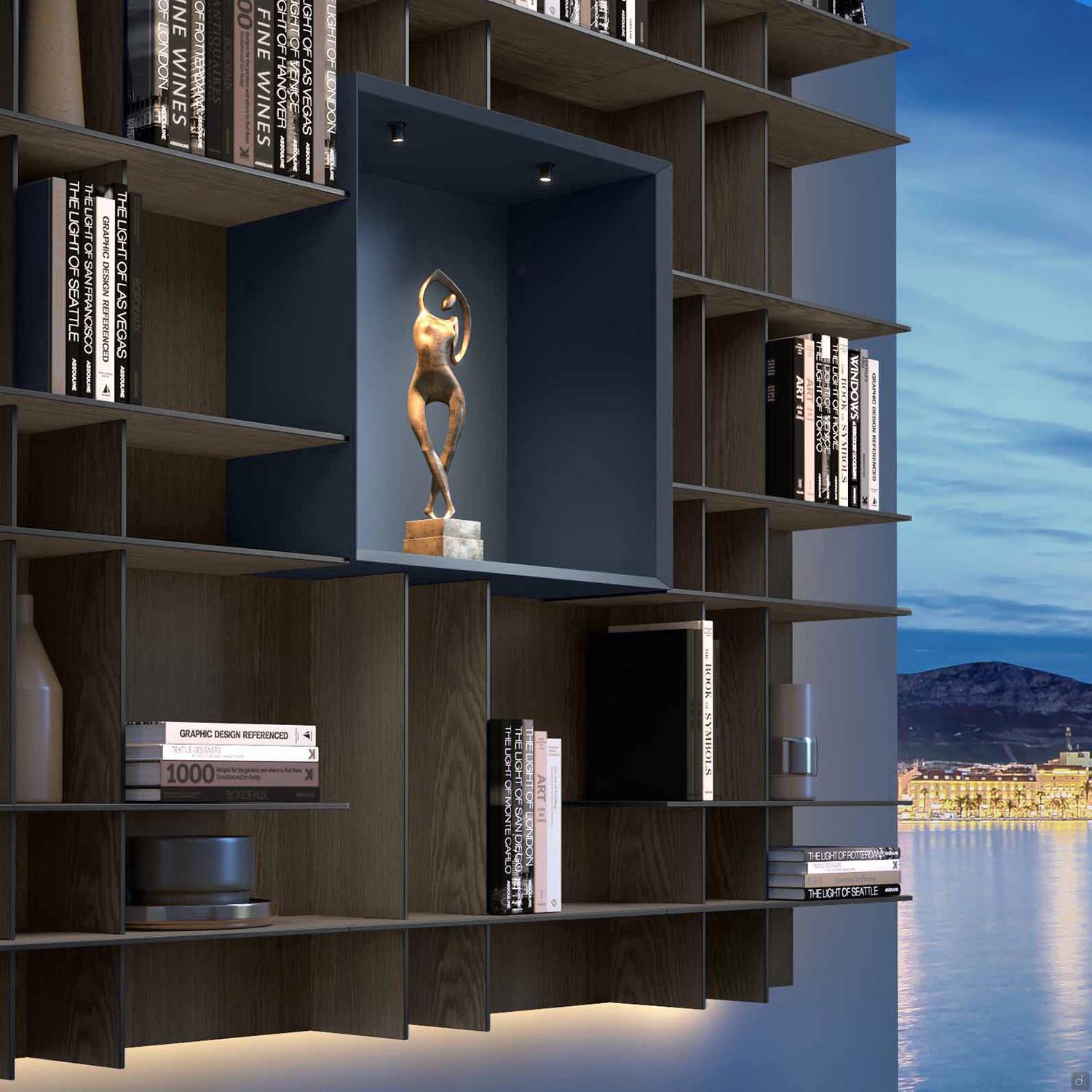

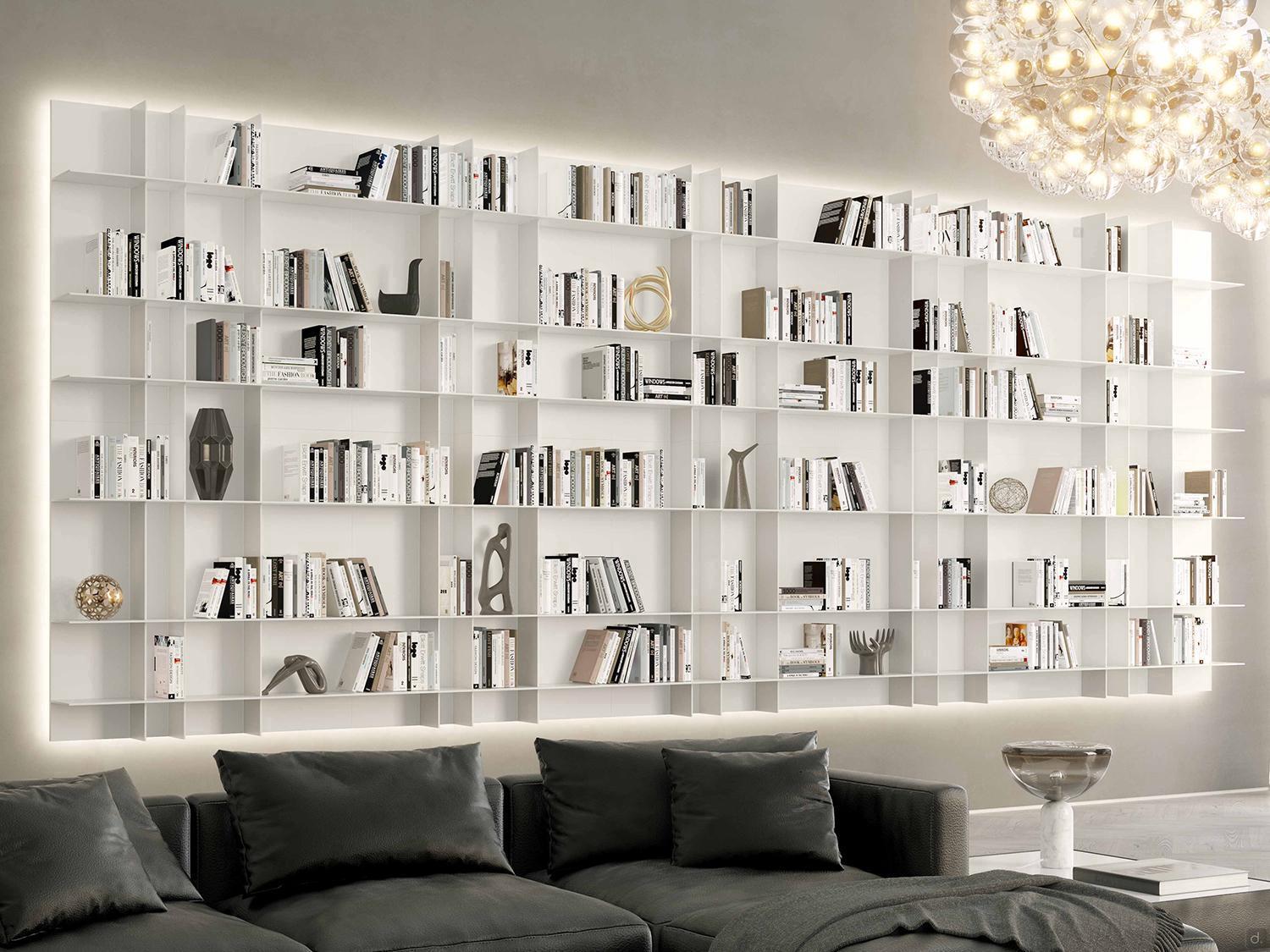

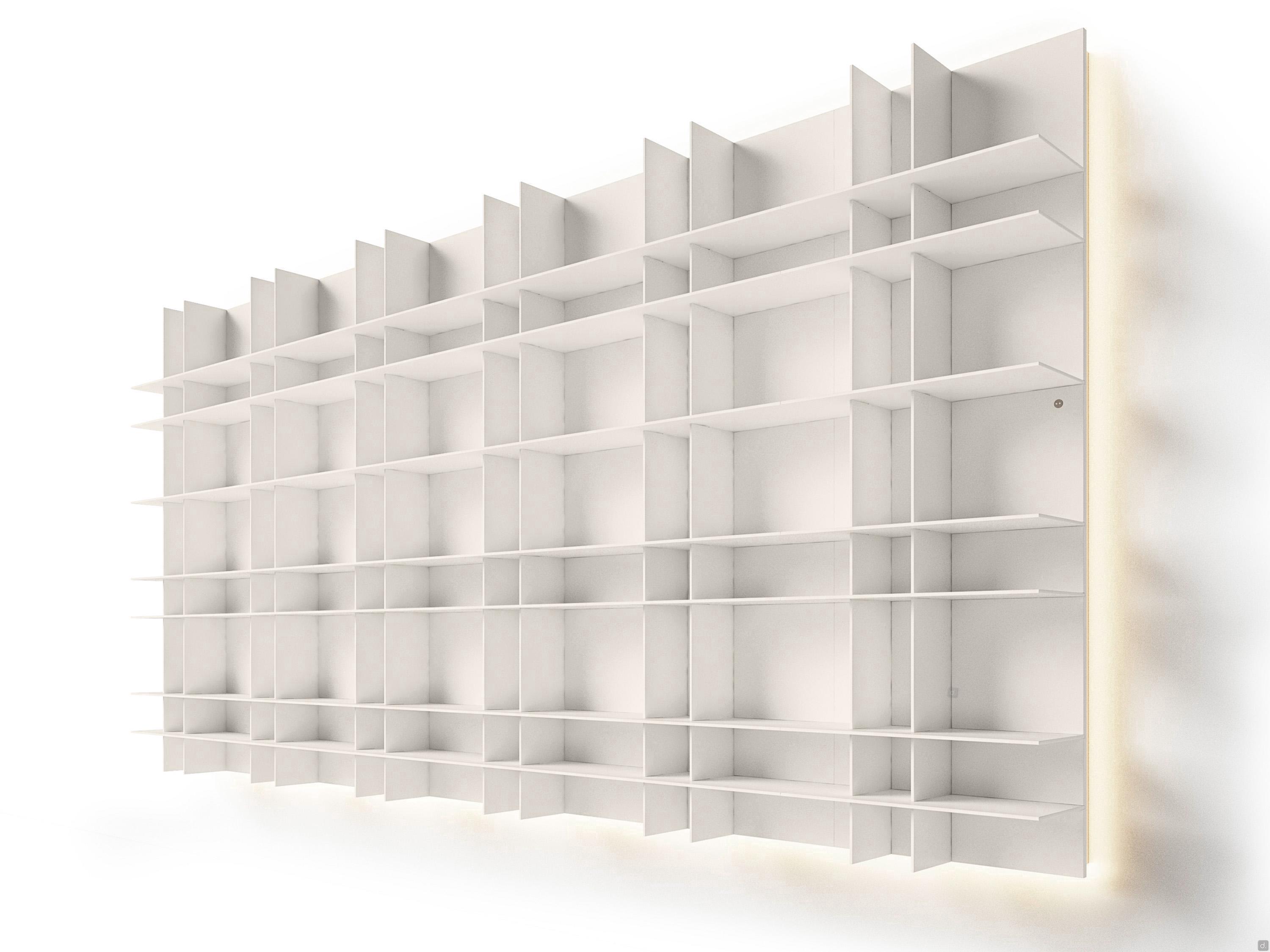

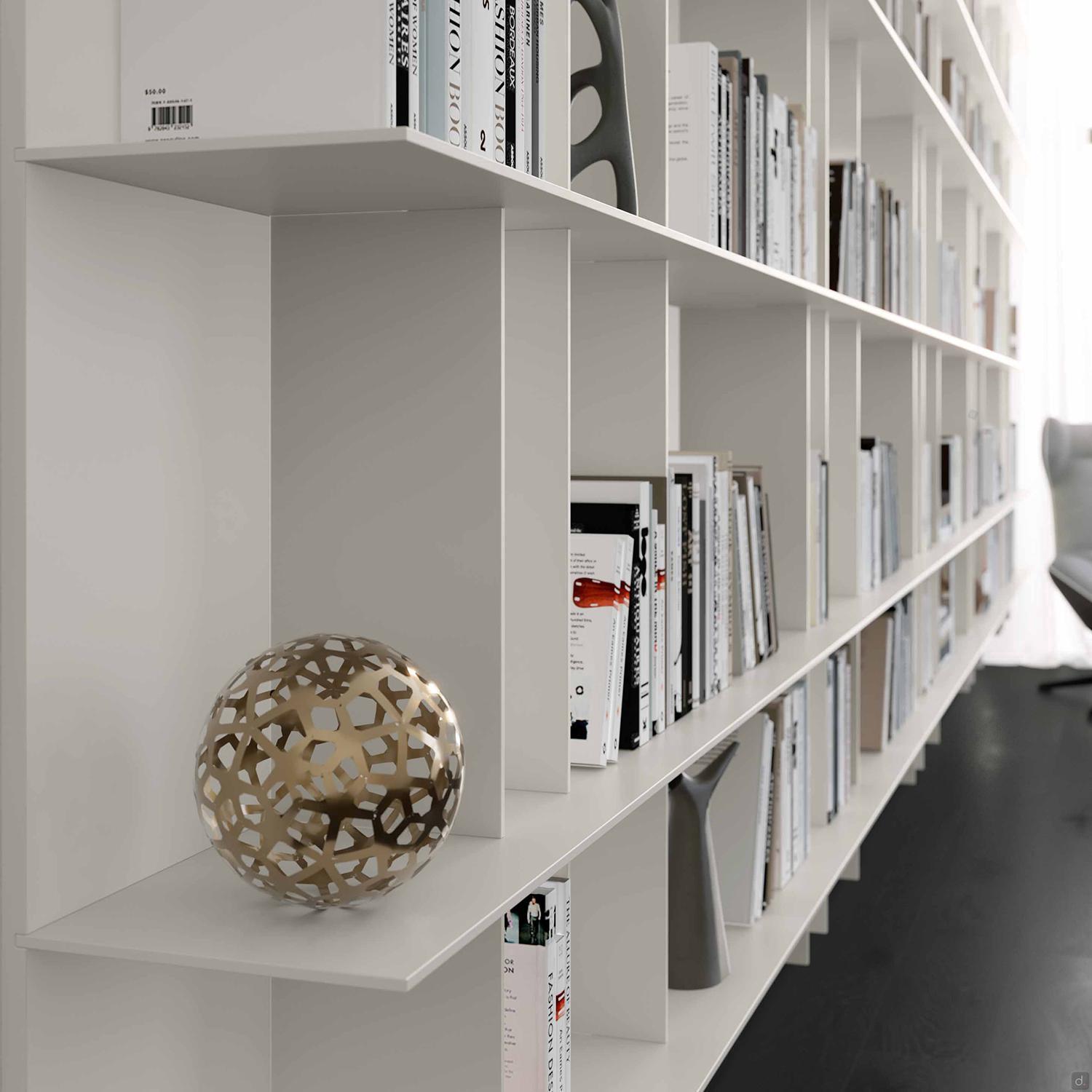

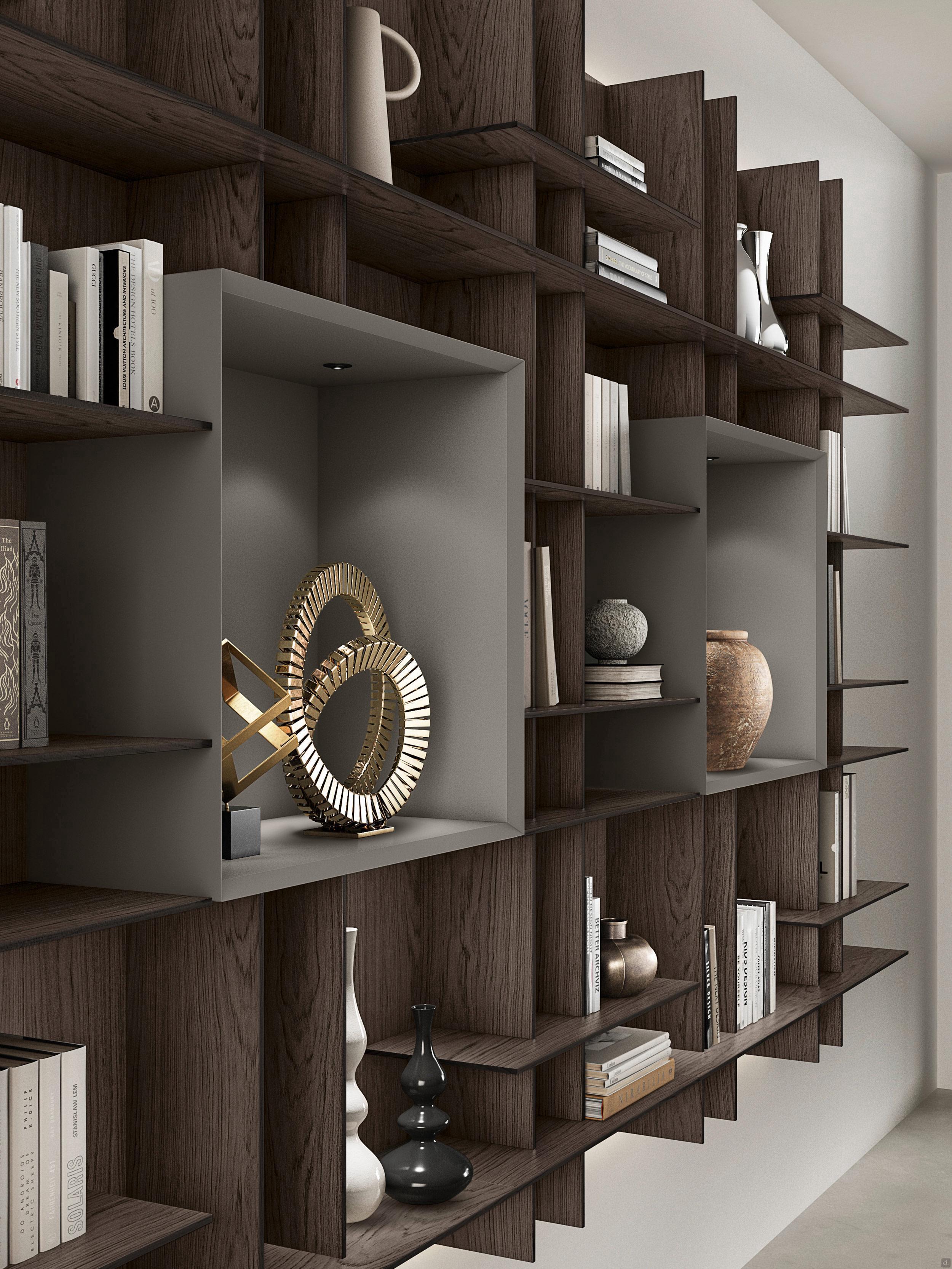

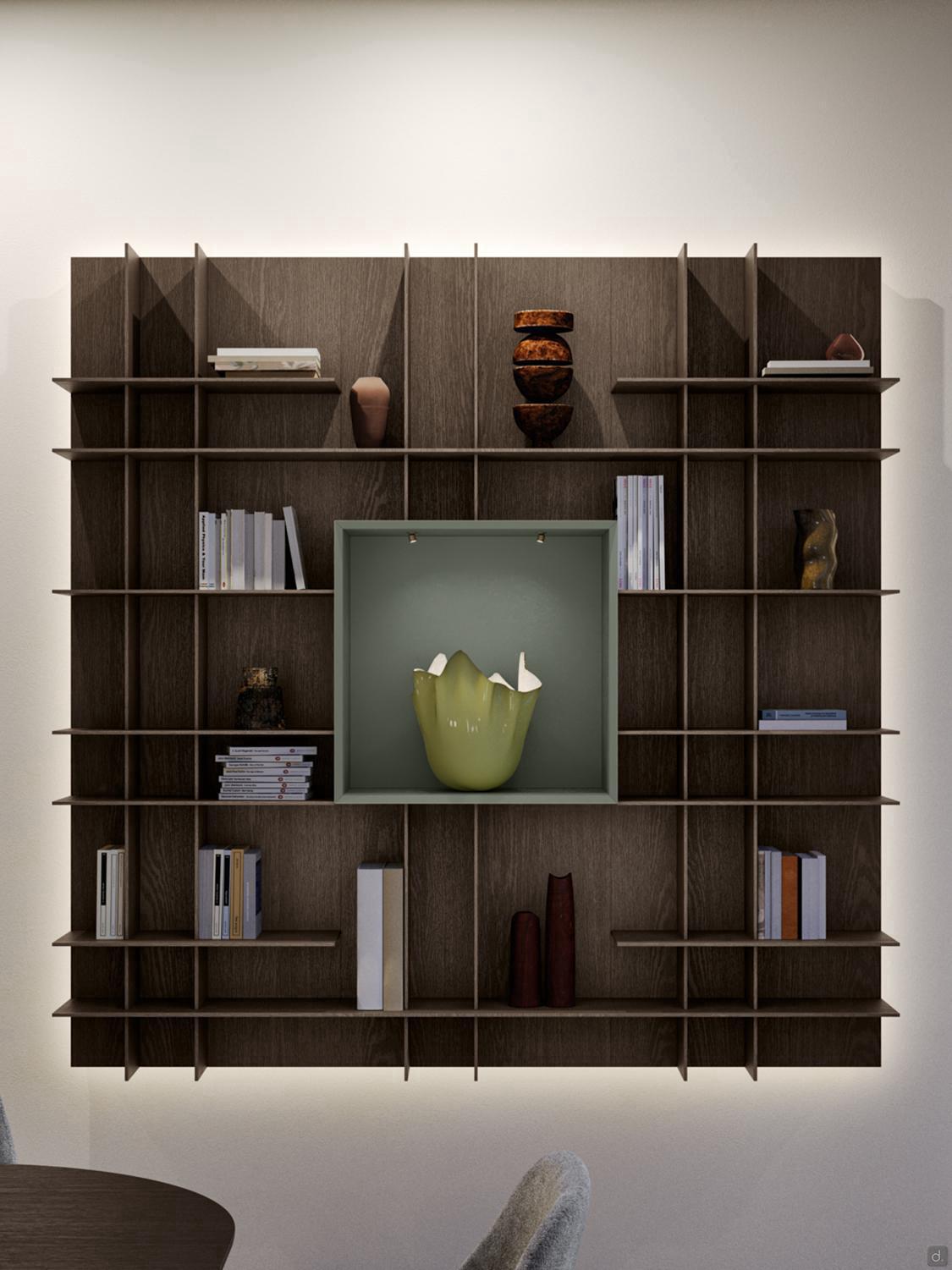

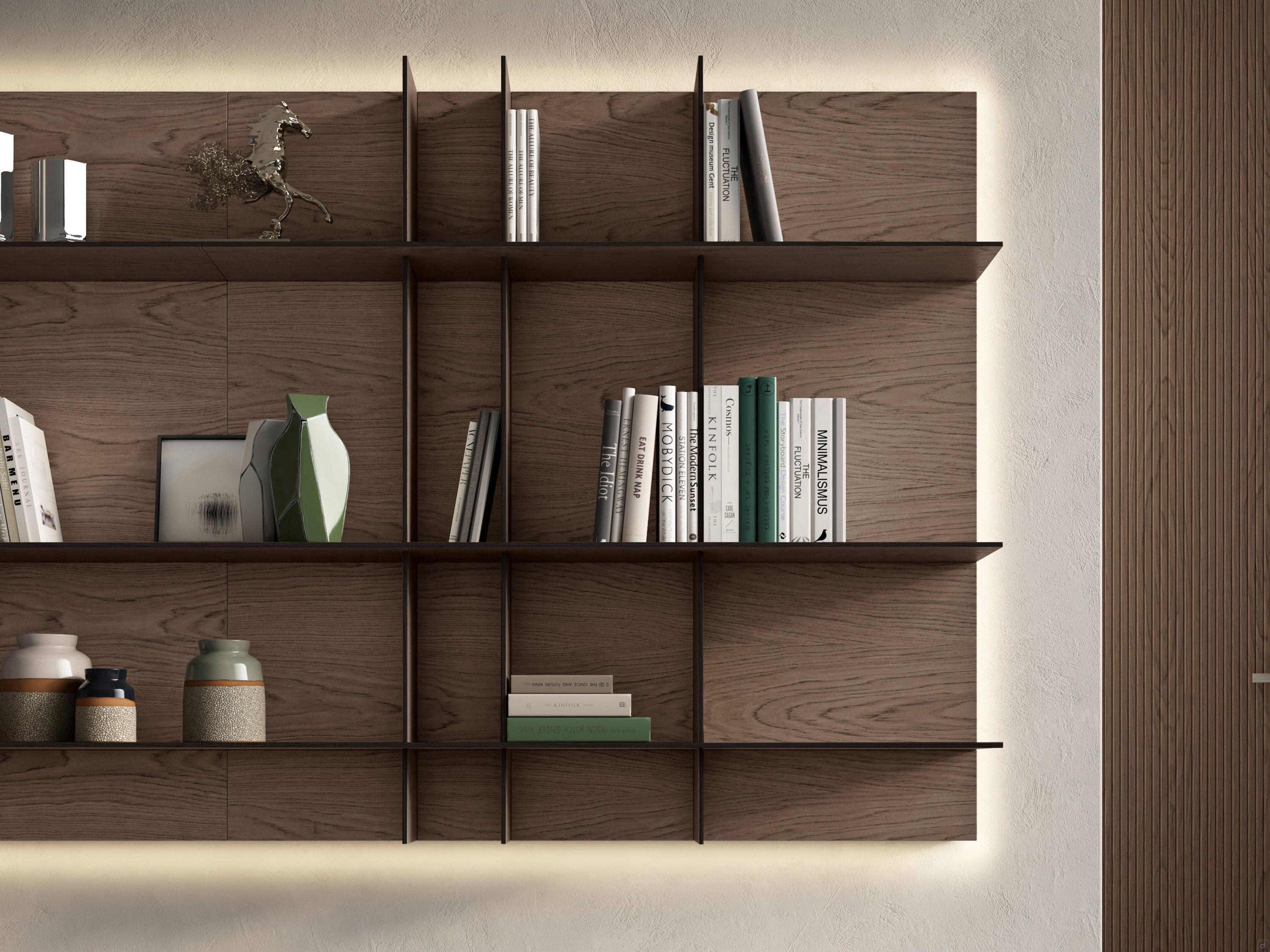

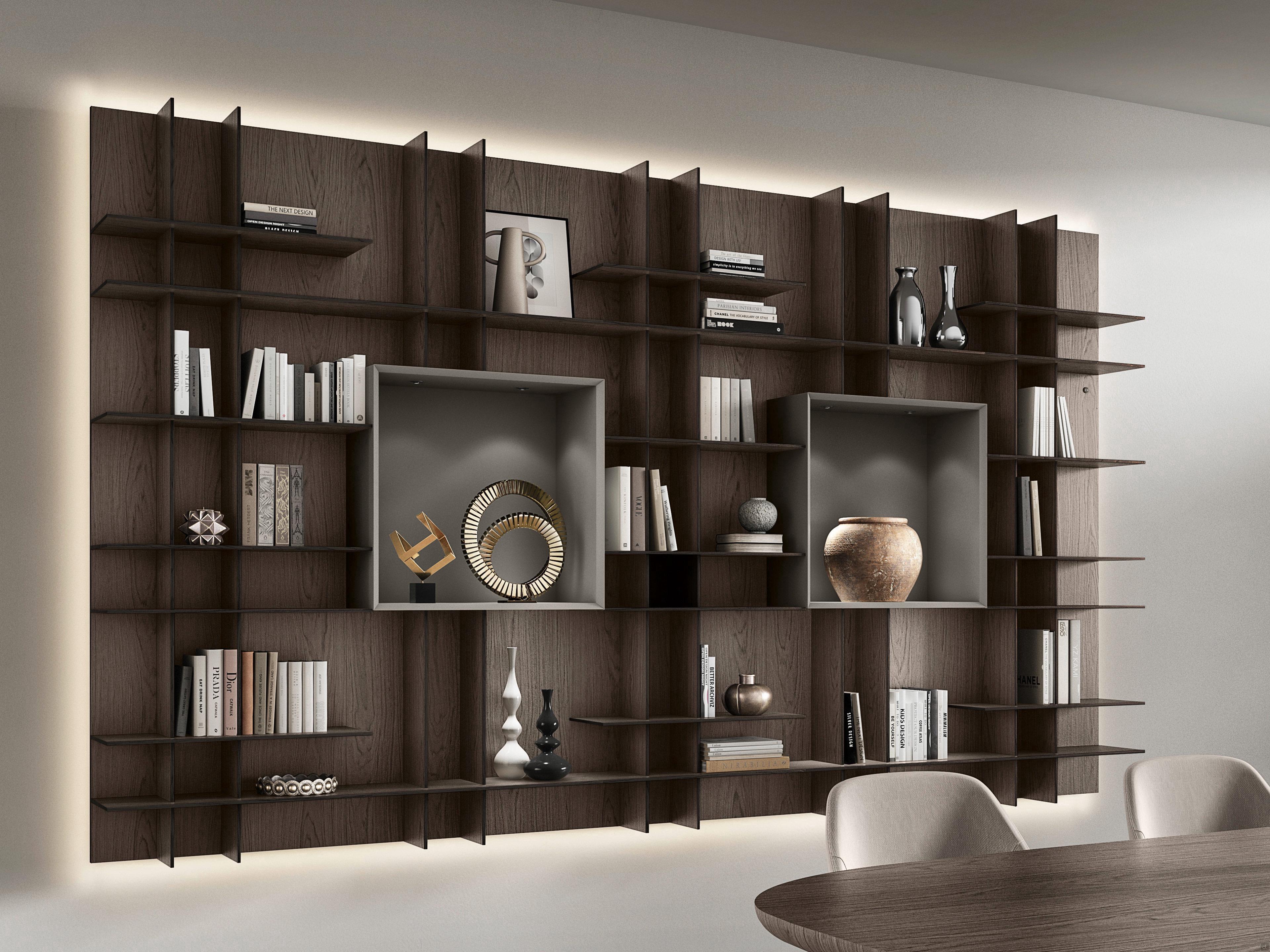

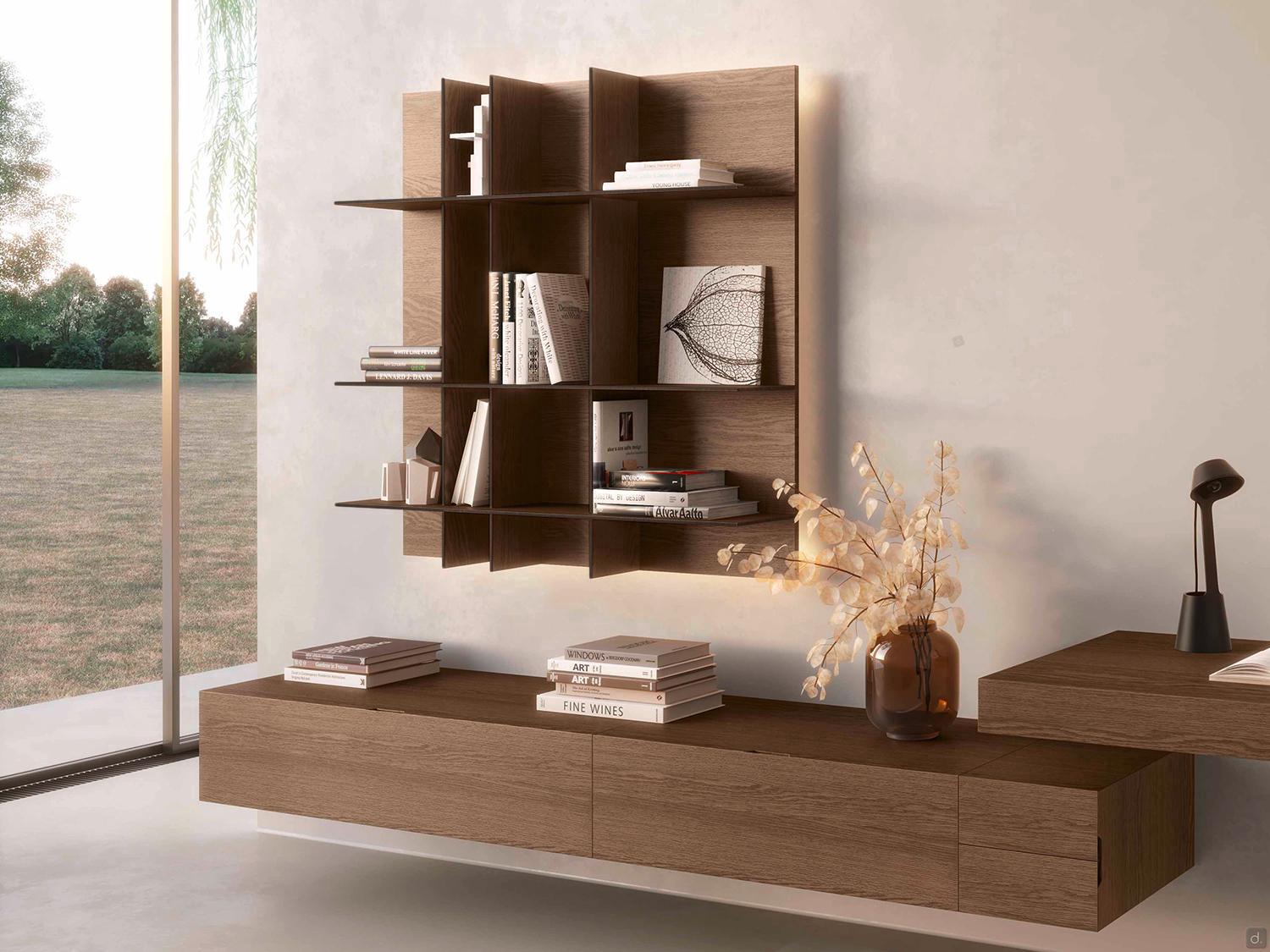

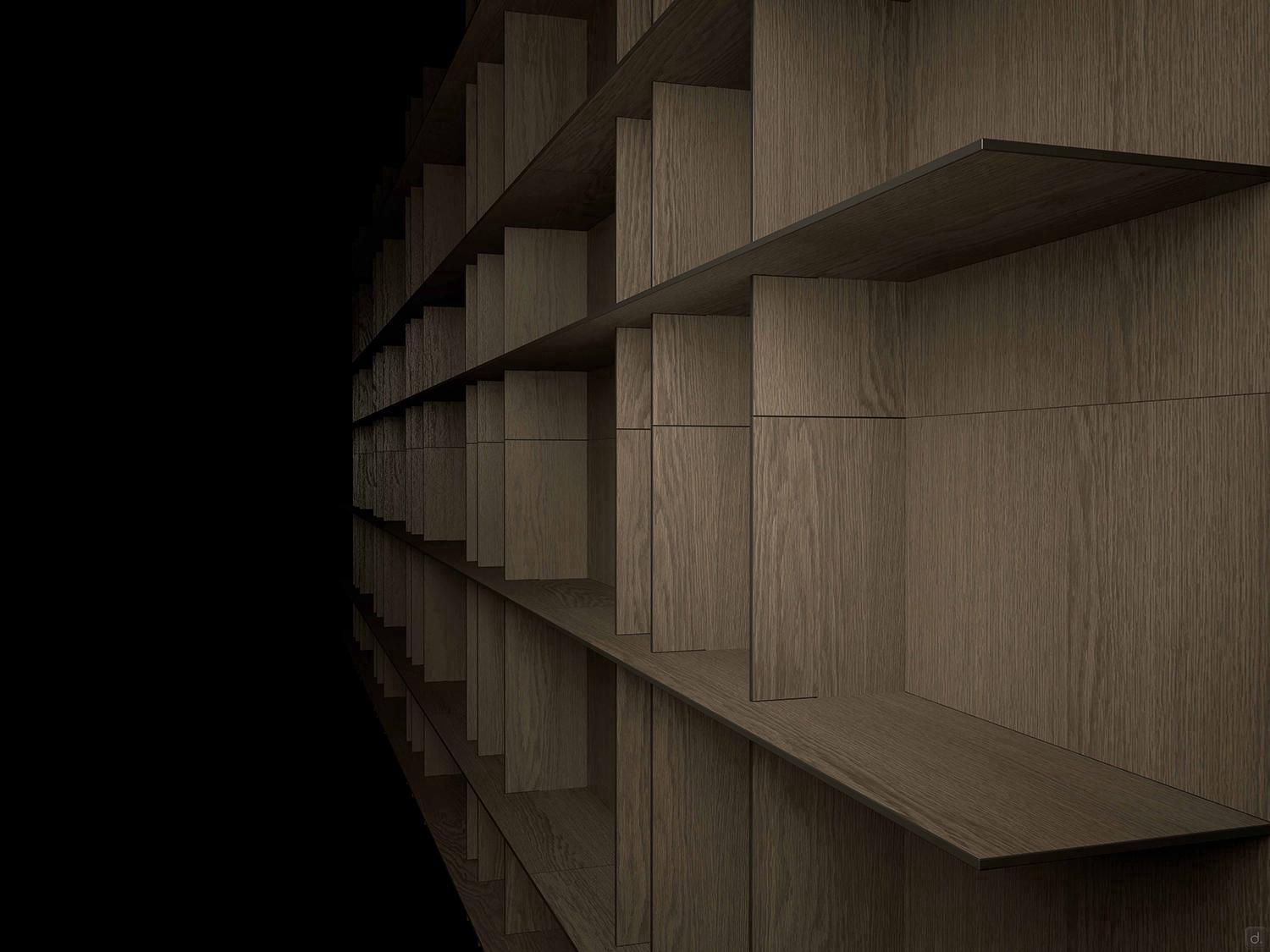

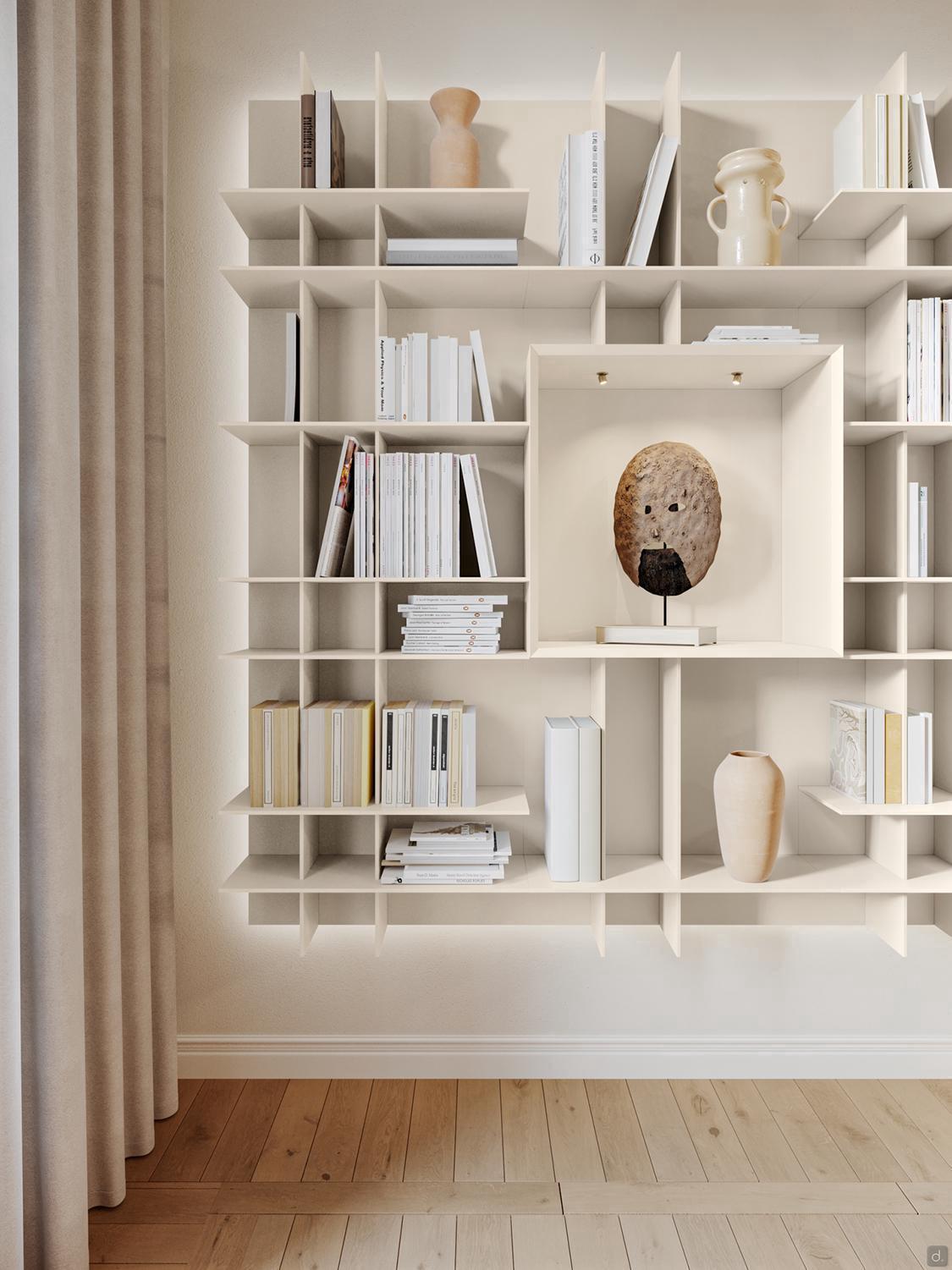

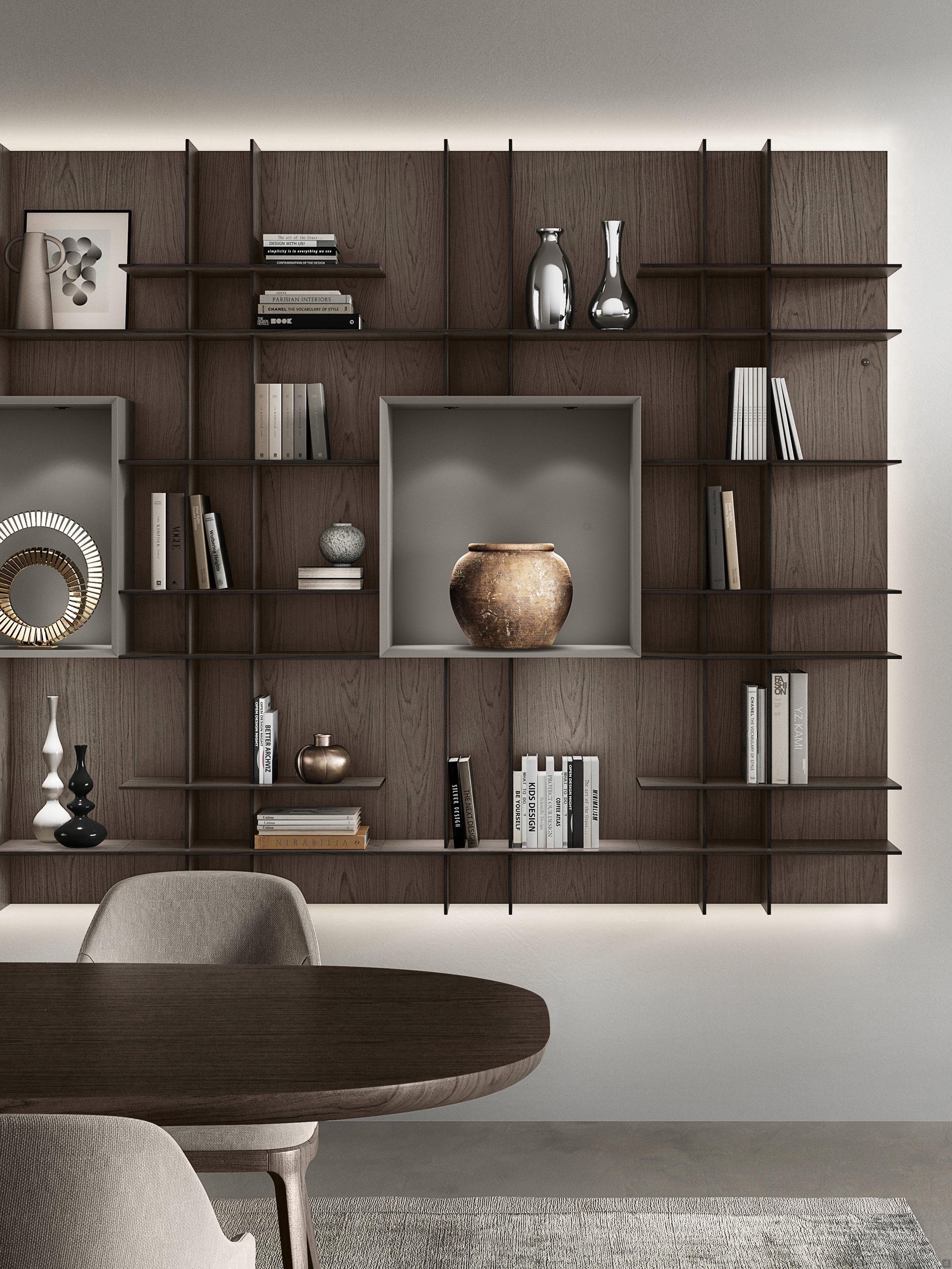

Royal is a wall panelling system with shelves and LED lighting. It is available as a single unit, or alternatively as a modular system which allows you to panel an entire wall.

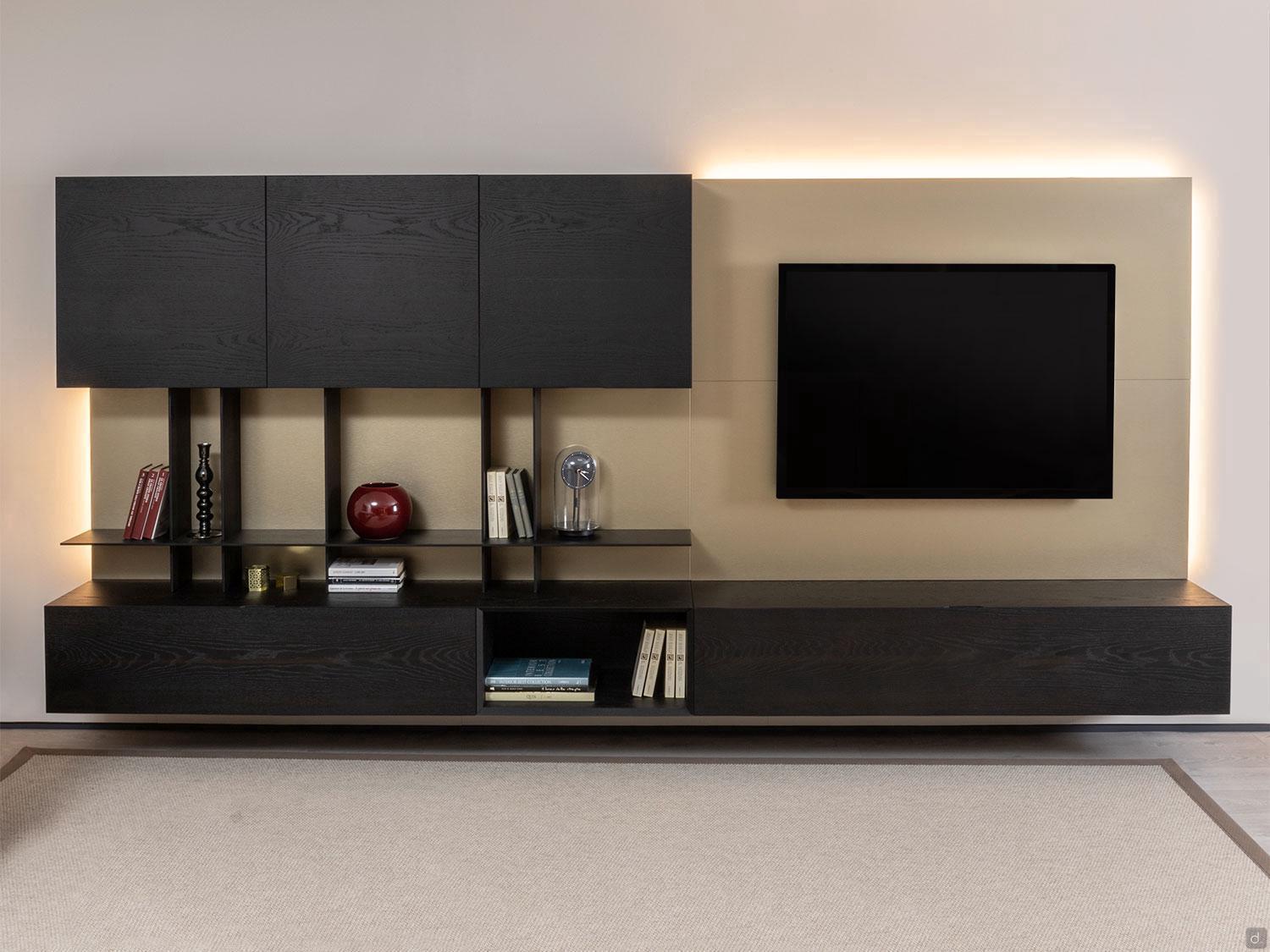

This wall panelling system is highly customisable thanks to the wide range of matt lacquers, metallic lacquers and open-pore oak finishes that are available. You can also choose to have your boiserie system in a single colour, or in a two-tone version. The panel can be equipped with a posterior frame, positioned on all 4 sides of an independent unit, or along the perimeter of a modular boiserie composition. The frame is made to match the back panel and can be accessorised with an LED strip.

Characteristics
wall panelling with shelves and dividers (0,8 cm thick)
wide range of finishes in matt lacquer, metallic lacquer and open-pore oak
available with back panel, shelves and dividers either matching or contrasting
posterior frame around the edge of the panel available with LED lights

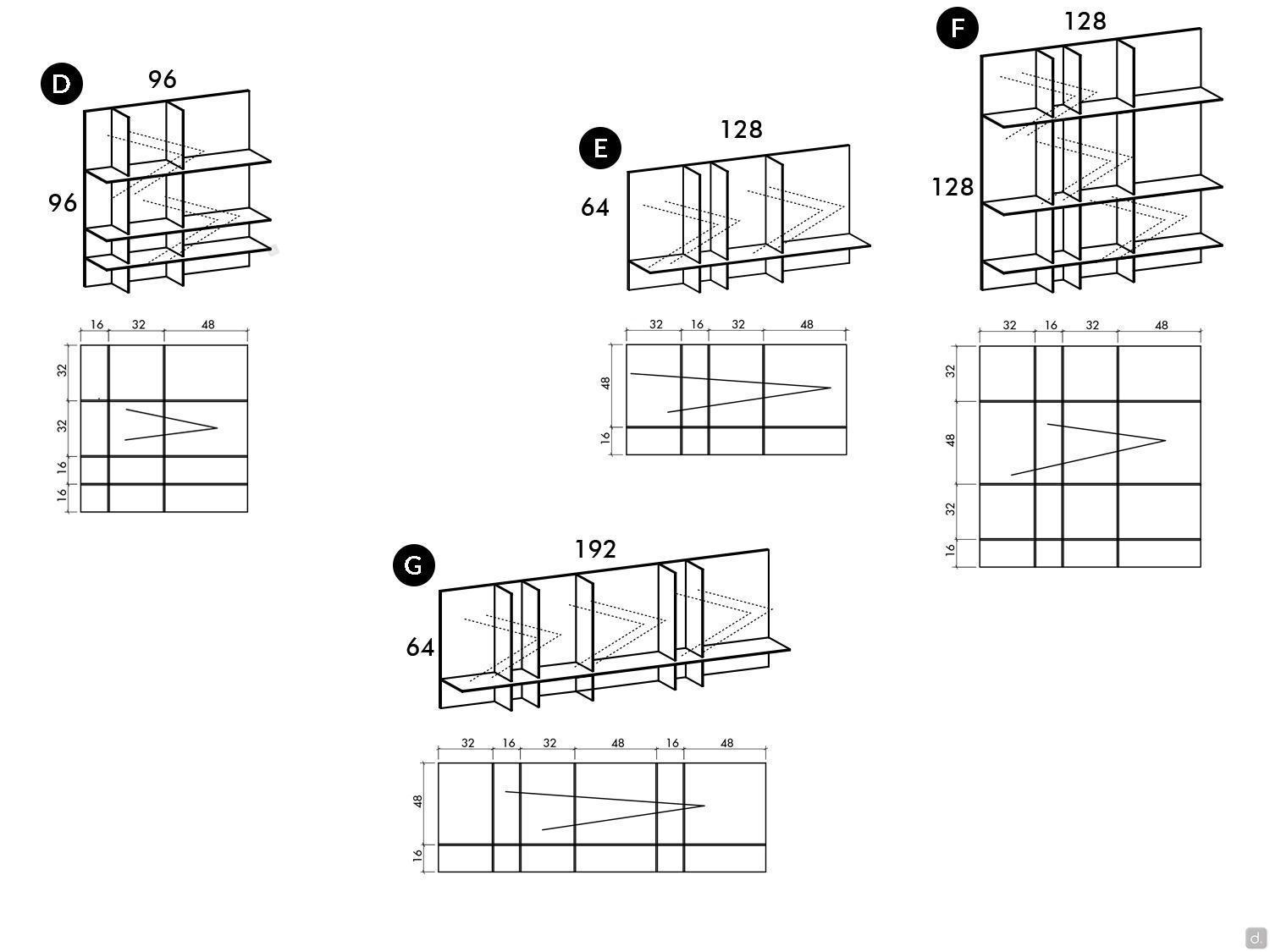

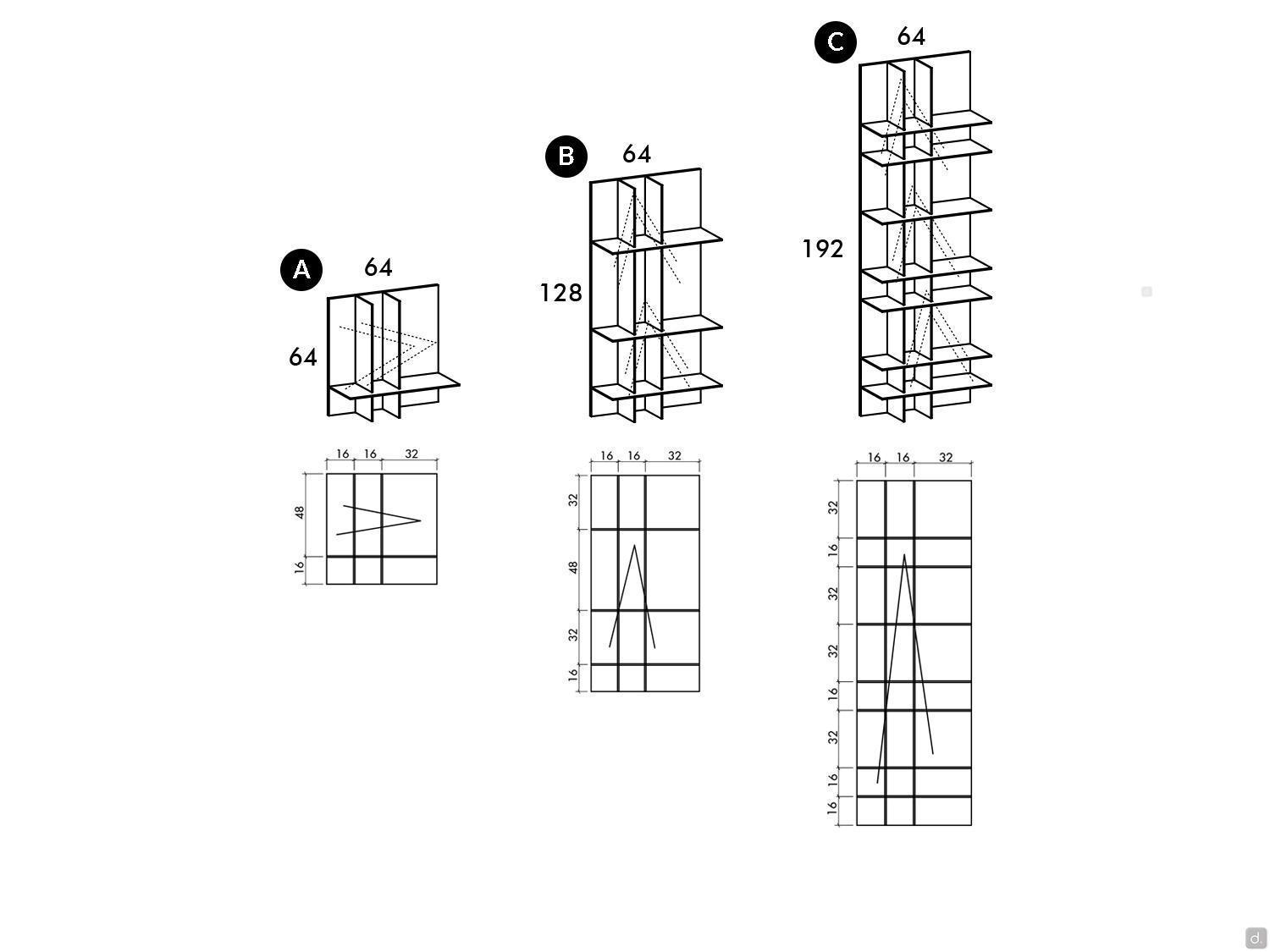

Models and Measurements
Model: view all available models in the Configurator
Width: cm 64 / 96 / 128 / 192
Height: cm 64 / 96 / 128 / 192
Thickness:
- back panel: cm 1,8
- posterior frame: cm 6,5 (technical compartment cm 7)
- shelves: cm 0,8
Depth:
- shelves: cm 25,2
- dividers: cm 19,2

Materials and Finishes
Back Panel / Shelves and Dividers:
- matt / metallic lacquer
- open-pore oak wood

Purchase Information
For each back panel, indicate the position of the posterior frame:
- on none of the sides, on n.1 side, on n.2 sides, on n.3 sides (for compositions of multiple panels);
- on n.4 sides (for an independent panel).
If you purchase a composition of multiple panels, please send a drawing of your Royal wall-panelling design as soon as you place your order.
The frame at the back of the panel matches the finish on the panel.

Matt or Glossy (where available) lacquer finish with colours from the RAL, NCS and Sikkens charts are available for this product.
To get it, configure your furniture with "Matt Lacquer" or "Glossy Lacquer" finish and add to your Basket the "Matt / Glossy Lacquer Samples cod.olv" product card, which you can find among the alternative products at the bottom of the page.
Please note: since the surcharge is intended on the entire supply of the cod.olv collection, only one addition to the Basket is required even in the case of more than one product from this collection to be lacquered.

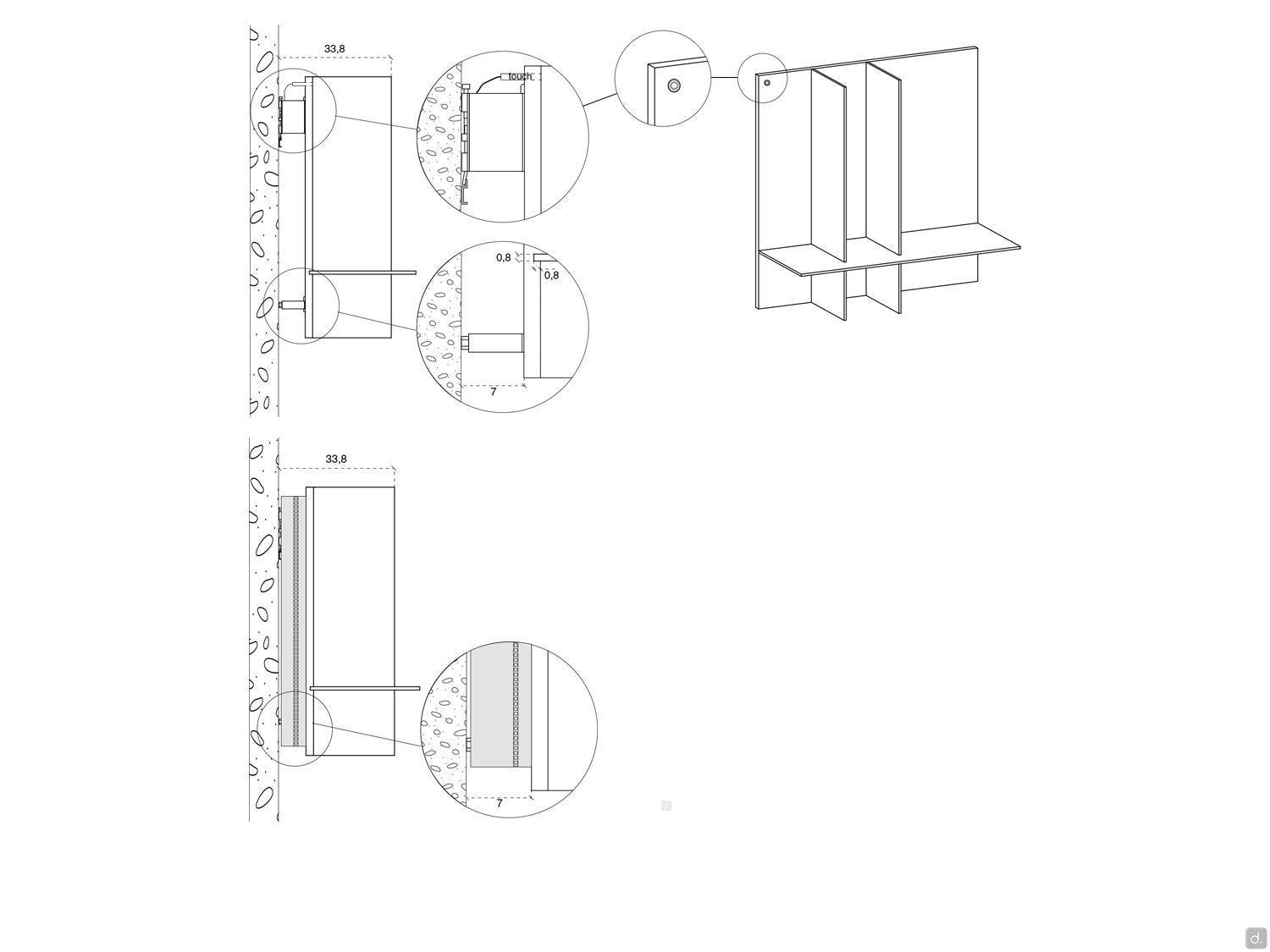

Technical study

Technical Specifications and Equipment
Back Panel: in MDF, 1,8 cm thick. Complete with a hardware kit for spaced mounting (6,8 cm in depth). Technical compartment (7 cm in depth).
Frame behind Panel: 6,5 cm in depth, matching the back panel. To be positioned on the 4 sides of an independent wall panel, or around the perimeter of a composition of multiple panels, in order to finish the external sides with a technical compartment. Can be equipped with an LED strip.

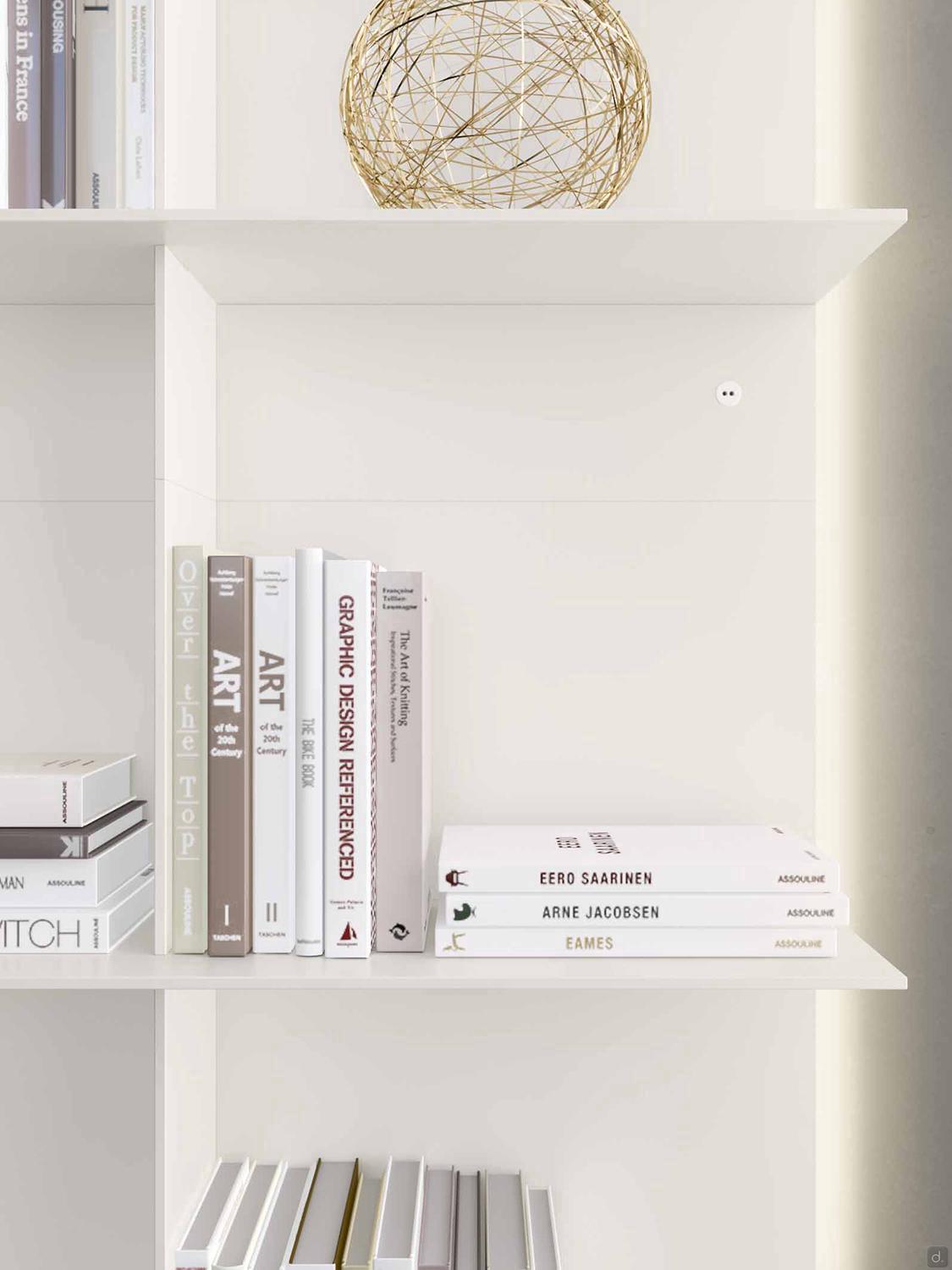

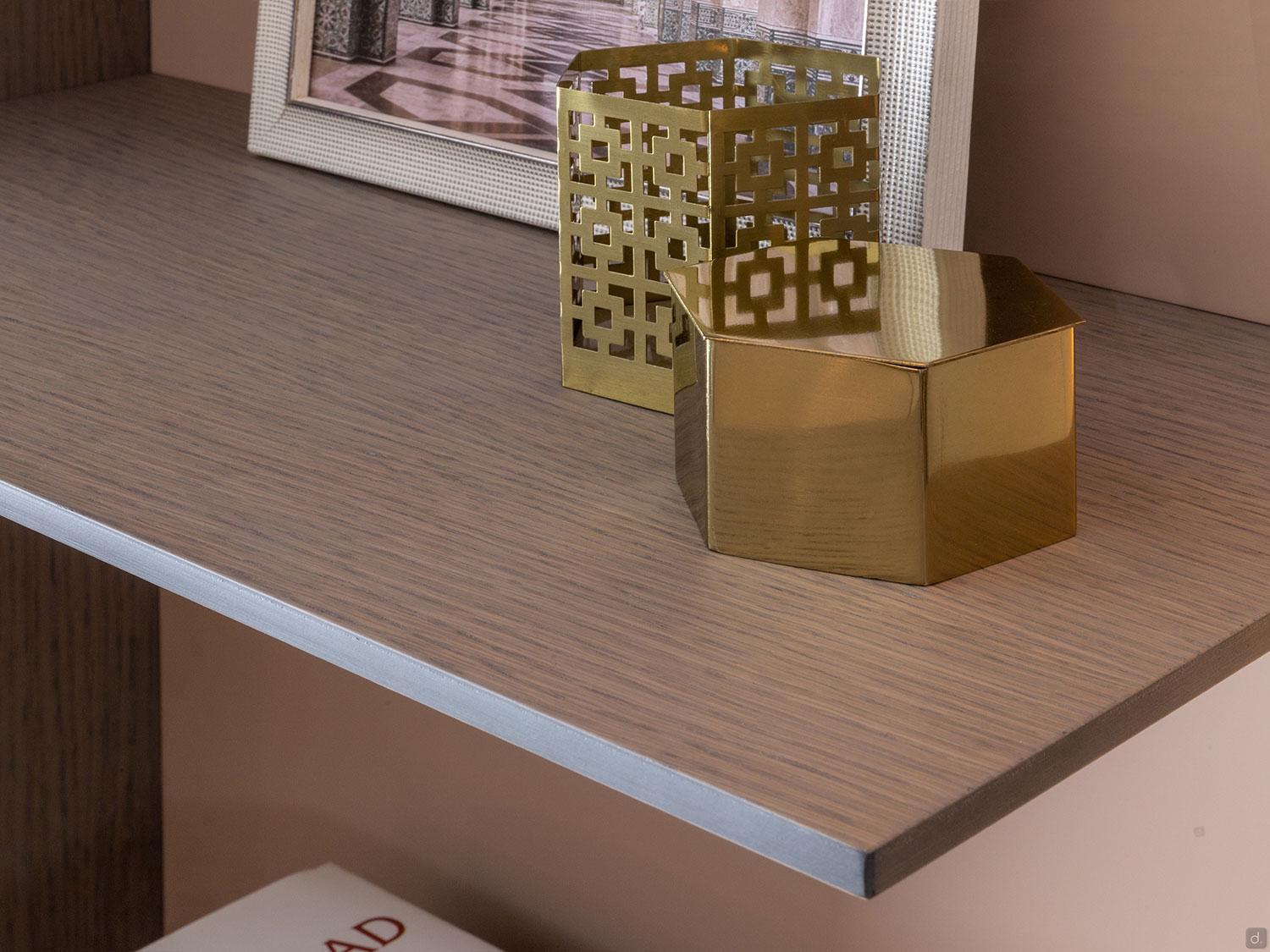

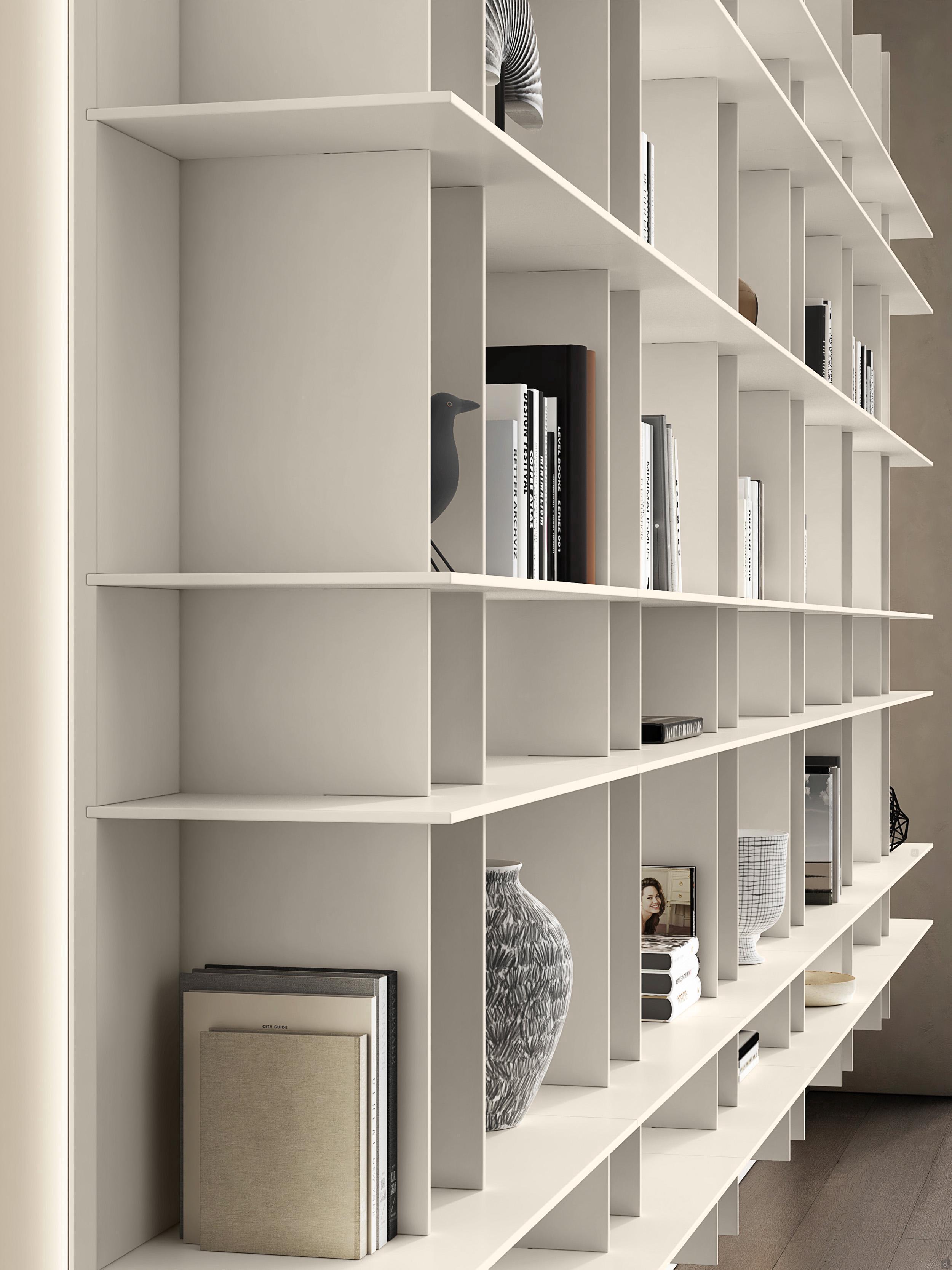

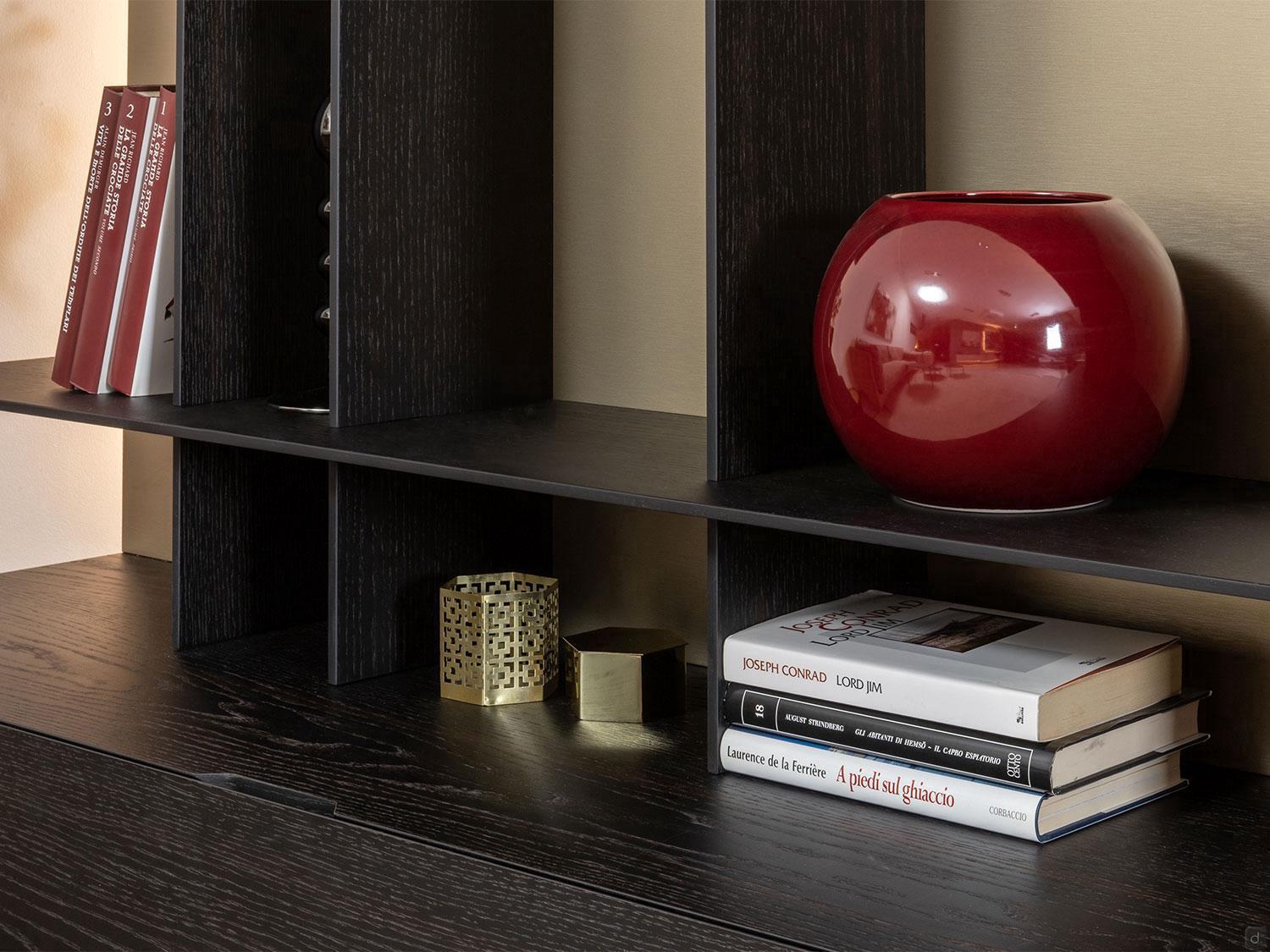

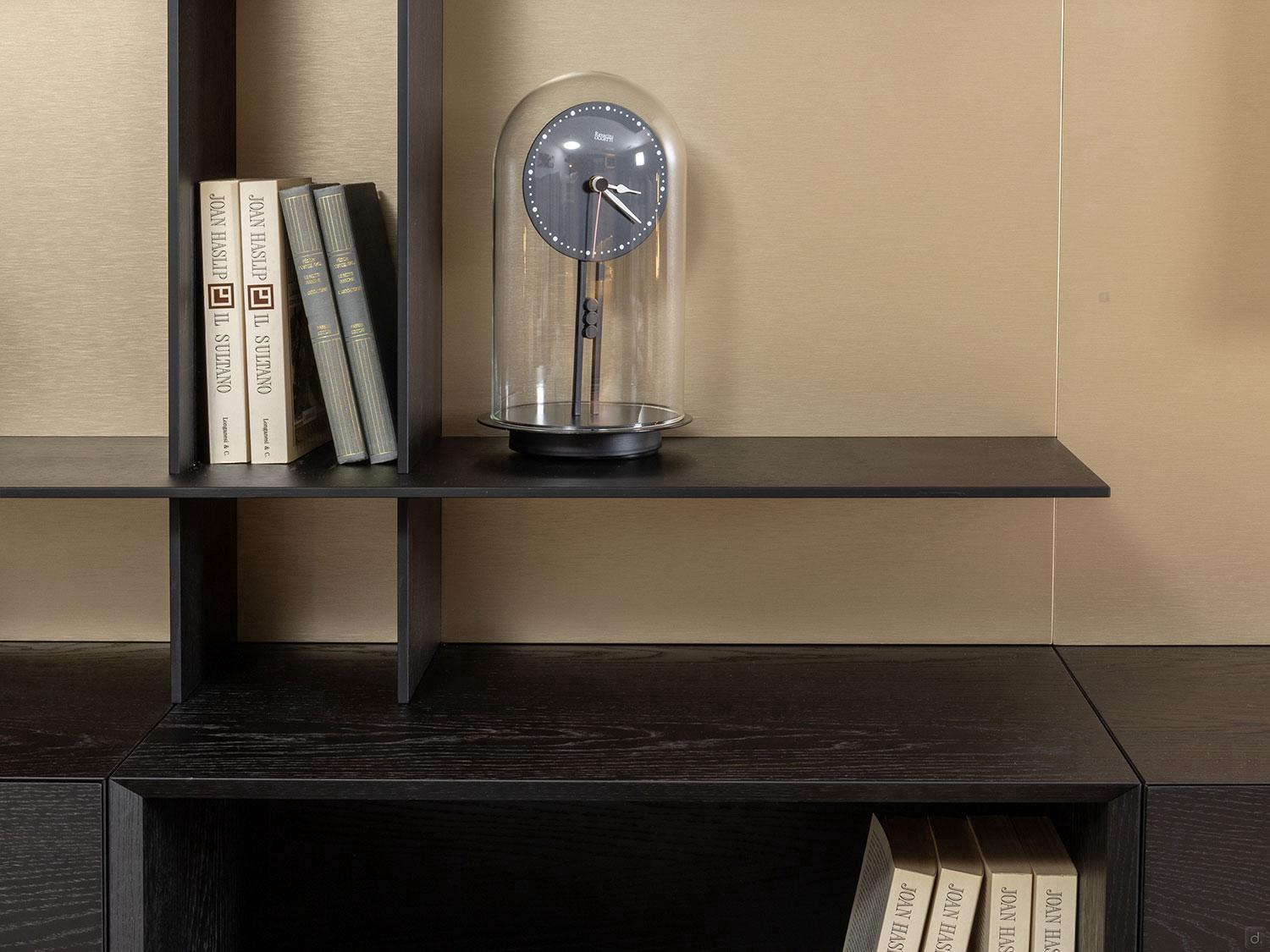

Shelves: horizontal and 25,2 cm in depth, in 0,8cm-thick plywood. The shelves in wood veneer are not bordered, they retain the original black color of the laminated material.

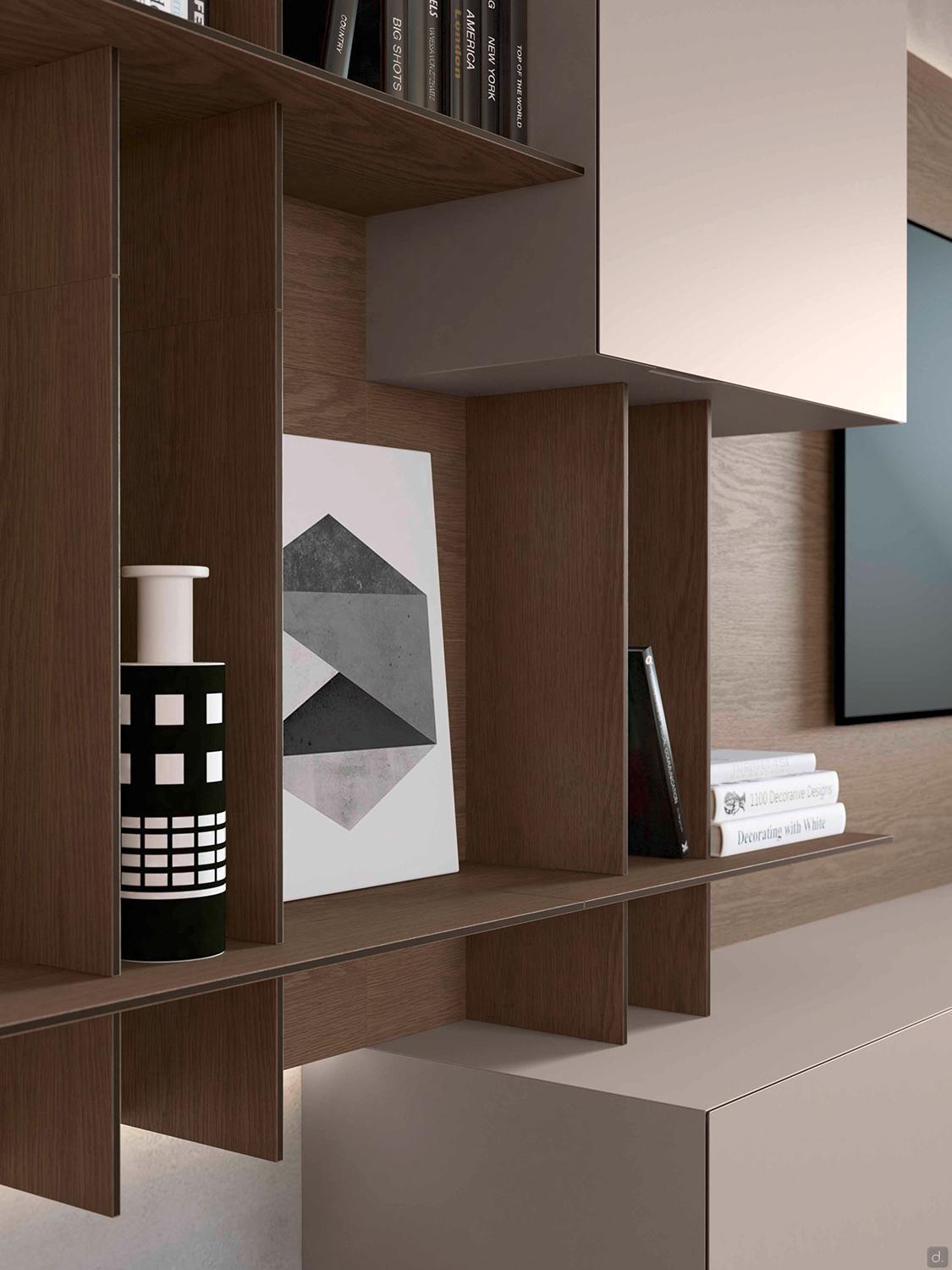

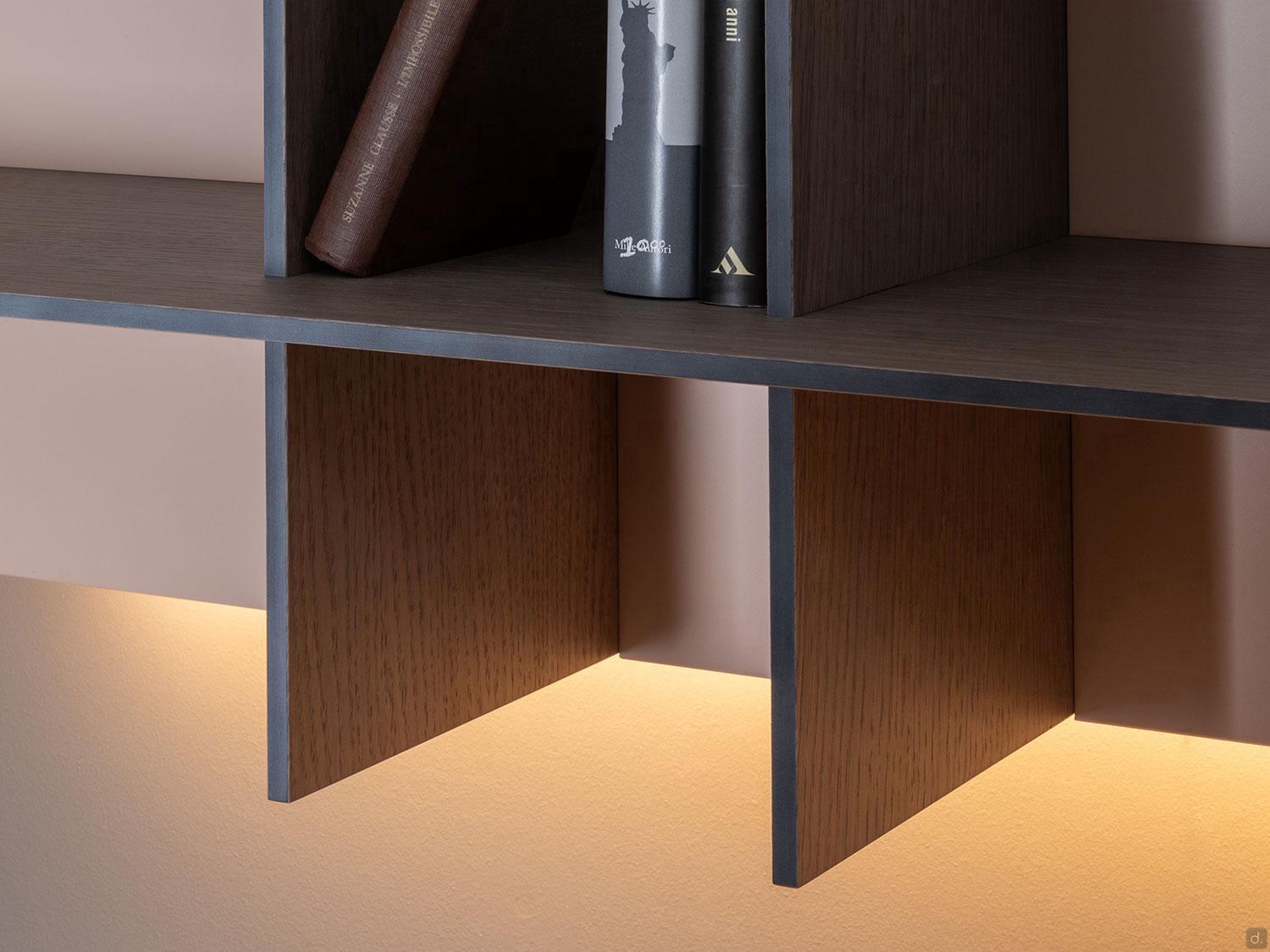

Dividers: vertical and 19,2 cm in depth, in 0,8cm-thick plywood. The dividers in wood veneer are not bordered, they retain the original black color of the laminated material.

Optional - Wall Panelling

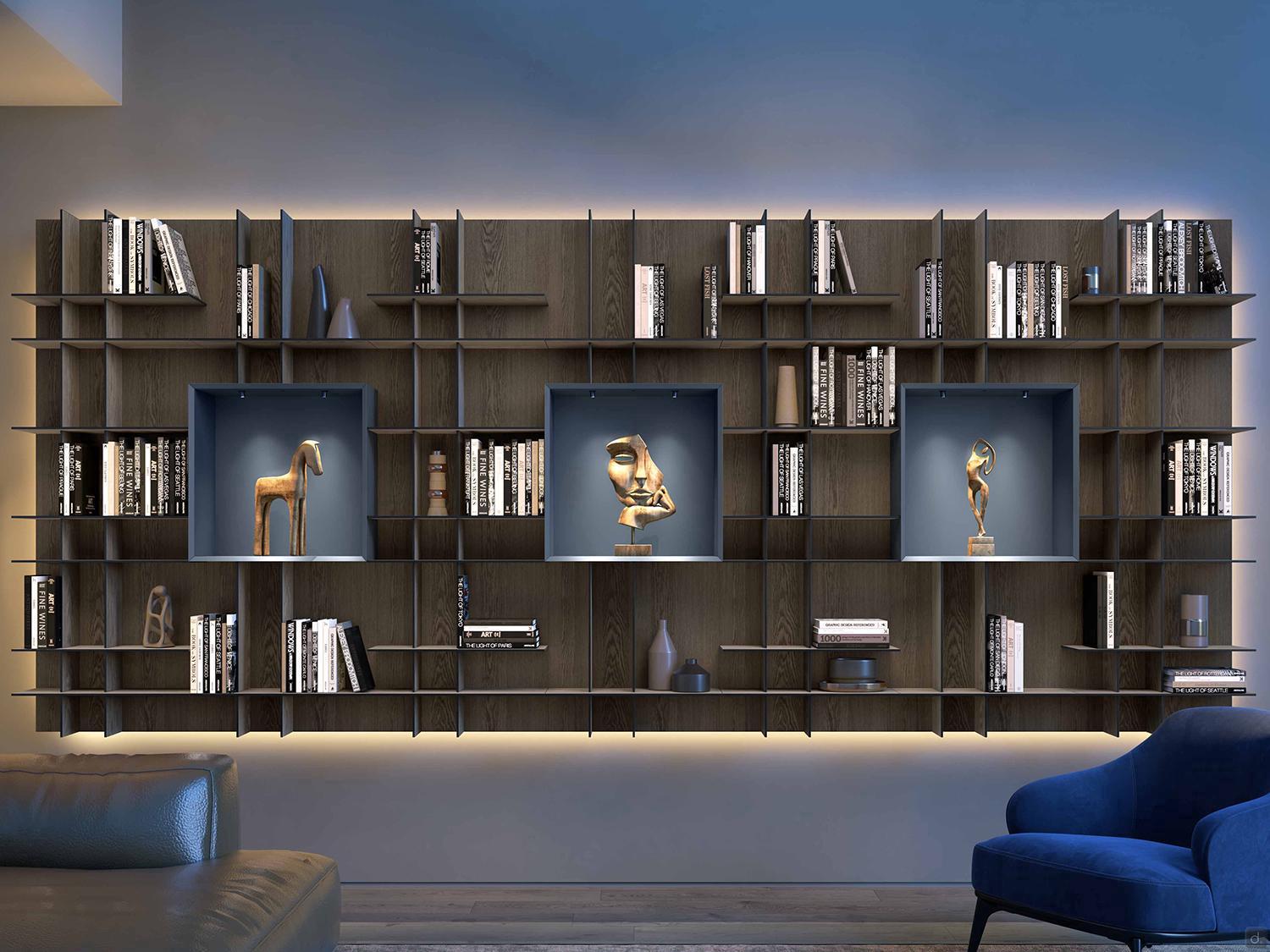

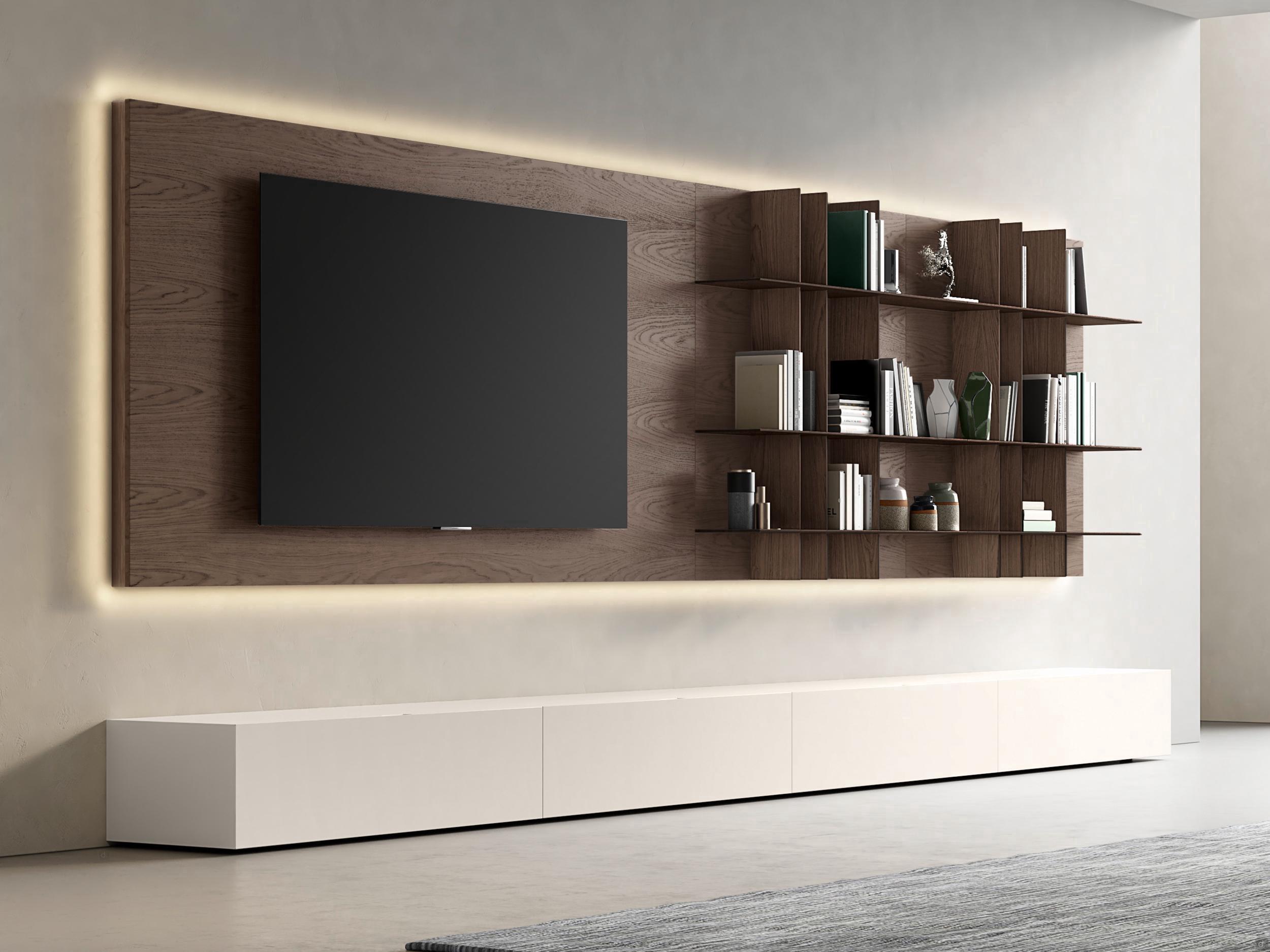

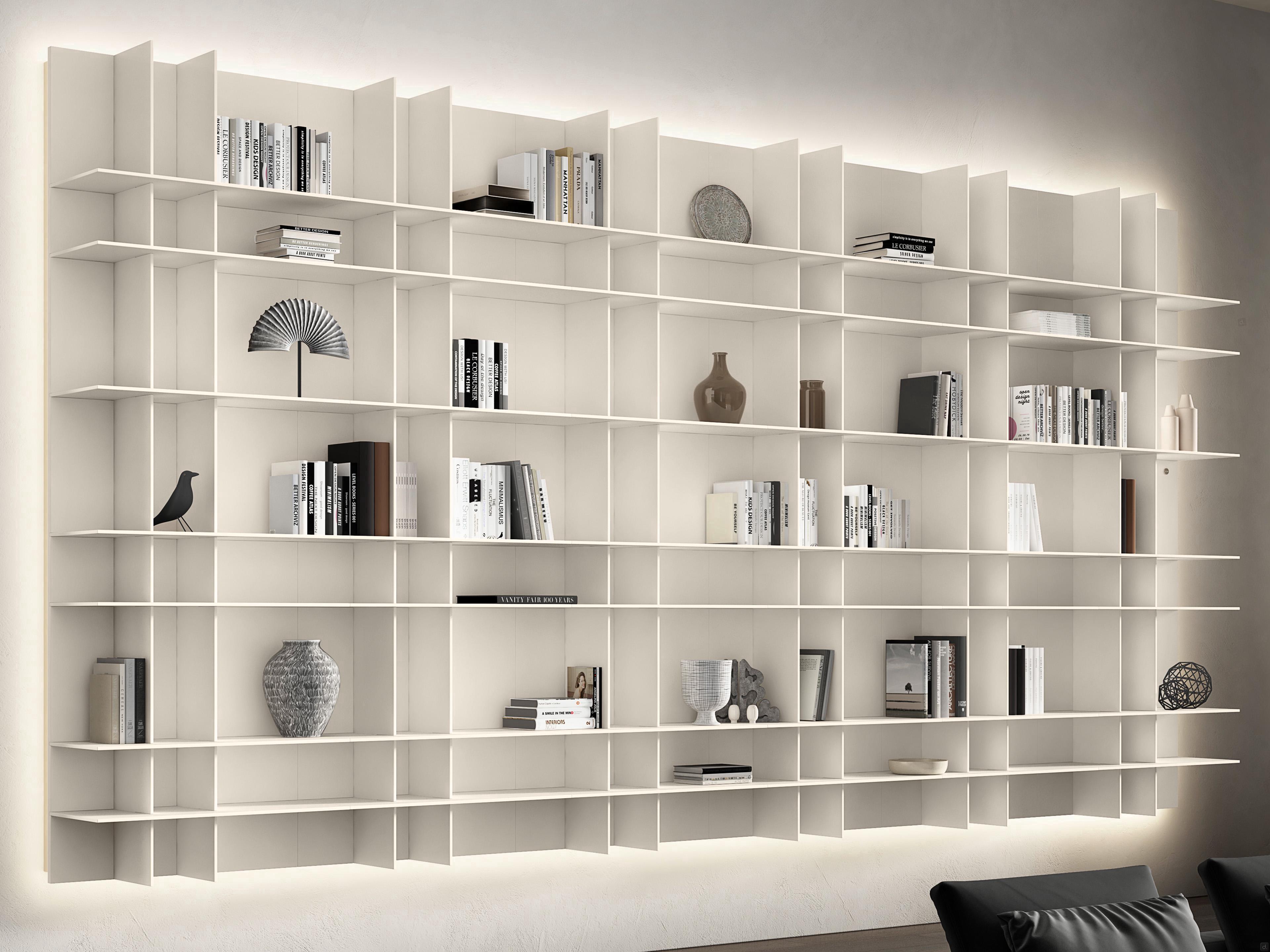

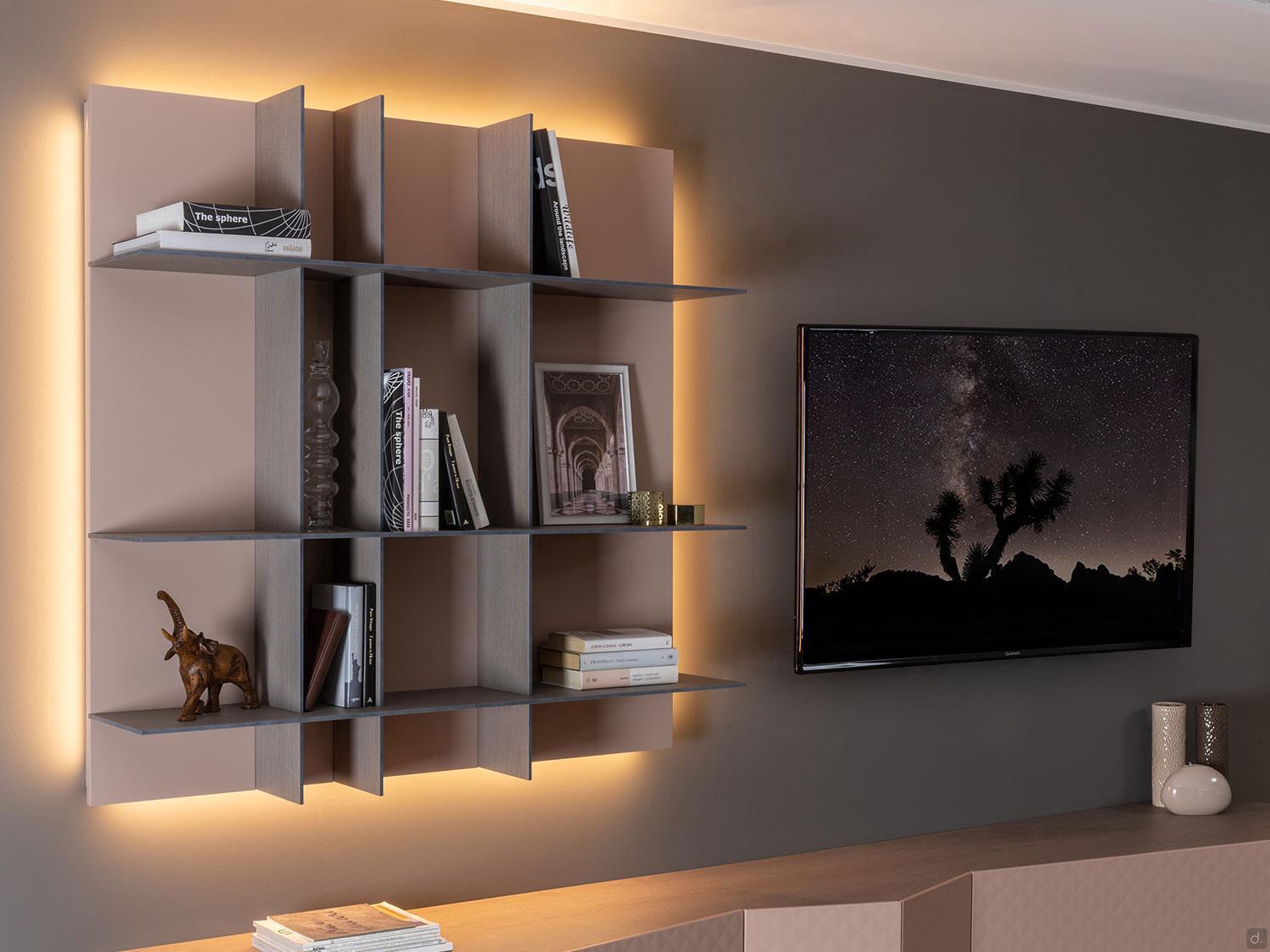

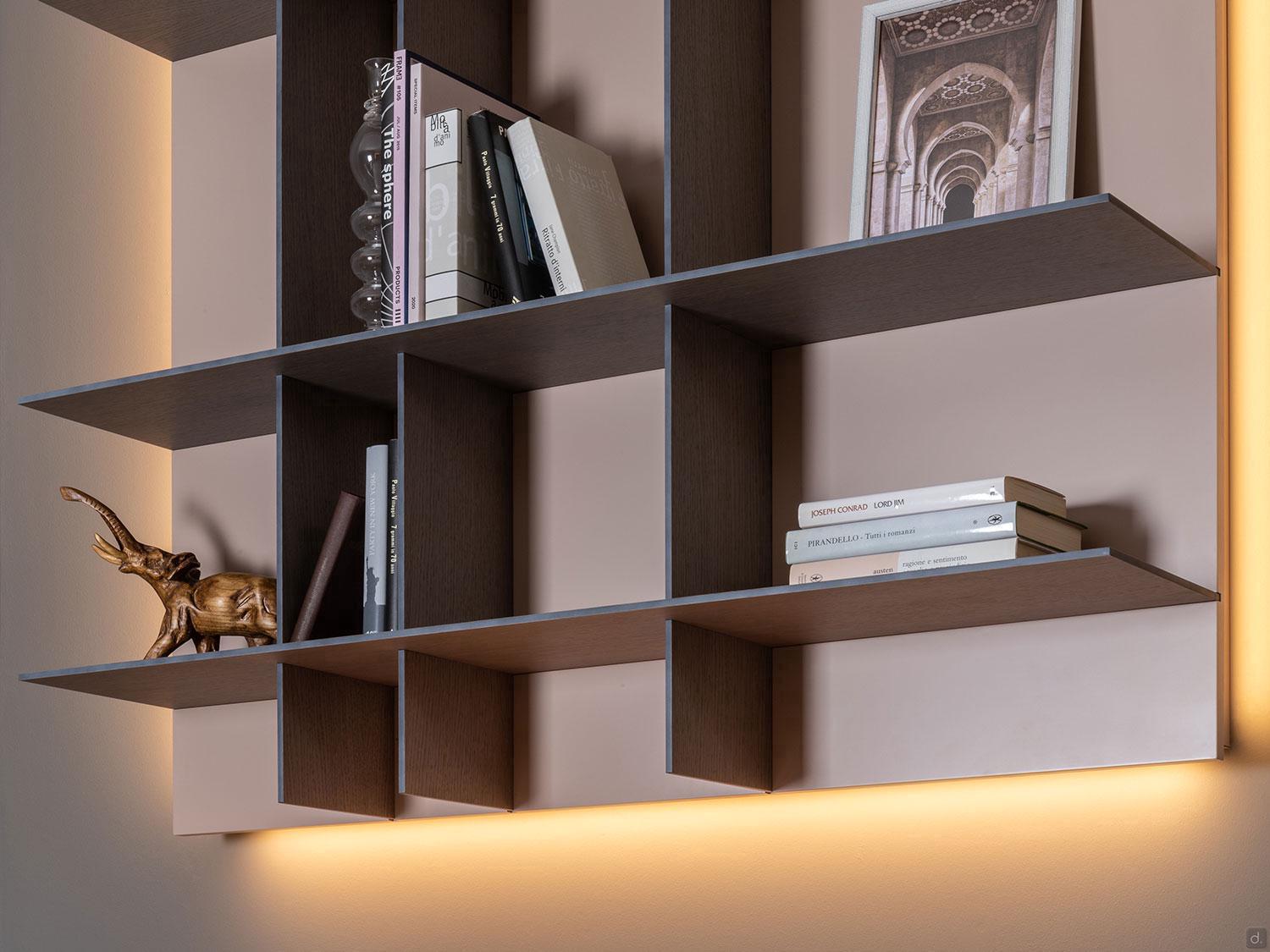

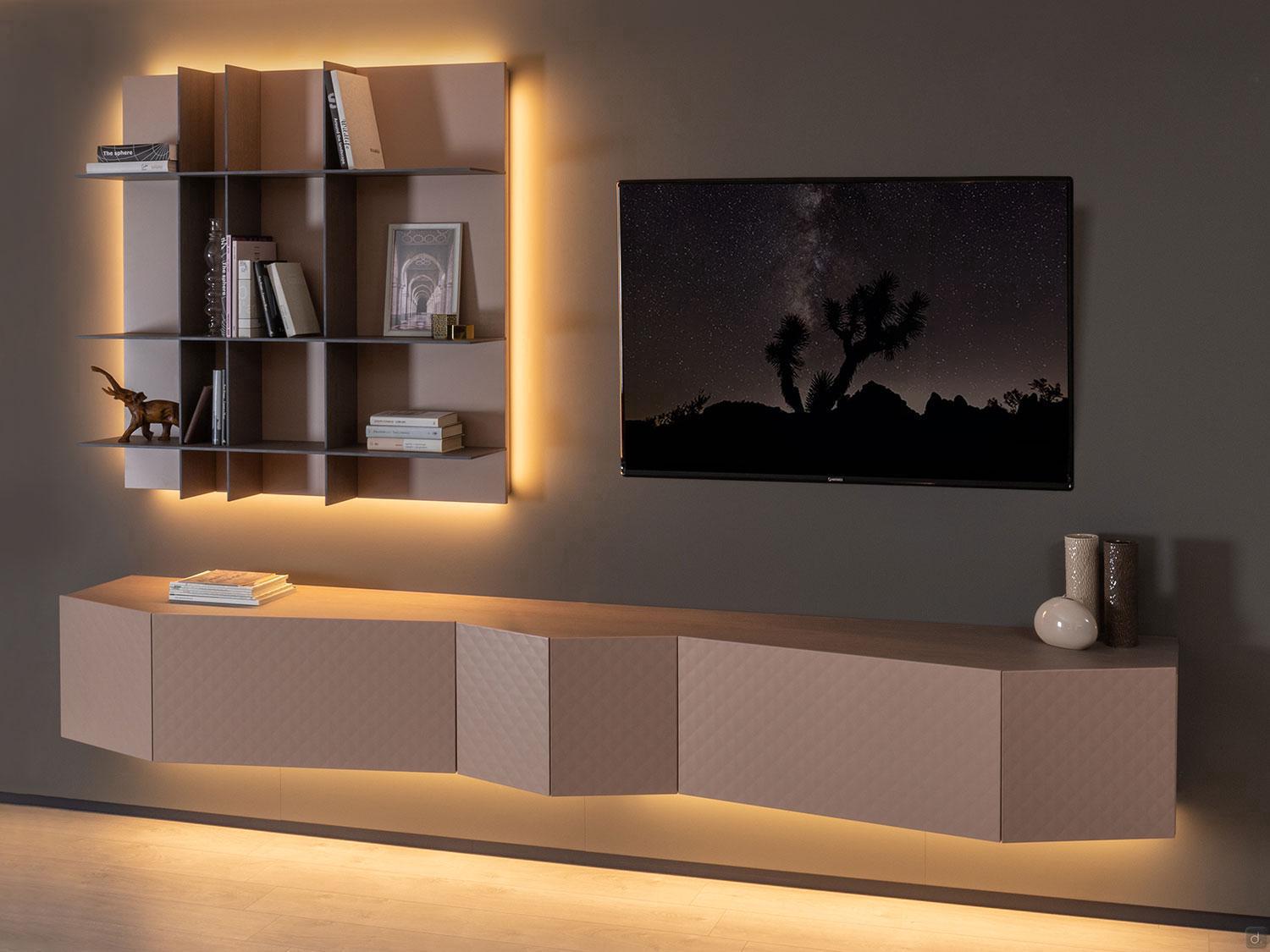

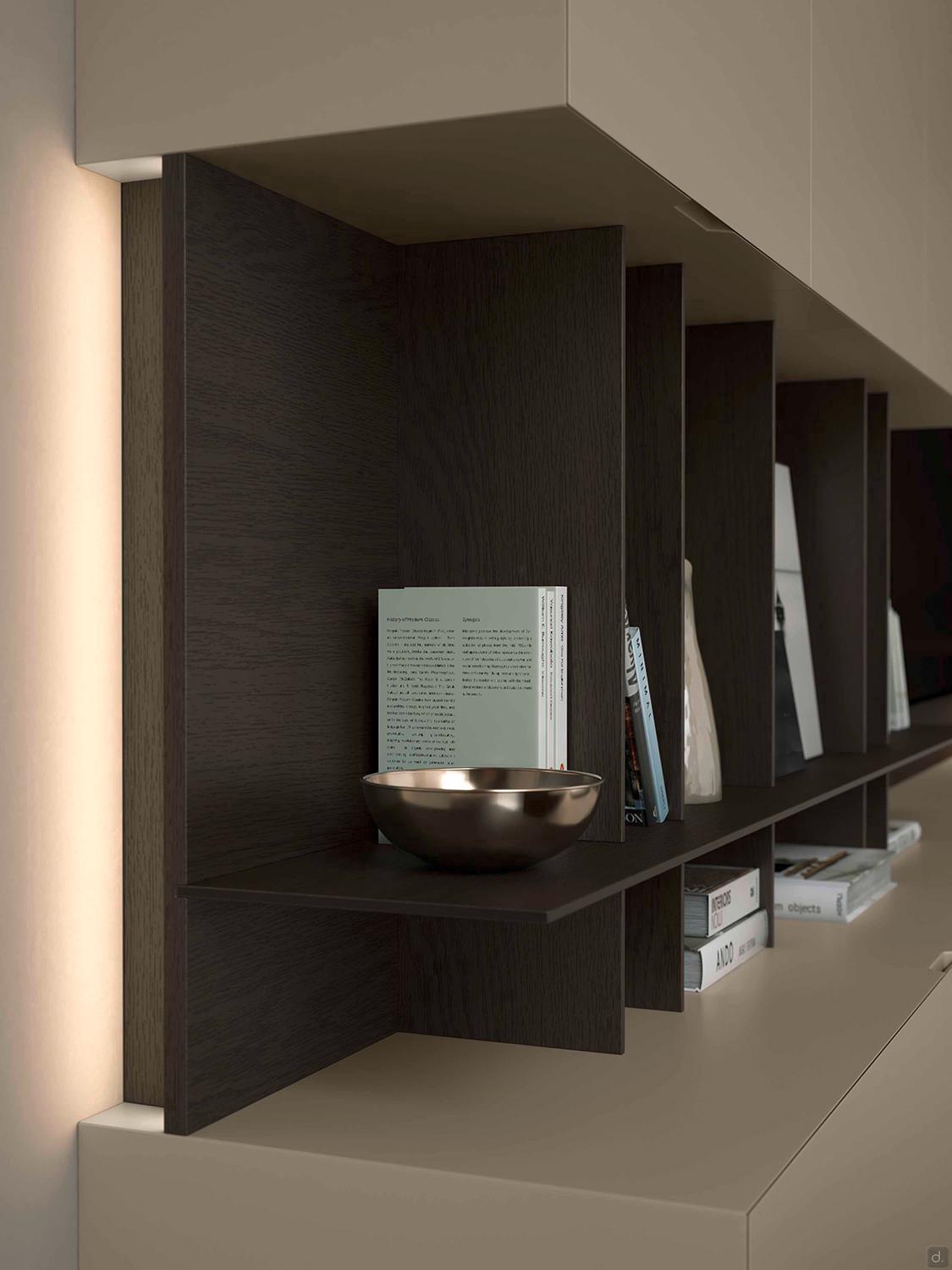

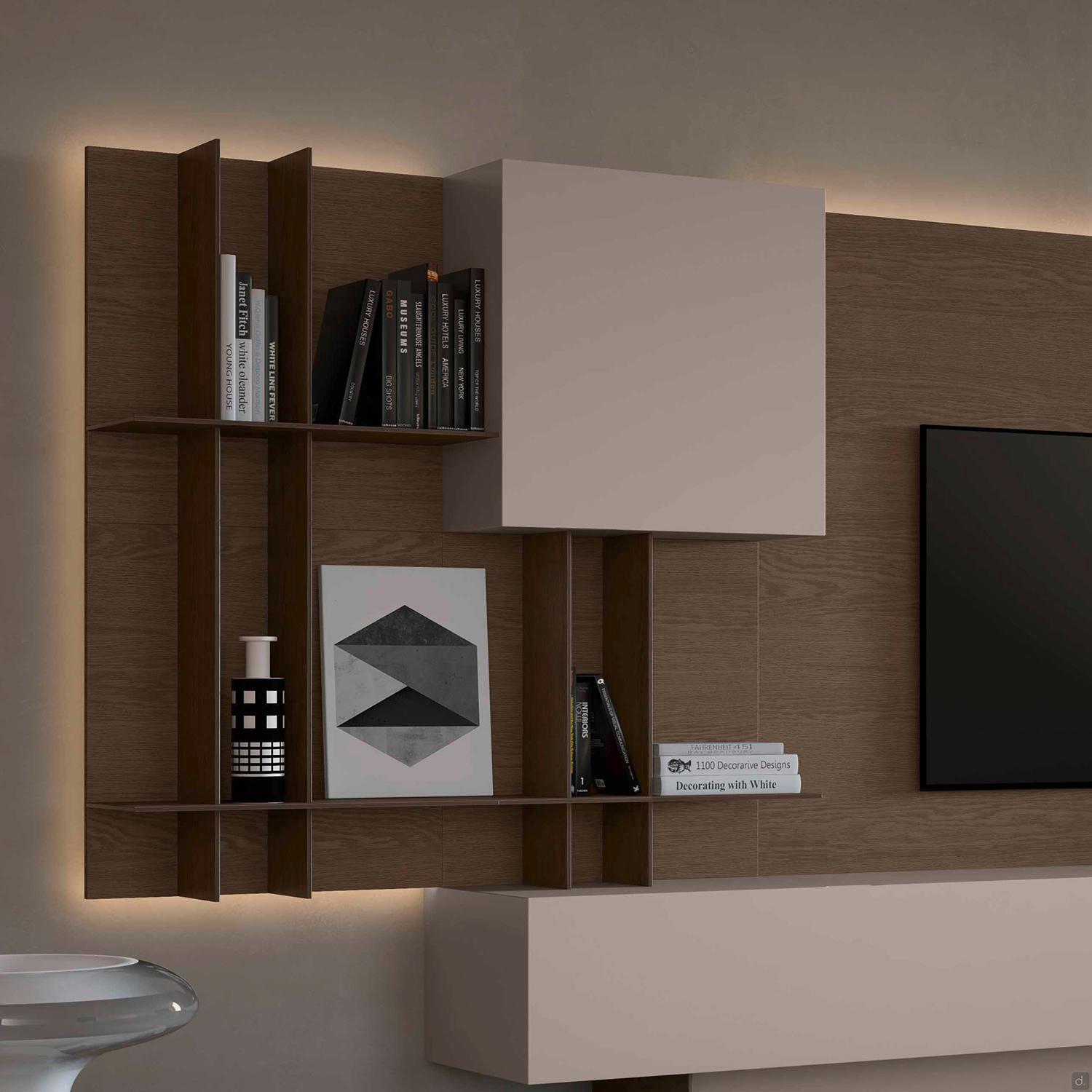

LED lighting: positioned on the frame around the edge of the wall-panelling composition (3000 K - 11 W/ml). Transformer is switched on/off with switch-controlled socket or touch switch (cm Ø 1,6).

Assembly Tips
Hardware is pre-mounted on all elements to facilitate and speed up assembly. Elements are complete with brackets for fixing them to the wall.

Video

Additional Information

Area of Production
Italy
Assembling
Medium Assembling
Weight
from 12,7 to 44,8 Kg
Cubic Metres
from 0,16 to 0,56 m³
