Technical Specifications and Equipment
Structure: rmade from TAMMEL (honeycomb panel + melamine). The honeycomb panel has a frame made from carefully selected solid pine and the honeycomb plated with panels of Royal, Alpha or Grafis MDF. Guarantees durability, lightness, practicality and meets all the requirements of the European Class 1 Standards regarding the limitation of harmful emissions of formaldehyde, meets the CARB2 standards.
Side and Back Panels: made from melamine (E1 class with low formaldehyde emission), meets the CARB2 standards. The side panels are cm 2,5.
Base and Top: honeycomb panels, 2,5 cm thick.
Shelves: in honeycomb cm 3,2 thick, d.36,1. Note: each column comes with 1 included shelf.

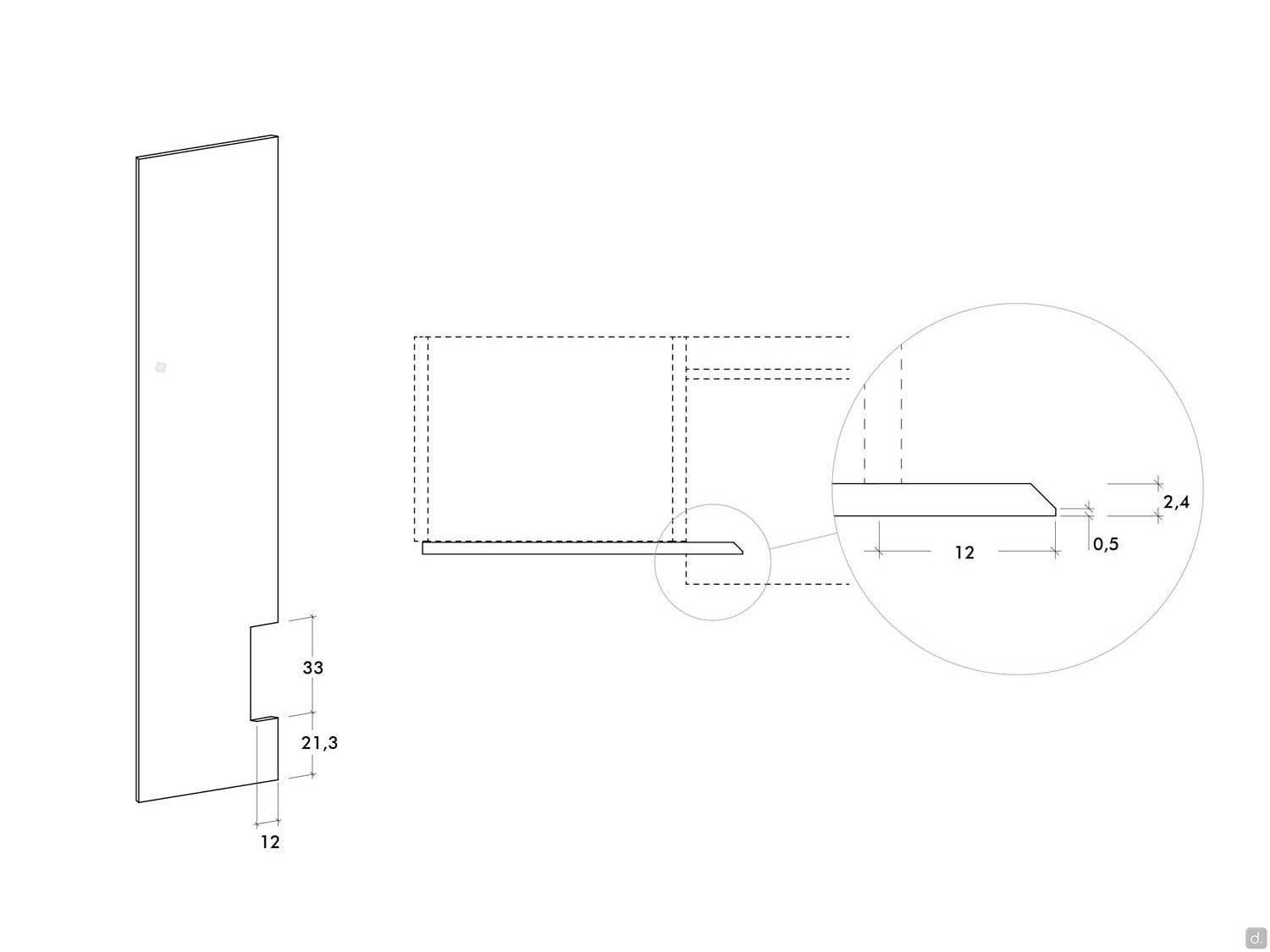

Lacquered / wooden Doors: honeycomb panels, 2,4 cm thick, with a frame made from solid pine, lacquer or wood. Lateral extension (+ cm 12) and a cm h.33 indent into which the suspended base unit is inserted.
The front panels can be smooth or personalised (only for finishes in lacquer, open-pore oak wood, aged oak wood):

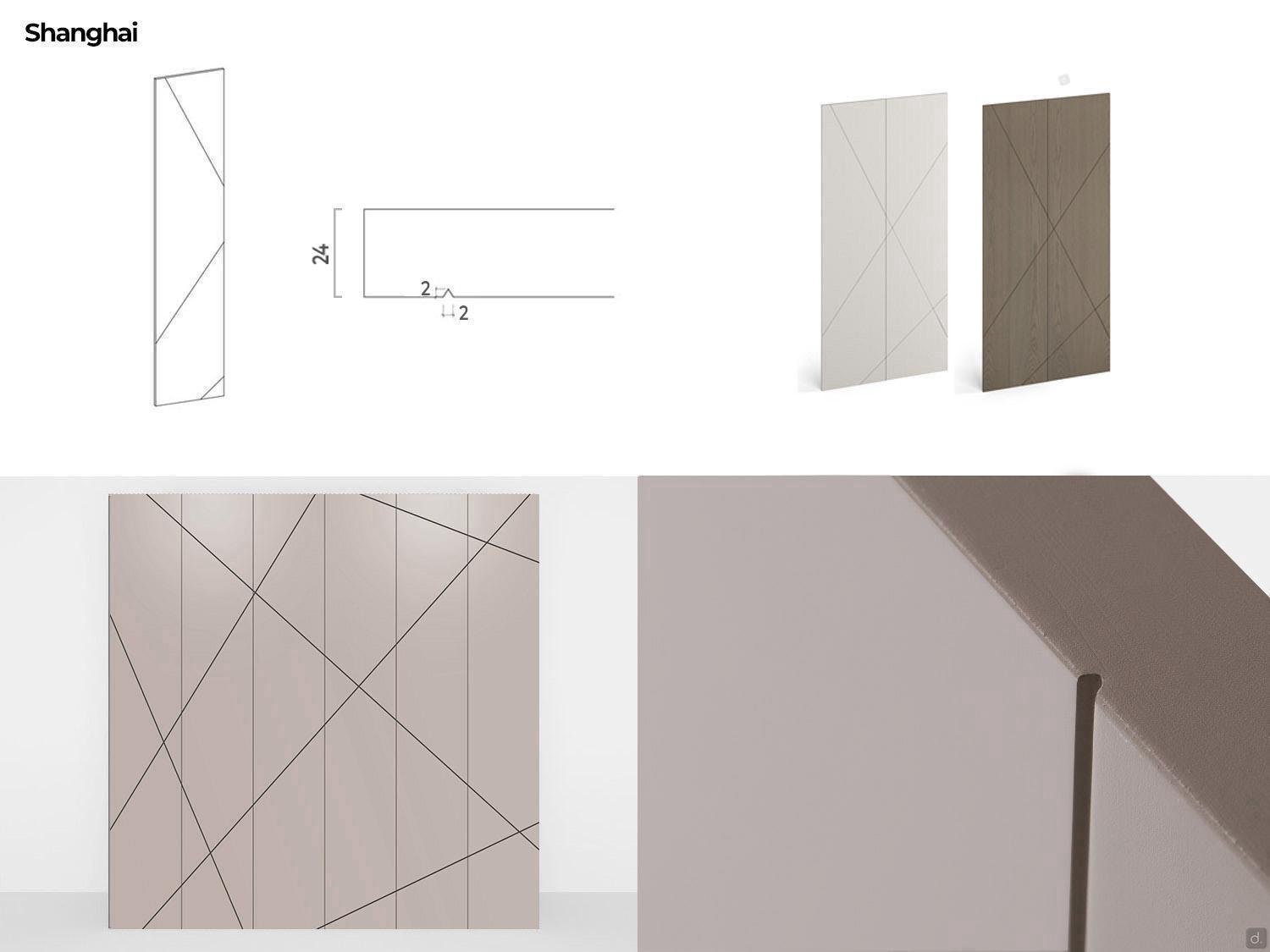

- Shanghai (only in matte lacquered finish): diagonal "V" incisions 0.2 cm thick.

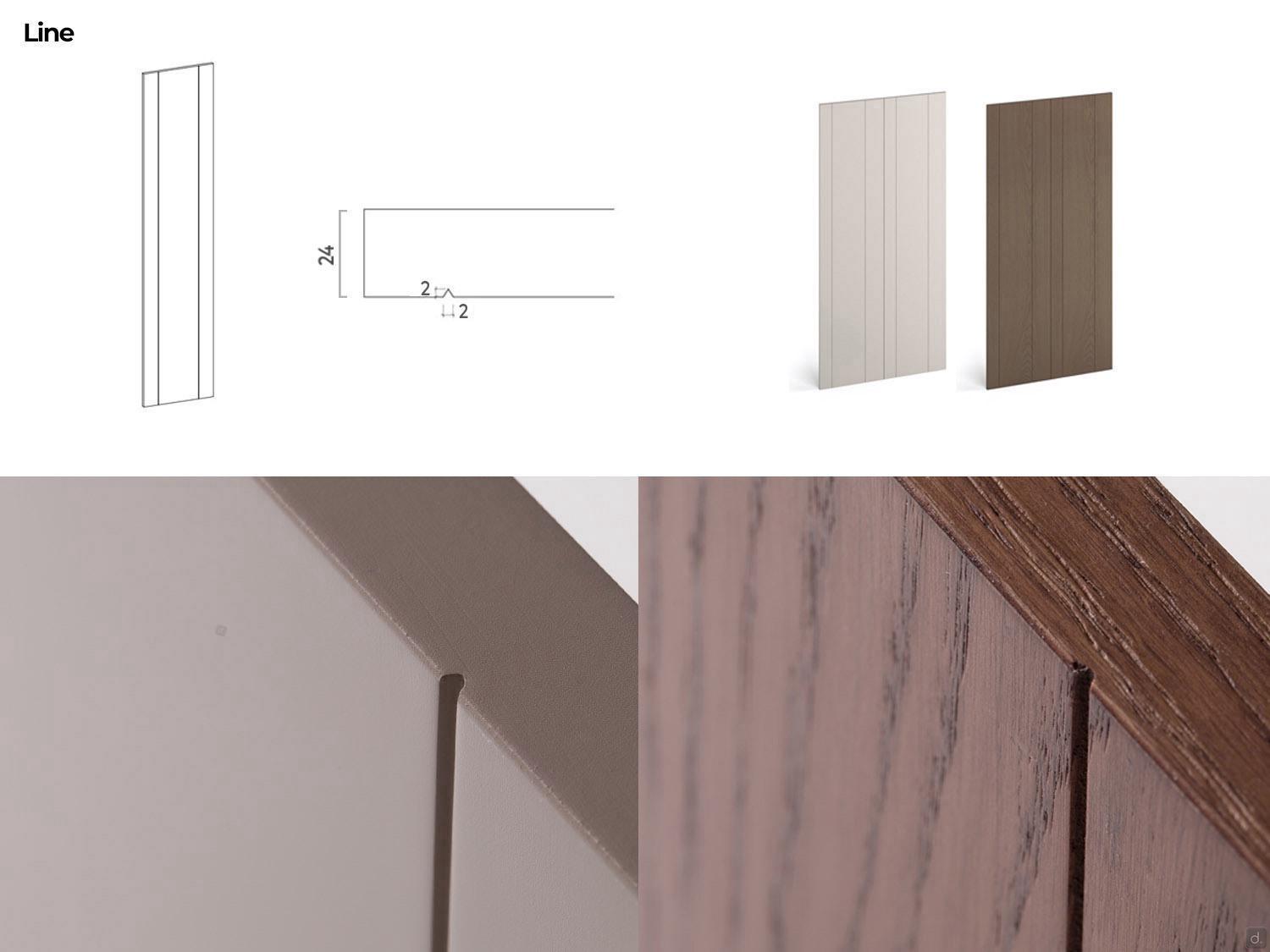

- Line (only in matte lacquered finish): vertical "V" incisions 0.2 cm thick
- with metal insert: cm 1 thick 0,2 in "version 1" with n.2 horizontal + n.1 vertical or in "version 2" with n.1 horizontal + n.1 vertical. Also available in the 2:2 version with a matt lacquered metal or metal insert 2 mm thick, protruding 2 mm from the door. Only available when purchased with a project, for further information please contact our Customer Service.

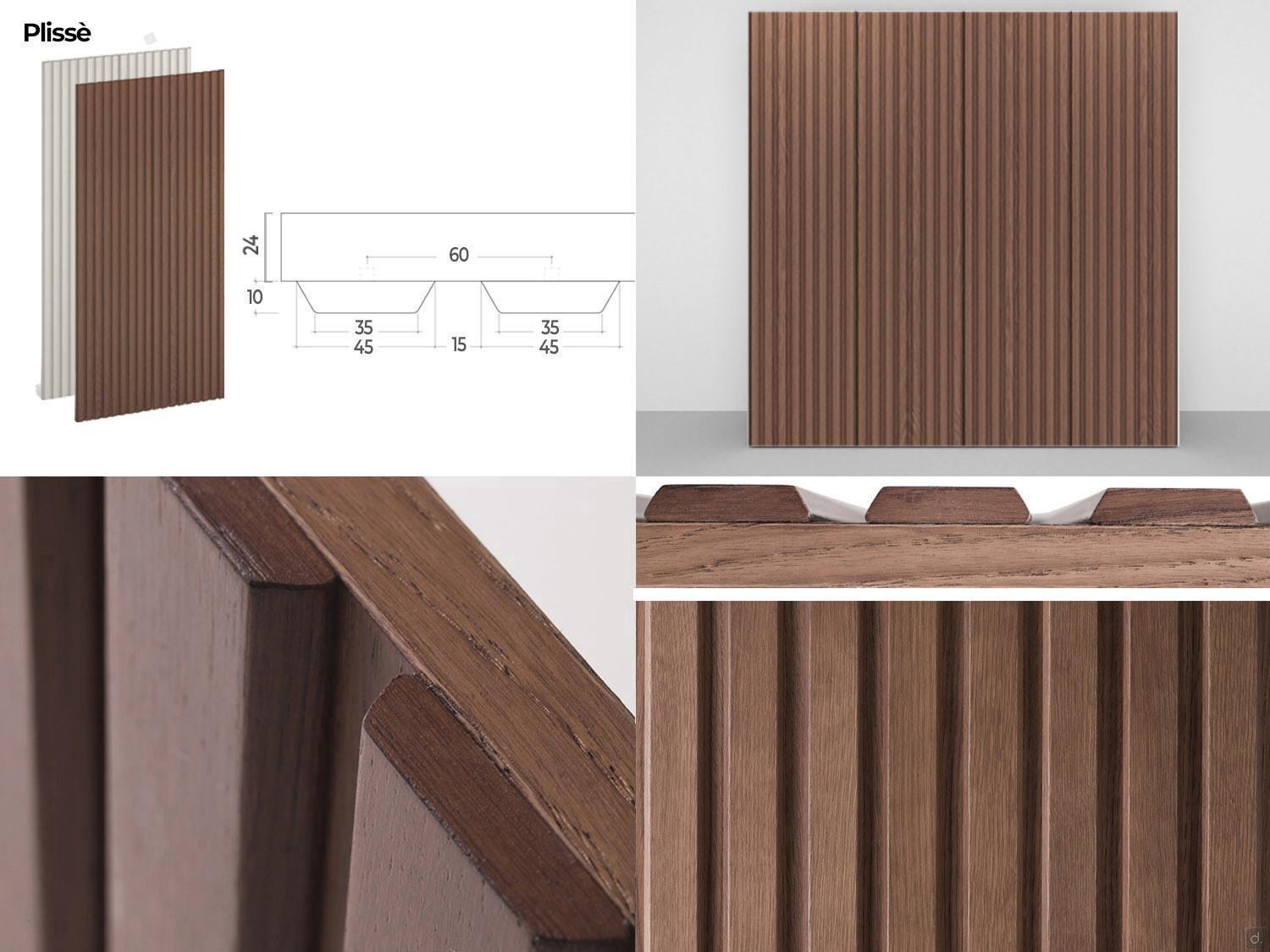

- Plissè: slats in lacquered solid wood or oak veneer with 30° processing: cm 4,5 thickness 1.

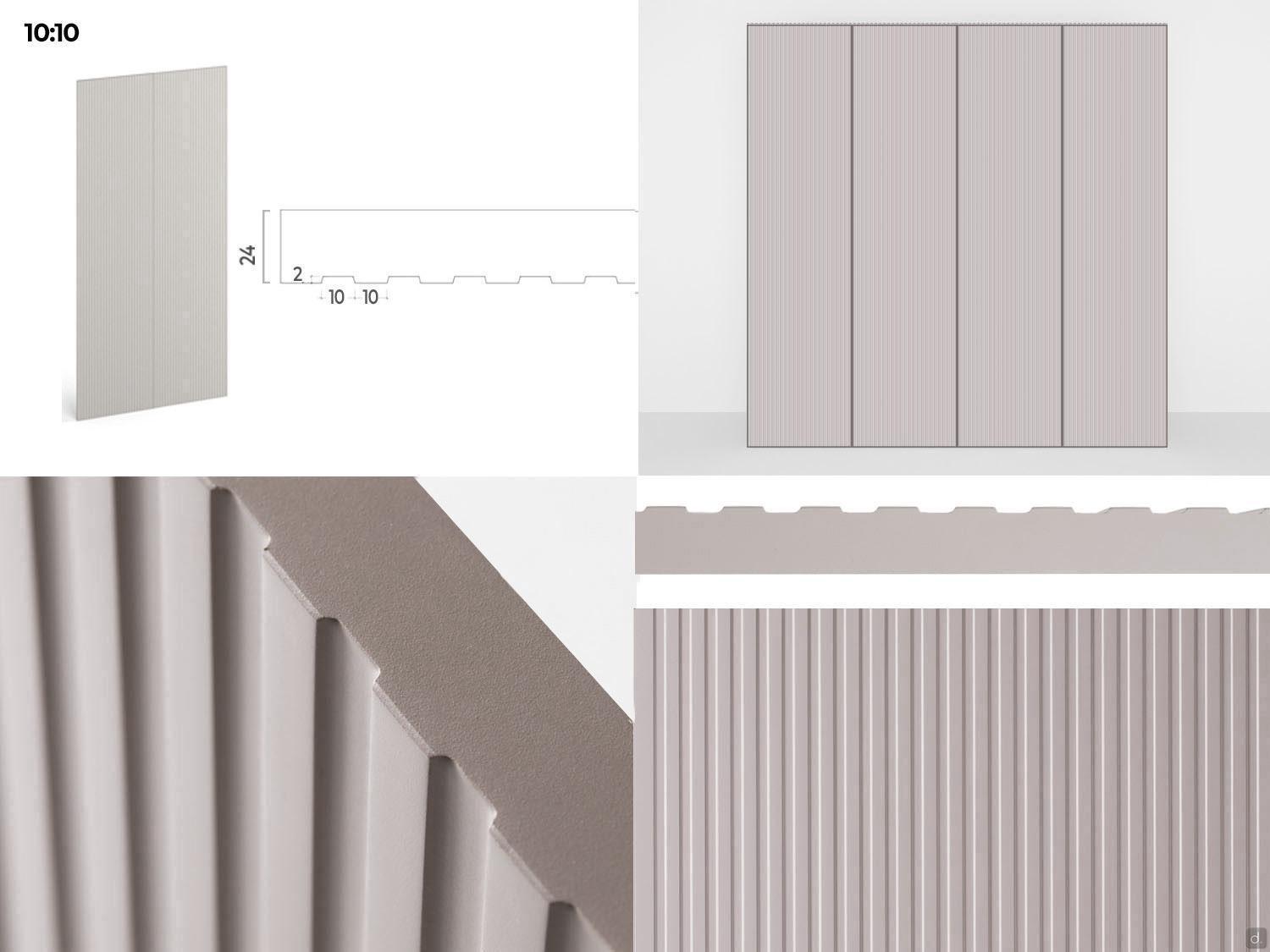

- 10:10 (only in matte lacquered finish): "U" incisions cm 1 thickness 0,2 thick.

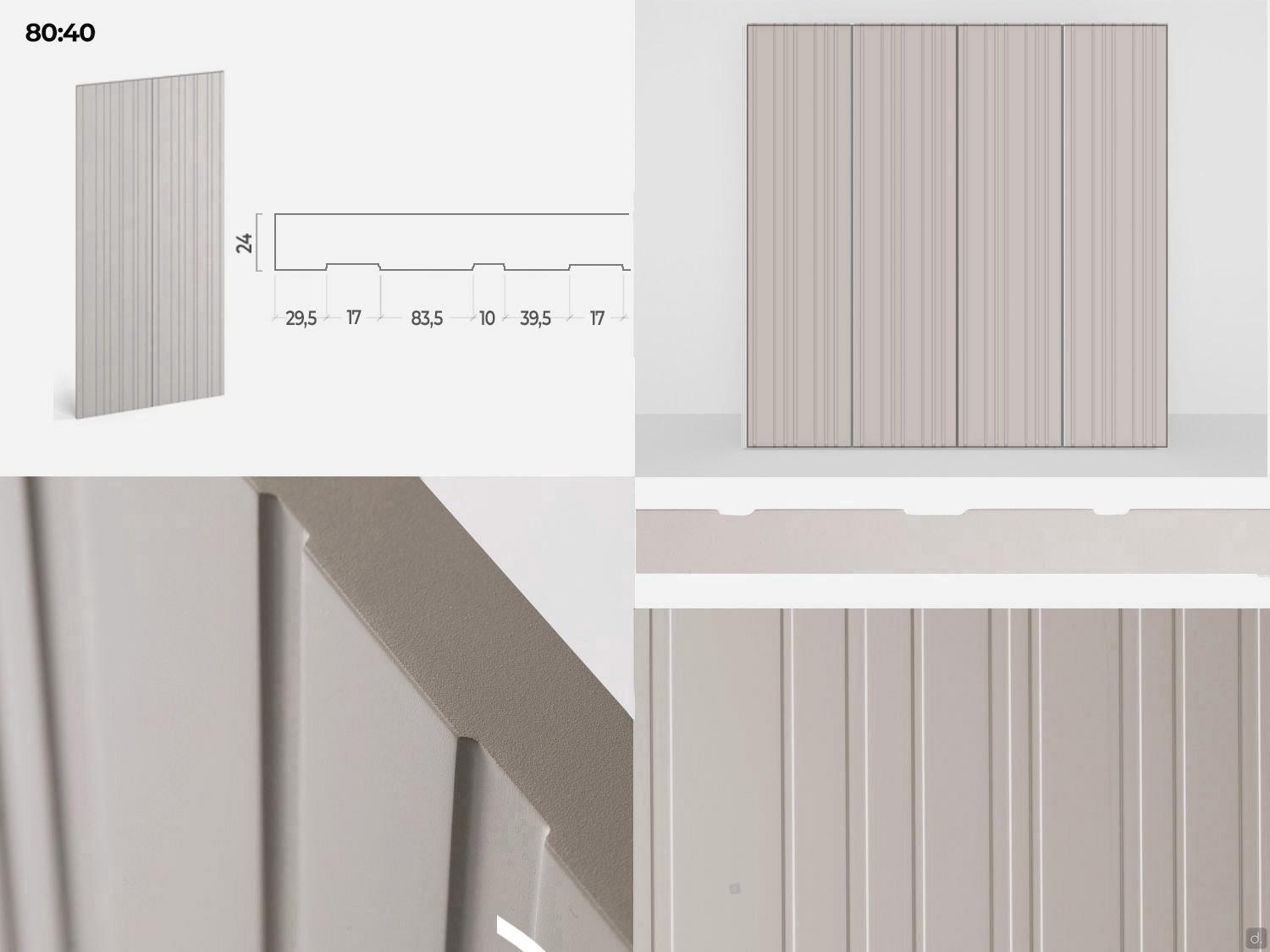

- 80:40 (matte lacquered finish only): "U" incisions cm 1 thickness 0,2 with variable spacing
- 10:2 (only in open-pore oak finish): vertical "V" incisions cm 0,2 thick.

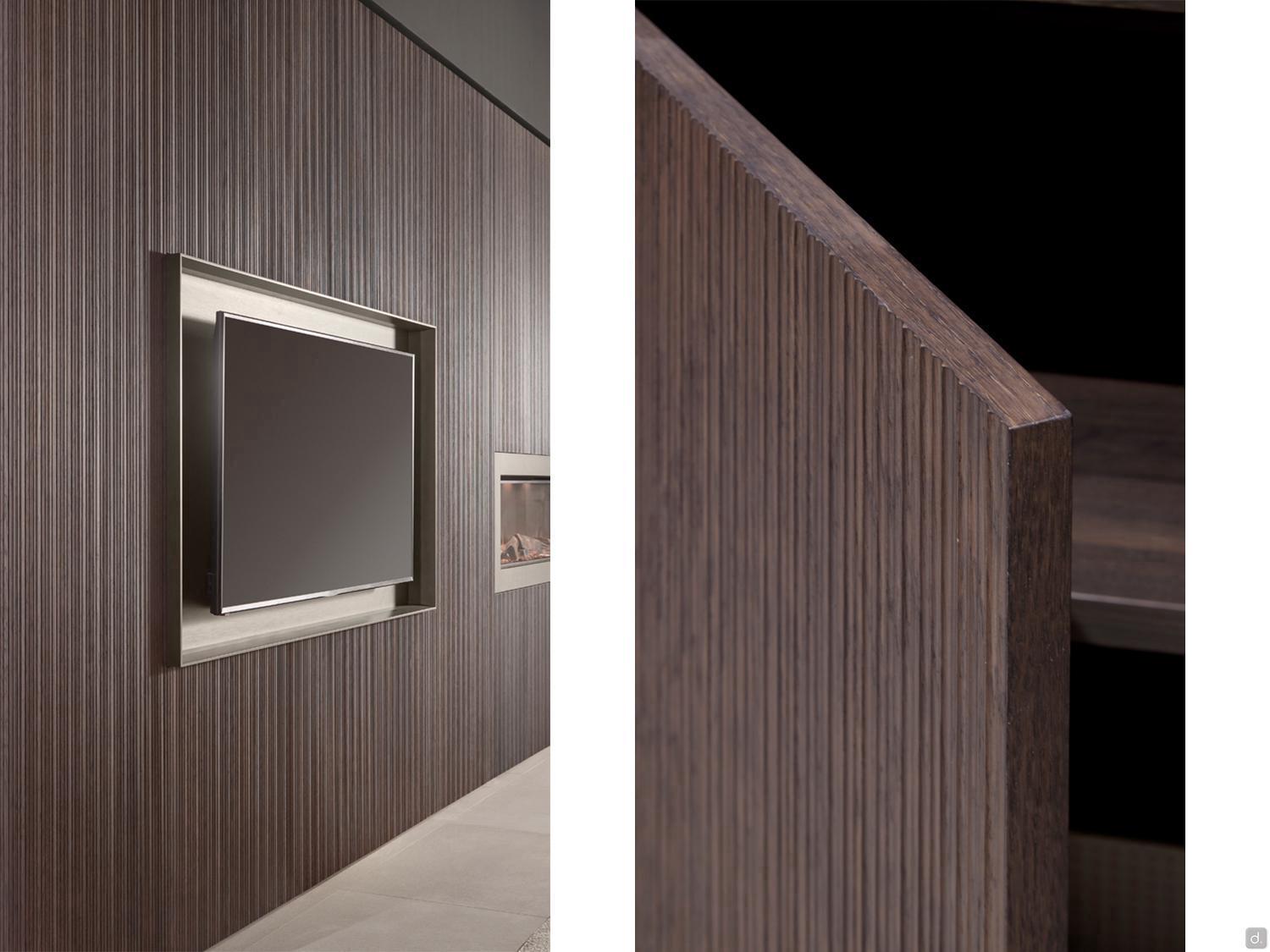

Doors and panels also available in TAMMAS (honeycomb + solid wood), honeycomb with solid spruce frame and solid wood honeycomb plated on both sides, dyed in the sample finishes and decorated with 10:10 or Wave processing. Only available when purchased with a project, for further information please contact our Customer Service.
Hinges: metal hinges in titanium finish with soft-closing mechanism. Standard opening angle of 110°, upgradeable to 155° except on the plissé finish, which comes exclusively with a 94° angle hinge.
Wall Panels: in MDF (1,8 cm thick) equipped with wall-mounting hardware (6,8 cm of technical compartment).
Side Panel Holes

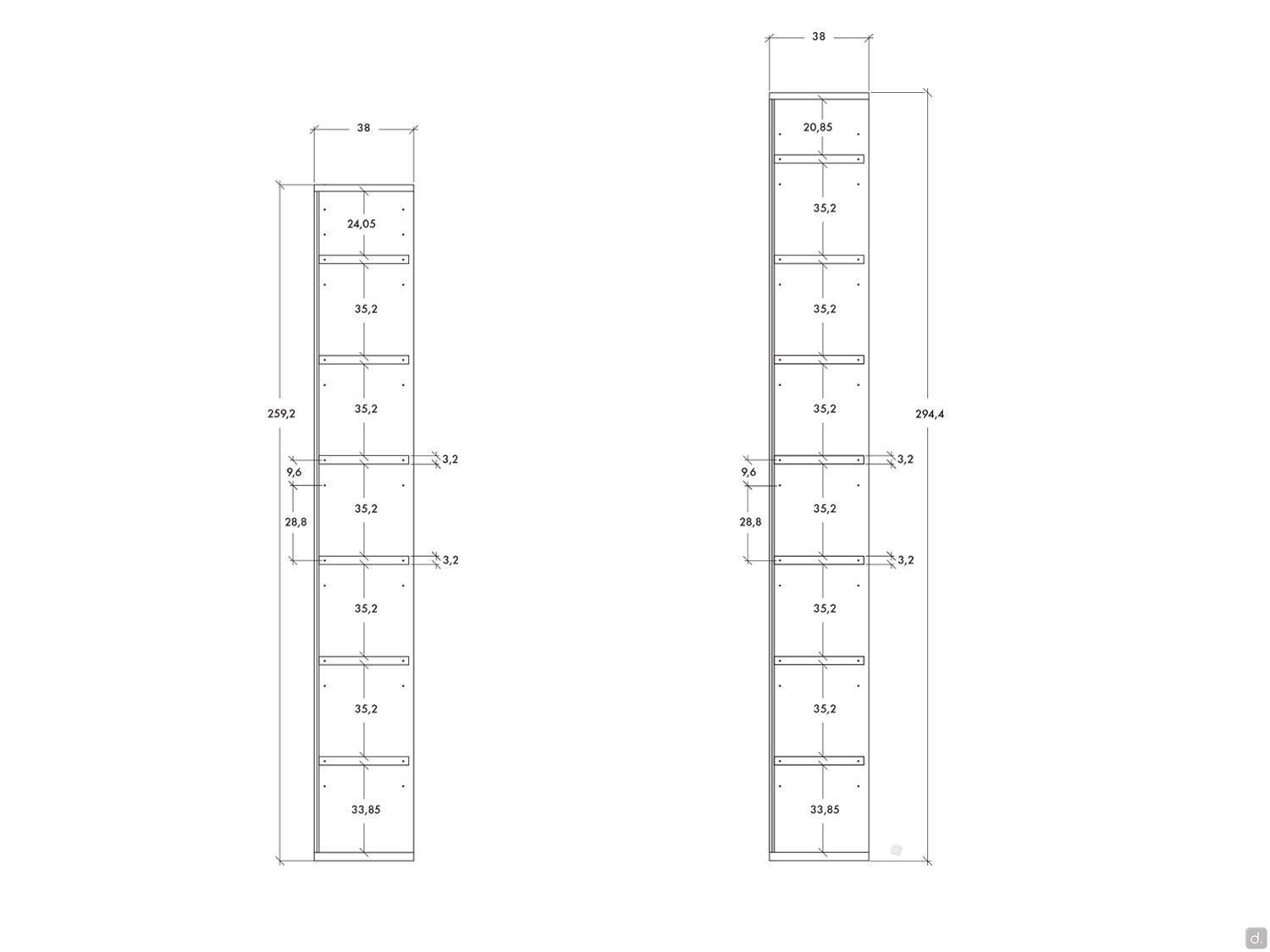

The side panels include fixed holes, cm Ø 1, approximately every cm 33,4 (see photos in the Gallery for diagram).
Optional - column cupboards

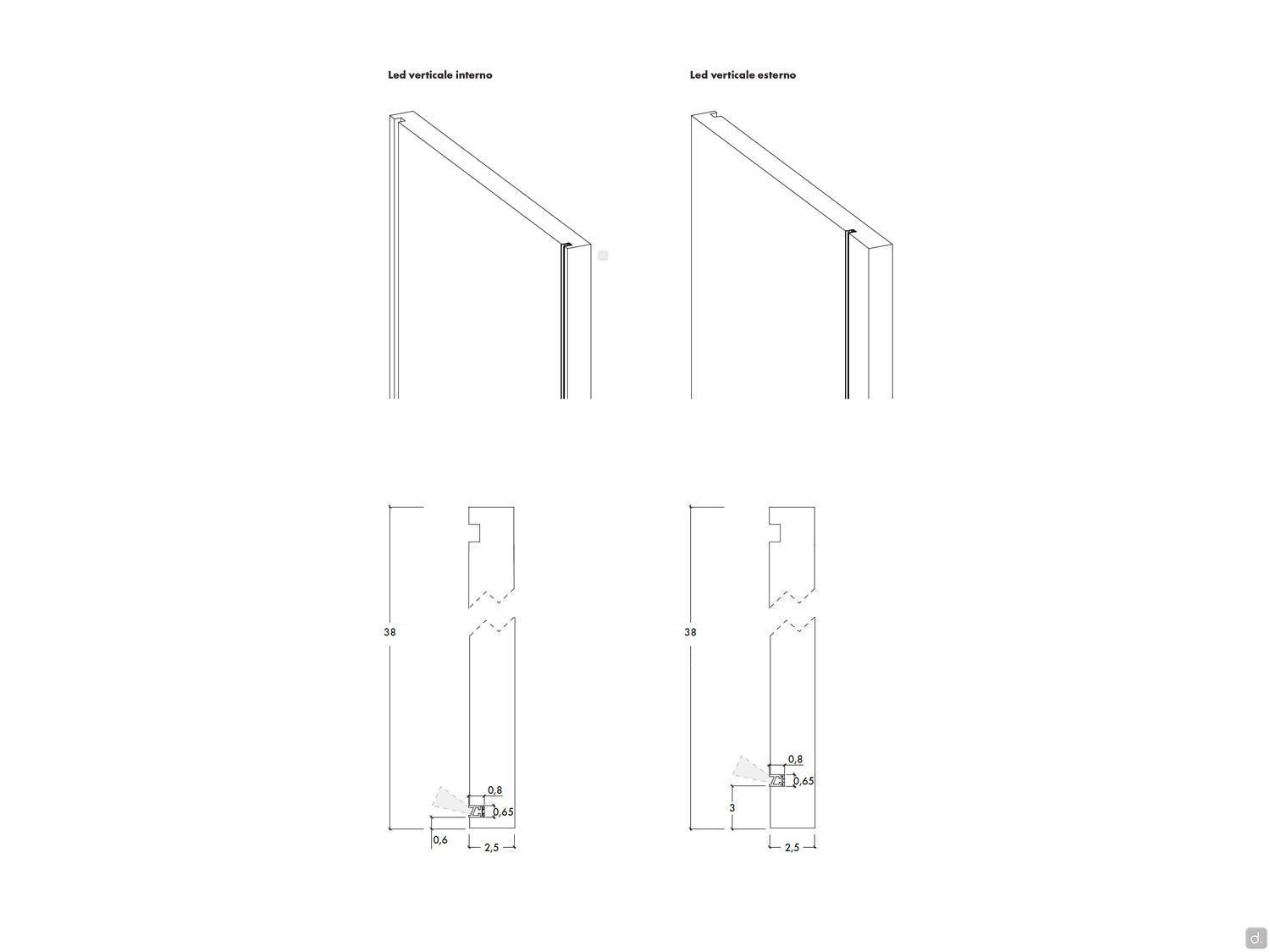

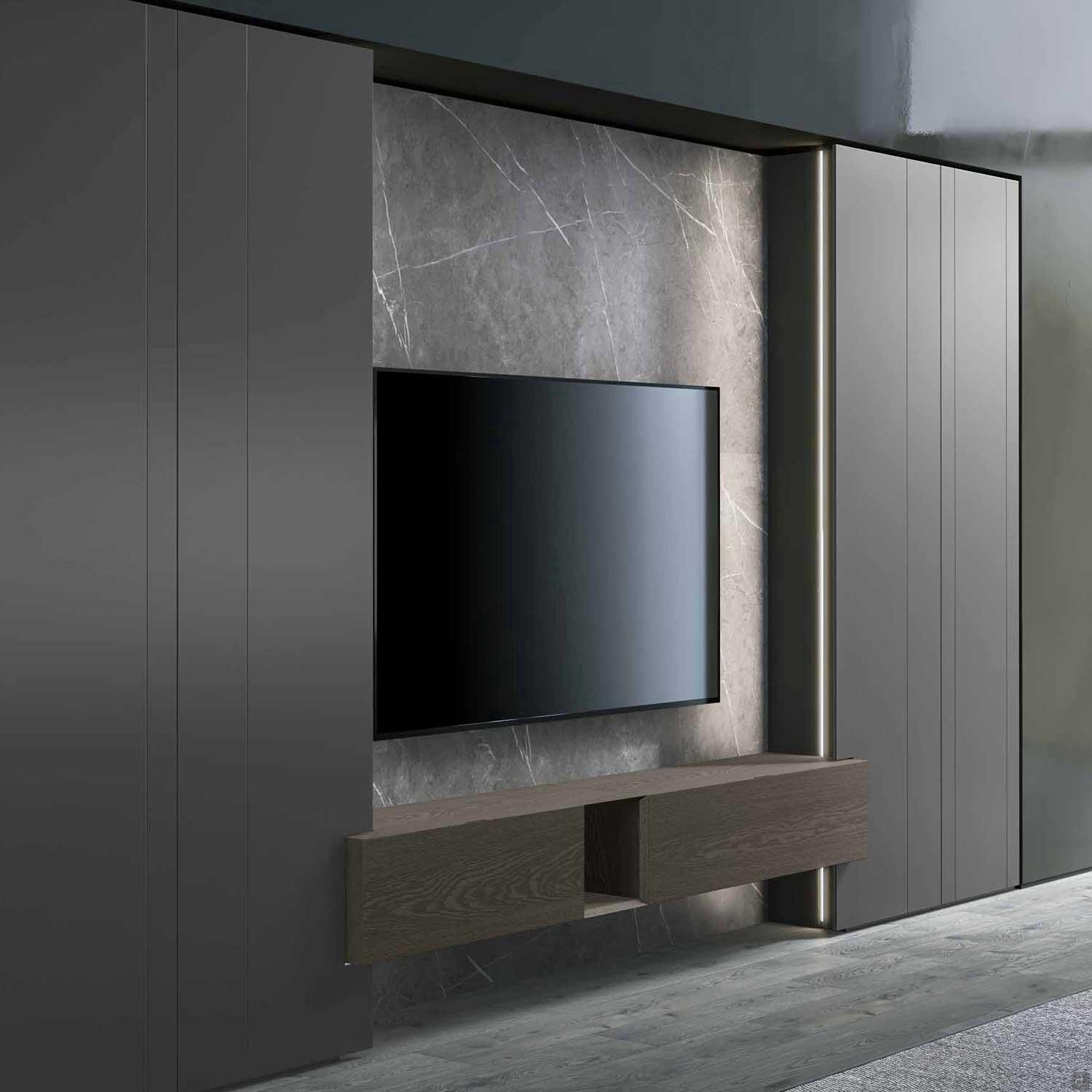

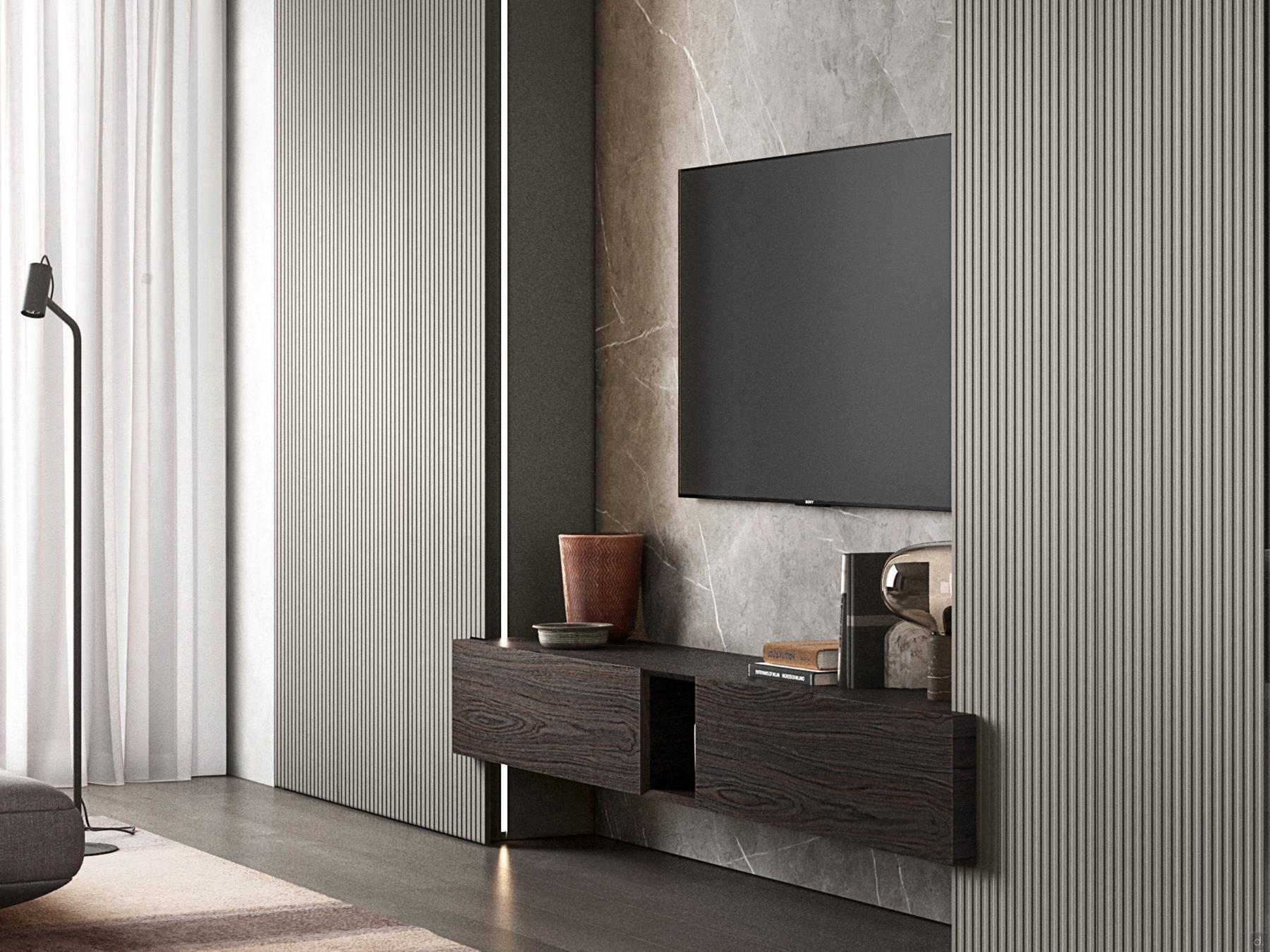

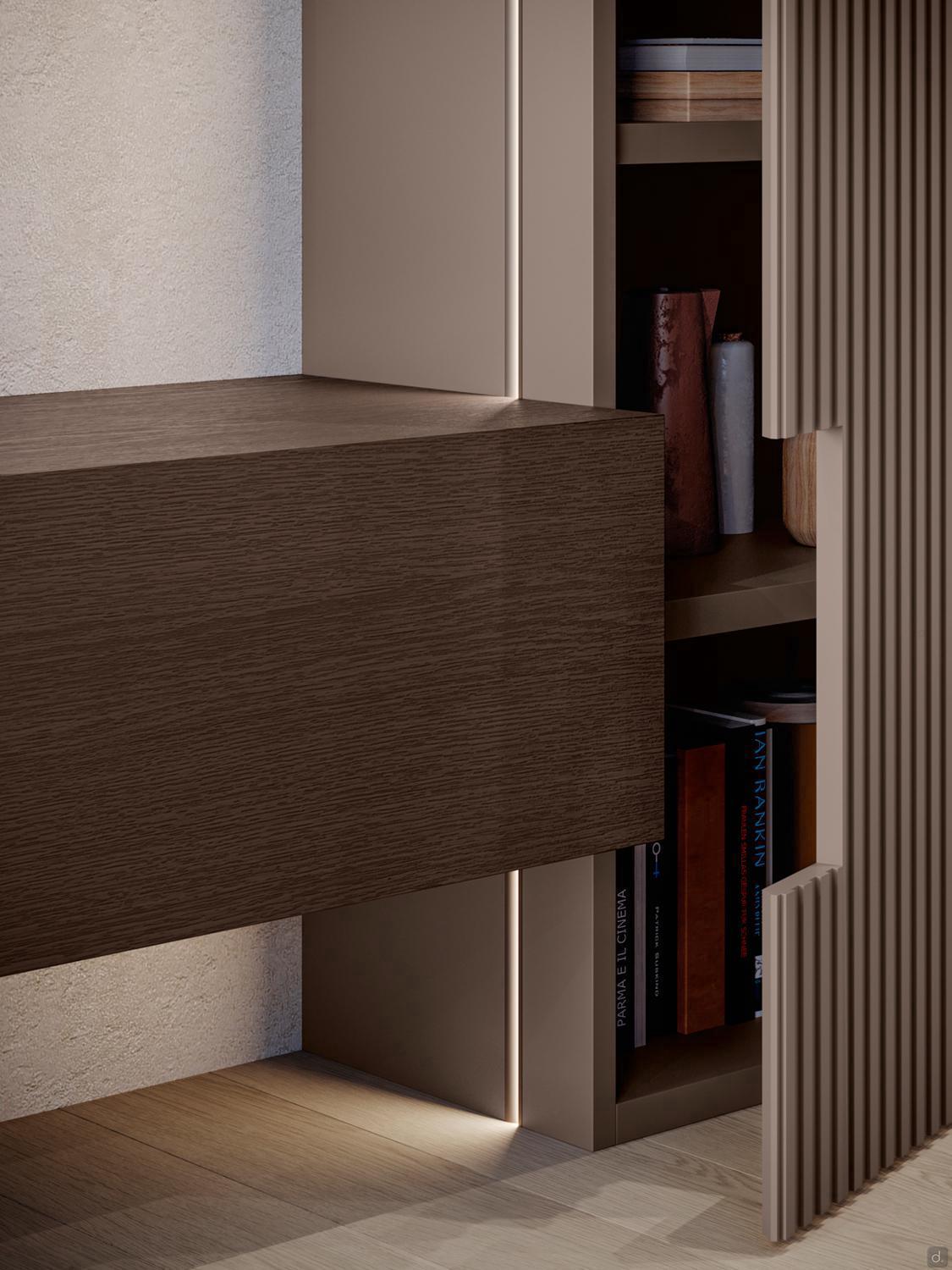

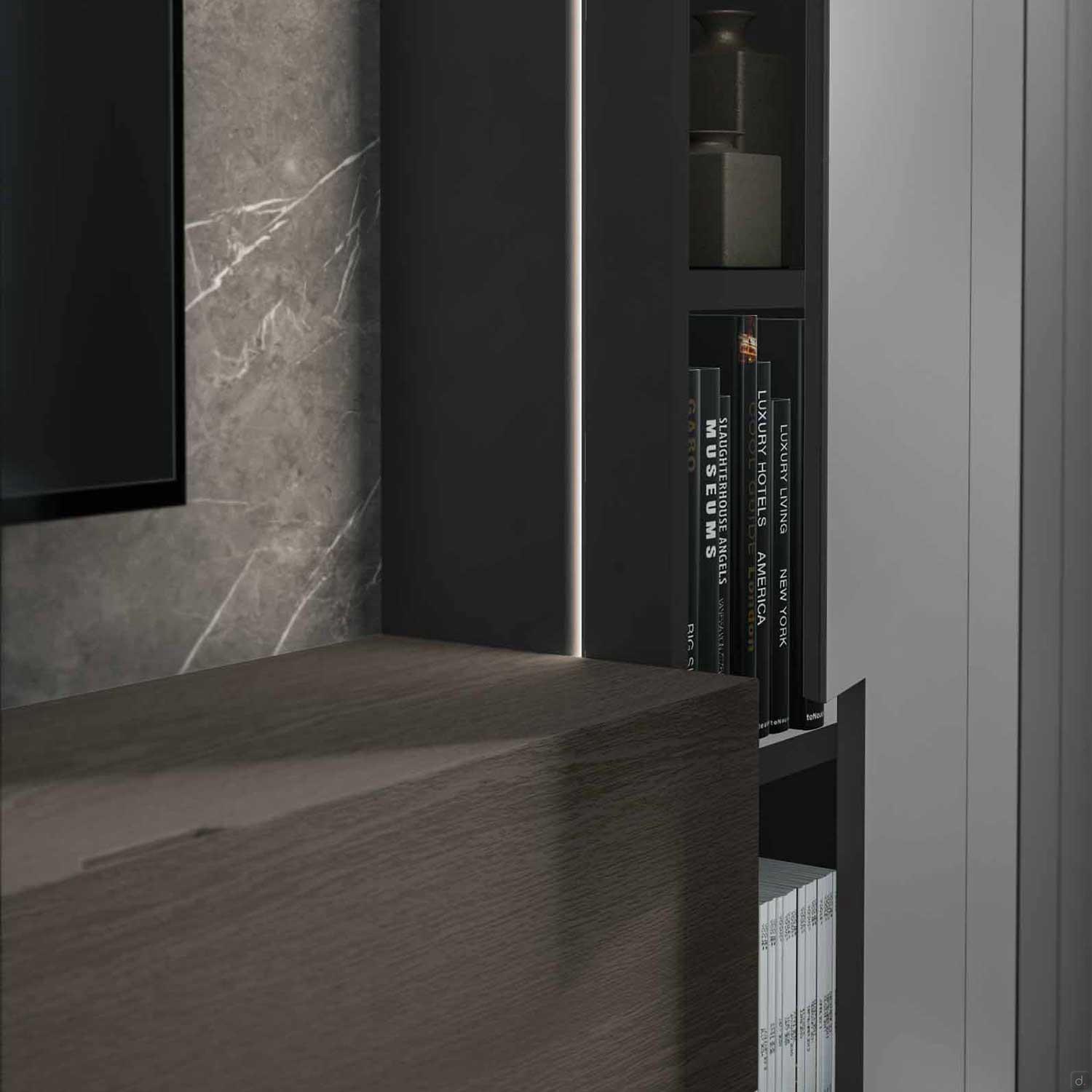

vertical LED lights: positioned on the side panels of the 2 column cupboards, at a distance of 8,2 cm from the front panels. Available with lighting directed internally or externally, and can be equipped with a transformer (maximum power supported is 75 / 150 / 180 W) and is switched on with a sensor. LED with heat graduation of 3000K-24V from 11 W/ml.
Assembly Tips
Hardware pre-mounted on all elements to facilitate and speed up the assembly process. The hinged doors are equipped with n.4 slow-closing metal hinges and a rubber dust stop. The feet, which are also pre-mounted on the stands, allow for the correct levelling of the cupboards.

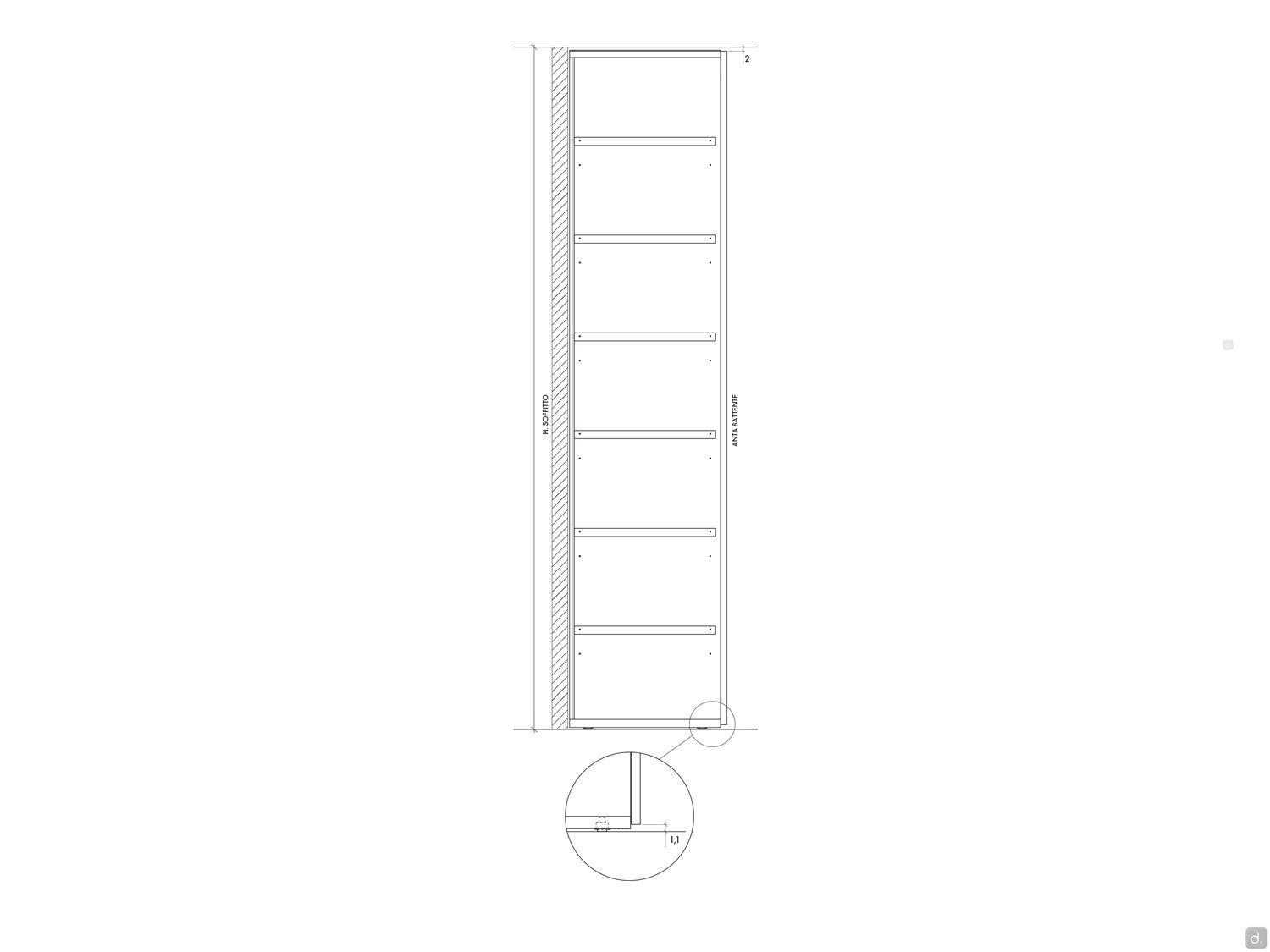

To assemble the body of the cupboard, you will need:
- 4 cm in width (if assembling in a 2 cm alcove)
- 3 cm in height
Further Information...
Honeycomb Panel: panel made with an internal honeycomb structure and a perimeter frame of 5 / 7 cm made from top-quality solid pine, closed with 2 panels in MDF (0,3 / 0,4 cm thick) which are subsequently lacquered and veneered.
The strengths of honeycomb panels are:
- greater durability over time;
- greater resistance to load;
- significantly reduced weight of the panels (up to 60% less), useful for transport, assembly, moving or removals, but especially to reduce the weight of the doors on the structure and hardware;
- hardware always fixed on the perimeter (in solid fir wood) of the sides and doors, so hinges will have a higher resistance and the furniture will have a considerably longer life;
- greater resistance to humidity, as the material "breathes";
- product is exclusively "100% Made in Italy".
Aged Oak: compared to the "standard" open-pore oak, aged oak is characterised by a slightly more brushed surface, which shows a deeper pore and a more marked grain. This difference is particularly noticeable on bigger surfaces such as tables, wall units and wardrobes, less so on accessories, beds and bedroom sets.
