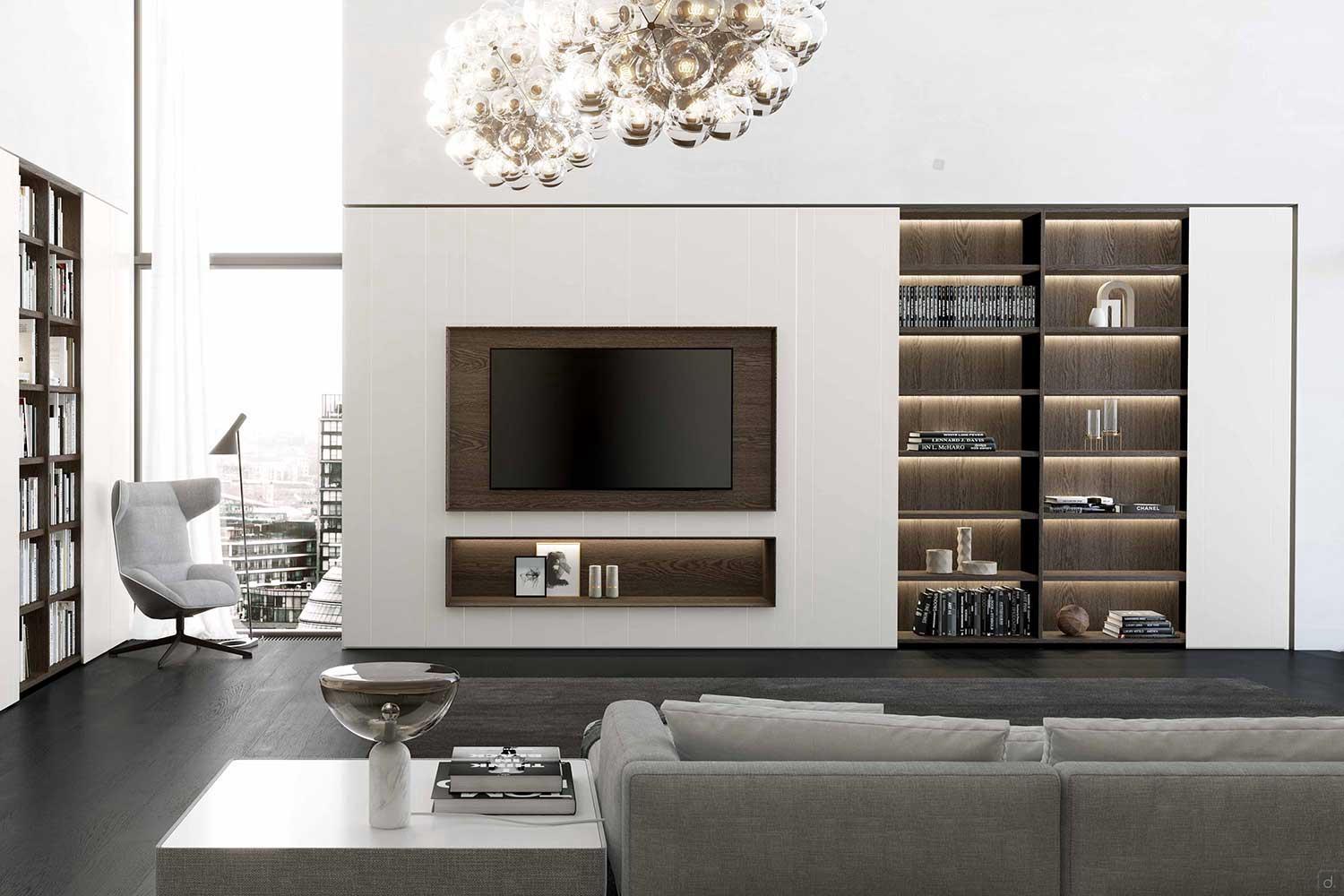

Lounge TV and open compartment
Wall System with Wall Tv

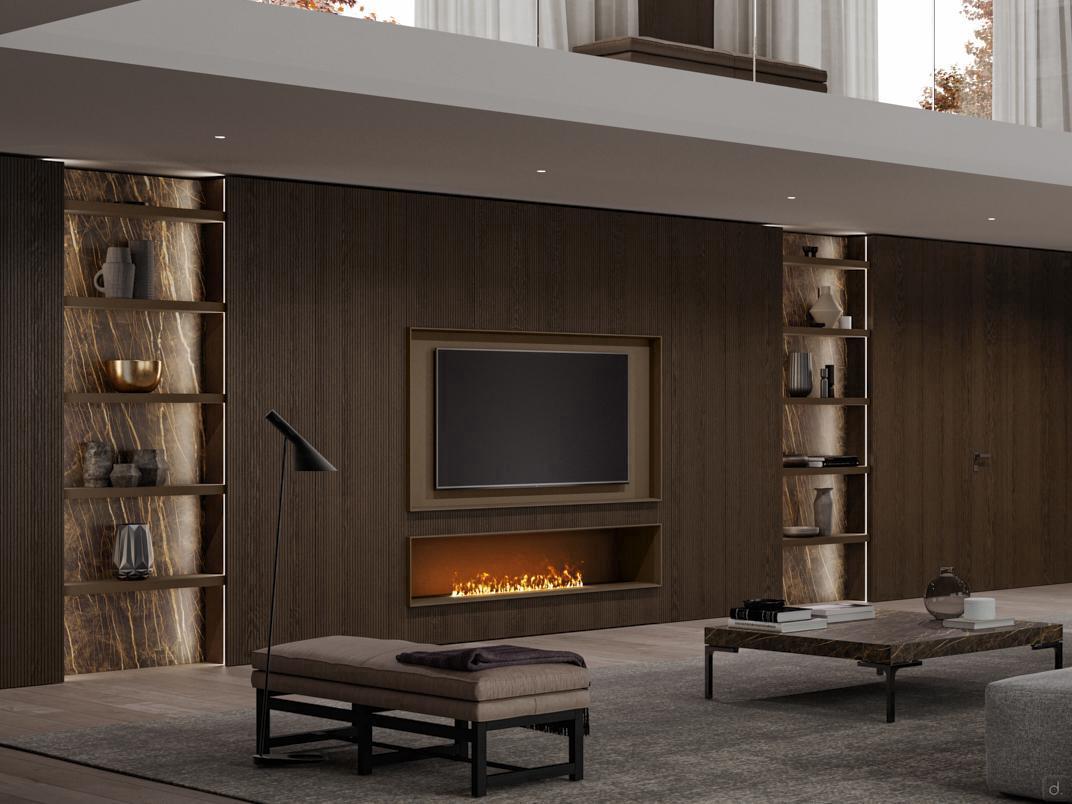

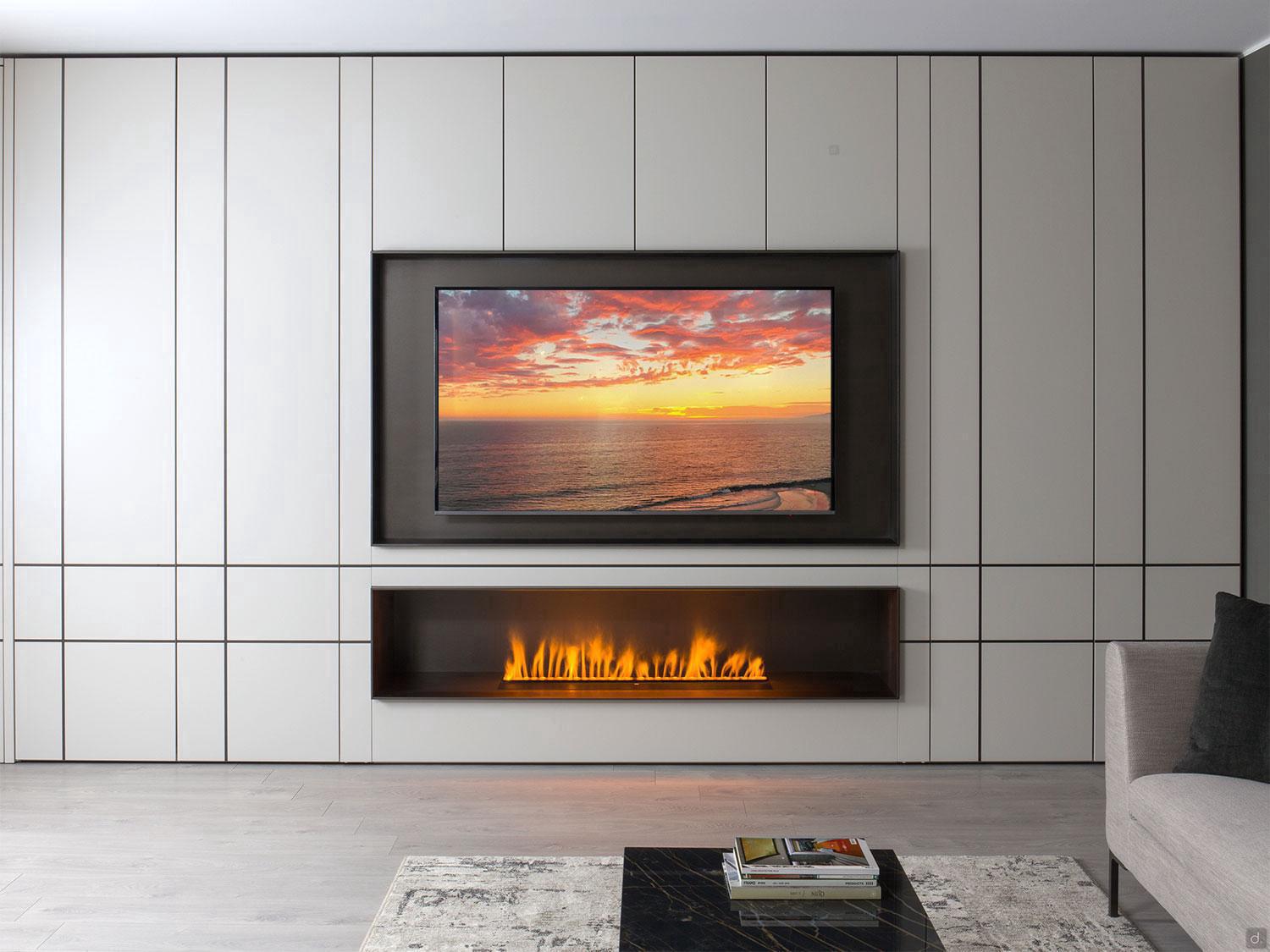

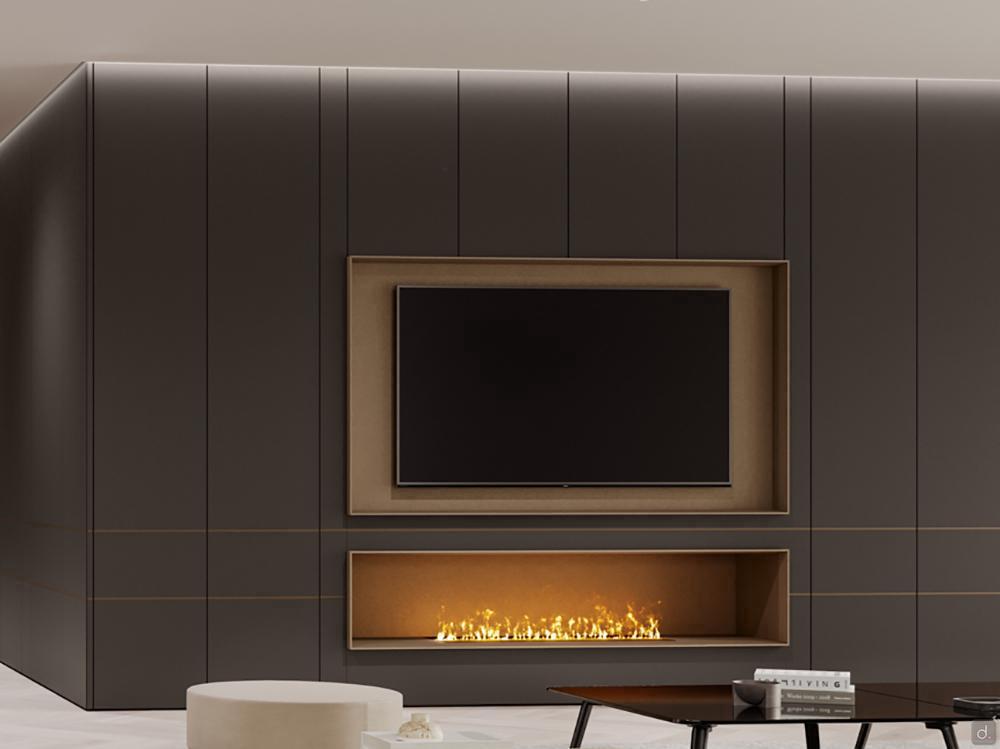

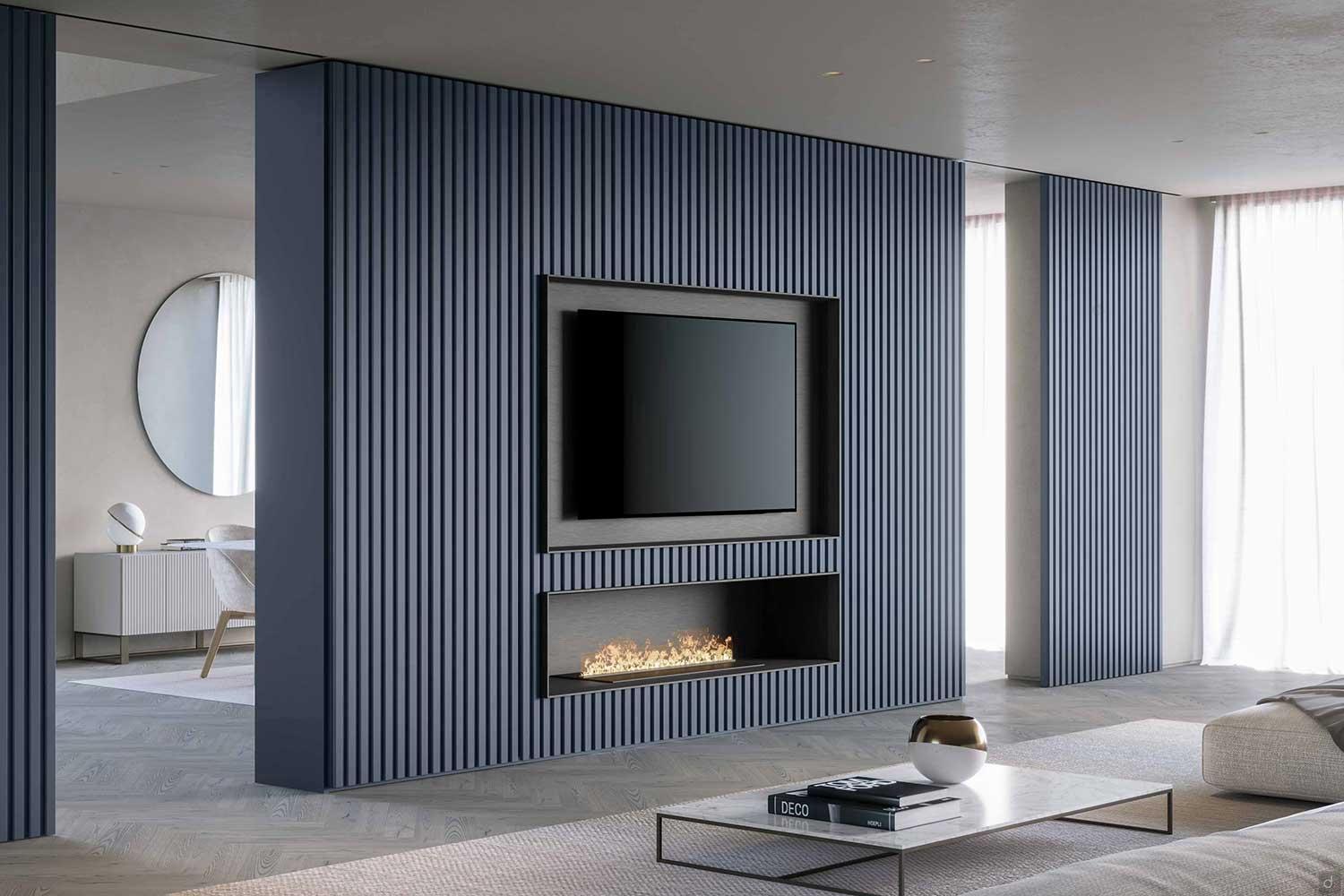

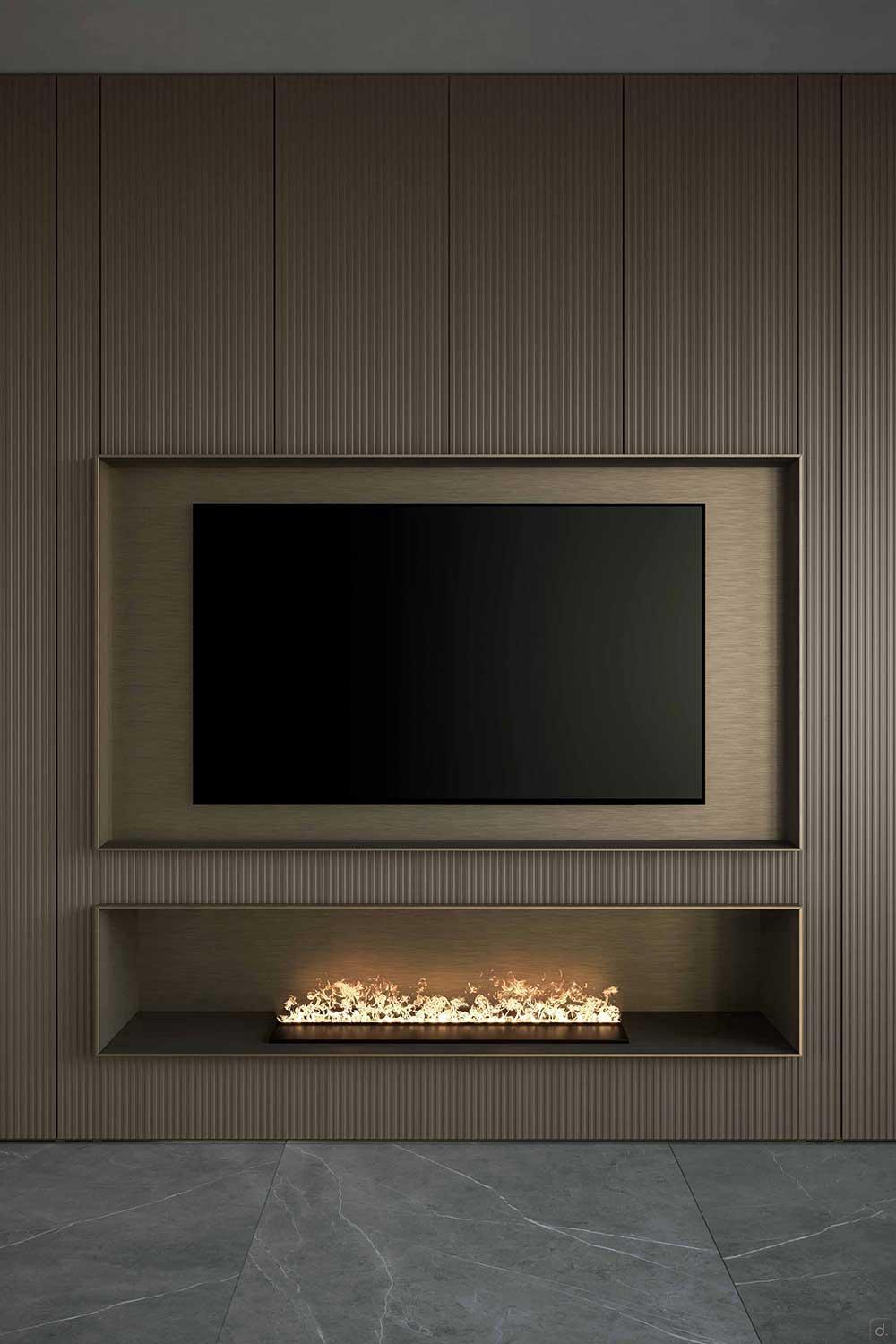

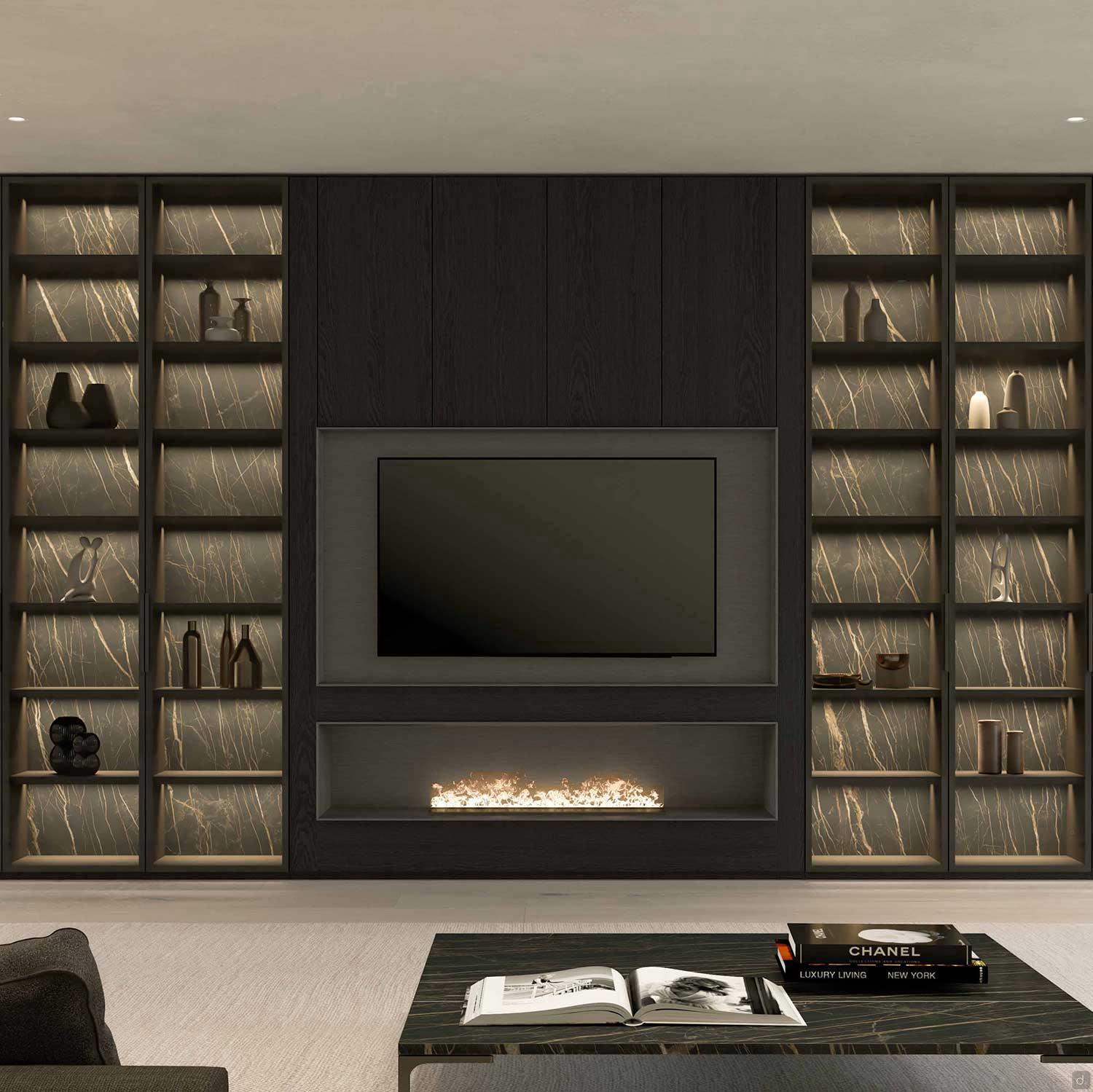

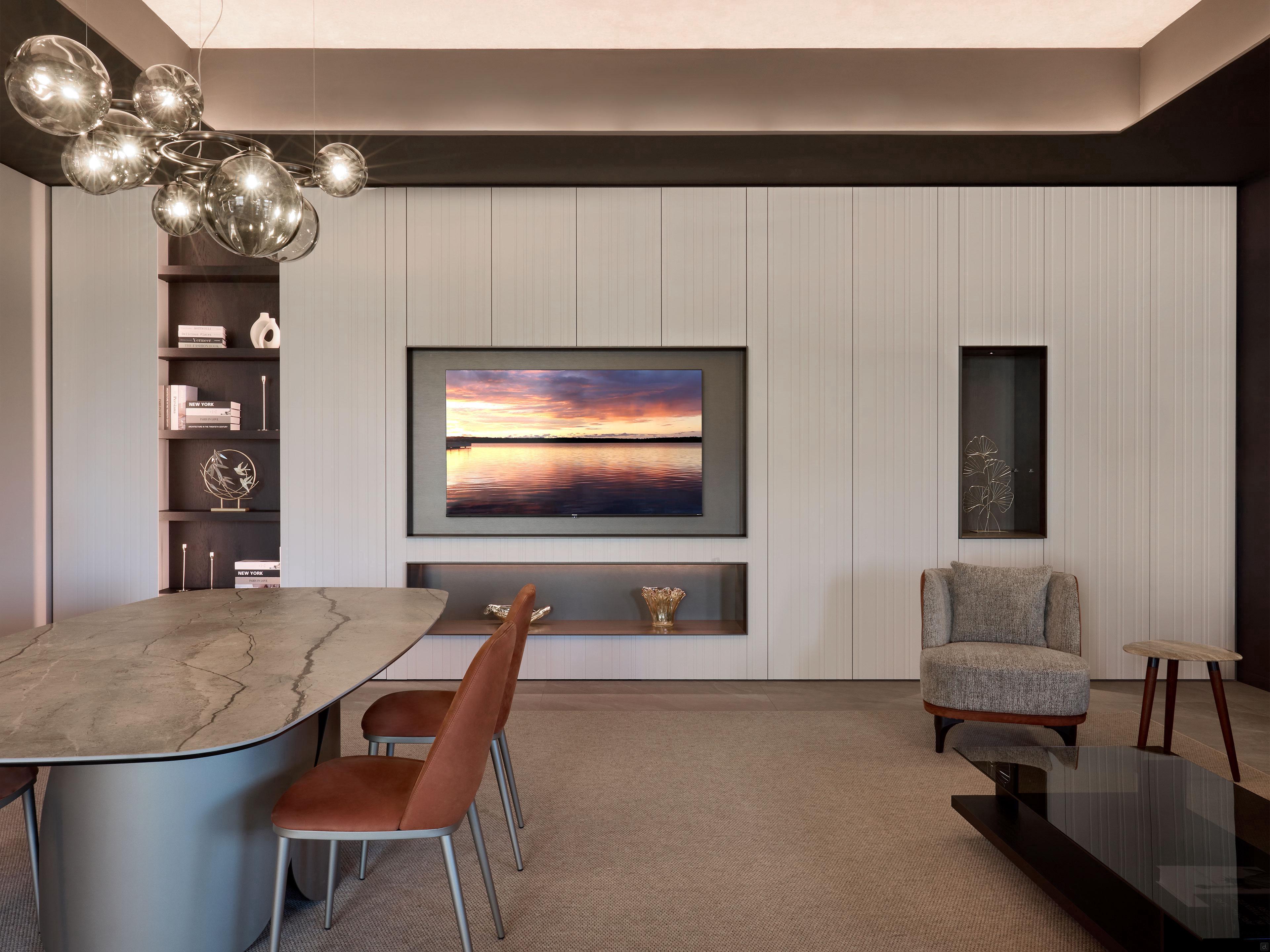

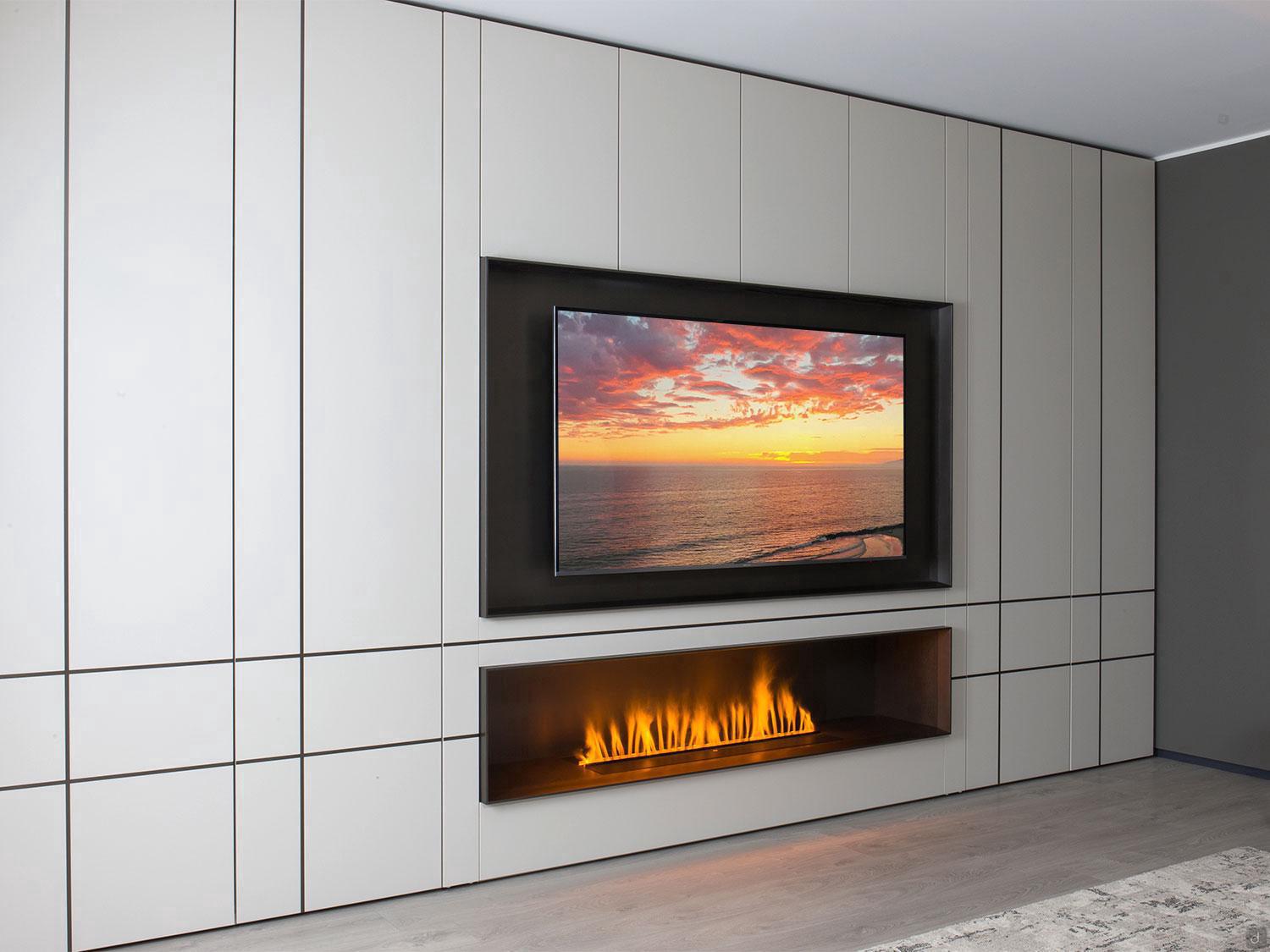

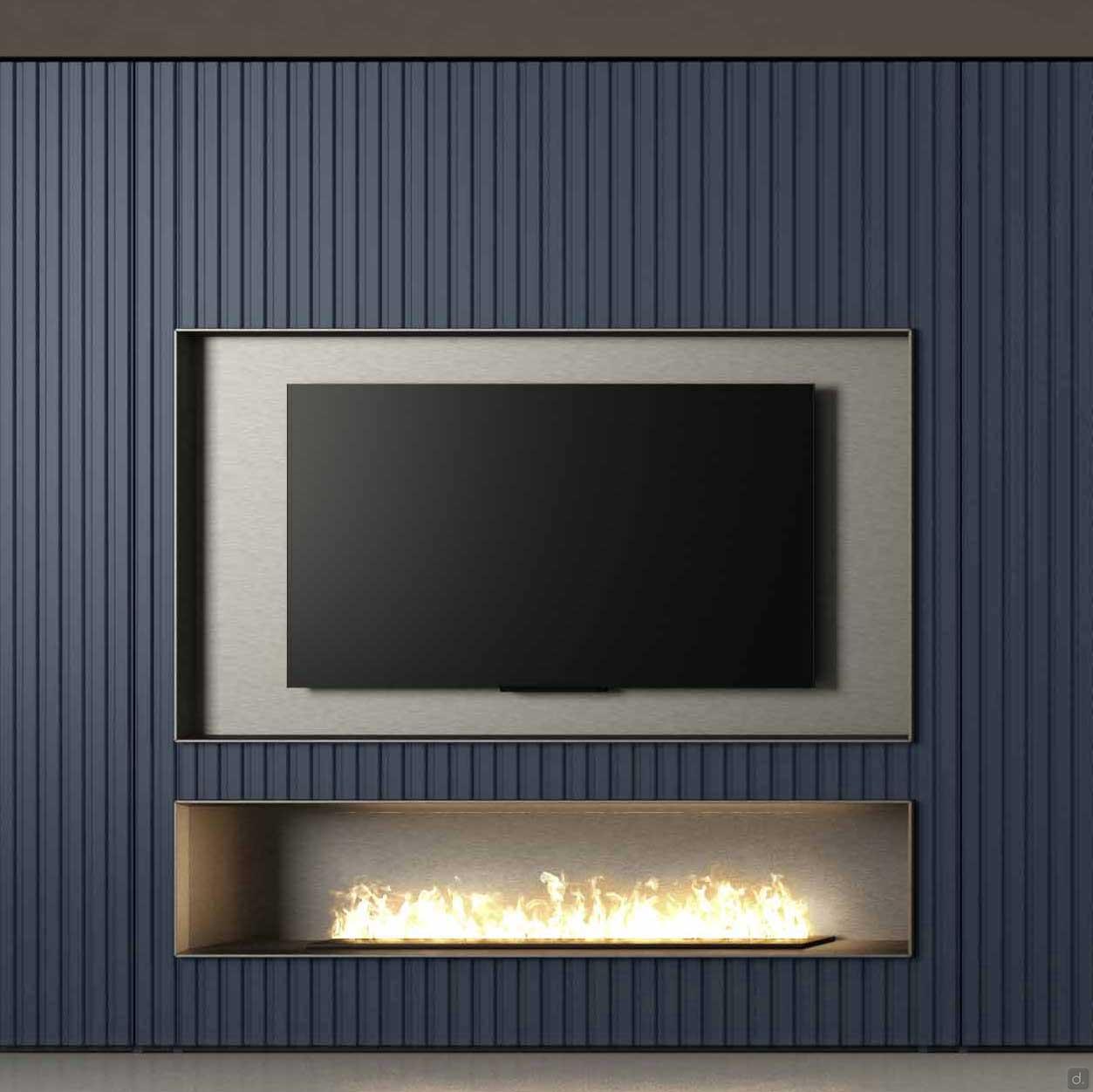

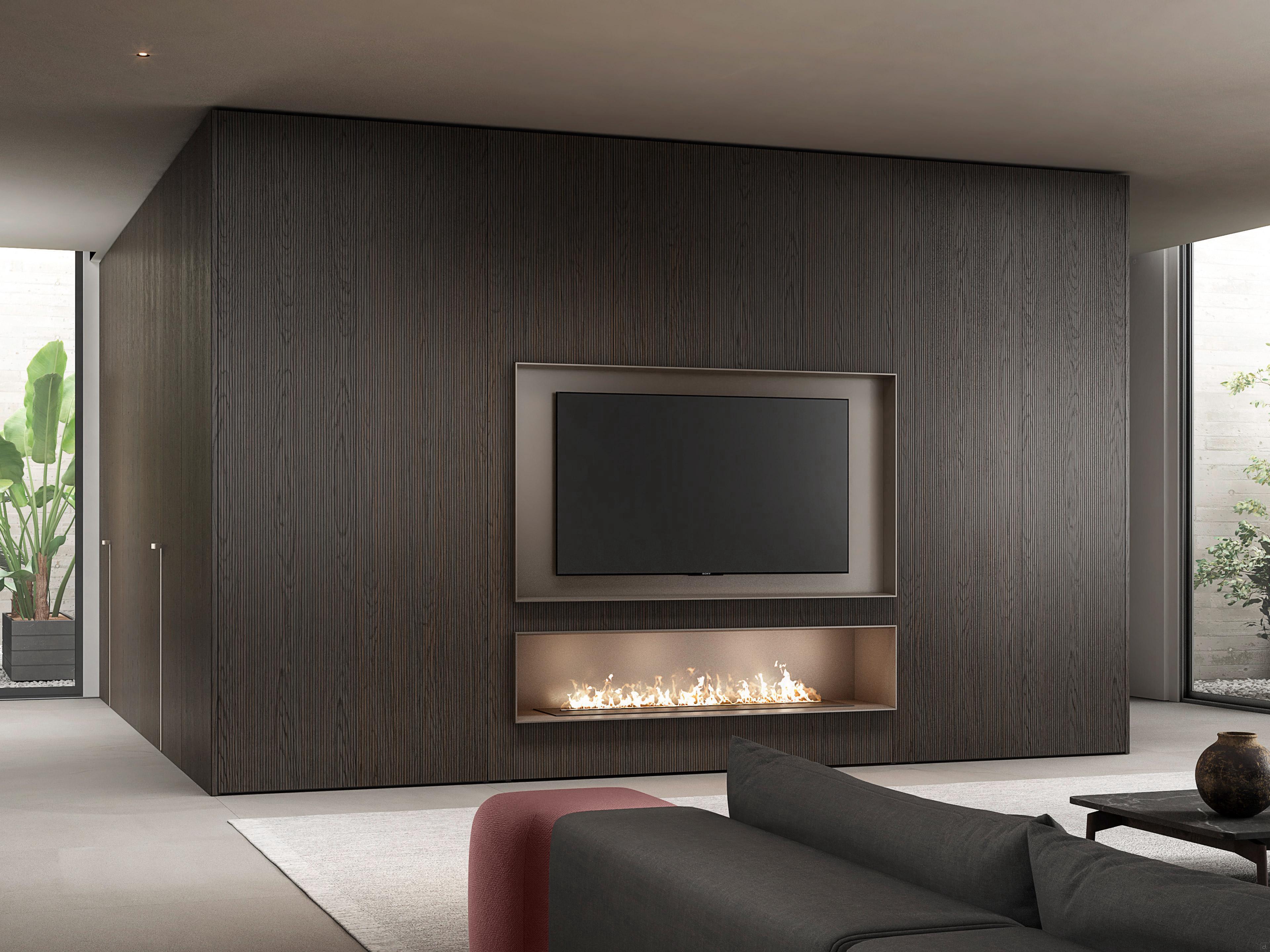

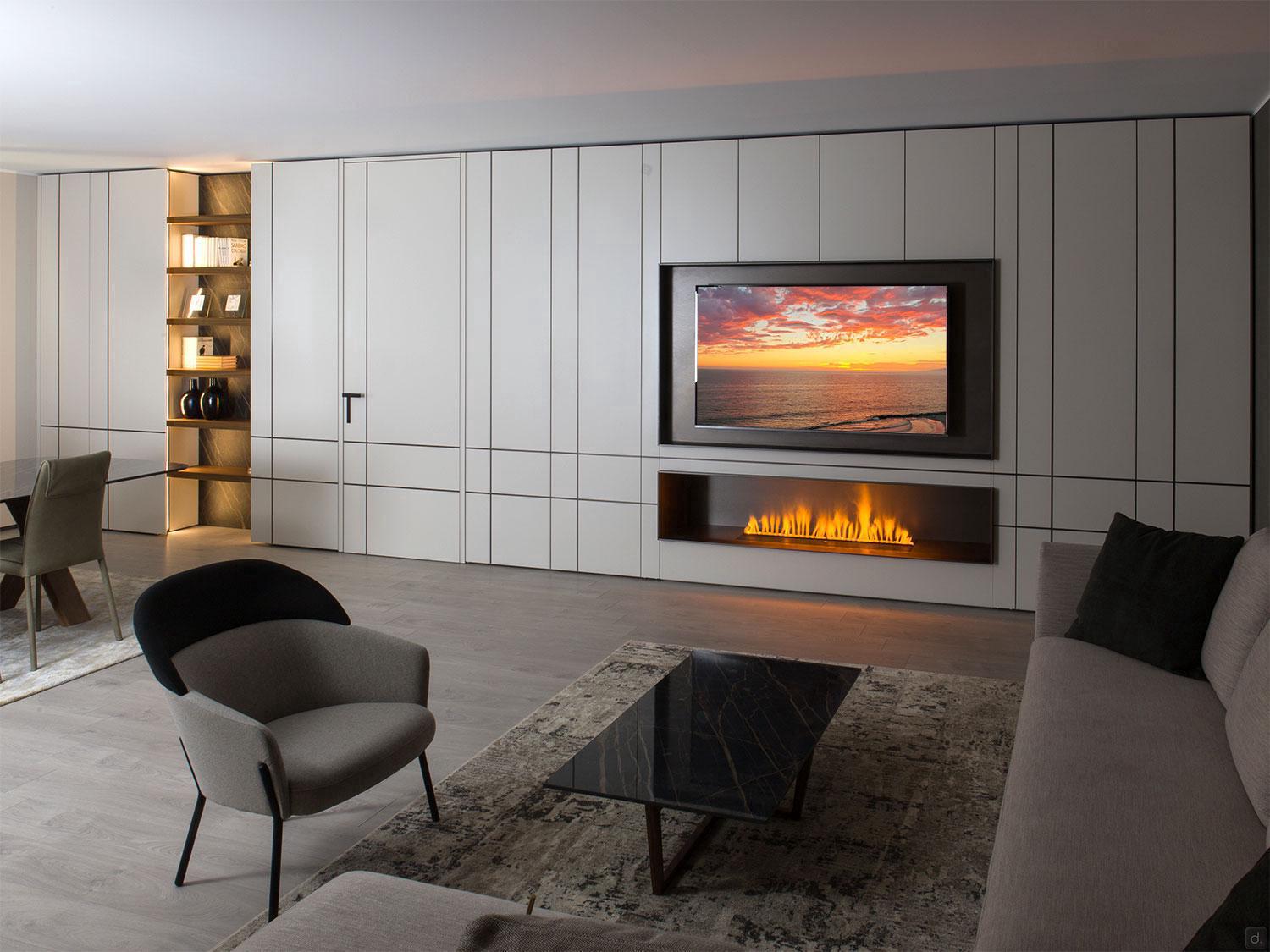

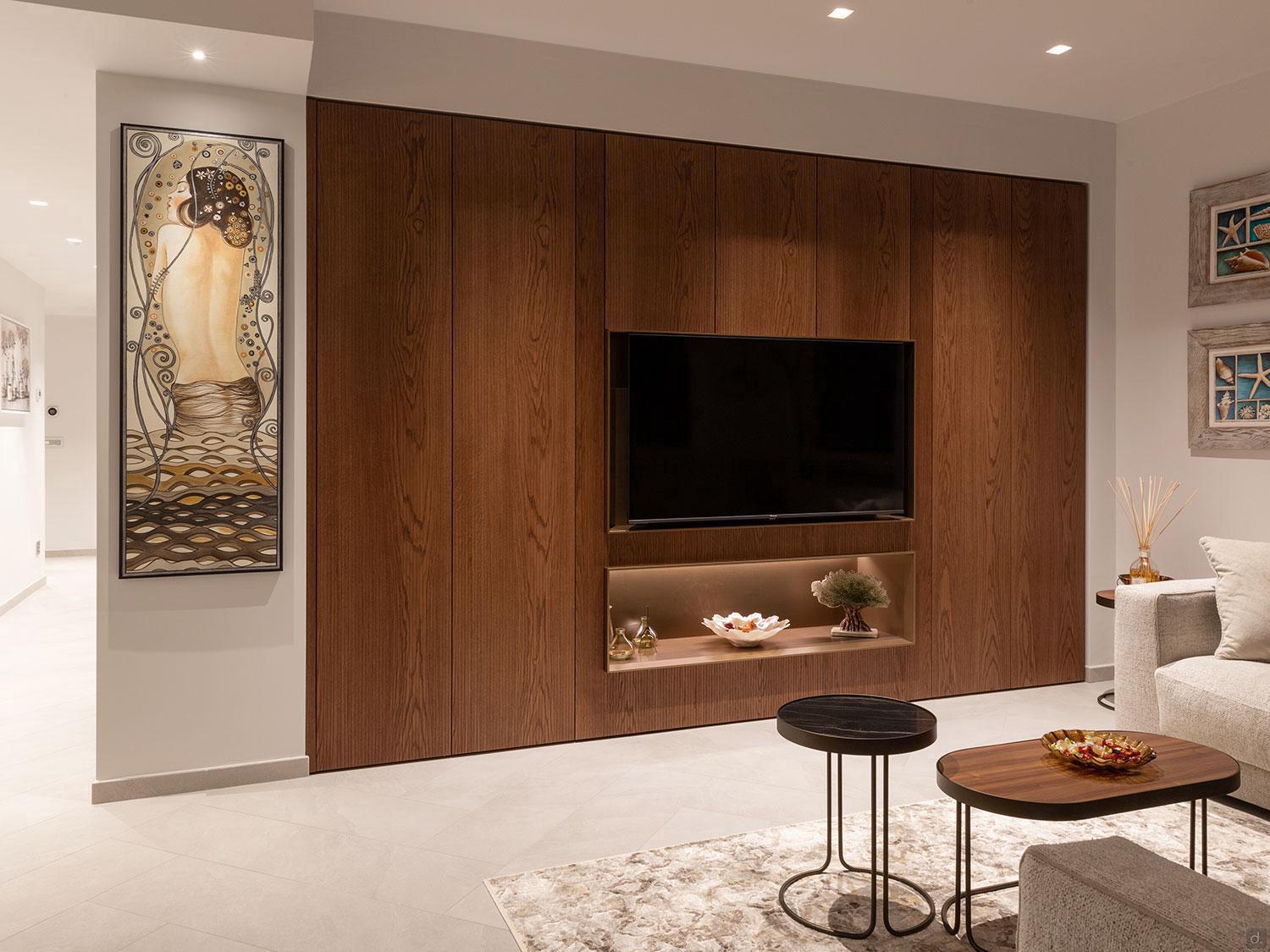

Lounge wall system with TV compartment and fireplace. Front panels in lacquer or wood with unique plissè effect. Custom height of your choice.

* Required Fields


From €4,965.87
Wishlist

Description

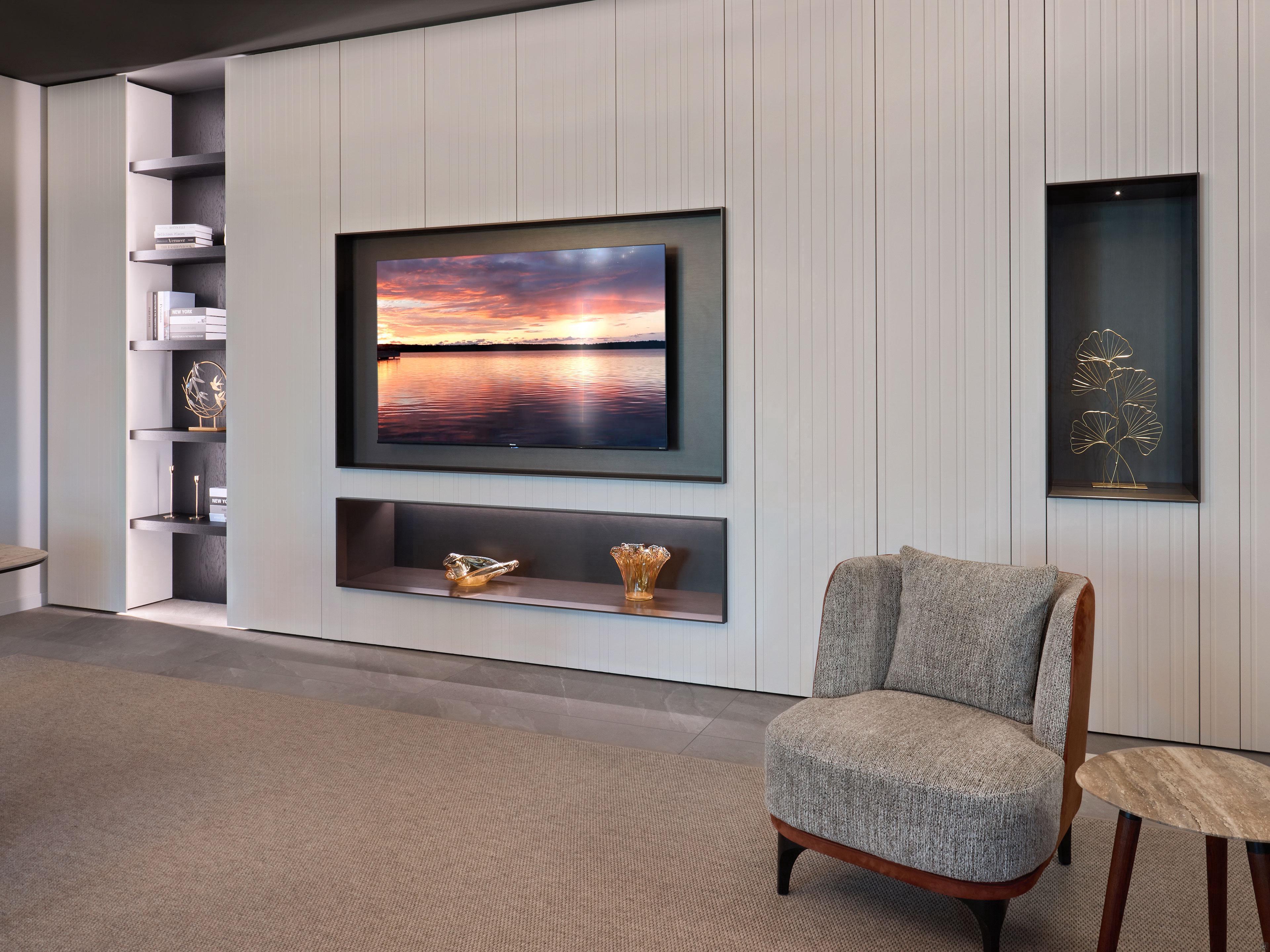

This wall system, which features a TV compartment and a fireplace compartment, is available in two widths; 170,5 or 218,5 cm, with 3 or 4 wall units respectively. This Lounge range stands out for its honeycomb structure in wood or lacquer with front panels which can be personalised, thanks to the range of surface types available: oblique and vertical carvings, metal inserts, or a special plissè (pleated) effect.

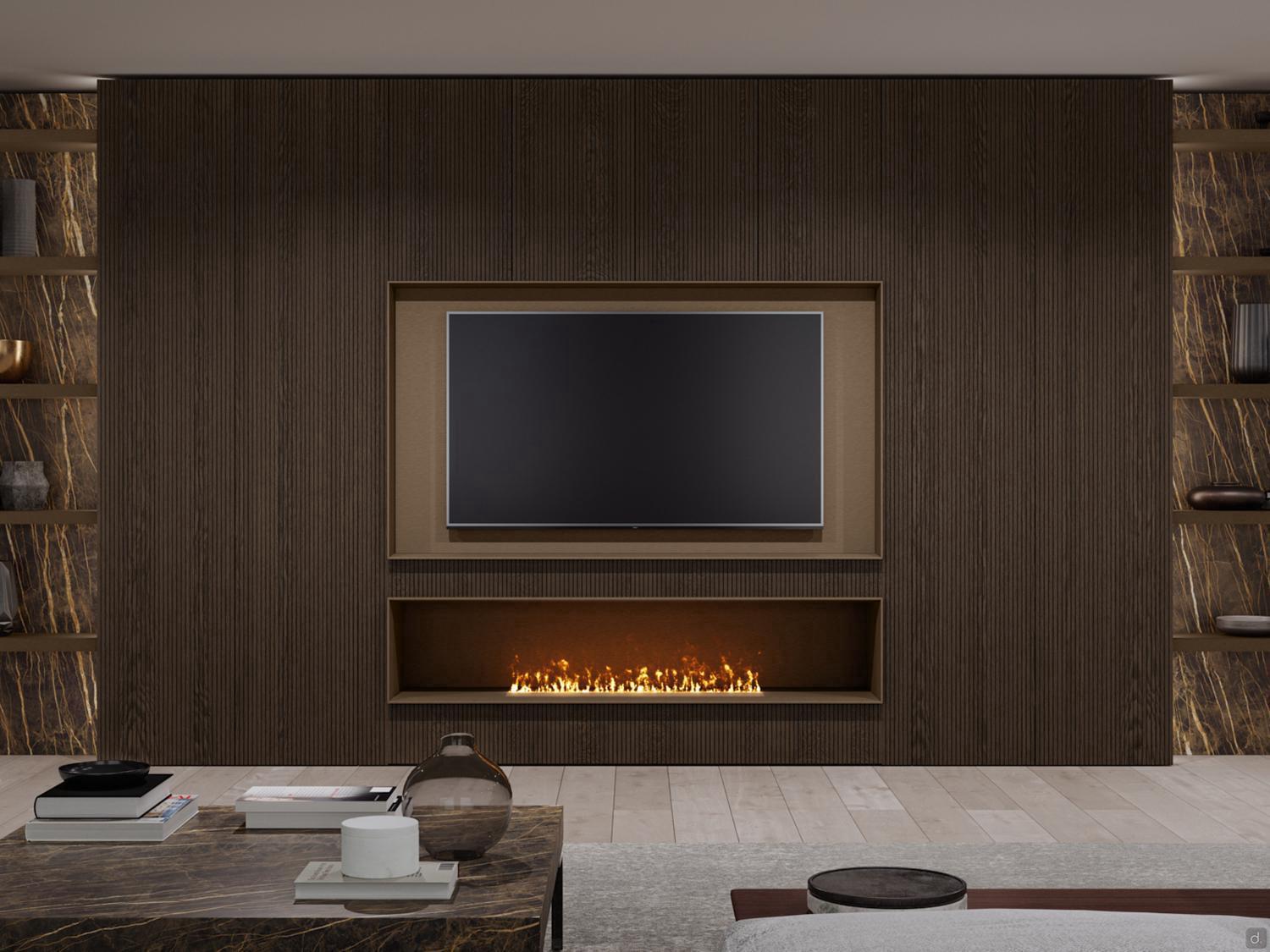

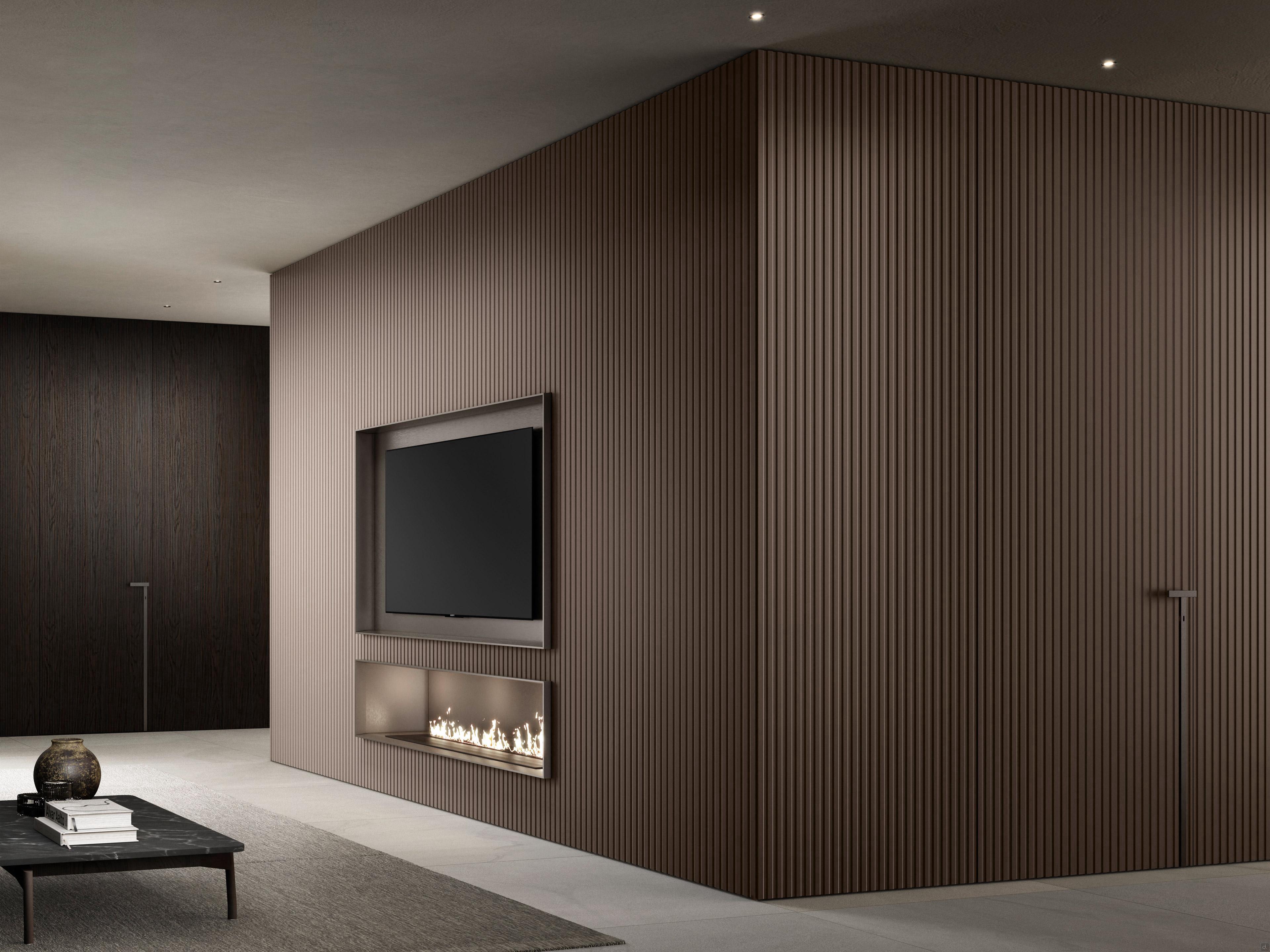

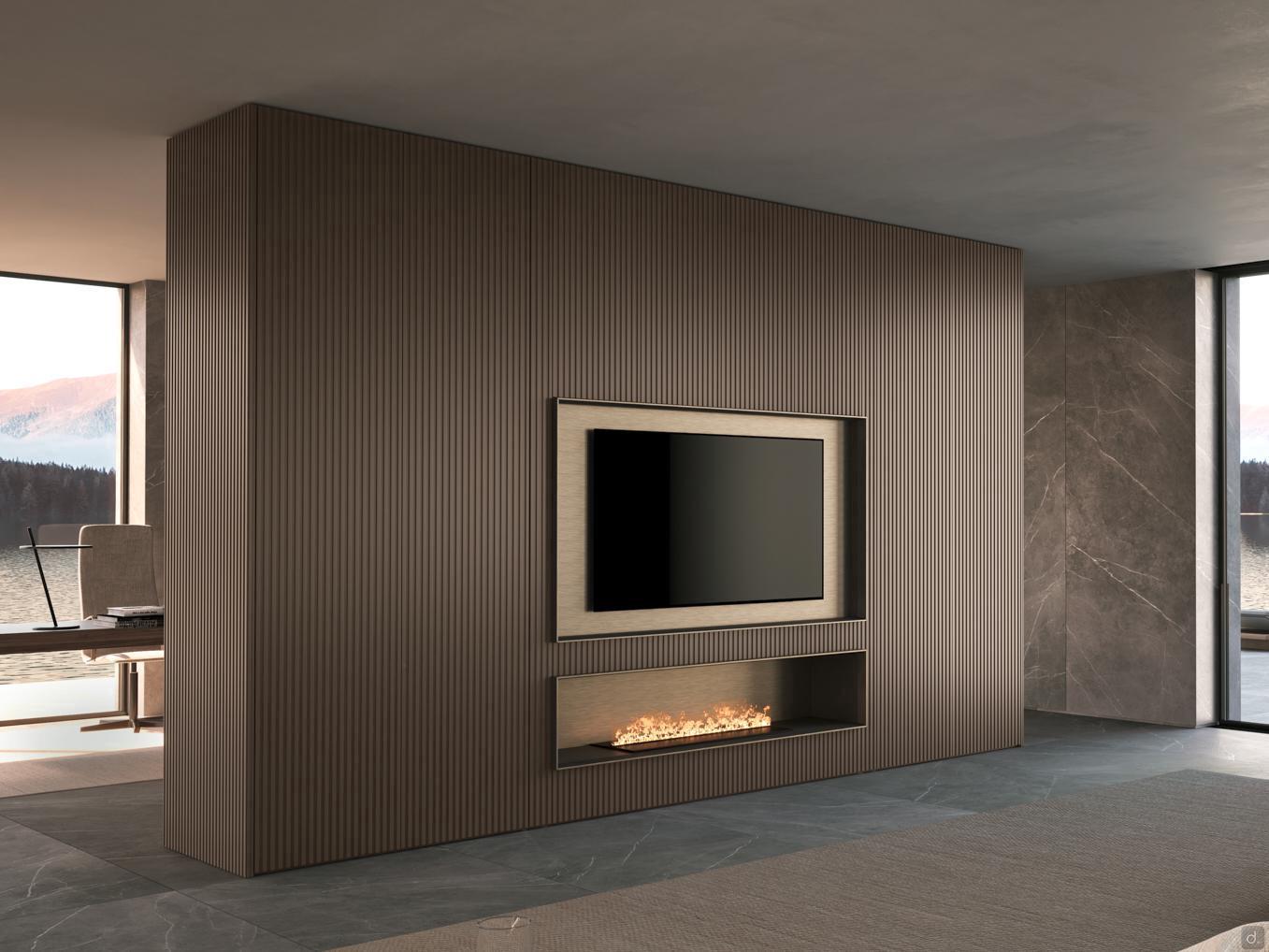

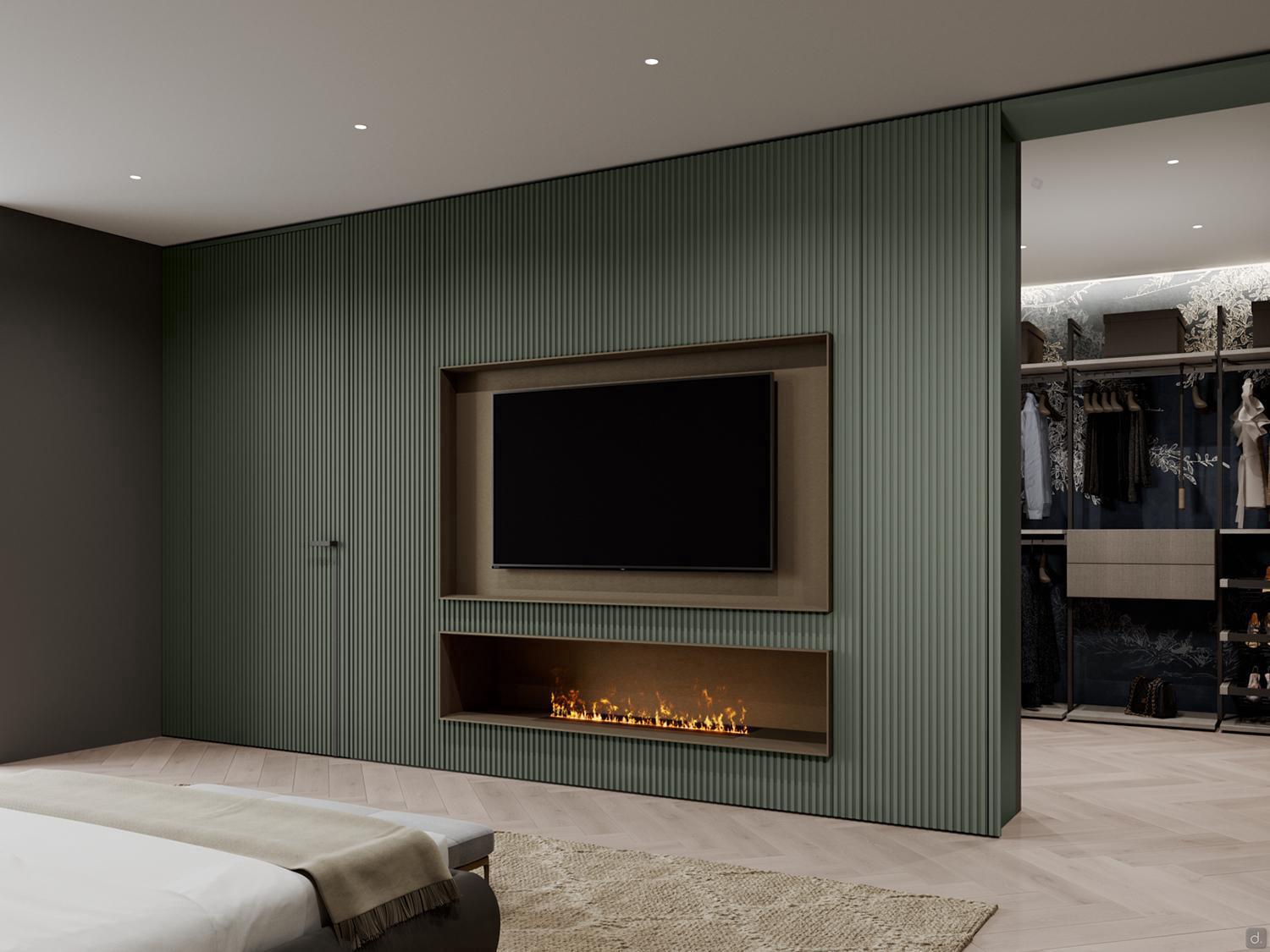

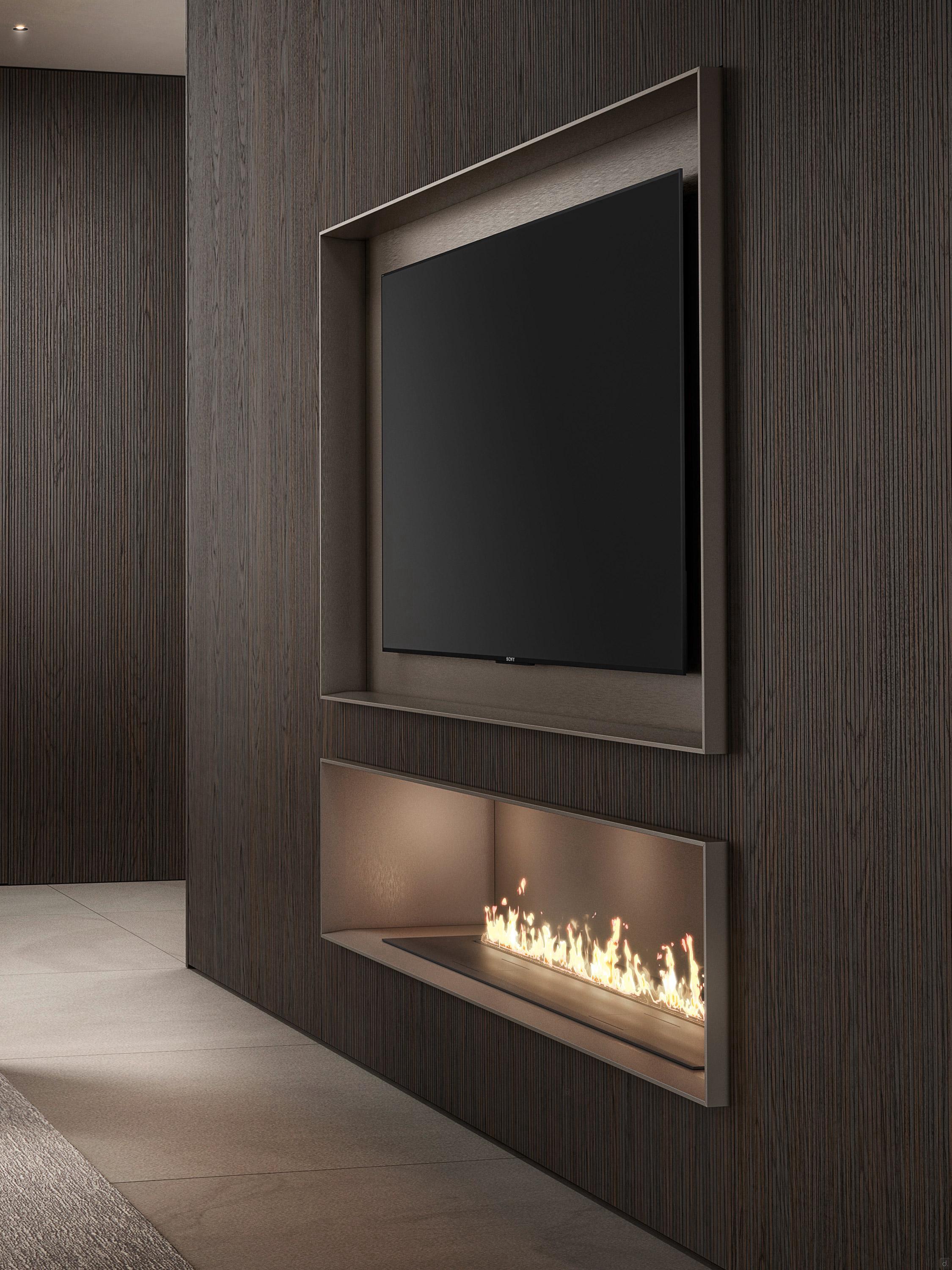

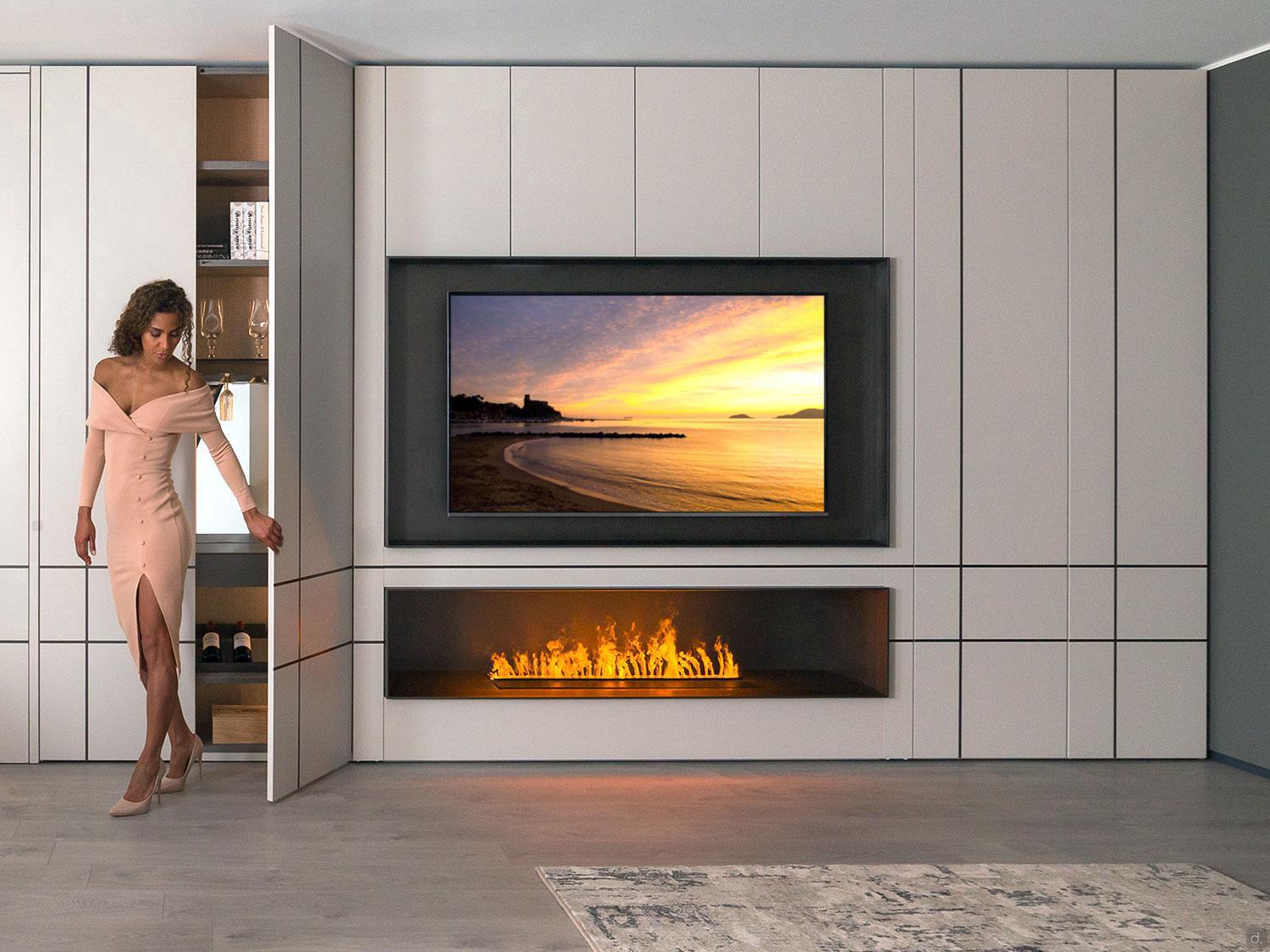

The lower open compartment can be equipped with internal LED lighting or a charming and elegant eco fireplace, featuring water vapour in a natural flame colour. The eco fireplace is available with a tank or an attachment to a water supply.

Characteristics
customisable wall system up to 295 cm in height
front panels with unique plissè effect and other options
the TV compartment and open compartment provide a pleasant, two-tone contrast with the rest of the structure
can be paired with column cupboards from the same collection
internal shelves for the upper cabinets can be purchased in the Lounge internal accessories product page

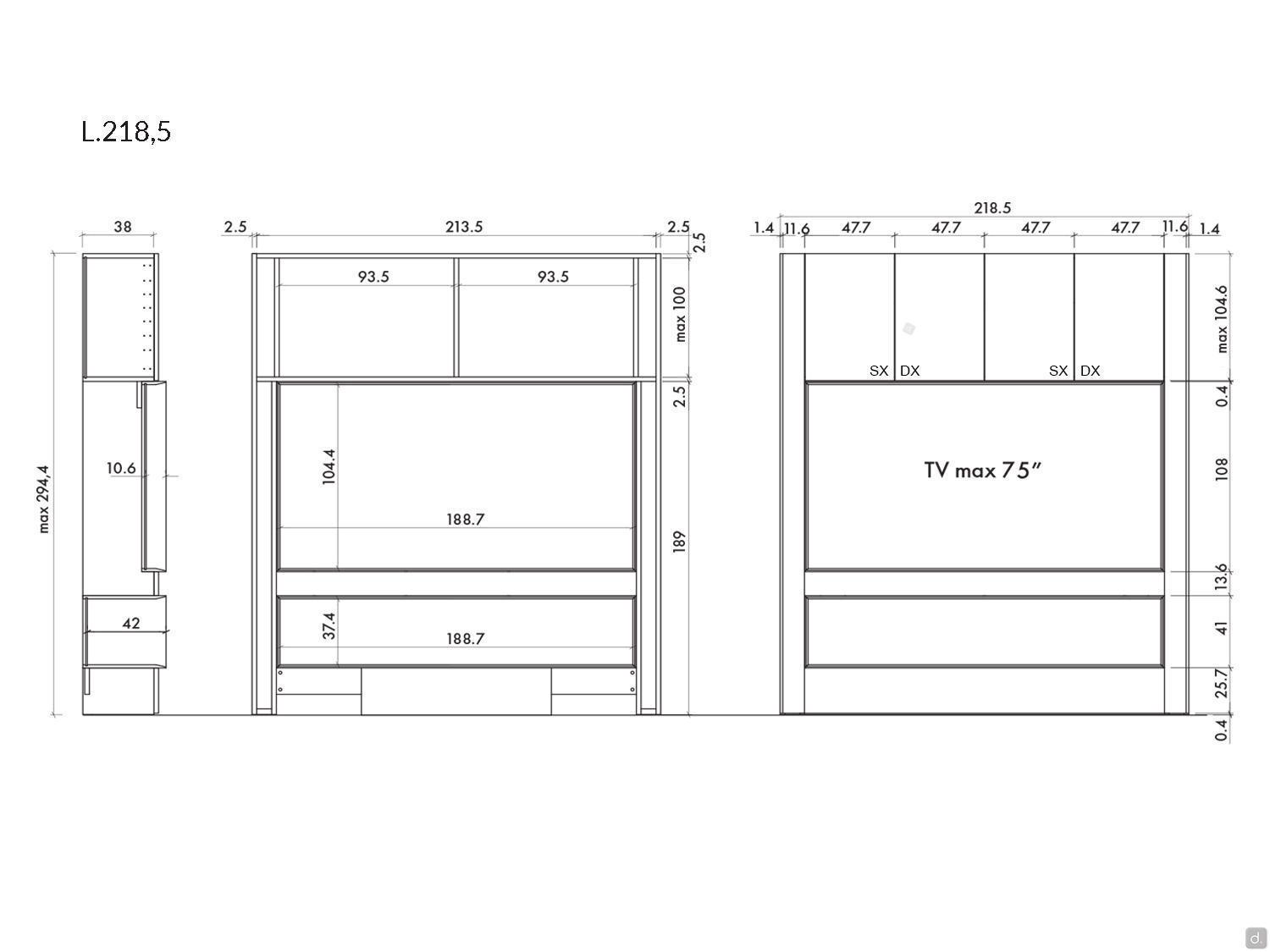

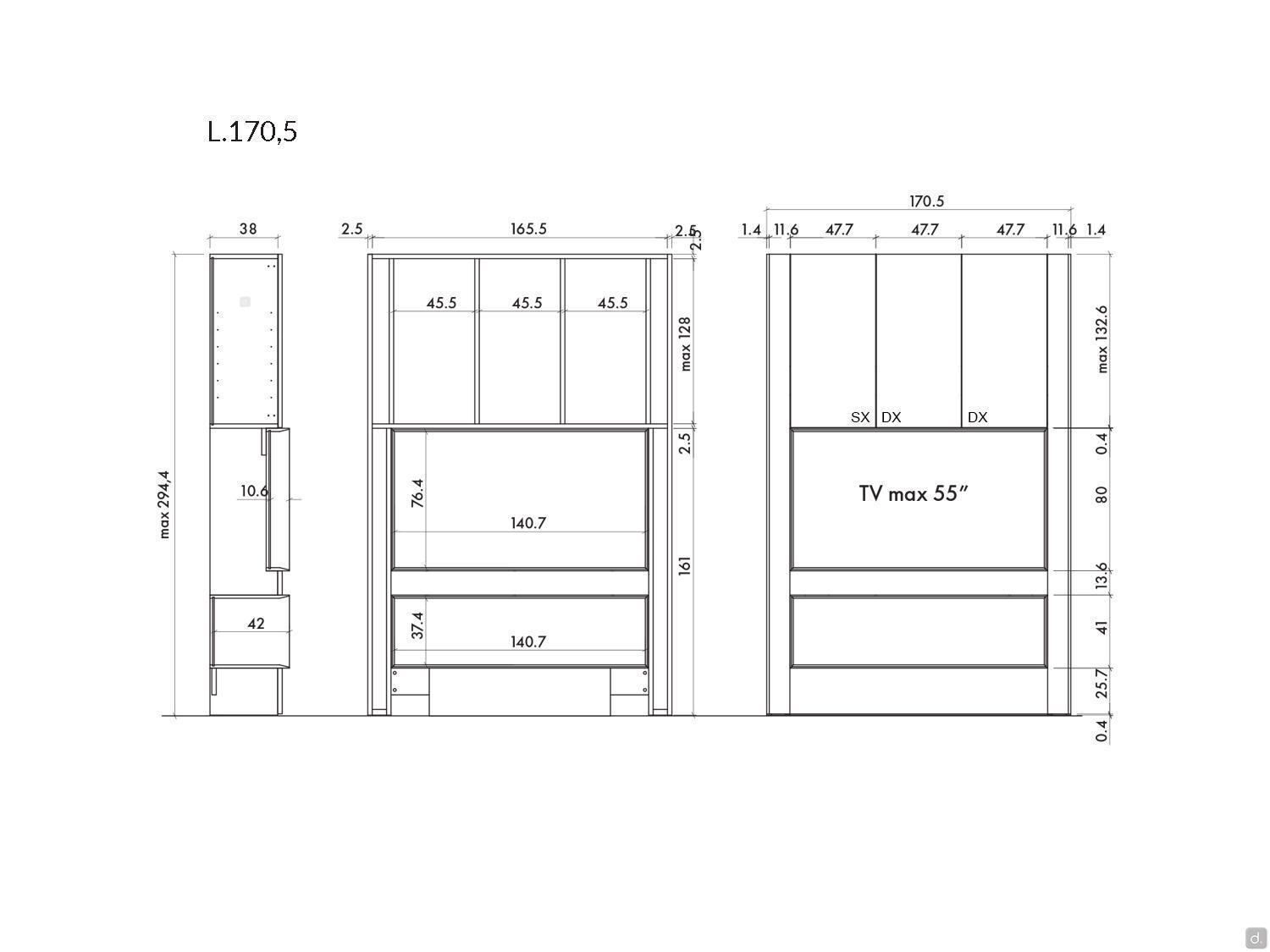

Model and Measurements
Models: with n.3 upper doors, with n.4 upper doors
Width:
- composition: cm 170,5 / 218,5
- TV compartment and open compartment: cm 140,7 / 188,7
Depth:
- cupboard: cm 40,4
- shell/ body: cm 38
- front panels: cm 2,4
Height:
- open compartment: cm 37,4
- TV compartment: cm 76,4 (composition cm 170,5) / 104,4 (composition cm 218,5)
- composition: cm 186 (min) / cm 295 (max)

Materials and Finishes
Front Panels:
- matt / metallic / glossy lacquer
- open-pore oak / aged oak
TV Compartment and Open Compartment:
- matt / metallic lacquer
- open-pore oak wood
Side Panels:
- matt / glossy lacquer
- open-pore / aged oak
Internal Panels:
- melamine

Purchase Information

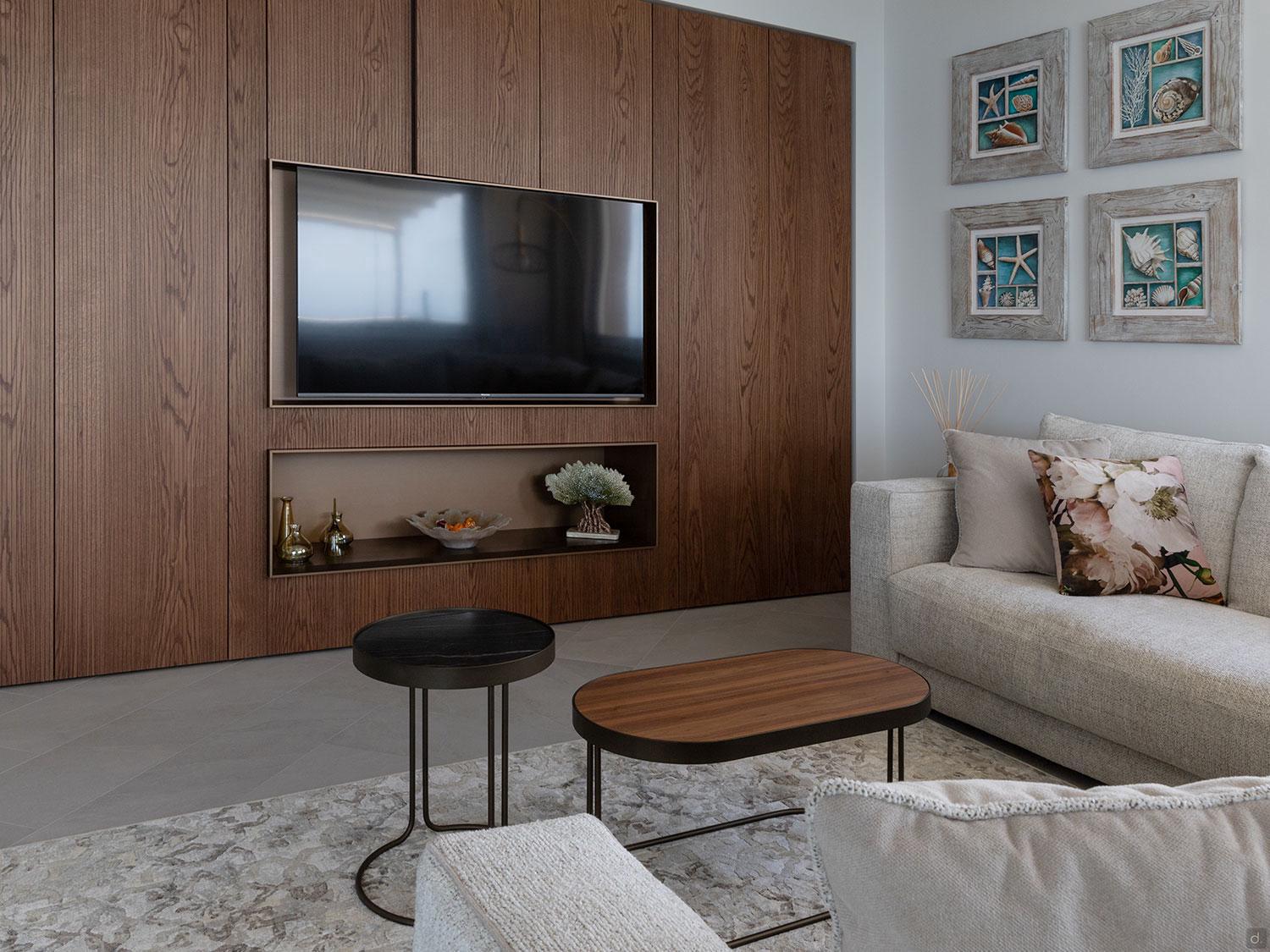

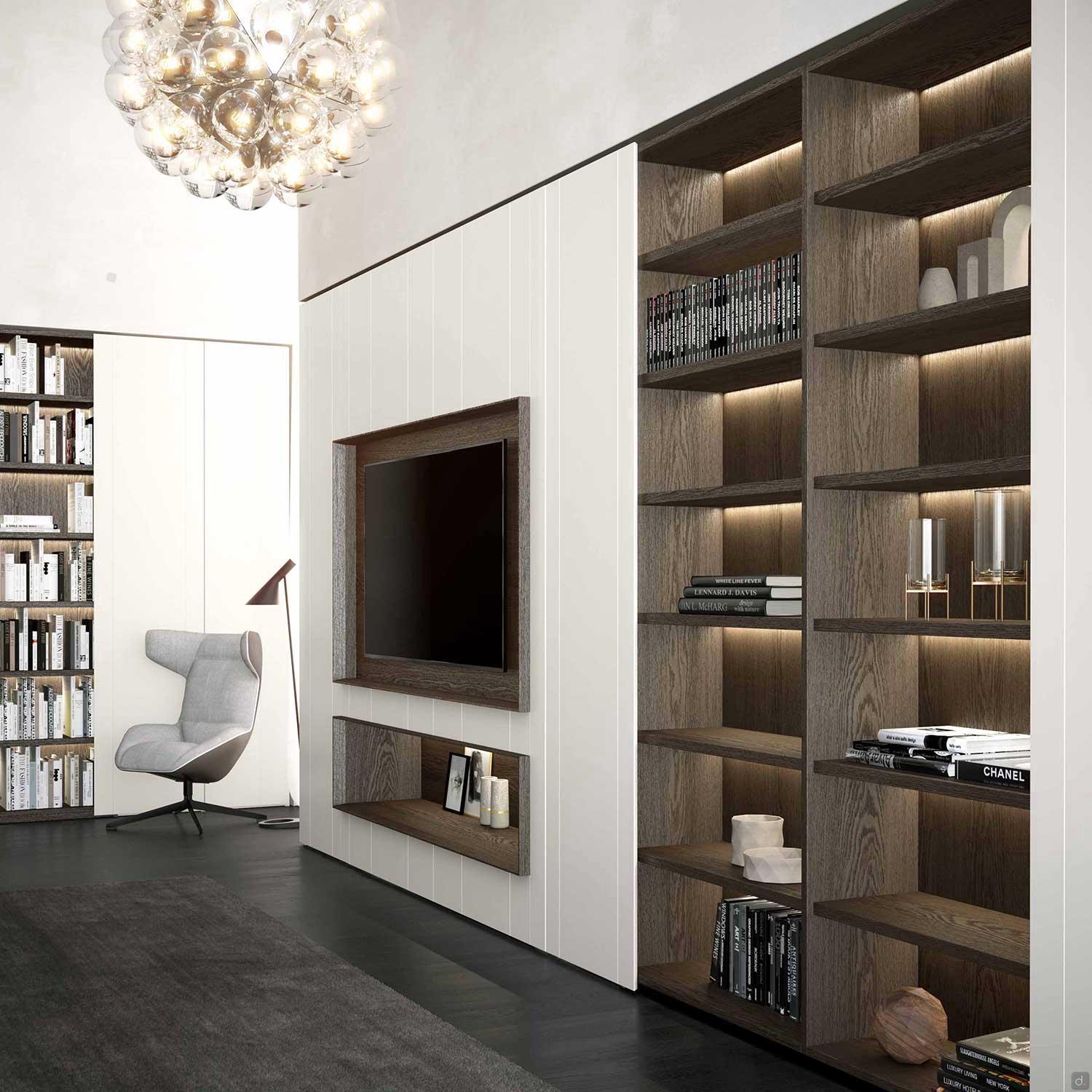

This Lounge wall system with TV compartment and open compartment can be used independently or positioned at the beginning, centre or end of a series of open column units, column cupboards, or other products from the Lounge collection.
To calculate the total size of your wall system, simply add the width of this unit to that of the other columns or elements from the Lounge collection.

Matt or Glossy (where available) lacquer finish with colours from the RAL, NCS and Sikkens charts are available for this product.
To get it, configure your furniture with "Matt Lacquer" or "Glossy Lacquer" finish and add to your Basket the "Matt / Glossy Lacquer Samples cod.olv" product card, which you can find among the alternative products at the bottom of the page.
Please note: since the surcharge is intended on the entire supply of the cod.olv collection, only one addition to the Basket is required even in the case of more than one product from this collection to be lacquered.

Technical study

Technical Specifications and Equipment
Structure: made from TAMMEL (honeycomb panel + melamine). The honeycomb panel has a frame made from carefully selected solid pine and the honeycomb plated with panels of Royal, Alpha or Grafis MDF. Guarantees durability, lightness, practicality and meets all the requirements of the European Class 1 Standards regarding the limitation of harmful emissions of formaldehyde, meets the CARB2 standards.
Side and Back Panels: made from melamine (E1 class with low formaldehyde emission), meets the CARB2 standards. The side panels are cm 2,5.
Base and Top: honeycomb panels, 2,5 cm thick.
Doors:honeycomb panels, 2,4 cm thick, with a frame made from solid pine, lacquer or wood. The front panels can be smooth or personalised (only for finishes in matt lacquer, open-pore oak wood, aged oak wood):

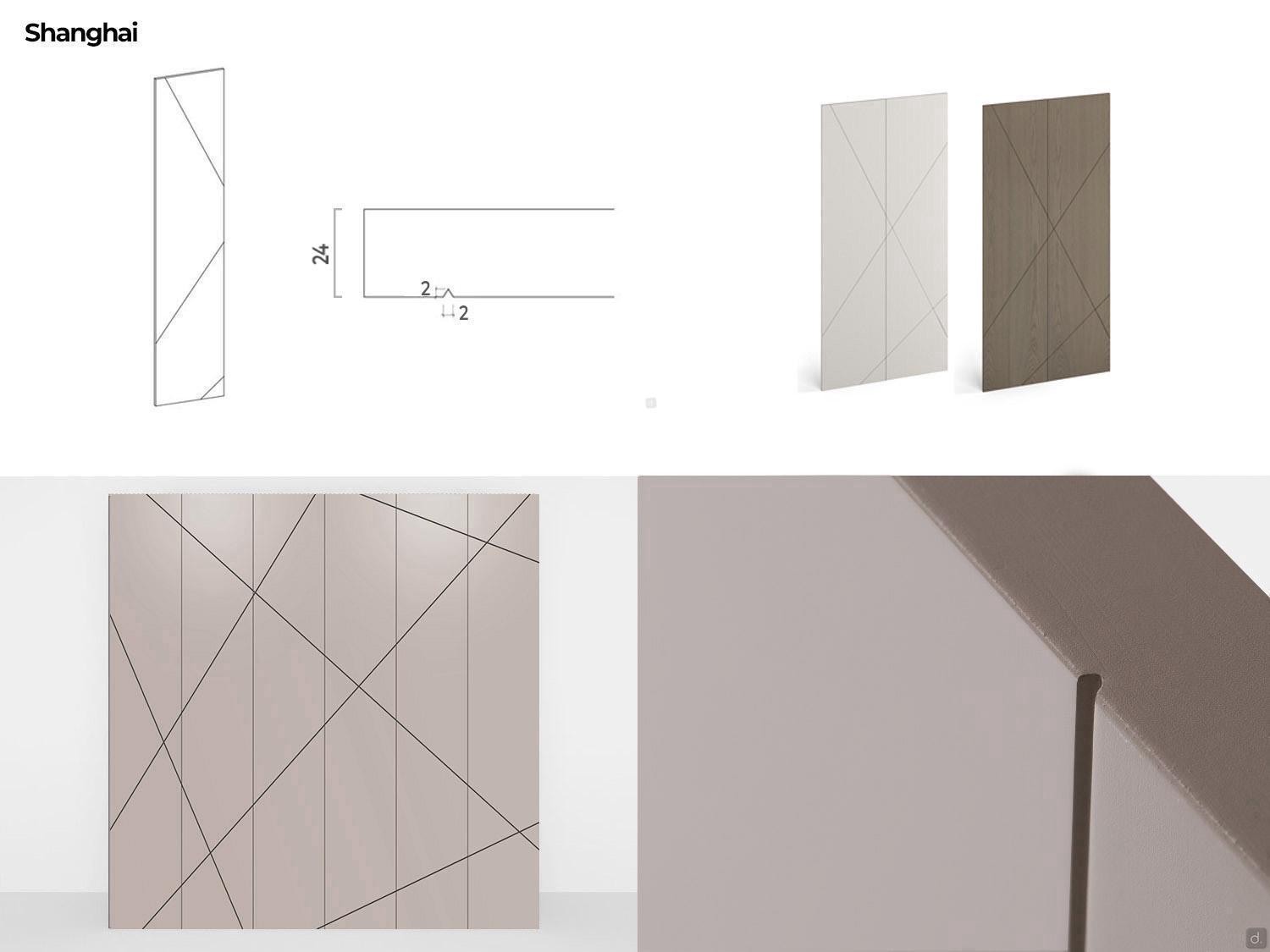

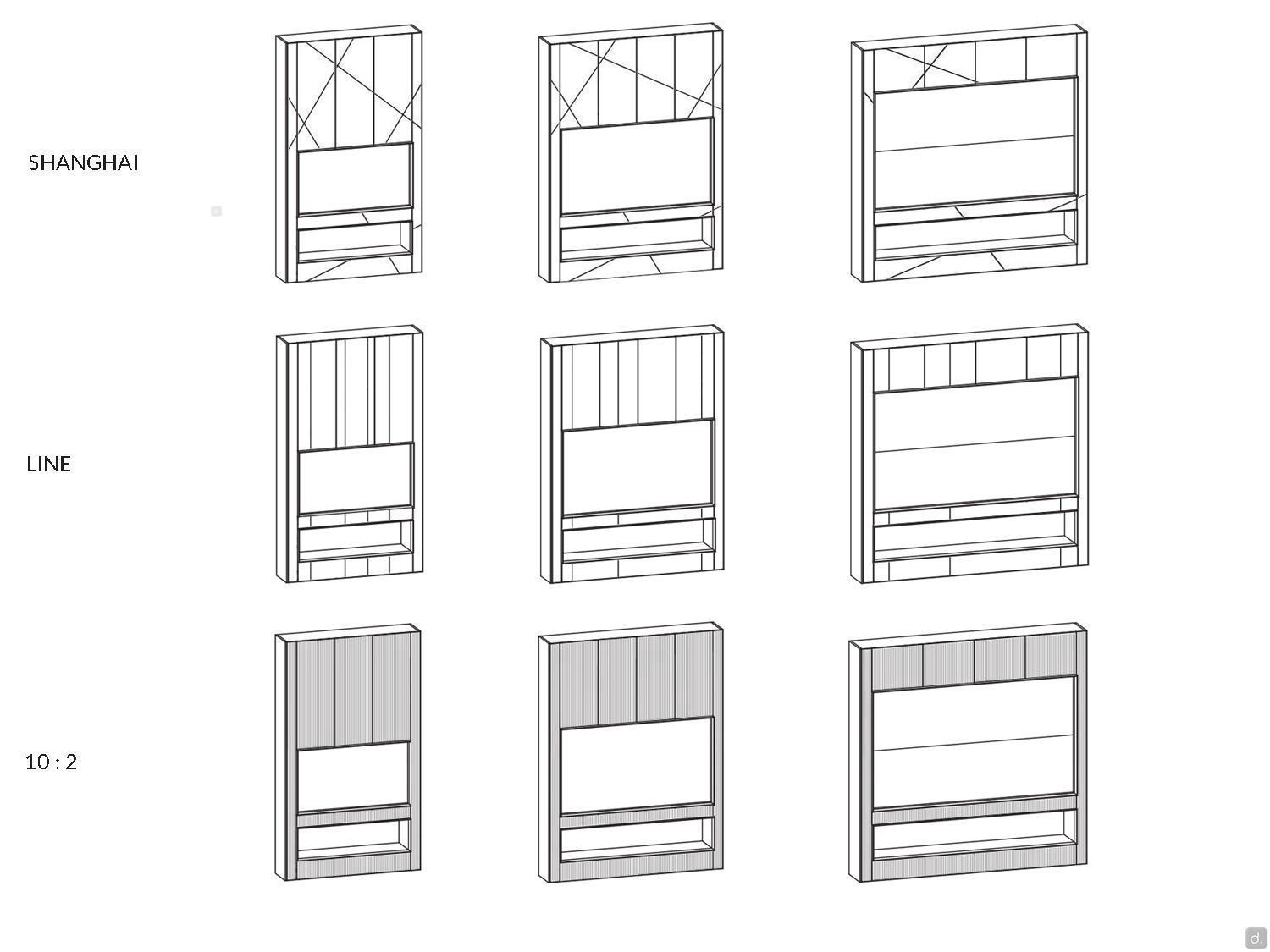

- Shanghai (only in matte lacquered finish): diagonal "V" incisions 0.2 cm thick.

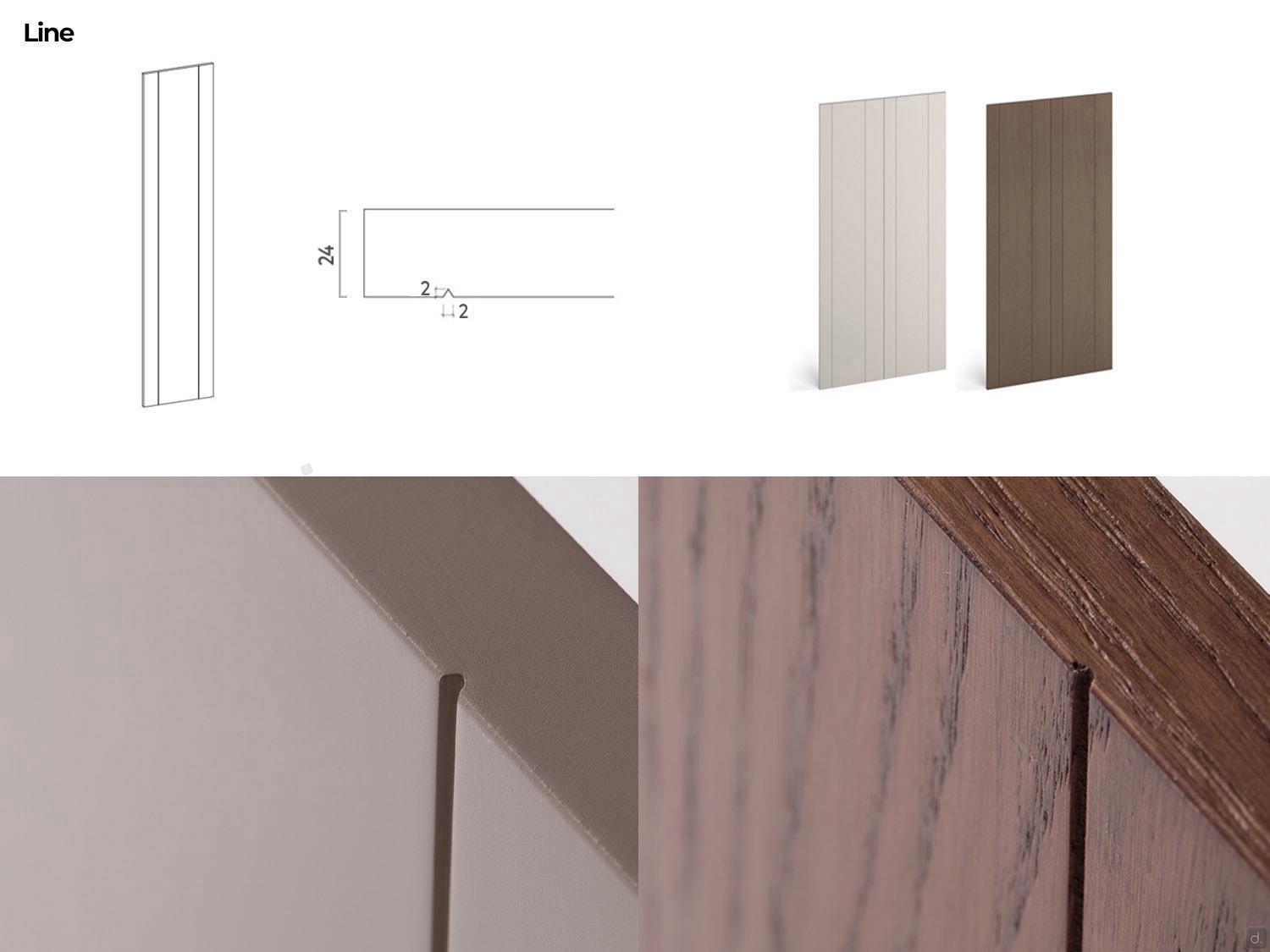

- Line (only in matte lacquered finish): vertical "V" incisions 0.2 cm thick

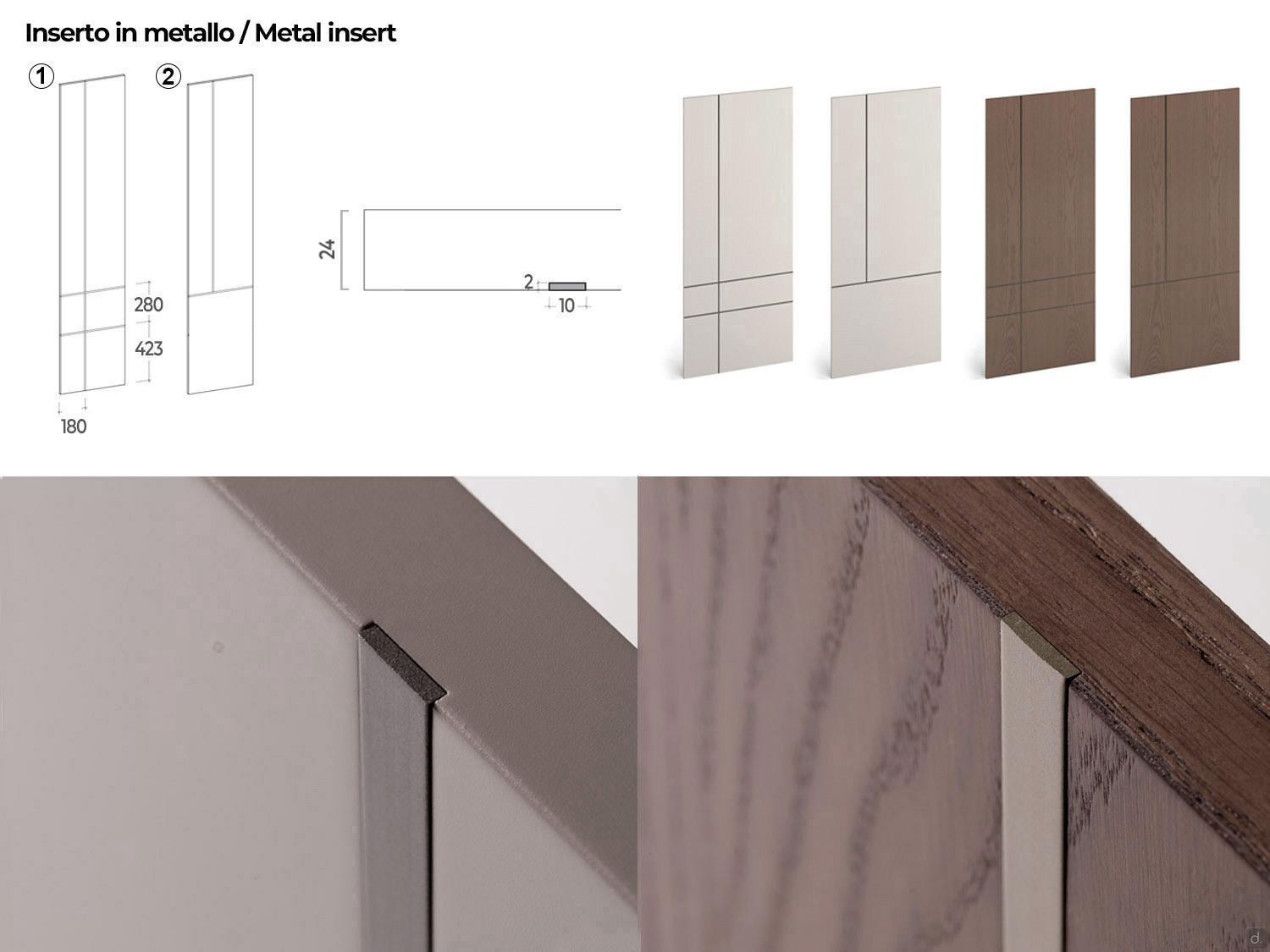

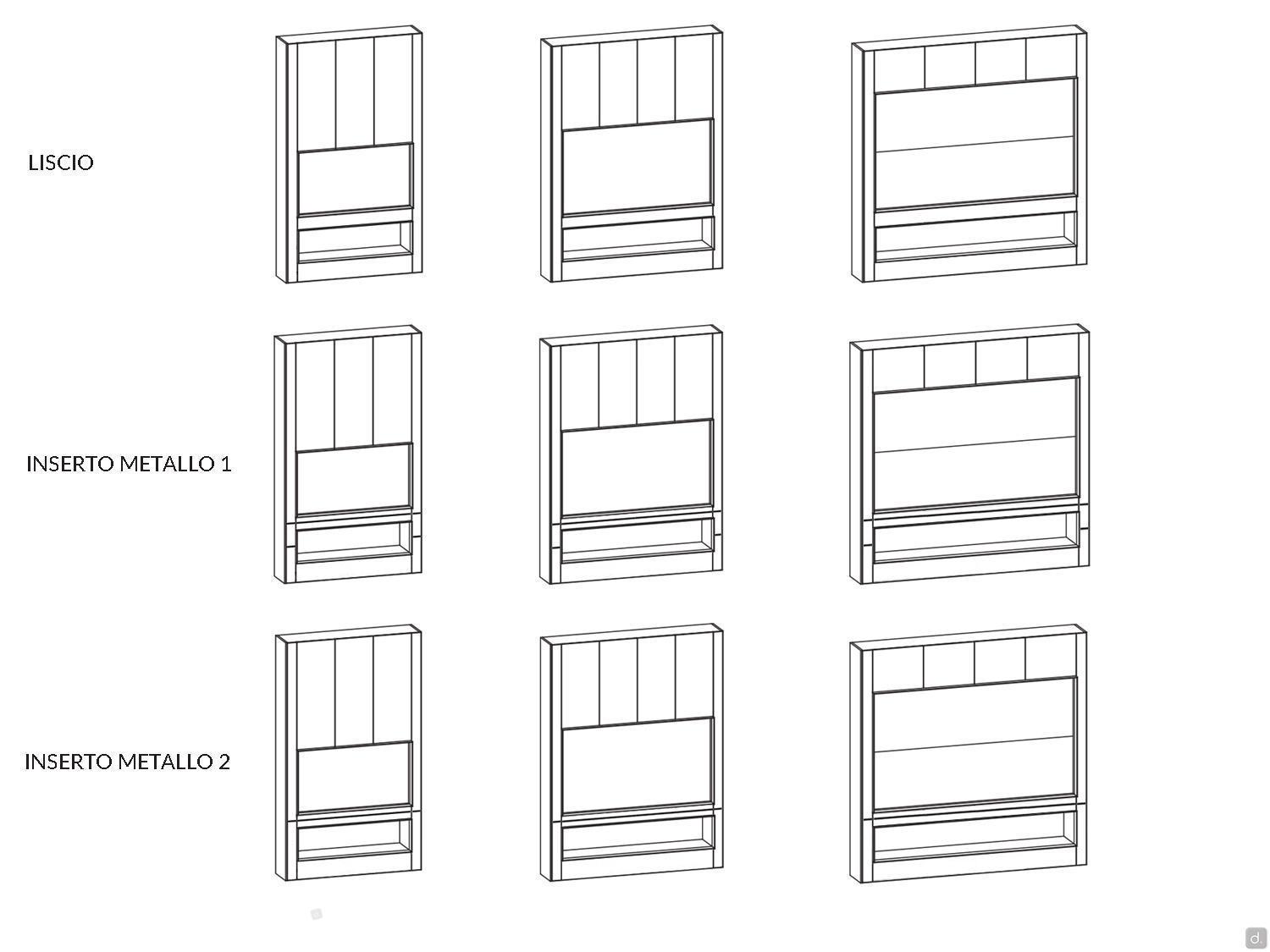

- with metal insert: cm 1 thick 0,2 in "version 1" with n.2 horizontal + n.1 vertical or in "version 2" with n.1 horizontal + n.1 vertical. Also available in the 2:2 version with a matt lacquered metal or metal insert 2 mm thick, protruding 2 mm from the door. Only available when purchased with a project, for further information please contact our Customer Service.

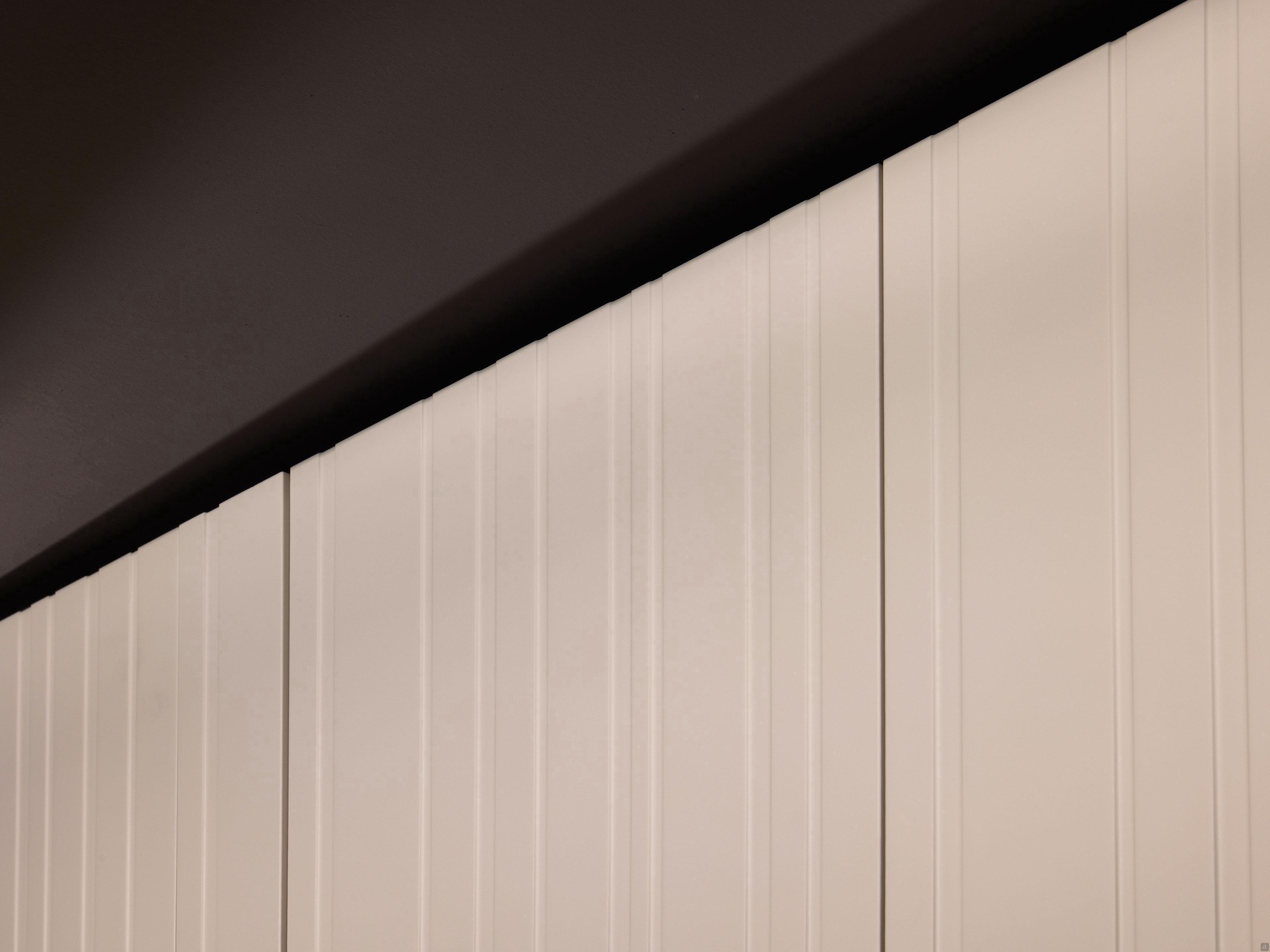

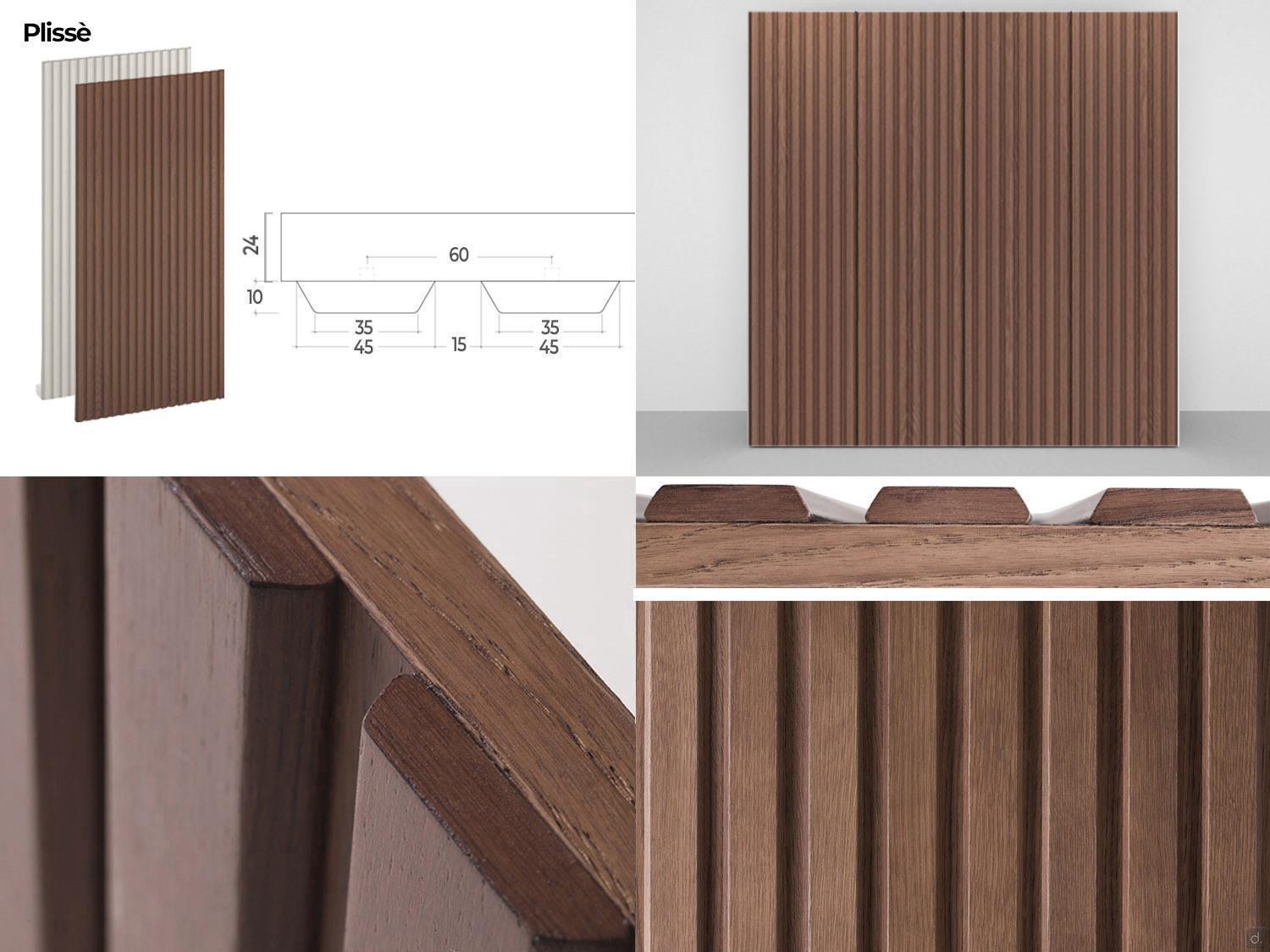

- Plissè: slats in lacquered solid wood or oak veneer with 30° processing: cm 4,5 thickness 1.

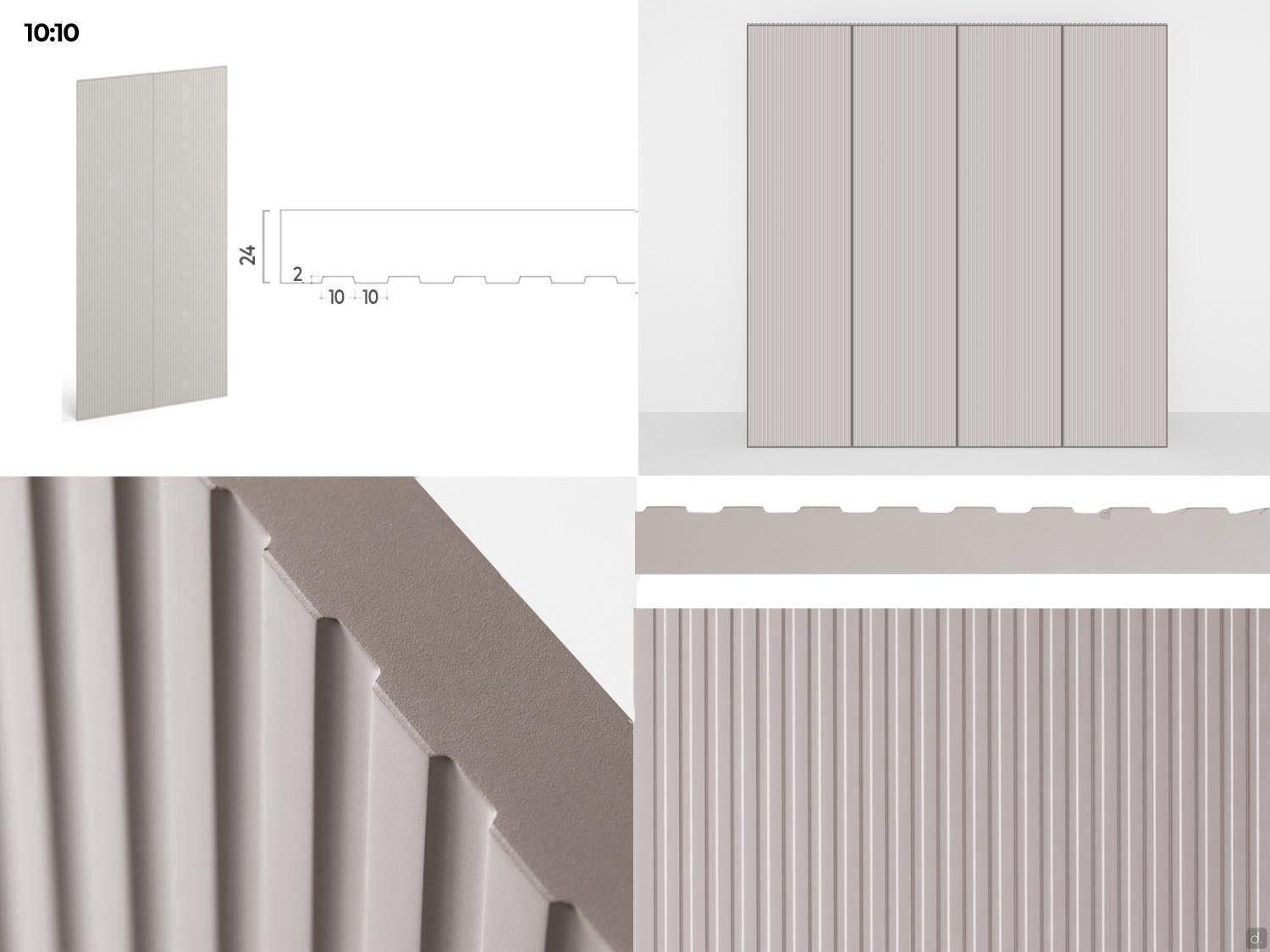

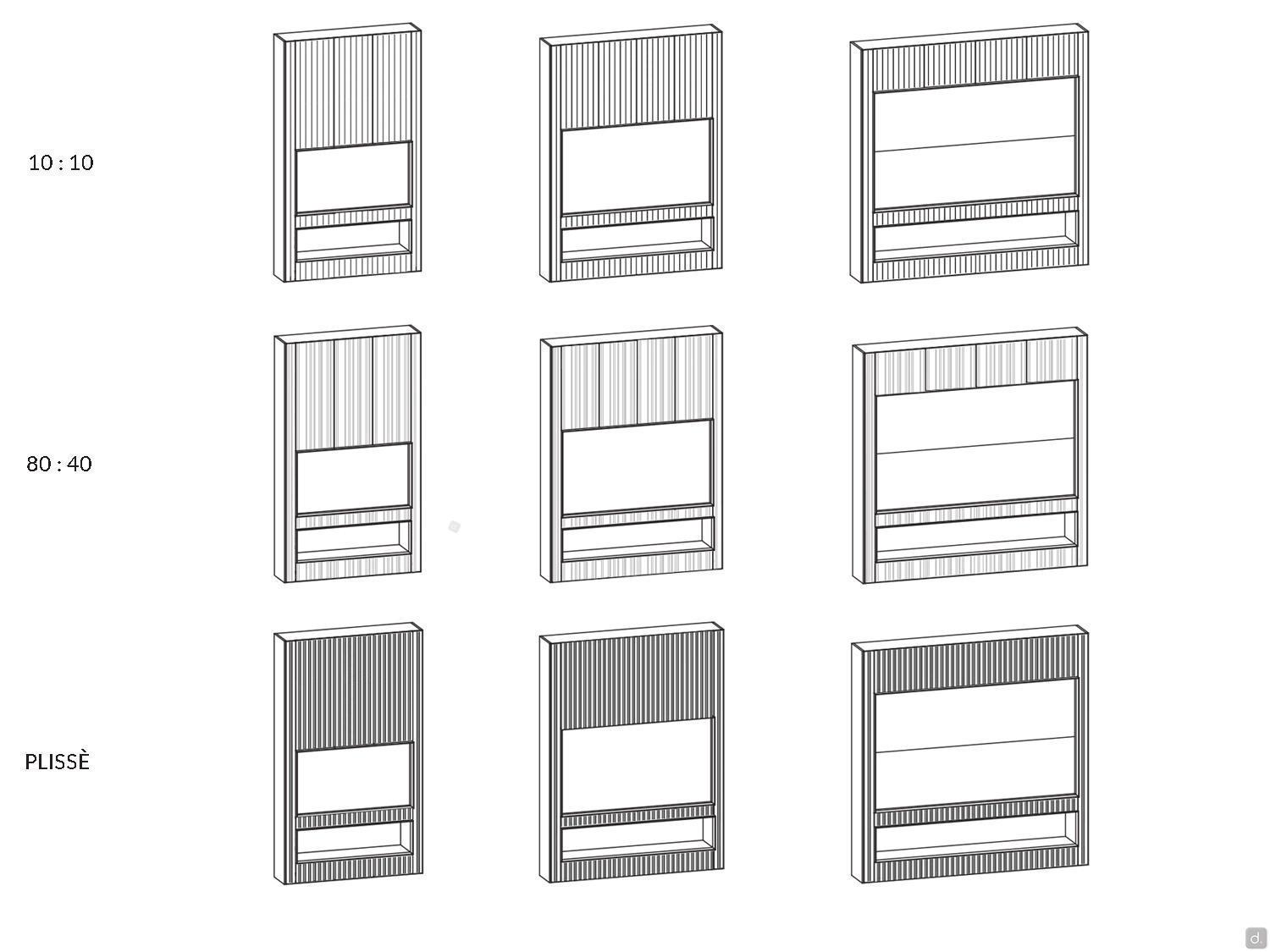

- 10:10 (only in matte lacquered finish): "U" incisions cm 1 thickness 0,2 thick.

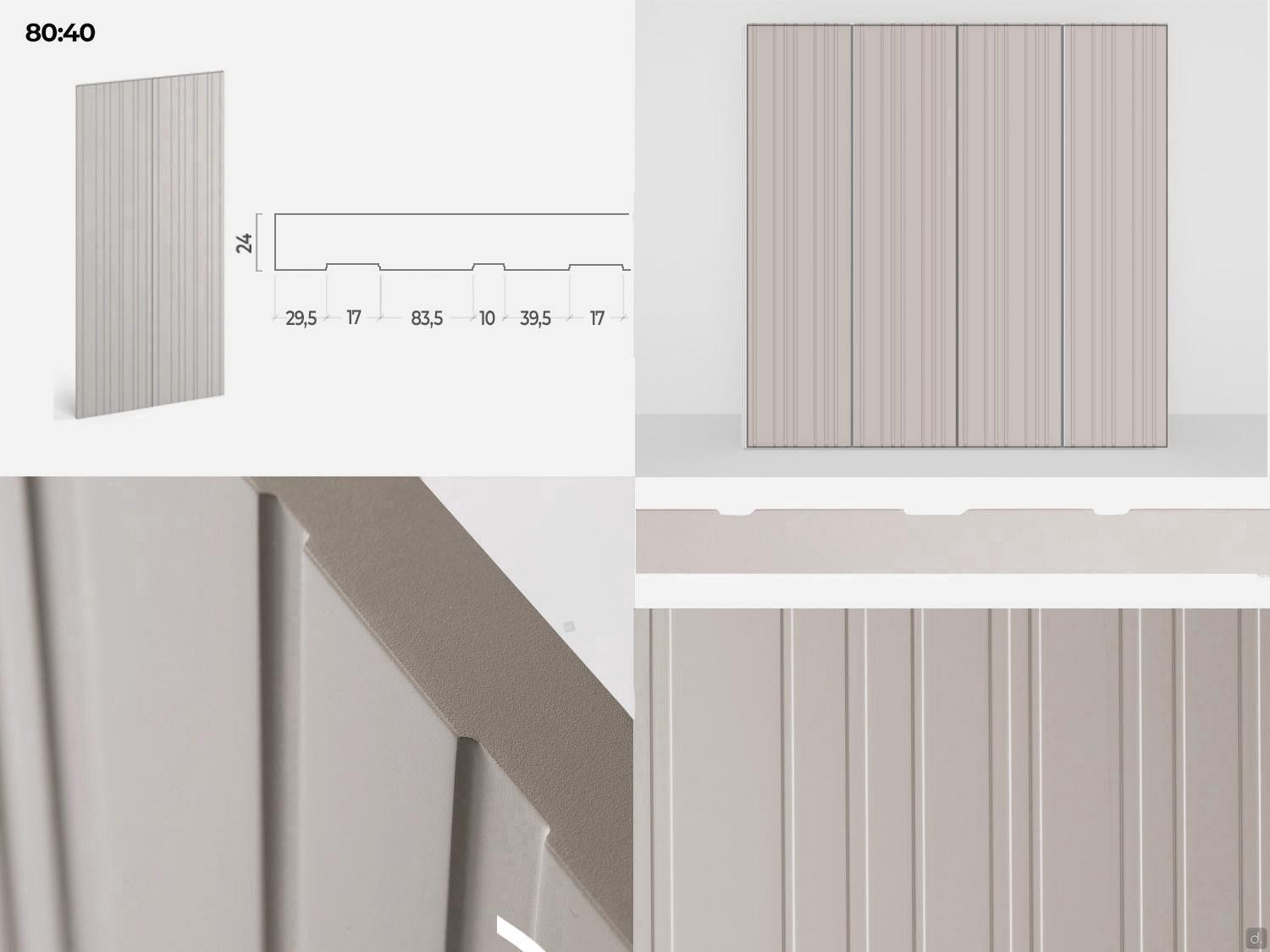

- 80:40 (matte lacquered finish only): "U" incisions cm 1 thickness 0,2 with variable spacing

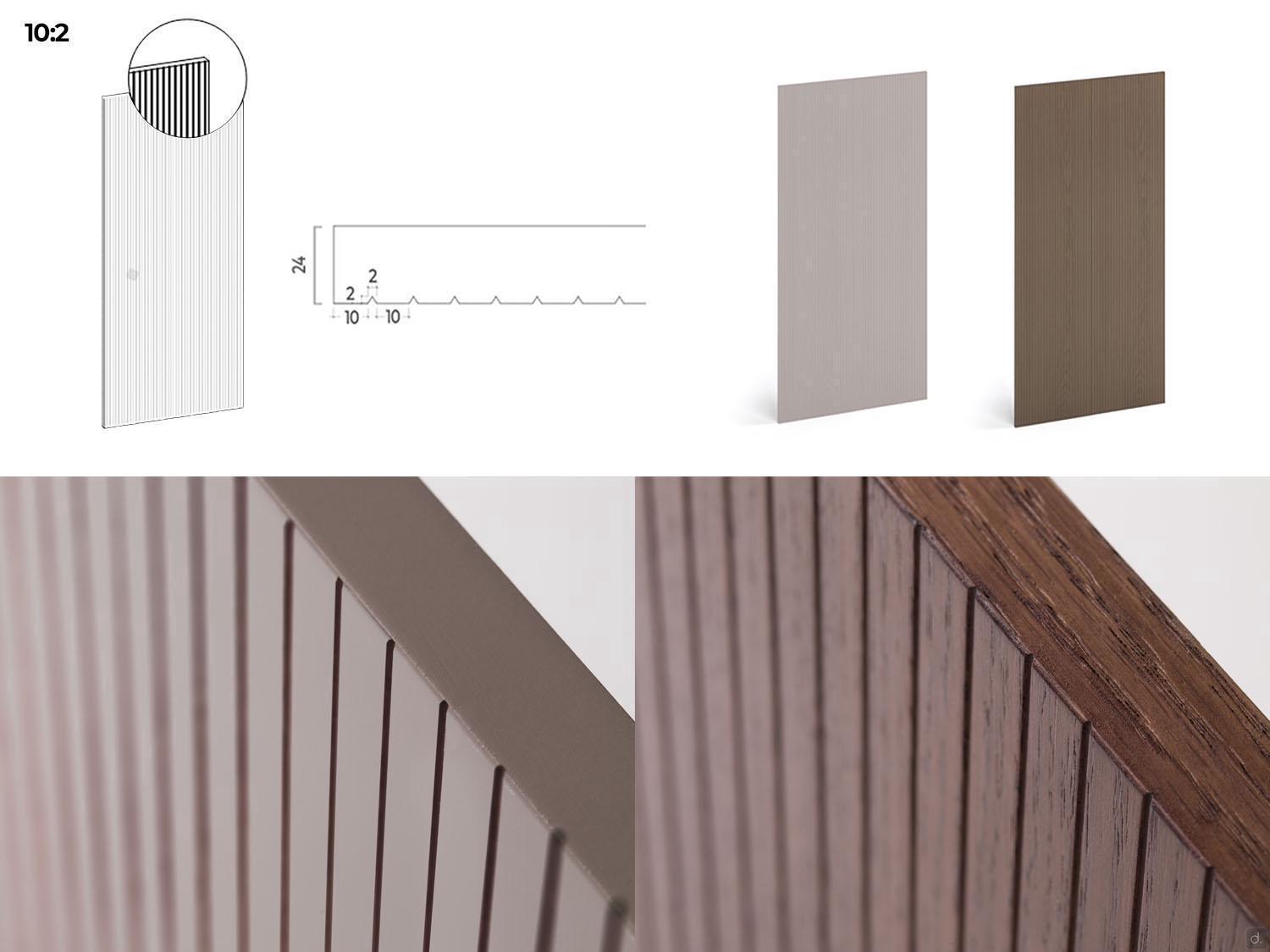

- 10:2 (only in open-pore oak finish): vertical "V" incisions cm 0,2 thick.

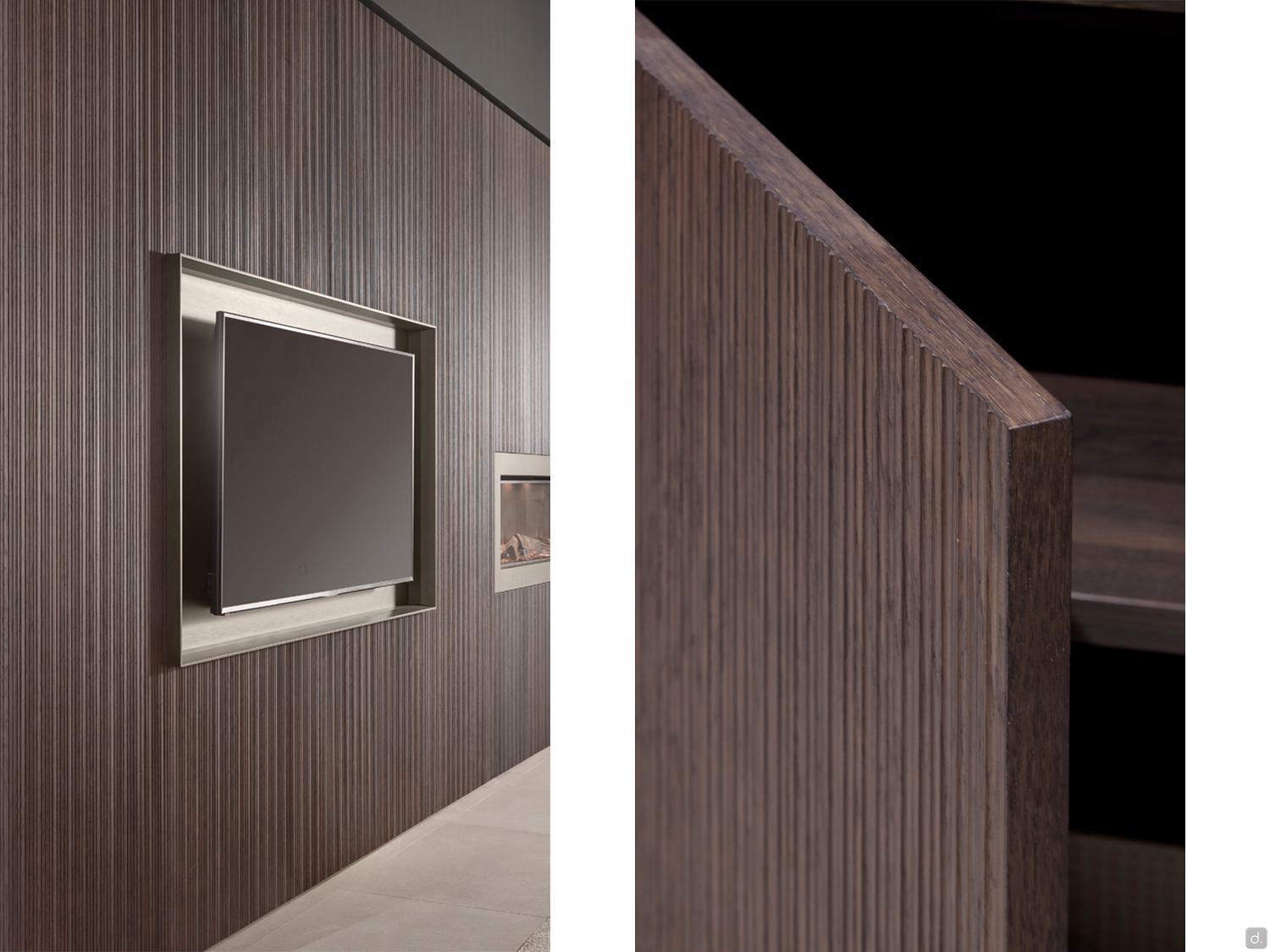

Doors/panels also available in TAMMAS (honeycomb + solid wood), honeycomb with solid spruce frame and solid wood honeycomb plated on both sides, dyed in the sample finishes and decorated with 10:10 or Wave processing. Only available when purchased with a project, for further information please contact our Customer Service.

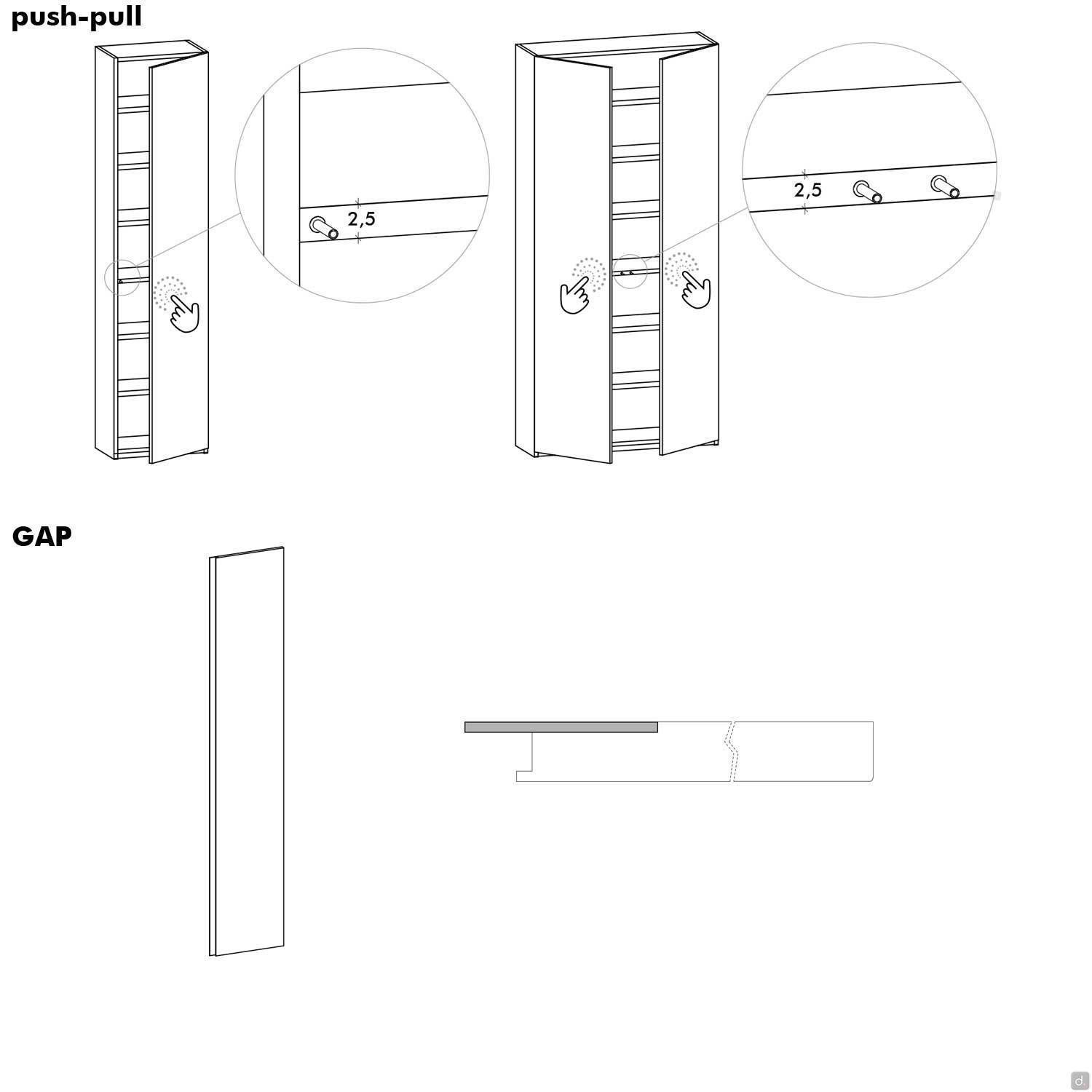

Handles: push-pull or Gap full-height groove handle.
Hinges: metal hinges in titanium finish with soft-closing mechanism. Standard opening angle of 110°, upgradeable to 155° except on the plissé finish, which comes exclusively with a 94° angle hinge.
TV / Open Compartments: in MDF and 1,8 cm thick.

Side Panel Holes
The side panels include fixed holes, cm Ø 1, on average every cm 33,4 (see photos in the Gallery for diagram).

Optional - open compartment

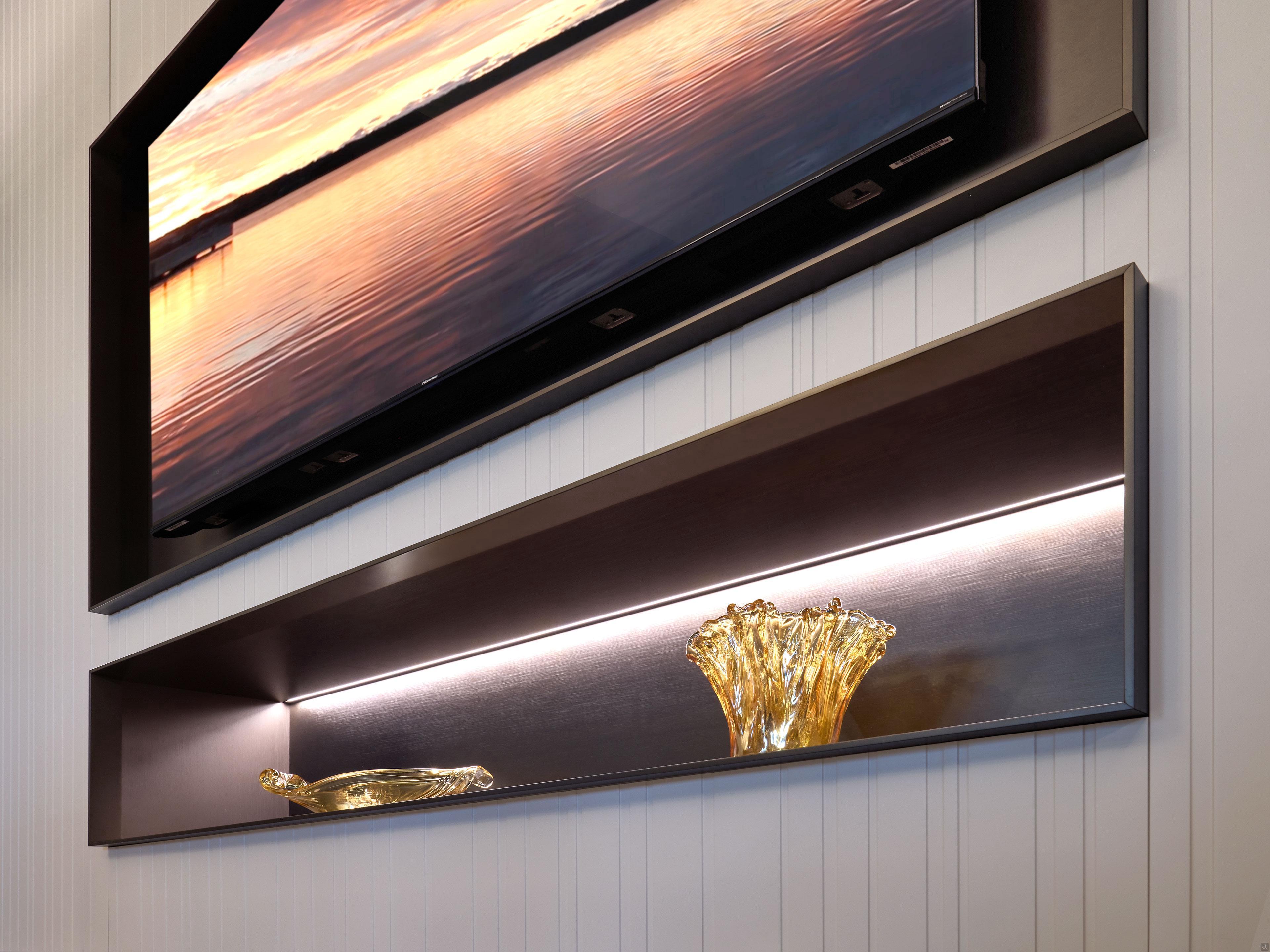

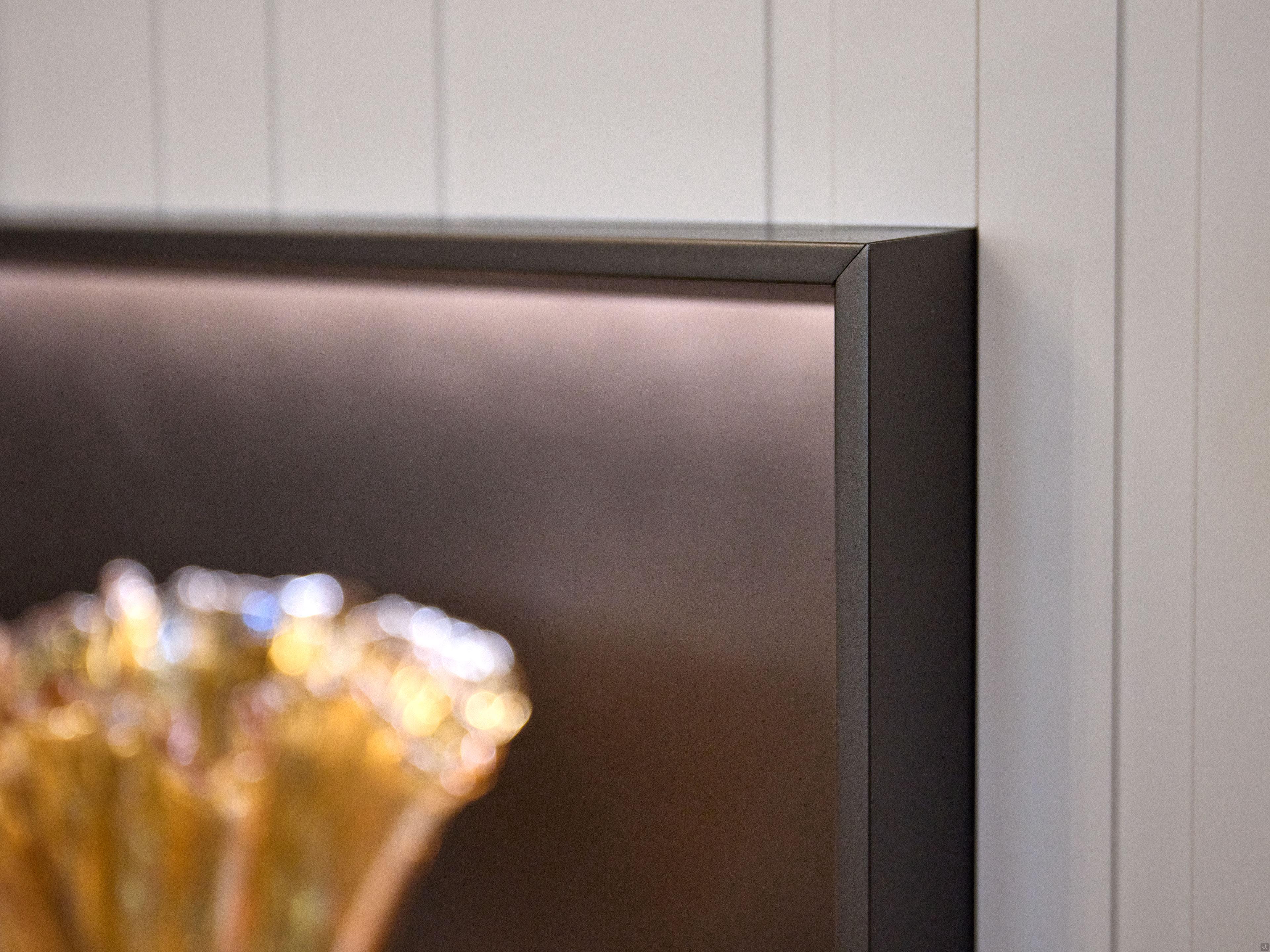

internal LED lighting: positioned horizontally, 1 cm from the back panel along the entire length of the open compartment, can be equipped with a transformer (20W) which is switched on/off with switch-controlled socket or touch switch. LED with heat graduation of 3000K-24V.

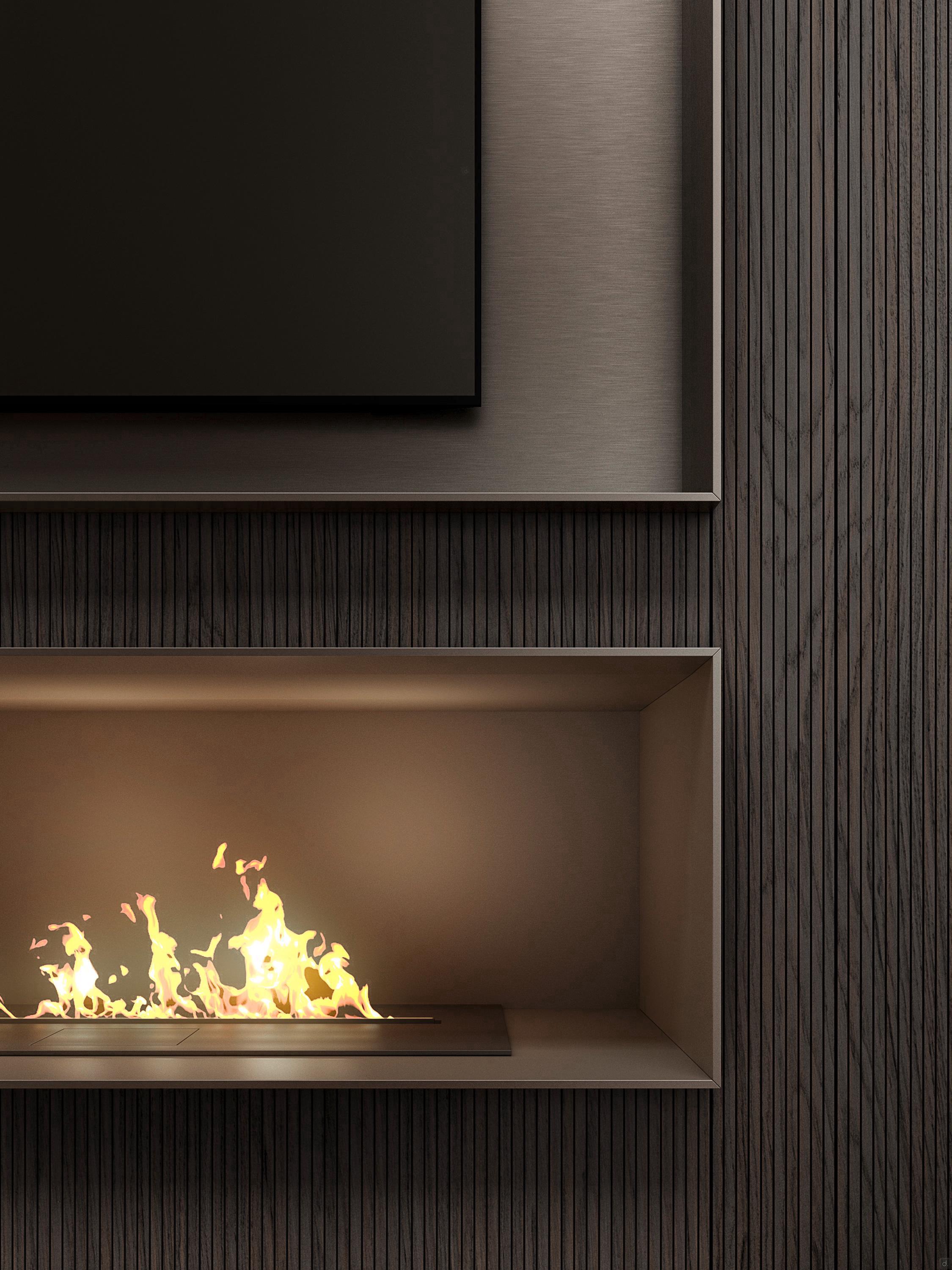

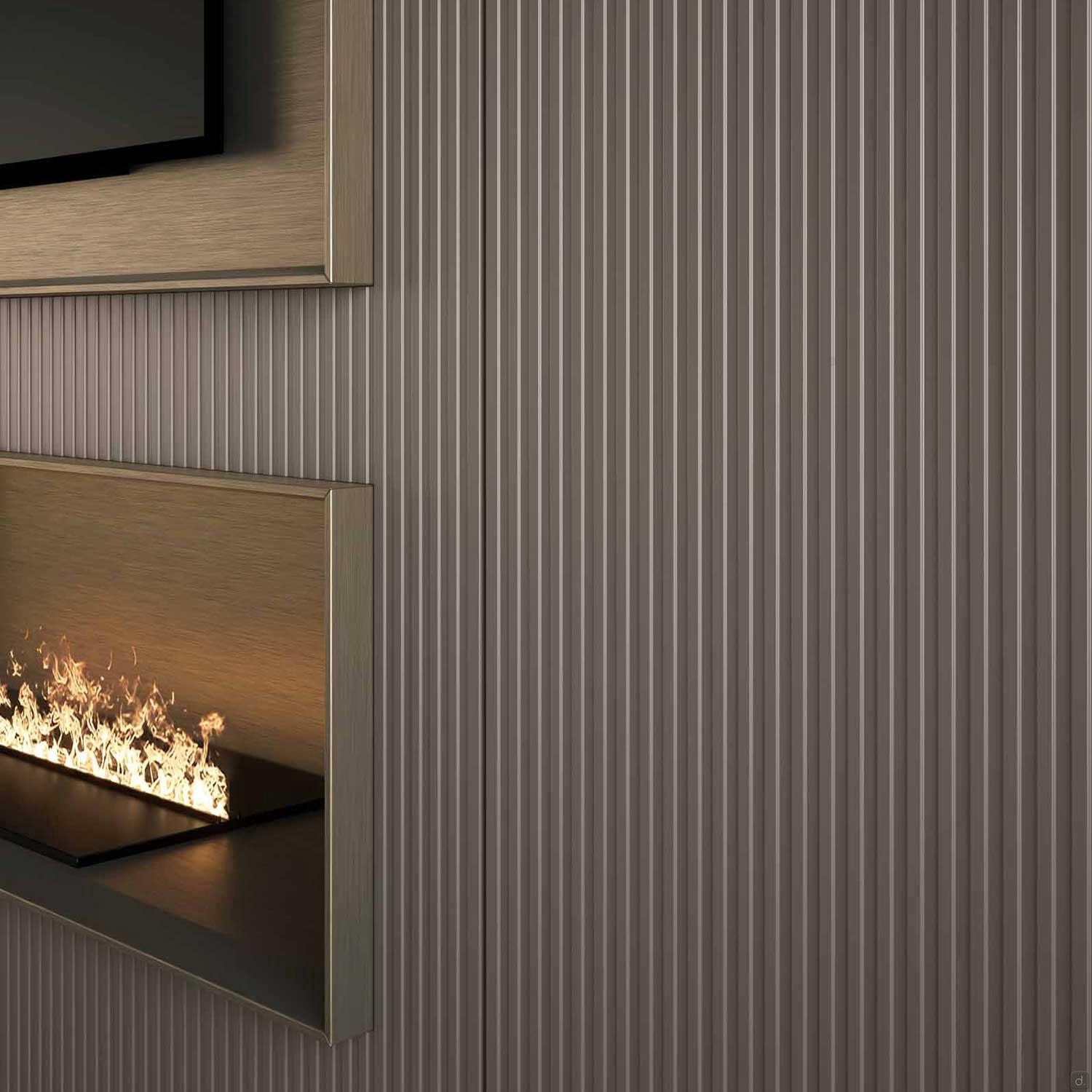

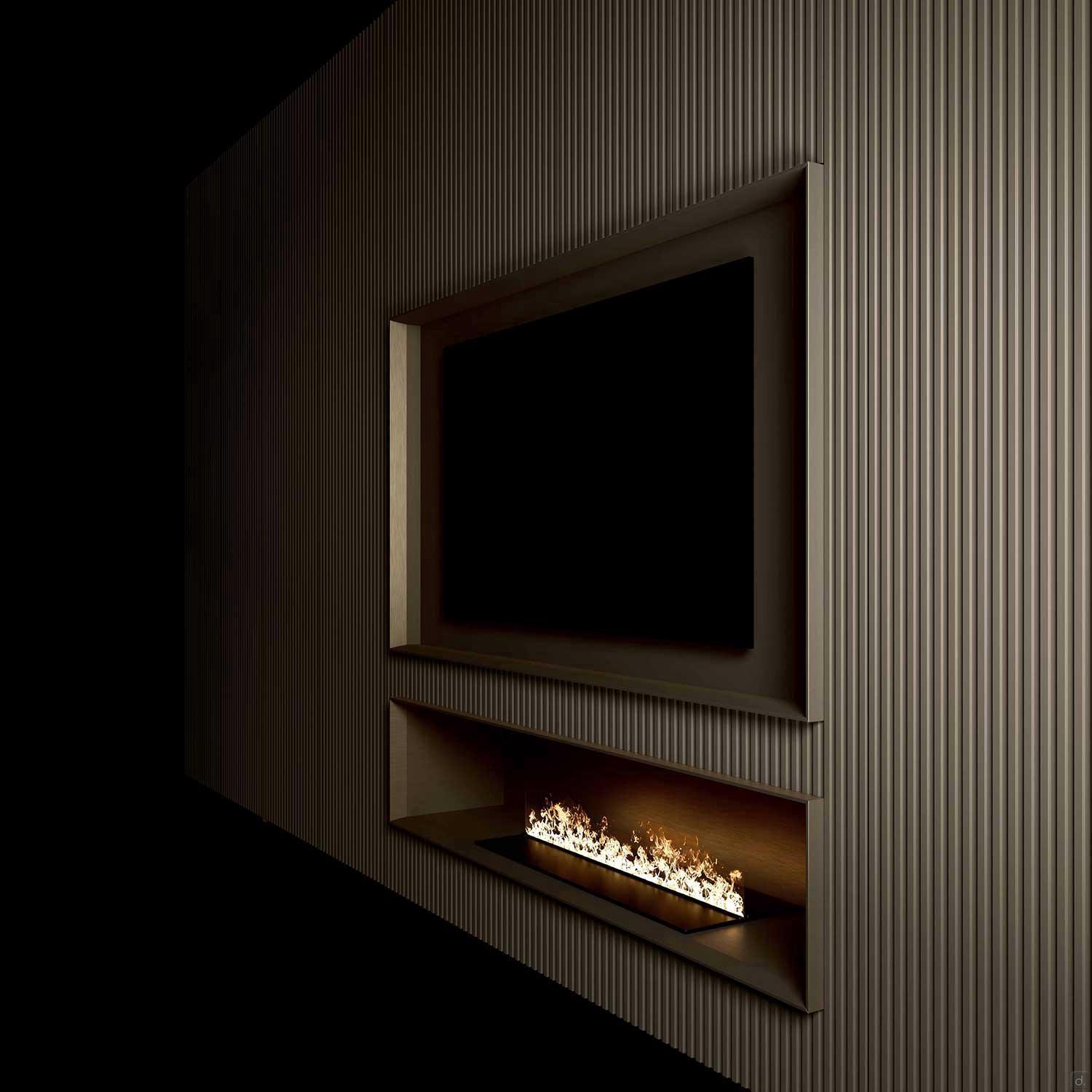

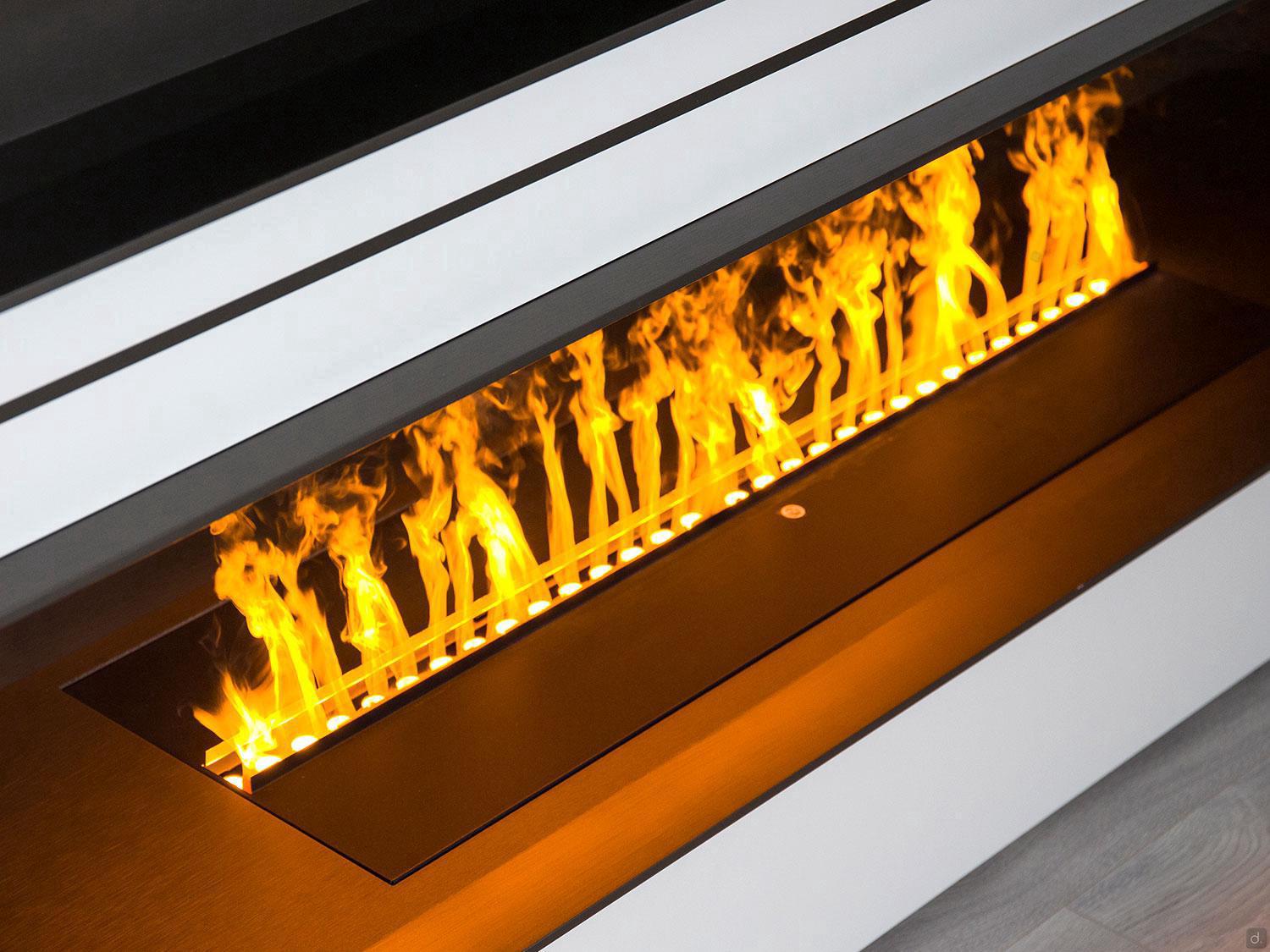

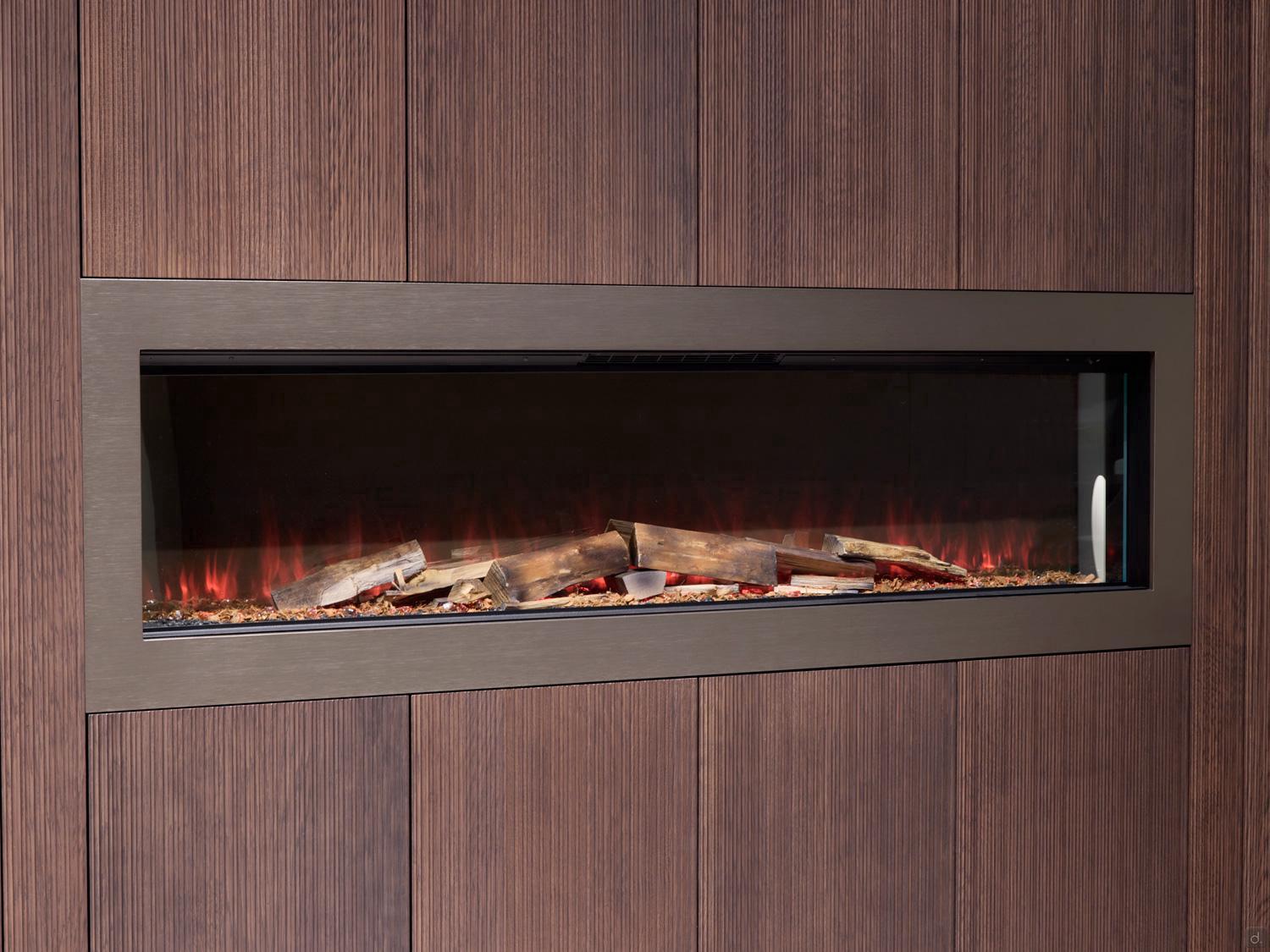

water vapour eco fireplace: water operation without the need for a chimney. With a tank or connected to the hydraulic system. Natural flame effect with remote control, complies with EC (Europe) safety standards.

Assembly Tips
Hardware pre-mounted on all elements to facilitate and speed up the assembly process. The hinged doors are equipped with n.4 slow-closing metal hinges and a rubber dust stop. The feet, which are also pre-mounted on the stands, allow for the correct levelling of the unit.

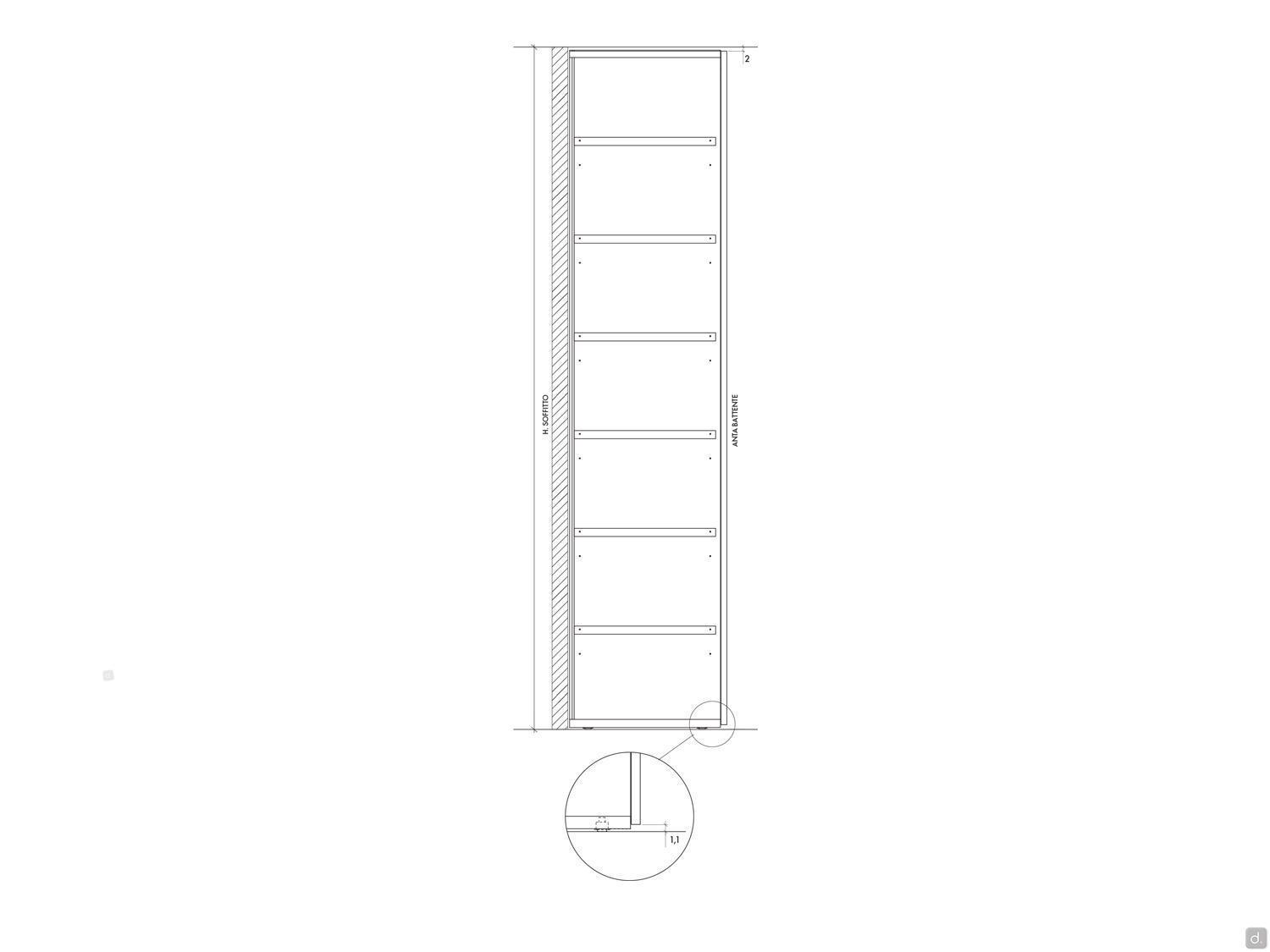

To assemble the body of the cupboard, you will need:
- 4 cm in width (if assembling in a 2 cm alcove)
- 3 cm in height

Further Information...
Honeycomb Panel: panel made with an internal honeycomb structure and a perimeter frame of 5 / 7 cm made from top-quality solid pine, closed with 2 panels in MDF (0,3 / 0,4 cm thick) which are subsequently lacquered and veneered.
The strengths of honeycomb panels are:
- greater durability over time;
- greater resistance to load;
- significantly reduced weight of the panels (up to 60% less), useful for transport, assembly, moving or removals, but especially to reduce the weight of the doors on the structure and hardware;
- hardware always fixed on the perimeter (in solid fir wood) of the sides and doors, so hinges will have a higher resistance and the furniture will have a considerably longer life;
- better resistance to humidity, as the material "breathes";
- product is exclusively "100% Made in Italy".
Aged Oak: compared to the "standard" open-pore oak, aged oak is characterised by a slightly more brushed surface, which shows a deeper pore and a more marked grain. This difference is particularly noticeable on bigger surfaces such as tables, wall units and wardrobes, less so on accessories, beds and bedroom sets.

Video

Additional Information

Area of Production
Italy
Assembling
Medium Assembling
Assembling Instructions
Download the Assembly Instructions
Weight
from 145 to 260 Kg
Cubic Metres
from 0,5 to 0,9 m³
Other Products from the same Collection
View all the products of the collection (cod.olv)

Partner Factory

This piece is made by a prestigious Italian company which has operated within the furniture industry since 1929. The company began as a carpentry workshop, before transforming into a furniture factory in 1949. Over the years, thanks to collaborations with well-known architects and designers, it has acquired fame at both a national and international level. The headquarters are located in Emilia Romagna, but the company is now recognised and valued in over 50 countries around the world.
True to their roots, the company catalogue centres around high-quality, modern furniture and accessories which are mostly made from wood. In particular, there are several pieces of furniture featuring skilfully-crafted wooden facades and doors with pleated details, consisting of vertical slats arranged in a regular pattern. The catalogue reflects modern trends and ways of living, offering customisable and durable options for every room of the house. Furniture solutions for the living room include wall units, tables, sideboards and cupboards. The bedroom furniture range features numerous models of wardrobes, beds and storage units.
As well as furnishing private homes and villas, this prestigious ‘Made in Italy’ company is committed to the design and manufacturing of quality contract furniture, particularly for hotels, showrooms, housing complexes and renowned offices around the world.
