Technical Specifications and Features.
Structure: made of TAMMEL (honeycomb coreboard + melamine). The honeycomb is with carefully selected solid fir frame and the honeycomb plated with MDF panels. It ensures non-deformability over time, lightness, practicality and meets all the requirements of European Class 1 Standards in order to limit harmful formaldehyde emissions, meets CARB2 standards.
Sides and Backs: made of wood particle board (class E1 low formaldehyde emission), meets CARB2 standards. Sides cm thick 2.5 / backs cm thick 0.8.
Bases and Lids: made of honeycomb coreboard cm thick 3.2 and cm thick 2.5 respectively.
Shelves: in honeycomb sandwich board cm thick 3.2 d.36.1.

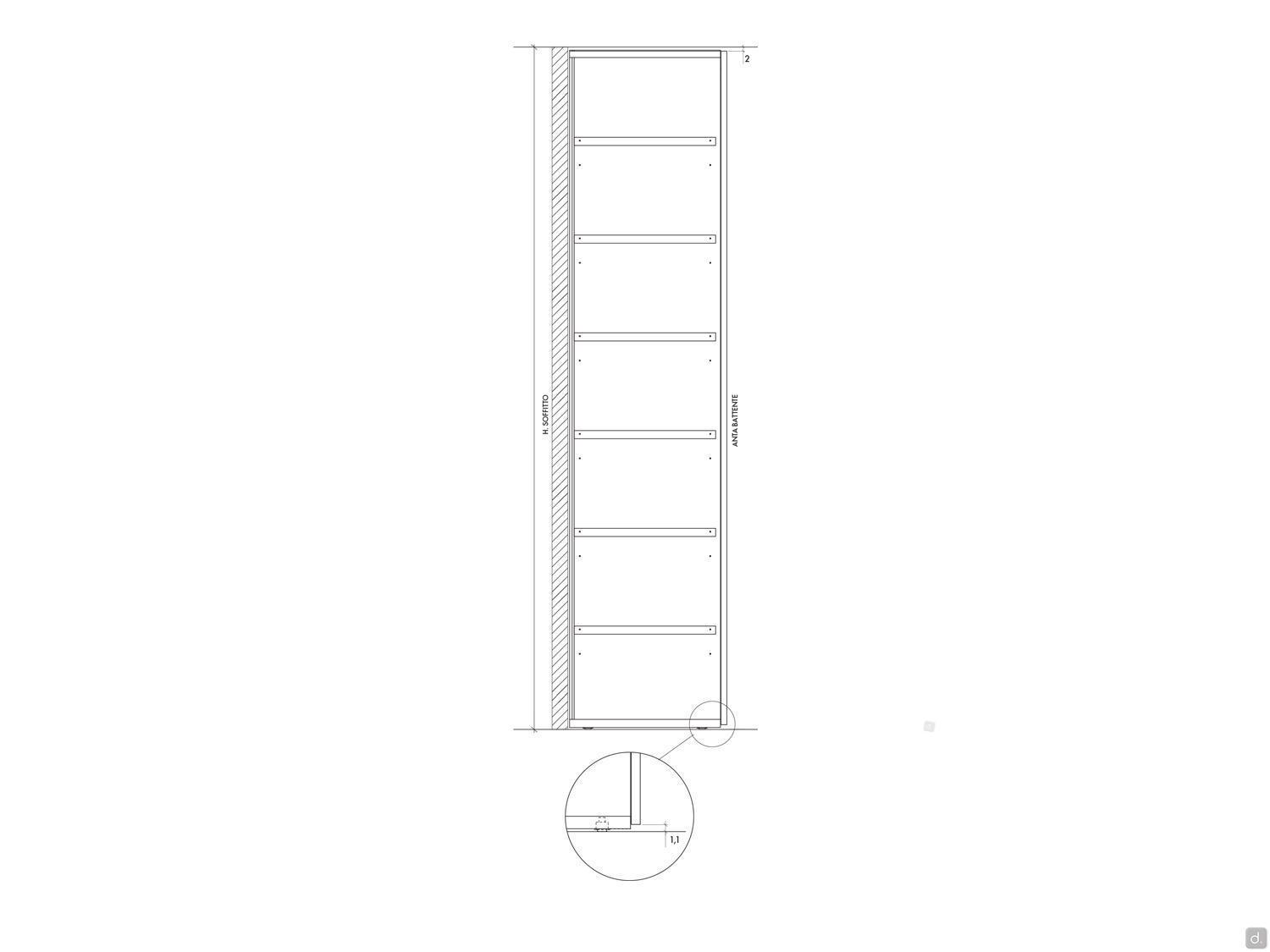

Door height from the floor: cm h.1,1.
Lacquered/wooden doors: in honeycomb-core cm sp.2,4 with solid fir frame, lacquered or wood. The fronts can be smooth or customized (only in matte lacquer or open-pore oak wood finish):

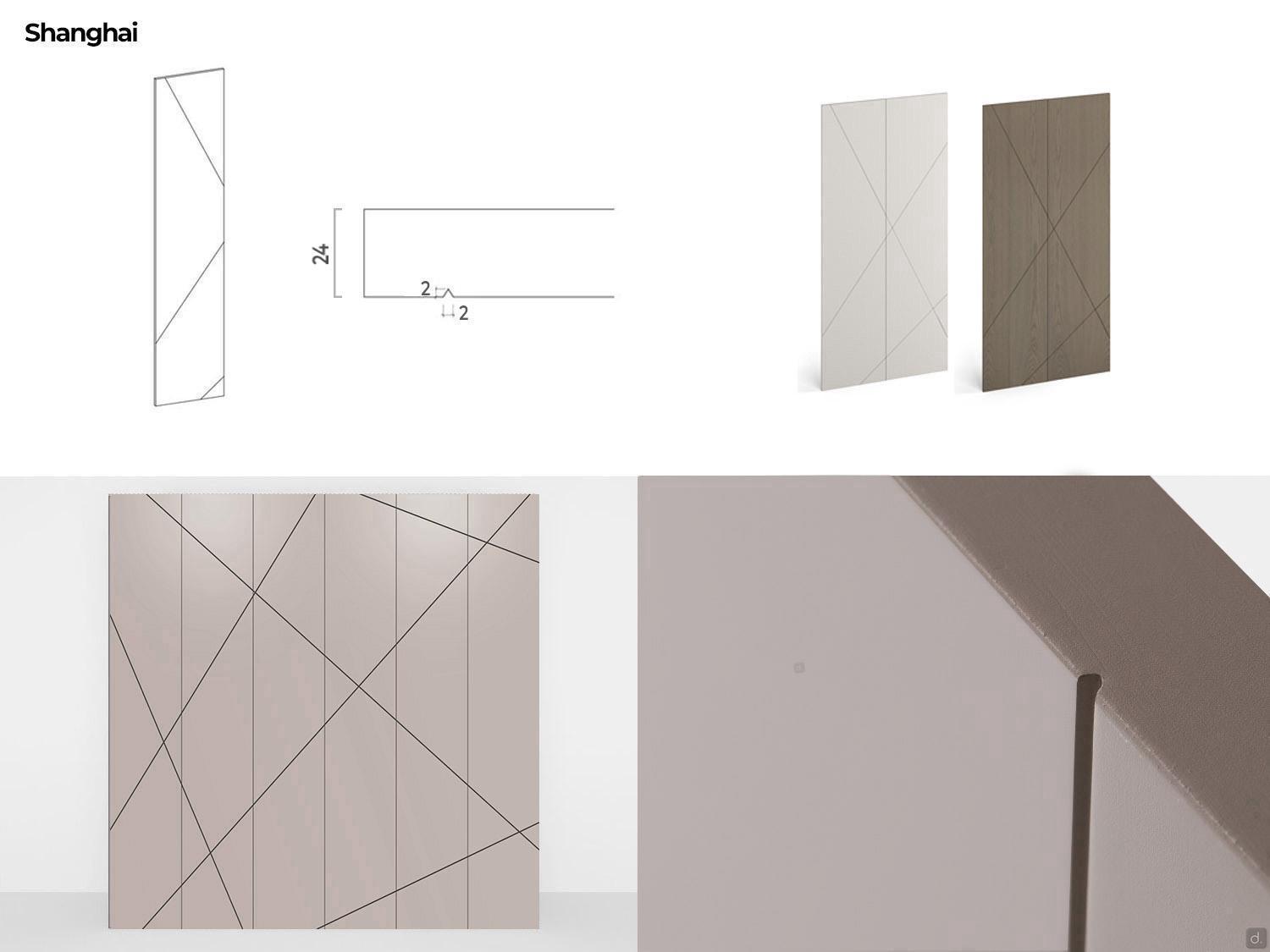

- Shanghai (only in matte lacquer finish): diagonal "V" engravings cm 0.2 thick.

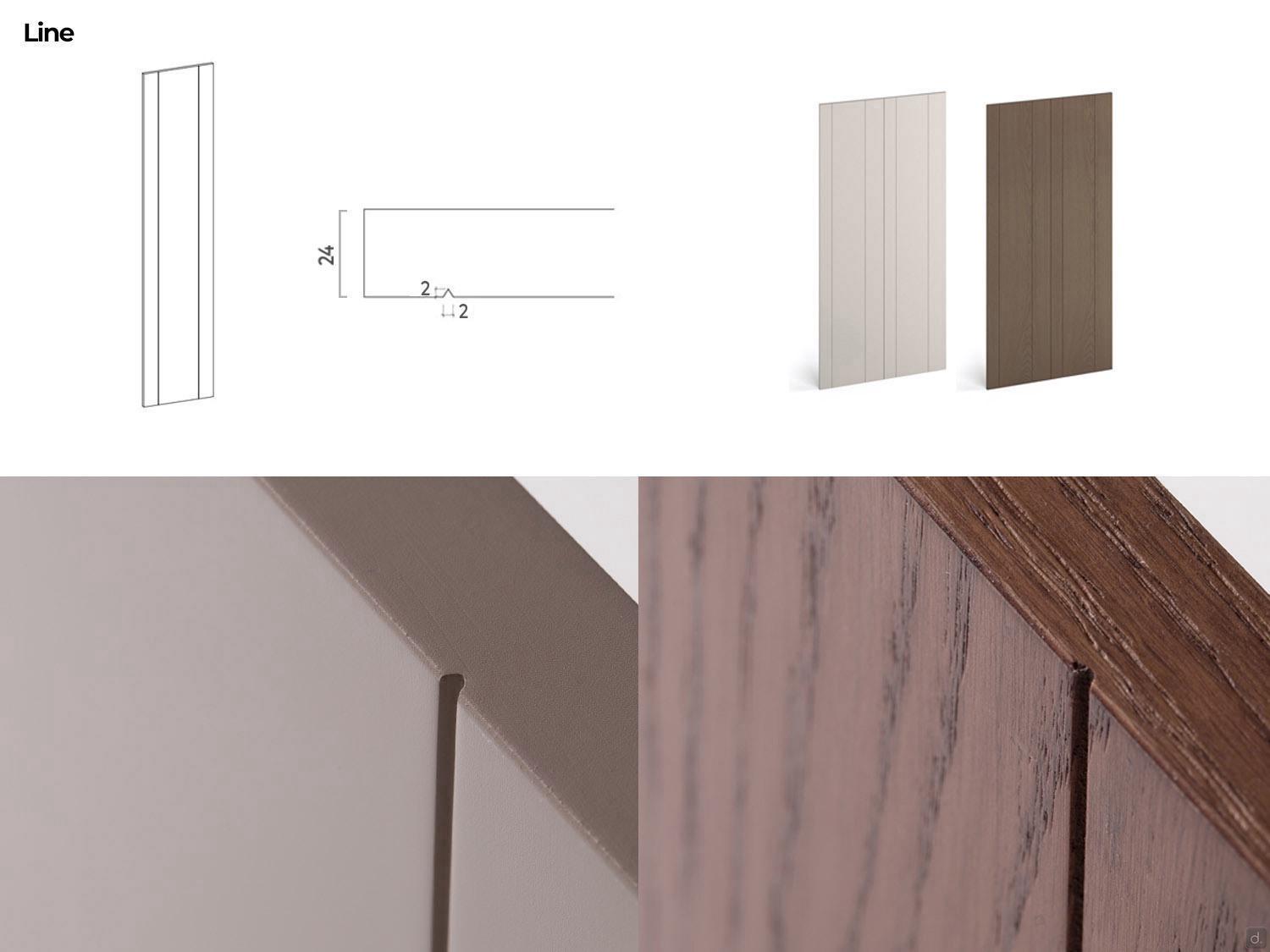

- Line (only in matte lacquer finish): vertical "V" engravings cm 0.2 sp.0.2.
- with metal insert: cm 1 sp.0,2 in "version 1" with n.2 horizontal + n.1 vertical or in "version 2" with n.1 horizontal + n.1 vertical.

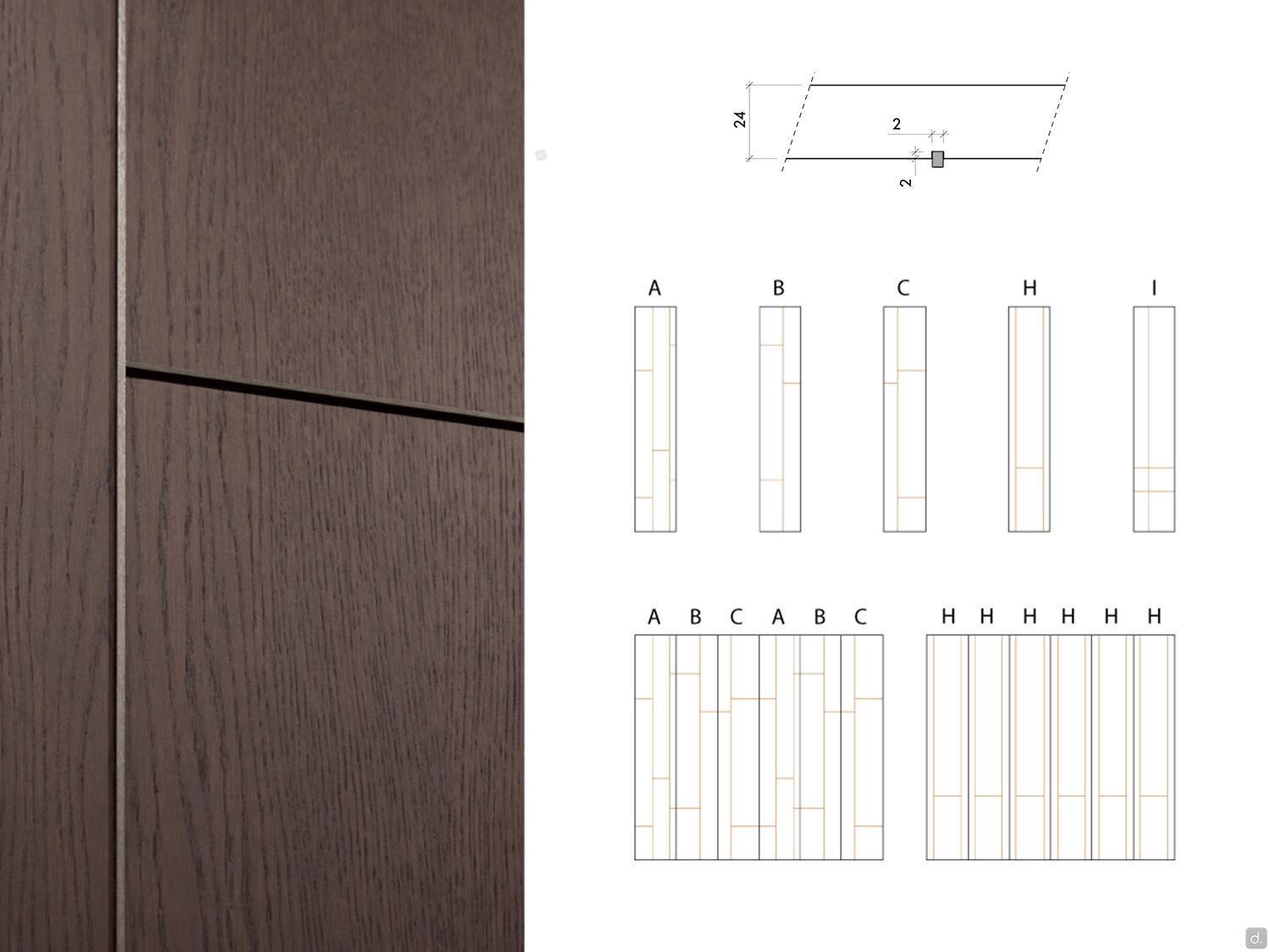

- With metal insert 2:2: cm 0.2 thick in different versions.

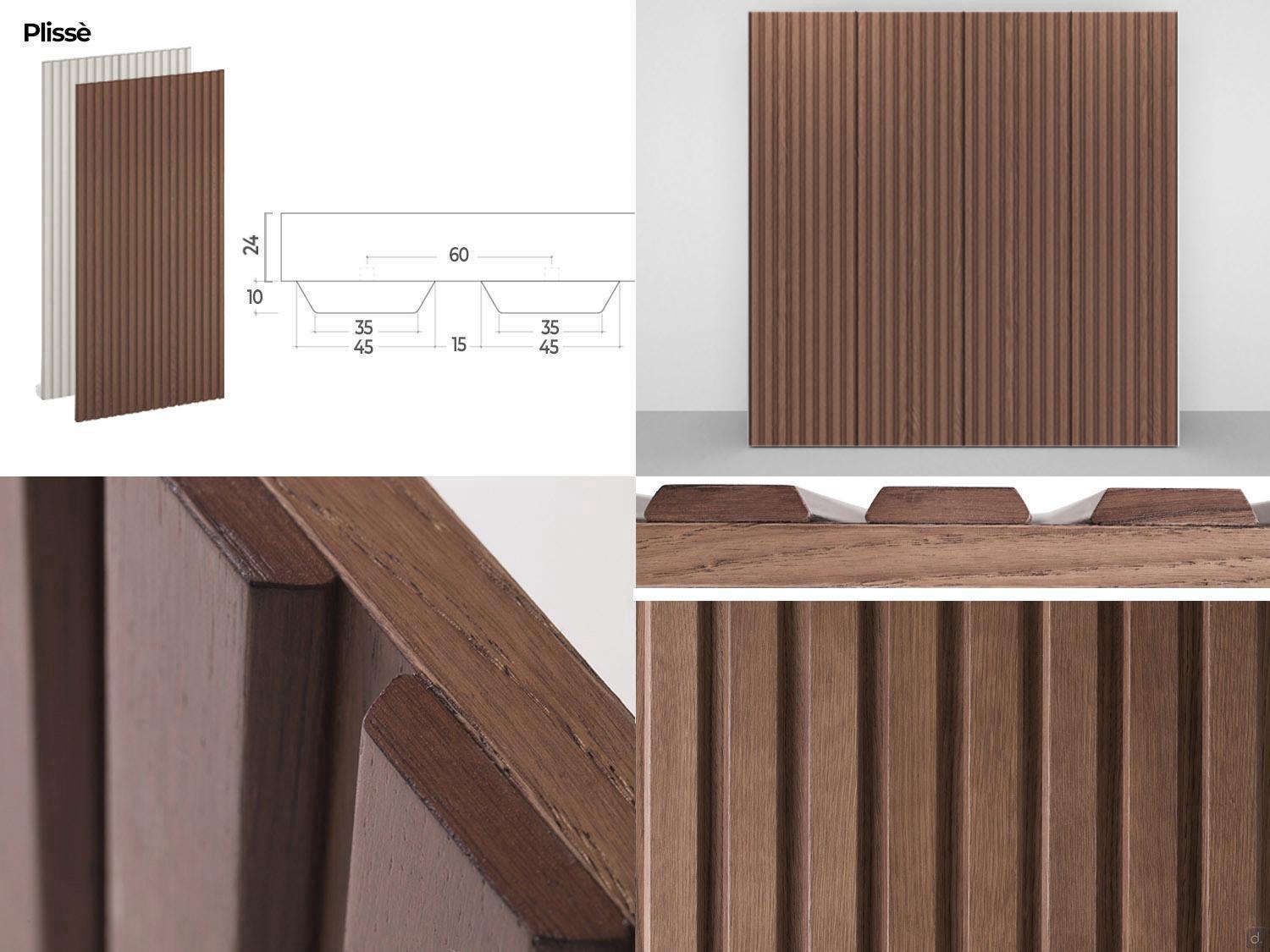

- Pleated: staves in lacquered solid wood or oak veneer with 30° processing: cm 4.5 sp.1.
- 10:10 (only in matte lacquer finish): "U" incisions cm 1 sp.0,2.

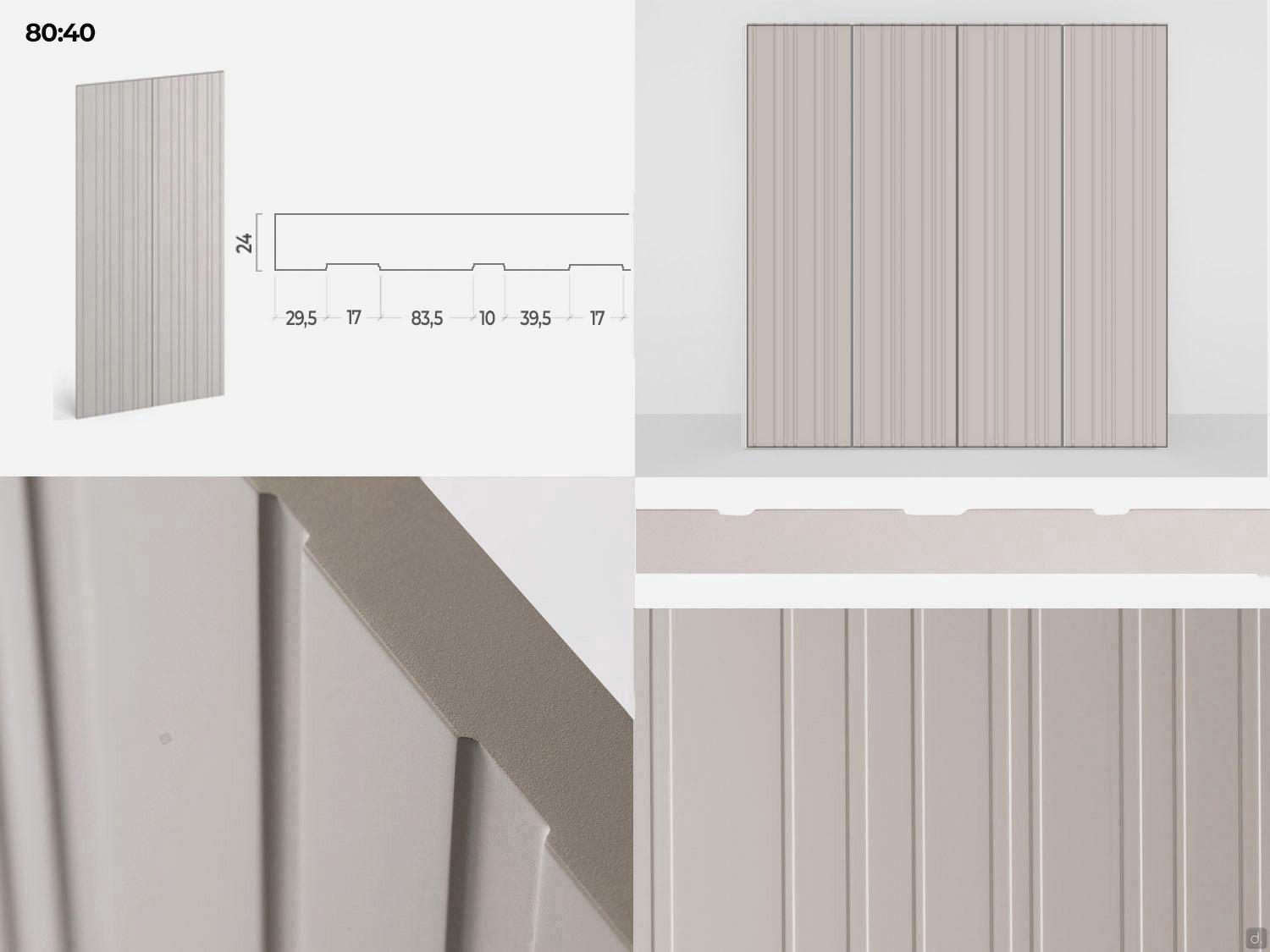

- 80:40 (only in matte lacquer finish): "U" engravings cm 1 sp.0,2 with variable pitch.
- 10:2: vertical "V" incisions cm 0.2 thick.

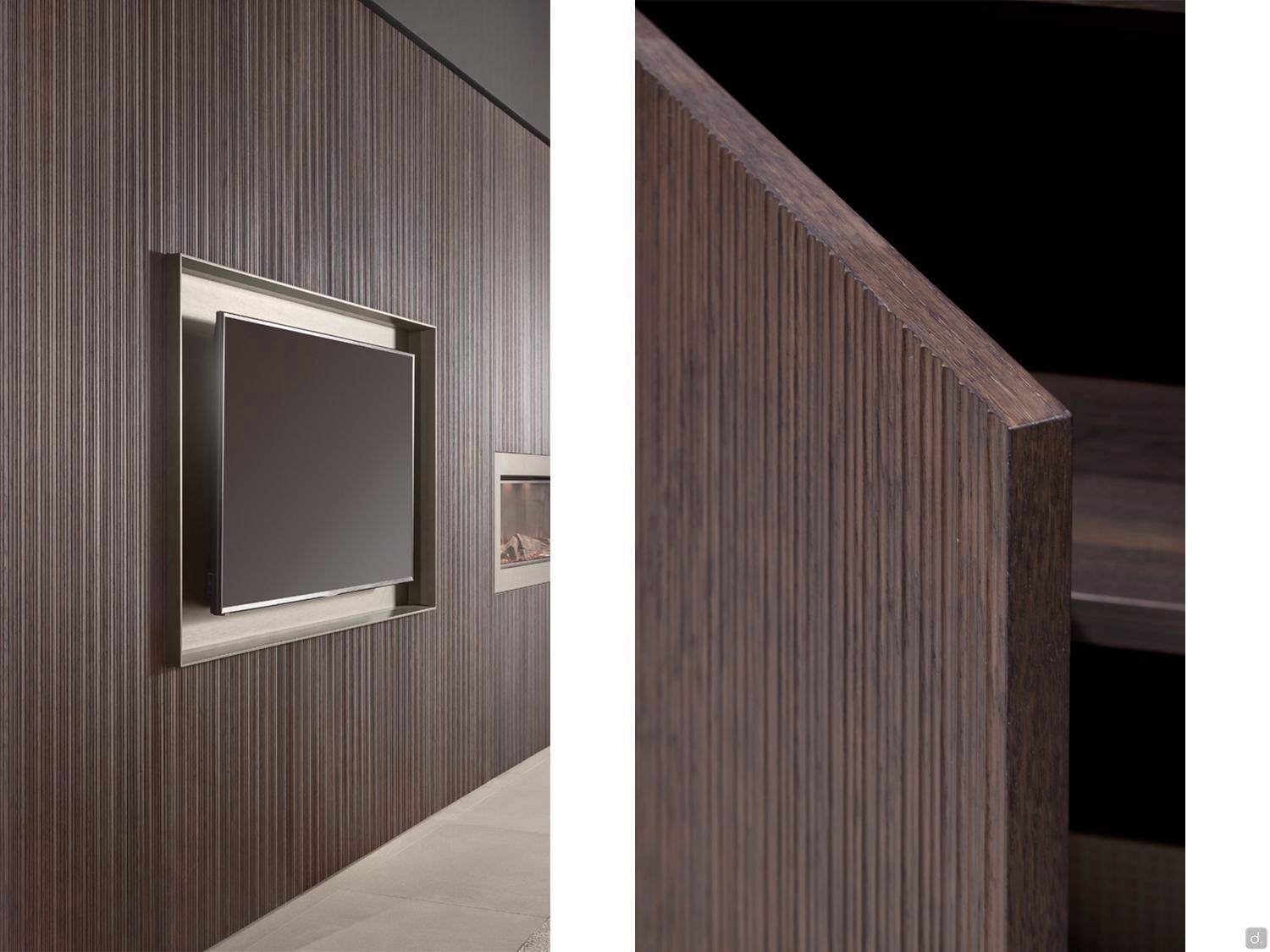

Doors also available in TAMMAS (honeycomb + solid wood), honeycomb with solid fir frame and honeycomb plated in solid wood on both sides, stained in sample finishes and decorated with 10:10 or Wave processing. Realizable only by design, for more information contact our Customer Service Department.

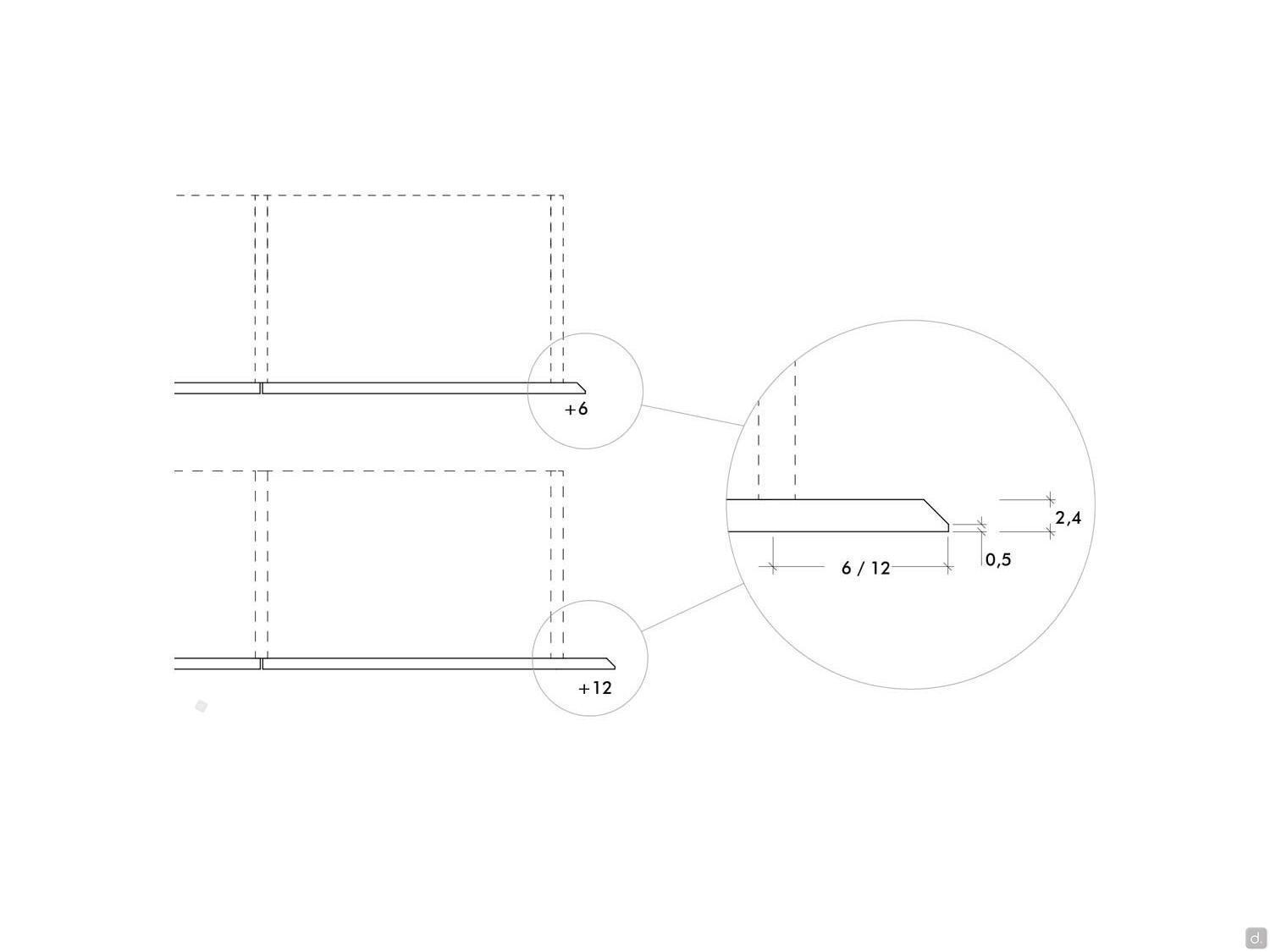

Diamond Doors: special surface processing on 2.4 cm thick honeycomb door with solid fir frame, lacquered or wood. Standard width (opening through groove) or with overhanging processing (+ cm 6 / 12). Frame and horizontal groove in matte lacquer or open-pore oak wood.

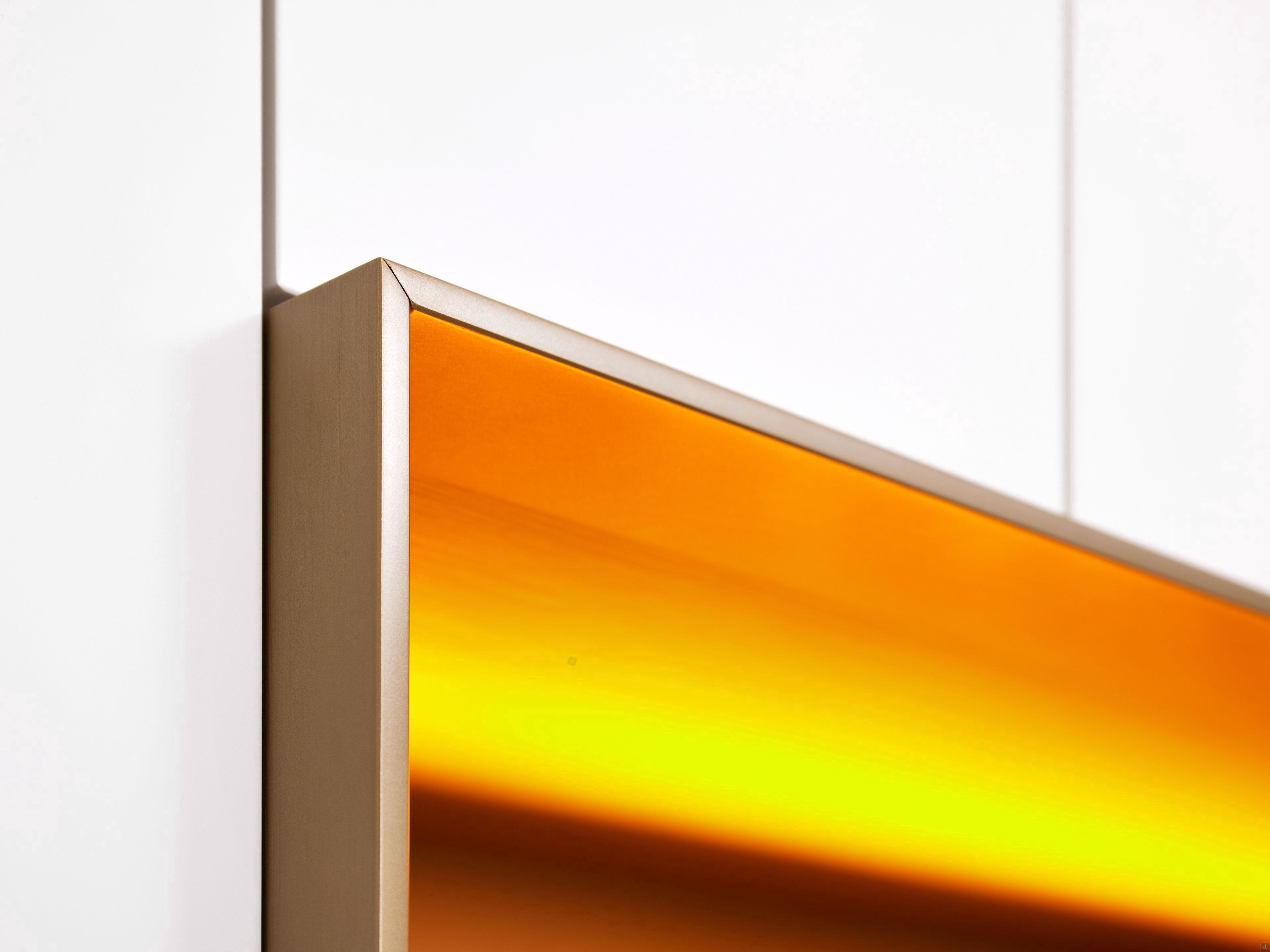

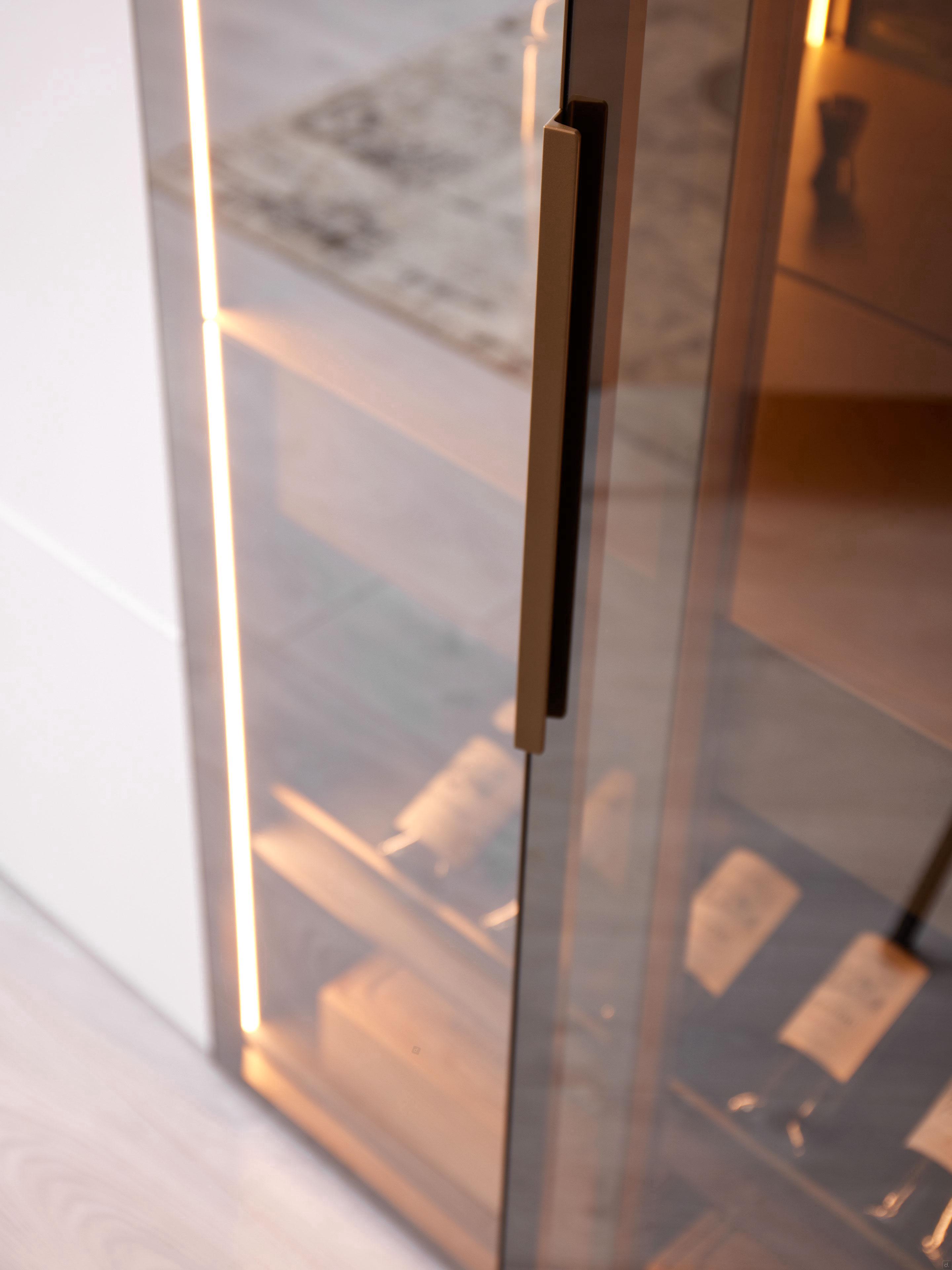

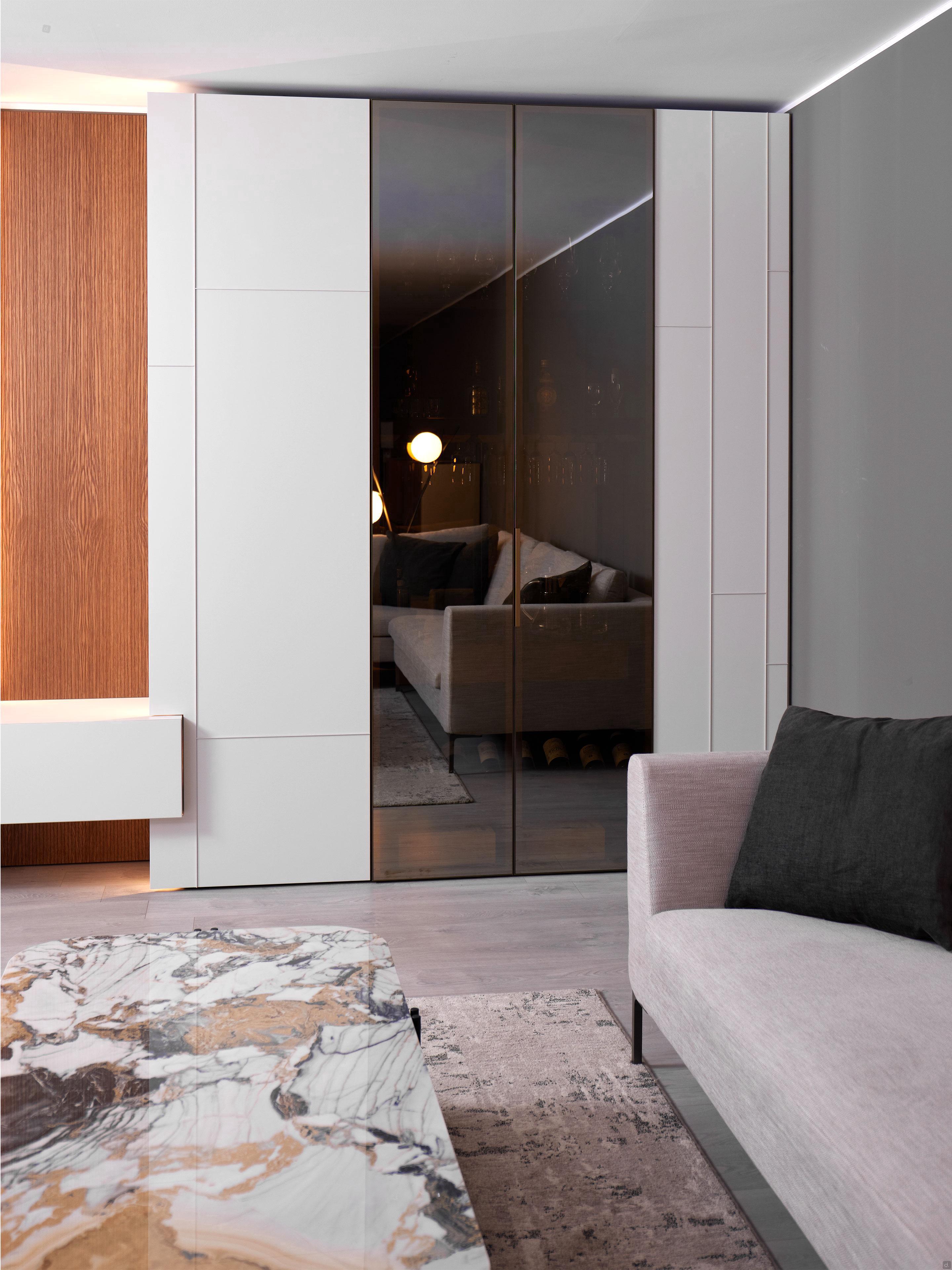

Glass / stone doors: on anodized aluminum frame cm sp.2.8. Glass cm sp.0.4 glued on frame. Laminam ceramic stone cm sp.0,3 with back glass fiber glued on frame. Handle integrated with the frame, in the 2-leaf version it is placed on the door opening to the right.

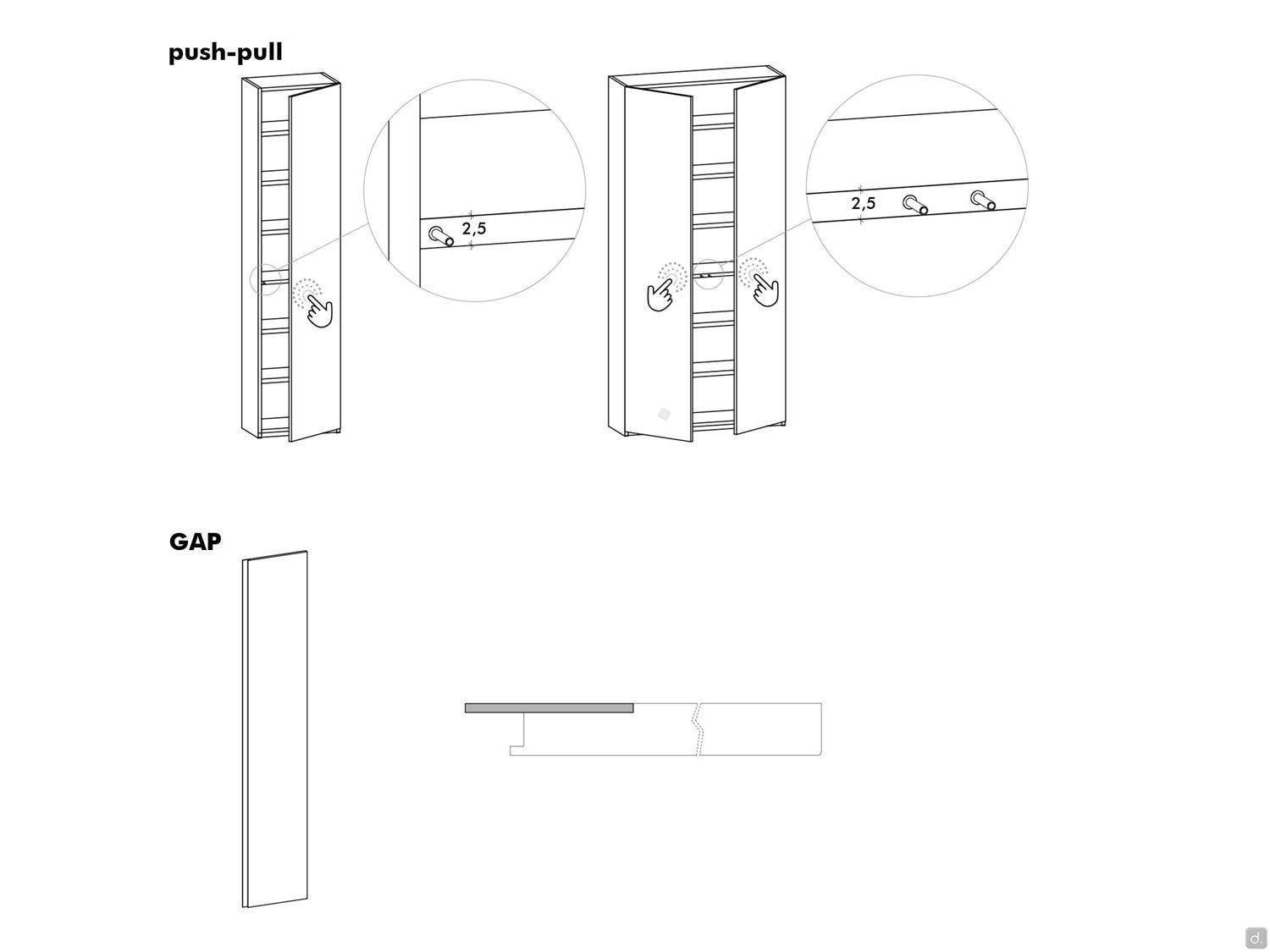

Handles: push-pull or full-height Gap groove. The latter consists of a 3 mm thick wooden strip that can be lacquered in all matte and metallic colors or veneered in open-pore oak.
Hinges: metal in titanium finish with slow closing as standard. Standard opening angle at 95°, which can be increased to 155° for wood and lacquered doors or 170° for glass doors. Hinged doors are equipped with No. 4 slow metal hinges up to cm 280 height, No. 5 hinges for higher heights.
Day Compartment: in MDF cm thickness 1.8.

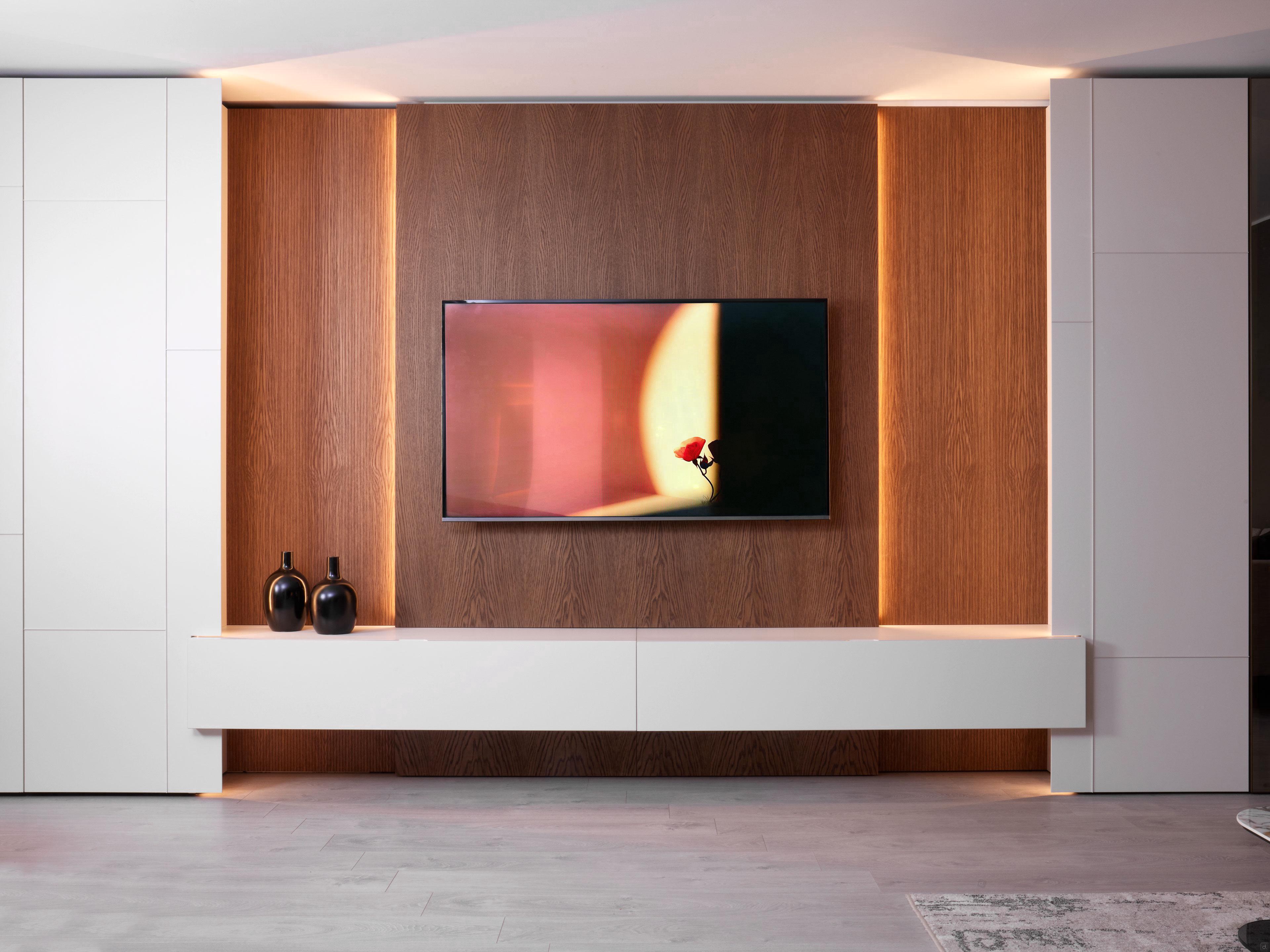

Boiserie Panels: in MDF cm sp.1.8 complete with hardware for wall mounting (6.8 cm technical compartment).

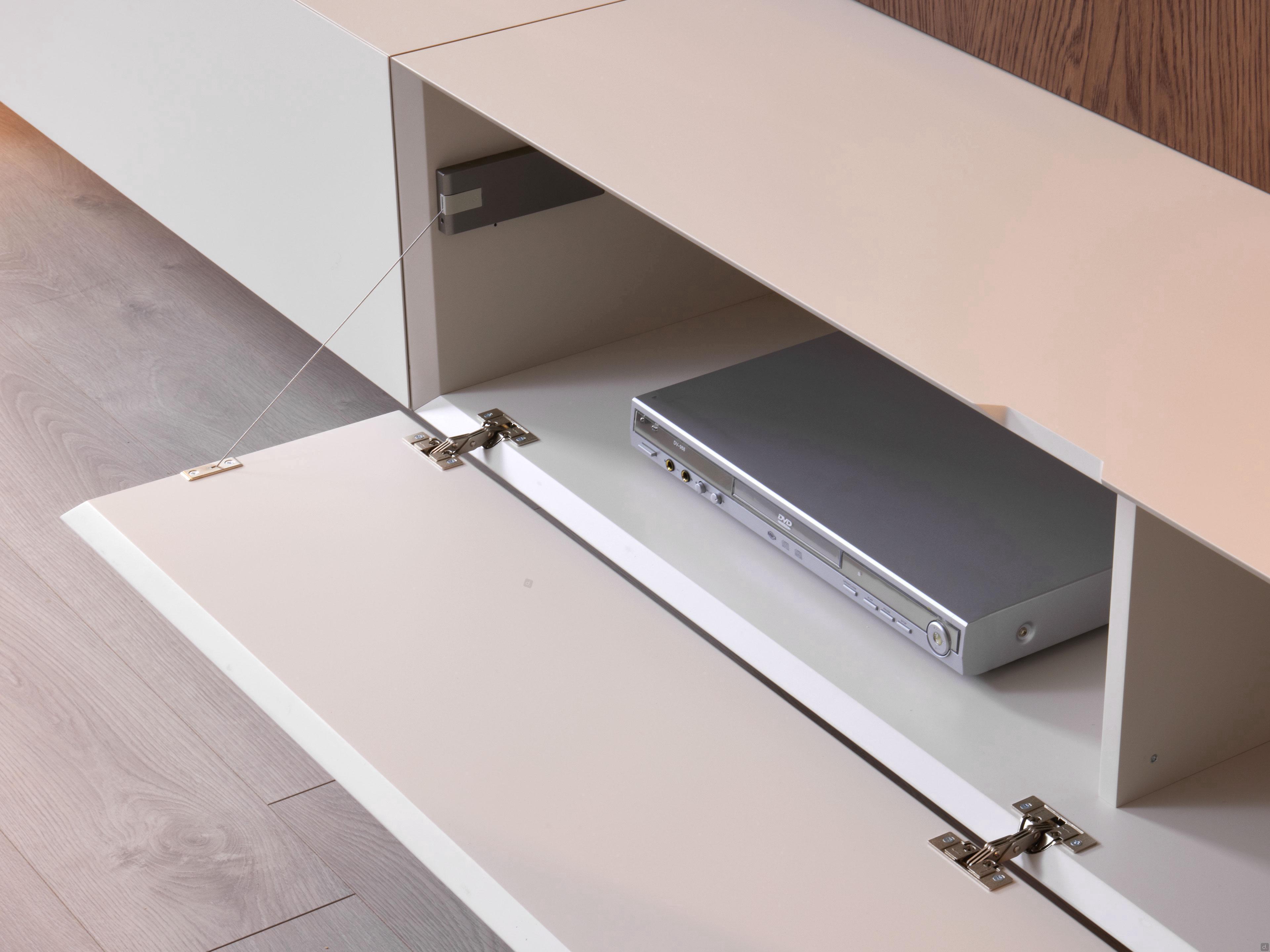

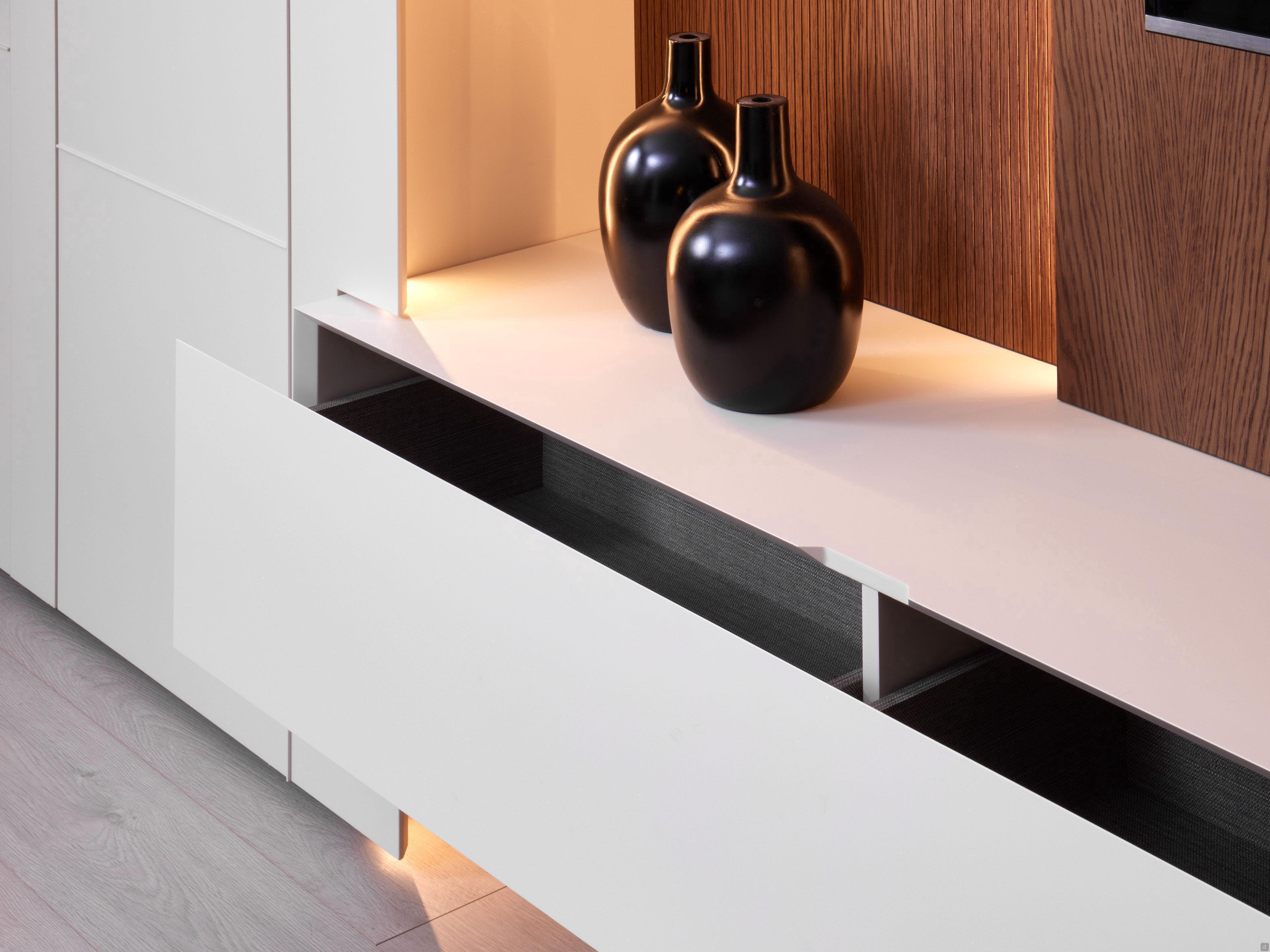

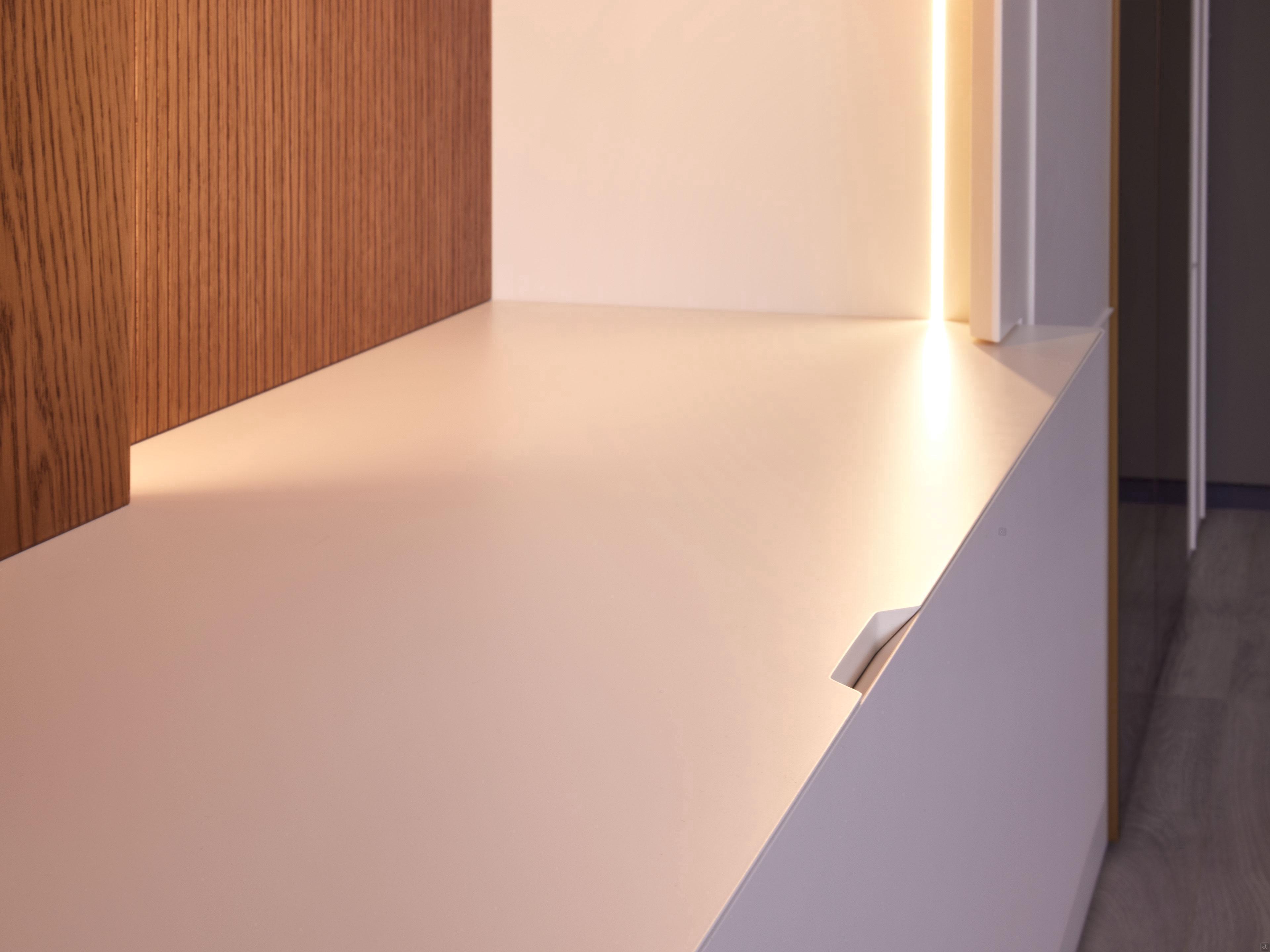

Suspended Base Cabinets: structure in MDF cm sp.1.8 with 45° machining on all sides. Available with drawer or drop-down door. Supplied as standard with slot for cable passage cm 20 x 2 (distance from back cm 3). The cable passage slot remains hidden from view, accessible from the 6.8 cm technical compartment that separates the wall from the paneling.

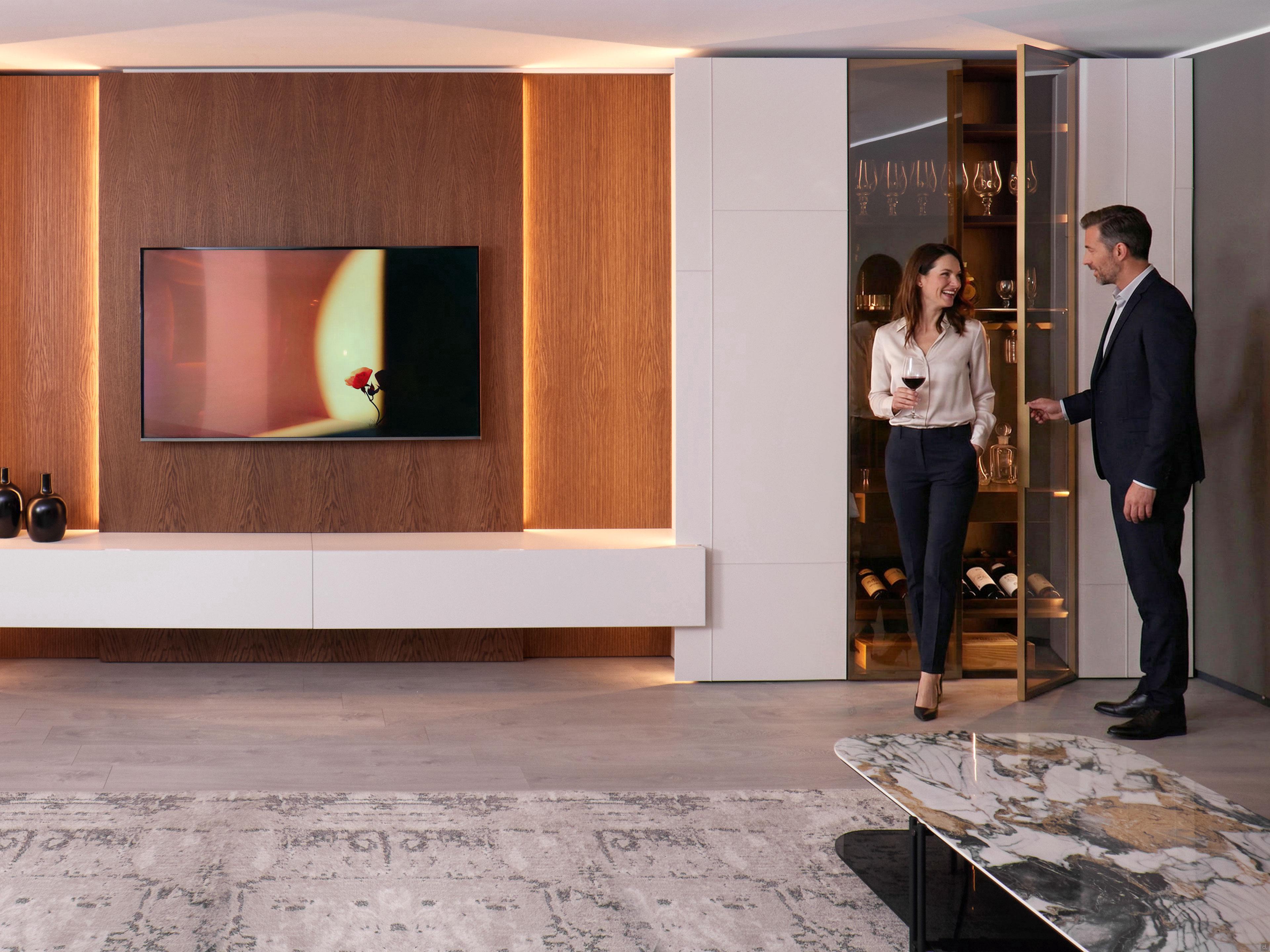

Equipment Bar Column Wardrobe Glass Doors:

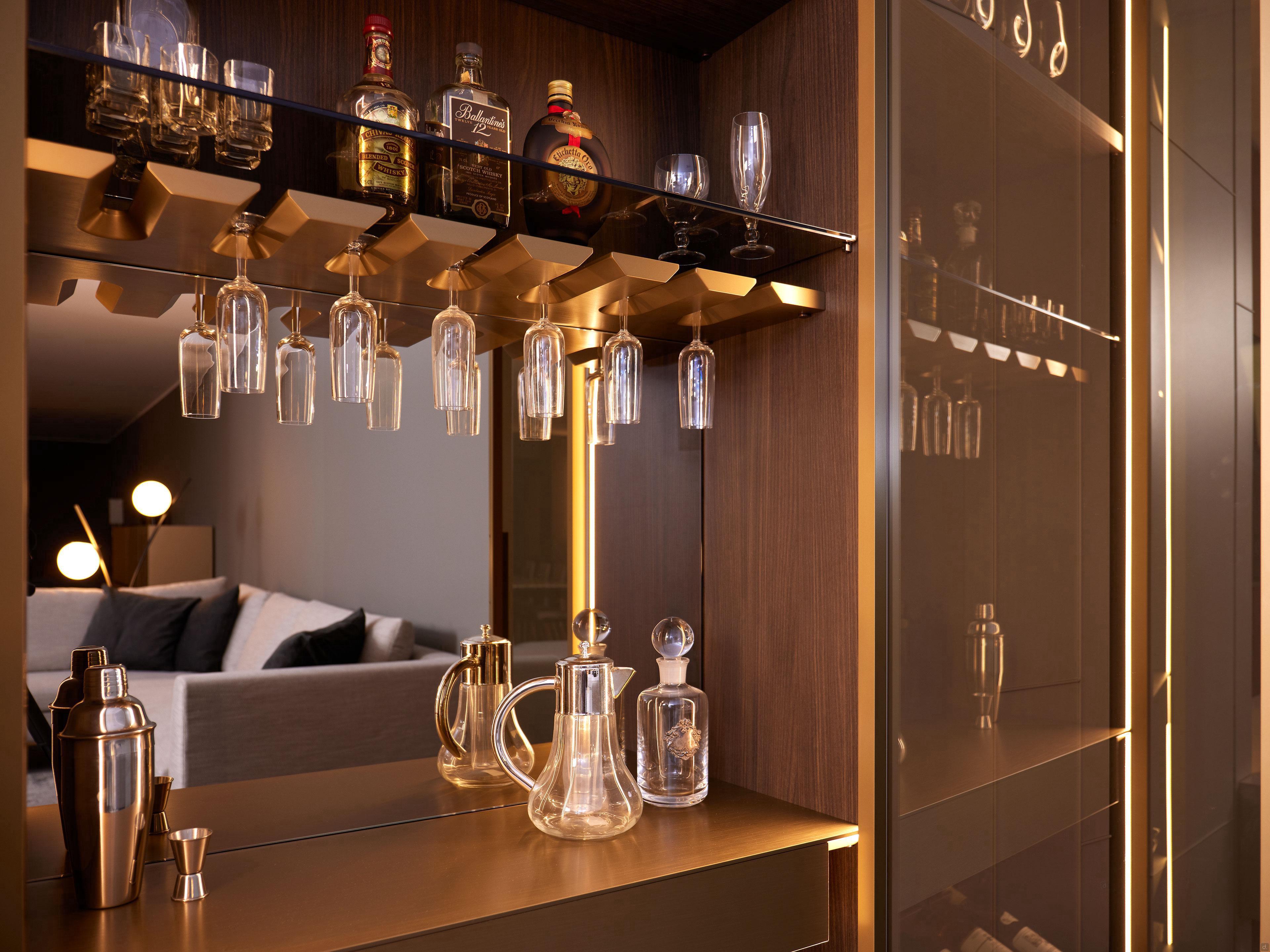

- no.1 glass rack shelf cm d.28 sp.2,5 in lacquered wood with 45° machining and grooves to accommodate glasses.

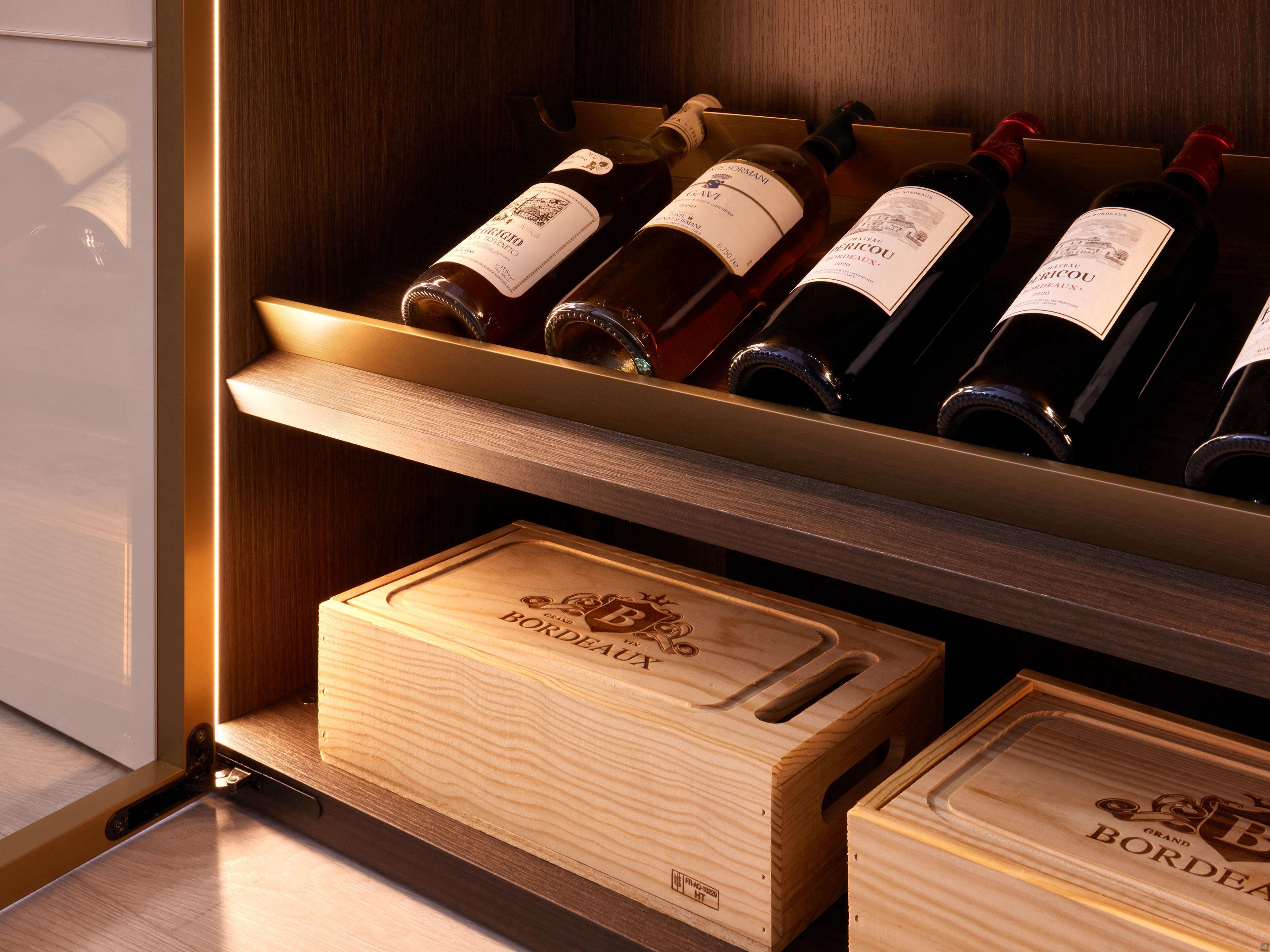

- n.1 inclined shelf bottle holder cm d.36 sp.2,5 (cm h. total 8,5) equipped with lower and upper riser (with grooves to accommodate bottle necks) in lacquered metal.

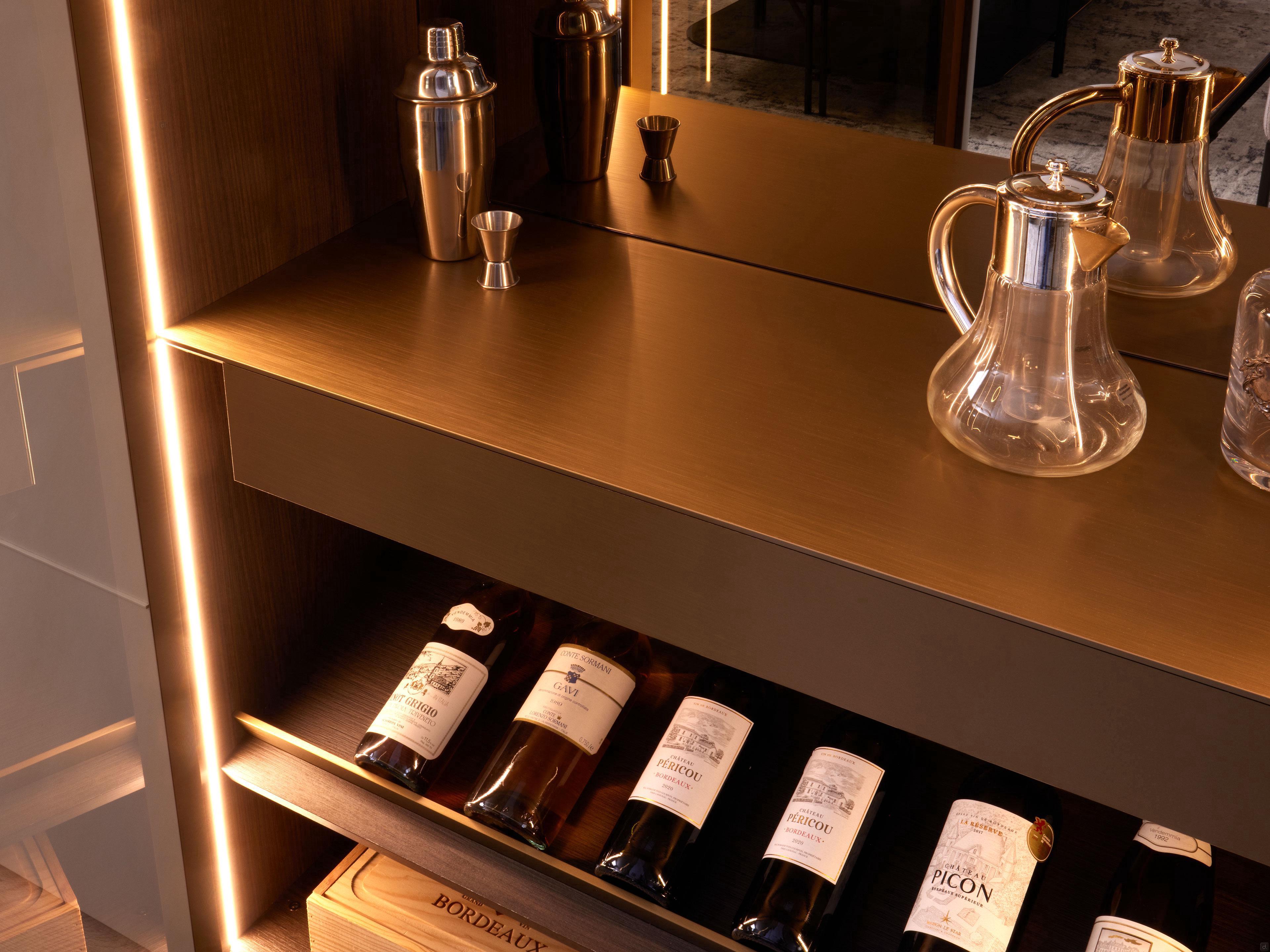

- n.1 drawer cm d.35,7 h.13 complete with top cm sp.2,5 in lacquered wood.
- No.1 mirror cm h.64,2 in natural mirror glass finish fixed on the back of the column.
Please note: The sides are always supplied without edging on the short sides. This difference in finish, which is often hidden from view once the cabinet is assembled, deliberately leaves the solid spruce frame of the honeycomb panel exposed to enhance the wooden component of the element and show the high quality of the finished product.
Drilling Sides

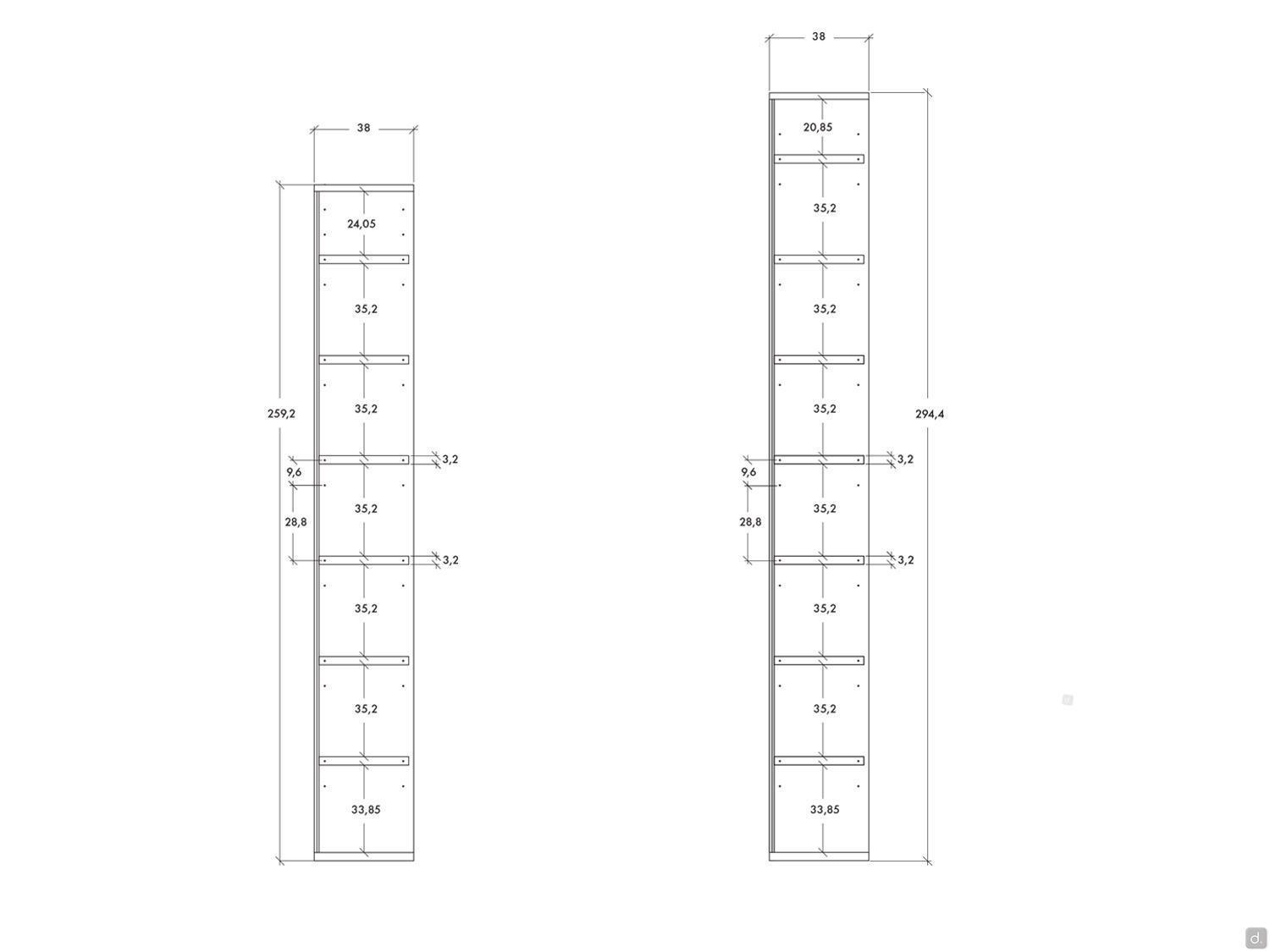

The sides include pairs of Ø 1.5mm holes spaced 9.6 cm apart, placed every 35.2 cm (see the diagram in the gallery).
Optional - open compartment module
internal LED lighting for open compartment: horizontal LED bar positioned 0.6 cm from the backrest along the entire width of the open compartment, which can be equipped with a transformer (maximum power supported 30 W) with commanded ignition or touch switch. 3000K-24V warm gradation LED.

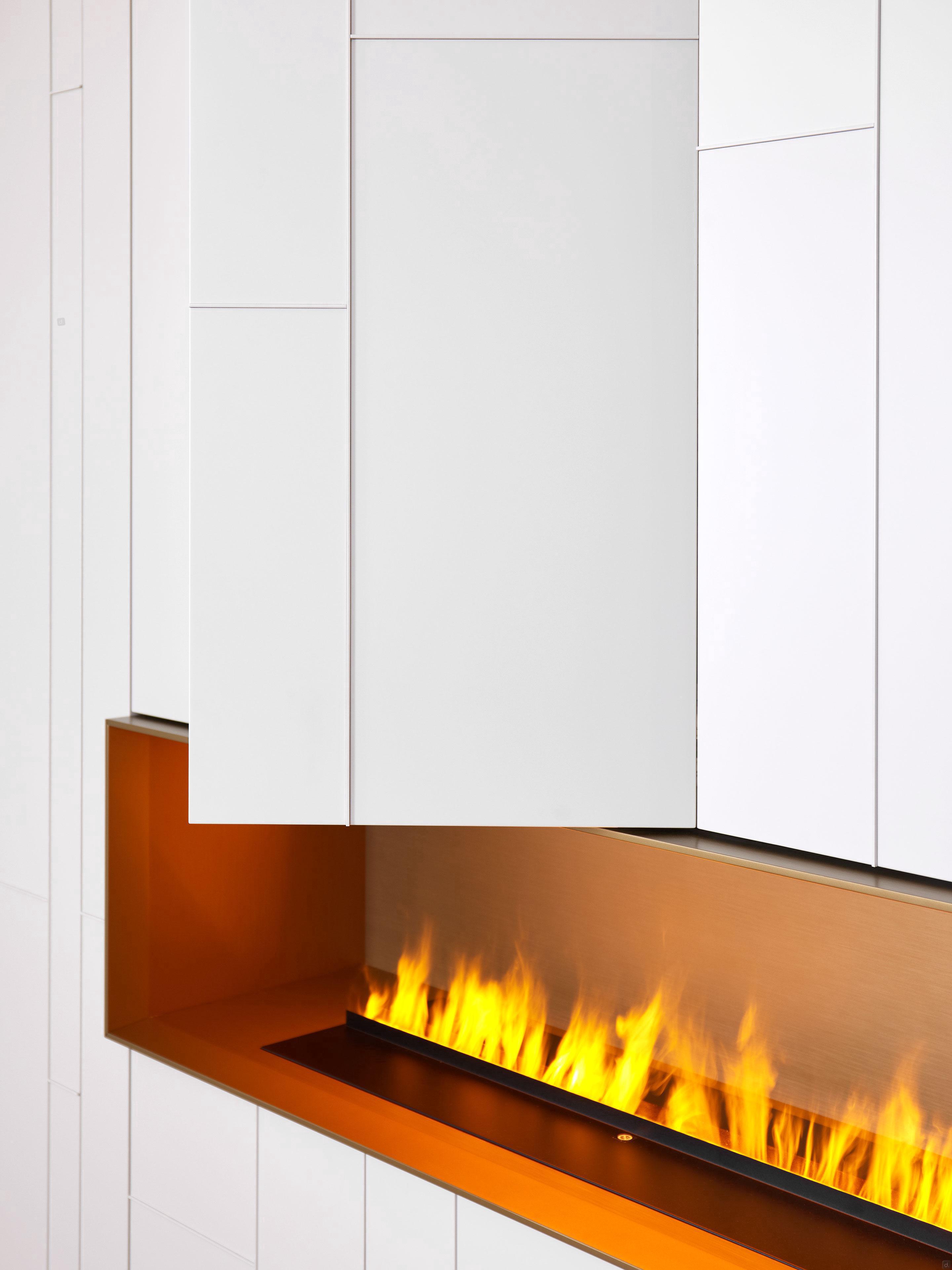

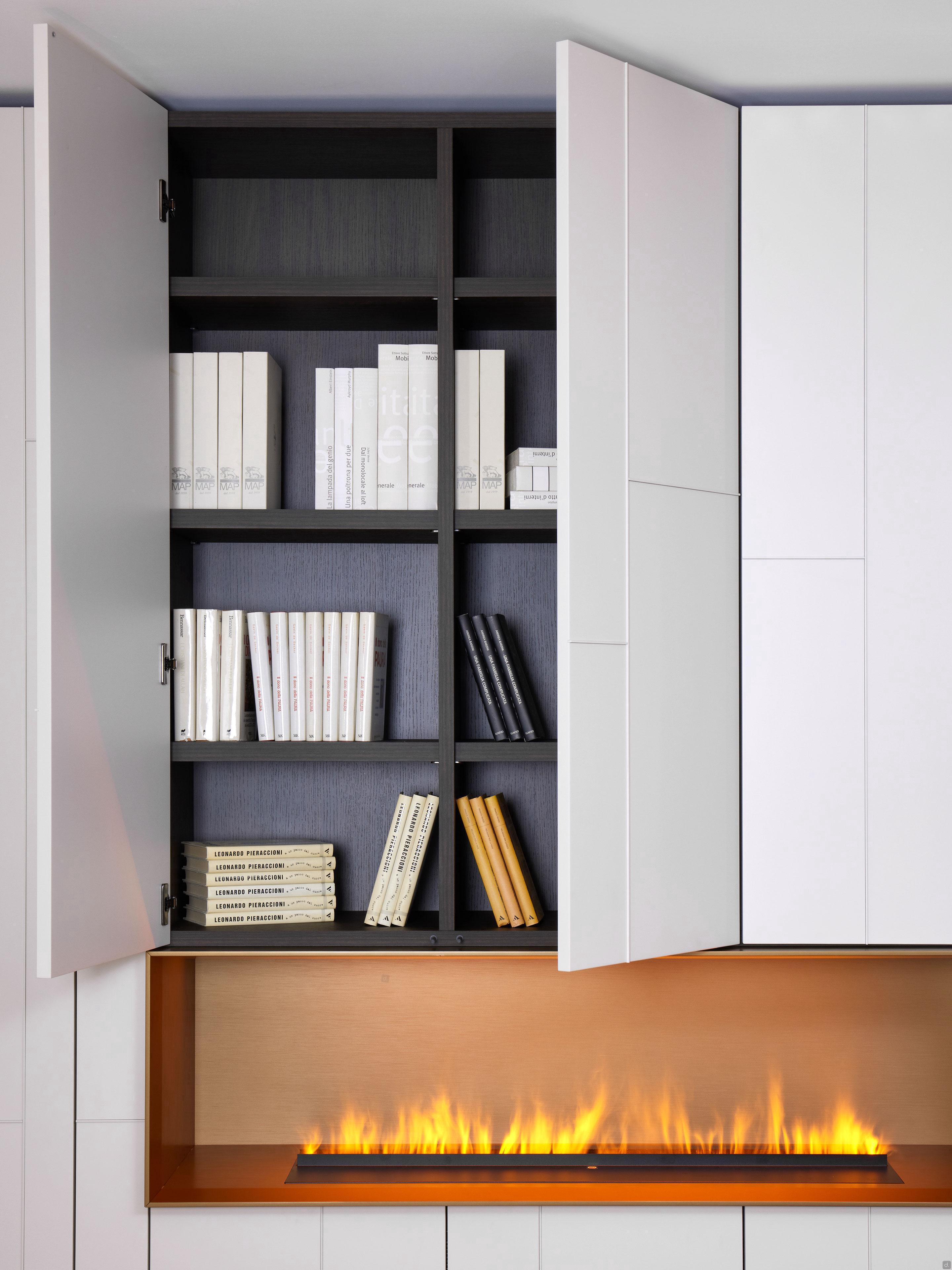

Water vapor fireplace (as a replacement for the open compartment): water operation without the need for a chimney, equipped with a tank or connected to the plumbing system. Natural flame effect with remote control, complying with CE (Europe) safety standards.

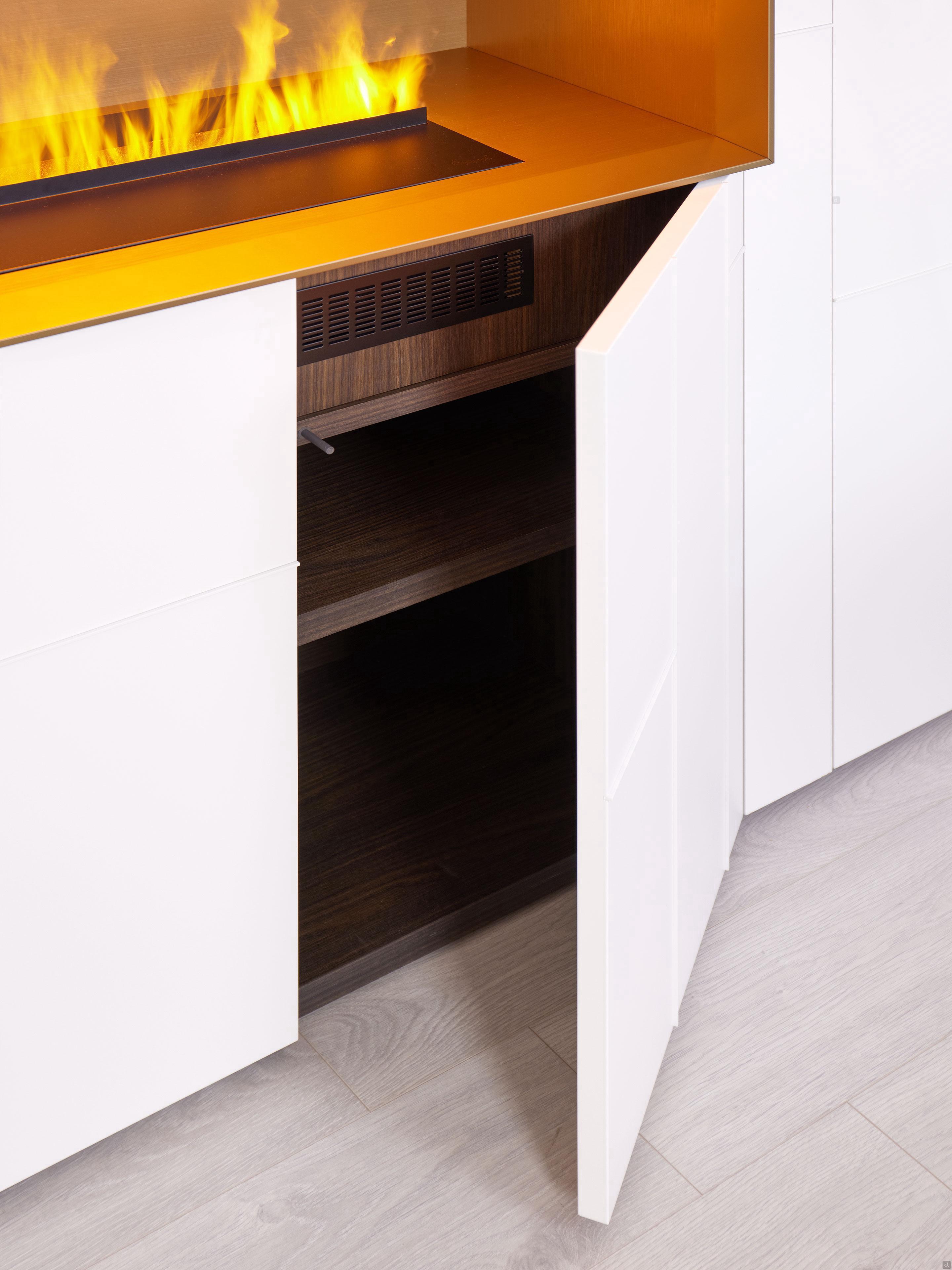

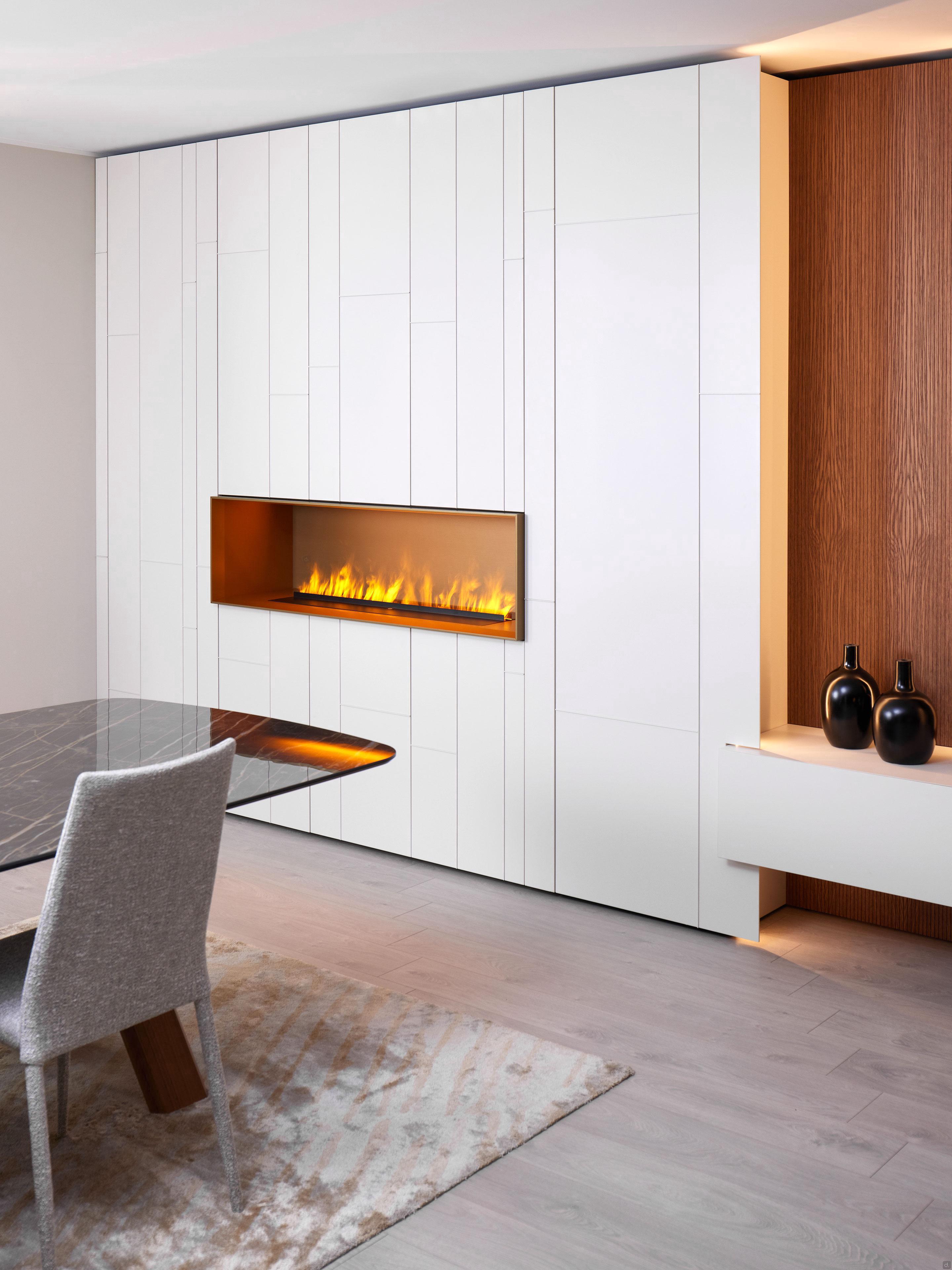

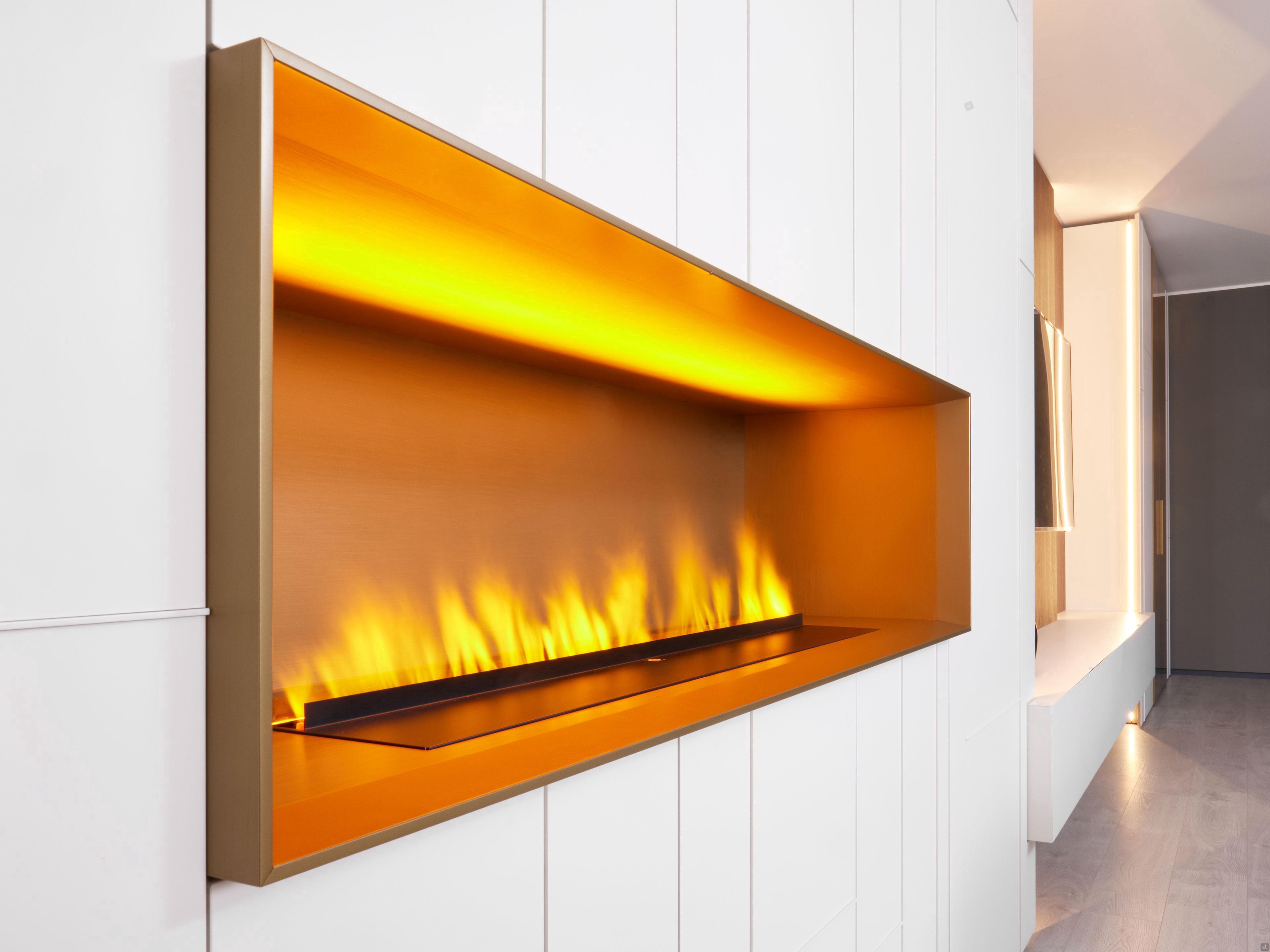

3D electric fireplace (in place of the open compartment): operates exclusively with electricity, is equipped with remote control and complies with CE (Europe) safety standards. Configuration and adjustment of the fireplace can also be done with a smartphone using the E-SMART app available for both Android and Apple: however, in this case a wireless network will be required.
The electric fireplace is integrated into the cabinet by replacing the open compartment with a dedicated structure also including the perimeter frame flush with the doors, which can be in matte lacquer or metallic.
Through LED lighting and a special internal mechanism, the electric fireplace simulates a traditional fireplace fire. Thanks to a ventilation system that can heat rooms up to 25 square meters, a pleasant warmth will envelop the room. Alternatively, you can also choose only the flame effect, without heat diffusion.
Optional - side cabinet columns
vertical LED bars: placed on sides and/or internal divisions of the modules, they are oriented 30° inward: for lighting outside the modules the bars are placed 3 cm from the fronts, while for lighting inside the modules they are 0.6 cm from the fronts. They can be equipped with a transformer (maximum supported power 30 / 75 / 150 W) and lighting by controlled socket (open compartments or transparent glass doors) or sensor (for all other doors). 3000K-24V warm gradation LEDs.
Optional - boiserie panels
LED lighting: placed on the perimeter frame of the wooden composition (3000 K - 11 W/ml). Transformer for controlled socket or touch switch cm Ø 2.
Mounting tips
Pre-mounted hardware on all elements to make assembly easier and faster.
Feet, also pre-mounted on the plinths, allow proper leveling of the cabinet due to a maximum extension of cm 0.8. In the unloaded position, they measure cm 0.5.
Mounting the body requires:
- in width cm 4 (if assembly in niche cm 2)
- in height cm 3
Read more...
Honeycomb: is a panel made with an internal honeycomb structure and perimeter frame of 5 / 7 cm made of first-grade solid fir closed with 2 MDF panels of thickness 0.3 / 0.4 cm, later lacquered or veneered.
The strengths of honeycomb paneling are:
- greater durability over time;
- greater resistance to load;
- significantly reduced panel weight (up to 60% less), which is useful both for transport, assembly, moving or relocation, but especially for reducing the weight of the sashes on the structure and hardware;
- hardware always fastened to the perimeter (solid fir) of sides and doors, so hinges will have greater strength and furniture will have significantly longer life;
- better resistance to moisture, as the material "breathes."
- exclusively "100% Made in Italy" product.
Rovere Vissuto: compared to "standard" open-pore oak, lived oak is characterized by a slightly more brushed surface, which shows a deeper pore and a more noticeable grain. This difference is more noticeable on important surfaces such as tables, wall units and cabinets, less so on complements, beds and bed sets.
