Technical Specifications and Equipment
Structure: in TAMMEL (honeycomb panels + melamin). The honeycomb panels are equipped with carefully selected solid pine frame and the honeycomb plated with panels of Royal, Alpha or Grafis MDF. Guarantees durability, lightness, practicality and meets all the requirements of the European Class 1 Standards regarding the limitation of harmful emissions of formaldehyde, meets the CARB2 standards.
Side and Back Panels: made from melamine (E1 class with low formaldehyde emission), meets the CARB2 standards. Thickness: Side panels 2,5 cm / Back panels 0,8 cm.
Base and Top: honeycomb panels, respectively 3,2 cm and 2,5 cm thick.
Shelves: honeycomb panels 3,2 cm thick and 36,1 cm deep.
Height doors from the floor: h. 1,1 cm.
Lacquered/wooden doors: honeycomb panels 2,4 cm thick with solid spruce, lacquered or wooden frame. The front is plain or customisable (exclusively in matt lacquer or open-pore oak finish):

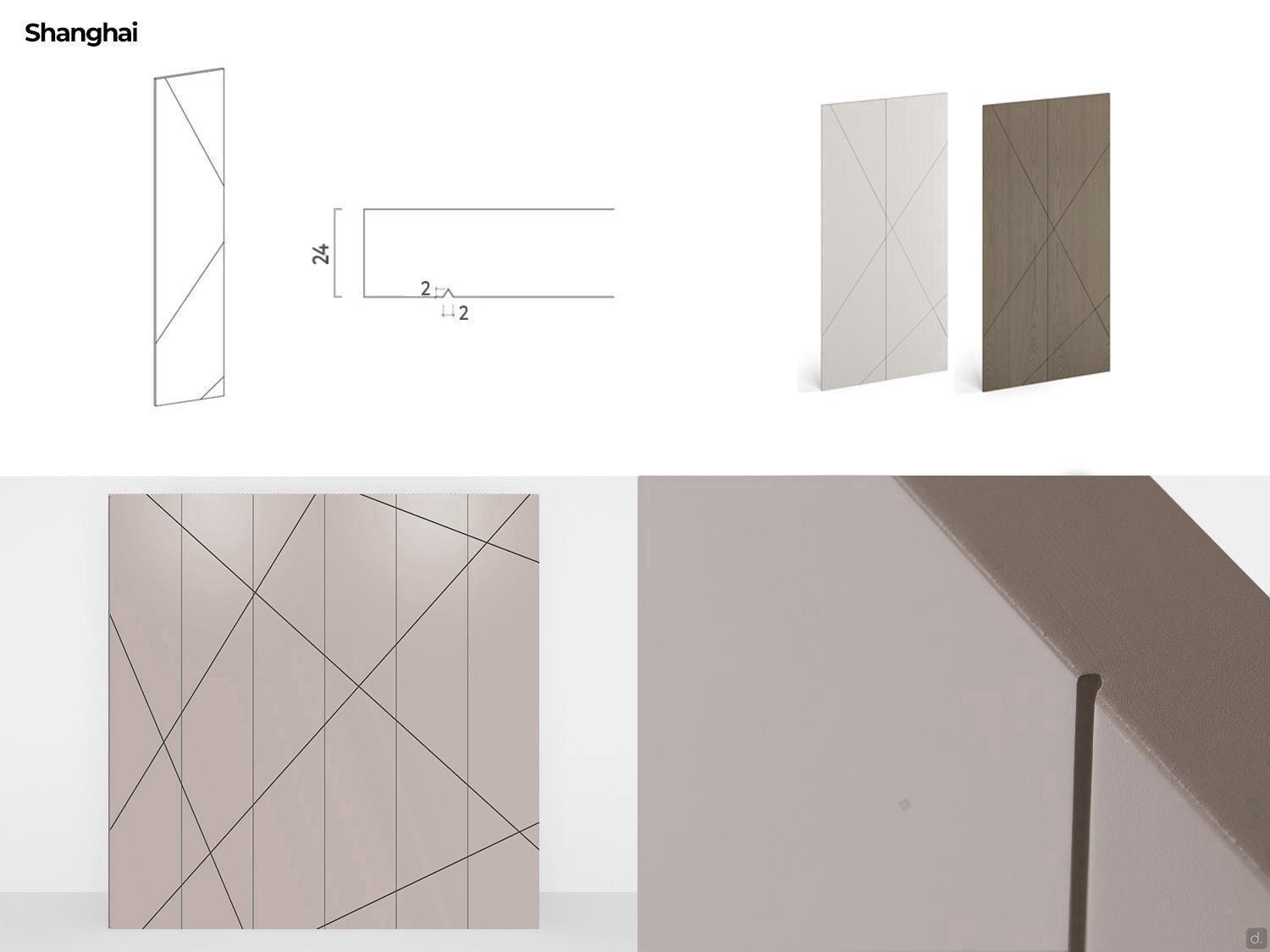

- Shanghai (only with a matt lacquered finish): diagonal V-shaped indentations, 0,2 cm deep and 0,2 wide.

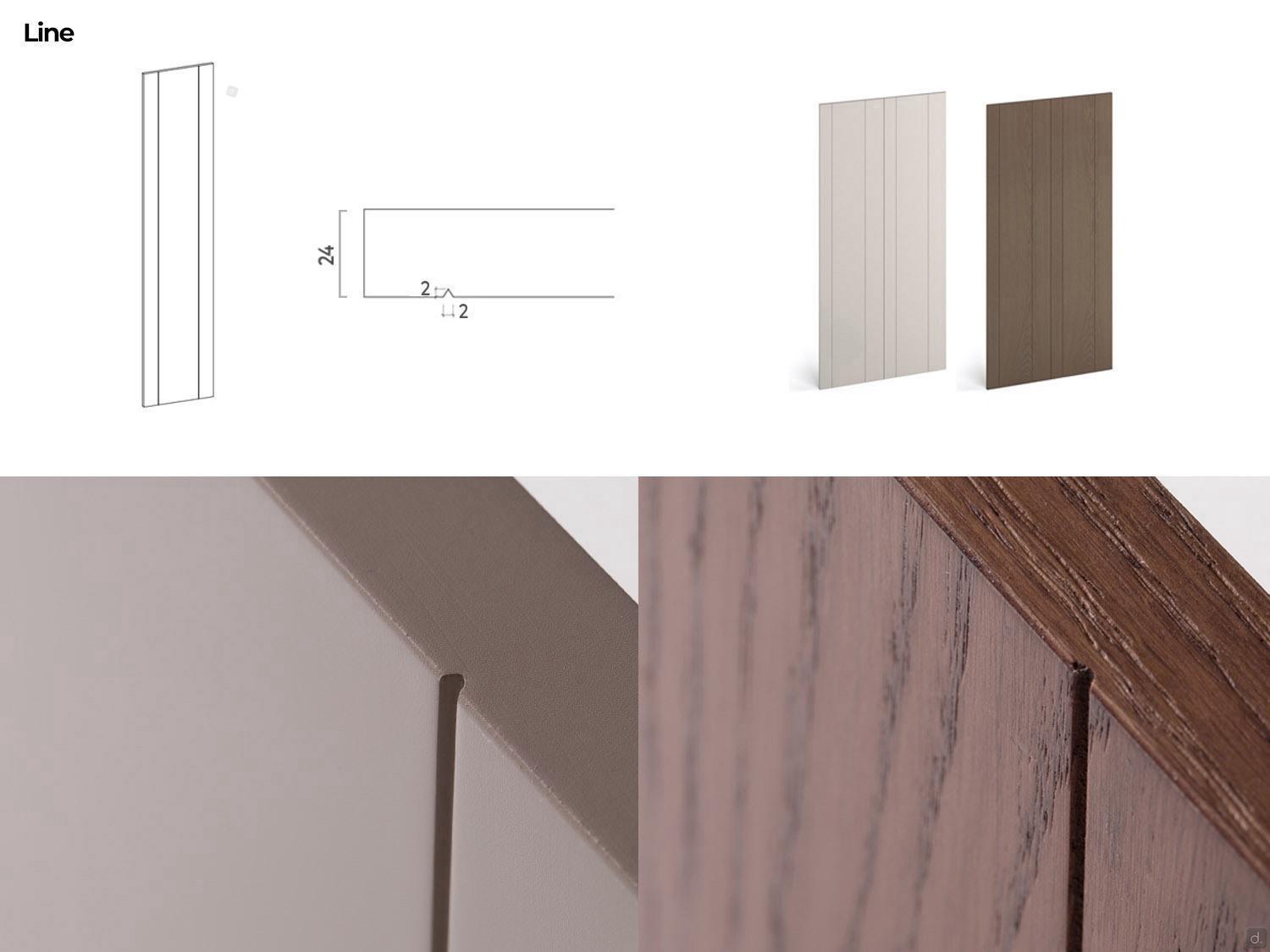

- Line (only in matt lacquered finish): diagonal V-shaped indentations, cm 0,2 deep and 0,2 wide.

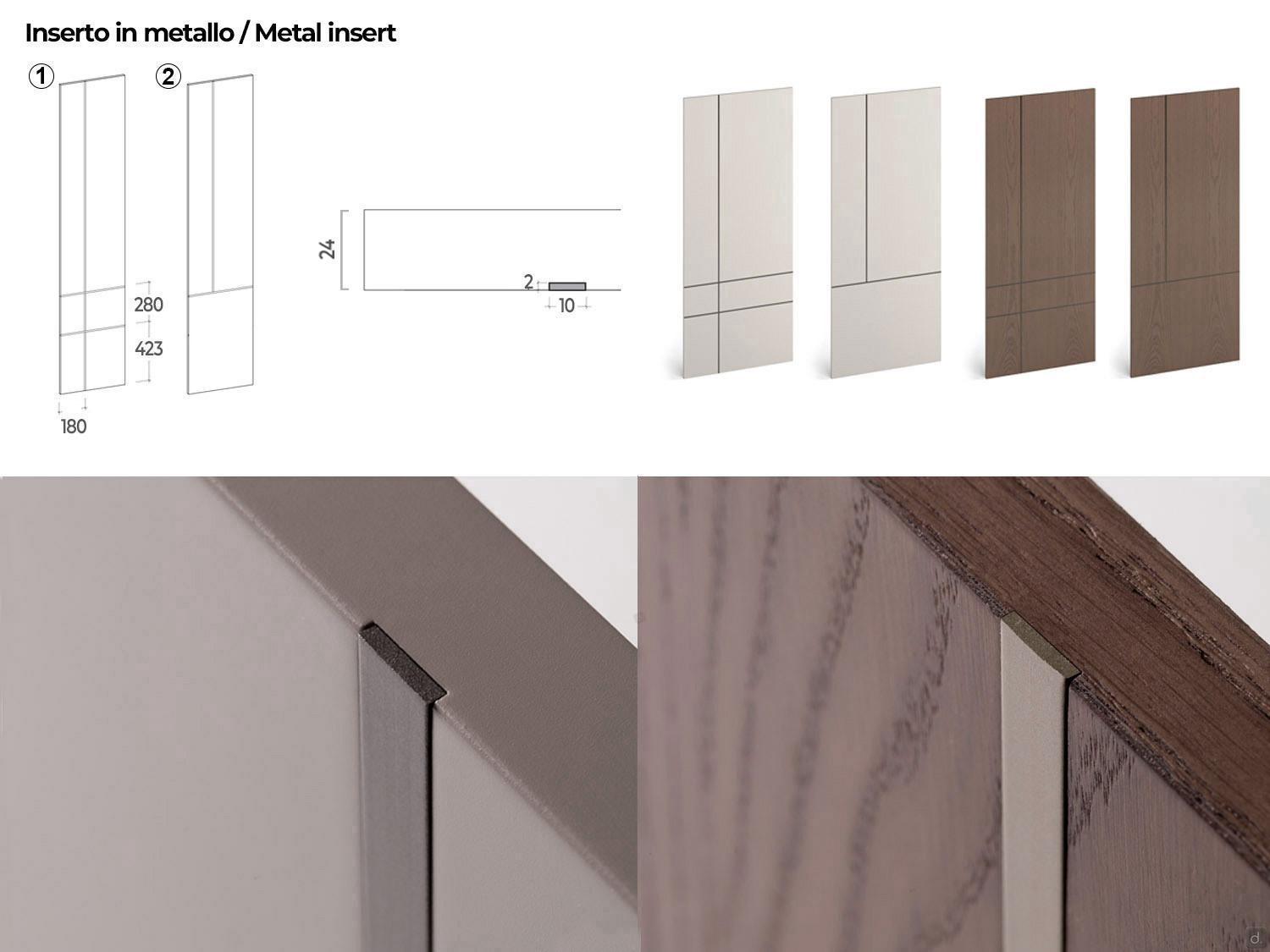

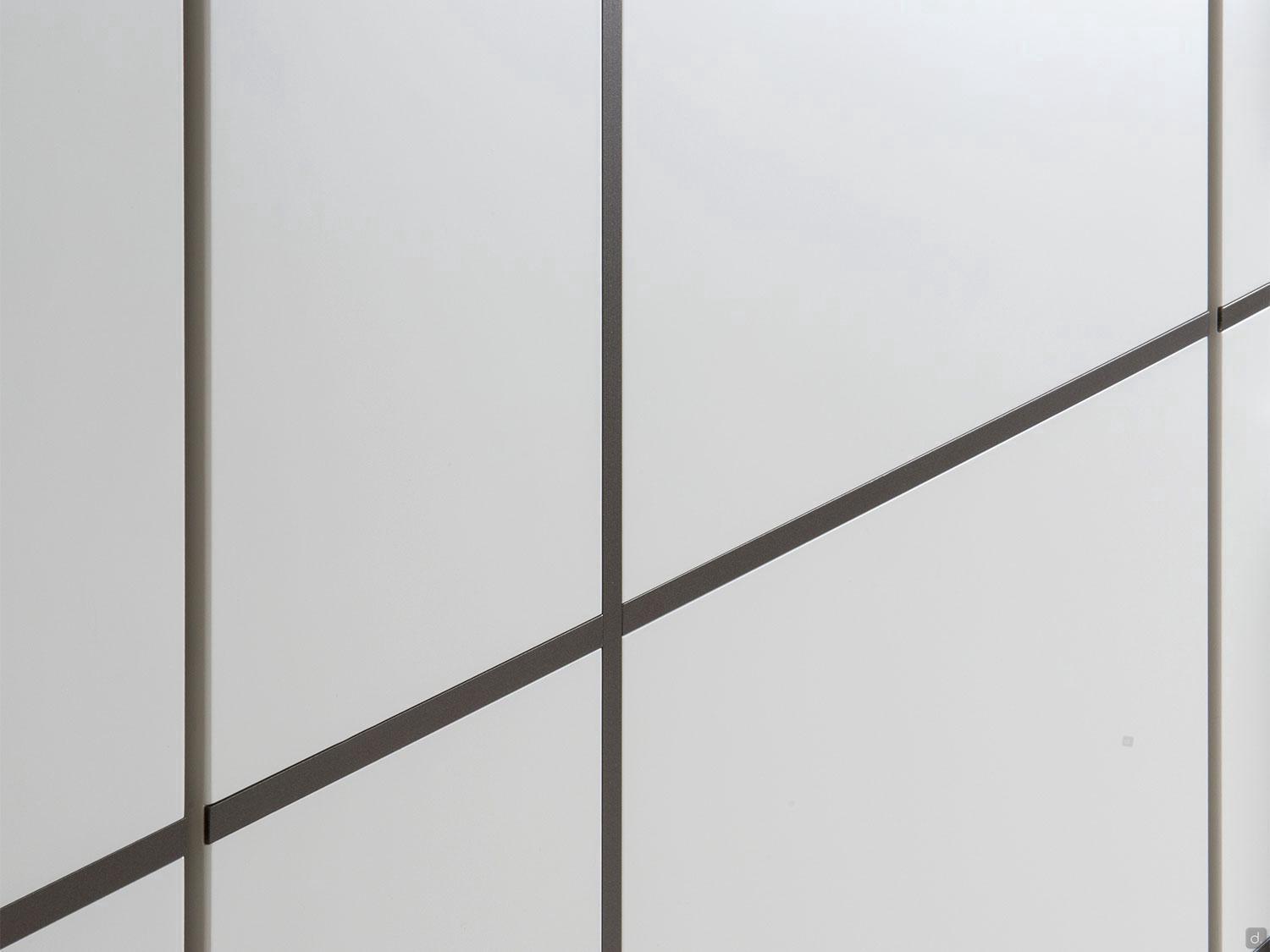

- with metal inserts: 1 cm wide, 0,2 deep in "version 1" with n.2 horizontal + n.1 vertical line or in "version 2" with n.1 horizontal + n.1 vertical. Also available in the 2:2 version with a matt lacquered metal or metal insert 2 mm thick, protruding 2 mm from the door. Only available when purchased with a project, for further information please contact our Customer Service.

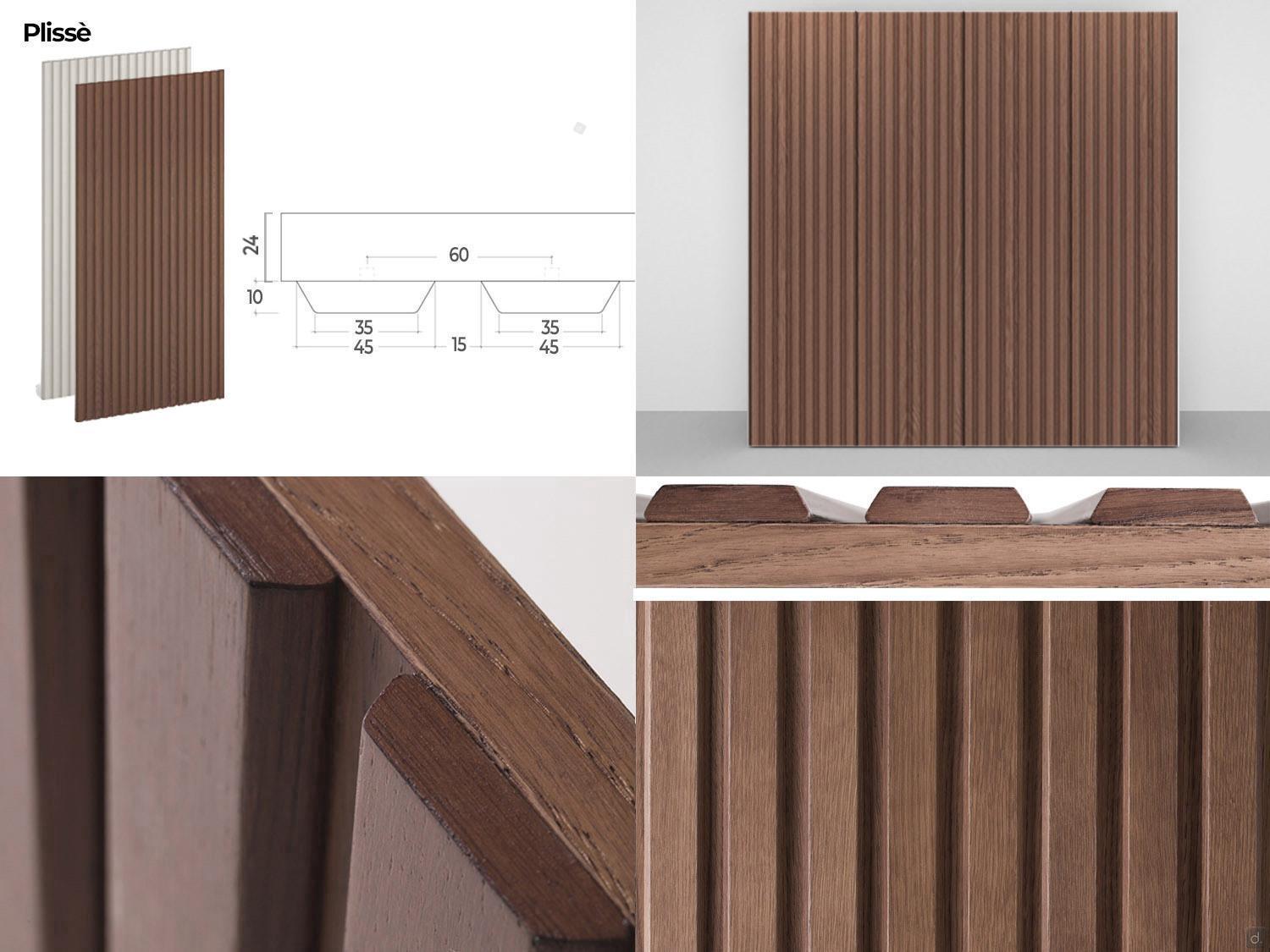

- Plissè: slats in solid lacquered wood or veneered oak with 30° processing technique: cm 4,5 th.1.

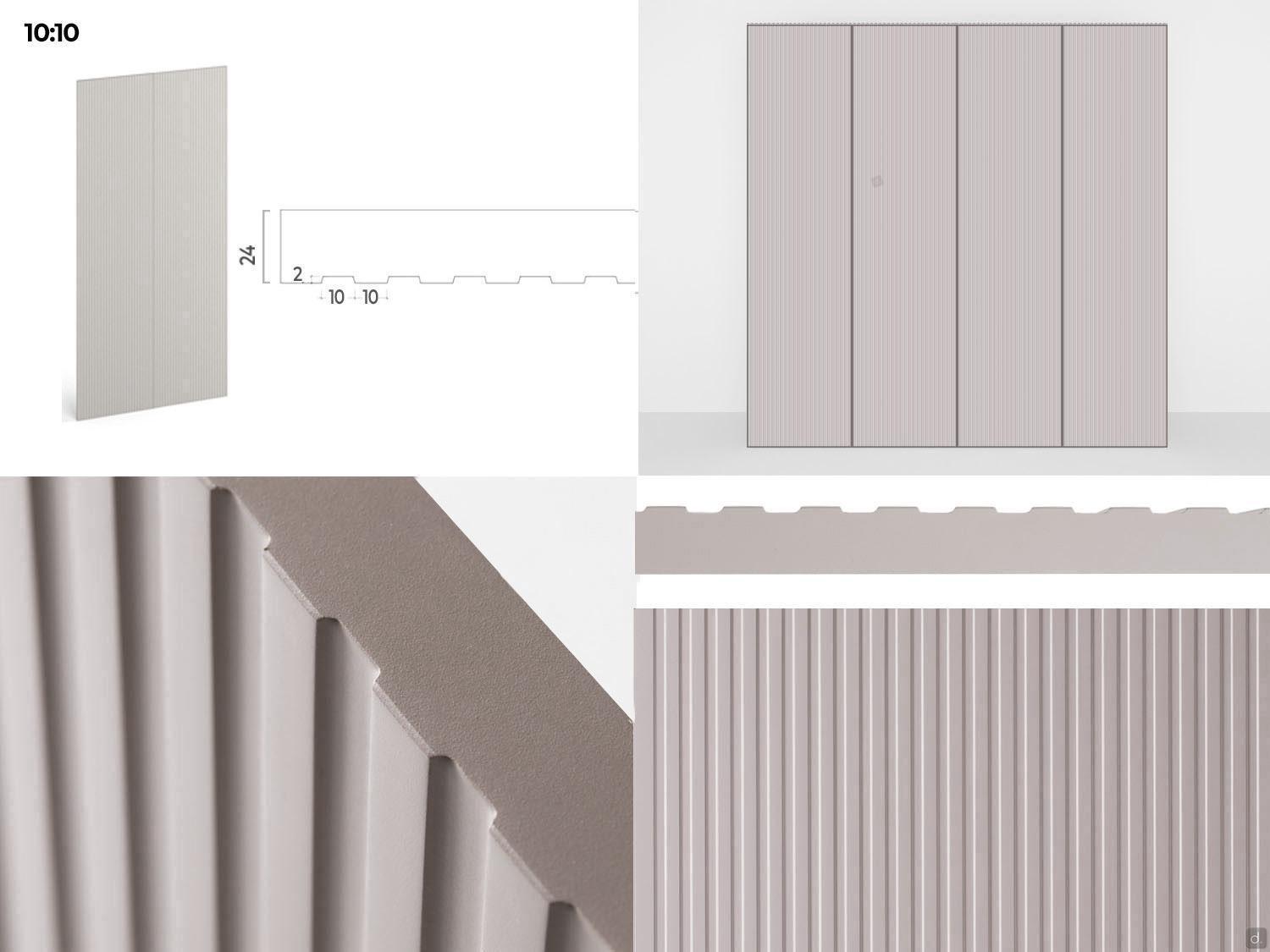

- 10:10 (only in matt lacquered finish): "U"-shaped indentation, 1 cm wide and 0,2 cm deep.

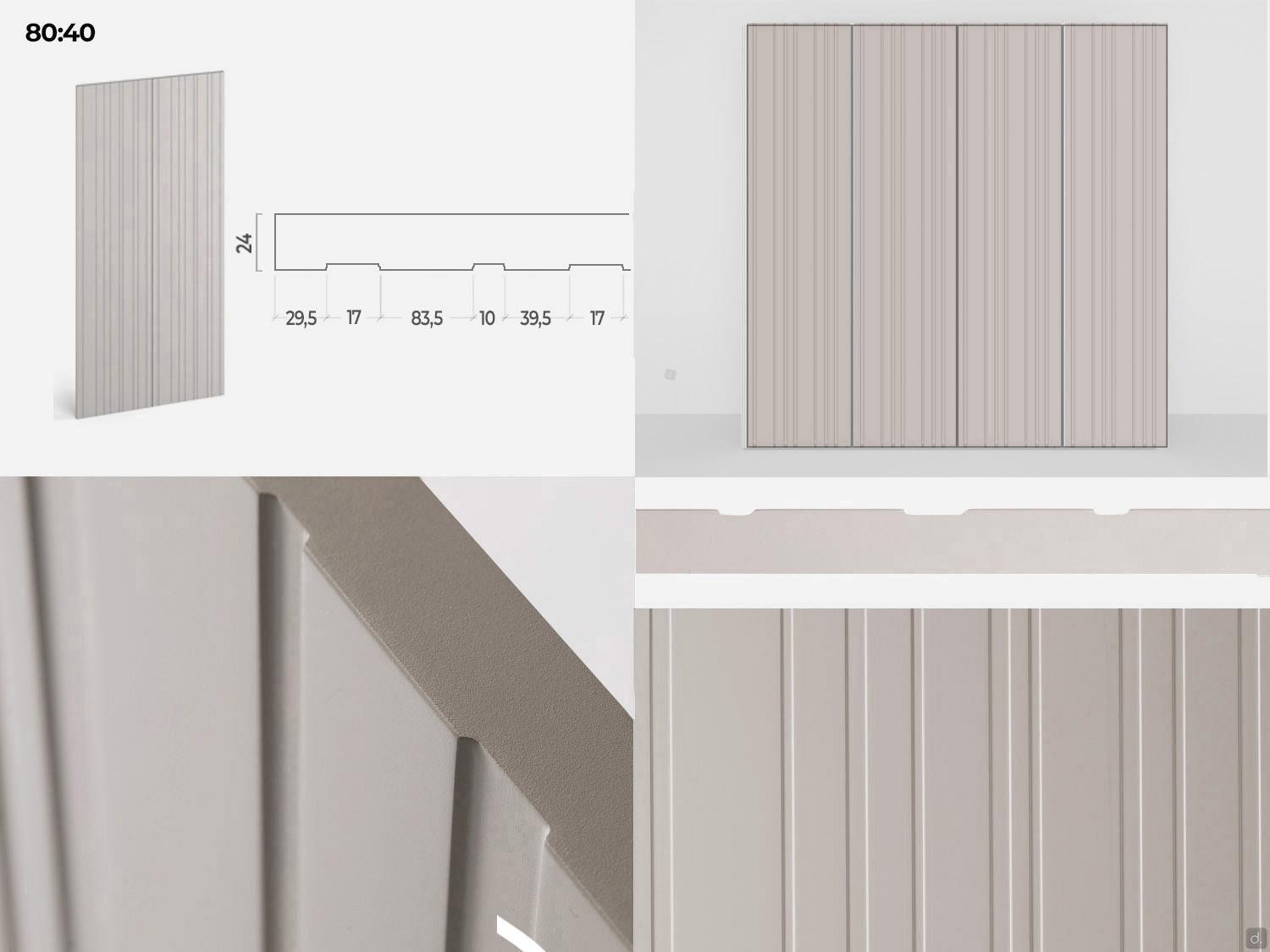

- 80:40 (only in matt lacquered finish): "U"-shaped indentation, 1 cm wide and 0,2 cm deep, at irregular intervals.

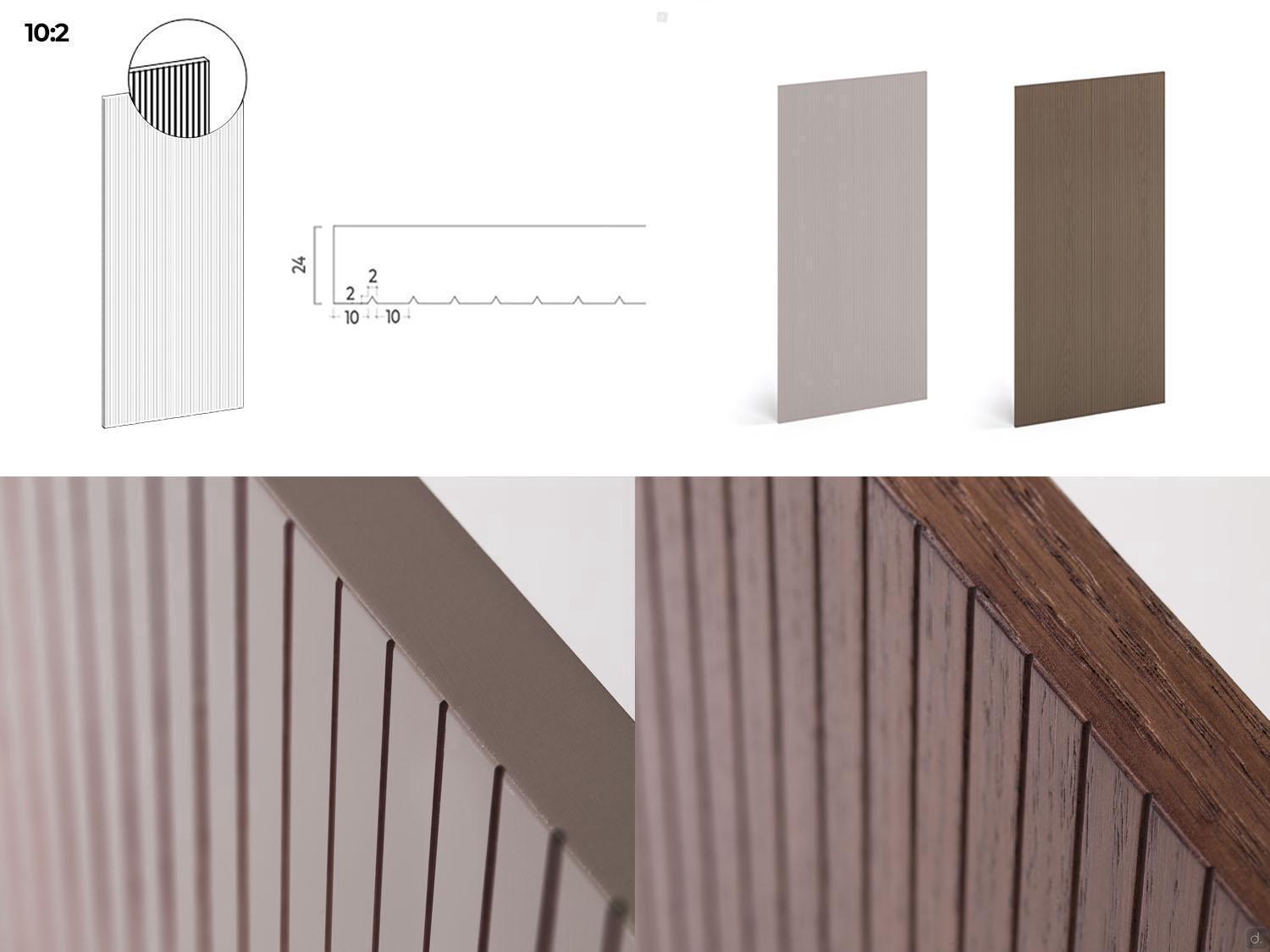

- 10:2 (only in open-pore oak wood finish): diagonal V-shaped indentations, cm 0,2 deep and 0,2 wide.

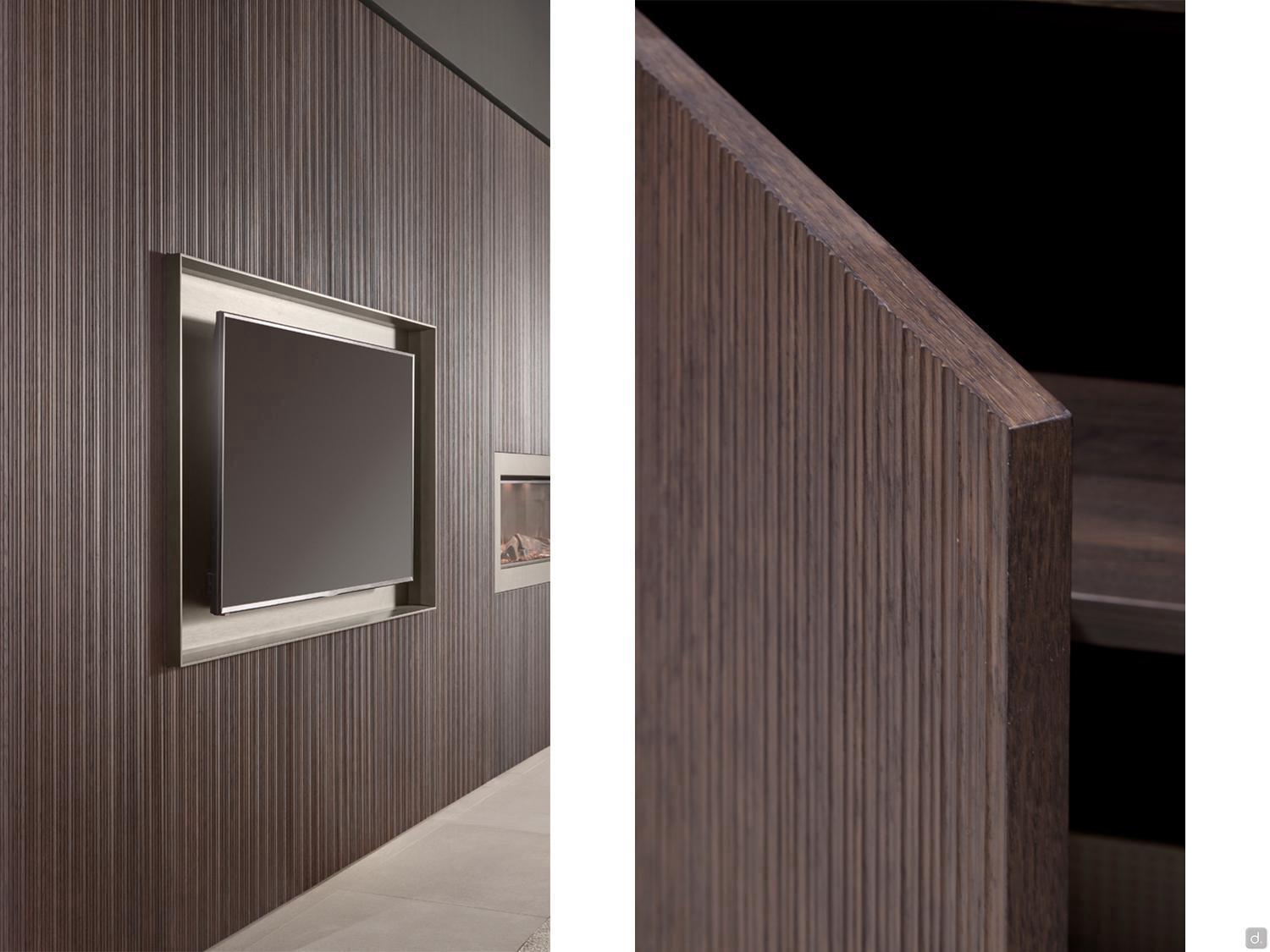

Doors also available in TAMMAS (honeycomb + solid wood), honeycomb with solid spruce frame and solid wood honeycomb plated on both sides, dyed in the sample finishes and decorated with 10:10 or Wave processing. Only available when purchased with a project, for further information please contact our Customer Service.
Diamond-pattern doors: a unique diamond-pattern effect on the surface of the 2,4cm-thick honeycomb-panel door with frame in solid pine, lacquered or in wood. Standard width (with groove handle) or with door extending on one side (+ cm 6 / 12). The frame and horizontal groove handle are made from matt lacquer or open-pore oak wood.
Glass / stone door:on the anodised aluminium frame. 2,8 cm thick. The glass is 0,4 cm thick and stuck to the frame. The Laminam ceramic stone is 0,3 cm thick, with rear glass fibre glued on the frame. The handle is integrated into the frame, for the version with 2 doors it is positioned so that the door opens to the right.

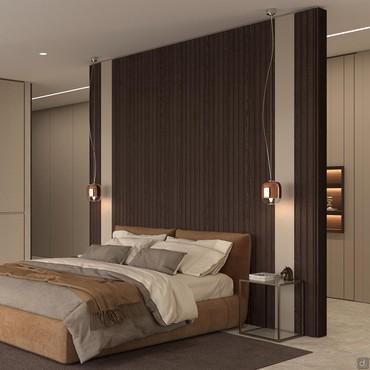

Boiserie: made from MDF, 1,8 cm thick. Equipped with hardware for assembly (+ technical compartment cm 0,8)
Decorative door: honeycomb panels 4 cm thick.
Shelves: honeycomb panels 5 cm thick / 12 cm wide.

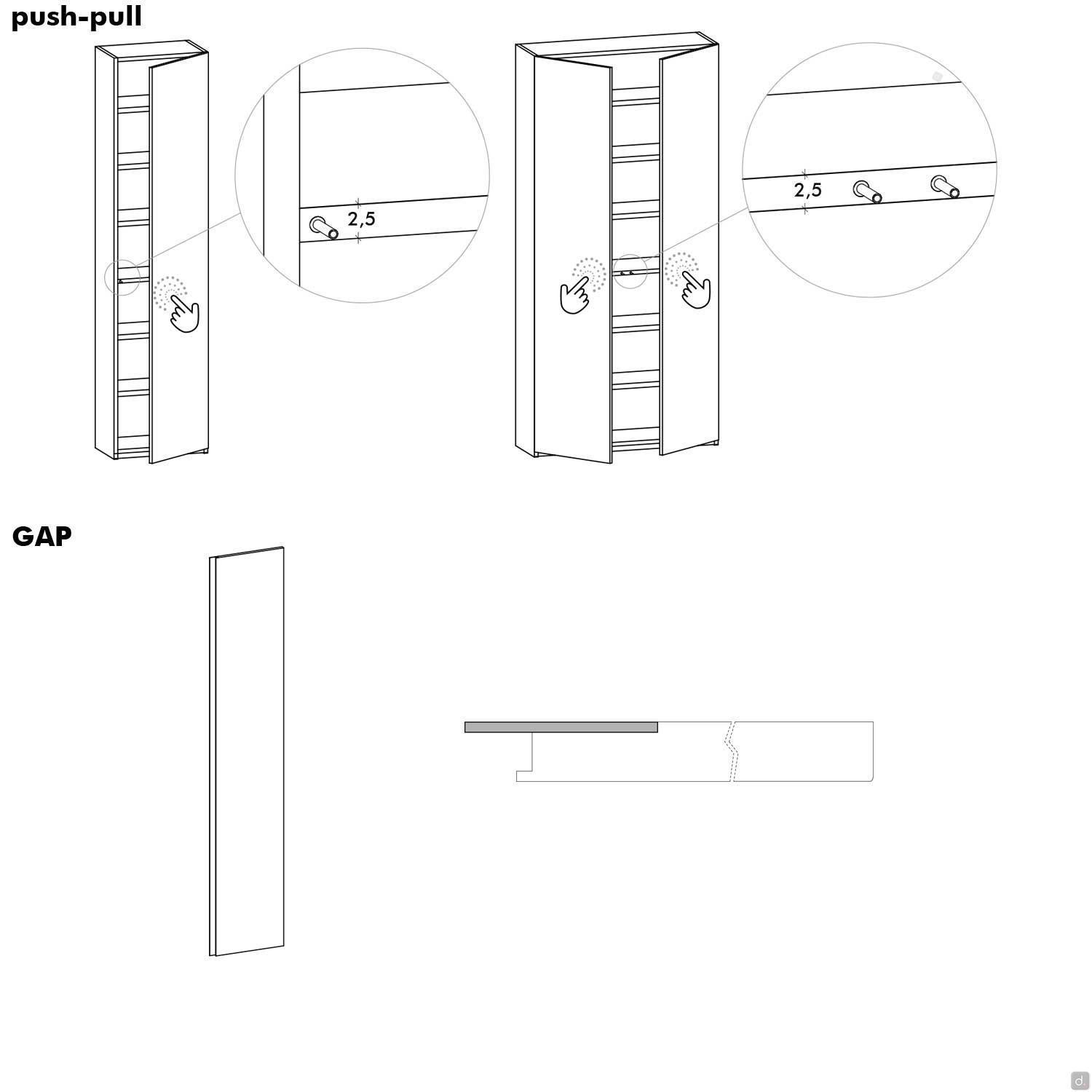

Handles: push-pull system or full-height Gap groove handle. It consists of a 3 mm thick wooden strip that can be lacquered in all matt and metallic colours or veneered in open-pore oak.

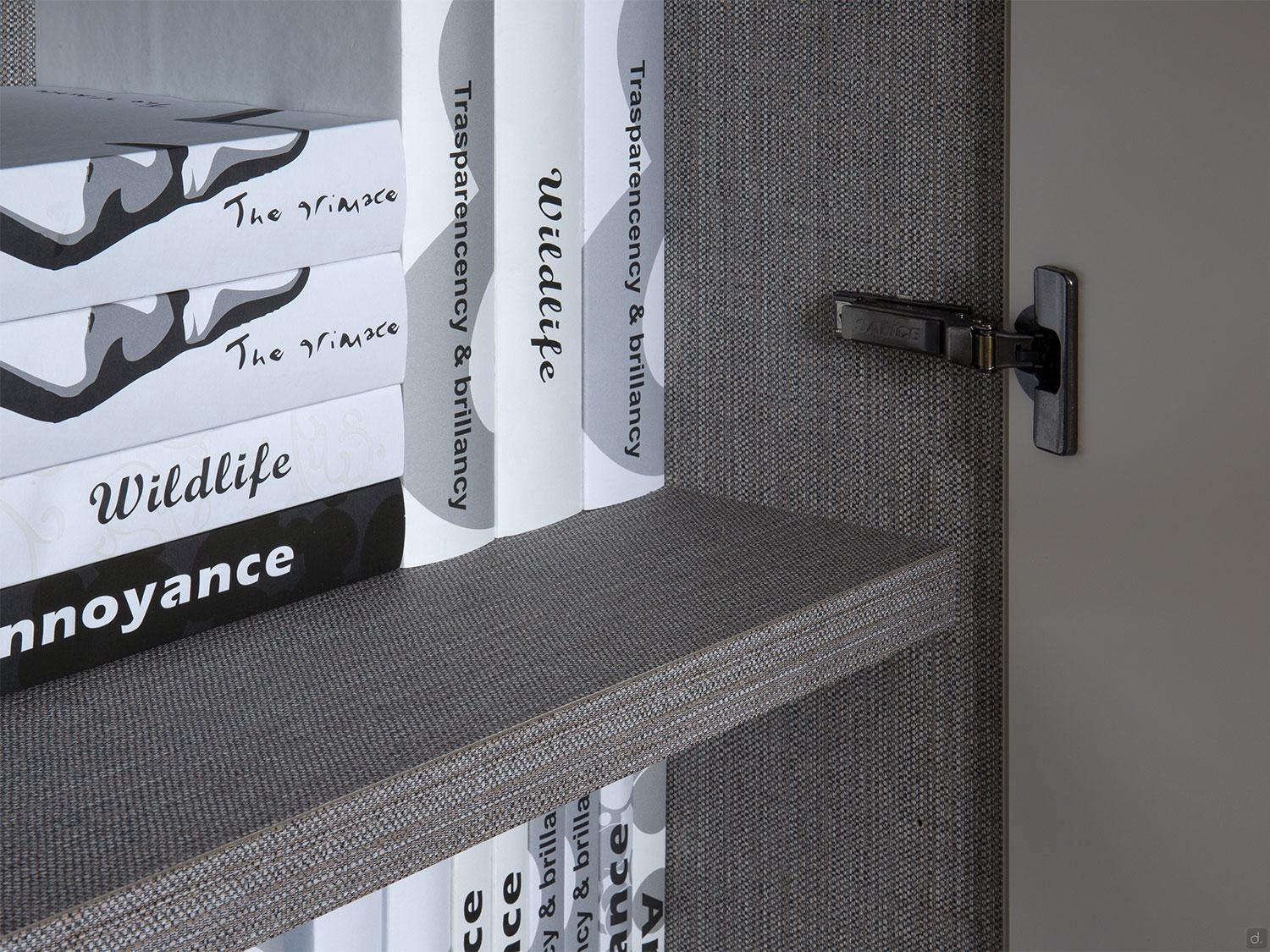

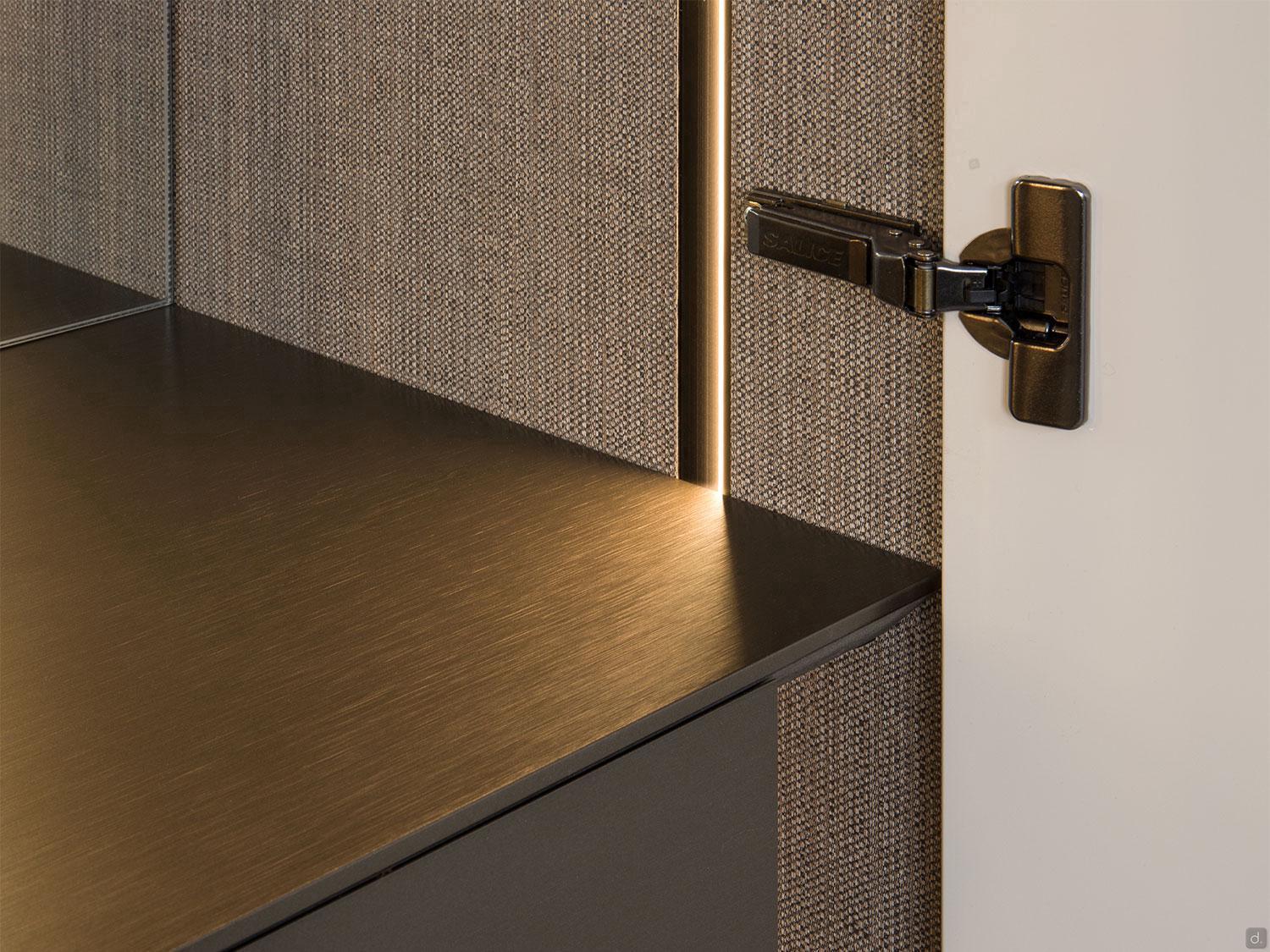

Hinges: Metal in colour Titanium with a soft-closing mechanism. Standard opening angle 95° (miximum 155° for wooden or lacquered doors or 170° for glass doors. The hinged doors are equipped with 4 soft-closing metal hinges up to a height of 280 cm, 5 hinges are equipped for higher heights.

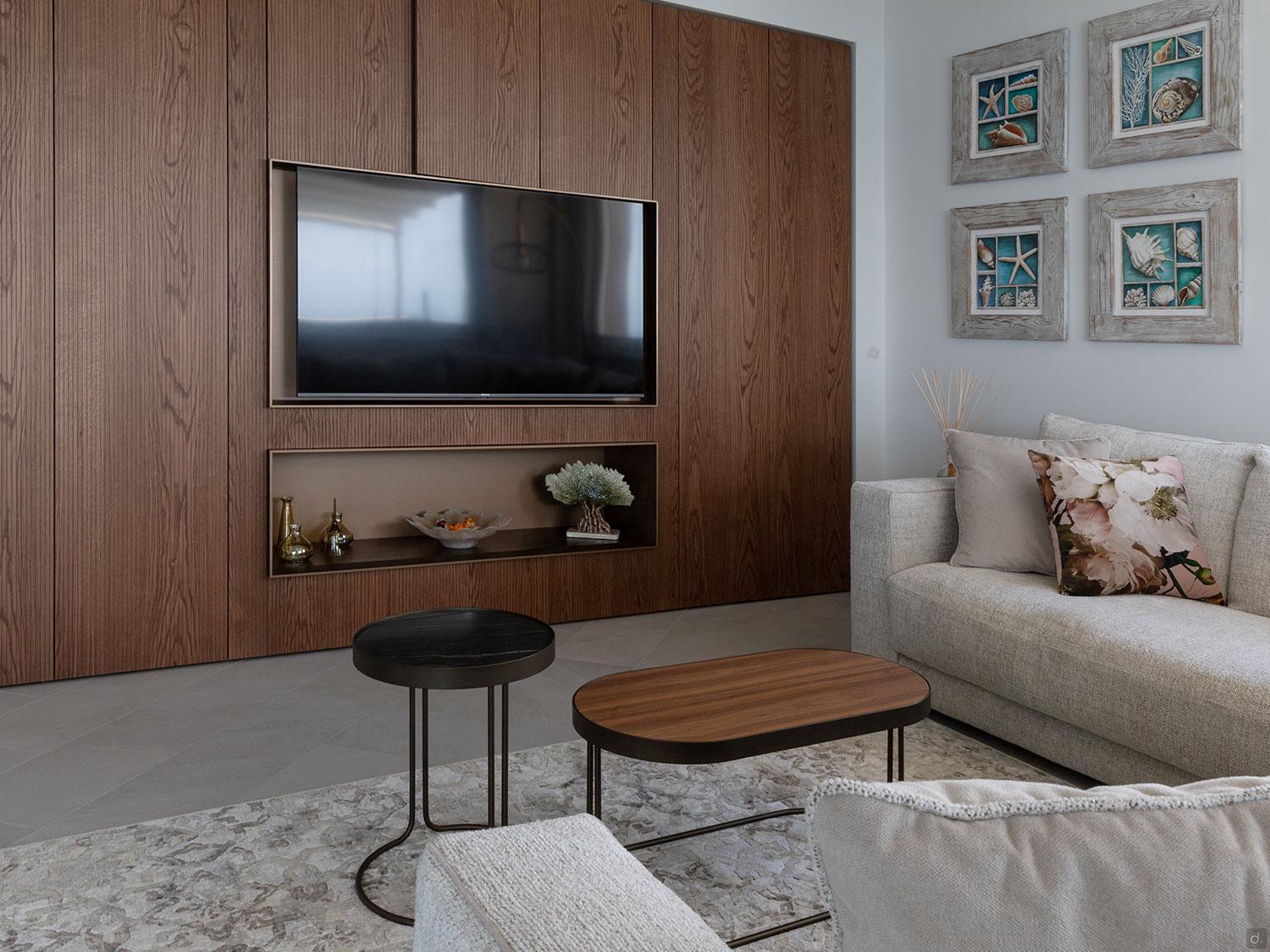

TV / Open compartment: MDF 1,8 cm thick.

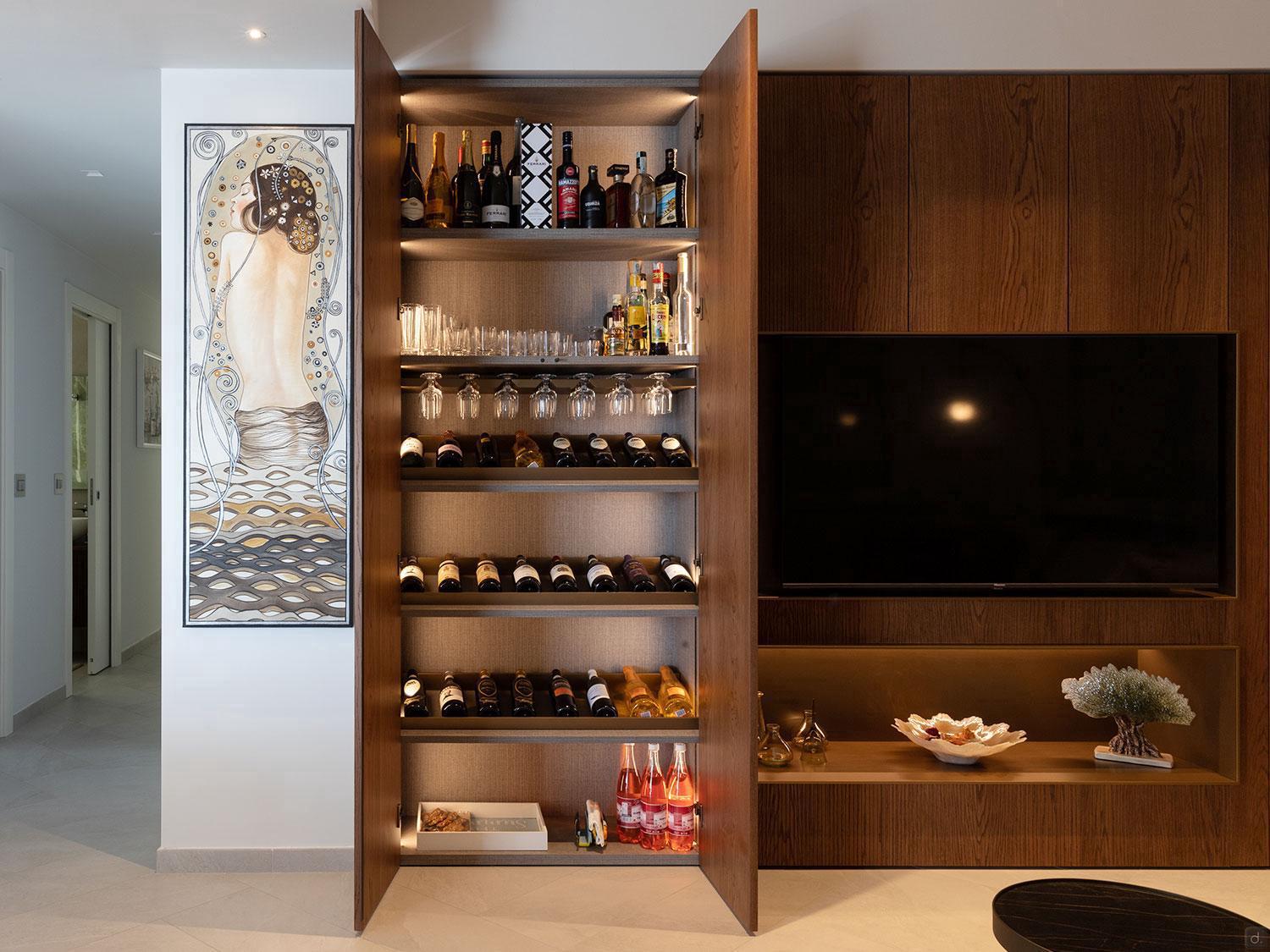

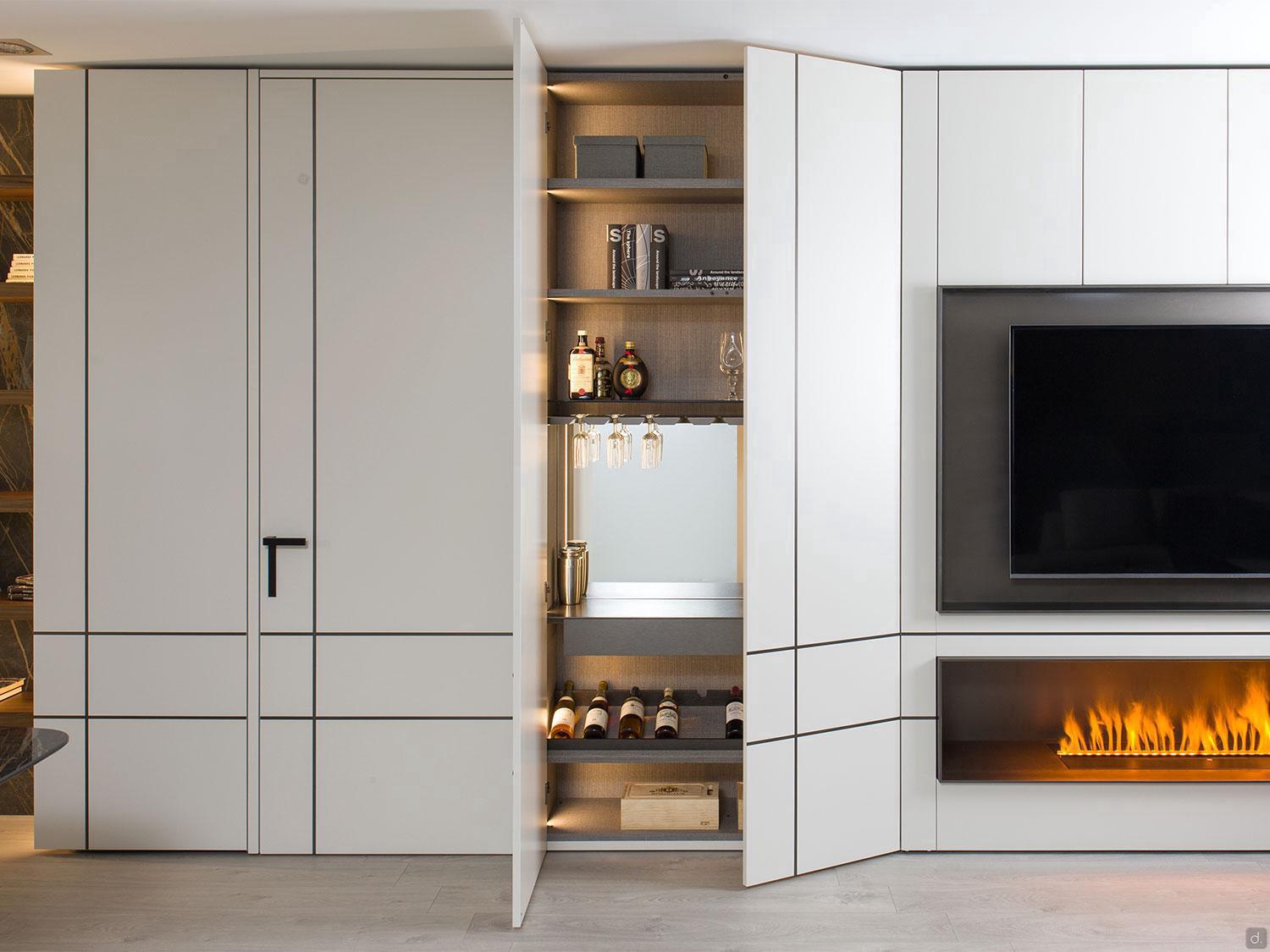

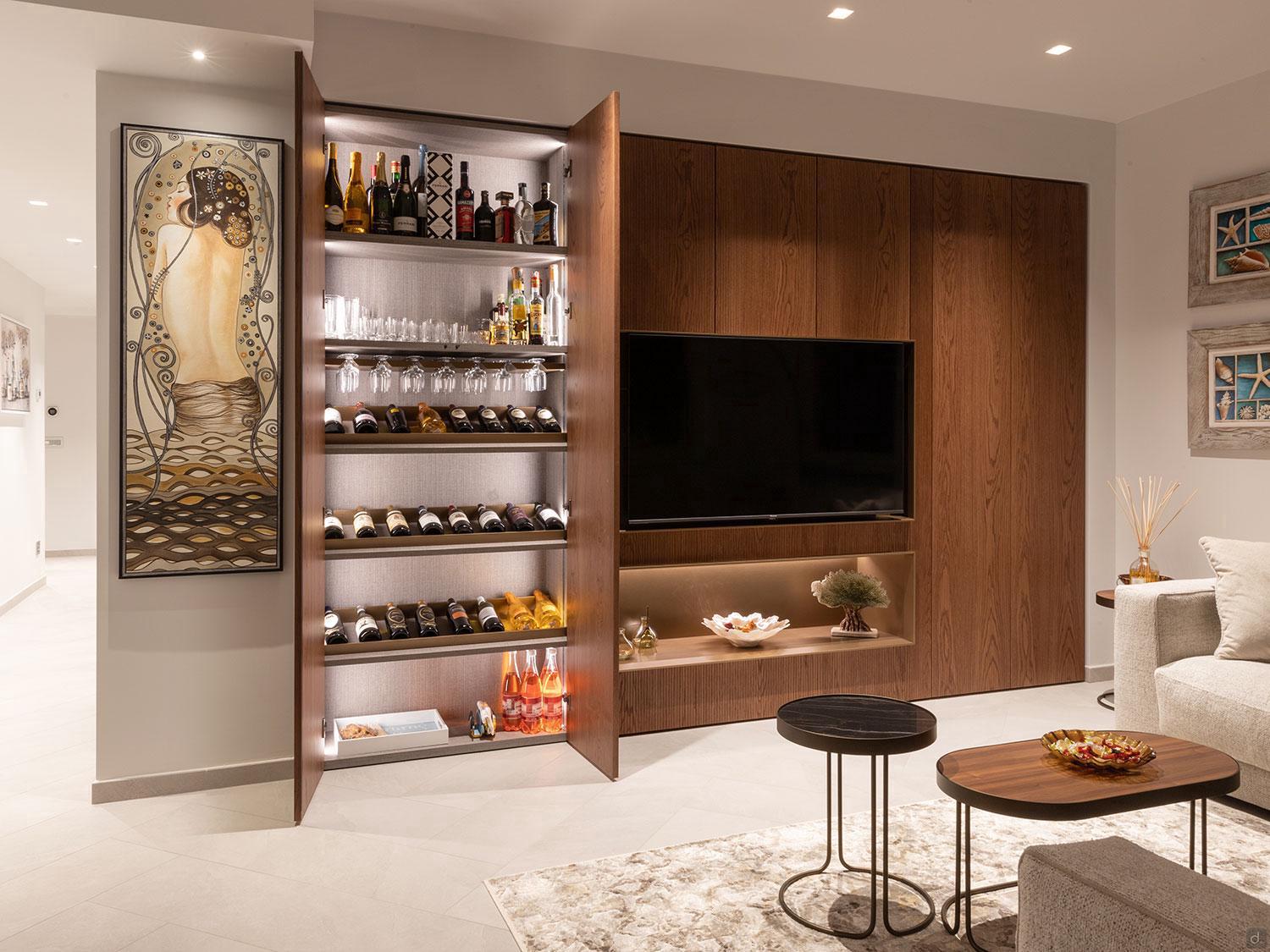

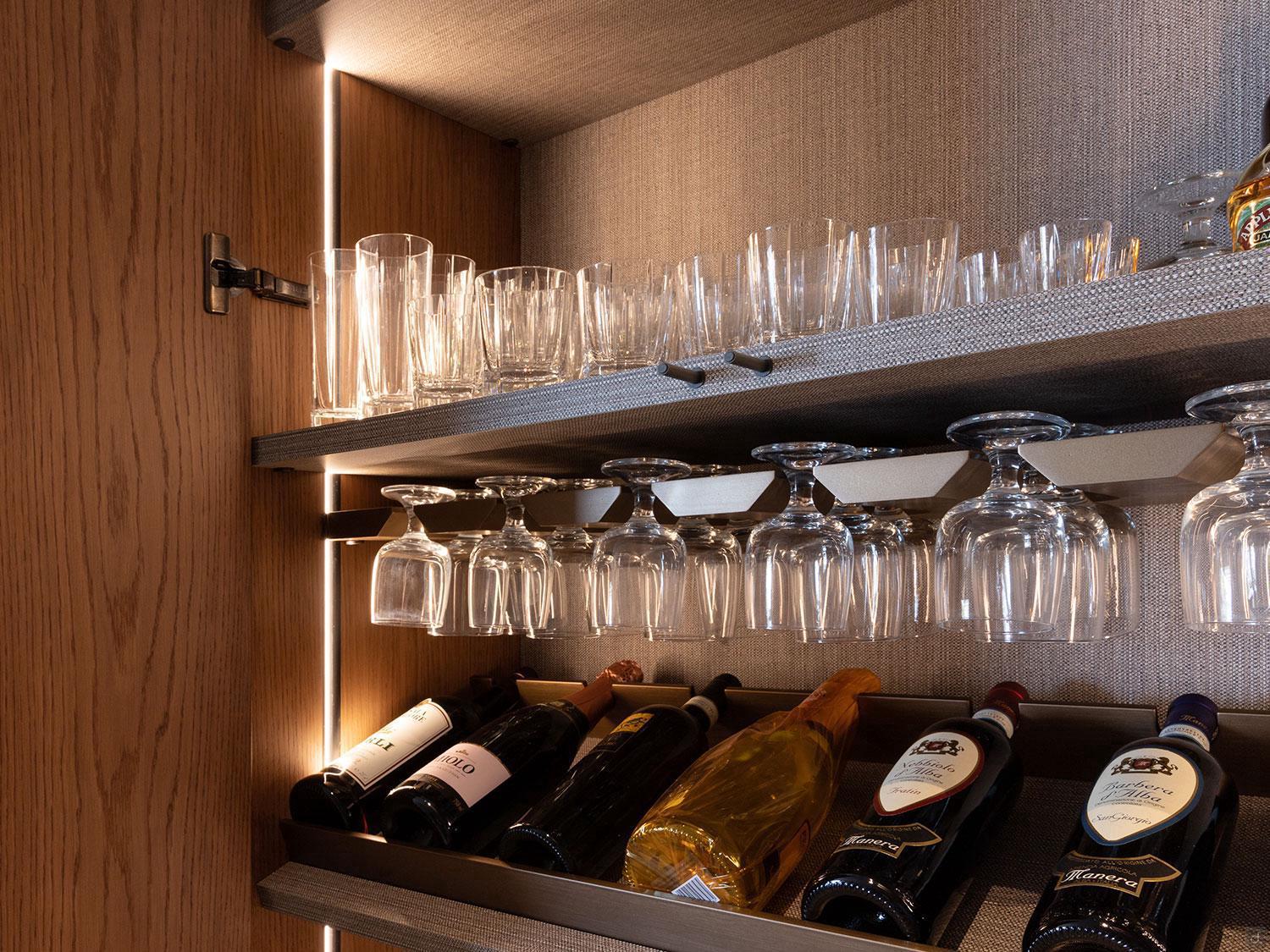

Bar Unit: MDF 1,8 cm thick comprising of:

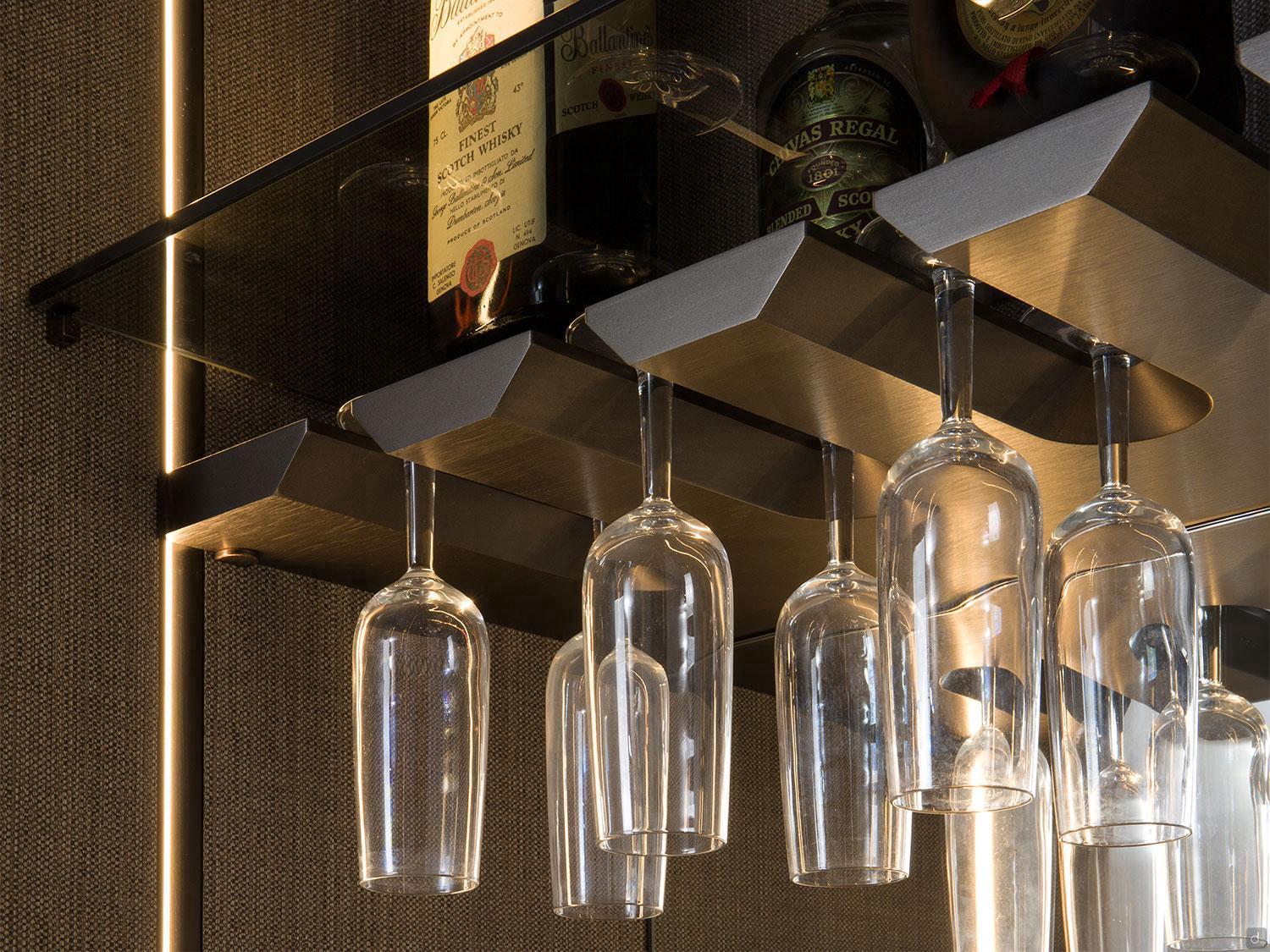

- n.1 lacquered glass rack, with a 45°: cm 117,5 p.28 h.2,5;
- n.1 smoked glass shelf;: 117,5 cm, d.34 cm t.0,8 cm;
- n.1 back-panel mirror: 117,5 cm, h.76,4 cm

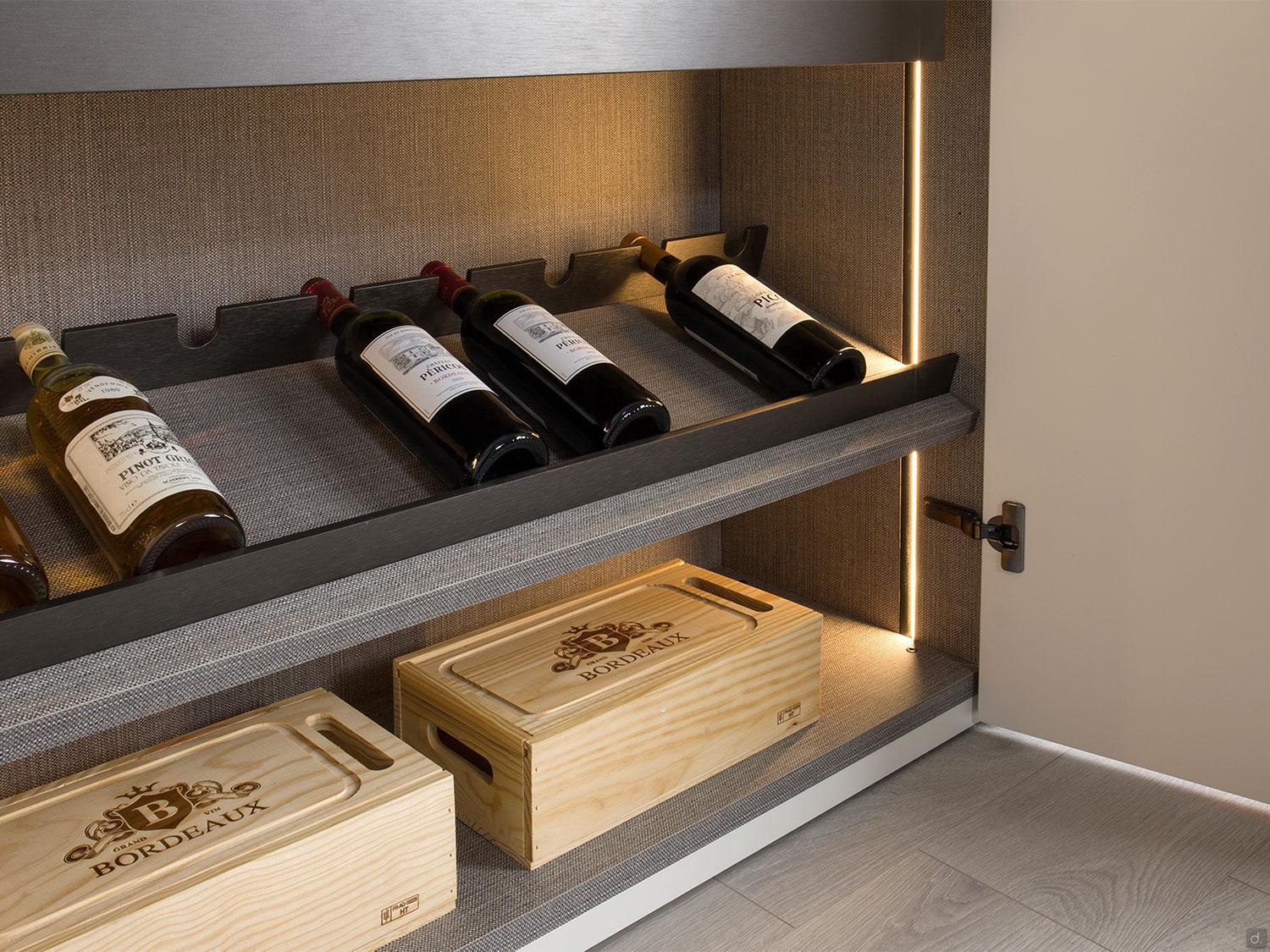

- n.1 tilted bottle rack shelf: 117,5 cm x d.36 cm, t.2,5 cm (overall h. 8,5 cm) equipped with a support surface at the top and bottom (with grooves for the necks of the bottles) in lacquered metal.
- n.1 drawer: 117,5 cm, d.35,7 cm, h.13 cm with top 2,5 cm thick. Only avalilable with 93,5 / 105,5 / 117,5 cm modules.
Drilling holes - Side

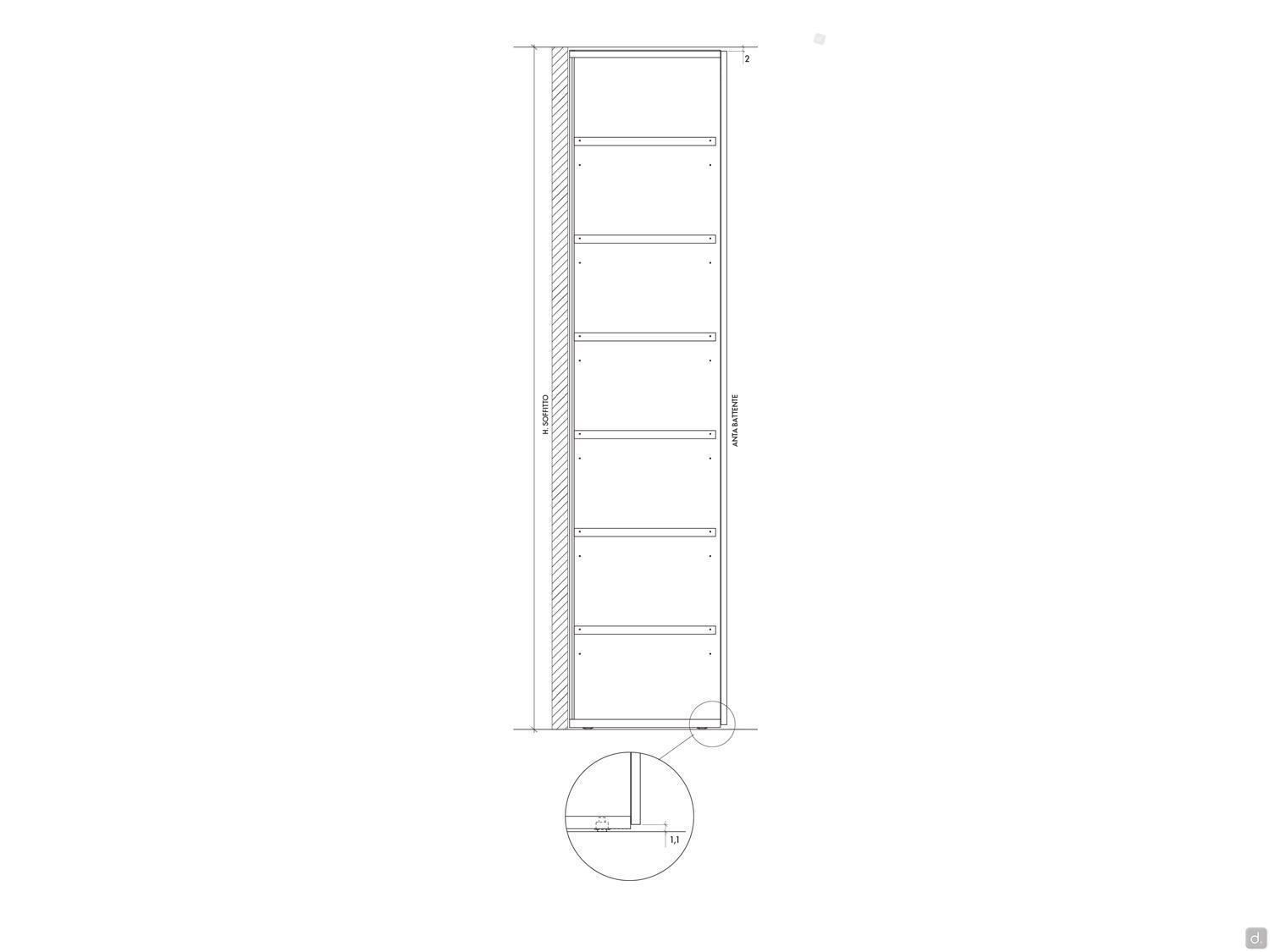

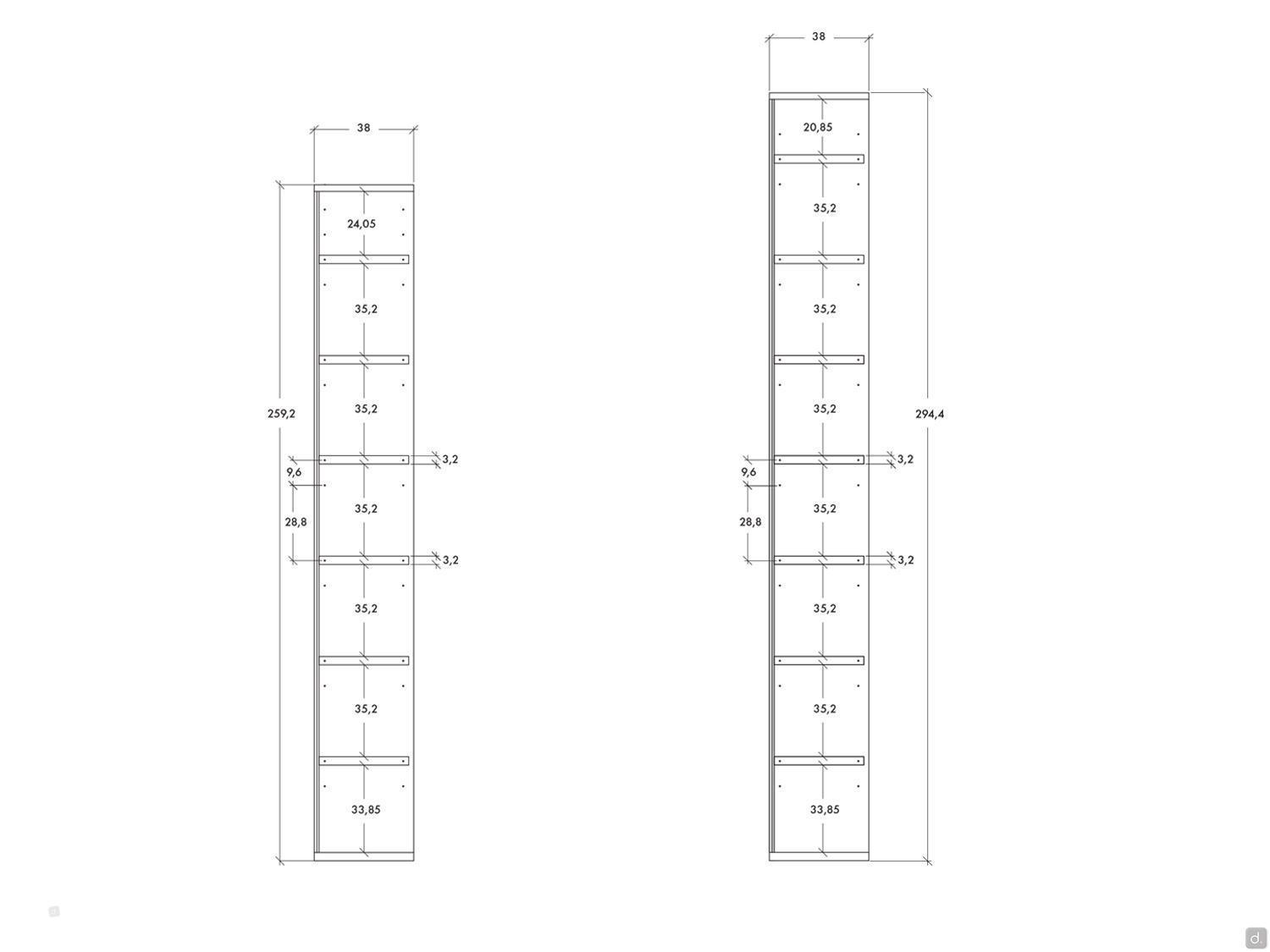

The sides have pairs of Ø 1.5 mm holes spaced 9.6 cm apart, placed every 35.2 cm (see diagram in gallery).

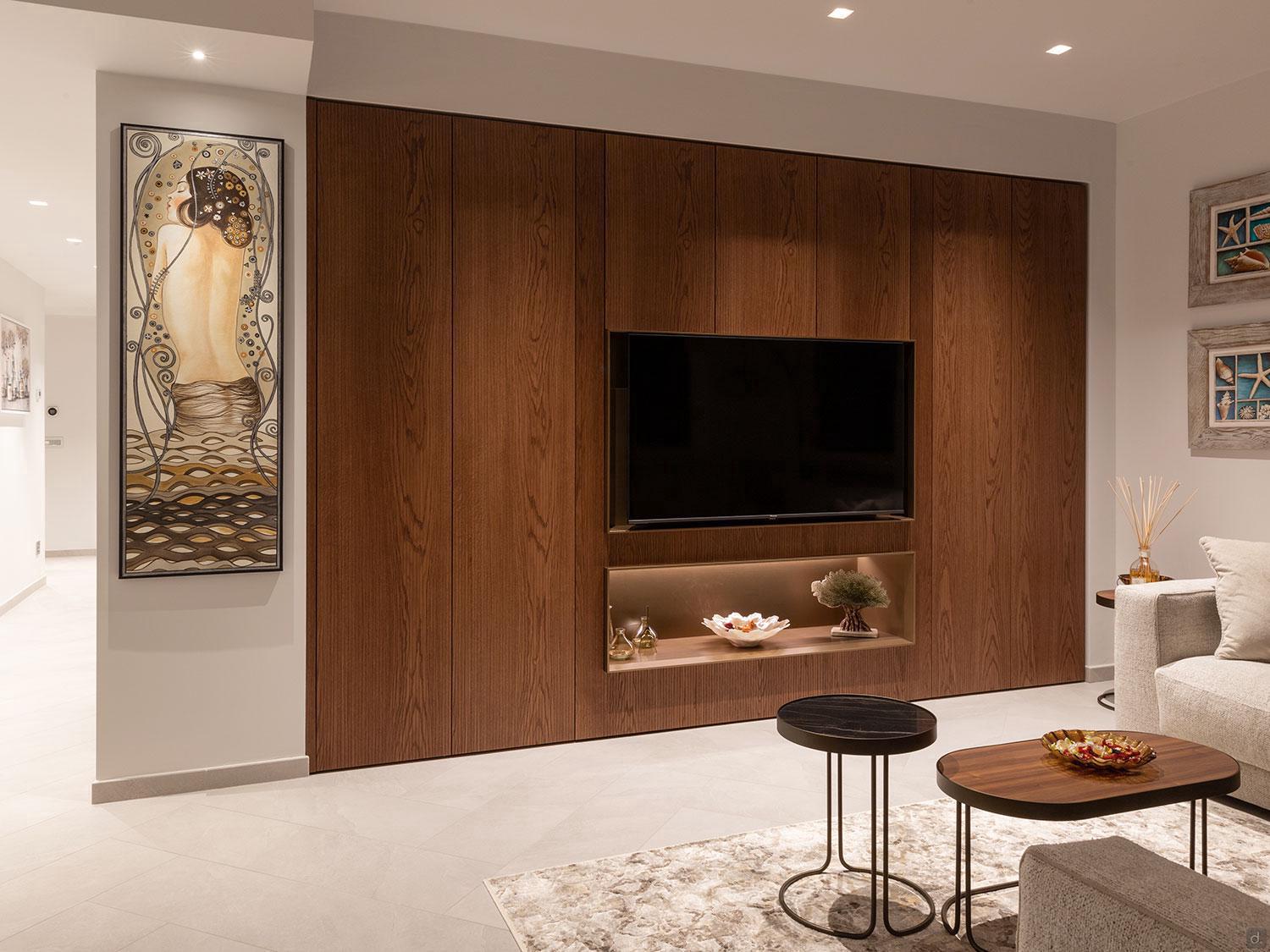

Optional - TV module
LED internal lighting for open compartments: horizontal LED bar placed 0,6 cm from the back panel along the width of the compartment, also available with a transformer (maximum power supported 20 W) which is switched on/off with a switch-controlled socket or or with a sensor. LED with heat graduation of 3000K-24V.

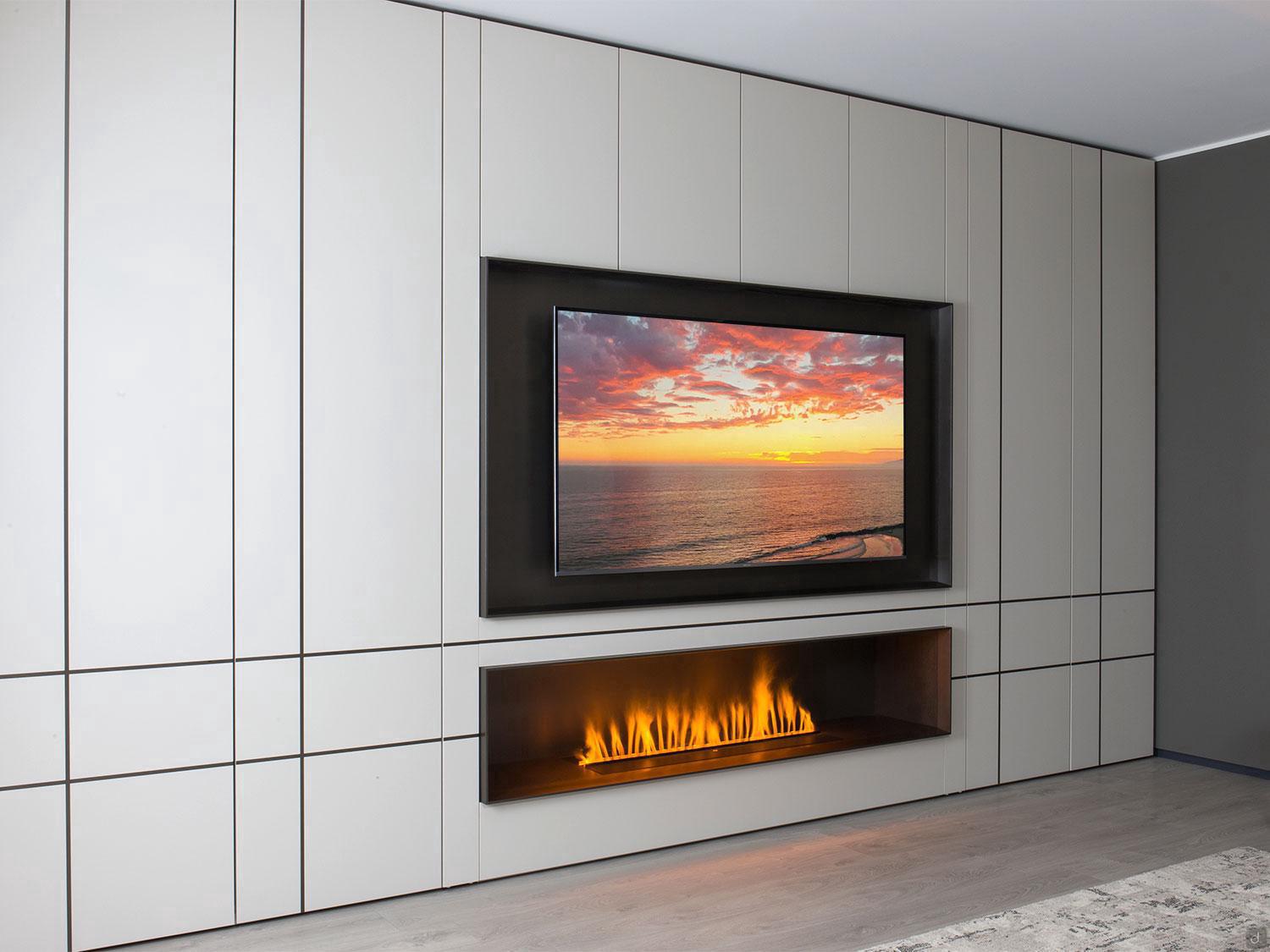

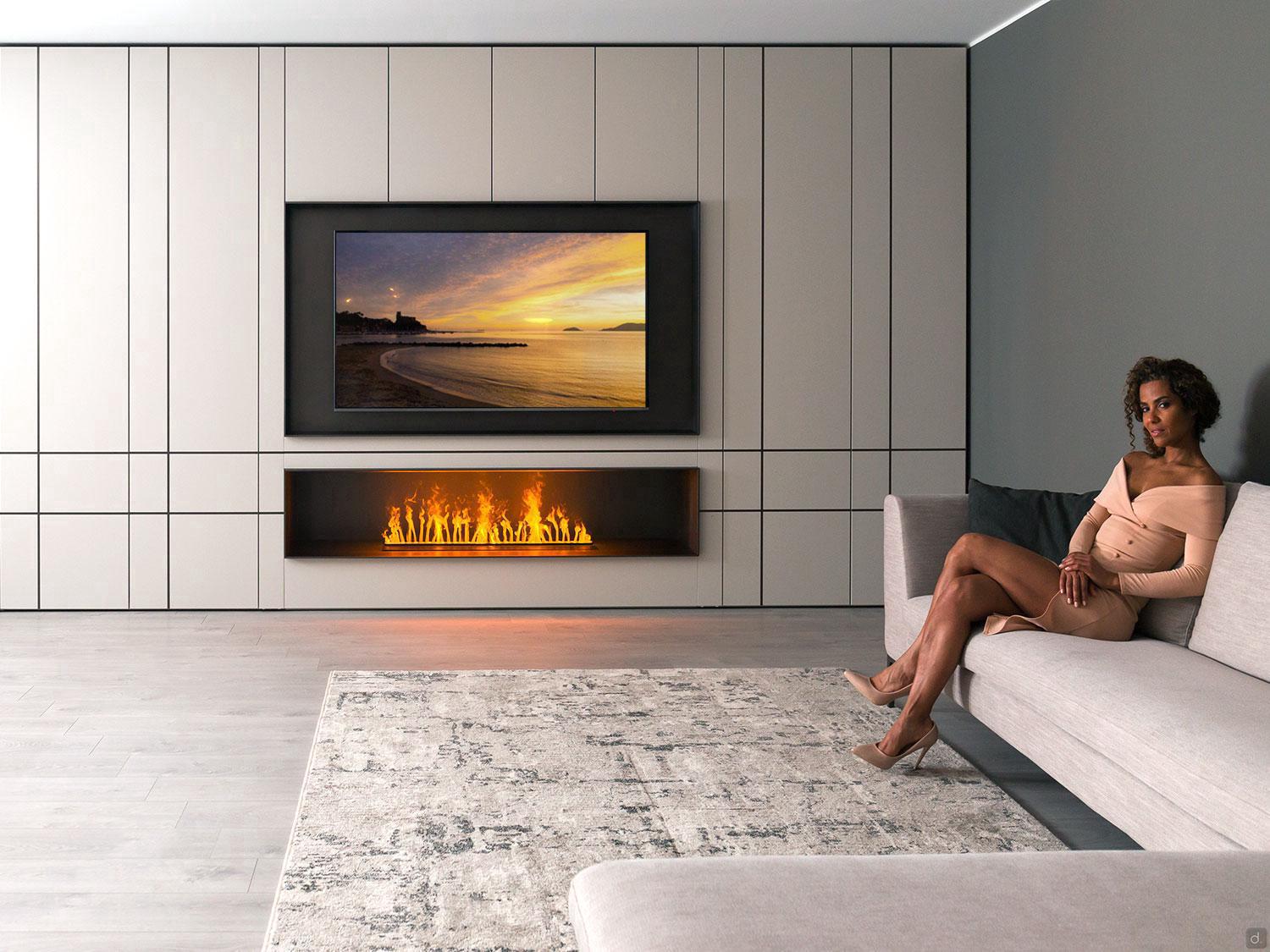

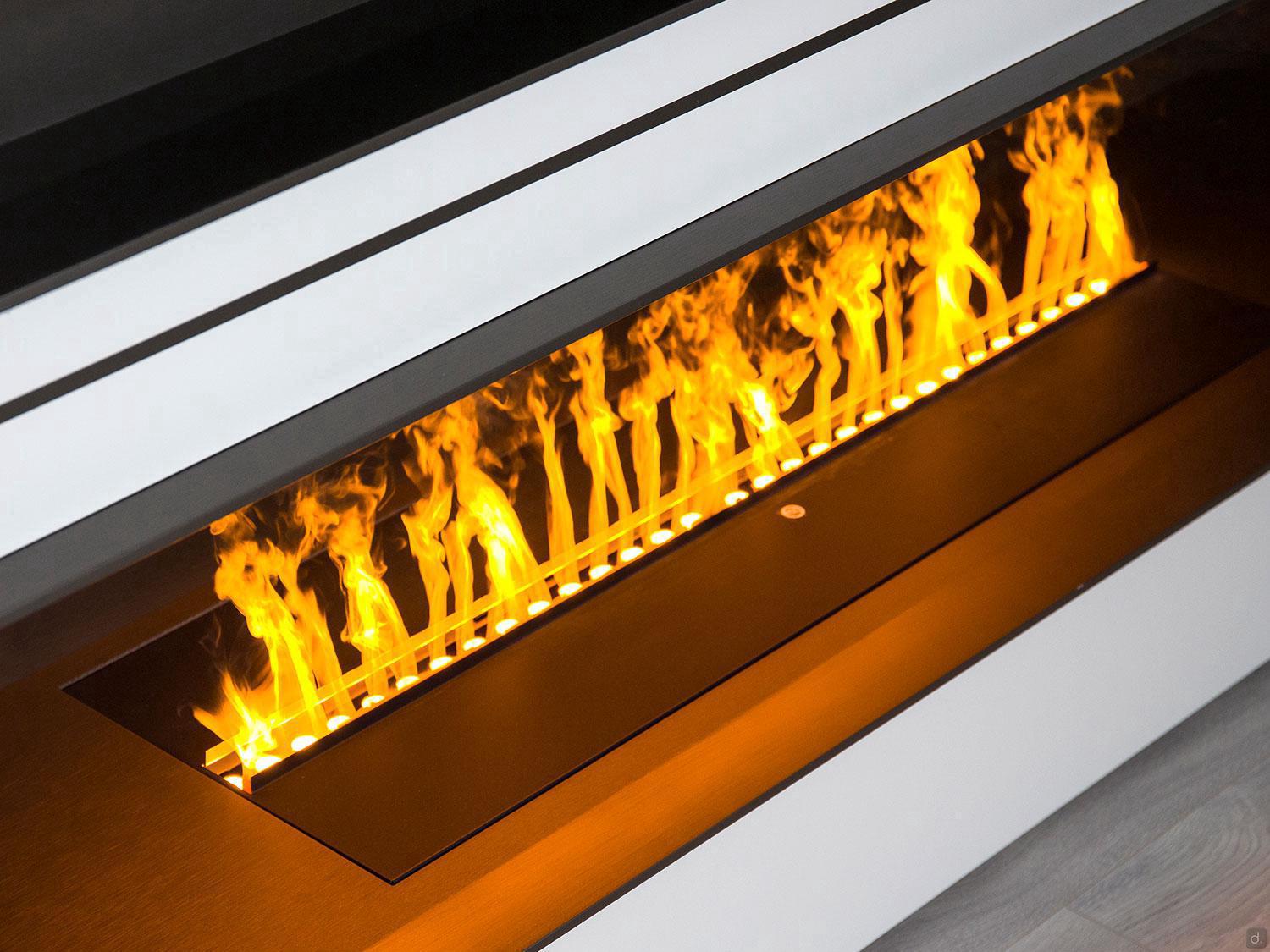

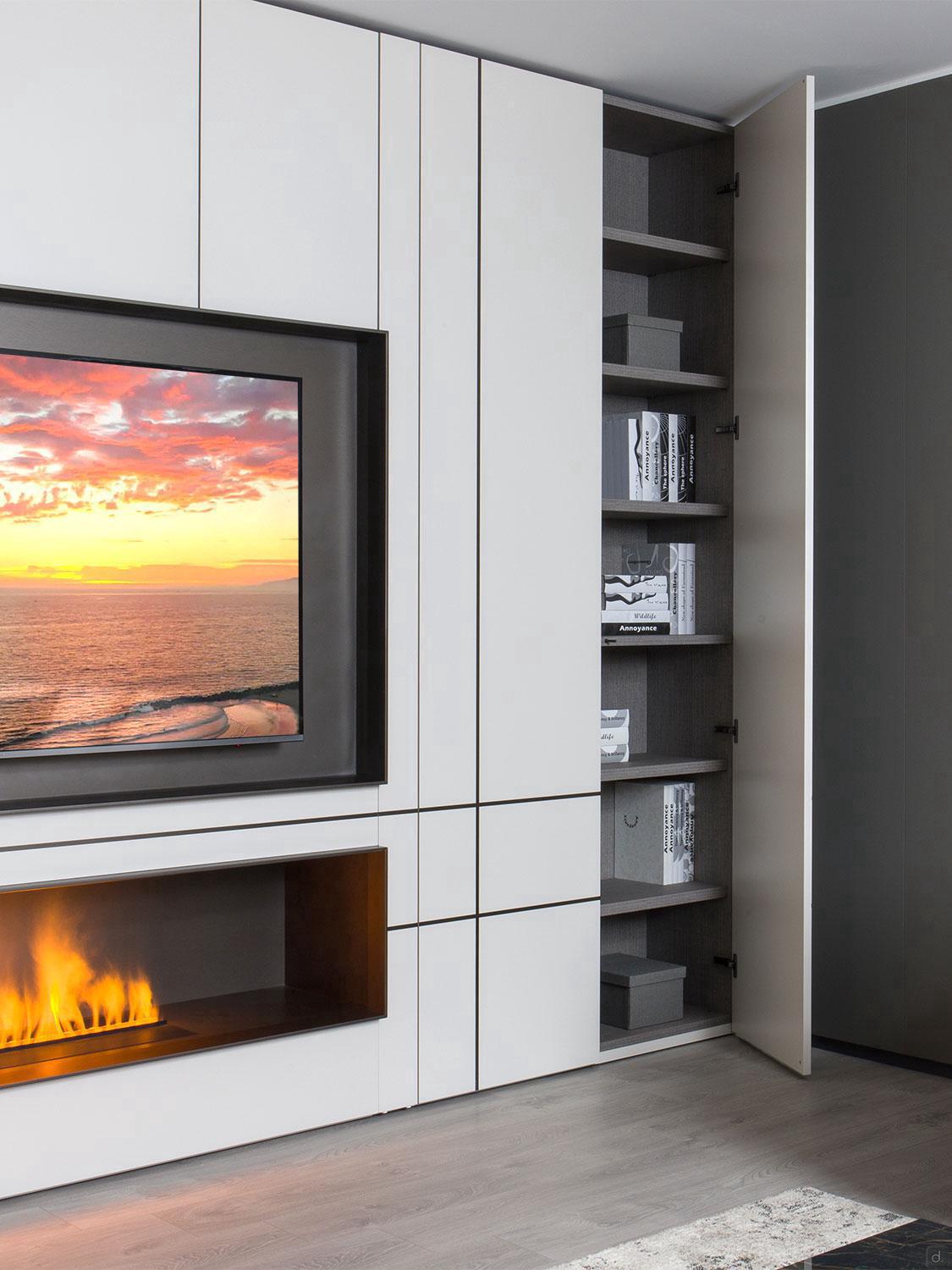

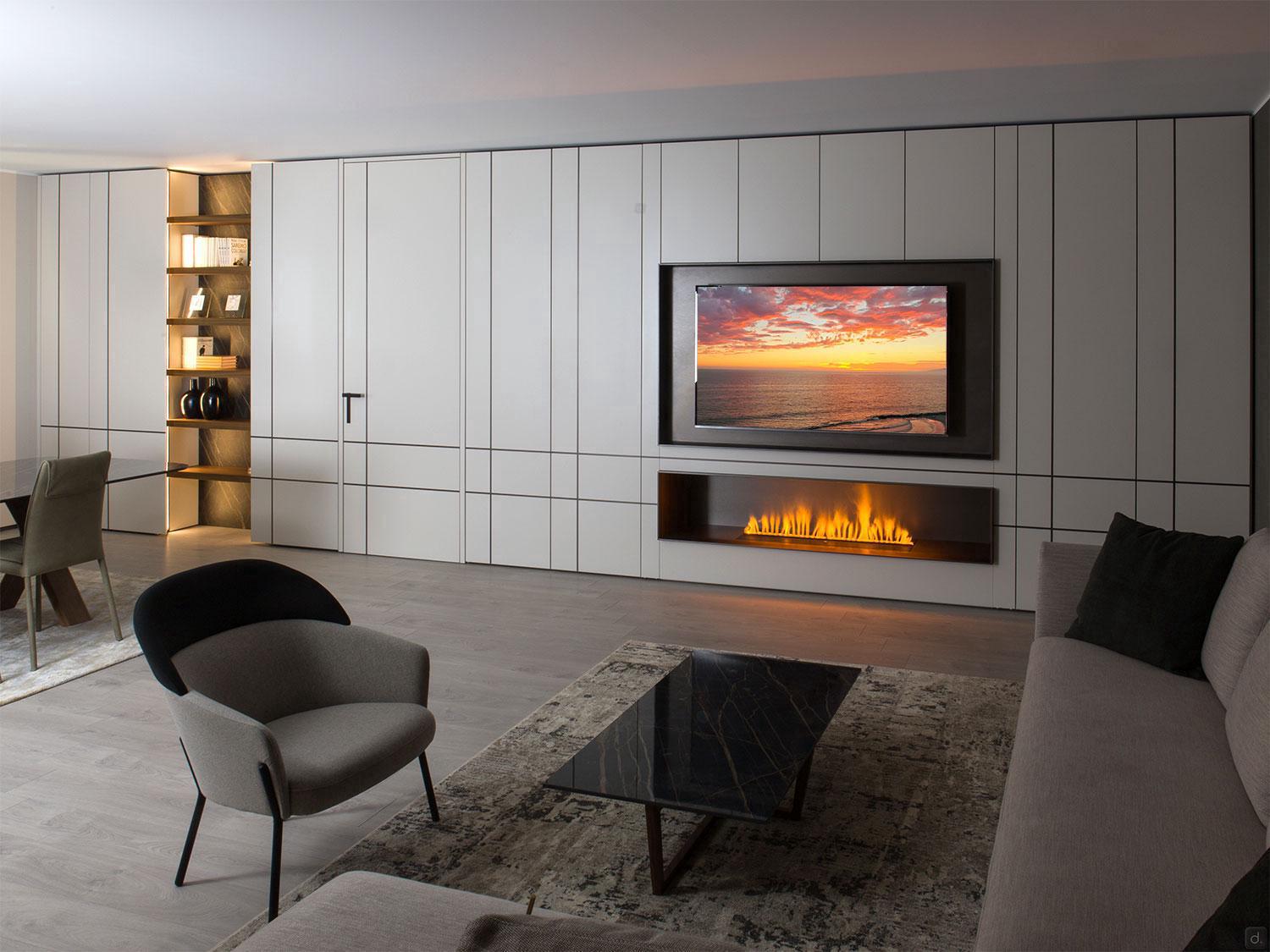

steam fireplace (instead of the open compartment): water vapor fireplace (without the need for smoke pipes), equipped with a tank or connected to the hydraulic system. Natural looking flames effect with a remote control, complying with CE safety standards (Europe).
Optional - Side columns units

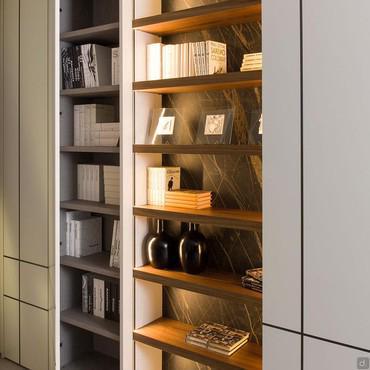

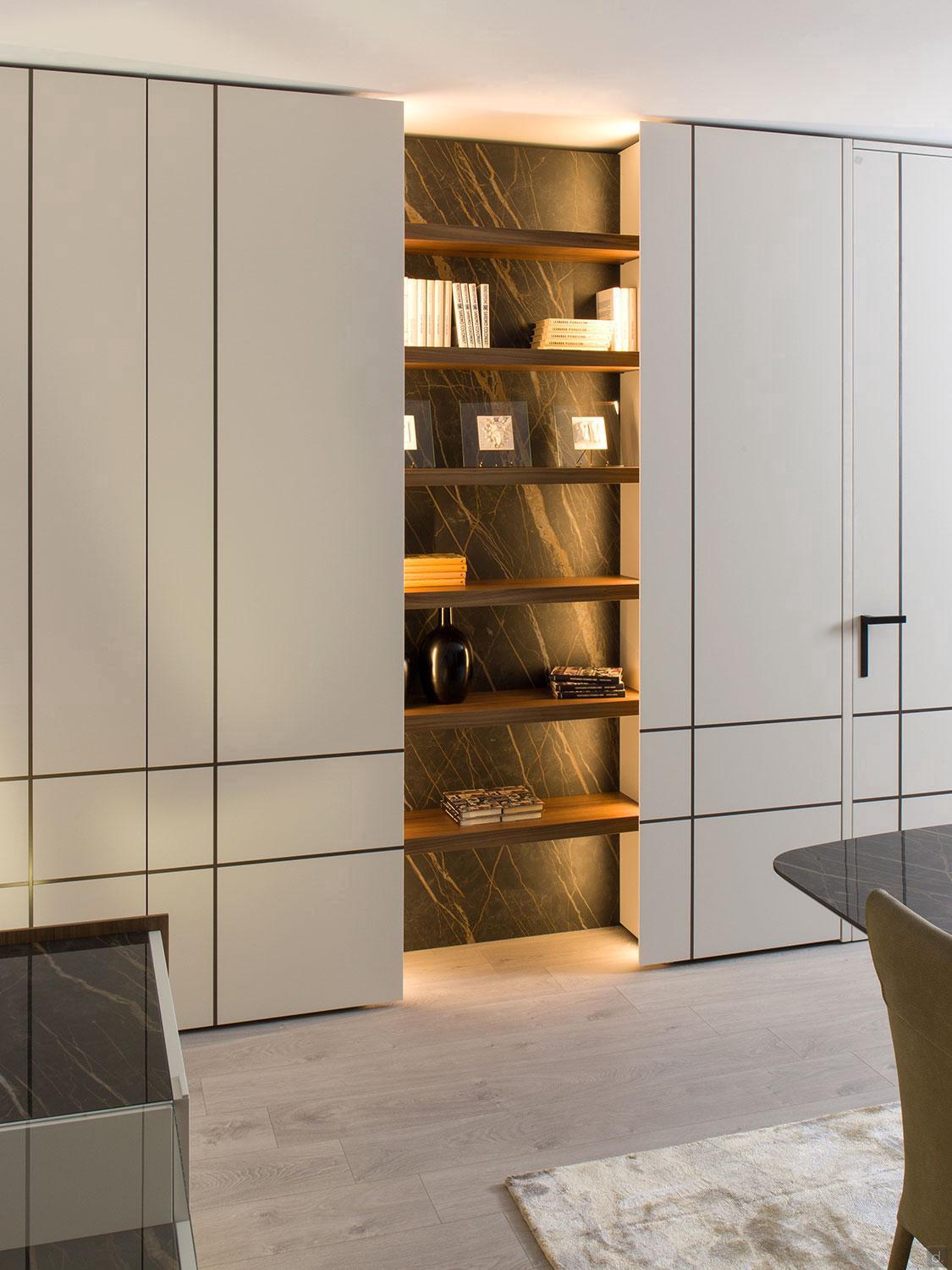

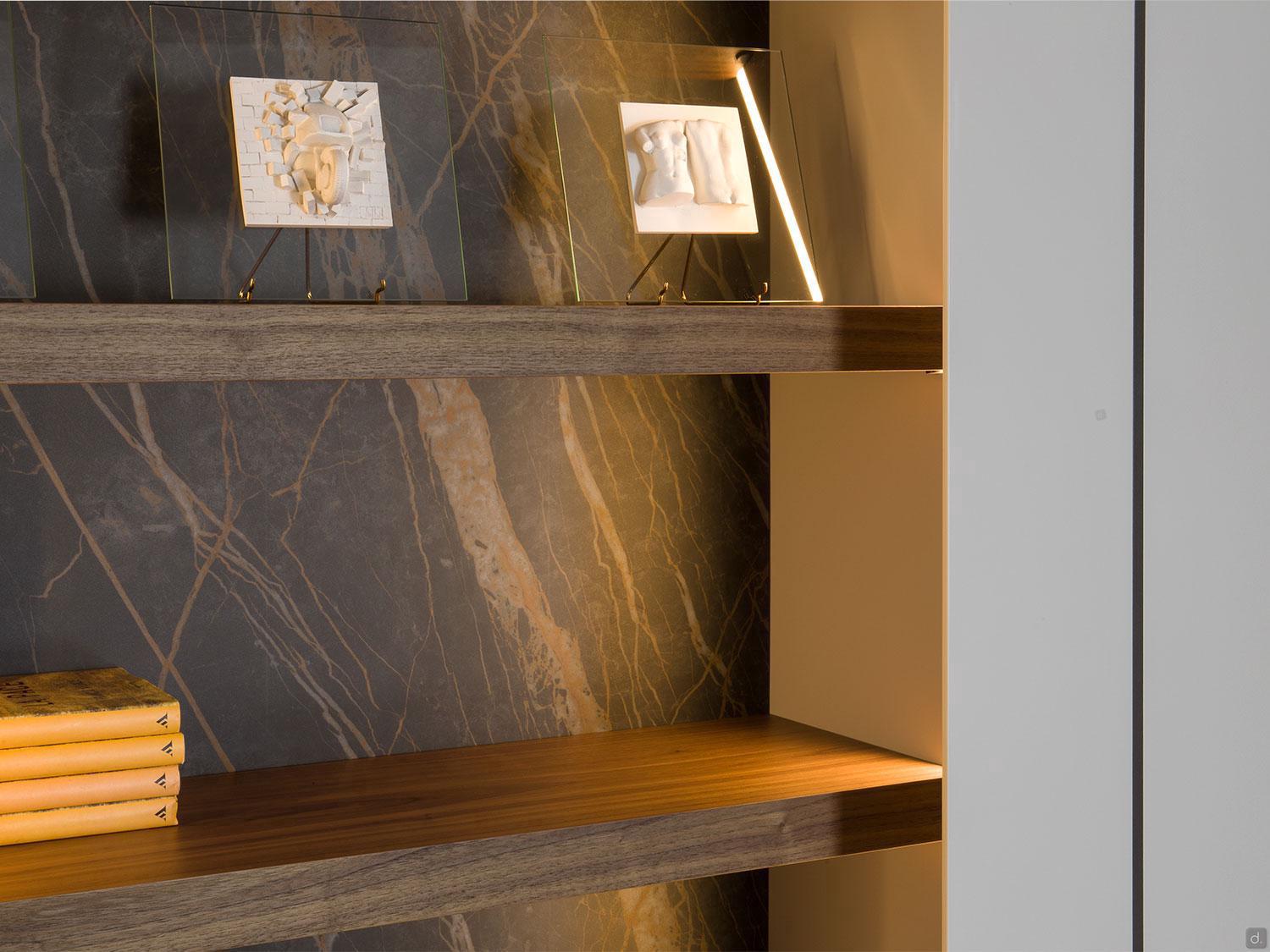

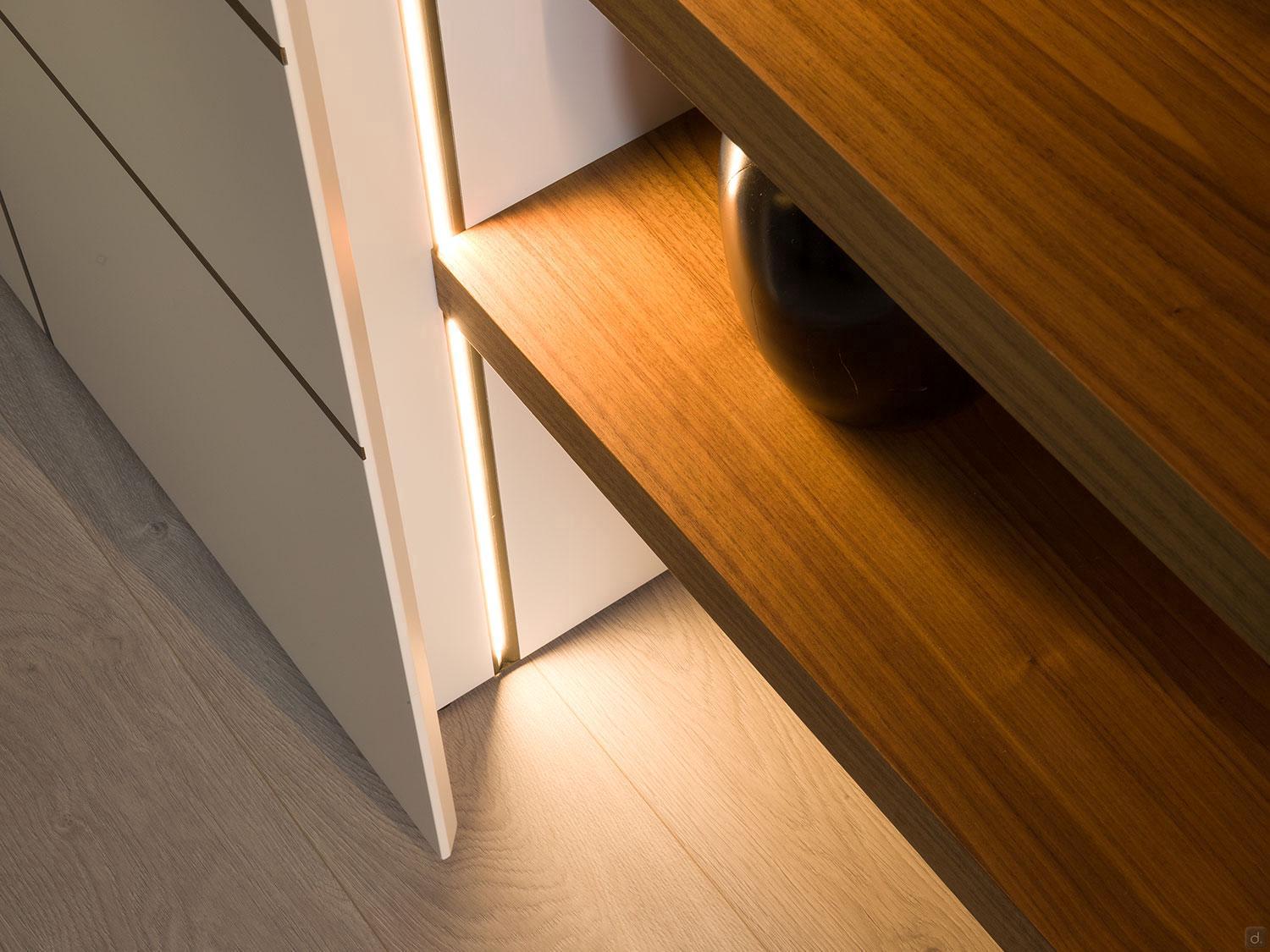

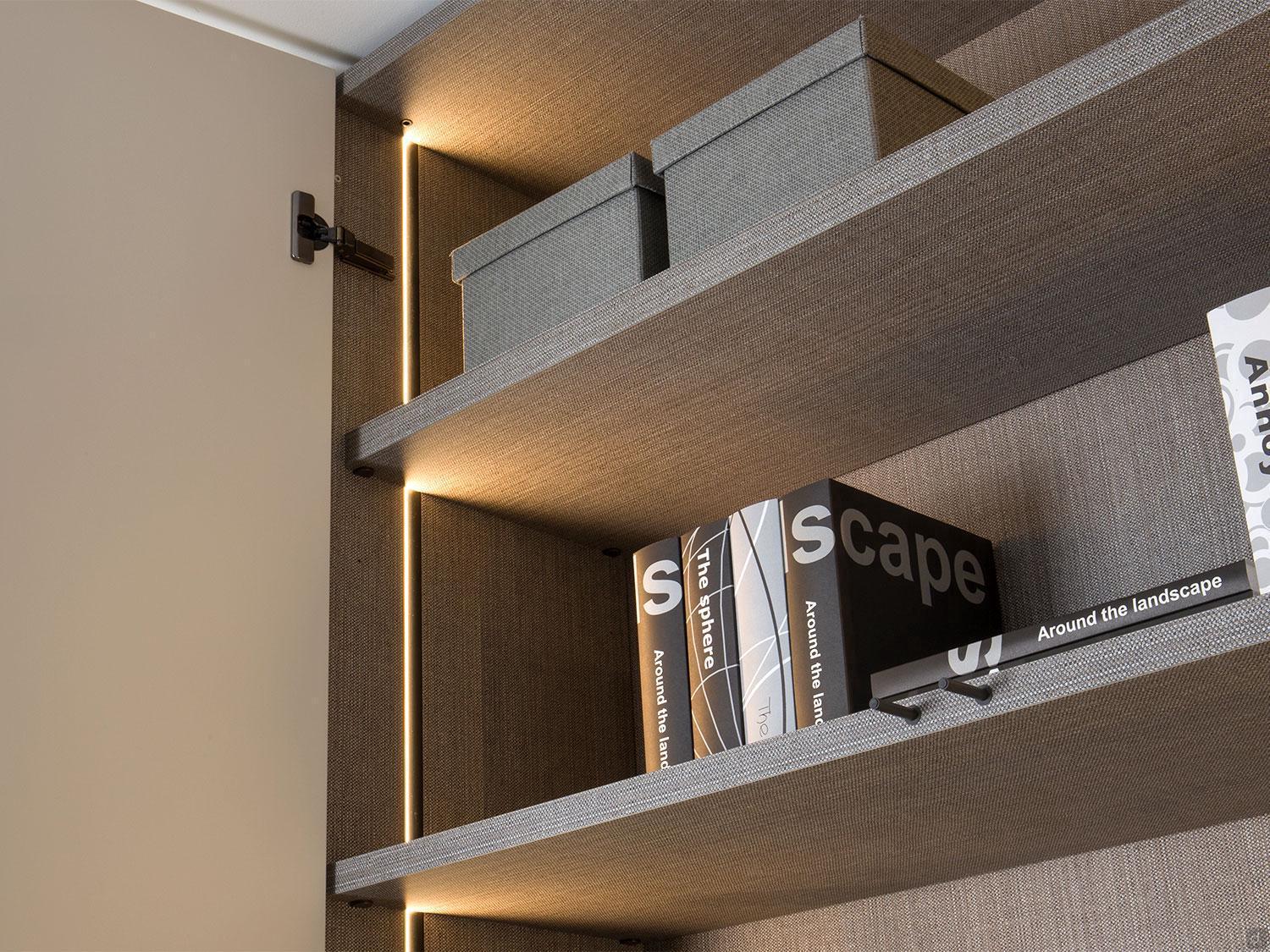

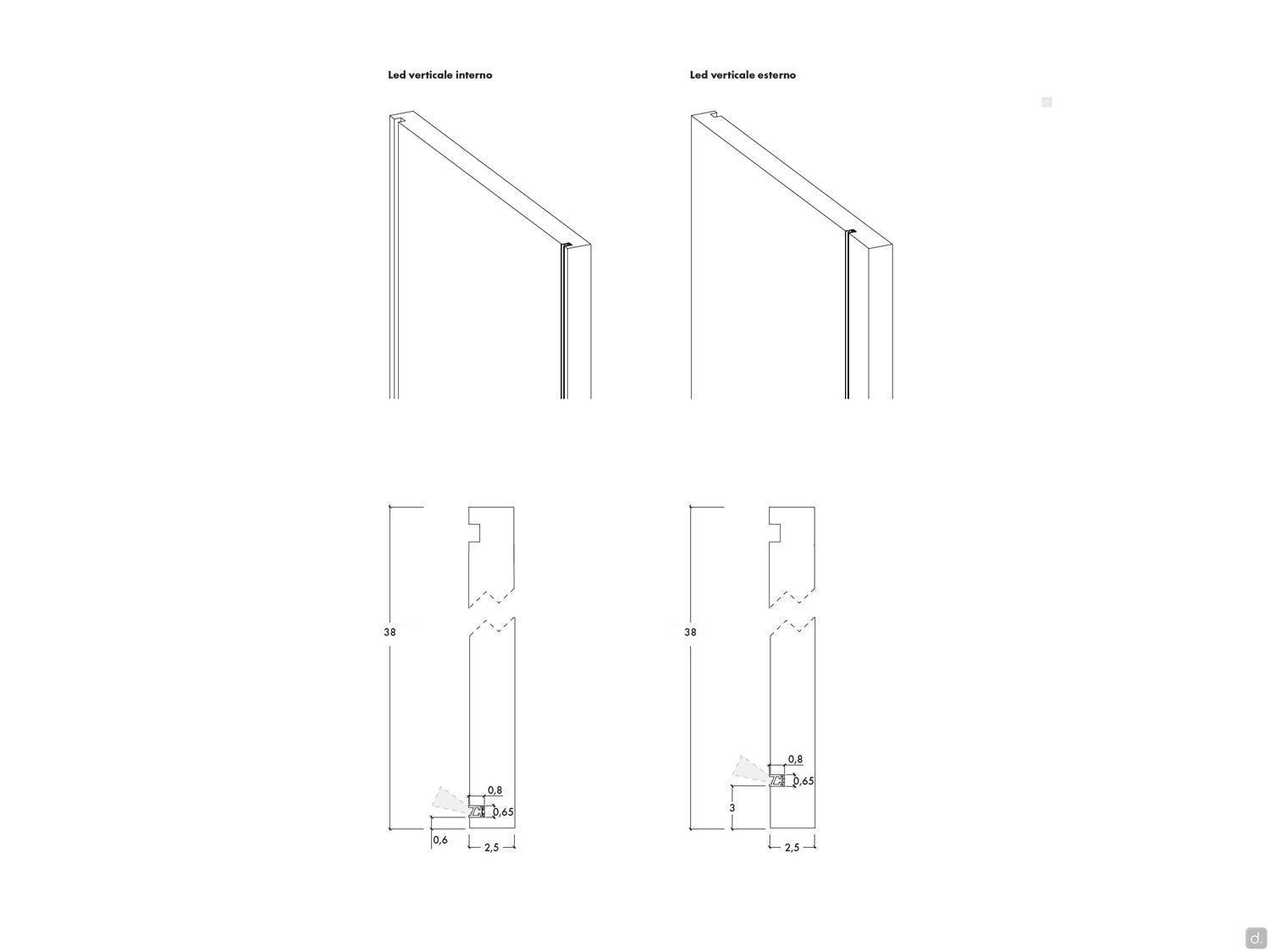

vertical LED lights:positioned on the side panels and/or the internal partitions of the moduls, angled at 30° toward the inside: for external lighting the LED-bars are placed at a distance of 6,5 cm from the front panels, for internal lighting LED-bars are placed at a distance of 0,6 cm from the front panels. Equipped with transformer (maximum power supported is 30 / 75 / 150 W) and is switched on/off with a switch-controlled socket (for open compartments or clear glass door) or with a sensor (for all other doors). LED with heat graduation of 3000K-24V.
Assembly Tips
Hardware pre-mounted on all elements to facilitate and speed up the assembly process.
The feet, which are also pre-mounted on the stands, allow for the correct levelling of the wall unit thanks to a maximum extension of 0,8 cm. In posizione scarica, misurano cm 0,5.
For the assembling of the structure you need:
- 4 cm in width (se montaggio in nicchia cm 2)
- 3 cm in height
Further Information...
Honeycomb Panel: panel made with an internal honeycomb structure and a perimeter frame of 5 / 7 cm made from top-quality solid pine, closed with 2 panels in MDF (0,3 / 0,4 cm thick) which are subsequently lacquered and veneered.
The advantages of honeycomb panels are:
- greater durability over time;
- greater resistance to load;
- significantly reduced weight of the panels (up to 60% less), useful for transport, assembly, moving or removals, but especially to reduce the weight of the doors on the structure and hardware;
- hardware always fixed on the perimeter (in solid fir wood) of the sides and doors, so hinges will have a higher resistance and the furniture will have a considerably longer life;
- greater resistance to humidity, as the material "breathes";
- exclusively "100% Made in Italy".
Aged Oak: compared to the "standard" open-pore oak, aged oak is characterised by a slightly more brushed surface, which shows a deeper pore and a more marked grain. This difference is particularly noticeable on bigger surfaces such as tables, wall units and wardrobes, less so on accessories, beds and bedroom sets.
