Specific Measurements

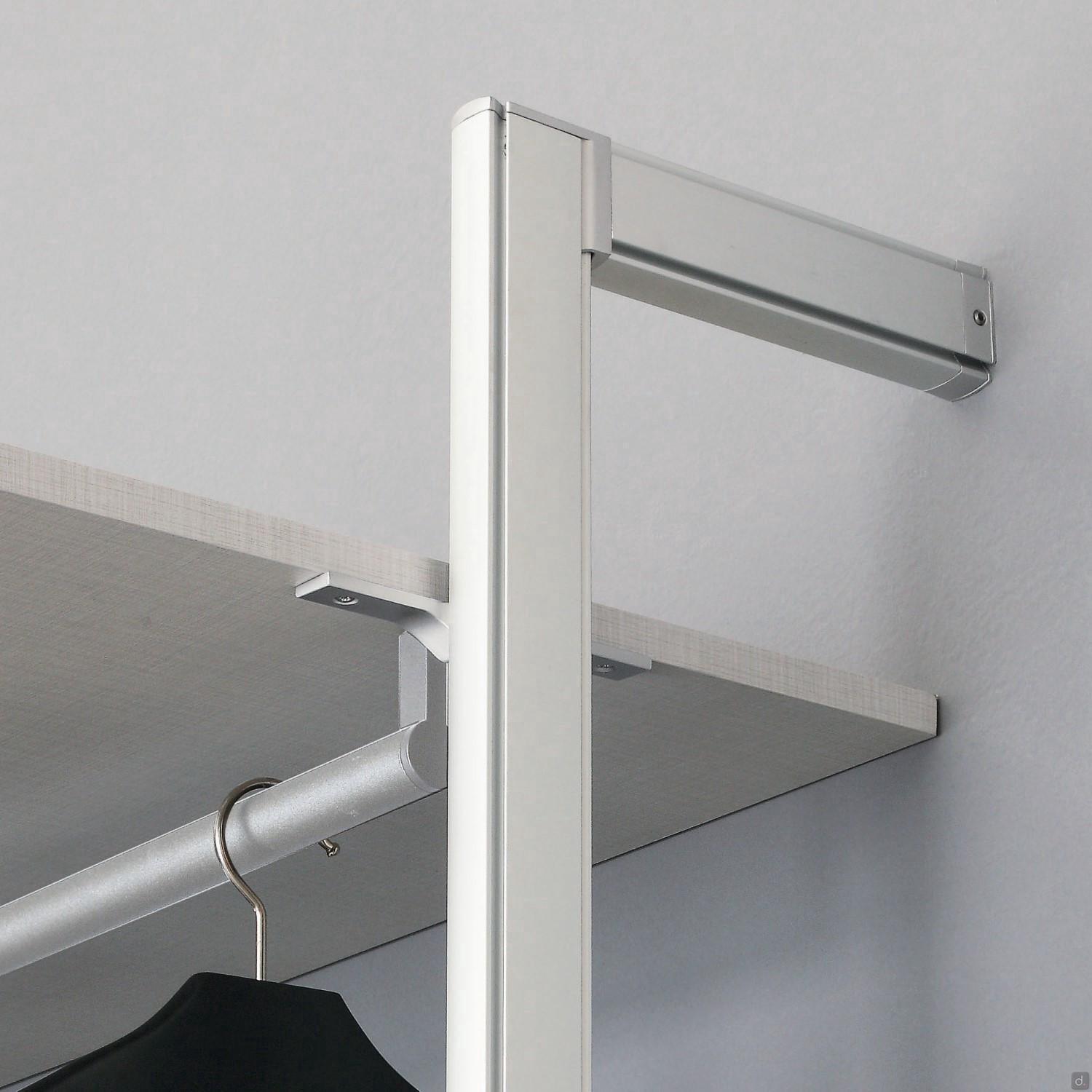

Floor / wall rod:: cm 3 d.5,4 h. up to cm 300. The cross-piece for the wall mounting is 27 cm.

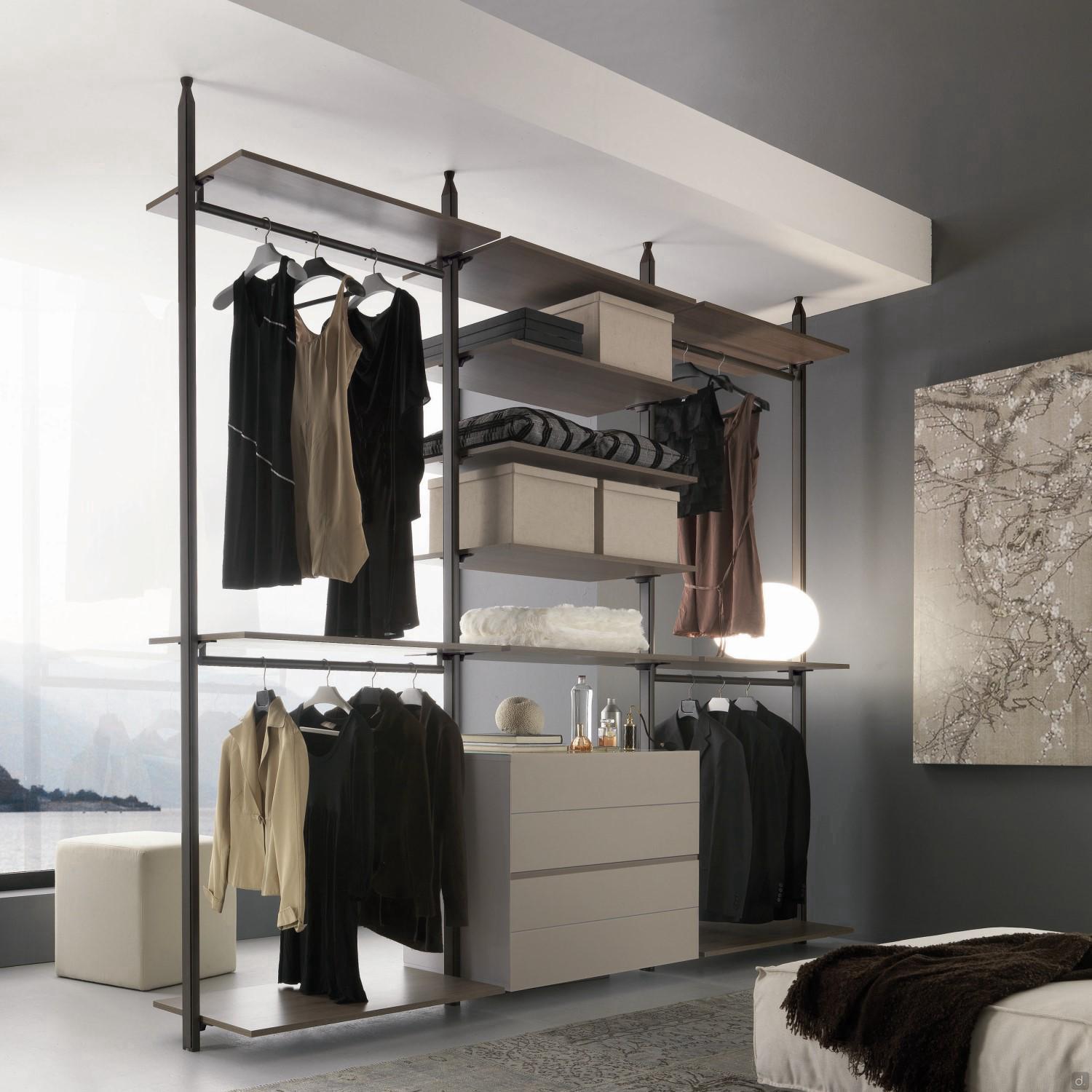

Floor / ceiling rod: cm 3 d.5,4 h. up to cm 300
Shelves:
- width: cm 54 / 82 / 110 x 110
- depth: cm d.50
- thickness: cm th.2
Technical Specifications and Equipment

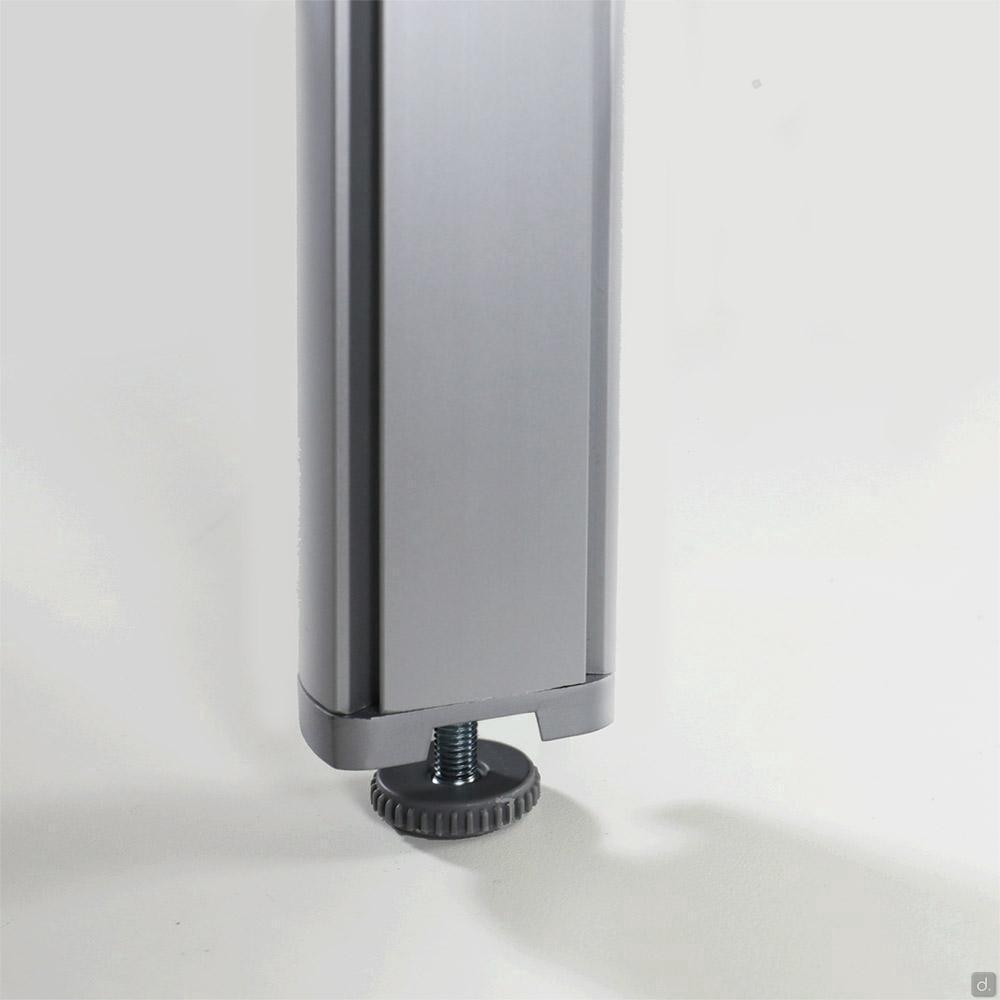

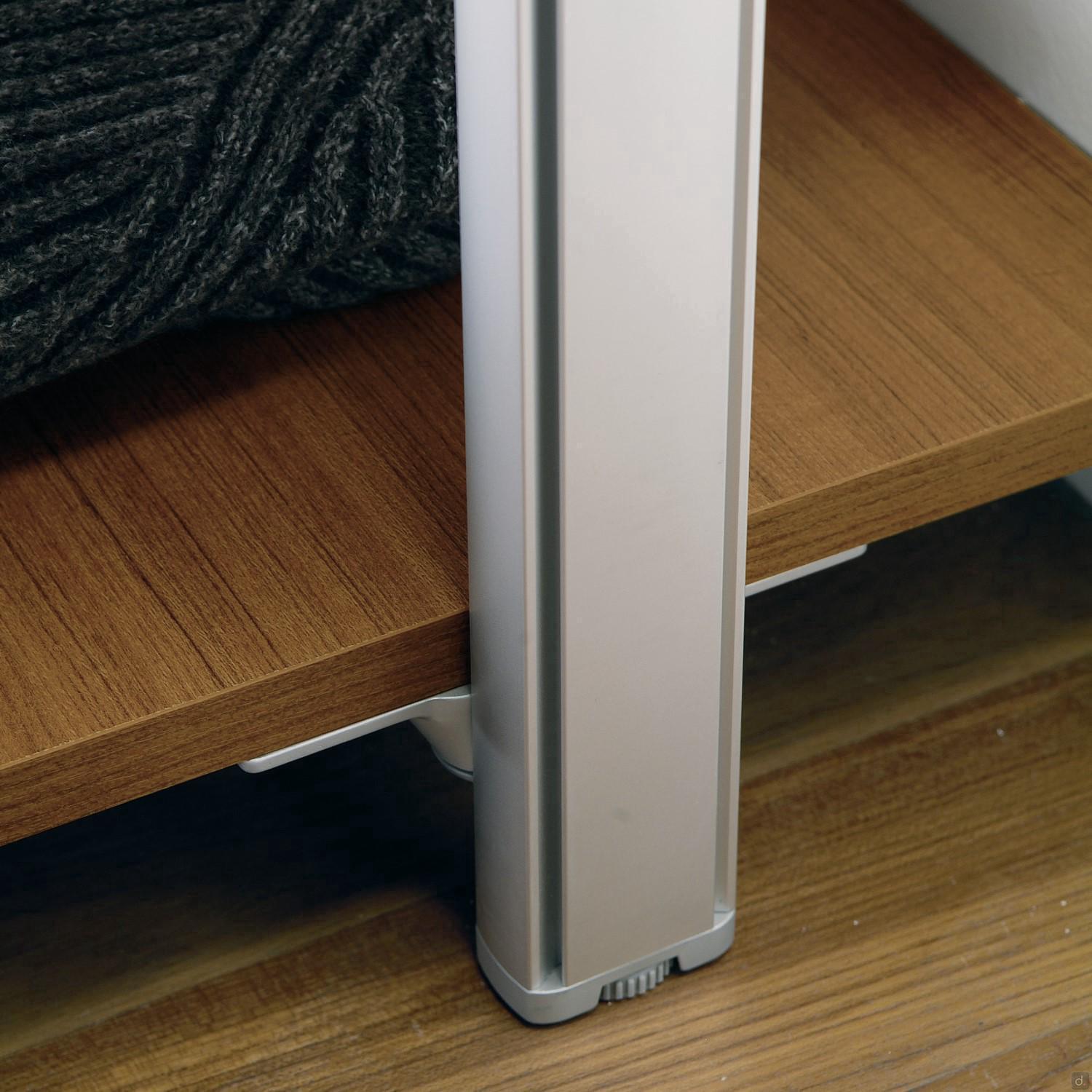

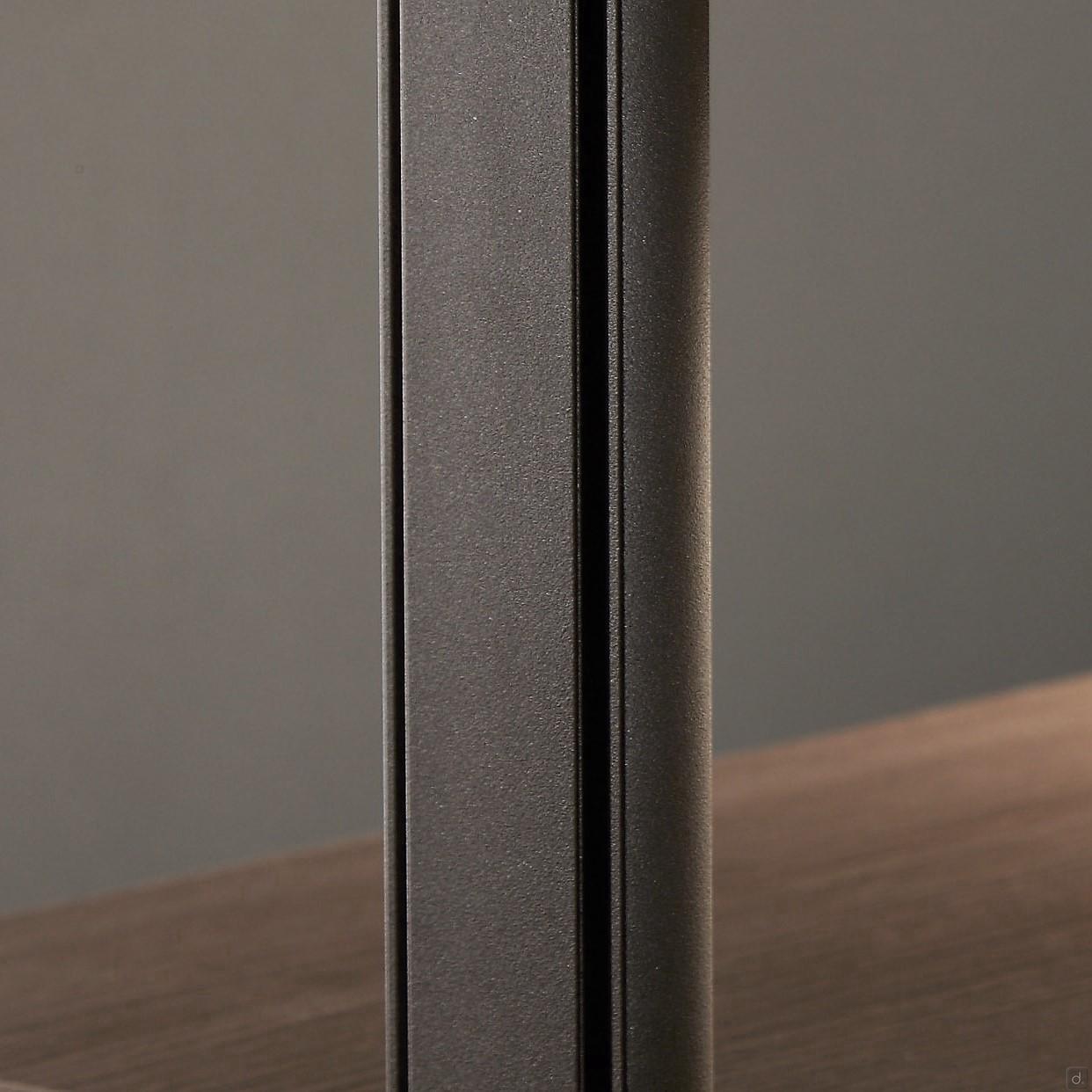

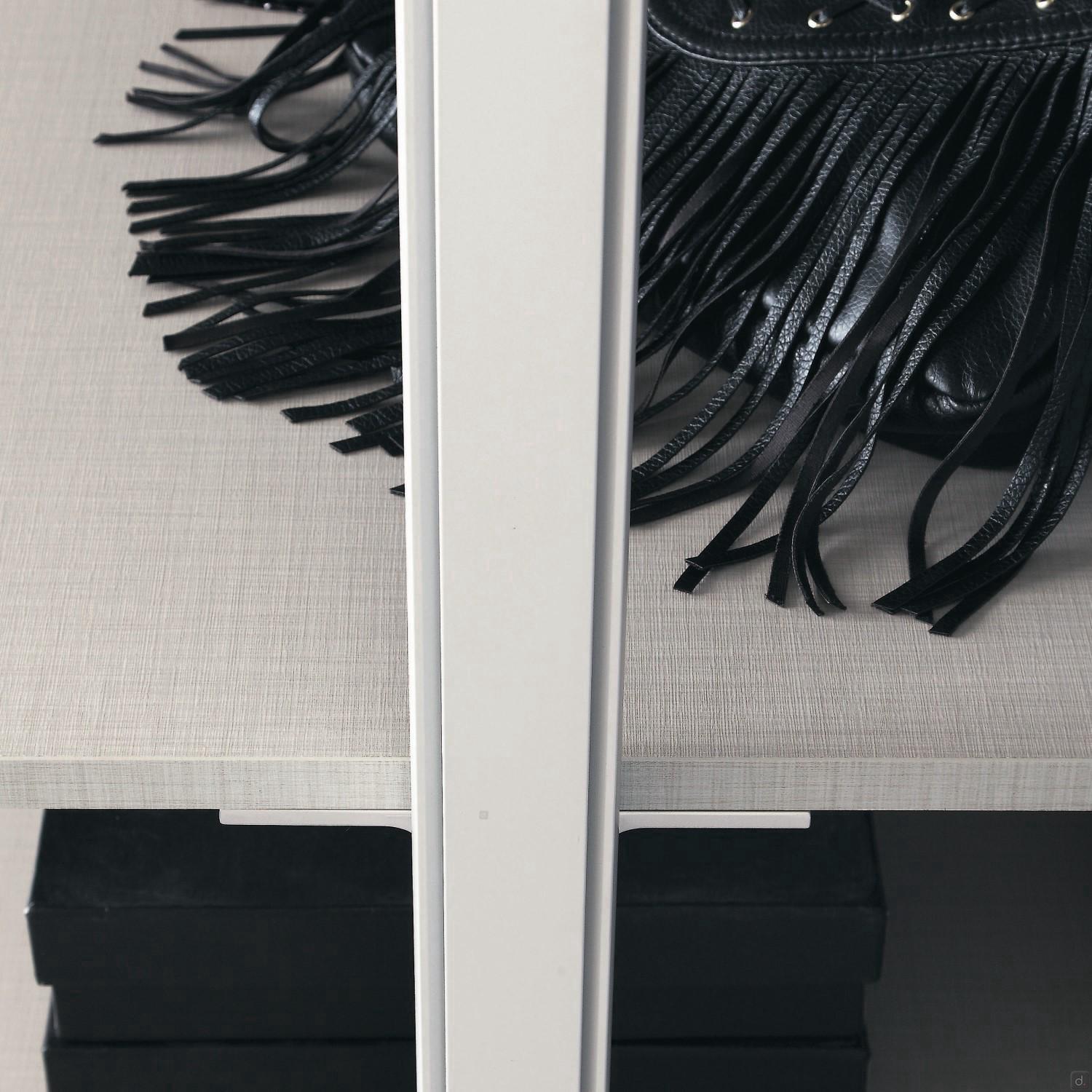

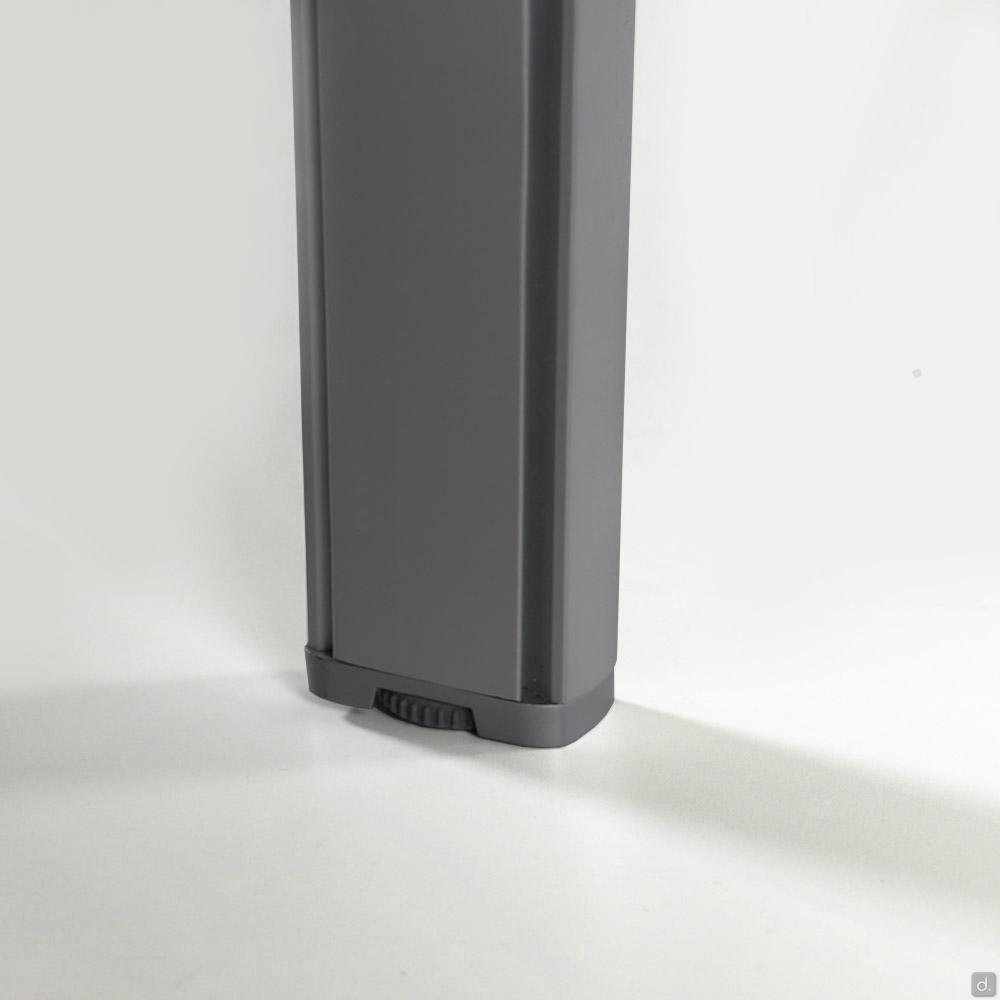

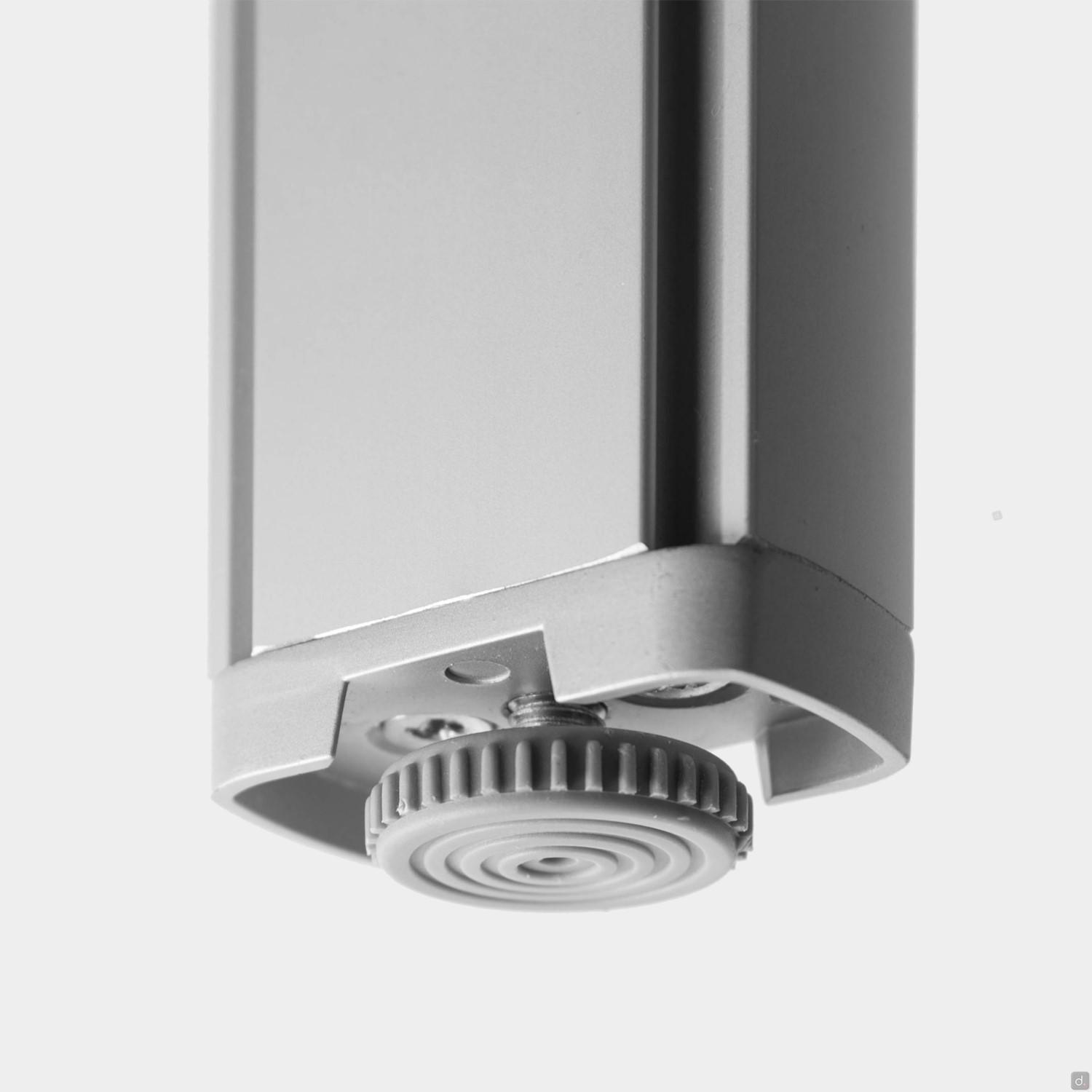

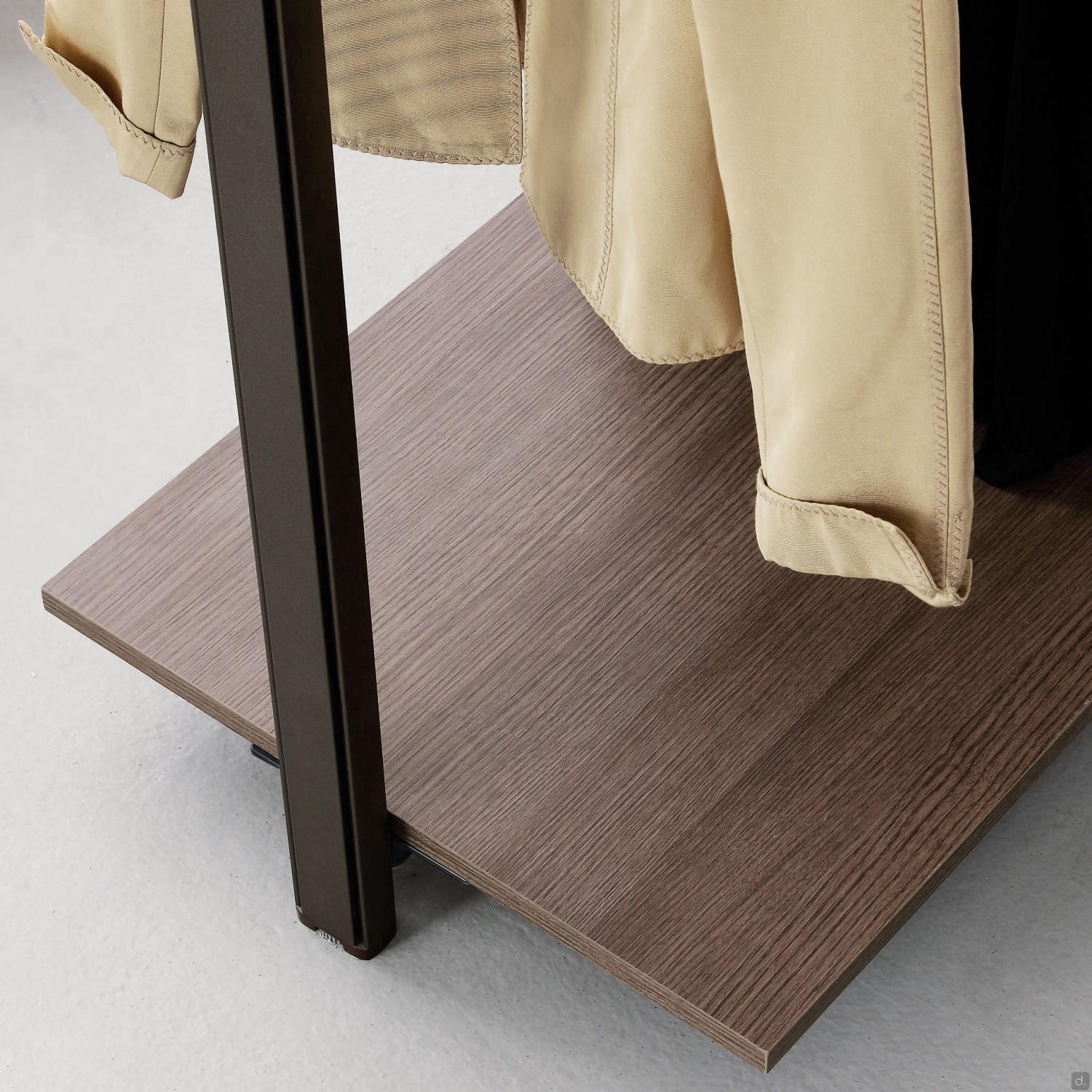

Rods: made of silver anodised or painted aluminium, also RAL lacquered. The side is shaped and has no holes, and is suitable for inserting zamak shelf supports for fixing shelves and drawers. They are complete with adjustable feet: the range is 1 cm.

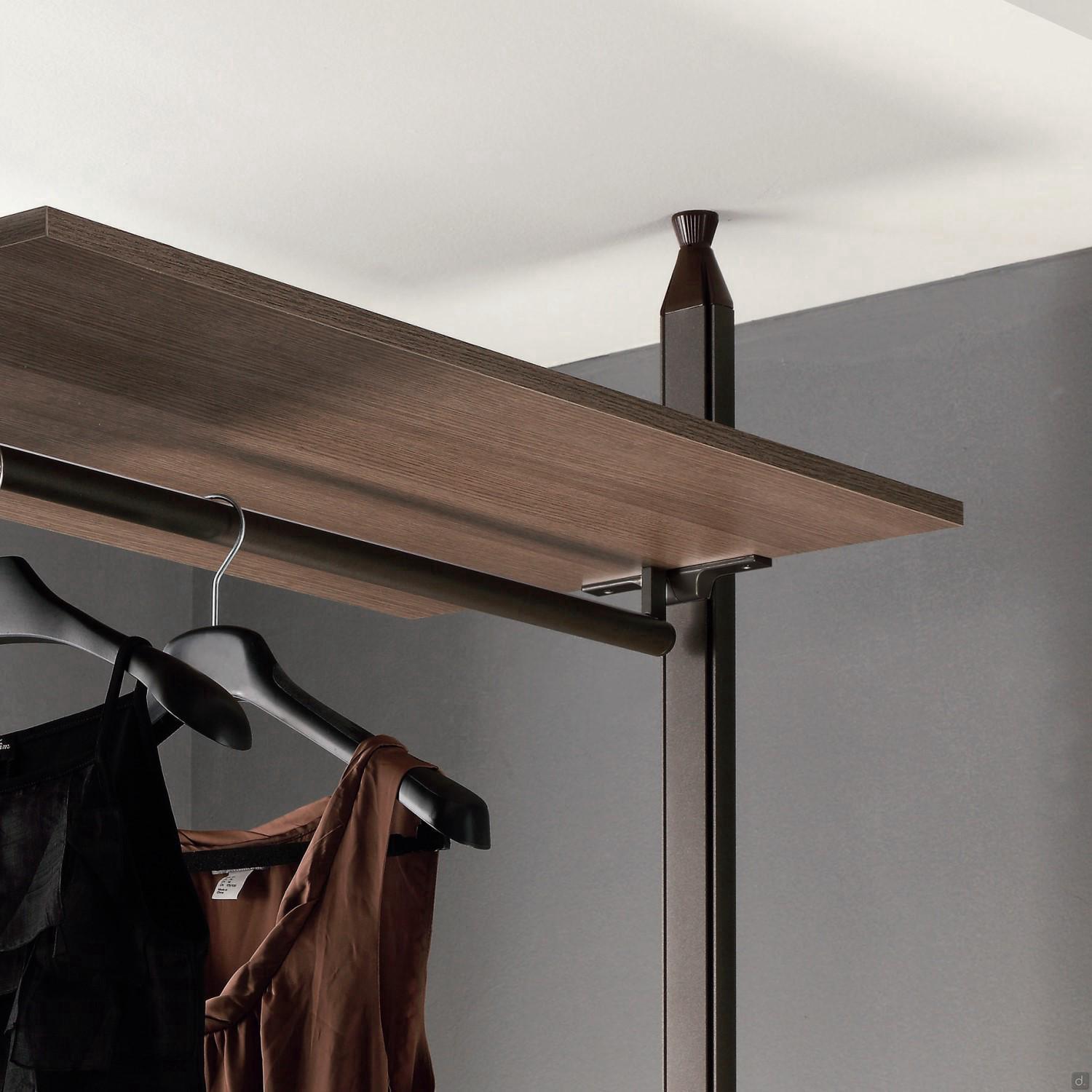

In the floor/ceiling version, the rod is supplied with a height approximately 0.5 cm lower than the ceiling height indicated in the Configurator. The adjustment range of the feet (+1 cm for the lower foot, +1 cm for the upper foot) allows you to adjust the height for a perfect installation. For this reason, it is advisable to measure the height of your ceiling precisely at the point where the rod will be installed and enter the correct measurement in the Configurator. Example: for a ceiling height of 270 cm, the rod will be supplied with a height of approximately 269.5 cm, with height adjustment up to +2 cm.

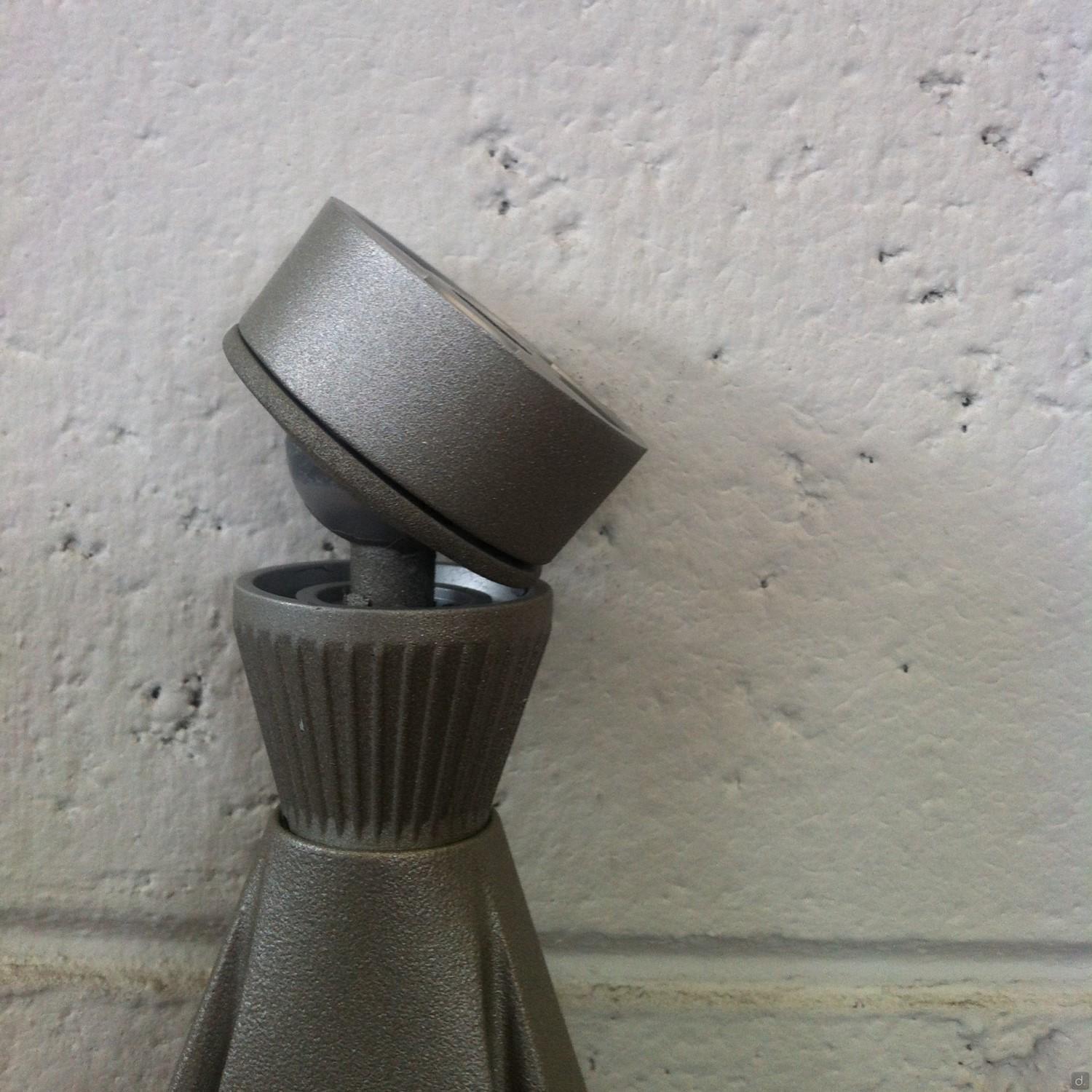

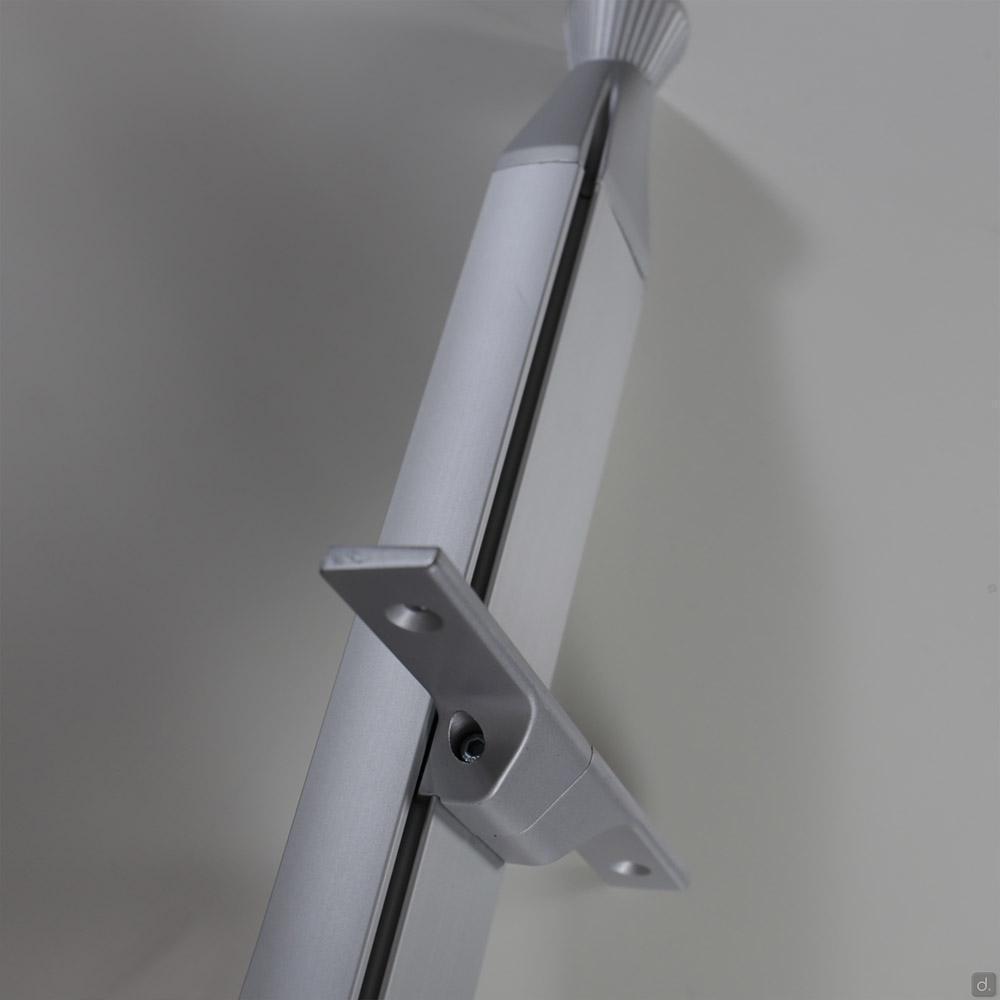

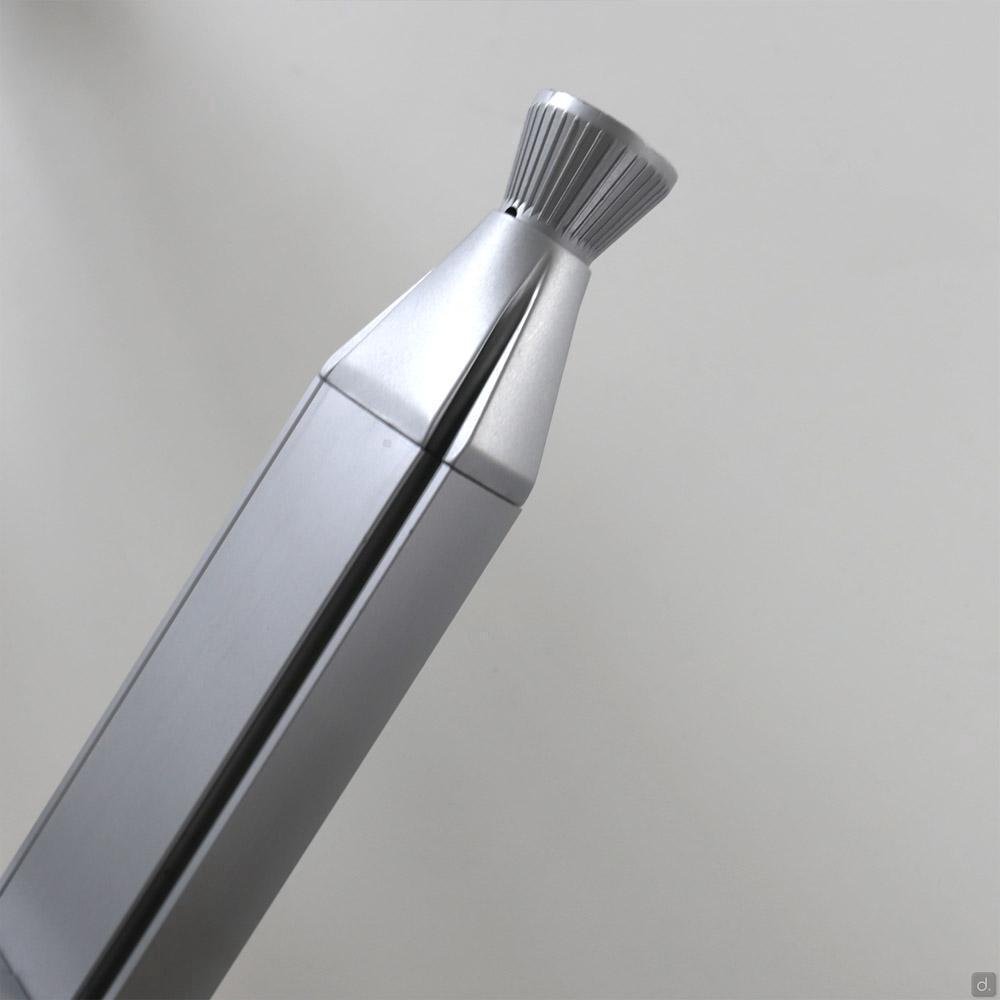

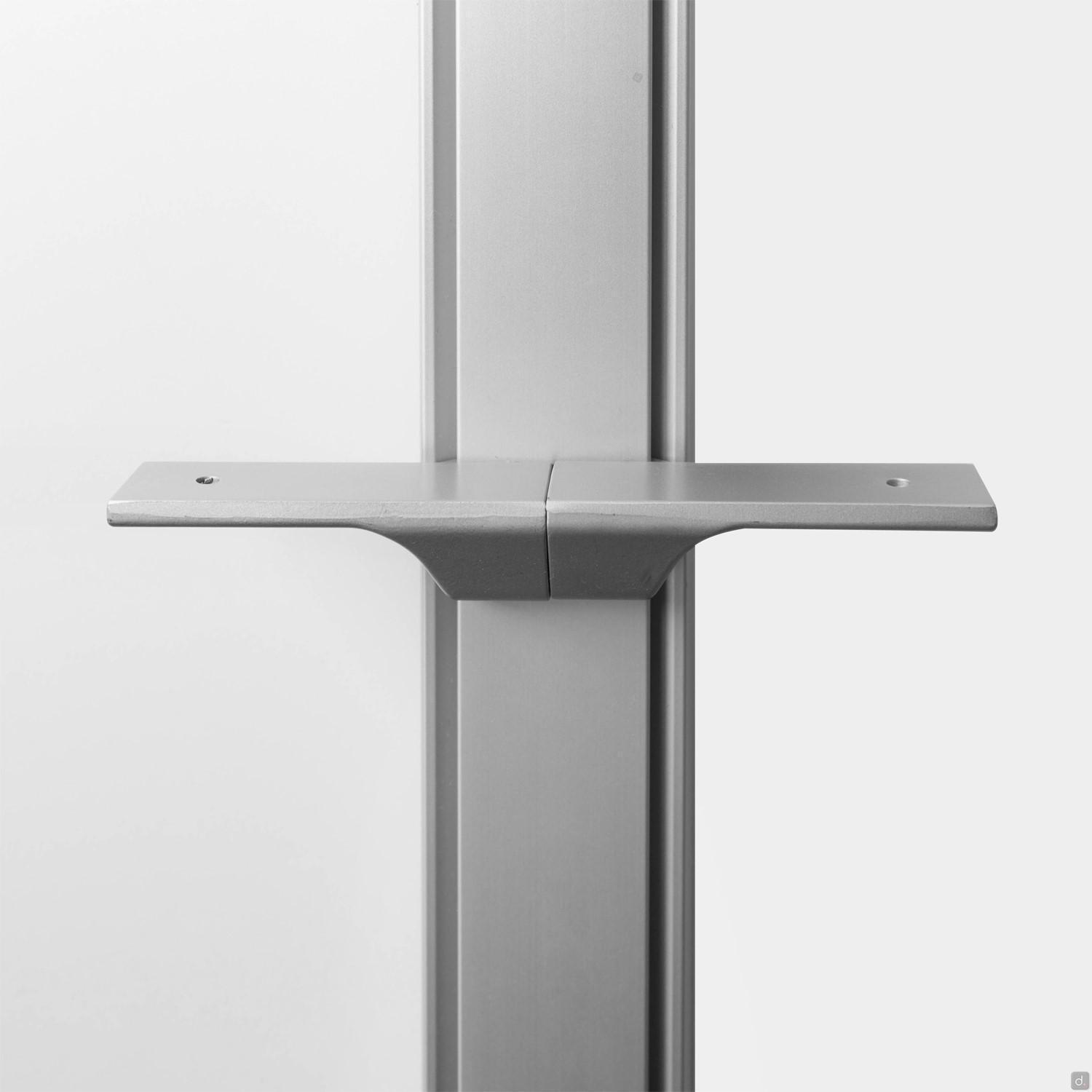

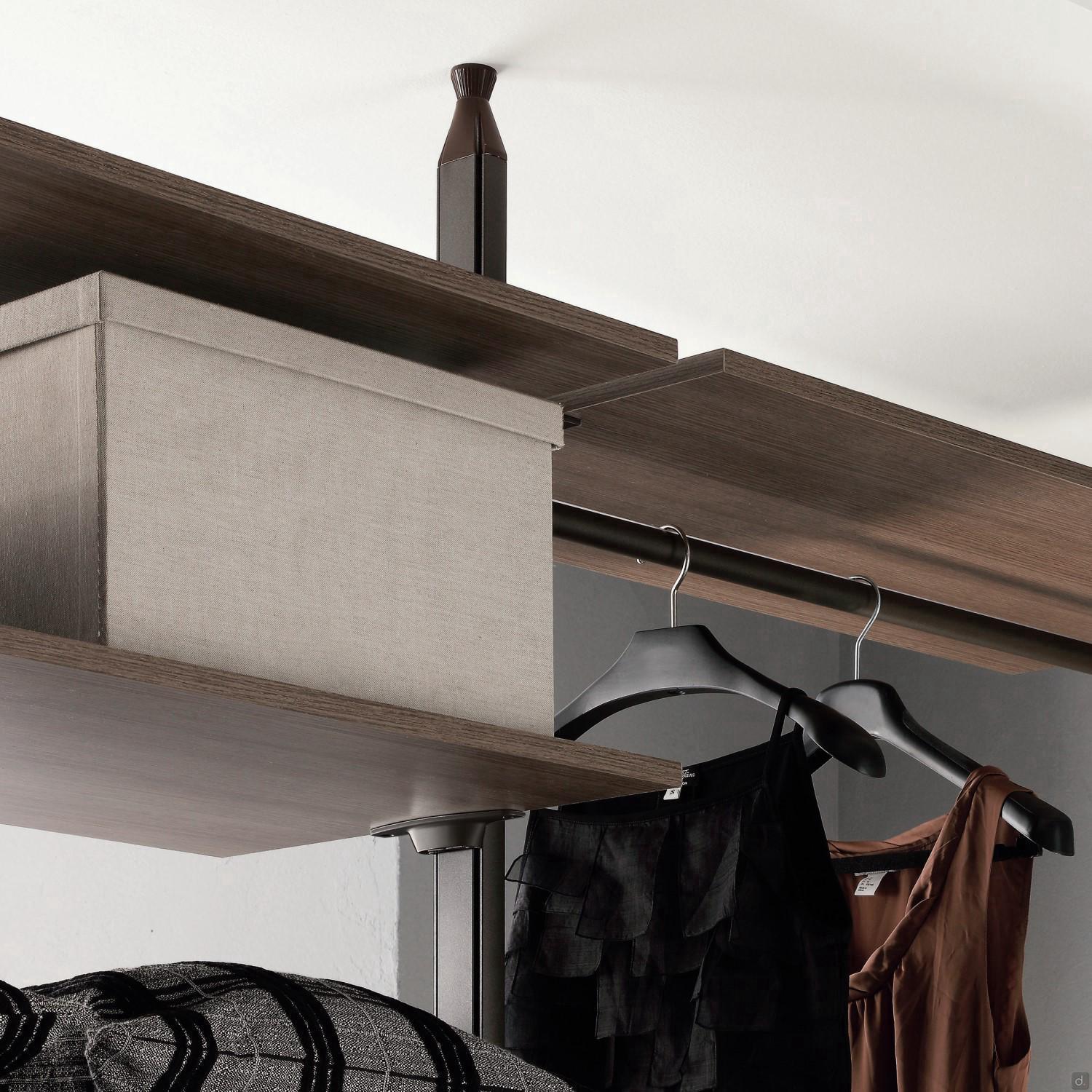

The rods are equipped with a safe and invisible wall mount that fixes them to the wall or the ceiling according to the model; the ones on the floor do not require fixing. In the floor / slanted ceiling version they also come with ad adapter that allows to adjust through a small wheel the rod according to your ceiling.

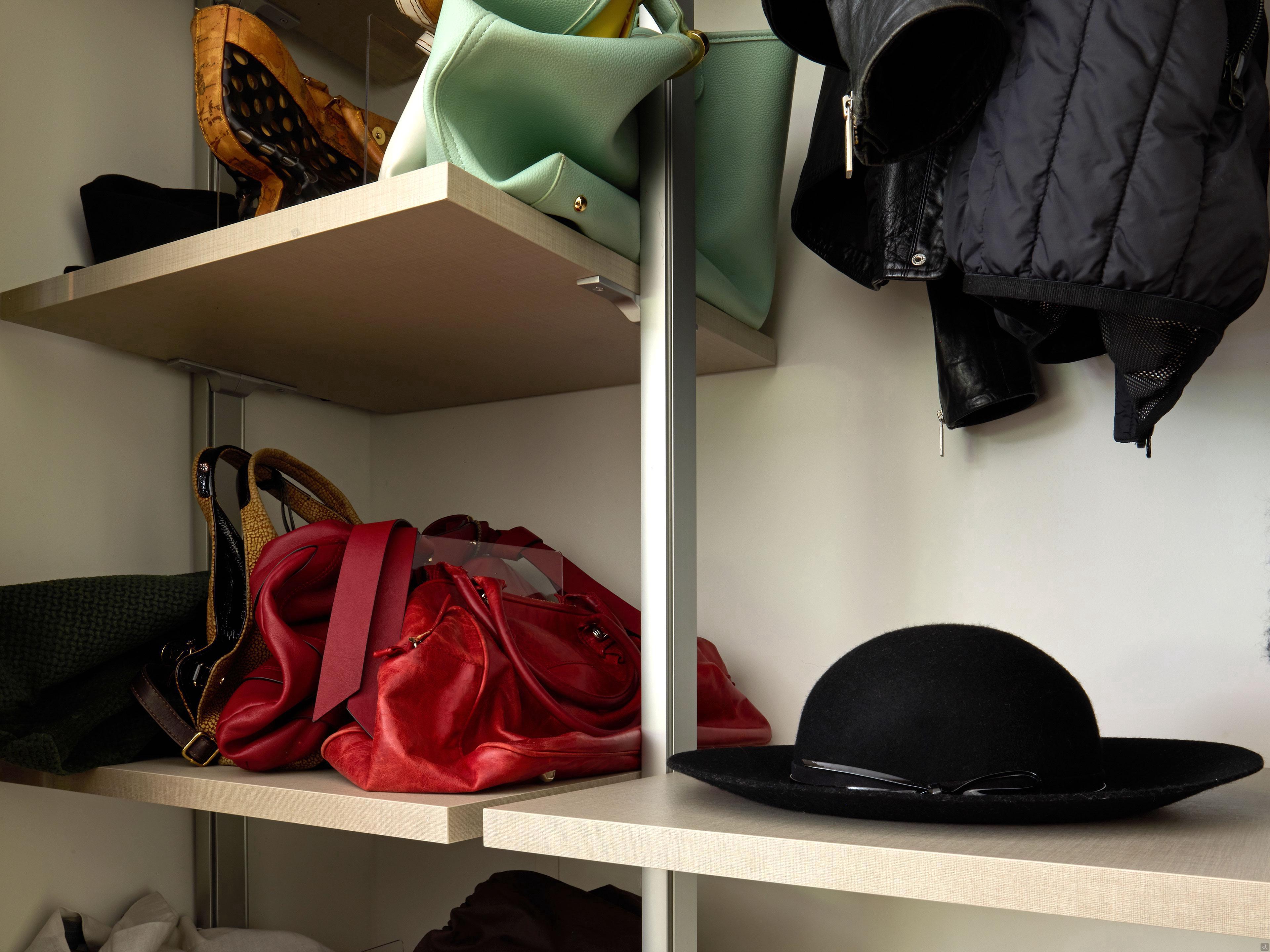

Linear shelves: made of melamine: they are equipped with two metal supports matching the rods.

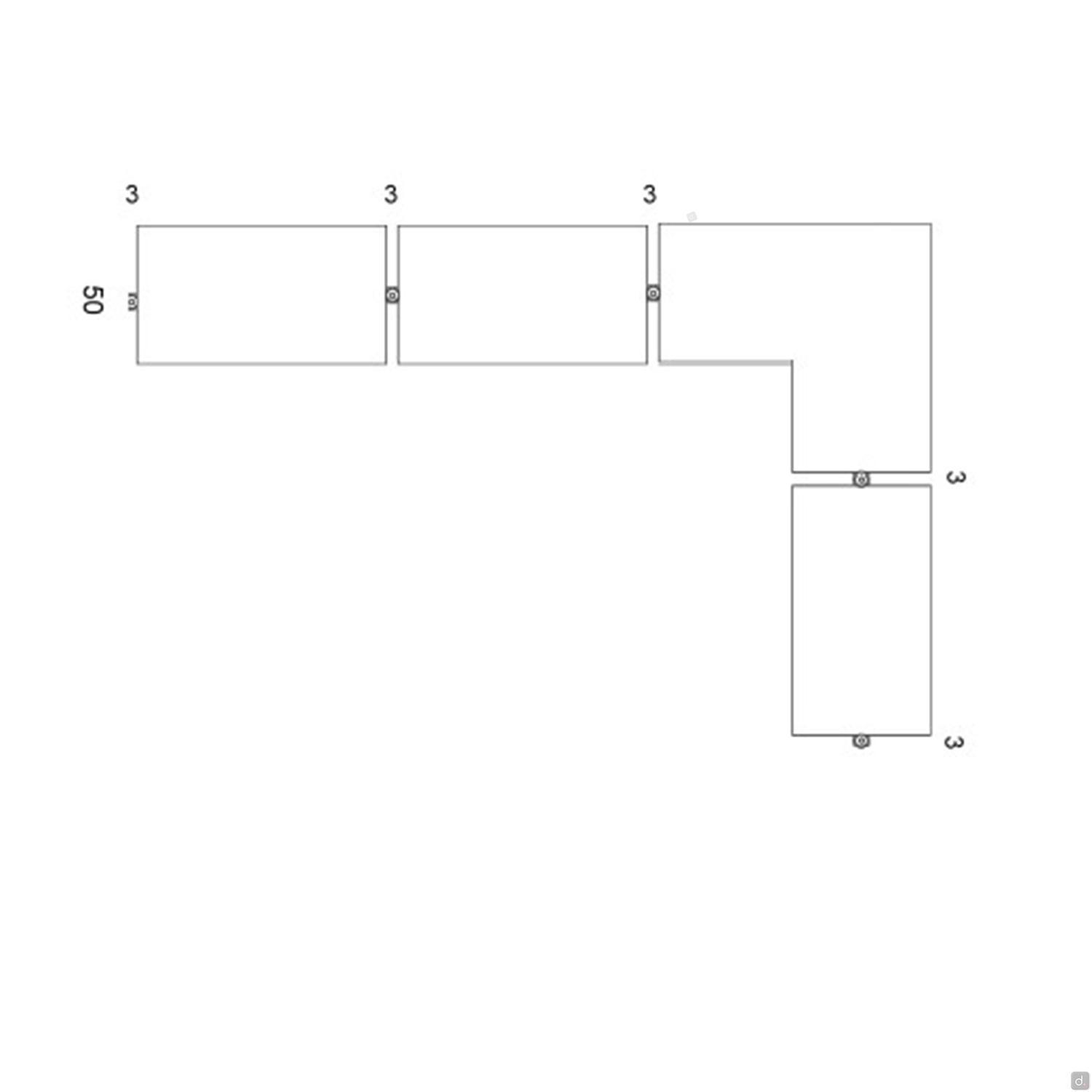

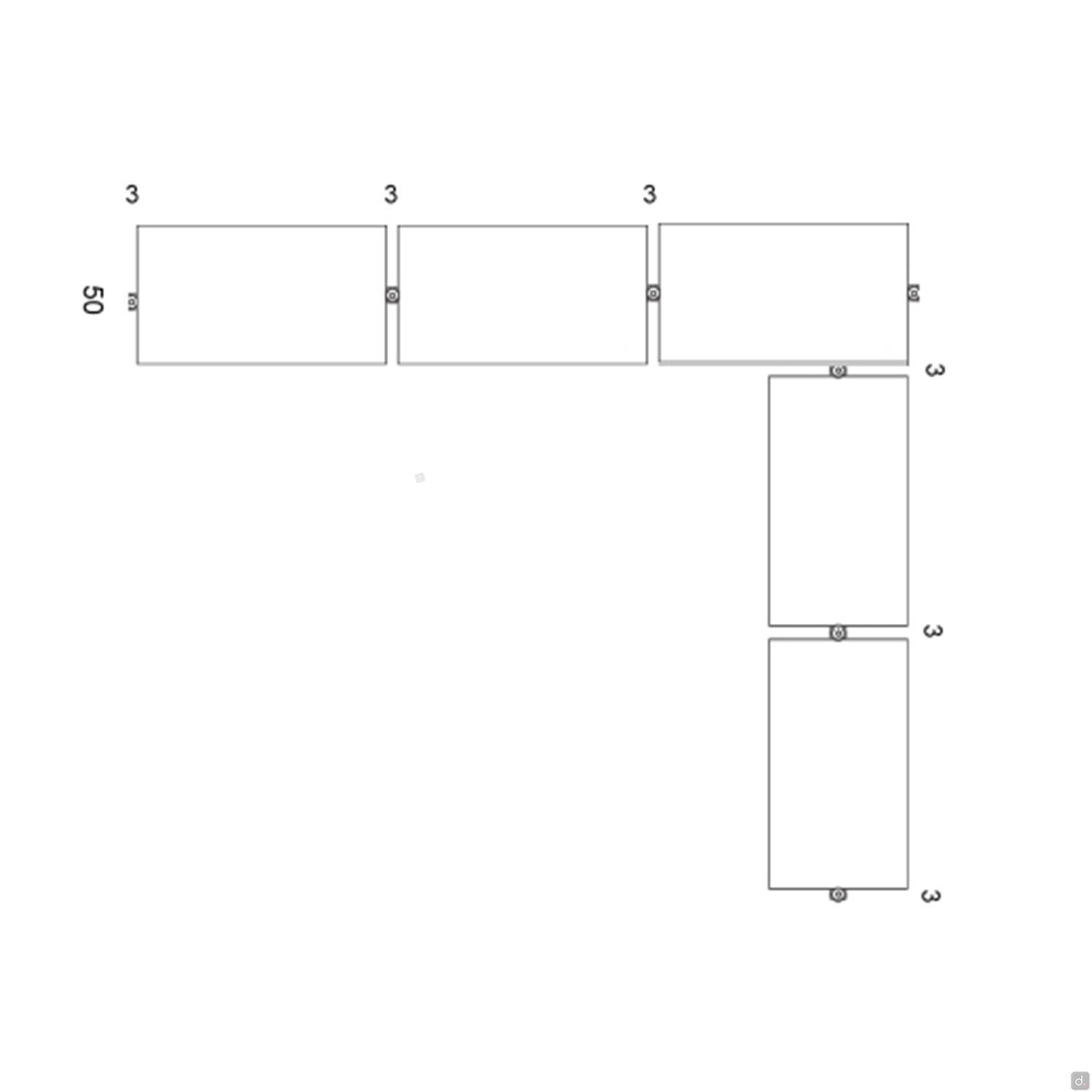

Corner shelves: made of melamine. They are equipped with three metal supports matching the rods; the two side supports will be fixed to the rods, the third on the corner must be fixed to the wall to guarantee the stability of the shelf.

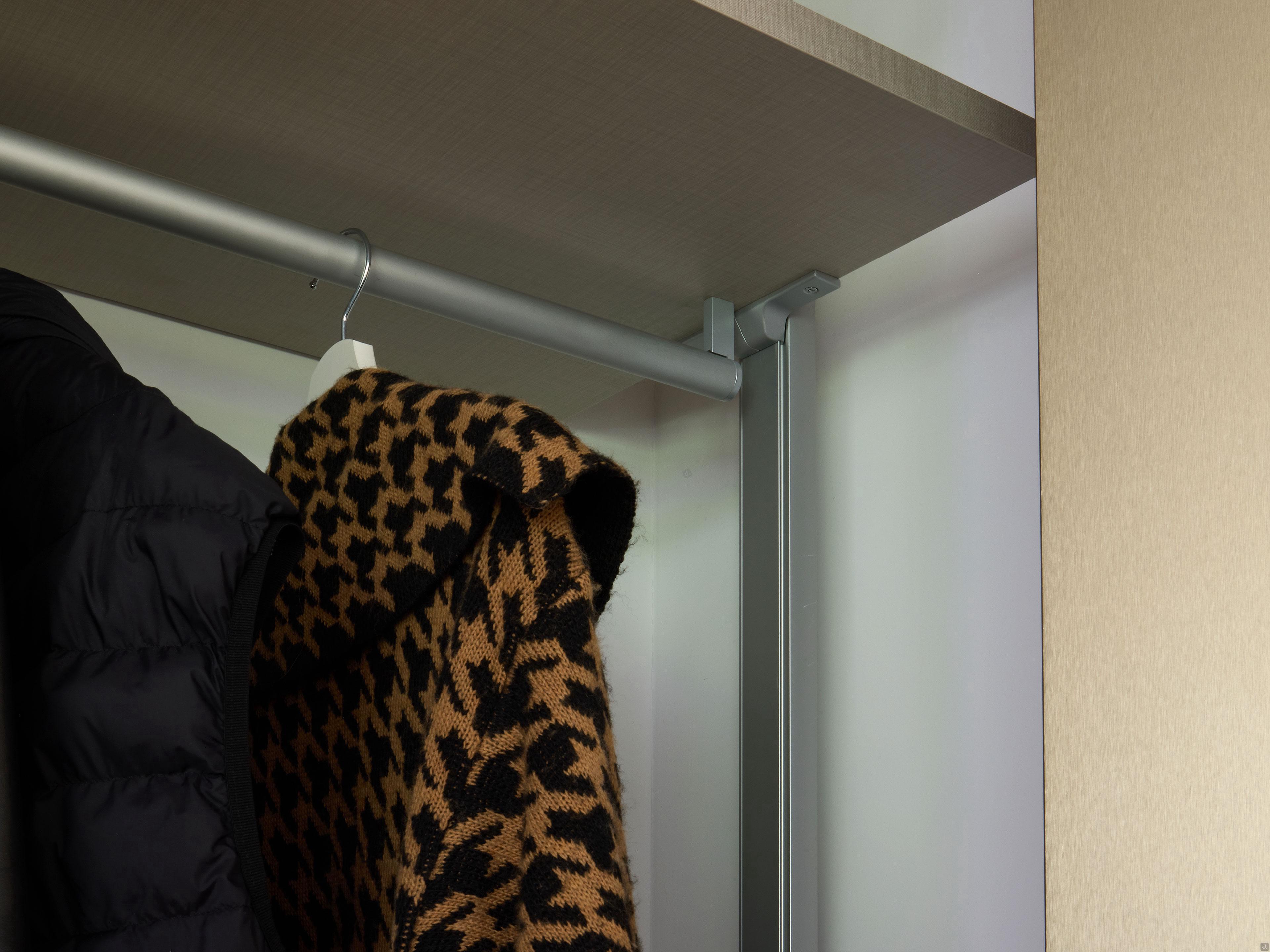

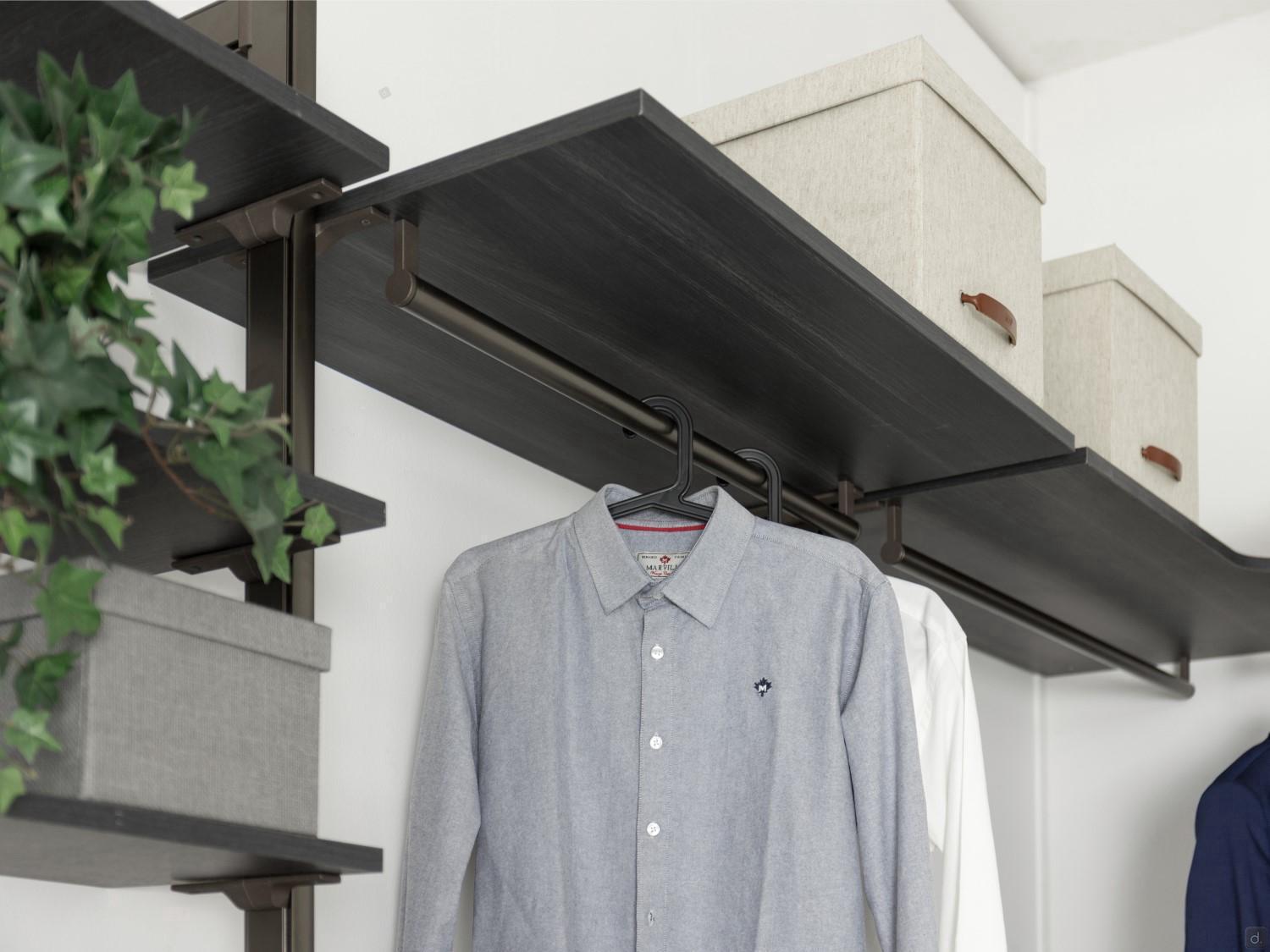

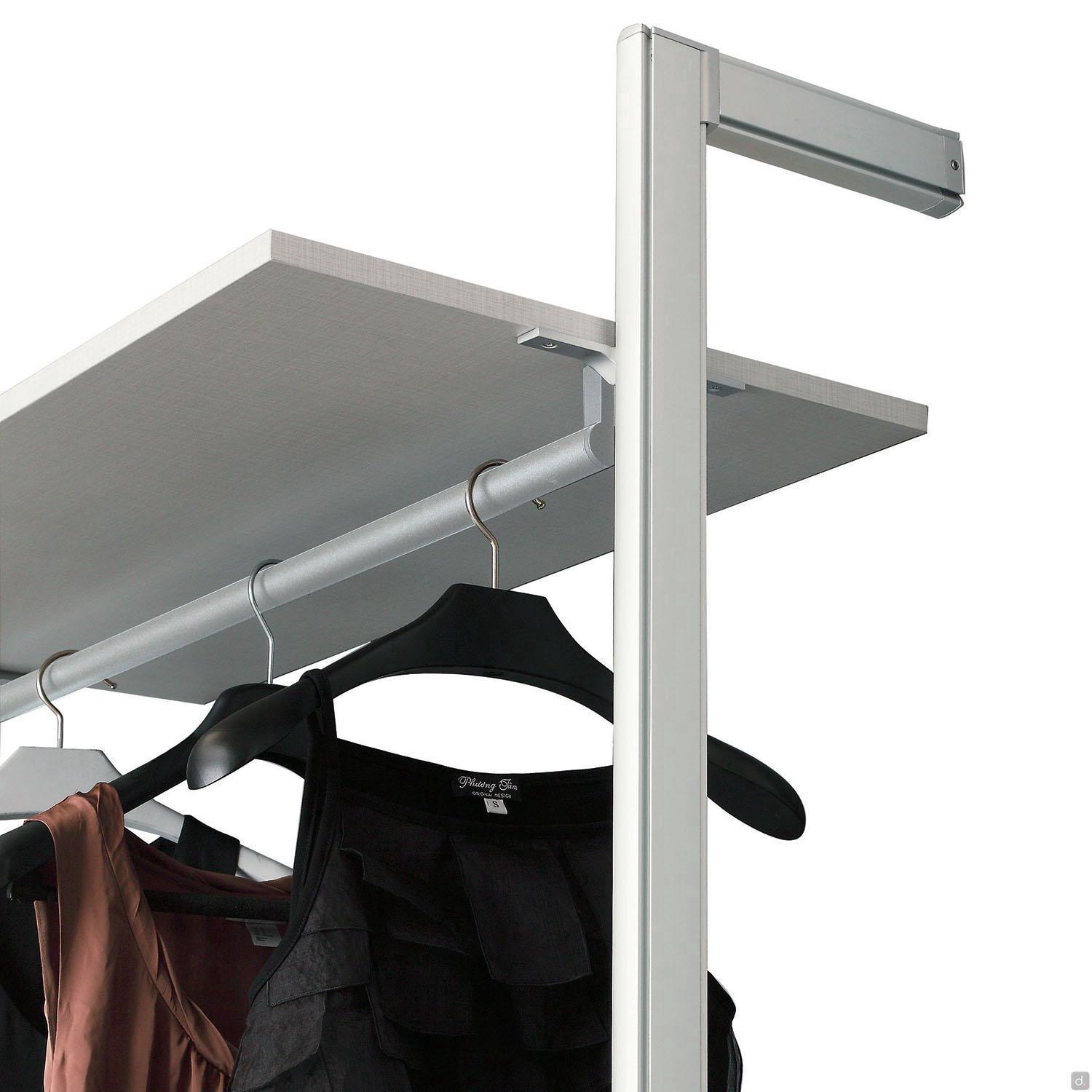

Clothes Hangers Bar: it is made of silver anodised aluminium and it is equipped with an anti-slip silicon seal. Corner shelves have two linear clothes bars perpendicular to one another. The bars come already assembled on the shelves.
Shirt Rack: available with standard widths of cm 82 d.44 h.37; compartments width 25 cm; custom reduction not possible. Available in white, charcoal grey or pearl fabric melamine to match them with the shelves.

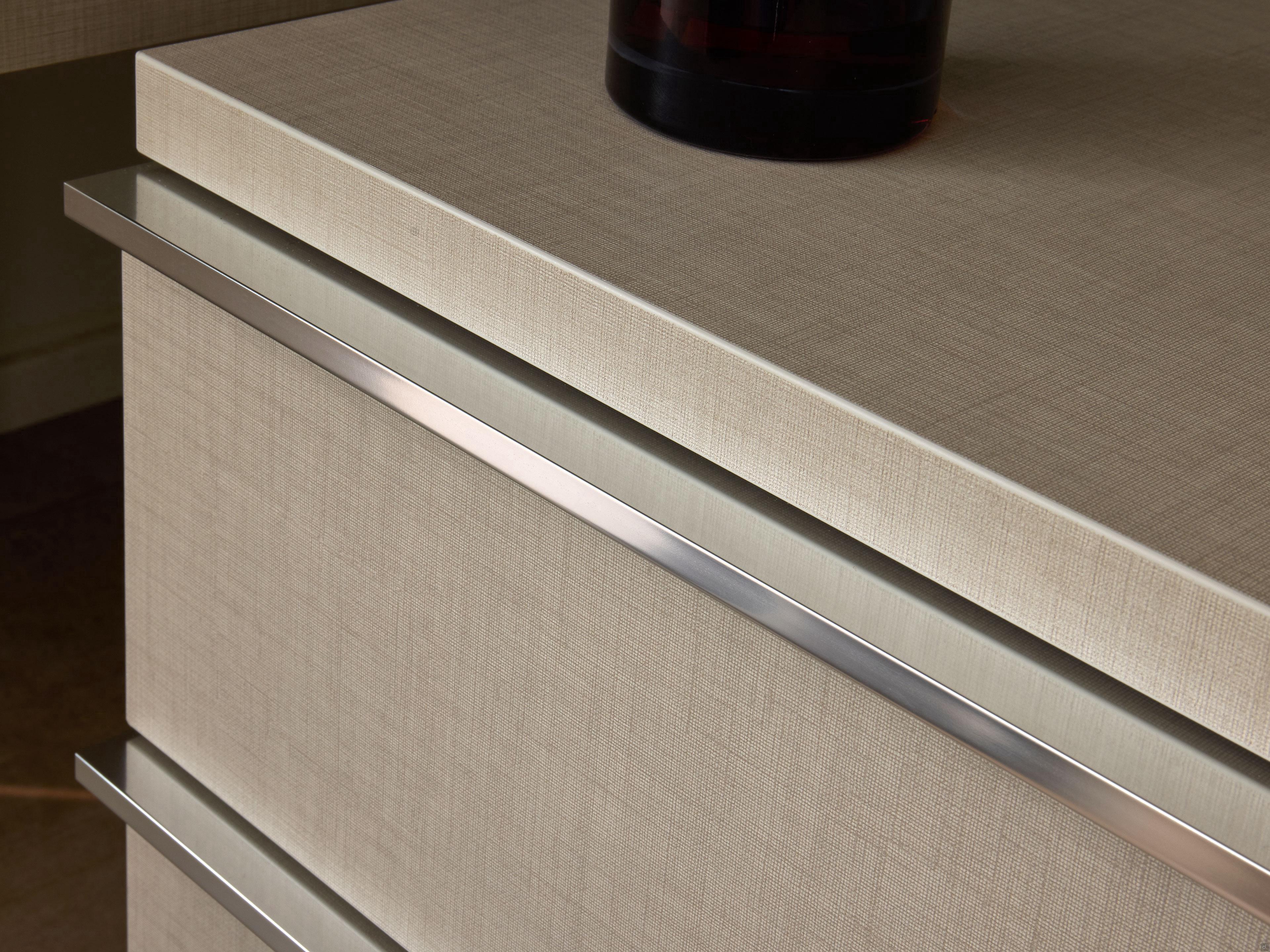

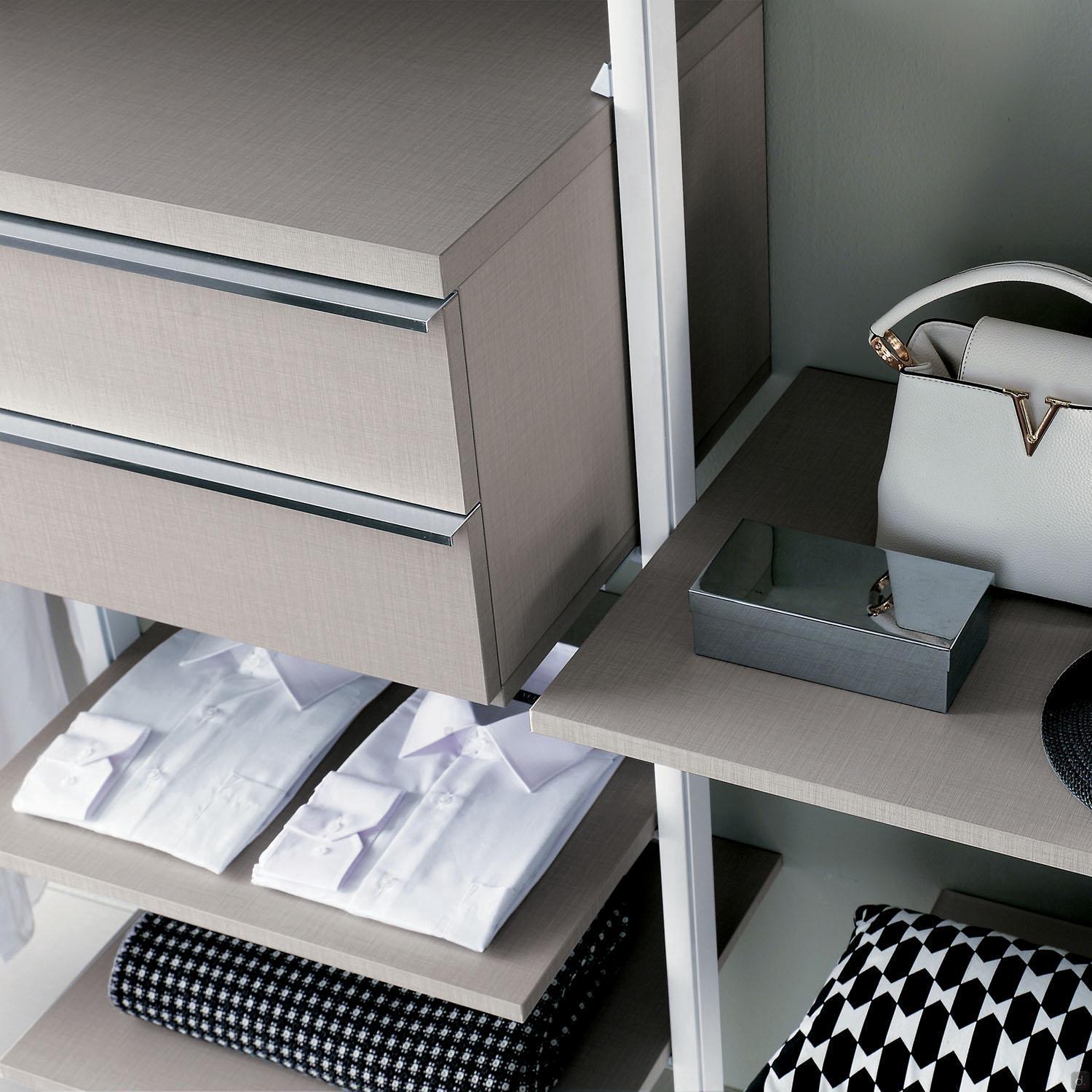

Chest of Drawers: finished on 4 sides for a use in a double-sided layout, available with 2 drawers (cm h.37), with 3 drawers (cm h.53) or 4 drawers (cm h.69) coming with standard widths, it is not possible to custom cut them. Available in white, charcoal grey or pearl fabric melamine to match them with the shelves; it is possible to choose 3 types of position:
- hanging: it comes with two metal supports to fix the drawers to the rods and a metal L shaped bracket to secure it to the wall. Supports and brackets are finished matching the rods. It is not possible to hang 3 and 4 drawers units due to the excessive load the supports will have to bear.

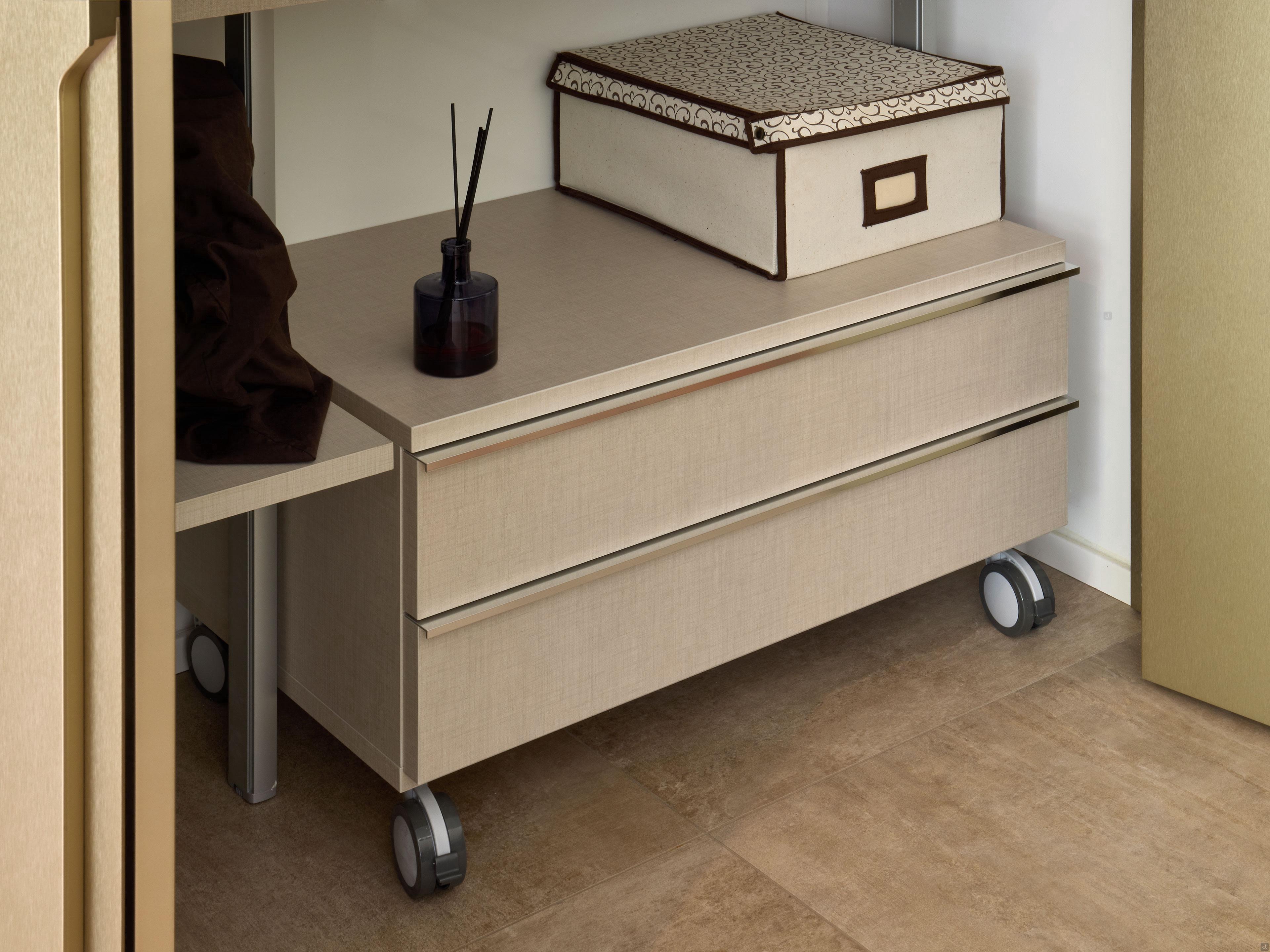

- floor standing with casters: it comes with a set of 4 wheels cm Ø 8 h.11;
- floor standing with plinth: it comes with a 5 cm high metal base.
Optional
Custom made width: Byron walk-in closet shelves can be made with custom width with no extra cost. For linear shelves the width must be included between 50 and 100 cm; for corner shelves both sides must be included between 90 and 110 cm.
LED light: led bar placed vertically on the internal profile o the rod. The bars come with transformer: the switch on / switch off system are handled directly from a wall socket. LED light is 3000K-12V.
Assembling Tips
The rods must be fixed to brick walls or ceilings through the supplied screws and dowels. They can also be fixed to plasterboard walls by using the proper hardware, however they must be purchased separately.
To fix the floor / ceiling rods you need 10 cm of space in height to easily use the screwer.
