Material Specifications
Structure and Upper Panels: 2 cm thick wood particle panels covered in matte, glossy or metallic lacquered melamine or with painted wood veneer. Glossy front refers to the external side and its edges, while the interior is supplied with the corresponding matte lacquered colour.
Back Panels: made of medium density wood particle panels, 0.8 cm thick, with synthetic finishing.
Drawer: 1,4 cm thick with 0.8 cm thick bottom panel made from wood particles, internal finish is Jute texture. Models with 4 doors and a total height of 51,5 cm equipped with a 0,4 cm thick divider and a 0,6 cm thick internal glass shelf.
Permieter Structure: made from medium density wood particle panels with a thickness of 1 cm covered in a matte lacquered melamine finish, metallic finish or wood veneer.
Feet:
- in shaped metal with a finish of your choice: height cm h. 8
- clear methacrylate: height cm h.8 / 12
- cylindrical in metal: height cm h.12 / 18
- in plastic: height cm h.1,5

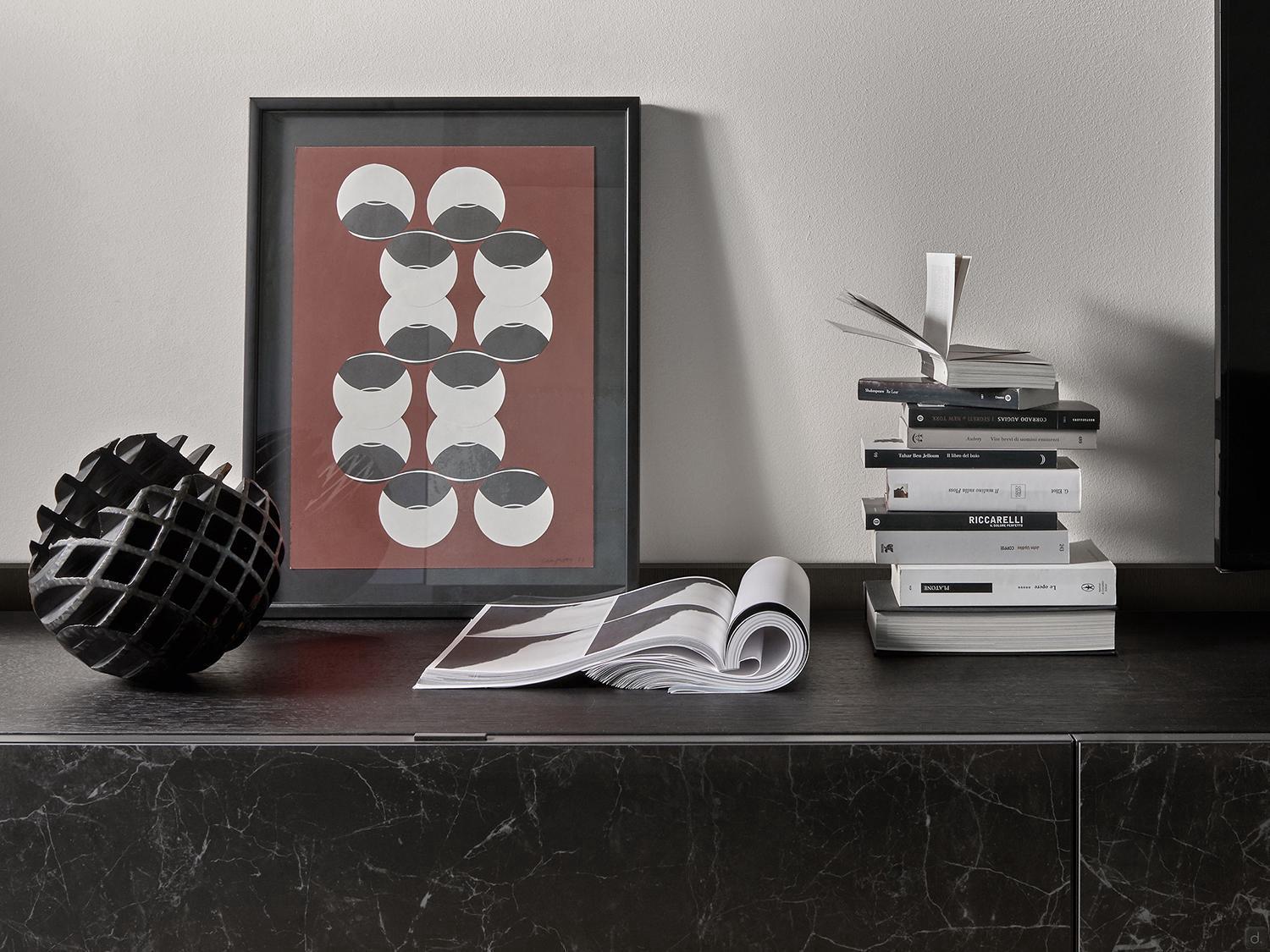

Fronts: made of ceramic obtained from slabs measuring 100 x 300 cm with a thickness of 0,3 cm. Cut randomly respecting the dimensions and direction of the design of the slab. Very resistant, they are an eco-friendly product.
Technical Specifications and Equipment
Hinged and Drop-Down Door Opening: the fronts with visible upper edge feature the Minimal handle, normally positioned in the centre of the front flush with the outside.
Optional Inner Drawers:
- The TV stands include the insertion of an internal drawer with folding on four sides with full extraction and internal height h.9 cm.
- opening with Minimal profile: high-sliding metal guides with full extraction, end-of-stroke block and dynamic load capacity of 30 kg. "Blumotion" cushioned return mechanism integrated into the guide for a smooth and silent closing.
Combination Table for Door Profile Finish and Ceramic Door Front Finish
Profile Finish
|
Ceramic Door Finish
|
| Brown |
Noir Desir |
| Brown |
Nero Greco |
| Lead |
Fusion White |
| Lead |
Statuarietto |
Optional
Lighting: LED light frame positioned on 3 or 4 sides of the perimeter with power supply included. 3000K LED with development from 14W to 50W max depending on the size. For perimeters with development greater than 6 m, two LED lighting systems will be coupled. Switch on via connection to the home network or via optional remote control. To have the container backlit via LED strip, a 1,9 cm thick spacer panel is provided between the container and the wall, always in black MDF finish. The depth of the element will consequently increase by 1,9 cm. The spacer panel is fixed to the wall while the container is attached to the spacer panel with the supplied hangers.
Lighting Below the Base: external profile in satin aluminum cm 1,2 x 1,2 with opal casing in plastic material with power supply included. LED 3000K with development from 7.2W to 28.8W max depending on the size. For perimeters with development greater than 6 m, two LED lighting systems will be coupled. Switch on via connection to the home network or via optional remote control.

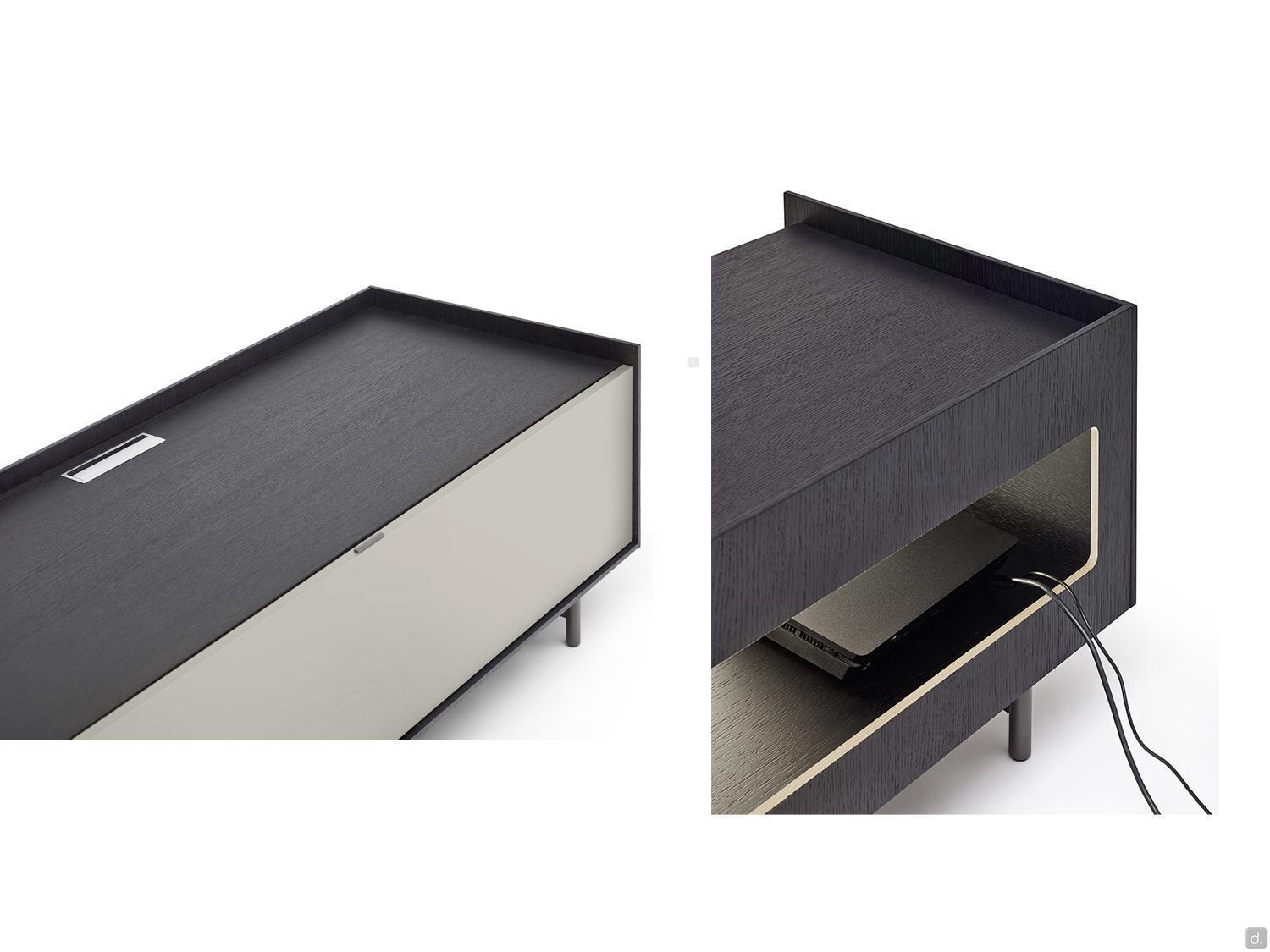

Cable Holes: Available on the top and back of the drop-down elements. The cable hole for the top is rectangular in aluminum, with a dust brush and an internal dimension of 16,5 x 2,6 cm. The rear cable hole consists of a large slot on the central part of the back (not visible from the front), the dimensions of which vary depending on the element involved but which leaves a frame of approximately 5 cm per side. For this reason, this last cable hole is only available on the floor models.
To know more...
Laminate: it is a wood-effect coating usually applied to different materials, such as chipboard panels. This coating consists of sheets obtained by pressing together various layers of paper sheets soaked in melamine or phenolic resins. There are different types and aesthetically it can be presented with different aspects, such as for example with a wooden appearance.
