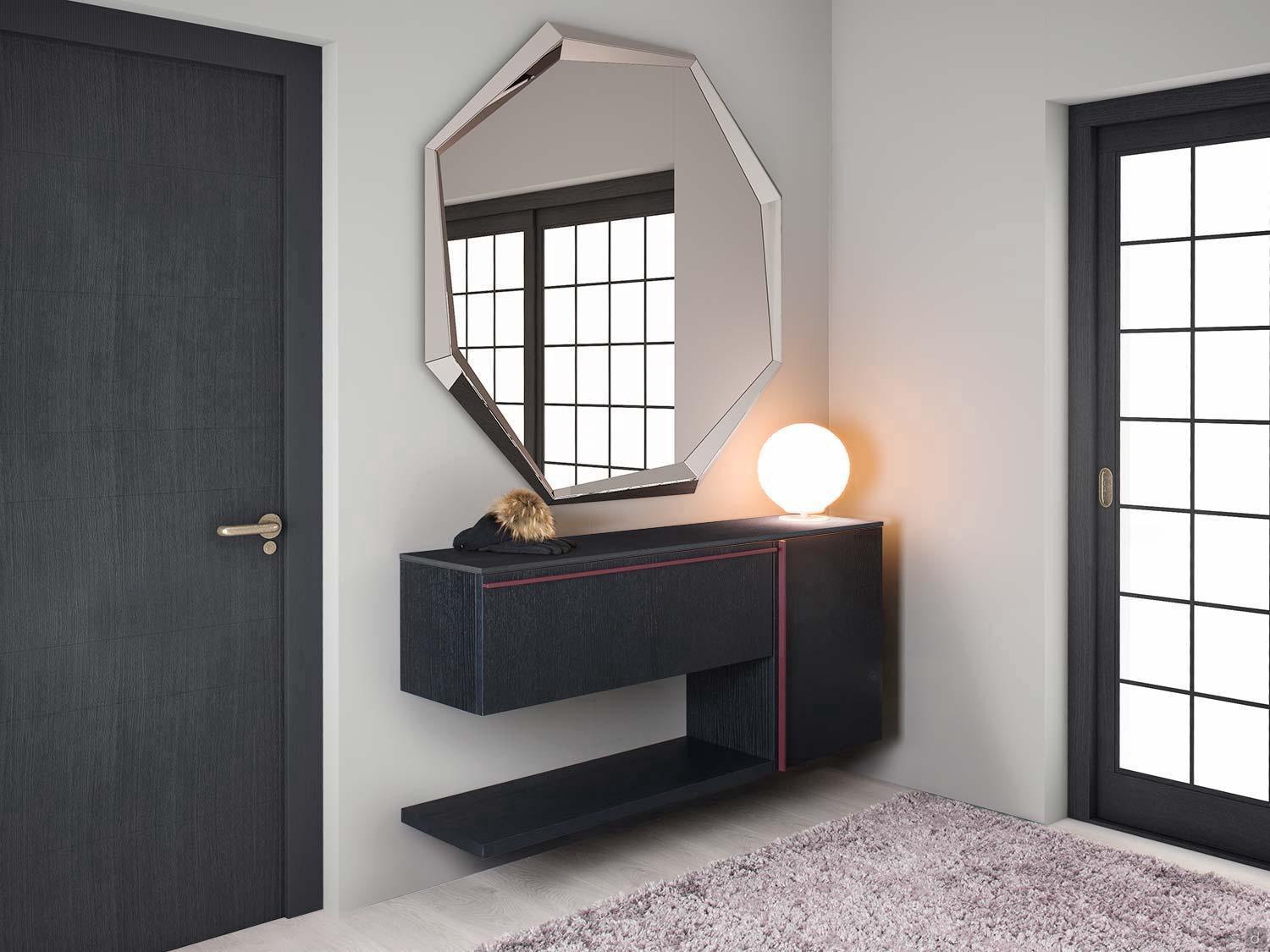

Compact hallway sideboard with doors Plan 02, with reduced depth of only 34,4 cm

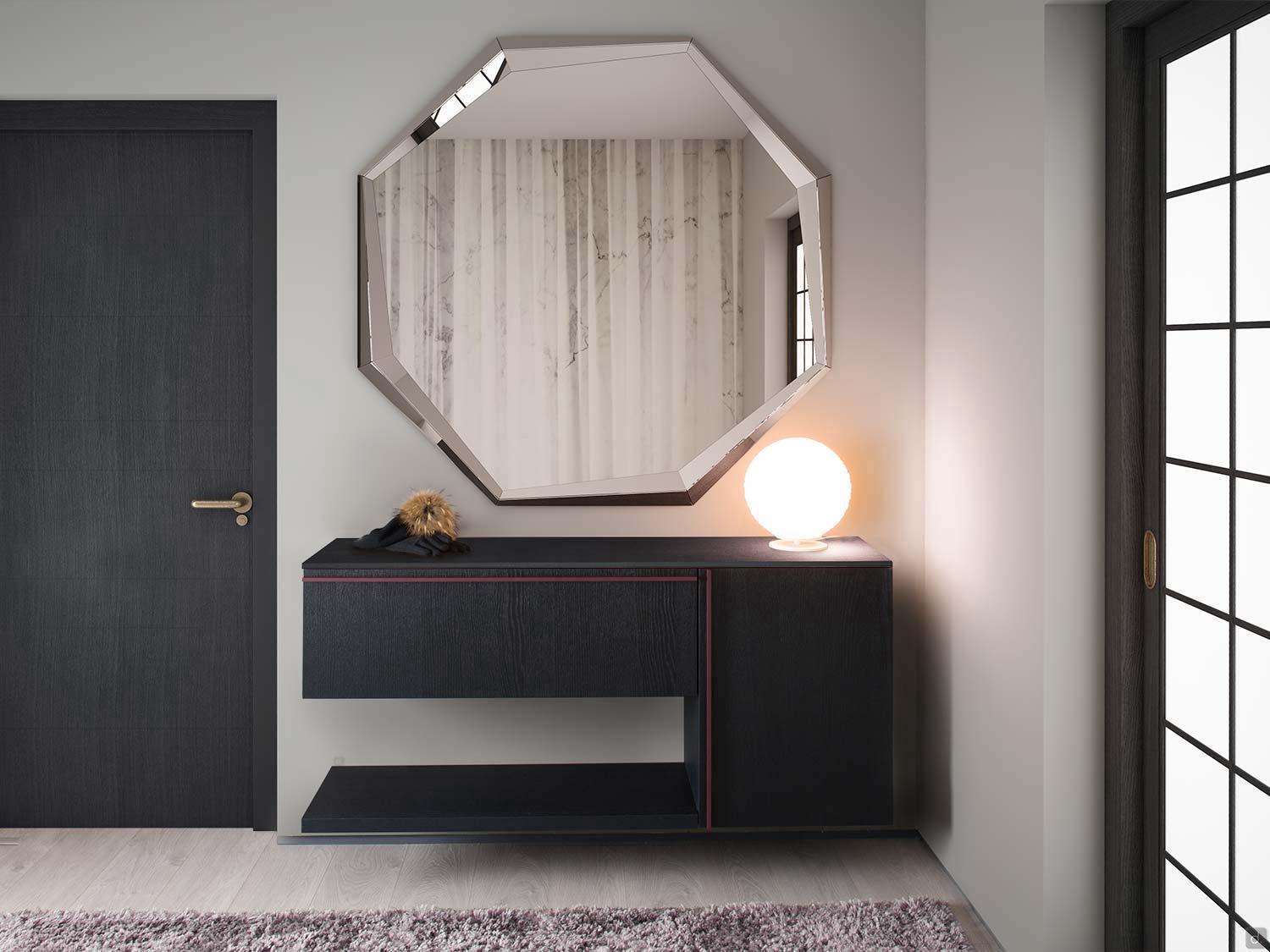

Compact hallway sideboard with doors Plan 02, frontal view of the hallway with mirror and light

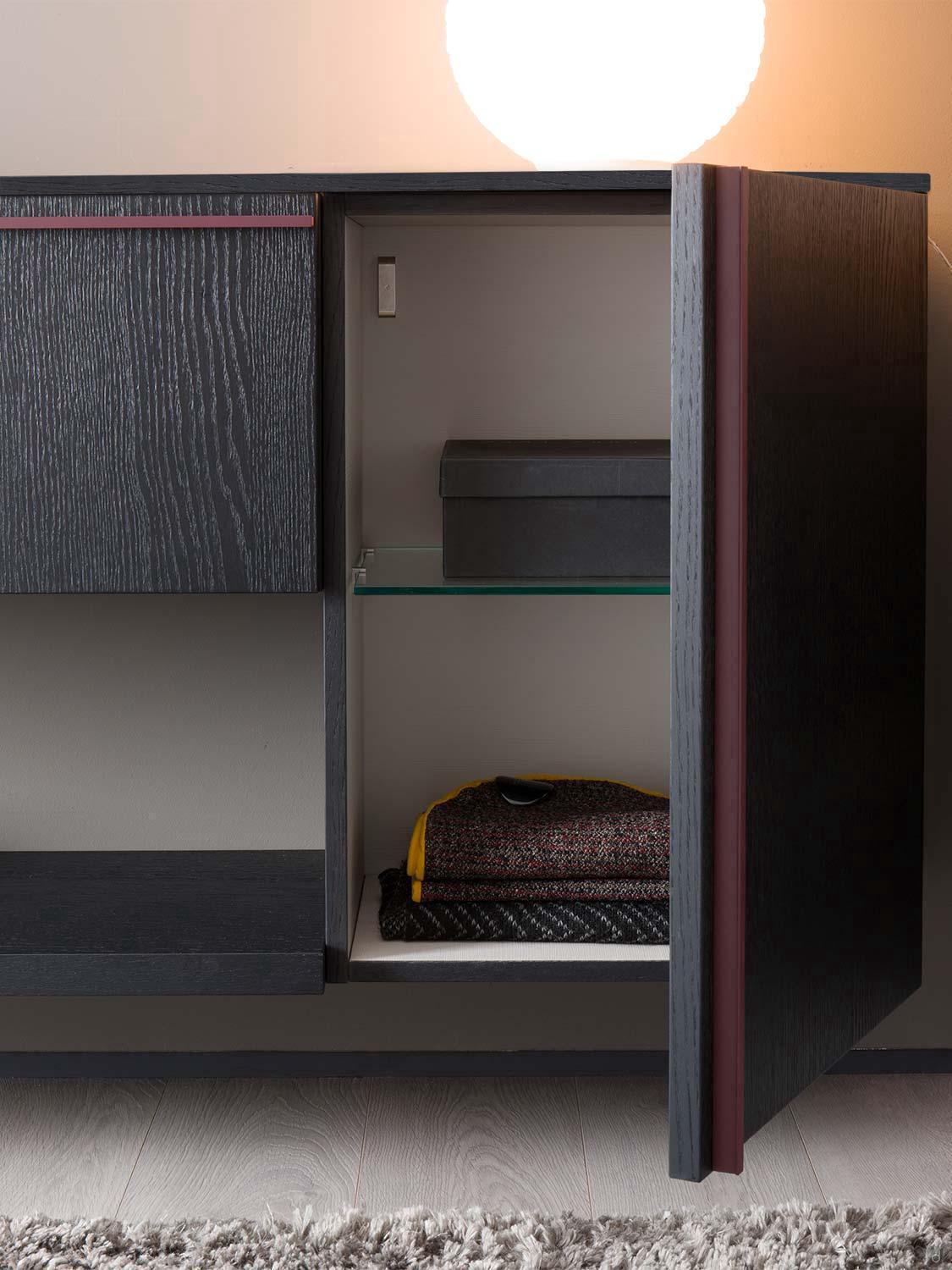

Plan 02 hallway sideboard: internal compartments of the module with hinged door and handles model Z in matt bordeaux

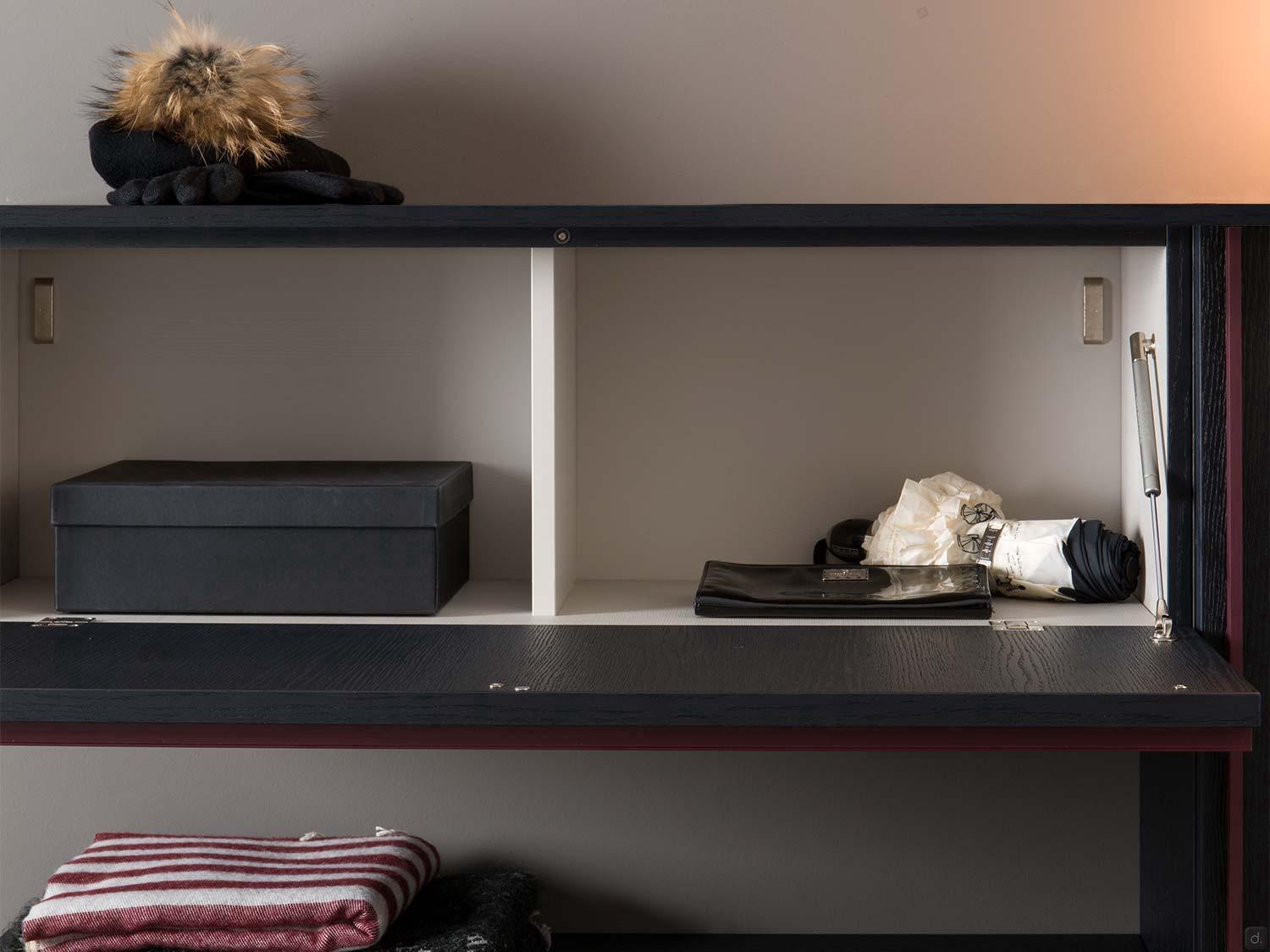

Detail of the two internal compartments inside the drop down door for Plan 02 hallway composition

Plan hallway sideboard with handles model Z lacquered in hide colour (top in marble available on request)

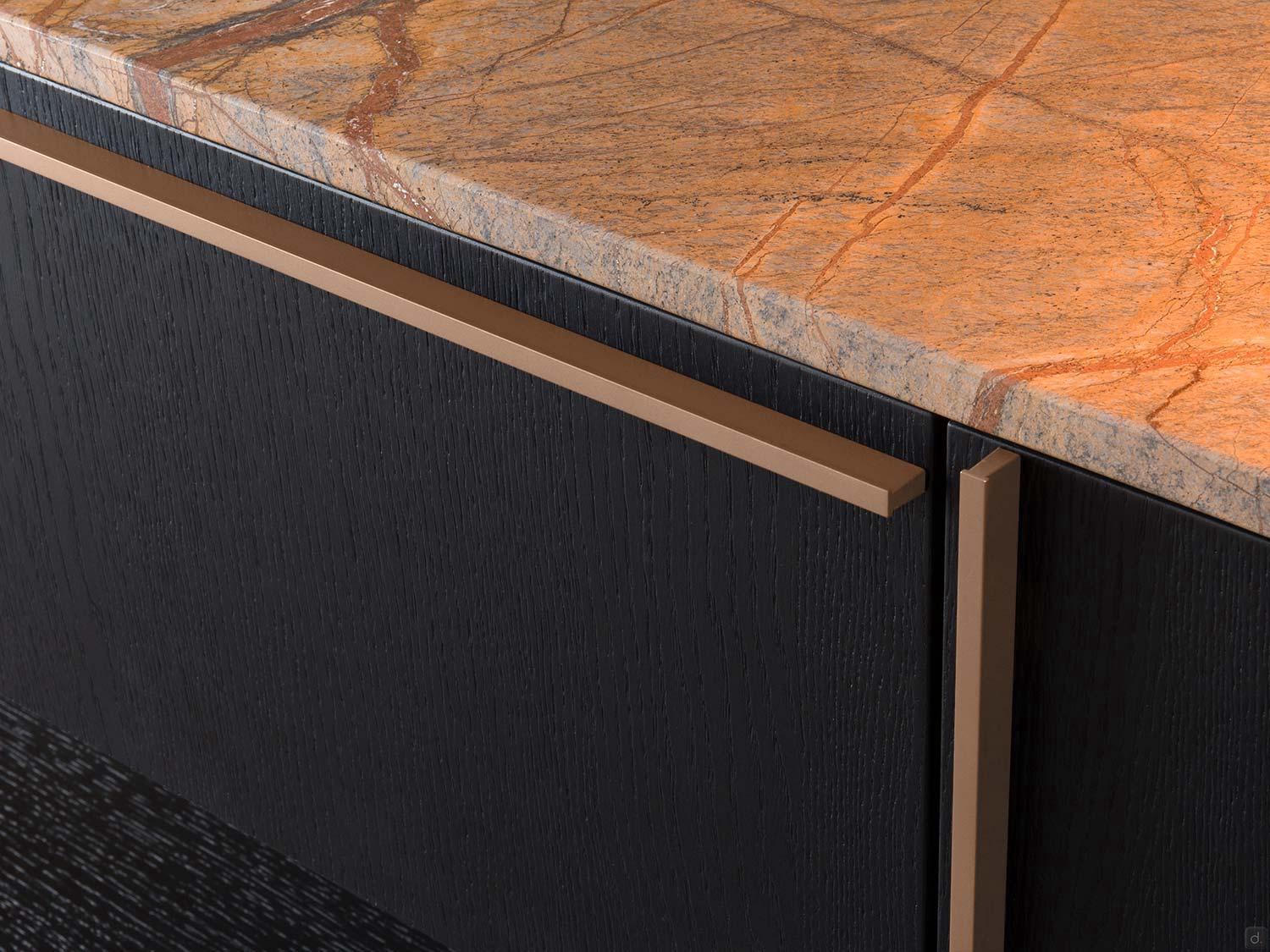

Detail of the handles model Z matt lacquered in natural hide colour (marble tops available on request)

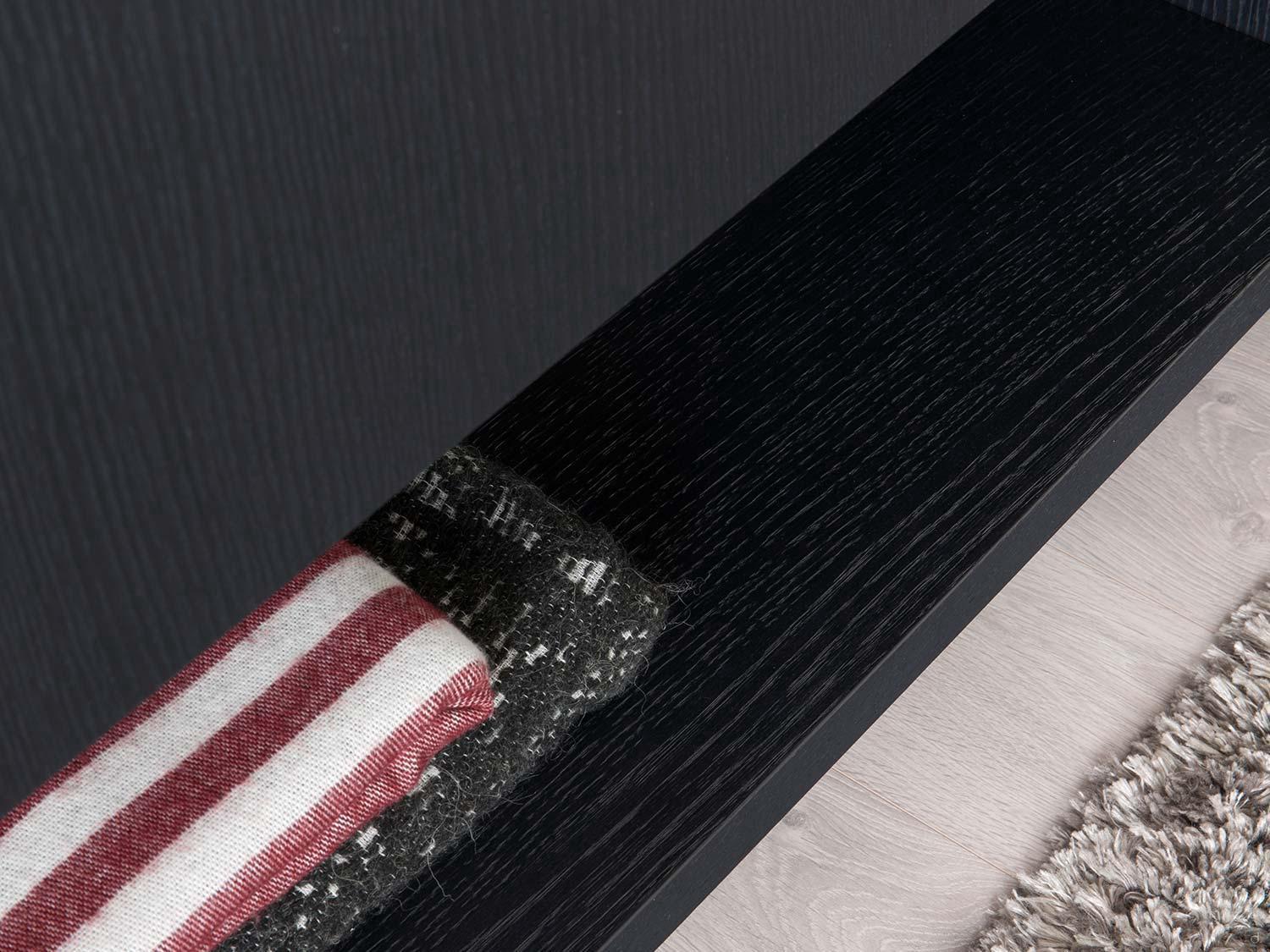

Detail of the charming finish Fashion Wood oak in colour fossil

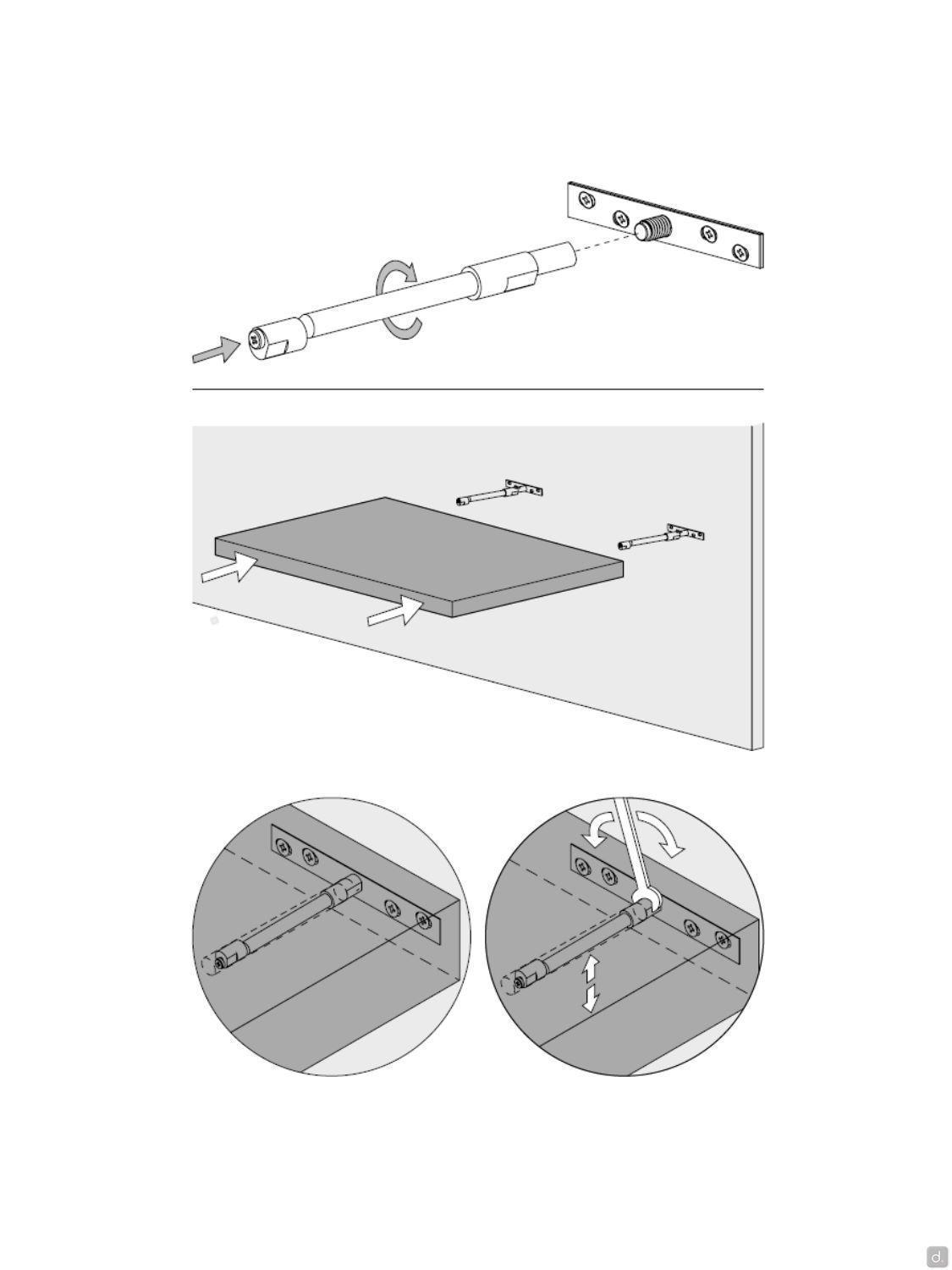

Detail of the fixing system of the big shelf

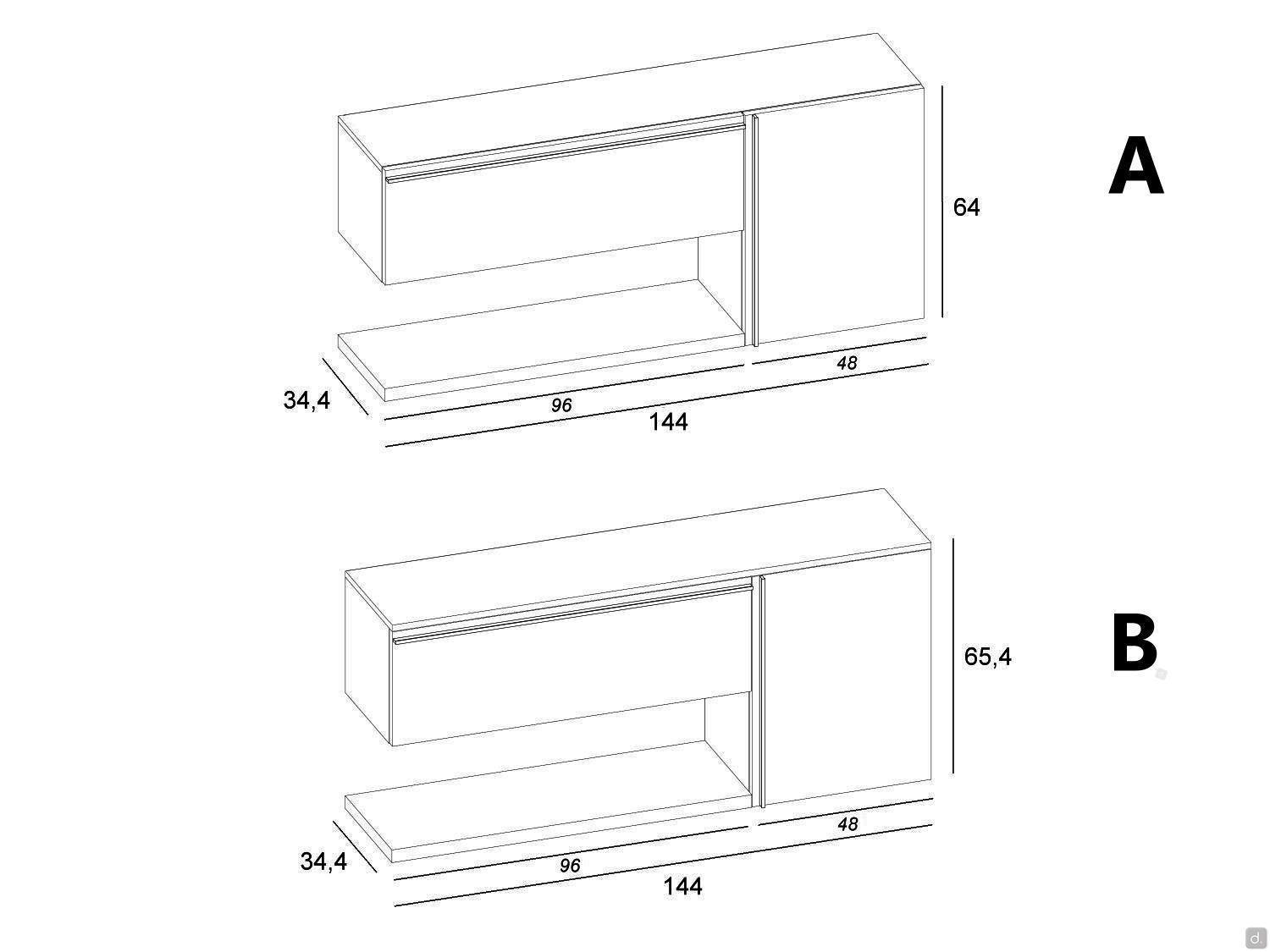

Scheme and measurements of the hallway sideboard Plan 02. (A): model with single integrated top. (B): model with unique top 1,4 cm thick.

+ 6

MORE IMAGES

Plan 02 - Hallway Sideboard
Wall Mounted Sideboard

Compact hallway sideboard with doors Plan 02, for narrow spaces. The layout includes drop down door, hinged door and shelf.

Quantity

From €601.60

View Samples

Wishlist

Description

Plan 02 is a compact hallway sideboard with doors, composed of an element with hinged door, an element with drop down door and a lower shelf. The design is clean, the choice of finishes wide and the depth is very narrow (only 34,4 cm); all these elements together make Plan 02 a very versatile furniture piece suitable for many contexts, from wide entrance walls with mirror and light to smaller niches. The two cabinets with doors are divided inside into two smaller compartments each, whereas top and shelf offer two spacious spaces where to put decorative items or to be used as pocket emptiers.
Furthermore, it is also possible to choose between an integrated top and an additional finishing top, which slightly protrudes compared to the cabinet and that can also be chosen in a colour or material different from the rest of the furniture.

Characteristics
big internal compartments thanks to the unit with drop down and hinged doors
available with integrated top or additional finishing top
great freedom of composition thanks to the different finishes and colours
big selection of handles in metal, leather or recess grip
reduced depth, also for narrow hallways or niches

Materials and Finishes
- melamine
- wood veneer
- open pore lacquer
- matt / glossy / metallic lacquer

Information for your Purchase
For the total height of the composition, in the version with single additional finishing top, please consider the height of the top itself (cm 1,4) and add it to the height marked in the configuration menu.

Technical study

Model and Specific Measurements
The sideboard cm 144 d.34,4 h.64 is composed of:
- n.1 drop down door unit cm 96 d.34,4 h.32
- n.1 hinged door unit cm 48 d.34,4 h.64
- n.1 shelf cm 96 d.34,3 th.3,5
The sideboard with Single additional Top includes:
- n.1 top cm 144 d.34,7 th.1,4

Technical Specifications and Equipment
Fronts: particle wood panels (class E1 - low formaldehyde emissions).
Thicknesses: door cm 2,2 / structure cm 1,8.
Shelf: particle wood panels (class E1 - low formaldehyde emissions) equipped with adjustable shelf supports.
Top: particle wood panel (class E1 - low formaldehyde emissions), cm th.1,4
Fixing: wall units equipped with adjustable brackets for wall fastening.
Opening Type (the movement of the door is guaranteed by a couple of oleodynamic pistons, soft closing included):
- handle T16: cm 19 d.3,3 h.0,8 in moka shine or white painted metal or matt lacquered;
- handle M: cm 10,2 d.1,4 h.0,3 in moka shine or white painted metal or matt lacquered;
- handle Z: cm d.1,5 h.0,7 in moka shine or white painted metal or matt lacquered;
- handle Pomolo: cm 4,1 d.1,6 h.4,1 in moka shine painted metal with knob covered in grey leather;
- push-pull;
- handle C15: cm d.1,7 h.1,4 in moka shine or matt painted metal or matt lacquered; available only on wall units with integrated single top.

Maintenance Tips
Do not put in contact water, liquids in general, excessive heat and humidity with the surfaces.
Clean exclusively with a wet cloth and neutral detergents, dry immediately with a soft cloth; the use of alkaline, abrasive products as well as solvents is not recommended. Products are not suitable for an outdoor use.

Video

Additional Information

Area of Production
Italy

Approximate Time
8-9 working weeks for production

Assembling
Medium Assembling

Assembling Instructions
Download Instructions:
Wall Units
Shelf

Cubic Metres
0,31 m³
