Material Specifications
Structure: made of 1.8 cm thick particle board panels.
Fronts: made of 1.8 cm thick particle board panels. With a smooth lacquered finish, the front is made of 1.9 cm thick MDF.
Technical Specifications and Equipment
Wash-basin base unit: without back panel to allow the passage of drains.
Doors: equipped with hinges with integrated decelerating system for slow and silent closing.
Drawers: fitted with a metal frame with full-extension runners and slow-closing mechanism. The under-sink drawer is shaped to allow the passage of the siphon.
Internal shelves: in transparent glass, 6 mm thick, with plastic shelf supports.

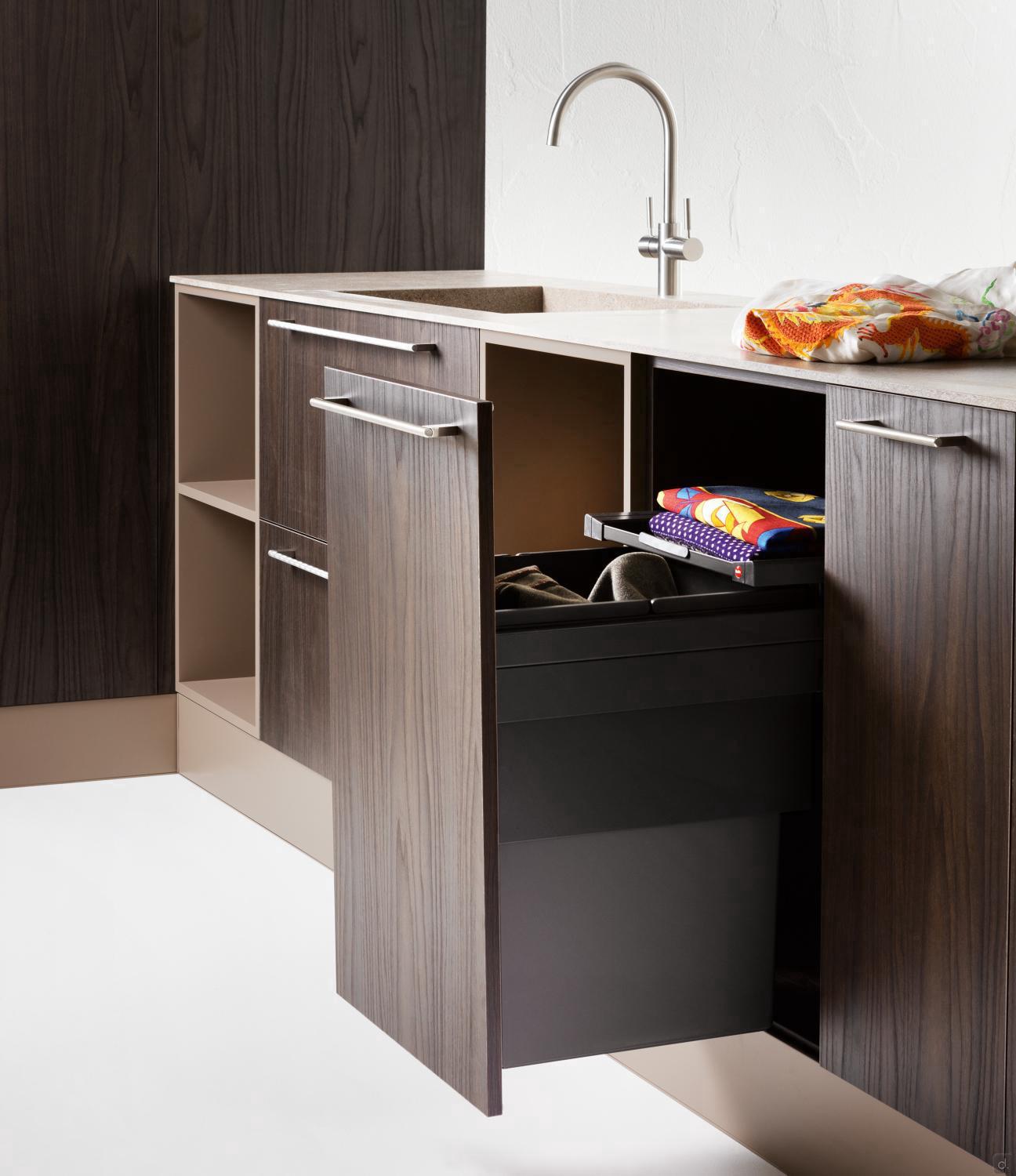

Base unit with removable laundry rack: high and capacious container, easily removable and complete with practical upper tray with closing or support function.

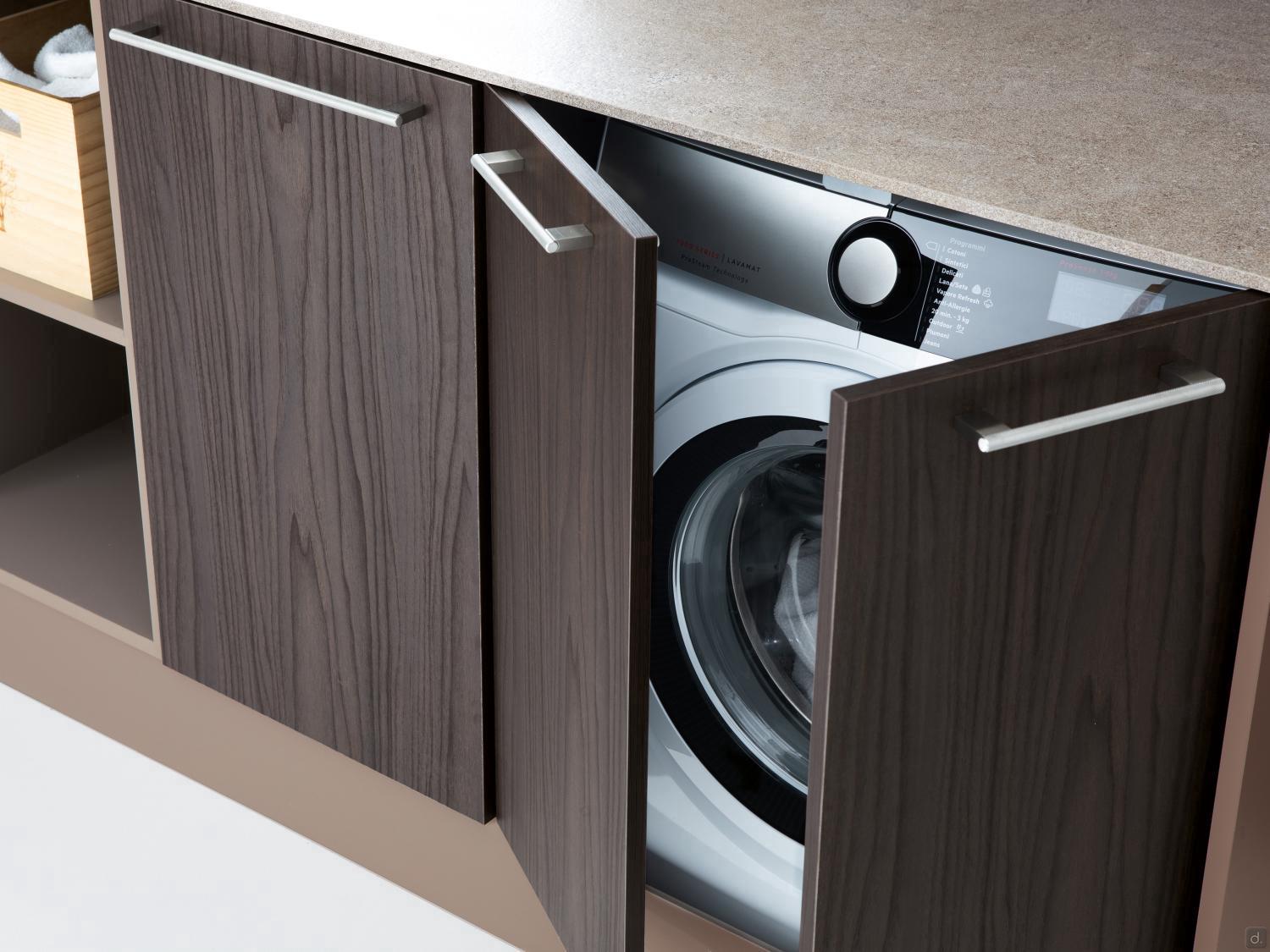

Washing machine base unit: useful internal space: cm 62 p.58 h.84 (the actual useful space would be cm 66; considering the thickness of the hinges, it is advisable to fit washing machines with a width of less than cm 62). When choosing the washing machine model, pay attention to the size of the rear drain hose and the position of the detergent drawer opening system (consider the thickness of the front structural bar of the base); it is recommended to ascertain the actual depth of the washing machine, also considering the size of the control buttons.

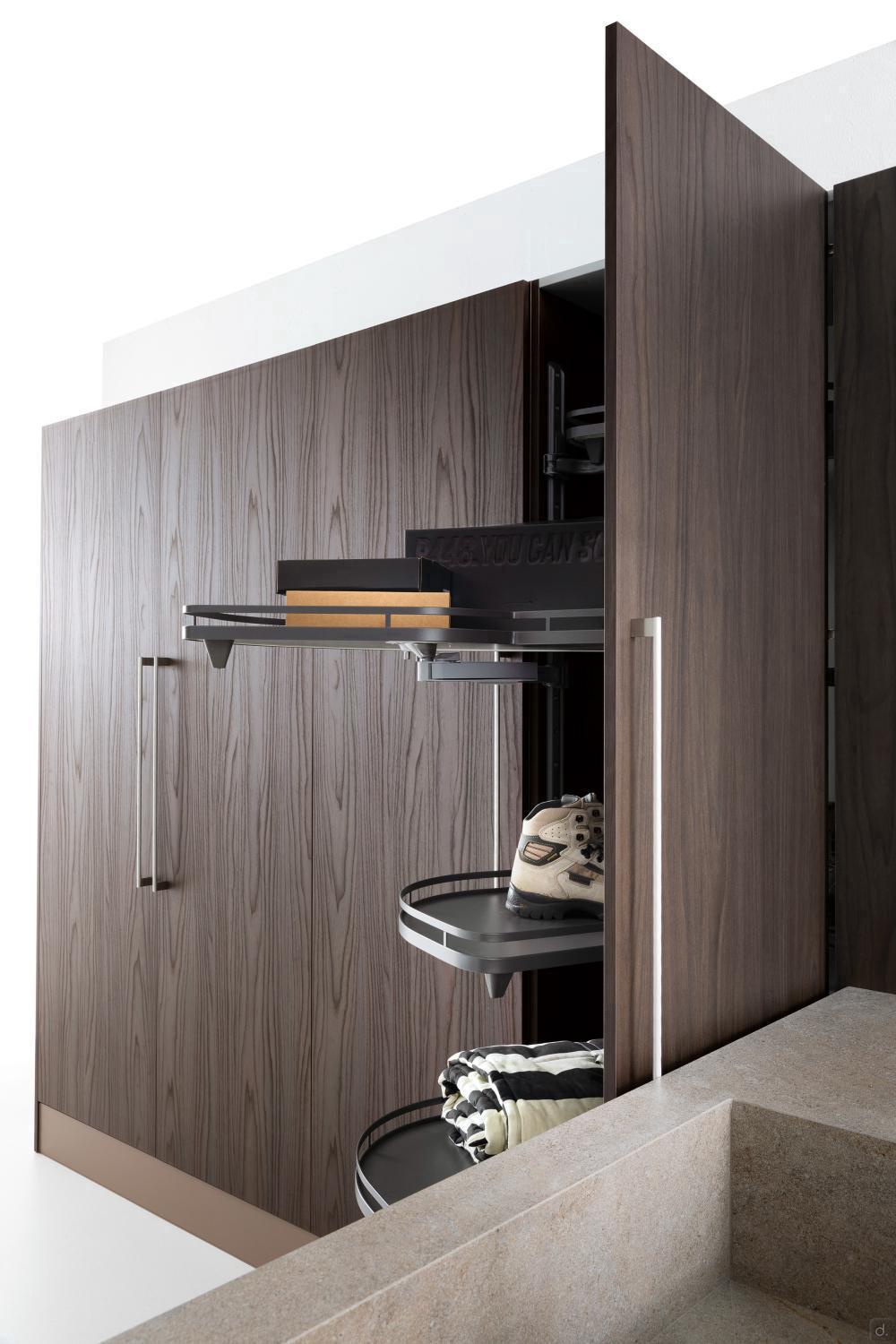

Corner column: internally equipped with large storage trays, also available in the full-extension model for easy accessibility. Maximum load capacity 20 kg.

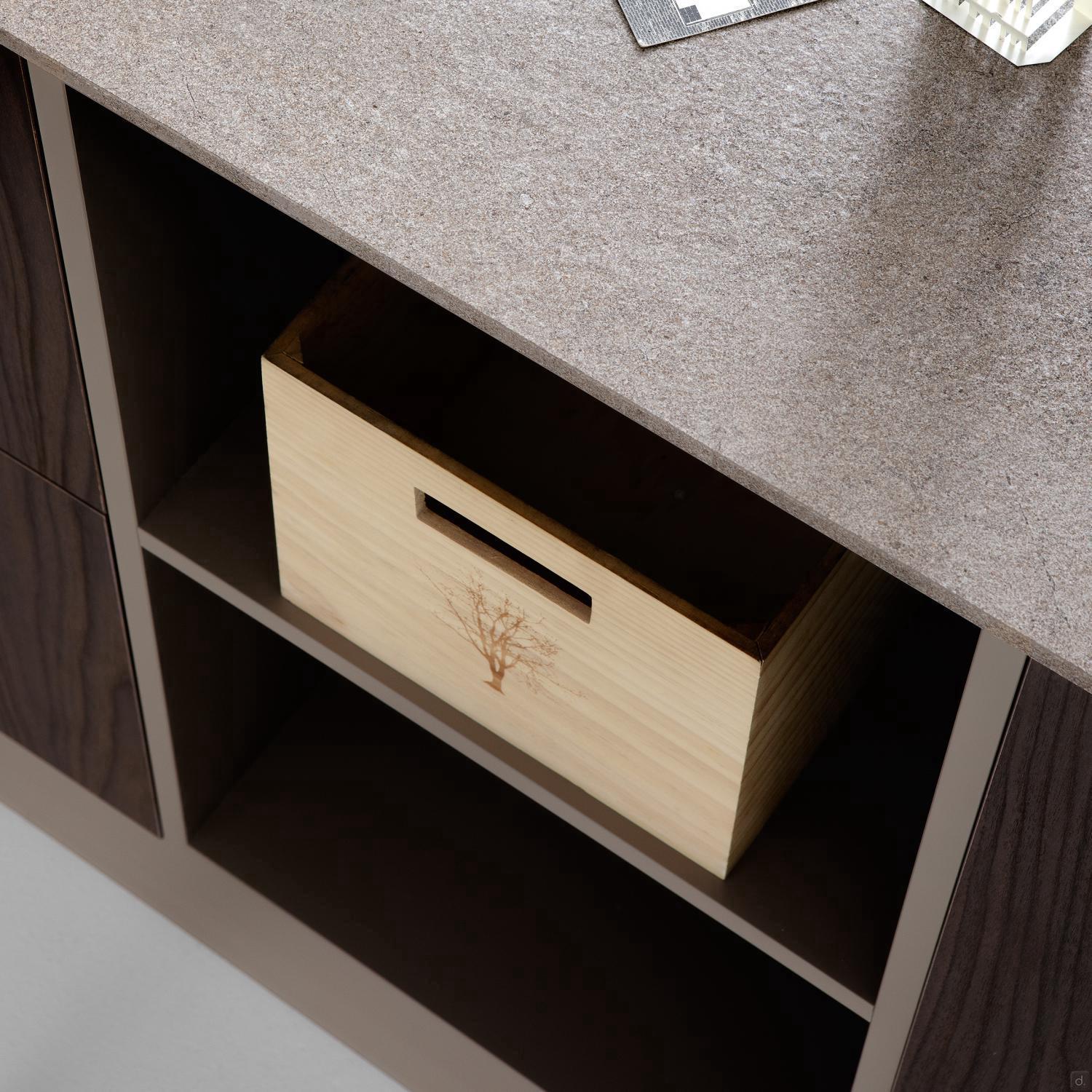

Wall and open base units: the back is in Orion grey melamine (for melamine furniture), matt lacquered to match (for matt or glossy lacquered furniture), sandblasted lacquered to match (for sandblasted lacquered furniture).

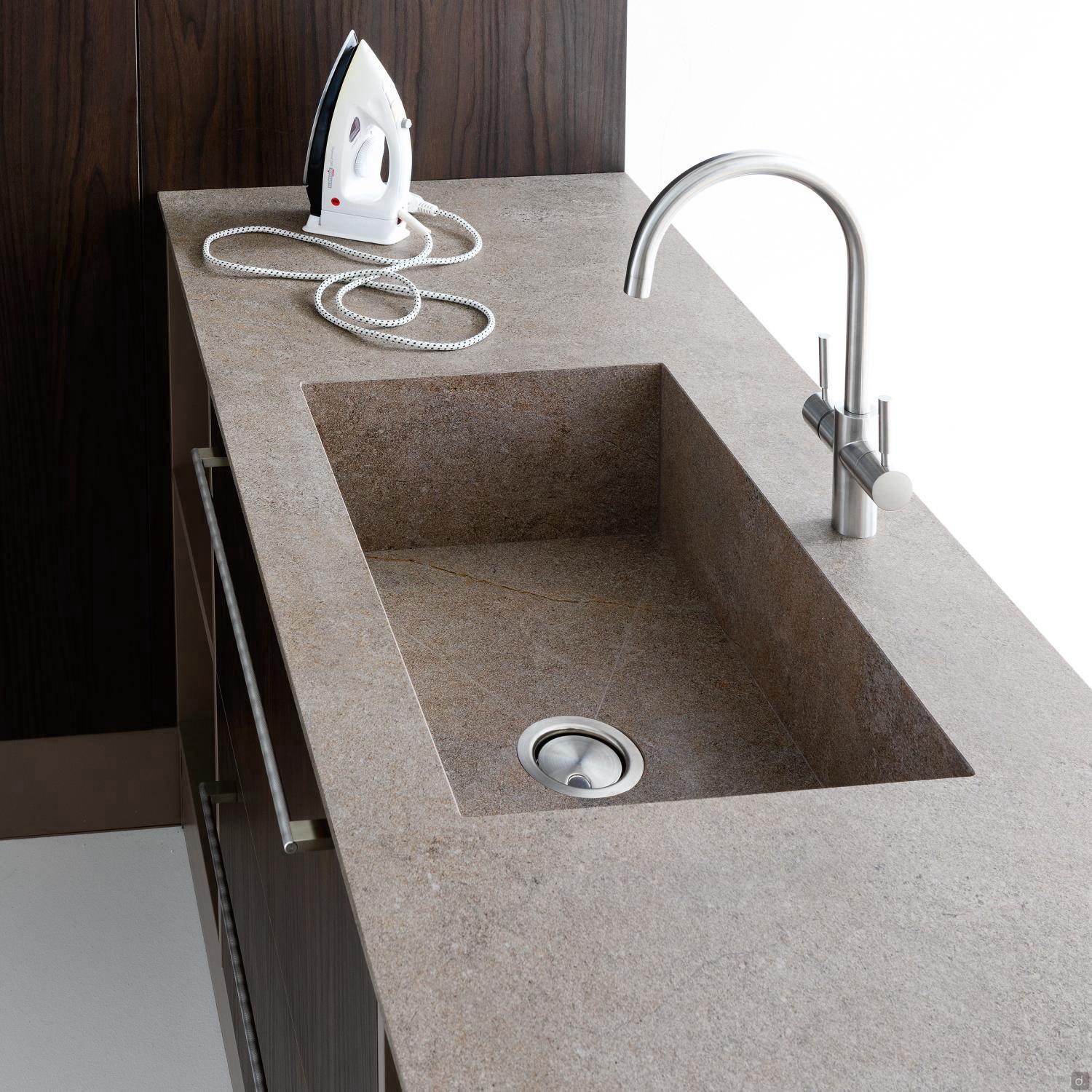

Wash basin: mod. Hugo large, integrated in the stoneware top, cm 70 p.40 h.18. The wash basin is not provided with an overflow hole, siphon and drain. There is a standard Ø 3.5 cm hole for a mixer positioned centrally on the top. The diameter of the drain hole is 9 cm.

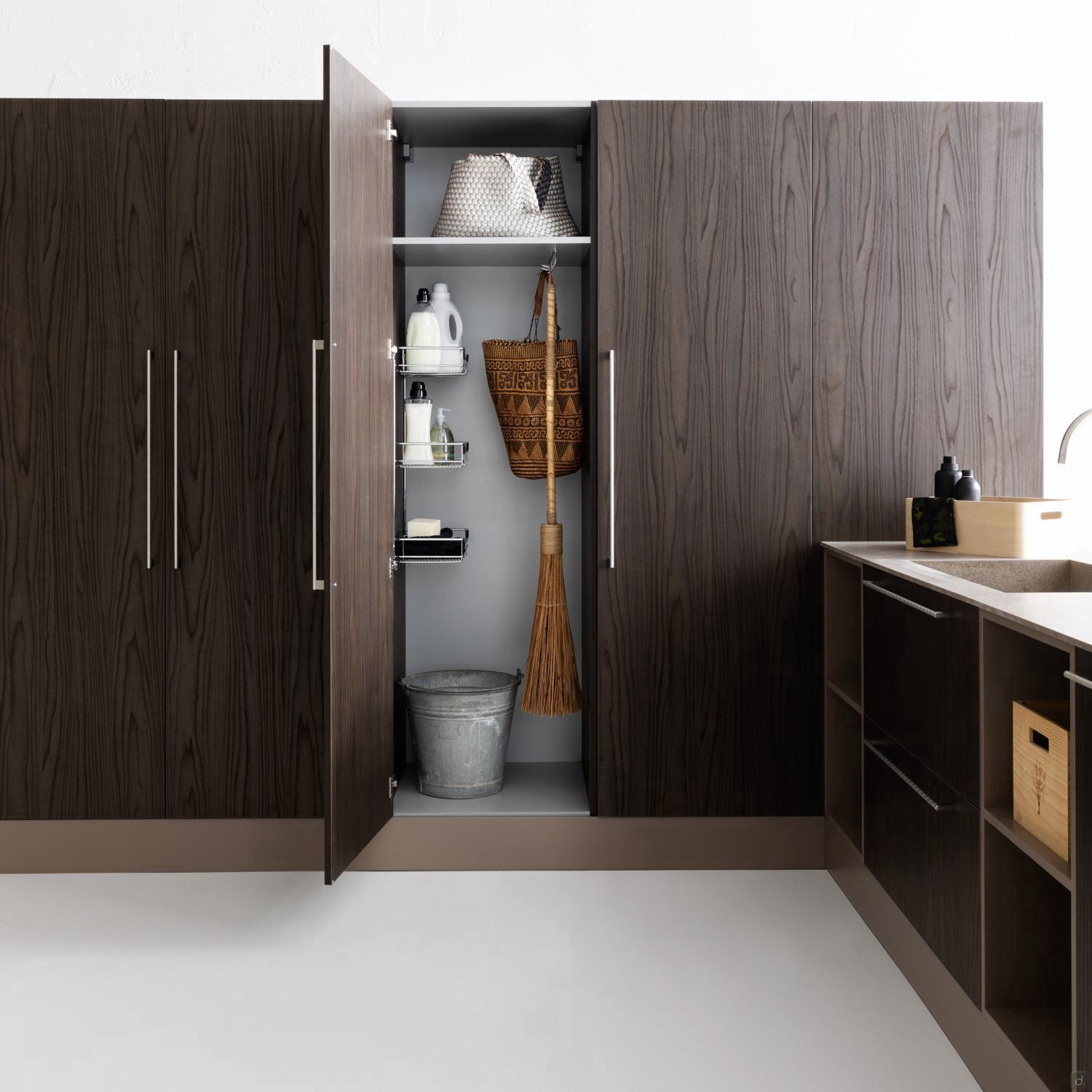

Baskets: set of 3 chrome-plated metal baskets, to be fixed to the sides of the tall unit. Total dimensions: cm 21 d.40,5 h.62.
Set of 5 broom cupboard hooks: in chrome-plated metal, to be fixed to the standard shelf of the tall unit. Total dimensions: cm 35 d.4,4 h.4,8.

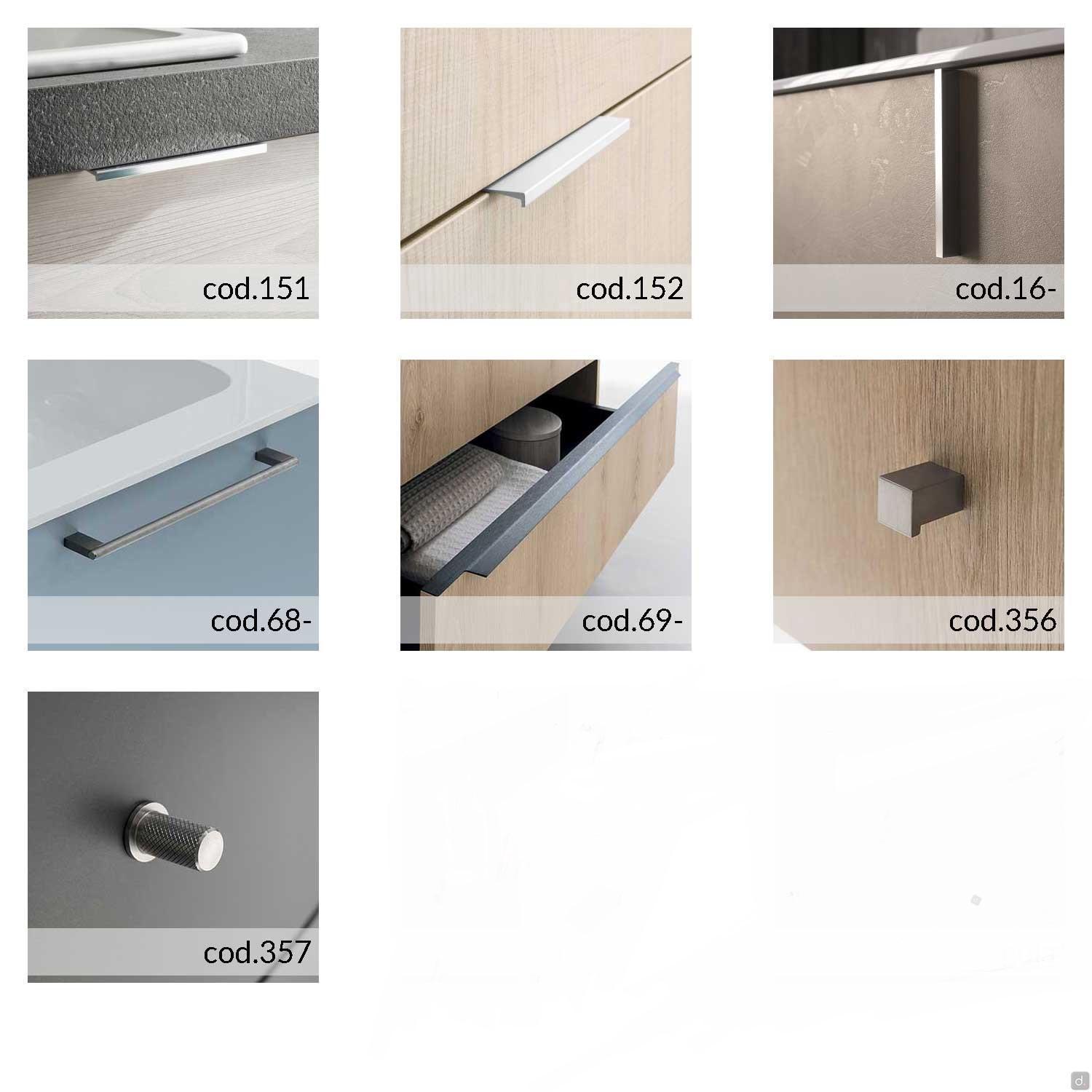

Handles: various models of handles are available, as well as push-pull opening. Handles cod.152 and cod.16 are available in matt lacquered finish in all sample colours. The handles mod. 68- protrude 4 cm from the surface of the door.
Maintenance Tips
Veneered: use neutral liquid detergents for cleaning. To remove limescale stains, wipe the surface with a sponge soaked in vinegar or anti-limescale product, then rinse and dry. Do not use acids, abrasive products or powders; do not leave anti-limescale products in contact with the surface for a prolonged period of time, as this could create halos.
Lacquer: use soft, non-abrasive cloths for cleaning to avoid damaging the surface. Do not use products containing solvents, acetone or abrasives, nor wax, alcohol or silicone-based products.
Stoneware: To prevent stains, clean promptly with a damp cloth or neutral detergents. We recommend the use of neutral detergents.
Read more...
Porcelain stoneware: Porcelain stoneware is made from a mixture of water and clay that is transformed, through the raw extrusion process, into a slab with extraordinary mechanical properties. Vitrification closes the pores, ensuring maximum resistance to water absorption and stains.
