Material Specifications
Structure: made of 1.8 cm thick particle board panels.
Fronts: made of 1.8 cm thick particle board panels. With a smooth lacquered finish, the front is made of 1.9 cm thick MDF.
Technical Specifications and Equipment
Wash basin base unit: without back panel to allow the passage of drains.
Doors: equipped with hinges with integrated decelerating system for slow and silent closing.
Drawers: fitted with a metal frame with full-extension runners and slow-closing mechanism. The under-sink drawer is shaped to allow the passage of the siphon.

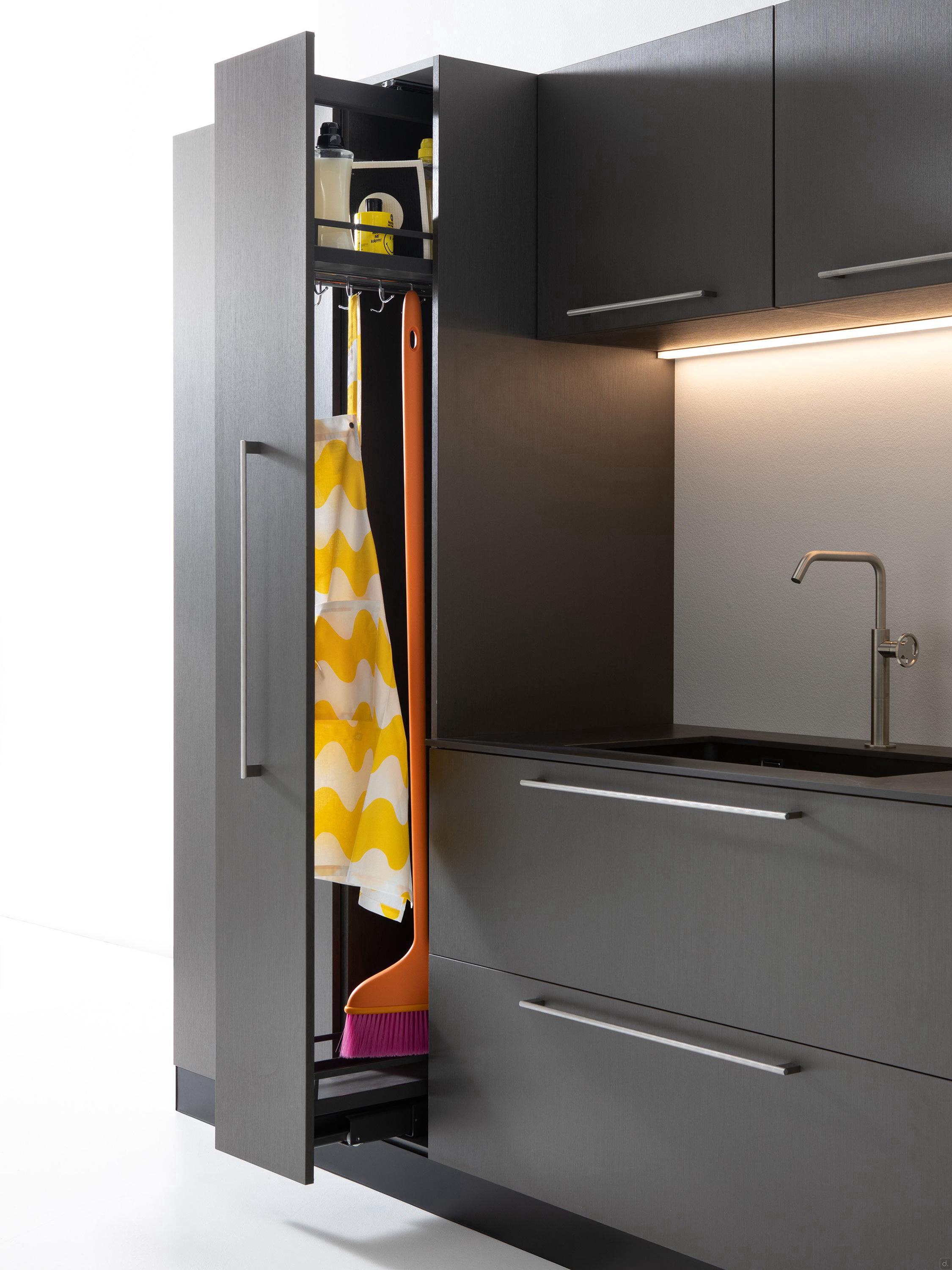

Column with full-extension pull-out door on rails, with 2 storage trays and broom hooks.

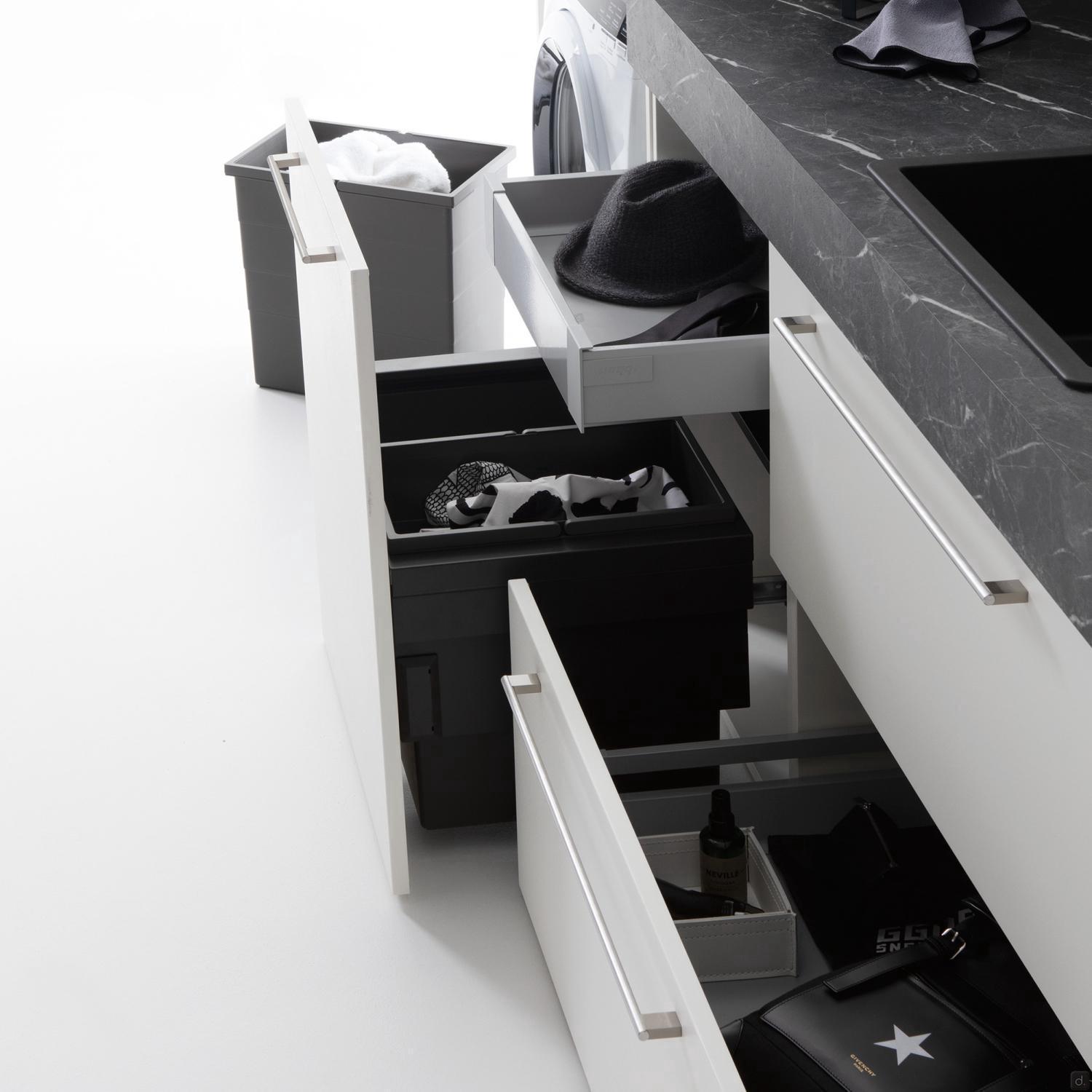

Base unit with pull-out laundry rack: high and capacious container, easily removable and complete with practical upper tray with a closing or storage function. The base also includes an additional top drawer.
Washing machine base unit: useful internal space: cm 62 p.58 h.84 (the actual useful space would be cm 66; also considering the thickness of the hinges, it is advisable to fit washing machines with a width of less than cm 62). When choosing the washing machine model, pay attention to the size of the rear drain hose and the position of the detergent drawer opening system (consider the thickness of the front structural bar of the base unit); it is recommended to ascertain the actual depth of the washing machine, also considering the size of the control buttons.
Open wall units: the back is in orione grey melamine (for melamine wall units), matt lacquered to match (for matt or glossy lacquered wall units), sandblasted lacquered to match (for sandblasted lacquered wall units).

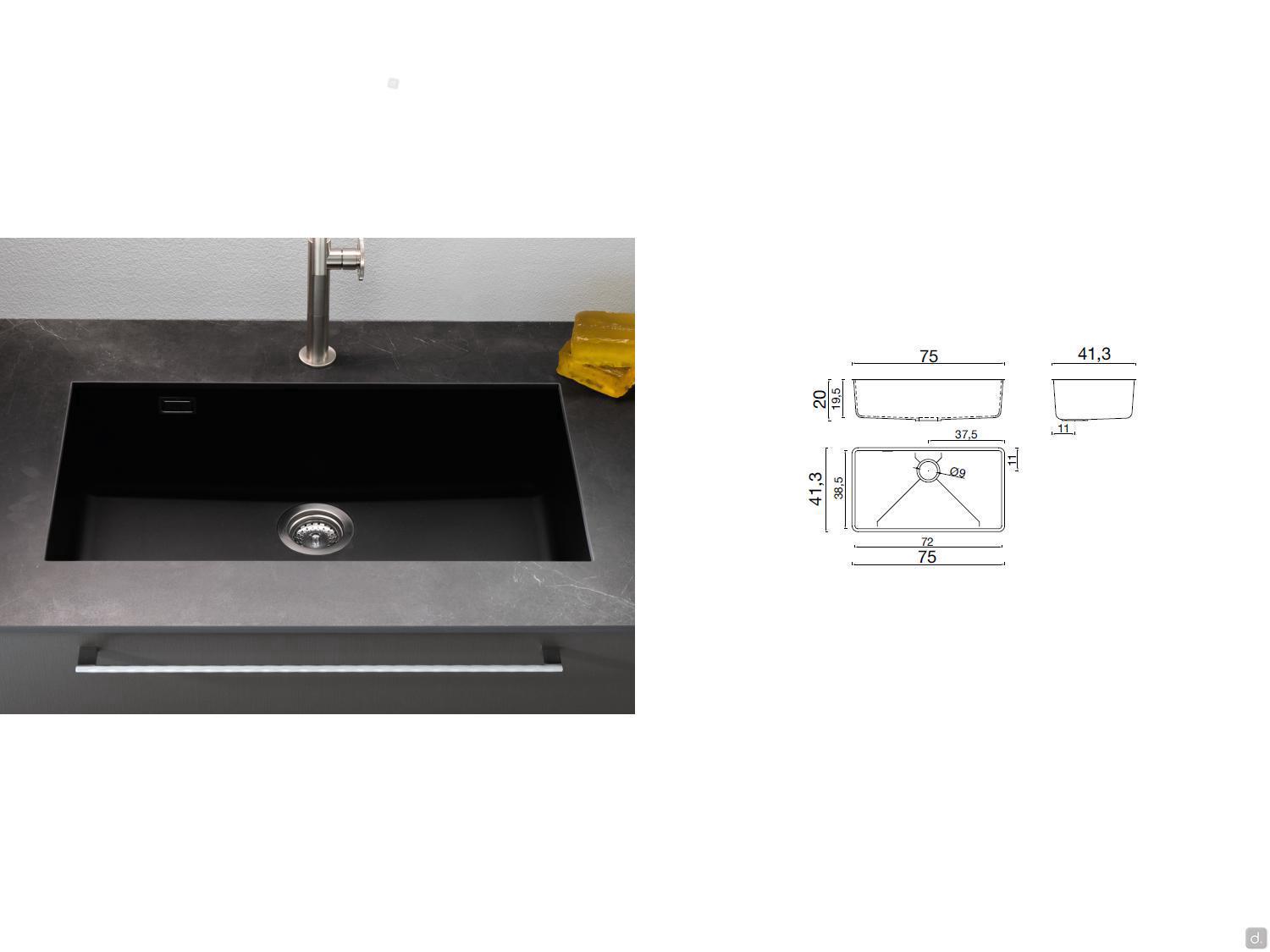

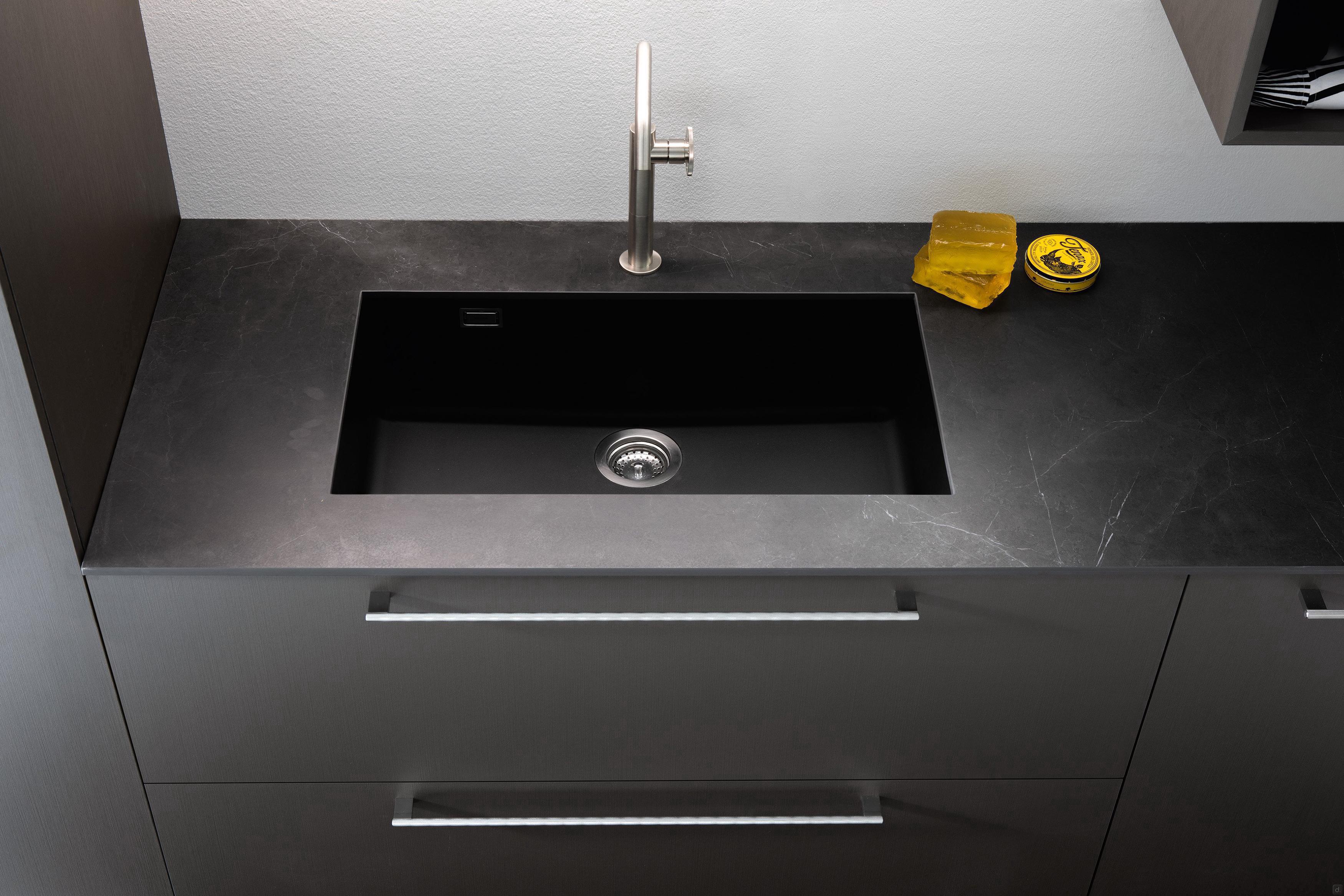

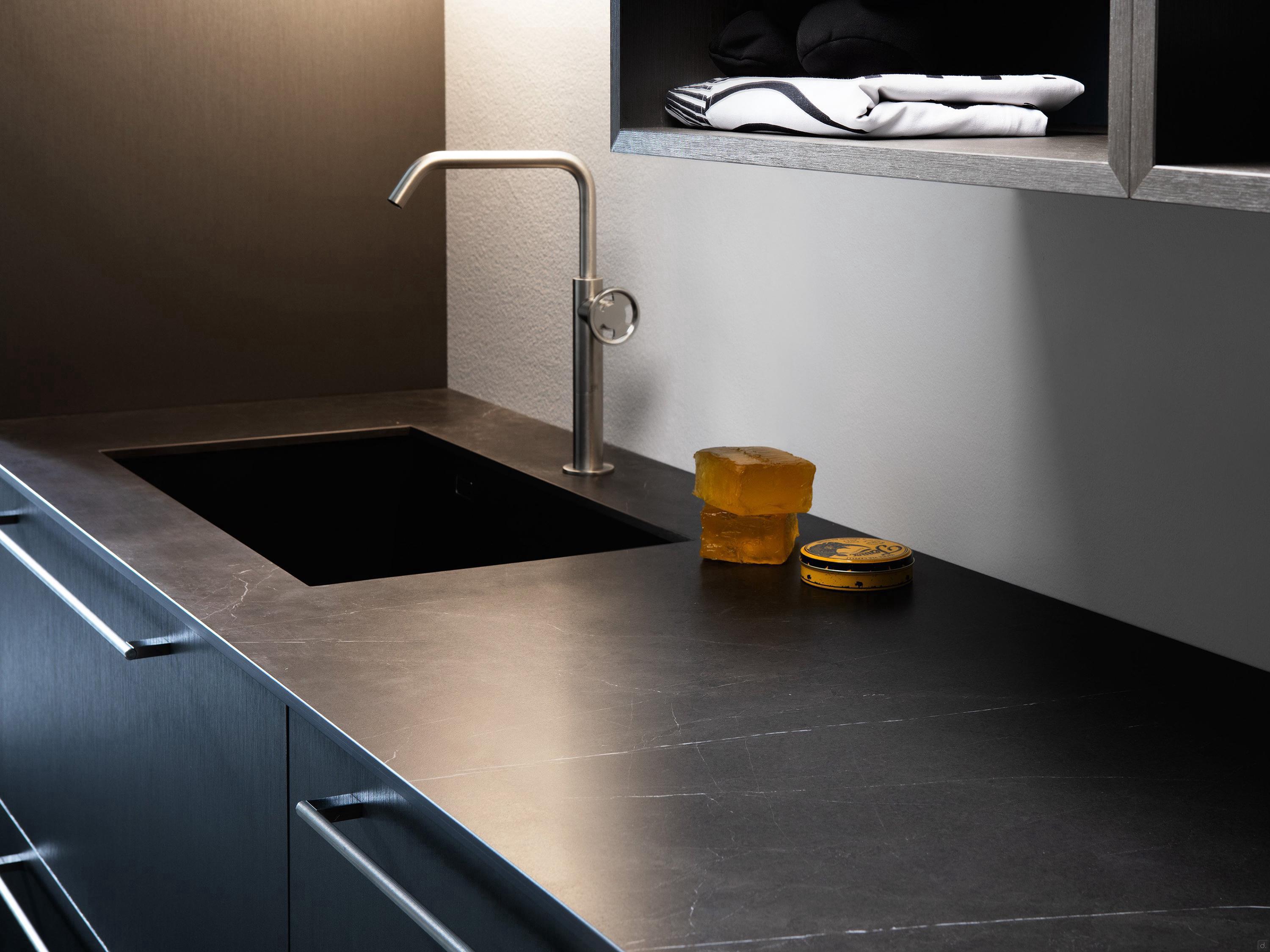

Washbasin: mod. Amerigo, built-in undermounted, in alpine white or matt black crystallite, cm 75 p.41,3 h.20. Bowl dimensions: cm 72 d.38,5 h.19,5. The washbasin is equipped with an overflow hole, siphon and drain. A standard hole for a Ø 3.5 cm mixer positioned centrally on the top is provided.
Led bar mod. GAE: cm 120 p.5 sp.1,3, chromed structure with opal polycarbonate screen. Natural light at 4.000°K, 30 W, 230V, IP44, class A.

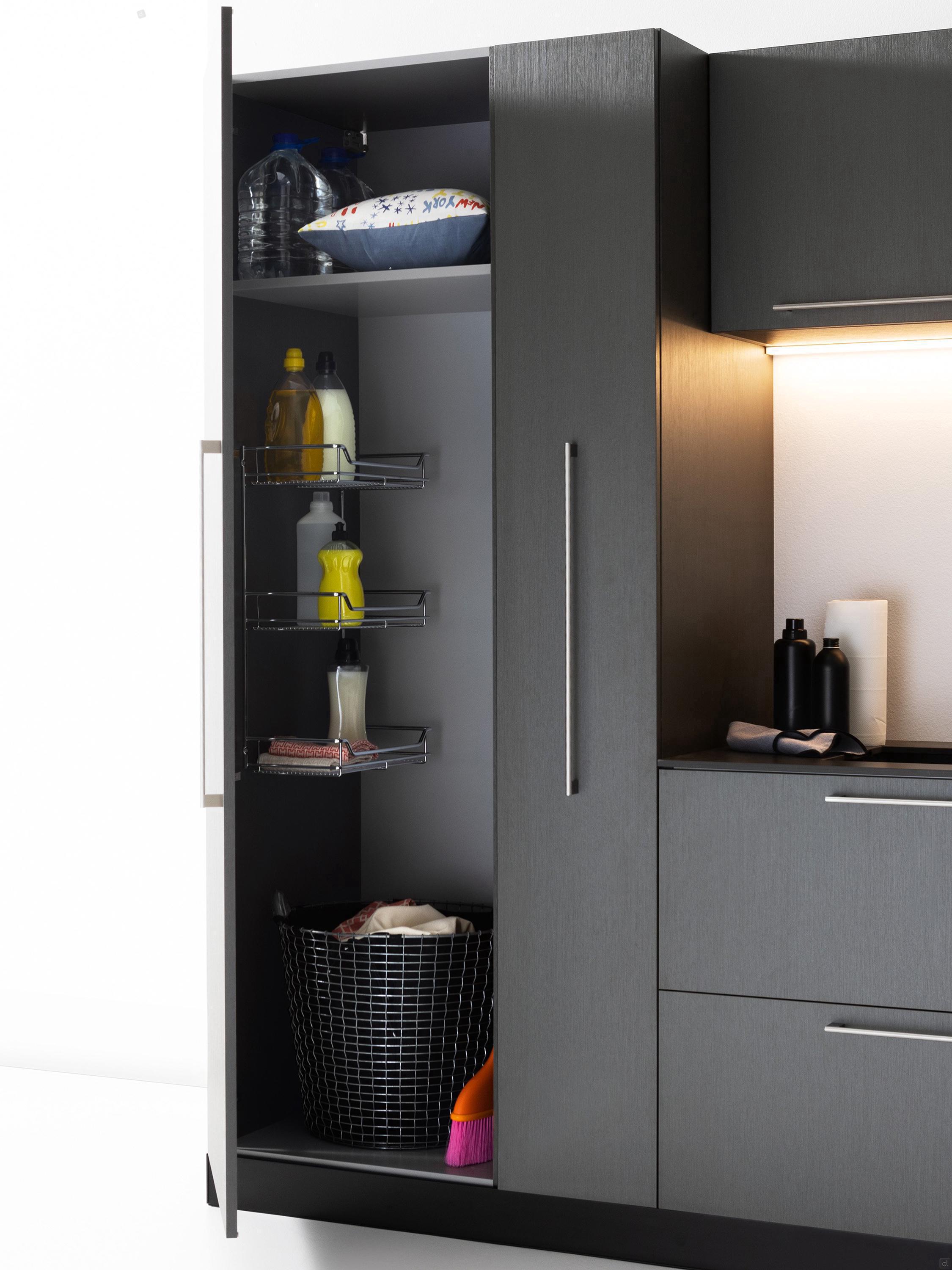

Baskets: set of 3 chromed metal baskets, to be fixed to the sides of the column. Overall dimensions: cm 21 p.40,5 h.62.

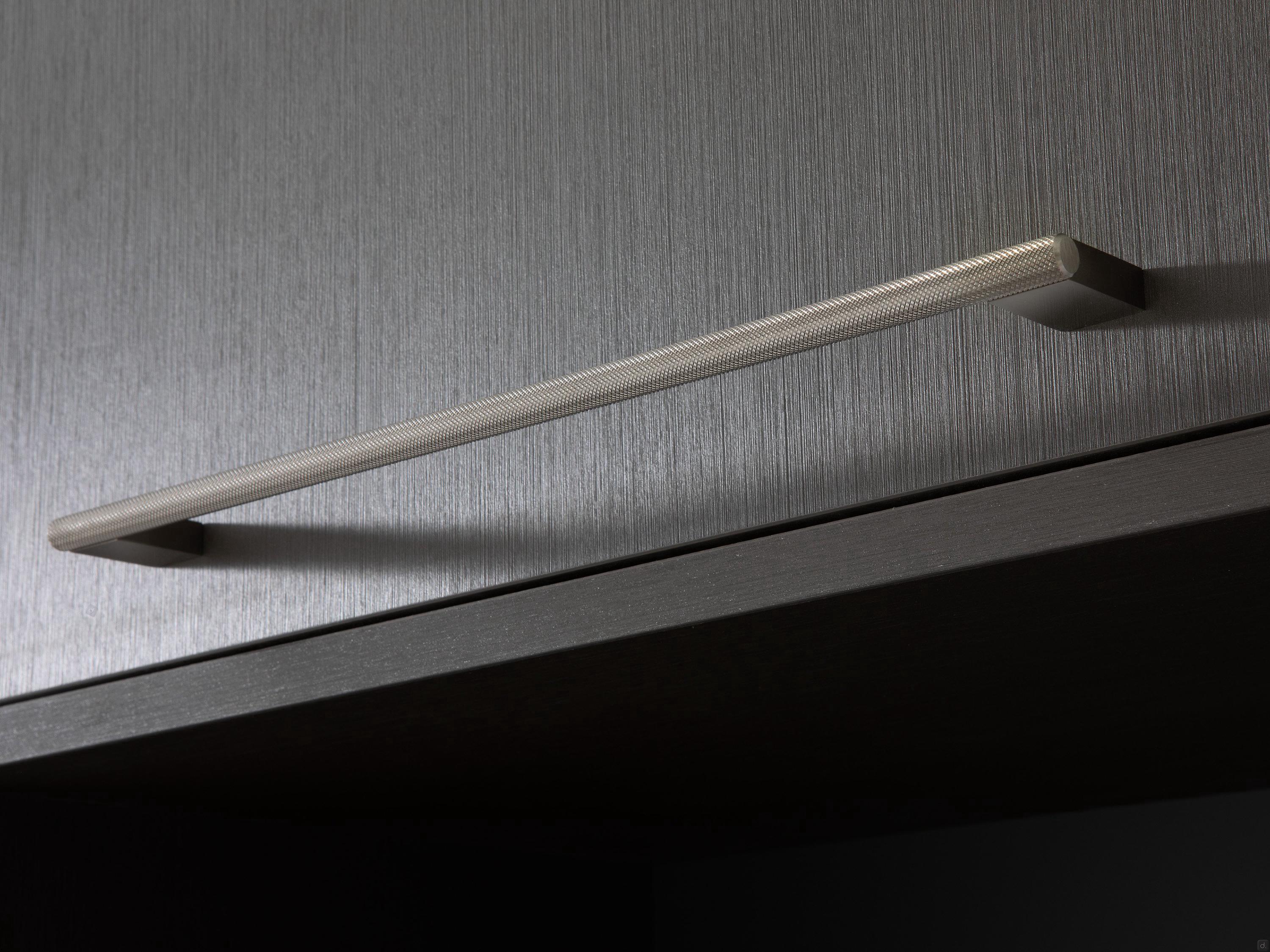

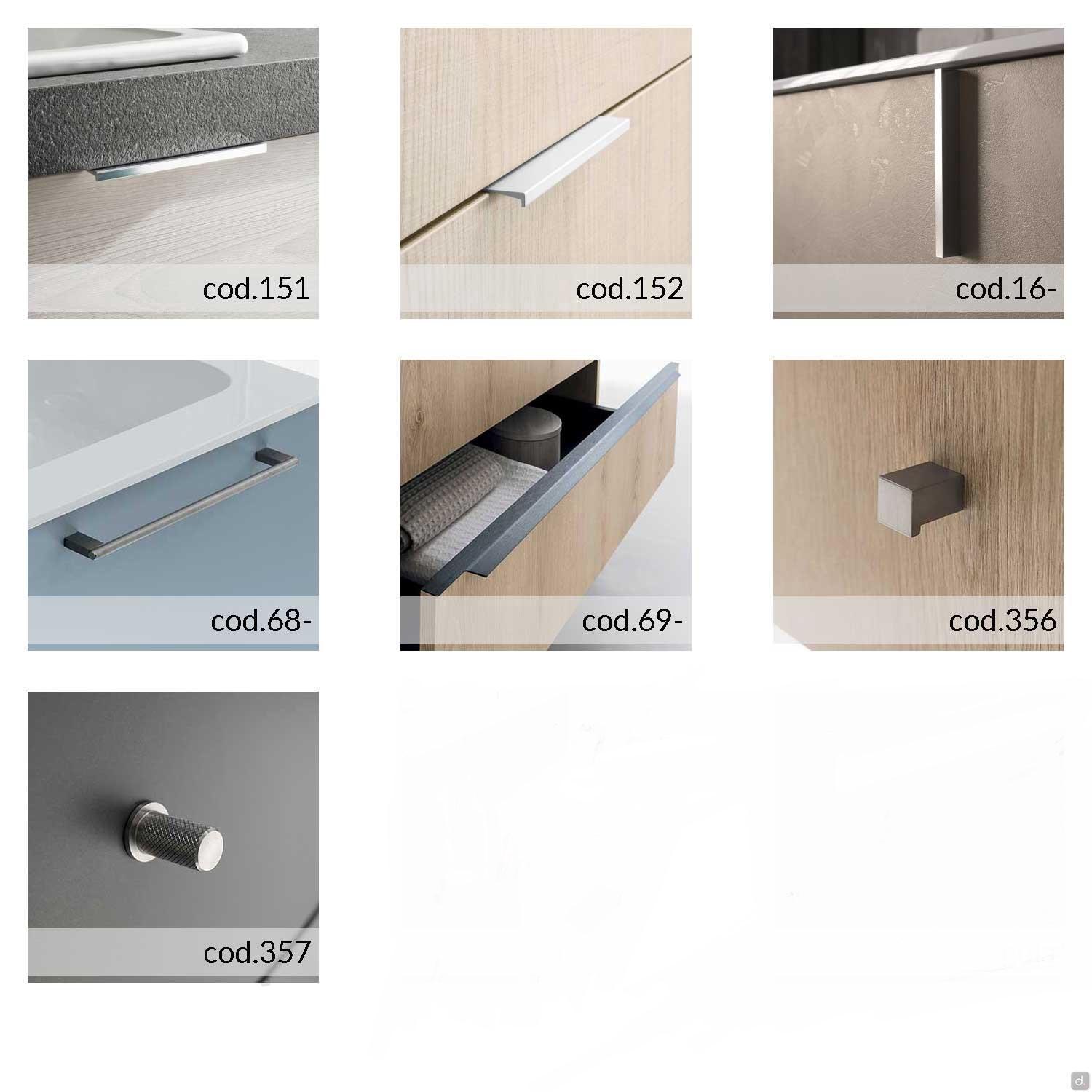

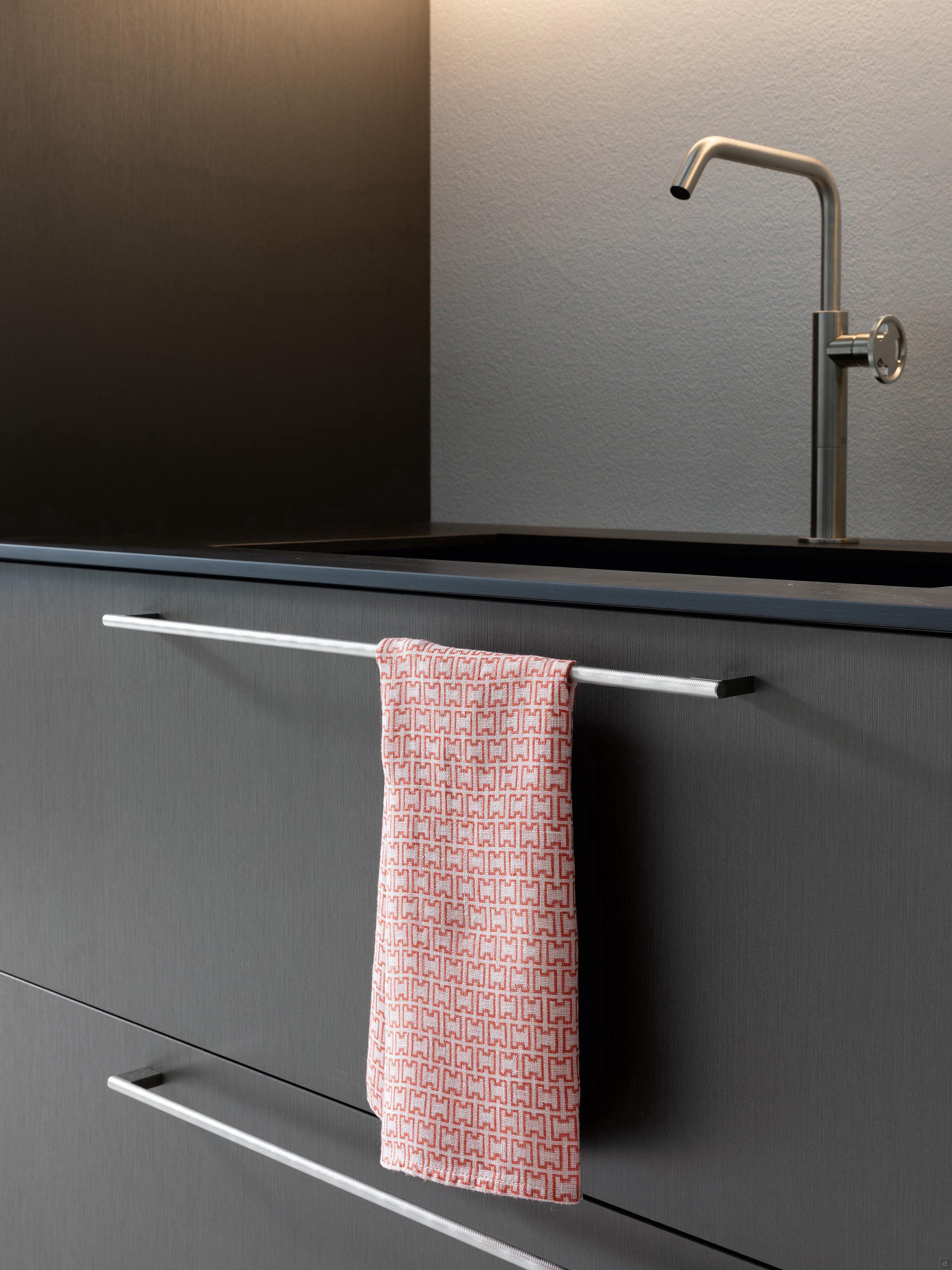

Handles: it is possible to choose between various models of handles, in addition to the push-pull opening. Handles cod.152 and cod.16 are available in matt lacquered finish in all sample colours. The handles mod. 68- protrude 4 cm from the door surface.
Optional

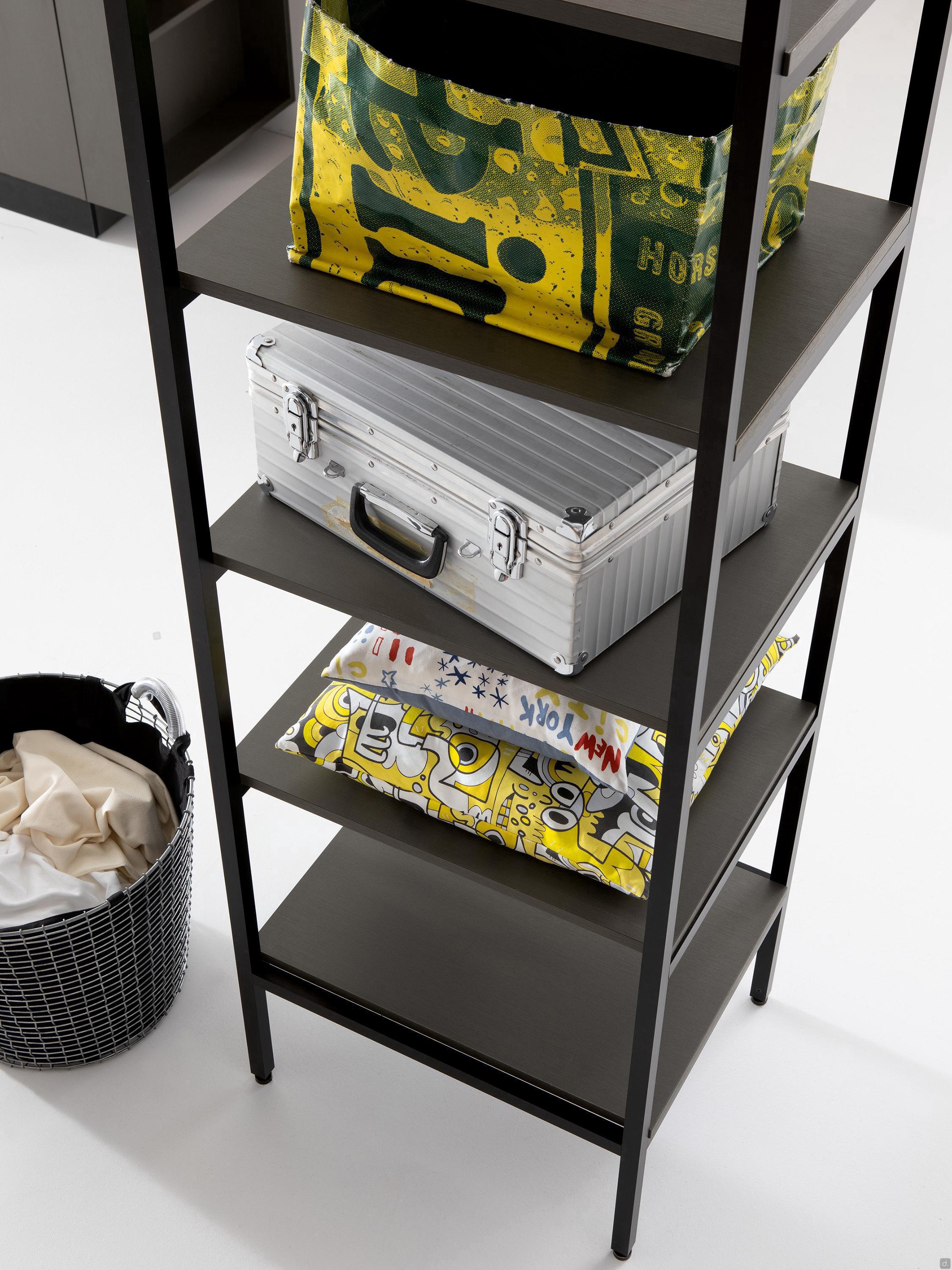

Open column with 5 shelves: cm 60 p.50 h.200. The structure is in matt black aluminium while the shelves are made in the same finish chosen for the rest of the laundry composition.
Maintenance Tips
Veneered: use neutral liquid detergents for cleaning. To remove limescale stains, wipe the surface with a sponge soaked in vinegar or anti-limescale product, then rinse and dry. Do not use acids, abrasive products or powders; do not leave anti-limescale products in contact with the surface for a prolonged period of time, as this could create halos.
Lacquer: use soft, non-abrasive cloths for cleaning to avoid damaging the surface. Do not use products containing solvents, acetone or abrasives, nor wax, alcohol or silicone-based products.
Stoneware: To prevent stains, clean promptly with a damp cloth or neutral detergents. We recommend the use of neutral detergents.
Read more...
Cristallite: approximately 80% quartz, the hardest and noblest component of granite. The quartz is mixed with a high quality acrylic resin to obtain a composite material that is resistant to breakage, dirt and durability.
Porcelain stoneware: porcelain stoneware is made from a mixture of water and clay that is transformed, through the raw extrusion process, into a slab with extraordinary mechanical properties. Vitrification closes the pores, ensuring maximum resistance to water absorption and stains.
