Material Specifications
Top, bottom, back panel: made with E1 particle wood panels with low formaldehyde emissions.
Sides and Partitions: made of E1 class particle wood panels with low formaldehyde emissions or with aluminium frame painted with epoxy powders.
Doors: made of class E1 low formaldehyde emission wood particle board panels (with textured finish), honeycomb-core panels (with lacquered or wood finish), with 2.1 cm thick melamine paper + 0.4 cm thick coated panel/glass, matte coloured lacquered interior in tone with the colour of the glass. Matte or glossy lacquering with polyurethane varnish. Also available in tempered glass with integrated aluminium frame and handle.
Technical Specifications and Equipment
Sides and partitions: cm 2,5 thick.
- version with Panel:
with ABS edge for textured melamine and lacquer, in wood for veneer doors. For partitions, ABS edge matching the inside. Equipped with adjustable feet inserted in the thickness of the panel and adjustable by 1,2 cm.
- version with Metal Frame:
side in clear smoke glass or frosted with metal frame in brown or titanium matt lacquer, metal frame partitions in brown or titanium matt lacquer. Equipped with adjustable feet inserted in the frame thickness and adjustable by 1,2 cm.
Top and bottom: cm 3,5 thick. ABS edge matching the inside.
Back panel: cm 0,8 thick.
Corner internal shelf: cm 3,5 thick. ABS edge matching the inside.

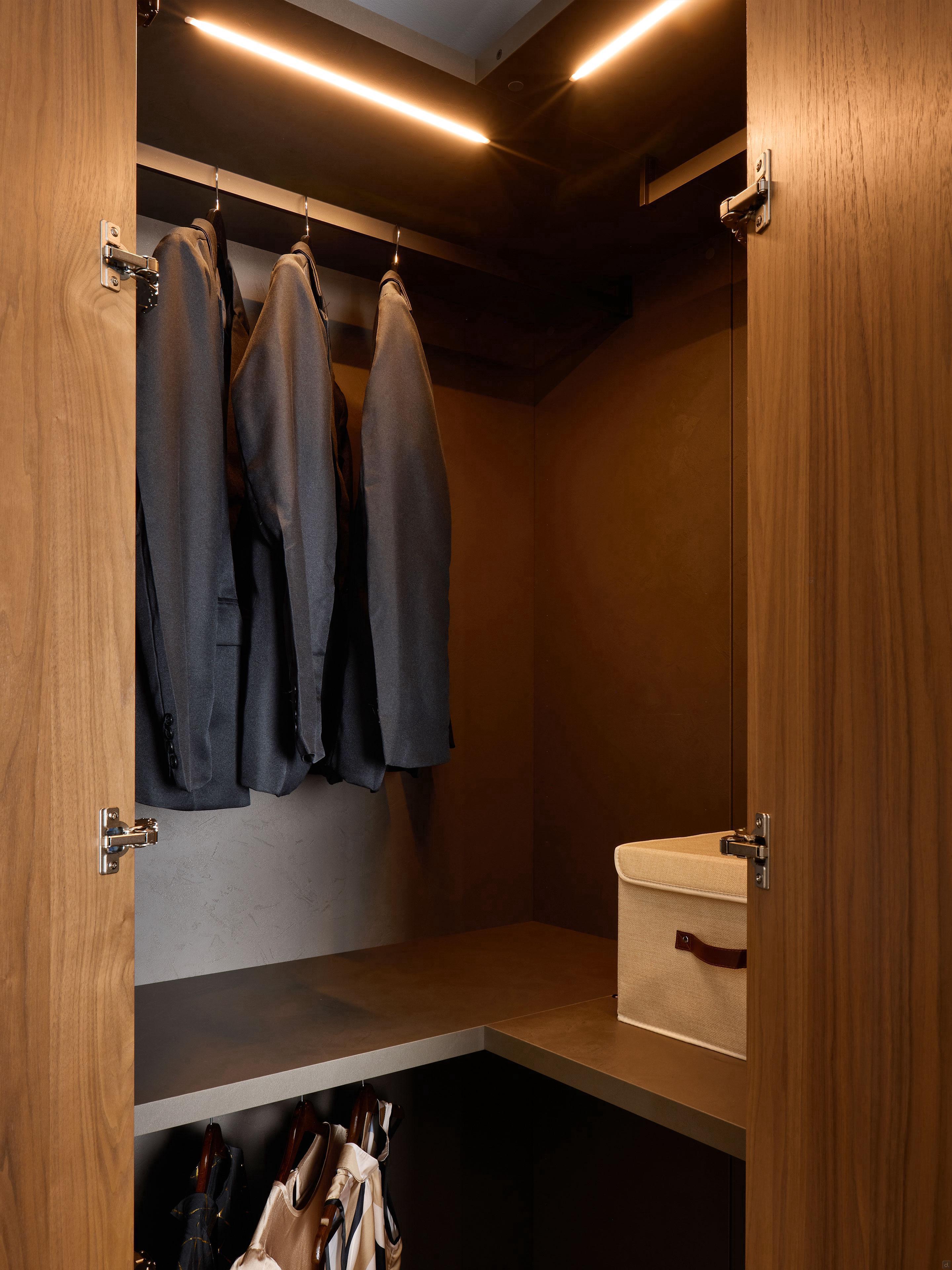

Bars for clothes hangers: rectangular section cm 3 x 1 in Titanium painted metal (for inside in loto natura, linen textured or medium elm) or Brown (for inside in loto taupe, loto terra or dark elm).

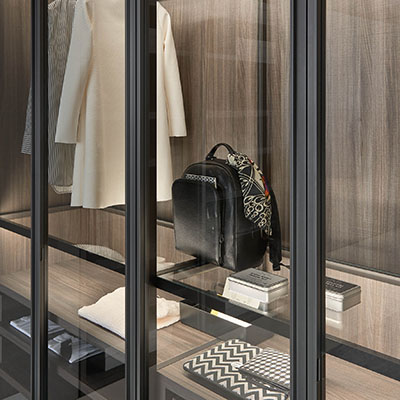

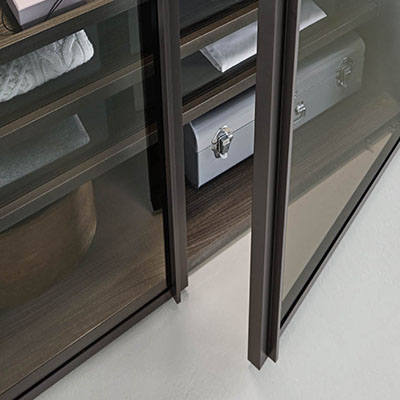

Doors: cm 2,6 thick. ABS edge matching the door for textured and lacquered finishes, wood for veneer doors. Clear or frosted smoked glass (mm 4 thick) with brown or titanium matt lacquered metal. The handle is always on the right door.

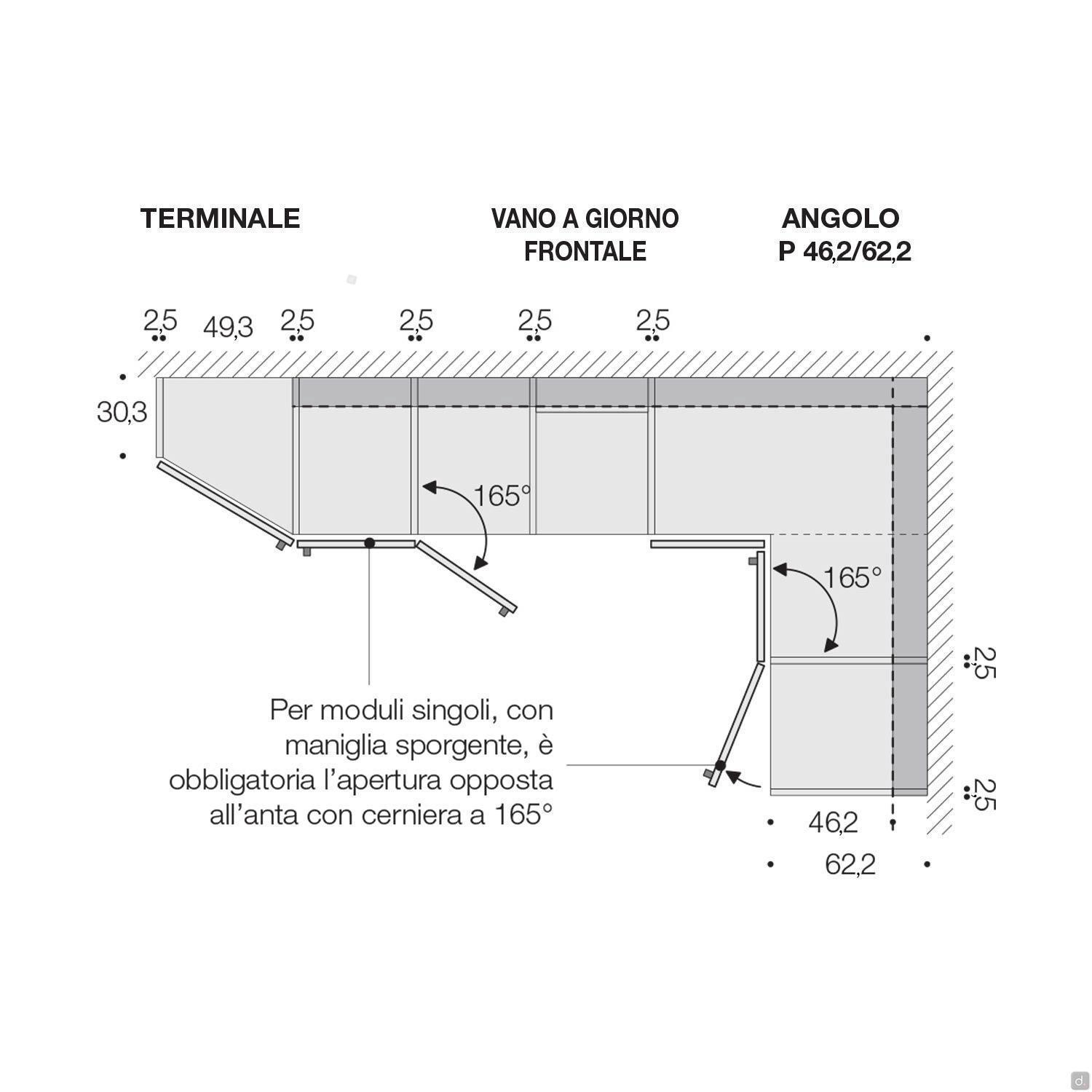

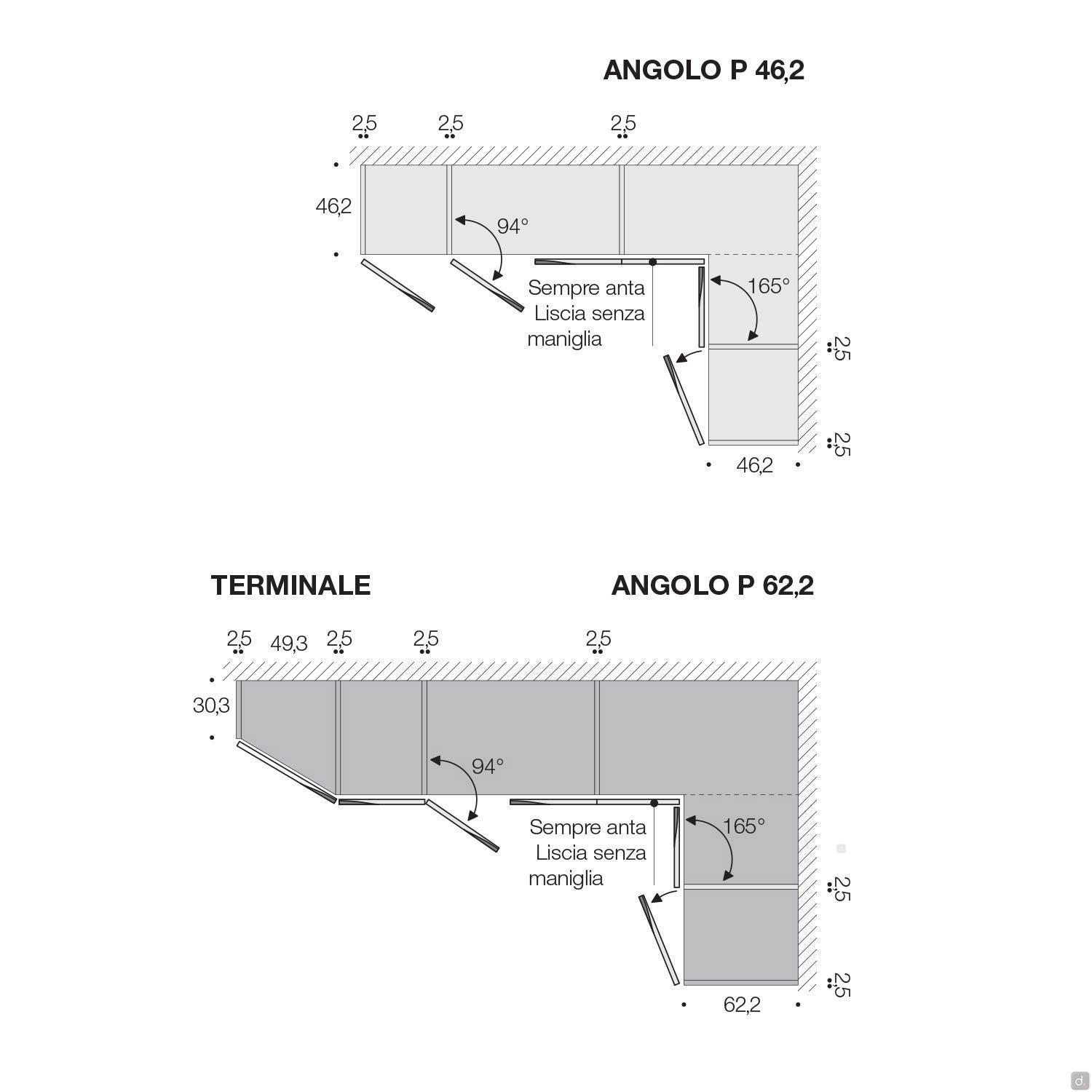

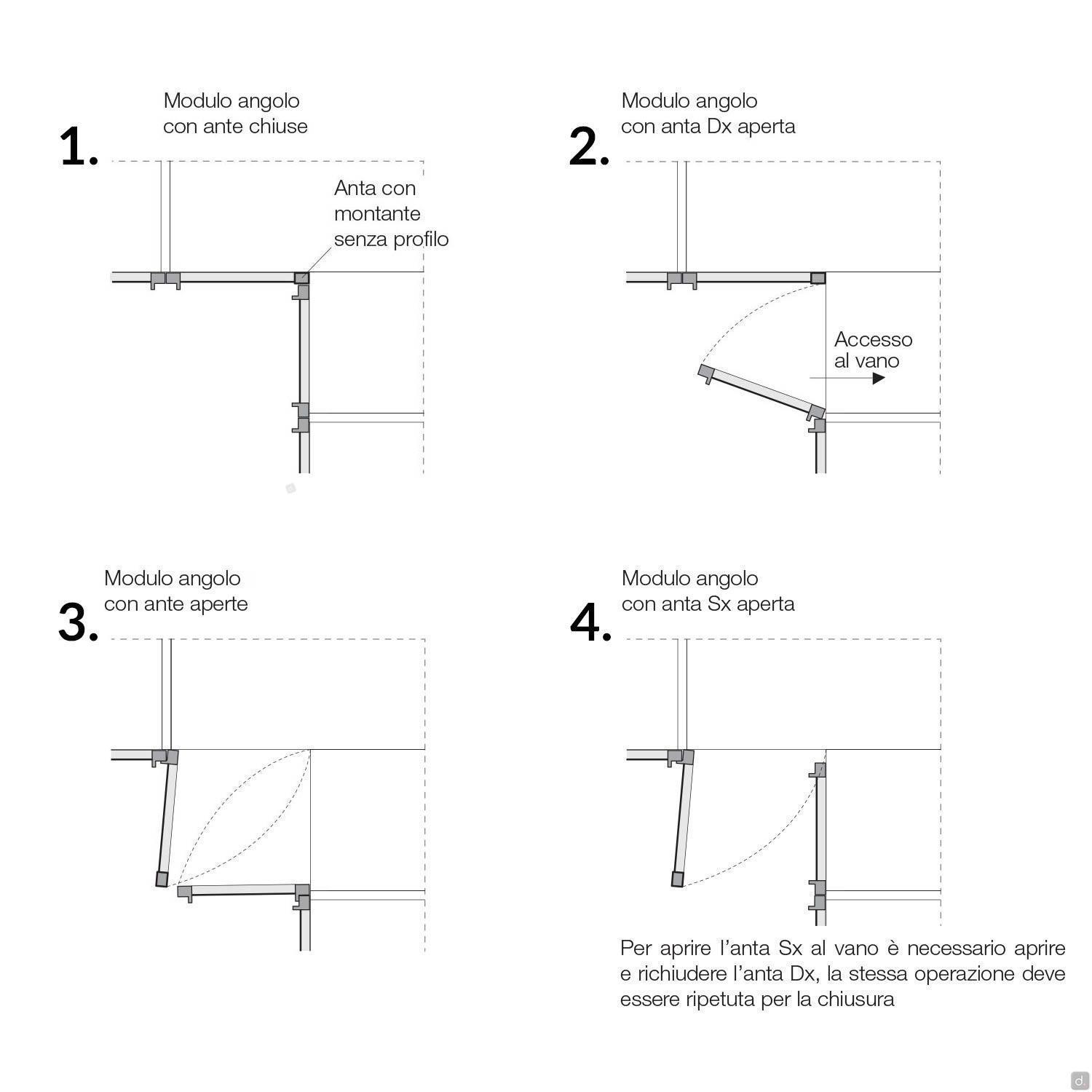

Hinges: door equipped with hinges with soft closing system, 165° opening. For doors cm 239,6, 255,6 and 287,6 high there are 6 hinges whereas for cm 223,6 doors the hinges are 4. Virginia door does not come with 165° hinges but with 90° ones: it is possible to access the corner module by opening one door at the time thanks to a door without edging profile.
Handles:
- Assisa: cm h.121,8, in matt lacquered metal
- Ala: cm h.110, in matt lacquered metal
- Wood: cm h.121,8, in painted ash solid wood
- Mia 1: cm h.30, in matt lacquered metal
- Mia 2: cm h.60, in matt lacquered metal
- Plana: cm h.16,5, placed at cm 93,5 from the lower edge of the door, in matt lacquered metal
- Presa: cm h.16,6, placed at cm 88,1 from the lower edge of the door, in matt lacquered metal
- Skin: cm h.16, placed at cm 95,9 from the lower edge of the door, in matt lacquered metal
- Beta: cm h.16, placed at cm 95,9 from the lower edge of the door, in matt lacquered metal
- Deluxe: cm h.16, placed at cm 95,9 from the lower edge of the door, in matt lacquered metal with faux-leather grip
- Pomolo: cm Ø 2,5, placed at cm 109 from the lower edge of the door, in matt lacquered metal
Sides Holes
- version with Panel:
sides and partitions with fixed holes each 9,6 cm.
- version with Frame:
the racks for the metal frame have gaps every 3,2 cm corresponding to the holes of the wooden sides/partitions.

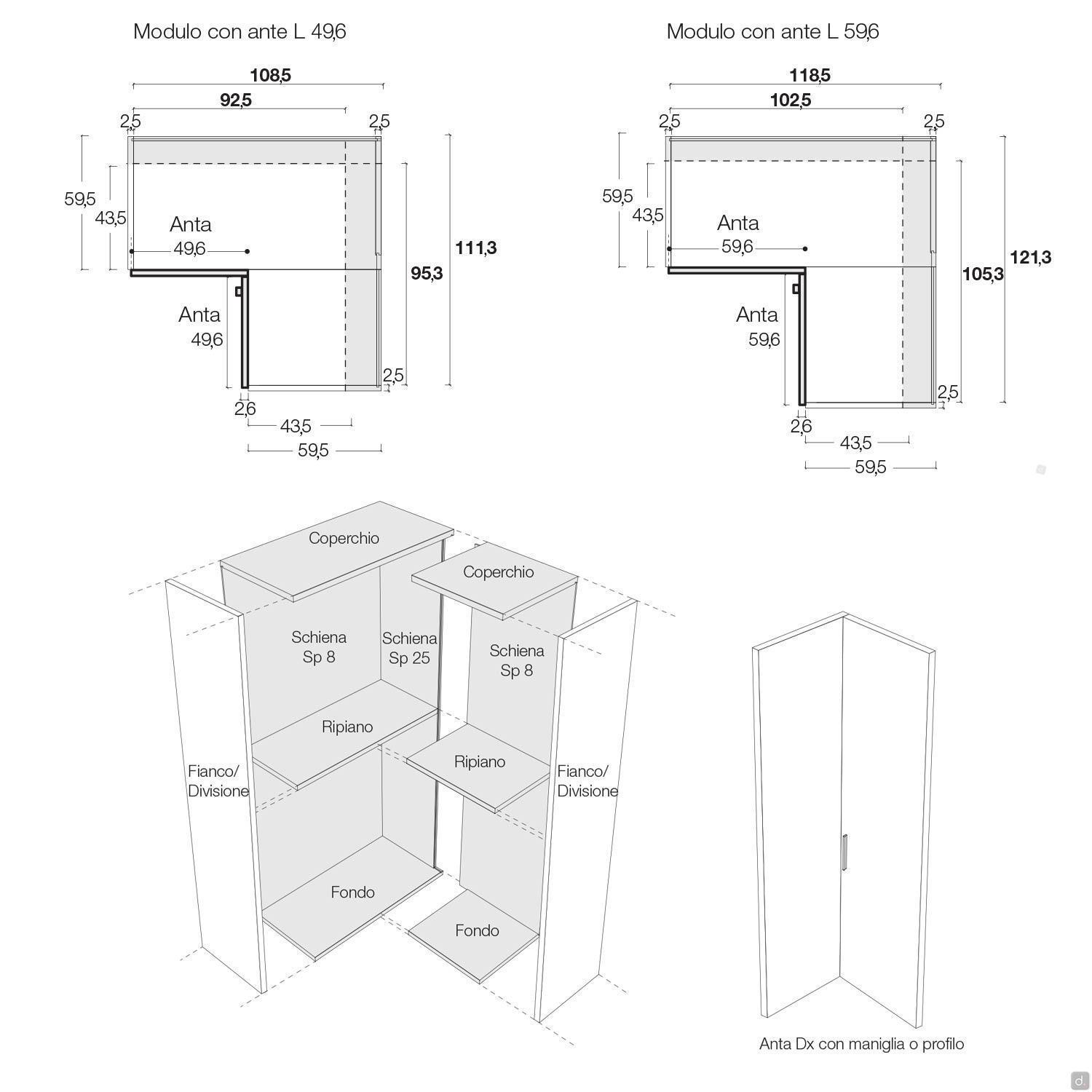

For specific measurements we recommend to have a look at the scheme in the picture gallery.
Assembling Tips
For the assembling of the structure you need:
- cm 3,5 in width
- cm 2 in height (cm 5 in case you selected LED bars, to place the power supply on the top)
