Material Specifications
Sides, partitions, bottom, top, back: made with E1 class particle wood panel with low formaldehyde emission.
Door: made with E1 class particle wood panels with low formaldehyde emission (with melamine finish or matt lacquer on ashwood laminate), with honeycomb panel (with lacquered or wood veneer finish), with melamine paper, cm 2.1 thick + cm 0.4 thick coated panel / glass, internal matt coloured lacquer in same shade of colour as the glass. Matt or high gloss lacquered finish made with polyurethane paints.
Technical Specifications and Equipment
Sides and partitions: cm 2,5 thick. Sides: ABS edge for textured finishes and lacquers, in wood for veneers. Partitions: ABS edge matching the internal finish. Included adjustable feet, adjustable by cm 1,2.
Top and bottom: cm 3,5 thick. ABS edge matching the internal finish.
Back: cm 0,8 thick.
Internal Shelf: cm 3,5 thick. ABS edge matching the internal finish.

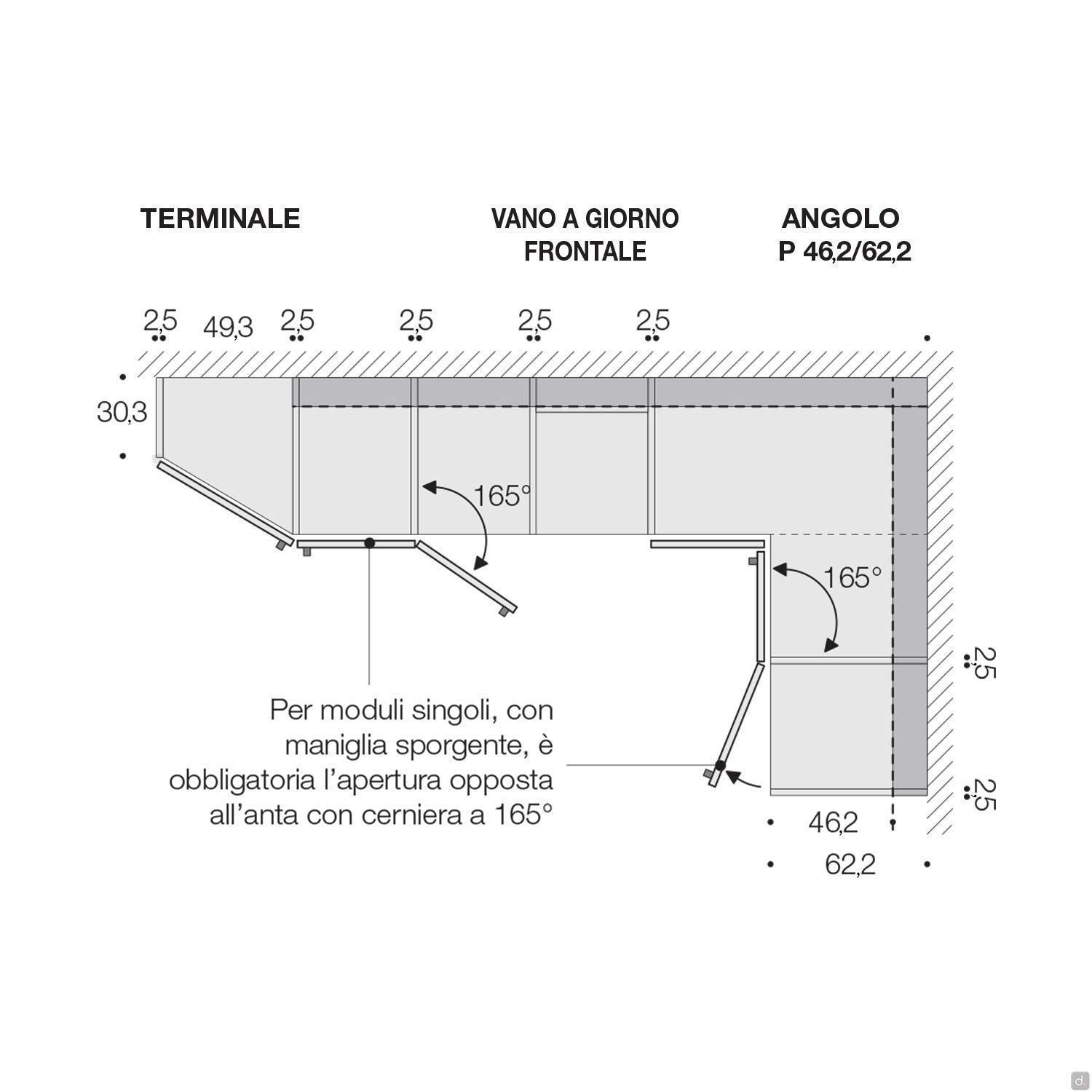

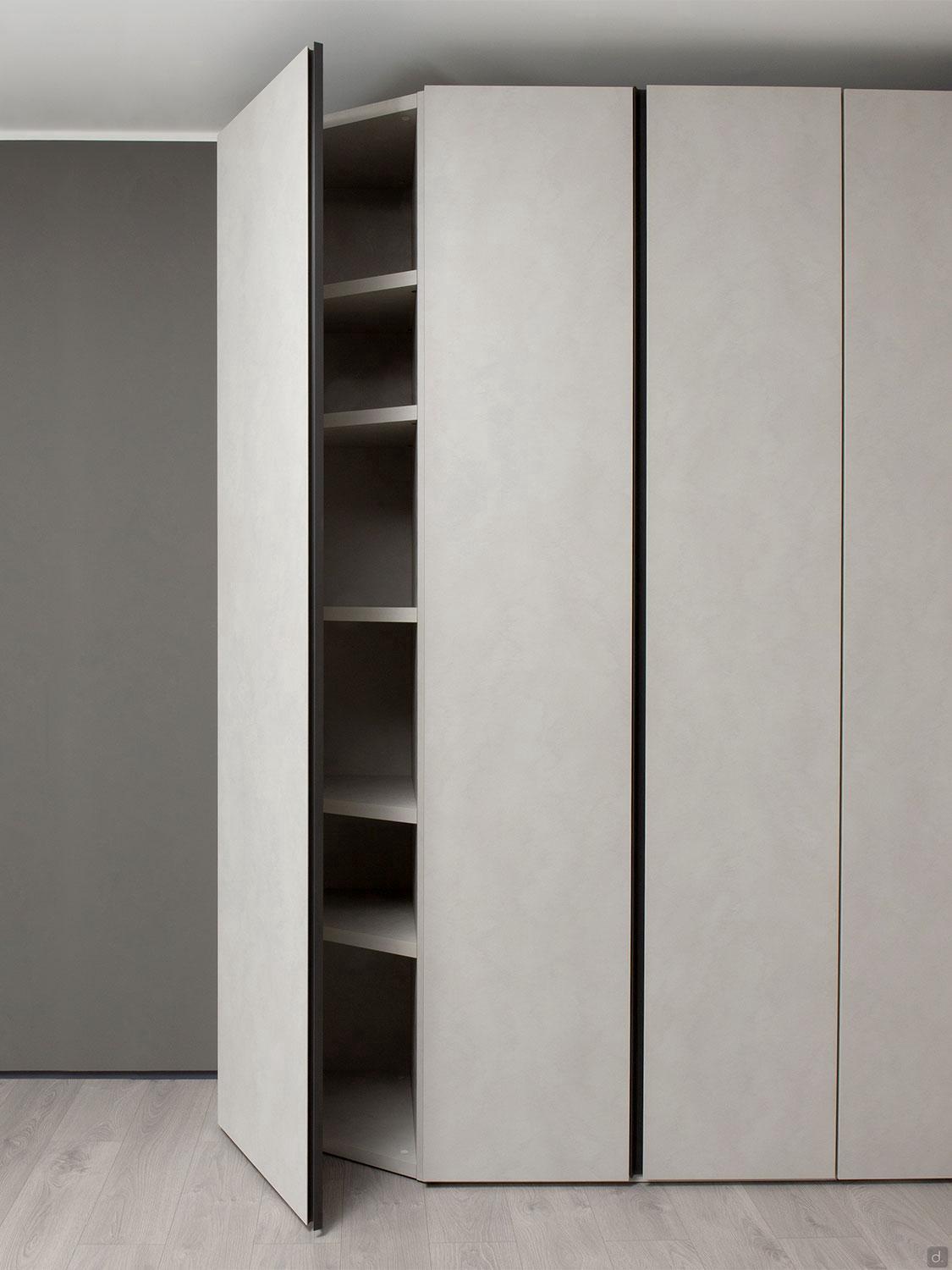

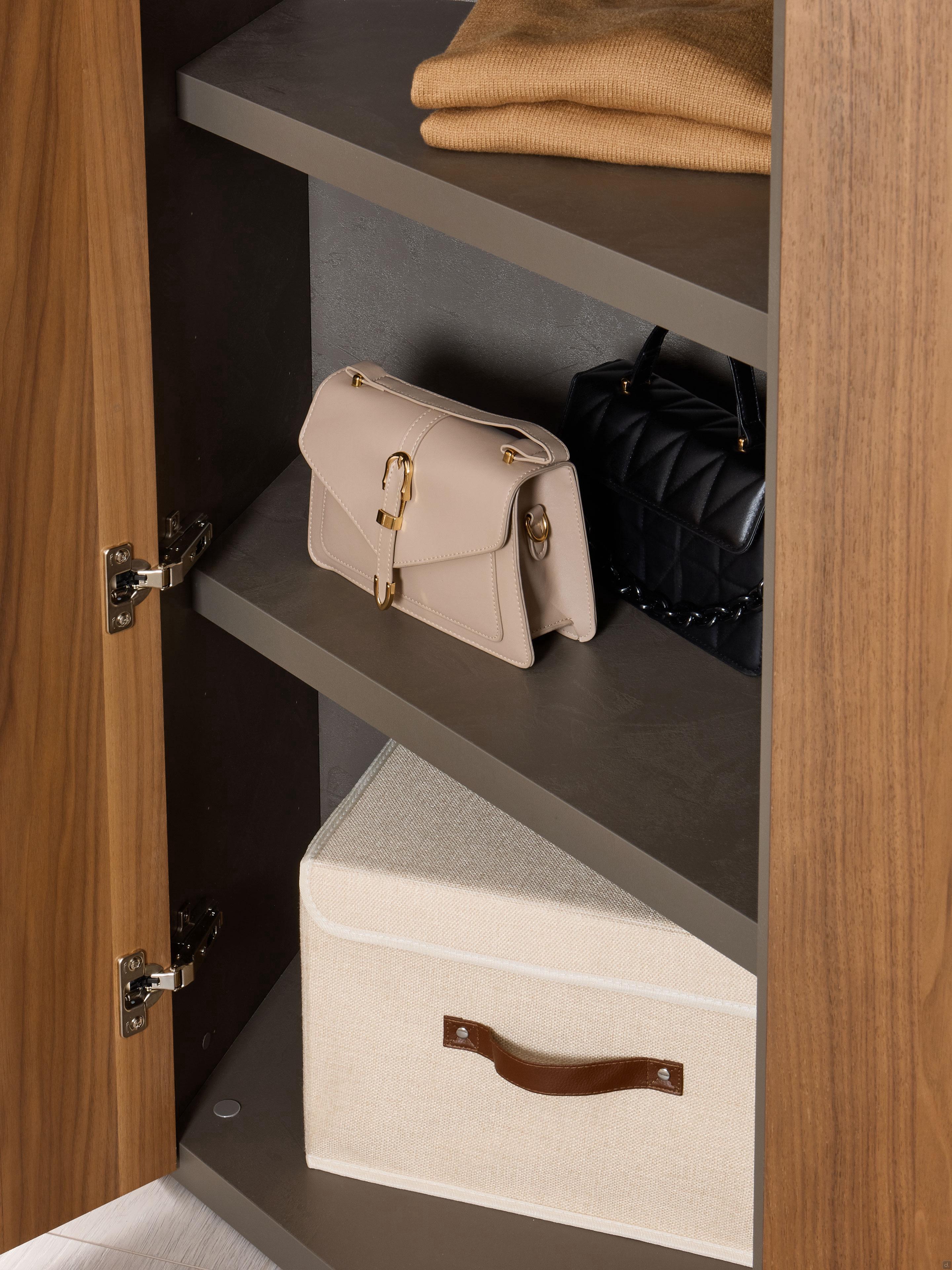

Door: cm 2,6 thick. ABS edge matching with the door for textured melamine and lacquer, in wood for veneered doors.Each door comes with a soft closing system and 94° opening; For doors with height cm 239,6, 255,6 and 287,6 there will be 6 hinges whereas for doors with height cm 223,6 there will be 4 hinges.
Handles:
- Assisa: cm h.121,8, in matt lacquered metal
- Ala: cm h.110, in matt lacquered metal
- Wood: cm h.121,8, in painted, solid ash wood
- Mia 1: cm h.30, in matt lacquered metal
- Mia 2: cm h.60, in matt lacquered metal
- Plana: cm h.16,5, positioned cm 93,5 from the bottom of the door, in matt lacquered metal
- Presa: cm h.16,6, positioned cm 88,1 from the bottom of the door, in matt lacquered metal
- Skin: cm h.16, positioned cm 95,9 from the bottom of the door, in matt lacquered metal
- Beta: cm h.16, positioned cm 95,9 from the bottom of the door, in matt lacquered metal
- Deluxe: cm h.16, positioned cm 95,9 from the bottom of the door, in matt lacquered metal with faux-leather grip
- Pomolo (knob): cm Ø 2,5, positioned cm 109 from the bottom of the door, in matt lacquered metal
Drilling Sides
Sides and partitions come with fixed holes every 9,6 cm. For detailed measurements, please see the relevant diagram image gallery.
Assembling Tips
To assemble the structure you need:
- cm 3,5 in width
-cm 2 in height (cm 5 in case you add LED bars, in order to place the power supply on the top).
