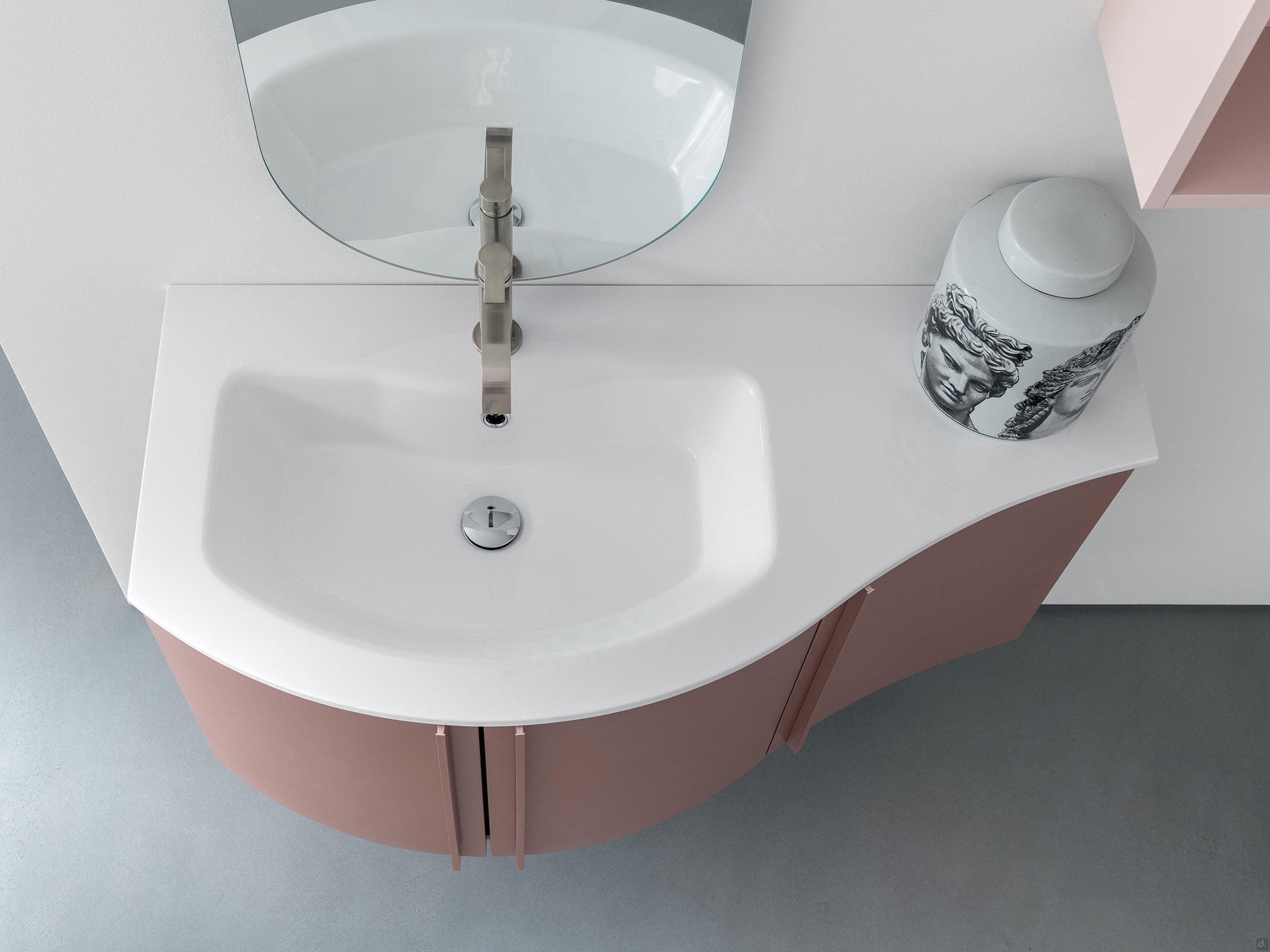

Curved Atlantic bathroom cabinet with Versus washbasin in continuation on curved end unit

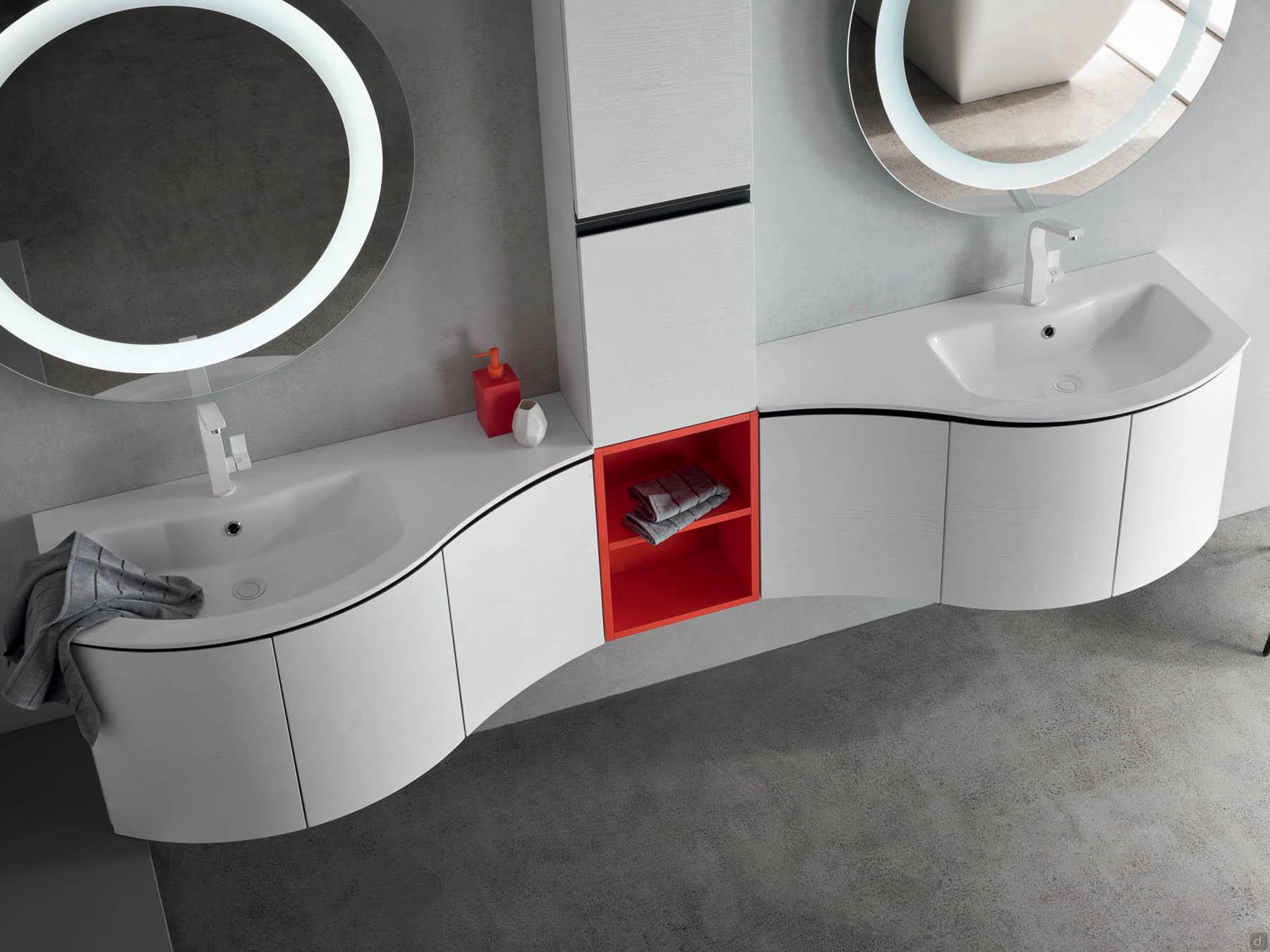

Curved Atlantic gloss white lacquered bathroom cabinet, complemented by other elements from the Atlantic collection

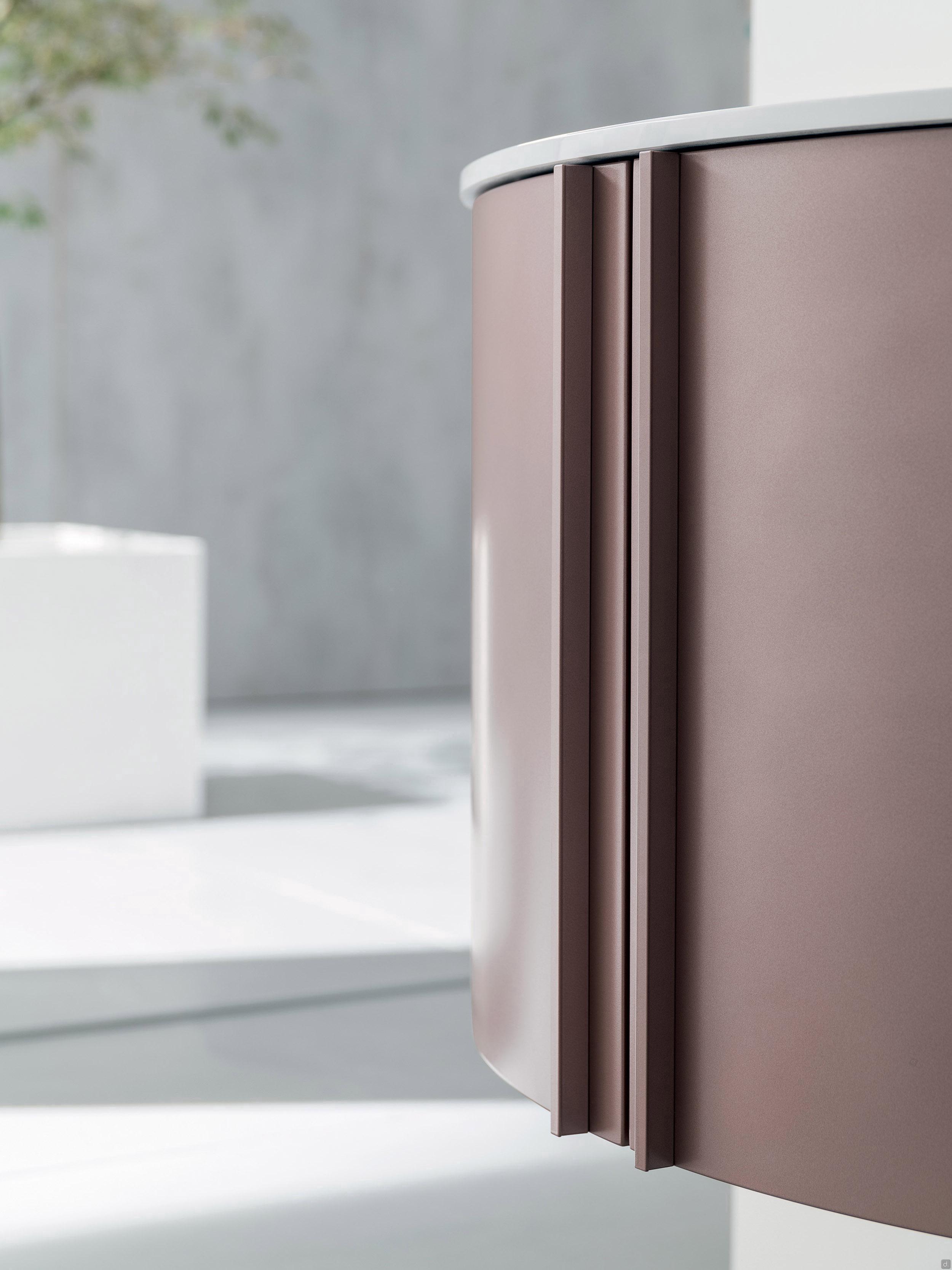

Detail of the full-height lacquered handle, one of the opening types available on the Atlantic curved bathroom cabinet

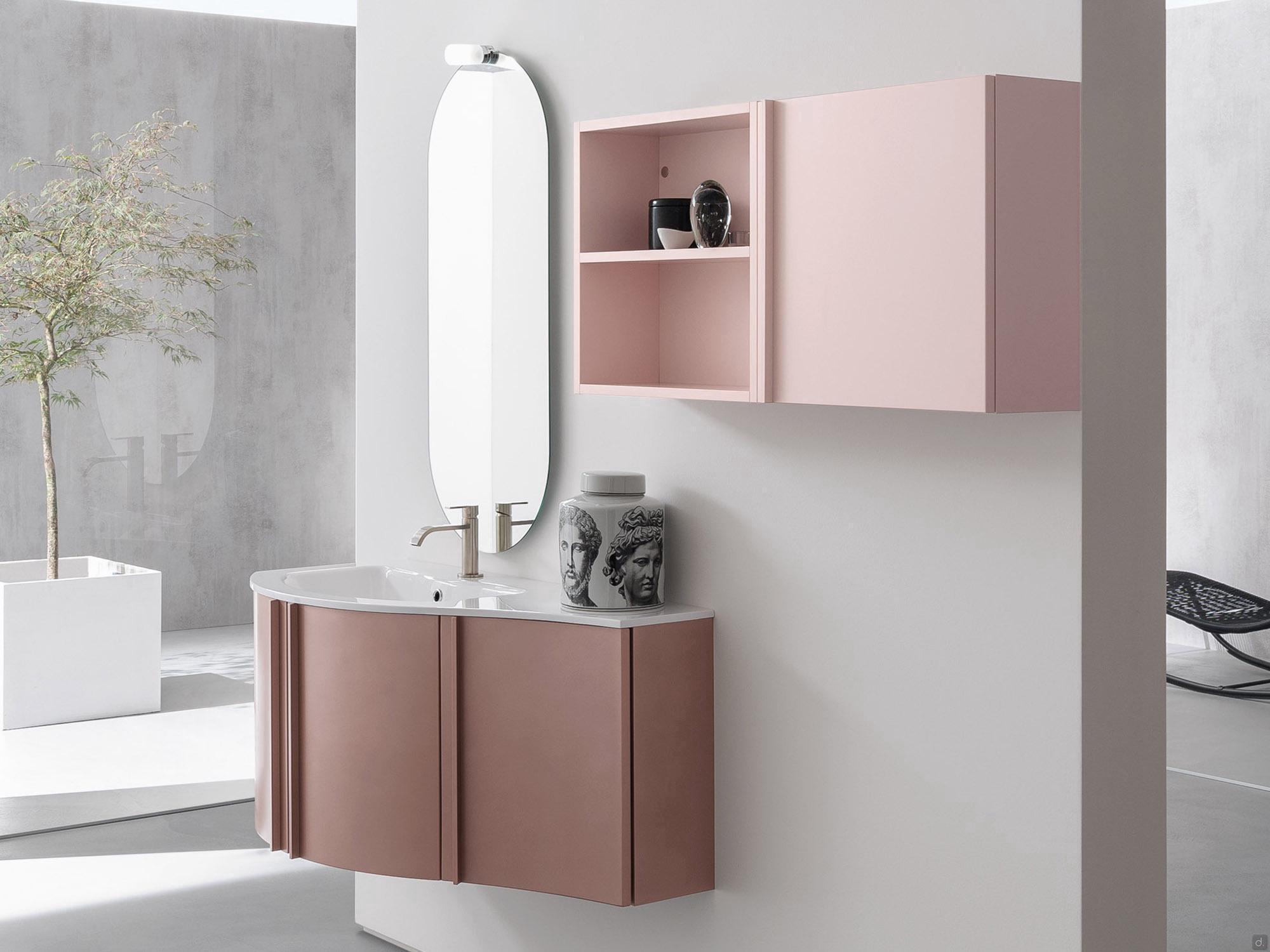

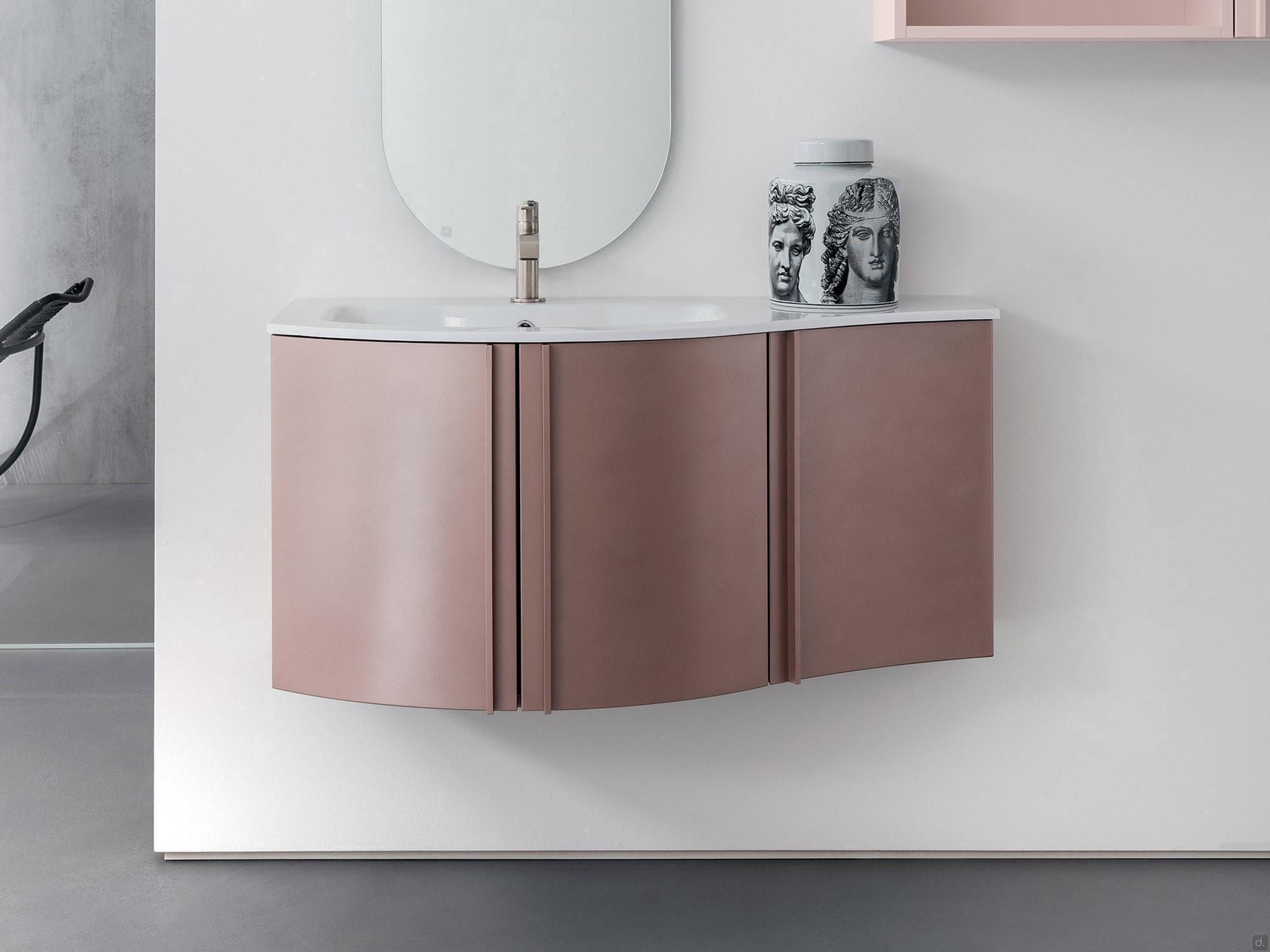

Atlantic composition with curved washbasin base unit at centre, in Petalo metallic lacquered finish

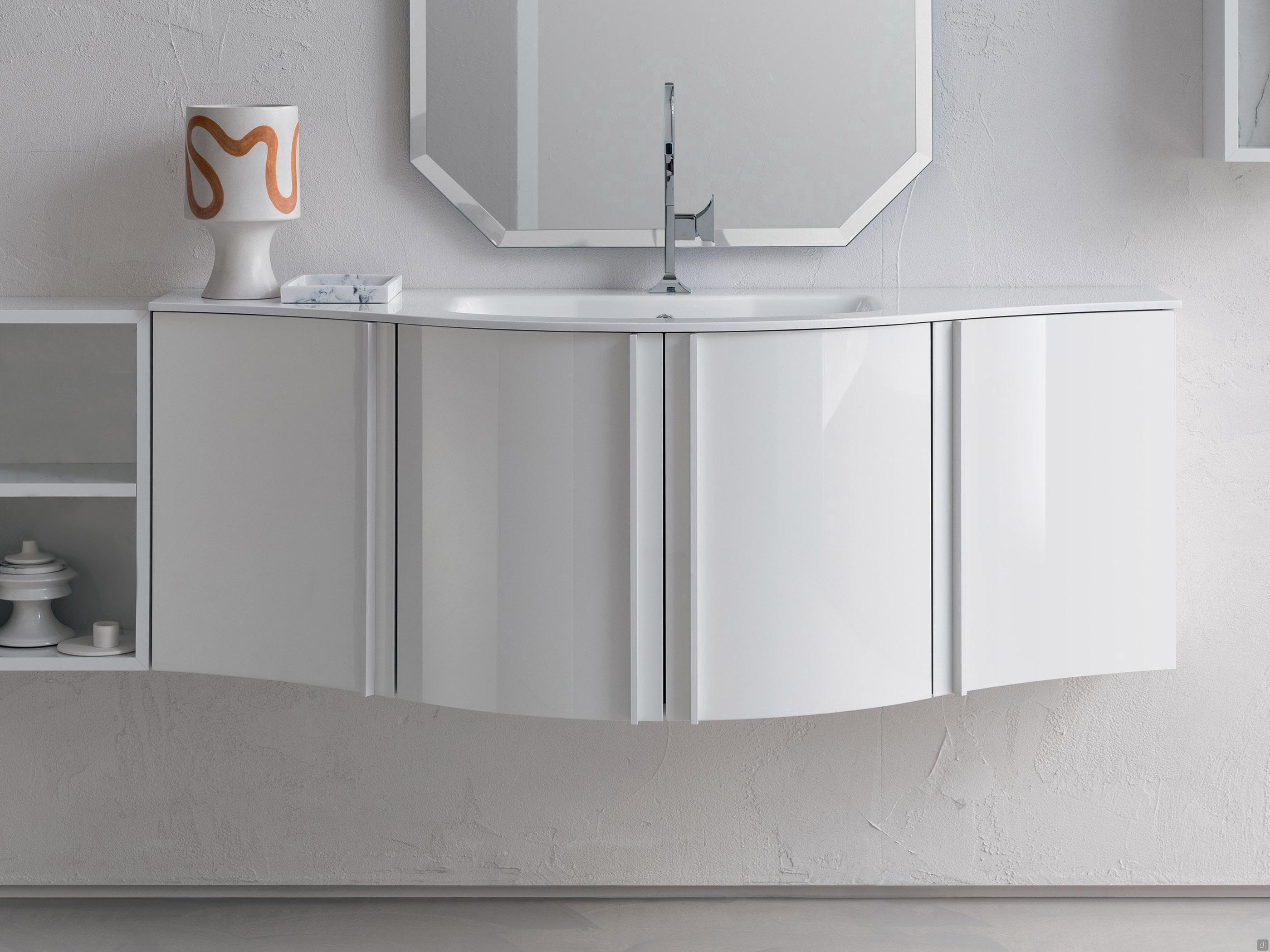

Atlantic curved bathroom cabinet with double curved end caps at both ends, configuration that can be realised with the dedicated tab in the configurator and in the alternative products at the bottom of the page

Atlantic curved bathroom cabinet with Versus gloss white mineralguss console washbasin, available in two widths of 70 and 95 cm

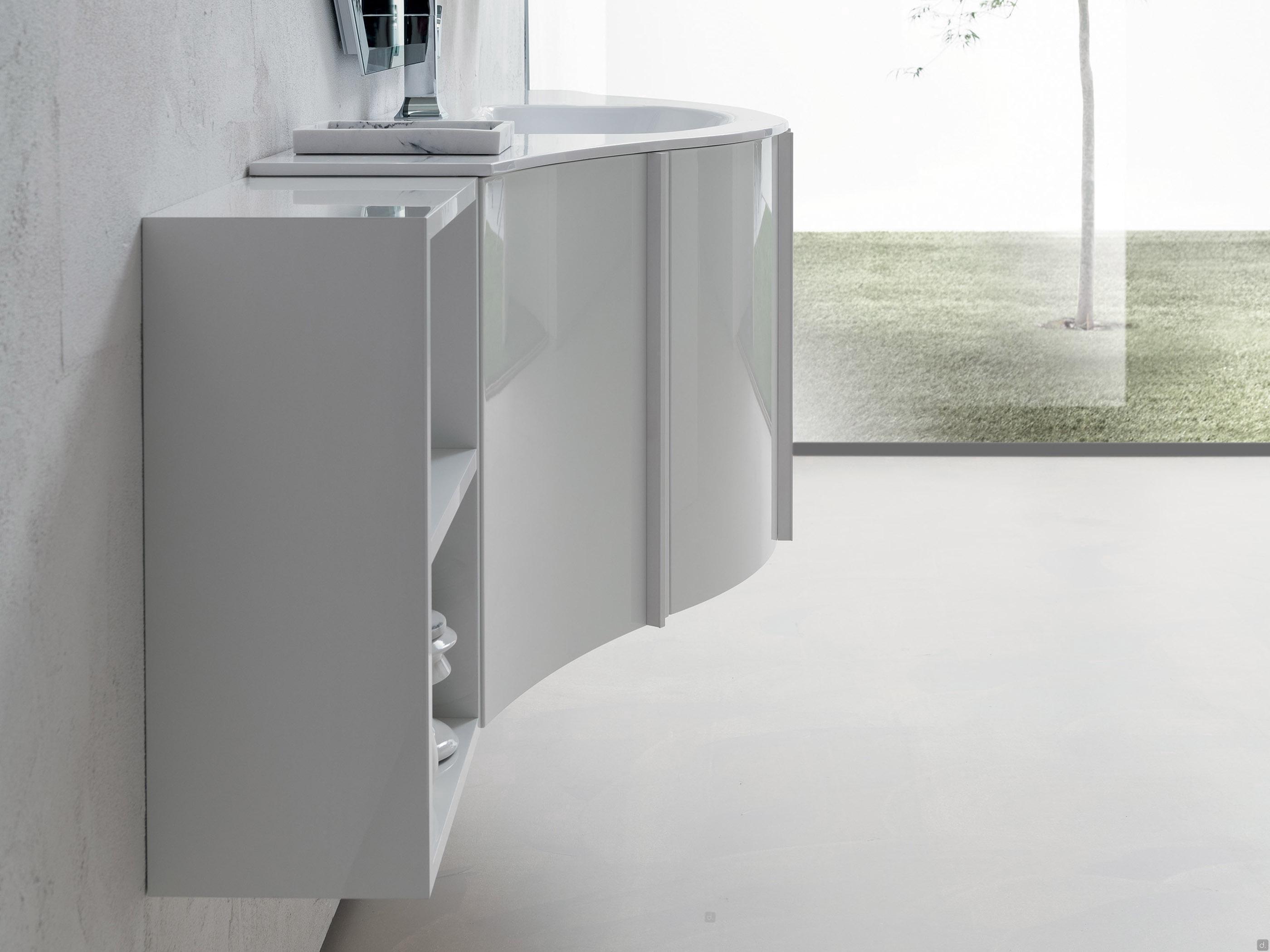

Atlantic open base unit combined with curved end unit and curved washbasin base unit for a space-saving and functional composition with reduced depth

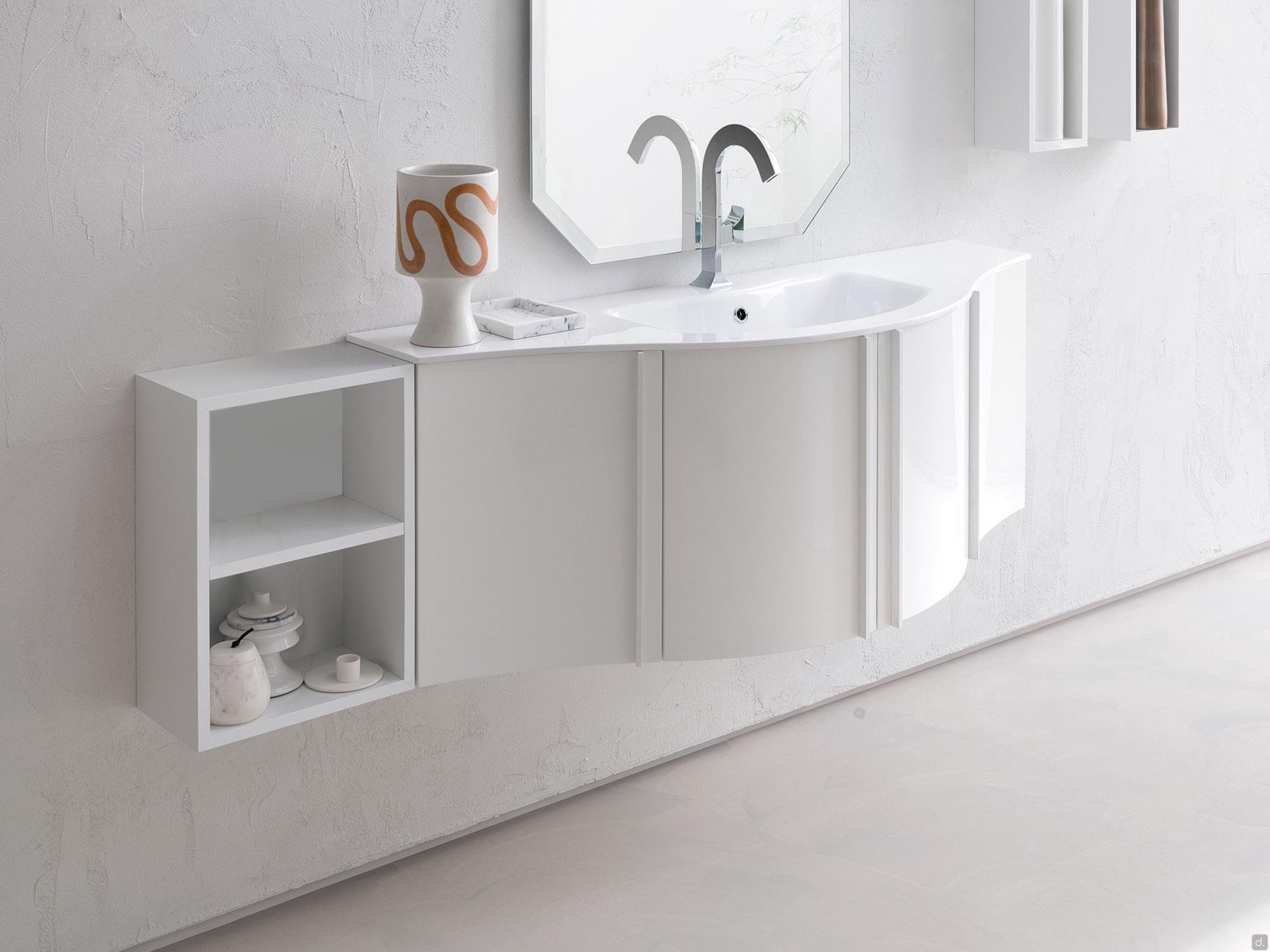

Atlantic curved bathroom cabinet with curved end pieces and open element, an example of how the Atlantic collection allows numerous combinations of base units and storage units (opening with groove not available)

Curved 2-drawer washbasin base unit with handles 16- (washbasin continuation on Atlantic base unit instead of curved end unit available on request)

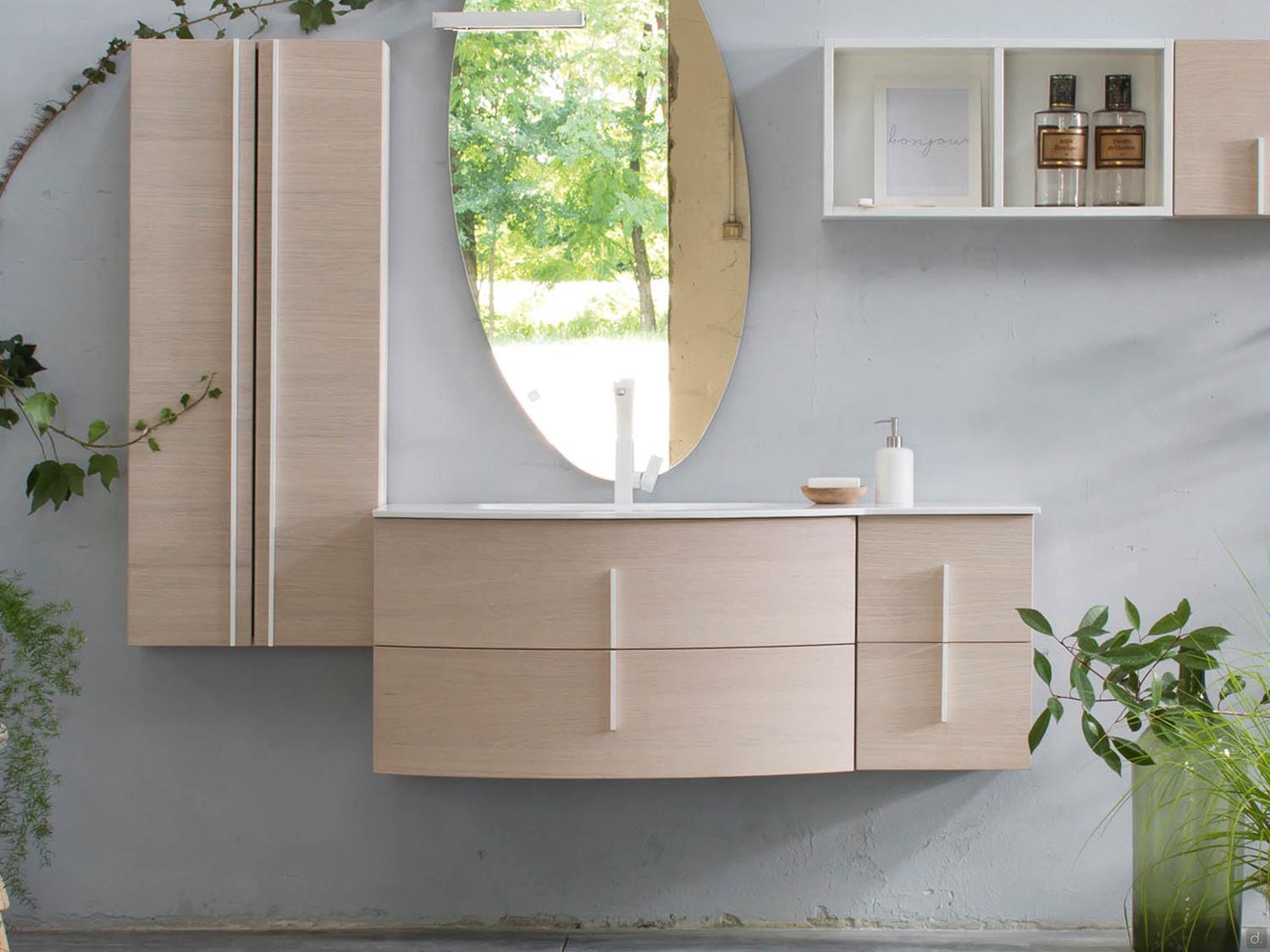

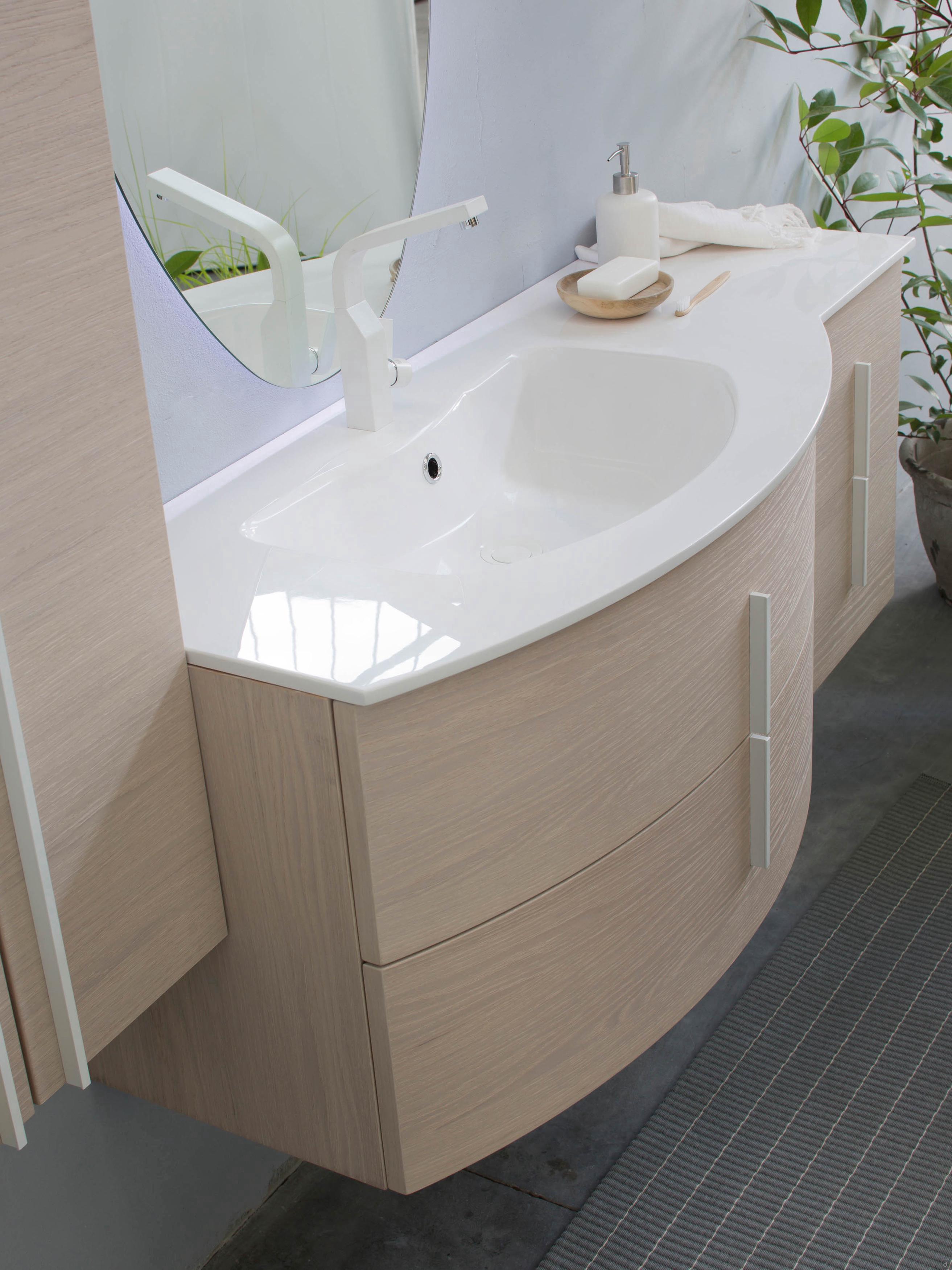

Atlantic curved bathroom furniture in wood finish essence 836 Rovere Riso (finish not available): the continuation of the washbasin on the Atlantic side base unit (instead of on the curved end unit) is available on request

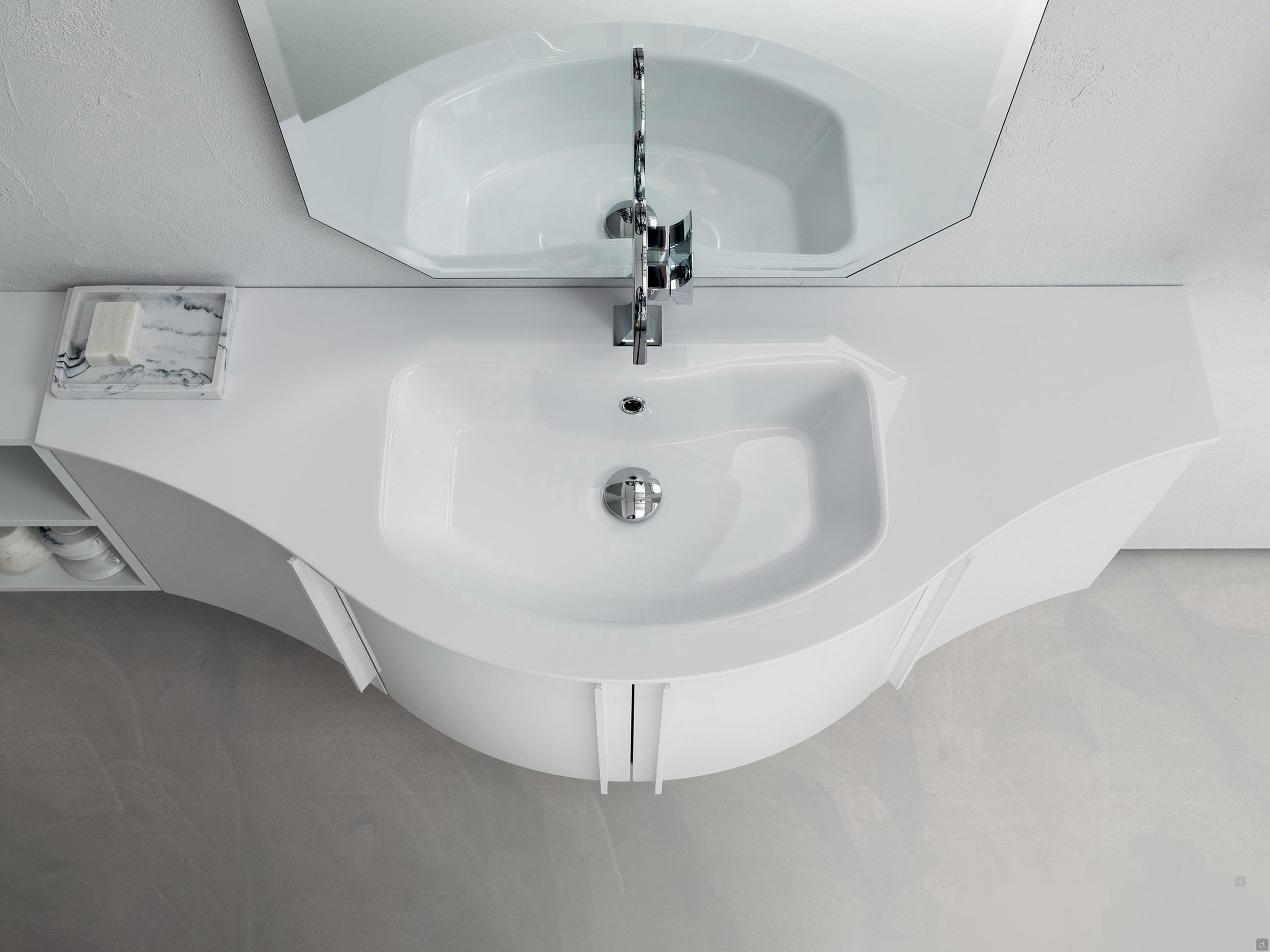

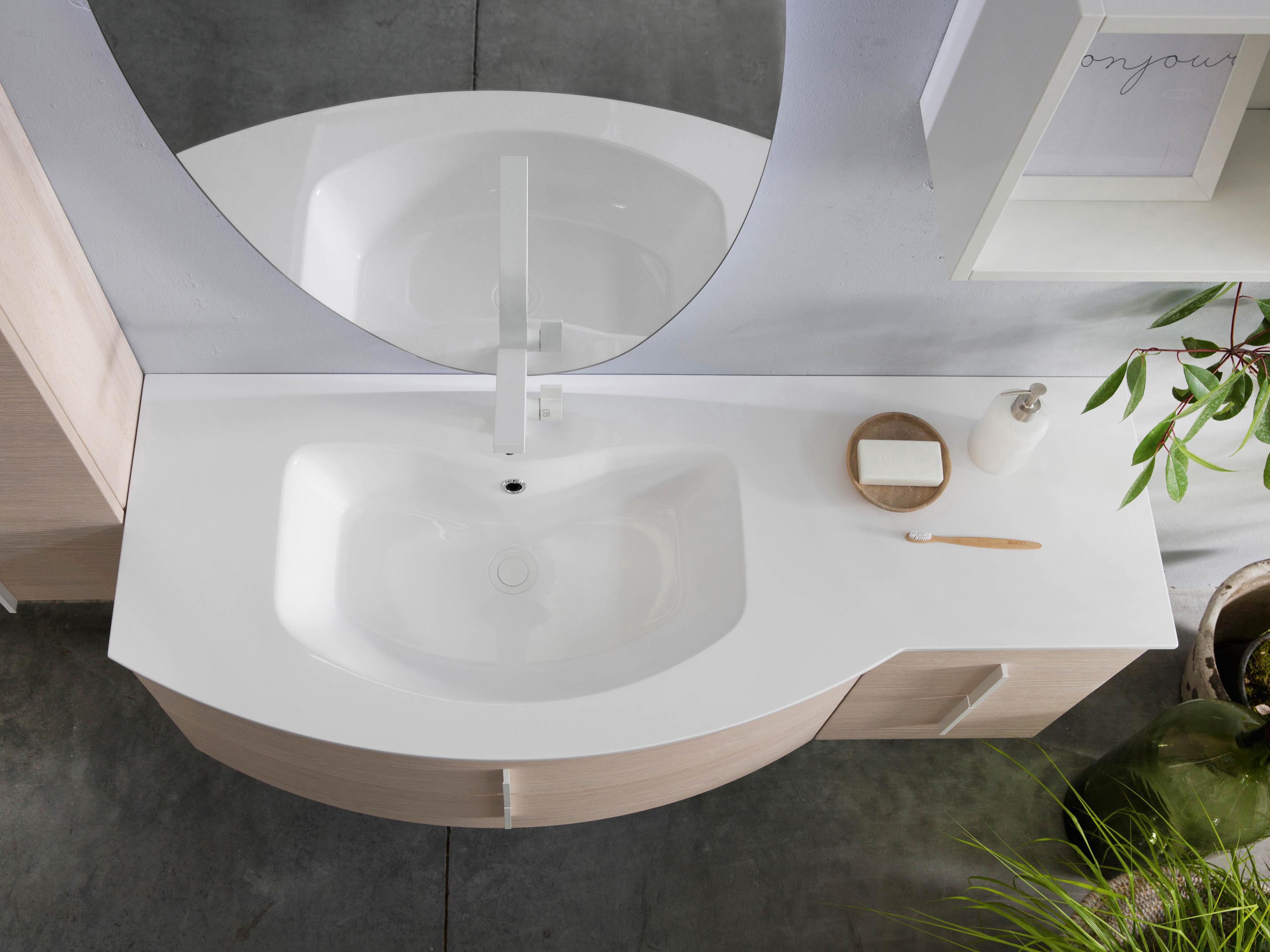

Functional Versus console washbasin in high-gloss white Mineralguss (continuation of washbasin on Atlantic base instead of curved end cap available on request)

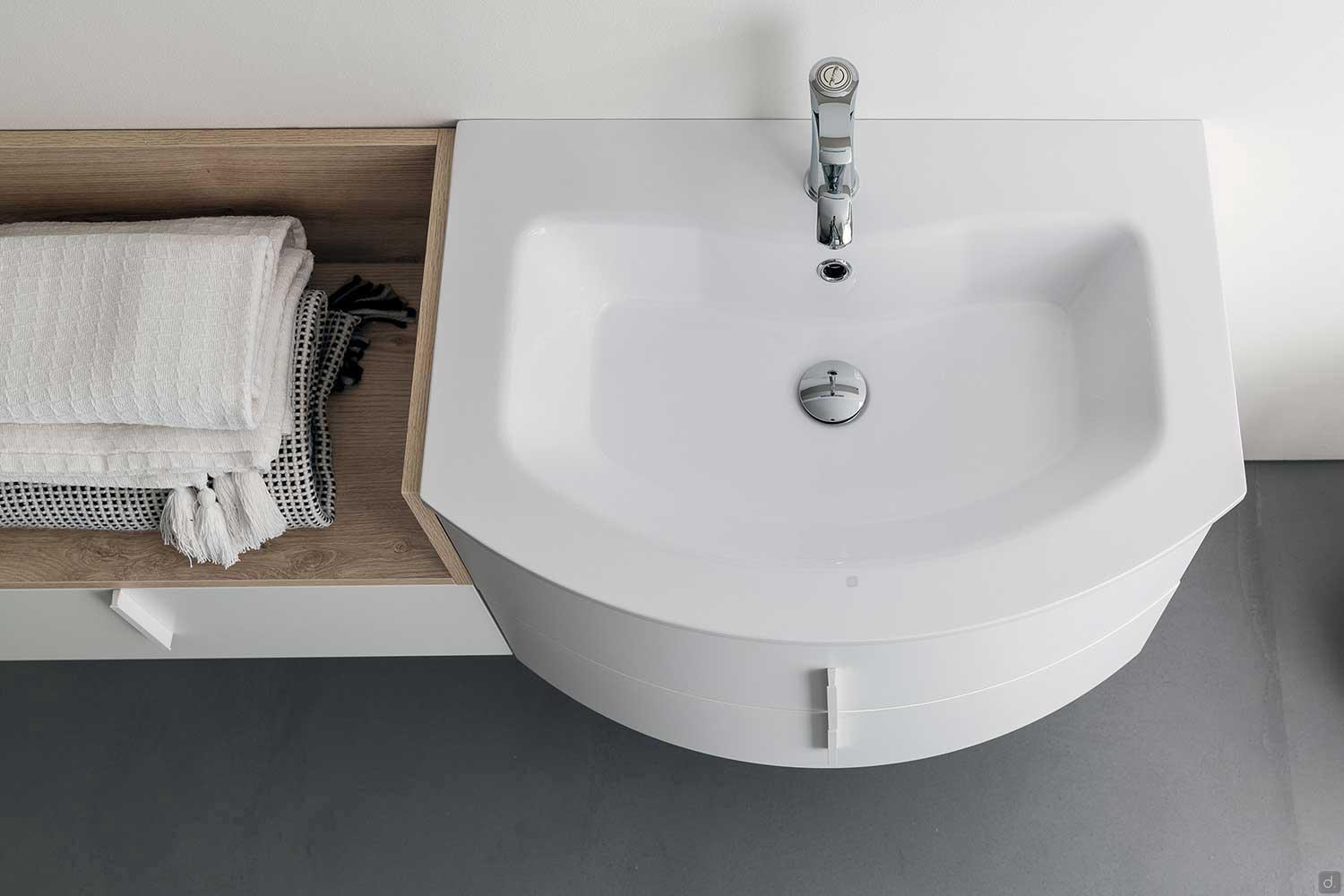

Top view of Versus 71 console basin in glossy white Mineralguss

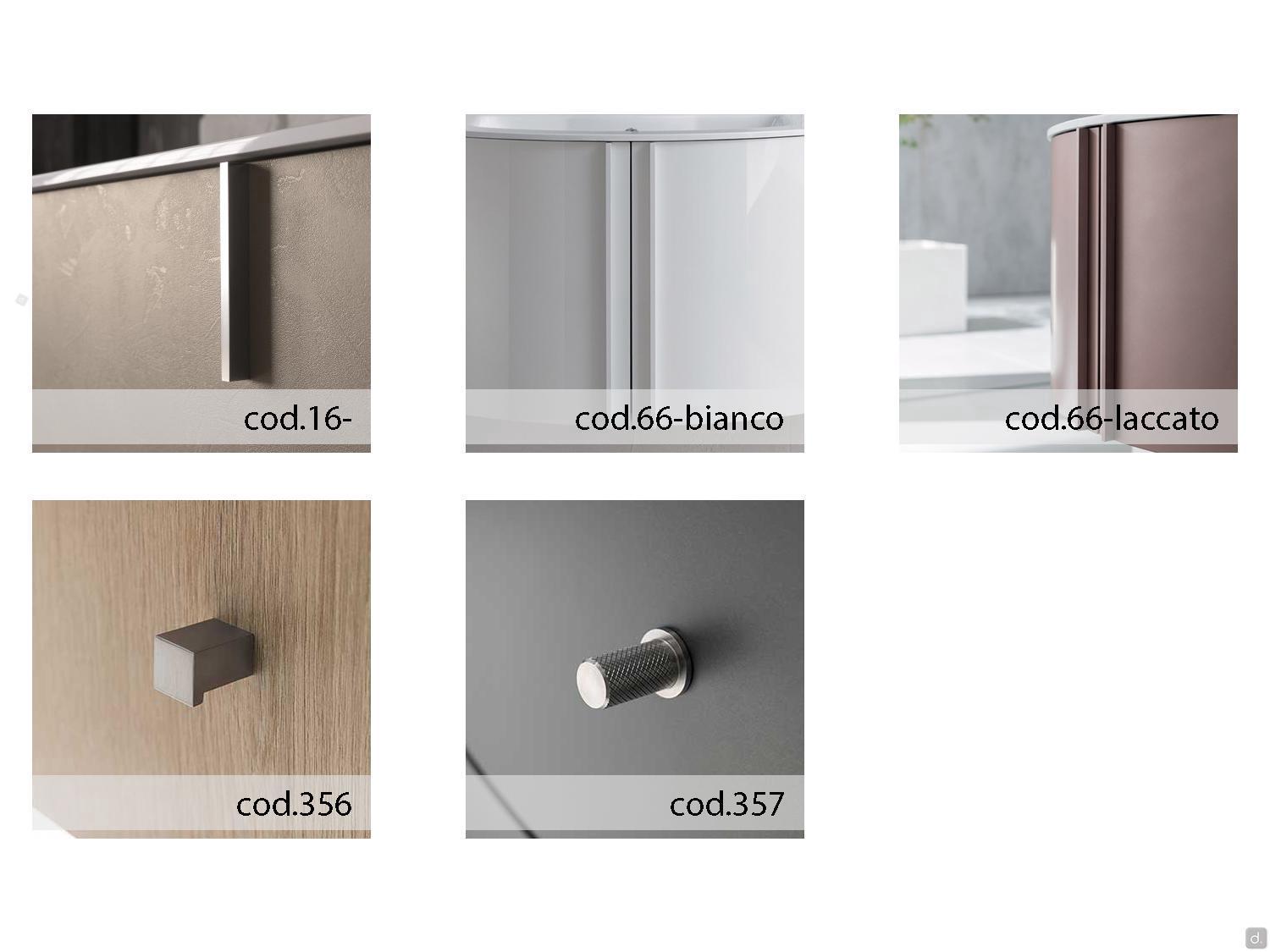

Atlantic curved bathroom cabinet - Handle models

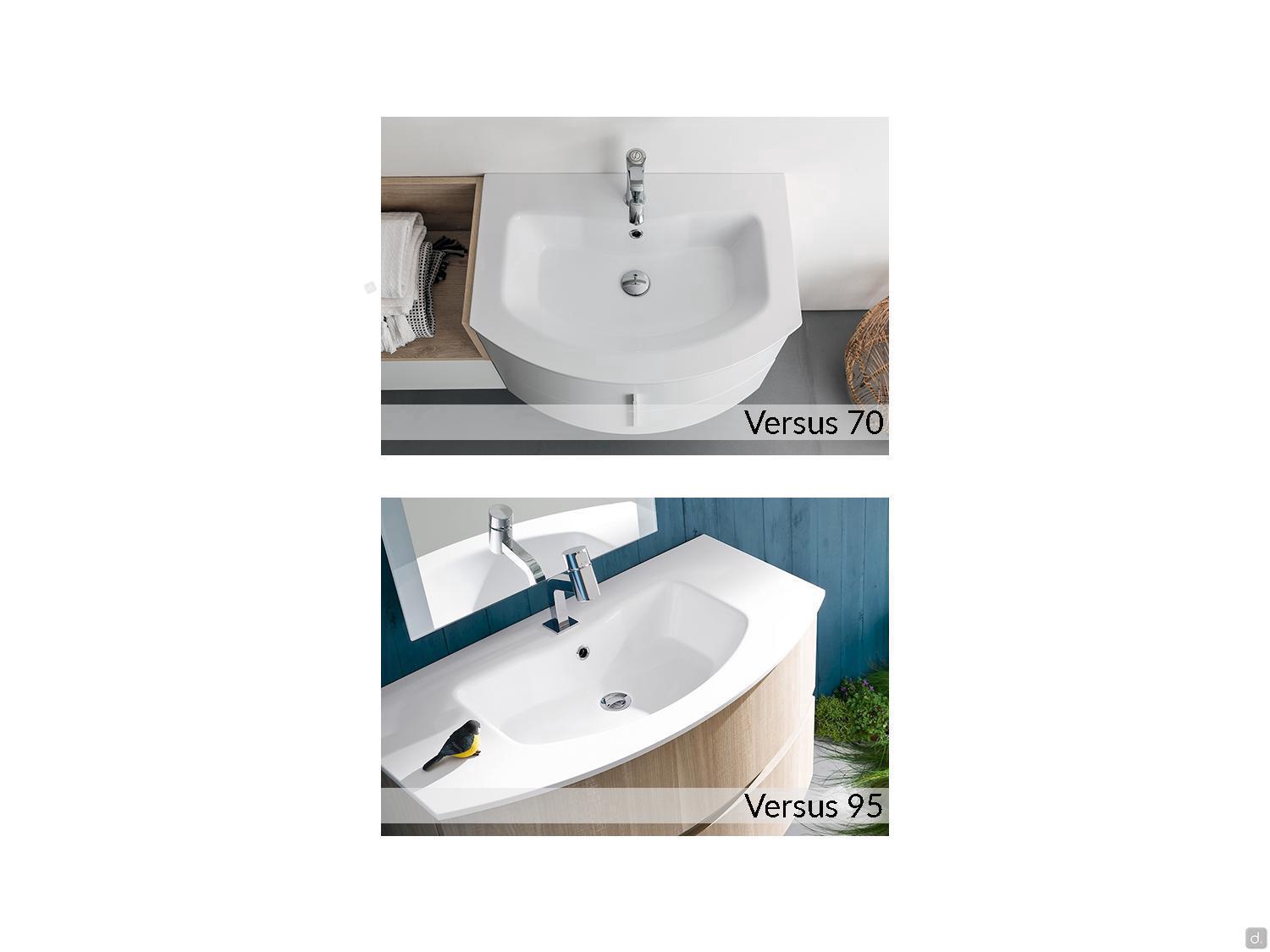

Curved bathroom cabinet Atlantic - Console washbasin models

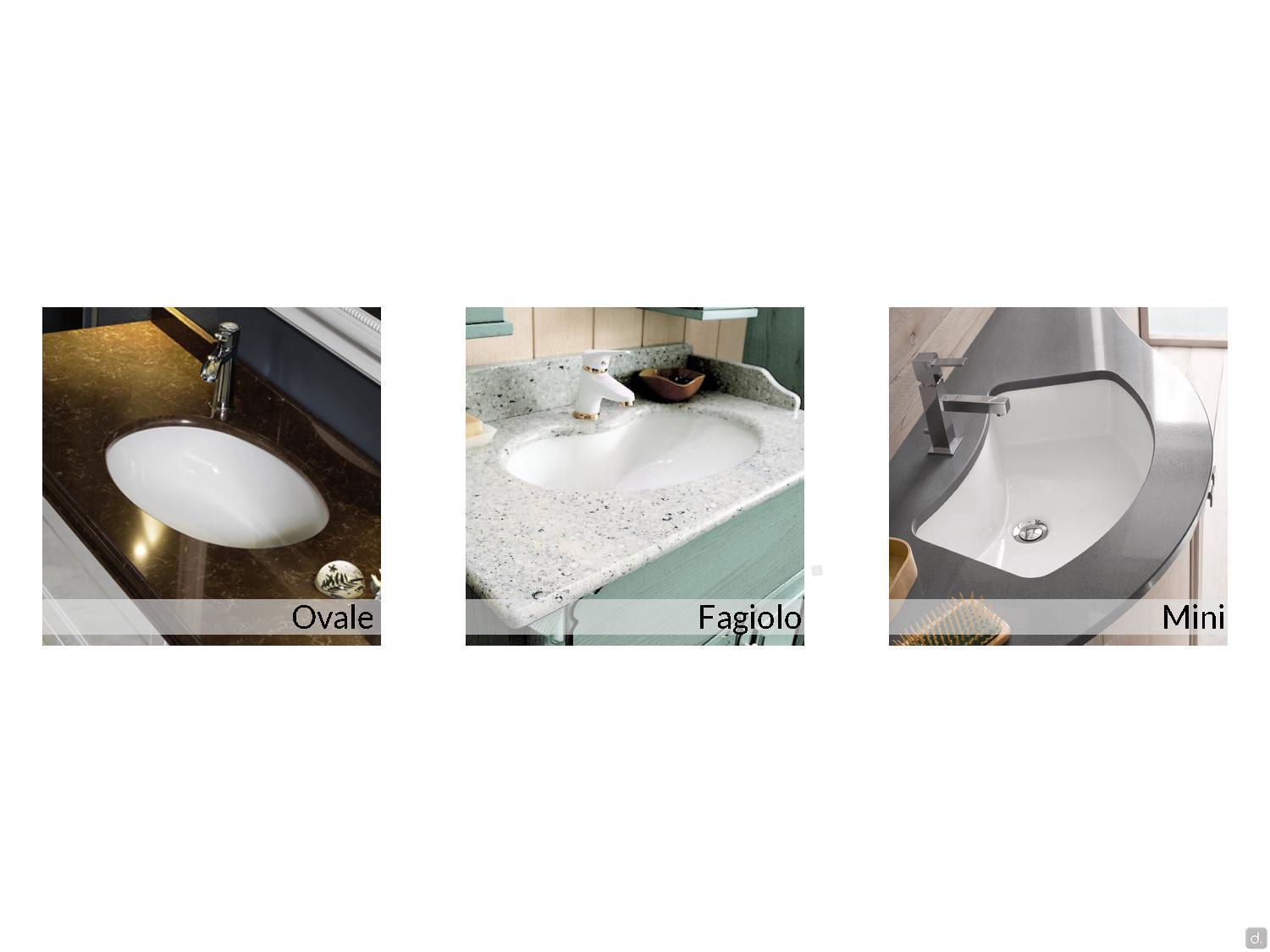

Curved bathroom cabinet Atlantic - Built-in washbasin models

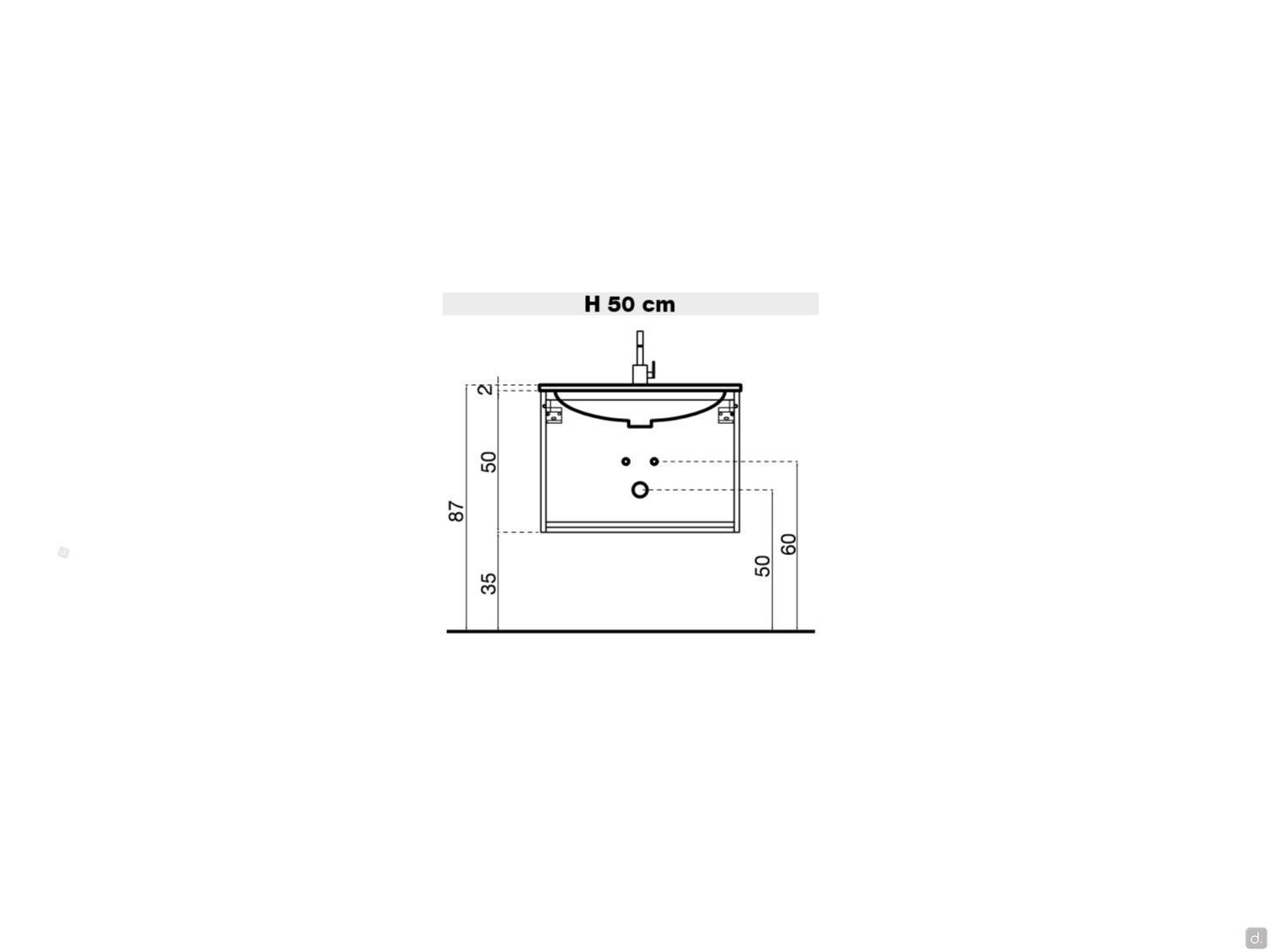

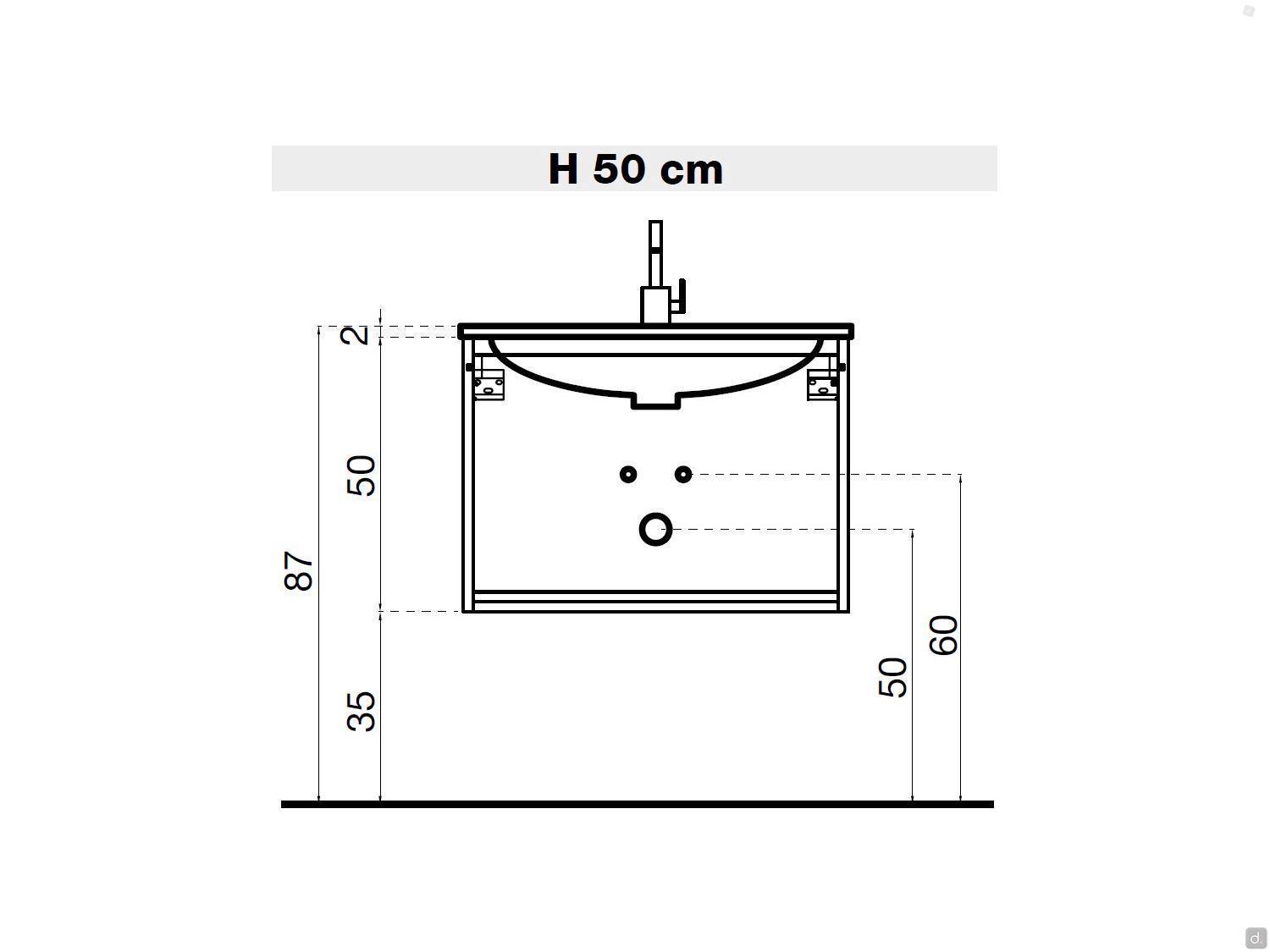

Example of drain placement on a basin base h.50 cm

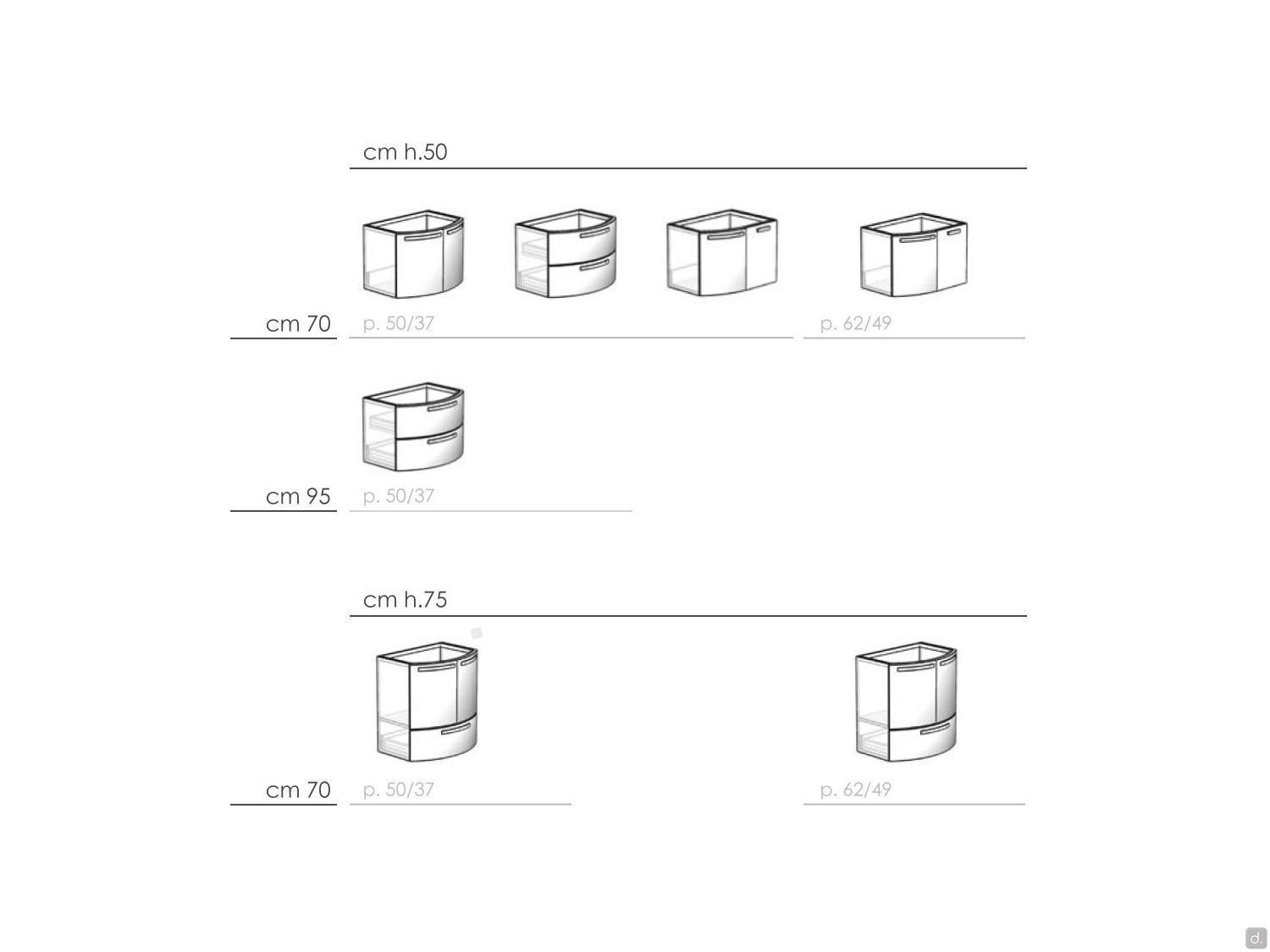

Atlantic curved bathroom furniture - Models and measurements

+ 15

MORE IMAGES

Atlantic Curved
Bathroom Vanity

Curved Atlantic wall-mounted or free-standing bathroom furniture, with console or undermounted washbasin. Available in a wide range of lacquered colours.

Quantity

From €779.76

View Samples

Wishlist

Description

Atlantic is a curved bathroom unit in wall-hung or floor-standing versions, available in 70 and 95 cm with doors or drawers.
Particularly versatile, it is ideal in any type of bathroom environment: perfect as a free-standing element in small spaces, when combined with products from the collection of the same name it allows the creation of original compositions with a modern and dynamic design. The wide range of colours in matt, sandblasted, metallic and glossy lacquered variants offers a high degree of customisation of your bathroom furniture.

Characteristics
curved wall-hung or floor-standing bathroom cabinet
available with console washbasin or built-in undercounter basin
opening by means of handles or push-pull
perfect in combination with curved end units or side base units

Models and Measurements
Models: bathroom cabinet with 2 doors, with 2 drawers, with 2 doors and 1 drawer
Width: cm 70 / 95
Depth: cm 50-37 / 62-49
Height:
- wall-hung: cm 50 / 75 + h. washbasin / th. top
- Floor: cm 81 / 85 / 87 / 90 + h. washbasin / th. top

Materials and Finishes
- matt white melamine
- lacquered: matt / glossy / sandblasted / metallic

Purchase Information
The overall height of the bathroom furniture is equal to the sum of the height of the base unit, the thickness of the top and that of the washbasin (in the case of console washbasins).
In the models with undermount washbasin the top protrudes 1 cm at the front and 0.5 cm at the side; for all these models the overall width and depth of the bathroom furniture will be 1 cm greater than the measurement indicated in the configurator.

You can complete the wall-hung models cm 70 / 95 p.50-37 with the curved end element that you can find in the Configurator or among the products at the bottom of the page.
The tapware is not included; again among the products at the bottom of the page you can find the Universal Siphon and the Drain for washbasins with or without overflow hole.

Interior Designer's Opinion

The curved Atlantic bathroom furniture can be completed by the single-door end unit which, continuing the curvature of the base, joins it to the wall for a compact and balanced appearance. By placing the end unit on either side of the base, it is possible to create sophisticated symmetrical solutions in the centre of the wall. By placing it on one side, on the other hand, it is perfect for creating eye-catching corner compositions, ideal in modern bathrooms with limited dimensions.

Technical study

Material Specifications
Structure: 1.8 cm thick particle board panels.
Fronts: doors, drawers and baskets made of 1.9 cm thick particle board panels.

Technical Specifications and Equipment
Structure: characterised by a free back for the passage of drains.
Drawers: equipped with metal frame with full-extension runners and slow-closing mechanism. Please note: in the 62 cm deep washbasin base units, the drawer shells are 45 cm deep.
Doors: fitted as standard with Smoove hinges that allow for slow closing.
Handles: you can choose from various models of handles, in addition to the push-pull opening. The handles cod.16- are available in a matt lacquered finish in all the colours of the sample collection.
Feet cm h.10: with rectangular or shaped section available in chrome, satin nickel, black lacquered, matt lacquered or sandblasted lacquered metal in all sample colours; the wall-hung base unit cm h.75 thus becomes a floor-standing unit 85 cm high (excluding the height of the washbasin and thickness of the top).
Feet cm h.12: with a square section available in satin nickel metal, matt lacquered or sandblasted lacquered in all the colours of the sample collection; the wall-hung base unit cm h.75 thus becomes a floor-standing unit cm 87 high (excluding the height of the washbasin and thickness of the top).
Plinth cm h.6 / 10 / 15: in aluminium or matt lacquered in all the colours of the sample collection; the wall-hung base unit cm h.75 thus becomes a floor standing unit cm 81 / 85 / 90 high (excluding the height of the washbasin and thickness of the top). Please note: the plinth is linear and does not follow the curved profile of the base unit. It is therefore recessed at the front.

Washbasin Model	Type Washbasin	Dimensions	Internal Tub	Mixer Hole	Overflow
Mini - glossy white ceramic	recessed undercounter	cm 63 d.42 h.19	cm 56/42 d.29 h.14	central on top	yes
Oval - ceramic glossy white	recessed on top	cm 57,5 p.41 h.21	cm 51,5 d.35,5 h.16	on right or left top	yes
Fagiolo - ceramic glossy white	undercounter recessed	cm 60 d.37 h.20	cm 54 d.28/31 h.15	central on top	yes
Versus 70 - glossy white mineralguss	console table	cm 71 d.51/38 h.16	cm 57 d.30 h.11	on washbasin	yes
Versus 96 - glossy white mineralguss	console table	cm 96 d.51/38 h.16	cm 57 d.30 h.11	on washbasin	yes

Please note: the mixer hole has a standard diameter of 3.5 cm.

The indicated measurements of all ceramic washbasins may be subject to a dimensional variation (specifically of approximately 0.8%) due to wear and tear of the moulds or to small variations in the technical characteristics of the materials making up the mix.

Optional
Splashback: designed to complete bathroom furniture with tops in stone, QTop or stoneware; particularly suitable for walls that are not perfectly square and for combination with free-standing mirrors.
Curved End Piece: foreseen for wall-hung vanity units cm 70 / 95 p.50-37, it can be purchased in the appropriate product card in the Configurator or at the bottom of the page.

Maintenance Tips
Stone: to prevent stains, clean promptly with a damp cloth or neutral detergents. We recommend the use of neutral detergents.
QTOP: unlike marble-resin, the mineral filler is not chemically attackable by acids. the recommended cleaning products should not have a high alkalinity (basic pH) that could alter, mainly from an aesthetic point of view, the binding resin. The best way to prevent stains is to remove them promptly with a damp cloth or neutral detergents before they harden.

Read more...
Porcelain stoneware : Porcelain stoneware is made from a mixture of water and clay that is transformed, through the raw extrusion process, into a slab with extraordinary mechanical properties. Vitrification closes the pores, ensuring maximum resistance to water absorption and stains.
QTOP: is a quartz-resin product consisting of natural materials (quartz and granite) and a high-quality binding agent, supplemented with coloured pigments and glass or mirror granules.
Mineralguss: is a material consisting of calcium carbonates and aluminium trihydrates, bound by a low percentage of polyester resin. The surface is coated with a gelcoat film that offers excellent physical and chemical resistance. The compound is ductile and heat resistant. Any colour variations caused by high temperatures can be removed by cleaning with a lightly abrasive sponge and subsequent polishing.
For cleaning, use a sponge with water and a normal cream detergent. The surface of the top must not be in contact with solvents and alkaline lotions such as ammonia. Hair dye products must not stagnate in the basin and must be rinsed off immediately. Never fill the sink with hot water above 60°C.
