Plan Drop Down - Unique Separated Top

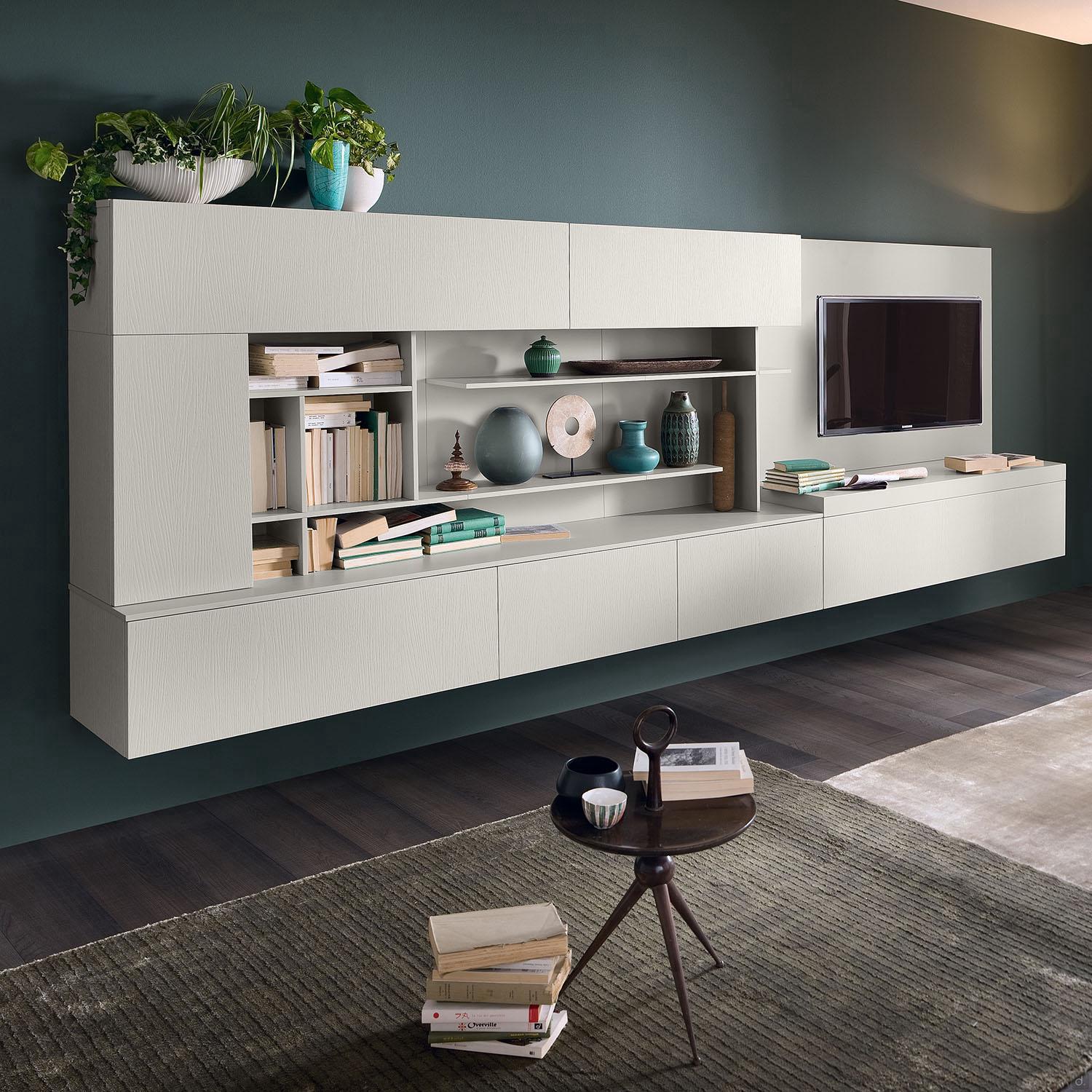

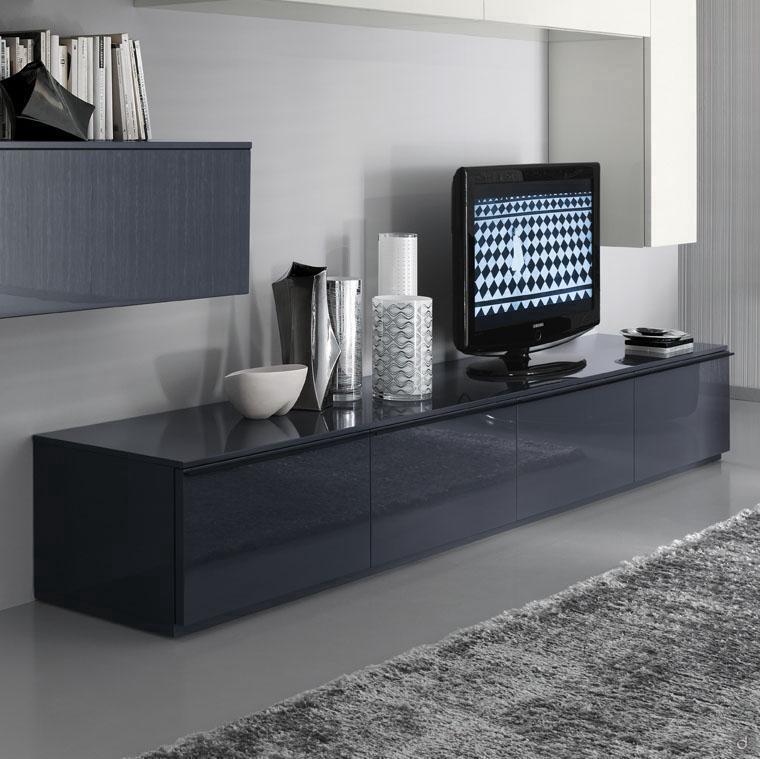

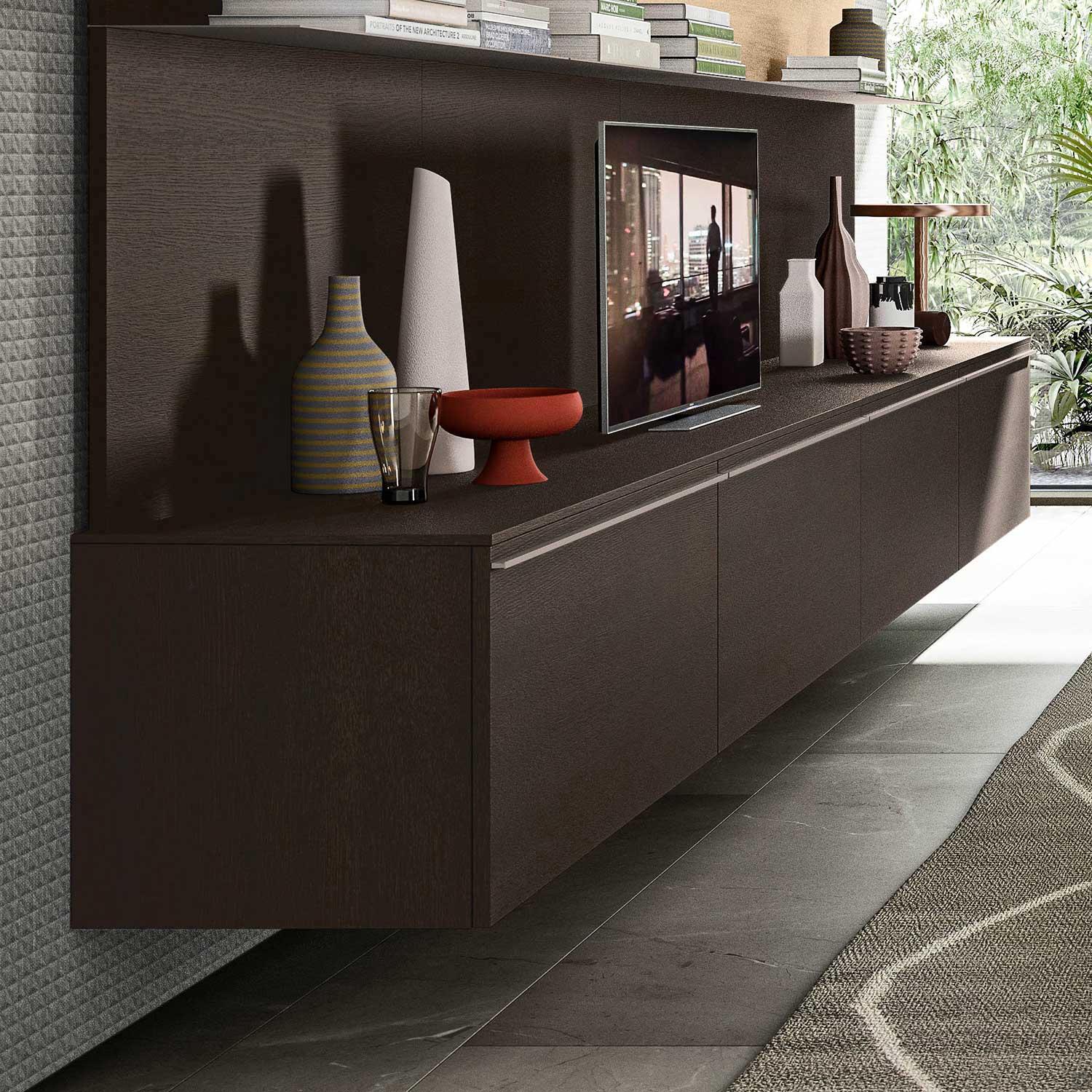

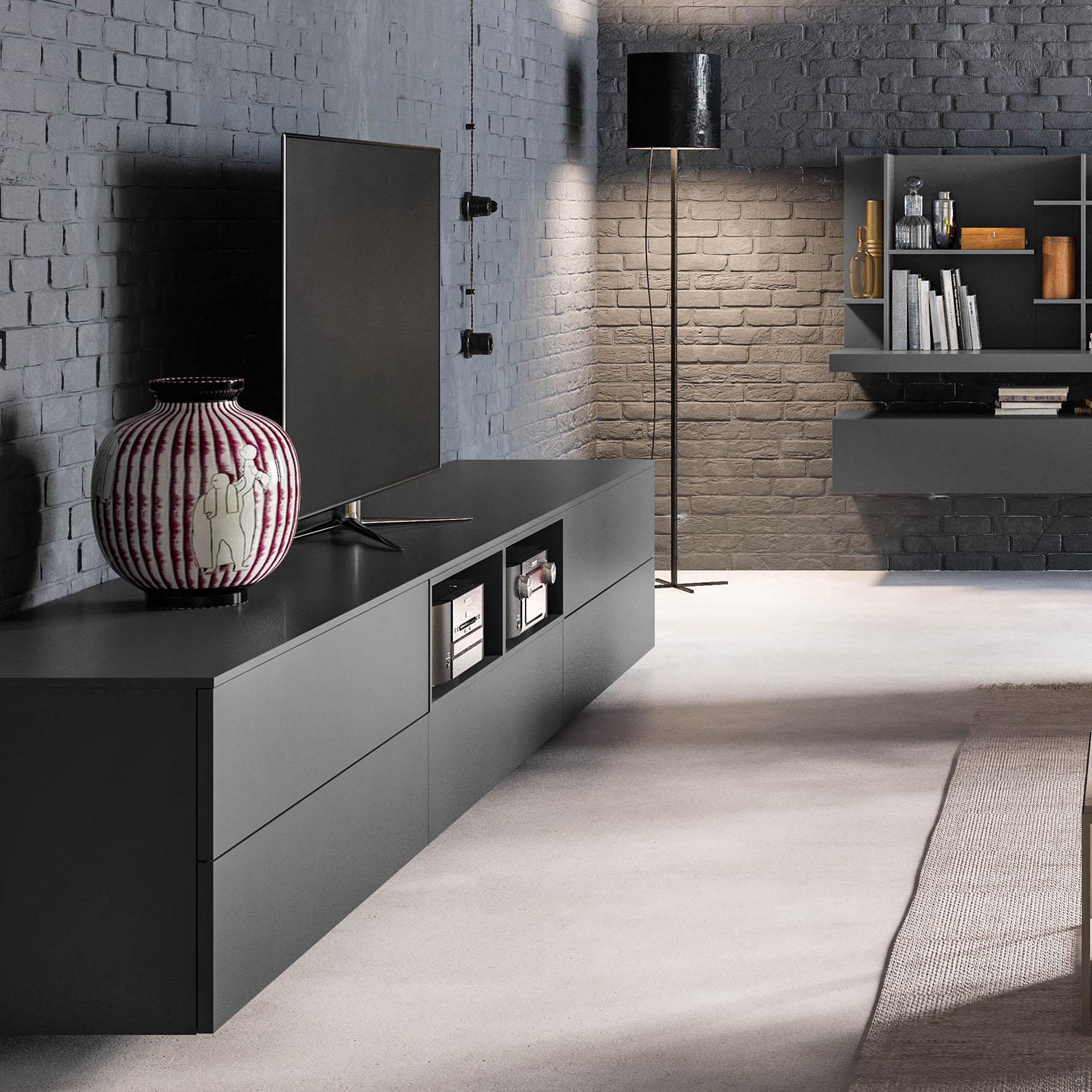

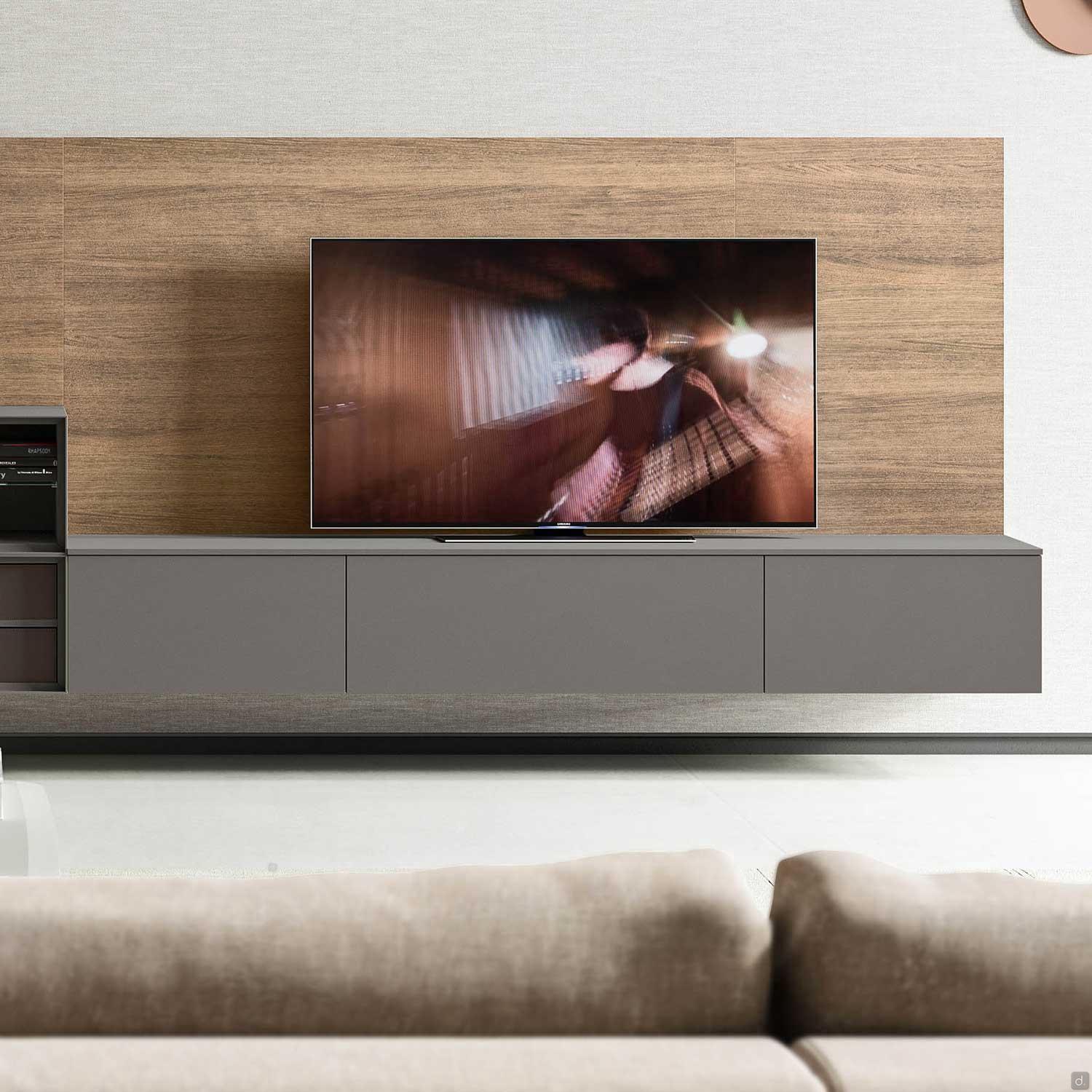

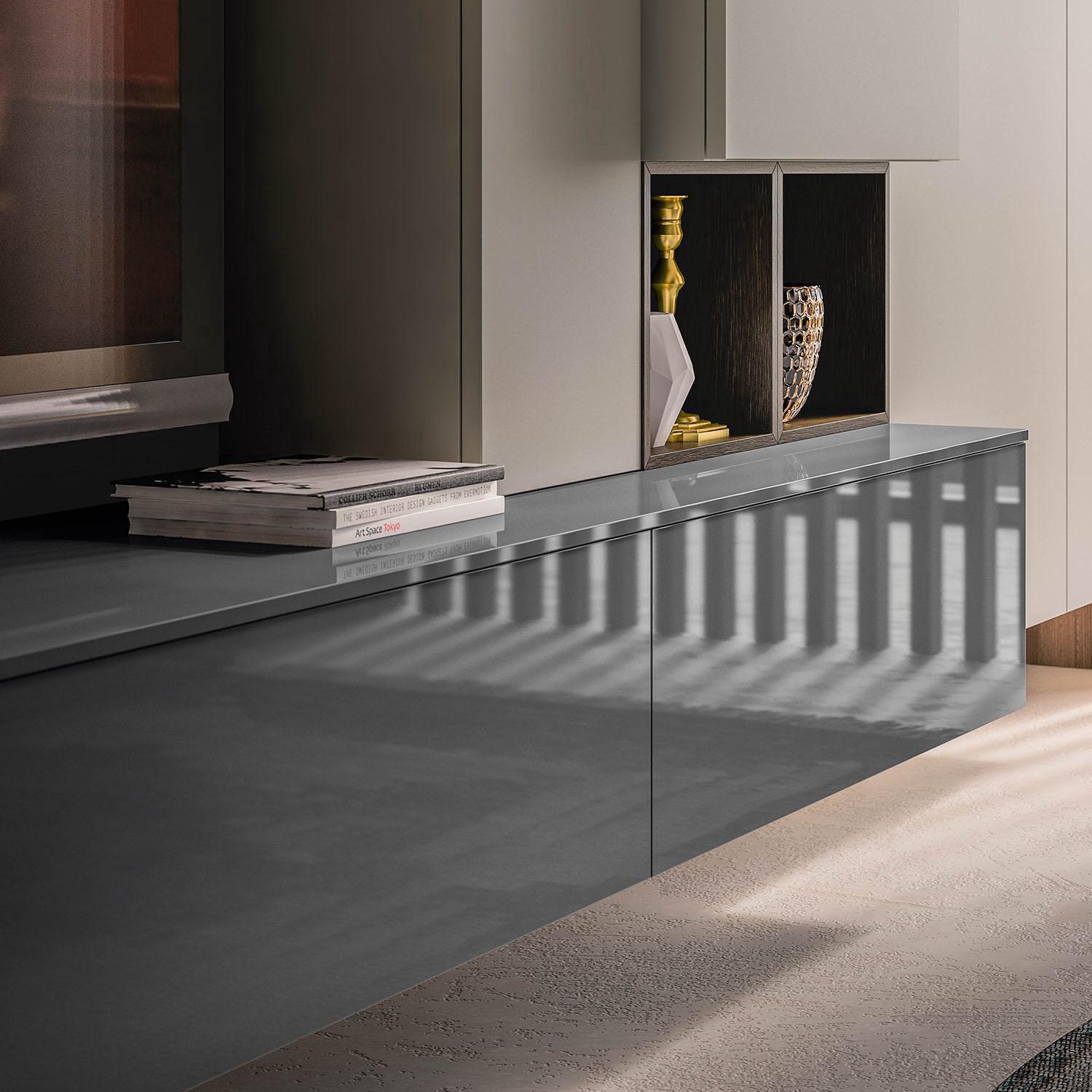

Plan drop down door cabinet also available with glass door. Perfect storage space also suitable as a TV unit with the optional cable hole system.

€221.00

* Required Fields


From €217.24

Description

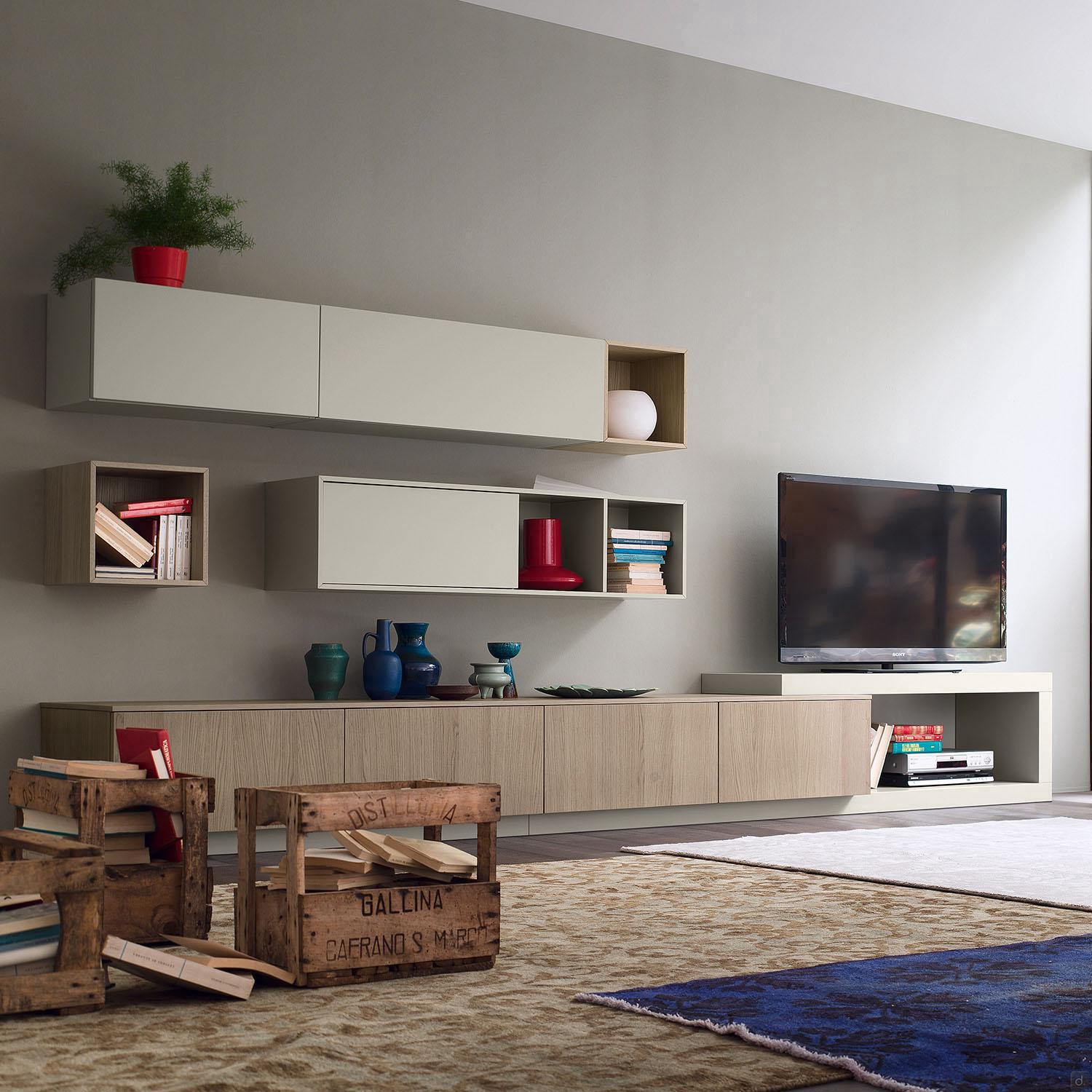

Plan drop down door cabinet allows to create bespoke living room layouts by mixing together different elements from the same collection. The cabinet is available in different widths and heights and it can be placed on the floor with feet or plinth, standing on other Plan elements or directly mounted to the wall.

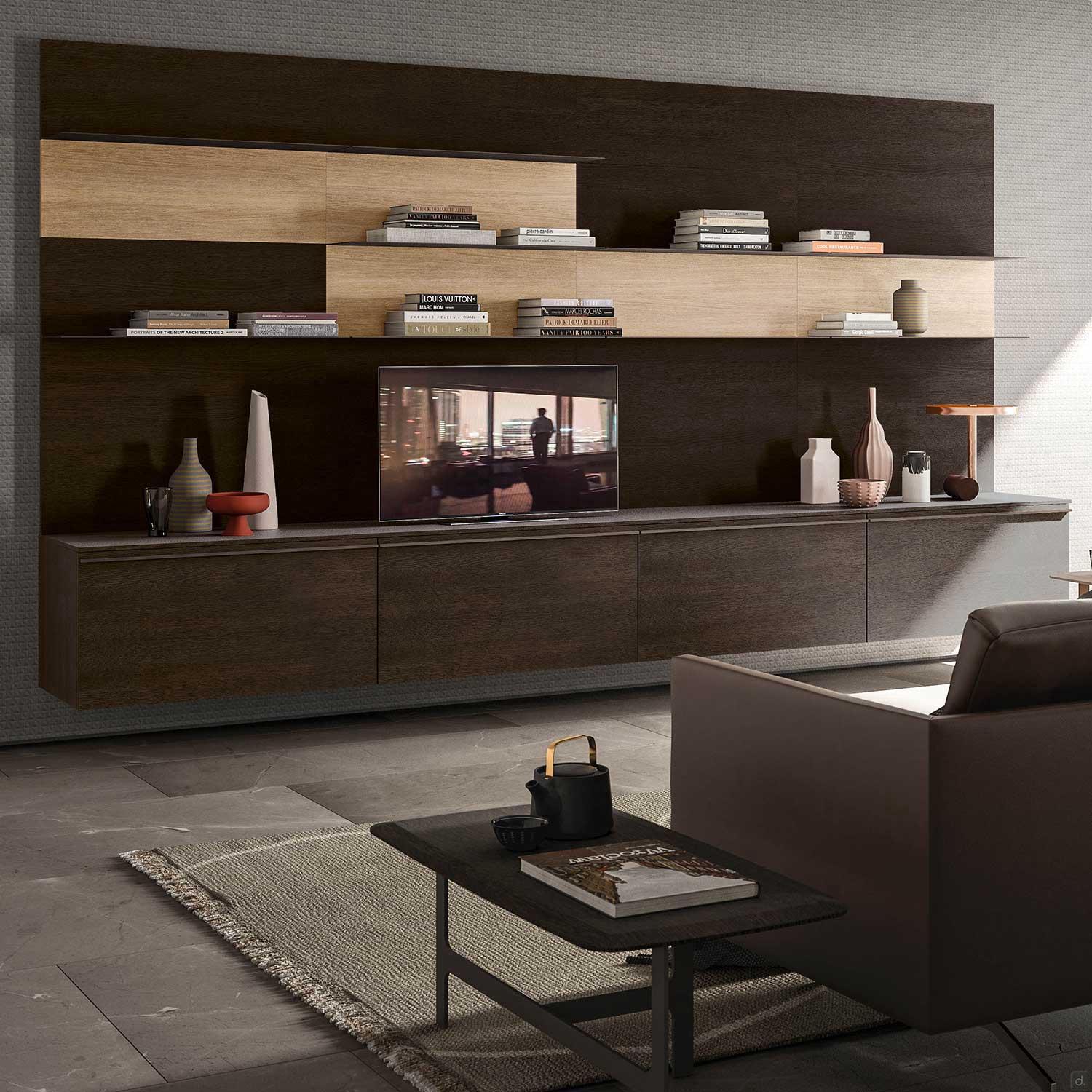

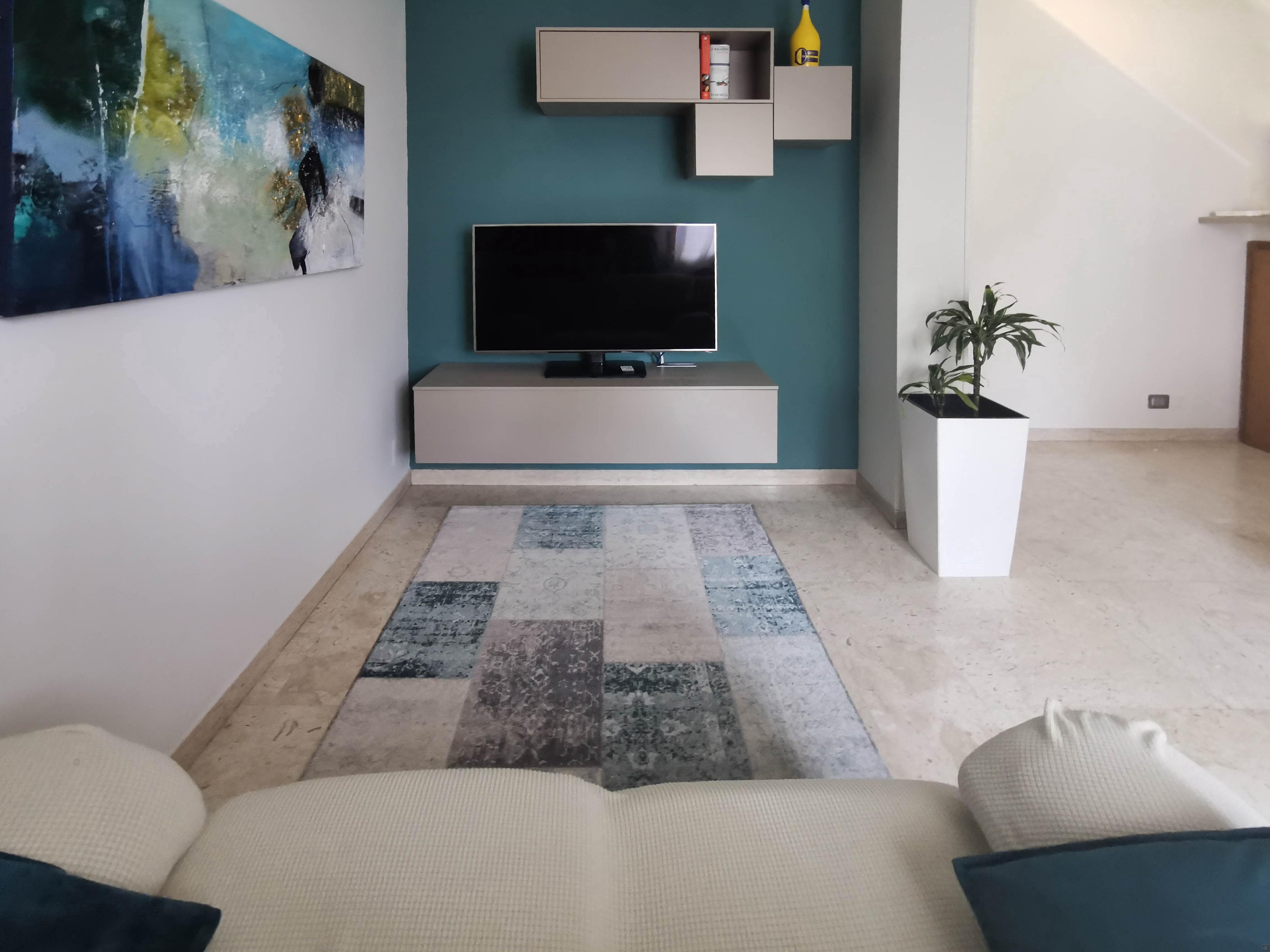

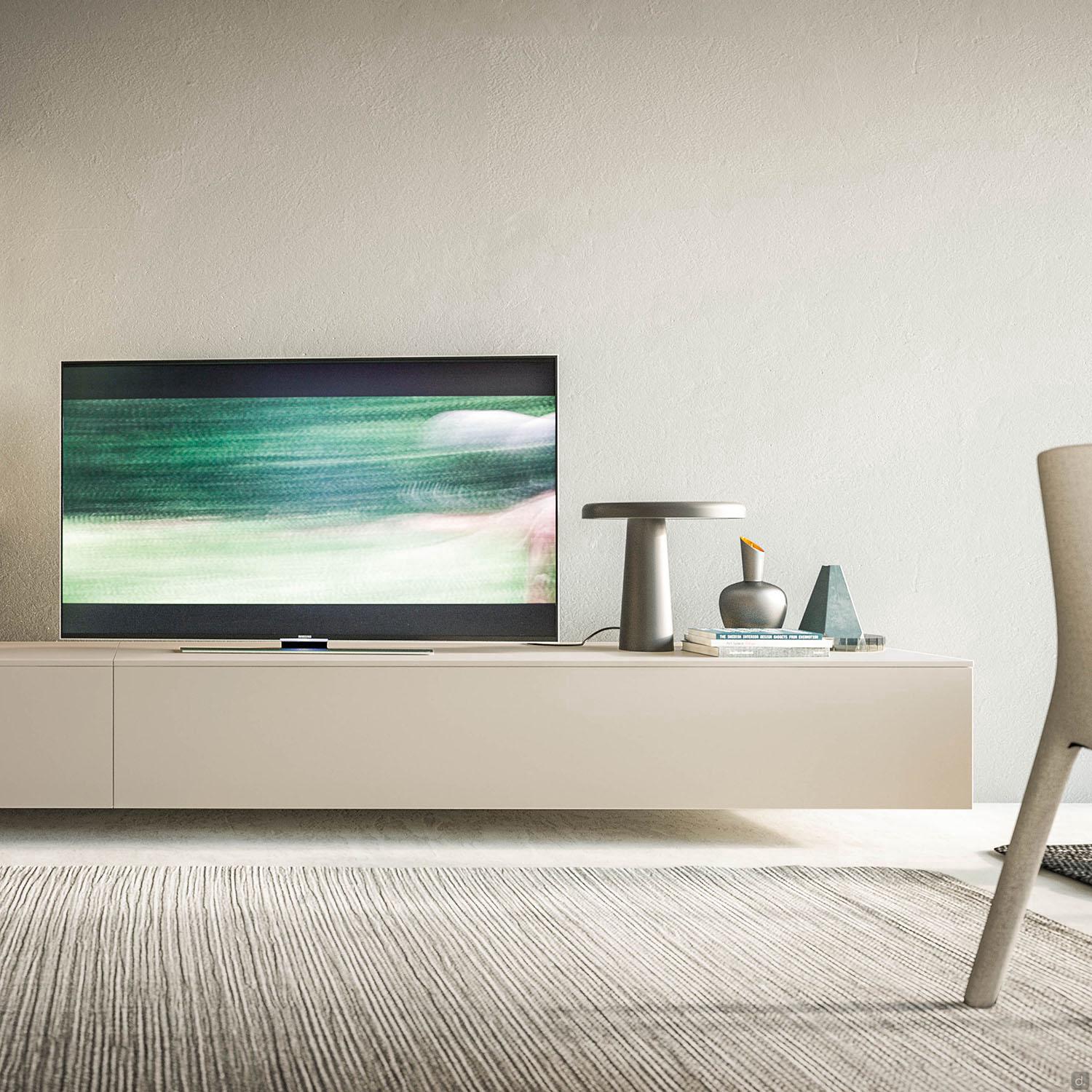

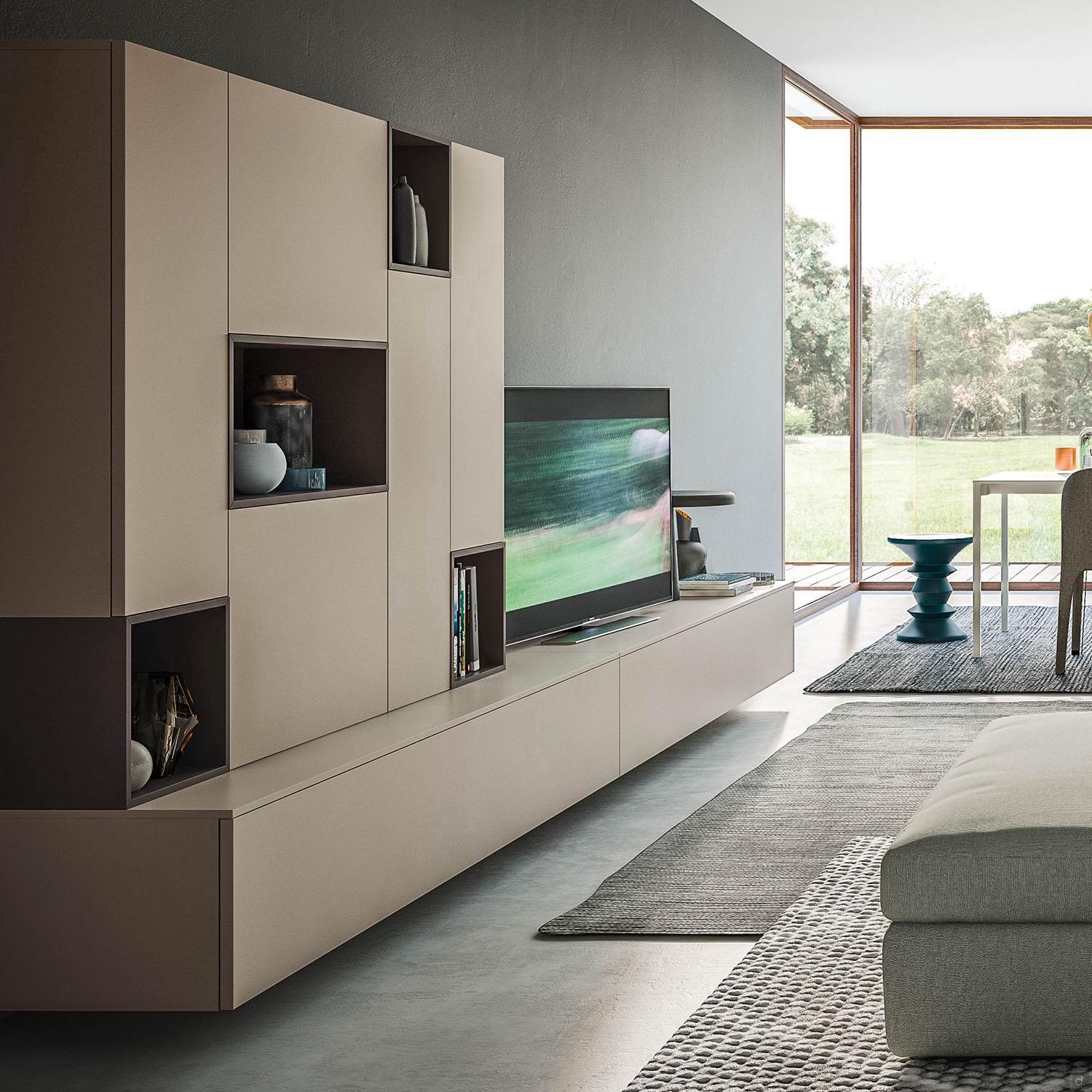

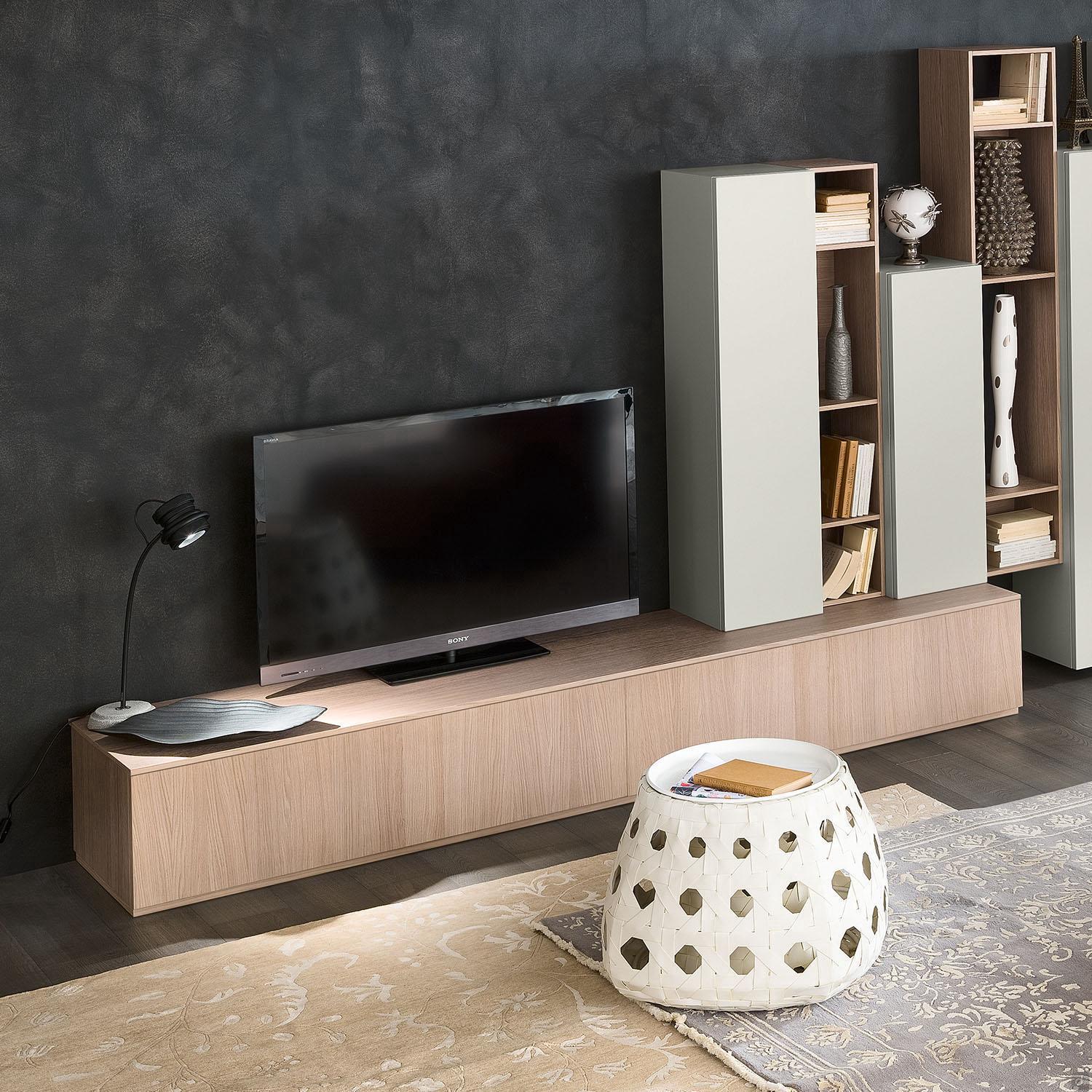

The opening of the door is available with a practical push-pull system or with a selection of handles. Plan drop down door cabinet can also be used as a TV unit, in this case we recommend to purchase the cable management set.

Characteristics
storage cabinet with drop down door, also with glass door

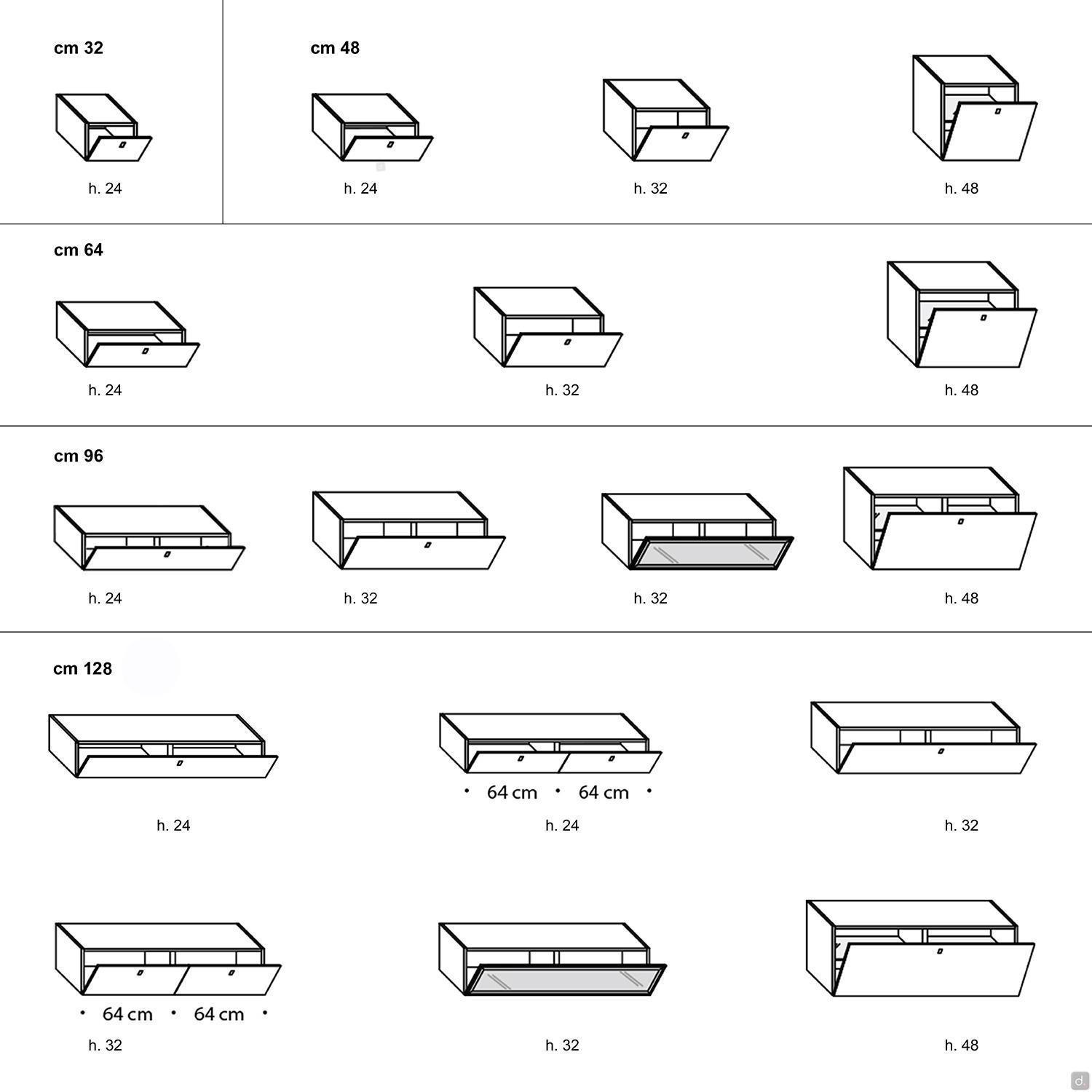

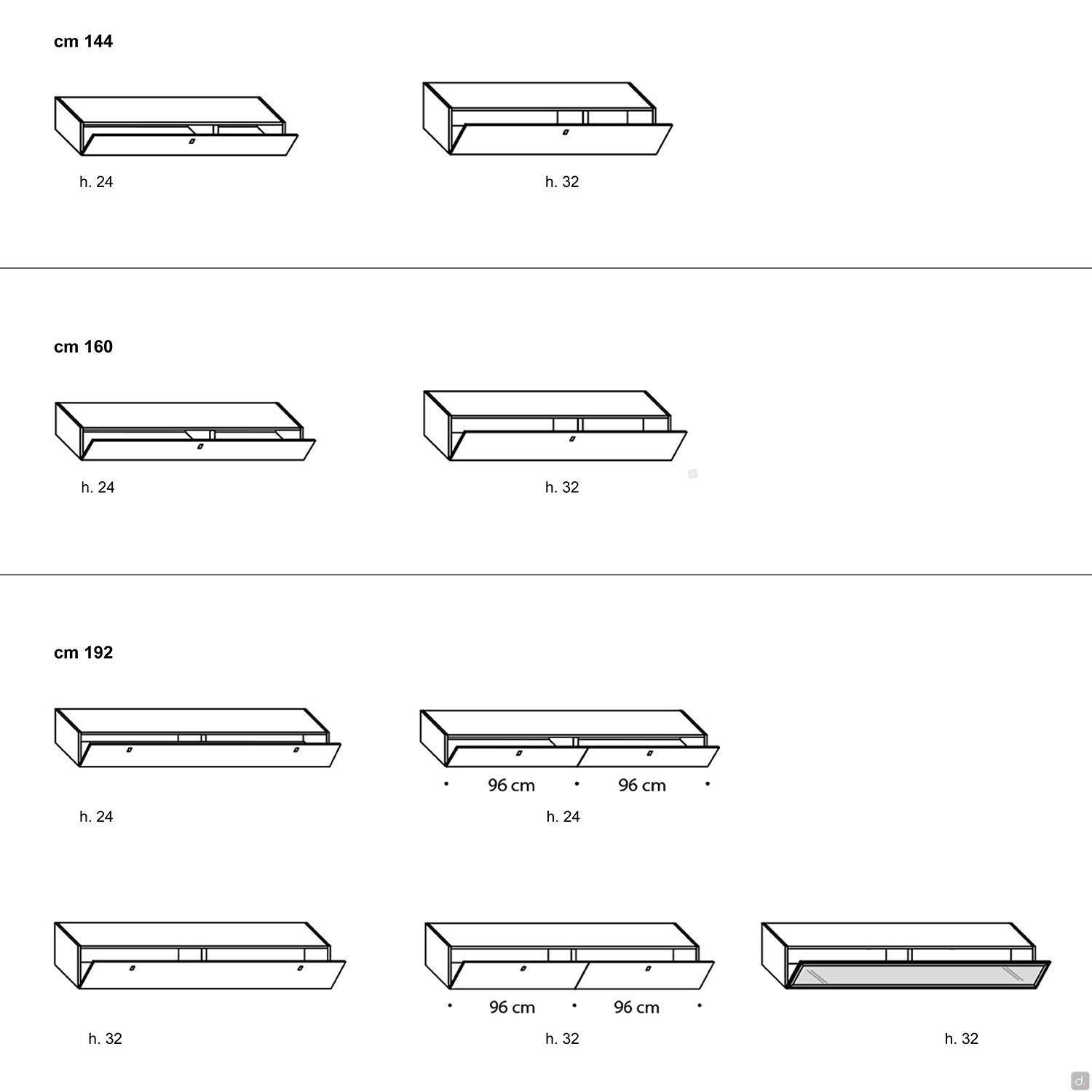

available in various sizes ranging between 32 and 192 cm
completely customizable in colours and finishes
also serving as TV cabinet

Measurements
Width: view the available widths in the Menus

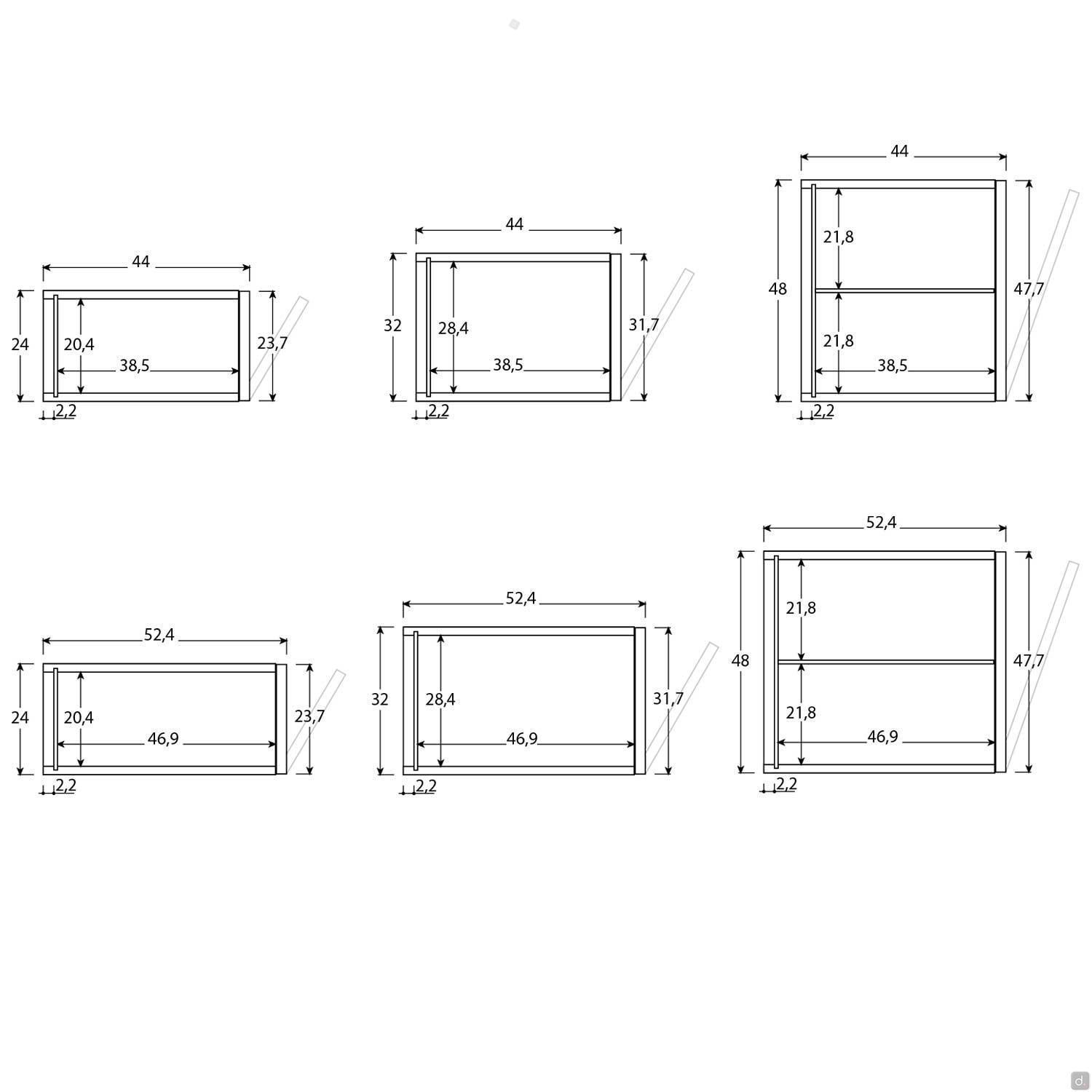

Height: cm h.24 / 32 / 48
Depth: cm d.44 / 52,4
Top Thickness: cm th.1,4
Feet / Plinth Height: cm h.2,5

Materials and Finishes
Structure:
- melamine
- wood veneer
- open pore lacquer
- matt / gloss / metallic lacquer
Doors:
- melamine
- wood veneer
- open pore lacquer
- matt / gloss / metallic lacquer
- tempered glass (with painted aluminium frame)

Information for your Purchase
The total height of the cabinet depends on the position, if wall-mounted or floor standing. In the second case add the feet / plinth height of 2,5 cm (coming with adjustable feet).

Technical study

Technical Specifications and Equipment
Fronts: particle wood panels (class E1 - low formaldheyde emissions) or in tempered glass with aluminium frame.

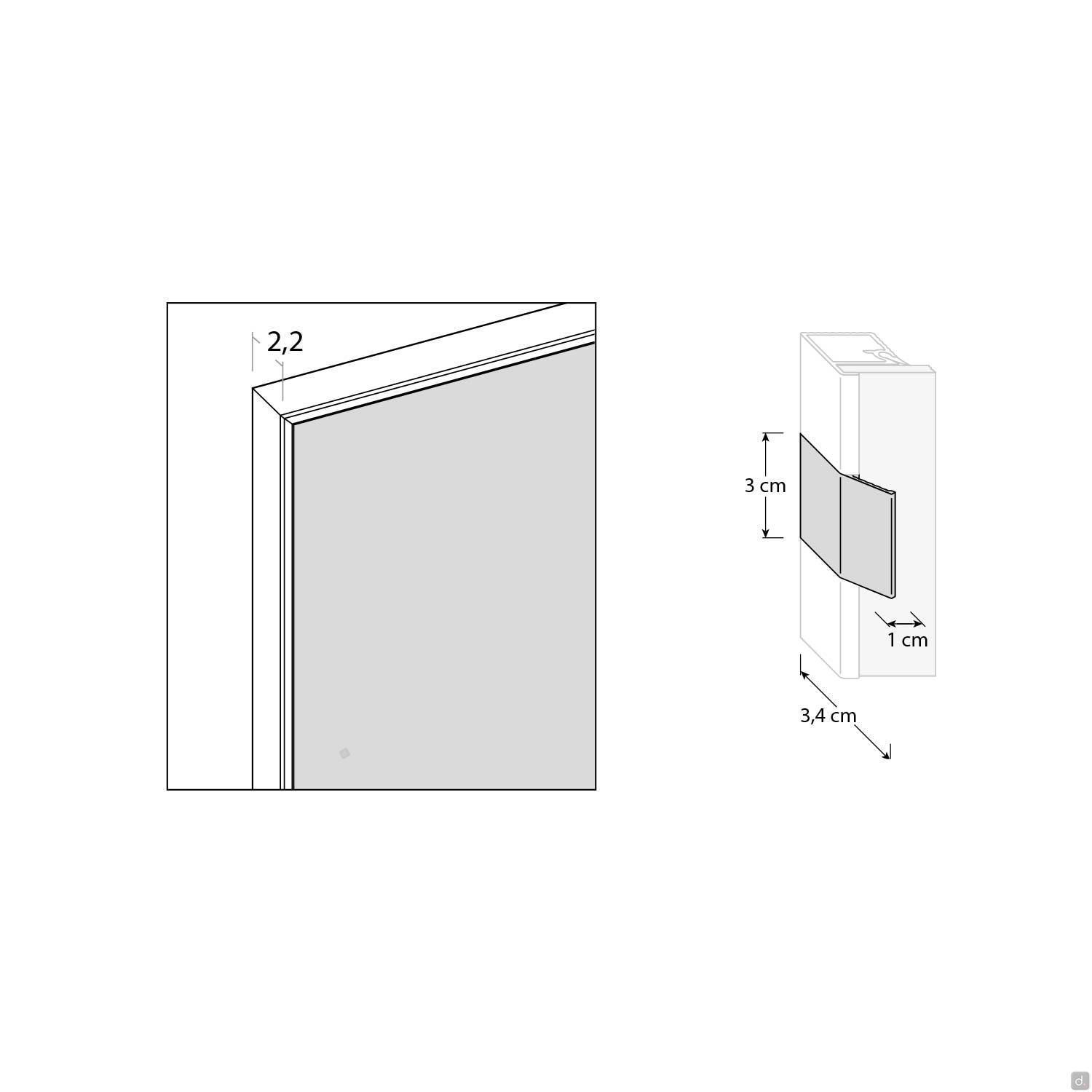

Thicknesses: door cm 2,2 / structure cm 1,8.

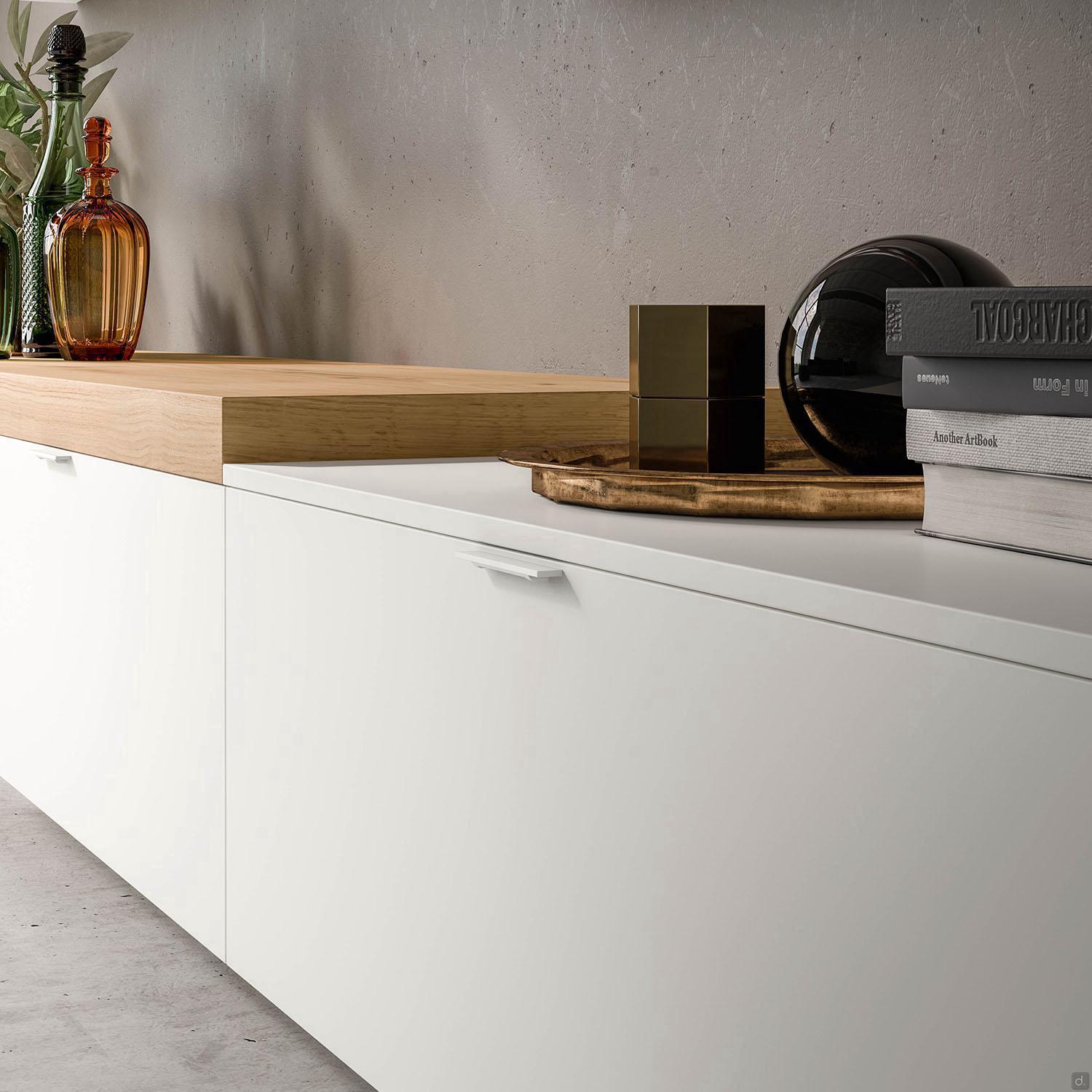

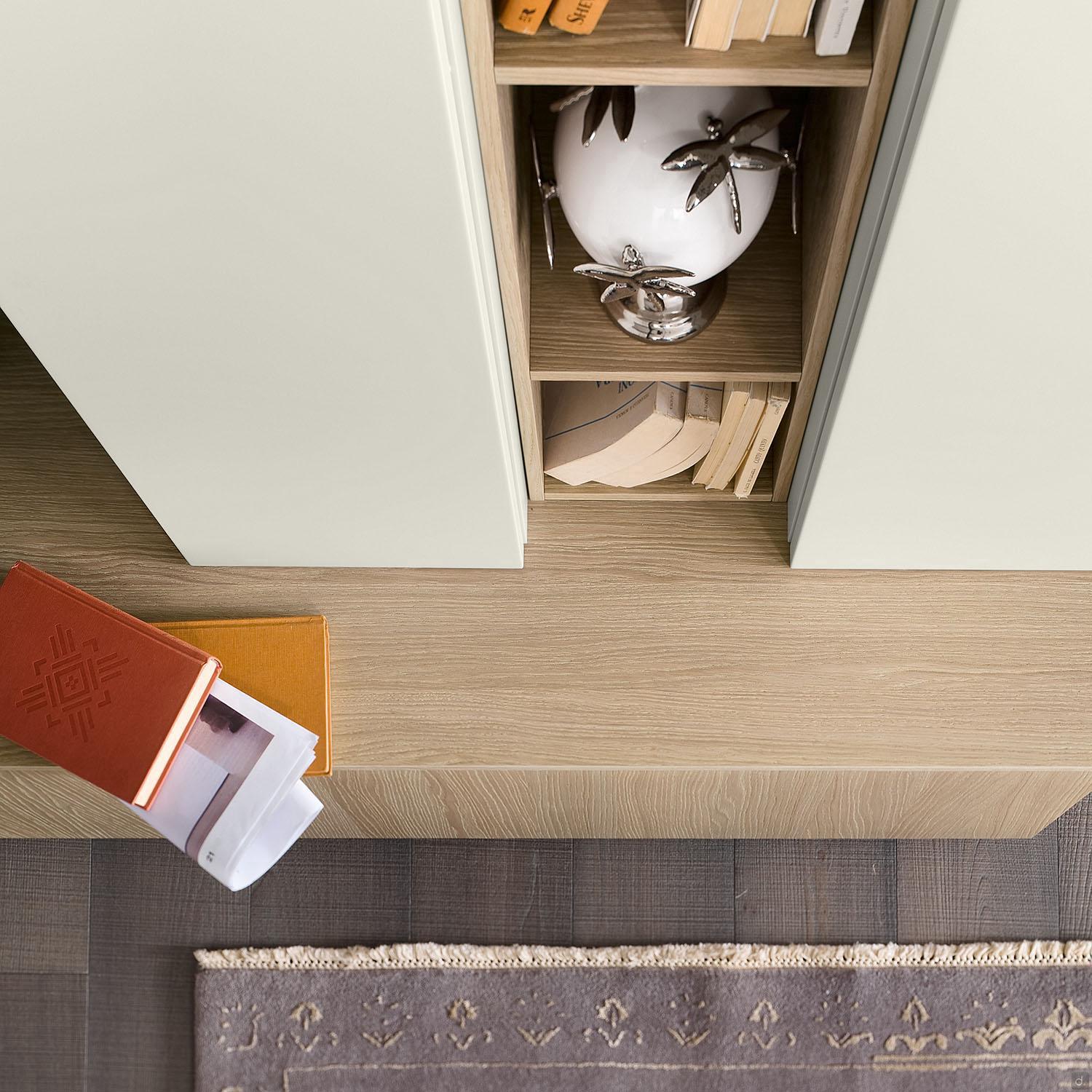

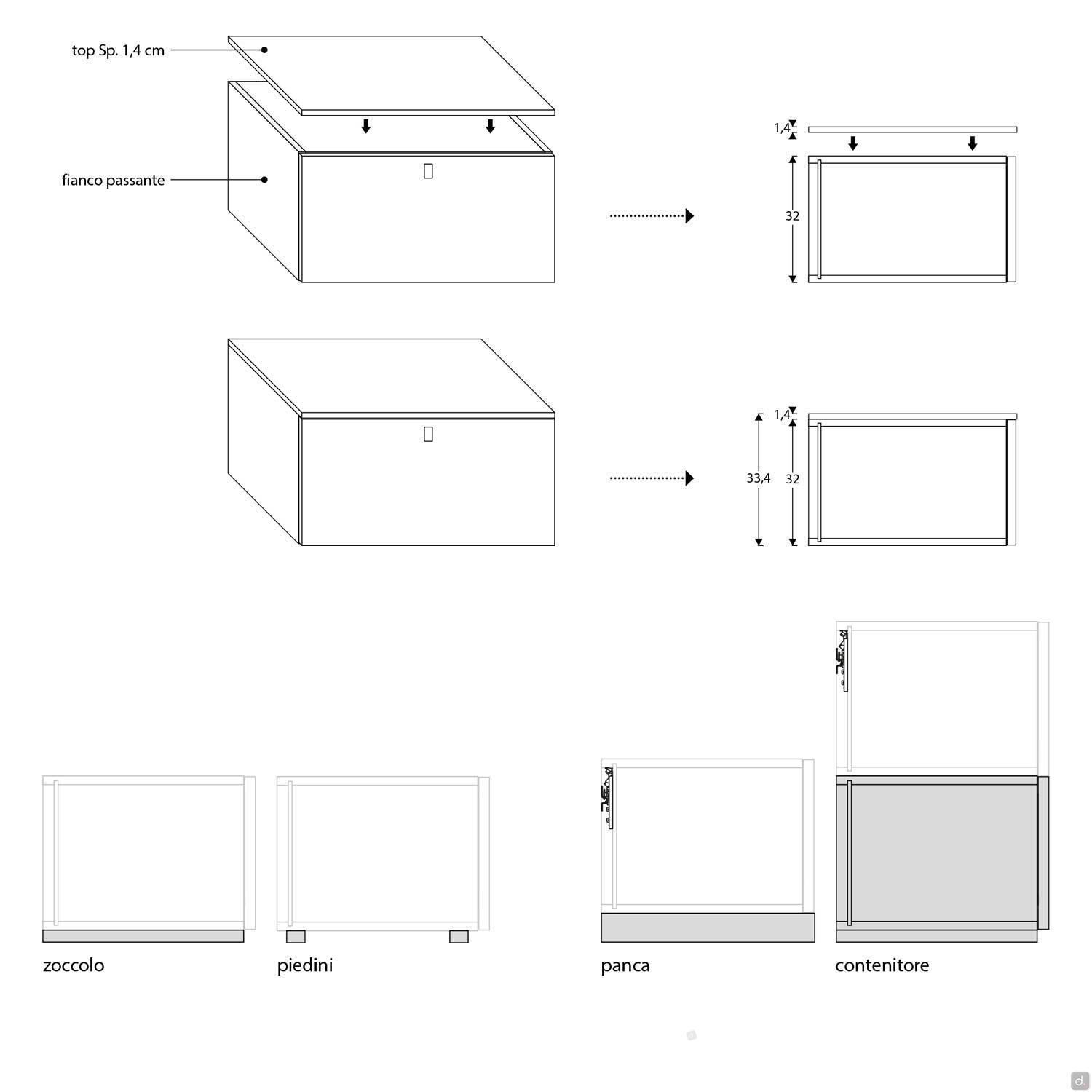

Top: unique separated top standing on the cabinets with the width of the whole layout, cm. d.44,3 / 52,7 th.1,4 to add to the height of the cabinet(s), matching the structure and fronts. The top protrudes by 0,3 cm in depth for all the compositions.

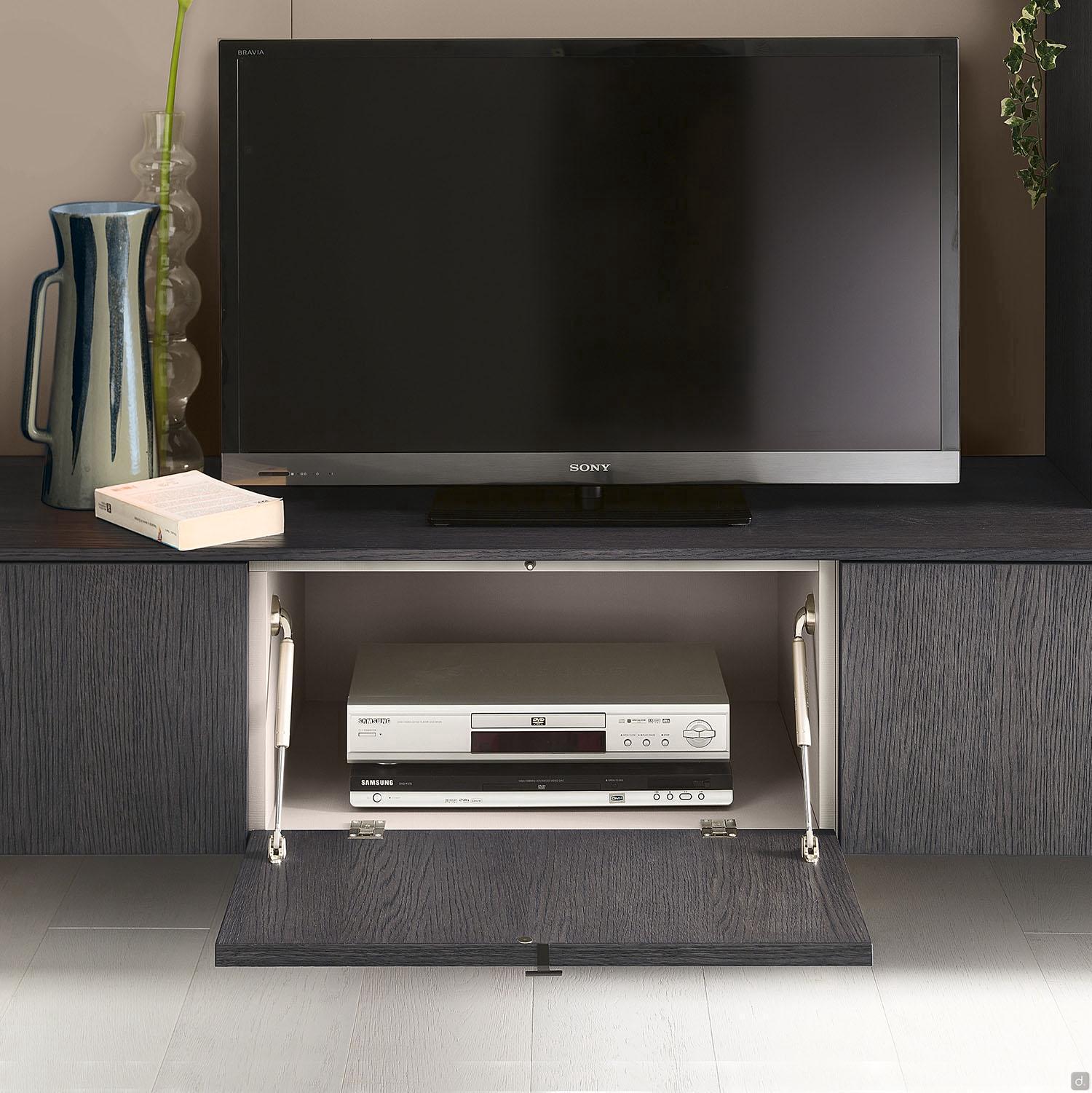

Opening type (door movement guaranteed by a couple of oleodynamic pistons):
- handle T16: cm 19 d.3,3 h.0,8 in moka shine painted metal or matt lacquered;
- handle M: cm 10,2 d.1,4 h.0,3 in moka shine painted metal, white or matt lacquered;
- handle Z: cm d.1,5 h.0,7 in moka shine, white painted metal or matt lacquer;
- handle Pomolo: cm 4,1 d.1,6 h.4,1 in moka shine painted metal with grey belting leather knob;
- handle C15: cm d.1,7 h.1,4 in moka shine, white painted metal or matt lacquer;
- push-pull.

Optional
cable hole set: it includes n.1 rectangular cable hole on te top measuring cm 18 x 5 in aluminium with lid, and n.1 round cable hole on the Back cm Ø 6 cm in black PVC. For models with 2 compartments (with cable hole placed above the internal partition) and 3 compartments there will be 2 round cable holes.

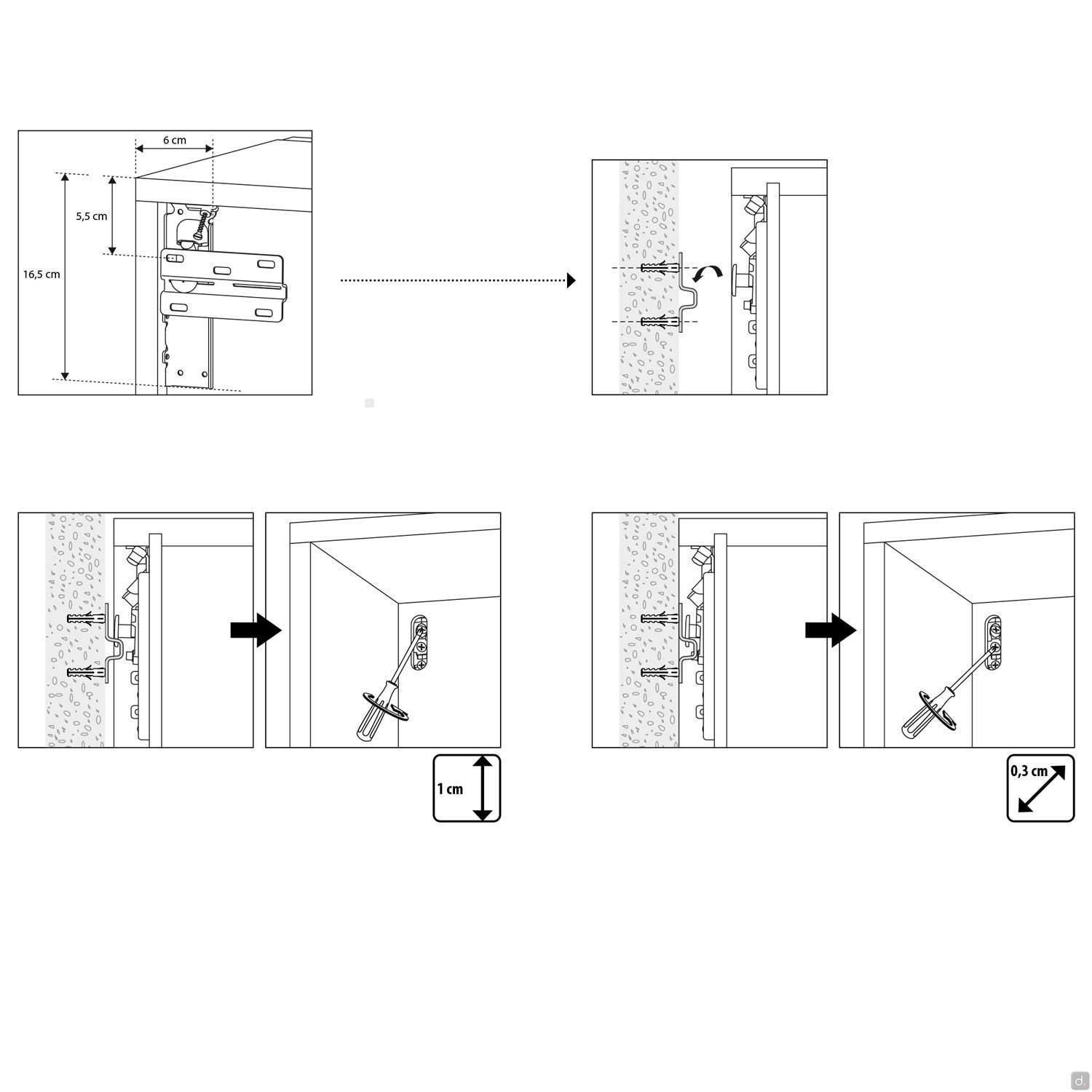

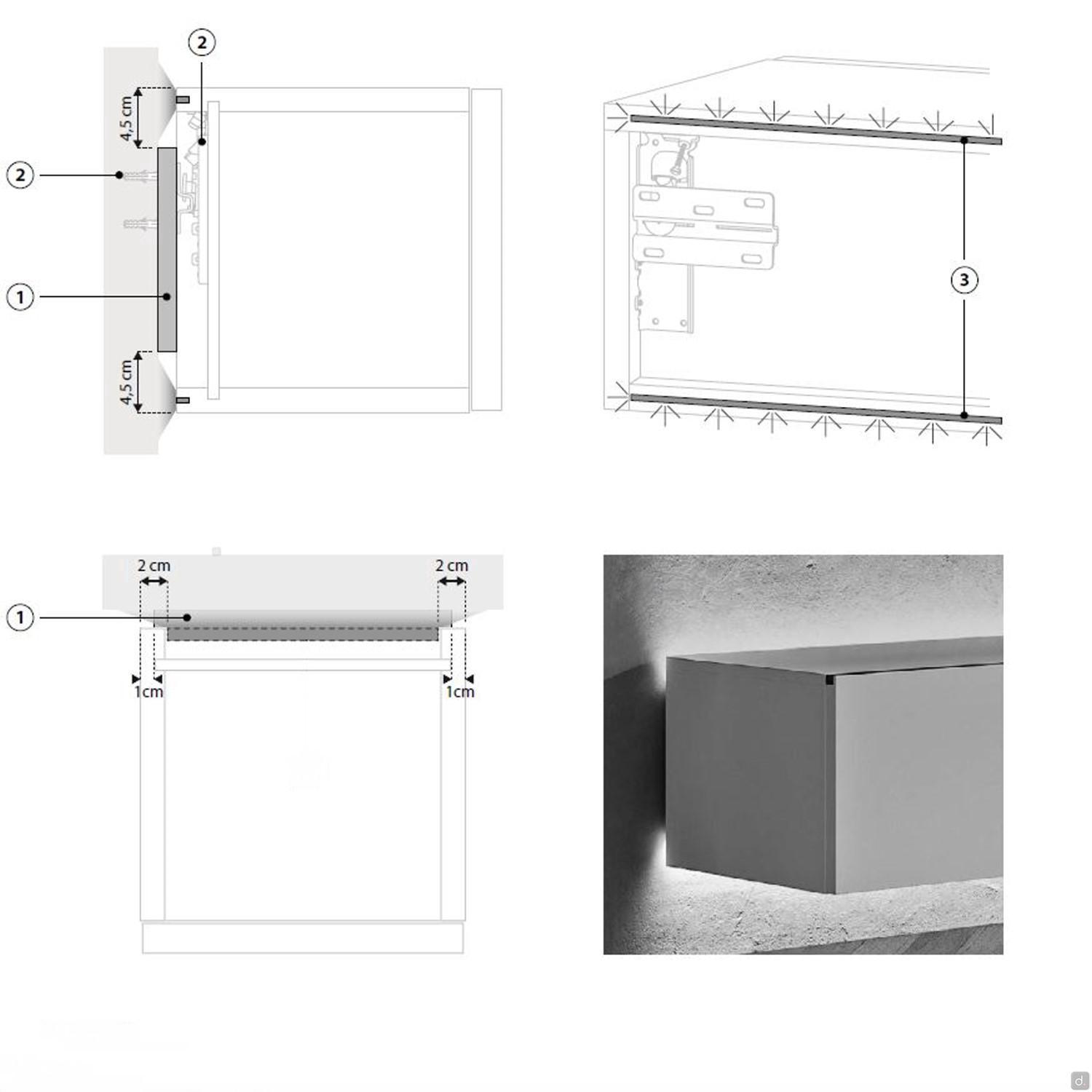

LED back lighting system: you can have the cabinet with a LED strip, in this case it is mandatory to insert between the cabinet and the wall a spacing panel, 1,4 cm thick in gunmetal melamine (the cabinet depth will increase by 1,4 cm). The spacing panel has to be fixed to the wall, while the cabinet is fixed to the panel with the included brackets. The LED strip has a warm 3000 K light and is positioned on the back along the long sides of the cabinet through a recess on the top and bottom. The transformer can be placed both in the sanitary space behind the cabinet or under the bottom.
remote control: to switch on and off the LED light, in case of layouts made up of more cabinets you will need only one remote.

Table of Watt / LED strip length correspondence

Watt
LED strip length
2,7 Watt cm 32
4,2 Watt cm 48
5,8 Watt cm 64
8,8 Watt cm 96
11,9 Watt cm 128
13,4 Watt cm 144
15 Watt cm 160
18 Watt cm 192


Maintenance Tips
The surfaces must not come into contact with water, liquids in general, excessive heat or humidity.
Cleaning should be carried out exclusively with a dam cloth and neutral detergents, and dried immediately with a soft cloth; the use of alkaline products, solvents and abrasives is not recommended. The products are not suitable for outdoor use.

Additional Information

Area of Production
Italy
Assembling
Medium Assembling
Assembling Instructions
Download the Assembling Instructions
Weight
from 7 to 44 Kg
Cubic Metres
from 0,06 to 0,48 m³
