Material Specifications
Sides, dividers, top, bottom, backs: made of wood particle board class E1 with low formaldehyde emission.
Doors: made of class E1 wood particle board with low formaldehyde emission (with textured melamine finish) or honeycombed panels (with lacquer or wood veneer finish). Matte or gloss lacquering carried out with polyurethane varnish.
Technical Specifications and Equipment
Sides and partitions: thickness cm 2,5. For sides, ABS edge for textured and lacquered, wood edge for veneered doors. For partitions, ABS edge matching the interiors. Completed with adjusted feet inserted in the thickness and adjustable cm 1,2.
Top and bottom: thickness cm 2,5. ABS edge to match the interior.
Backs: thickness cm 0,8.
Interior shelves: thickness cm 3,5. ABS edge to match the interior.

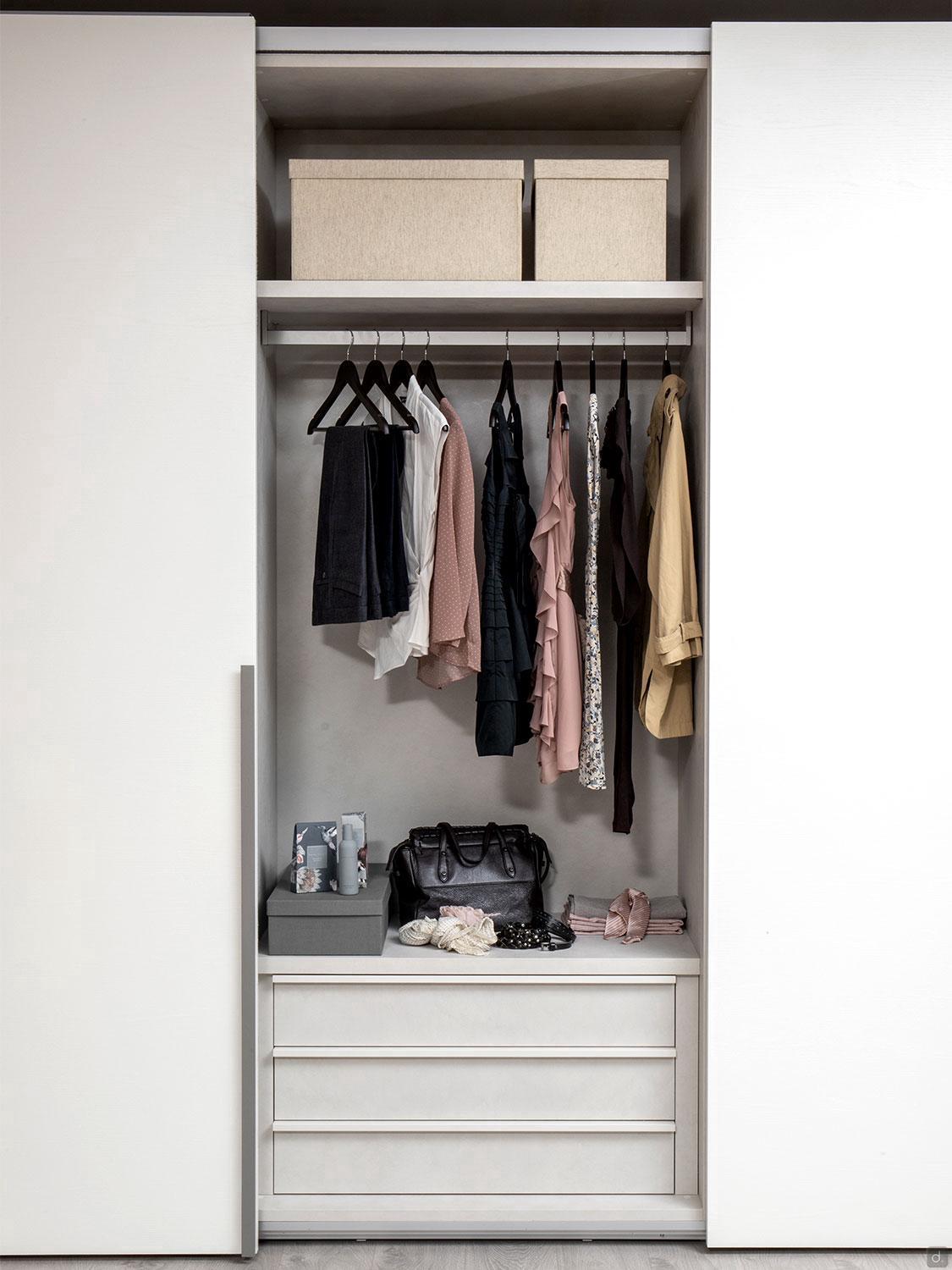

Clothes hanging rods: rectangular section cm 3 x 1, in Gunmetal painted metal (for interior in loto natura, textured linen or medium elm), Brown (for interior in loto taupe, loto terra, dark elm or eco-walnut), Palladium (for interior in sand, rock and tobacco sketch).

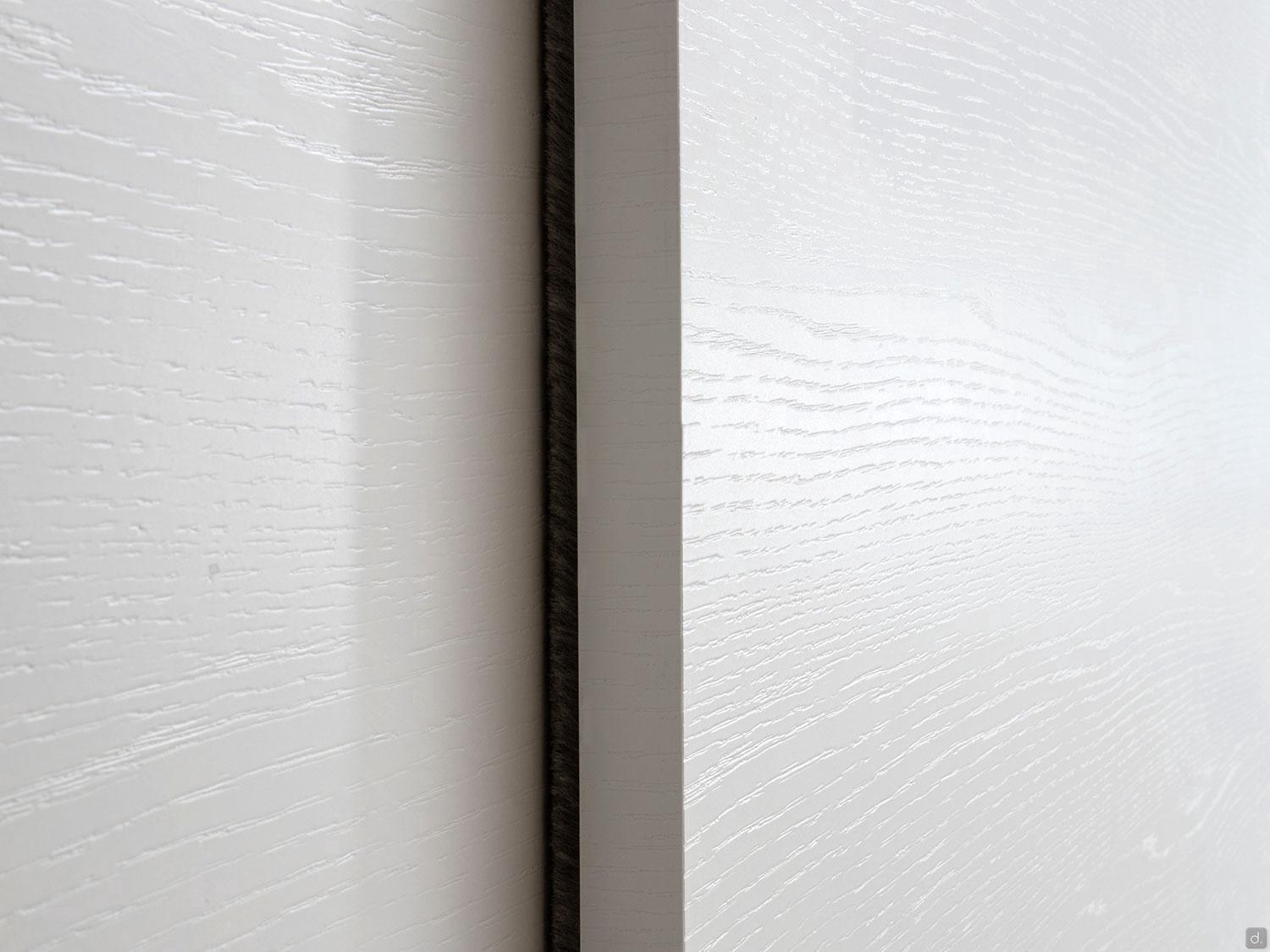

Doors: thickness cm 2,6. ABS edging to match the door for textured and lacquered, wood for veneered doors. Doors come complete with dust cover profile and external adjustment tie rods.

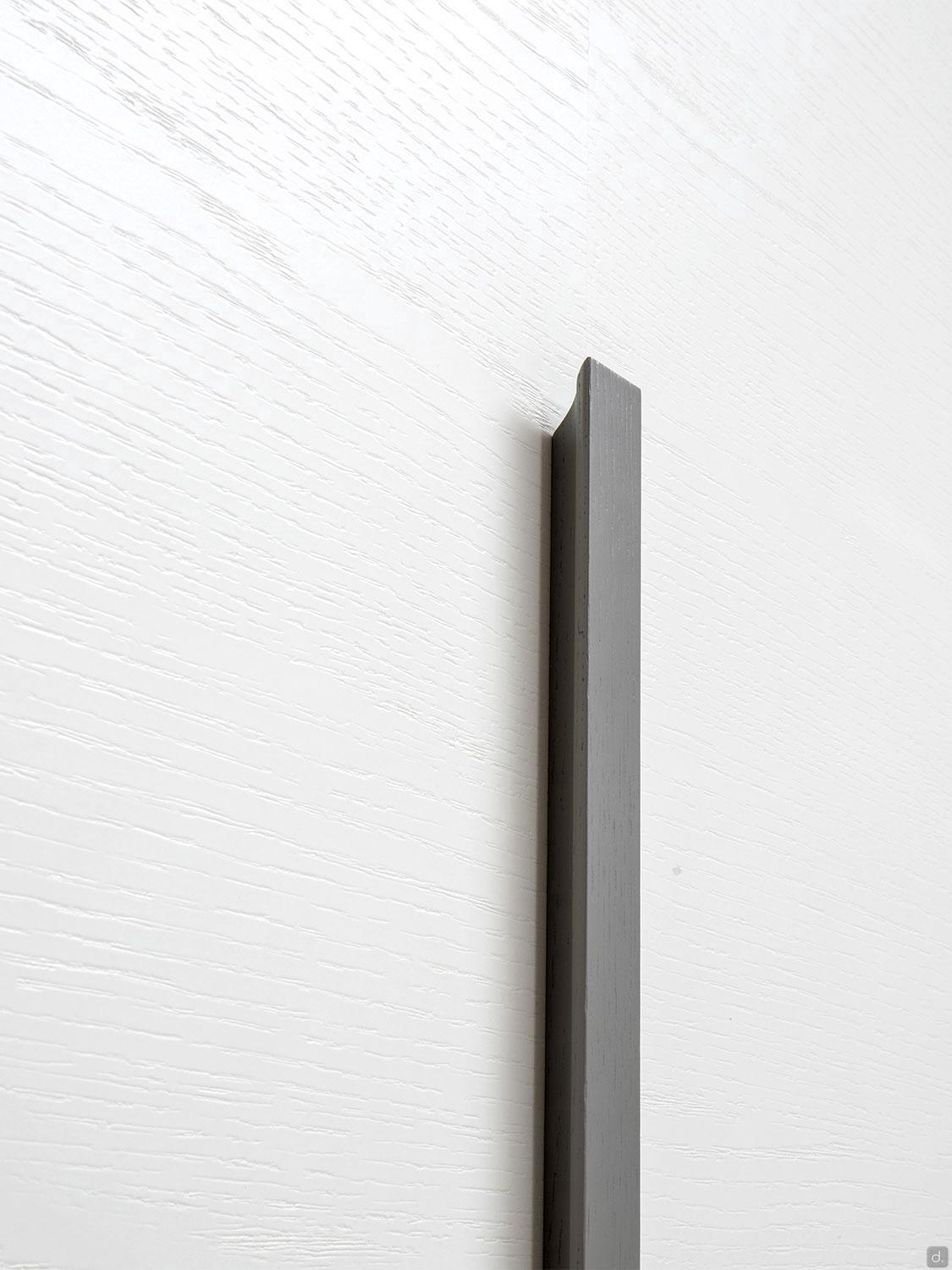

Handles:
- Assisa: cm h.121,8, in matte lacquered metal
- Ala: cm h.110, in matte lacquered metal
- Wood: cm h.121,8, in solid stained ash wood
- Mia 1: cm h.30, in matte lacquered metal
- Mia 2: cm h.60, in matte lacquered metal
- Socket: cm h.16,6, positioned cm 88,1 from the bottom edge of the door, in matte lacquered metal
- Skin: cm h.16, positioned cm 95,9 from the bottom edge of the door, in matte lacquered metal
- Beta: cm h.16, positioned cm 95,9 from the bottom edge of the door, in matte lacquered metal
- Deluxe: cm h.16, posizioned cm 95,9 from the bottom edge of the door, in matte lacquered metal with faux leather handle

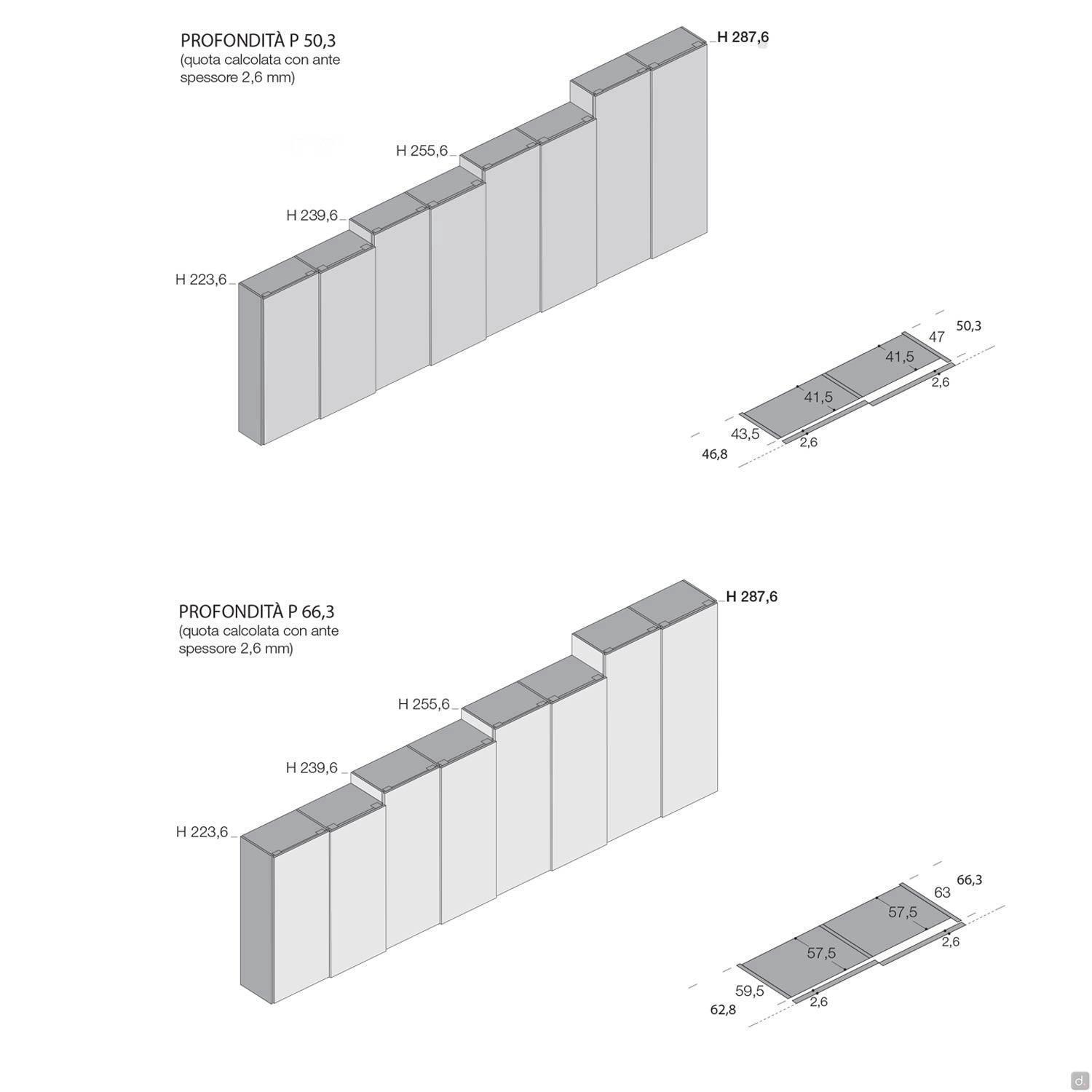

Useful interior height:
- for wardrobe cm h.223,6: cm 206,6
- for wardrobe cm h.239,6: cm 222,6
- for wardrobe cm h.255,6: cm 238,6
- for wardrobe cm h.287,6: cm 270,6
Drilling Sides

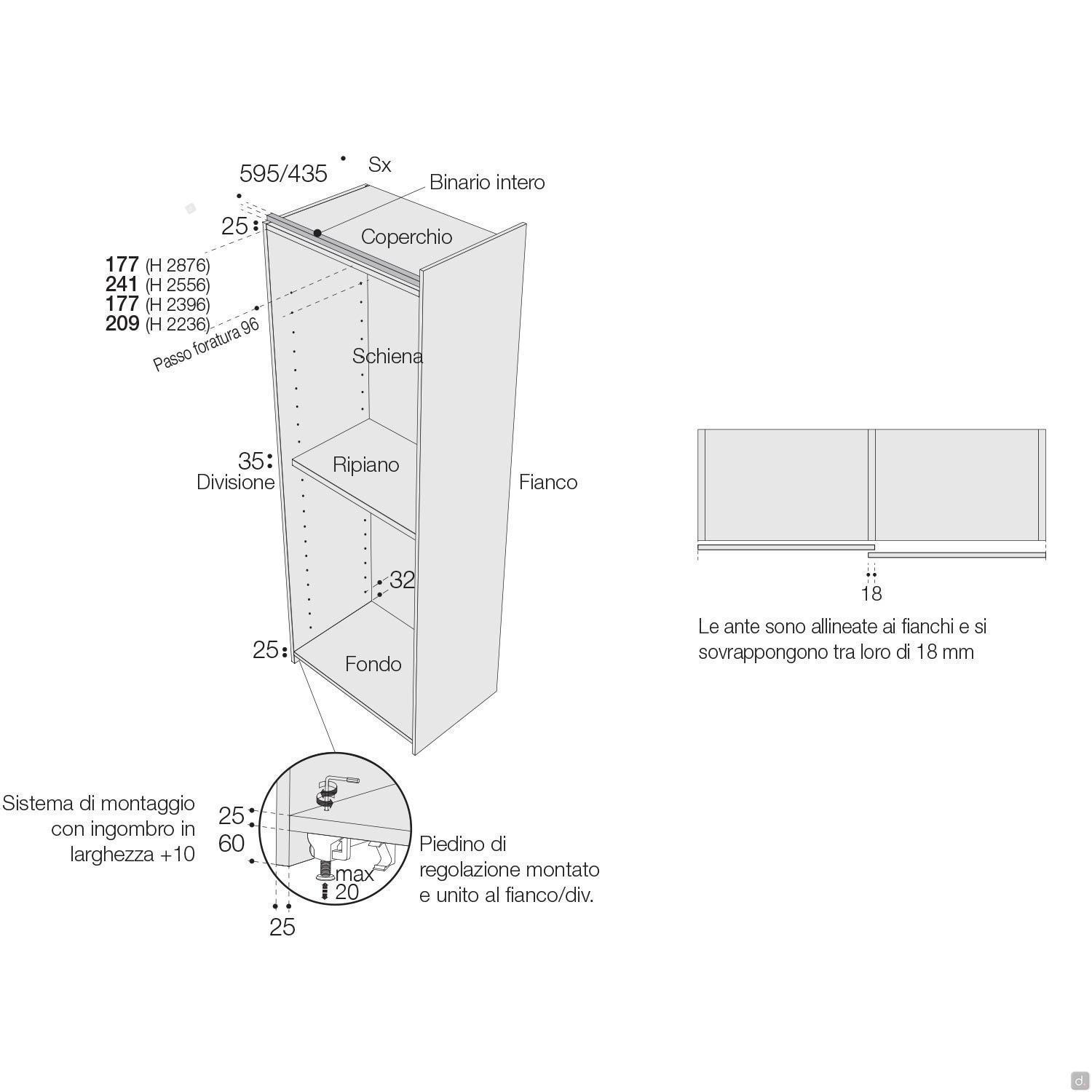

Sides and partitions provide fixed perforations everu 9.6 cm on average. For detailed measurements, please see the dedicated diagram in the Images gallery.
Assembly Tips
For the assembly of the structure the following are required:
- cm 3,5 in width
- cm 6 in height
Doors can be adjusted from the front and do not require additional upper space.
In wardrobes cm d.43,5 at least 2 modules are provided as standard with an anti-tip hook to be fixed to the wall. Also in wardrobes cm d.59,5 at least one module is supplied with an anti-tip hook for use when needed. The anti-tip plate to be fixed to the wall is provided with spacers that allow its use even in the presence of skirting boards with a maximum thickness of 15 mm.
