Model and Measurements Specifications

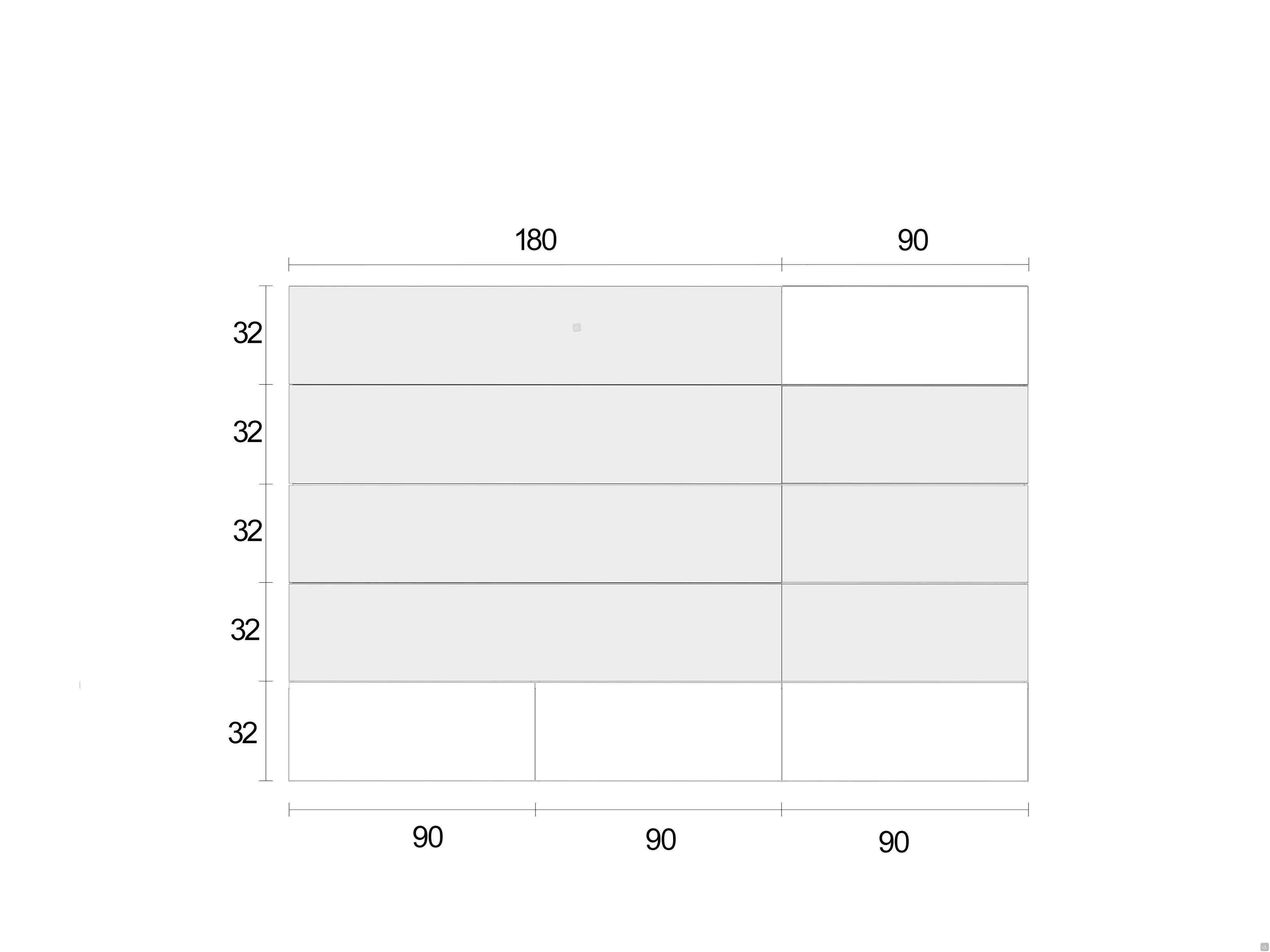

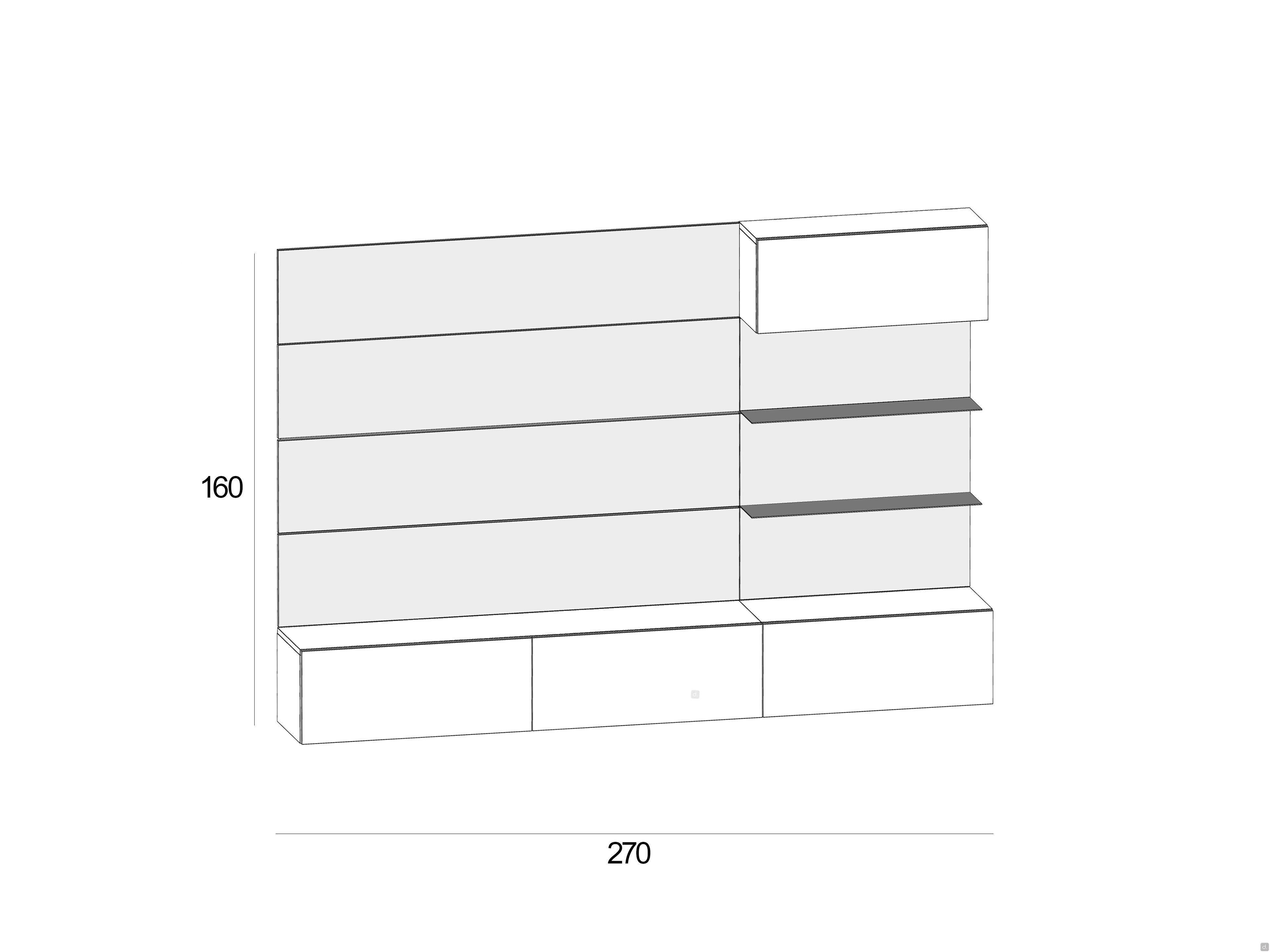

Model A (width: cm 270)
n.3 drop-down door base units: cm 90 d.45,2 h.32
n.1 wall unit with vasistas door: cm 90 d.45,2 h.32
n.4 wall panels: cm 119,7 thickness 2,5 h.31,7
n.3 wall panels: cm 89,7 th.2,5 h.31,7
n.2 metal shelves: cm 90 d.27 th.0,3

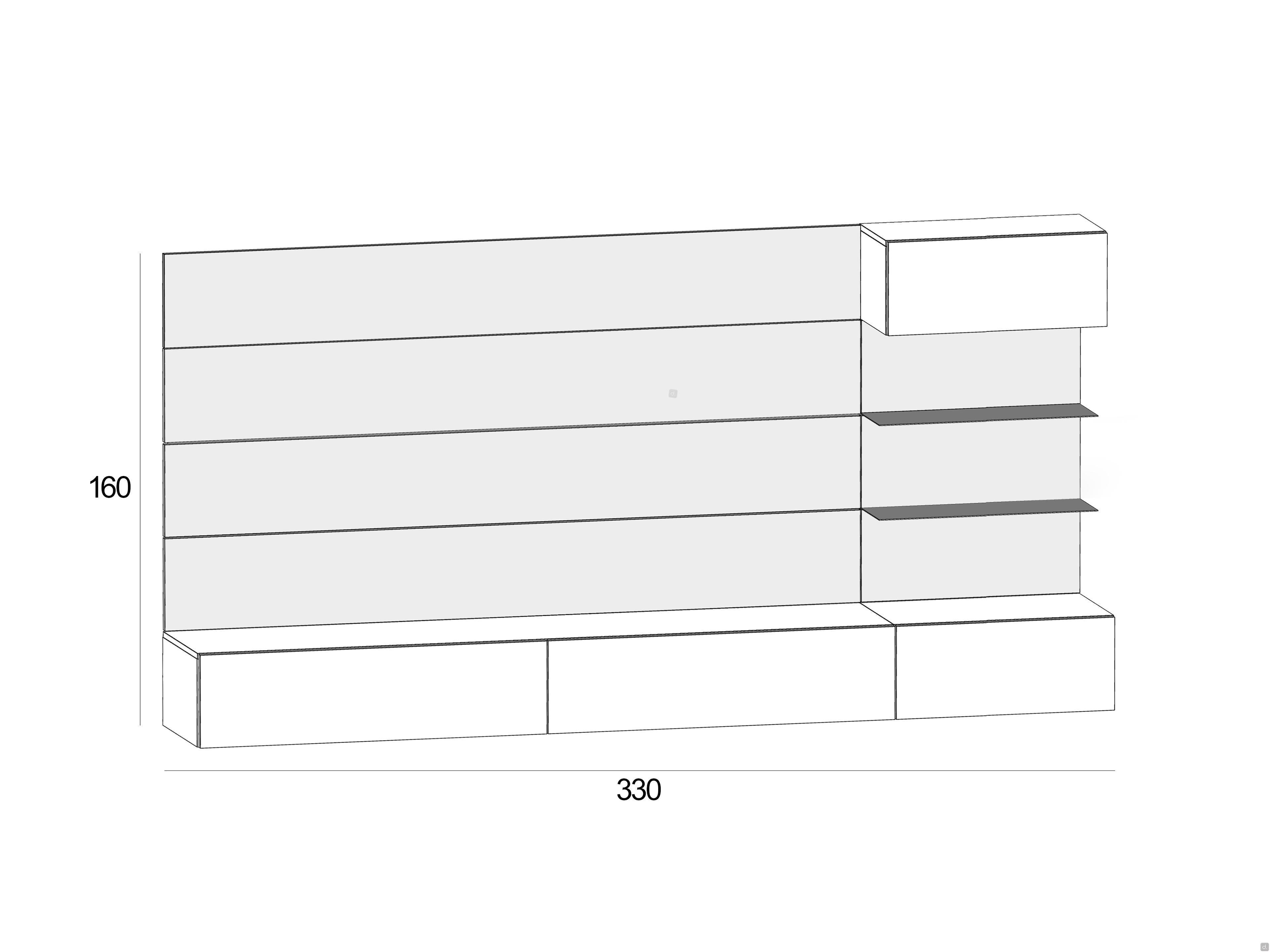

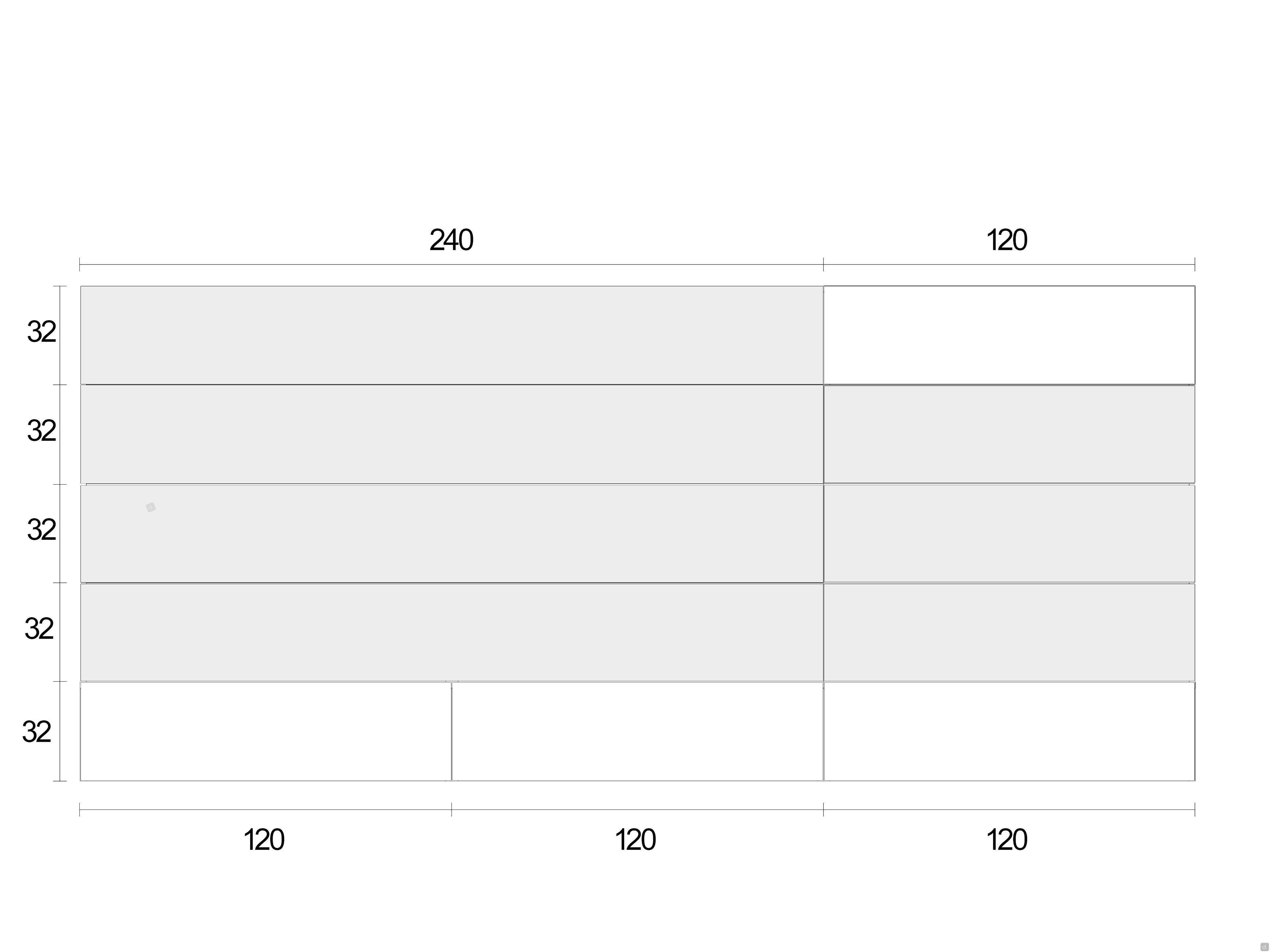

Model B (width: cm 330)
n.3 drop-down door base units: cm 120 d.45,2 h.32
n.1 wall unit with vasistas door: cm 90 d.45,2 h.32
n.4 wall panels: cm 239,7 thickness 2,5 h.31,7
n.3 wall panels: cm 89,7 thickness 2,5 h.31,7
n.2 metal shelves: cm 90 d.27 th.0,3

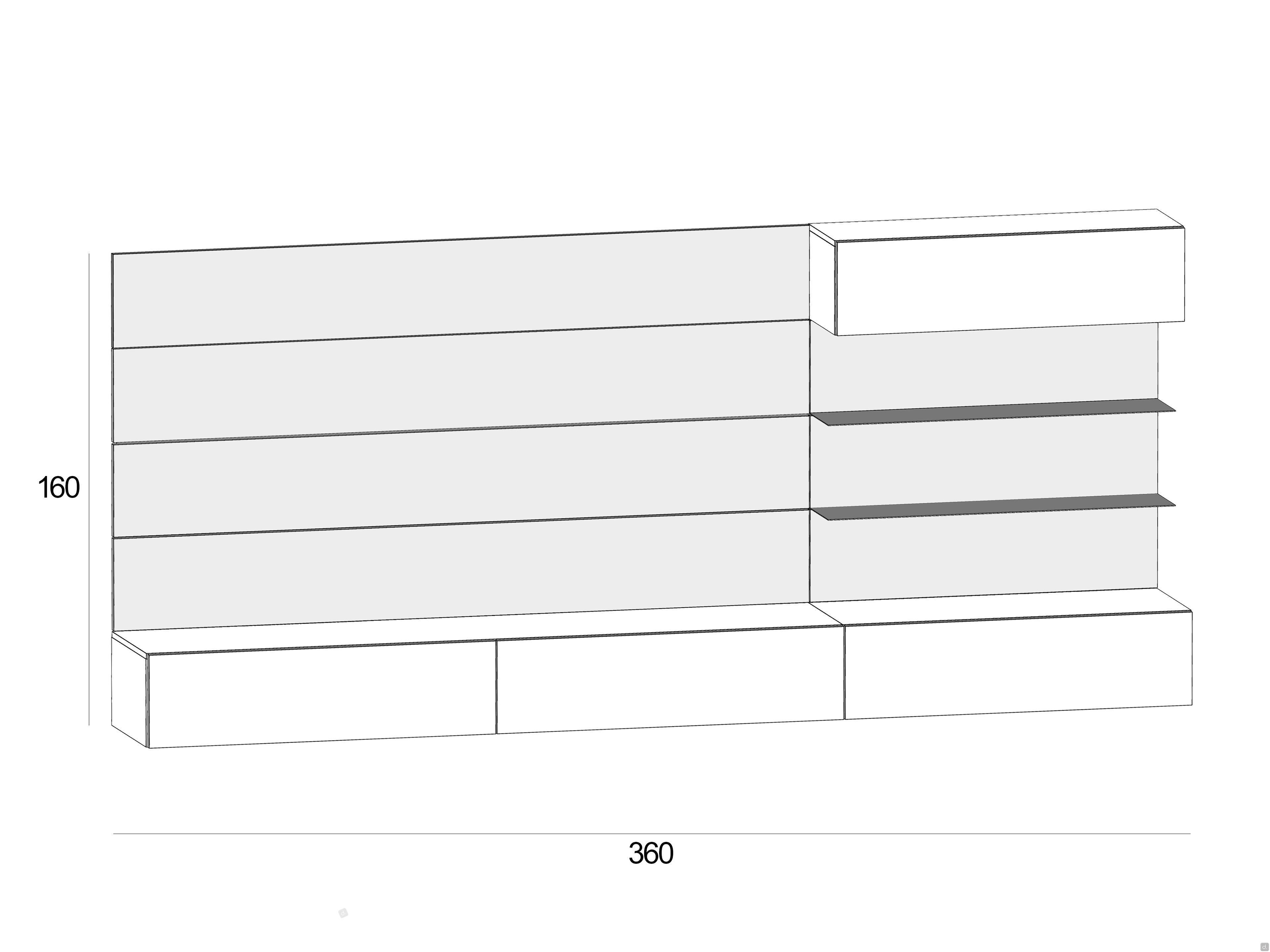

Model C (width: cm 360)
n.3 drop-down door base units: cm 120 d.45,2 h.32
n.1 wall unit with vasistas door: cm 90 d.45,2 h.37,5
n.4 wall panels: cm 239,7 thickness 2,5 h.31,7
n.3 wall panels: cm 89,7 thickness 2,5 h.31,7
n.2 metal shelves: cm 120 d.7 th.0,3
Technical Specifications and Equipment
Structure and Storage Unit Fronts: made of 2 cm thick particle board panels. Coated with synthetic veneer, also matte lacquered, glossy, metallised or with painted wood veneer. The high-gloss structure only extends to the outside of the side panels and their perimeter edges. Interior and backs are supplied in the corresponding matt lacquer colour. For elements with drawer, the interior is always Sketch Roccia.
Tilt Door Base: fitted with special hinges for turning the door with a 45° edge, recessed in the thickness of the structure and front. Also equipped with a mechanism to cancel the weight of the door when closing and guarantee minimum effort to the user during use.
Wall Panels: made of 2.5 cm thick particle board, covered with synthetic veneer, also matt lacquered, metallised or with painted wood veneer. Back panel boiserie in black MDF 1.9 cm thick, complete with fittings and hardware for wall fixing. The panel keeps the boiserie at a distance of 2.4 cm from the wall and is shaped from time to time, depending on the overall dimensions of the composition.
Shelves: in painted metal 0.3 cm thick fixed directly to the back panel, positioned in the groove between two boiserie panels.
Optional
Perimeter Led Bar: 84W (for 270 cm Model A wall), 100W (for 330 cm Model B wall) or 120W (for 360 cm Model C wall), complete with power supply and recessed in the MDF back panel. 3000K light diffused on the 4 sides of the composition, remote control ignition available as an additional option.
Recessed LED bars for wall unit: 8.8 W. Recessed profile cm 0.9, thickness 0.8 with opaline polycarbonate cover, horizontally recessed in the bottom side of the bottom of the wall unit.
Under-shelf LED bars: 11.6 W each, complete with 75 W ballast with overload protection. Magnetic attachment to the shelf, with front cover matching the shelf 1.2 cm and recessed 3000K LED light. The boiserie panels, as well as the MDF back-panel, include as standard a groove for the passage of the power supply cables, which always exit from the right (looking frontally at the shelf).
