Replay 05
Bespoke Wall System

Replay 05 wall unit with display cabinet and open compartments in wood, melamine or lacquered. 3 metres wide and ideal for framing TV's up to 60 inches.

* Required Fields


From €2,737.46
Wishlist

Description

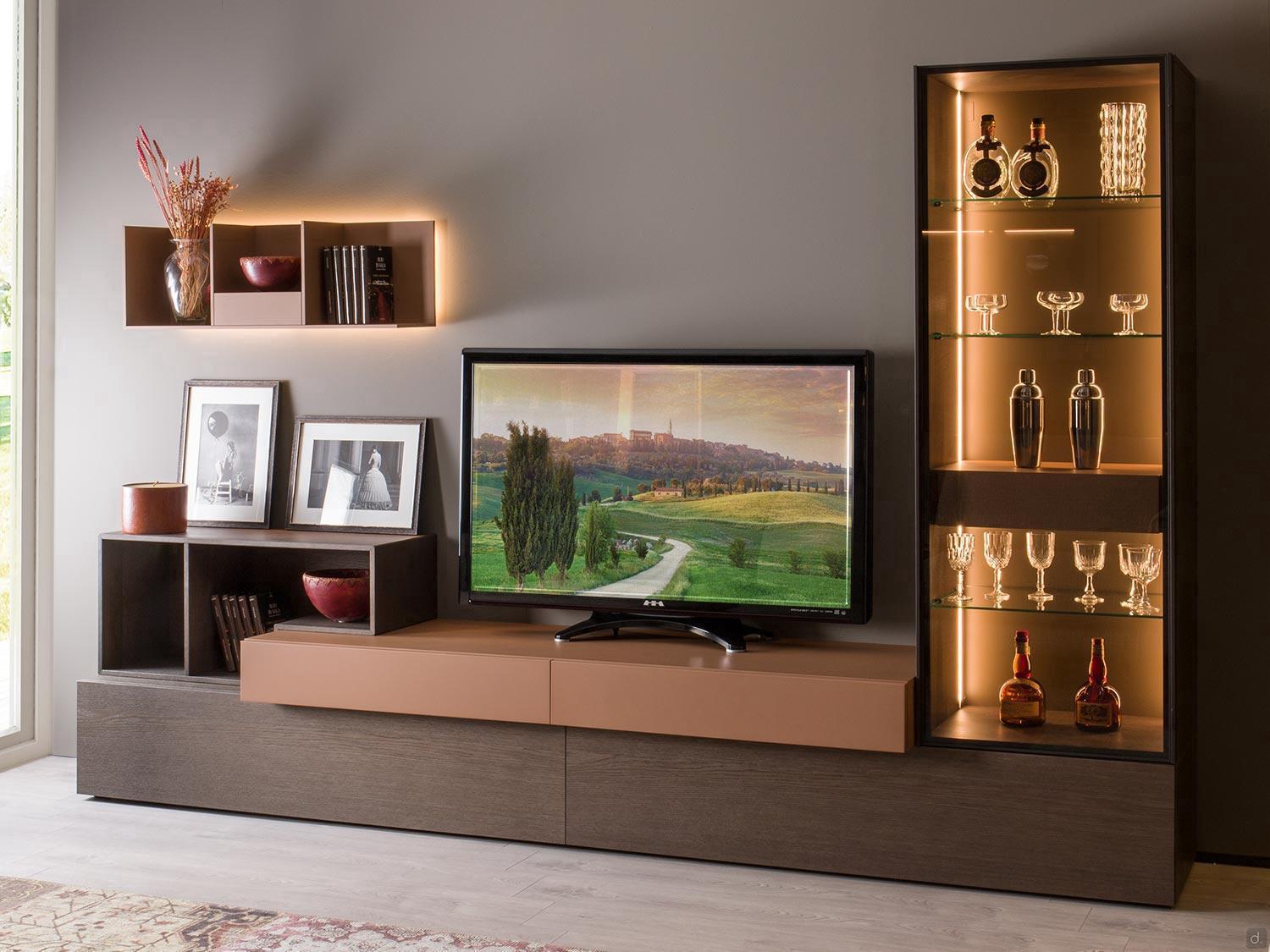

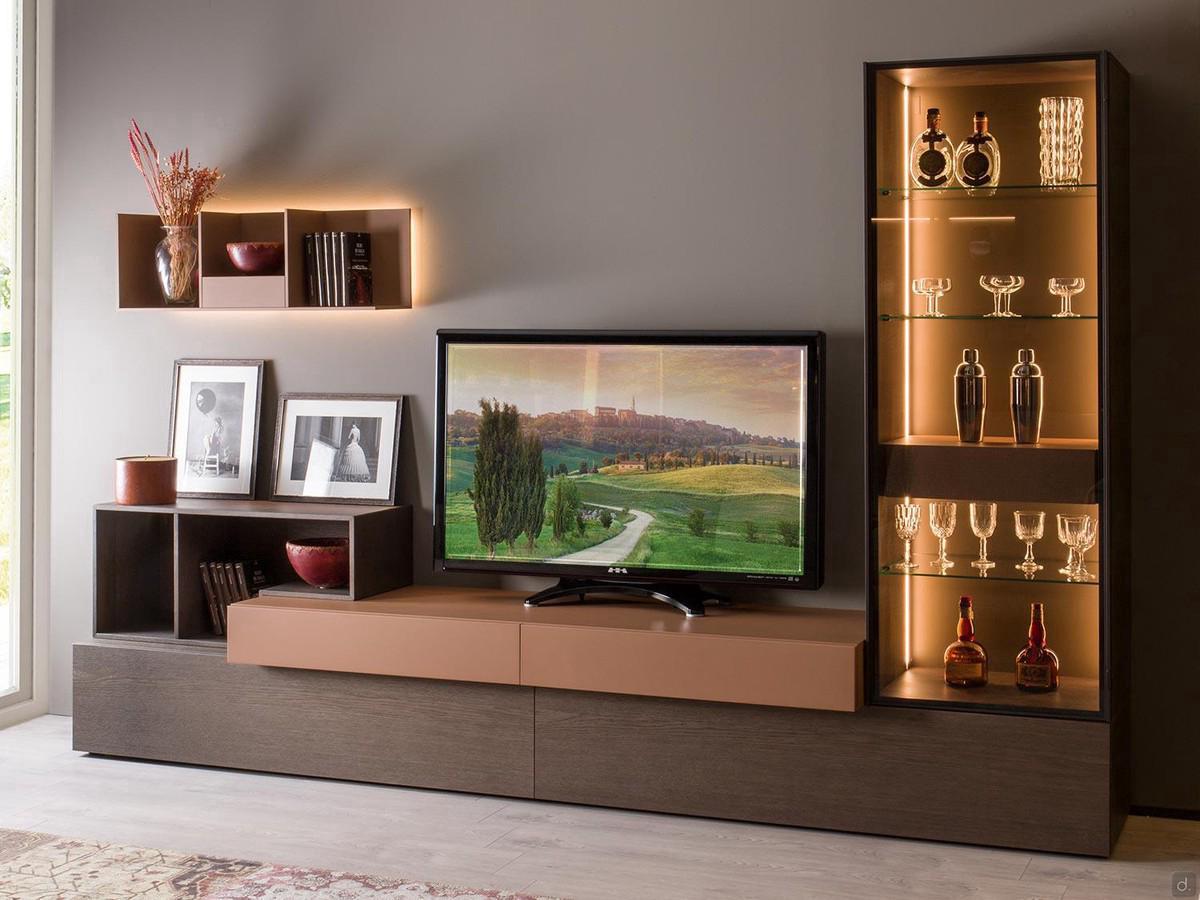

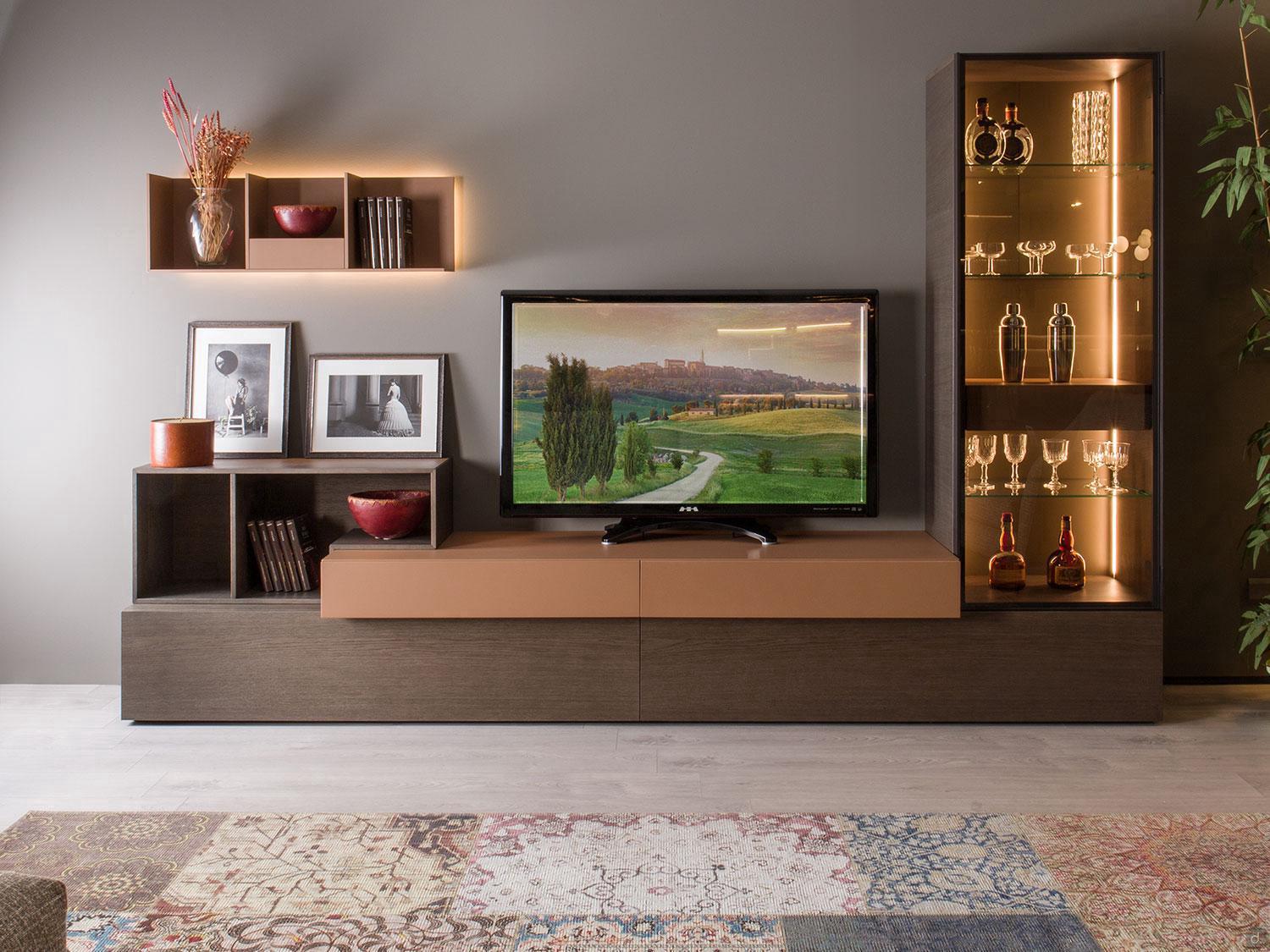

Replay 05 is a wall unit with display cabinet and open compartments three metres wide and 54.6 cm deep. The composition is developed from the bottom up, starting from the wide drop-down base units to which the base unit with drawers is superimposed, the latter protruding gently, soaring forward and reaching its maximum depth. The top of the base with drawers gives life to the table top, which can comfortably accommodate TV's of significant proportions, up to 60 inches.

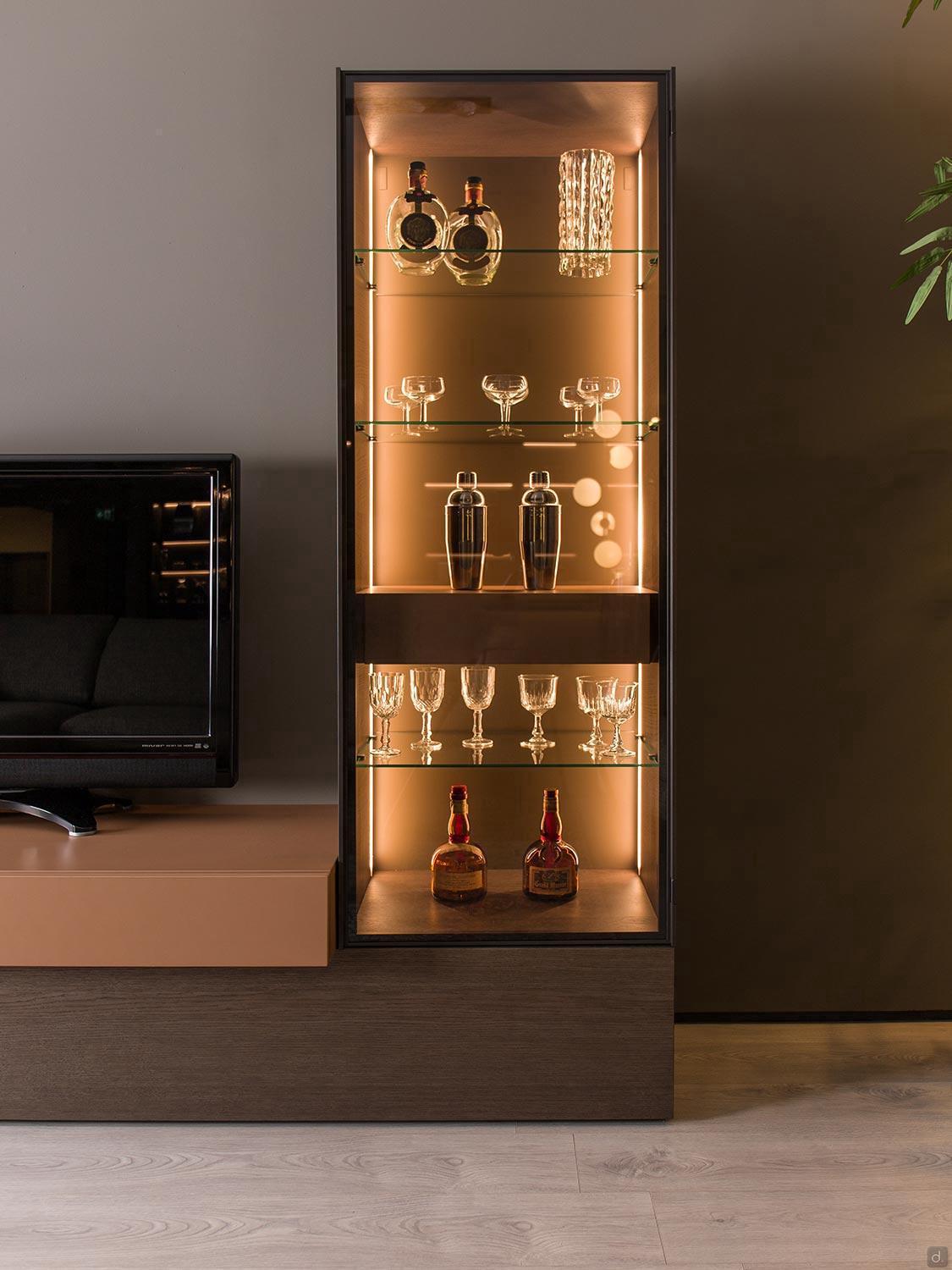

On the right-hand side, attention is captured by the large display case with glass shelves, enhanced by the storage drawer matching the interior. On the left side, on the other hand, storage space is provided by the large open compartments, perfect for storing books and small items. The large display cabinet and the suspended open wall unit delicately frame the entire composition, emphasising the great scenographic effect thanks to the LED lighting.

Features
Fully customisable wall unit in finishes and colours, with drop-down doors, drawers and open compartments
Display case with glass shelves and storage drawer, which can be fitted with side LED bars for sophisticated lighting

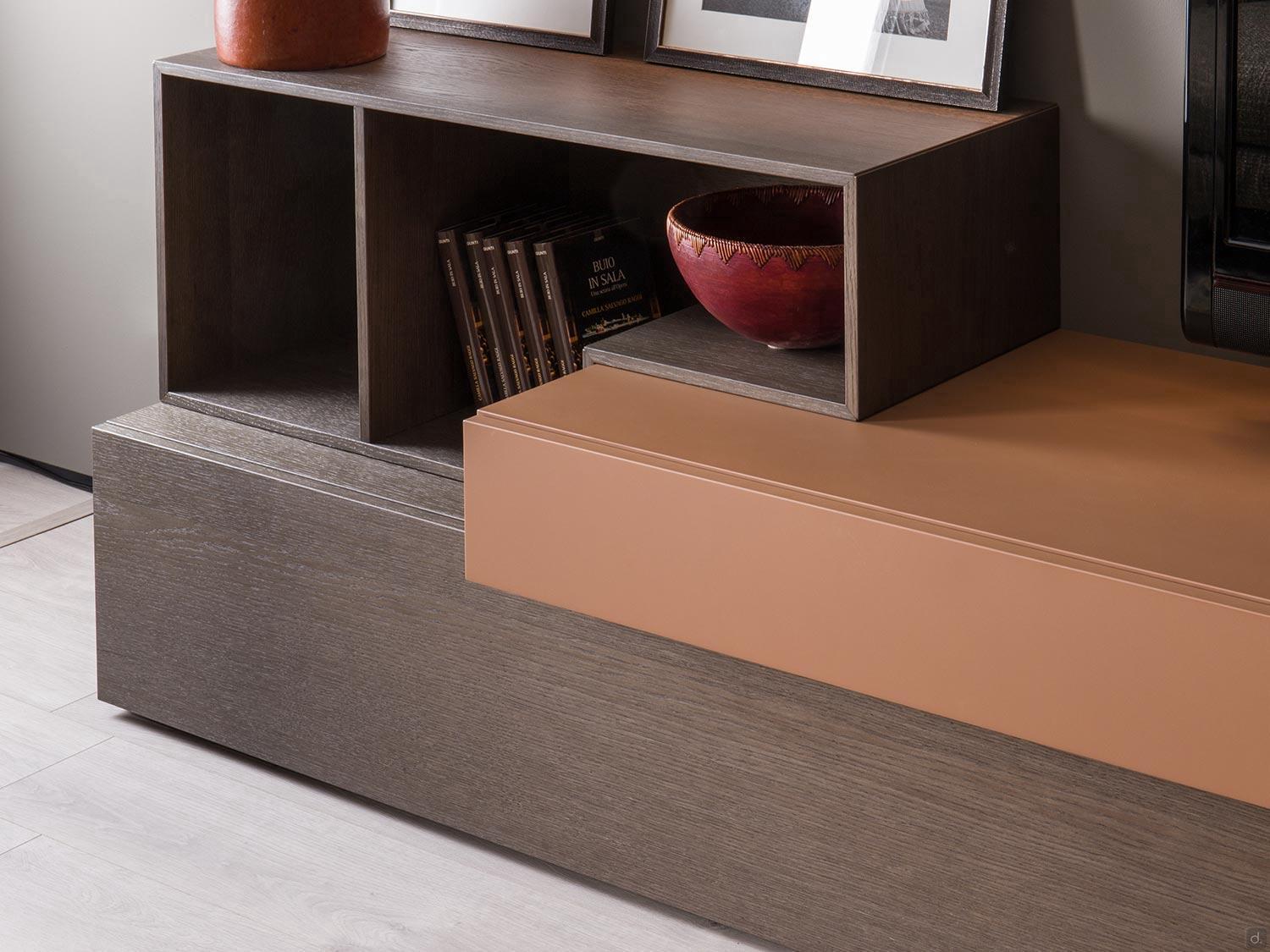

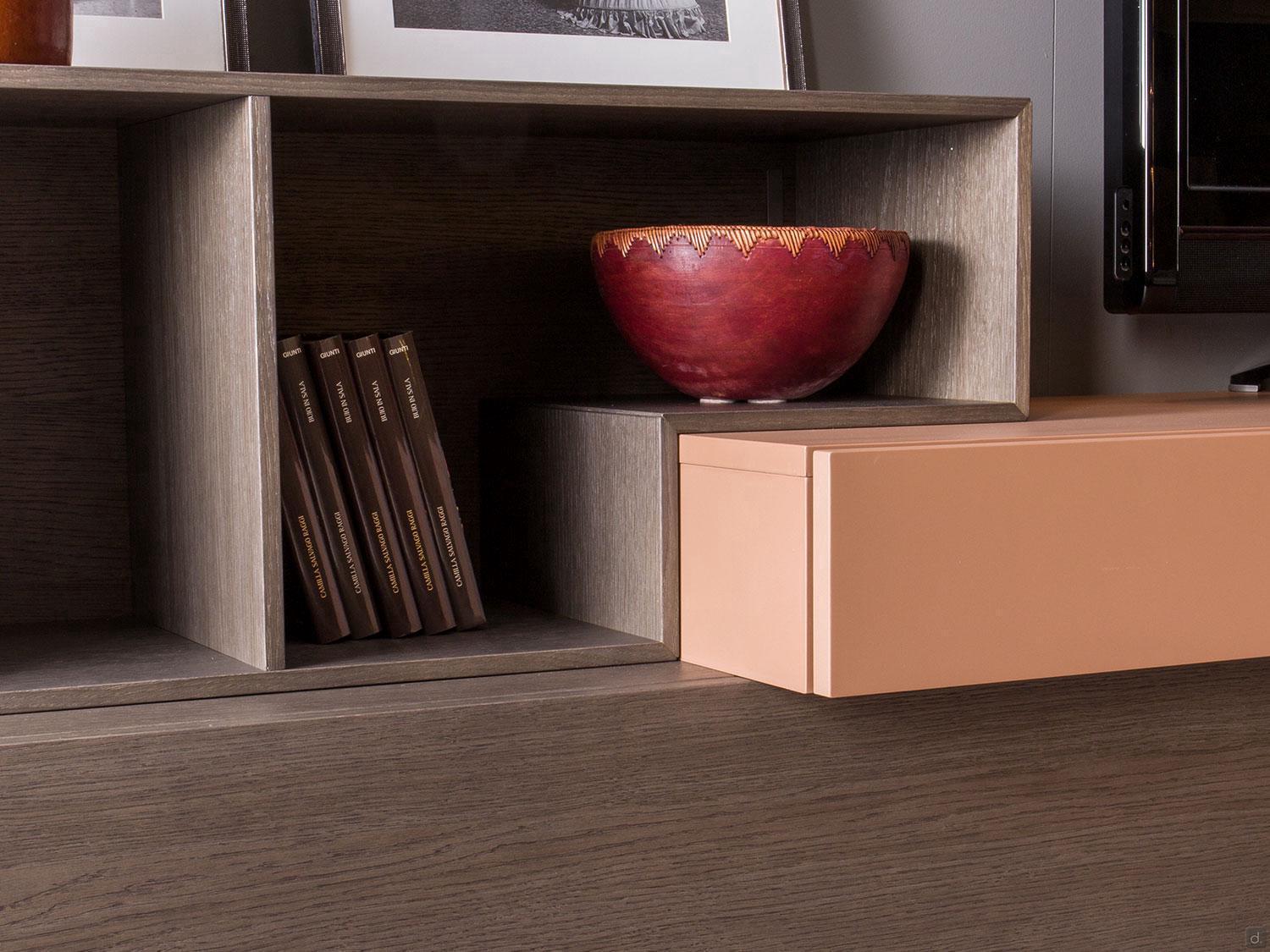

Open compartments with excellent storage capacity for books or small objects
Large shelf that can comfortably accommodate free-standing or suspended TV's up to 60 inches

Measurements
Overall measurements:
- cm 300 d.54,6 h.192

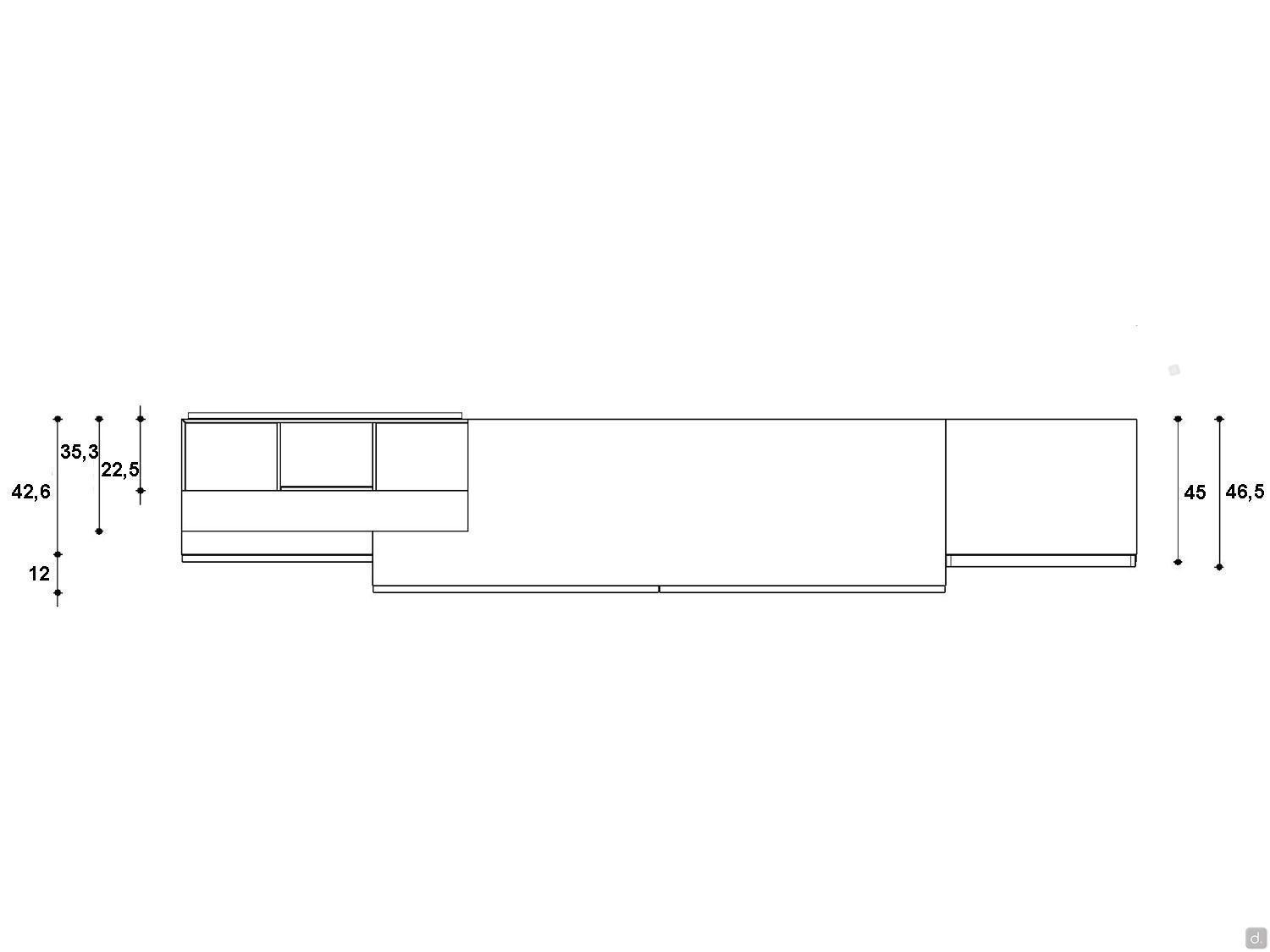

For the measurements of the individual elements that make up the wall, please refer to the diagrams in the Gallery or the Technical Details section.

Materials and Finishes
Drop-down Bases with Drawers and Display structure:
- melamine
- matte / glossy / metallic lacquer
- wood veneer
Suspended Display Frame:
- gunmetal / brown / palladium metal
Glass door:
- transparent / smoked transparent glass
Display internal Shelves:
- transparent glass

Technical study

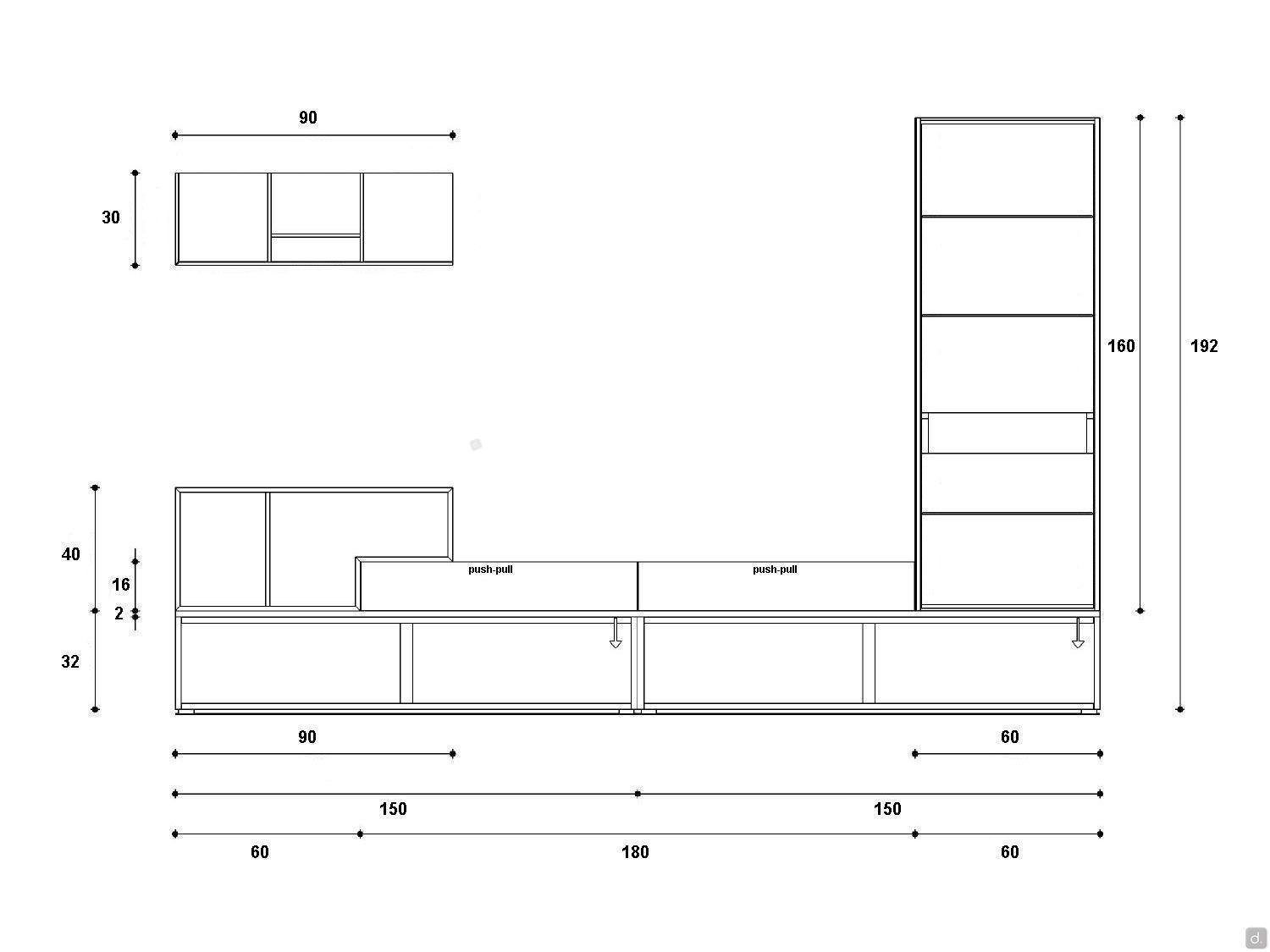

Specific Measurements
n.2 drop-down bases: cm 150 d.45 h.32
n.1 base unit with drawers: cm 180 d.54,6 h.16
n.1 showcase wall unit:: cm 60 d.45,2 h.160

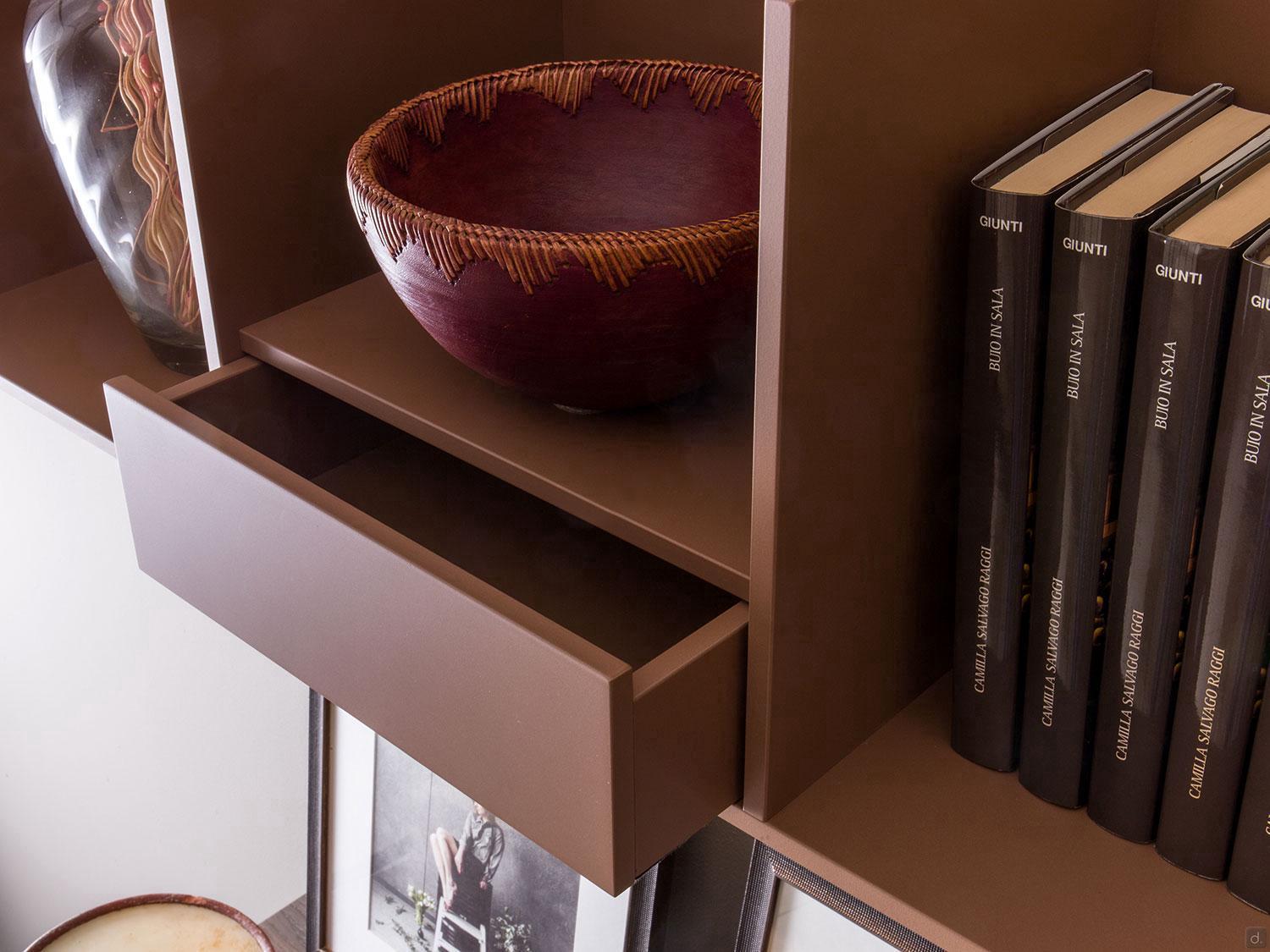

n.1 open wall unit with drawer: cm 90 d.22,5,5 h.26
n.1 Cube open wall unit: cm 90 d.35,3 h.40

Technical Specifications and Equipment
Base and Display Structure: 2 cm thick particle board panels, (sides, bottoms and tops) 8 mm thick particle board backs. 45° machining between the body elements  (sides, bottoms and tops).

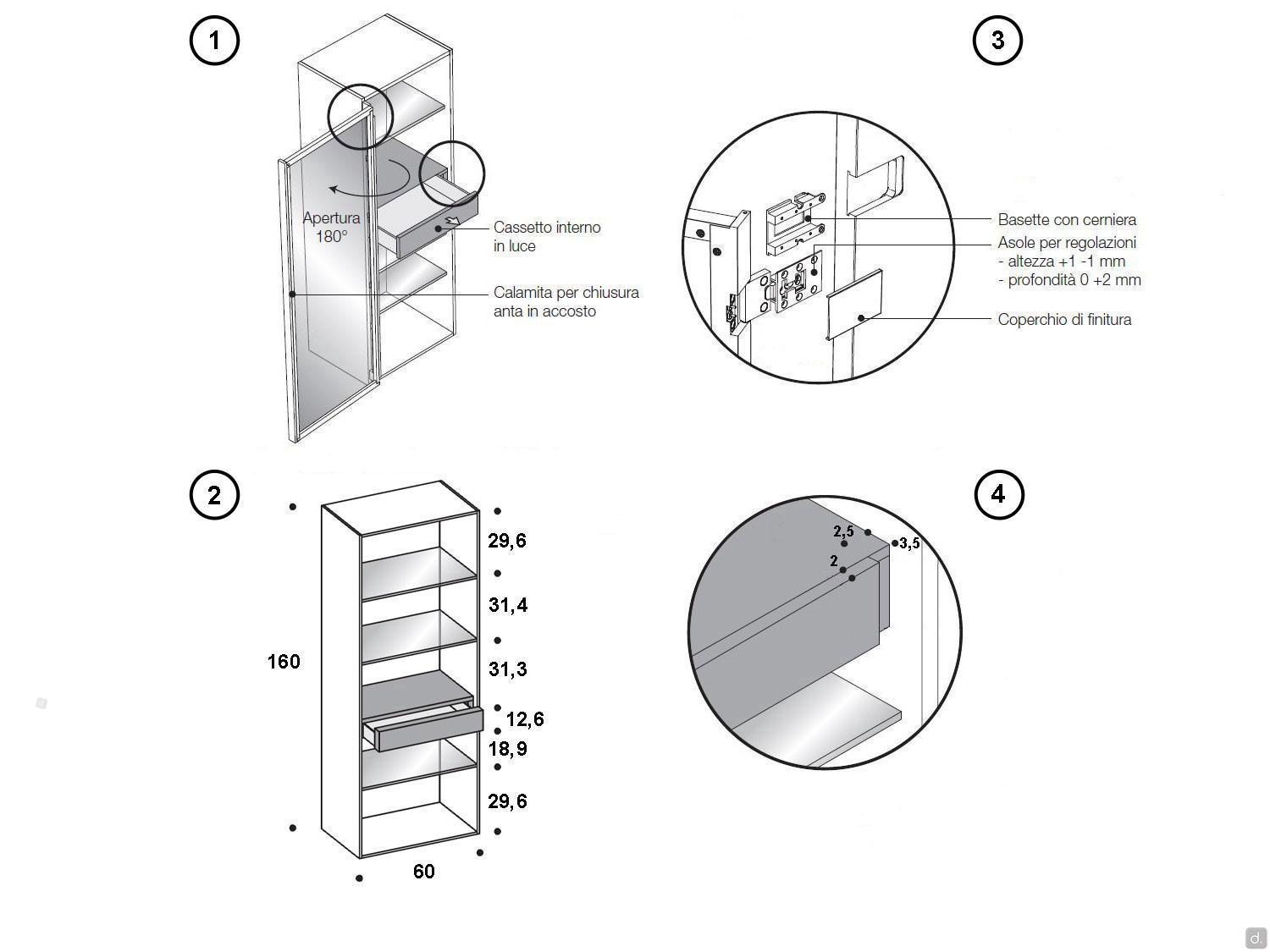

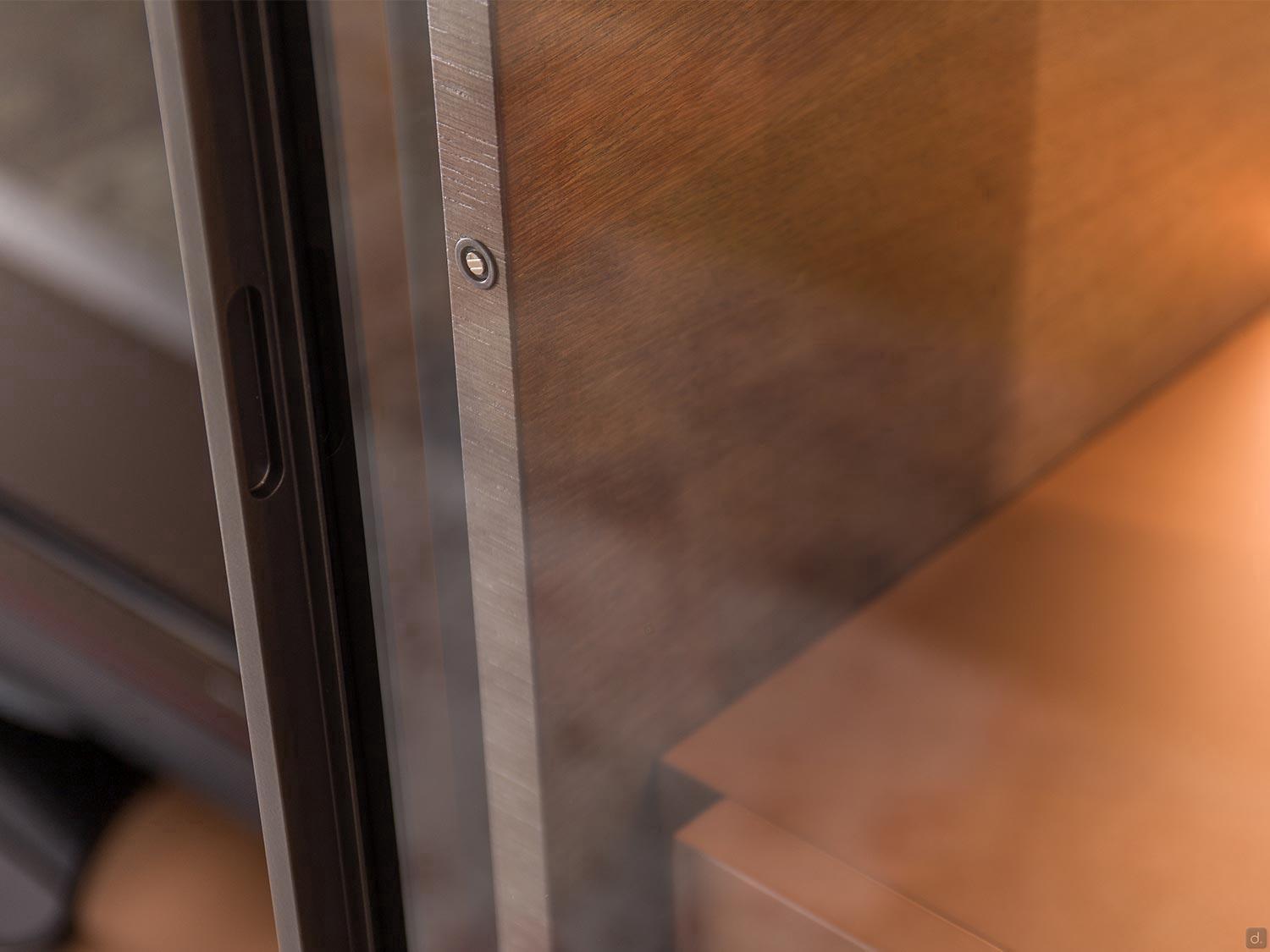

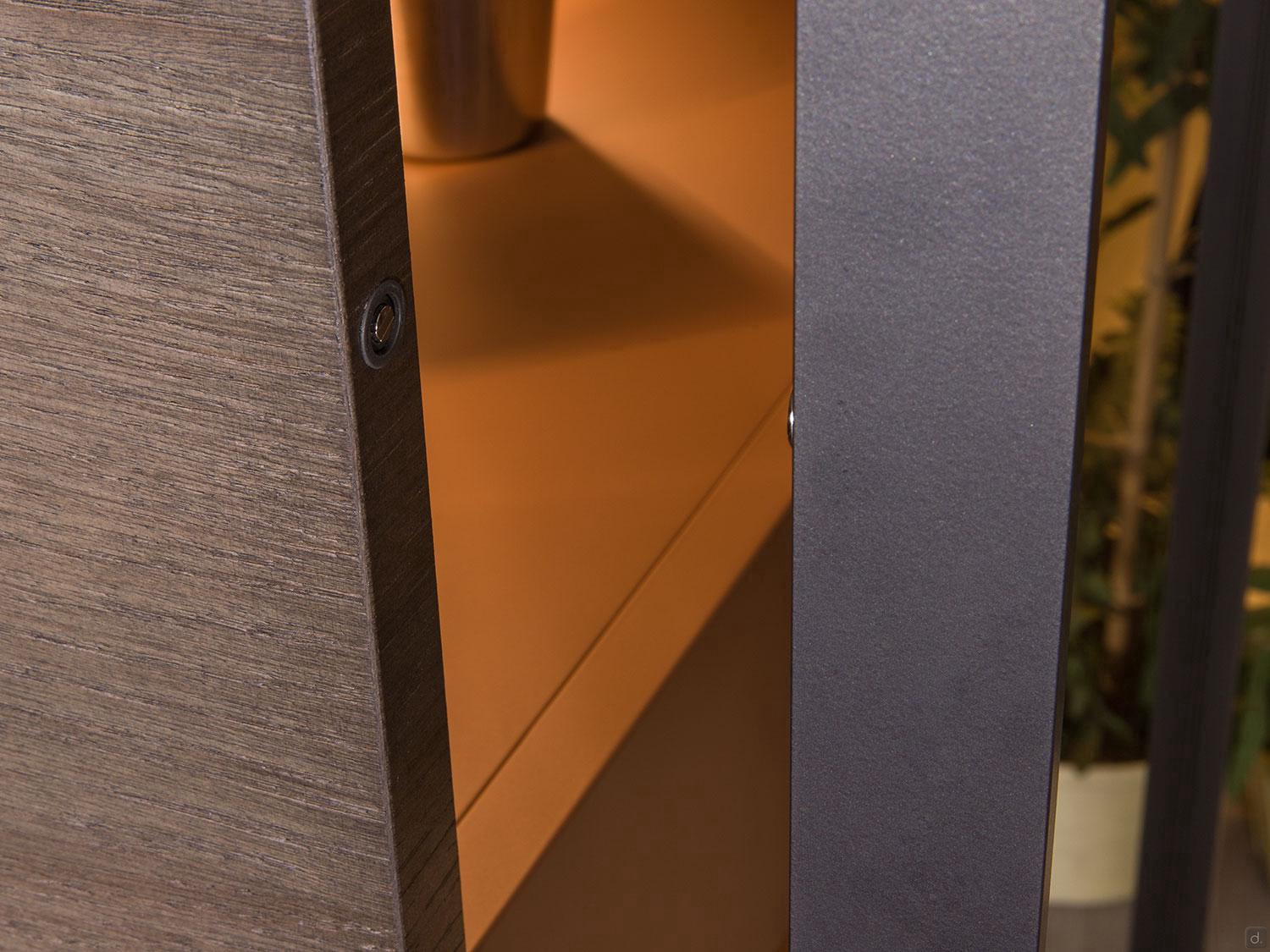

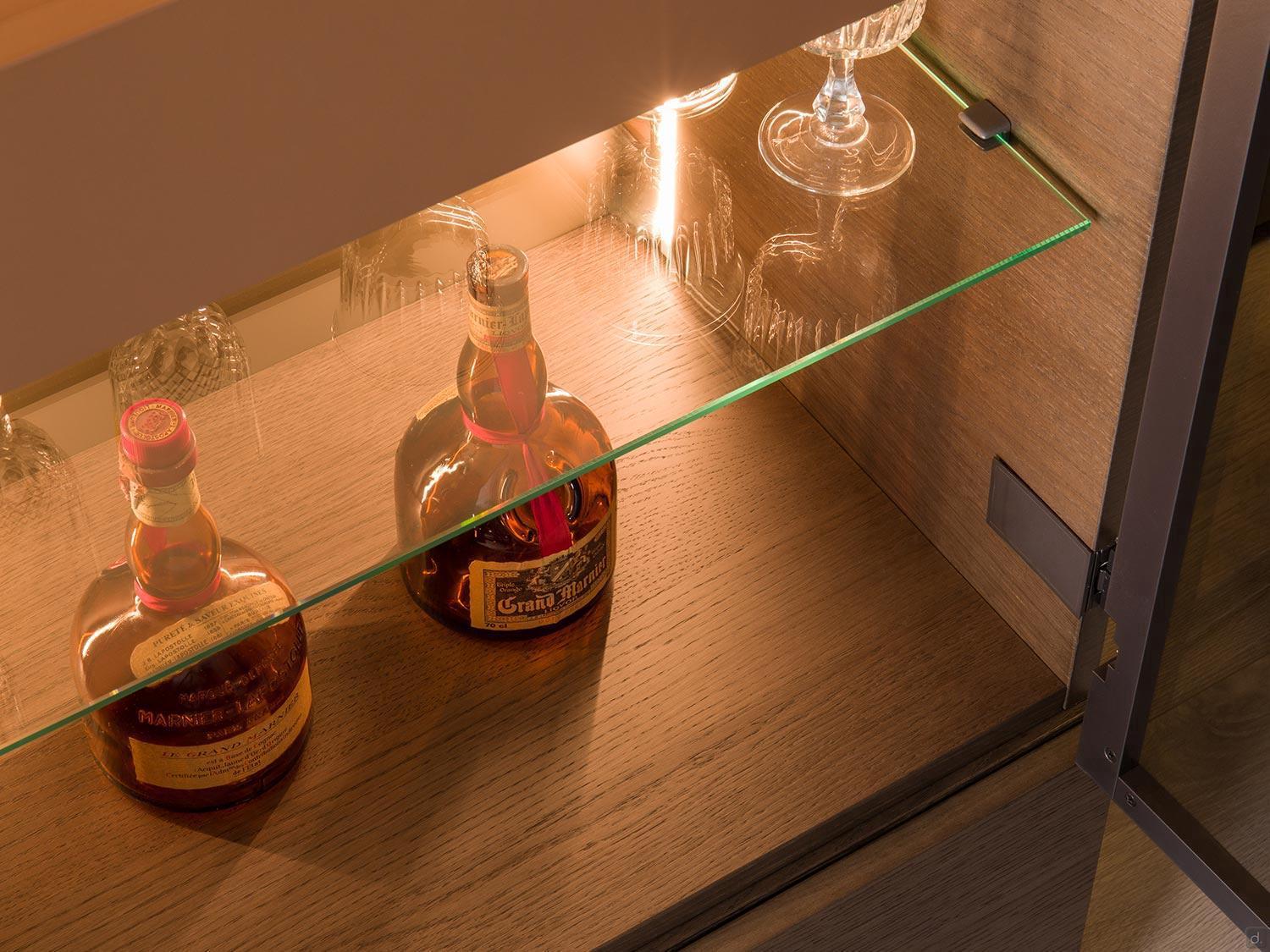

Wall Unit Display: structure in 2 cm thick particle board panels, 3.5 cm thick glass door with 3 internal glass shelves and 1 internal drawer cm 55 d.46,5 h.12,6 in melamine, matte / metallic lacquered or wood veneer with matching lacquered back. Opening system with magnet for closing in combination with 180° door opening.

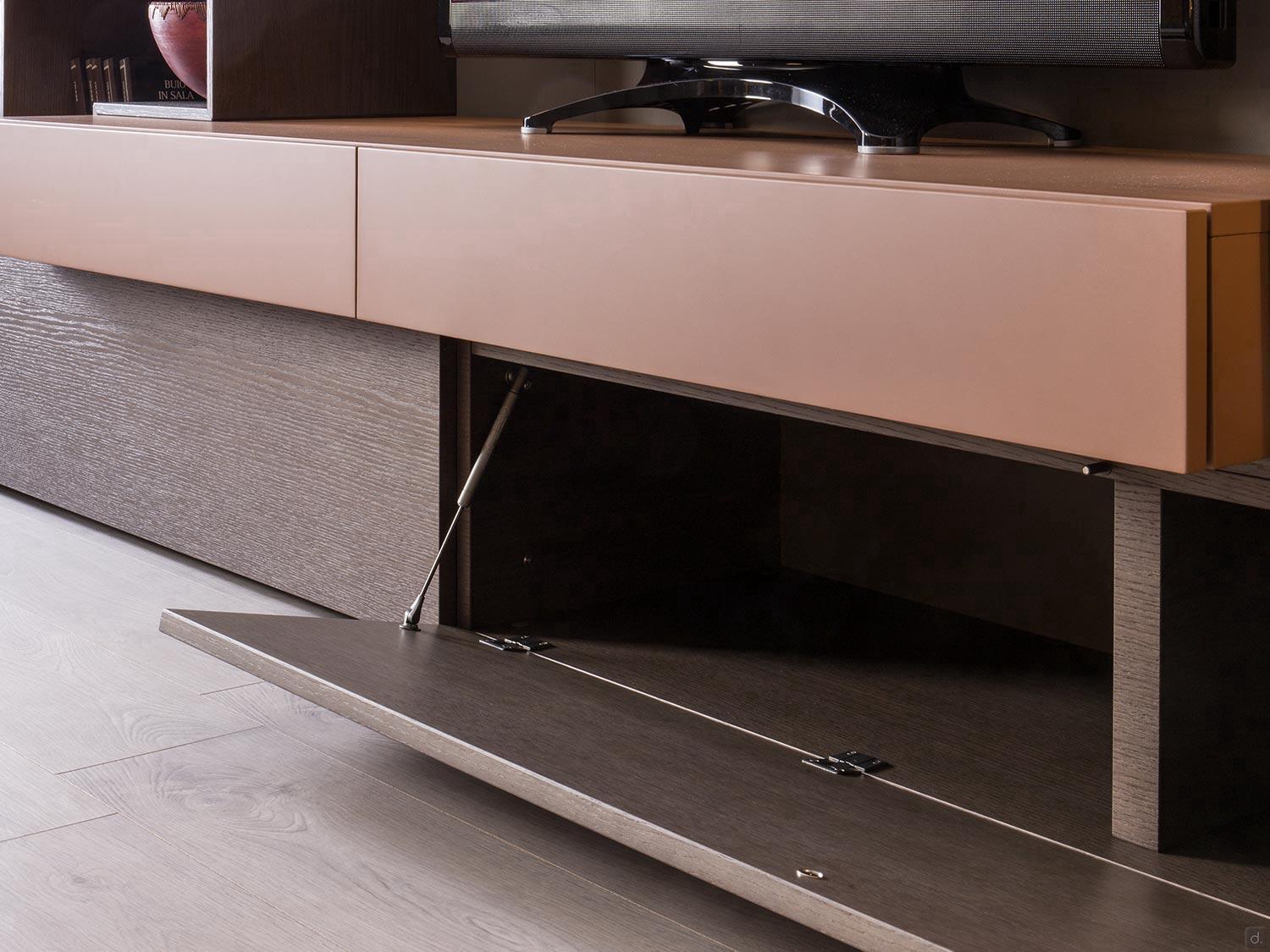

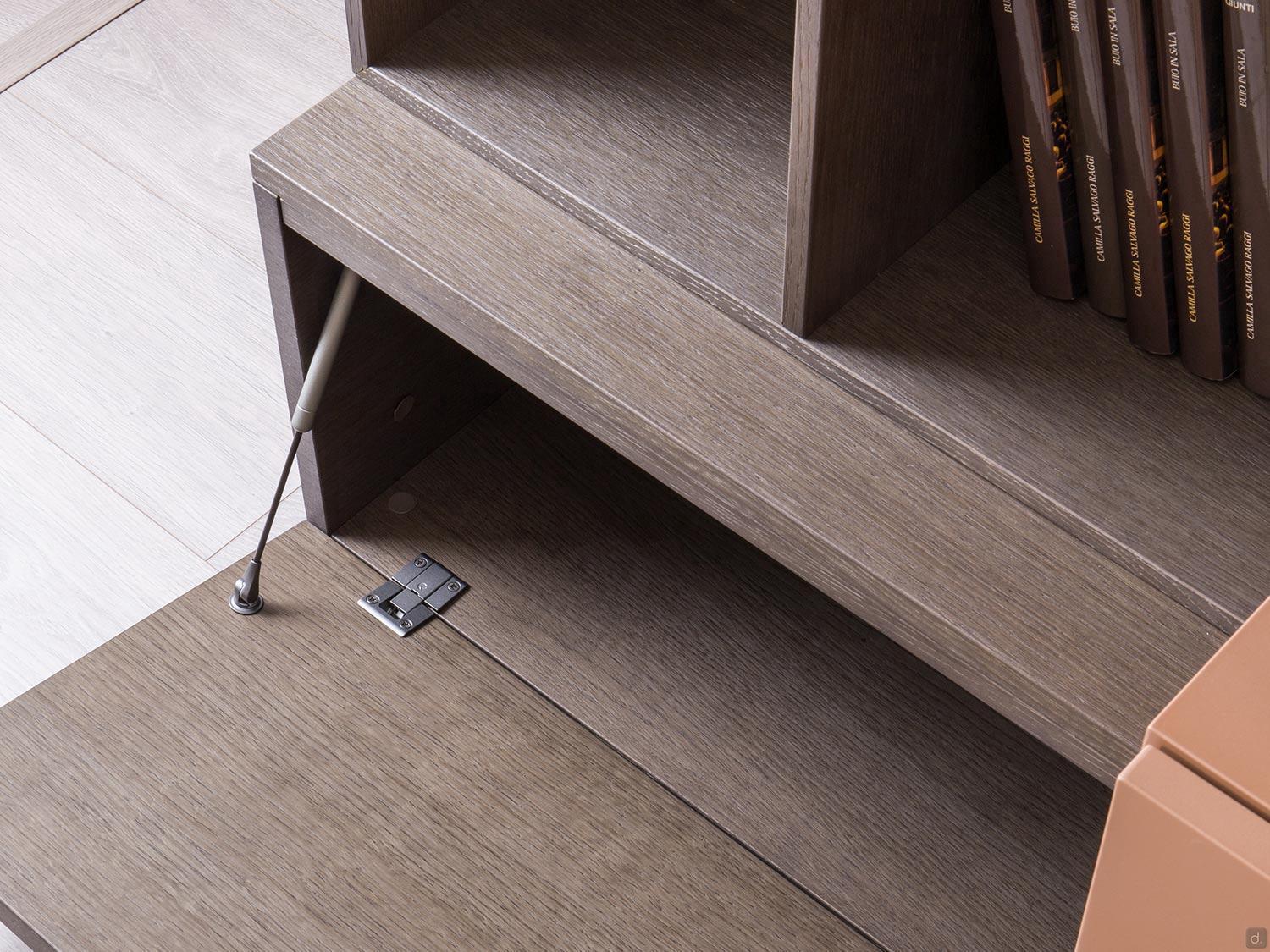

Drop-Down Bases: equipped with special hinges for door rotation, with 45° edge, recessed in the thickness of the structure and front. Also equipped with a mechanism to cancel the weight of the door when closing and guarantee minimum effort for the person during use.

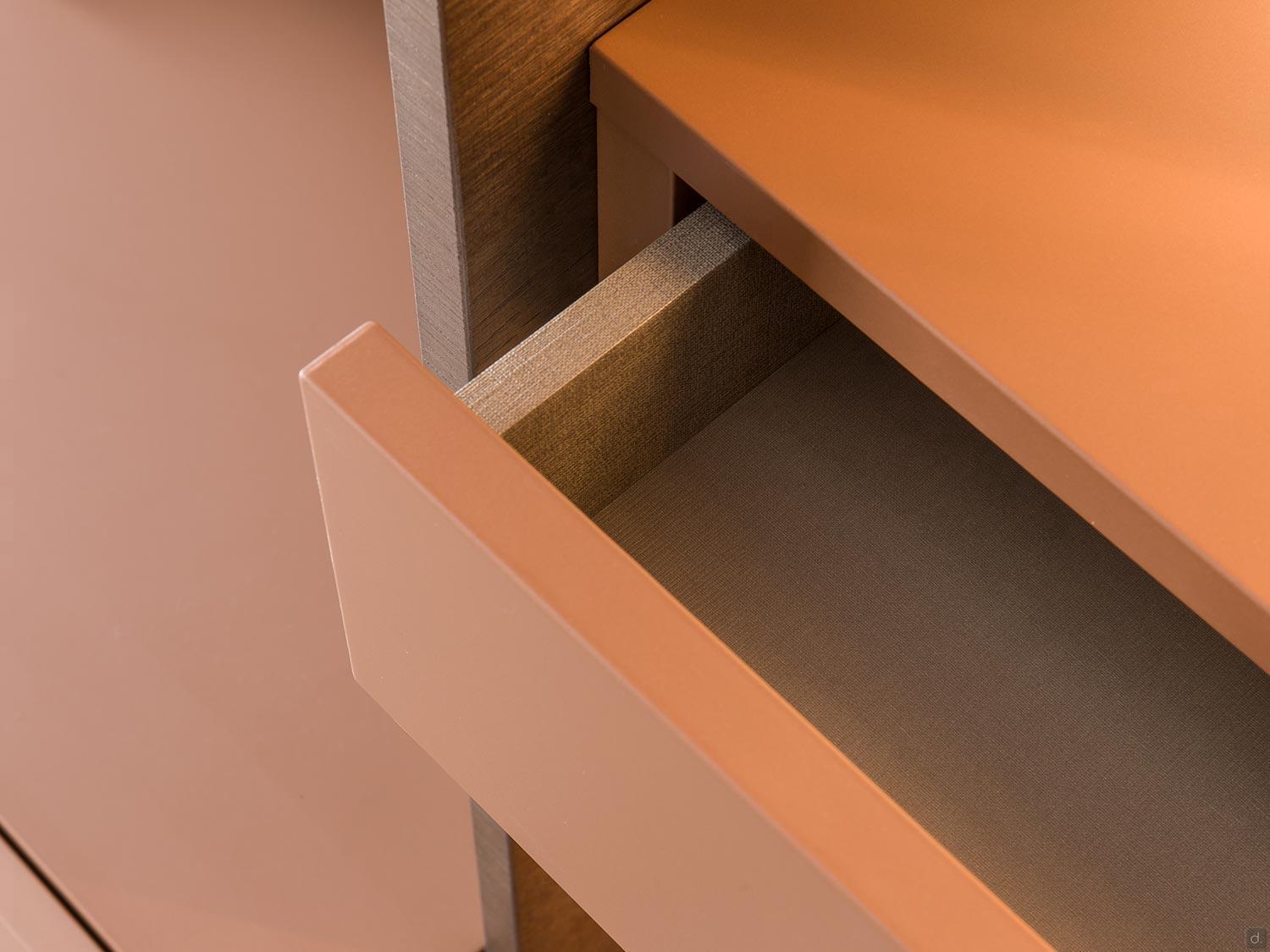

Base with Drawers: 2 cm thick particle board panels. The drawer sides are made of 1.4 cm thick particle board panels with a Jute-textured covering and are mounted on high-slide metal runners with an anti-block and cushioned return mechanism, with a puch-pull opening system.

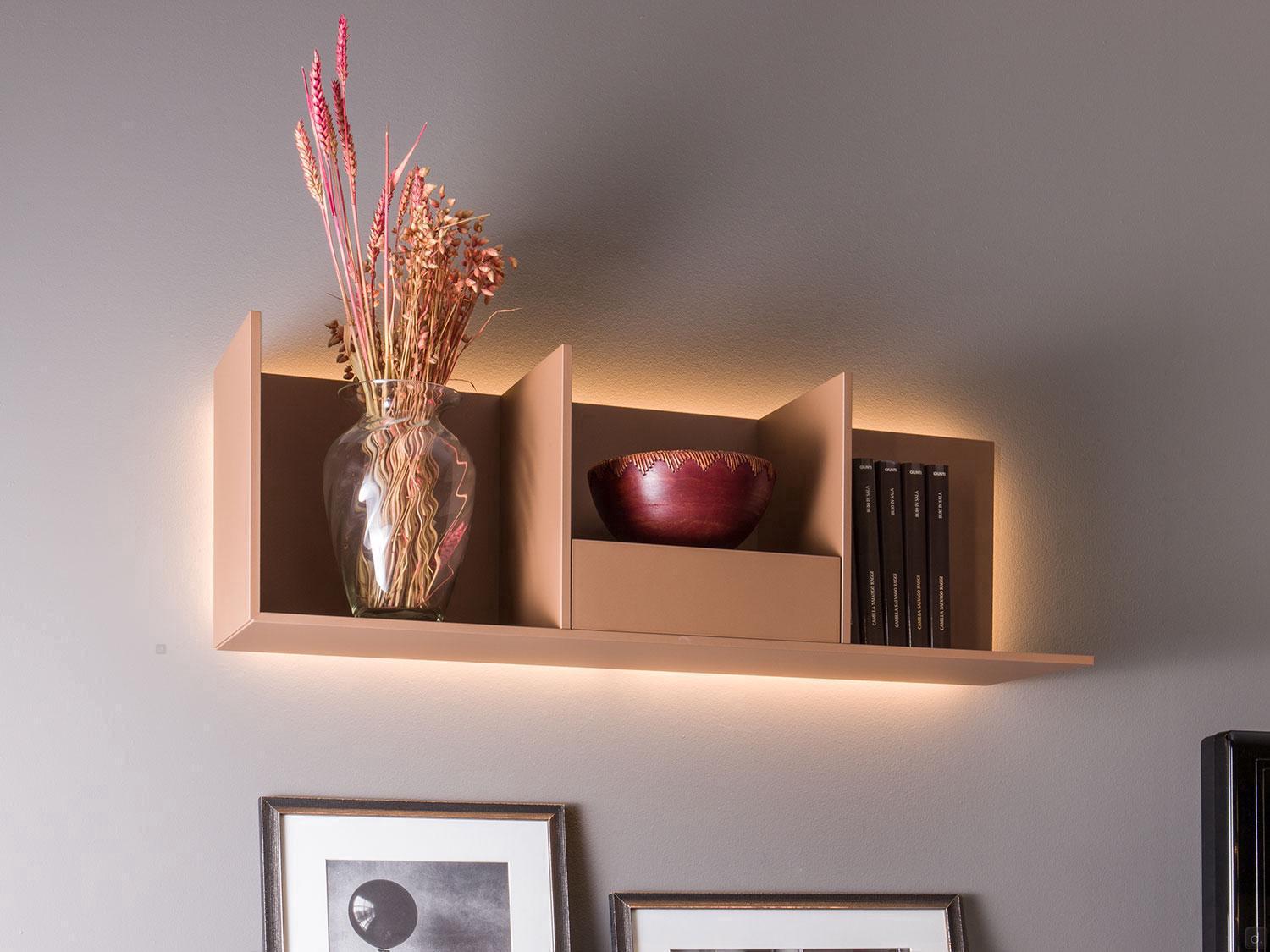

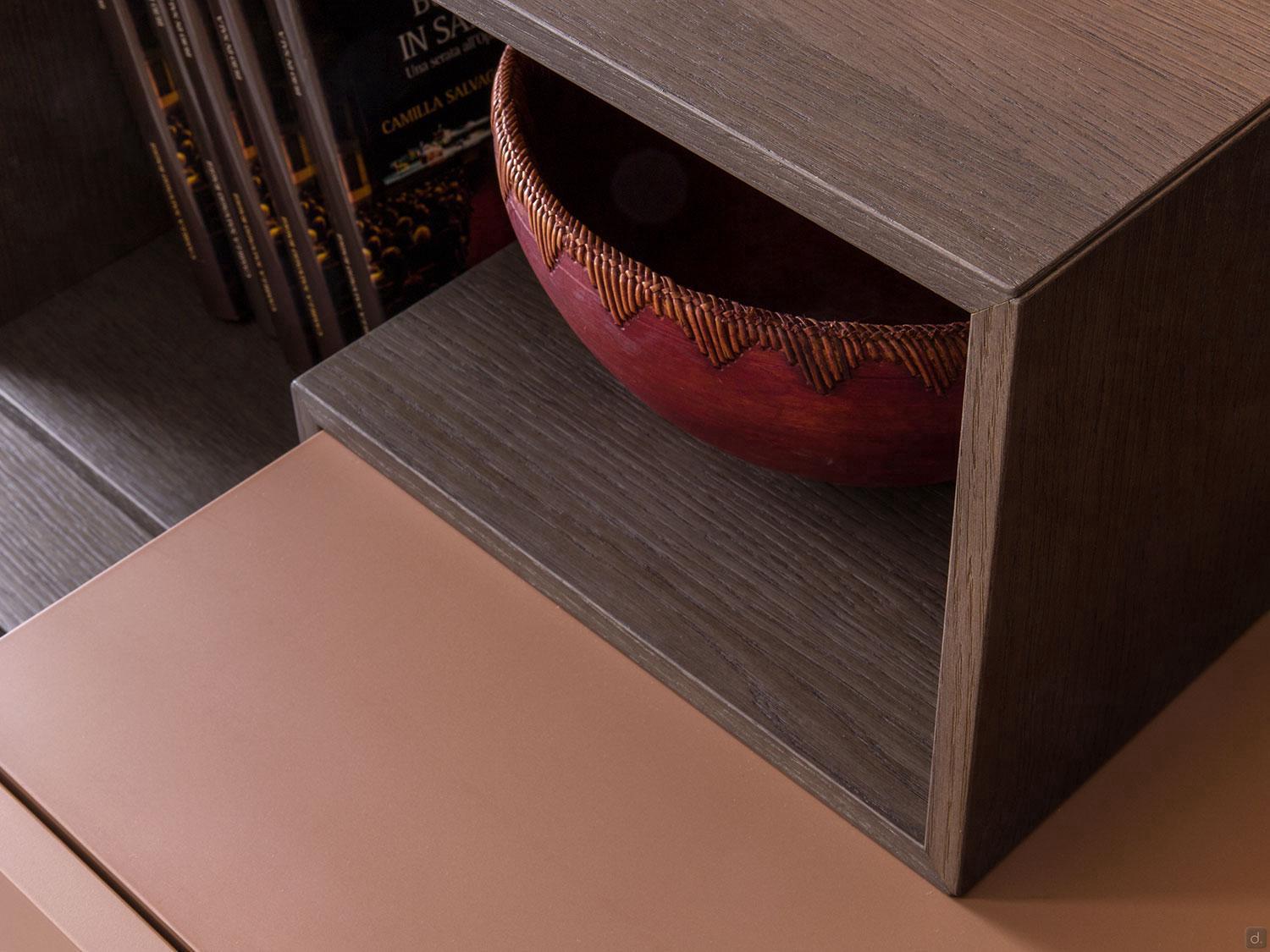

Cube wall unit: made of 1.5 cm thick particle board panels; horizontal panels joined to vertical ones by means of a 45° joint with 2x2 mm "wire breaker".

Optional

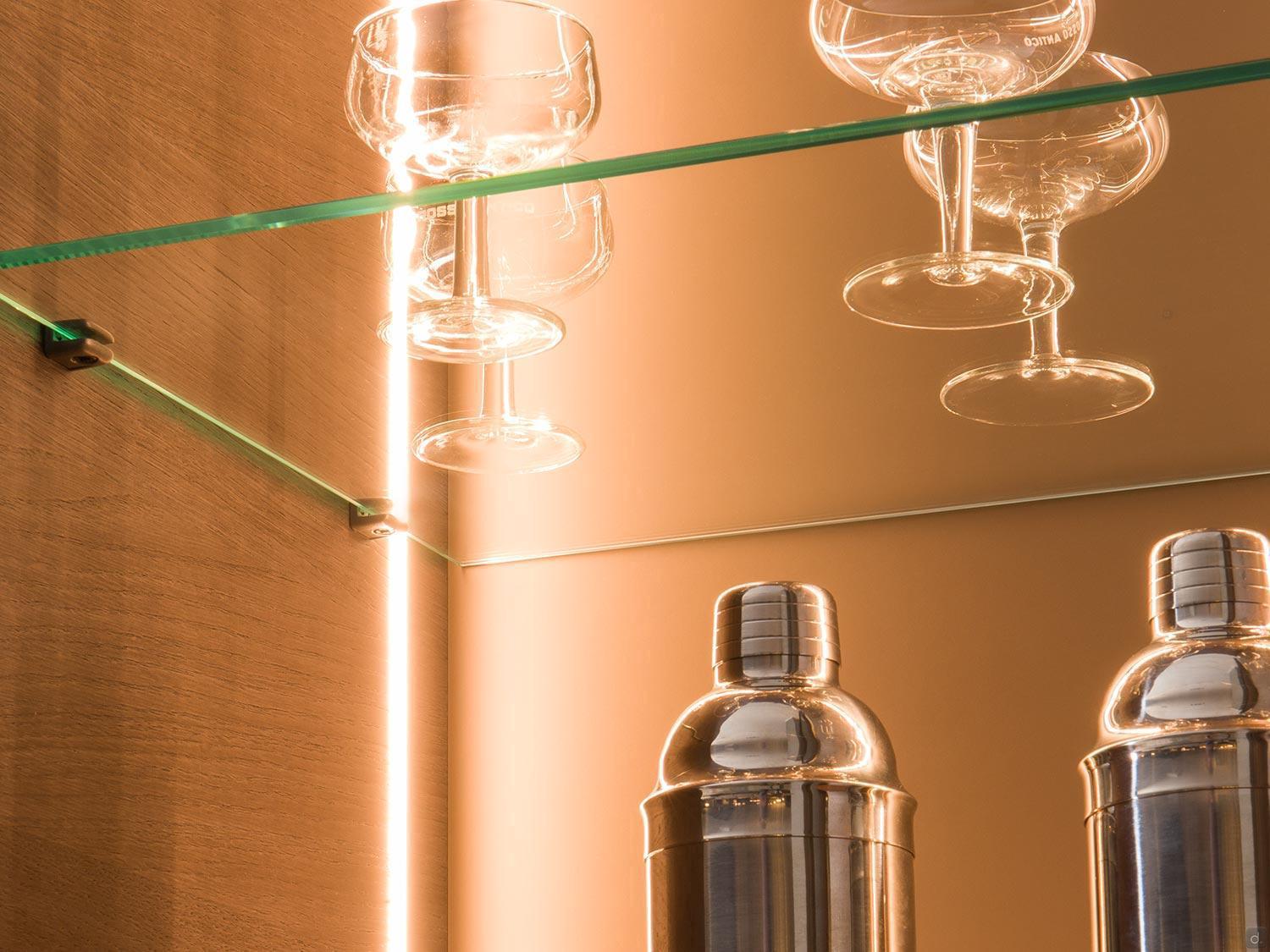

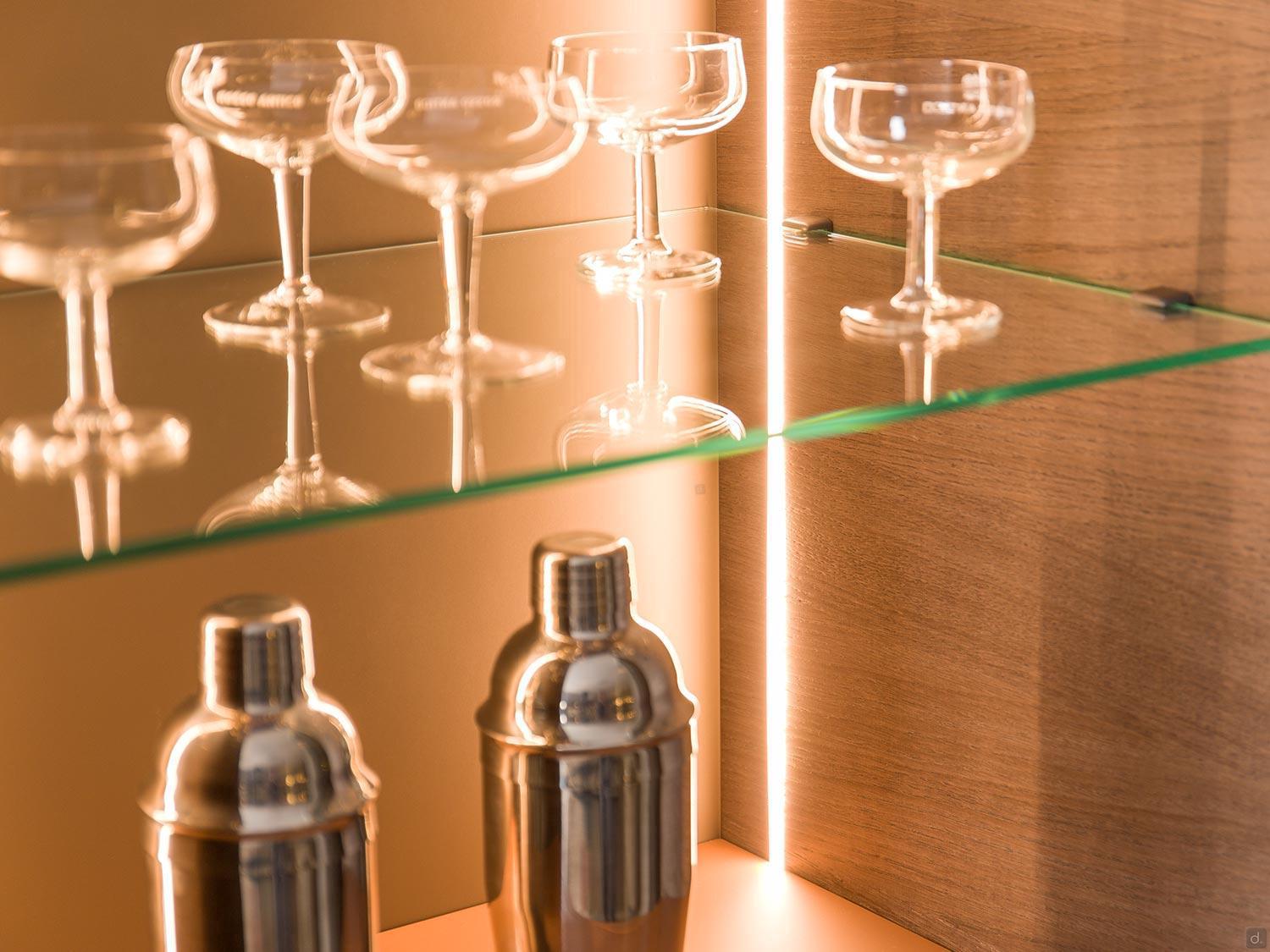

Vertical recessed LED bar for Display Cabinet: from 30W, complete with power supply unit and recessed in the back of the MDF panel. 3000K light diffused on 2 sides, remote control switch available as an additional option.

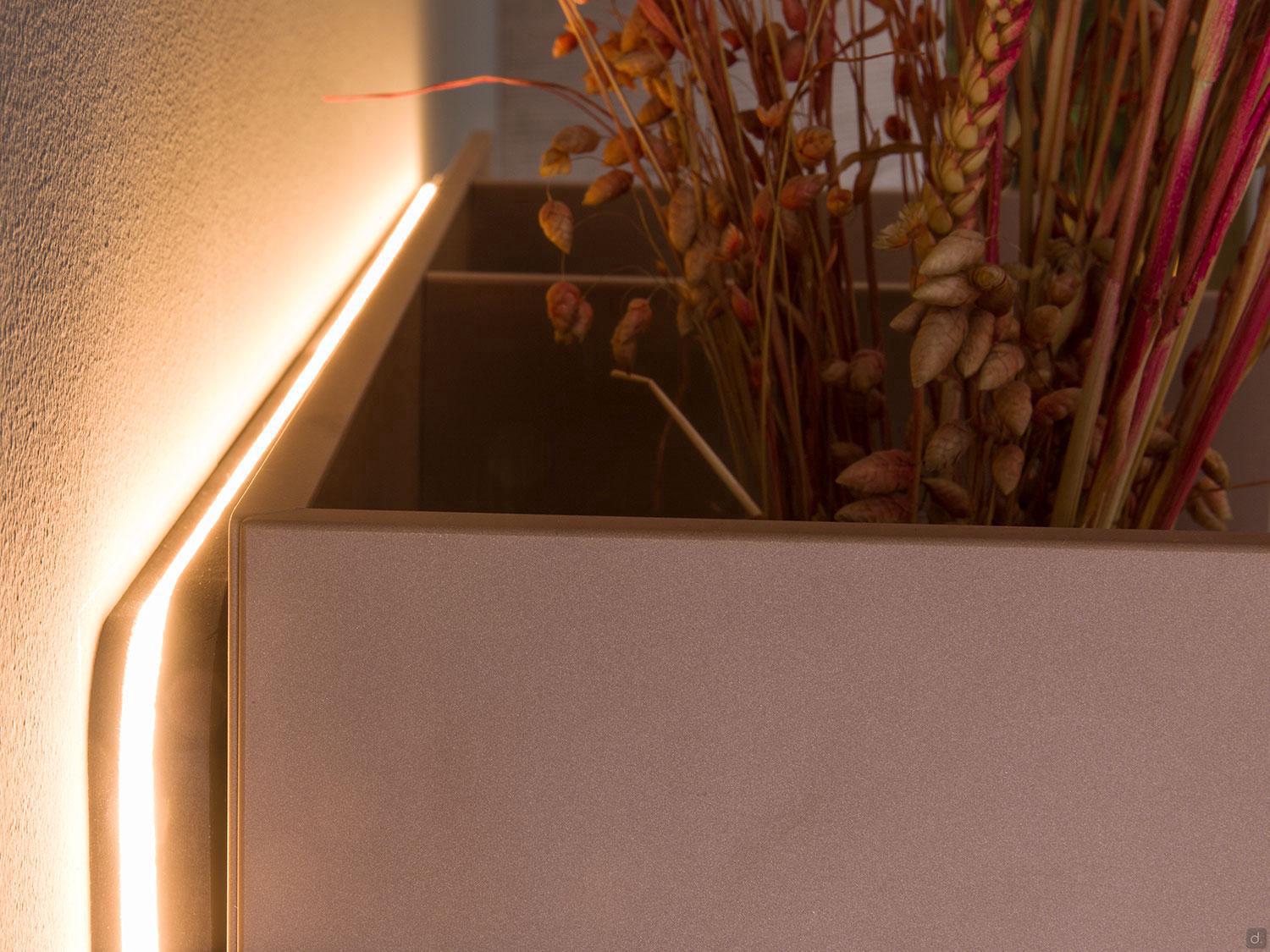

LED bar for open wall unit with drawer: from 22W, complete with power supply and recessed in the back of the MDF panel. 3000K light diffused on 4 sides, remote control available as an additional optional extra.

Video

Additional Information

Area of Production
Italy
Assembling
Medium Assembling
