Technical Specifications and Equipment

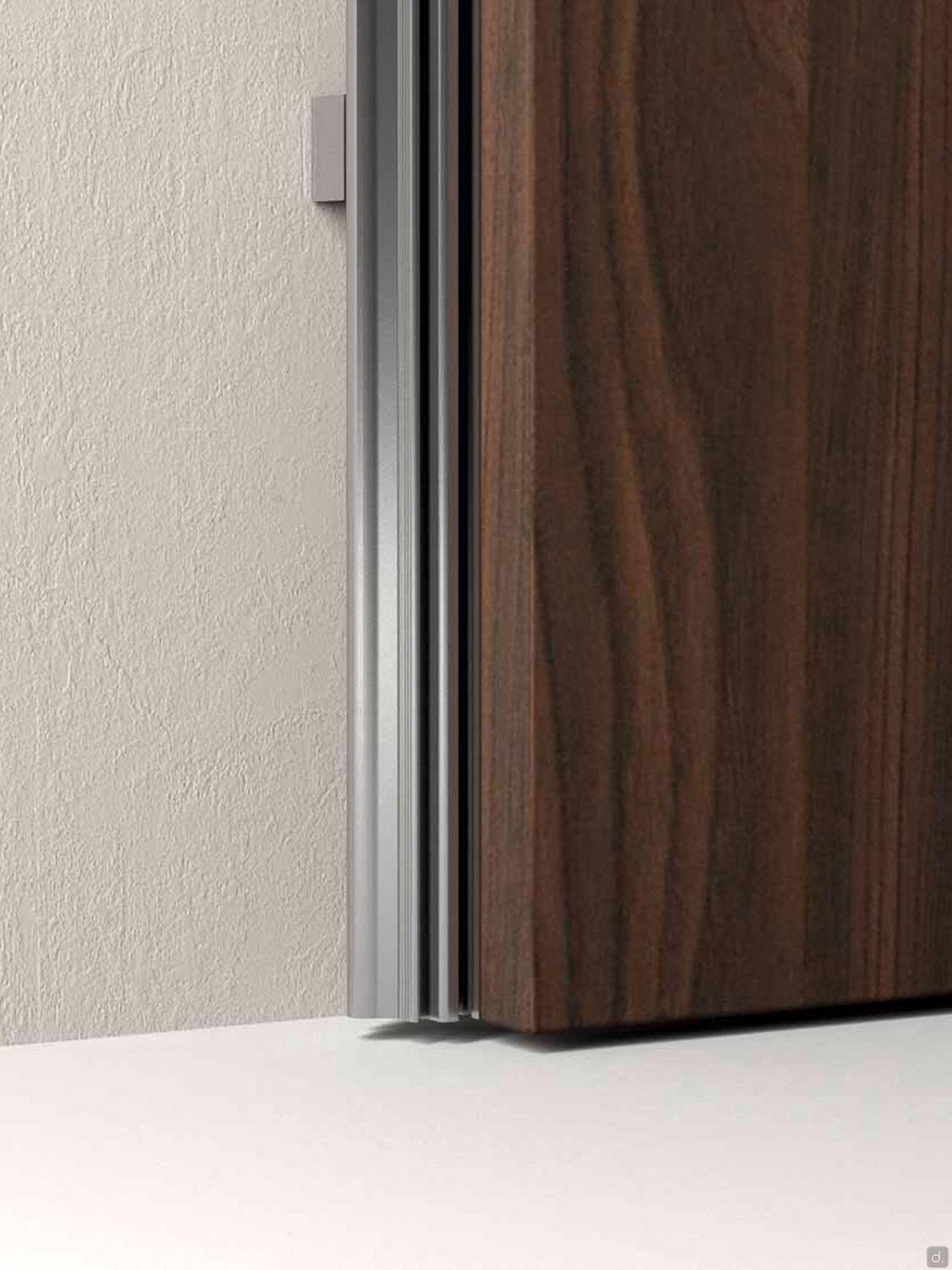

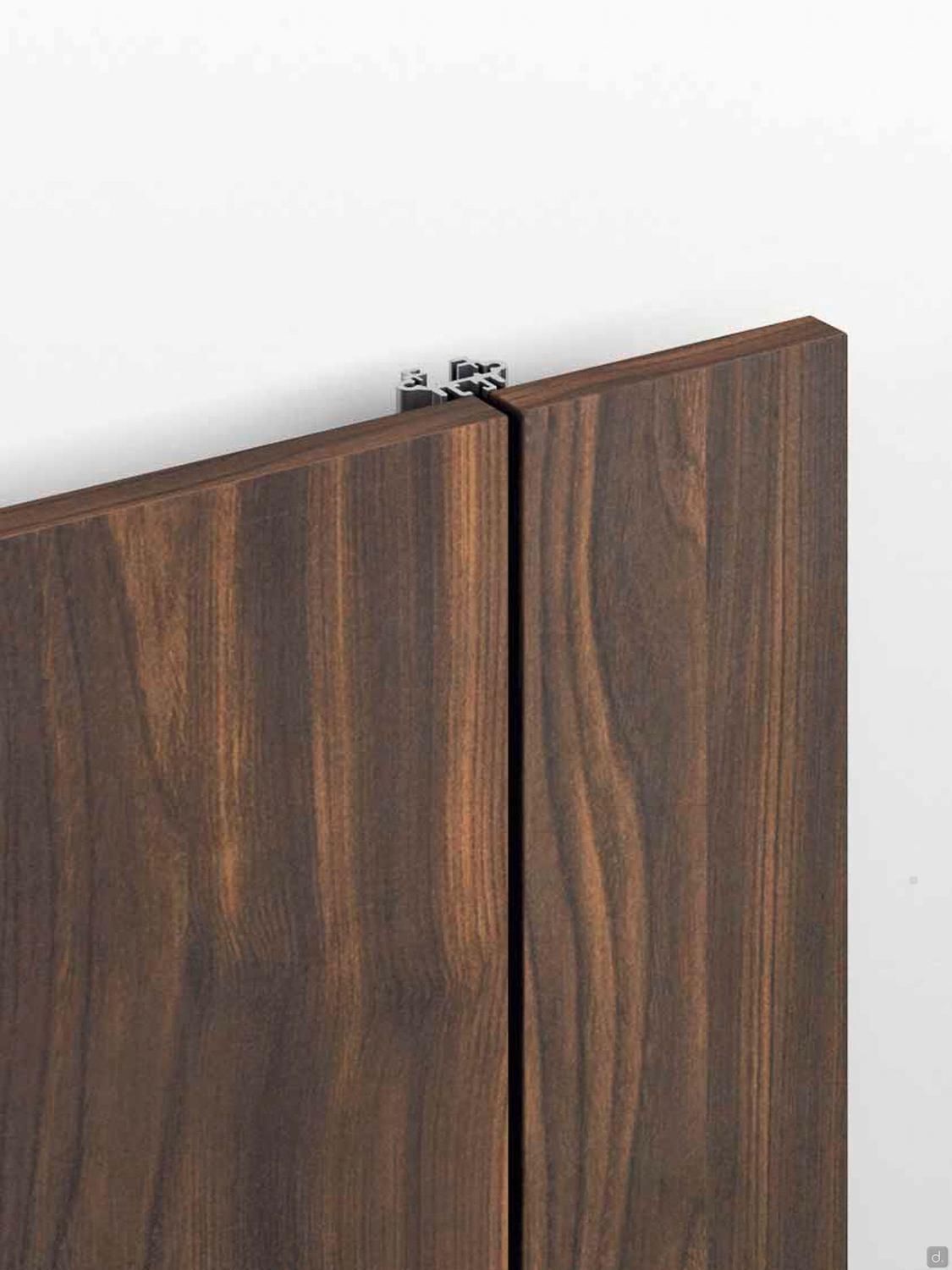

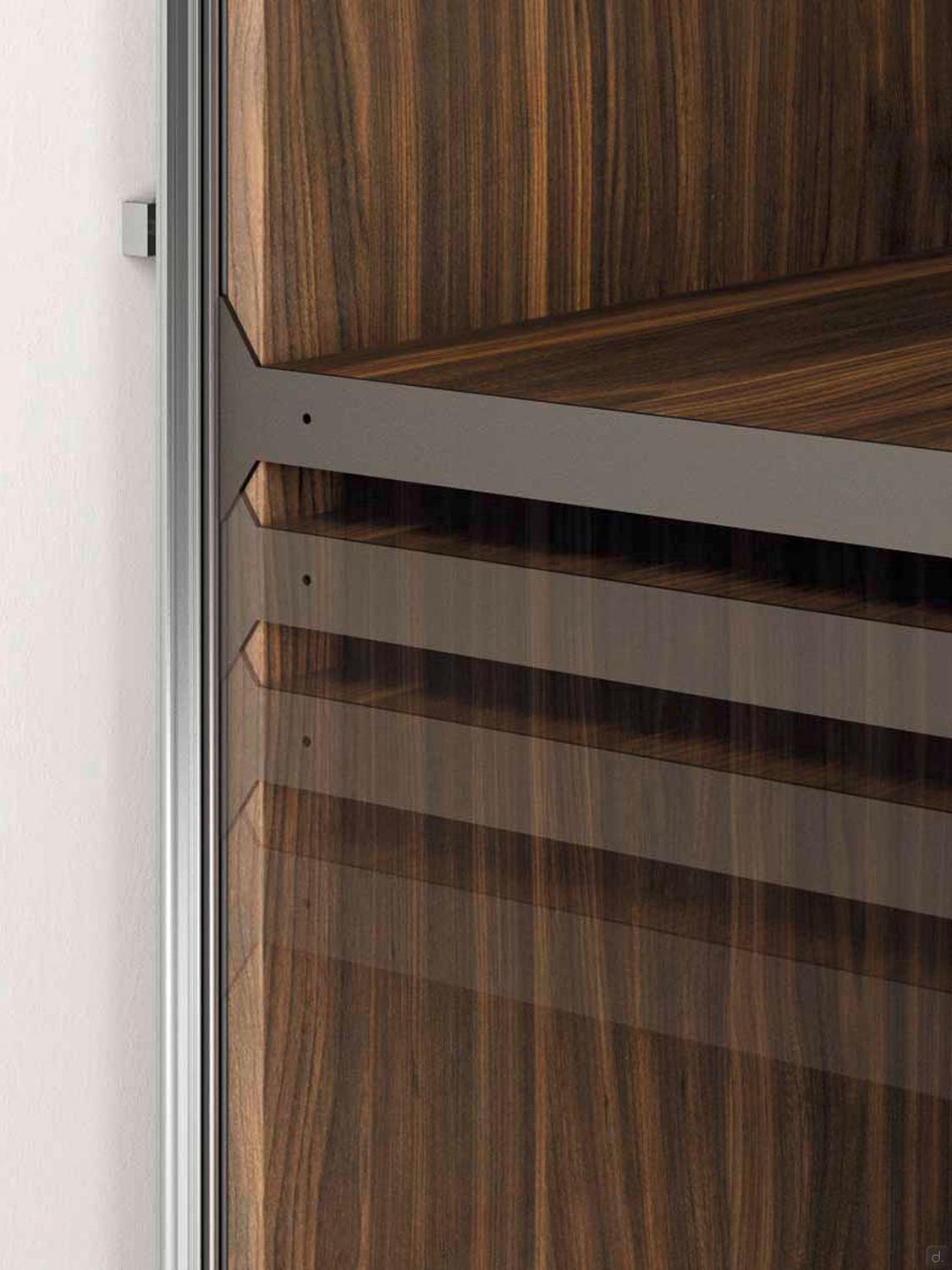

Rack Profile: cm 3,5 d.4,2 h.242,8 shaped with 3,2 cm spacing between hooks for free positioning of equipment. In a brown aluminium finish, also available with electricity supply (in the presence of accessories with LED bars).

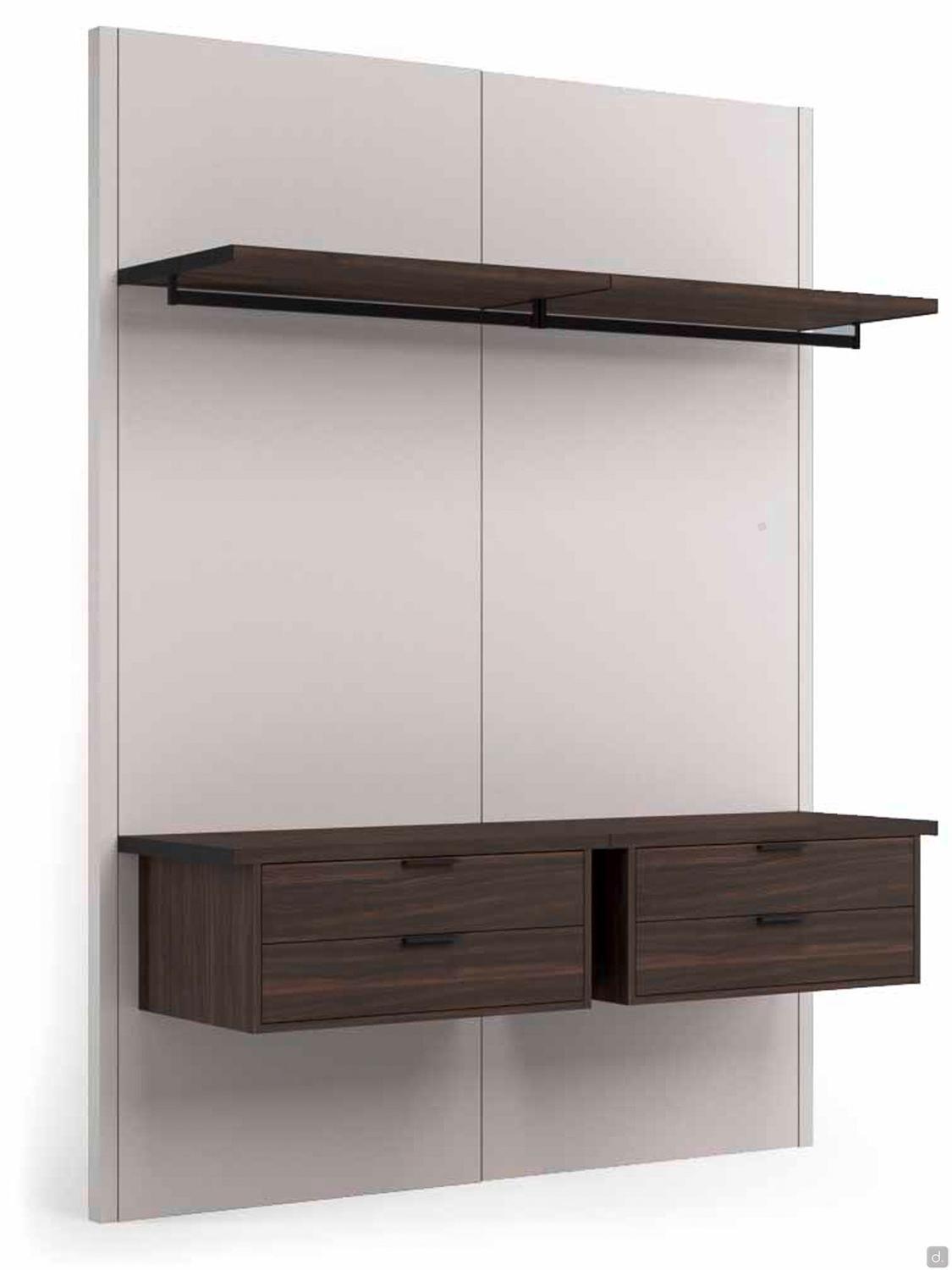

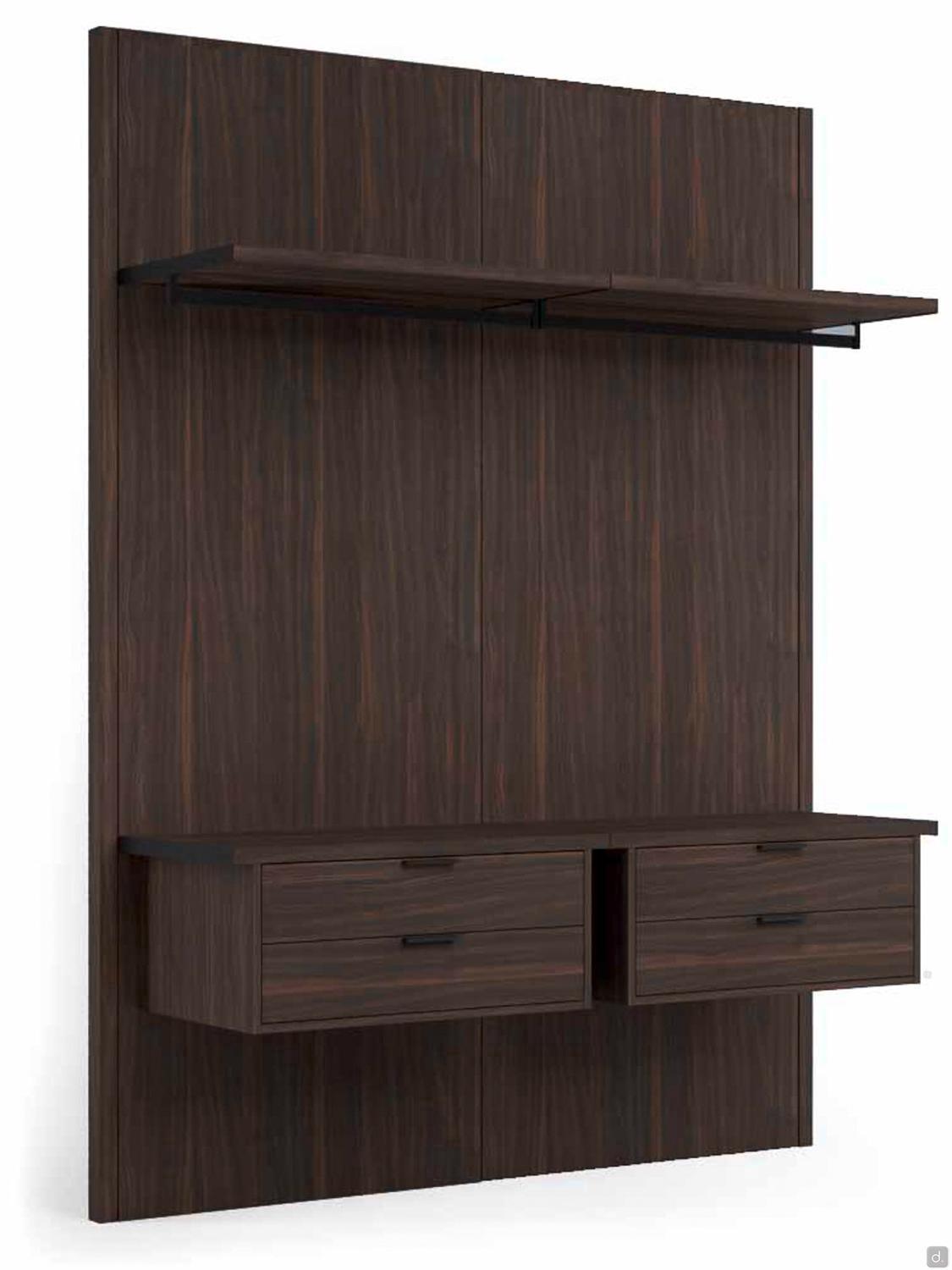

Panel: cm h.242,4 th.1,8.

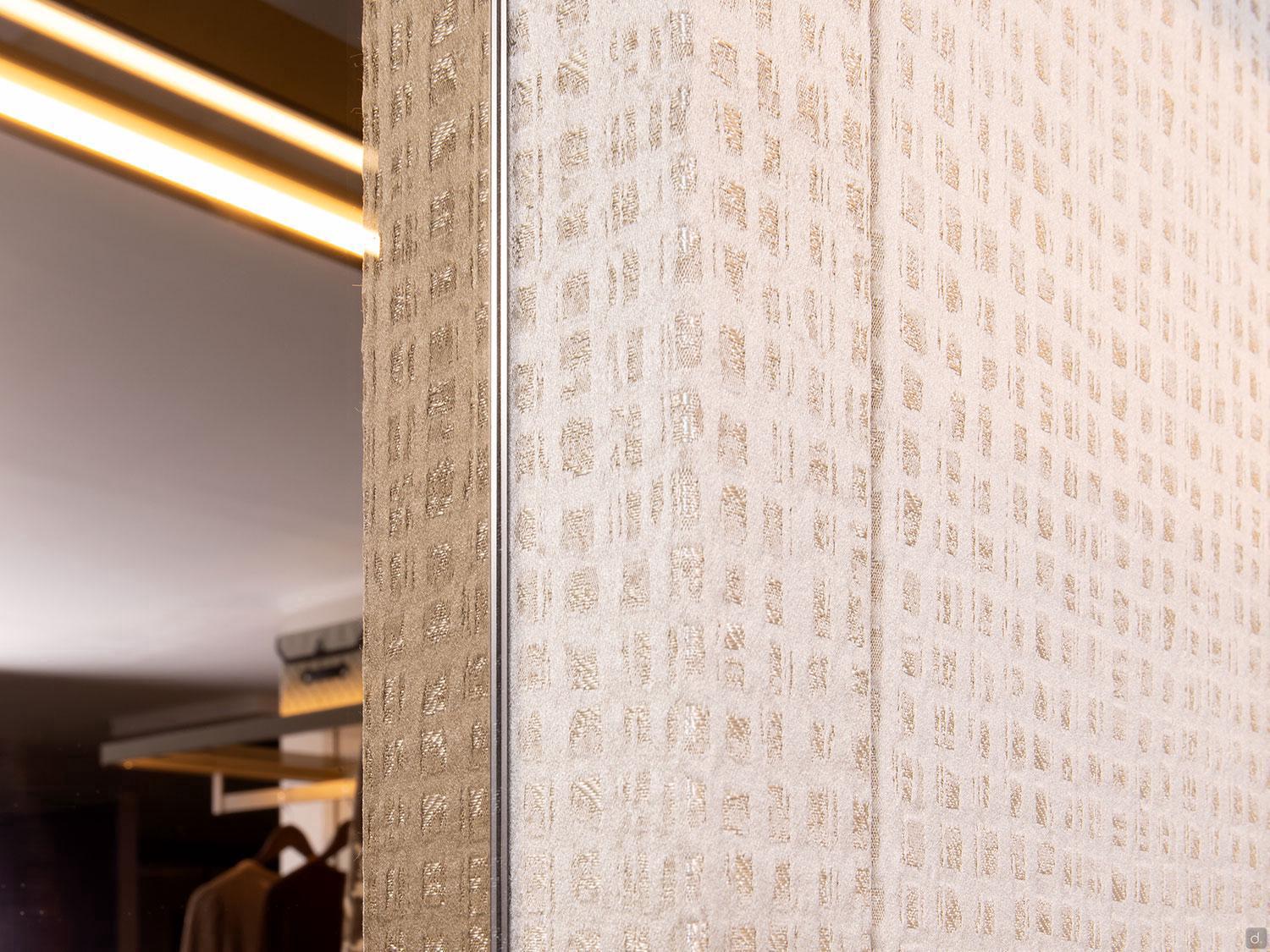

- wood version: in melamine-faced MDF, matte lacquered or metallic, veneered in open-pore oak, aged oak or covered in fabric or faux leather.
- mirror version: 1,4 cm thick MDF panel + 0.4 cm thick natural, bronzed or smoked mirror.

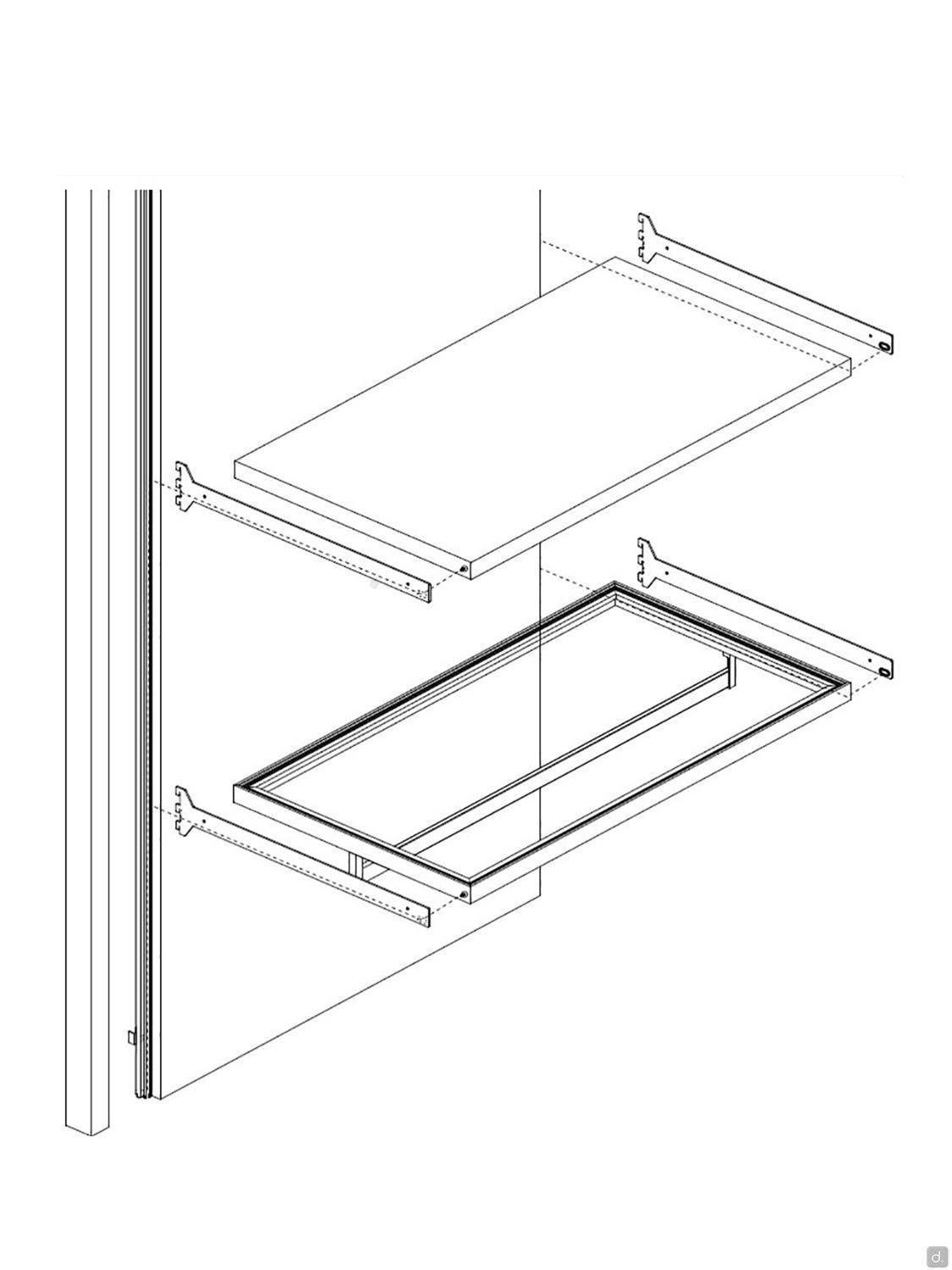

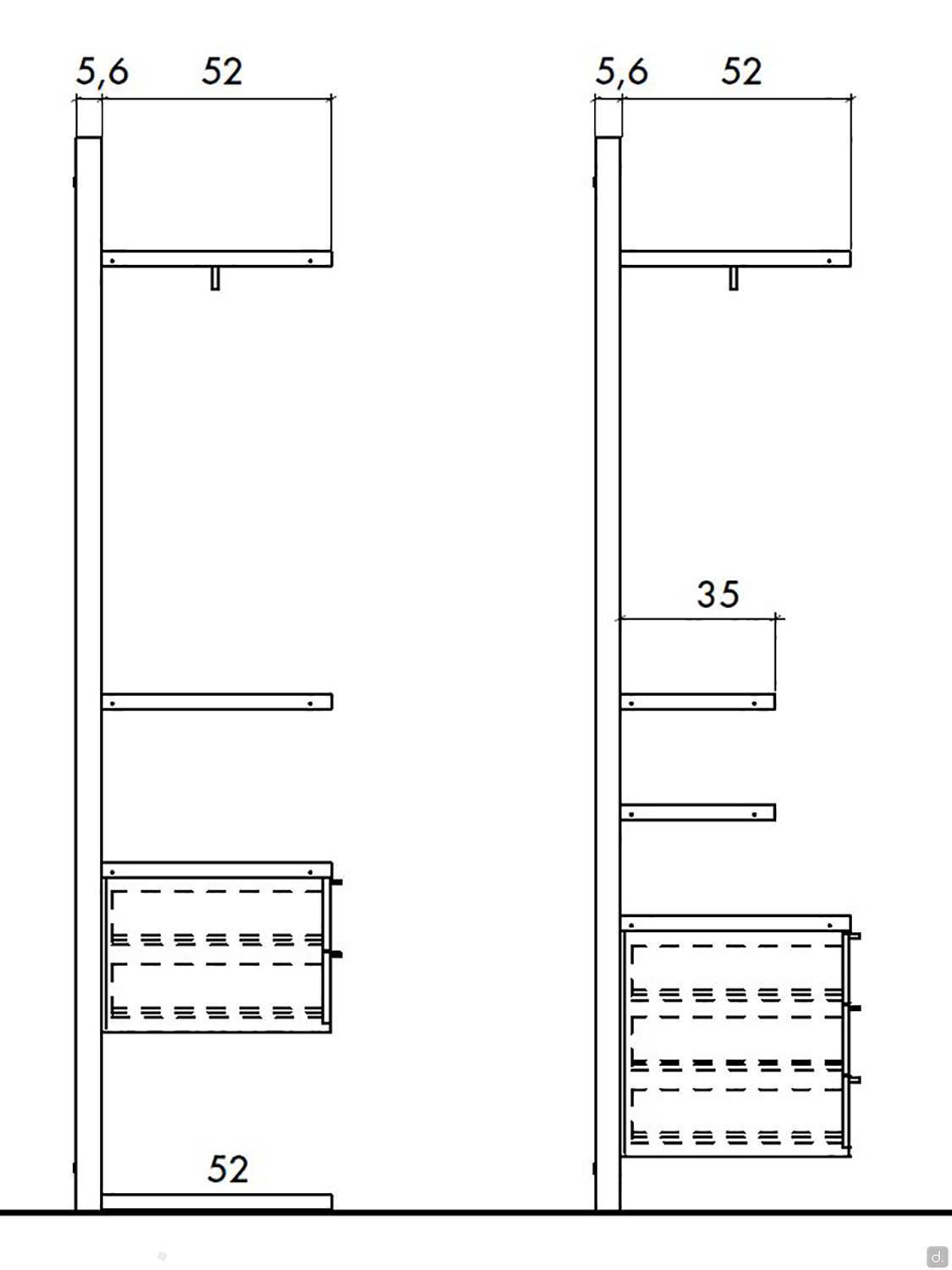

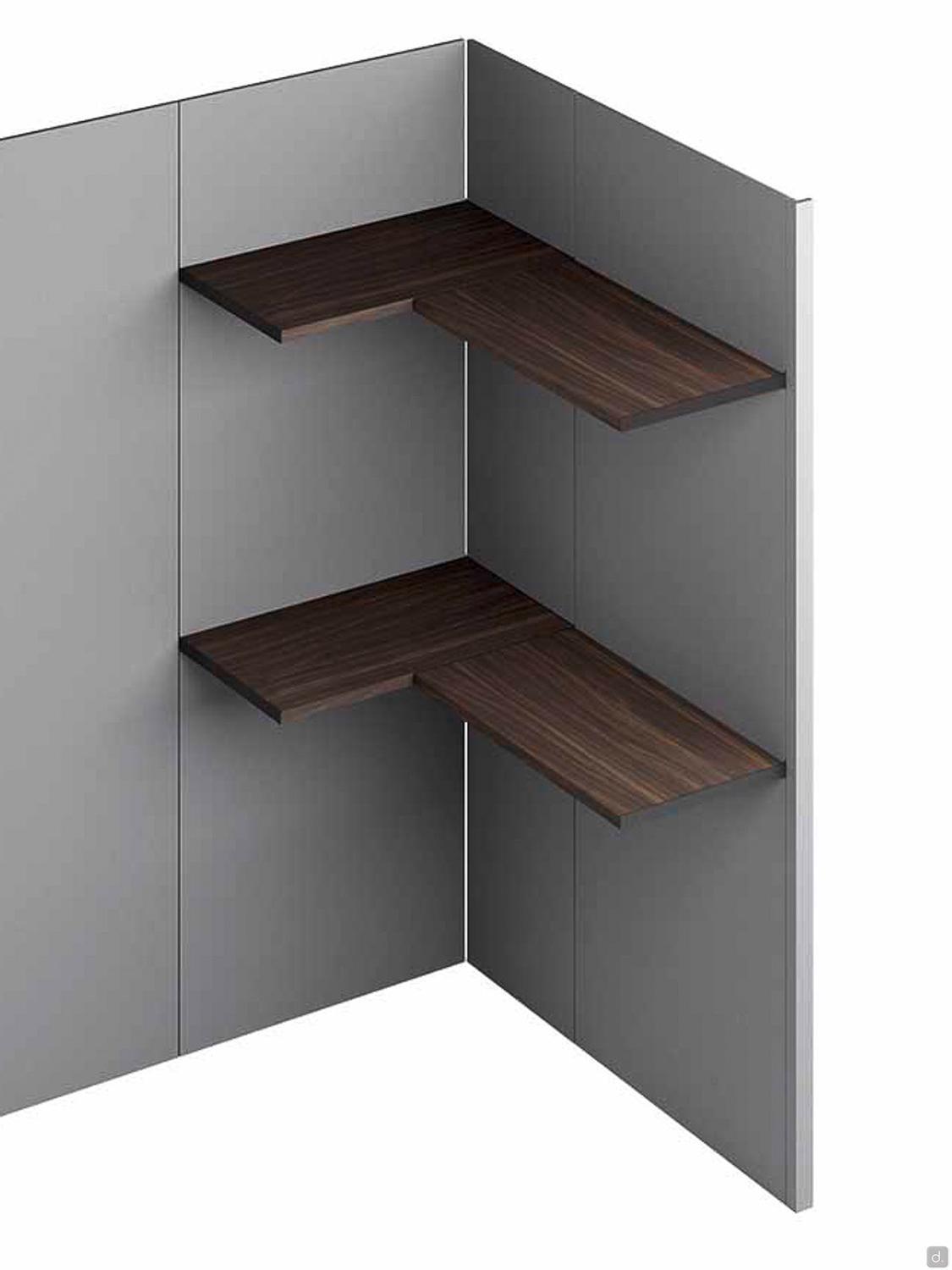

Shelf: panel that can be equipped directly in the product sheet with n.1, 2 or 3 wooden shelves (other equipment in separate sheet). In honeycomb-core wood with solid pine frame, 3.2 cm thick, available melamine-faced, matte lacquered, metal lacquered or open-pore oak wood, which can be equipped with a hanging rod or LED bar. Complete with 2 metal brackets to fix to the panel, which can be positioned every 3.2 cm along the rack.

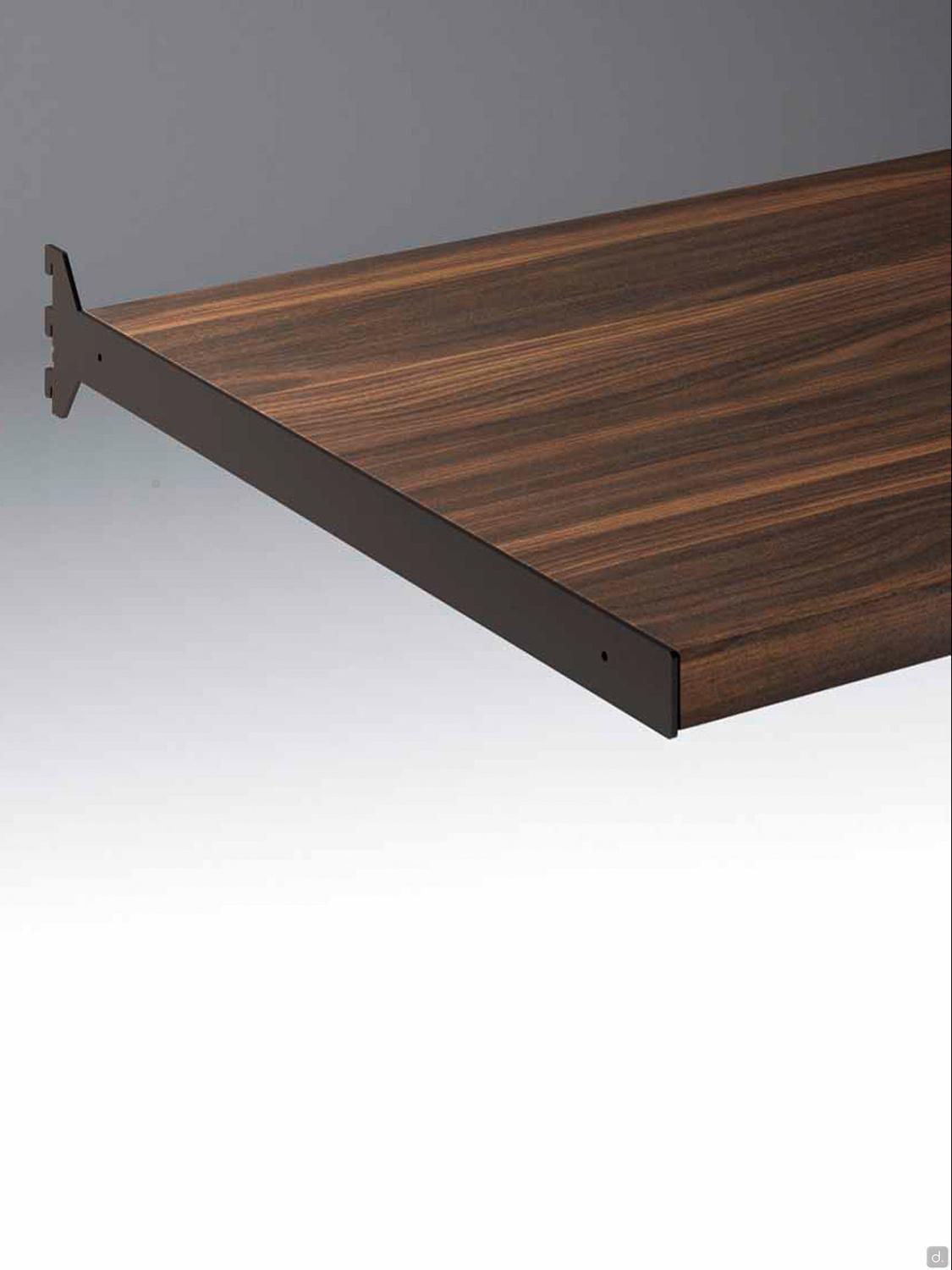

Shelf Brackets: in brown painted metal or lacquered metal, cm th.0,3 d.35 / 52 depending on the depth chosen by configuring the back panel.

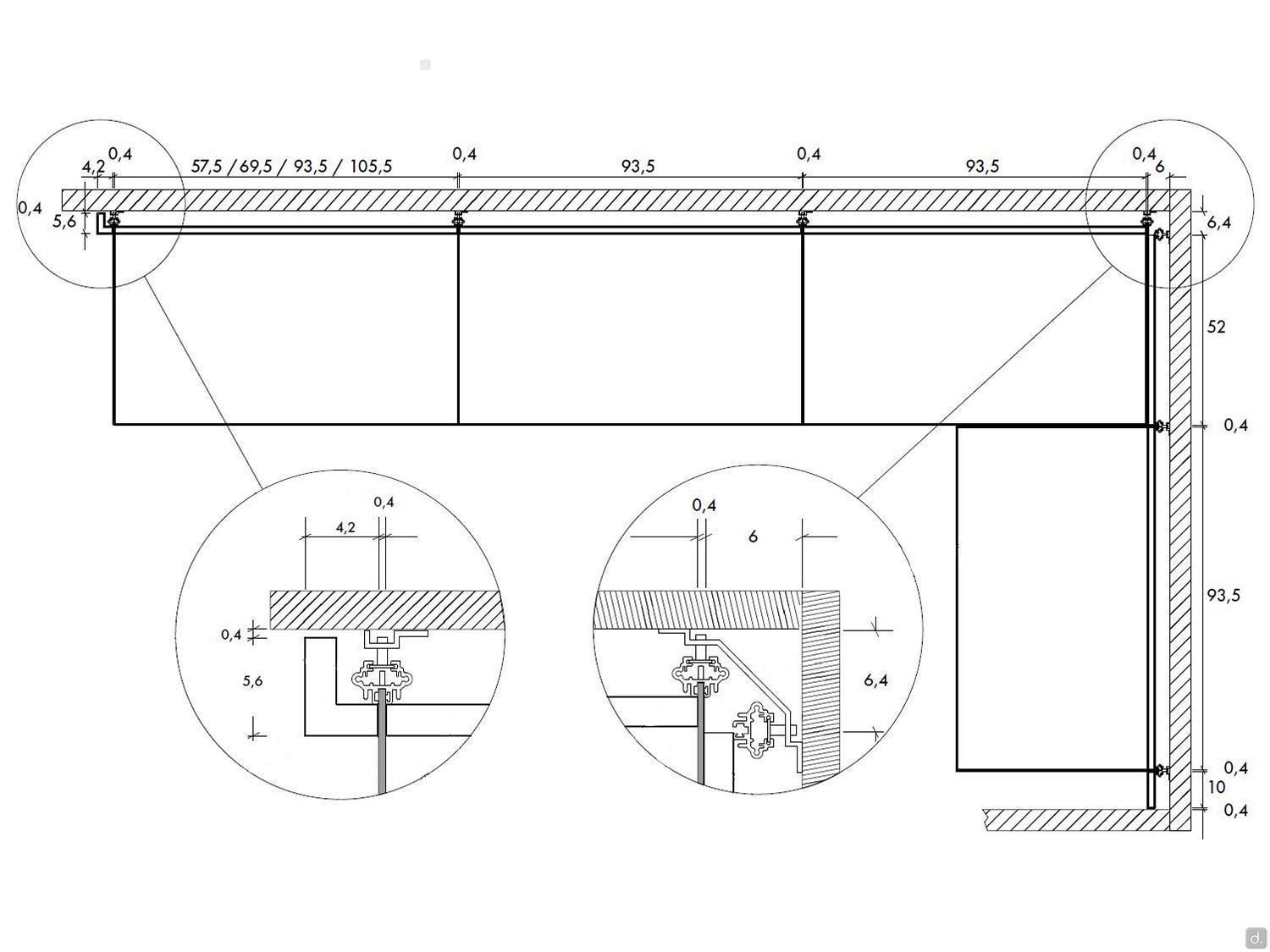

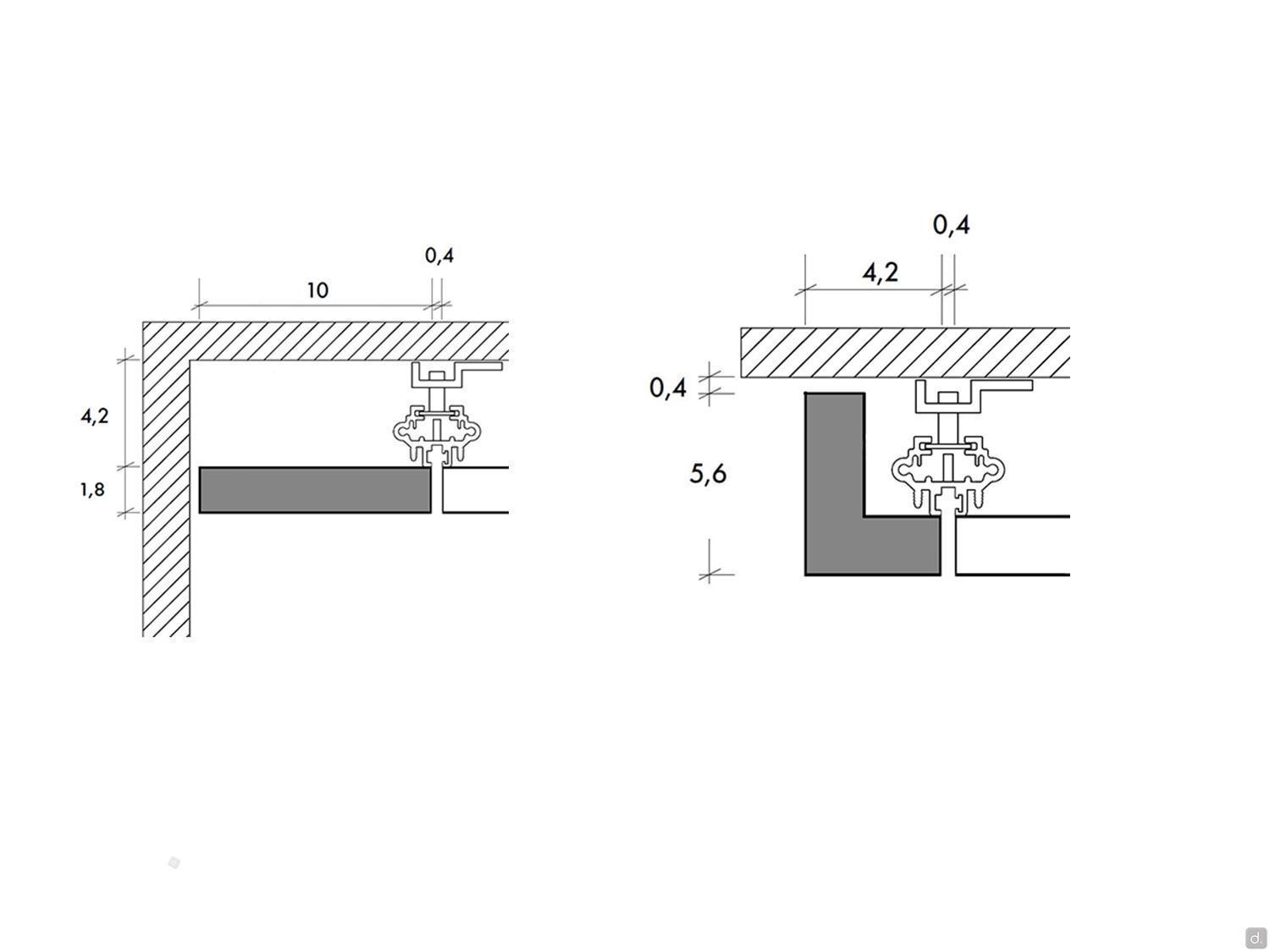

Start/End Uprights: available as an L-shaped end panel or as a buffer strip, MDF 1.8 mm thick. Must be positioned at the beginning and end of the compositon, available in the same finishes as the back panels.

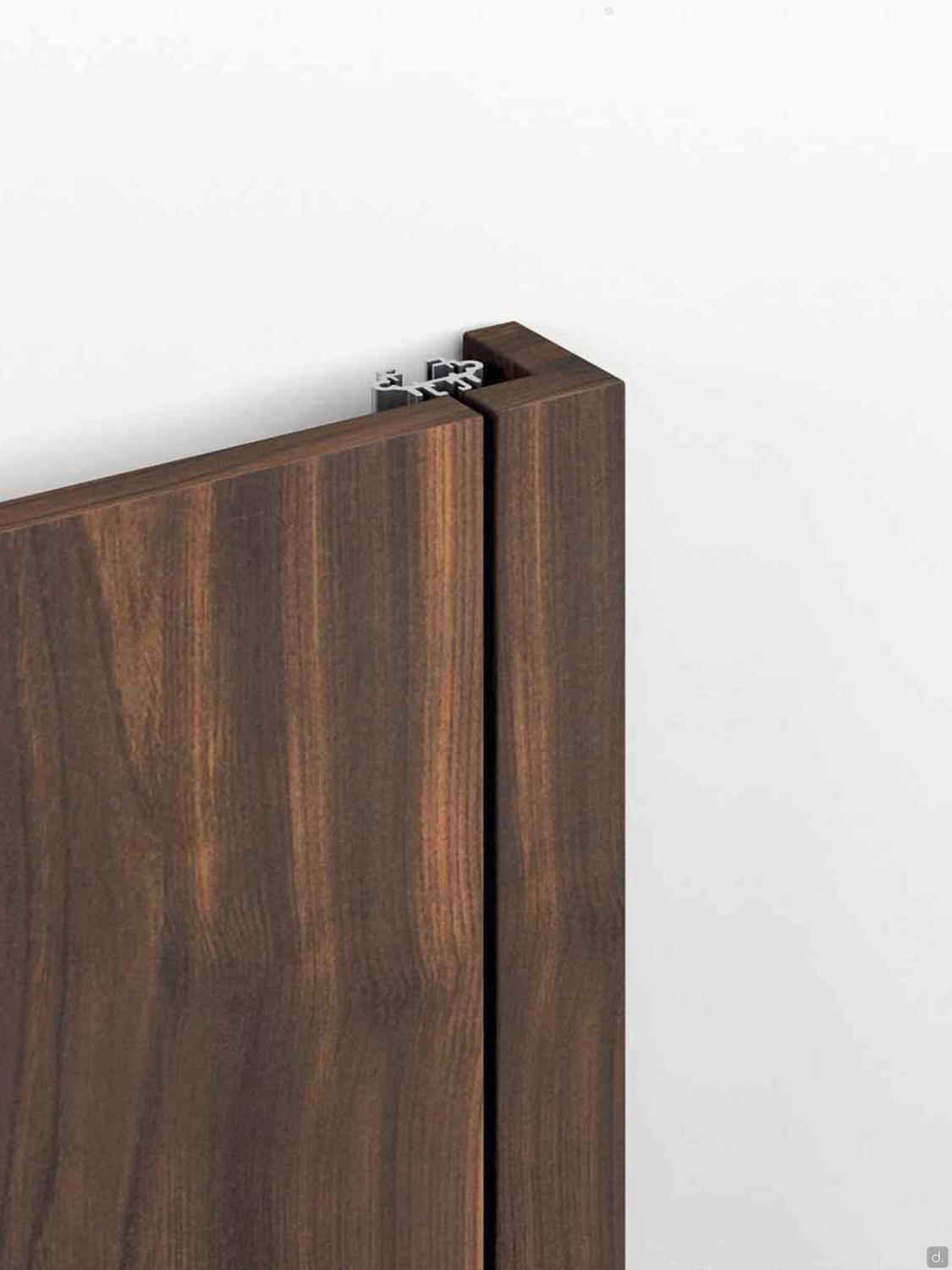

- L-shaped Closing Panel: cm 4,2 d.5,6, indicated in compostions with visible beginning and end panels
- Infill strips: customised widths between cm 3 and cm 10, th.1,8, indicated in compositions with beginning and end adjacent to other walls.
Please Note: The uprights at the end of the compostion always include a rack for the correct wall fastening of the end element, also available with electricity in the case of elements equipped with LED bars.

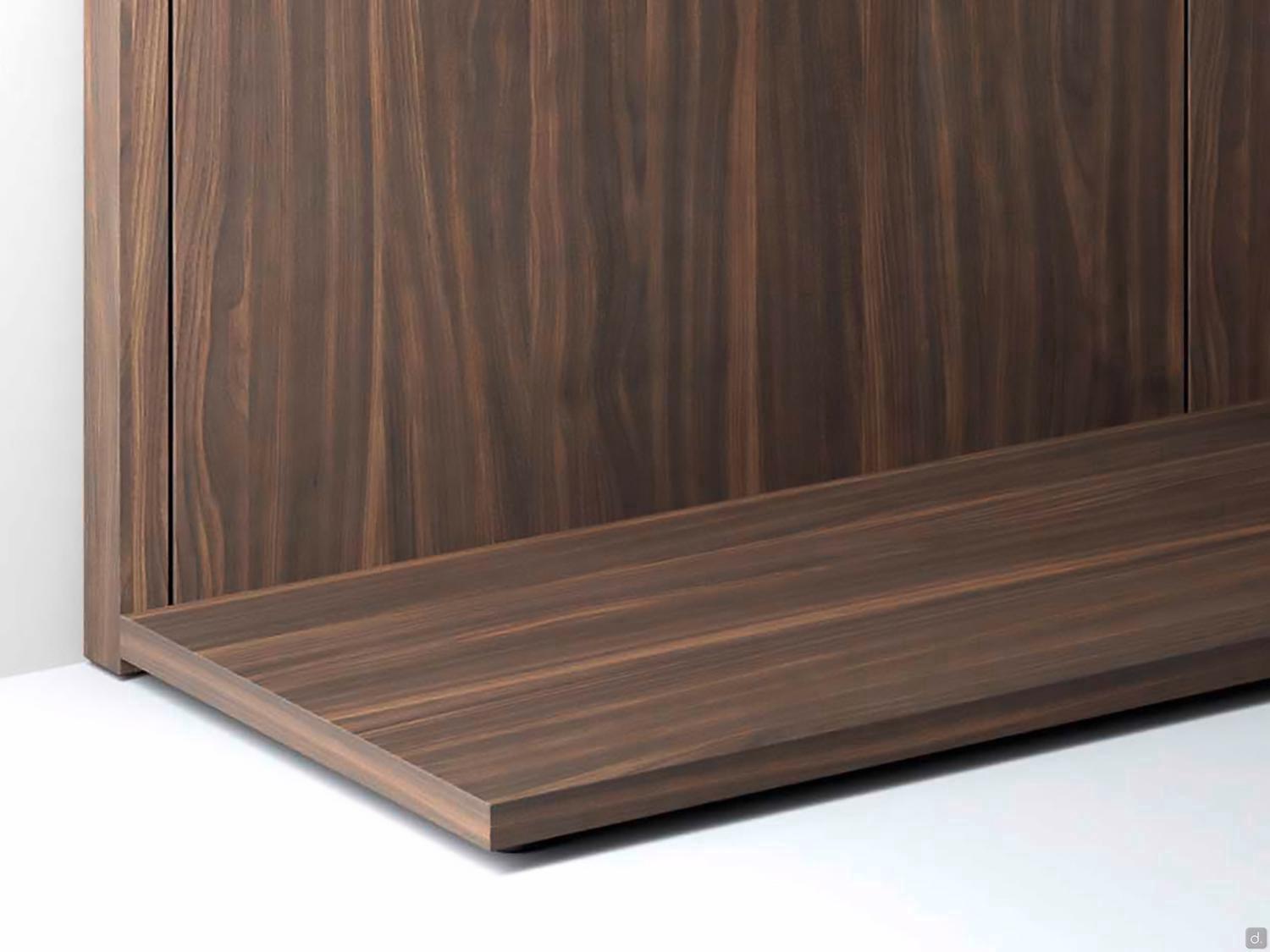

Floor Panel: customised width in melamine, matte lacquered, metallic or open pore oak wood. Thickness cm 3,5, d.35 or 52 depending on the depth selected. With black ABS fixed feet, 0.5 cm.
Optional - Shelf

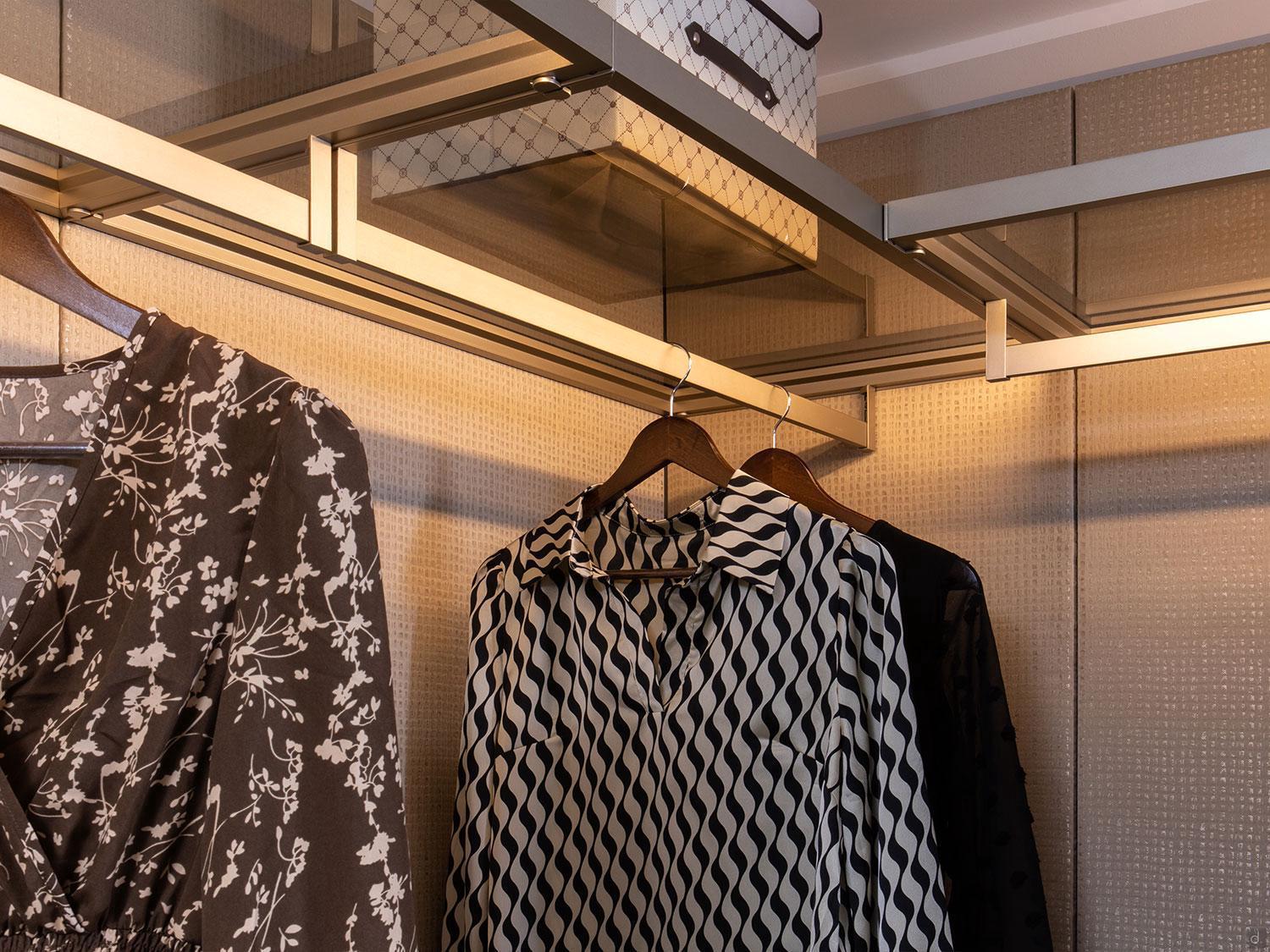

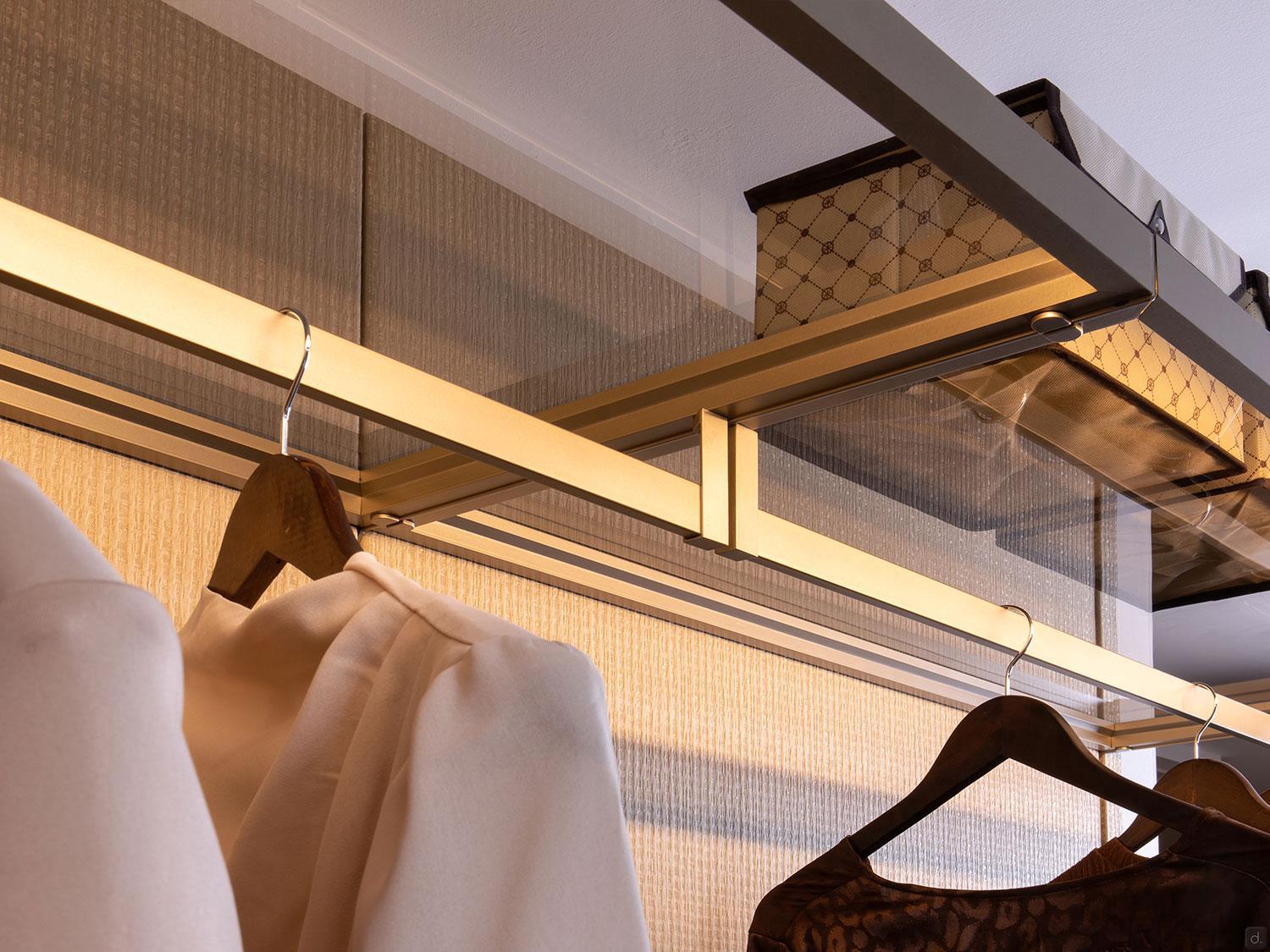

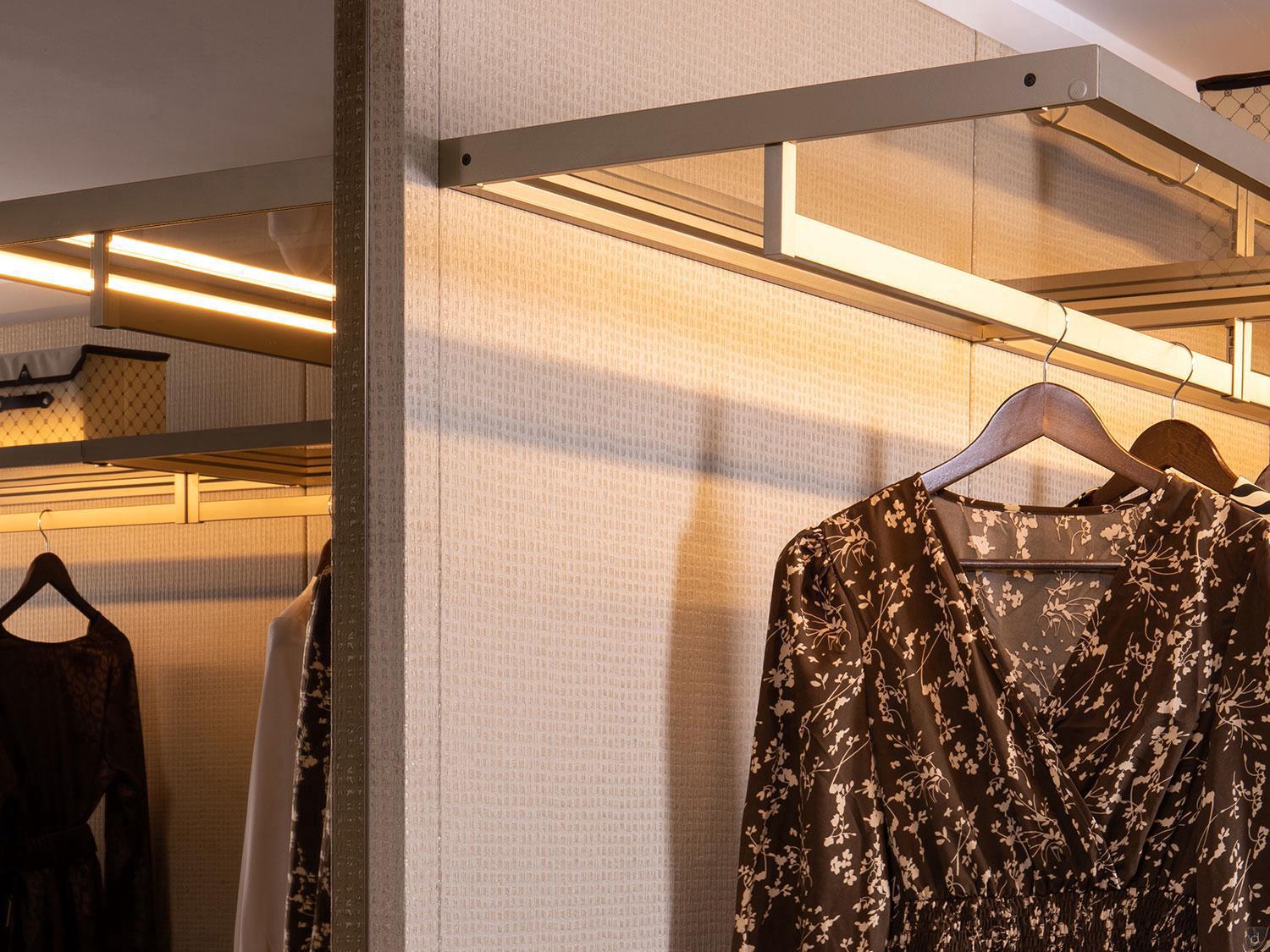

Clothes Hanging Rod: rectangular section cm 3 x 1, in brown lacquered metal or metal finish. Available on all 4 shelf / panel widths in the configurator.

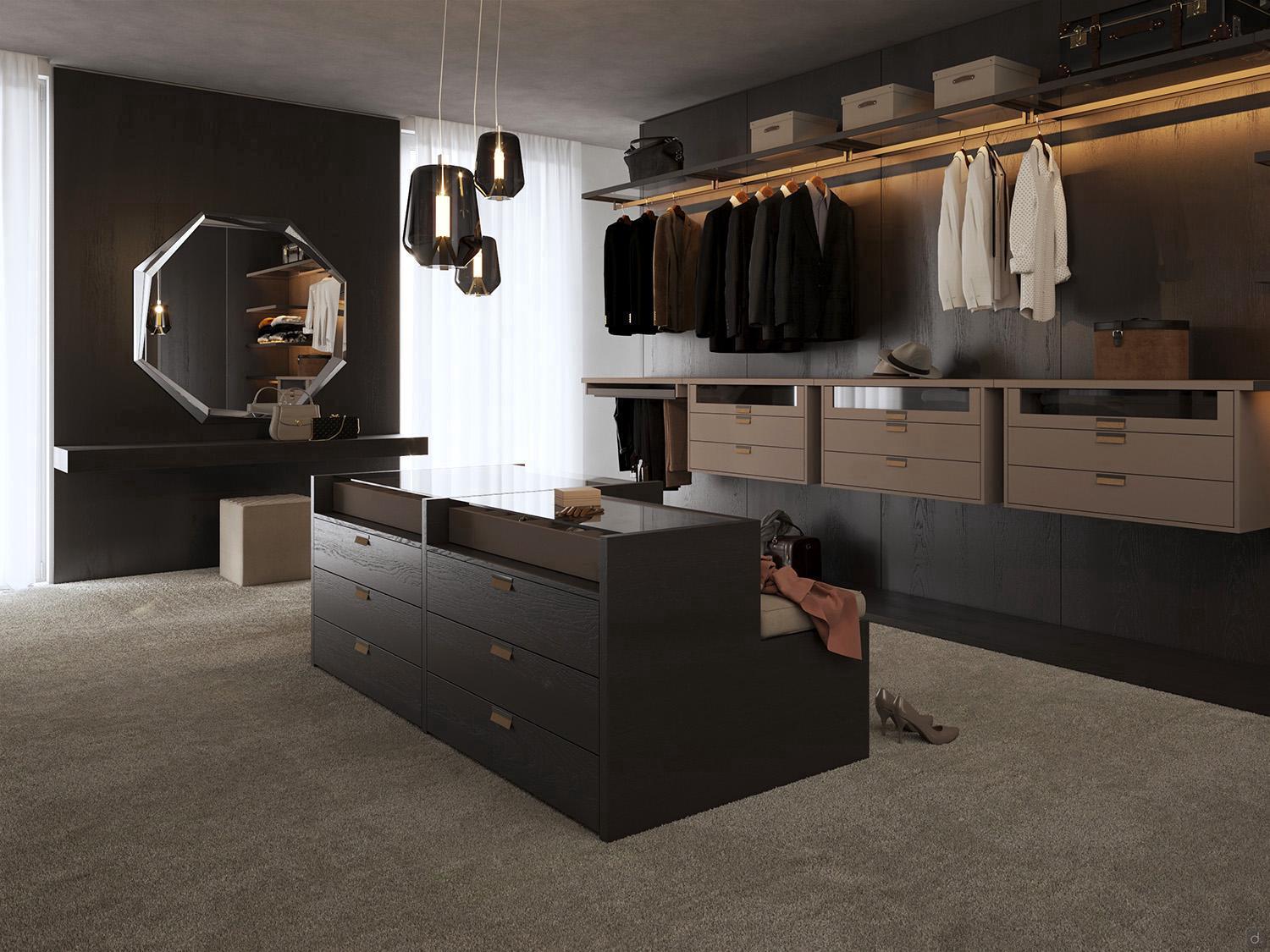

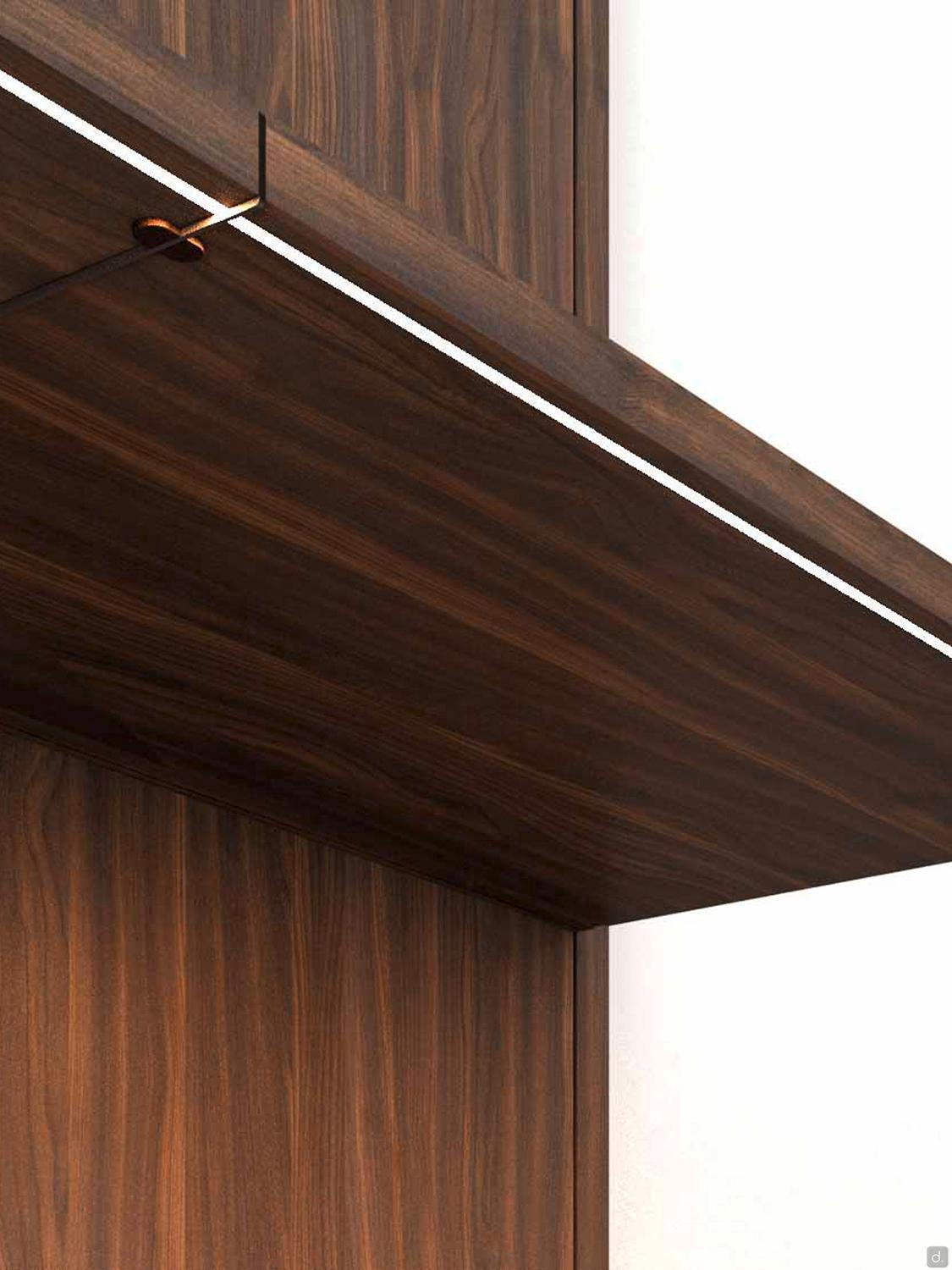

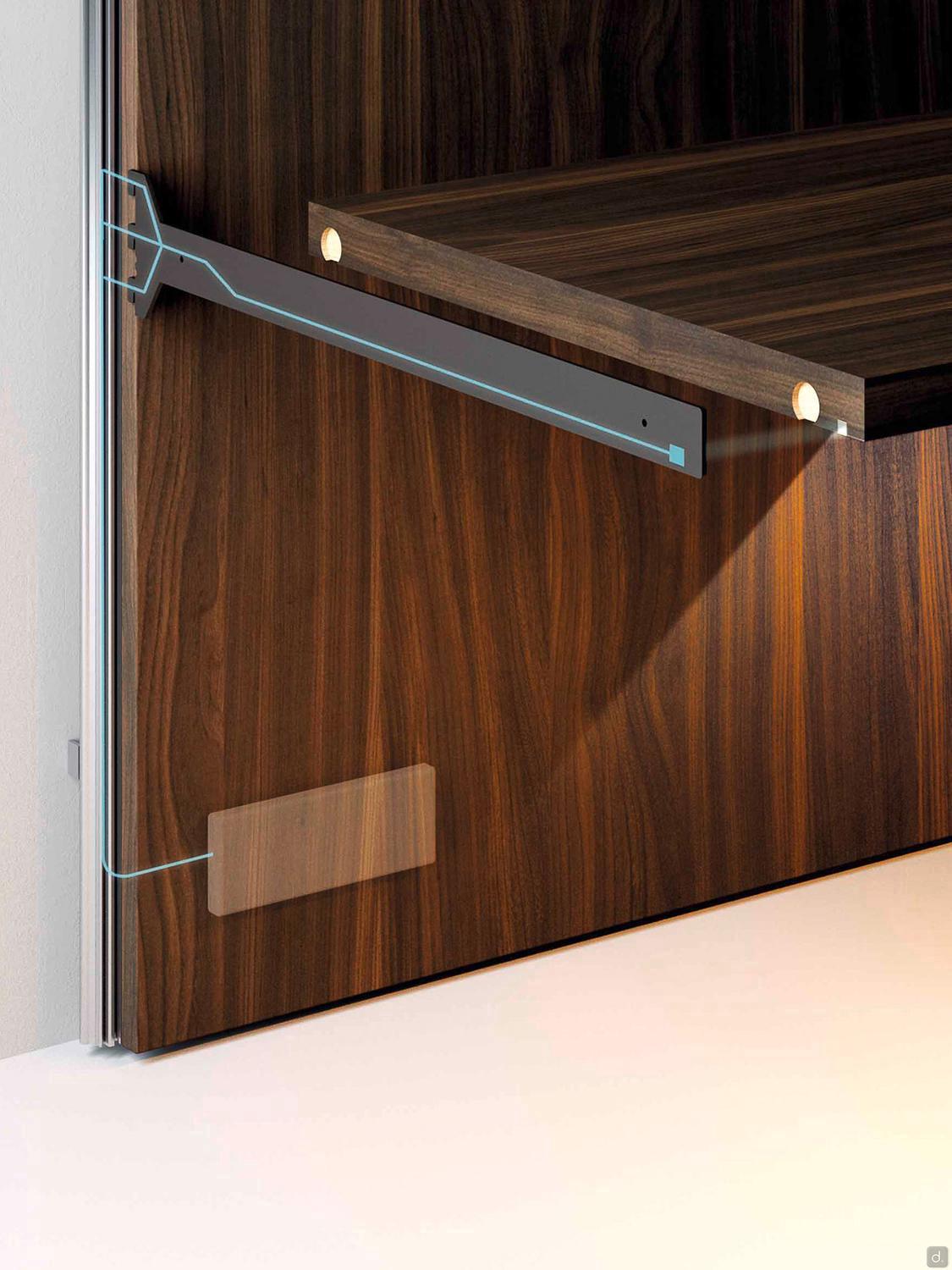

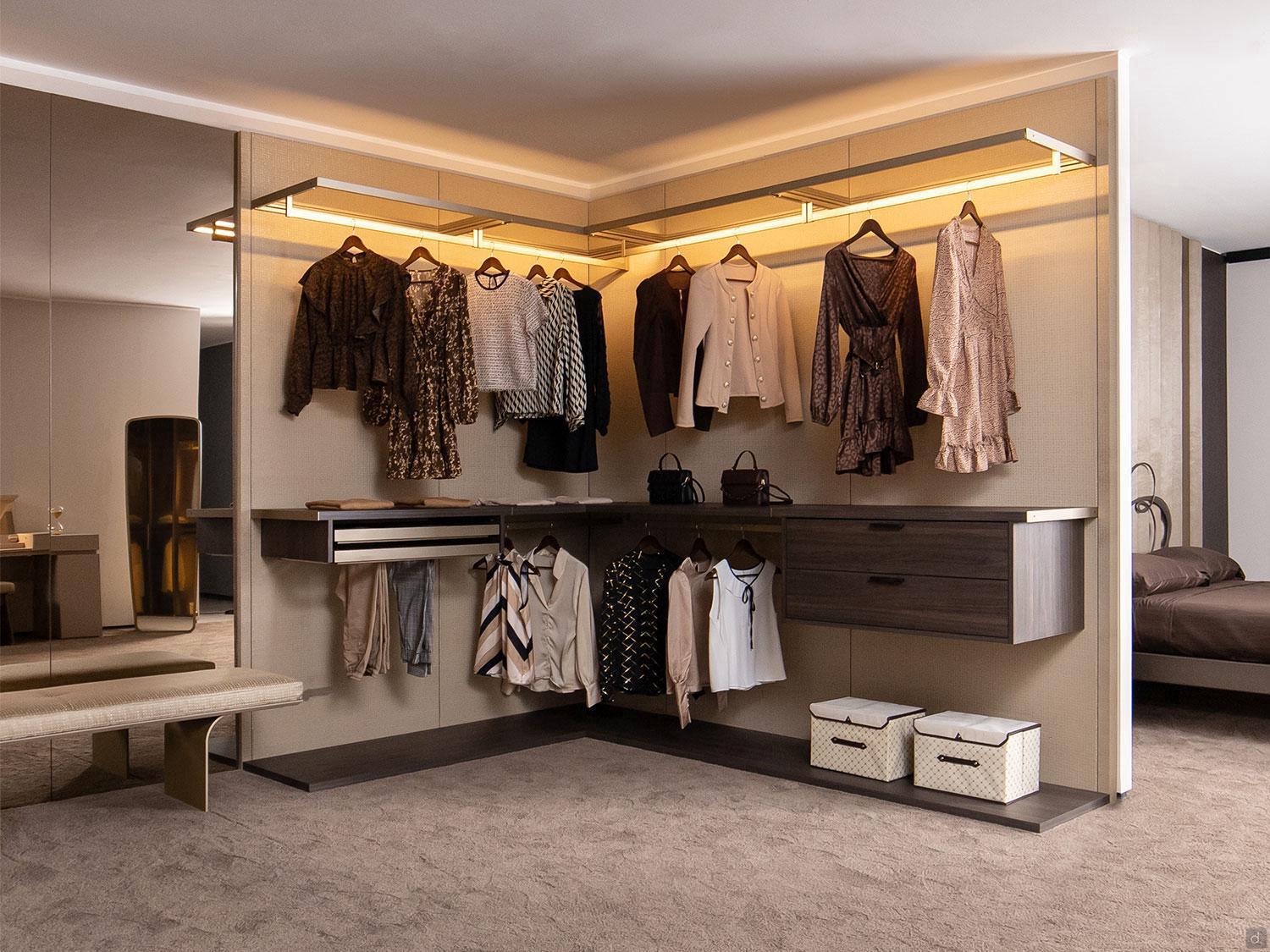

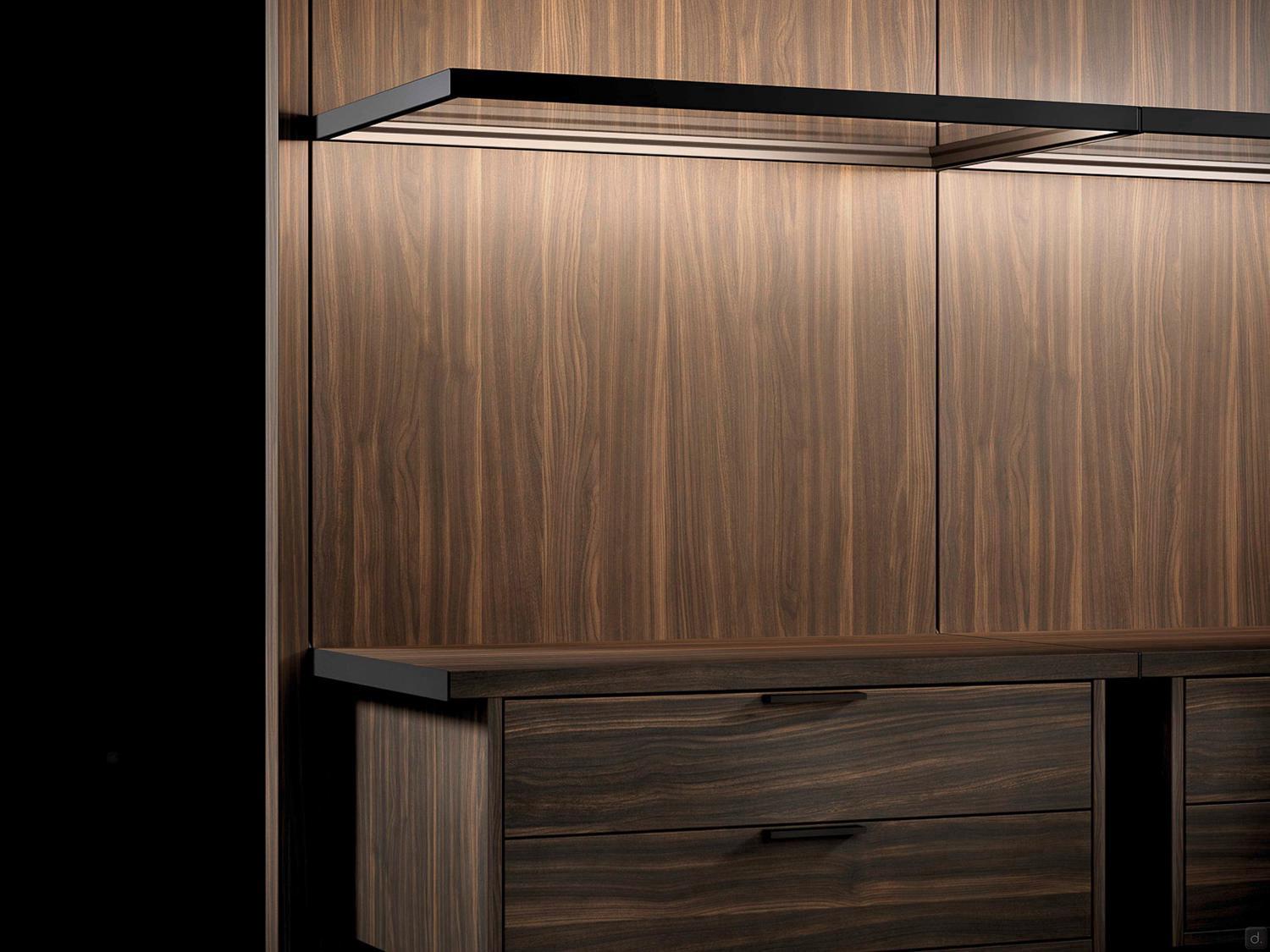

LED bar: warm light at 3000K and 24V positioned in a milled recess in the front of the shelf. Electricity transmitted through contact between brackets and electrical rack profile, equipped with a power cable to connected to the transformer located in the sanitary gap between the panel and the wall. To equip the shelf with LED lighting, both rack profiles, left and right of the panel, must be electrically powered. The lights are switched on via a contolled socket.
Assembly Tips
A height clearance of 2 cm is required for assembling the wardrobe.
Read More...
Honeycomb core panel: this is a panel made with an internal honeycomb structure and a 5 / 7 cm perimeter frame in first choice solid pine closed with 2 MDF panels 0.3 / 0.4 cm thick, subsequently lacquered or veneered.
The strengths of honeycomb core panels are:
- greater durability;
- greater load resistance;
- significantly reduced panel weight (up to 60% less), which is useful for transport, assembly, moving relocation, but above all, for reducing the weight of the sashes on the structure and hardware;
- hardware always fixed to the perimeter (solid pine wood) on the sides and doors, so the hinges will have greater strength and the furniture will last considerably longer;
- better resistance to humidity, as the material 'breathes';
- exclusively "100% Made in Italy" product.
Aged Oak Wood: compared to 'standard' open pore oak, aged oak is characterised by a slightly more brushed surface, which shows a deeper pore and a more evident grain. This difference is more noticeable on important surfaces such as tables, wall units and wardrobes, less so on accessories, beds and bed sets.
