Technical Specifications and Equipment

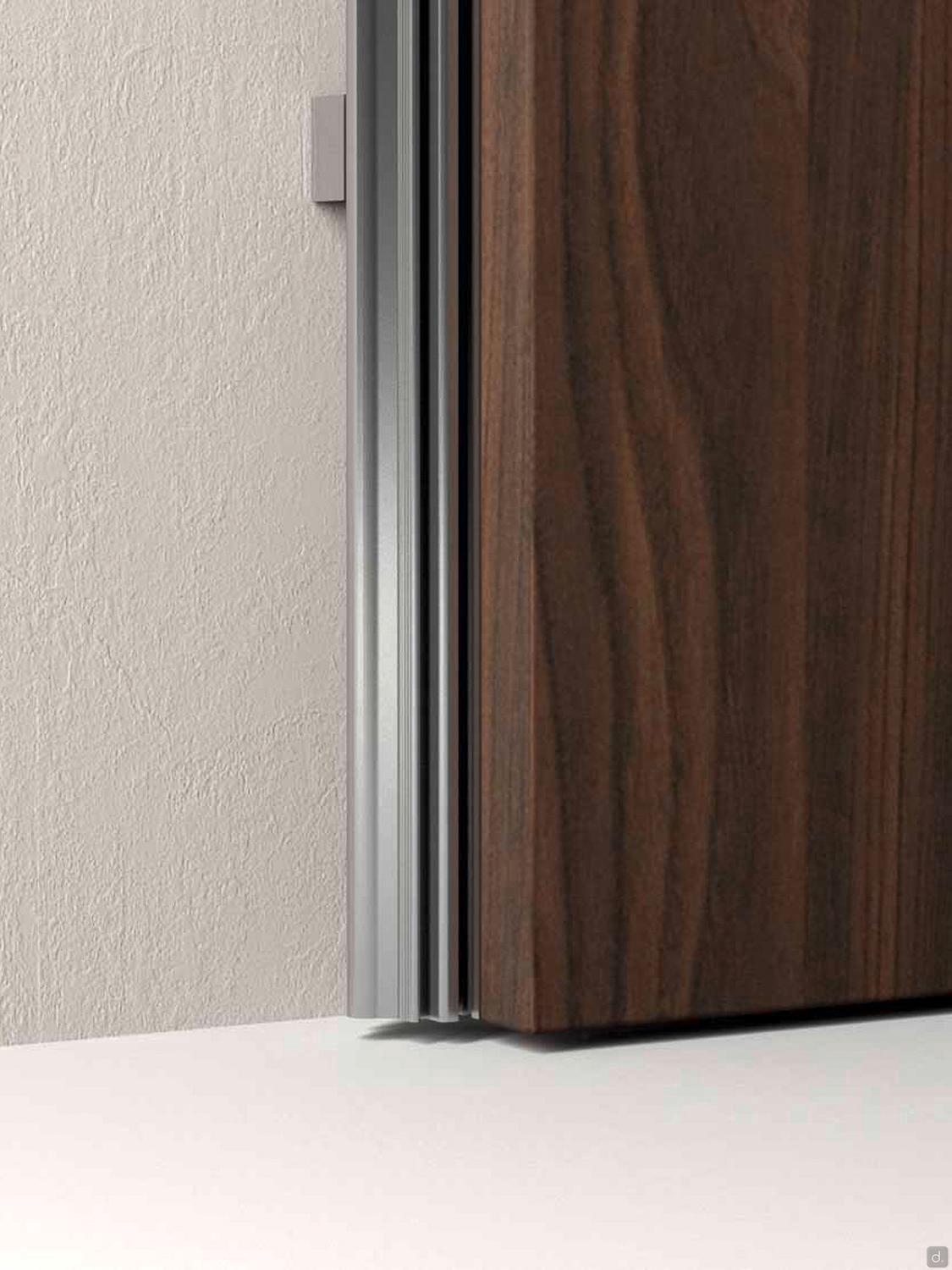

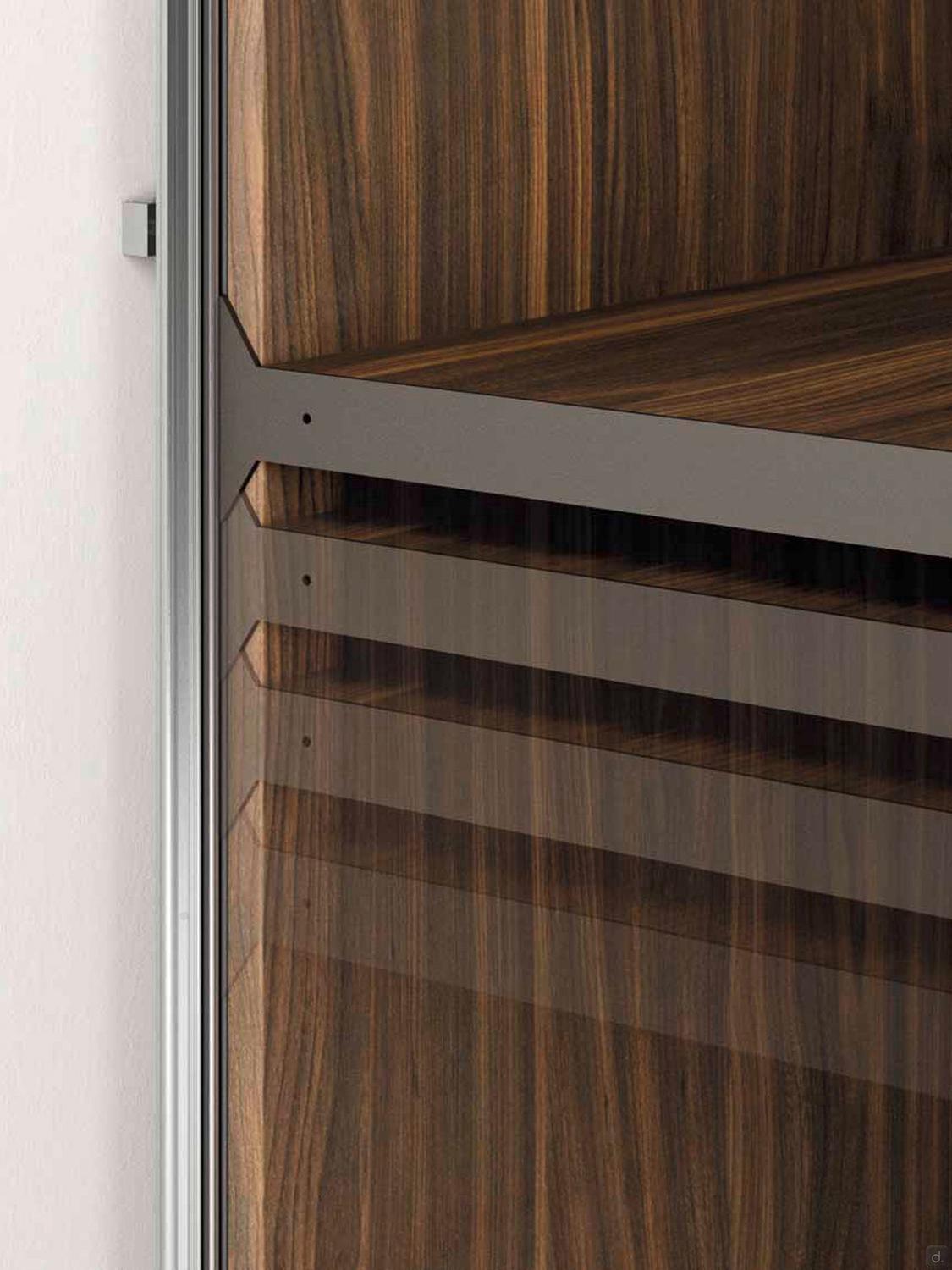

Profile with rack: 3,5 d.4,2 h.294,0 cm shaped with 3.2 cm spacing between prefixed hooks for free positioning of equipment. Made of brown aluminium finish, also available with electrical power supply (in the presence of accessories with LED bars).

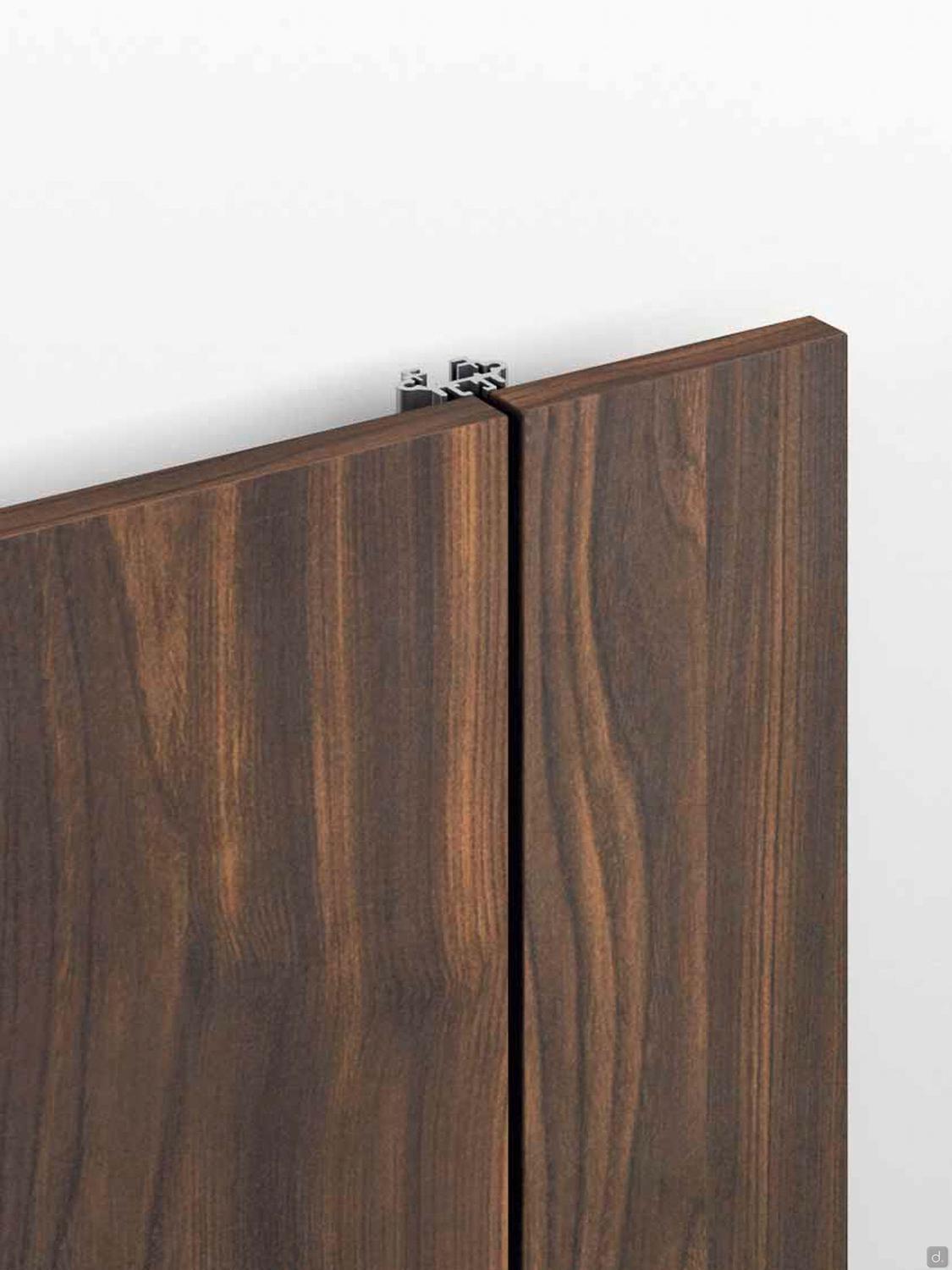

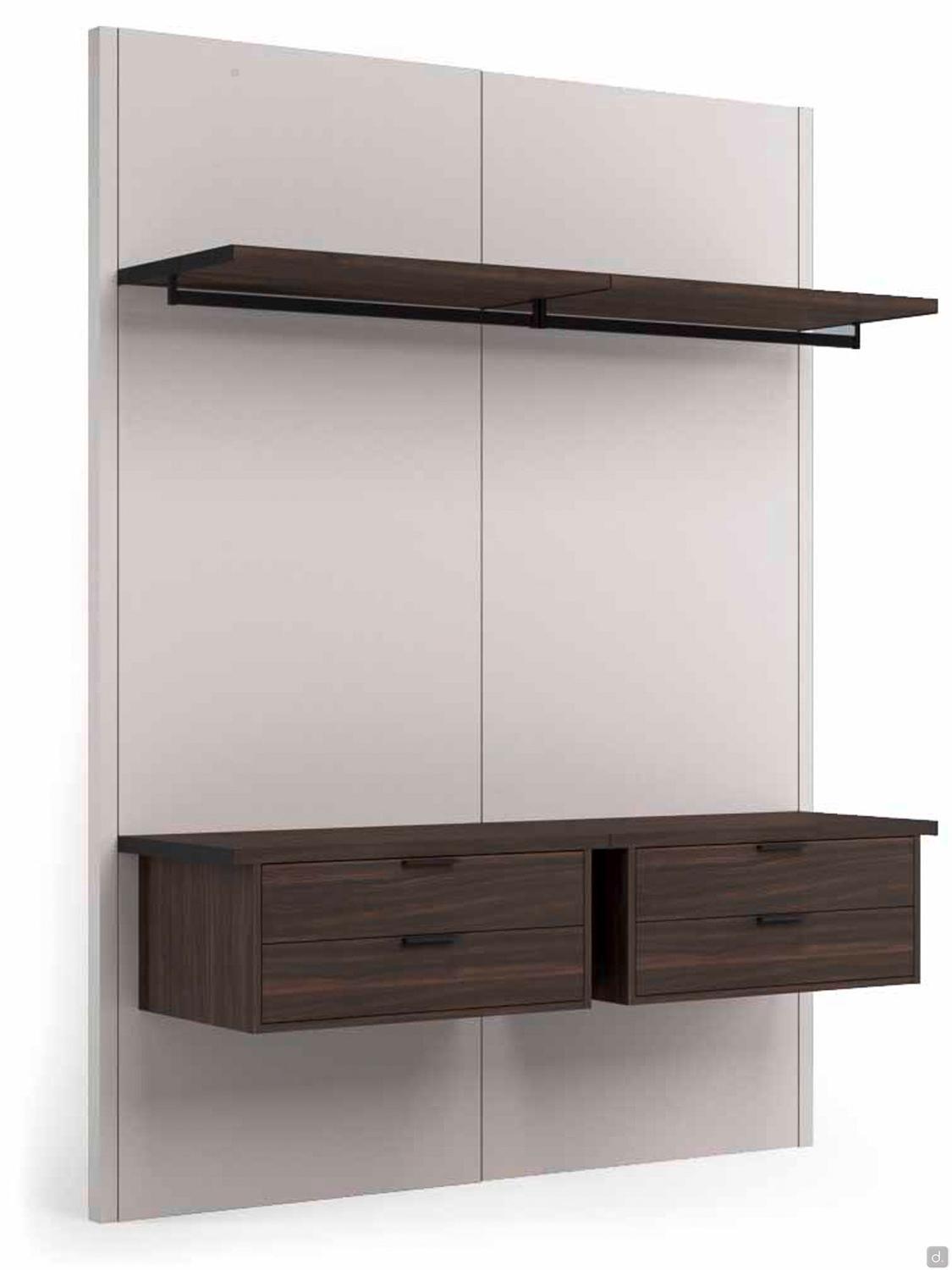

Panel: h.293,6 th.1,8.cm

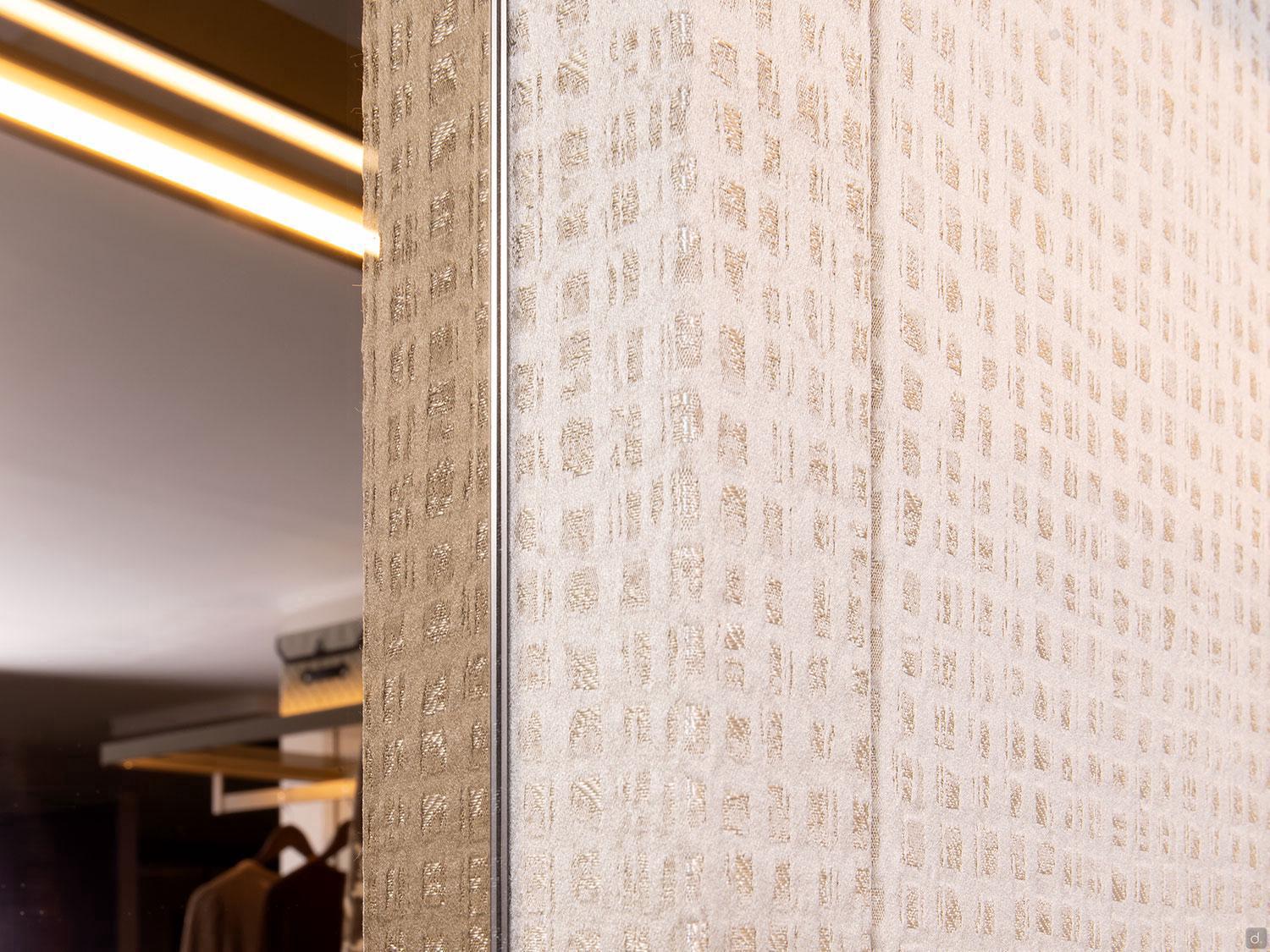

- wood version: in MDF melamine, matte lacquered or metallic, veneered in open-pore or aged oak, or covered in fabric or faux leather.

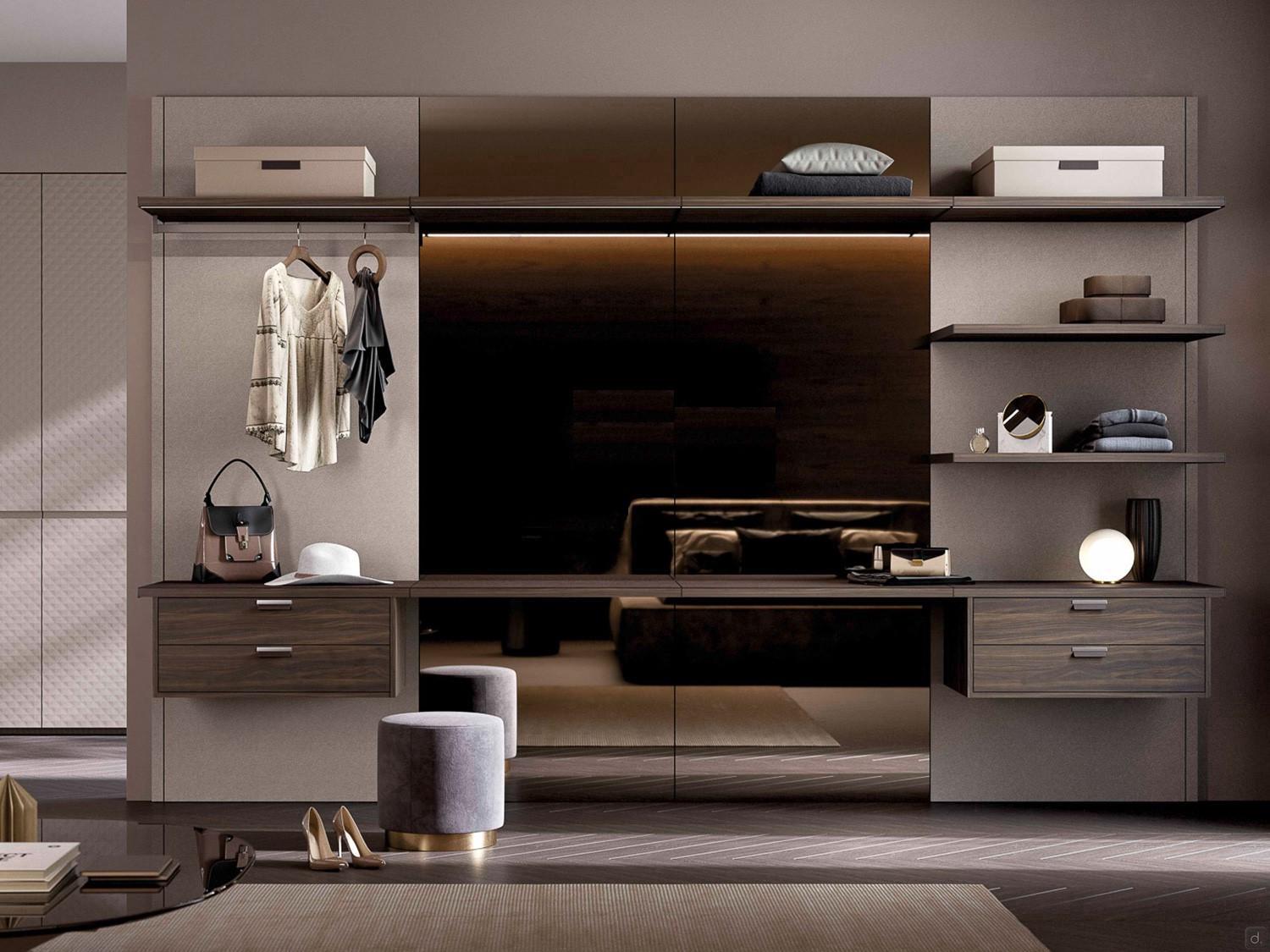

- mirror version: 1,4 cm thick MDF panel + 0,4 cm thick natural, bronzed or smoked mirror.

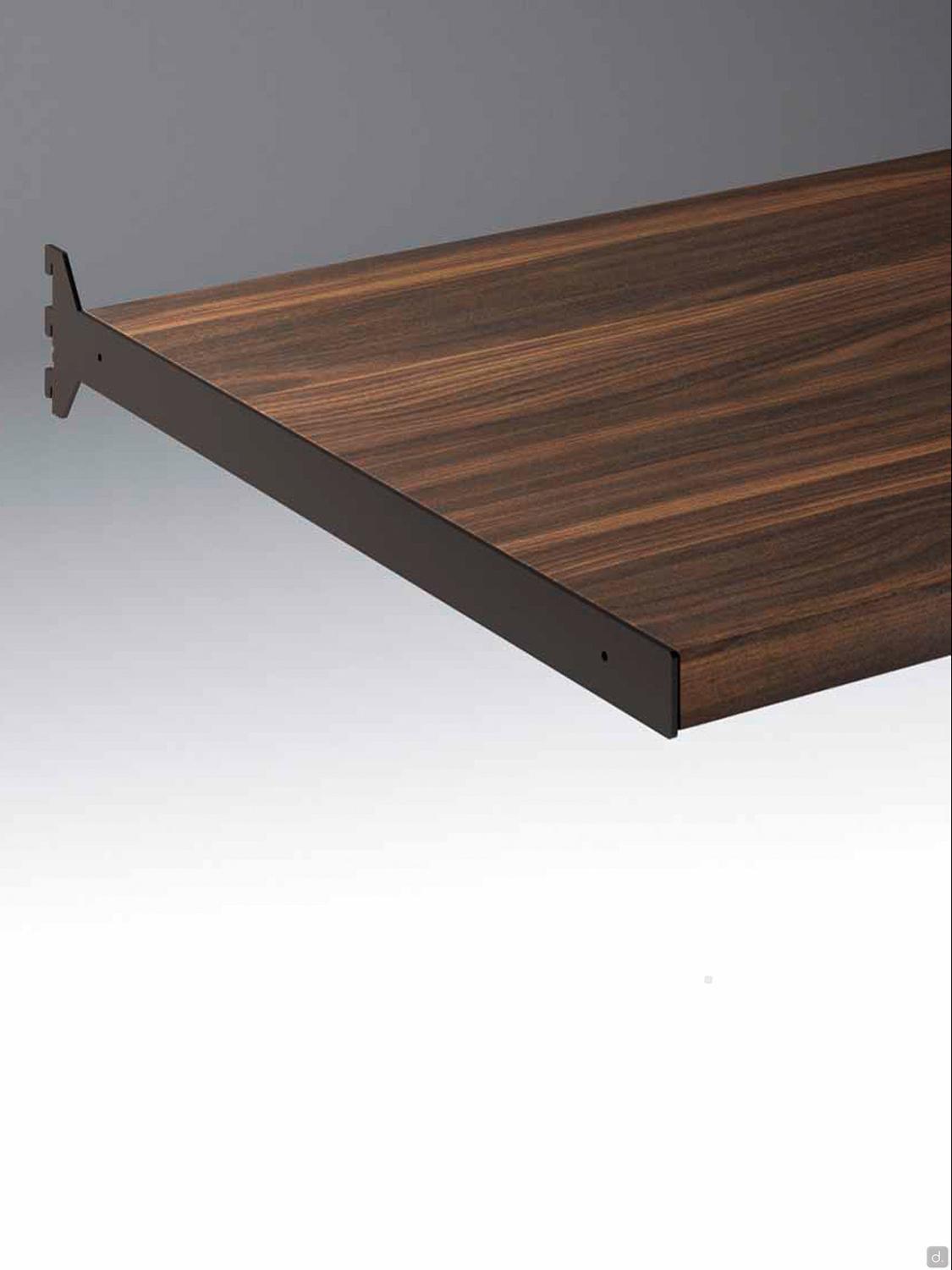

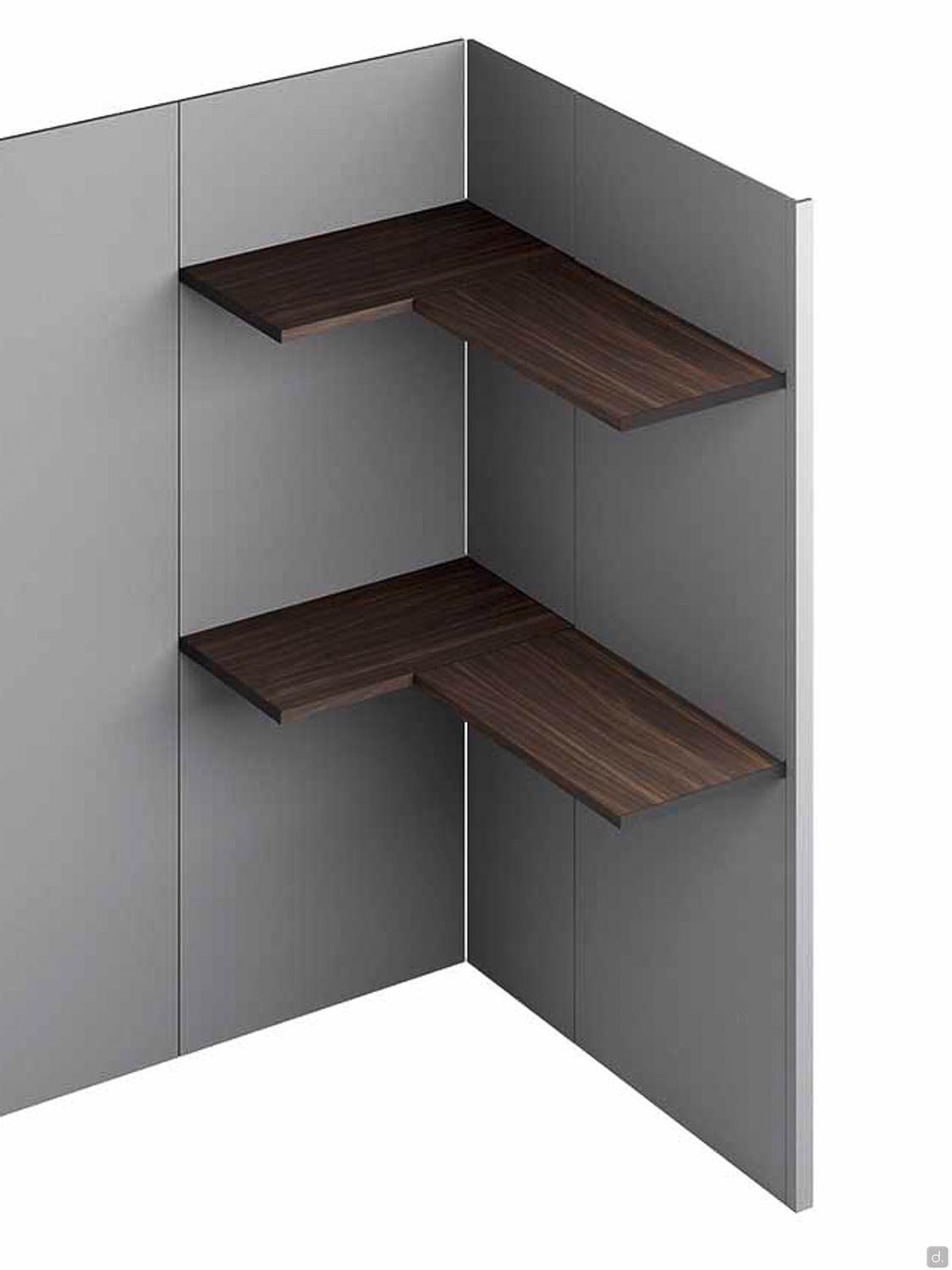

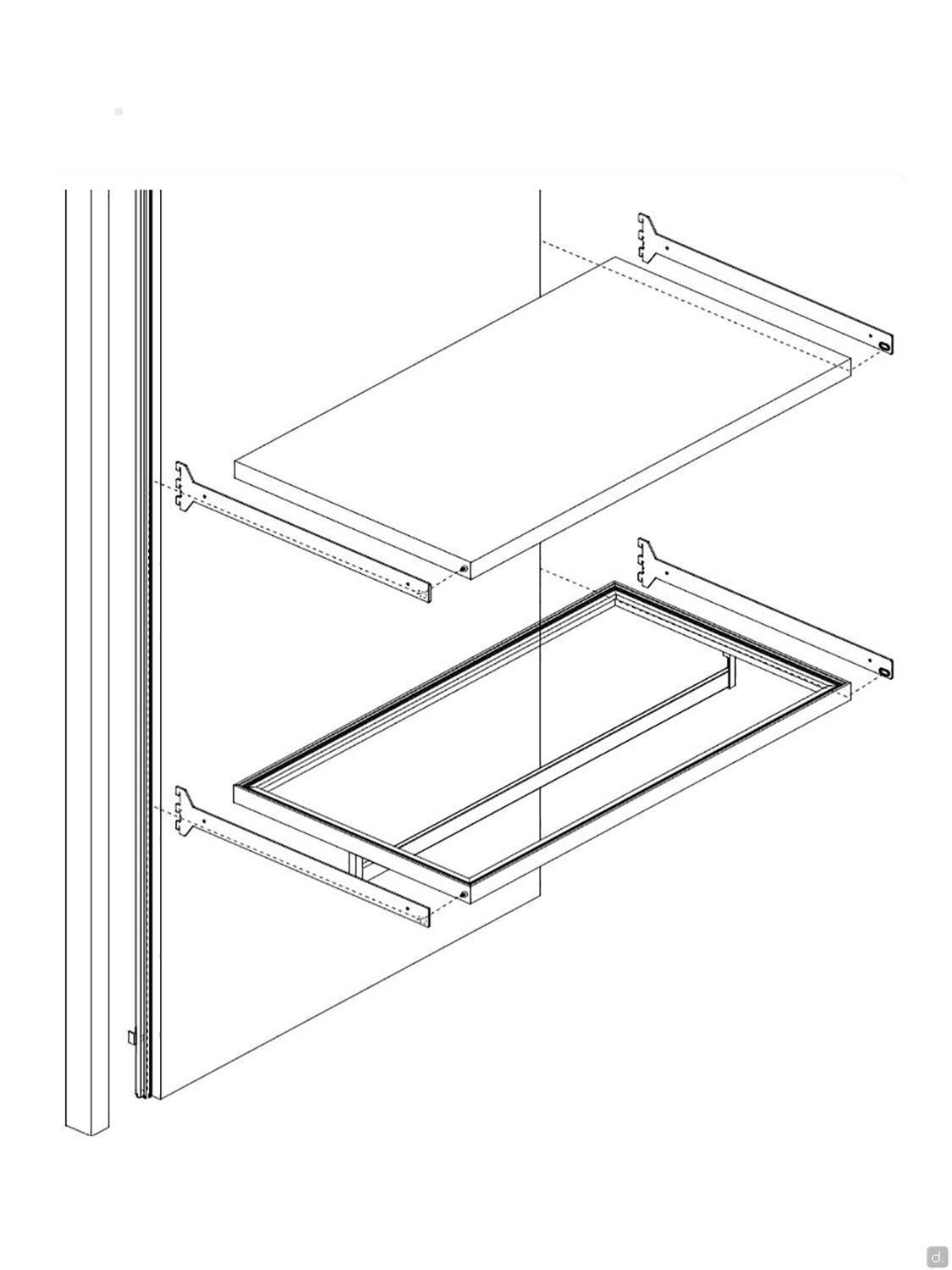

Shelf: panel that can be equipped directly in the product sheet with no.1, 2 or 3 wooden shelves (other equipment in separate sheet). In honeycomb sandwich board with solid spruce frame, 3.2 cm thick, available in melamine, matte lacquered, metallic lacquered or open-pore oak wood veneer, which can be equipped with a hanging rod or LED bar. Complete with no.2 metal brackets for fixing to the panel, positionable every 3.2 cm along the rack.
Shelf Brackets: brown painted metal or or lacquered metal, 0,3 cm thick d.35 / 52 depending on the depth chosen when configuring the back panel.

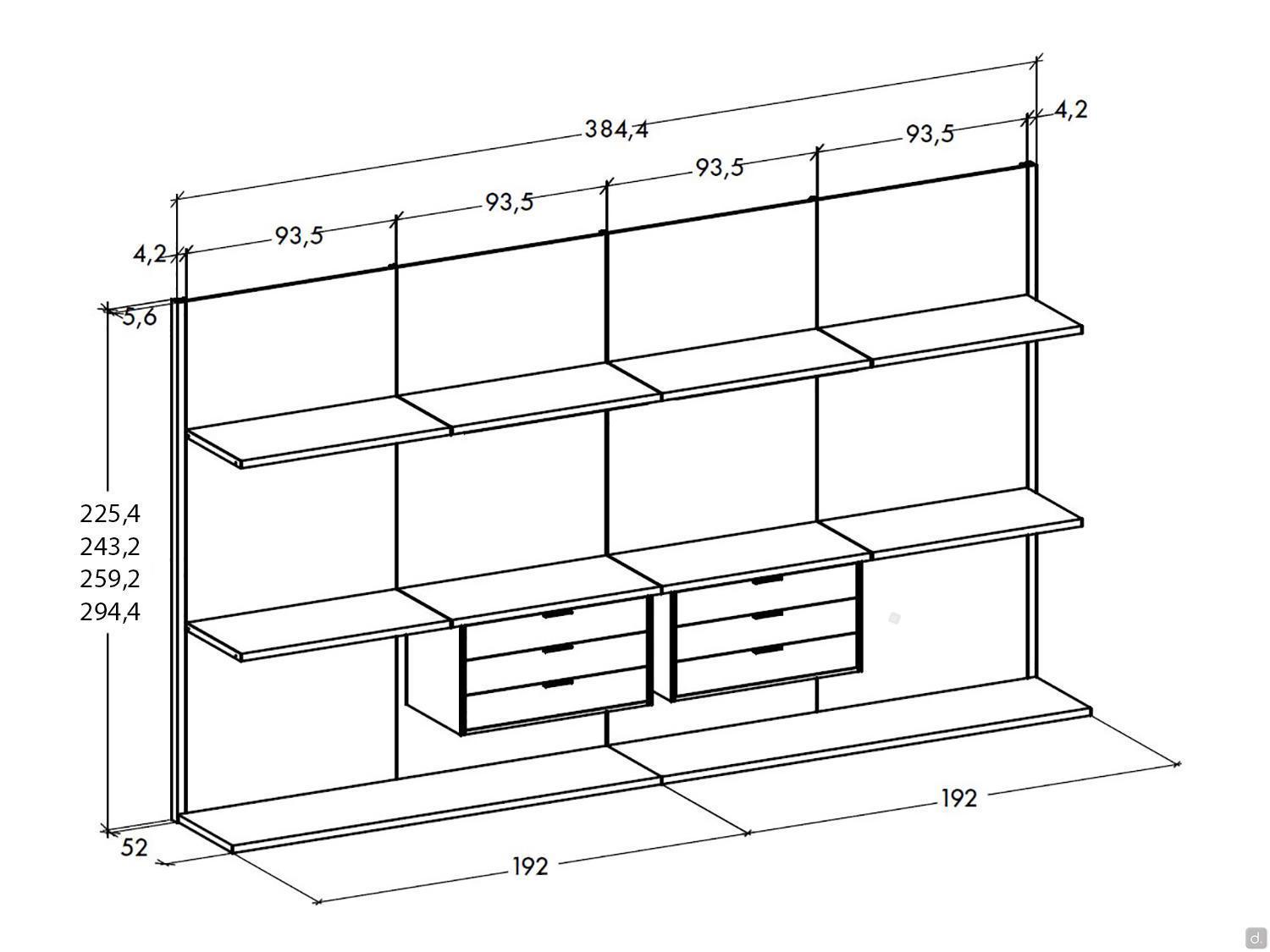

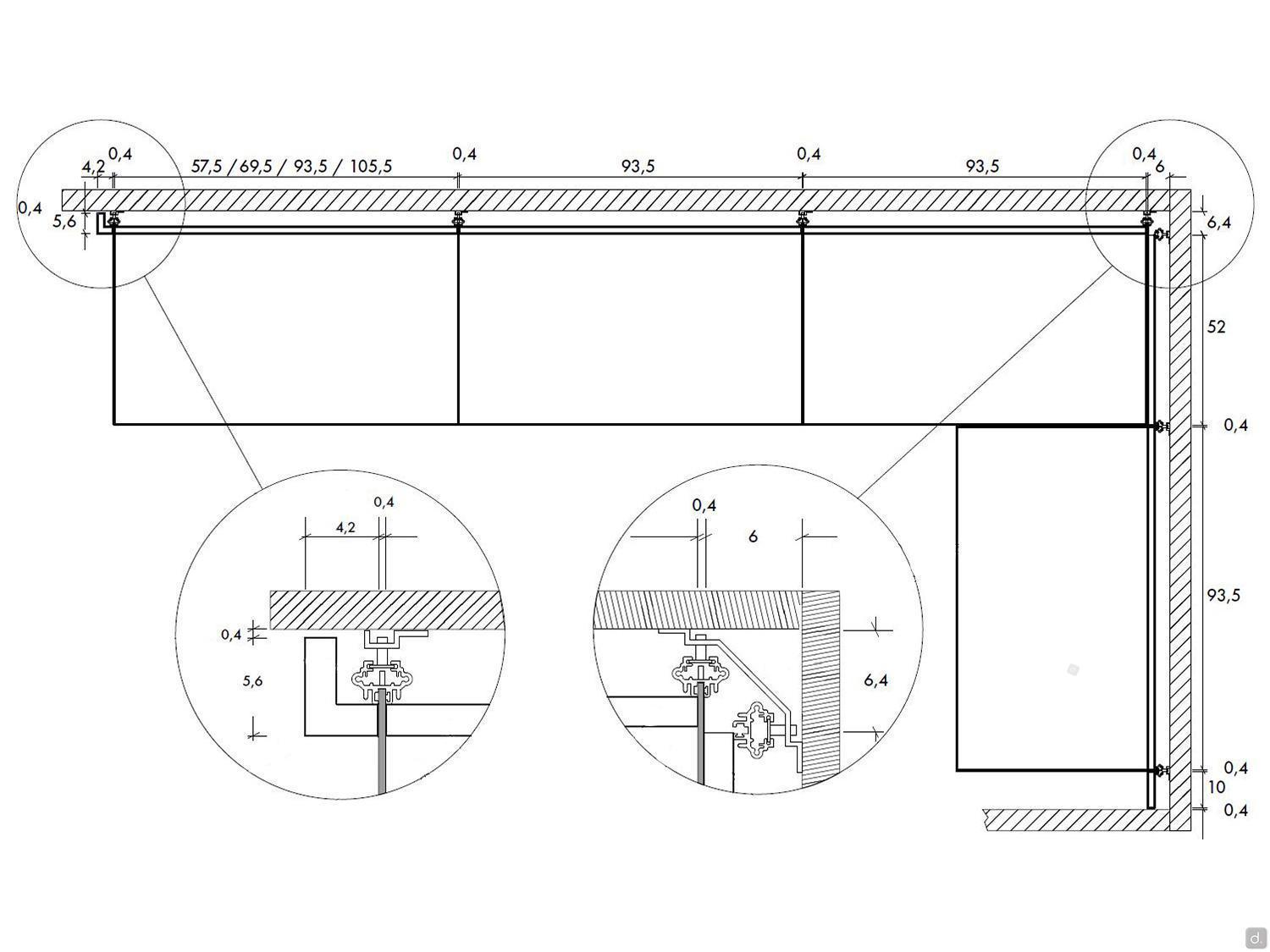

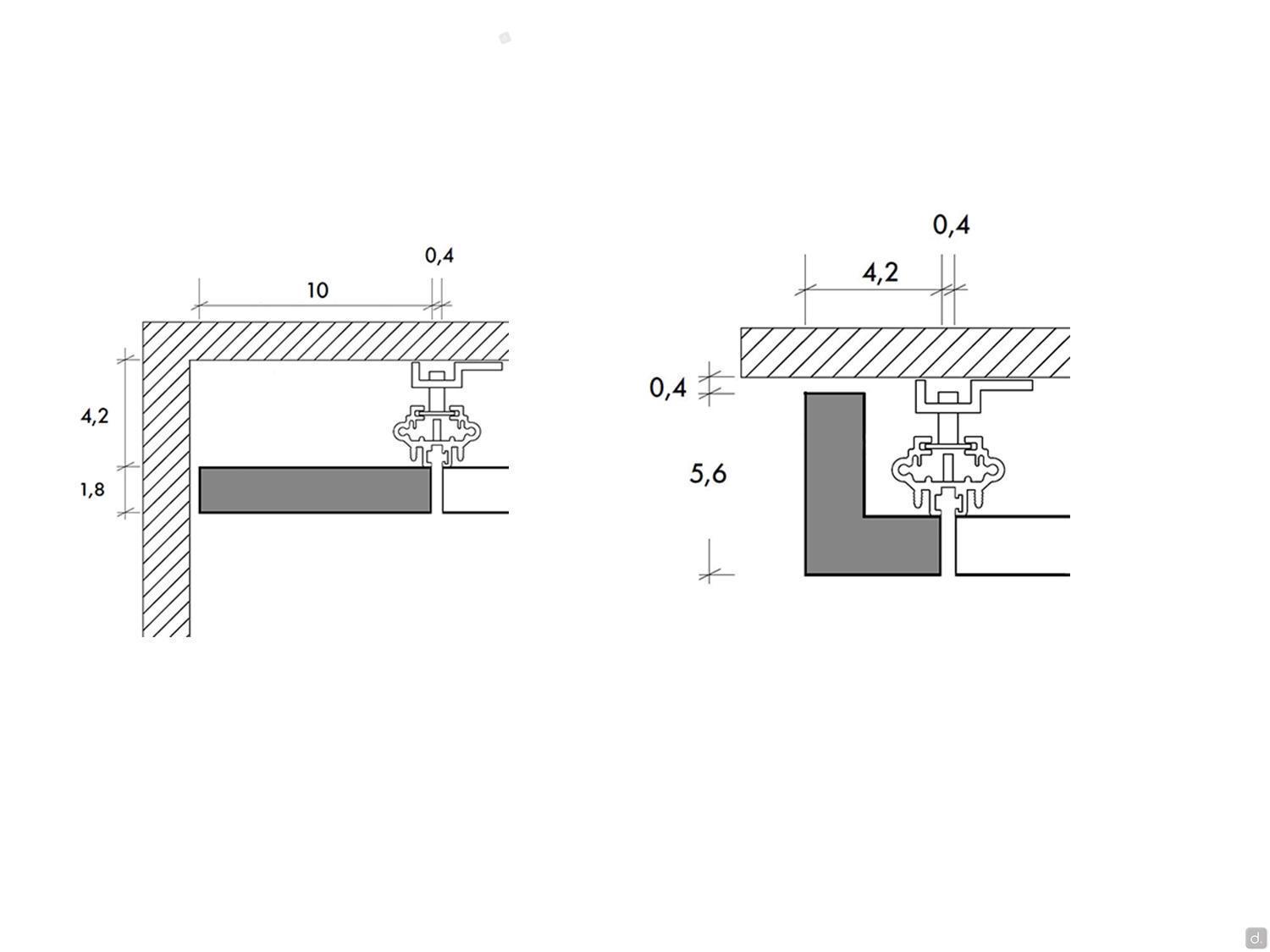

Beginning / End Uprights of compostion: available as an L-shaped end panel or as an infill strip, in MDF 1,8.cm thick. Must be placed at the beginning and end of the composition, available in the same finishes as the backs panels.

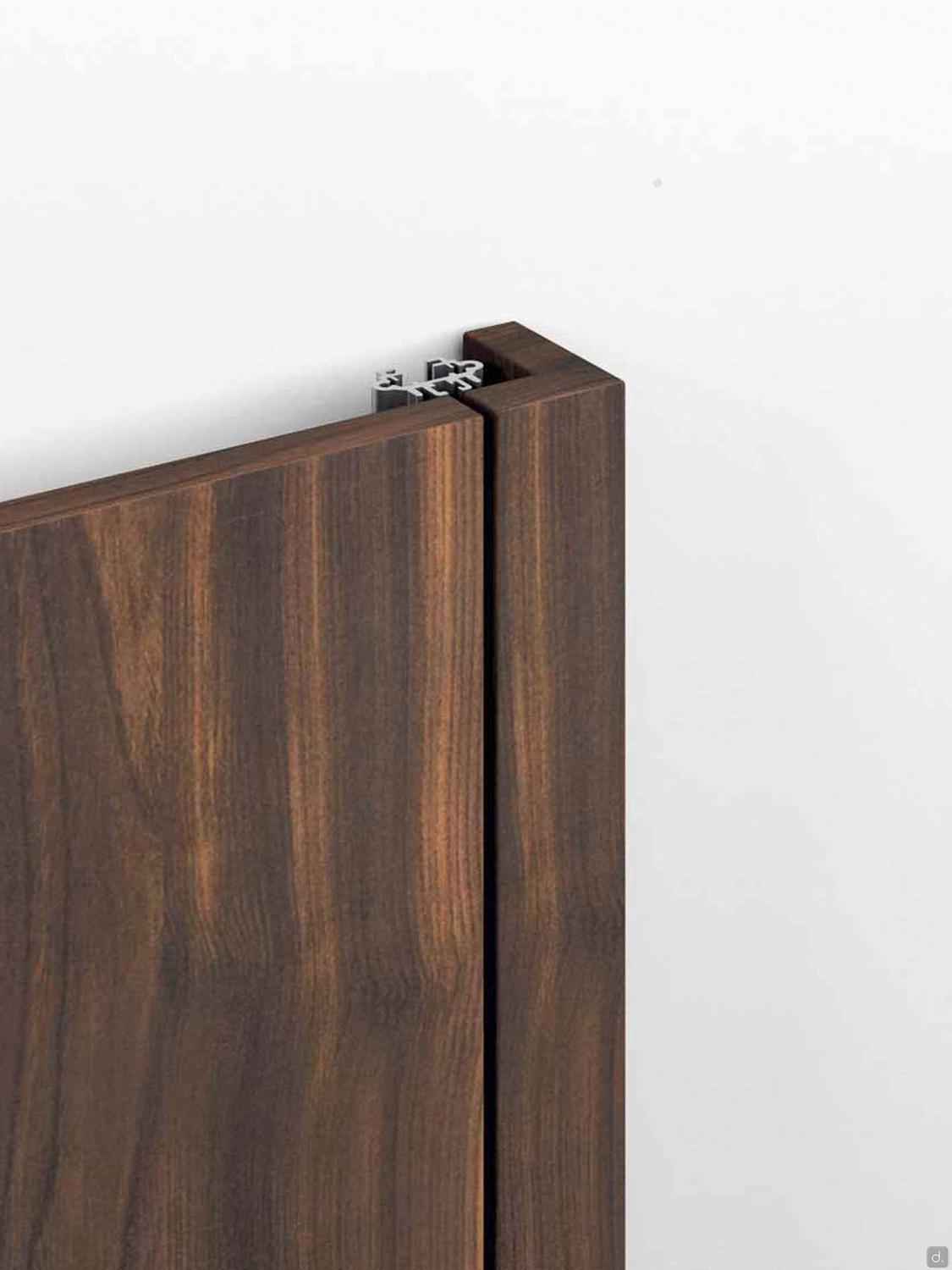

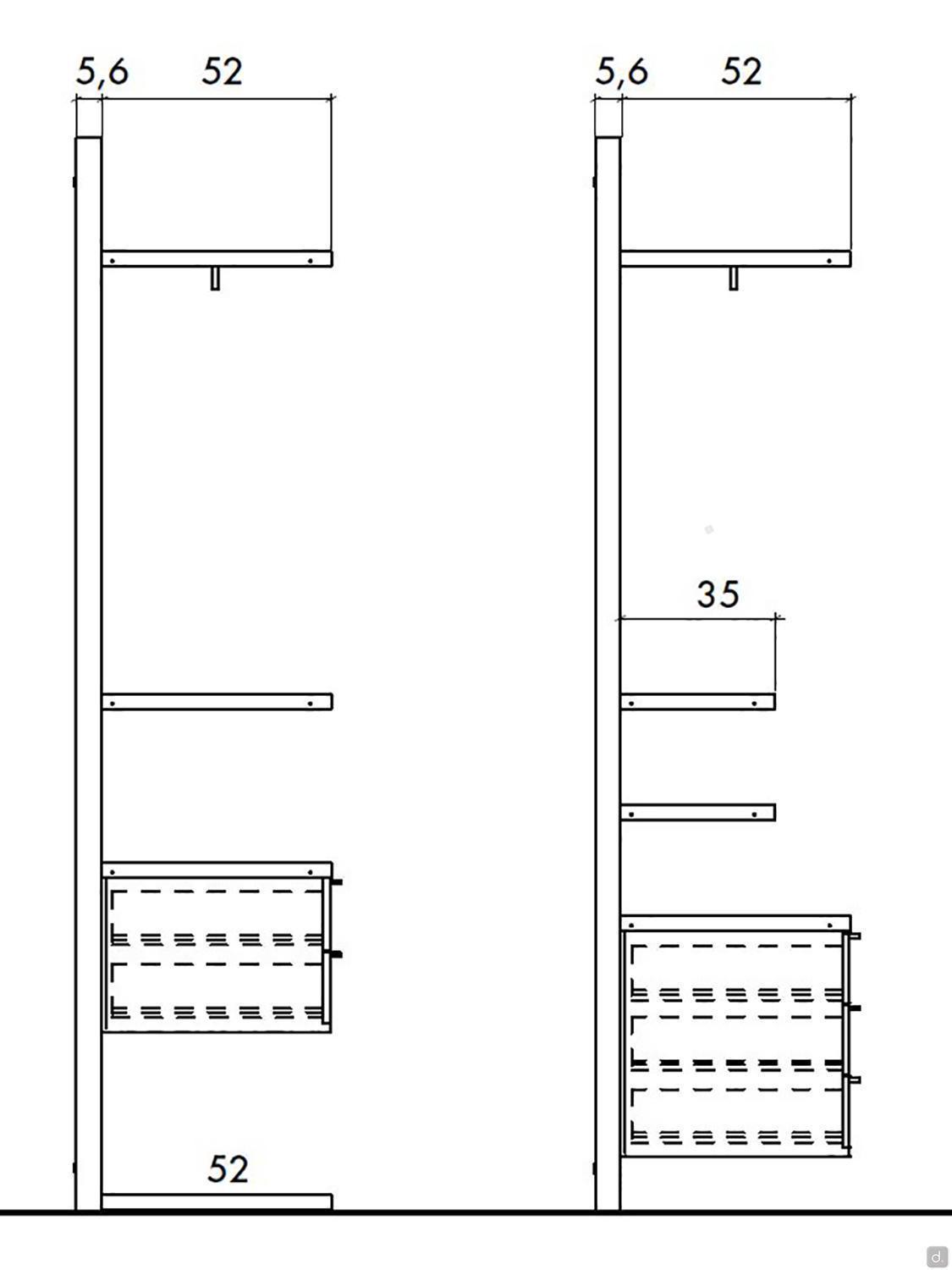

- L-shaped closing panel: 4,2 d.5,6 cm, indicated in compositons with visible beginning and end
- Infill Strip: custom width between 3 and 10 cm, thickness 1.8, indicated in compositions with beginning and end adjacent to other walls
Please Note: The uprights at the end of the compositon always include a rack for proper wall attachment of the end element, also available electrically in case of elements accessorised with LED bars.

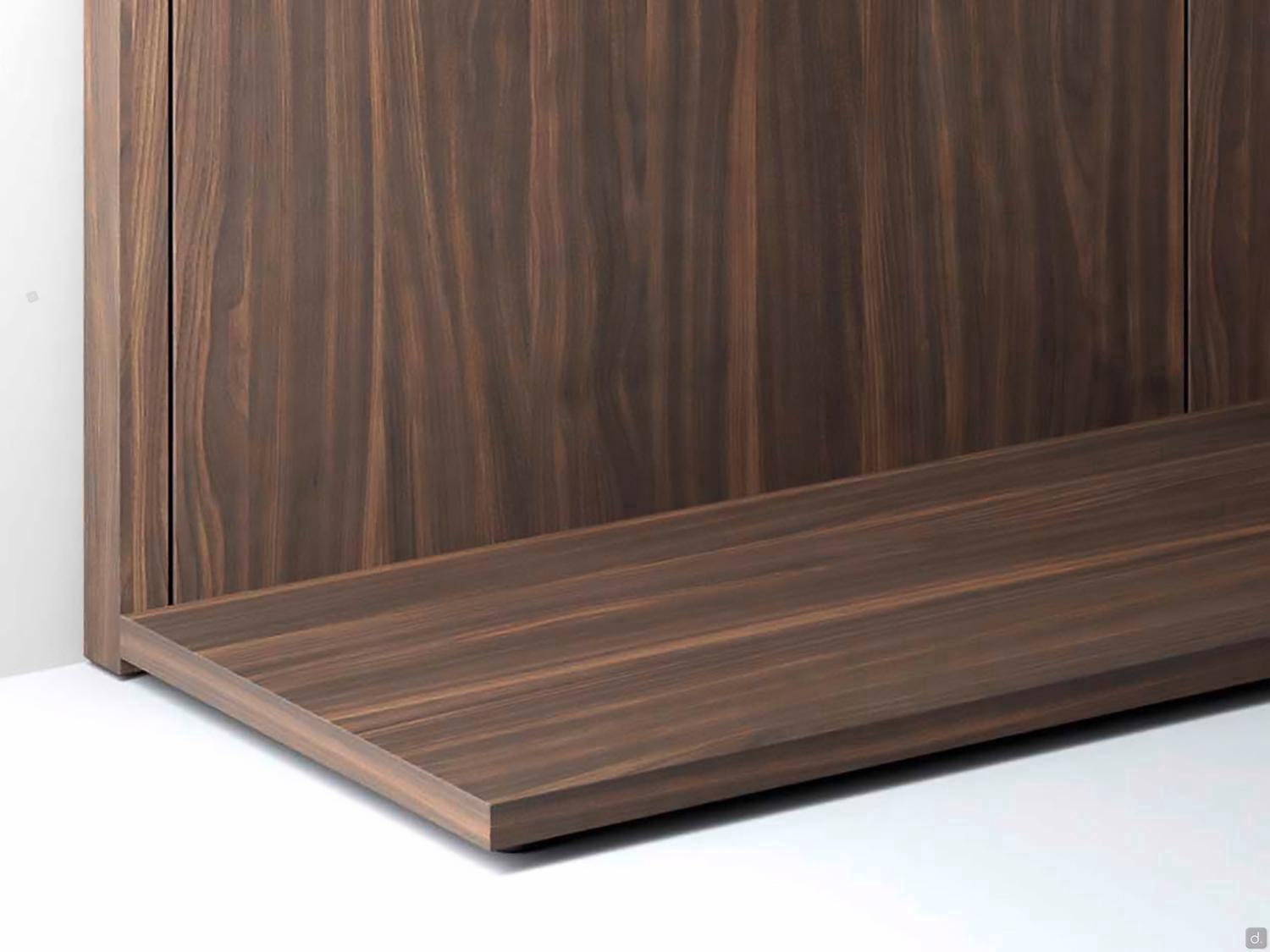

Floor panel: custom width in melamine, matte lacquered or metallic, open-pore oak wood. Thickness 3,5, d.35 or 52 cm depending on the depth selected. With black ABS fixed feet, 0,5 cm.
Optional - Shelf

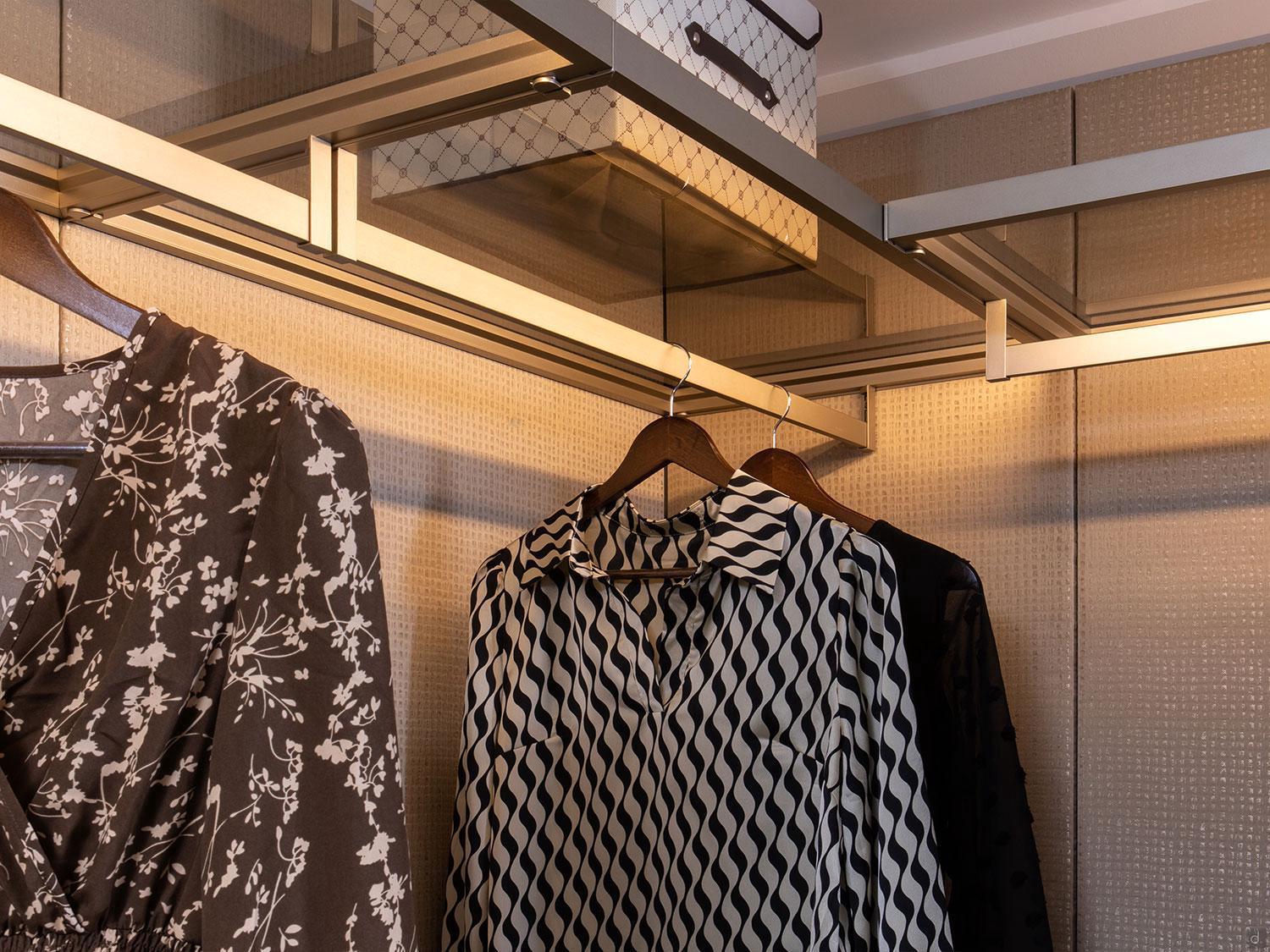

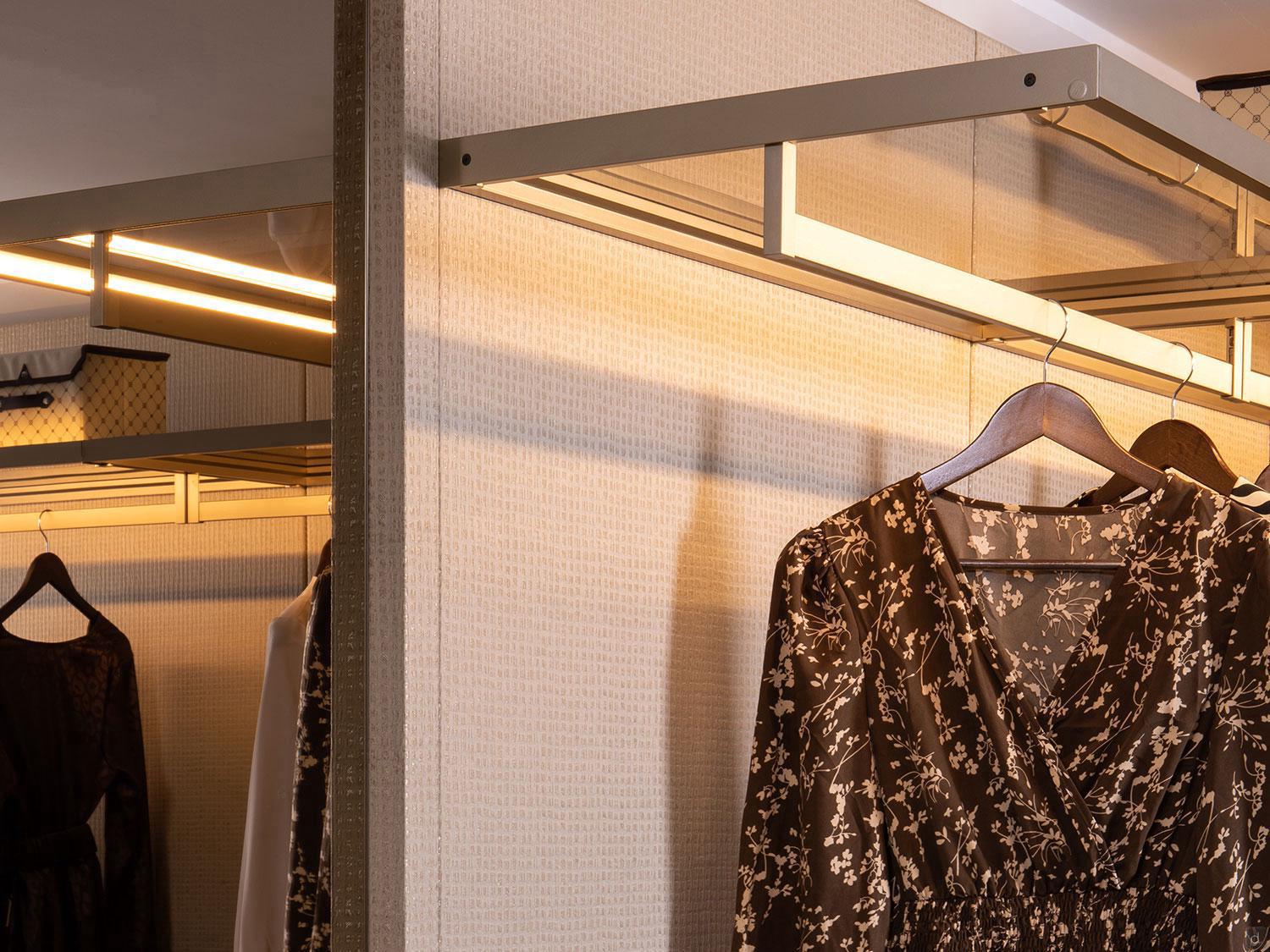

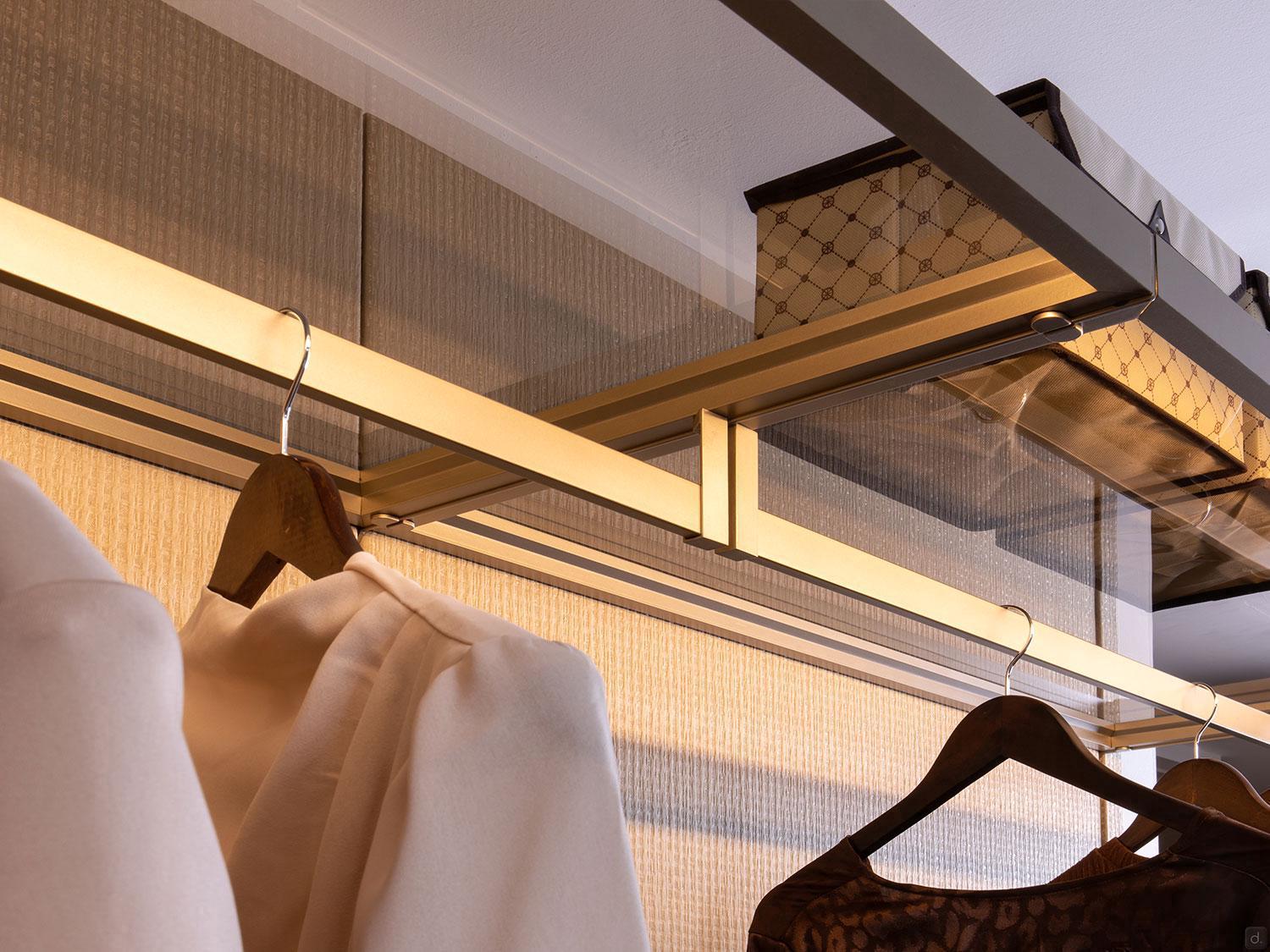

Clothers Hanging Rod: rectangular section 3 x 1 cm, in brown lacquered metal or metallic finish. Available on all 4 shelf/panel widths present in the configurator.

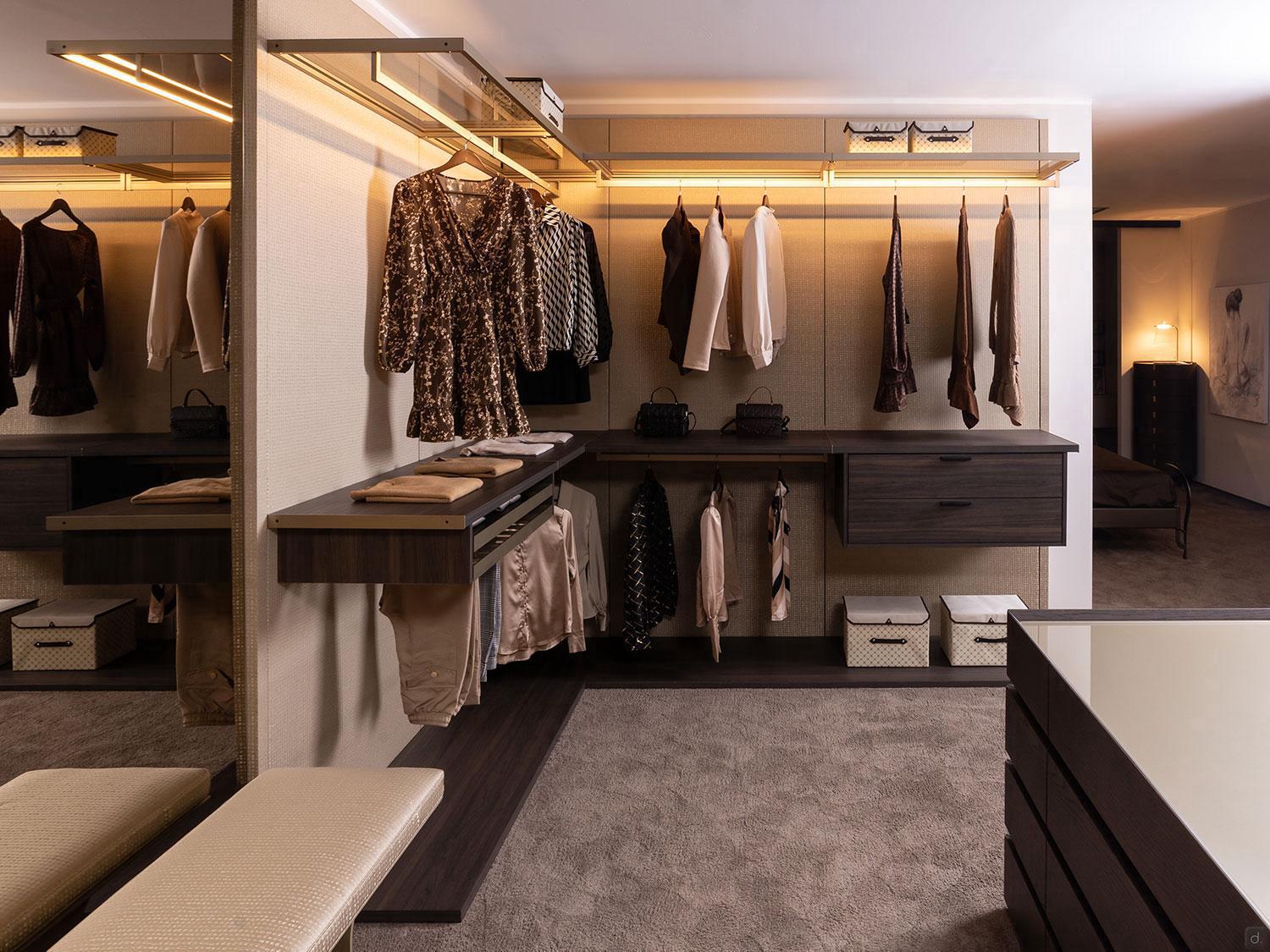

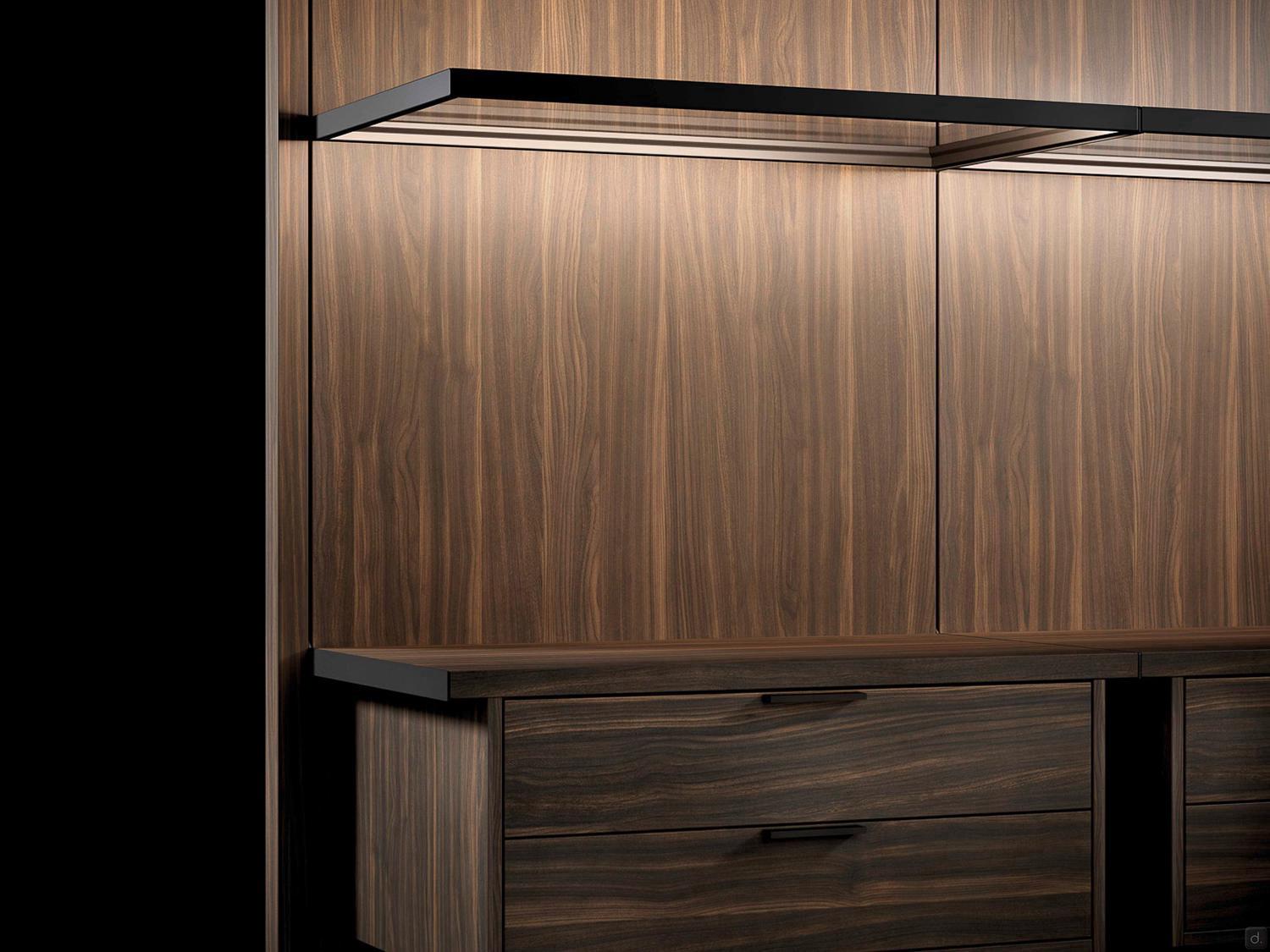

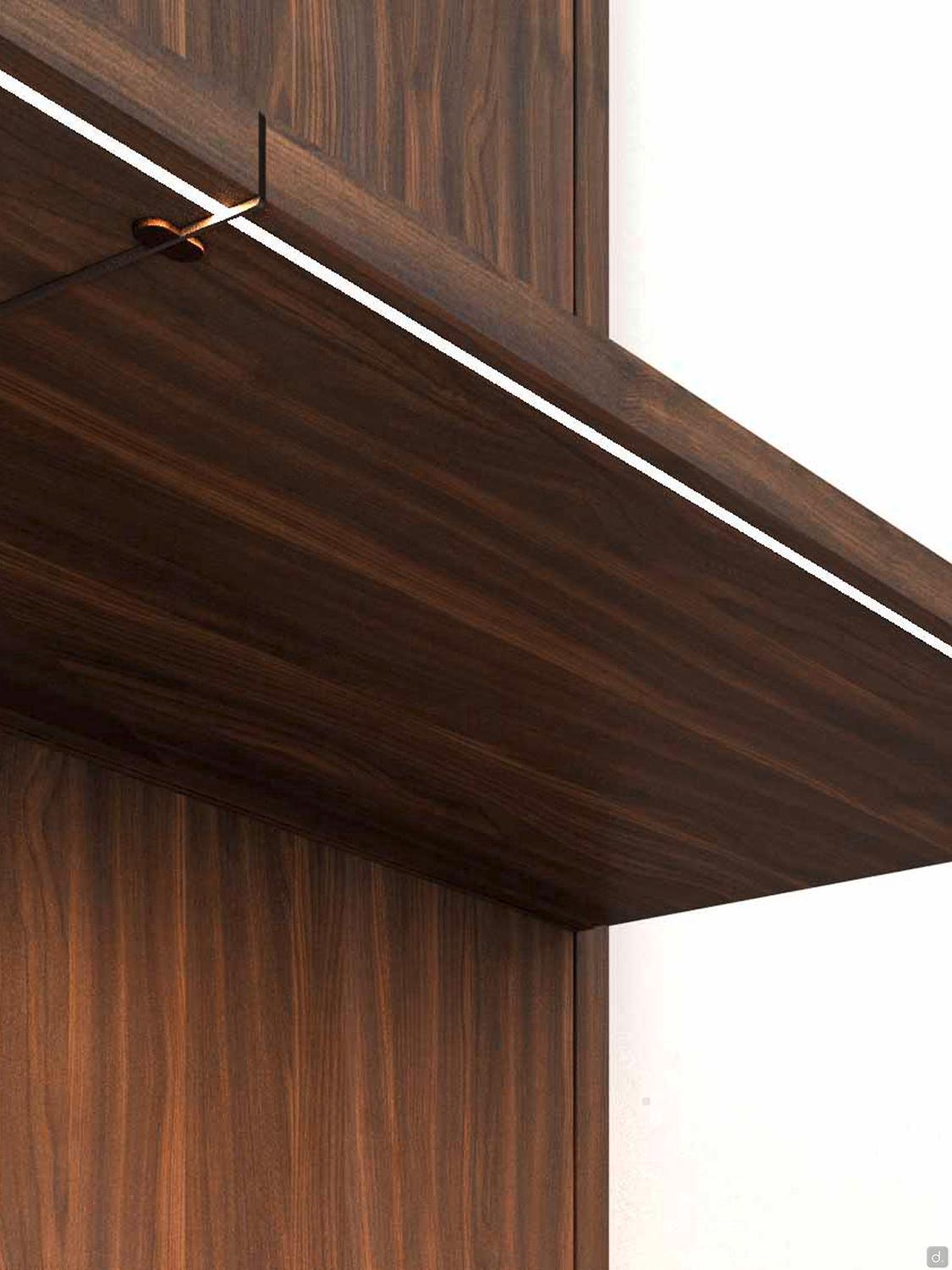

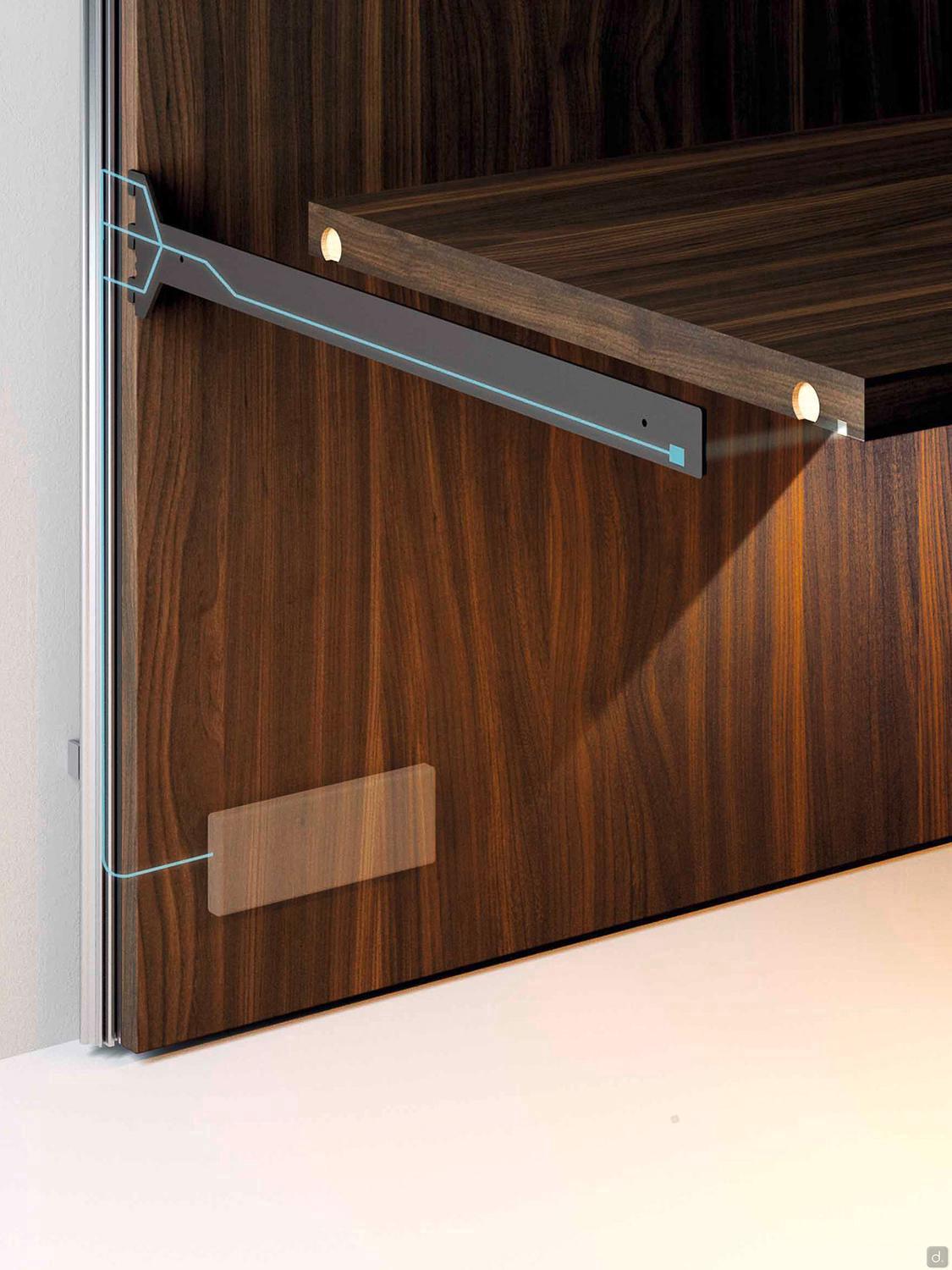

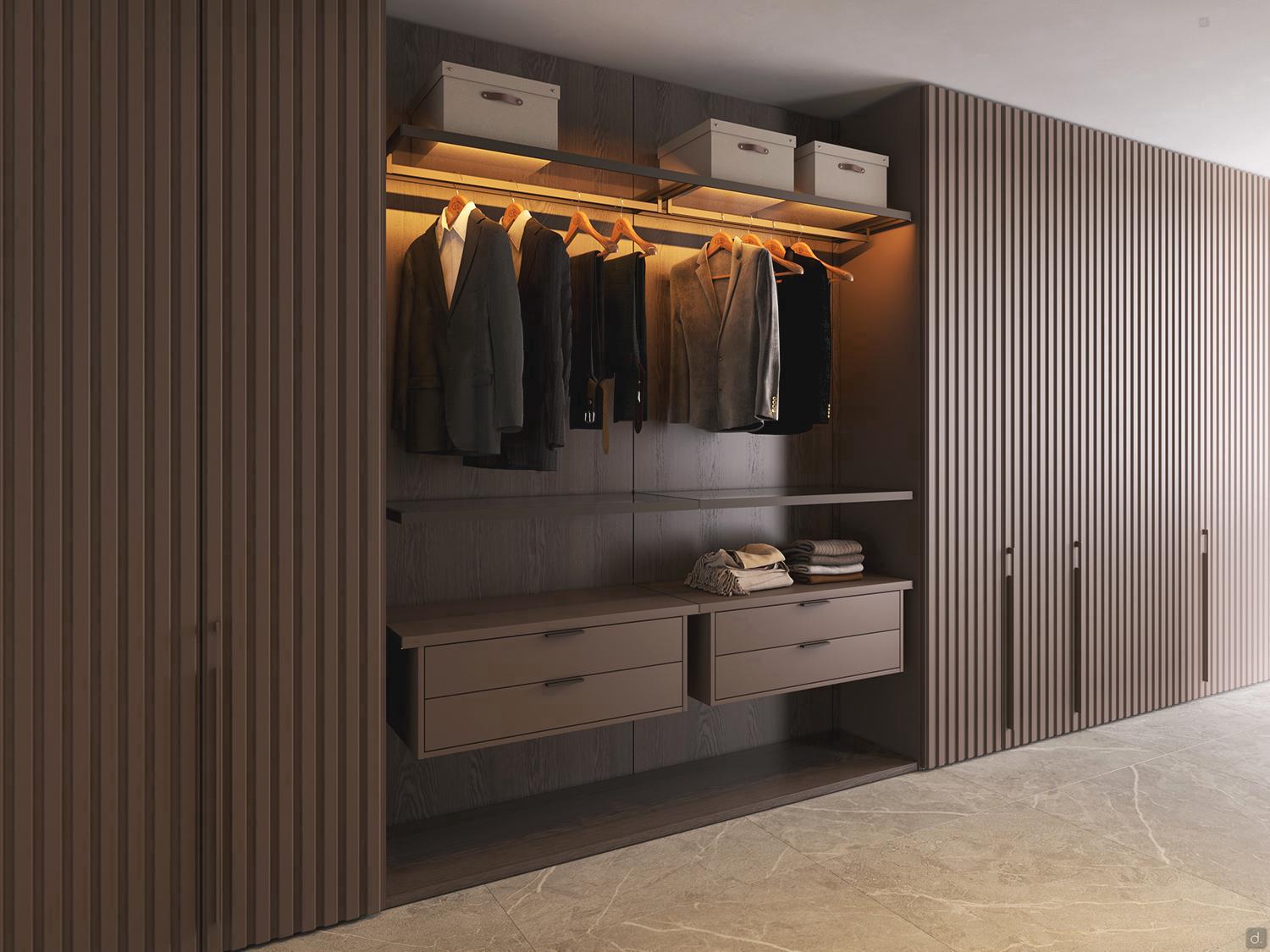

LED Bar: warm light at 3000K and 24V positioned in milled in the front of the shelf. Electricity transmitted through the contact between brackets and electrified rack profile, equipped with a power cable to be connected to the transformer placed in the sanitary gap present between the panel and the wall. To equip the shelf with LED lighting, both rack profiles, left and right of the panel, must be electrified. The lights are turned on via a controlled socket.
Assembly Tips
A height clearance of 2 cm is required for mounting the walk-in closet.
Read more...
Honeycomb: is a panel made with an internal honeycomb structure and a 5 / 7 cm perimeter frame made of first-grade solid spruce closed with 2 MDF panels of 0.3 / 0.4 cm thickness, later lacquered or veneered.
The strengths of honeycomb panelling are:
- greater durability over time;
- greater resistance to load;
- significantly reduced panel weight (up to 60% less), which is useful both for transport, assembly, moving or relocation, but especially for reducing the wight of the sashes on the structure and hardware;
- hardware always attached to the perimeter (solid spruce) of sides and doors, so hinges will have greater strength and furniture will have a significantly longer life span;
- better resistance to moisture, as the material "breathes".
- exclusively "100% Made in Italy" product.
Aged Oak: compared to "standard" open-pore oak, aged oak is characterised by a slightly more brushed surface, which shows a deeper pore and a more noticeable grain. This difference is more noticeable on important surfaces such as tables, wall units and cabinets, less so on accessories, beds and bed sets.
