N117 - Atlantic
Wall Hung Bathroom Vanity

N117 Atlantic bathroom unit with hanging shelving, cabinet with two drawers and one door. Shelves with 4 compartments each, ceramic built-in sink.

* Required Fields


From €2,658.23
Wishlist

Description

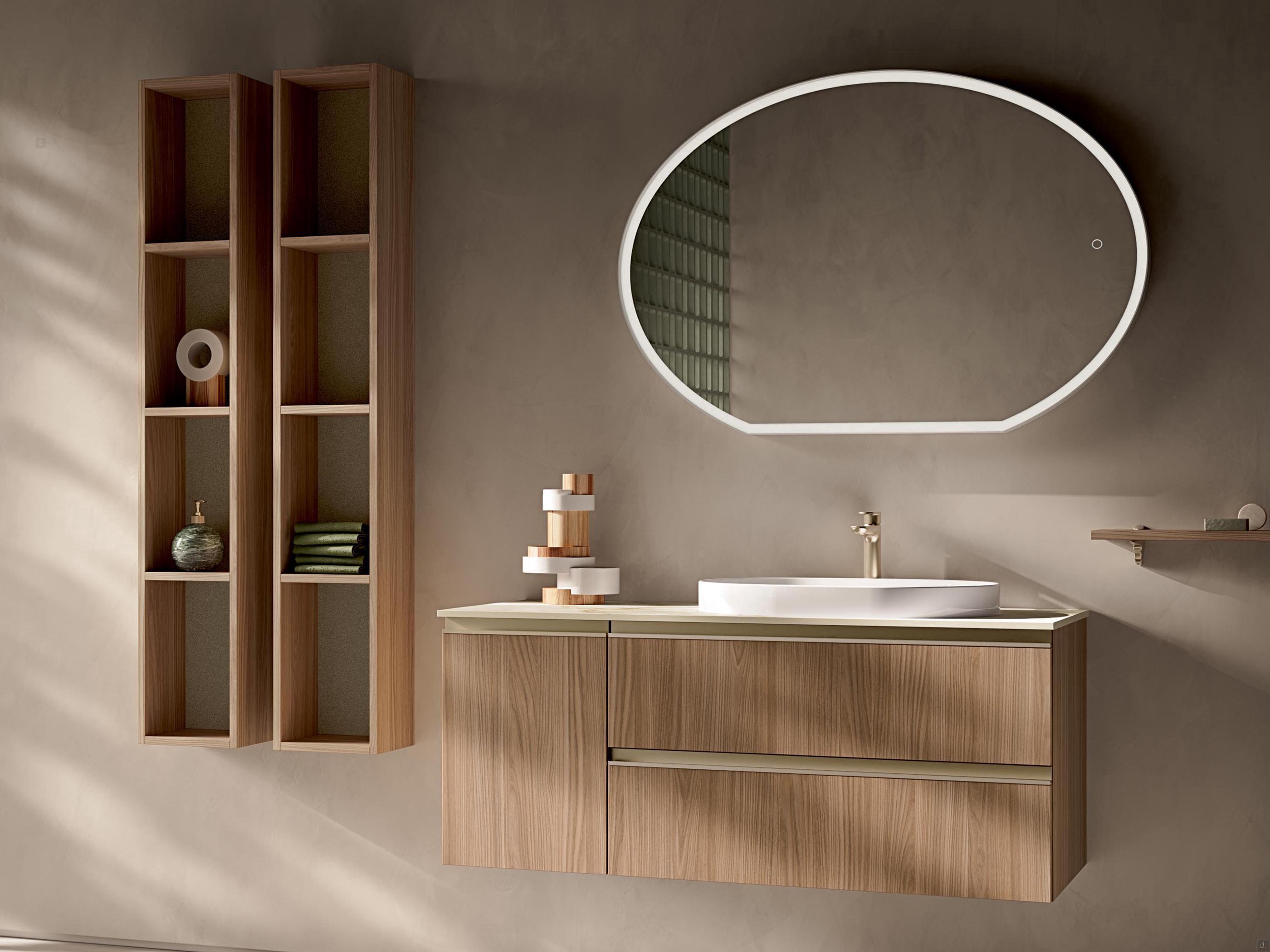

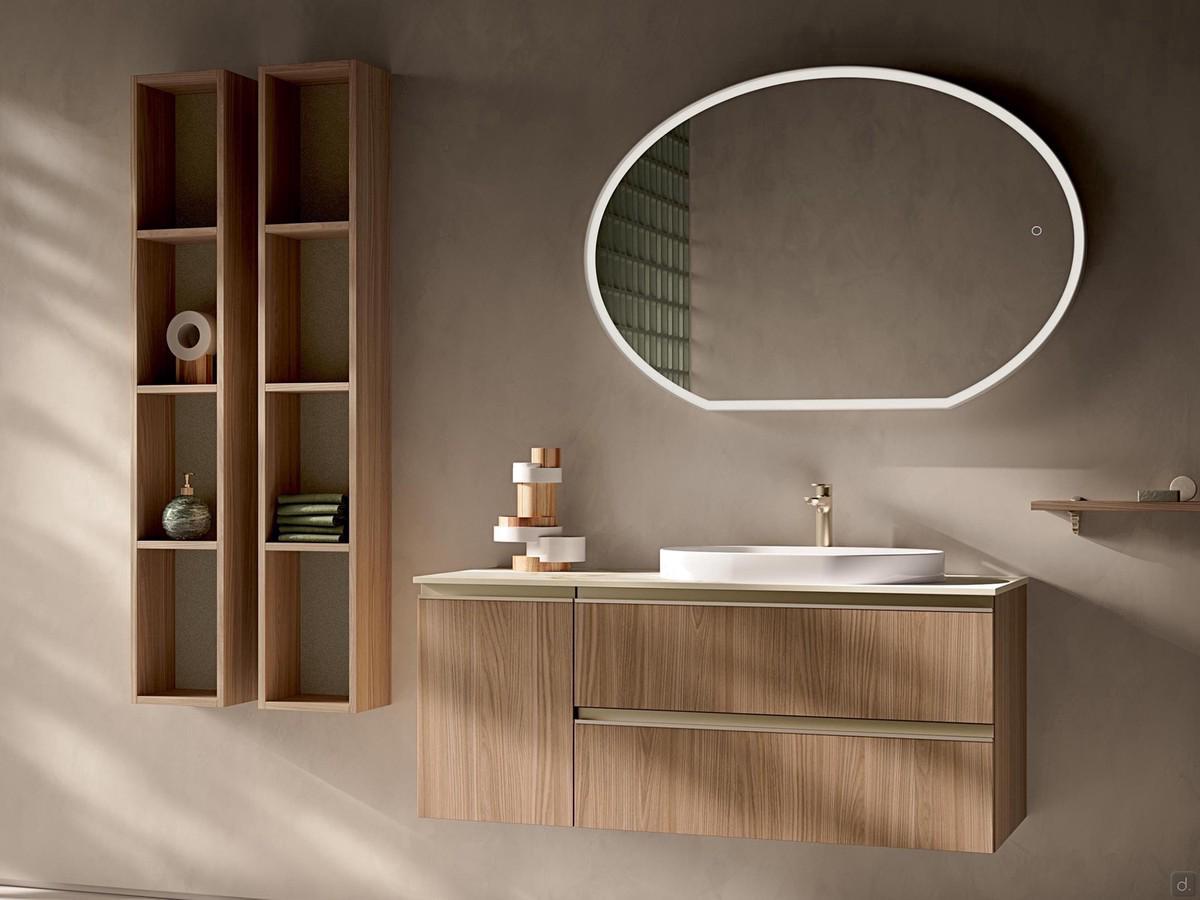

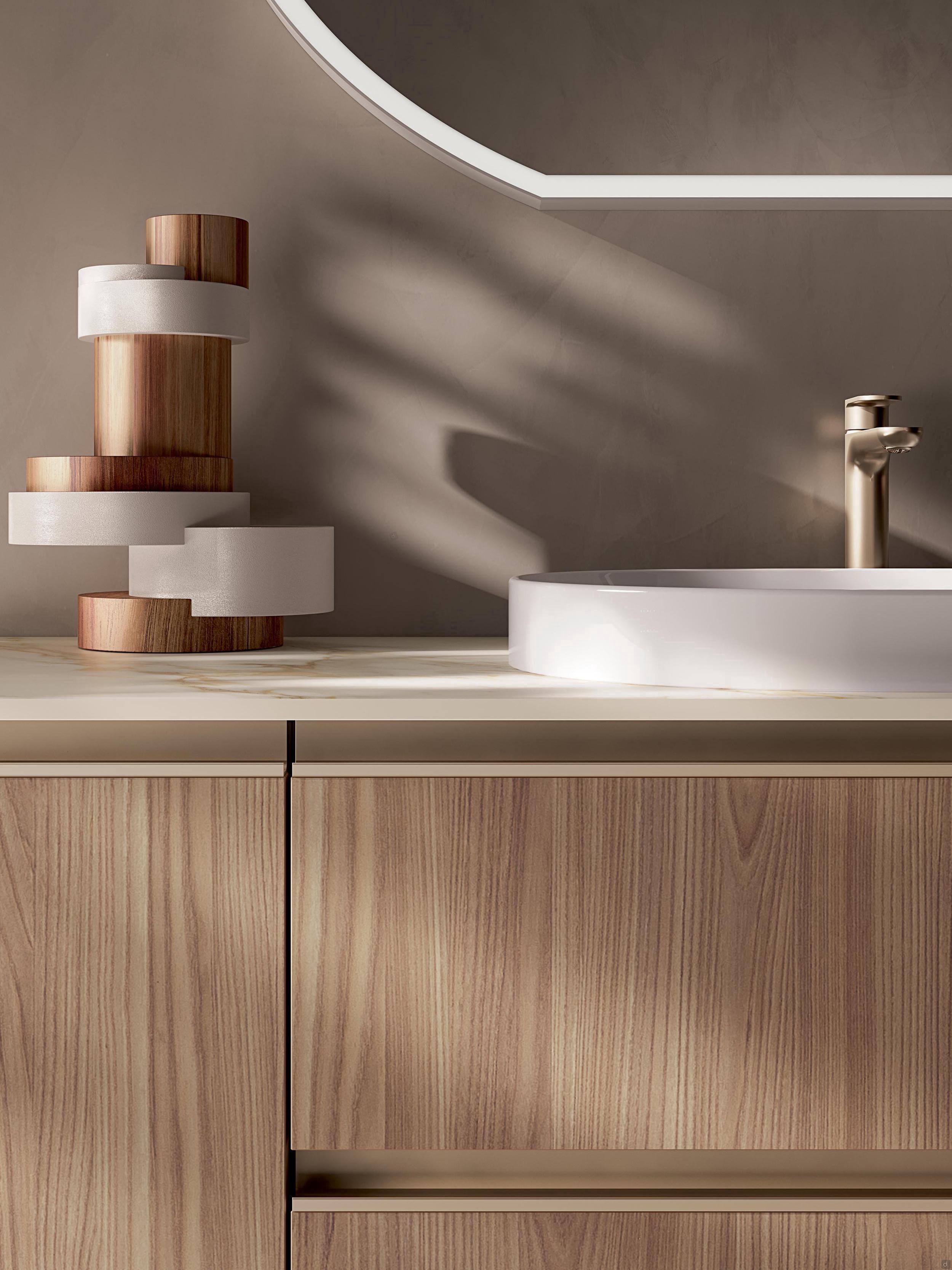

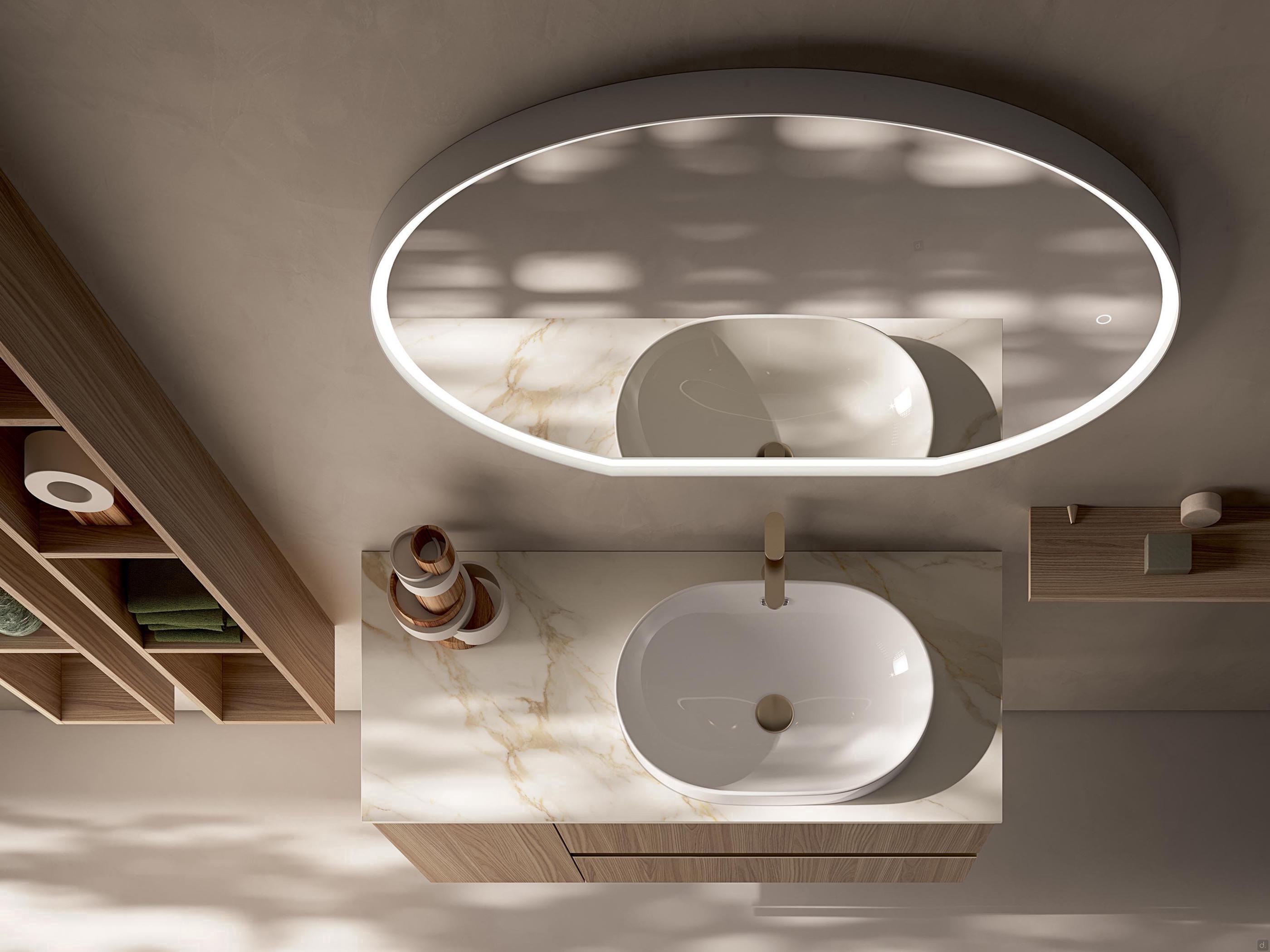

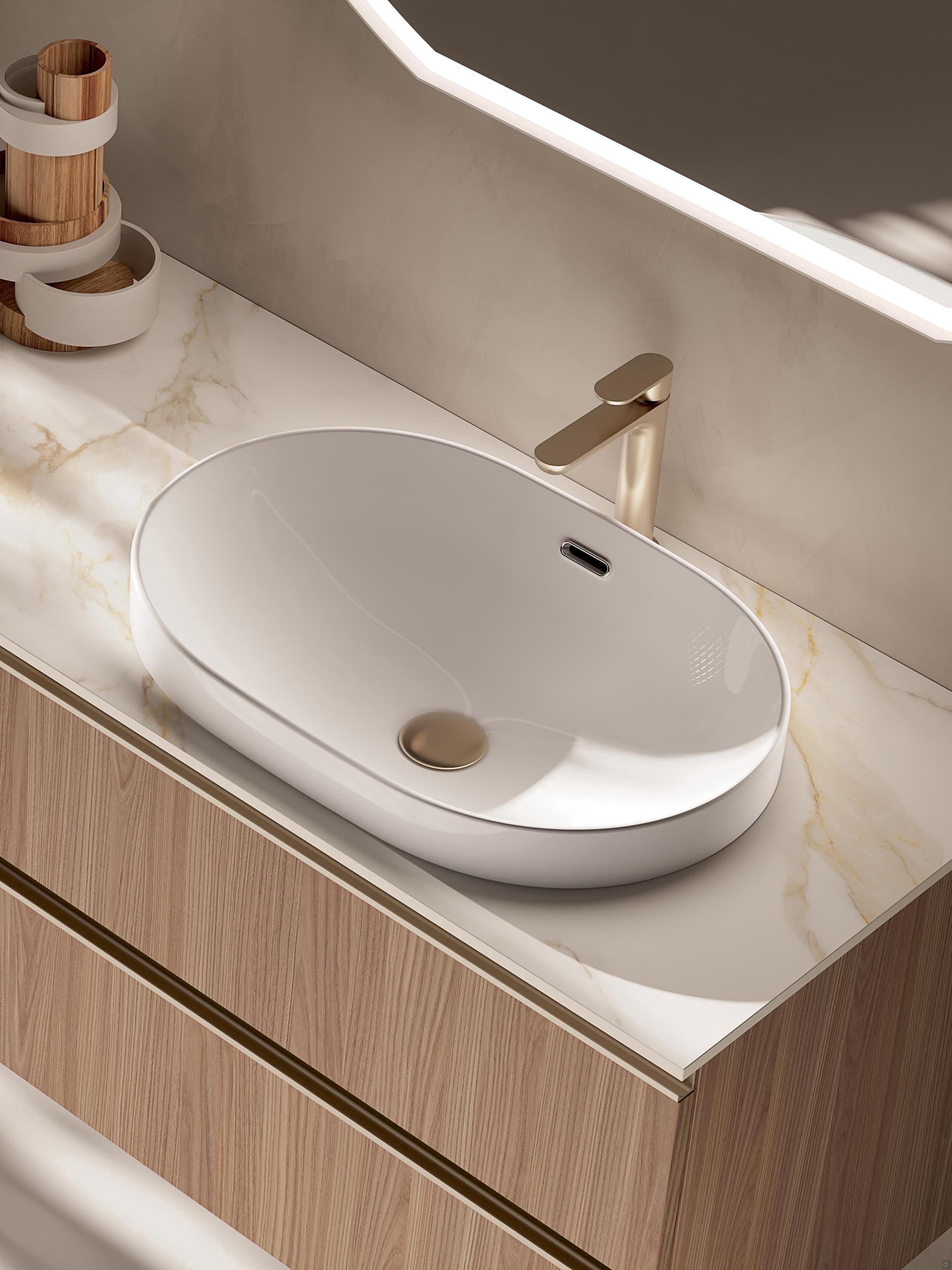

N117 Atlantic is a bathroom unit with open wall-hung columns, a washbasin base unit with double drawer and hinged door, and a stone-effect stoneware top. The washbasin, oval-shaped and in polished ceramic, is recessed above the top, with a central mixer tap on the top.

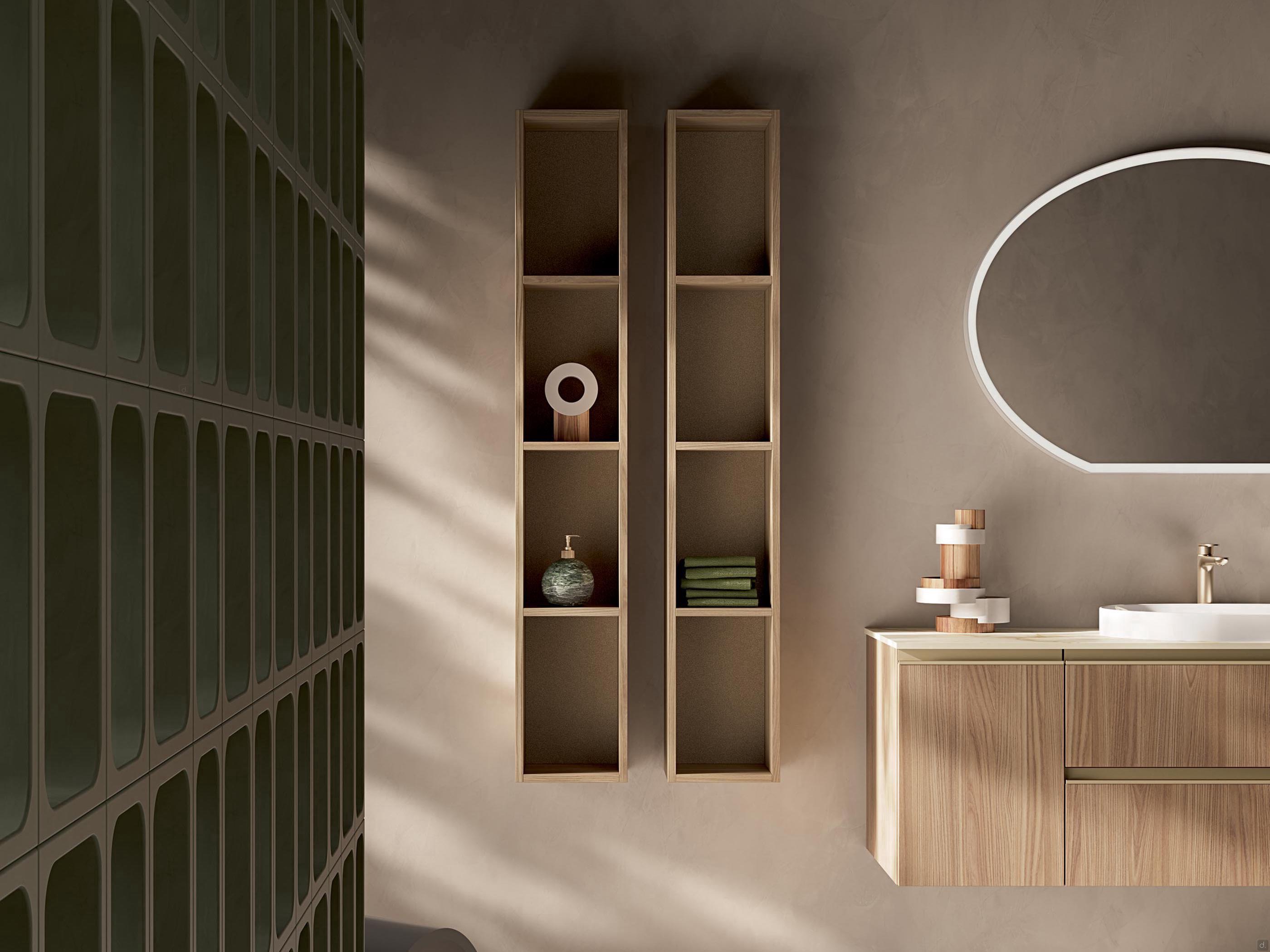

The storage space in the N117 composition is ample and diversified, and can be found both inside the pull-out or hinged compartments of the base unit, and in the open elements of the wall-hung tall units. The latter can be freely positioned on the wall, in no way bound to the washbasin unit, and are also customisable in terms of material and colour.

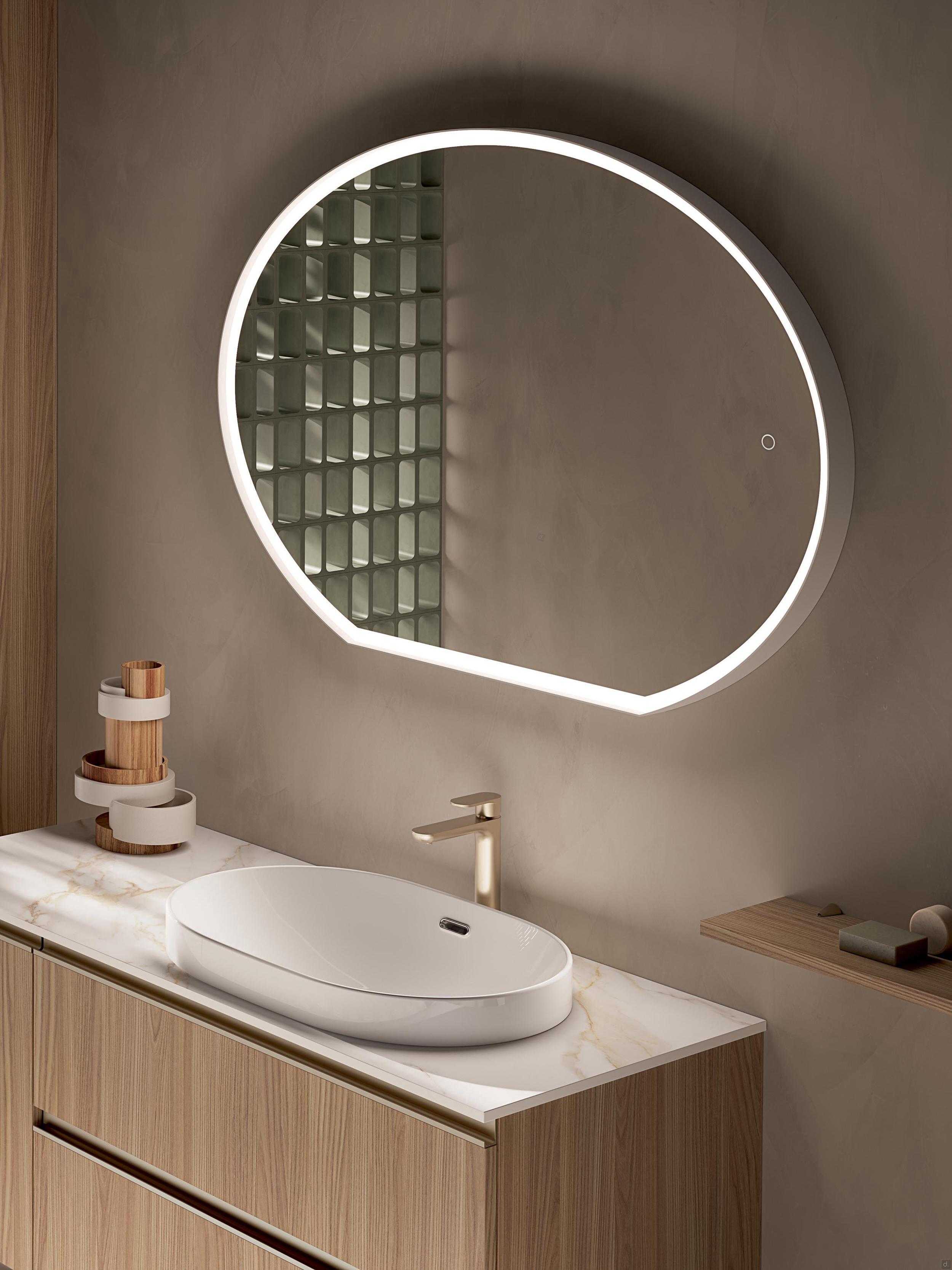

Included in the cabinet, in addition to the open tall units, is a 110 cm oval mirror with LED lighting integrated in the frame. A touch button directly on the glass allows you not only to switch it on, off or dim it, but also to vary the light temperature between 2700 and 6000K at will.

Features
bathroom cabinet with inset ceramic washbasin, two drawers and hinged door
includes two tall units with 4 open compartments each, configurable in melamine, lacquer or wood
door and drawer opening via push-pull, groove, lacquered metal groove or applied handles
includes a 110 cm oval mirror with dimmable LED light integrated in the frame

Dimensions
Suspended bathroom cabinet
- cm 121 p.51 h.51
Open columns:
- cm 25 p.20,8 h.150

Materials and Finishes
Base and Open Columns
- melamine
- lacquered: matt, glossy, on melamine,
- wood essence
Top and Washbasin
- stoneware

Info for your Purchase

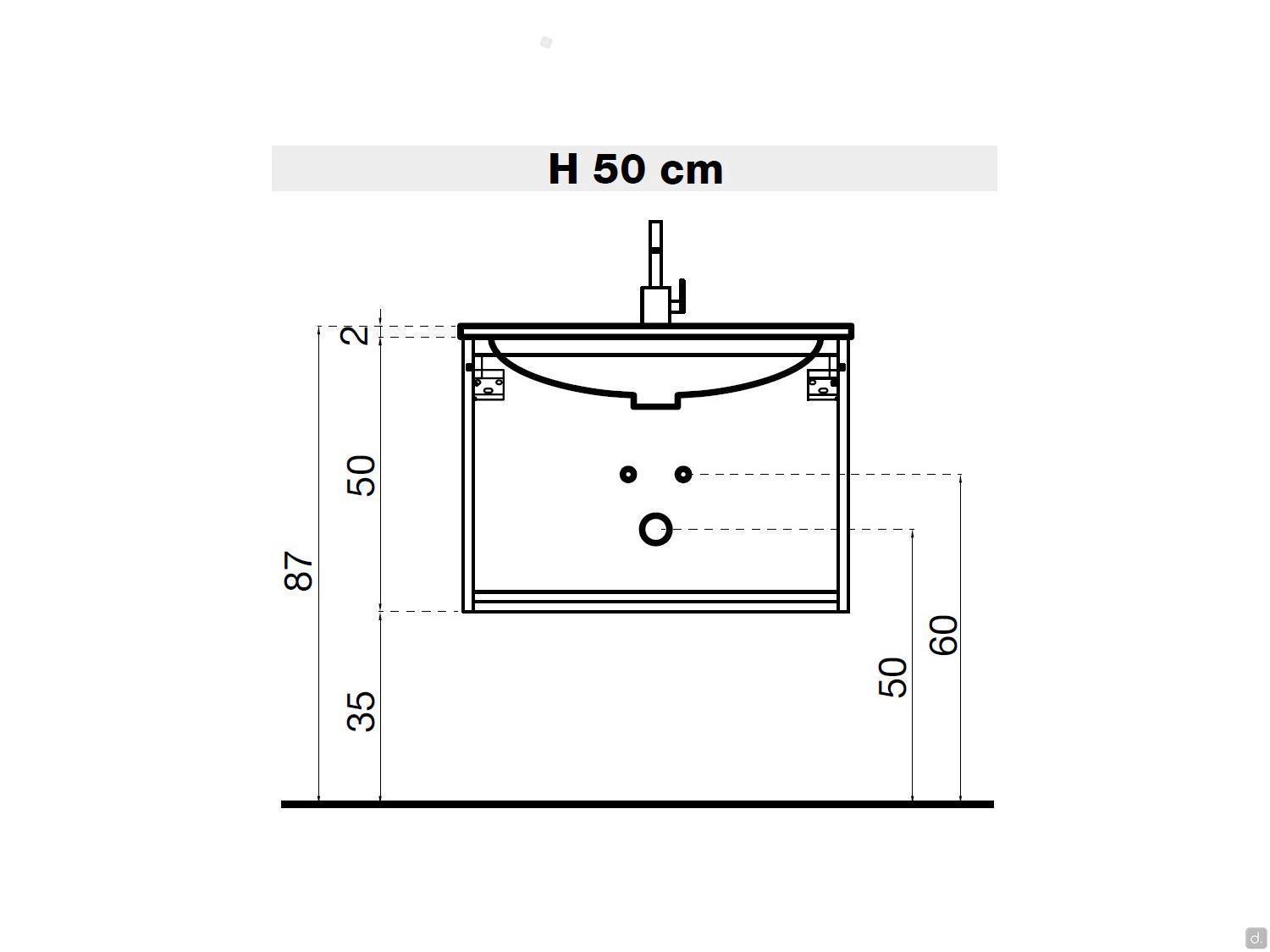

The top protrudes 1 cm at the front and 0.5 cm at the side. The overall height of the bathroom furniture is equal to the sum of the height of the base and the thickness of the top, it is therefore 1 or 1.3 cm higher than indicated in the configurator (depending on the stoneware category selected).
The washbasin is provided with an overflow hole. The tapware is not included; among the products at the bottom of the page you can find the Universal Siphon and the Drain.

Technical study

Technical Specifications and Features

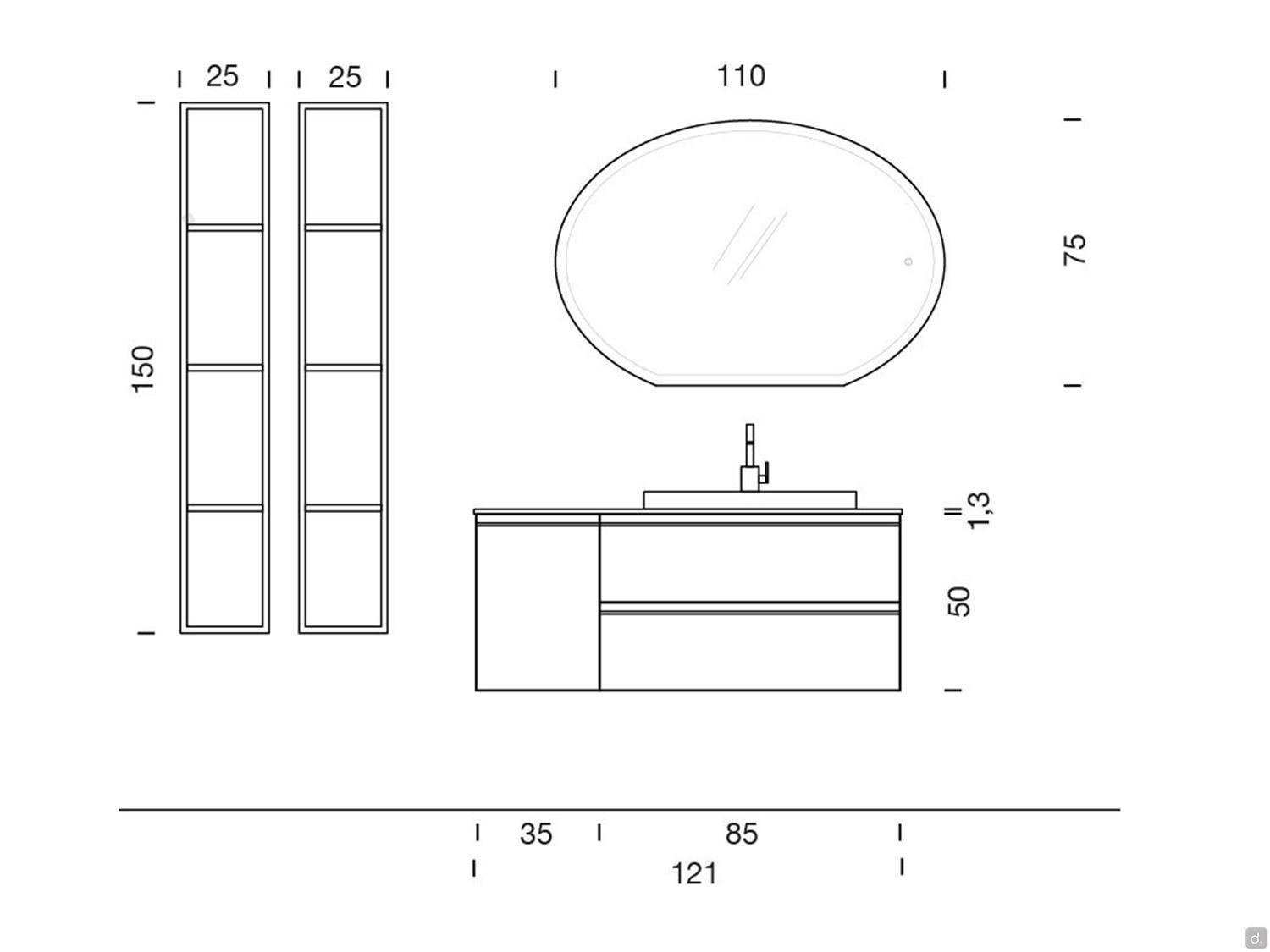

The N117 Atlantic bathroom cabinet is composed of:
n.1 washbasin base unit with 2 drawers: cm 85 d.50 h.50
n.1 base unit with hinged door: cm 35 d.50 h.50
n.1 stoneware top: cm 121 d.51 thickness 1 / 1,3 (the thickness depends on the selected finishing category)
n.1 JES built-in ceramic washbasin: cm 60 p.40 h.18,5 (in height it protrudes 5 cm from the Top)
n.2 open tall units with 4 compartments: cm 25 d.20,8 h.150
n.1 HALO mirror with integrated led light: cm 110 h.75 sp.5

Base and open unit structure: cm 1.8 thick, made of particle board panels.
Base and wall unit fronts: cm 1.8 thick, made of particle board panels. Choice of handles, push pull, groove or groove.
Legrabox drawer: characterised by straight sides both internally and externally, only 1.28 cm thick. Equipped with a metal frame with full-extension runners and slow-closing mechanism.

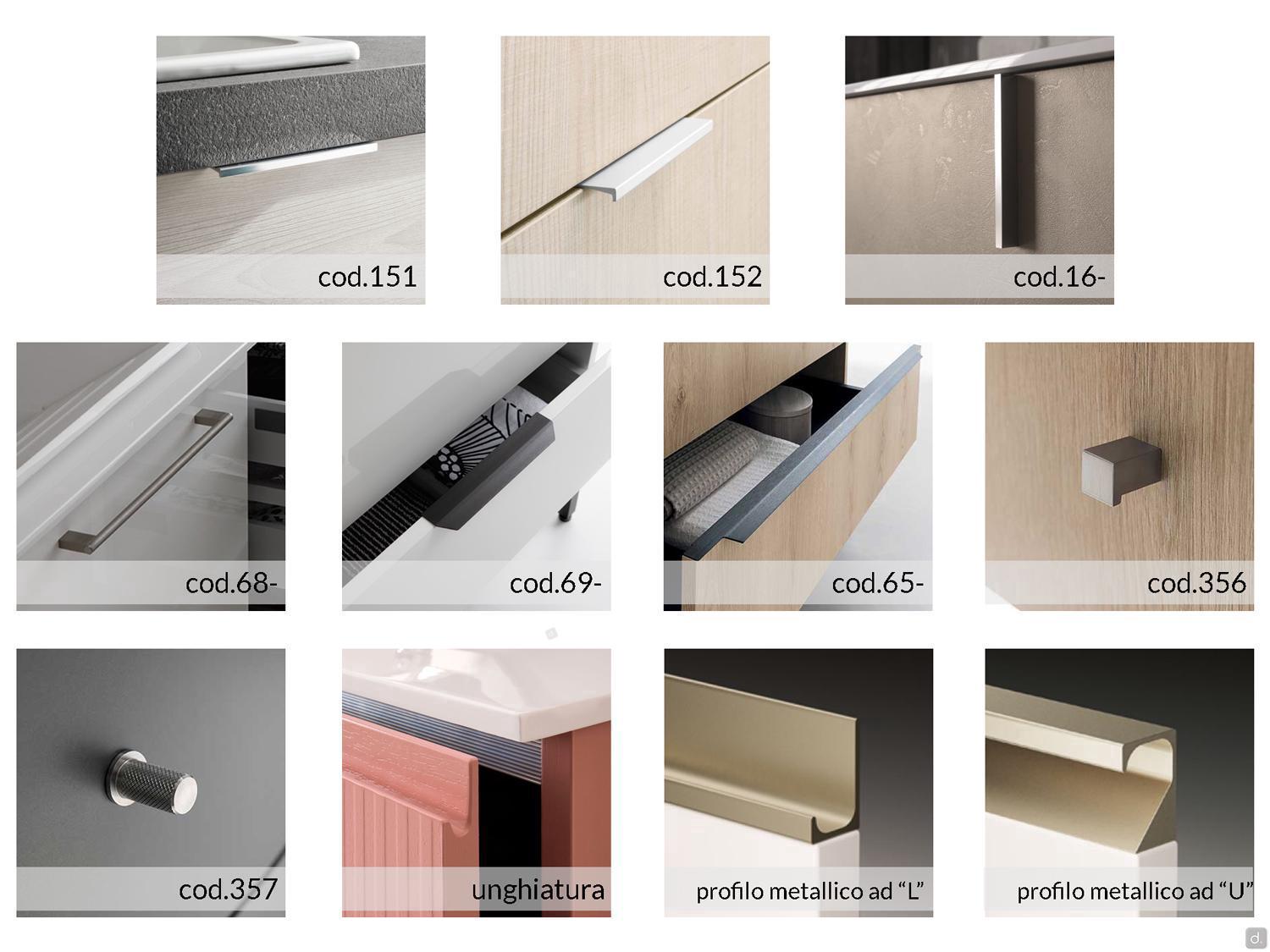

Handles: you can choose from various models of handles, as well as push-pull opening.
Handles cod.152, cod.16- and throat with grip are available in matt lacquered finish in all sample colours.
Throat available in lacquered finish only.
The handles mod. 68- protrude 4 cm from the surface of the door.

Optional
Shelf: cm 70 p.16 sp.1,8 supplied in the same colour as the base units, with visible shelf supports in two finishes

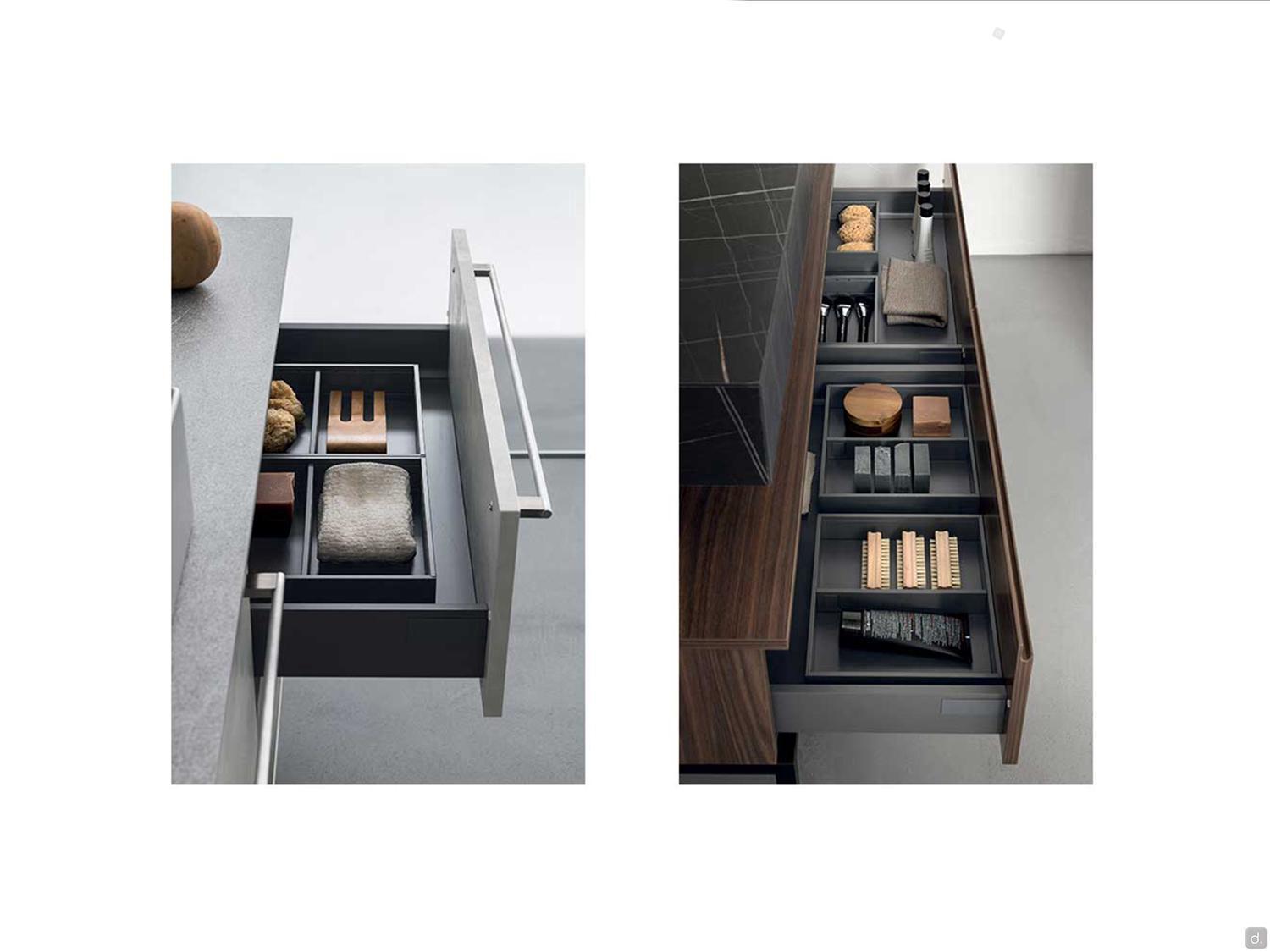

Organiser: internal subdivision system for the Legrabox drawer, in Orion Grey finish.

Maintenance Tips
Veneered: use neutral liquid detergents for cleaning. To remove limescale stains, wipe the surface with a sponge soaked in vinegar or anti-limescale product, then rinse and dry. Do not use acids, abrasive products or powders; do not leave anti-limescale products in contact with the surface for a prolonged period of time, as this could create halos.
Lacquer: use soft, non-abrasive cloths for cleaning to avoid damaging the surface. Do not use products containing solvents, acetone or abrasives, nor wax, alcohol or silicone-based products.

Video

Additional Information

Area of Production
Italy
Assembling
Medium Assembling
Assembling Instructions
See Tab Video
Other Products from the same Collection
View all the products of the collection (cod.cmp)

Partner Factory

This bathroom furniture is a 100% Italian product made by a company from the province of Pordenone that started in the field during the 90s. Initially oriented towards the production of classic and modern bathrooms, it grew throughout the years earning national and international fame in the water and sanitary system as well. The company headquarters cover 16.500 square metres and are equipped with innovative machinery. Its business is characterised by the high quality standard of the materials employed, studied and renovated every year to follow the latest fashion. The solid wood comes from forests that follow regularised policies regarding tree cutting and all the other materials are either recycled or recyclable. Every productive phase takes place inside the company itself in order to guarantee the highest monitoring level.

The company creates its personal models but still focuses on the needs of modern housings in terms of space and taste. Moreover, the modular nature of the products allows for high customisable projects. It is possible to widen the initial composition with additional accessories and equipment in every moment. The wide collection and the colour range offered cover several different styles and types of environment: from a more elegant and refined bathroom to an original design, from soft and natural shades to pastel colours. Cabinets with drawers and baskets placed under the basin, wall-hung drawers, columns to store linen or beauty products, dressing tables of the most diverse shapes: the bathroom vanities of this collection are thought to satisfy every need.
