Specific Measurements

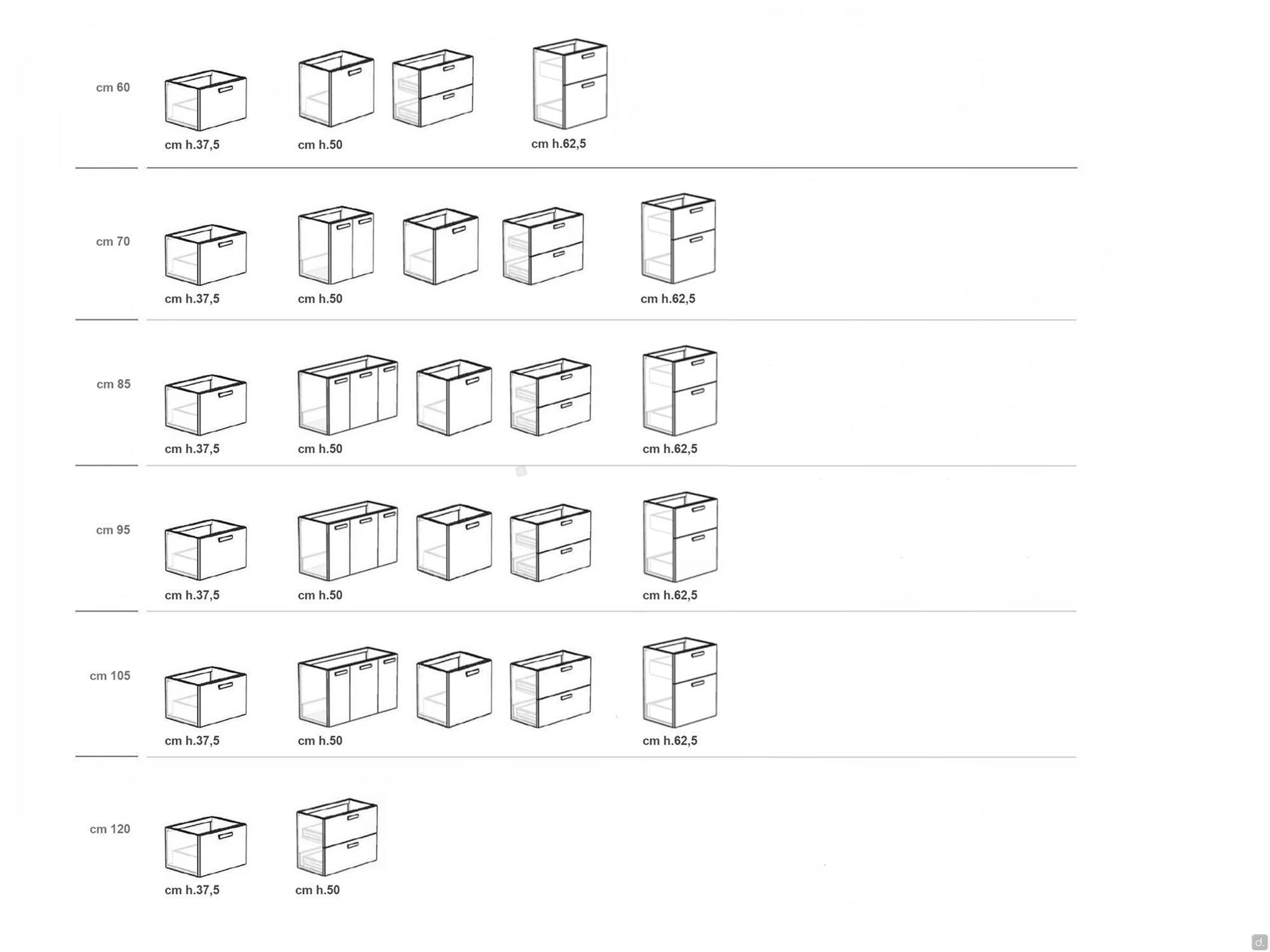

Base with 3 doors cm 85: n.1 central door cm 35 + n.2 lateral doors cm 25.
Base with 3 doors cm 95: n.2 doors cm 35 + n.1 lateral door cm 25.
Base with 3 doors cm 105: n.3 doors cm 35.
Specific Materials
Structure: cm th.1,8 made of wood particle panels.
Fronts: doors, drawers and deep drawers are made of wood particle panels cm th.1,8. With a smooth lacquered front in MDF with a thickness of cm 1,9.
Technical Specifications and Equipment
Structure: characterised by an open back creating space for the tubes.

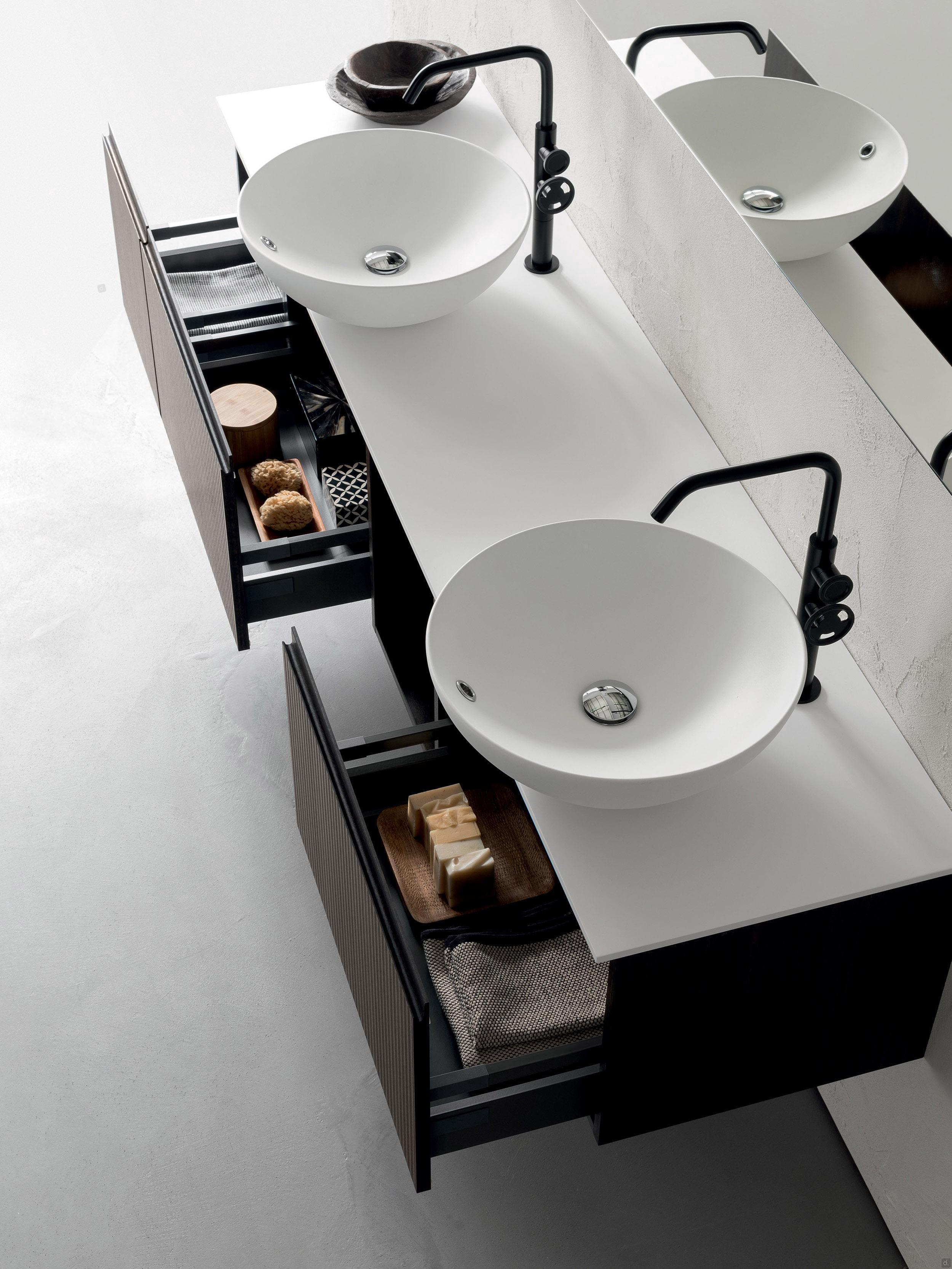

Legrabox Drawers / Deep Drawers: equipped with a metal body featuring straight sides both internally and externally, with a thickness of only 1,28 cm. Fully extractable guides and slow closing.
Doors: equipped with a series of Smoove hinges for slow closure.

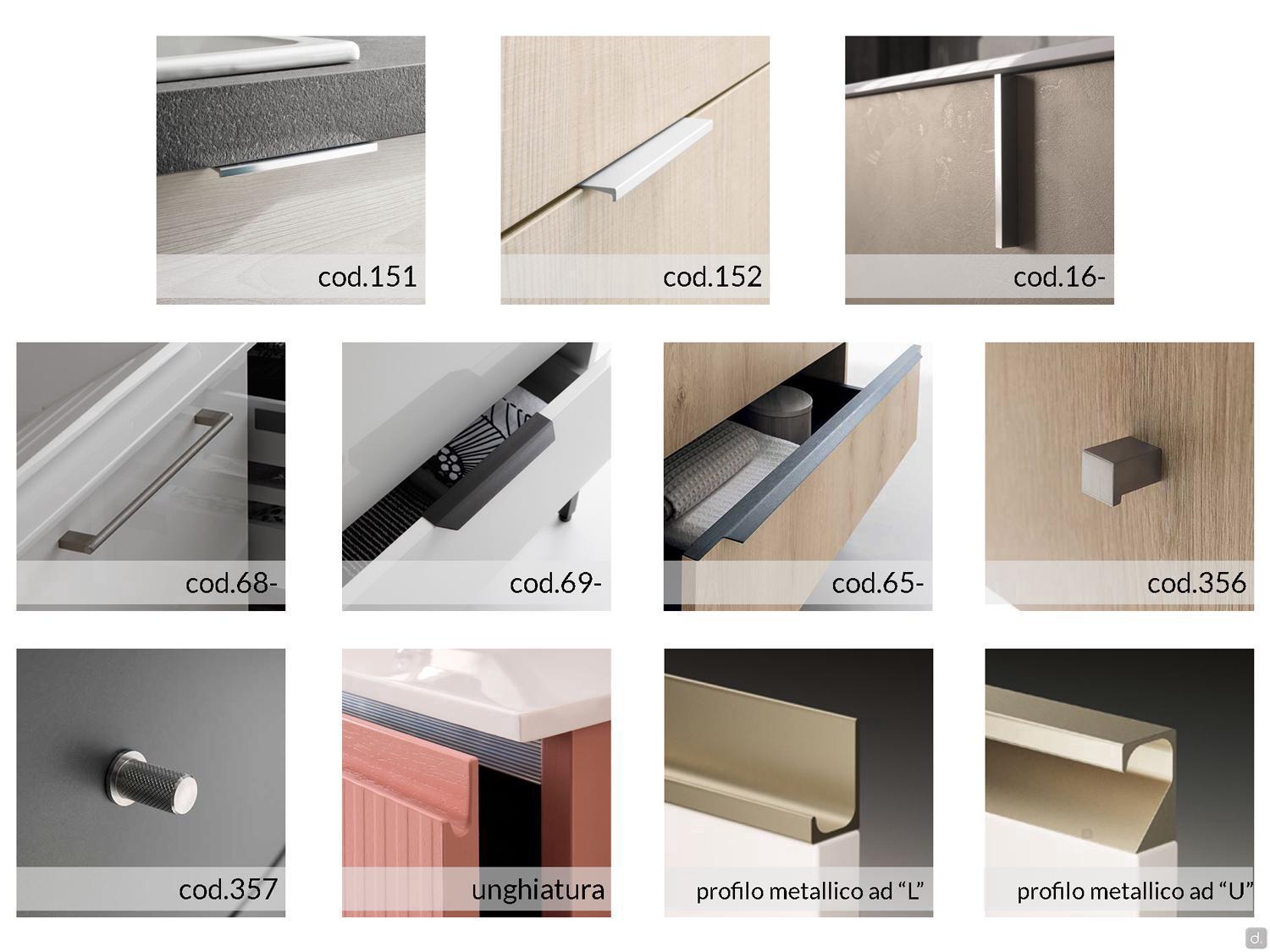

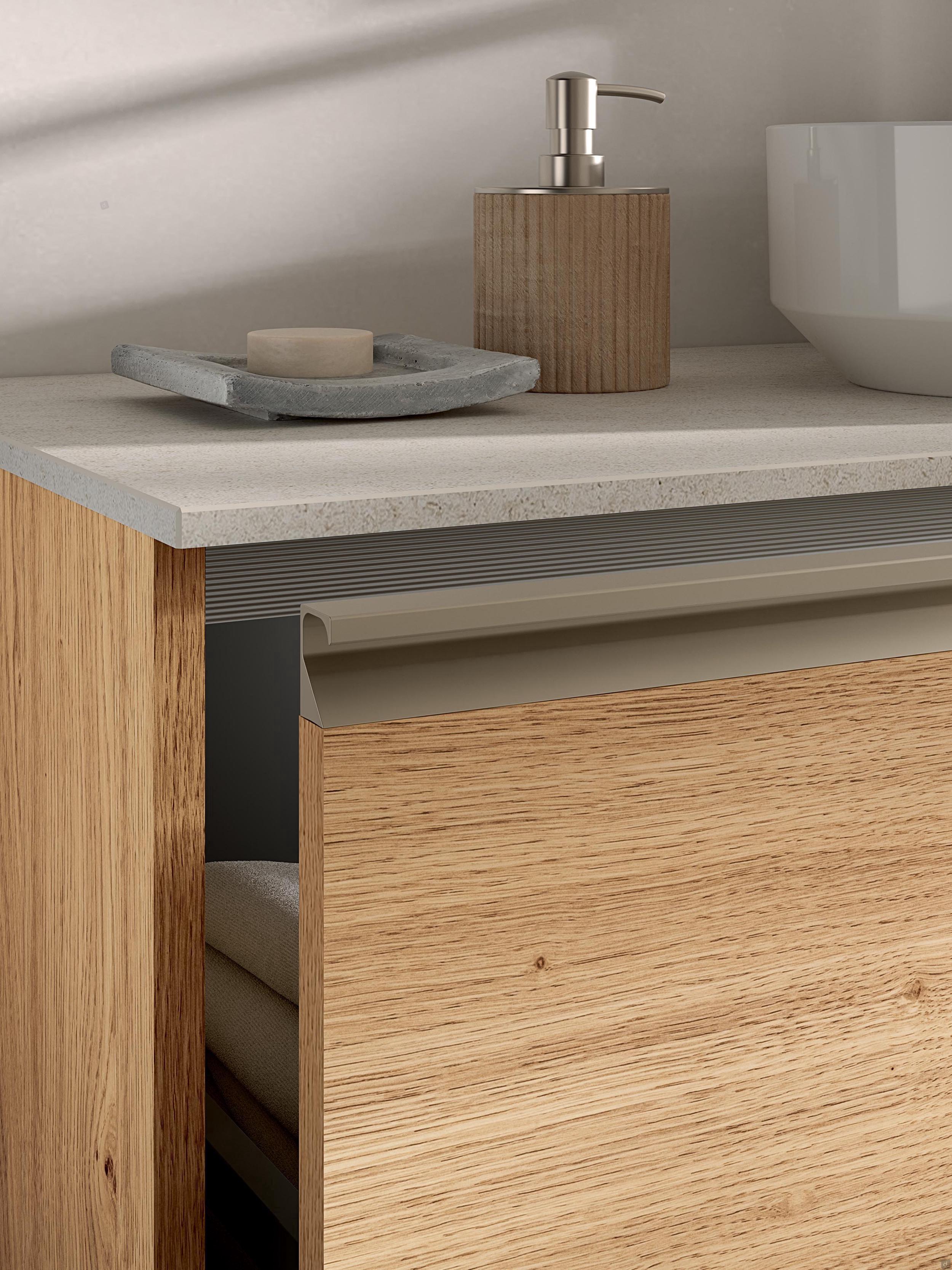

Handles: it is possible to choose different handle models other than push-pull. The handles cod.152, cod.16- and both metal profiles are available in a matte lacquered finish in all the colours of the sample book.
Handles mod. 68- protrude 4 cm from the door surface.
Feet cm h.10: with rectangular or shaped form available in chrome, satin nickel, black painted, matte lacquered or sandblasted lacquered metal in all the colours of the sample book; the suspended base cm h.62.5 thus becomes a floor-standing unit cm high 72.5 (excluding the height of the sink and the thickness of the top) .
Plinth cm h.10: in aluminium or matte lacquer in all colours of the sample book; the suspended base cm h.62,5 then becomes floor-standing cm 72,5 (excluding the washbasin height and top thickness).
| Washbasin Model |
Measurements |
Inner Basin |
Mixer Hole |
Overflow |

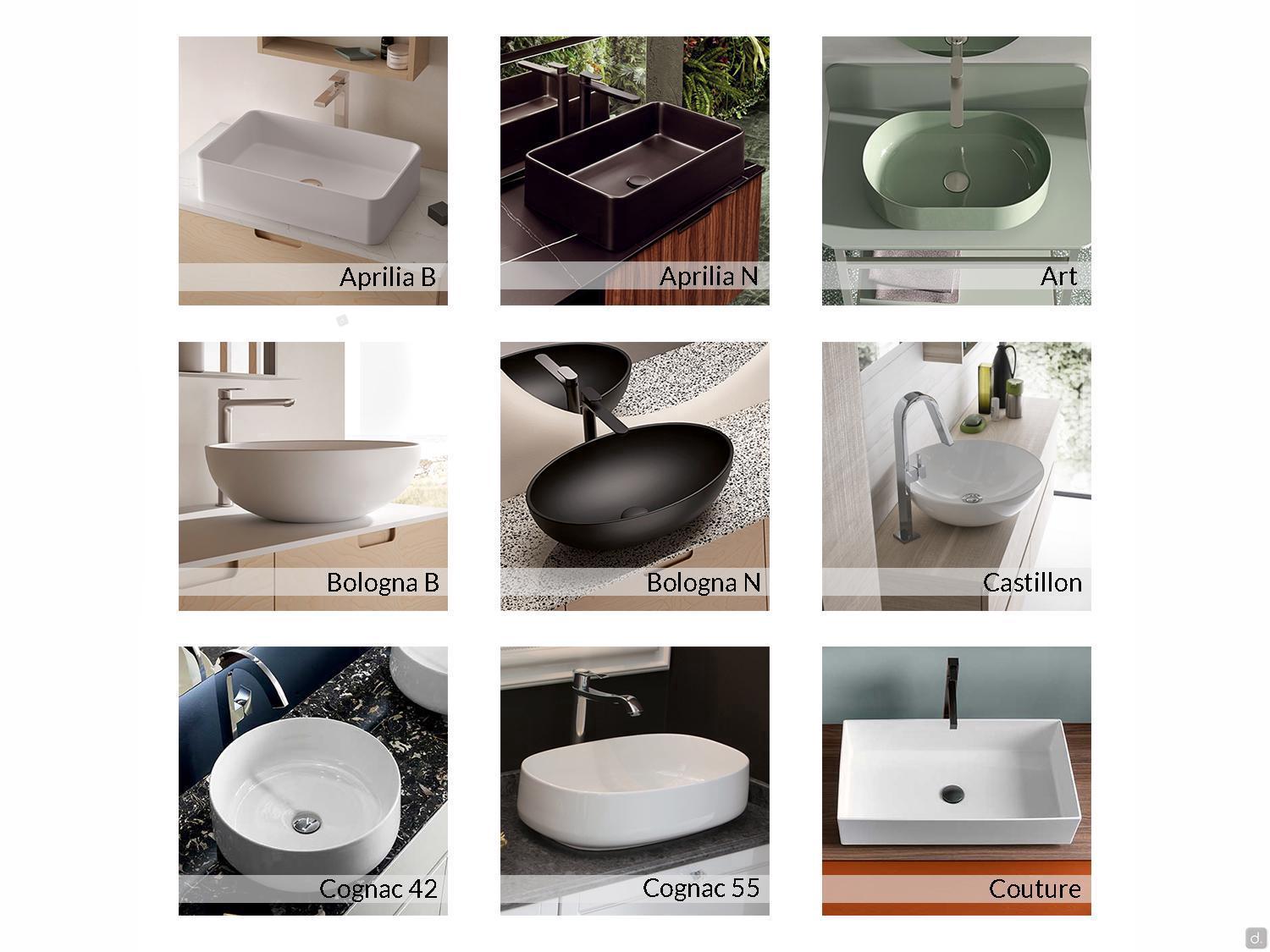

| Aprilia - white or black matte ceramic |
cm 59 d.37 h.14,5 |
cm 56,5 d.34,5 h.12 |
on the wall
or central top |
no |
| Art - glossy colourful ceramic |
cm 54 d.34,5 h.15 |
cm 52,5 d.33 h.12 |
on the wall
or central top |
no |
| Bologna - white or black matte ceramic |
cm 60 d.42 h.17 |
cm 57 d.39 h.14,5 |
on the wall
or central top, R / L |
no |
| Castillon - glossy white ceramic |
cm 43 d.43 h.15 |
cm 41 d.41 h.10 |
on the wall
or central top, R / L |
yes |
| Cognac 42 - glossy white ceramic |
cm 42 d.42 h.16,5 |
cm 40 d.40 h.14 |
on the wall
or on top, R / L |
no |
| Cognac 55 - glossy white ceramic |
cm 56 d.36,5 h.15 |
cm 54 d.34,5 h.12 |
on the wall
or central top, R / L |
no |
| Couture - glossy white Mineralguss |
cm 65,5 d.36,5 h.15 |
cm 64 d.35 h.13,5 |
on the wall
or central top, R / L |
no |

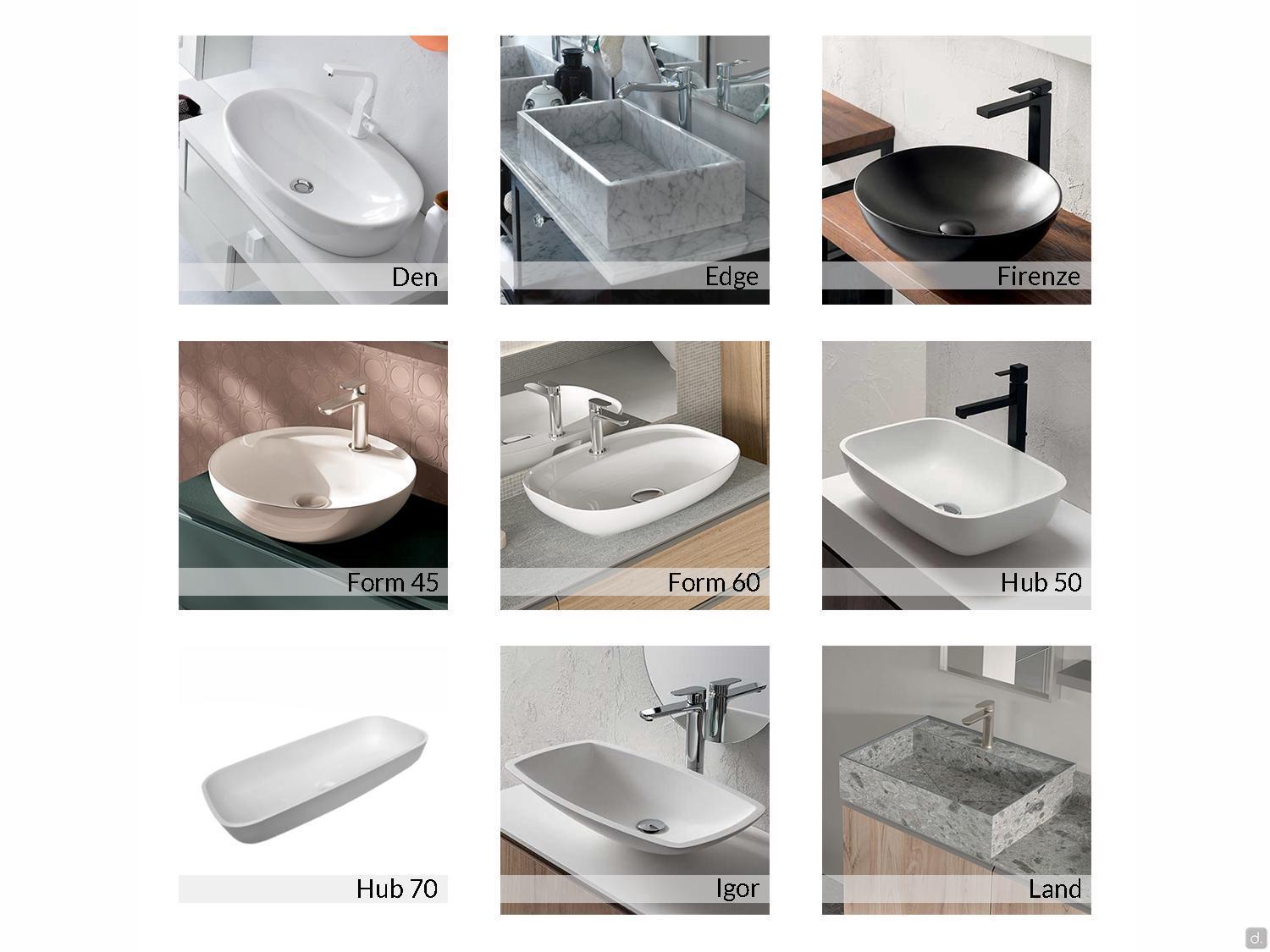

| Den - glossy white ceramic |
cm 66 d.40 h.14,5 |
cm 60 d.28 h.11 |
on washbasin |
no |
| Edge - White Carrara marble |
cm 65 d.36 h.15 |
cm 61 d.32 h.13 |
on the wall
or central top |
no |
| Firenze - matte black ceramic |
cm 43 d.43 h.15 |
cm 41 d.41 h.10 |
on the wall
or central top, R / L |
yes |
| Form 45 - glossy white ceramic |
cm 45 d.45 h.12 |
cm 44 d.33 h.8,5 |
on washbasin |
no |
| Form 60 - glossy white ceramic |
cm 60 d.45 h.12 |
cm 59 d.34 h.8,5 |
on washbasin |
no |
| Hub 50 - matte white Corian |
cm 52,4 d.34,3 h.14,5 |
cm 50 d.32 h.12 |
on the wall
or central top |
no |
| Hub 70 - matte white Corian |
cm 72,4 d.34,3 h.14,5 |
cm 70 d.32 h.12 |
on the wall
or central top |
no |
| Igor - matte white Tekor |
cm 60,5 d.35 h.17 |
cm 56 d.30,5 h.13 |
on the wall
or central top |
no |
| Land - porcelain gres |
cm 60,2 d.46 h.15 |
cm 57,7 d.33,5 h.10,5 |
on the wall |
no |

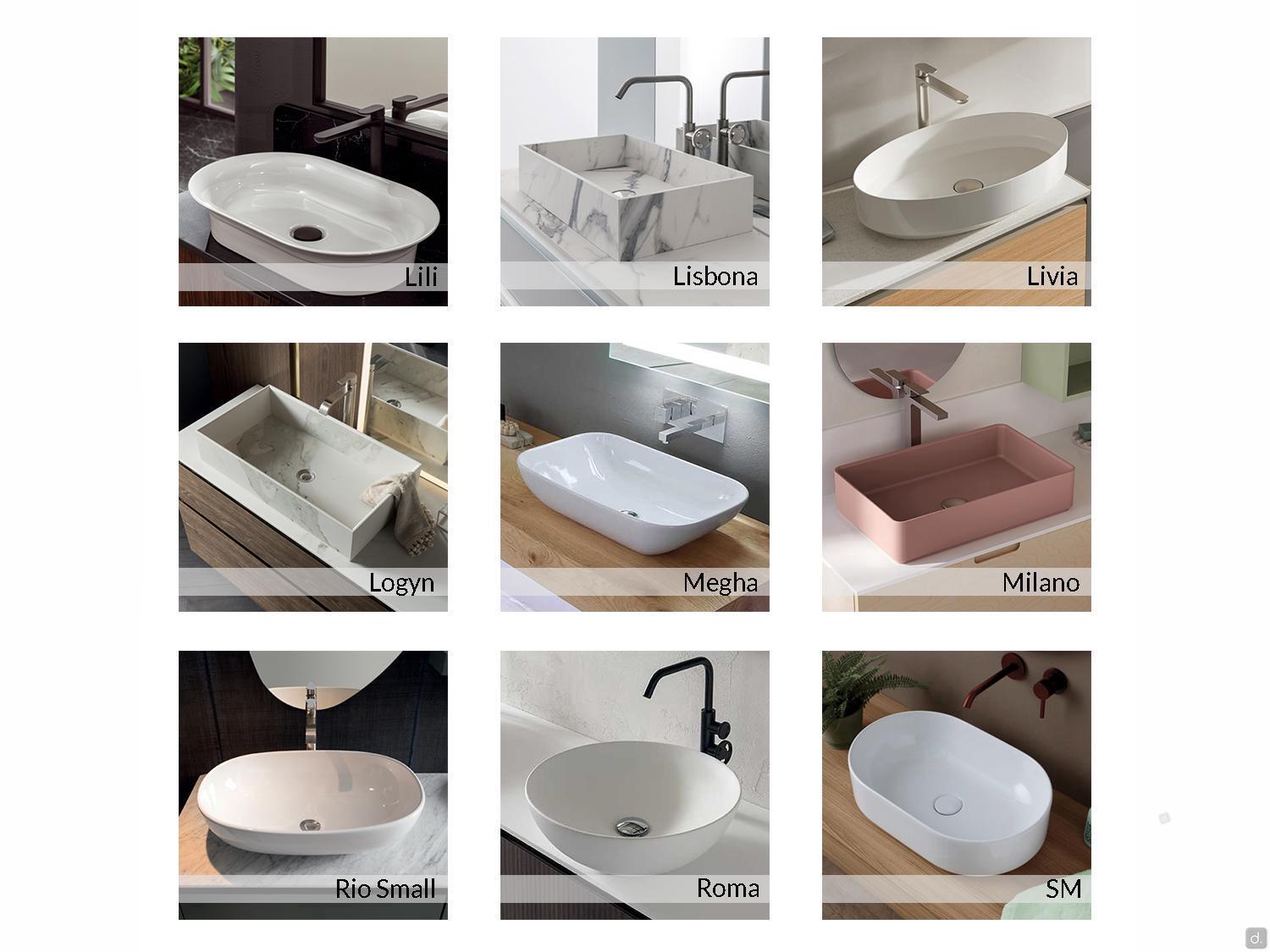

| Lili - glossy white ceramic |
cm 62 d.40 h.13 |
cm 52 d.30 h.10 |
on the wall
or on top R / L |
no |
| Lisbona - stratified HPL |
cm 54 d.33,5 h.13 |
cm 52 d.31,5 h.10 |
on the wall
or central top |
no |
| Livia - glossy white ceramic |
cm 61 d.39 h.13 |
cm 58,5 d.37,5 h.10 |
on the wall
or central top |
no |
| Logyn - porcelain gres |
cm 65 d.36 h.15 |
cm 62,5 d.33,5 h.12,5 |
on the wall
or central top |
no |
| Megha - glossy white ceramic |
cm 59 d.35 h.17 |
cm 61 d.39,5 h.14 |
on the wall
or central top |
no |
| Milano - Minera-Kolor |
cm 58,5 d.37,5 h.13 |
cm 56,8 d.35,5 h.11,5 |
on the wall |
no |
| Rio Small - glossy white ceramic |
cm 61 d.39,5 h.14 |
cm 59,5 d.38,5 h.12 |
on the wall |
no |
| Roma - matte white ceramic |
cm 43 d.43 h.15 |
cm 41 d.41 h.10 |
on the wall
or central top, R / L |
sì |
| SM - glossy white ceramic |
cm 54 d.34,5 h.15 |
cm 52,5 d.33 h.12 |
on the wall
or central top, R / L
|
no |

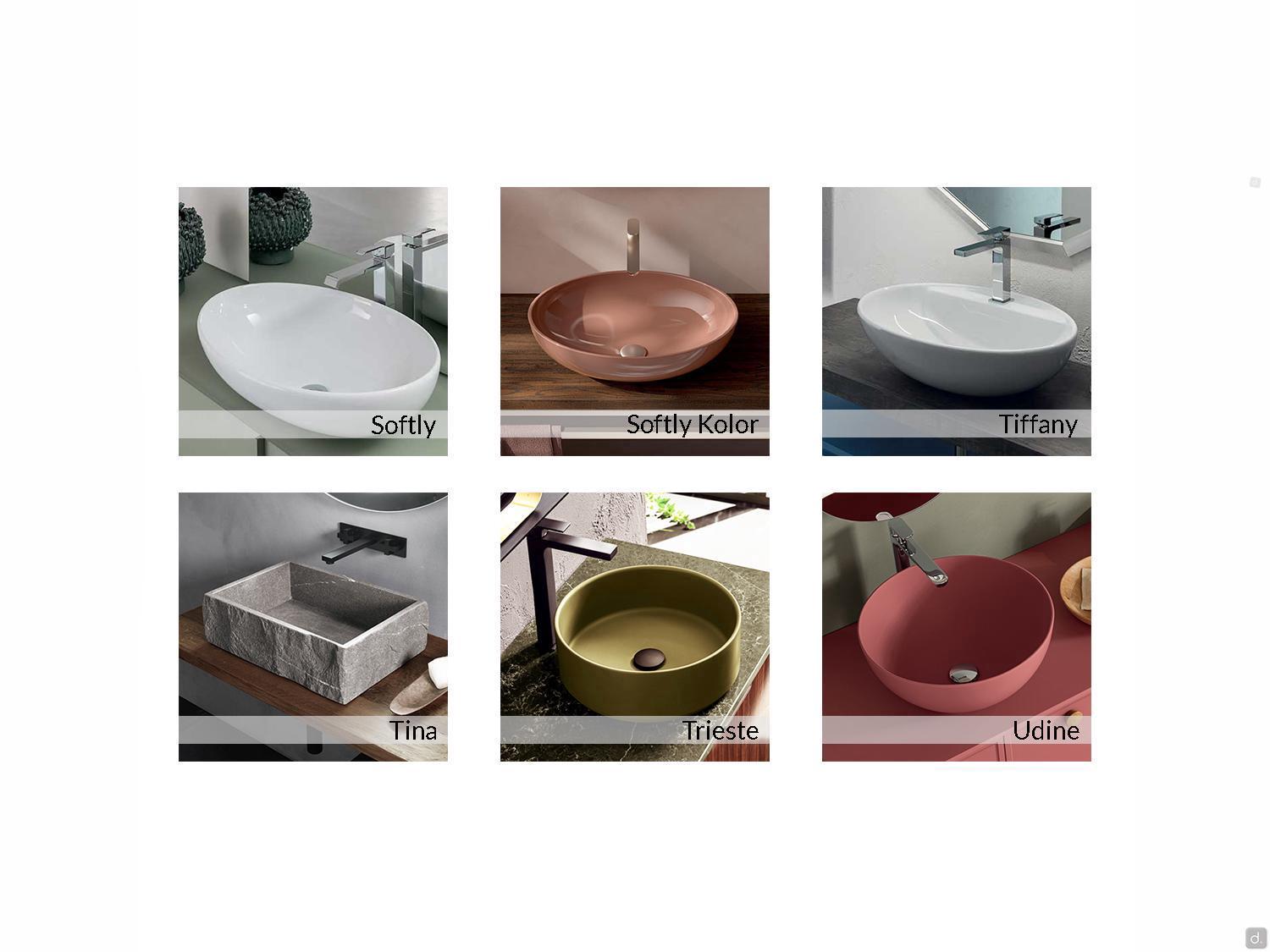

Softly / Softly Kolor -
white or coloured glossy ceramic |
cm 60 d.42 h.17 |
cm 57 d.39 h.14,5 |
on the wall
or on top, R / L |
no |
| Tiffany - glossy white ceramic |
cm 60 d.43 h.17 |
cm 57 d.32 h.14,5 |
on washbasin |
no |
| Tina - Piasentina stone |
cm 65 d.36 h.15 |
cm 60 d.30 h.13 |
on the wall
or central top |
no |
| Trieste - Minera-kolor |
cm 37 d.37 h.13 |
cm 35 d.35 h.11 |
on the wall
or central top, R / L |
no |
| Udine - Minera-kolor |
cm 42 d.42 h.19,5 |
cm 40,5 d.40,5 h.18 |
on the wall
or central top, R / L |
no |
N.B. The mixer hole has a standard diameter of 3,5 cm. For sinks without an overflow hole, we recommend using a continuous drain.
The indicated measurements of all ceramic sinks may undergo a dimensional variation (specifically of approximately 0.8%) due to wear of the moulds or small variations in the technical characteristics relating to the materials that make up the mixture.
Optional

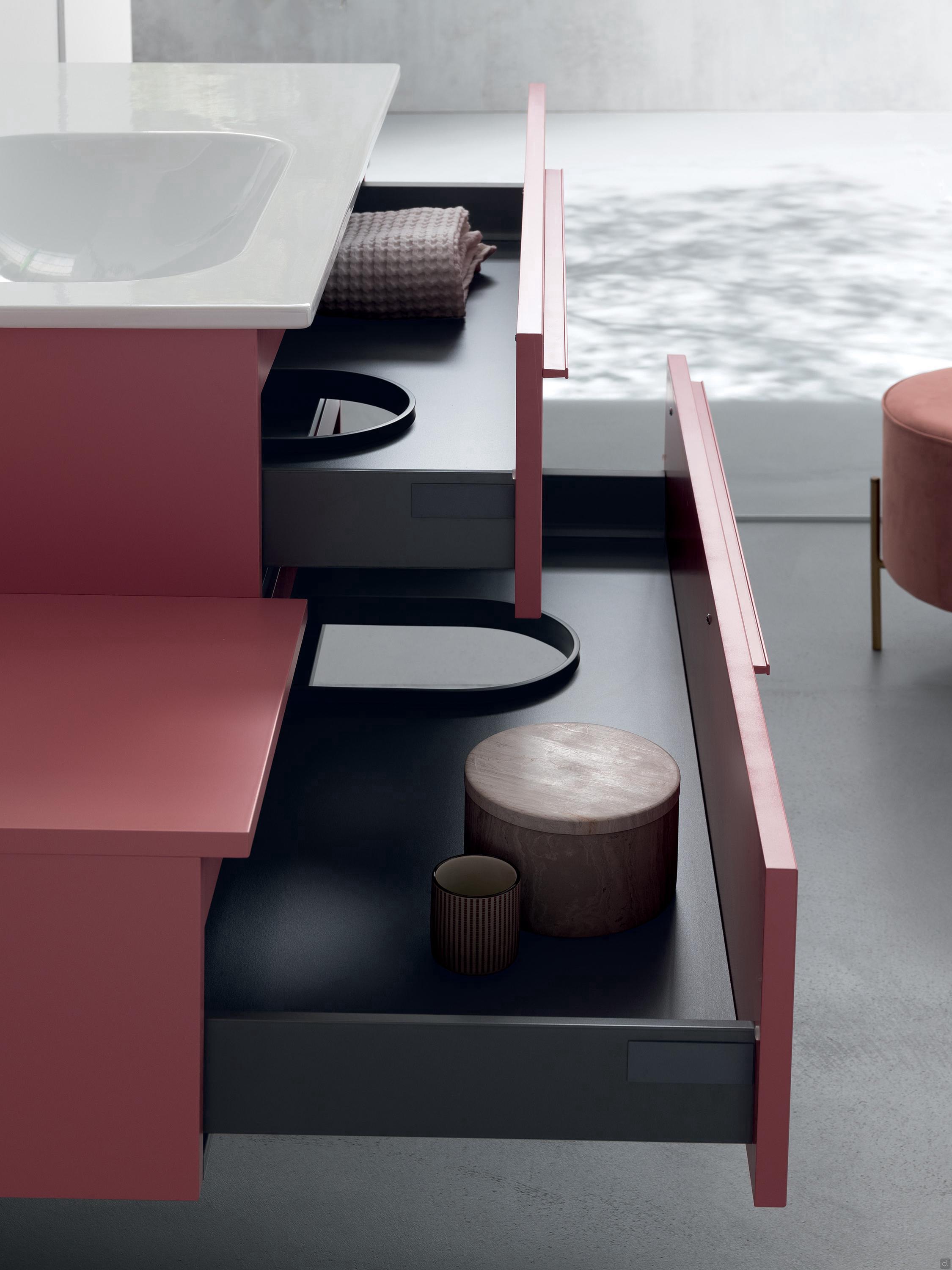

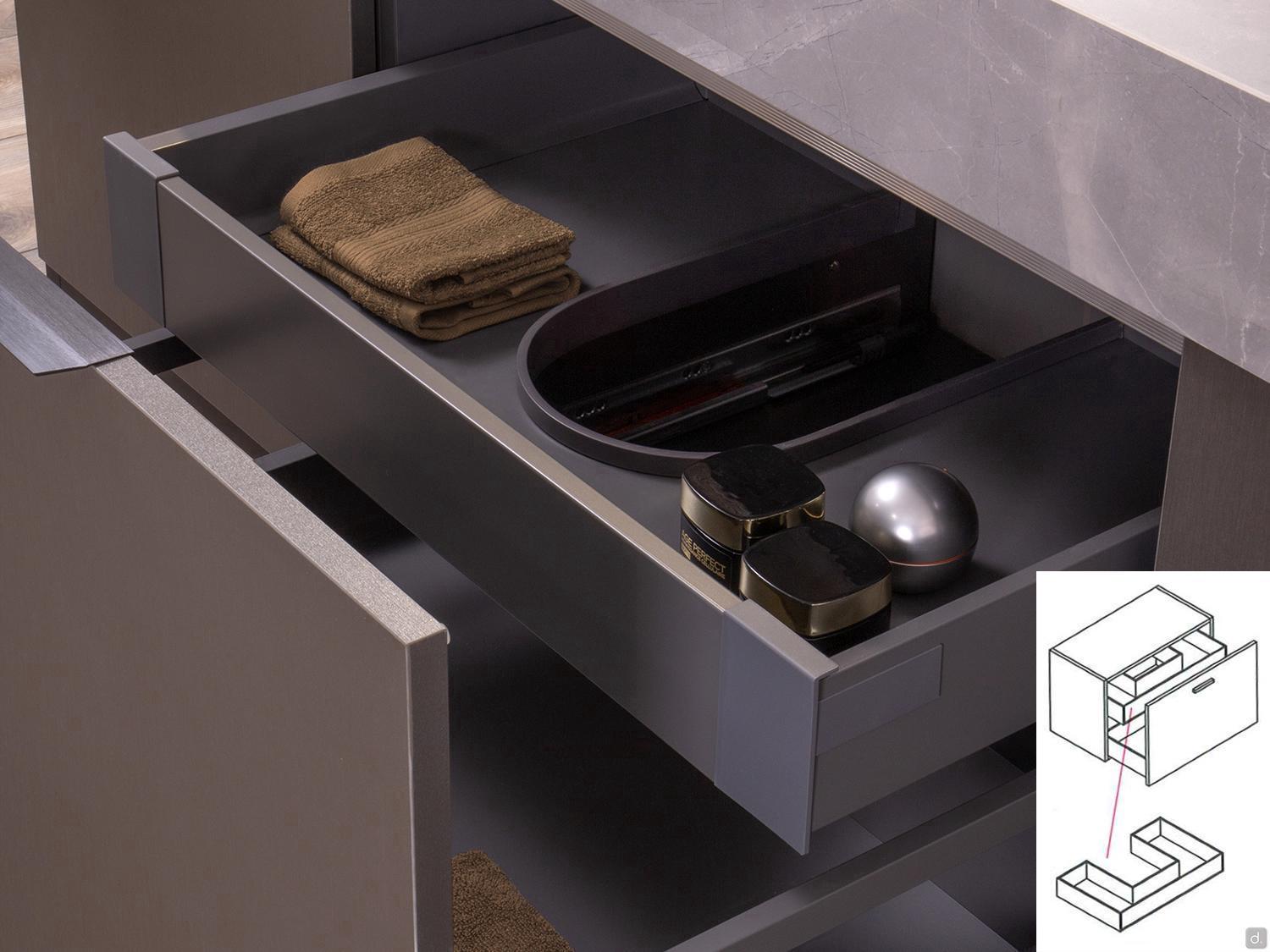

Shaped internal metal drawer: available for all models with metal deep drawer; the drawer is positioned approximately halfway up the sink base and is shaped to accommodate the drains.
Splashback: designed to complete bathroom units with stone, Qtop, stoneware, HPL or resin tops; particularly suitable for walls that are not perfectly square and for combining with free-standing mirrors.

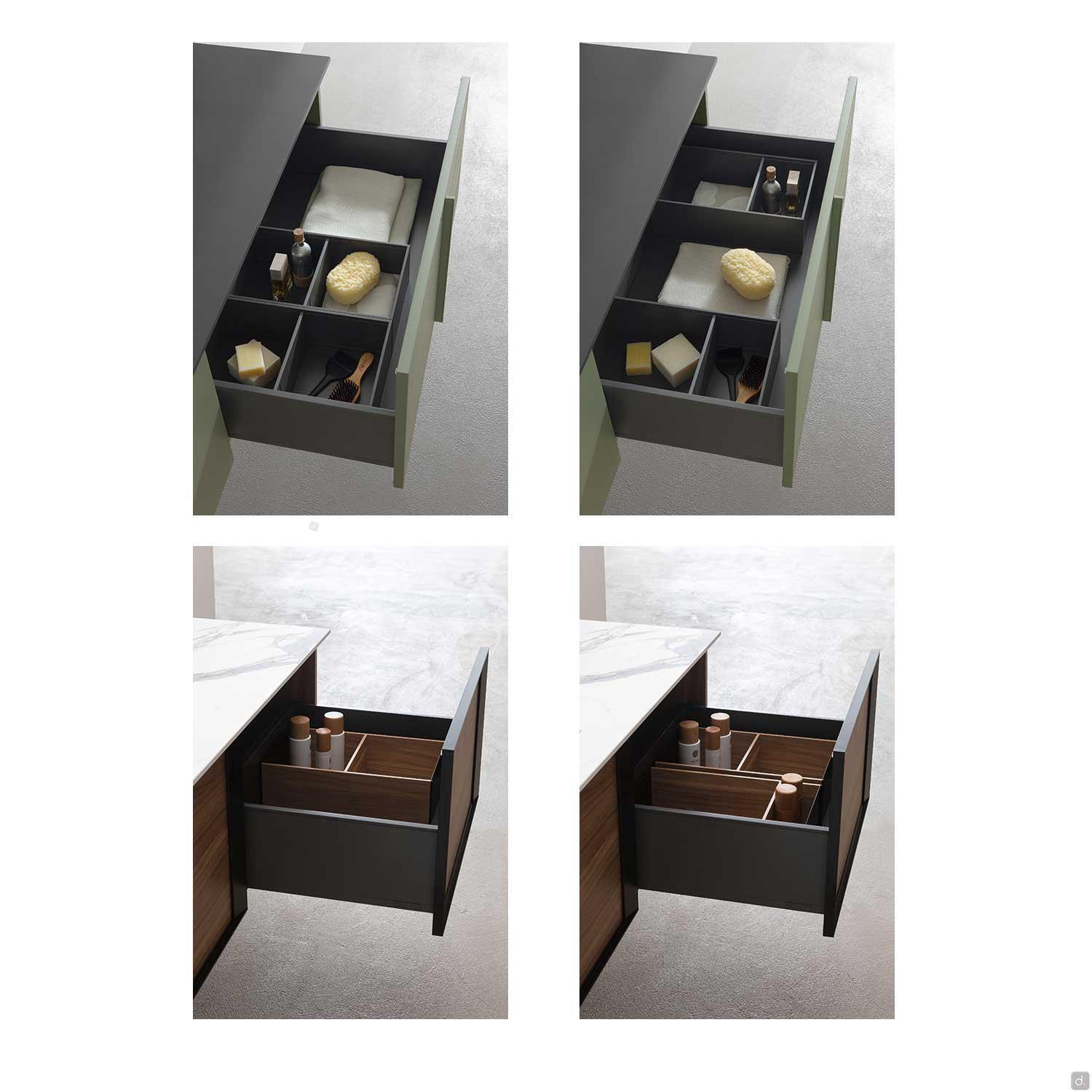

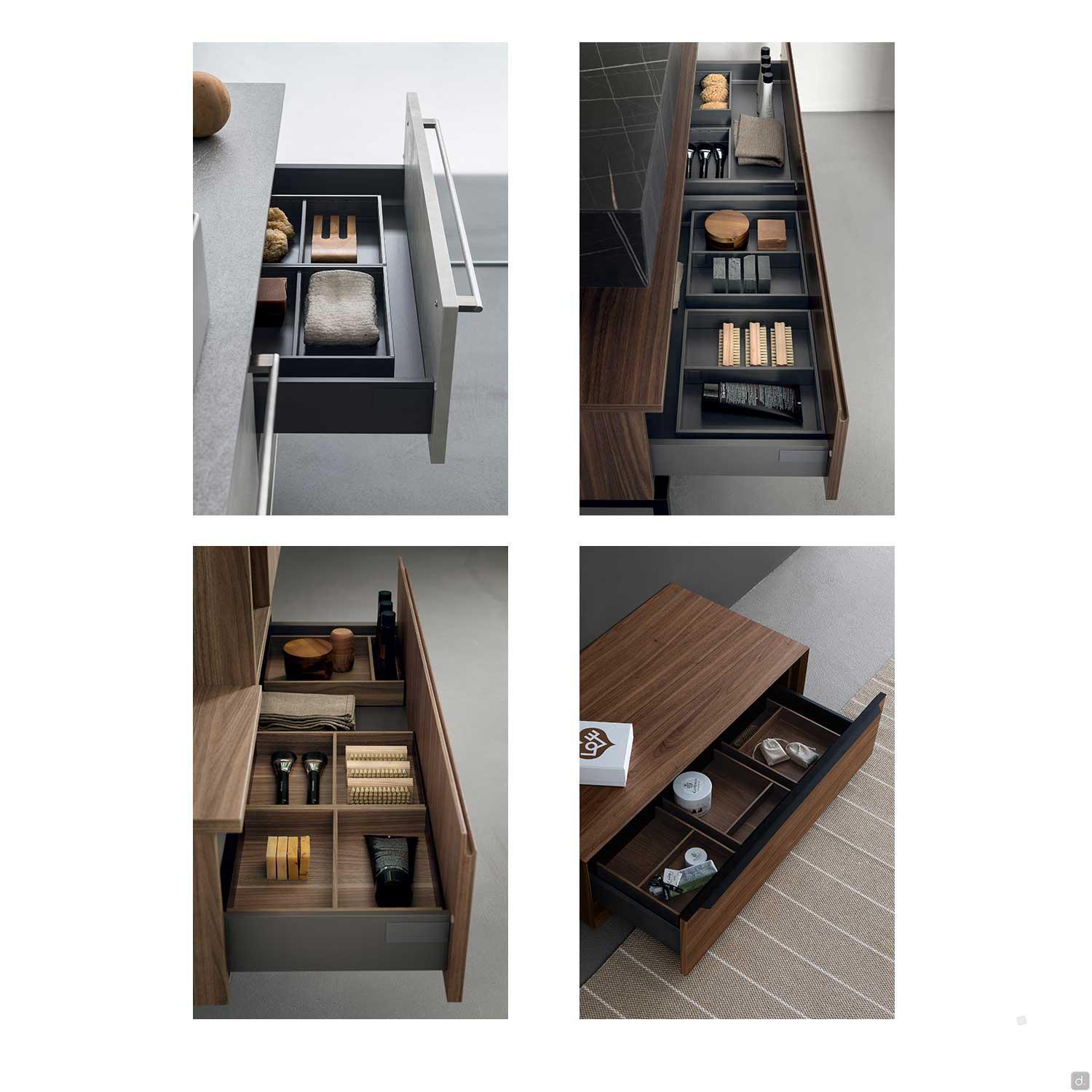

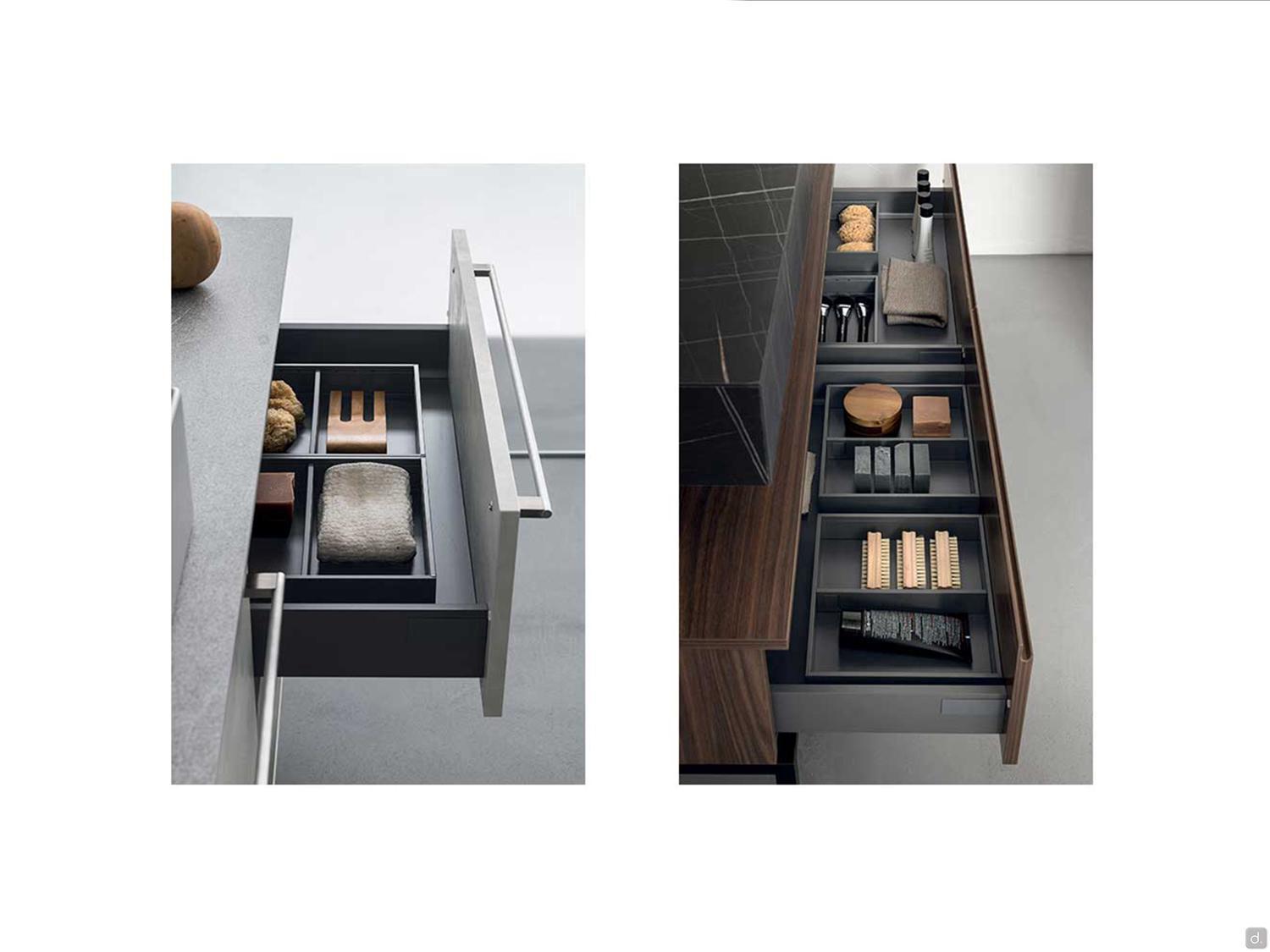

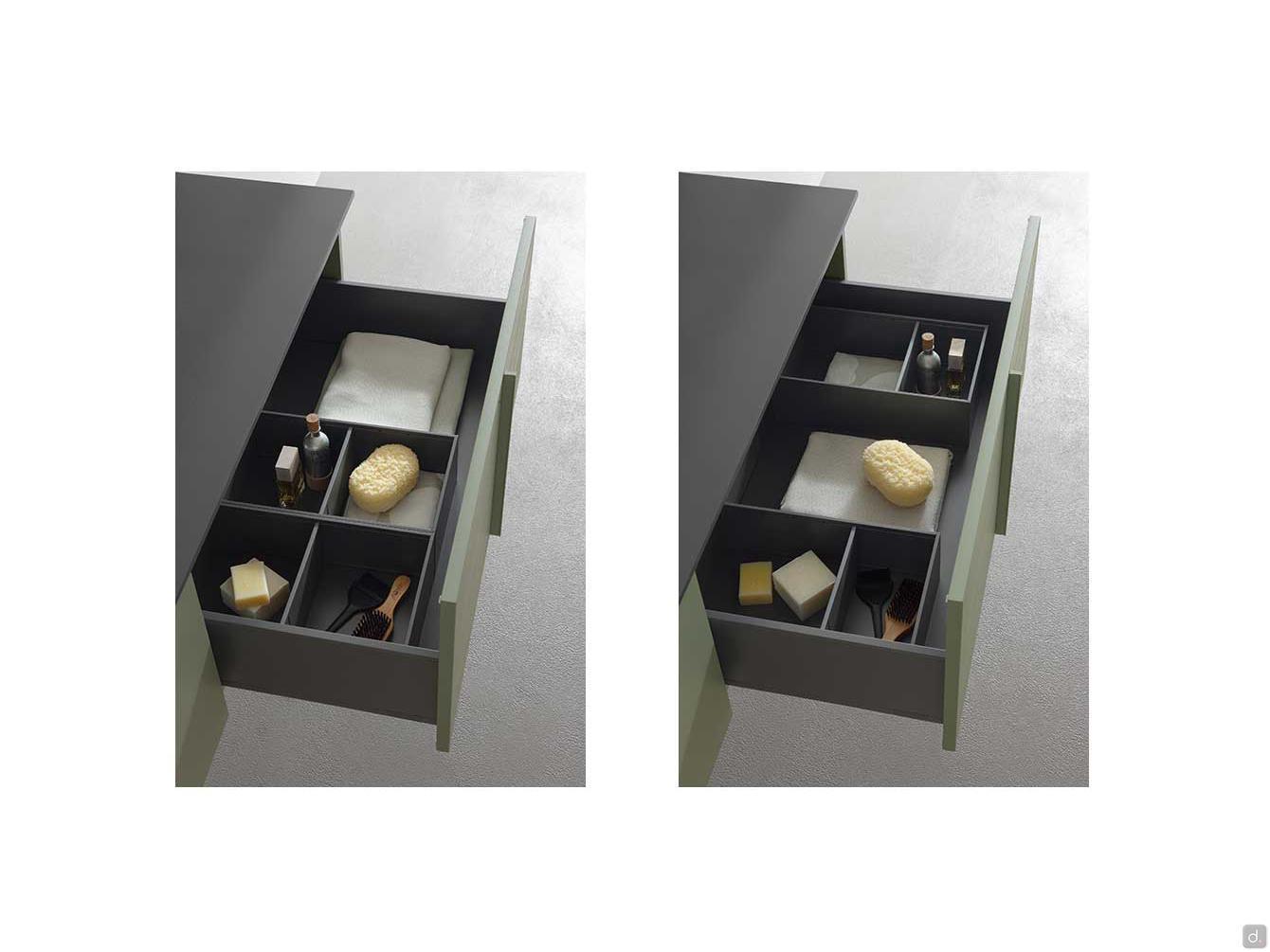

Organizer: internal division system for Legrabox drawers and deep drawers. Available in the Orion Grey finish.
Maintenance Tips
Melamine: for cleaning, simply use neutral liquid detergents. To remove limescale stains, wipe the top with a sponge soaked in vinegar or limescale remover, then rinse and dry. Do not use acids, abrasive products or powders; do not leave limescale removers in contact with the top for a long time, as they may create halos.
Stratified HPL: for maintenance it is necessary to clean the top with a soft, damp cloth, without rubbing to avoid scratching or abrading the top. We recommend using neutral detergents. Do not use abrasive or scratching substances, acids or highly acidic salts, metal detergents and concentrated limescale removers. Avoid contact with boiling water, avoid using steam cleaners.
Lacquer: for cleaning, use soft, non-abrasive cloths to avoid damaging the surface. Do not use products containing solvents, acetone or abrasives, or products based on wax, alcohol or silicone.
Wood: "living" material protected on the surface by paint; for cleaning it is necessary to use a soft, non-abrasive, damp and well-wrung cloth. It is recommended to clean the top in the direction of the grain and dry carefully.
Stone: to prevent stains, clean promptly with a damp cloth or neutral detergents. The use of neutral detergents is recommended.
Tekor: for maintenance, it is sufficient to use soapy water or common slightly abrasive detergents with a cotton cloth or slightly abrasive sponge, taking care to rinse the surface well. Avoid placing very hot objects, very aggressive acids or combinations of solvents. Any damage can however be repaired by a specialized craftsman.
QTOP: unlike marble-resin, the mineral charge is not chemically attacked by acids. the products recommended for cleaning must not have a high alkalinity (basic pH) which could alter, mainly from an aesthetic point of view, the binding resin. The best way to prevent stains is to promptly eliminate the dirt with a damp cloth or neutral detergents before they harden.
Minera-Kolor: to remove most dirt and stains, a powder detergent combined with an abrasive sponge or a common detergent based on chlorine or bleach is sufficient. To remove stains caused by limescale, the use of a common limescale remover is recommended. To maintain the original opacity of the product, clean occasionally with amuchina or with a 1/20 solution of bleach diluted in water. To enhance the typical opalescent satin finish, occasionally pass with an abrasive sponge, applying a circular motion.
To know more...
Gres: porcelain gres is obtained from a mixture of water and clay that is transformed, through the raw extrusion process, into a sheet with extraordinary mechanical properties. Vitrification closes the pores, ensuring maximum resistance to water absorption and stains.
Tekor: mineral compound coated with a resin film that provides both physical and chemical resistance.
QTOP: QTOP is a resin-quartz product, made up of natural materials (quartz and granits) and a high-quality binding agent, integrated with colour pigments and granules of glass and mirror.
Minera-Kolor: Minera-Kolor is composed of natural mineral fillers (calcium carbonates and aluminium trihydrates) bound by a low percentage of polyester resin: a material that is therefore elegant to the touch, hygienic and suitable for bathroom furnishings. The technical enamel that covers the surface of the material is opaque in colour, with excellent physical and chemical resistance. It is resistant to boiling water and temperature changes. Any colour variations that arise due to use can be easily eliminated by simply cleaning, using a slightly abrasive sponge and applying a circular motion.
