Heritage 02 bathroom cabinet with a 50 cm depth - the fronts and the frame of the mirror are made of matte lacquered slatted MDF wood SIKKENS E4.03.80

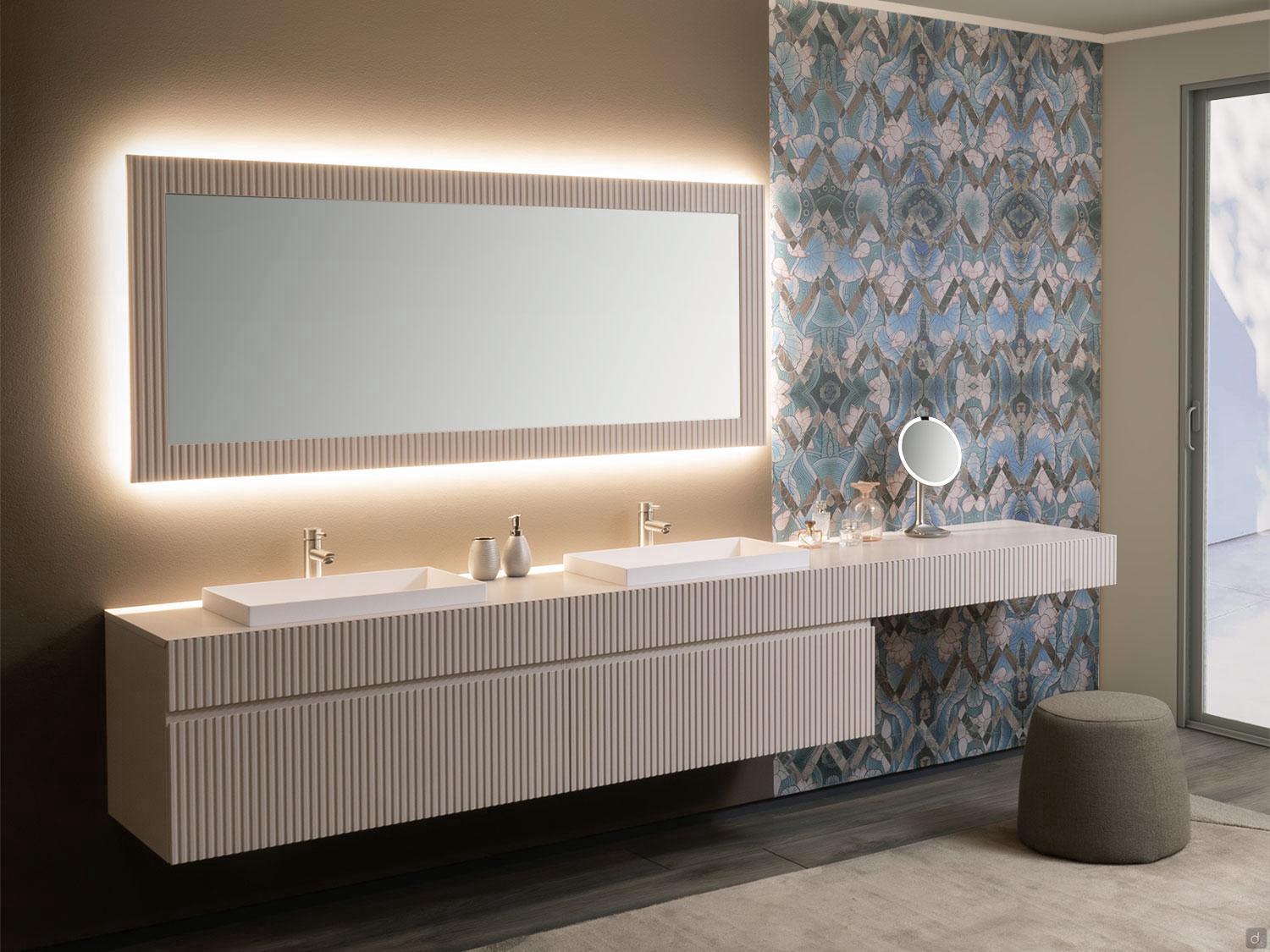

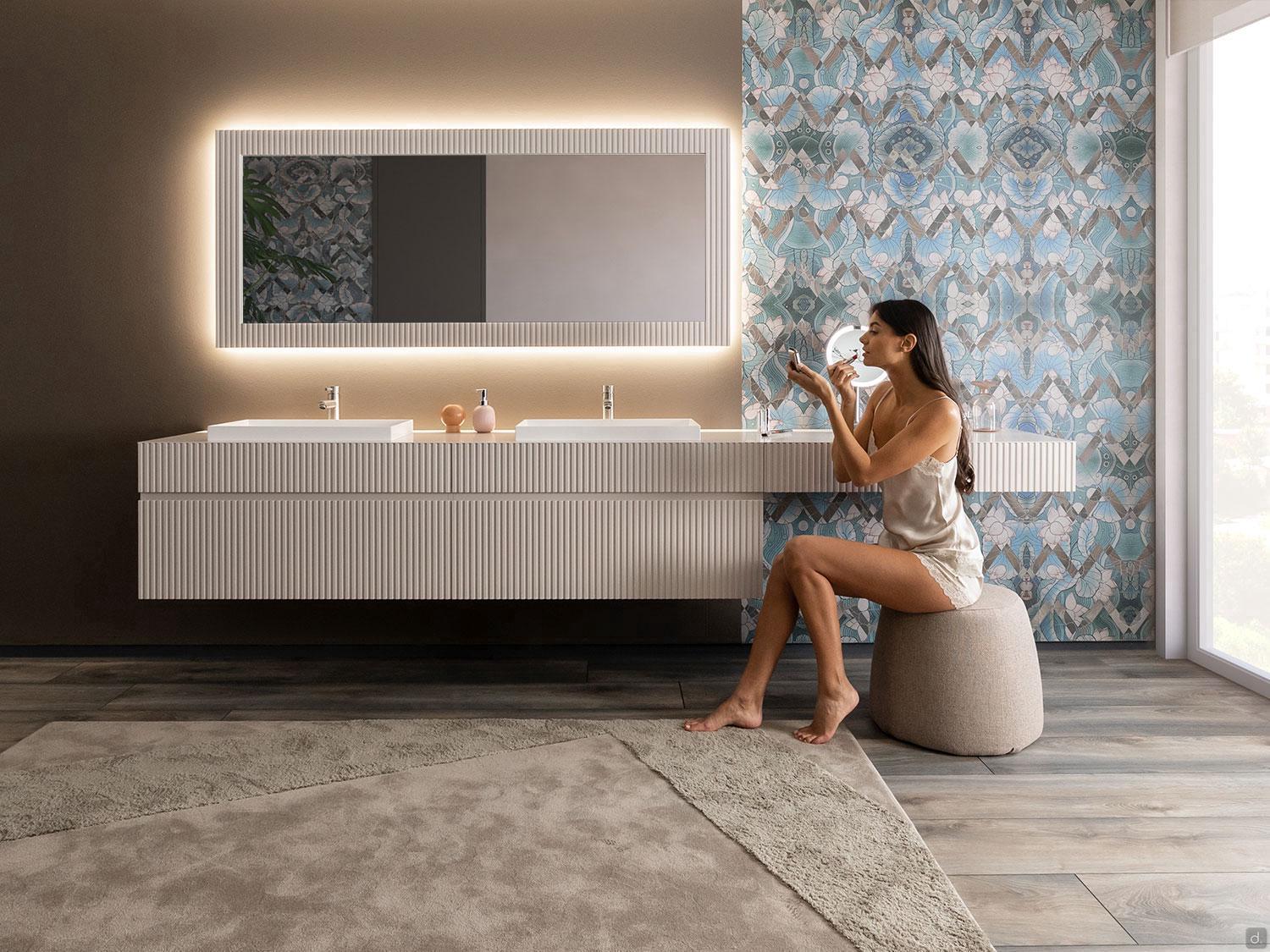

Heritage 02 bathroom cabinet with 50 cm depth - optional dressing table base added on the right of the bathroom unit composition

A glimpse of slatted MDF fronts: the perfect "positive-negative" scanning stands out, and the gap between one base and the other is not noticeable

Top view of the lacquered MDF top which matches the bases and the mirror frame

Suspended base unit with drawer, perfect for expanding the bathroom unit by creating a dressing table area

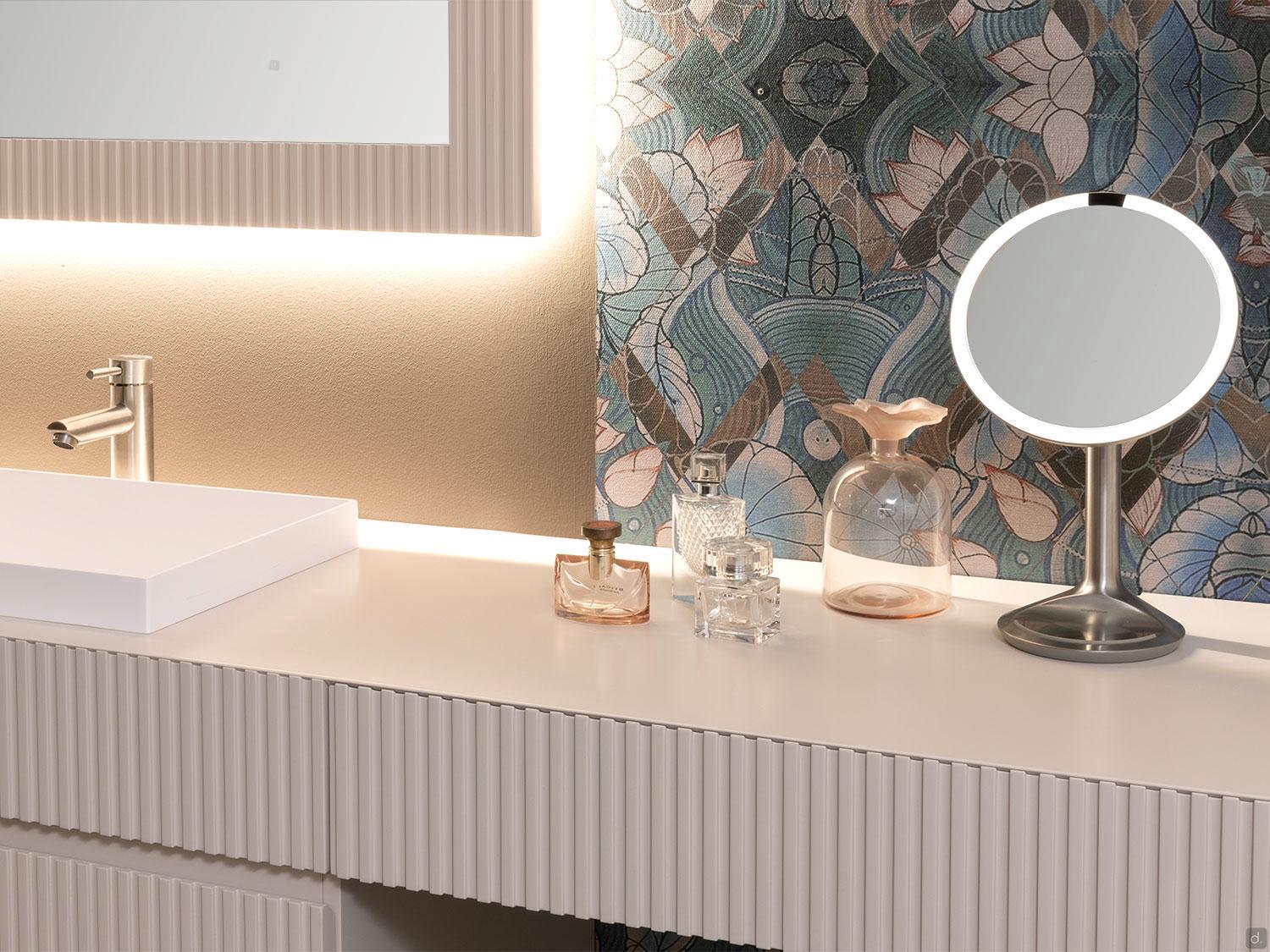

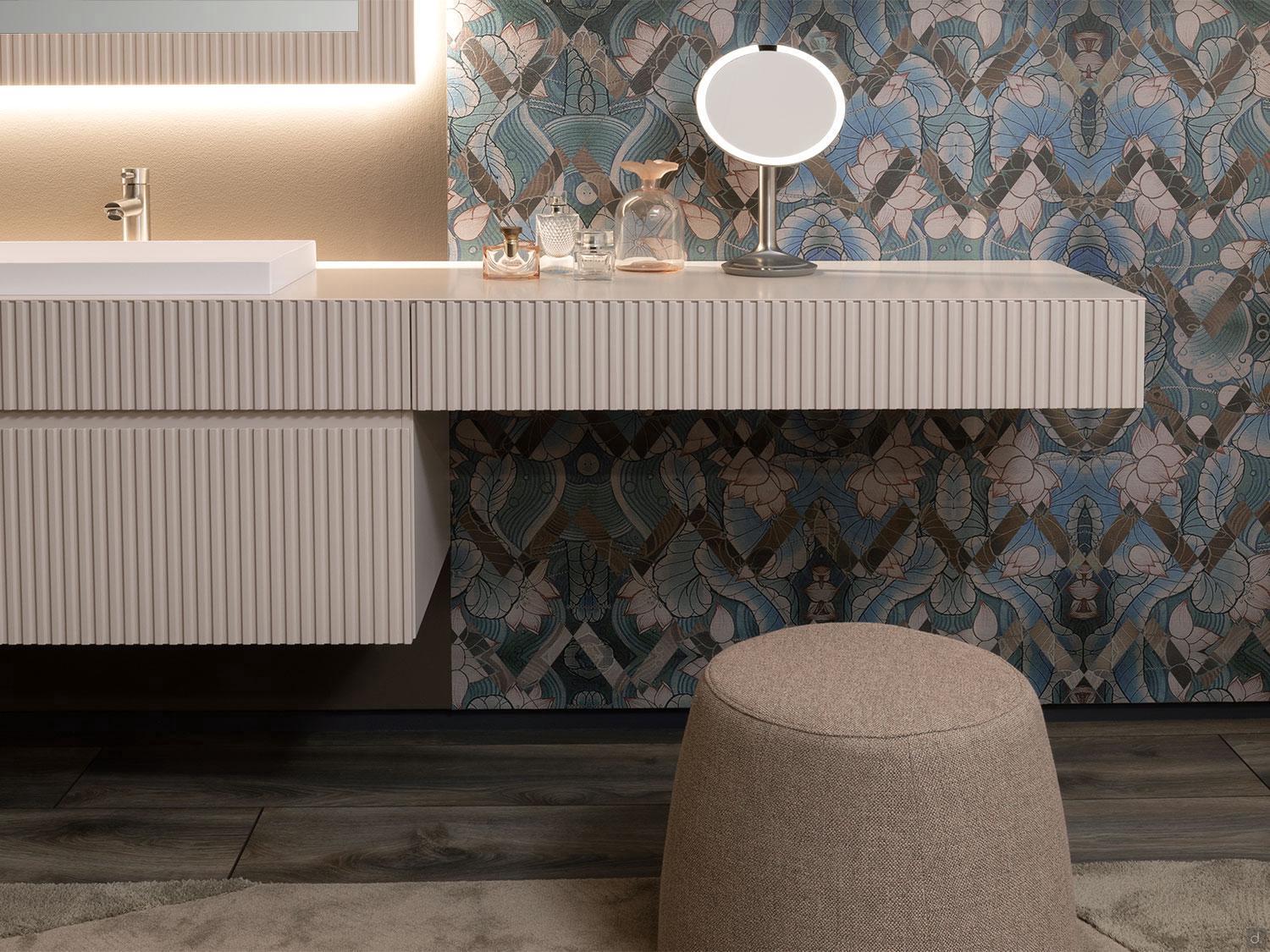

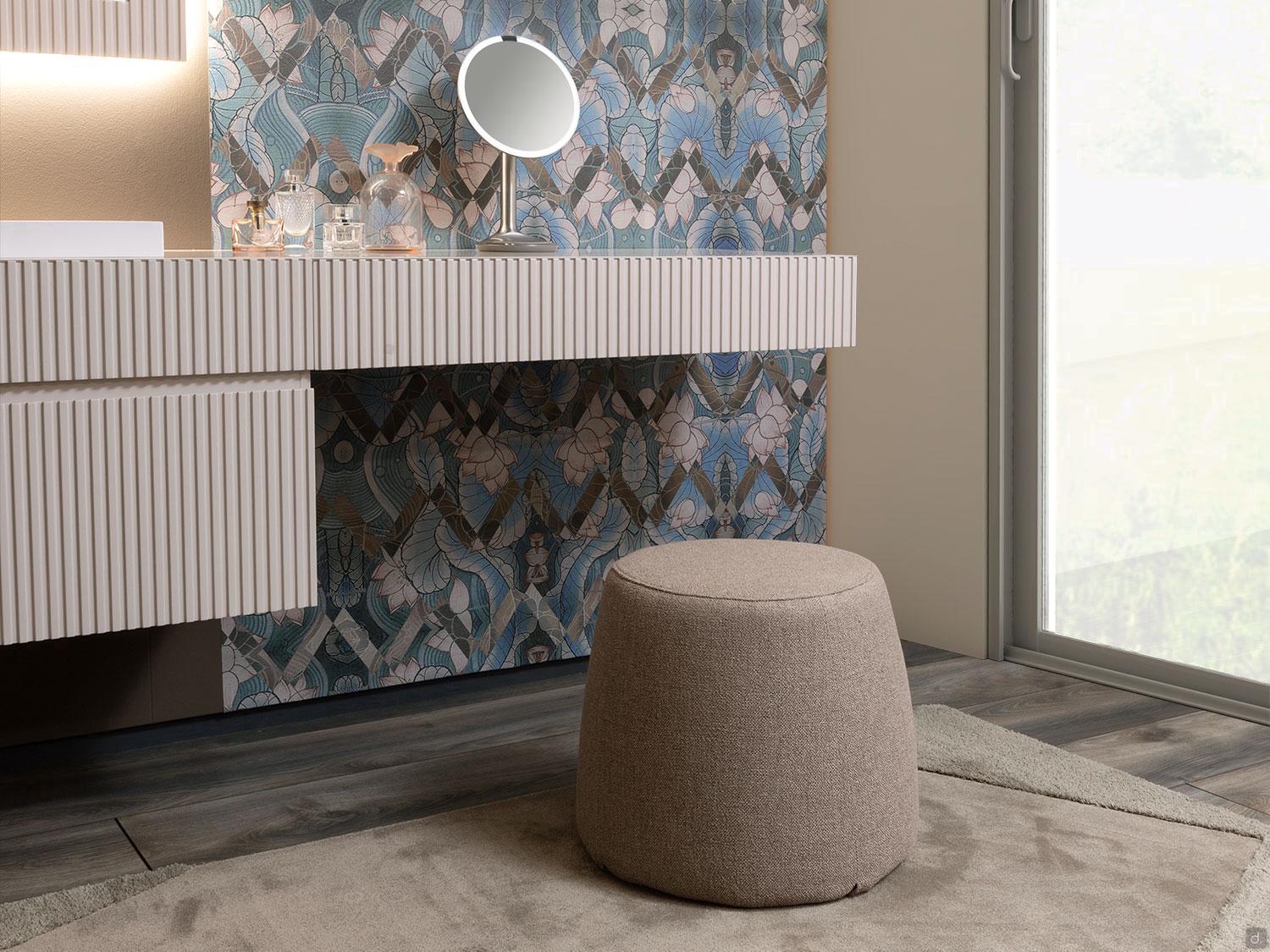

A simple pouf is all it takes to make the Heritage 02 suspended bathroom base a practical and elegant dressing table with drawer

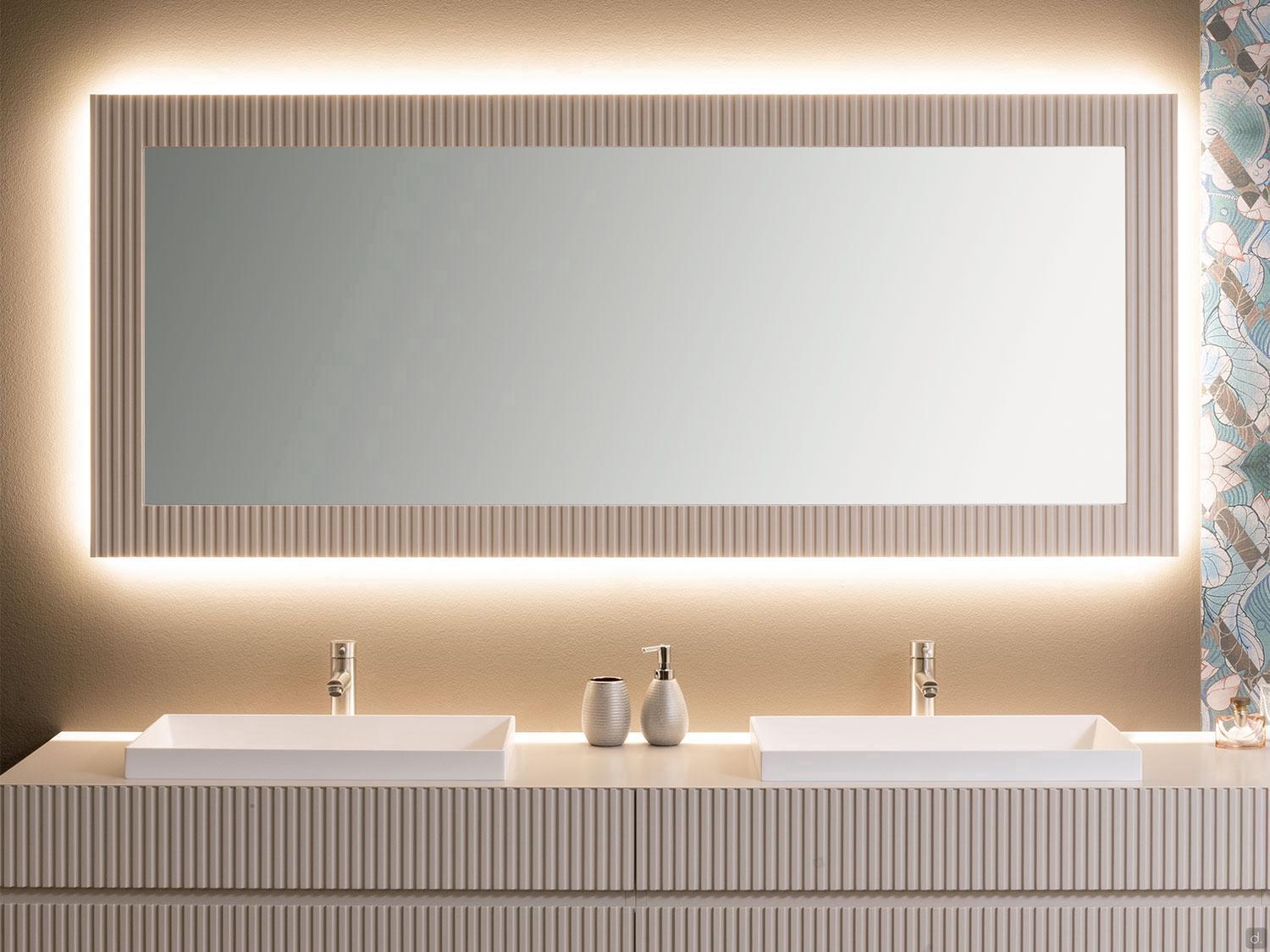

Backlit LED mirror on all 4 sides, frame made of slatted MDF to match the bases

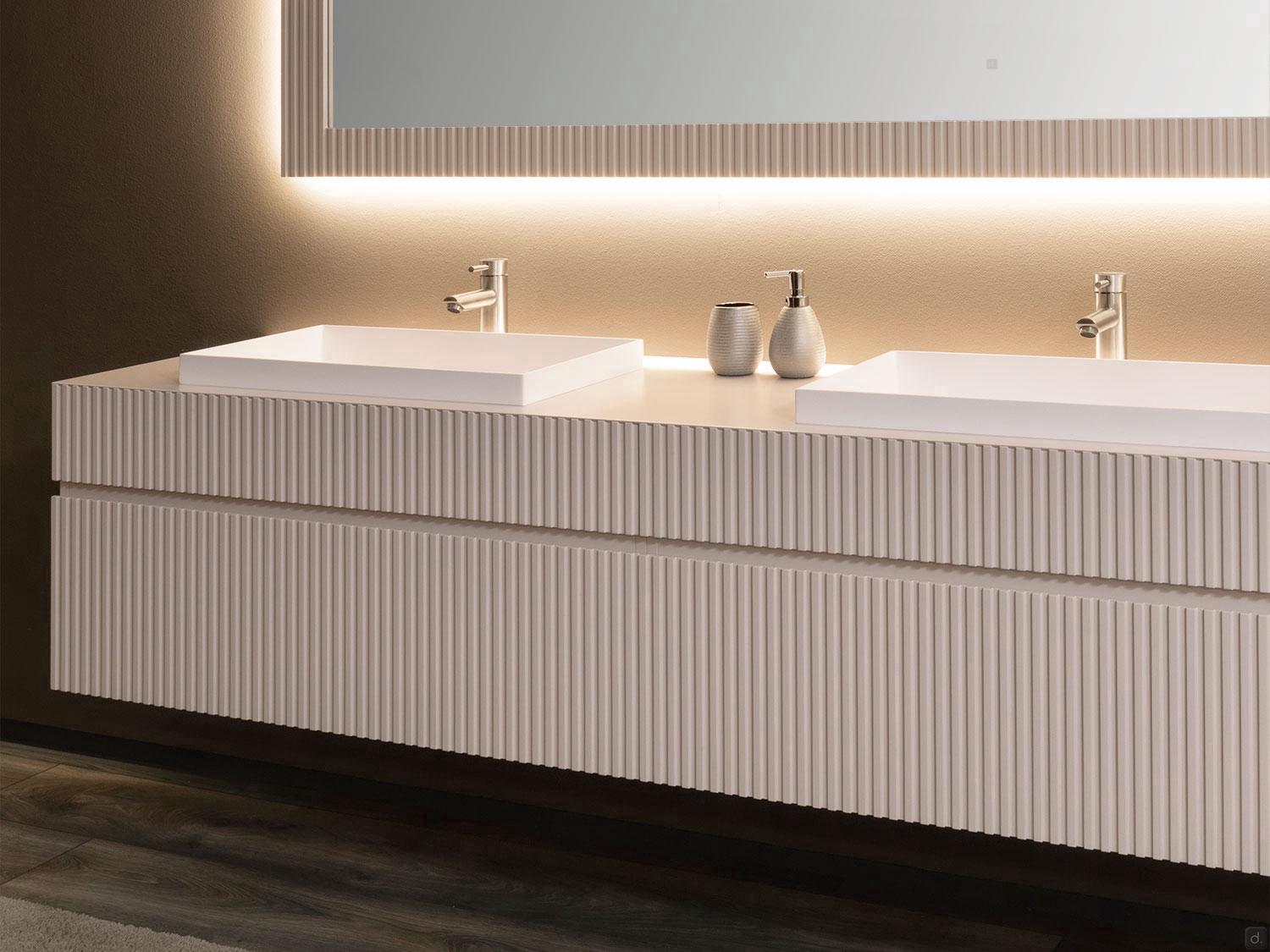

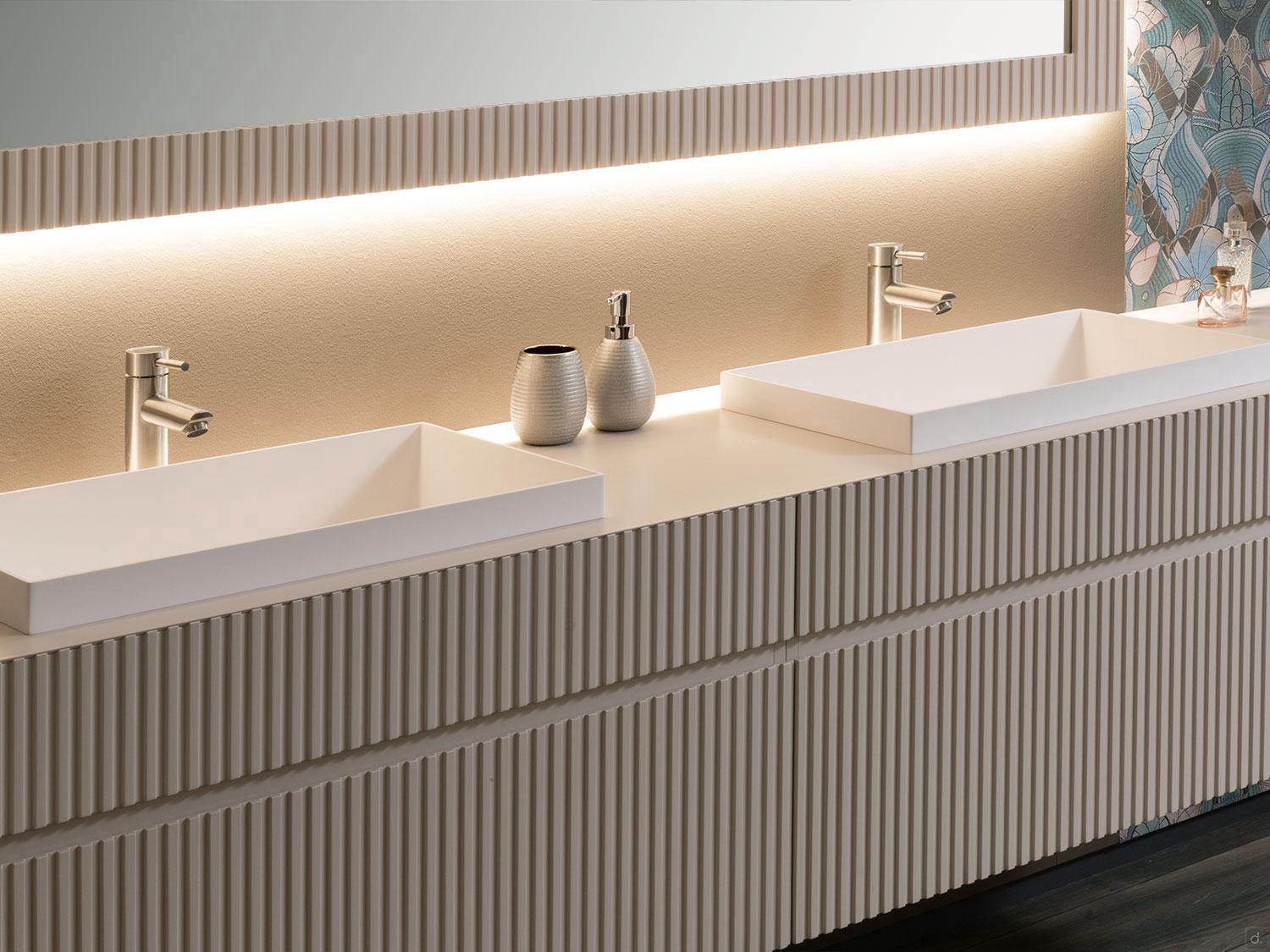

Three-quarter view of the washbasin bases with the double basin built-in top

Close-up of the matte white mineralguss basin fitted with a continuous drain

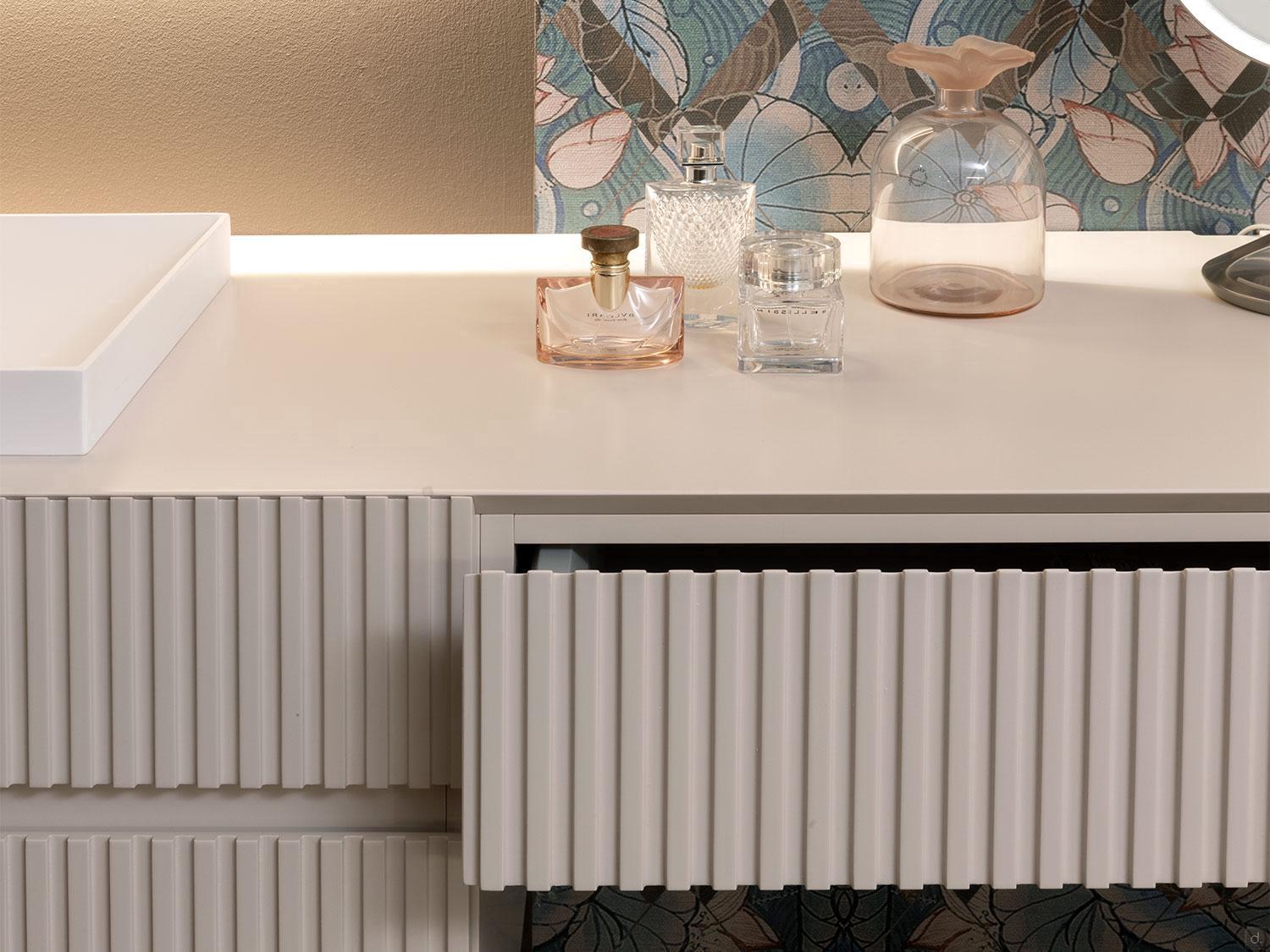

The perfect match between the slatted fixed top front and the smooth top, both with a 45° milled sharp edge

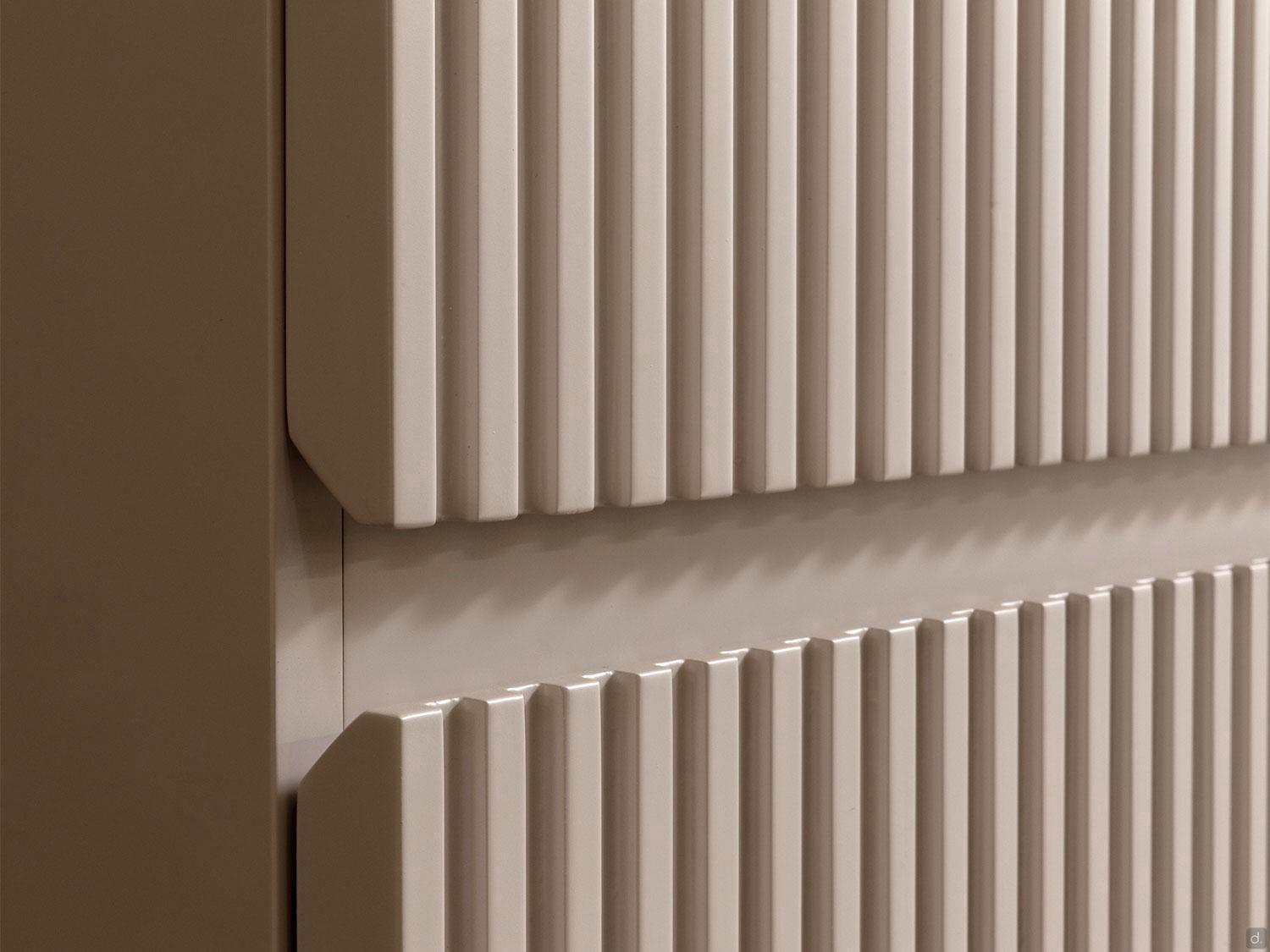

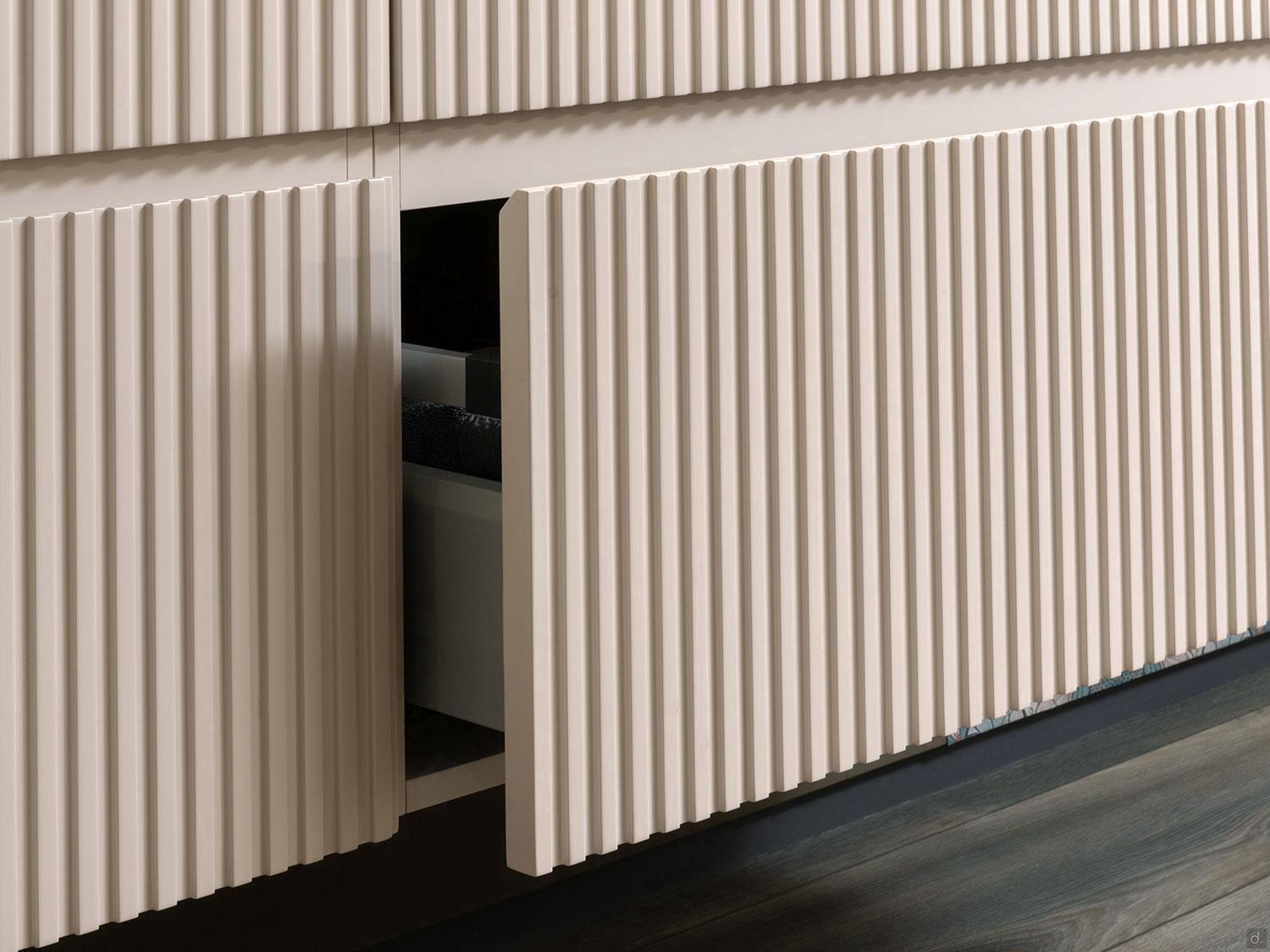

Close-up of the slatted MDF fronts with a 45° cut of the top edge. Notice the smooth horizontal trim edge in matching colour

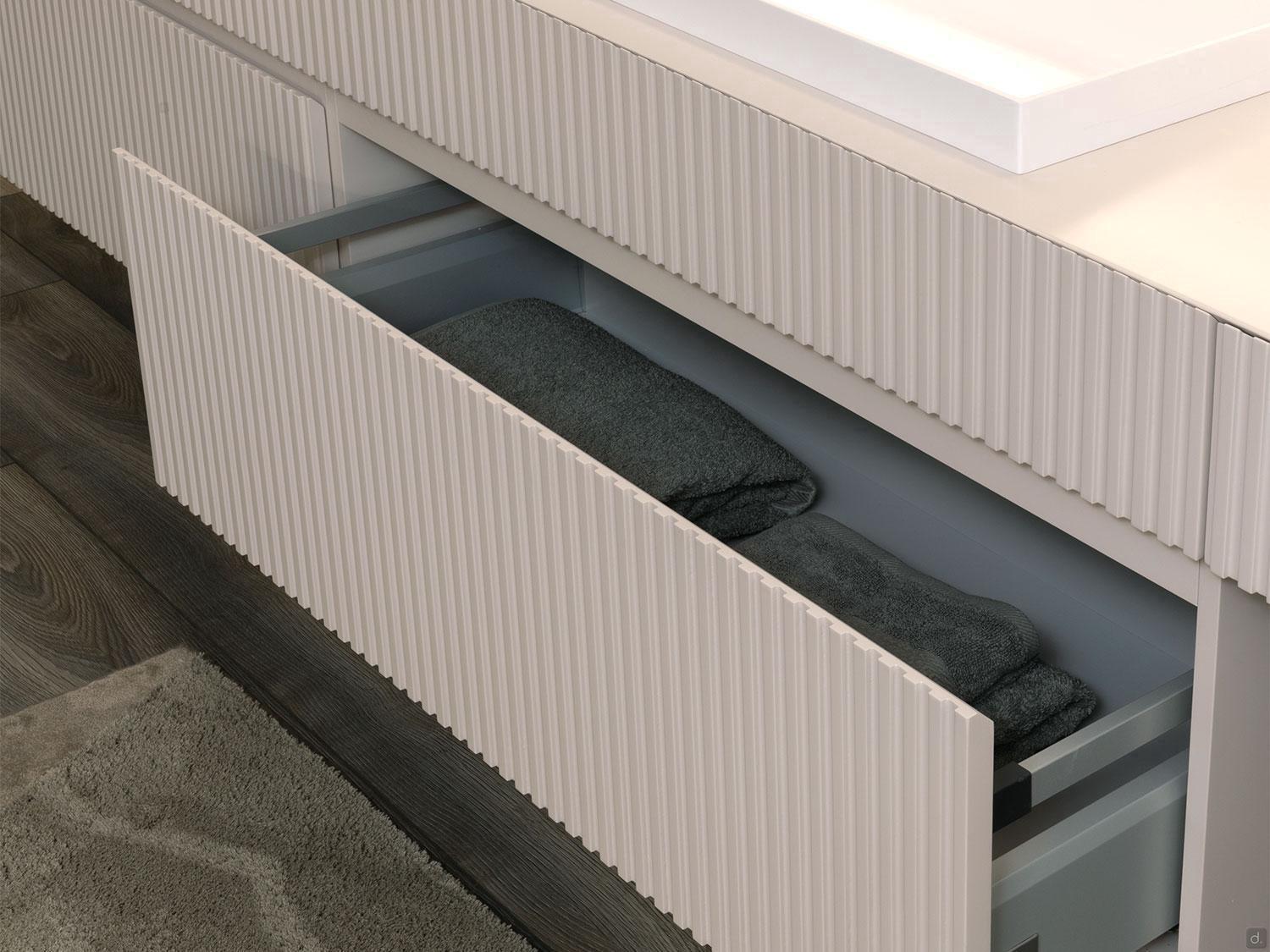

View of the interior of the spacious lower baskets fitted with soft-closing guides

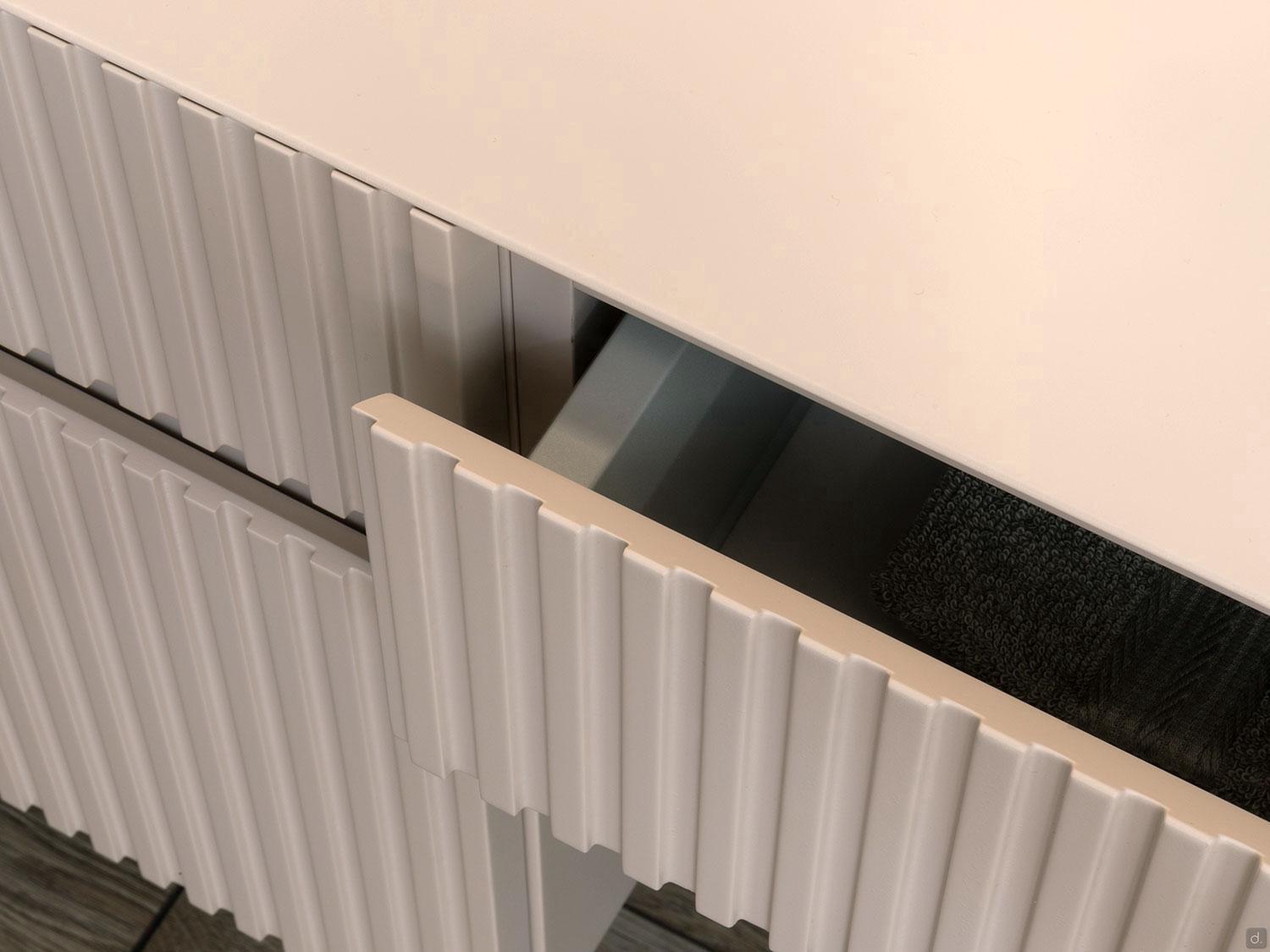

Close-up of the slatted fronts and 45° processing of the top

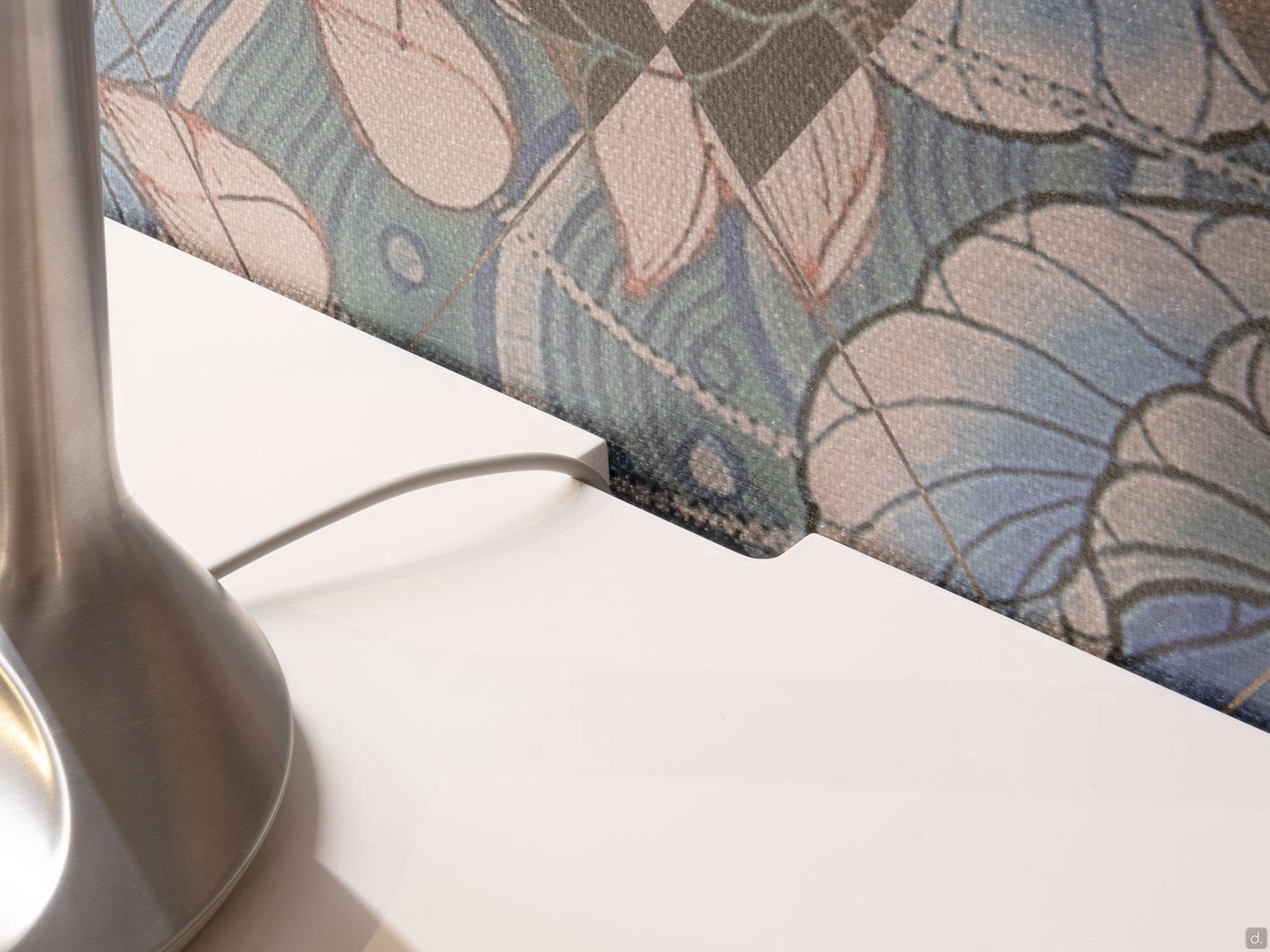

Close-up of the cable gland slot centrally positioned in relation to the dressing table base

+ 13

MORE IMAGES

Heritage 02
Wall Hung Bathroom Vanity

Name: Heritage 02
Brand: diotti.com
SKU: ghz-dtc-bagno-artigianale-showroom-heritage-02
Price: 4606.99 EUR
Availability: InStock

Heritage 02 Bathroom cabinet with a depth of 50 cm, slatted MDF front panels and customized width ranging from 120 to 200 cm. An optional suspended base unit is available for dressing table use.

Wishlist

Description

Heritage 02 is a 50 cm deep bathroom cabinet composed of wall-mounted basket bases: the quality and formal refinement of the furniture shines through in the workmanship and attention to detail. The fronts are made of matte lacquered mdf wood in all colours of the RAL or SIKKENS scales and characterized by the special grooving obtained by machine milling. The lower portion of the base units is occupied by the basket, while above it is a fixed front; both go into a horizontal band lacquered in the same colour, allowing the opening of the pull-out elements equipped with soft closing.

With the exception of the lower edge of the basket fronts, all the others are worked with a 45° cut; in addition to promoting ergonomics when opening, this process allows the perfect match between the fixed front of the base units and the finishing top, which is also made of MDF wood lacquered in the same colour with a 45° cut in the front. The arrangement, the width of which can be managed down to the nearest centimeter ranging from a miniumum of 120 to a maximum of 200 cm, is mounted above an elegant mirror available in two models: with a slatted frame lacquered to match the bases and backlit on all four sides, or totally in glass with a shelf for storage, upper LED spotlight and backlighting on the other sides. Finally, the bathroom furniture can be completed with the addition of an optional dressing table base: made to match the bases of the composition, it is perfectly aligned with the fixed fronts of the same height and can be equipped with a cable slot centrally positioned on the top and bottom.

Features
Bathroom furniture with slatted MDF fronts: the furniture can be lacquered in all RAL and SIKKENS scale colours
Wall-mounted base units with basket that can be customized down to the nearest centimeter: the units can range from 120 to 200 cm
Two models availabe: with side washbasin or double washbasin base
Top in smooth matte lacquered MDF to match the bases: the basins are built-in above the top in matte white mineralguss
Baskets equipped with assisted closing guides: opening by means of the 45° claw placed on the lower edge of the fronts
LED backlit mirror with lacquered slatted frame: alternatively LED mirror with glass shelf
Suspended base unit with optional drawer, to expand the bathroom unit by creating a dressing table area

Materials and Finishes
Base Fronts:
- Slatted Matte Lacquered MDF RAL / SIKKENS
Mirror with Frame:
- Slatted Matte Lacquered MDF RAL / SIKKENS
Top and Side Bases:
- Smooth Matte Lacquered MDF RAL / SIKKENS

Information regarding your purchase
The faucets and siphon (drain pipe) are not included.
The 50 cm height includes both the bathroom furniture and the thickness of the top.
Please Note: To ensure the exact scanning of the slats on the fronts of each base, the width of the cabinets may vary by a few millimeters to an inch, while keeping the total width of the unit unchanged.

Technical study

Technical Specifications and Equipment
The bathroom cabinet with the "single washbasin base" model includes:
n.1 Washbasin base unit cm d.50 h.50 with lower basket h.31,4 and upper fixed front h.16, customizable in width ranging from a min. of 80 cm to a max. of 100 cm. Basket closure is assisted.
n.1 Side base unit cm d.50 h.50, with lower basket h.31,4 and upper drawer h.16, customizable in width from a min. of 40 cm to a max. of 100 cm. Basket closure is assisted.

The bathroom cabinet with the "double washbasin base" model includes:
n.2 Washbasin bases cm d.50 h.50 with lower basket h.31,4 and upper fixed front h.16, customizable in width from a min. of 80 cm to a max. of 100 cm. Basket closure is assisted.

For both models, the bathroom furniture includes the following :
n.1 Top cm d.50 th.2 in smooth matte lacquered MDF RAL / SIKKENS to match the bases, customizable in width from a min.of 120 cm to a max. of 200 cm. The top is provided with the holes for the built-in top mounted washbasin: it is then possible to choose whether or not to have the hole for the faucet which is always positioned central to the basin.
n.1 / 2 Built-in top mounted washbasins in matte white mineralguss mod. Paola, cm 60 d.34,5 h.16,5 (the washbasin protrudes in height by cm 5 compared to the top). The measurements of the basin are: cm 59,5 d.33,5 h.13. It is fitted with a drain (without a plug) while there is no overflow hole.
n.1 Mirror with customized width from cm 110 to 190, height cm 80 available in two models: "with glass shelves" cm d.9 th.1 and LED lighting with top spotlight mod. FLY and backlighting on the other 3 sides. Or "with frame" cm th.9 in slatted matte lacquered RAL / SIKKENS MDF to match the bases and LED backlighting on the 4 sides.
PLEASE NOTE: The width of the mirror is always calculated with 5 cm less per side compared to the unit.
n.1 Optional dressing table base cm d.50 h.16 with drawer which can be customized in width from a min. of 80 cm to a max. of 100 cm. The drawer closure is assisted. The base can be fitted with a cable hole cm 5 d.1,5 on the top and bottom, which is always positioned centrally.

Maintenance Tips
Lacquer: Use soft, non-abrasive cleaning cloths to avoid surface damage. Do not use products containing solvents, acetone or abrasives, nor wax, alcohol or silicone-based products.
Mineralguss: Use a sponge with water and regular cream detergent for cleaning. The surface of the top should not be in contact with solvents and alkaline lotions such as ammonia. Hair dye products should not settle in the basin and should be rinsed out immediately. Never fill the sink with hot water over 60°C .

Read More...
Mineralguss: Is a material composed of calcium carbonates and aluminium trihydrates, conded by a low percentage of polyester resin. The surface is coated with a gelcoat film that provides excellent physical and chemical resistance. The compound is ductile and heat resistant. Any colour variations caused by high temperatures can be removed by cleaning with a lightly abrasive sponge and additional polishing.

Video

Additional Information

Area of Production
Brianza

Approximate Time
8-9 working weeks for production

Assembling
Medium Assembling

Other Products from the same Collection
View all the products of the collection (diotti.com)

Partner Factory

diotti.com tailor-made bathroom vanities and cabinets for the living room are bespoke creations made by a skilled artisan specialised in bathroom furniture, based in the heart of Brianza Furniture District. The know how typical of this area is expressed in furniture and accessories that stand out for the impeccable quality of the materials, construction details and careful workmanship. Together with style, always in line with the latest trends, and attention to detail, these are the values that make the artisanal excellence or Brianza district one of a kind. For this reason the bathroom furniture and living room cabinets branded diotti.com are placed in the medium-high range of the market: choosing a product like this means gifting your home with a unique and personalised piece of furniture, built to last over time.

From the choice of raw materials, through the manual work processes, to the final quality check, diotti.com guarantees high quality standards, offering furniture crafted entirely in Italy.

diotti.com is a collection of modern furniture for the house: high degree of customization, design and 100% Made in Italy manufacturing quality are matched together in unique furniture solutions, contemporary in their design and reliable through time.
diotti.com is a home design Italian brand that matches the convenience and transparency of'online purchasing together with the experience offered in a showroom.
