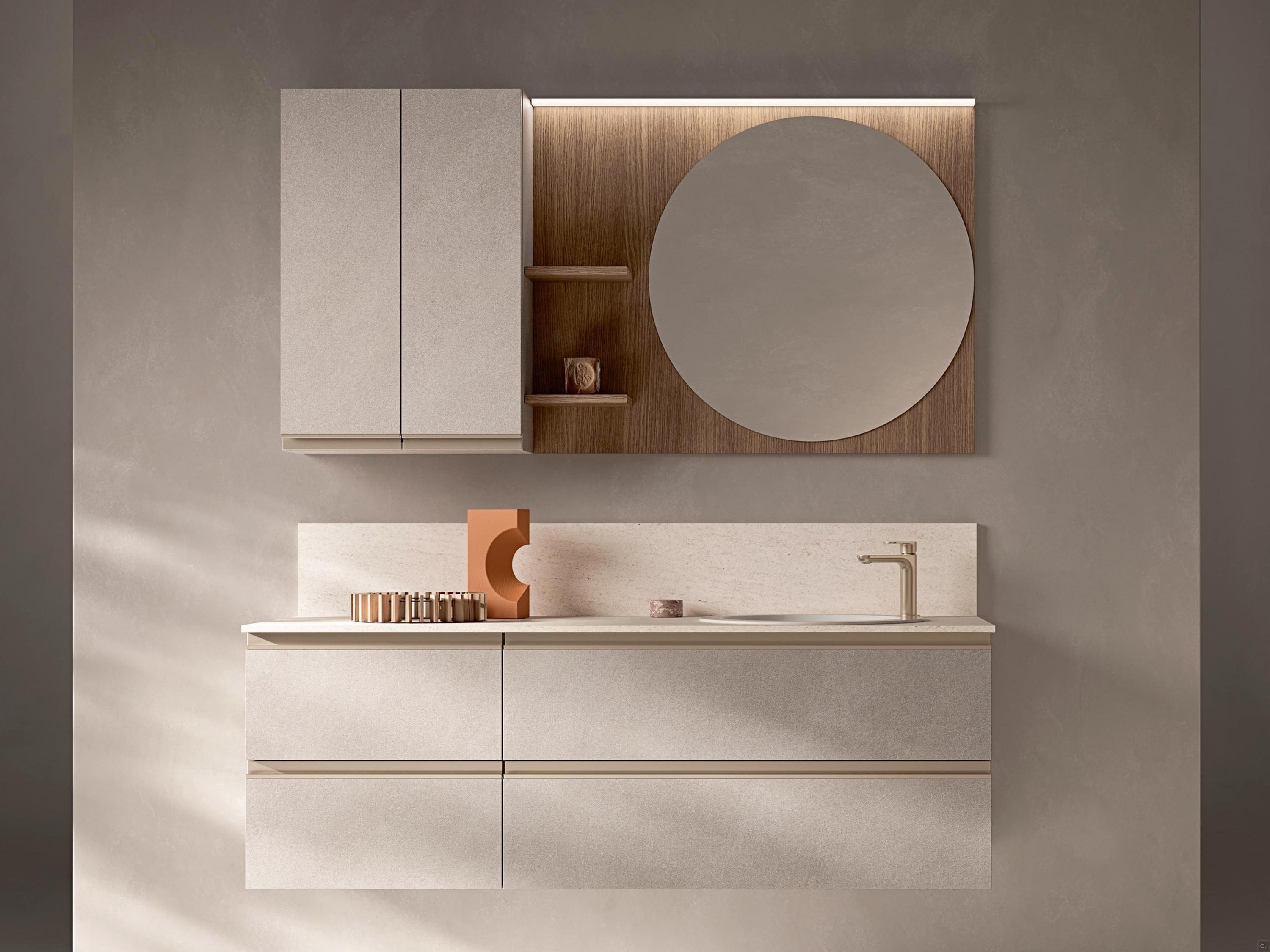

Wall-mounted bathroom furniture with shelves and mirror N116 - Atlantic - composition in stone-effect melamine 285 Mud with mirror in wood-effect melamine 283 Cumin - glossy white ceramic washbasin

Stoneware top in 3Z Atalaia finish with optional rear splashback, 20 cm high.

Base units with drawers in stone-effect melamine - 285 Mud - Polished white ceramic washbasin top mod. Spazio

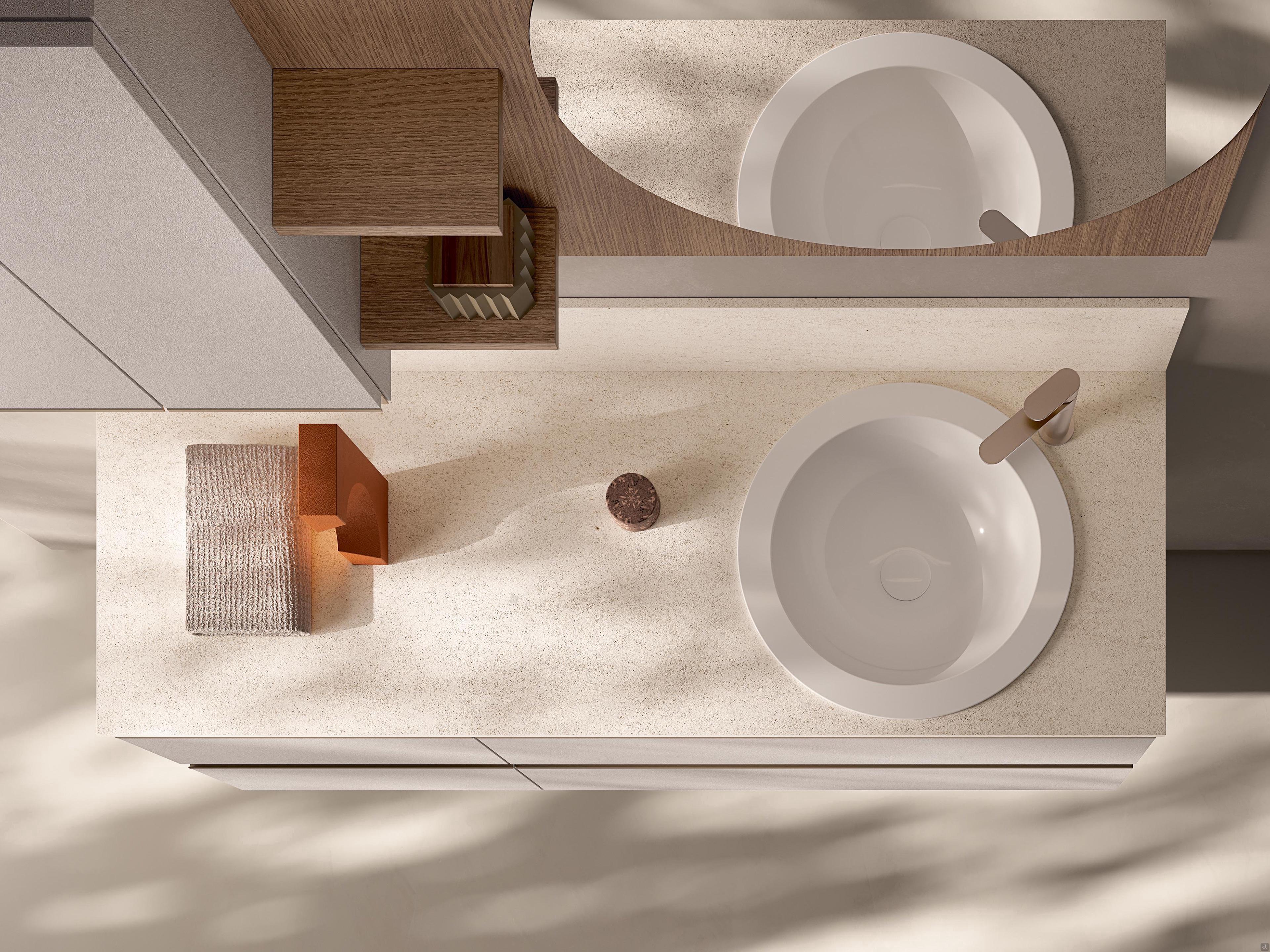

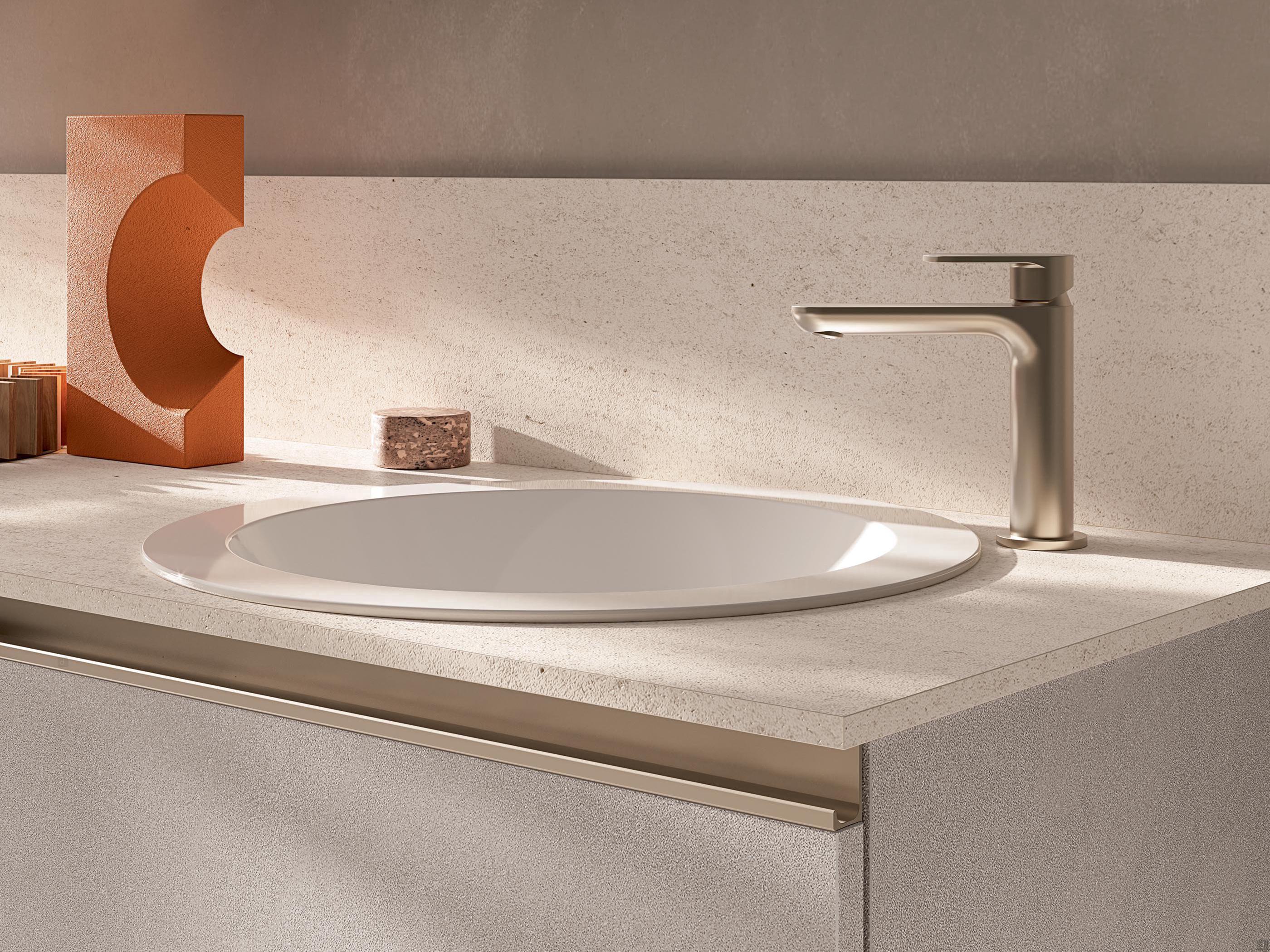

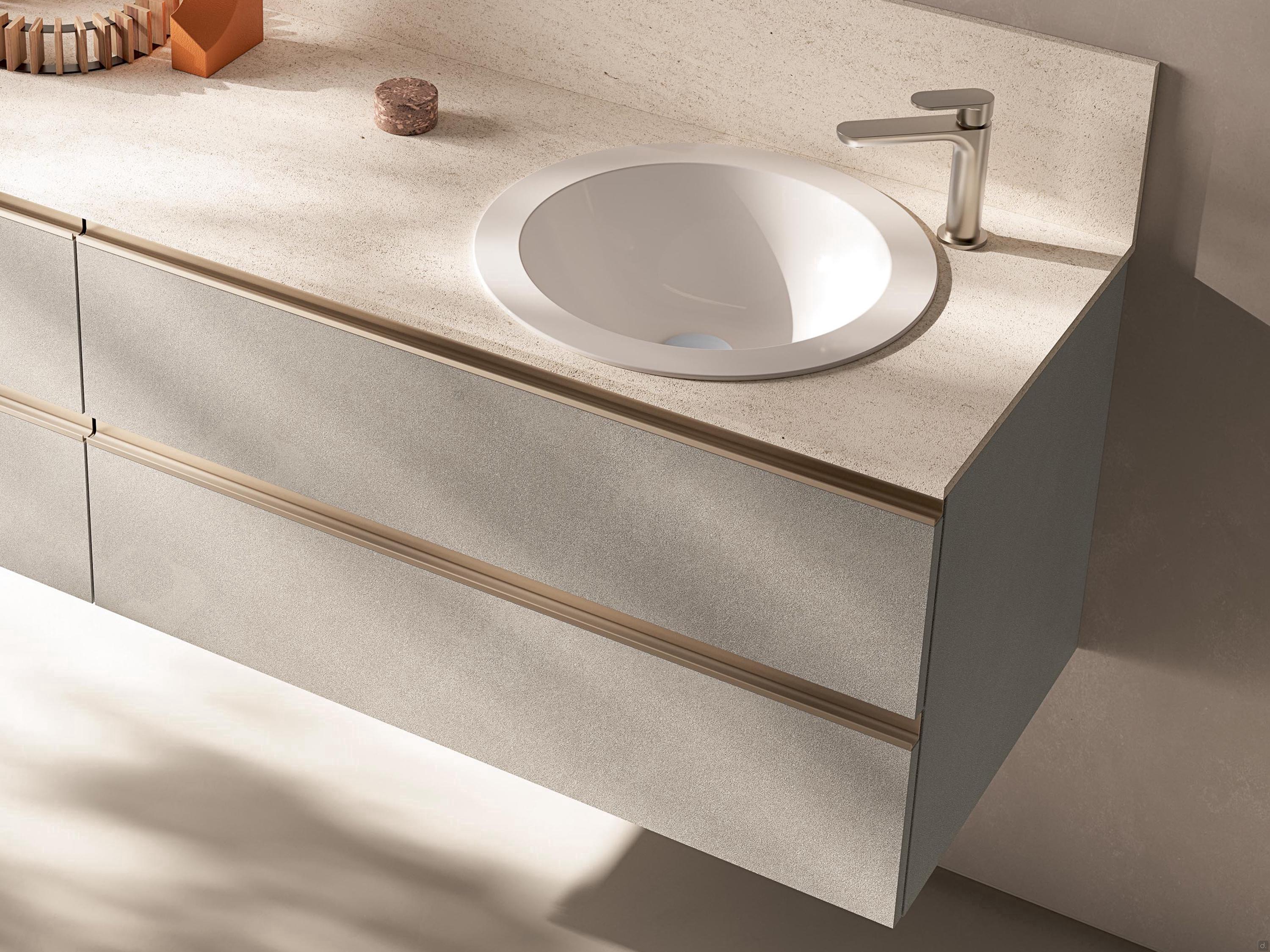

Round washbasin model Spazio inset above countertop made entirely of polished white ceramic

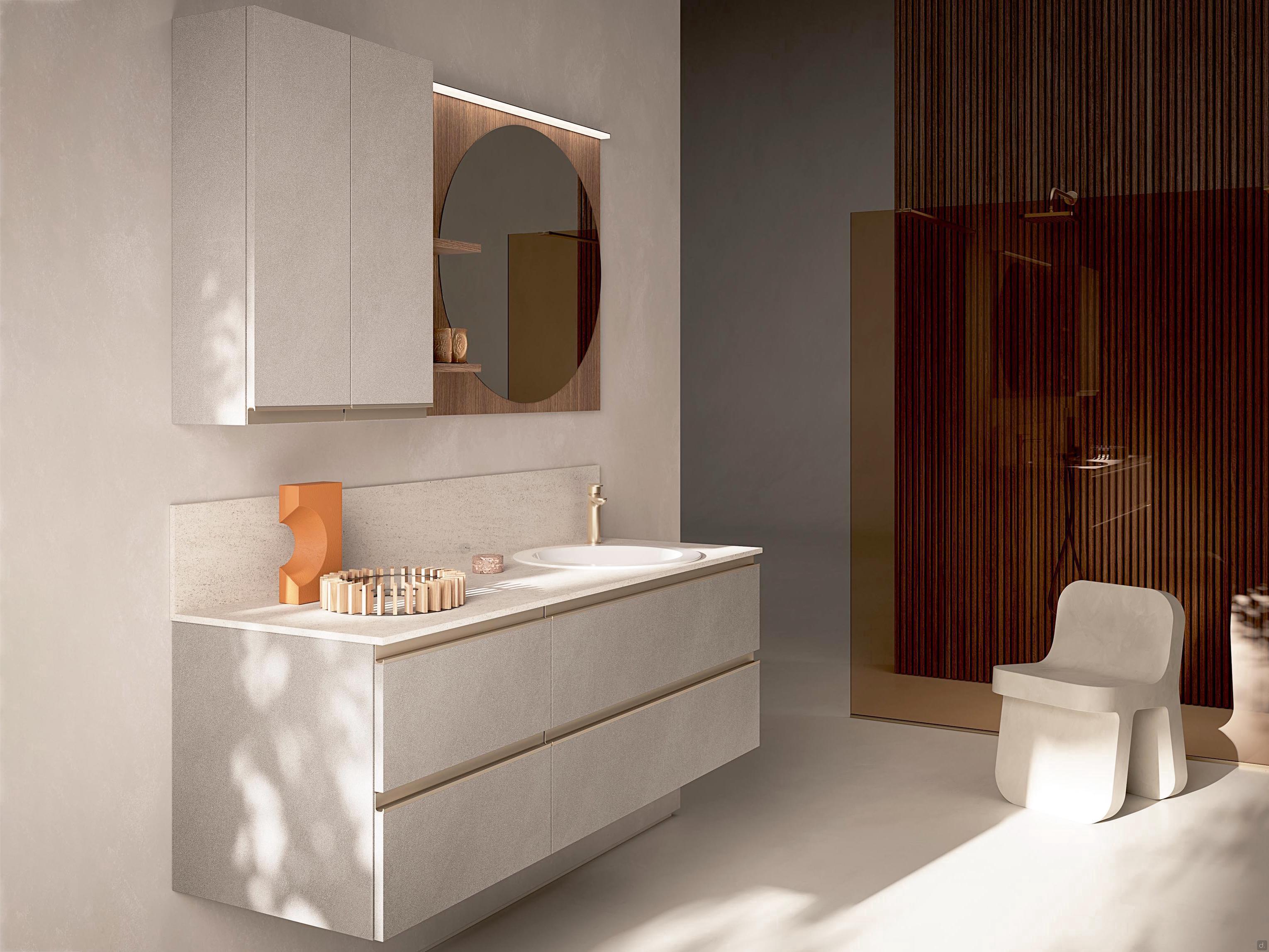

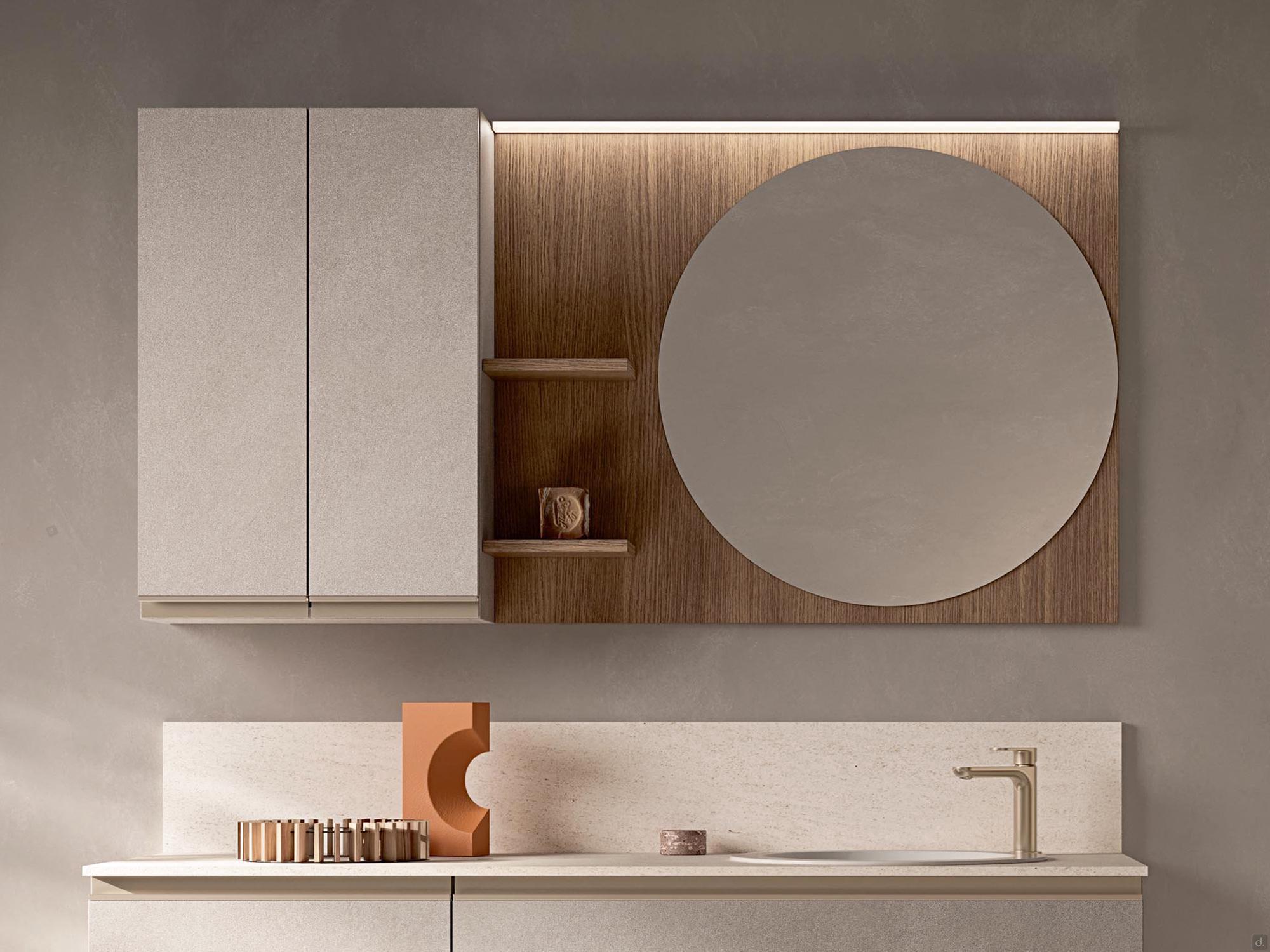

Composition complete with two-door hinged wall unit and mirror. Stone-effect melamine for base and wall unit with contrasting mirror in wood-effect melamine 283 Cumin

Hinged wall unit with two doors coordinated in finish and opening to the base units. Mirror with shelves in wood-effect melamine 283 Cumin

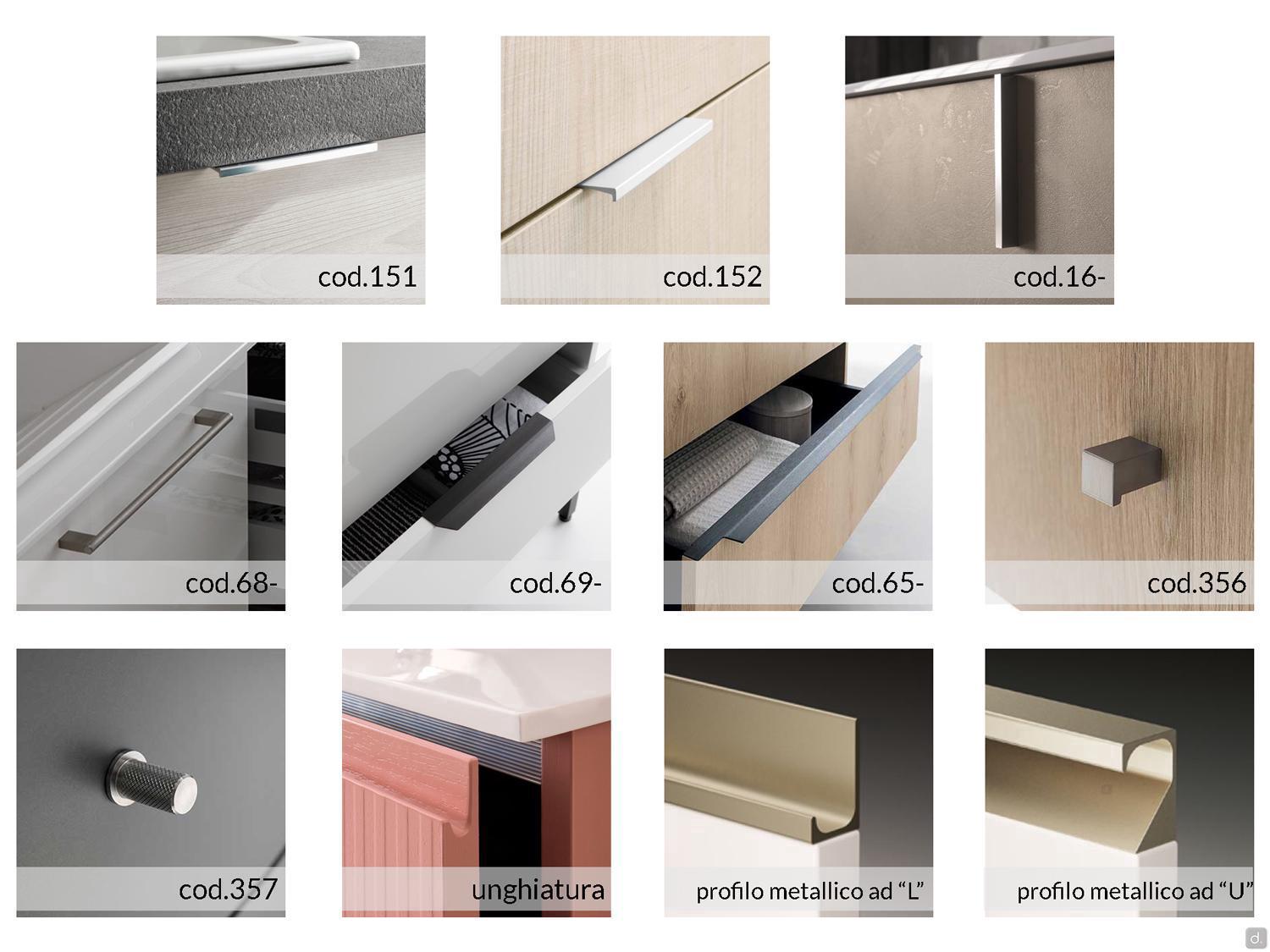

Available opening types and handle models

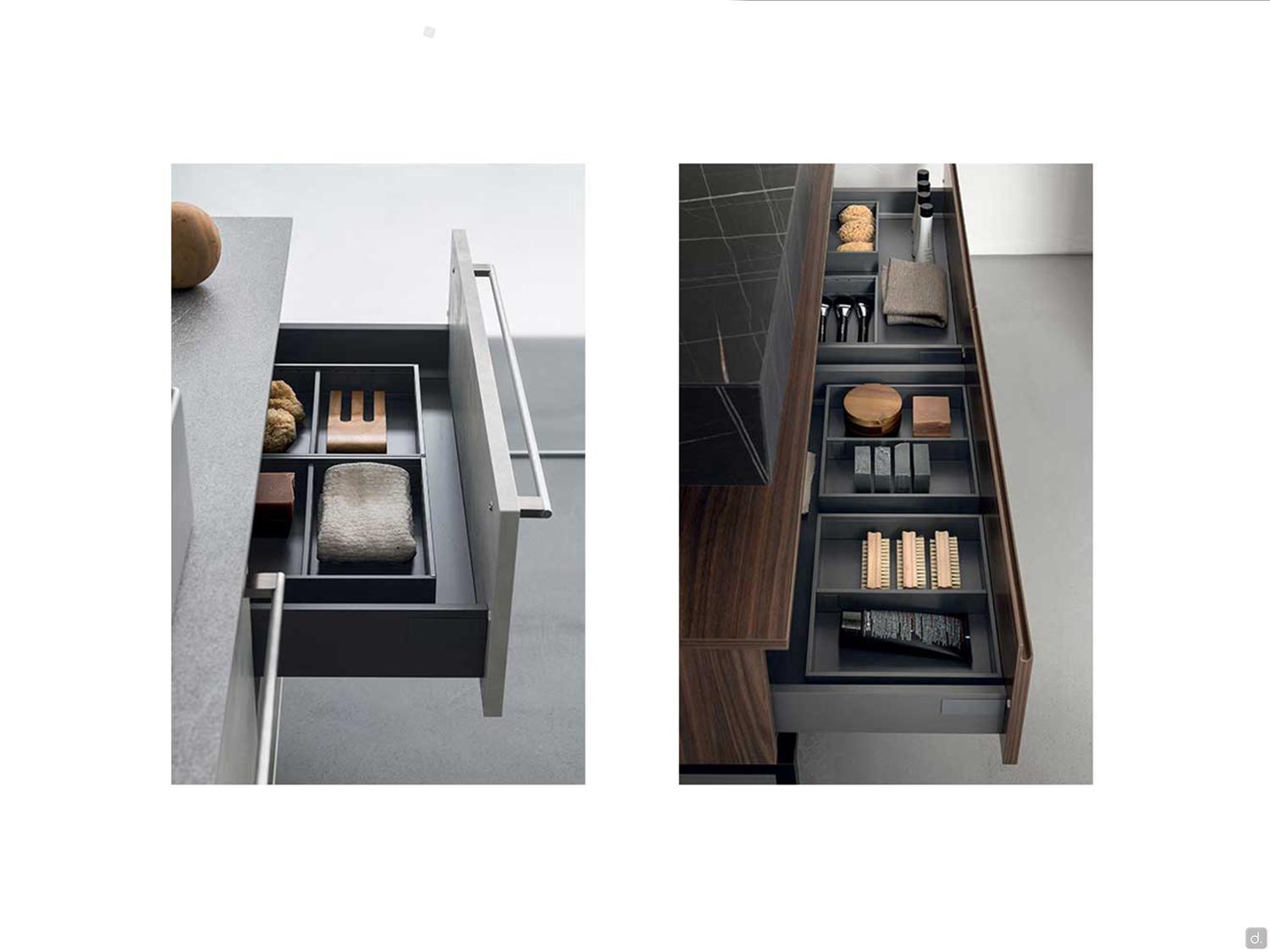

Optional drawer organiser - Orion Grey finish

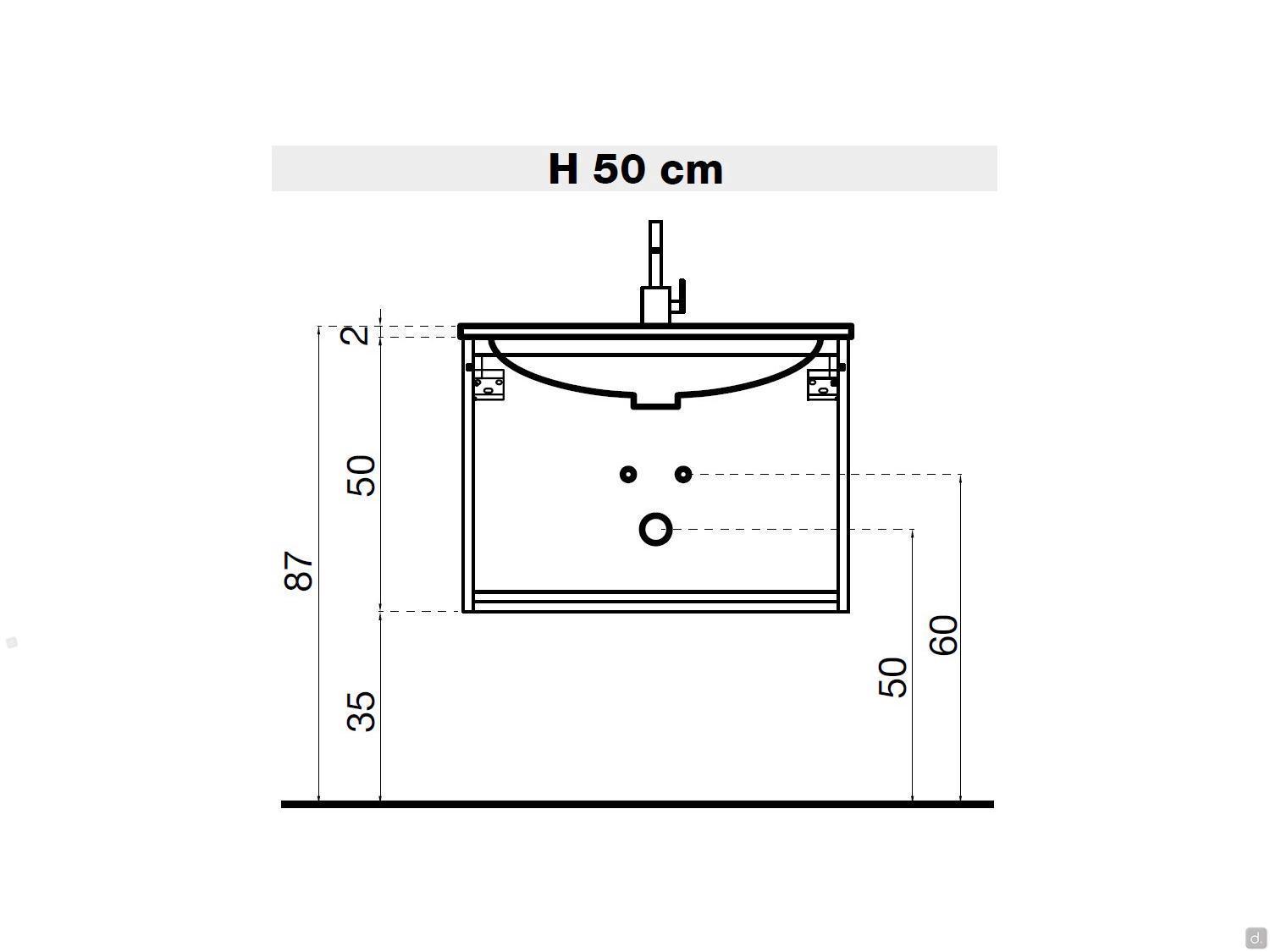

Example of drain placement on base h.50 cm

+ 7

MORE IMAGES

N116 - Atlantic
Wall Hung Bathroom Vanity

N116 wall-hung bathroom furniture with shelves and mirror. Top in gres stoneware and ceramic sink. Cabinets and wall units coordinated with a contrasting mirror.

Quantity

From €3,085.35

View Samples

Wishlist

Description

N116 - Atlantic is a wall-hung bathroom furniture with shelves and mirror complete with stoneware top and glossy white ceramic undermount washbasin. The 146 cm width and reduced depth of 51 cm concentrate excellent storage capacity and great freedom of customisation in a compact bathroom unit with great material impact. The base units, both side and washbasin, are fitted with large drawers that can also be equipped with internal organisers, and to enrich the whole we find on the upper part, a wall unit with hinged doors and a large mirror fitted with shelves and LED lighting. Further added value is the possibility of completing the silhouette of the top with the rear splashback in the same colour as the top and available in heights of 9, 12.2 and 20 cm.

Features
wall-hung bathroom unit with spacious drawers, wall unit with hinged doors and open shelves
stoneware top, precious to the eye and resistant to daily use
opening system can be customised with a choice of handles, metallic profiles or push-pull
optional rear splashback available in three heights, always matching the stoneware top
can be completed with the individual elements of the Atlantic family, including tall units, wall units and open units

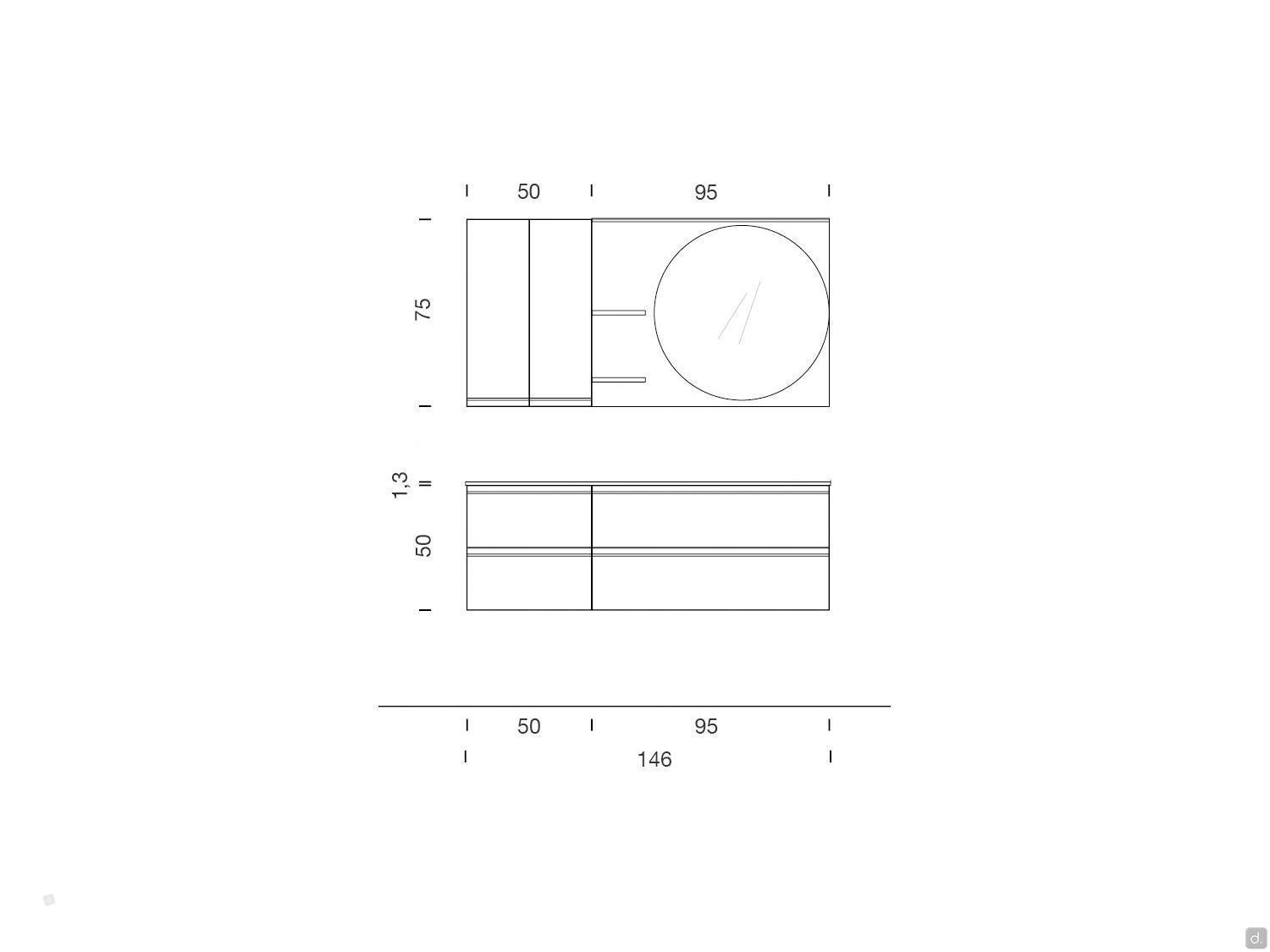

Dimensions
wall-hung bathroom cabinet:
- cm 146 d.51 h.50

Materials and Finishes
Base, Wall Unit and Mirror:
- melamine
- matt lacquered, glossy, on melamine, on wood
- wood veneer
Top:
- stoneware
Washbasin:
- polished ceramic

Info for your Purchase
The stoneware top protrudes 1 cm frontally and 0.5 cm laterally: the depth of the base alone is 1 cm less than the top. The overall height of the bathroom furniture is equal to the sum of the height of the base and the thickness of the top (1.3 cm).
The washbasin does not have an overflow hole. Faucets are not included; among the products at the bottom of the page you can find the Universal Siphon and the Drain.

Technical study

Technical Specifications and Features
The N116 bathroom furniture is composed of:
n.1 base unit with n.2 drawers: cm 50 p.50 h.50.
n.1 base unit with n.2 drawers: cm 50 d.50 h.50.
n.1 glossy white ceramic washbasin, Spazio model, cm 46 p.46 h.14,8. The dimensions of the basin are: cm 37 p.37 h.12,7. It is provided with an overflow hole and a hole for mixer Ø 3.5 cm.
n.1 stoneware top: cm 146 d.51 sp.1,3.
n.1 Screen mirror: cm 95 h.75, shelf depth cm p.16,8, with LED lighting (27W, 230V, IP21,4000K) without socket and switch.
Wall unit with doors: cm 50 p.20,8 h.75. Back in orion grey finish; Inner shelf in cm 0,6 thick clear glass.
Frame: cm 1.8 thick, made of particle board panels, then veneered with vertical grain.
Fronts: made of solid oak frame and central panel of 2 cm thick particle board, then veneered with horizontal grain.
Legrabox drawer: characterised by straight sides both internally and externally, only 1.28 cm thick. Equipped with a metal frame with full-extension runners and slow-closing mechanism.
Handles: various models of handles are available, as well as push-pull opening.
Handles code 152 are available in matt lacquered finish in all sample colours.
The handles mod. 68- protrude 4 cm from the door surface, while the 703 handles protrude 3 cm.

Washbasin Model	Dimensions	Internal basin	Type Built-in	Mixer Hole	Overflow- full
Spazio - matt white ceramic	cm 46 p.46 h.14,8	cm 37 d.37 h.12,7	top	wall-mounted on right or left top	yes

N.B. The mixer hole has a standard diameter of 3.5 cm.
For washbasins without an overflow hole, the use of a continuous drain is recommended.

Optional
splashback: designed to complete bathroom furniture with tops in HPL laminated veneer, marble stone, stoneware or quartz-resin; particularly suitable for walls that are not perfectly square and for combination with free-standing mirrors.
organisers: internal subdivision system for Legrabox drawer and basket. Available in Orione finish.

Maintenance Tips
Wood: "living" material protected superficially by varnish; for cleaning, use a soft, non-abrasive, damp cloth well wrung out. It is advisable to clean the top in the direction of the grain and dry carefully.
Stone: to prevent stains, clean promptly with a damp cloth or neutral detergents. We recommend the use of neutral detergents.

Read more...
Porcelain stoneware : Porcelain stoneware is made from a mixture of water and clay that is transformed, through the raw extrusion process, into a slab with extraordinary mechanical properties. Vitrification closes the pores, ensuring maximum resistance to water absorption and stains.

Video

Additional Information

Area of Production
Italy

Approximate Time
5-6 working weeks for production

Assembling
Medium Assembling

Assembling Instructions
See Tab Video

Cubic Metres
0,62 m³
