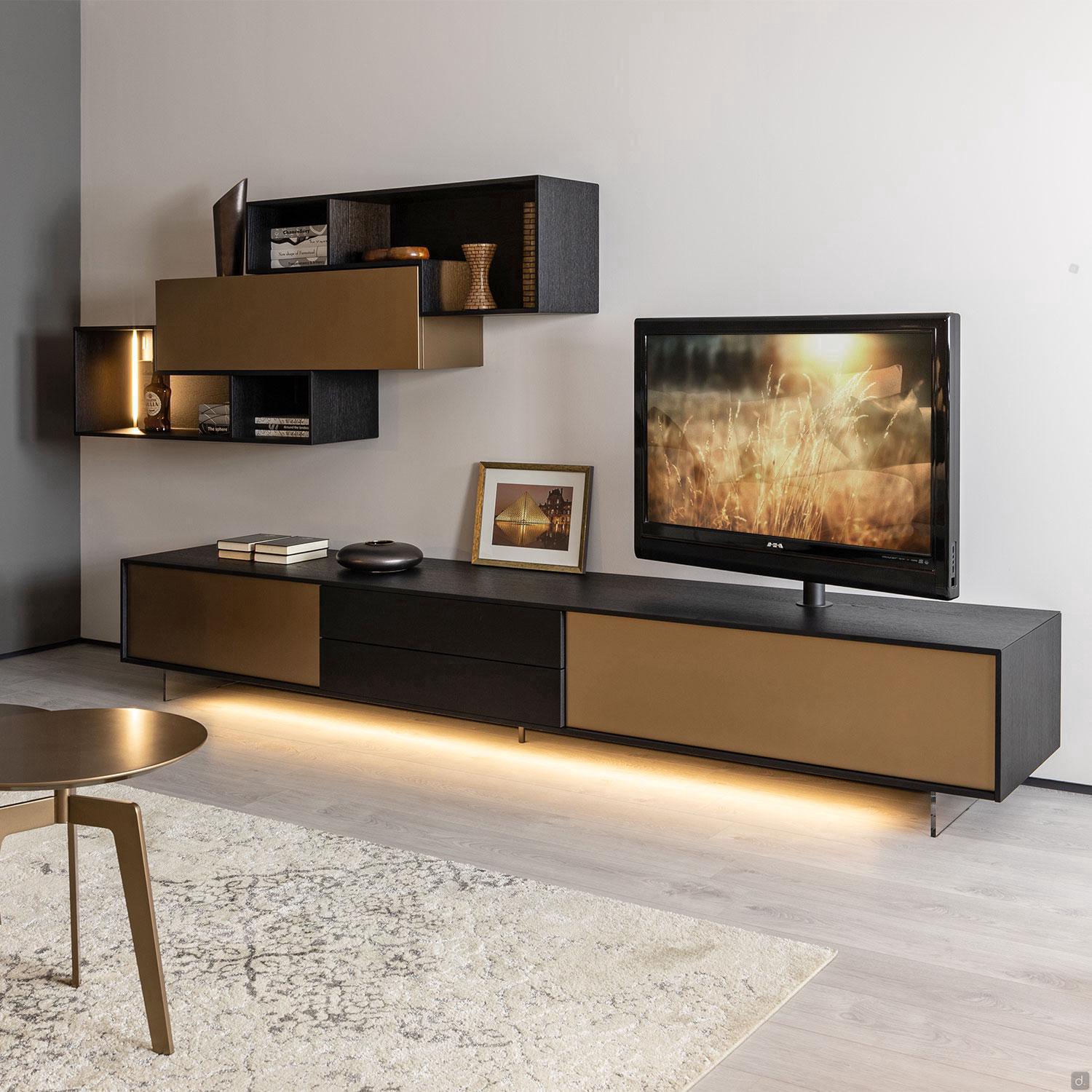

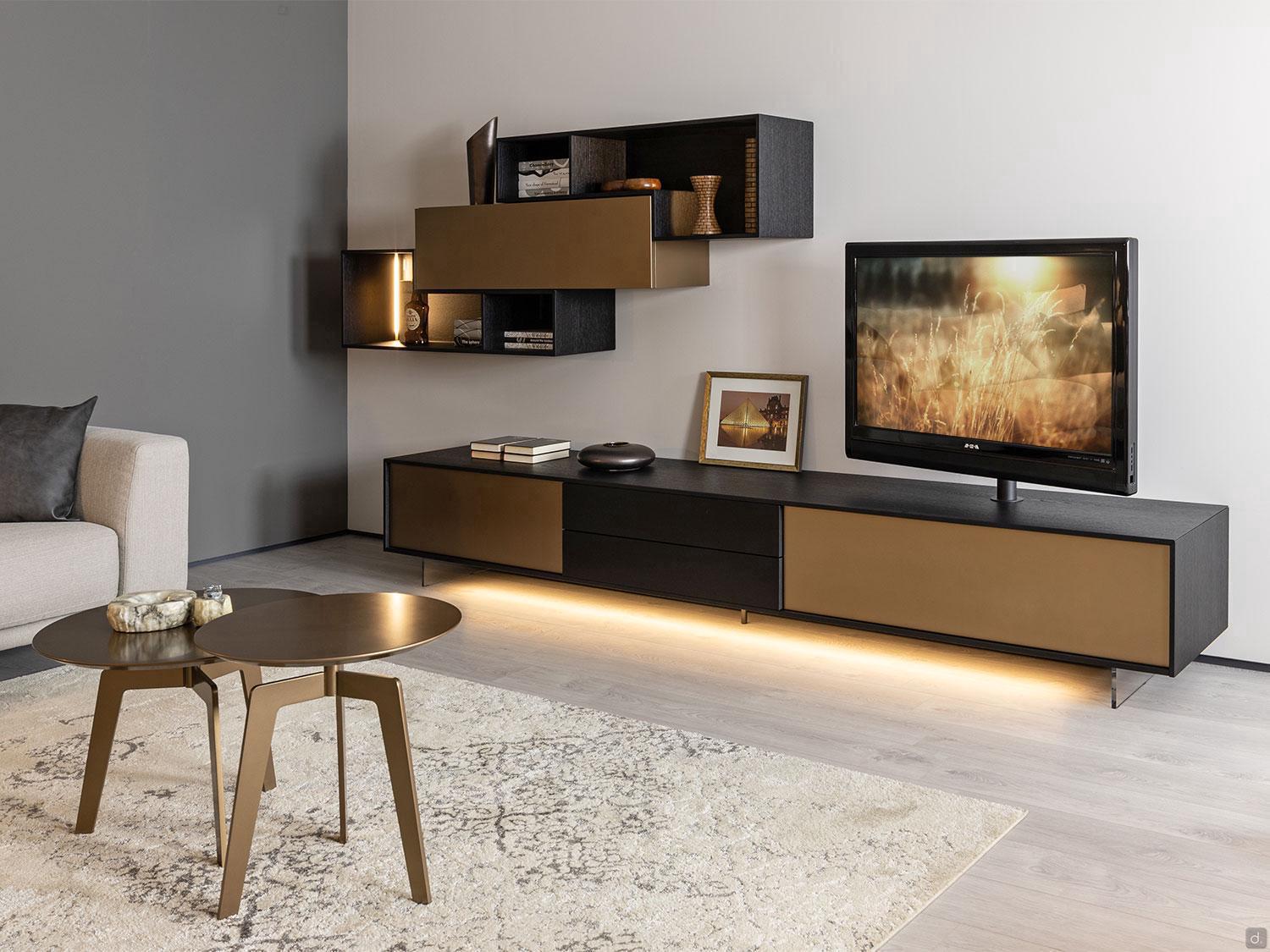

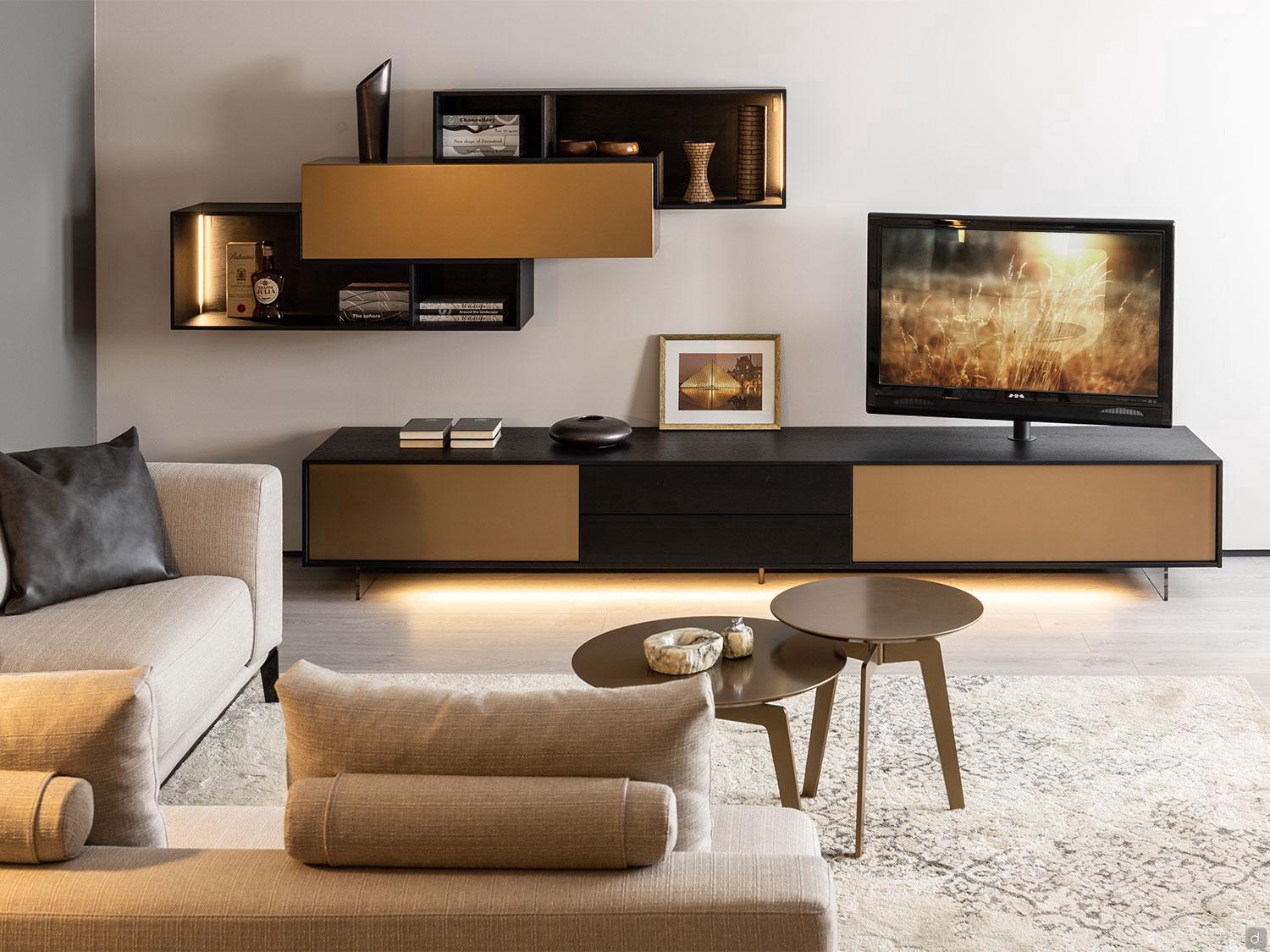

Bespoke wall system with LEDs Replay 01. Low cabinet with swivel support for your TV with deep drawers. Open drop-down wall units.

Wall system finishes: wood Coal Oak, metallic lacquered Bronze

Refined wall system that distinguishes itself for the combination of black and bronze colours

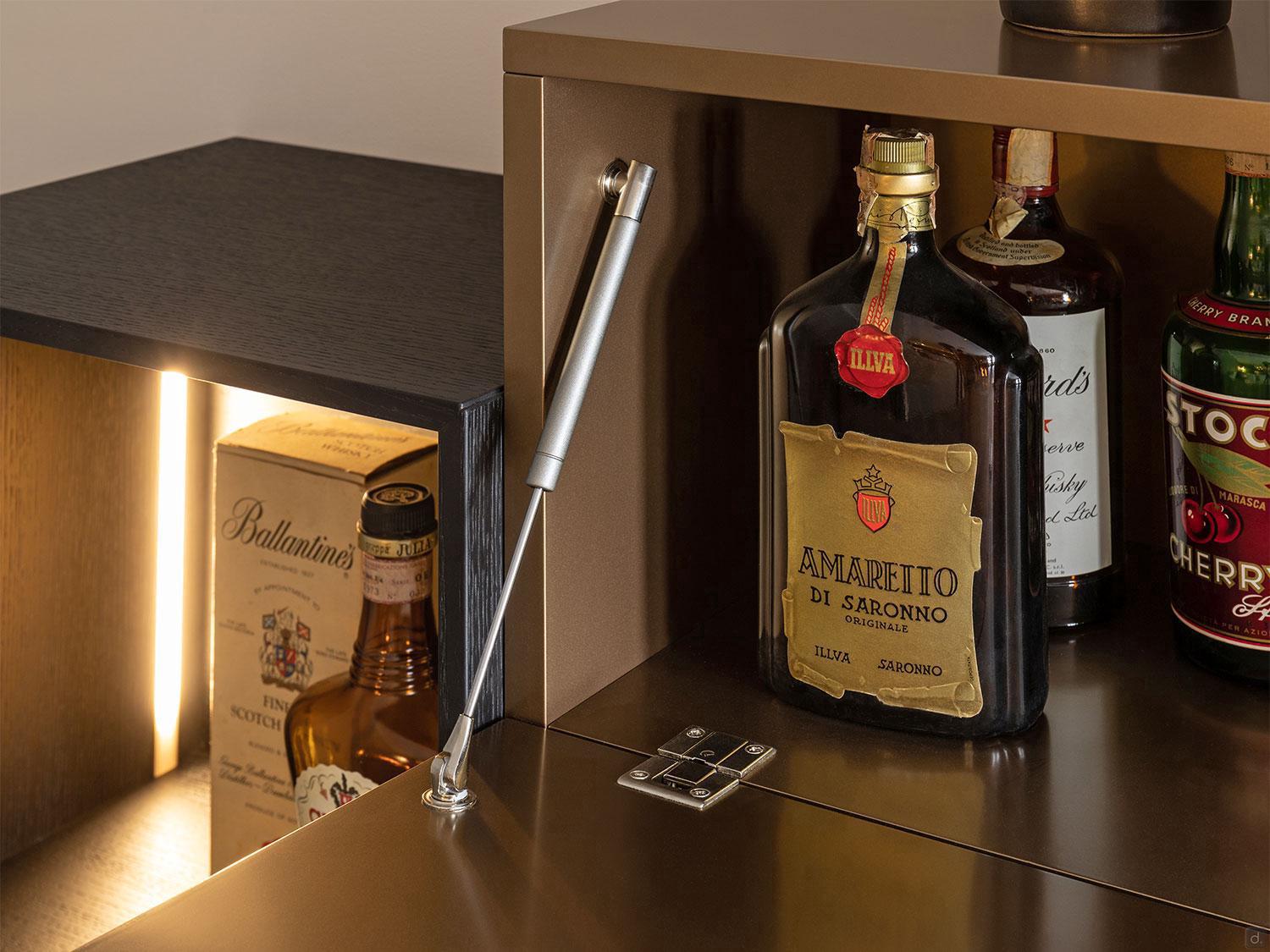

Detail drop-down wall unit and opening system

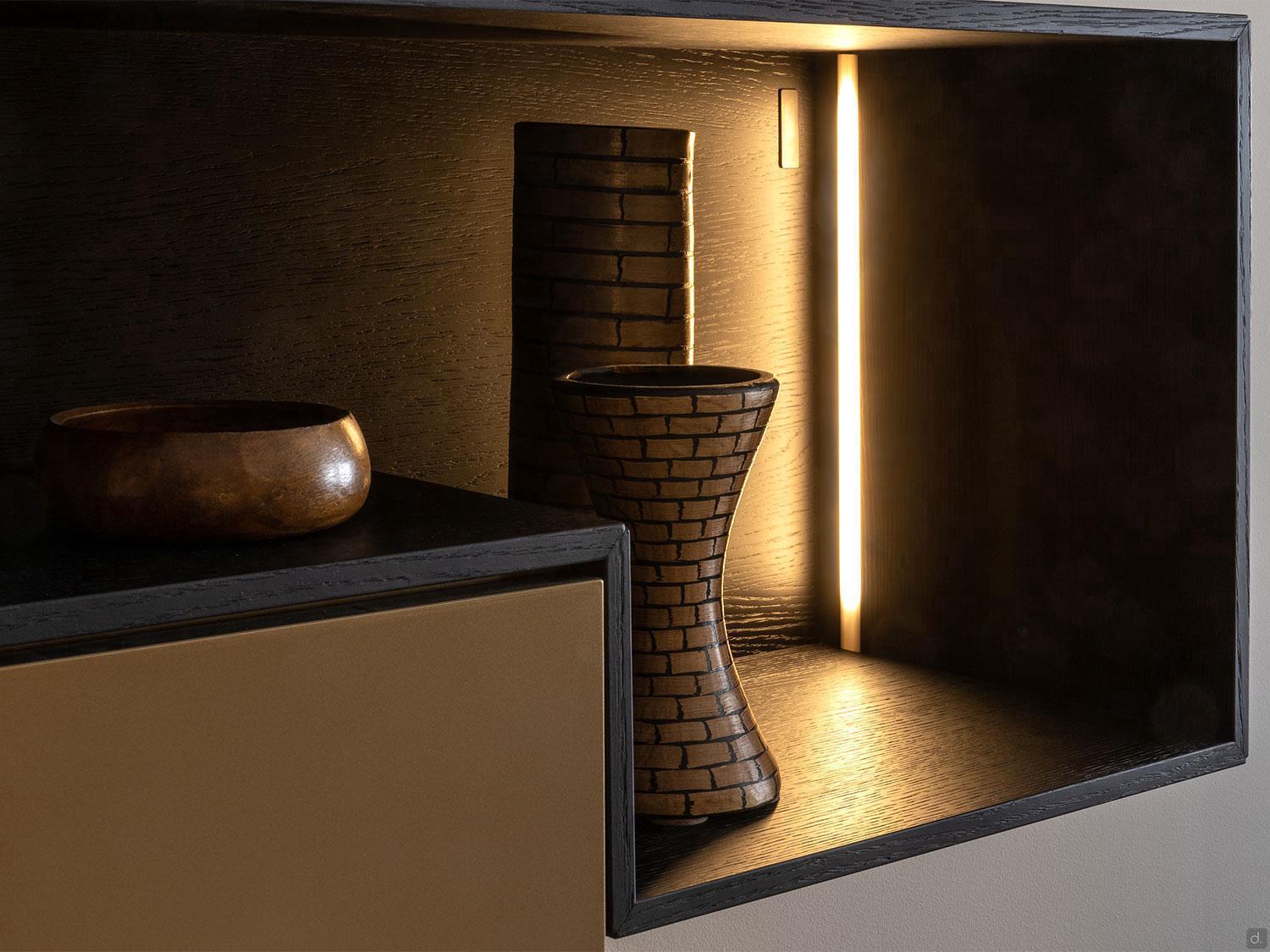

The wall units are equipped with vertical installation LEDs

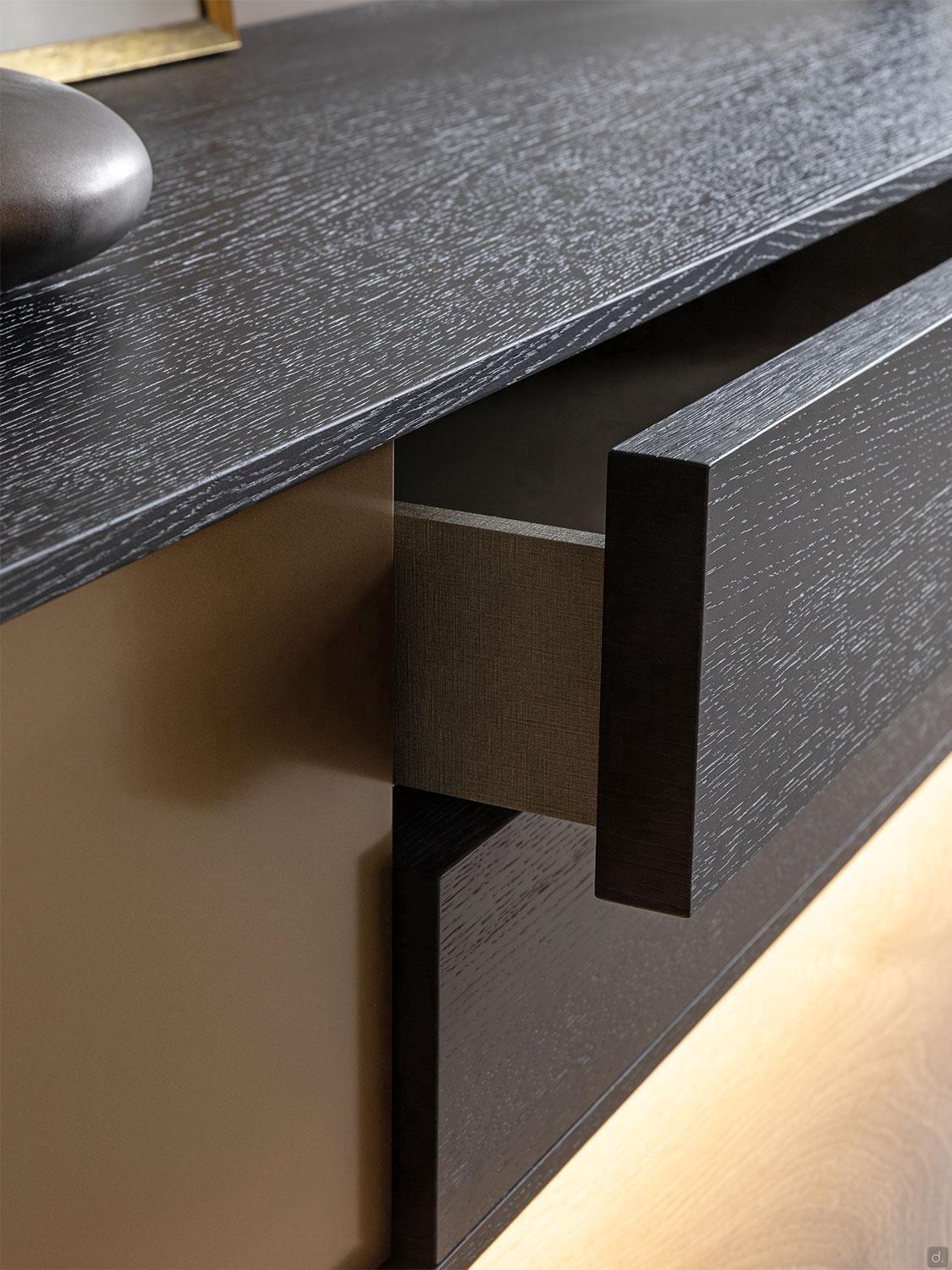

Detail drawer with fronts and sides in particle wood panel, with metal guides equipped with end run block and soft return mechanism

Detail finish wood veneer finitura legno essenza Coal Oak

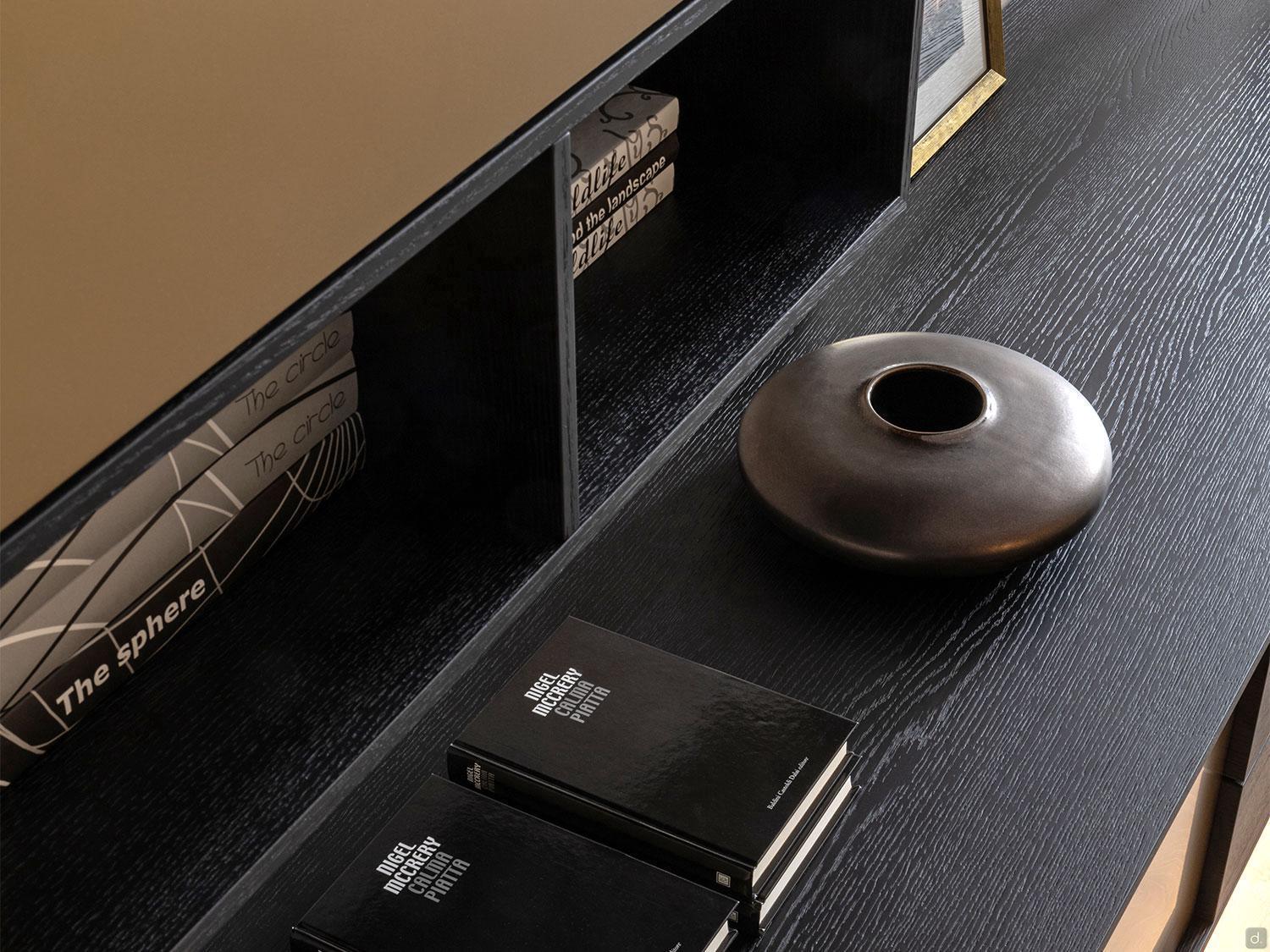

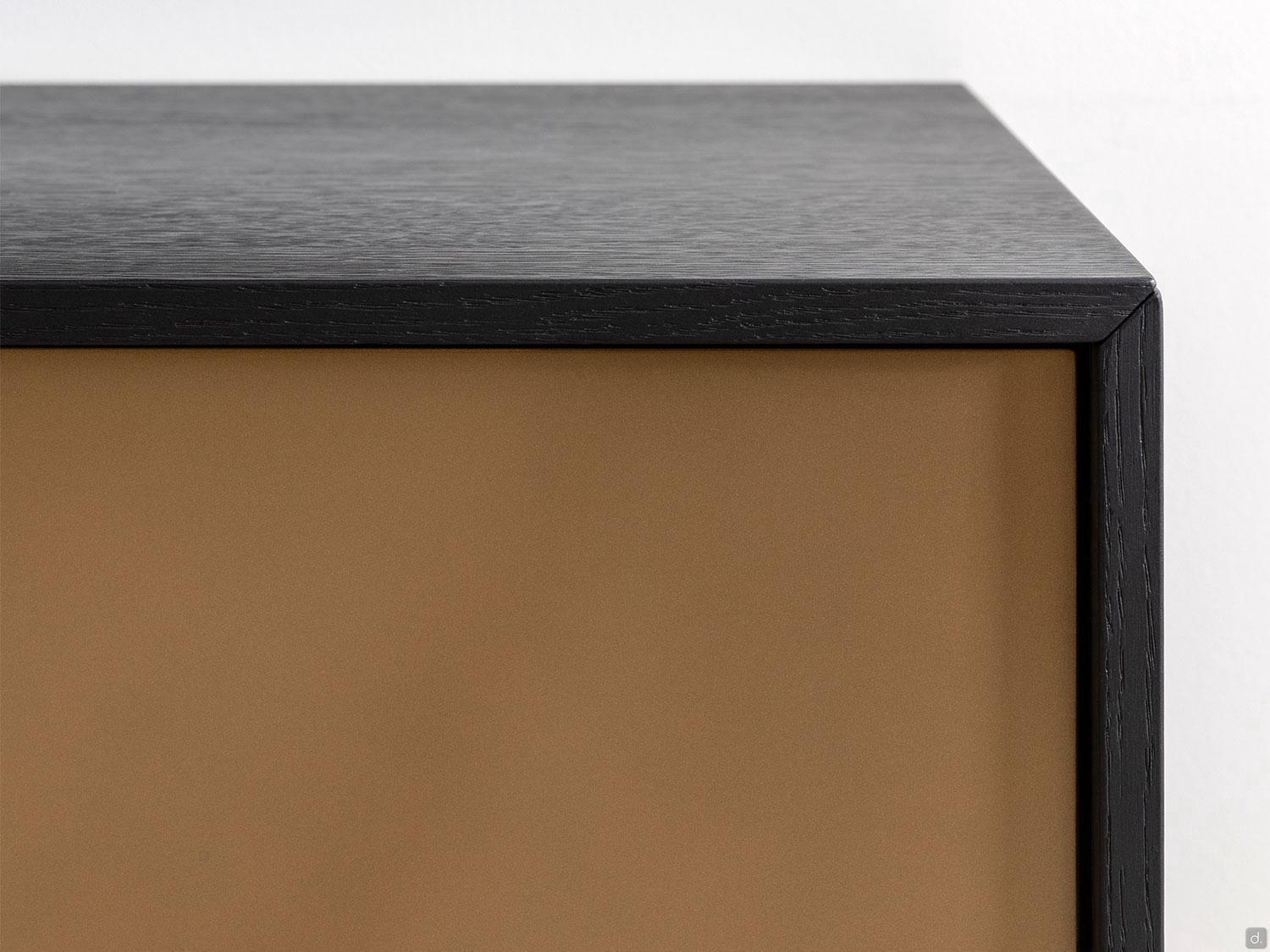

Detail of the top corner of the container base

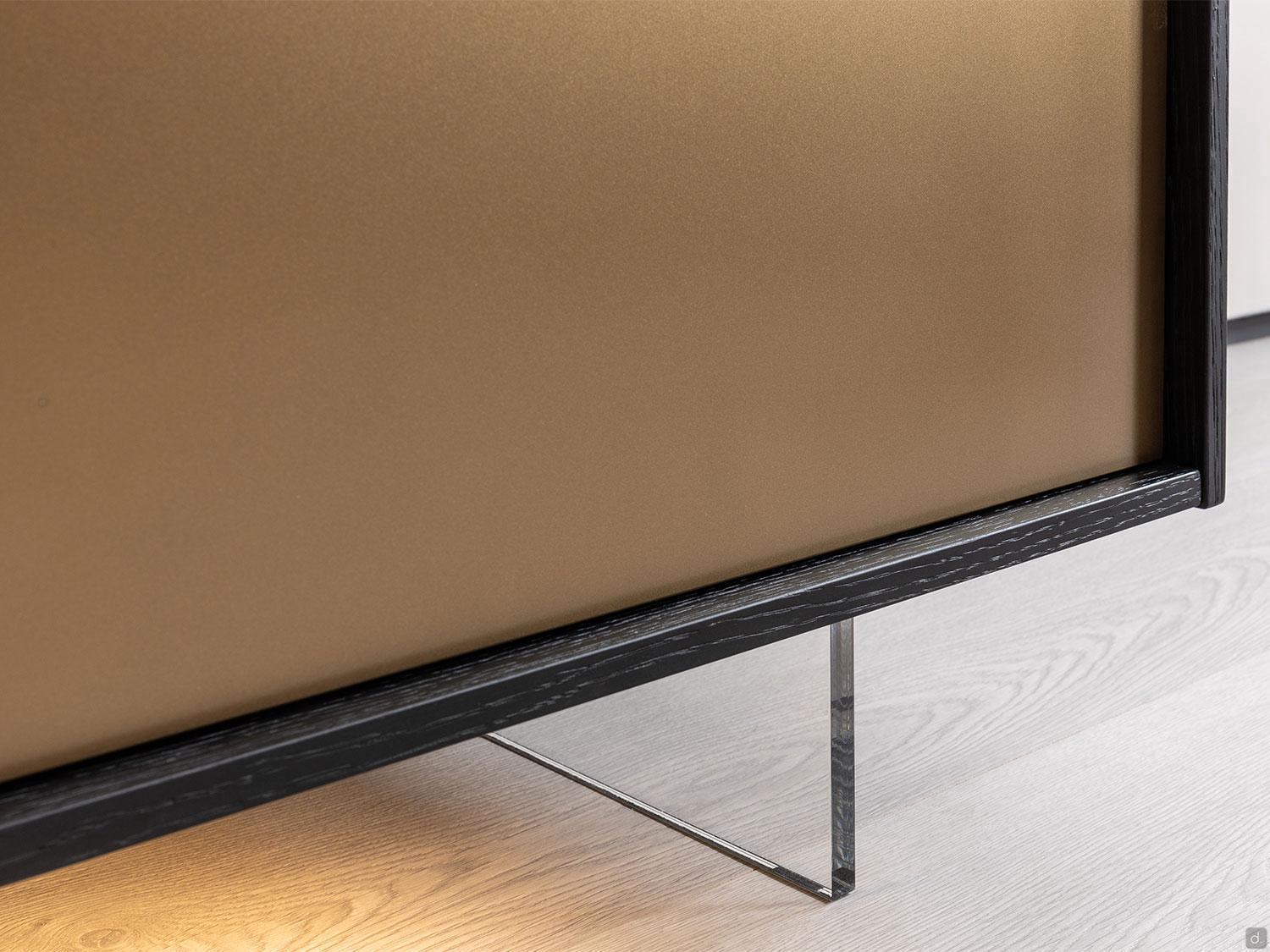

Detail of the transparent acrylic feet, height 12 cm

+ 6

MORE IMAGES

Replay 01
Bespoke Wall System

Bespoke wall system with LEDs Replay 01. Low cabinet with swivel support for your TV with deep drawers, drop-down wall units.

* Required Fields

Measurements *

cm 330 d.56 h.160

Part A Finish *

Part A Colour Code Please View Samples and Insert Code

Part A Colour Code

Part B Finish *

Codice Colore Parte B *

Codice Colore Parte B

Part B Colour Code Please View Samples and Insert Code

Part B Colour Code

Composition Side *

Optional - LED light

horizontal LED bar under the cabinets (with power supply) +€170.86
vertical recessed LED bar for open compartments (with power supply) +€76.84

Optional - Remote Control

to manage the LED bars +€108.18

Quantity

From €3,471.77

View Samples

Wishlist

Description

Replay 01 is a bespoke wall system with LEDs, elegant and refined in black and bronze. The oak wood is combined with the metallic lacquered Bronze, the warm texture of the dark wood is embellished with bronze coloured details. The result is a sophisticated composition for refined and fancy living rooms.
This wall system is composed by a container cabinet with doors and drawers, a drop-down wall unit and two open wall units. The floor standing base becomes a perfect TV cabinet with cylindrical metal support, which can be used both to support the TV screen but also to help you with your cable management. This shaft allows the TV to rotate both sides, a very useful feature that guarantees a clear screen view also from less centred positions. This discreet and thin base is made of transparent acrylic.
Replay 01 stands out also for its wall units composition: the wall unit with door is long and low, the two open wall units appear as two container shelves with an irregular shape. These irregular shapes have an internal dividing unit that helps you order your books and what you want to put on them.
Replay 01 is more than a simple modern living room wall system, it is also equipped with LEDs. The lighting is integrated both in the open wall units and in the TV cabinet, this detail makes this piece of furniture unique and refined.

Characteristics
every element is available in many different colours and finishes
TV cabinet is conceived for 32" to 55" screens, it can turn left and right
TV cabinet has a discreet base in transparent acrylic
wall system with integrated lighting, LEDs in the wall units and under the base

Measurements
Overall Measurements: cm 330 d.56 h.160

Materials and Finishes

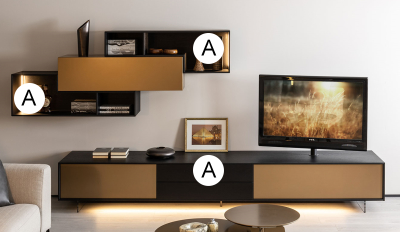

Part A:
- matt / matt on ash wood laminate / metallic lacquered
- wood veneer

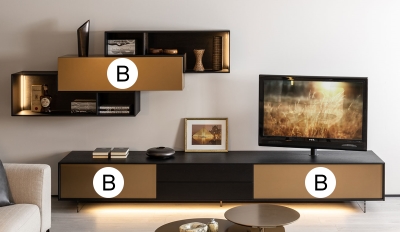

Part B:
- melamine
- glossy / matt / matt on ash wood laminate / metallic lacquered
- wood veneer

Info for your Quote
The overall measurements are referred to the composition as presented in these pictures. The real measurement might change depending on the position of its elements.

Technical study

Model and Specific Measurements
n.1 drop-down base: cm 90 d.54,6 h.32
n.1 base unit with 2 drawers: cm 90 d.56,1 h.32
n.1 drop-down base with integrated Vesa support: cm 120 d.54,6 h.32
n.1 square 4 sides: cm 303 d.56,1 h.35
n.1 base with feet in transparent acrylic cm h.12
n.1 drop-down wall unit: cm 120 d.35,4 h.32
n.2 open wall units: cm 120 d.35 h.40

Technical Specifications and Equipment
Base and Wall Units: 20 mm thickness particle wood panel covered in melamine material class E1 - low formaldehyde emission (sides, bottoms, covers and shelves) or mm 40 (partitions and internal dividing elements). The 90 cm elements are equipped with a support metal shaft which is positioned under the cover to prevent cupping. The back panels are 4 mm thick. The drop-down wall unit has a maximum weight capacity of 100 kg
Doors: 20 mm thickness particle wood panel covered in melamine material class E1 - low formaldehyde emission. They are equipped with metal hinge or bases in nickel finish with 90° opening. Adjustable horizontally, vertically and in depth.
Drawers: the fronts are made of 20 mm thickness particle wood panel covered in melamine material class E1 - low formaldehyde emission. The sides are made of particle wood panel, 14 mm thickness with framed jute finish and they are mounted on metal guides with end run block and soft return mechanism.
Open Wall Units: 15 mm thickness particle wood panel covered in melamine material class E1 - low formaldehyde emission. Maximum weight capacity: 80 kg.
Drop-Down Base with Vesa Mount: container completed by a cylinder metal support for cable routing. It can hold TVs from 32" to 50", maximum weight capacity 20 kg. The maximum rotation on both sides is 43° (for 32" TV) and 25°(for 50" TVs). The support - 7 cm diameter - is centrally positioned 18 cm away from the hole and is equipped with two holes for cable routing.
4 Sides Square: made of 15 mm thick panels with 45° conjunction and 2x2 mm wire-breaker shutter at the top.
Vertical recessed LED : 3,6W each, with power supply. Natural white light at 3.000°K.
Under Base LED bar: 28,8W, with power supply. Natural white light at 3.000°K.

Video

Additional Information

Area of Production
Italy

Approximate Time
7-8 working weeks for production

Assembling
Medium Assembling
