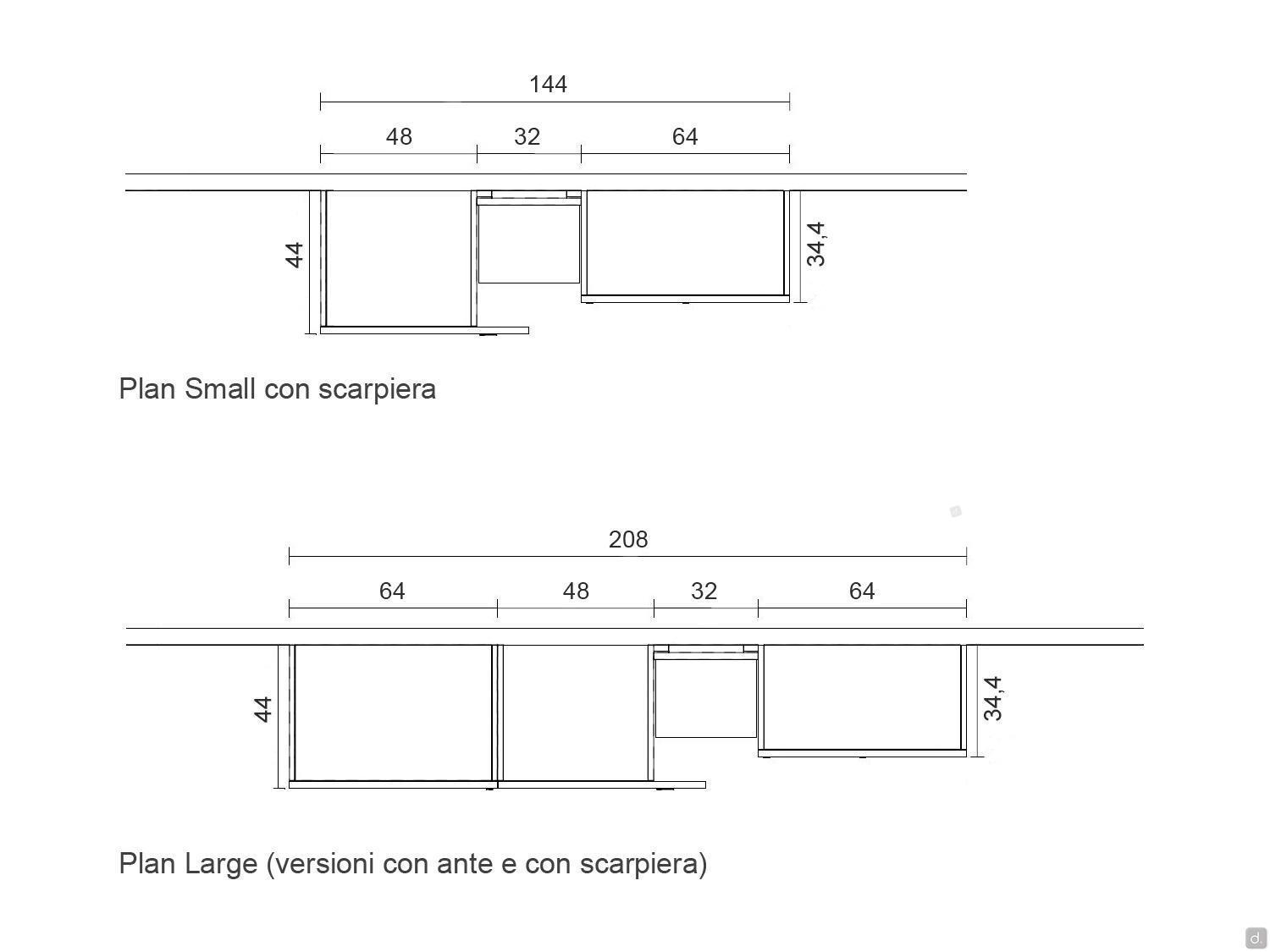

Specific Measurements

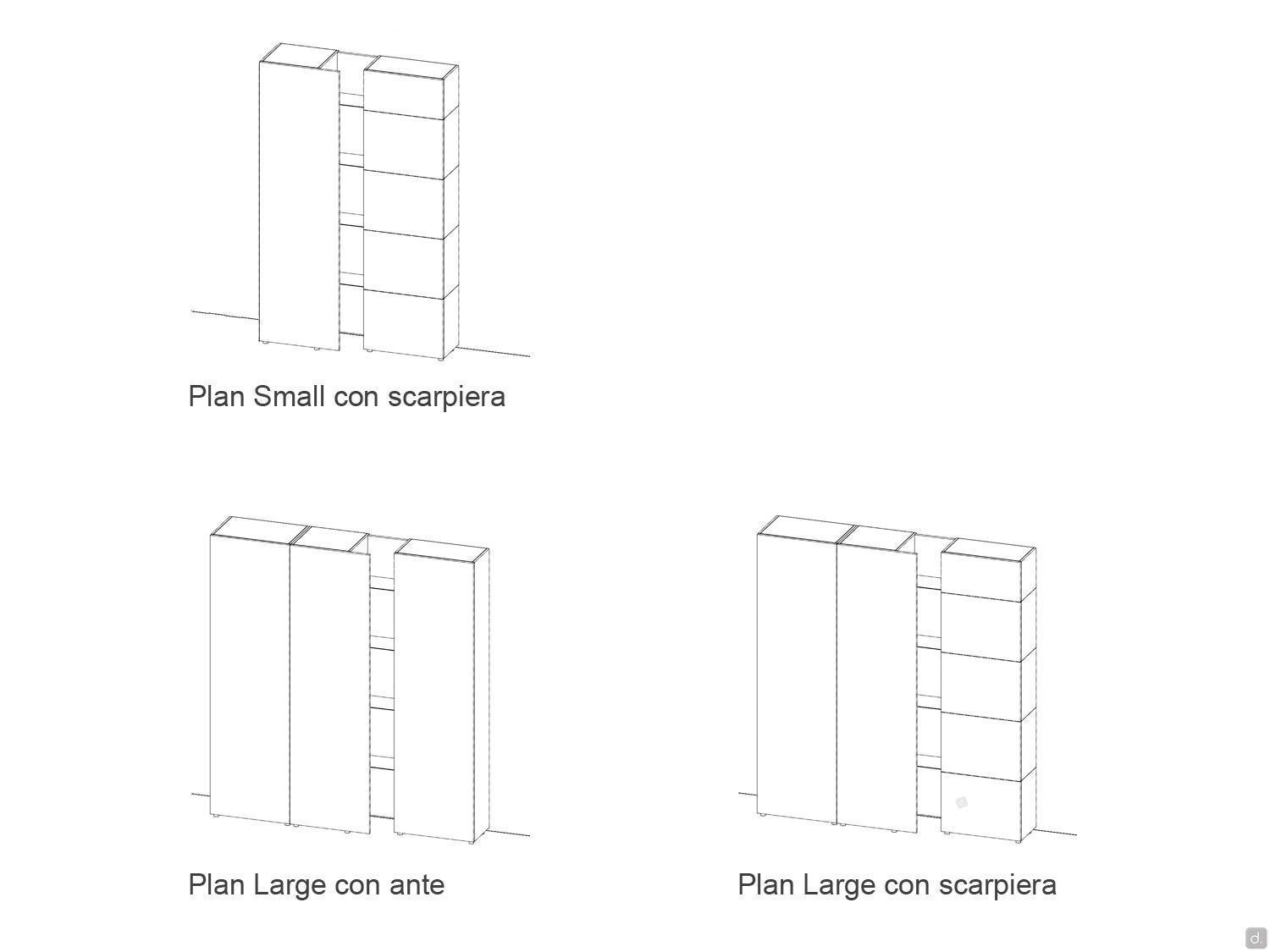

Plan 37 Small:
- n.1 hinged storage cabinet with rail for clothes and two wooden shelves: cm 64 (storage cm 48) d.44 h.224
- n.1 open compartment cm 32 h.224 equipped with:
- n.4 wall back panels: cm 32 d.4,4 h.48
- n.1 wall back panel: cm 32 d.4,4 h.32
- n.4 shelves for back panel: cm 32 d.26,5 th.0,4
- n.4 drop down units with shoe rack and one wooden shelf: cm 64 d.34,4 h.48

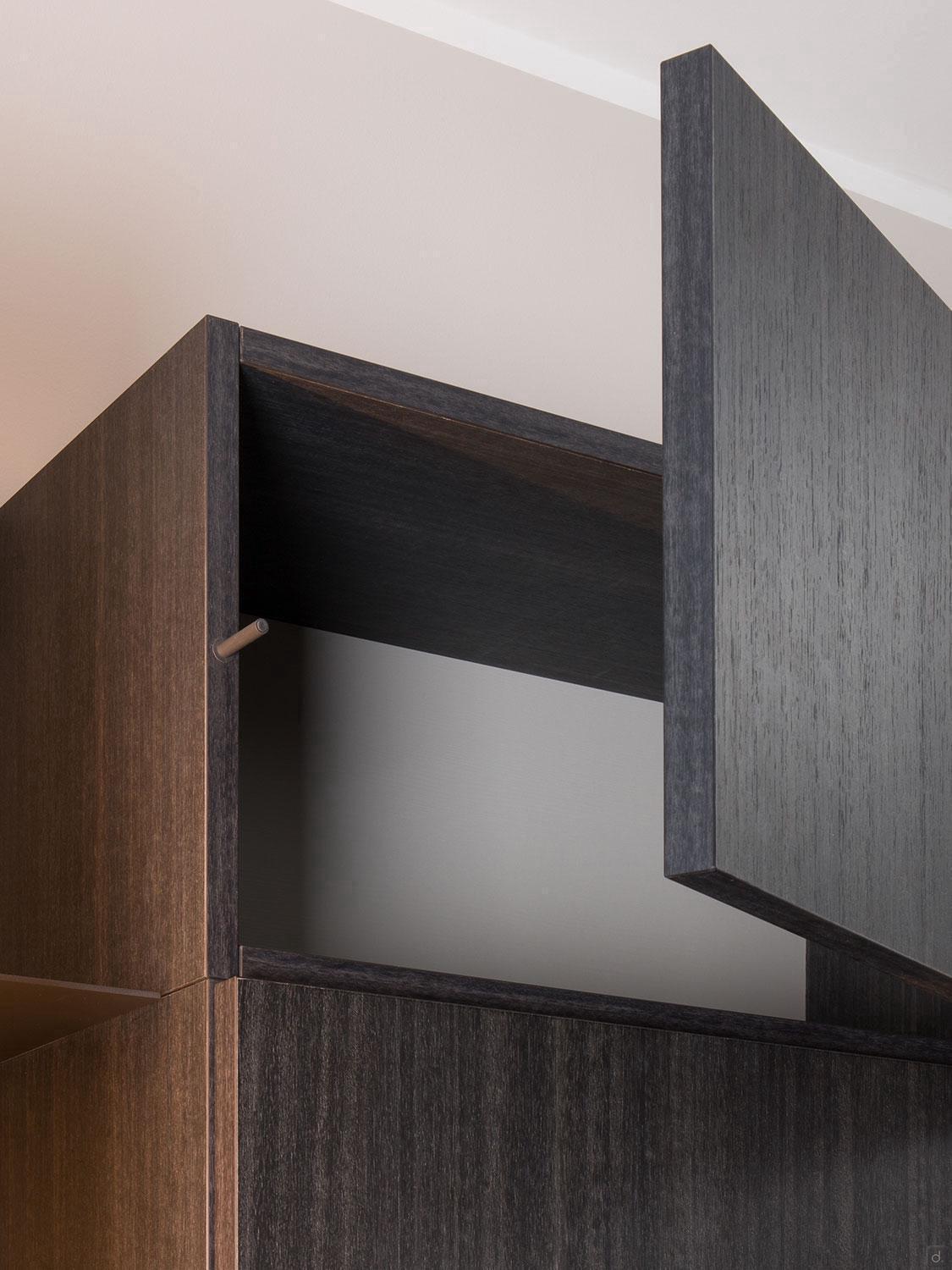

- n.1 hinged storage cabinet: cm 64 d.34,4 h.32

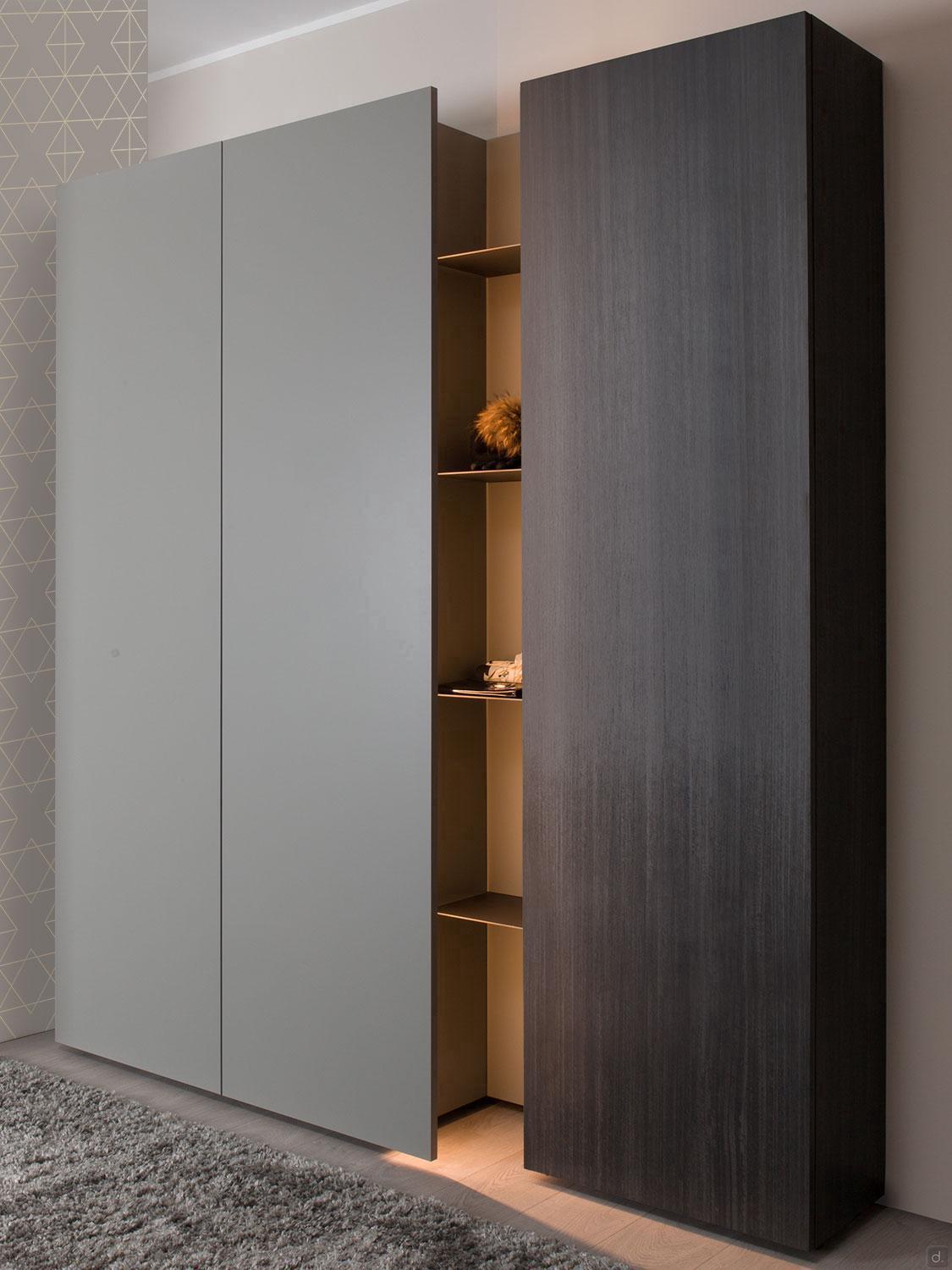

Plan 37 Large with doors:

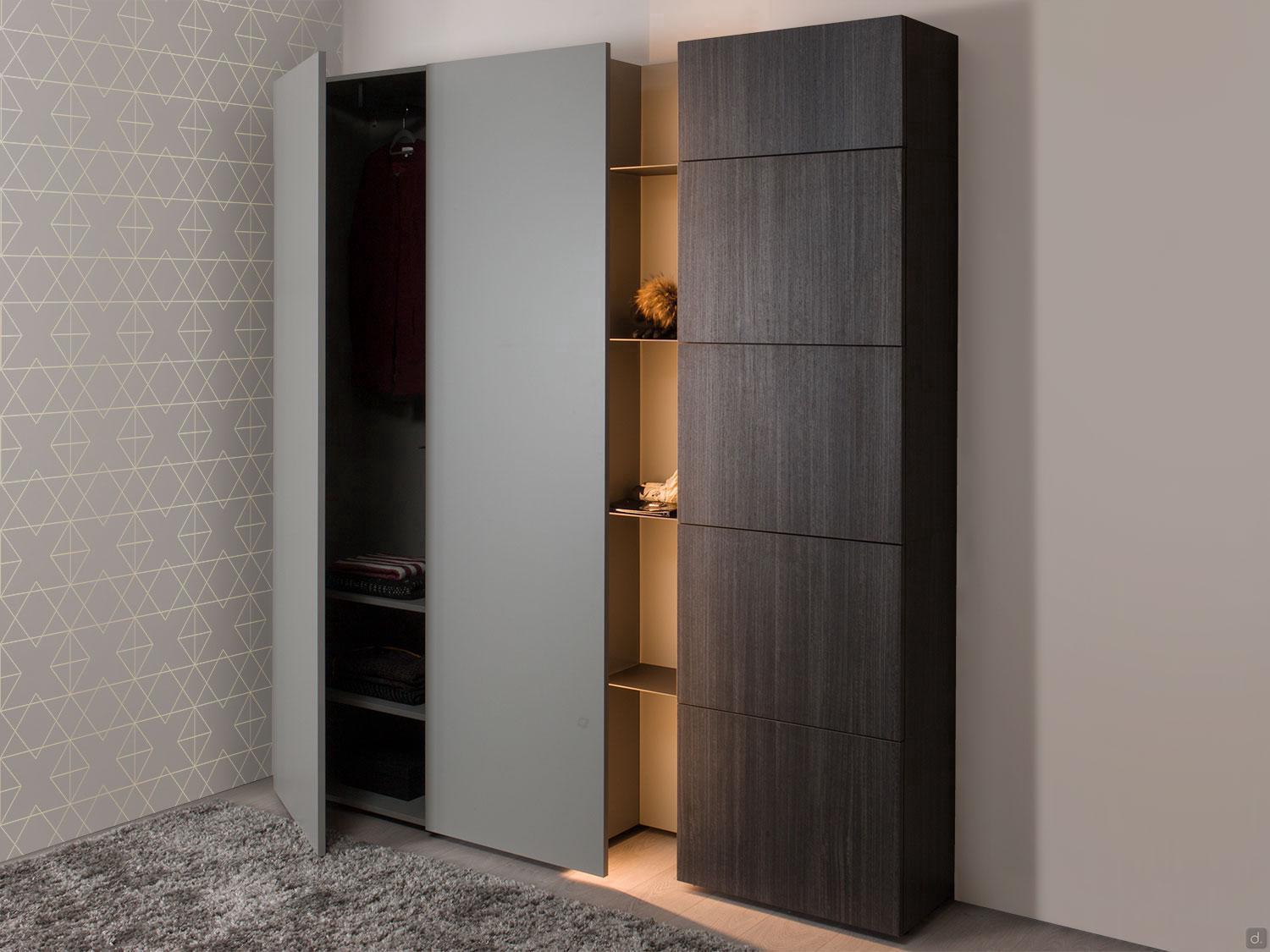

- n.1 hinged storage cabinet with rail for coats and two wooden shelves: cm 64 d.44 h.224
- n.1 hinged storage cabinet with rail for coats and two wooden shelves: cm 64 (storage cabinet cm 48) d.44 h.224
- n.1 open compartment cm 32 h.224 equipped with:
- n.4 wall back panels: cm 32 d.4,4 h.48
- n.1 wall back panel: cm 32 d.4,4 h.32
- n.4 shelves for back panels: cm 32 d.26,5 th.0,4
- n.1 hinged storage cabinet with five glass shelves and a wooden one: cm 64 d.34,4 h.224

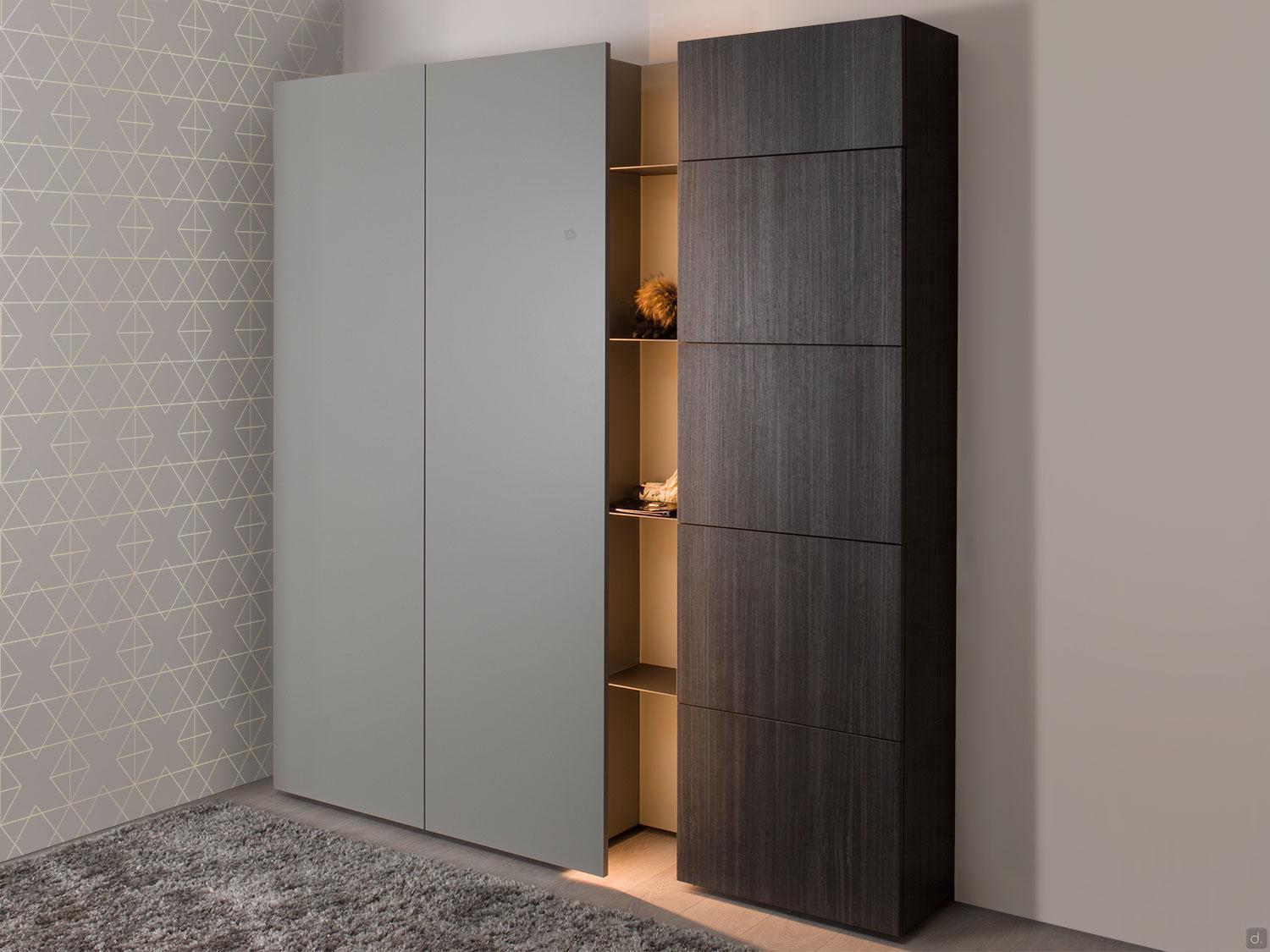

Plan 37 Large with shoe rack:
- n.1 hinged storage cabinet with rail for coats and two wooden shelves: cm 64 d.44 h.224
- n.1 hinged storage cabinet with rail for coats and two wooden shelves: cm 64 (storage cabinet cm 48) d.44 h.224
- n.1 open compartment cm 32 h.224 with:
- n.4 wall back panels: cm 32 d.4,4 h.48
- n.1 wall back panel: cm 32 d.4,4 h.32
- n.4 shelves for back panel: cm 32 d.26,5 th.0,4

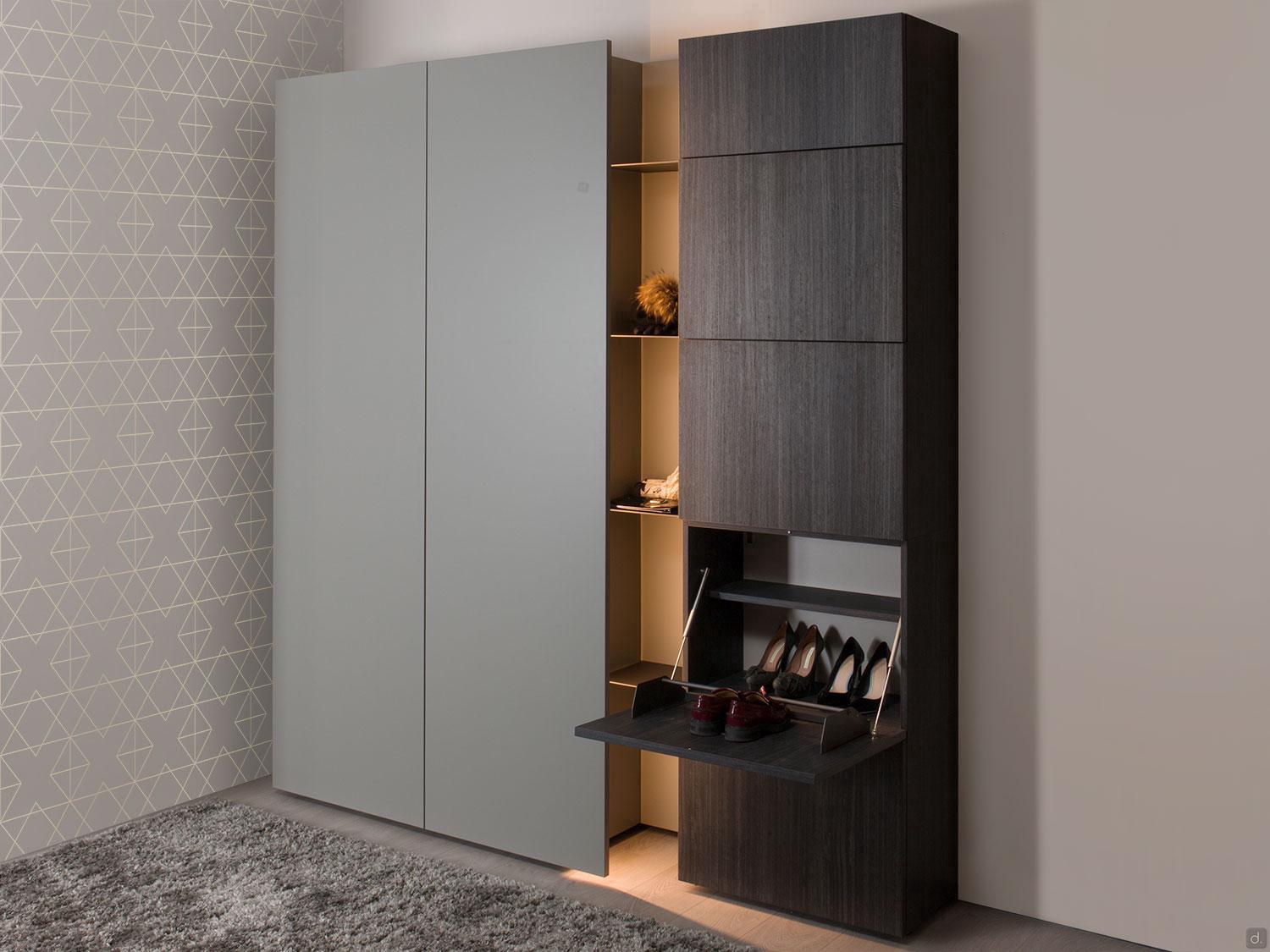

- n.4 drop down storage units with shoe rack and one wooden shelf: cm 64 d.34,4 h.48
- n.1 hinged storage cabinet: cm 64 d.34,4 h.32
Technical Specifications and Equipment
Structure: thickness cm 1,8 in particle wood panel coated in melamine material (class E1 with low formaldehyde emissions), wood or mdf (for glossy lacquer). Storage units with 2,5 cm adjustable feet in matt black plastic.
Doors: thickness cm 2,2.
Shelves: thickness cm 1,8, in wood matching the inside.
Storage Back Panel: thickness cm 0,8 matching the inside or in taupe decor for melamine finishes.

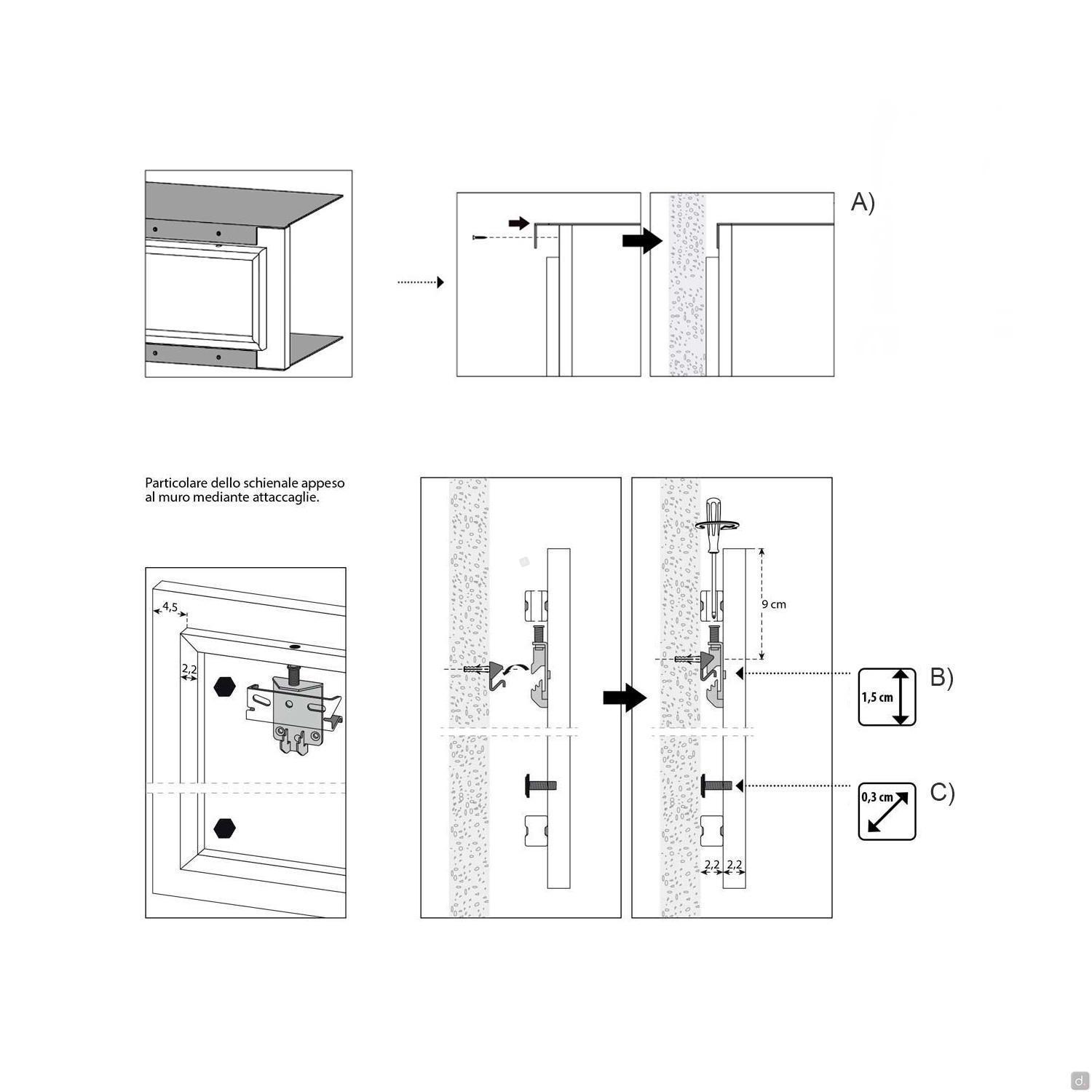

Wall Back Panels: thickness cm 4,4, including a panel in particle wood cm th. 2,2 and a back frame 2,2 cm thick. The brackets are on the rear part of the panel they are adjustable and they can hold up to 100 kg each.

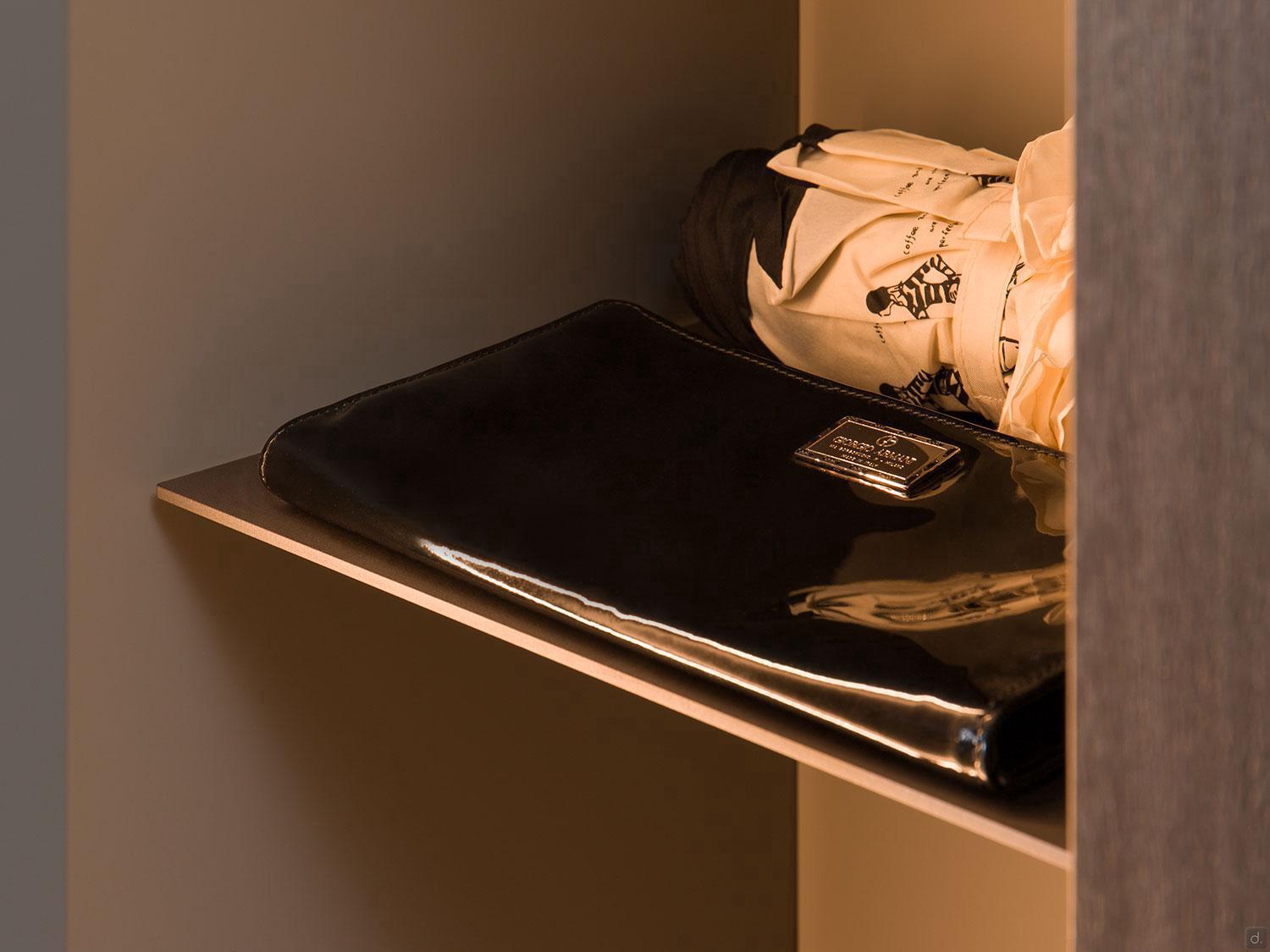

Shelves for Back Panel: thickness cm 0,4 in moka shine painted steel sheet.
Internal Equipment:

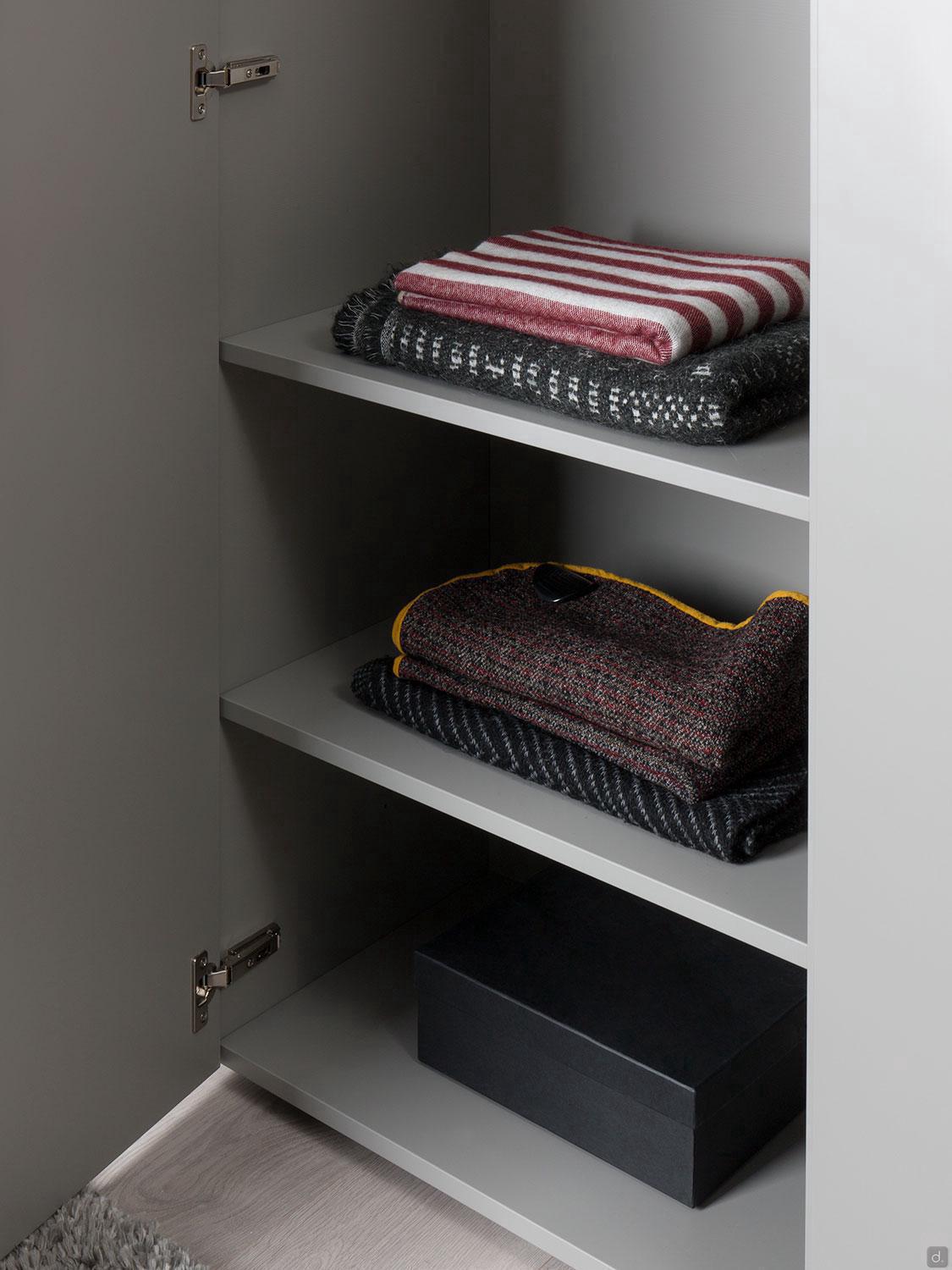

- hinged storage cabinets: n.1 rail in moka shine painted metal + n.2 wooden shelves matching the inside (wardrobe version) or 5 glass shelves + 1 shelf matching the inside (standard version).

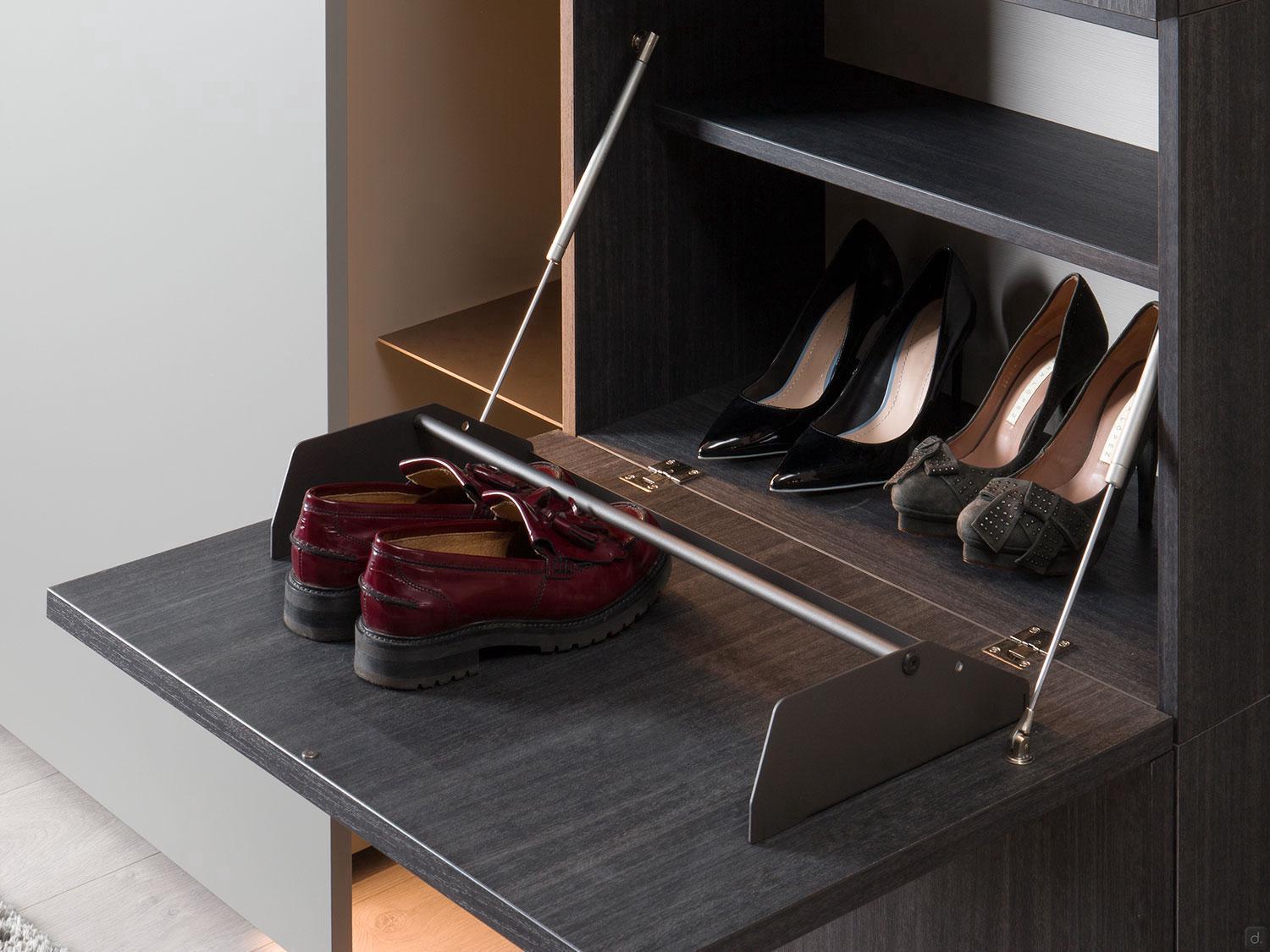

- drop down door storage units: n.1 shoe rack in moka shine painted metal + n.1 wooden shelf matching the inside.

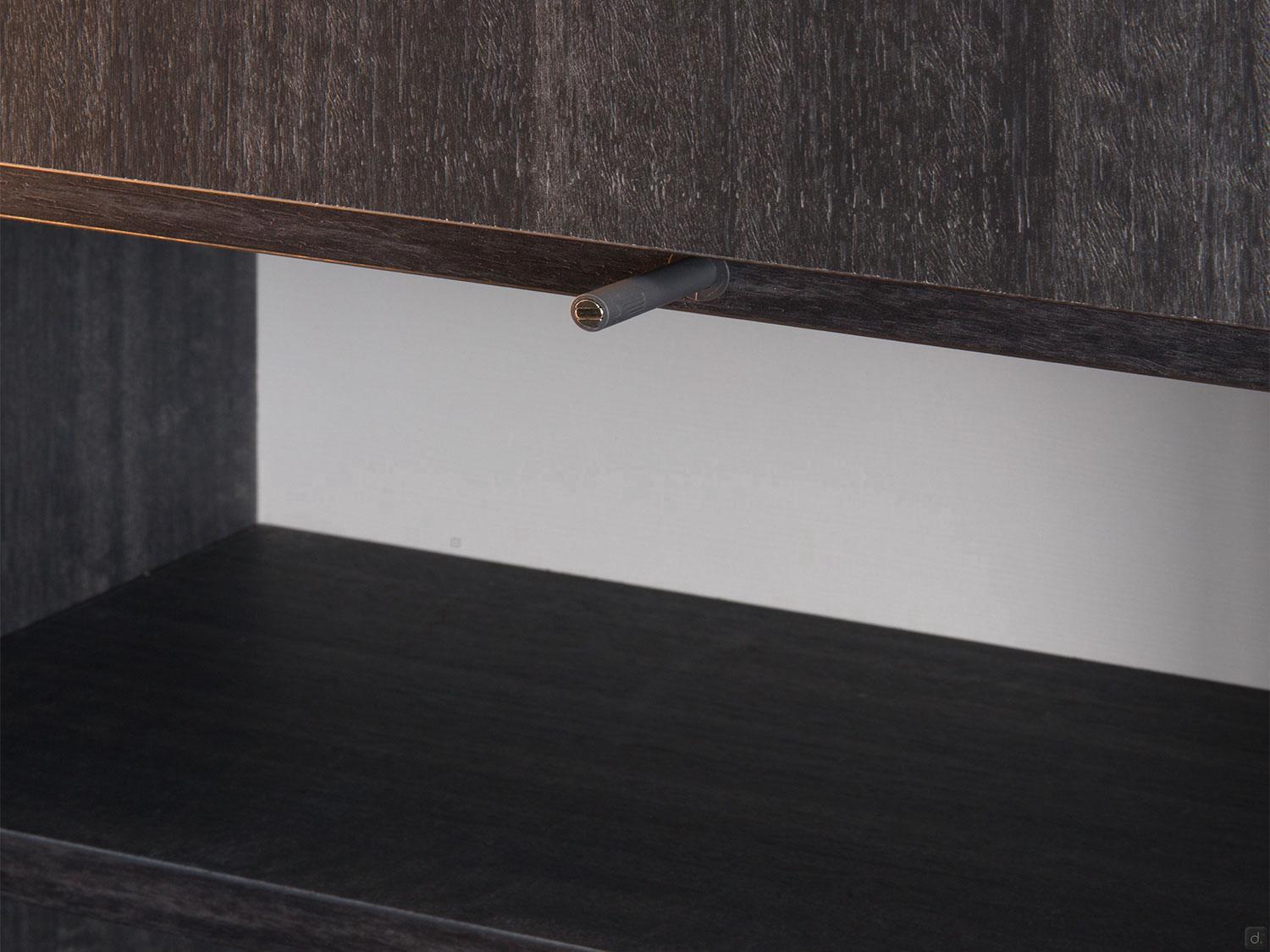

Storage Opening: push-pull.
Optional

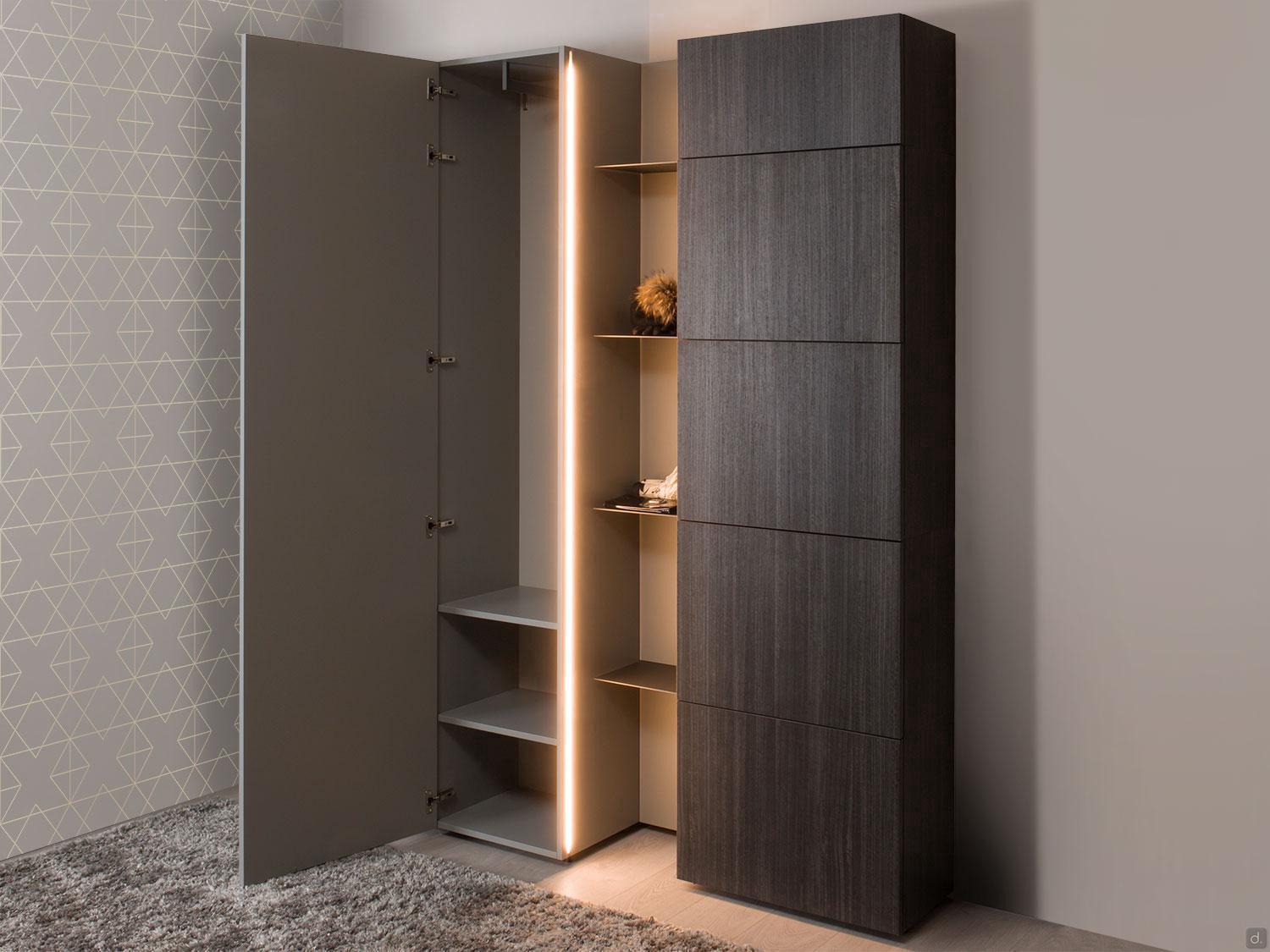

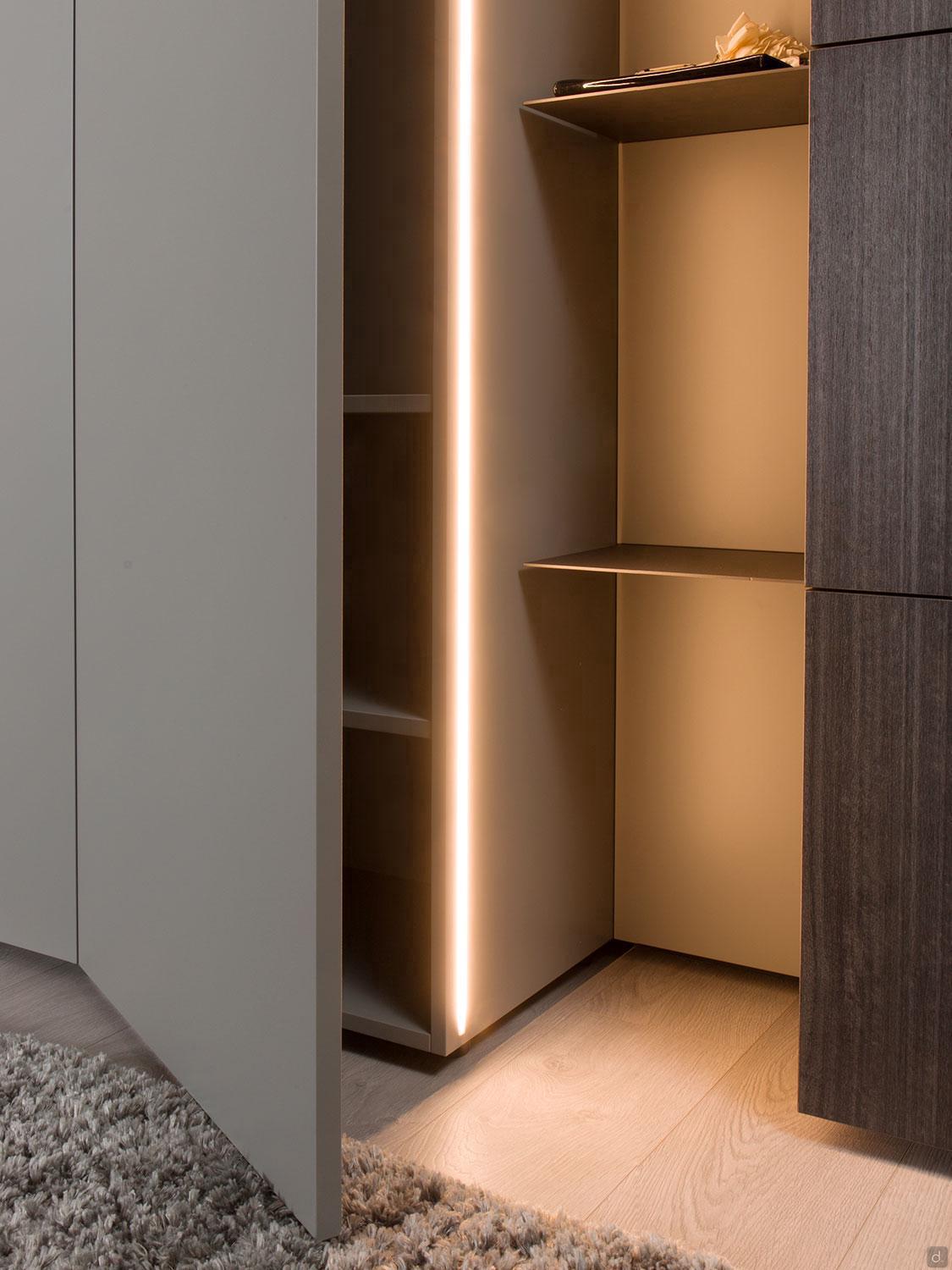

LED bar: built-in on the external side of the open compartment side, hidden by the protruding door, 22,4 W of power and 3000 K colour temperature (warm light). The bar is made of opal polycarbonate and is equipped with a 30 W transformer; light can be switched on and off through a socket on the wall or the optional remote control.
Assembling Tips
The storage units are equipped with brackets for wall fastening with an anti-tip safety system. Plugs can be adjusted from the inside by 1 cm in height and 0,3 cm in depth.
