Plan 41
Hallway Furniture

Plan 41 living cupboard for the hallway with display case. Open compartment and side columns for clothes. Refined decorative compartment suitable for glasses and bottles.

Quantity

From €2,610.87

View Samples

Wishlist

Description

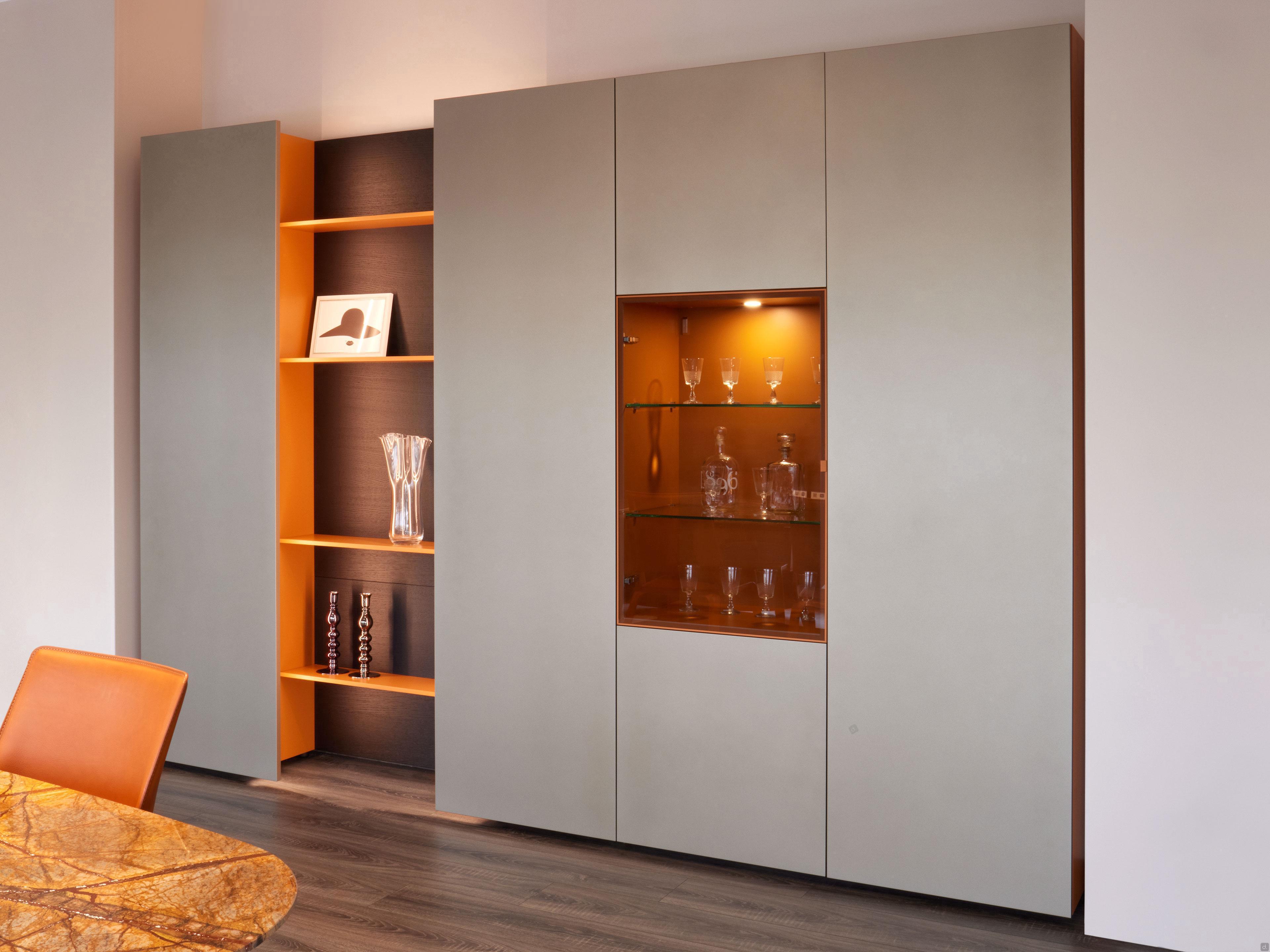

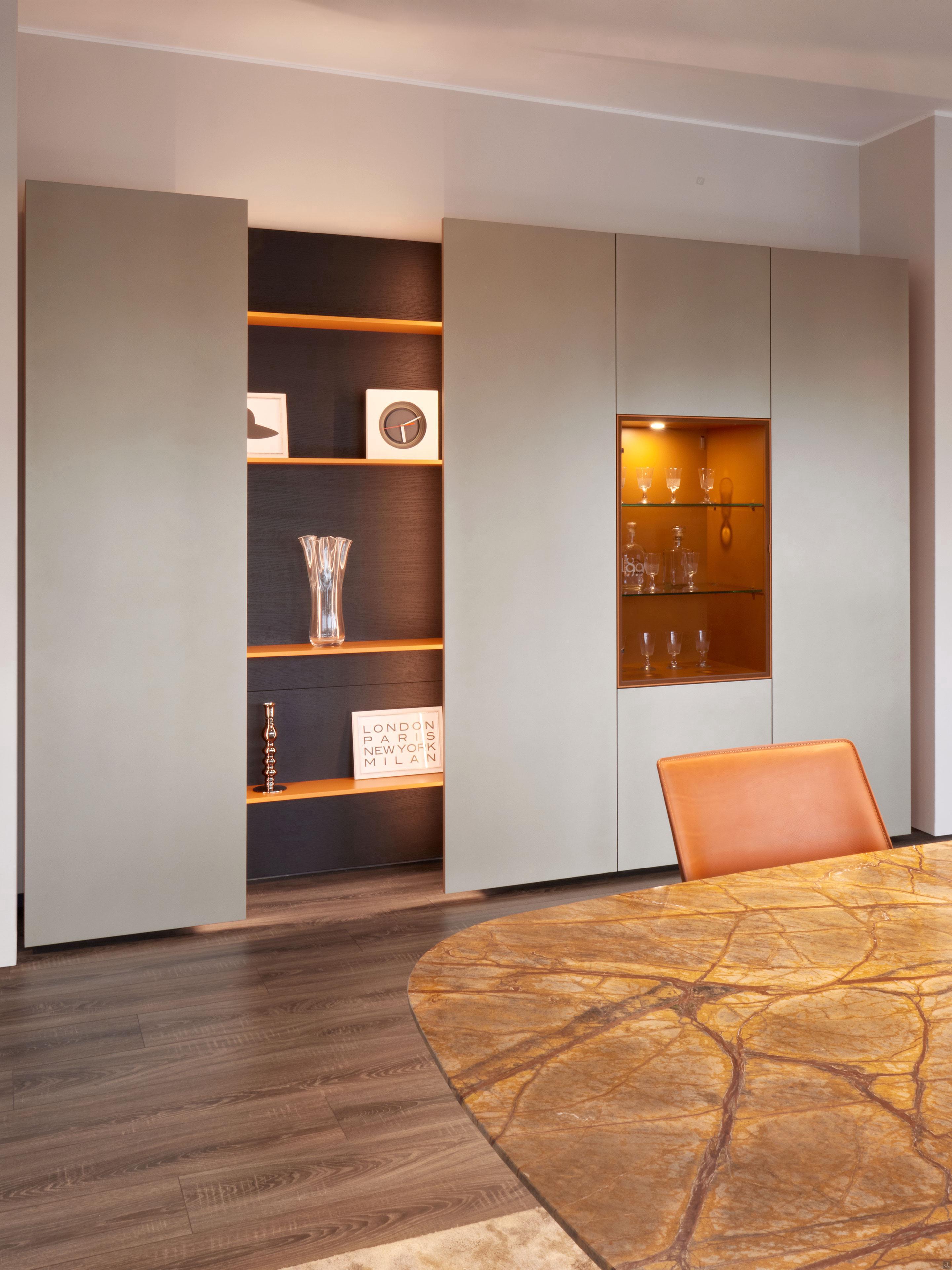

Plan 41 is a living cupboard for the hallway with display cabinet available in two sizes, 256 or 320 cm, composed of capacious hinged storage units, large shelves, and coat hooks. In the larger width version, the modularity is extended by adding a column composed of two elements, a floor-standing base unit and an upper wall unit, which enclose a third element; the display cabinet is made with a metal frame, equipped with glass shelves and an upper LED spotlight. The mix of hinged containers, open compartment with shelves, hangers, and showcase element, allows the Plan 41 wardrobe to be a valid solution for use in entrance areas. Furthermore, thanks to the numerous shelves it is perfect for everyday accessories, in living rooms; where thanks to the internal and external storage spaces, and the combinations of materials and colours, it can perfectly perform the function of a decorative cupboard, where dining room objects, such as plates and glasses, can be stored, while at the same time showing great scenic presence, thanks to the open niche with shelves, enclosed by cantilever doors. To complete the composition, the LED lighting system is available for the open compartment, delicately inserted in the milled on the outer sides of the two columns.

Features
entrance wardrobe with shelves, hangers and open compartment available in widths of 256 or 320 cm

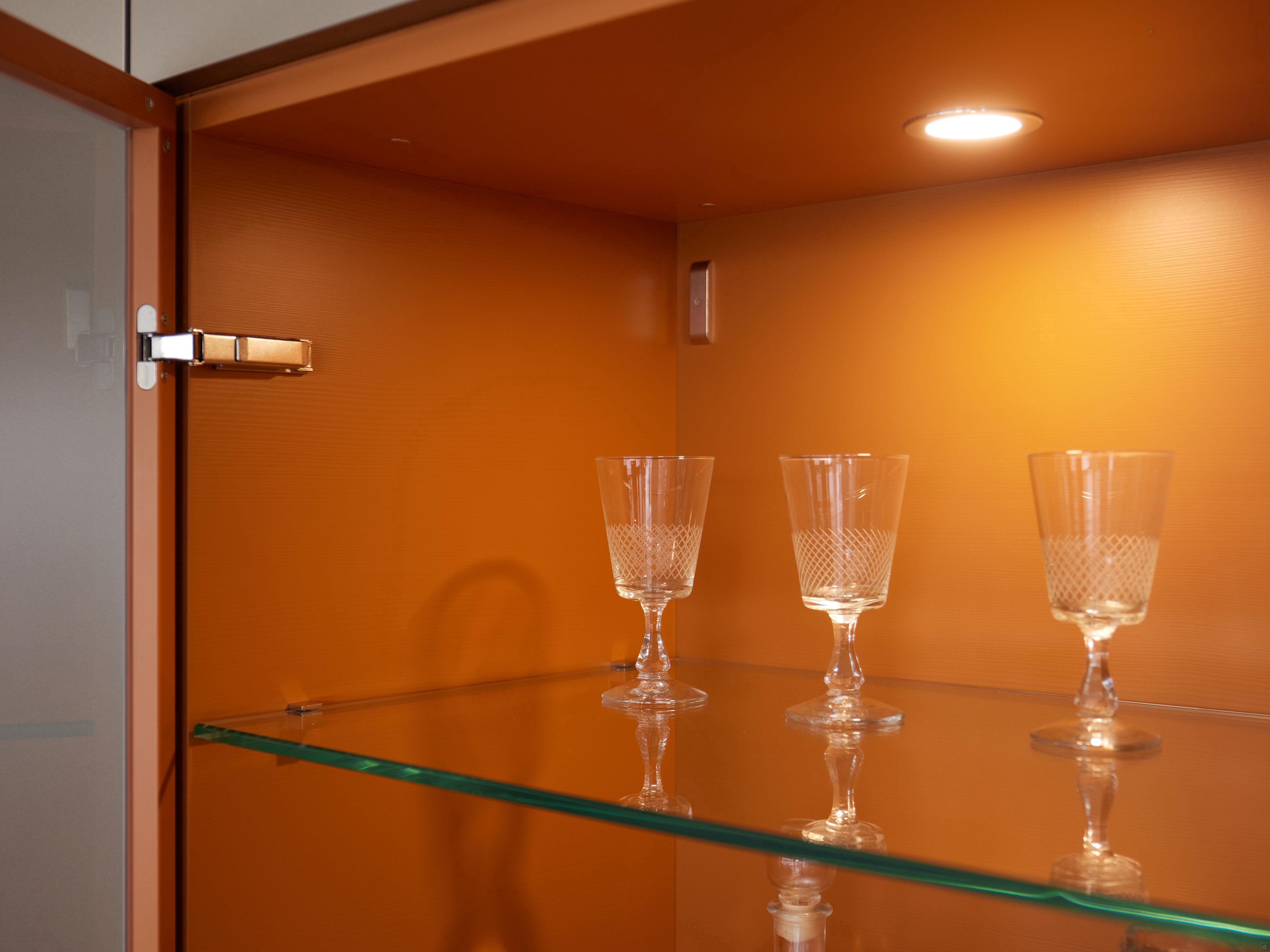

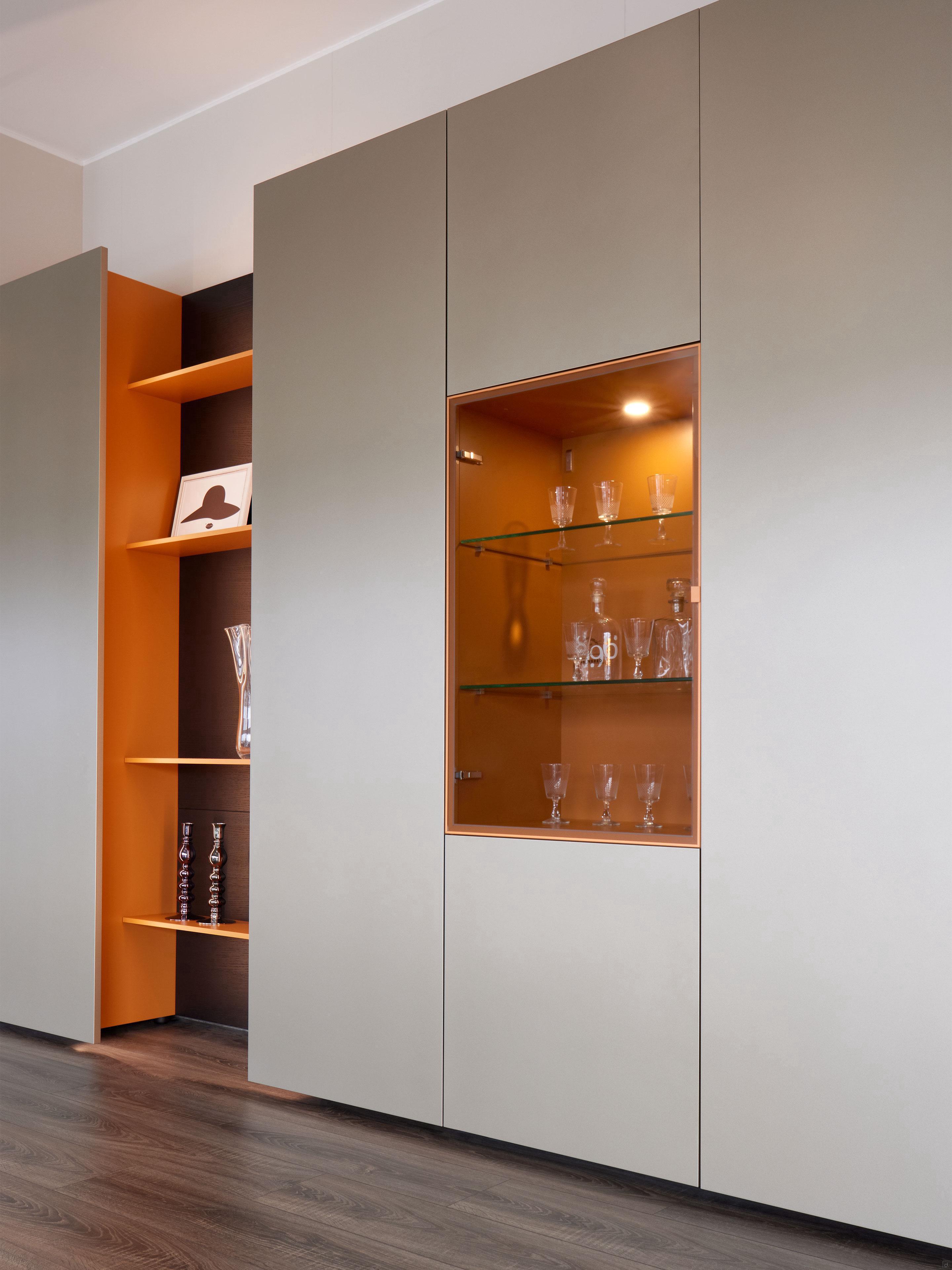

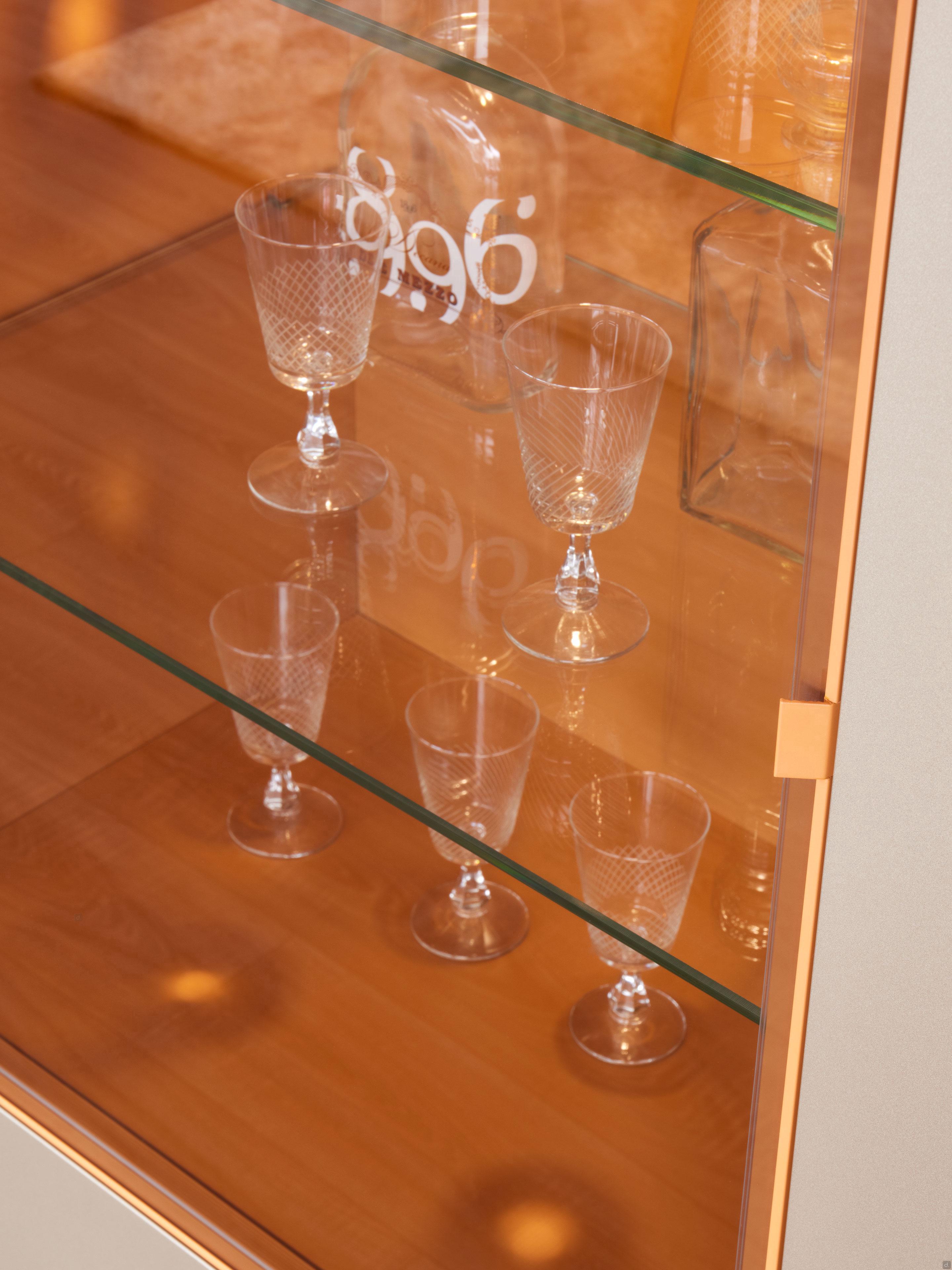

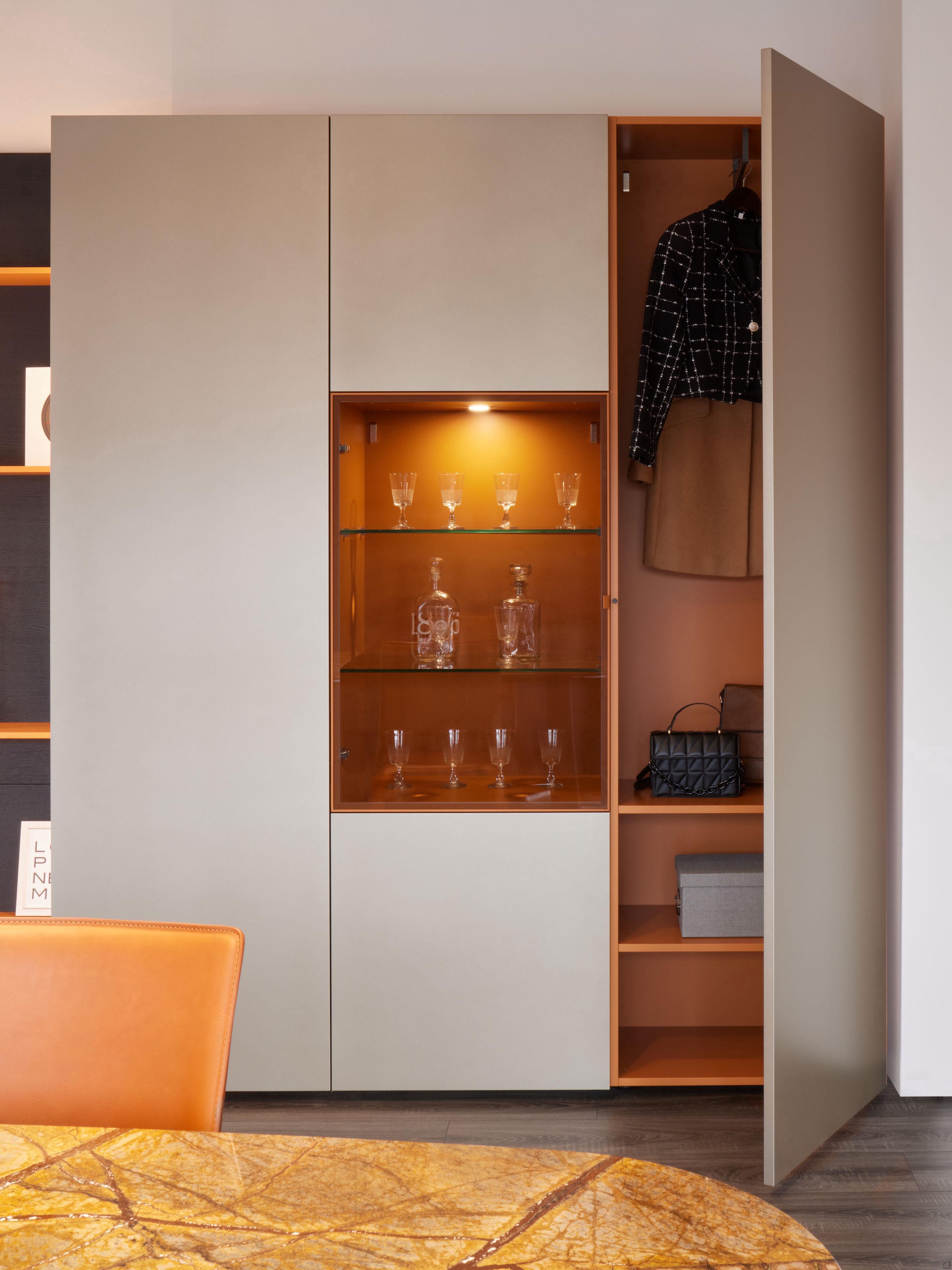

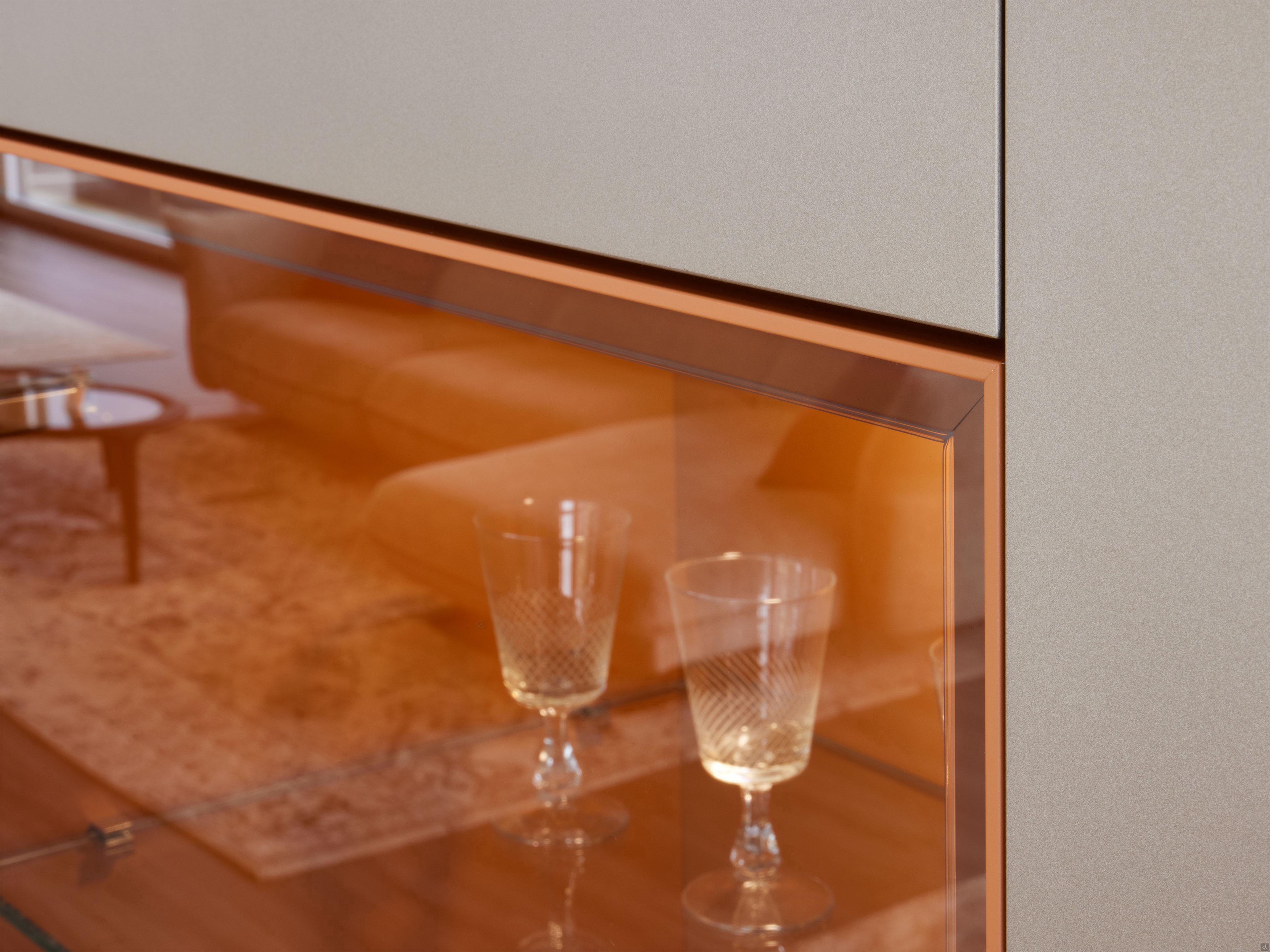

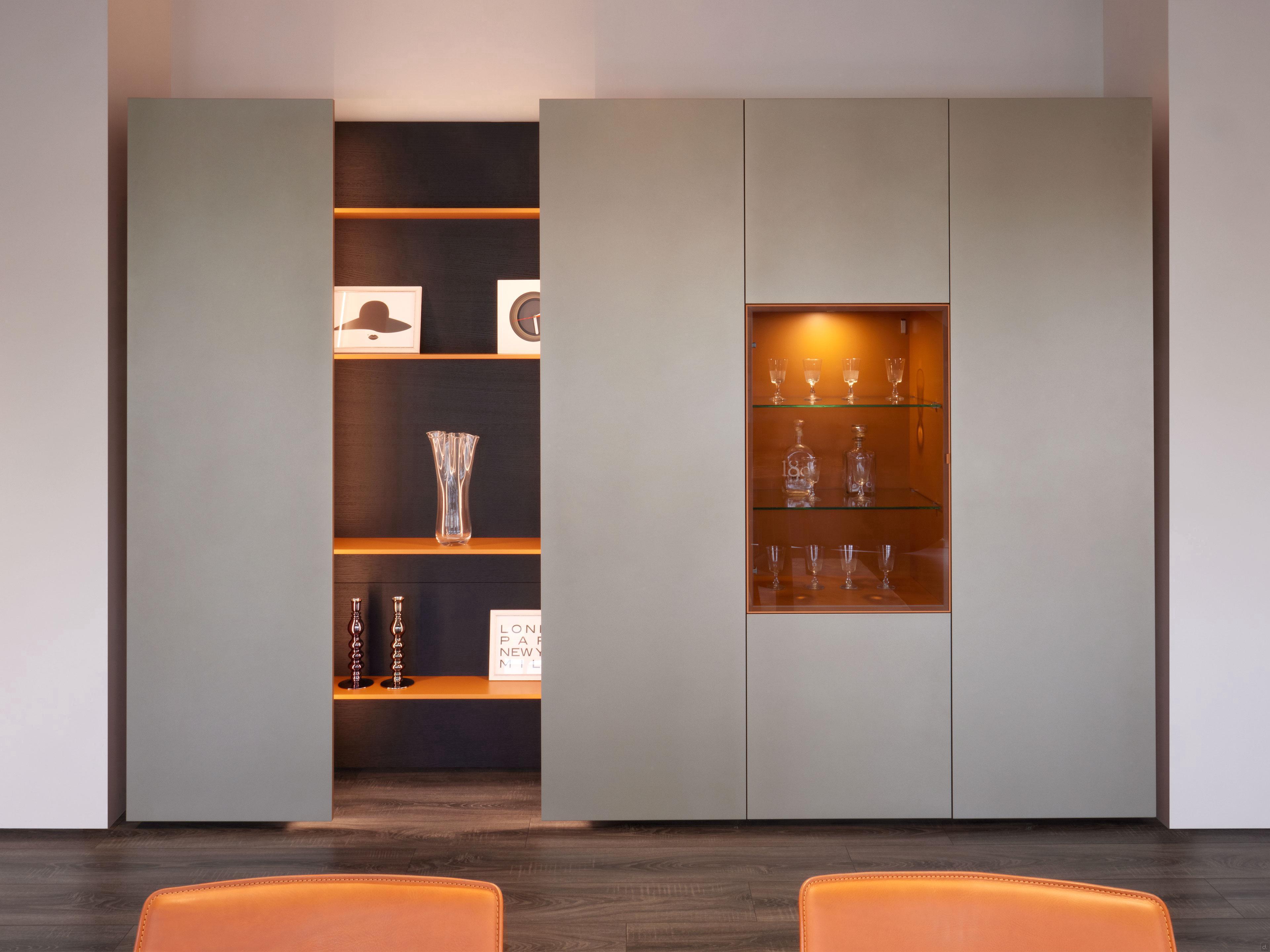

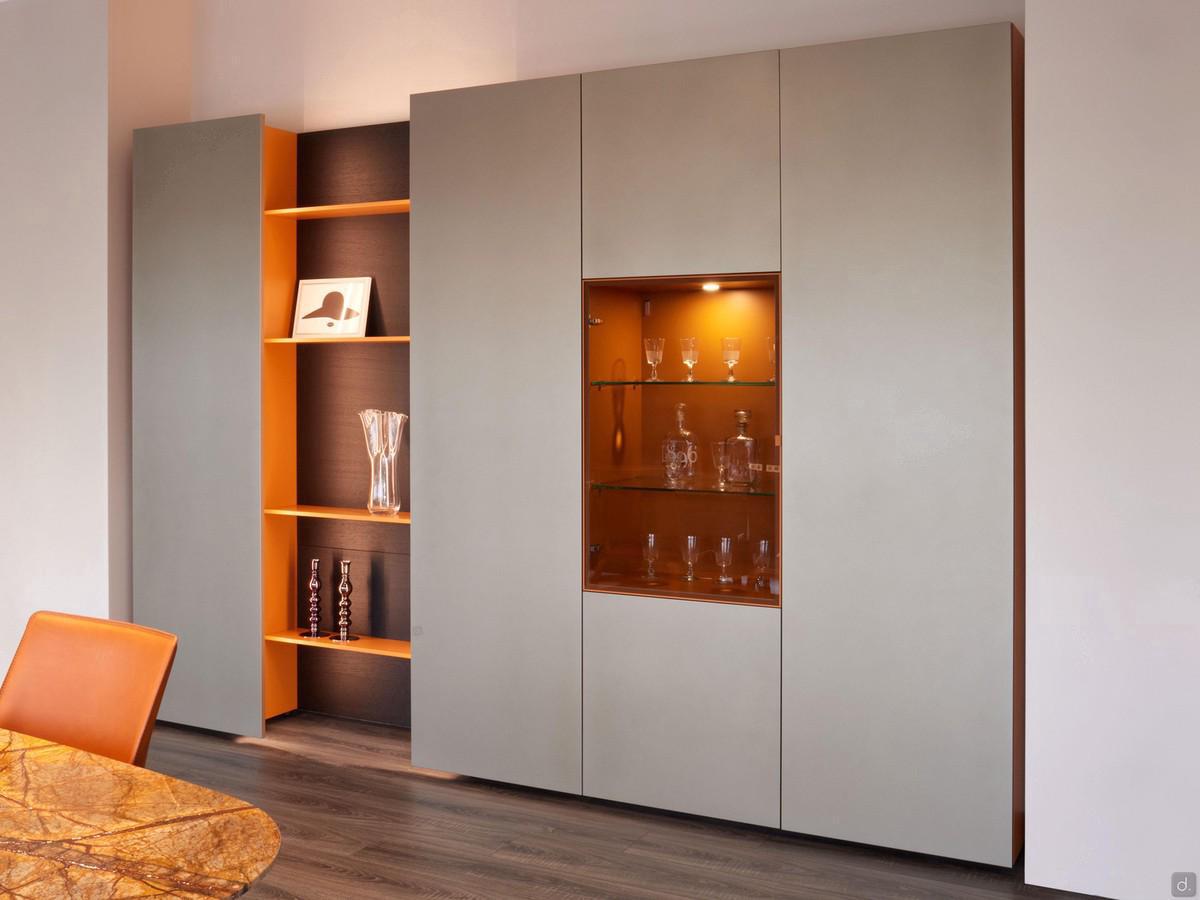

composition B with central showcase column with metal frame, glass shelves and internal LED spotlight

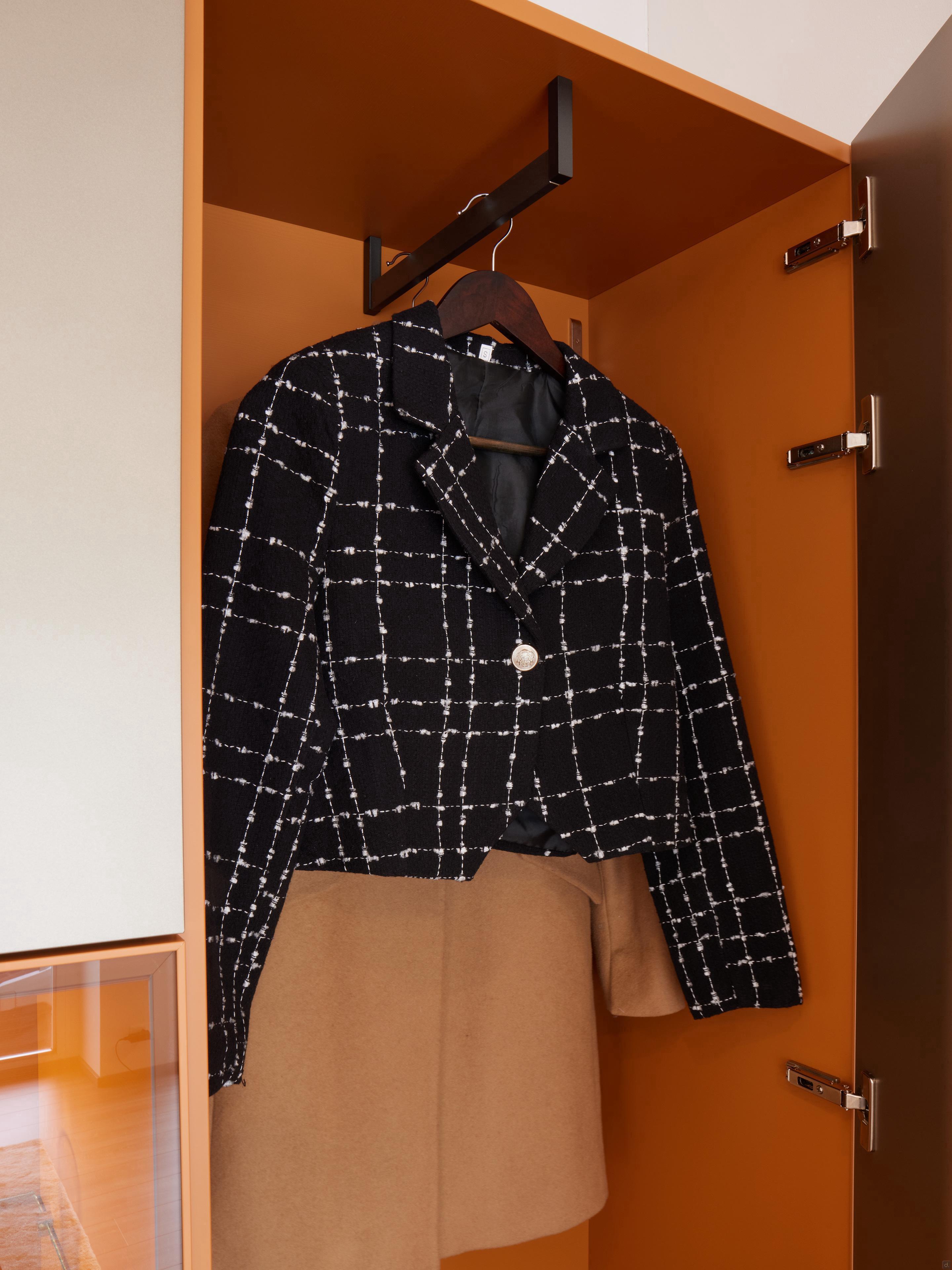

coat rack module complete with upper hanging rail and two lower shelves

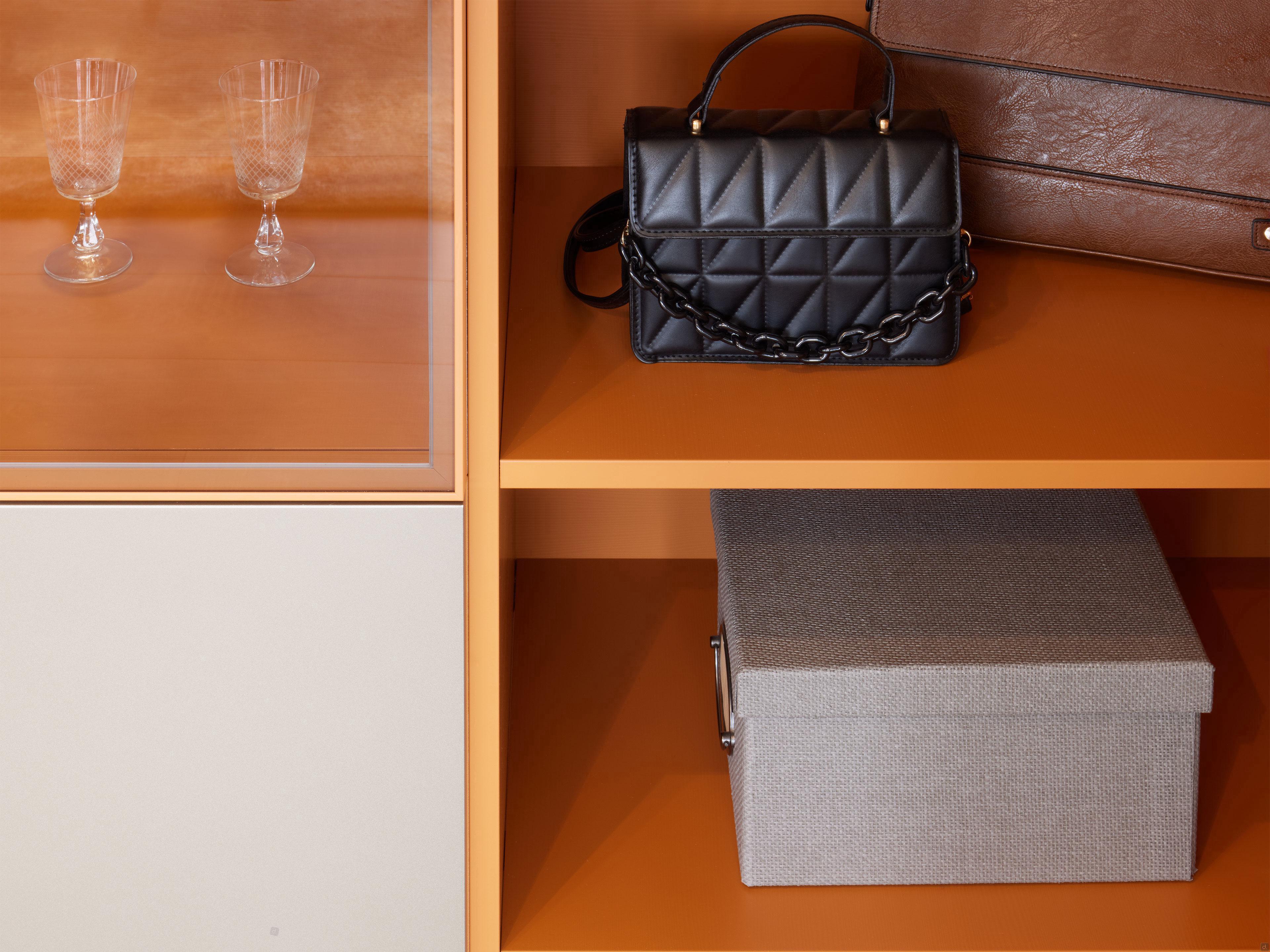

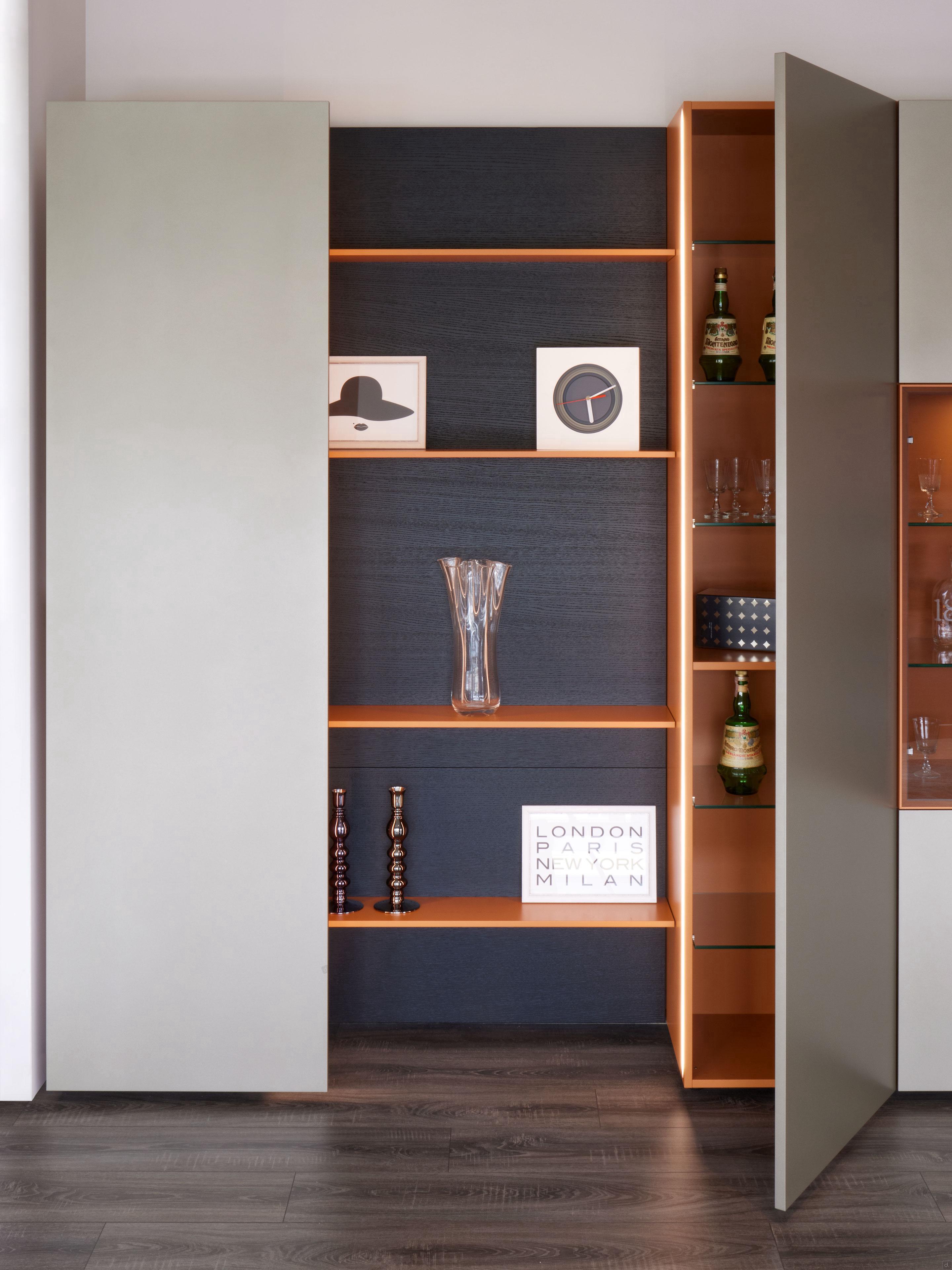

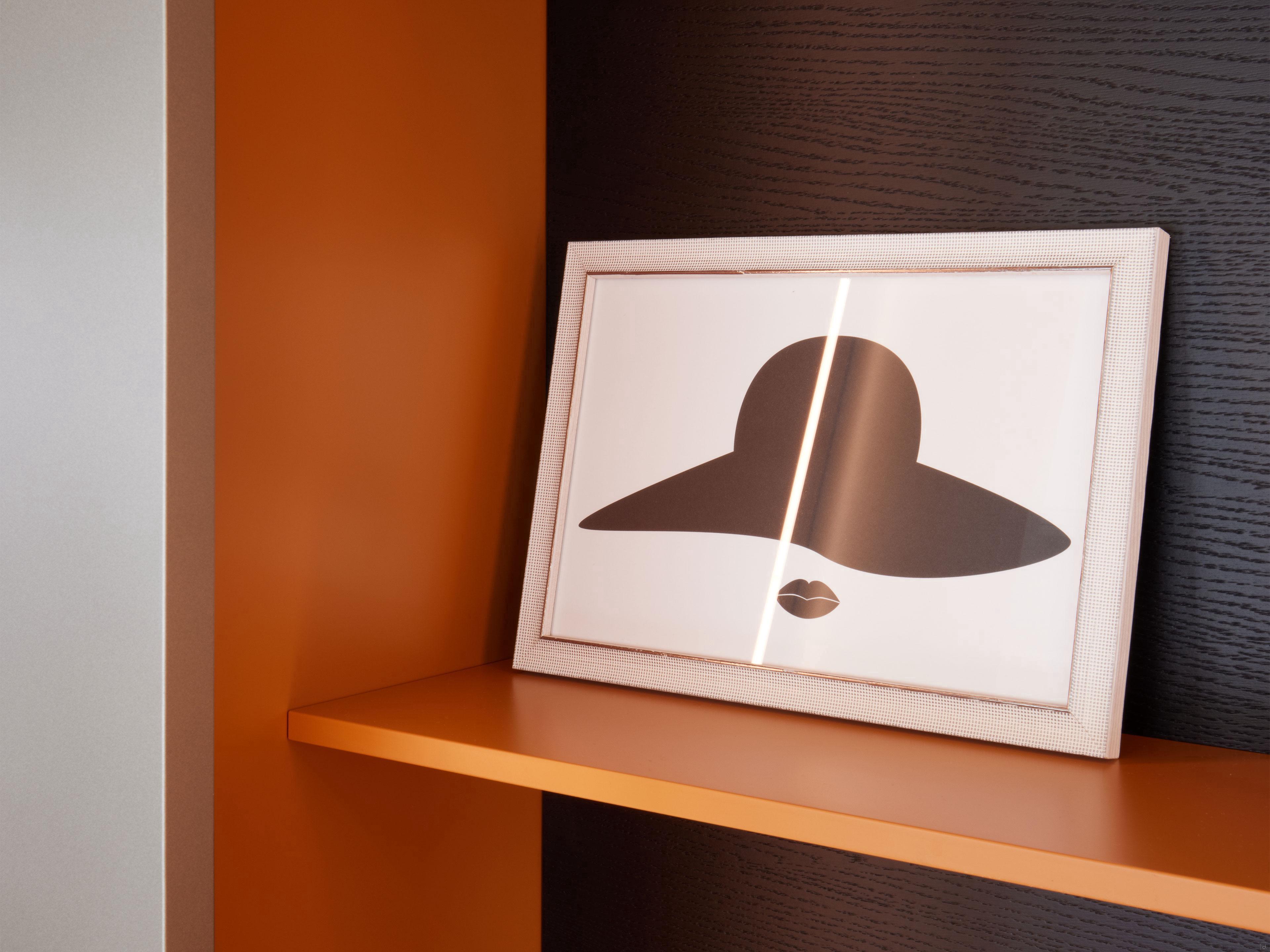

open compartment that can be created with back in contrasting finish, equipped with 4 shelves

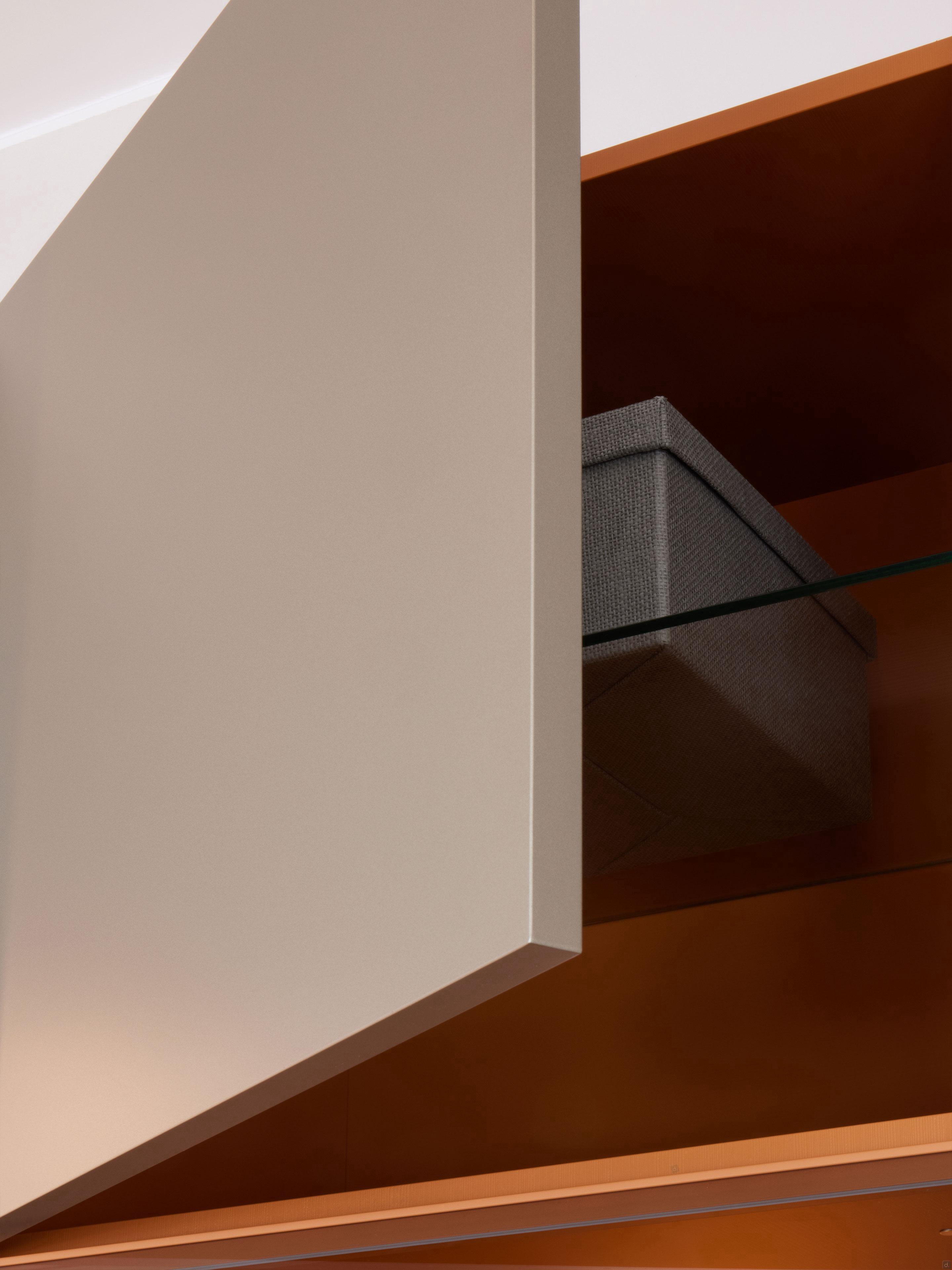

push-pull opening of hinged doors and integrated handle for the display case

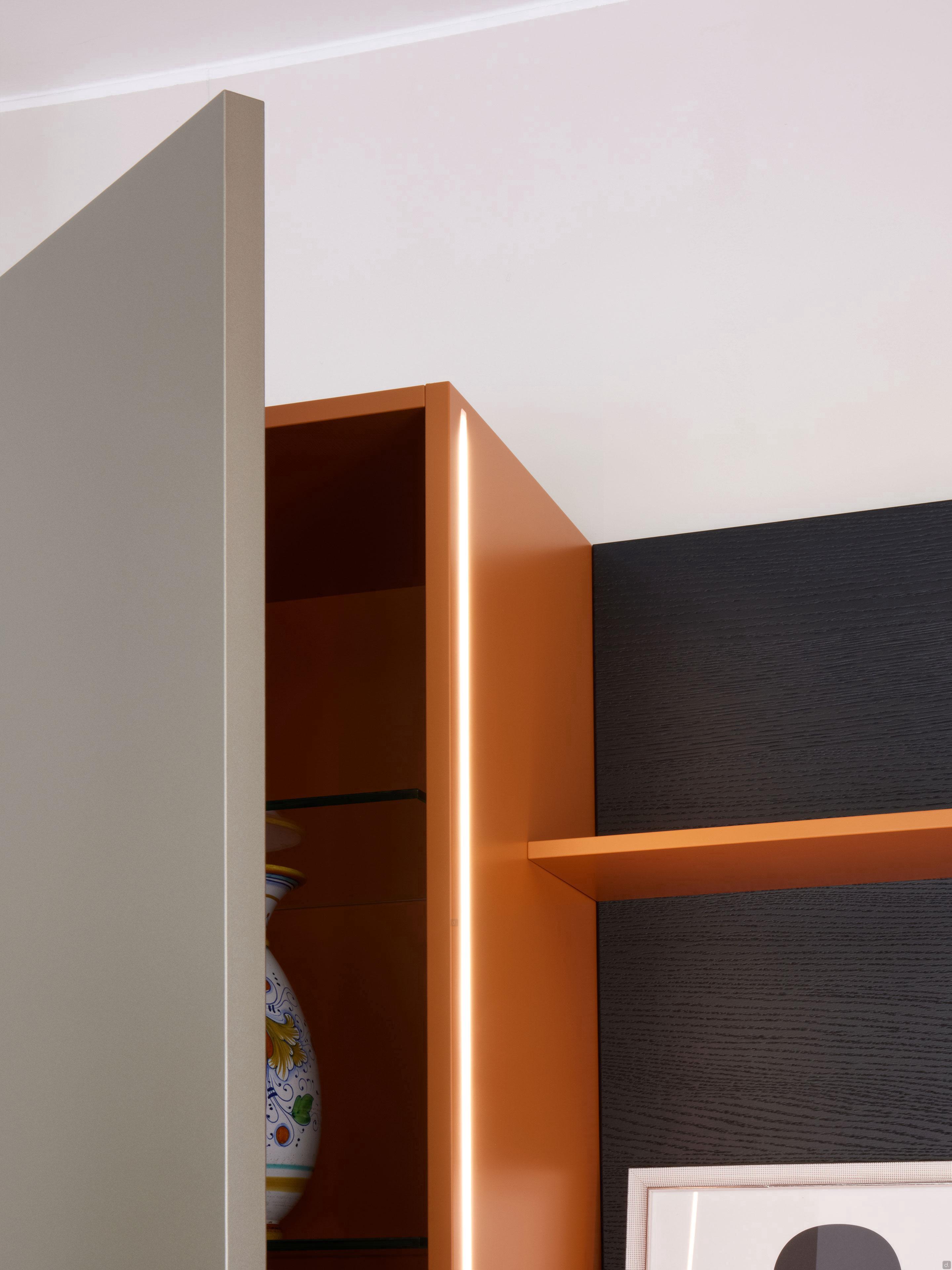

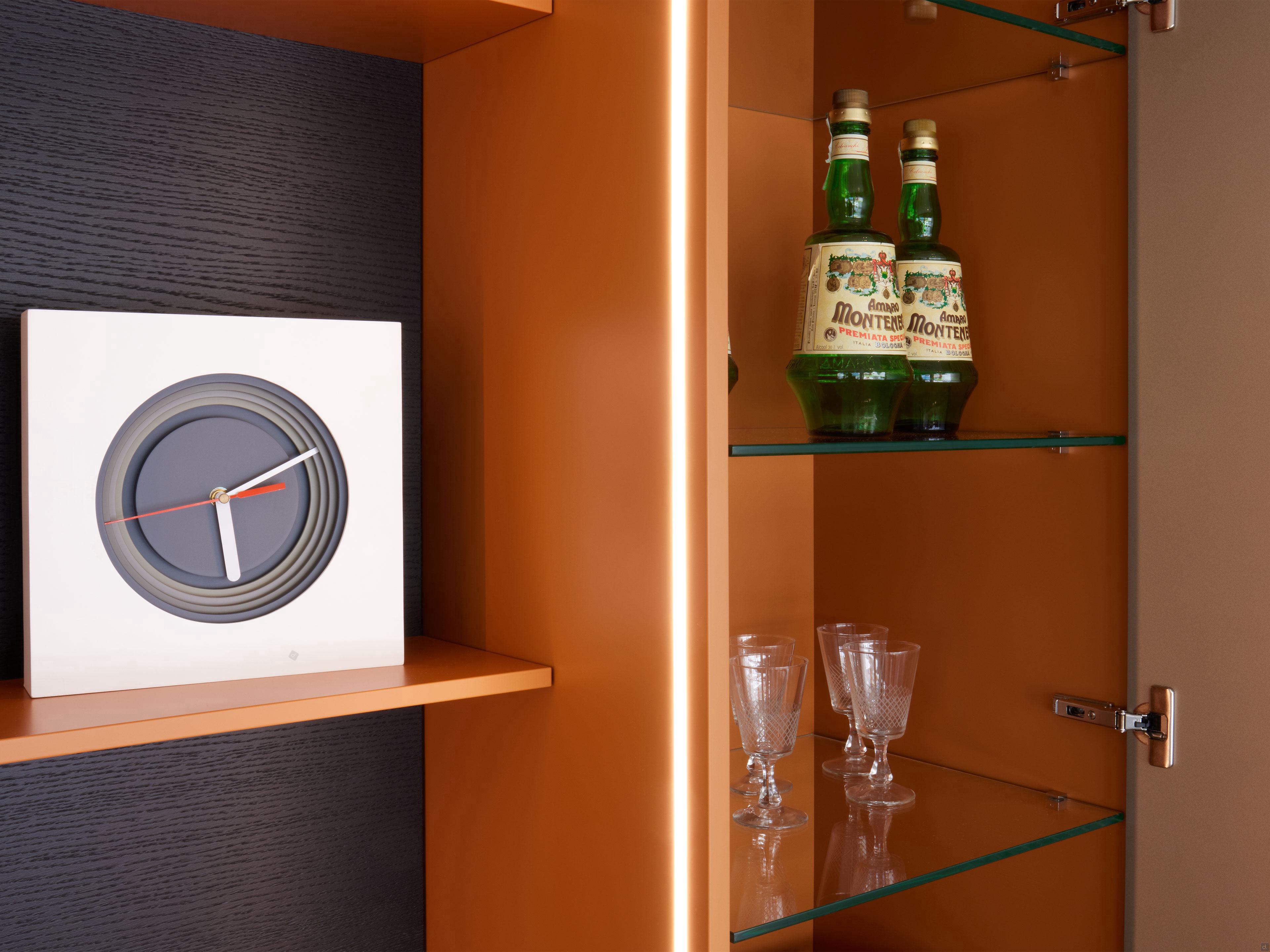

indirect lighting of the open compartment with LED bars recessed in the side

Dimensions
Width:
- Composition A: cm 256
- Composition B: cm 320
Height:
- cm 226.5 (cm 224 container + cm 2.5 feet)
Depth:
- storage units with shelves / hangers: cm 44 (body cm 41,6 / inside cm 40,8)
- wall backrest: cm 4,4
- shelves for wall back: cm 19,5

Materials and Finishes
Fronts / Structure / Wall Backs
- melamine
- wood essence
- open-pore lacquered
- matt / glossy / mica lacquered
Interiors:
- decor melamine / decor lacquered / decor miceralised
Backrest shelves
- wood

Info for your Purchase
You can extend your Plan 41 entrance cabinet by combining all elements of the Plan collection.
To calculate the total height of the cabinet consider the height of the storage units and the height of the levelling feet (+ h.2,5 cm).

Technical study

Dimensions Specifications

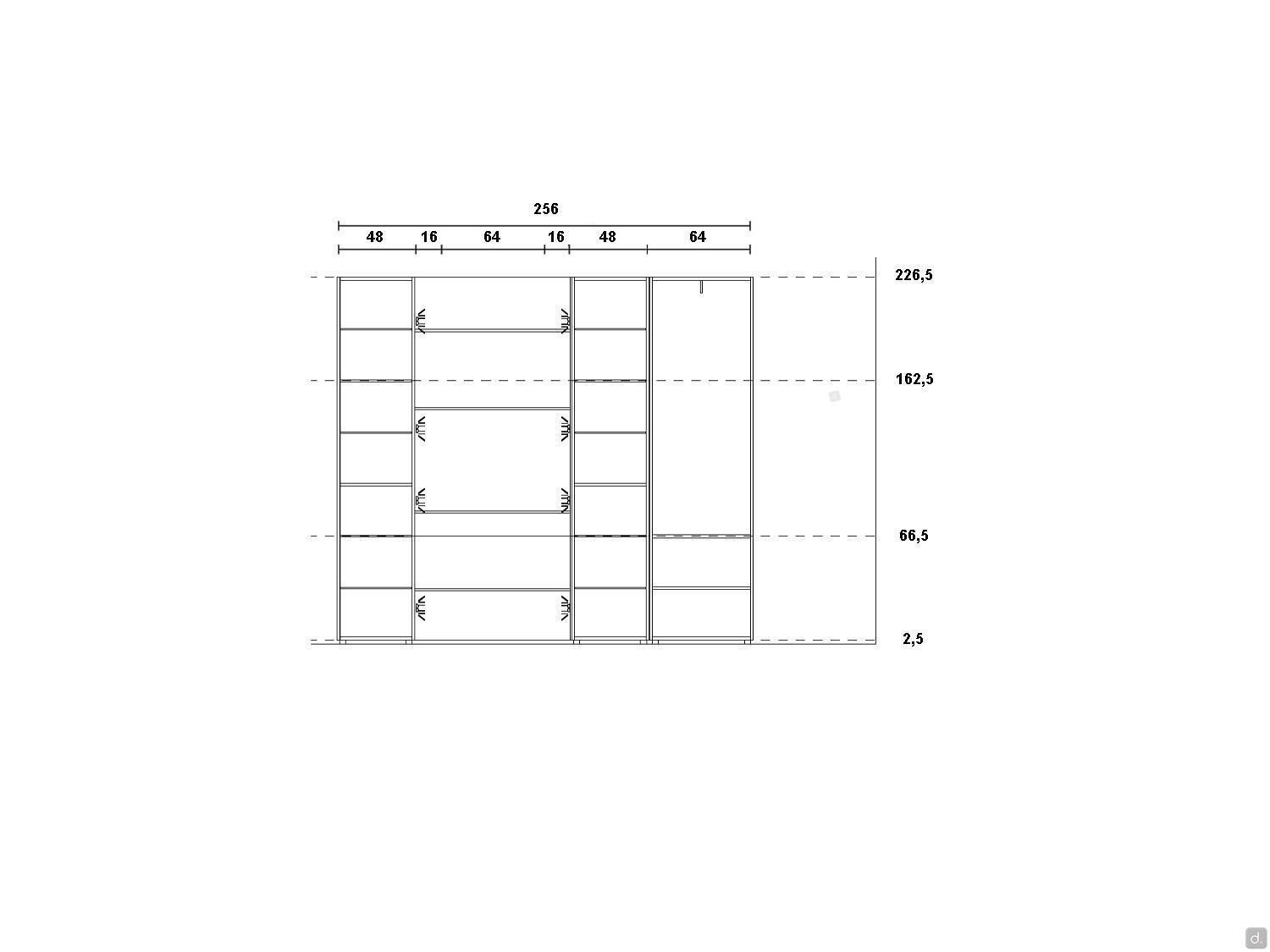

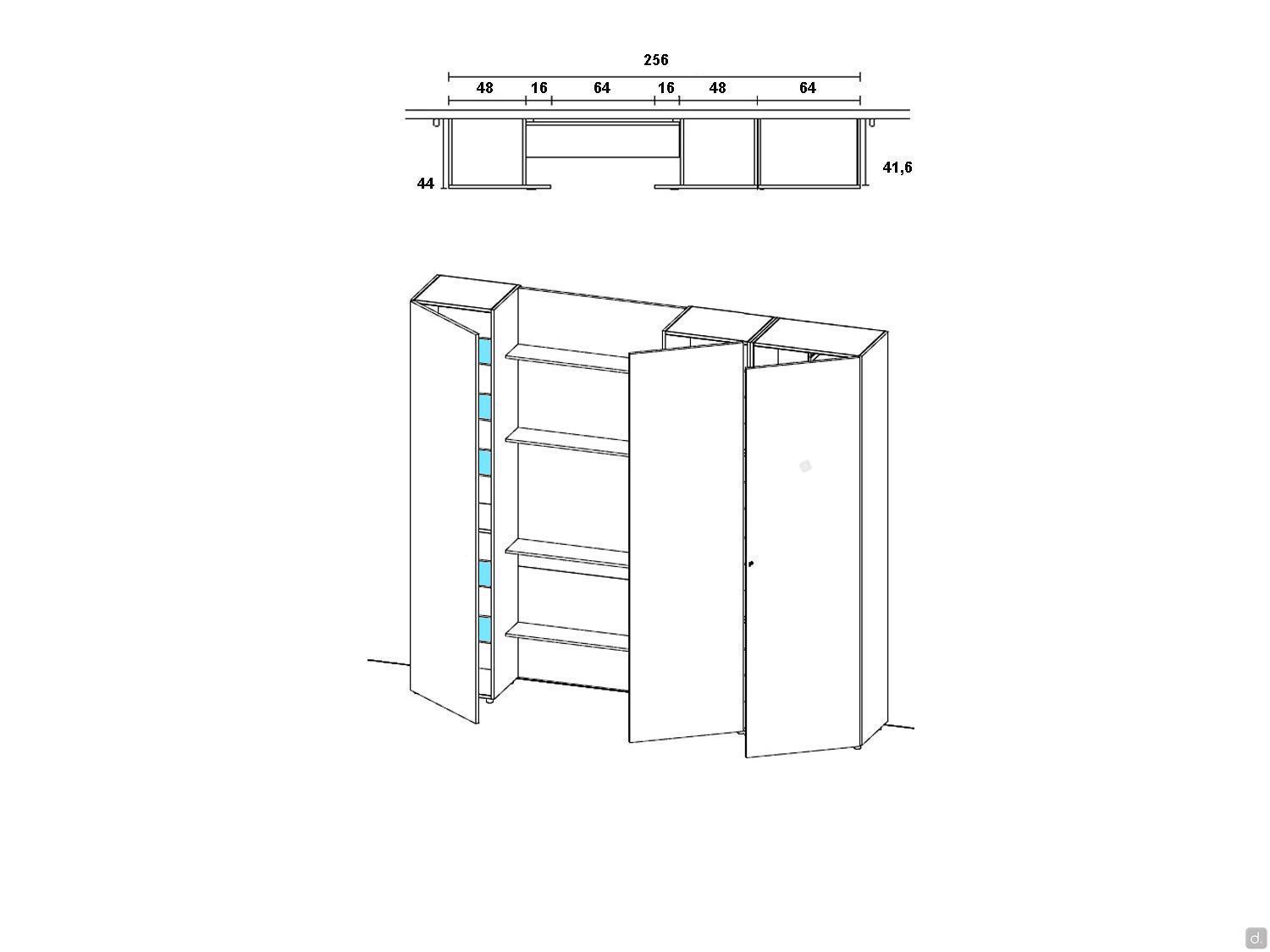

Composition A:
- n.2 hinged containers equipped with n.5 glass shelves and n.1 central wooden shelf: cm 64 (container cm 48) d.44 h.224
- n.1 open compartment cm 96 h.224 equipped with
- n.1 wall-mounted back panel: cm 96 d.4,4 h.64
- n.1 wall back panel: 96 d.4,4 cm h.160
- 4 shelves for back panel: 96 d.19,6 cm, 1,4 cm thick
- n.1 hinged container with hanging tube and n.2 wooden shelf: cm 64 p.44 h.224

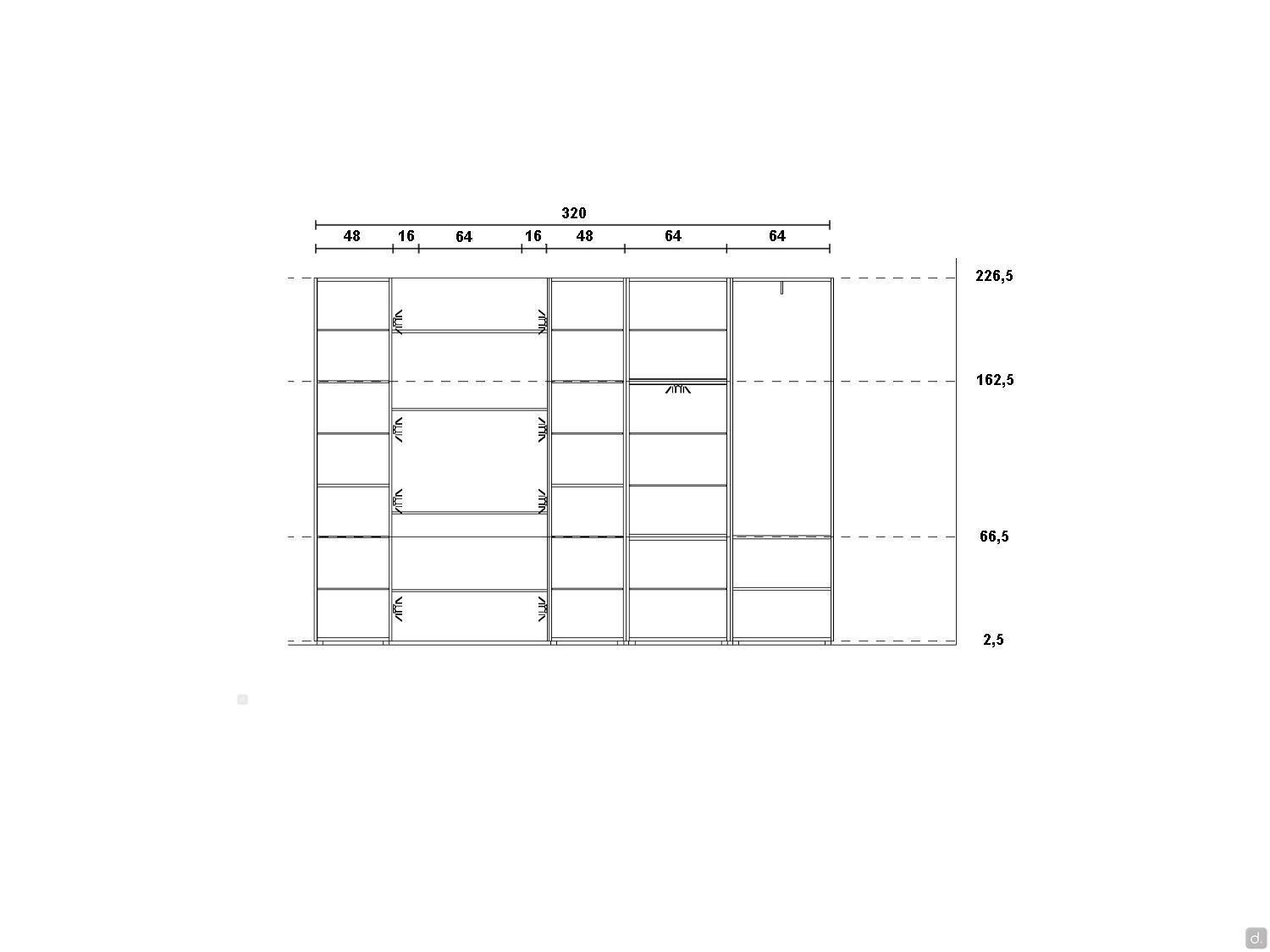

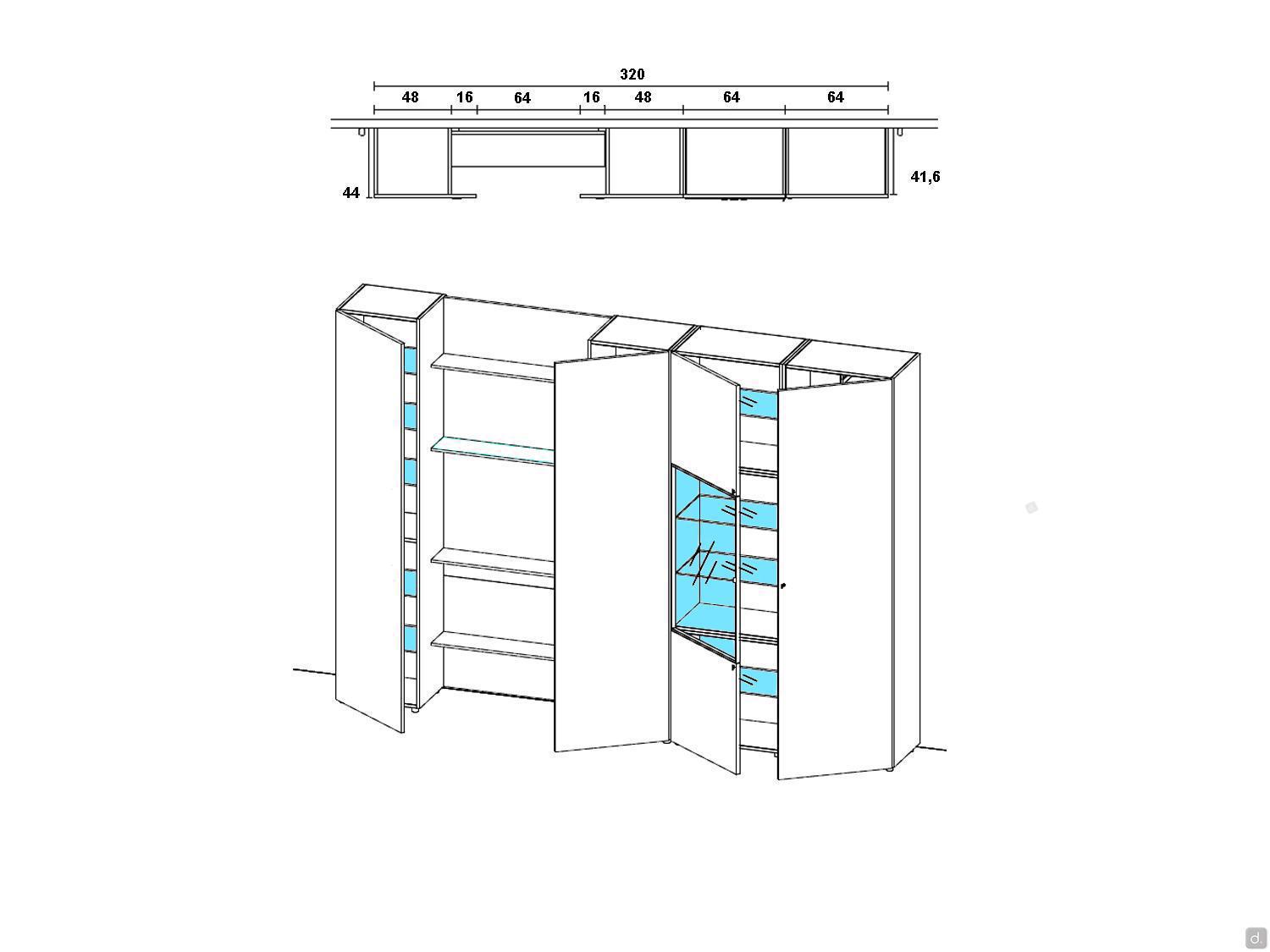

Composition B:
- n.2 hinged containers equipped with n.5 glass shelves and n.1 central wooden shelf: cm 64 (container cm 48) d.44 h.224
- n.1 open compartment cm 96 h.224 equipped with
- n.1 wall-mounted back panels: cm 96 d.4,4 h.64
- n.1 wall back panel: cm 96 d.4,4 h.160
- 4 shelves for back panel: 96 d.19,6 cm, 1,4 cm thick
- n.2 hinged storage units (base and wall unit) with n.1 glass shelves: cm 64 p.44 h.64
- n.1 hinged storage unit with metal frame and glass door with n.2 glass shelves: cm 64 p.44 h.96
- n.1 hinged storage unit with hanging tube and n.2 wooden shelf: cm 64 p.44 h.224

Technical Specifications and Equipment
Structure: 1.8 cm thick in particle board panel covered in melamine (class E1 with low formaldehyde emission), wood or mdf (for glossy lacquer). Containers fitted with h.2.5 cm matt black plastic feet.
Doors: thickness cm 2.2.
Shelves: thickness cm 1,8, in wood matching the interior.
Backs of Storage Units: thickness cm 0,8, matching the interiors or in dove-colour decor for the melamine finishes.
Wall Backs: cm 4.4 thick, comprising a 2.2 cm thick particle board panel and a 2.2 cm thick back frame. Adjustable brackets with a maximum load capacity of approximately 100 kg each are located on the back of the panel.
Wall Back Shelves: cm 96 p.19,6 thickness cm 1,4 in wood finish of your choice. Maximum load capacity 30 Kg evenly distributed over linear metre .
Internal fittings:
- hinged containers: n.1 clothes hanger tube in moka shine painted metal + n.2 wooden shelves matching the interior (wardrobe version) or n.5 glass shelves + n.1 shelf matching the interior (basic version).
Container opening: push-pull.

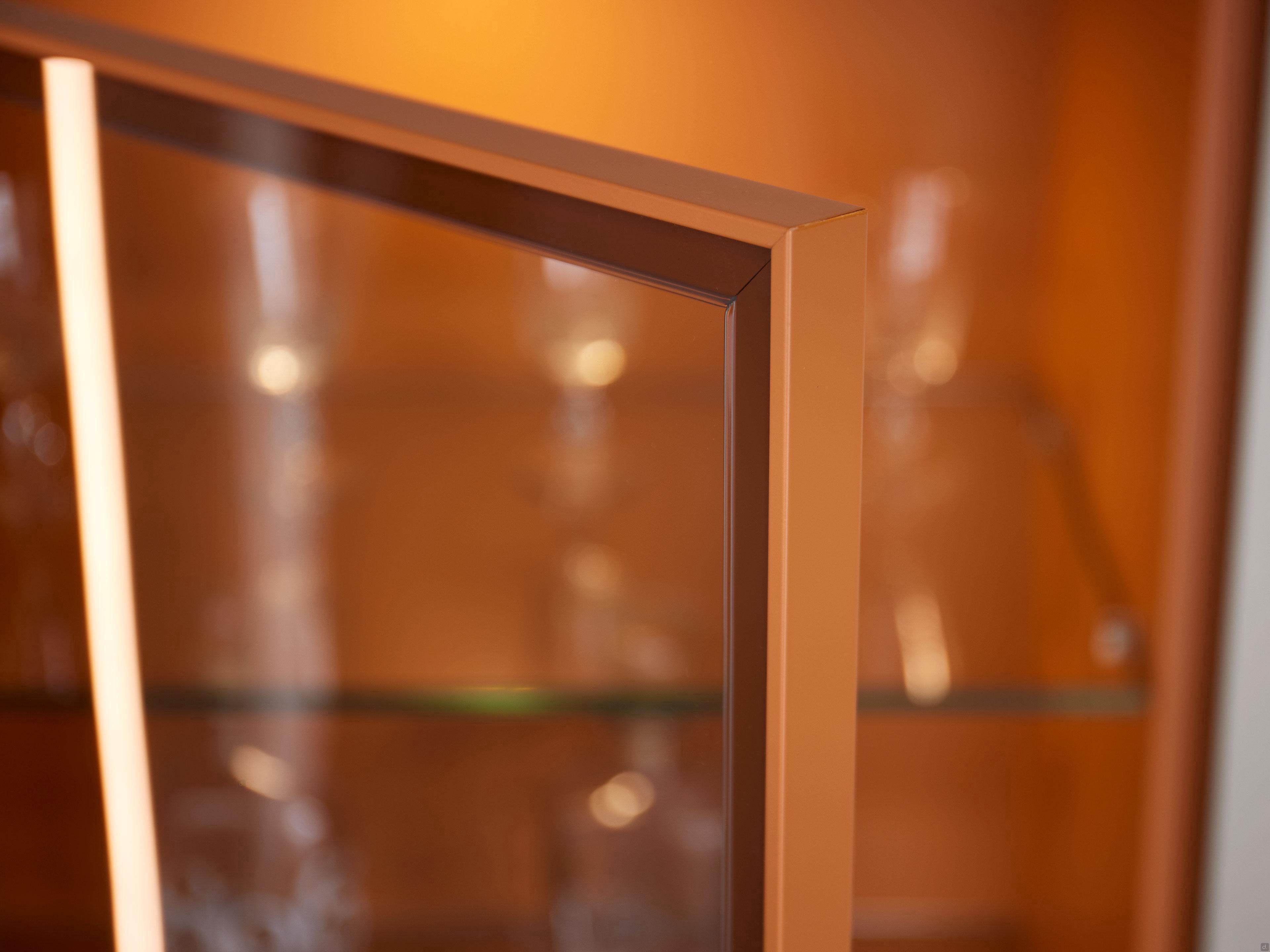

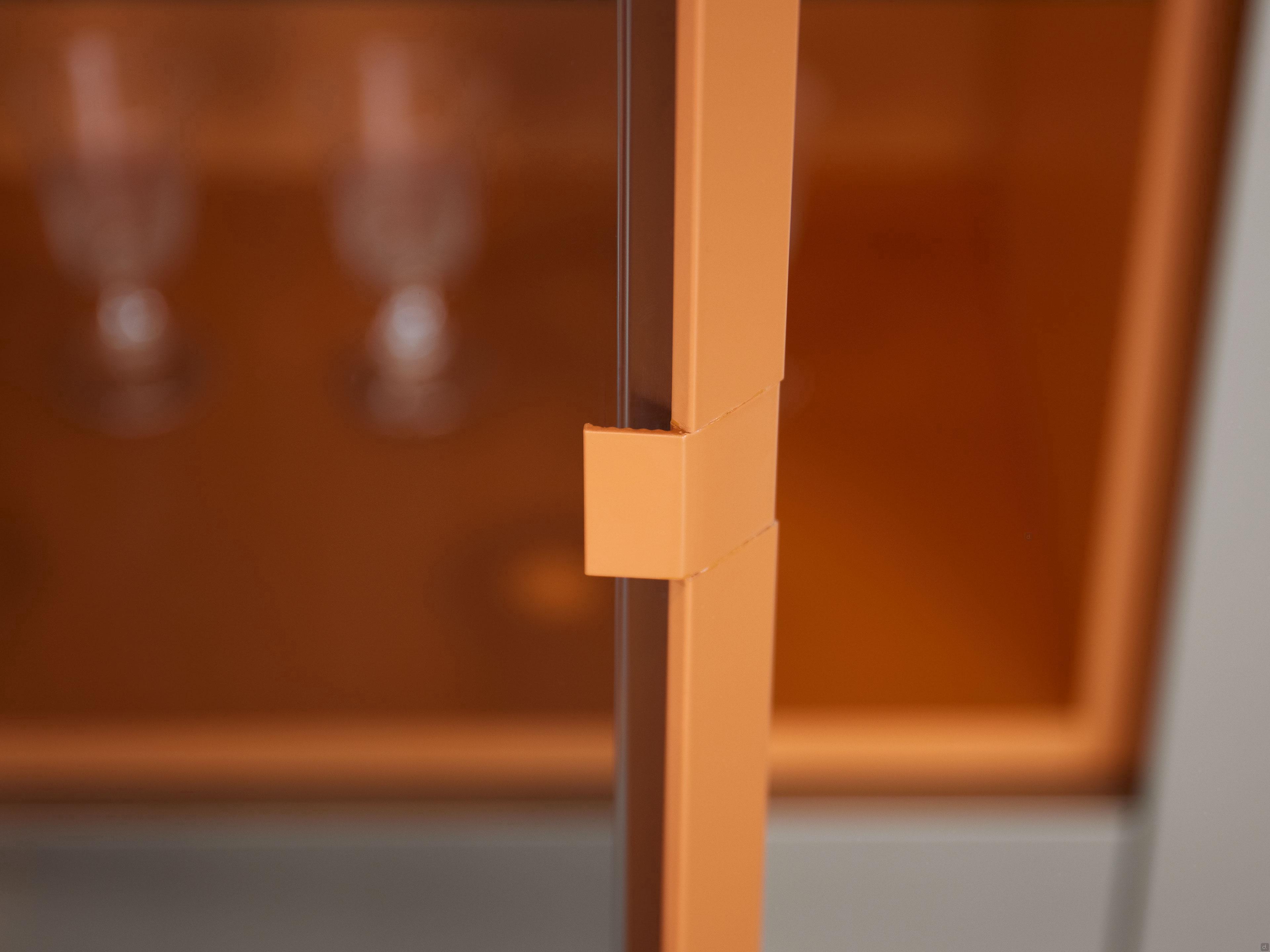

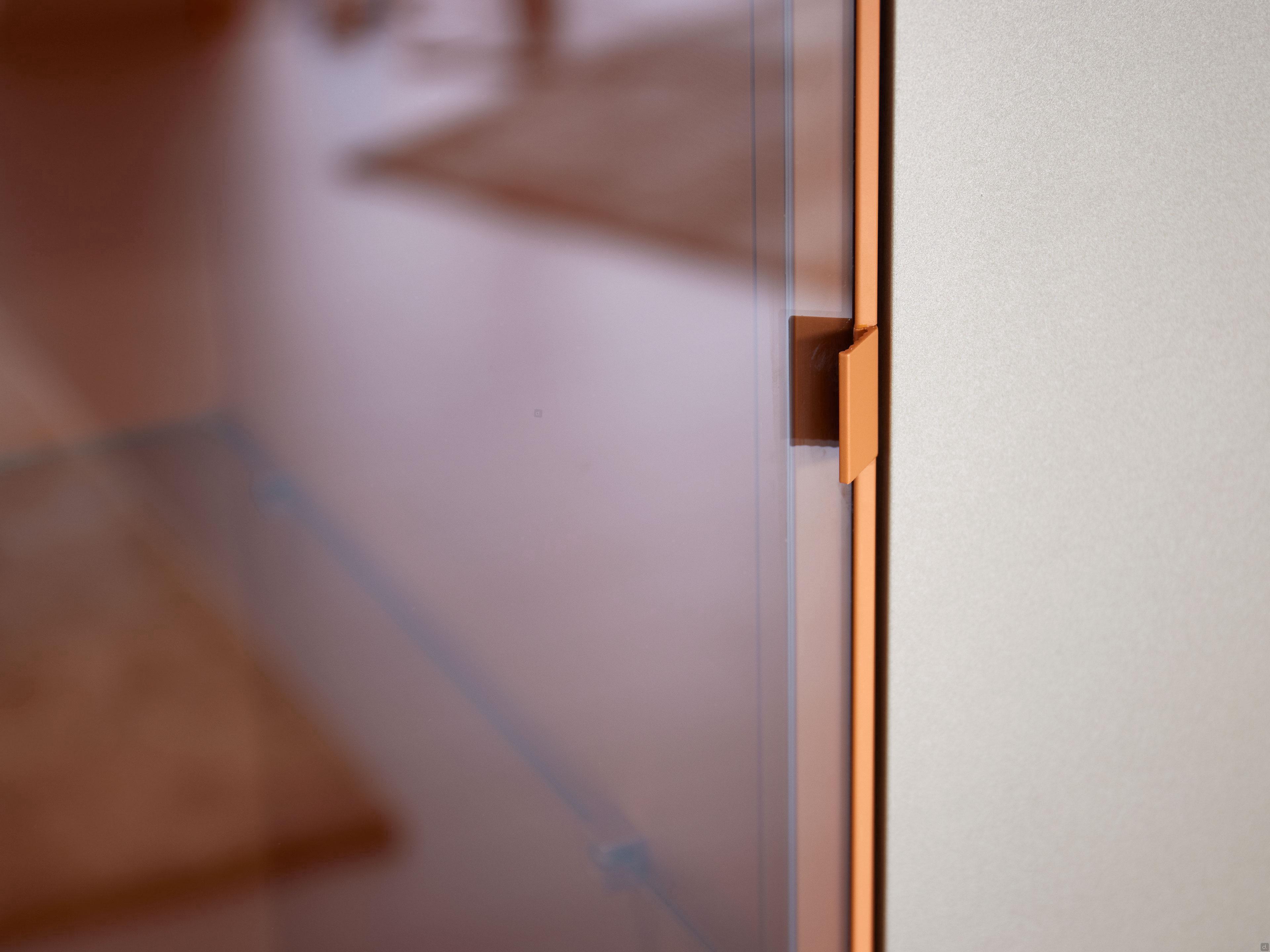

Showcase opening: handle integrated on frame.

Optional

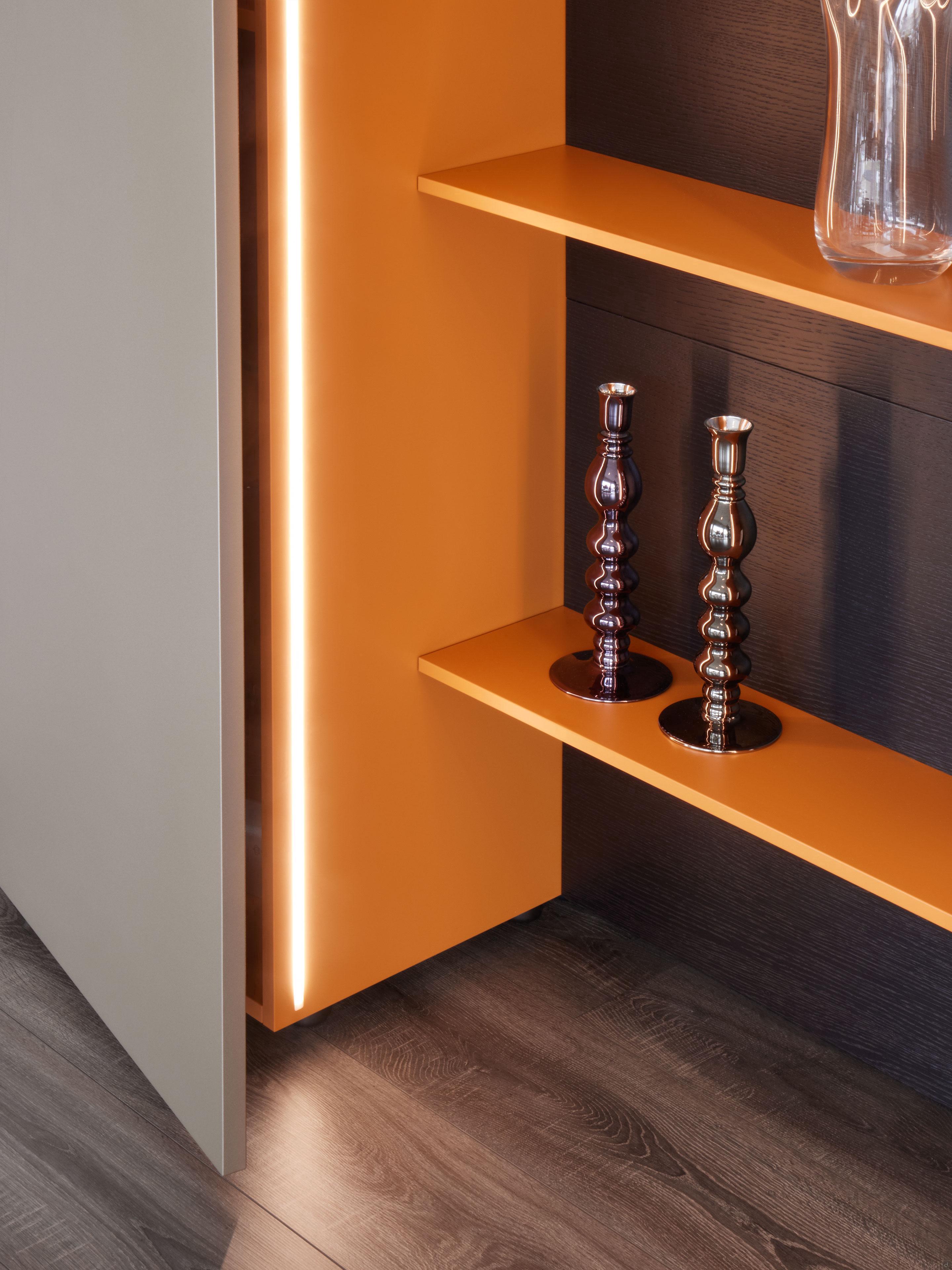

LED bar: placed in a milled position on the outside of the side of the open compartment covered by the protruding door, it has a power of 22.4 W and a colour temperature of 3000 K (warm light). The bar is made of diffusing opal polycarbonate and is supplied complete with a 30 W transformer: it is switched on by direct connection to the wall socket or with an optional remote control.

Mounting Tips
The enclosures are fitted with wall mounting brackets with an anti-release system. The wall plugs are adjustable from the inside by 1 cm in height and 0.3 cm in depth.

Additional Information

Area of Production
Italy

Approximate Time
9-10 working weeks for production

Assembling
Medium Assembling

Cubic Metres
1.50 to 2.70 m³
