Technical Specifications and Equipment

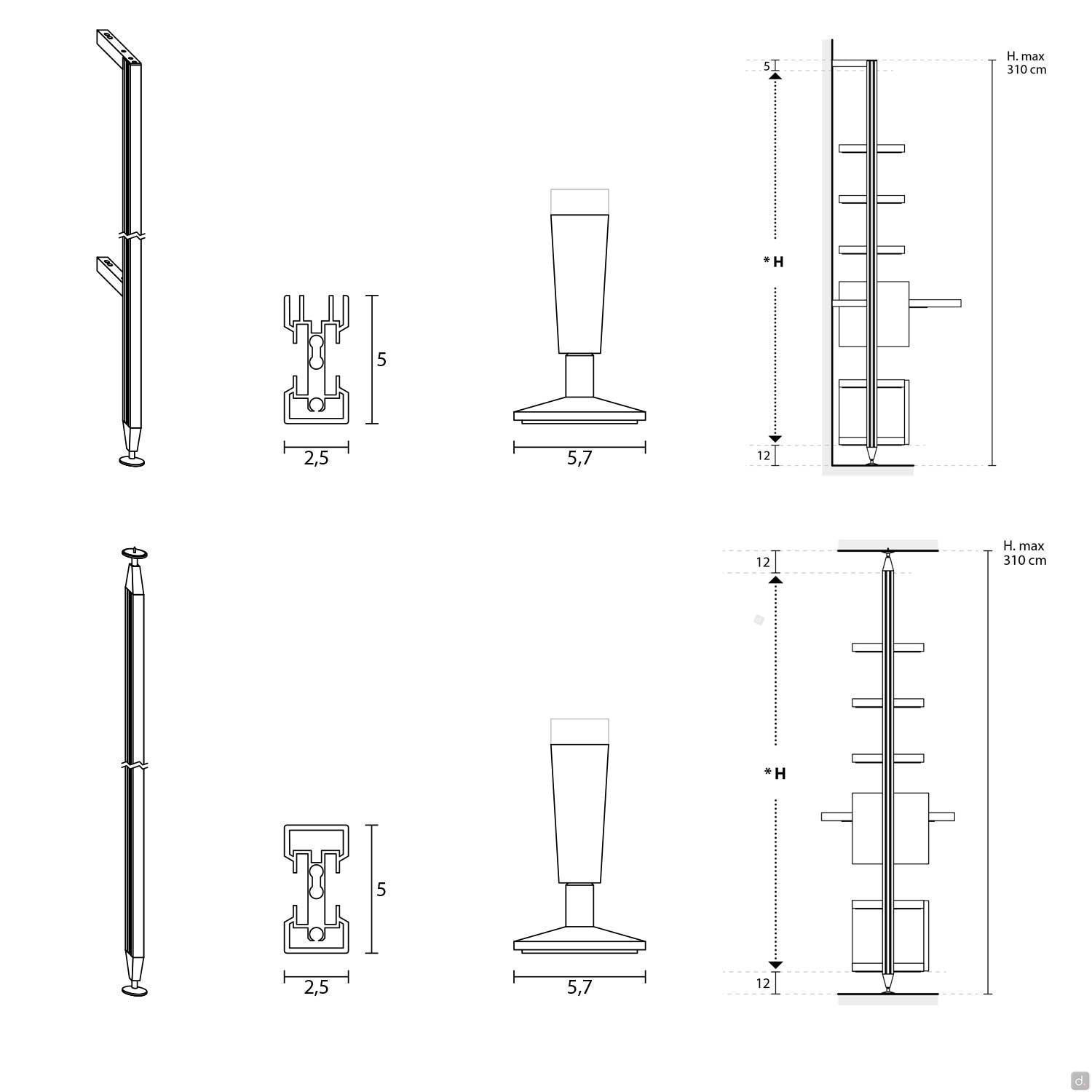

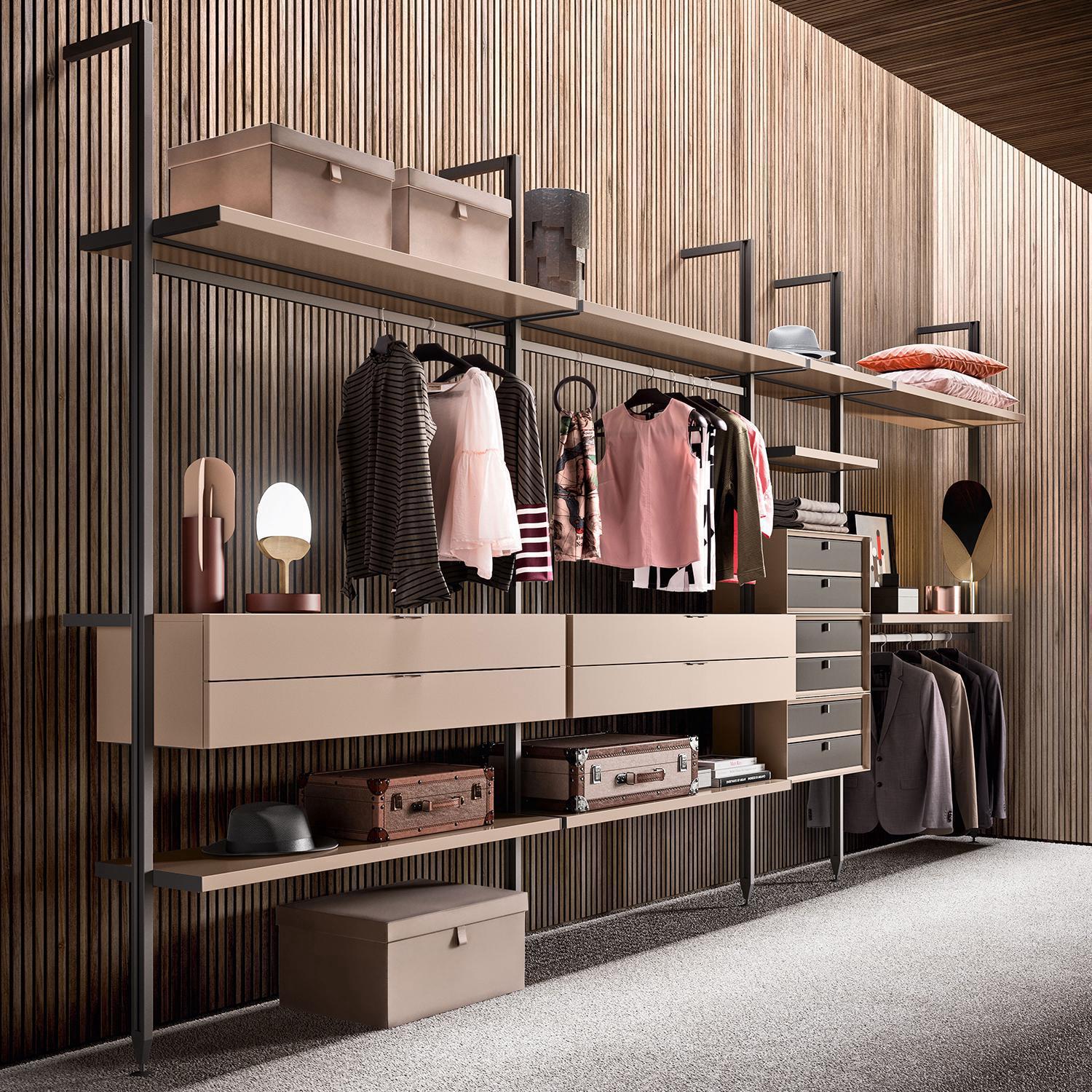

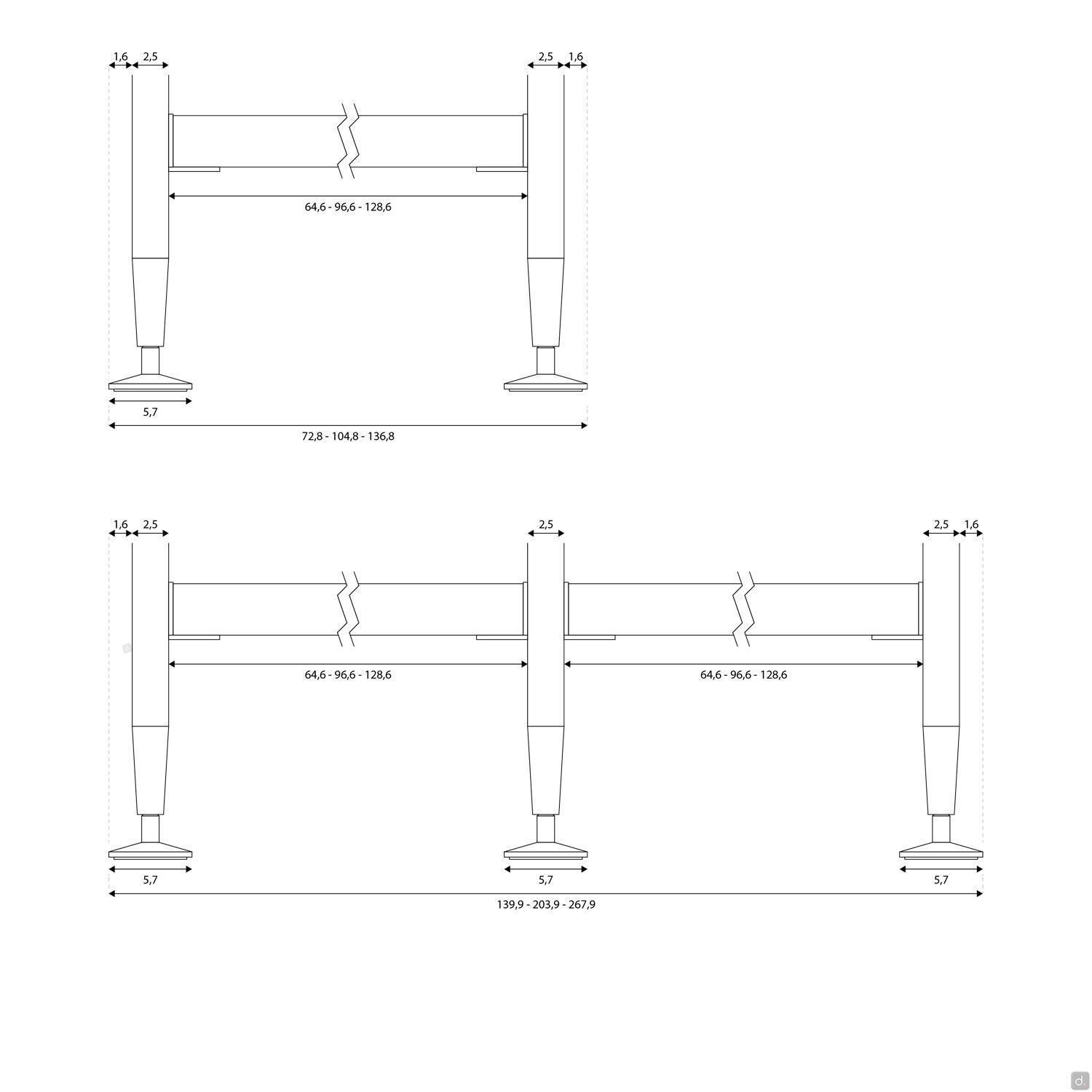

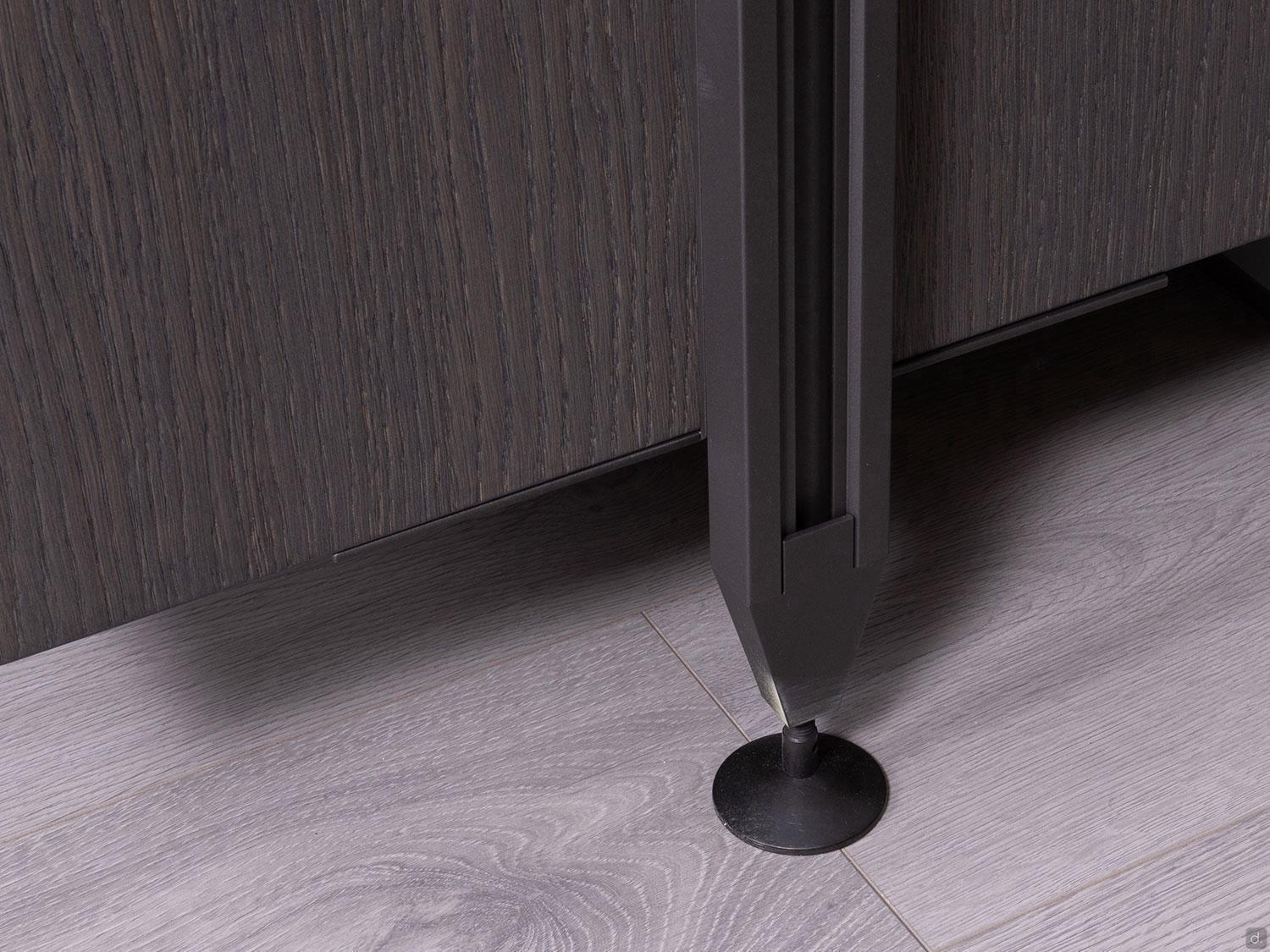

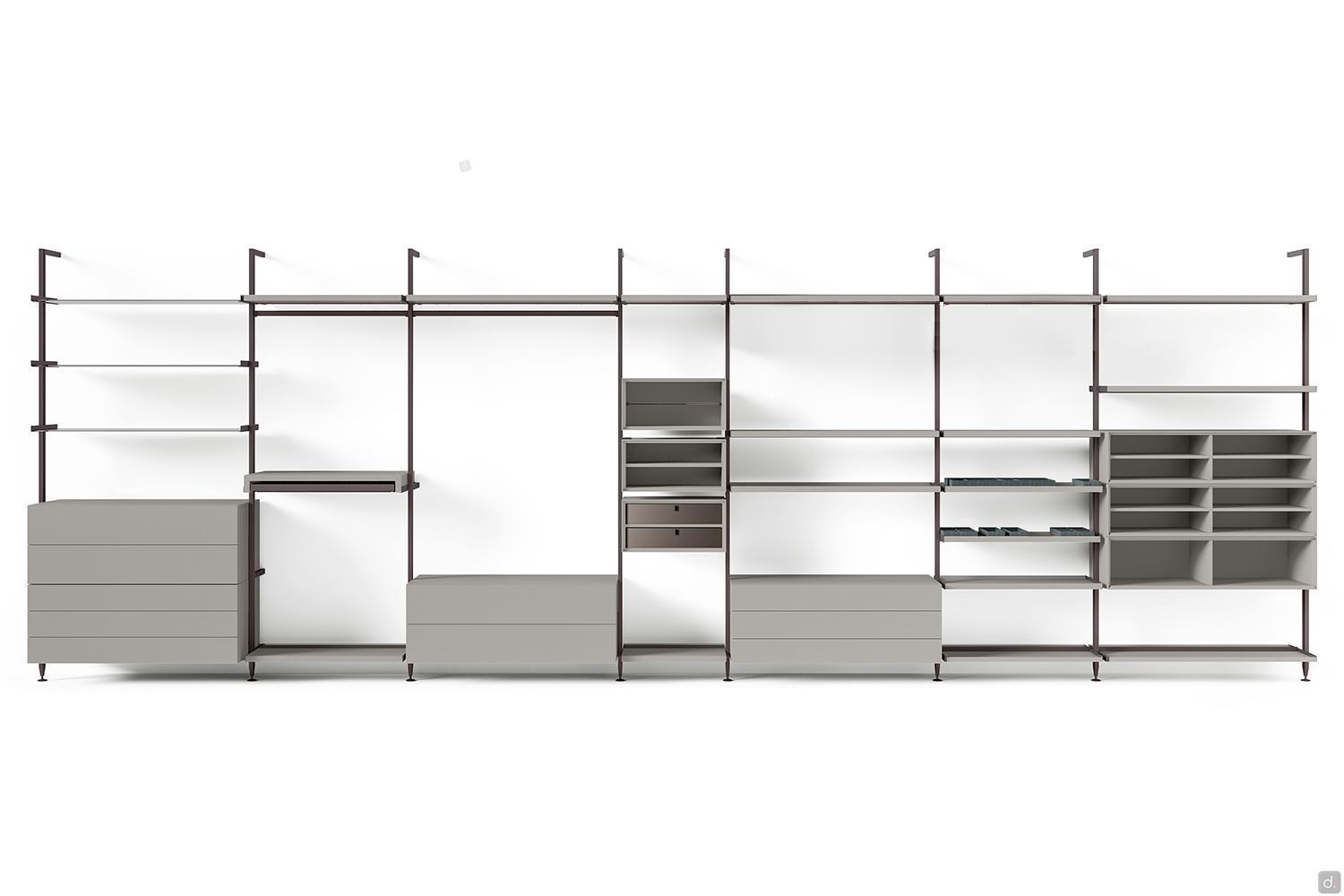

Wall-mounted upright: in extruded aluminium painted Moka Shine / nickel (the latter, the ending part of the floor foot is in chromed finish), composed of a cm Ø 5,7 h.12 floor foot, a wall upright (cm 2,5 in width), a central crossbar (always present regardless of height) and an upper crossbar. The foot does not need to be fixed to the floor and can be adjusted in height by +/- 0,5 cm. Always specify the height of the upright (max cm 310).
The central and upper crossbars must always be fixed to the wall using the dowels provided; the quality of assembly is solely the responsibility of the customer and assembly/ fixing to the wall should be carried out using only materials which are best adapted to the type of wall in question.
The central crossbar can be positioned at any height, except in the case of the following components:
- desk: the crossbar must be positioned at the same height as the desk and fixed to the desk with the designated bracket provided.
- storage box (cm d.52,4): the crossbar must be positioned at the same height as the lower part of the storage box and fixed to this part by means of the designated bracket provided; each storage container must always have a central crossbar.

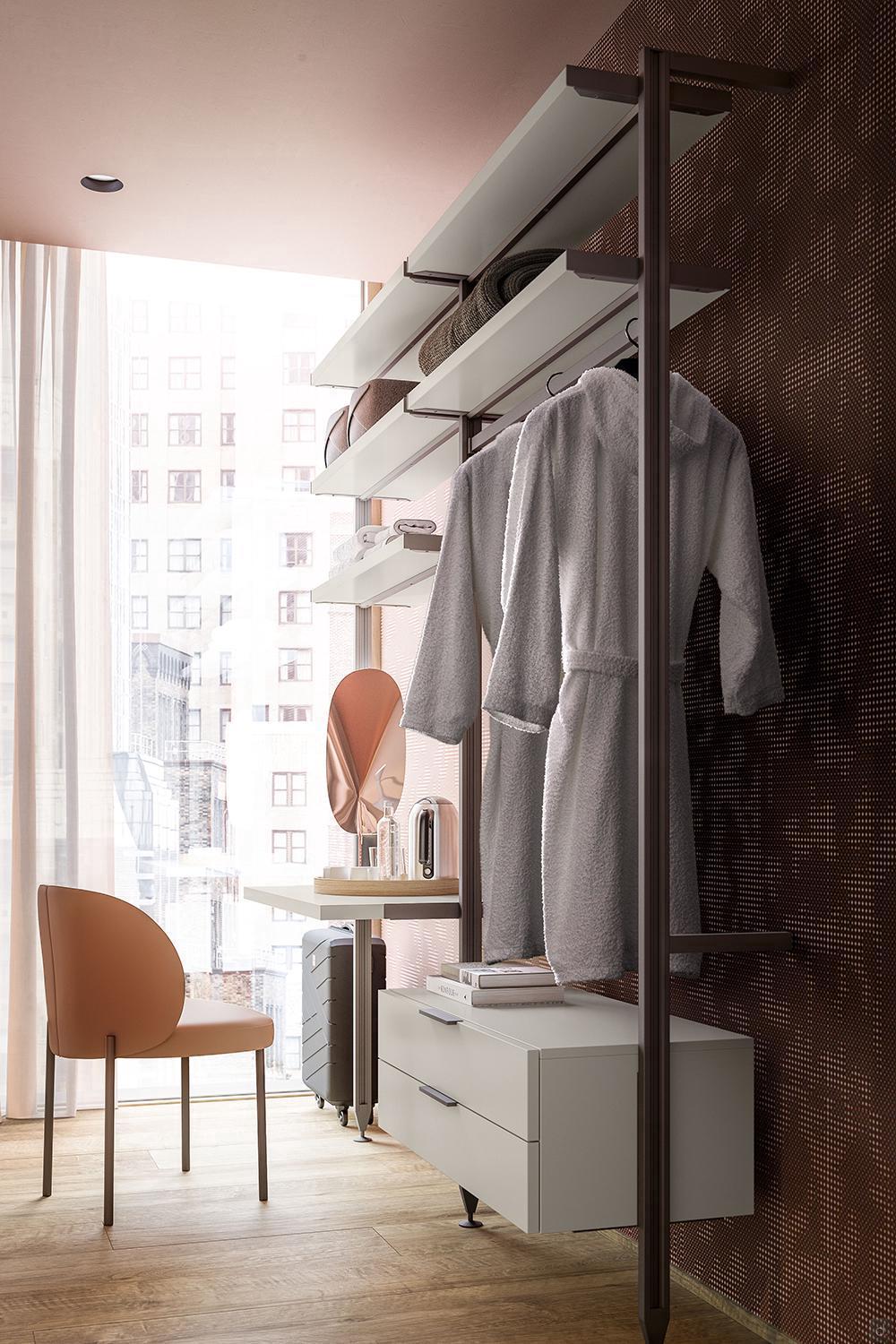

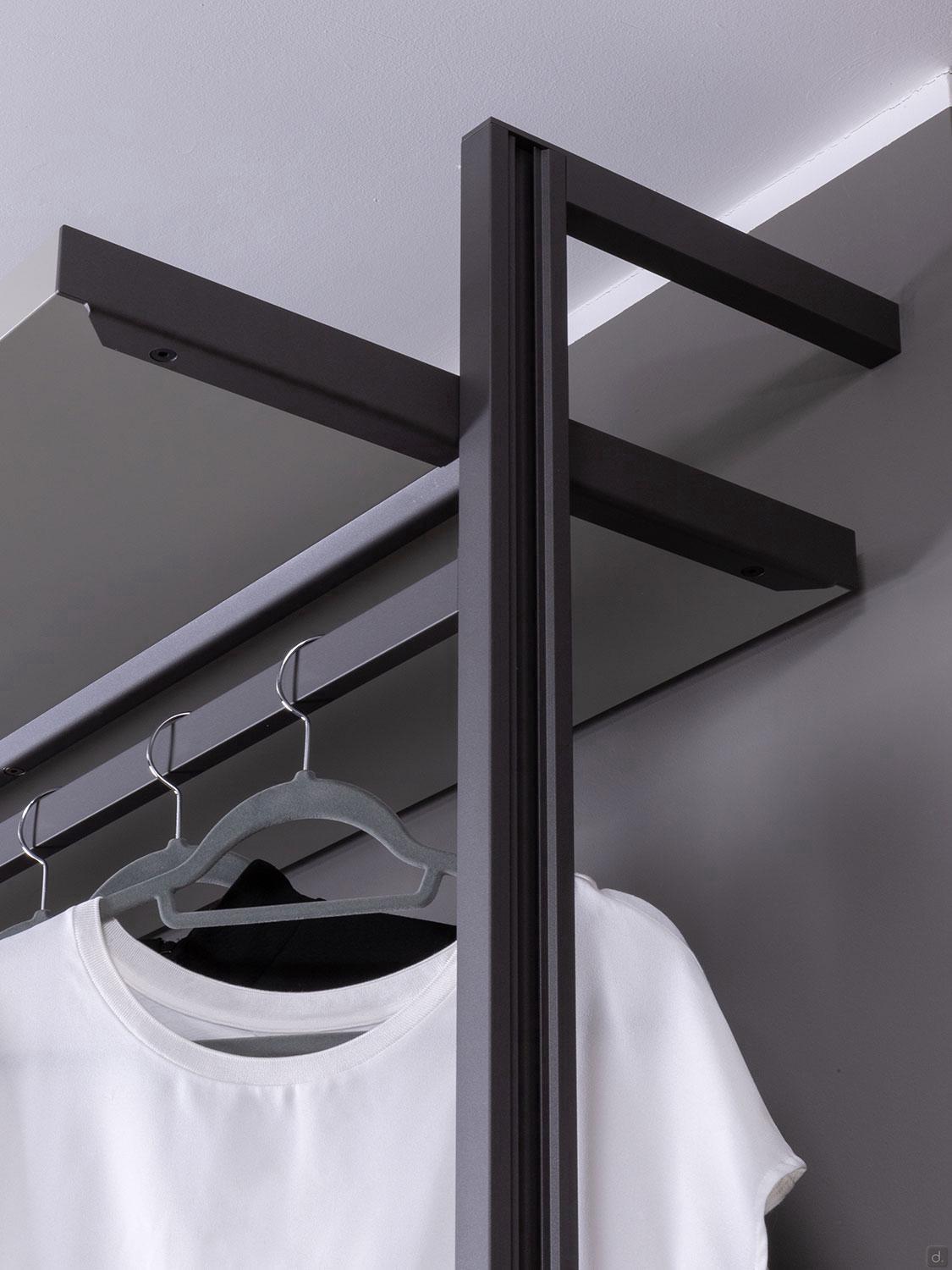

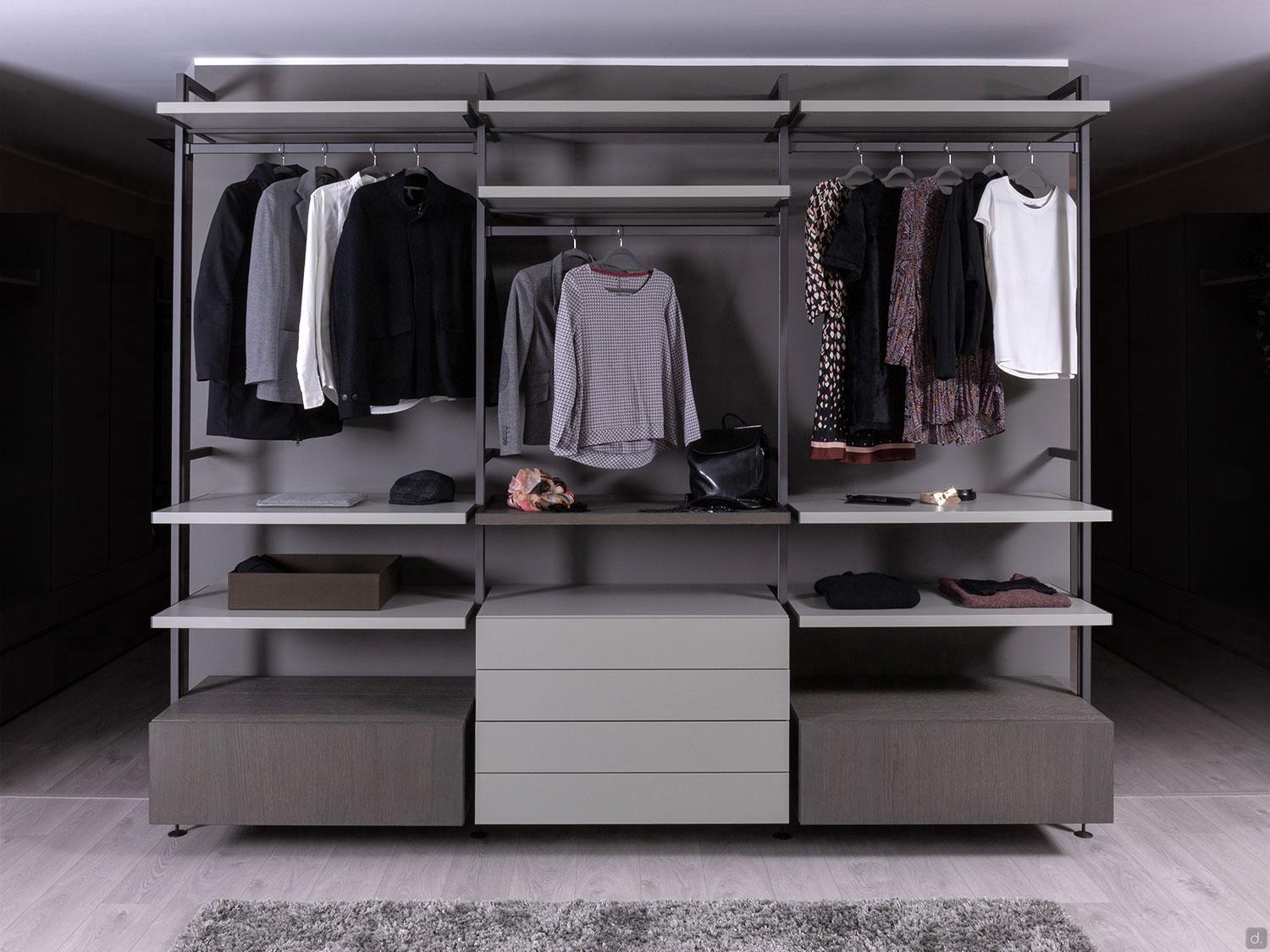

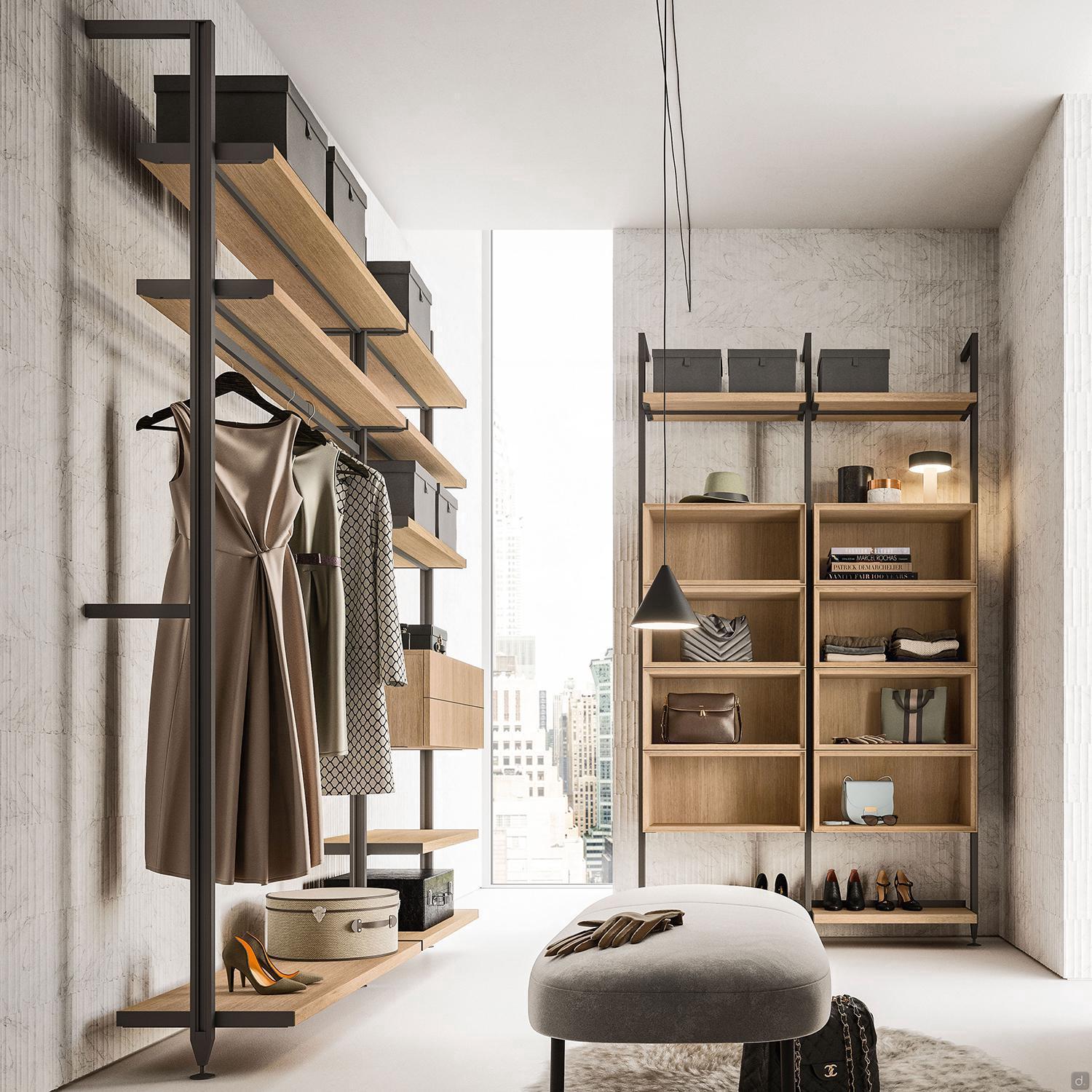

Ceiling-mounted upright: in extruded aluminium painted Moka Shine / nickel (for the latter, the end part of the floor and ceiling foot is in chrome finish), composed of a cm Ø 5,7 h.12 floor foot, and a 2,5 cm wall upright. The legs can be adjusted in height by +/- 2 cm; the leg does not need to be fixed to the floor, but the upright must be attached to the ceiling using the dowels which are supplied. The quality of assembly is solely the responsibility of the customer and assembly/ fixing to the ceiling should be carried out using only materials which are best adapted to the type of ceiling in question.

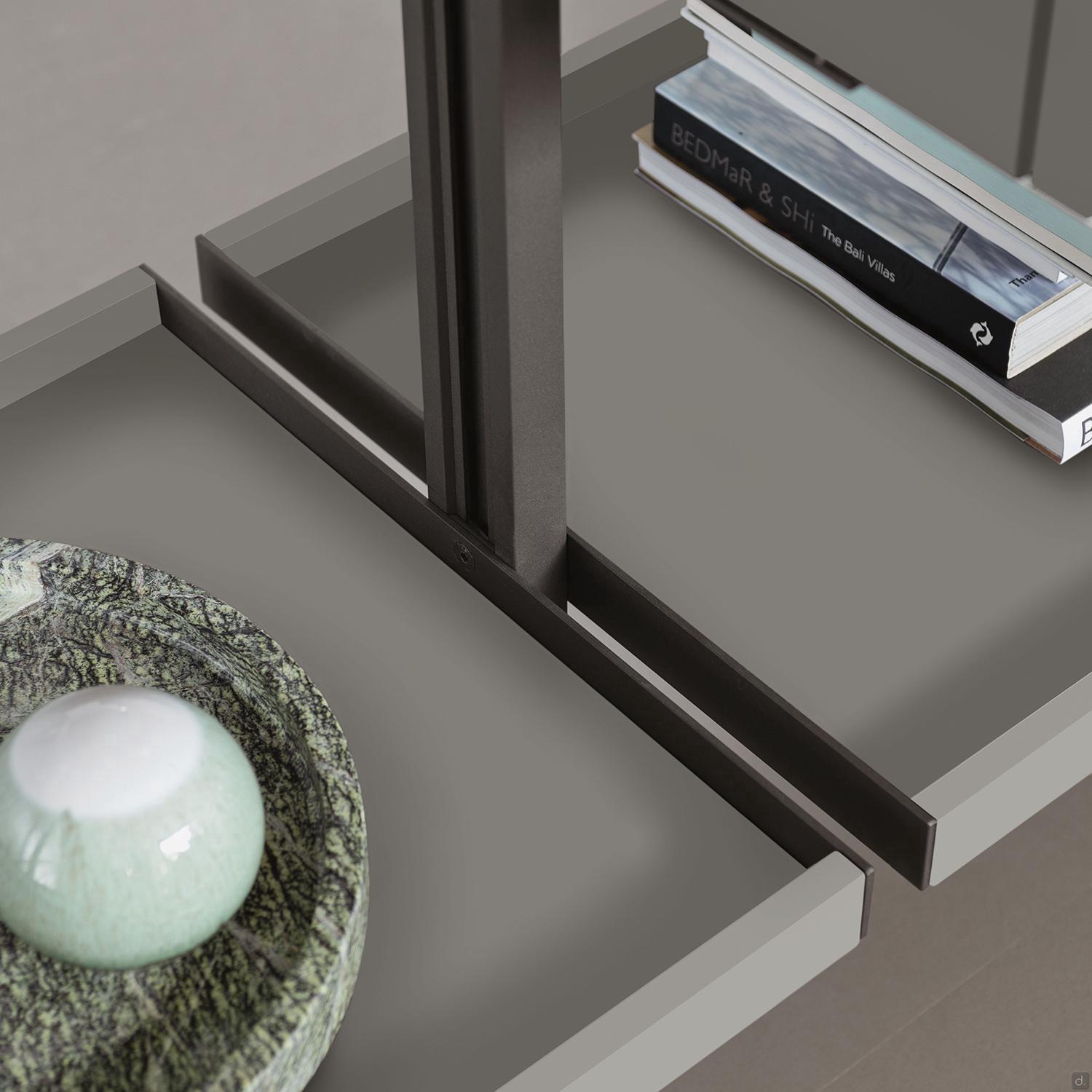

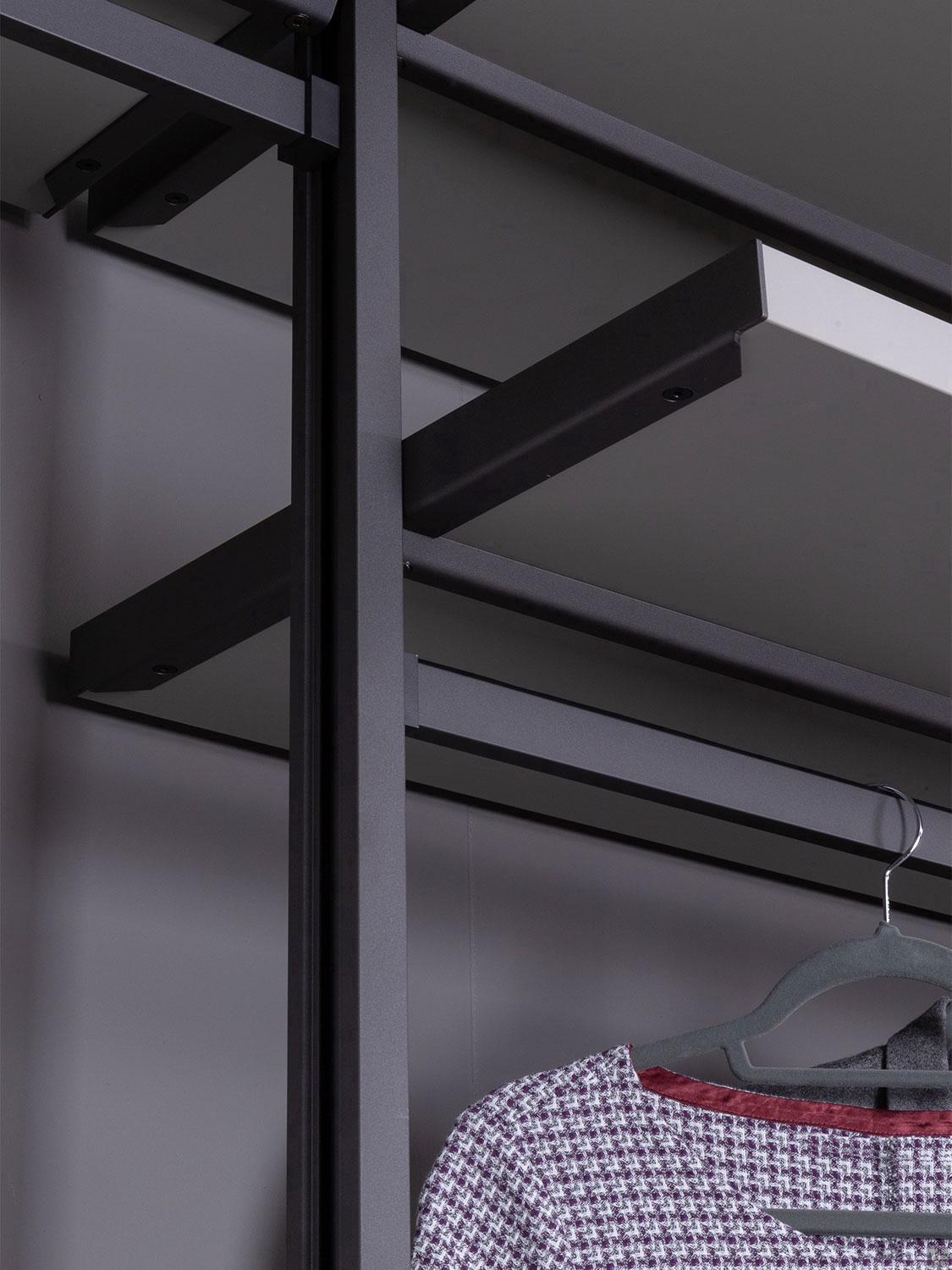

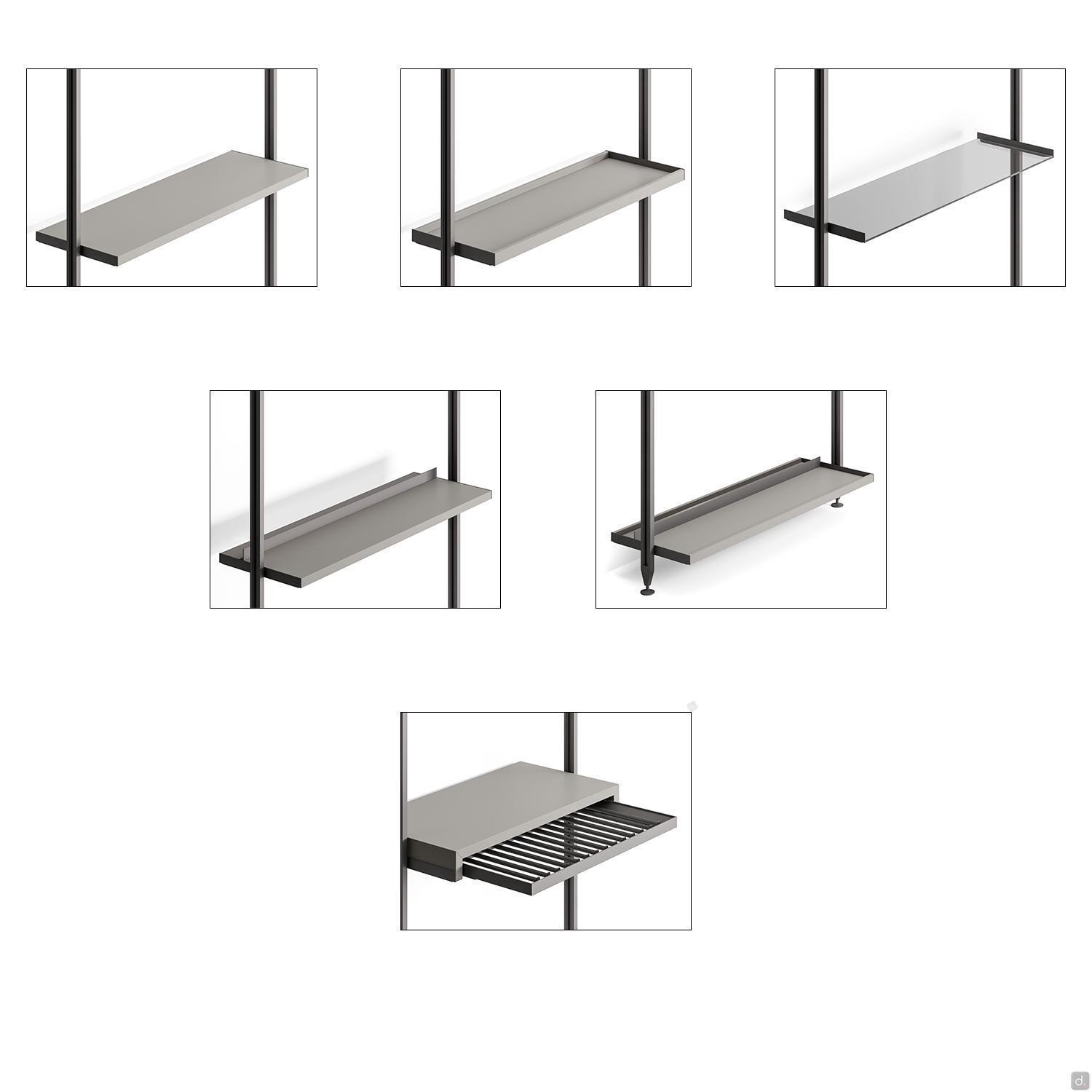

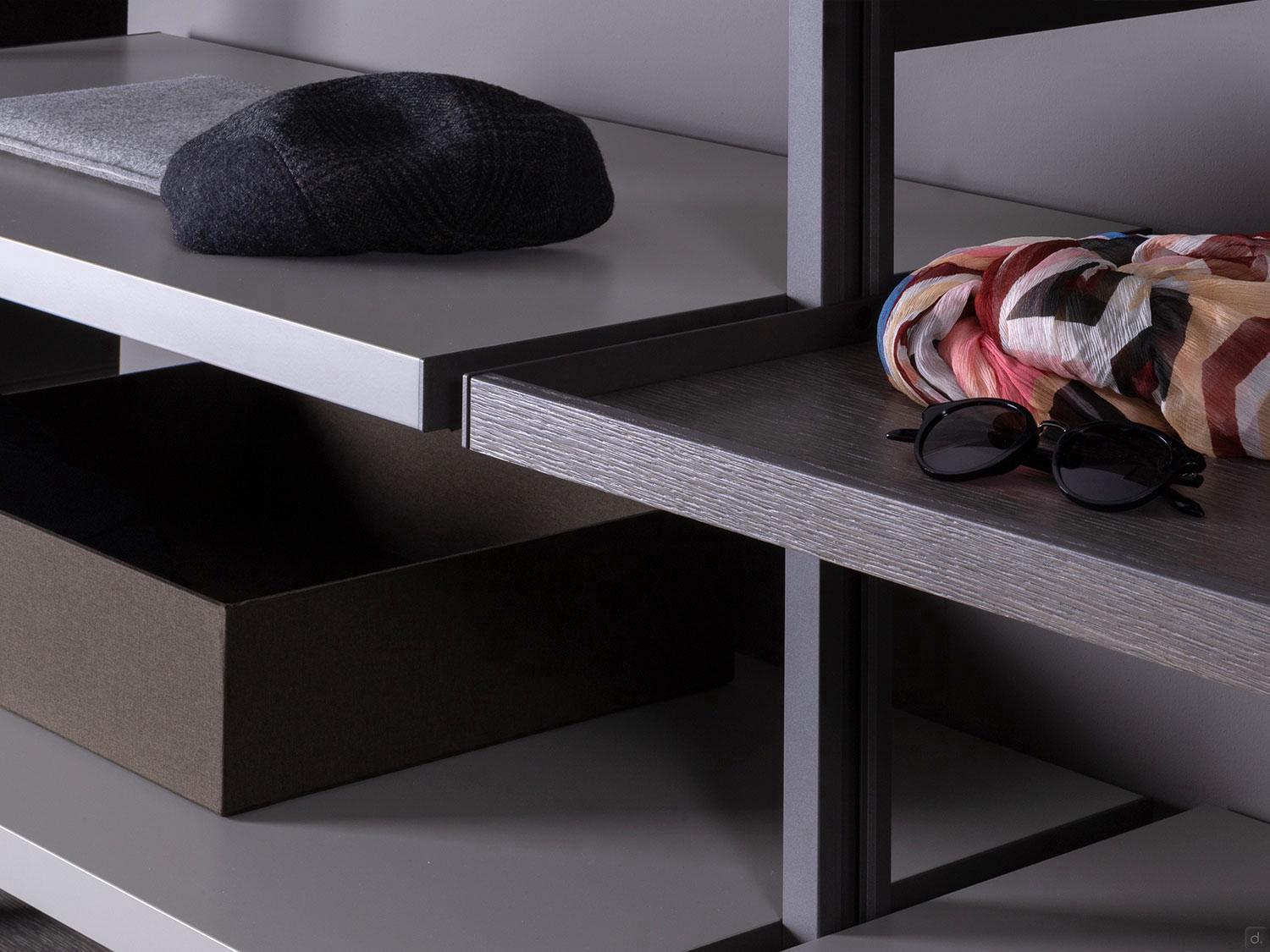

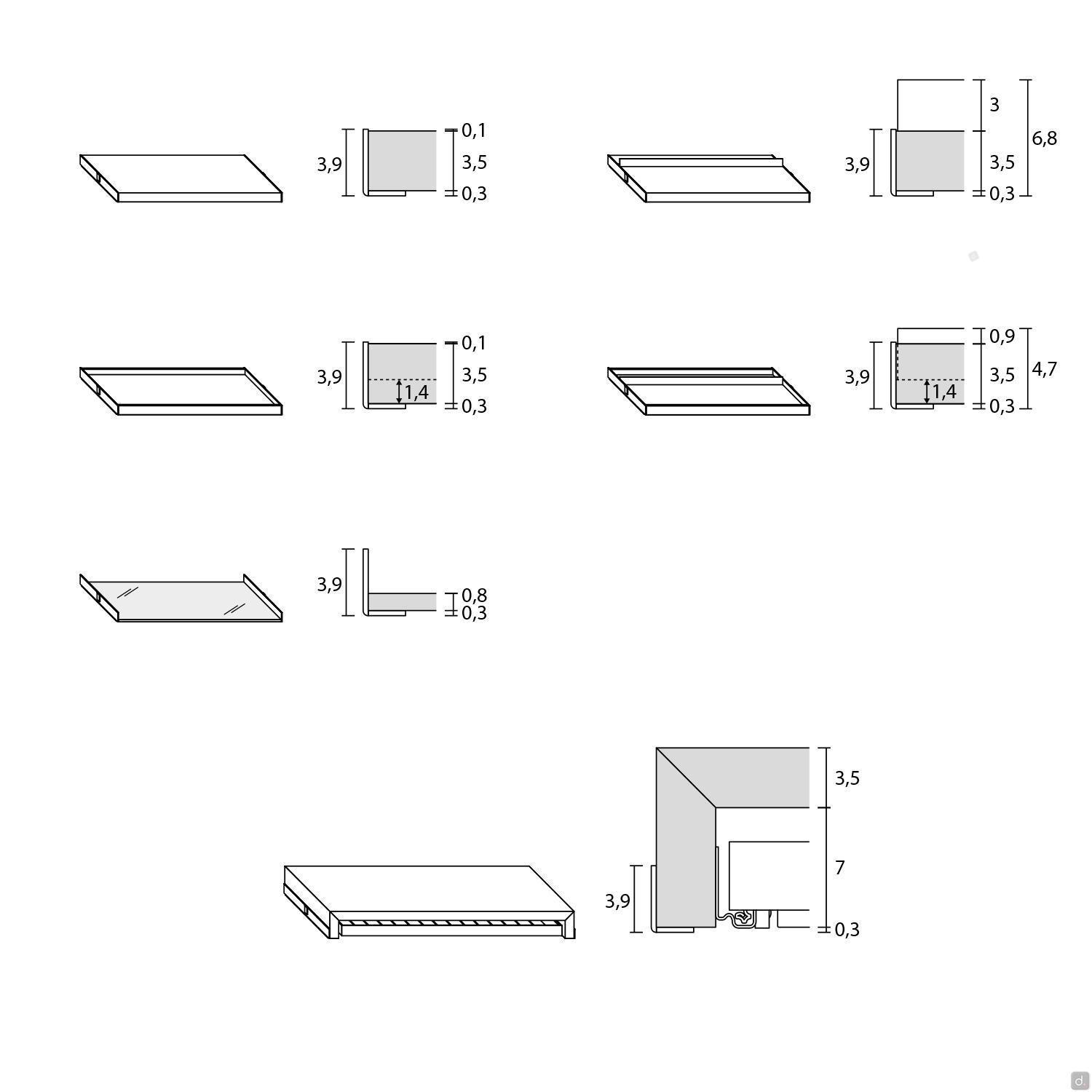

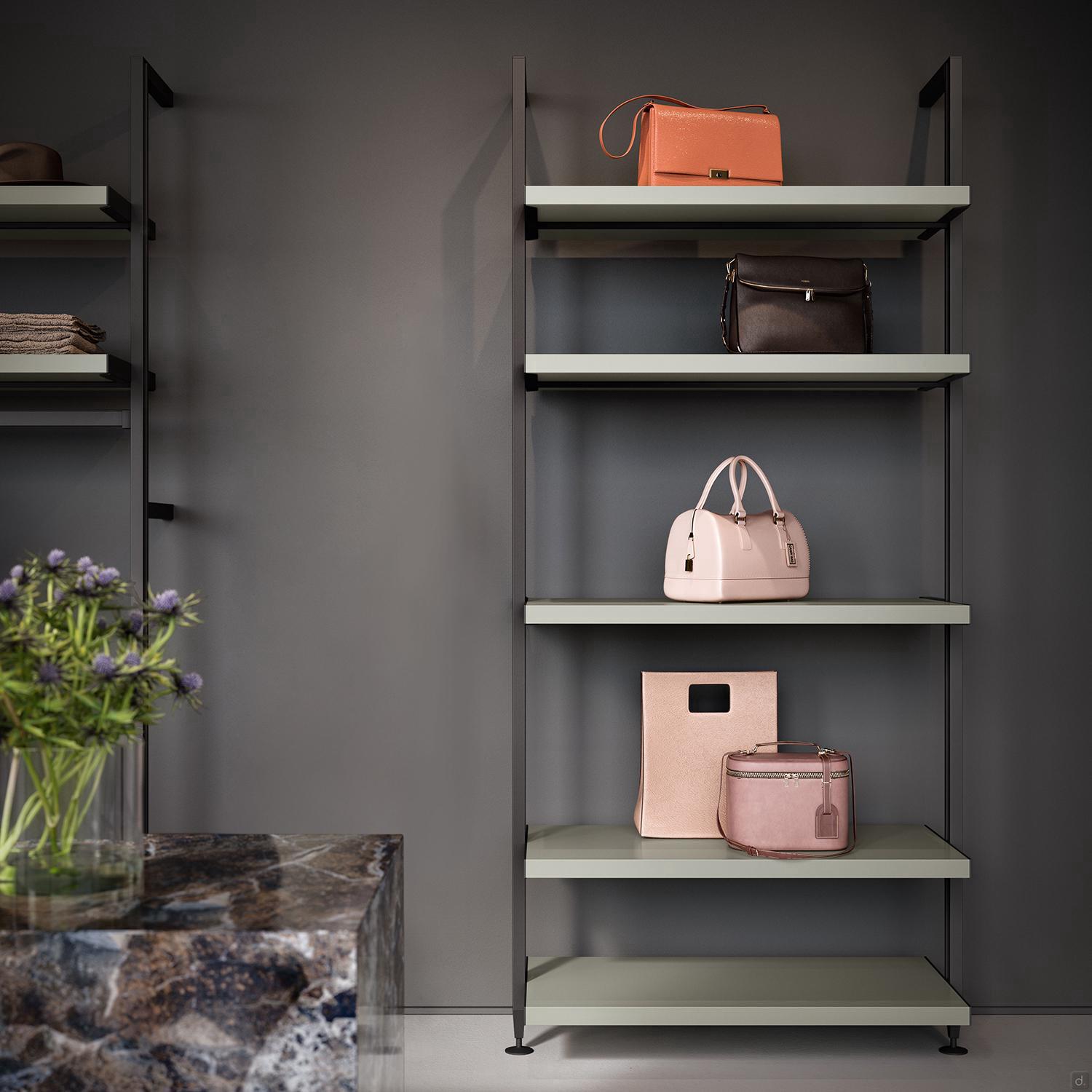

Shelf: available in wood (3,5 cm thick), a tray shelf (with a folding finish, 1,4 cm thick), or in clear-grey glass (0,8 cm thick). All shelves are complete with an under-shelf support bar and painted-metal brackets in the Moka Shine / nickel finish for fixing them to the uprights. Total height: cm h.3,9.
The shelf for the wall-mounted version features a 2 / 3,5 cm empty space at the back. The shelf for the ceiling-mounted version is always positioned centrally in relation to the uprights. Maximum load: wooden shelf: 15 Kg/ml, tray shelf and glass shelf: 10 Kg/ml.

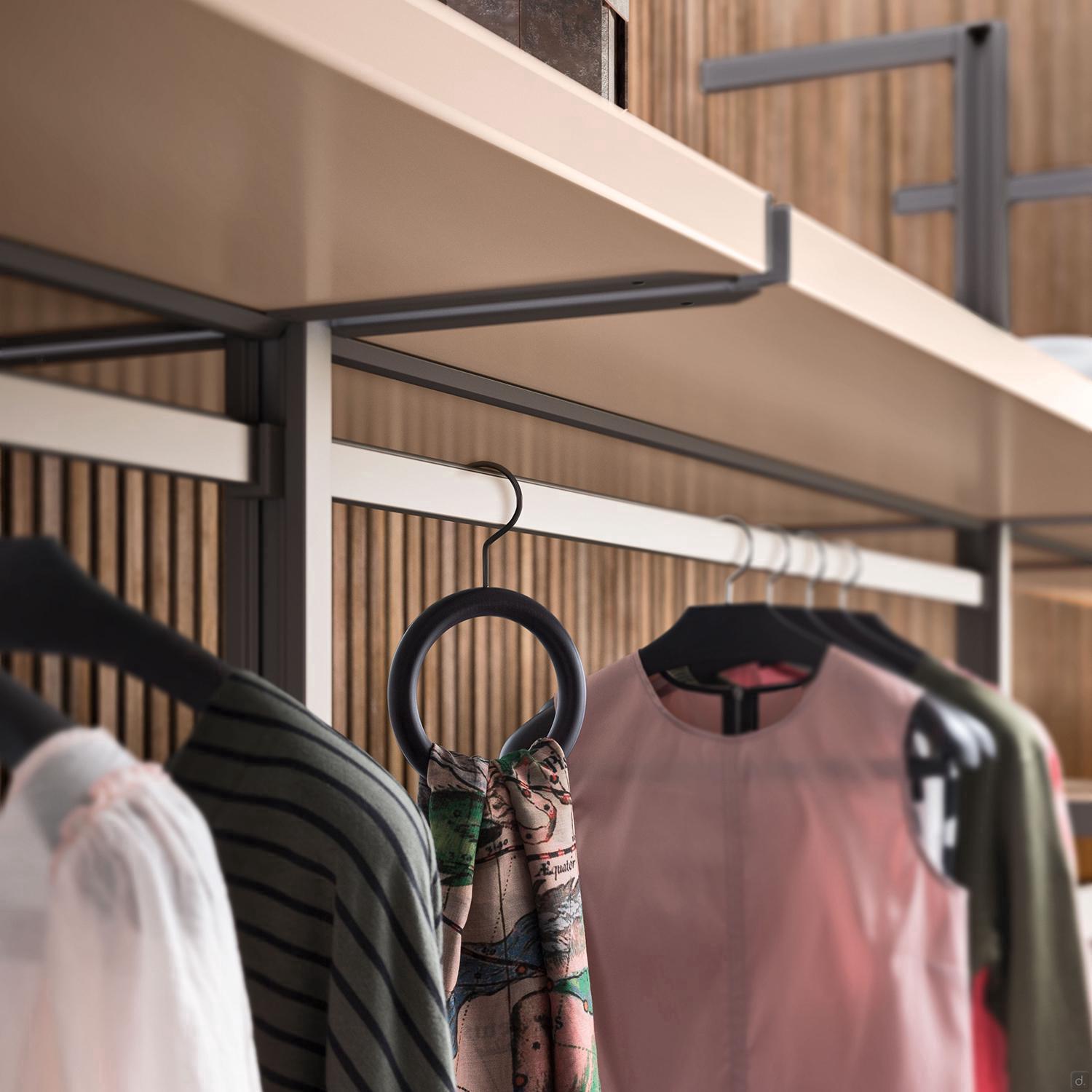

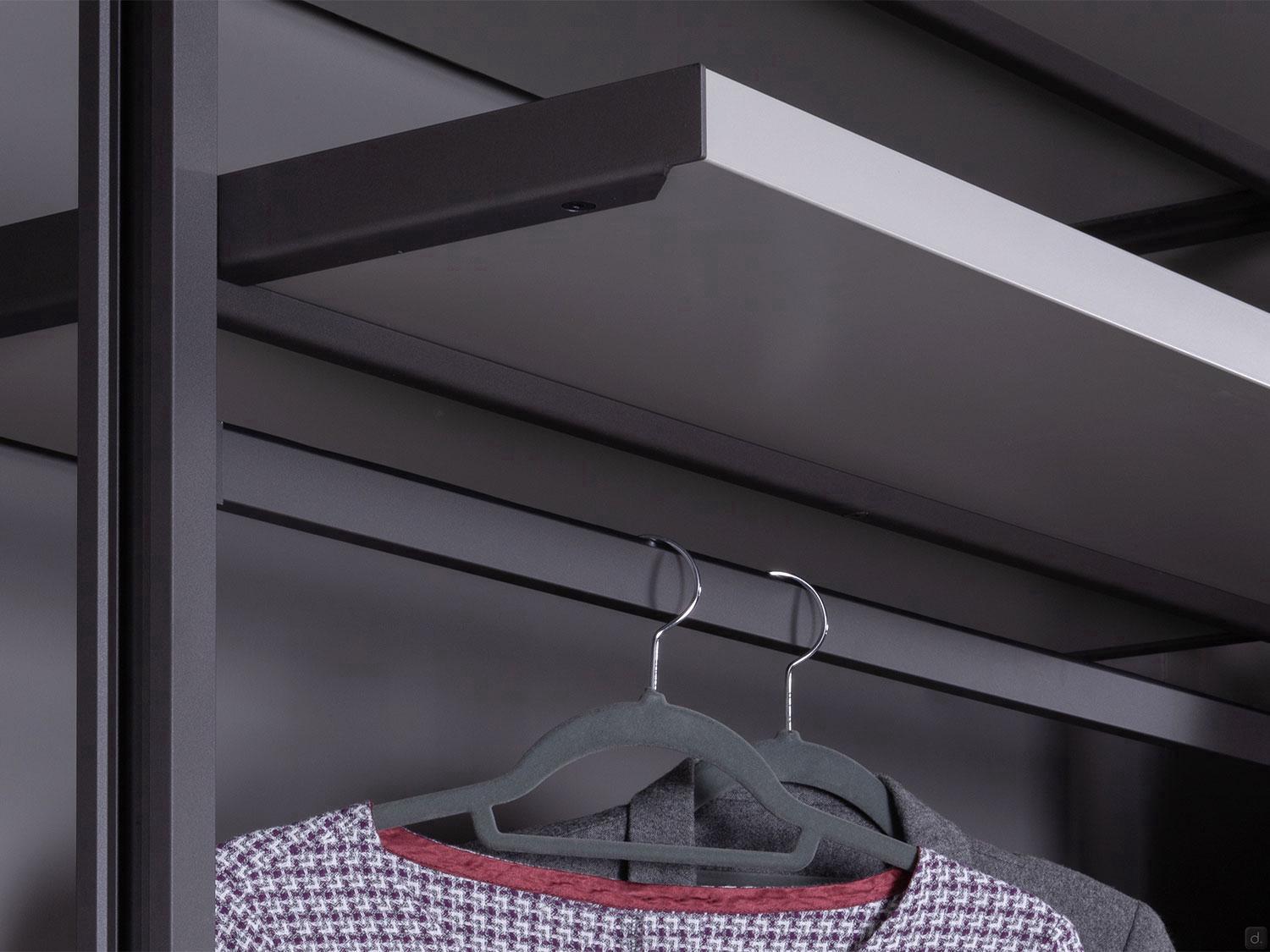

Clothes rail: in Moka Shine / nickel painted metal with gasket and mounting brackets. Maximum load: 15 Kg/ml.

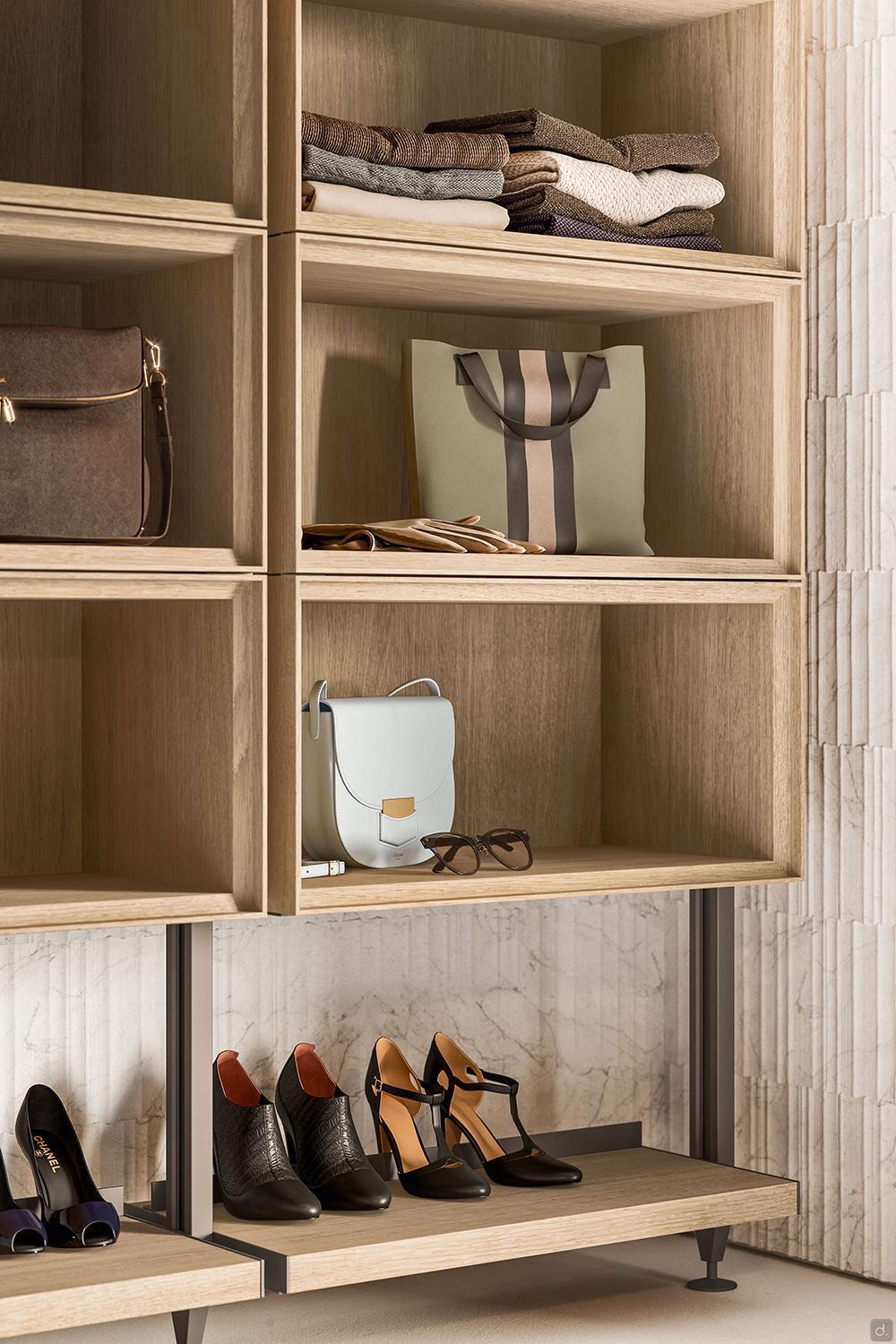

Shoe rack: available in wood (3,5 cm thick, cm h.6,8) and in a tray version with a folding finish (1,4 cm thick, cm h.4,7). All shoe racks are complete with an under-shelf support bar, scuff plate and painted-metal brackets (Moka Shine / nickel finish) for fixing them to the uprights.
The shoe rack for the wall-mounted version features a 2 / 3,5 cm empty space at the back. The shoe rack for the ceiling-mounted version is always positioned centrally in relation to the uprights. Maximum load: wooden shoe rack: 15 Kg/ml, tray shoe rack: 10 Kg/ml.

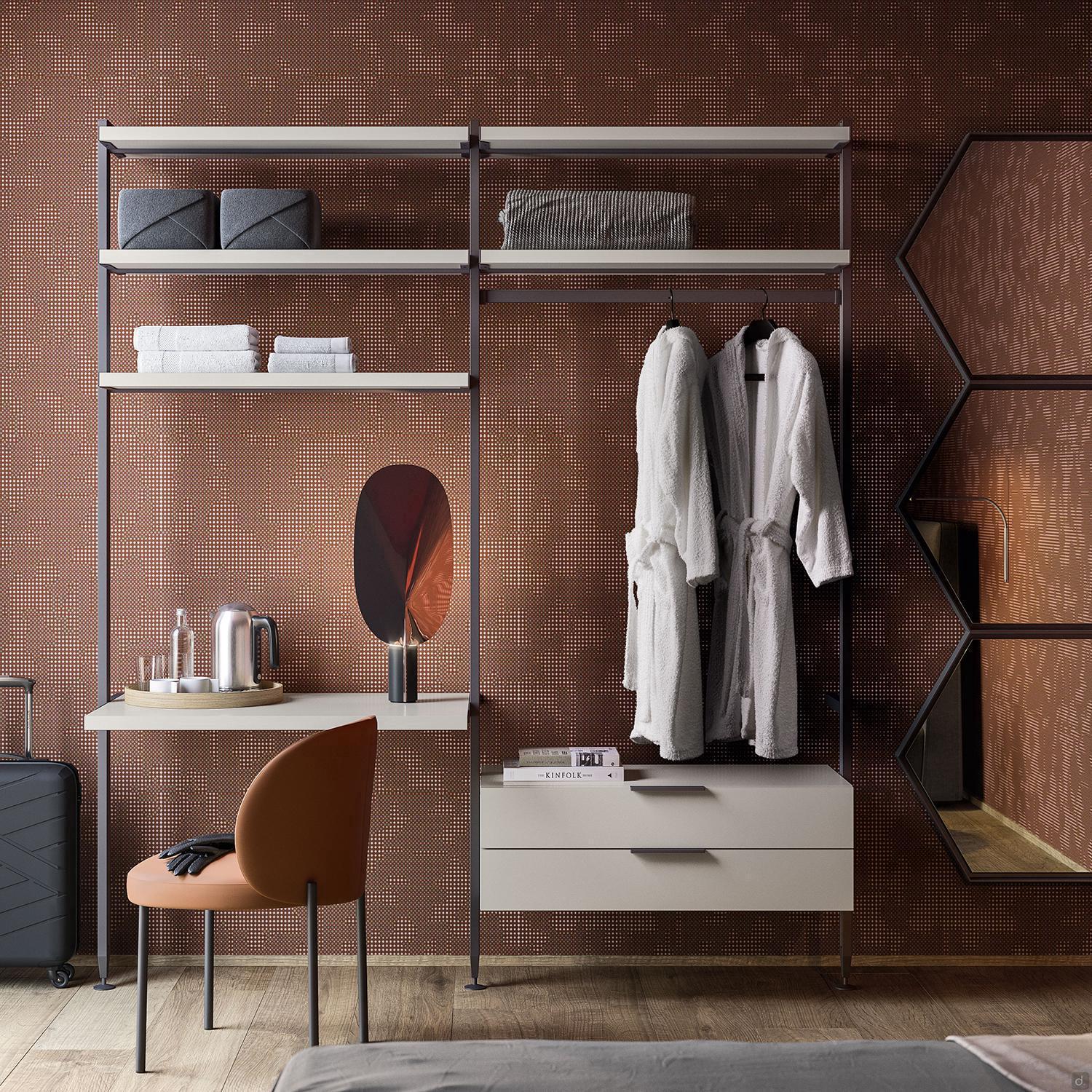

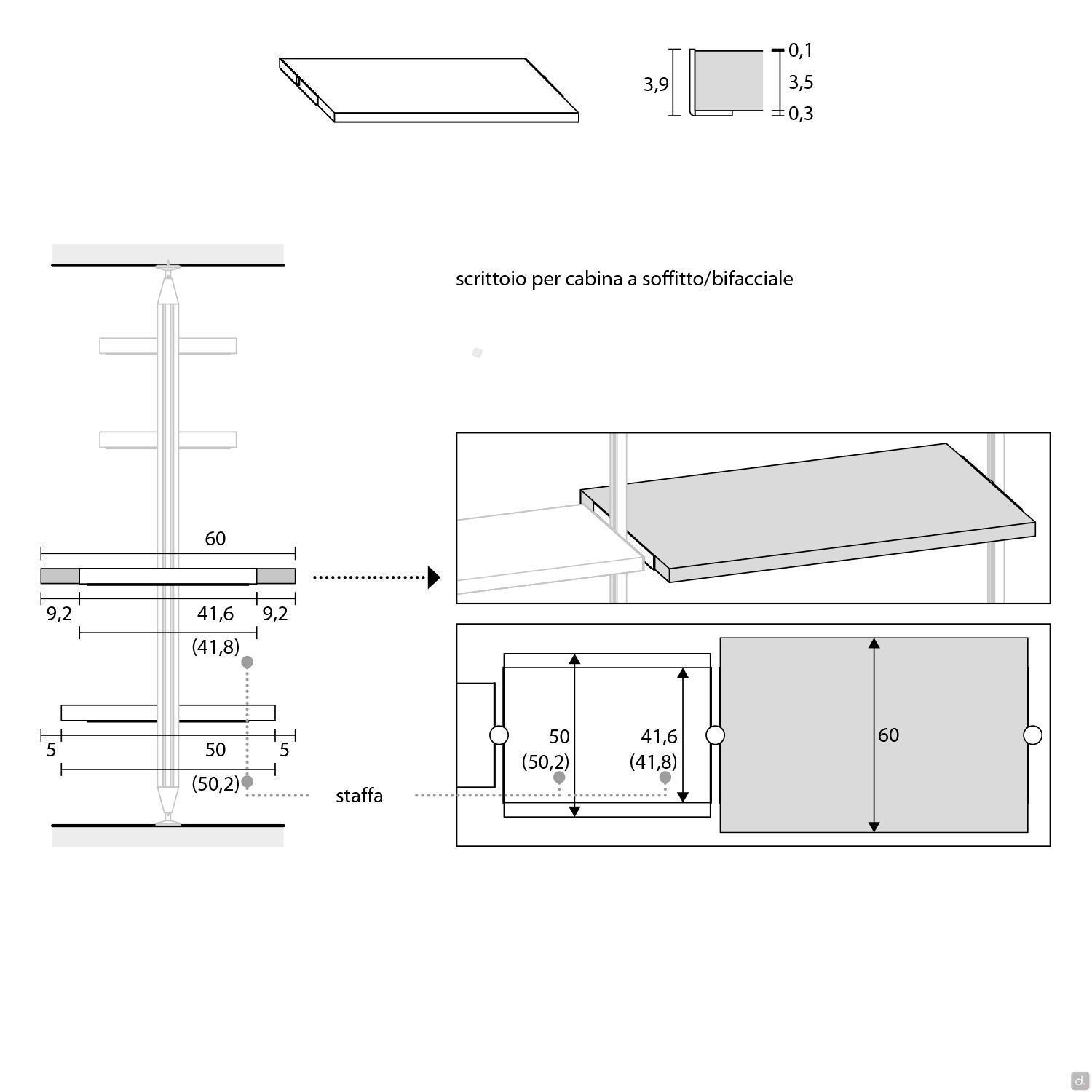

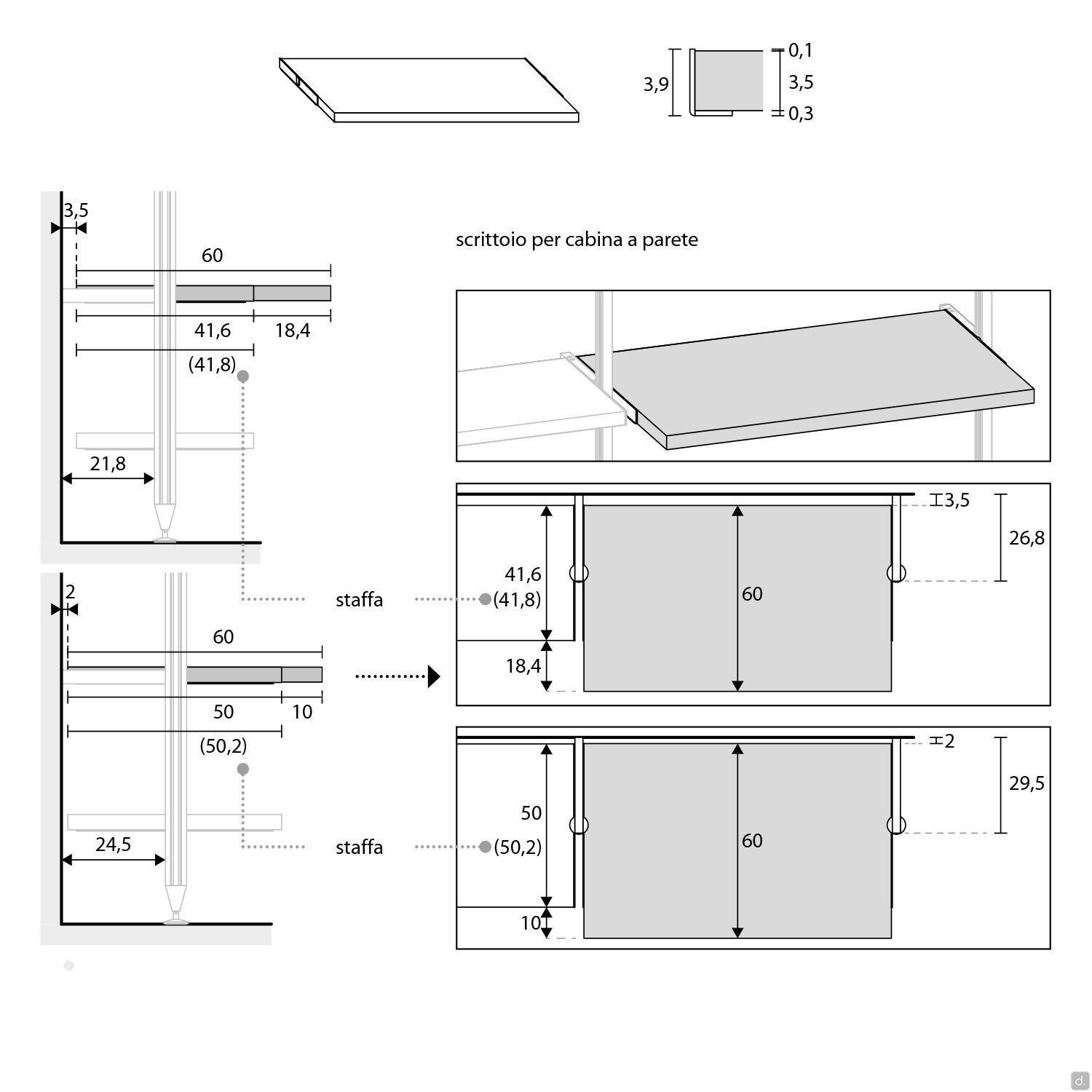

Desk: wooden, 3,5 cm thick, with an under-desk support bar and and painted-metal brackets (Moka Shine / nickel finish) for fixing it to the uprights. Total height: cm h.3,9. In the wall-mounted version, the desk can only be positioned on the d.26,8 / 29,5 uprights; not centred in depth; but overhanging at the front, always positioned at the same height as the central crossbar and fixed to that crossbar with the appropriate bracket. In the ceiling-mounted version, the desk is always positioned centrally in relation to the uprights. Maximum load: 15 Kg/ml. Please note:
- only one desk per gap;
- desks cannot be positioned next to each other in consecutive gaps;
- a desk and a d.52,4 cm storage box (wall-mounted version) cannot be positioned at the same height in two consecutive gaps.
Trouser rack: with a pull-out tray and painted metal brackets in Moka Shine / nickel finish (Please note: the metal frame of the pull-out tray is not supplied in nickel finish, but only in moka shine). Veneered, lacquered and wooden shelf. Maximum load: shelf with folding finish: 15 Kg/ml, trouser rack: 20 Kg/ml.

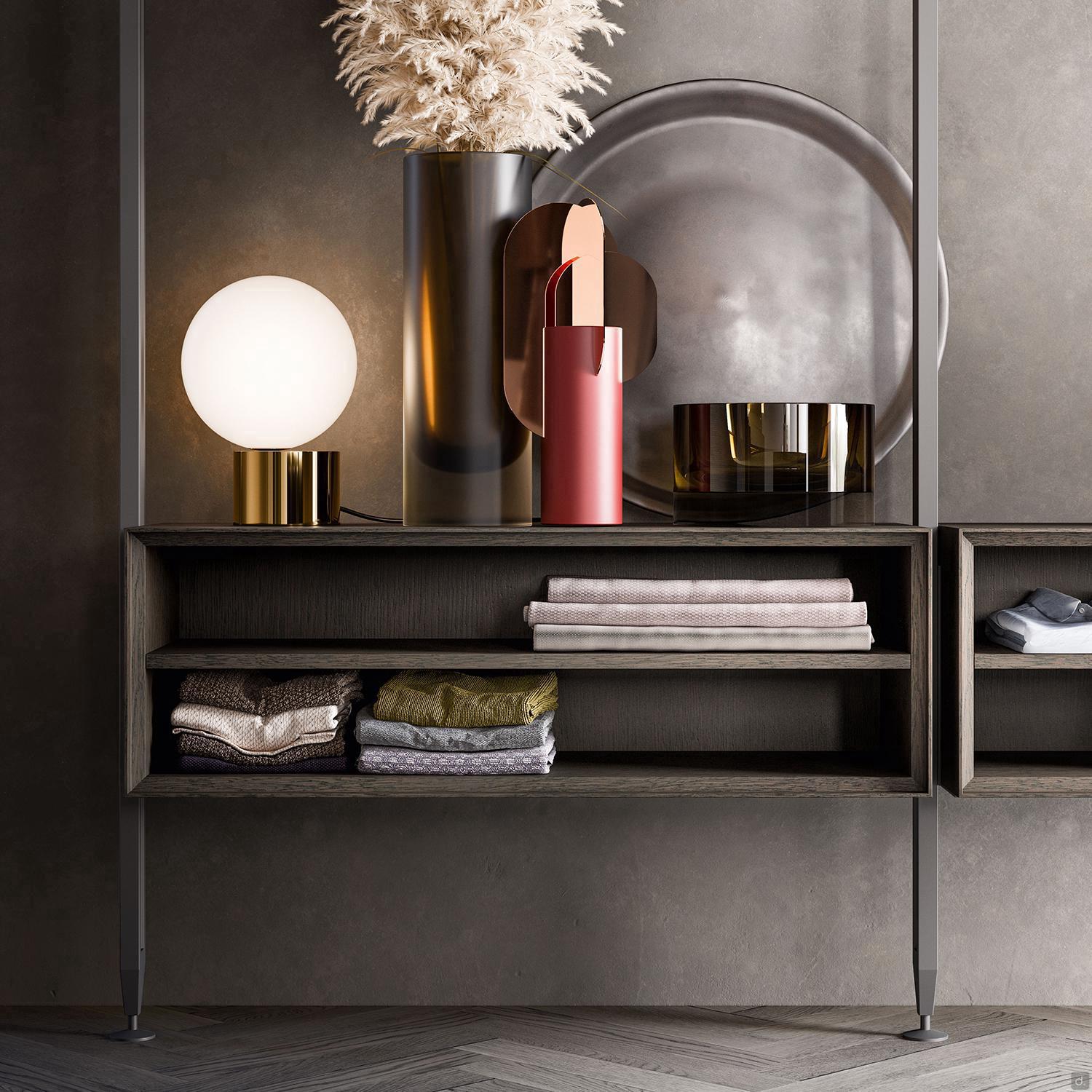

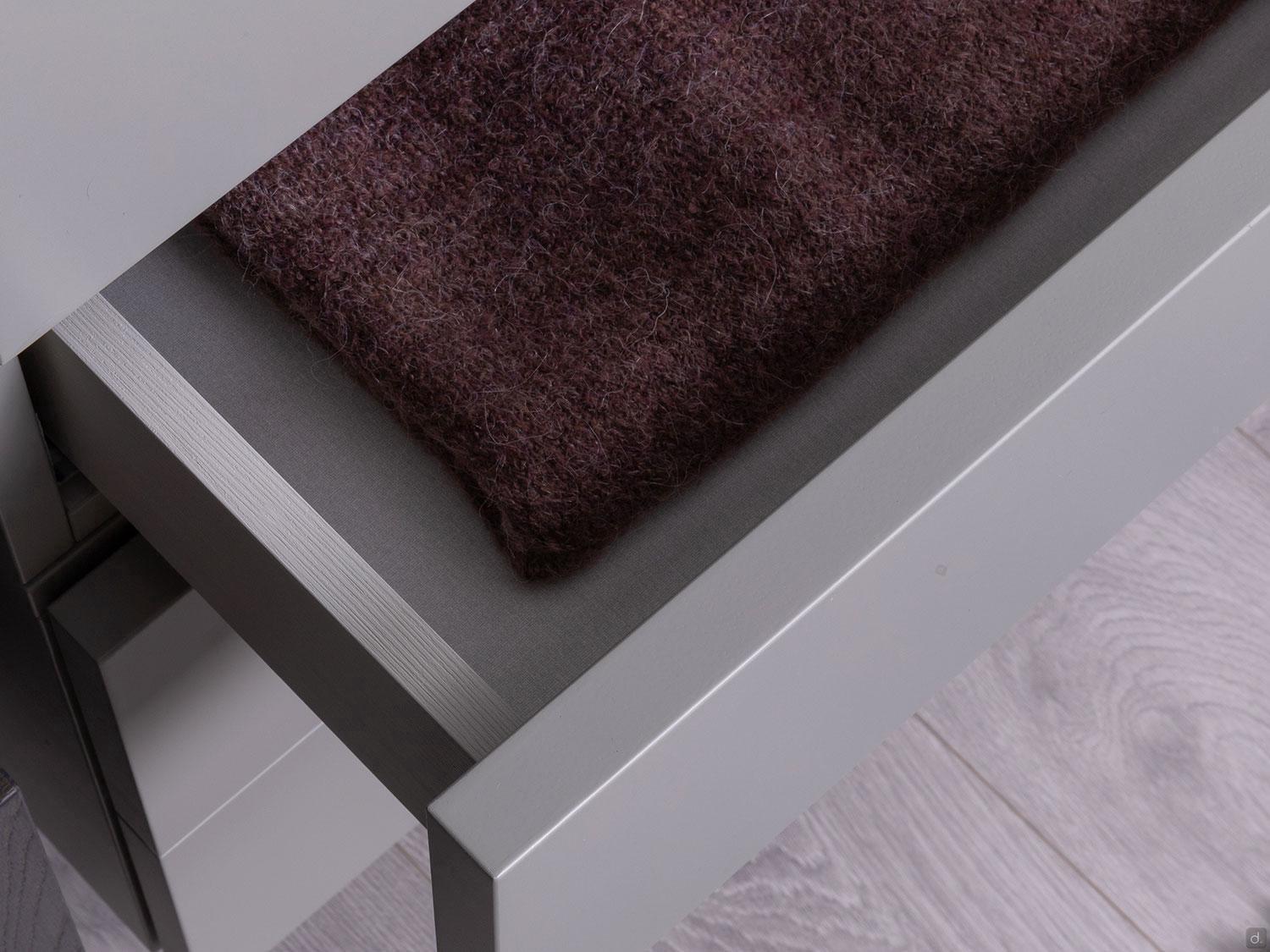

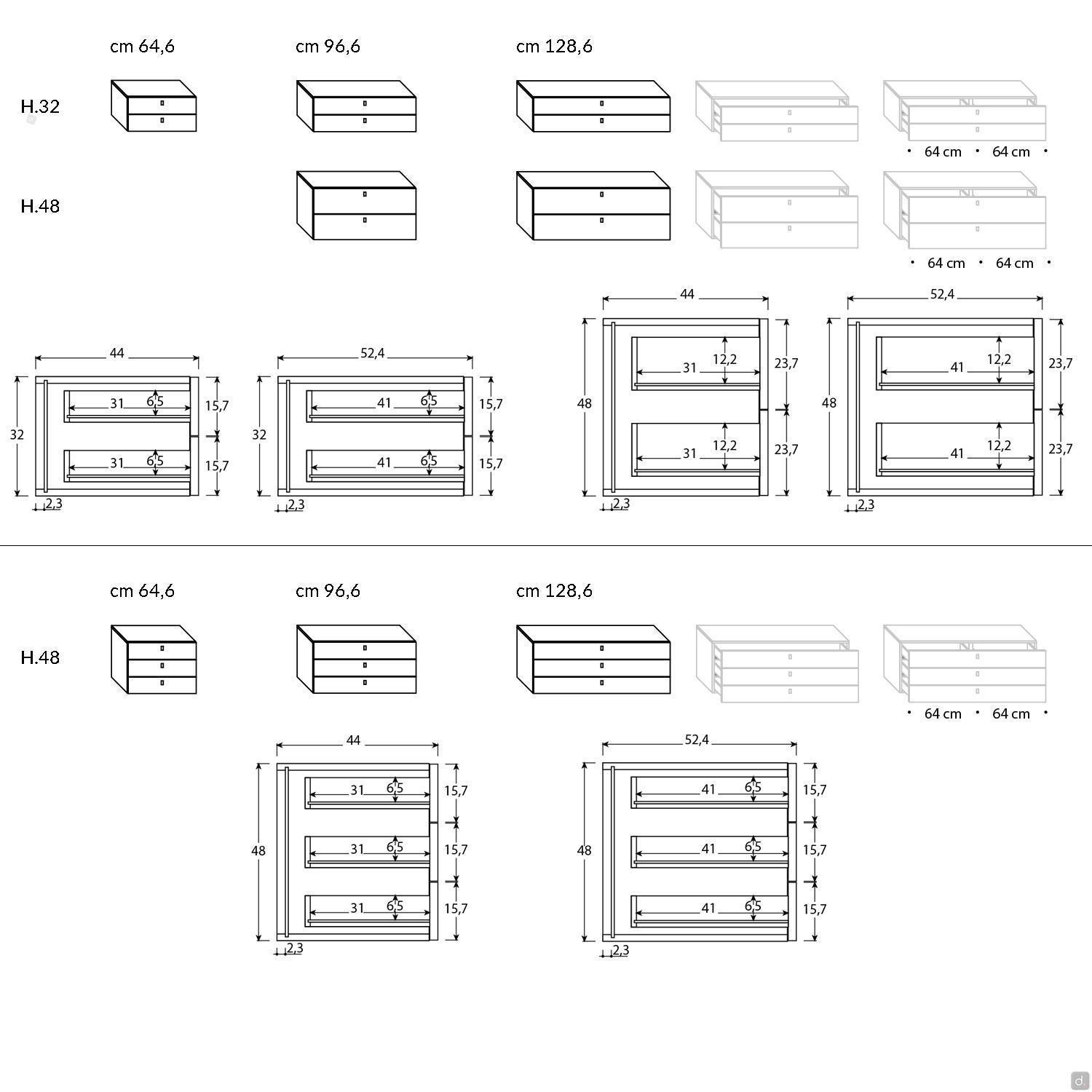

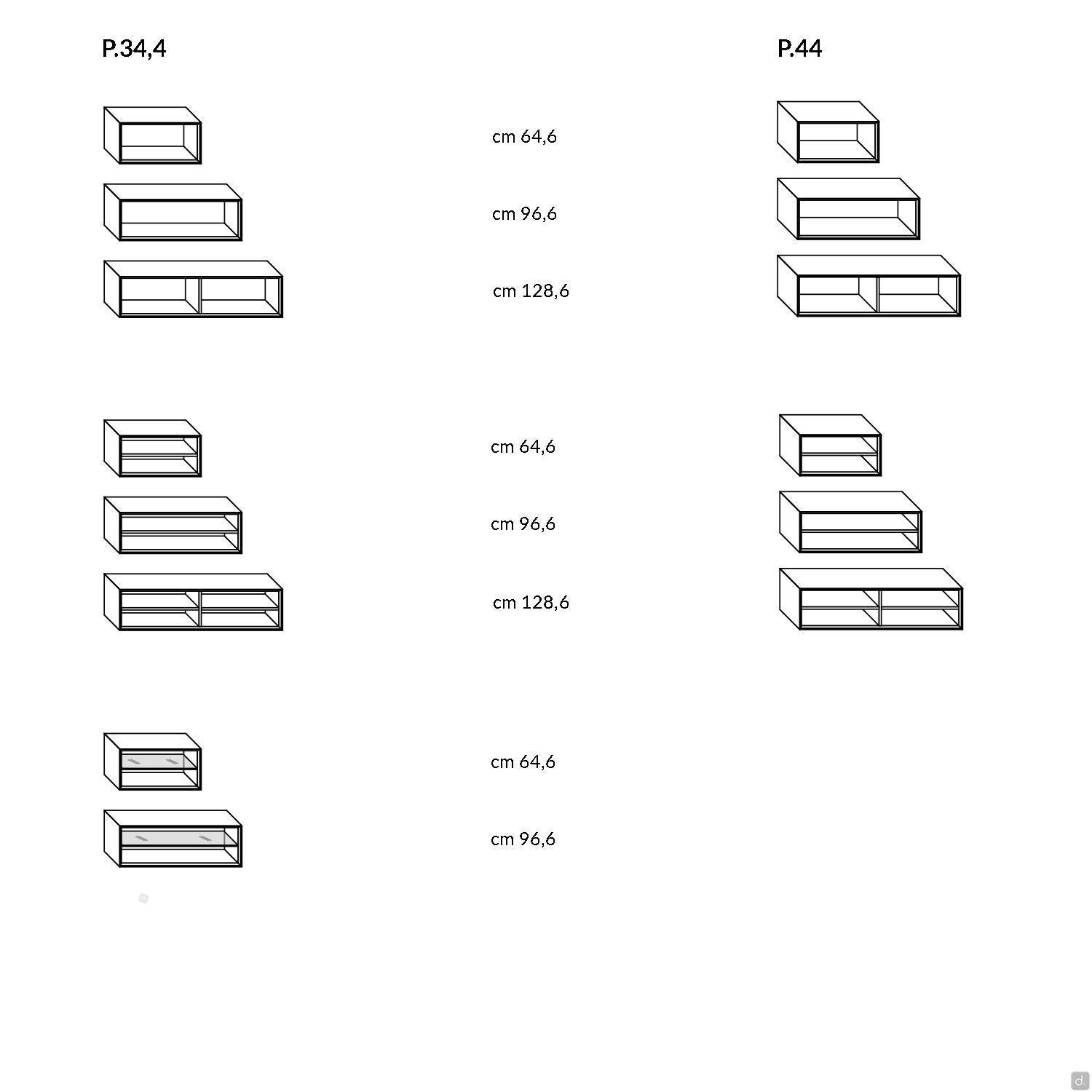

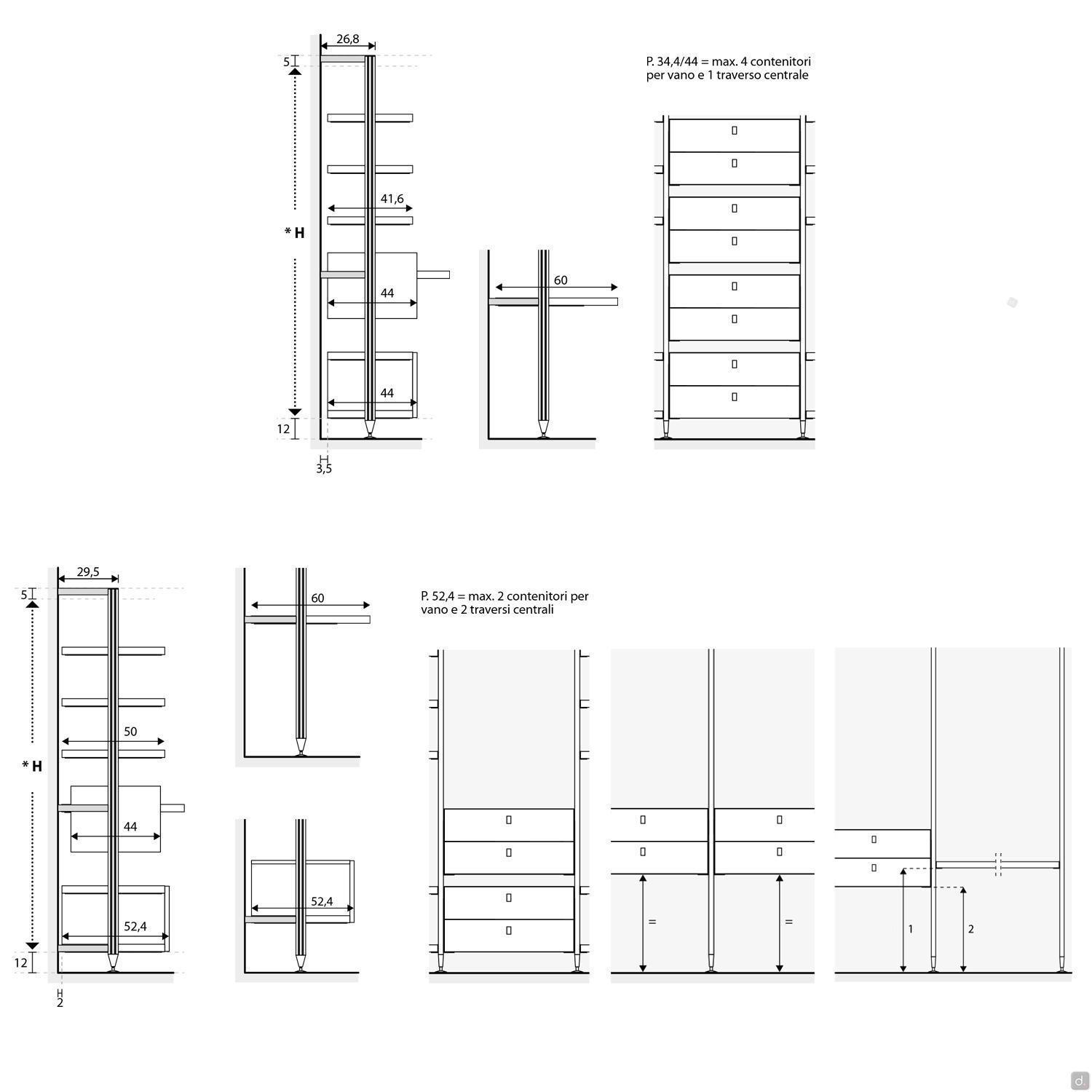

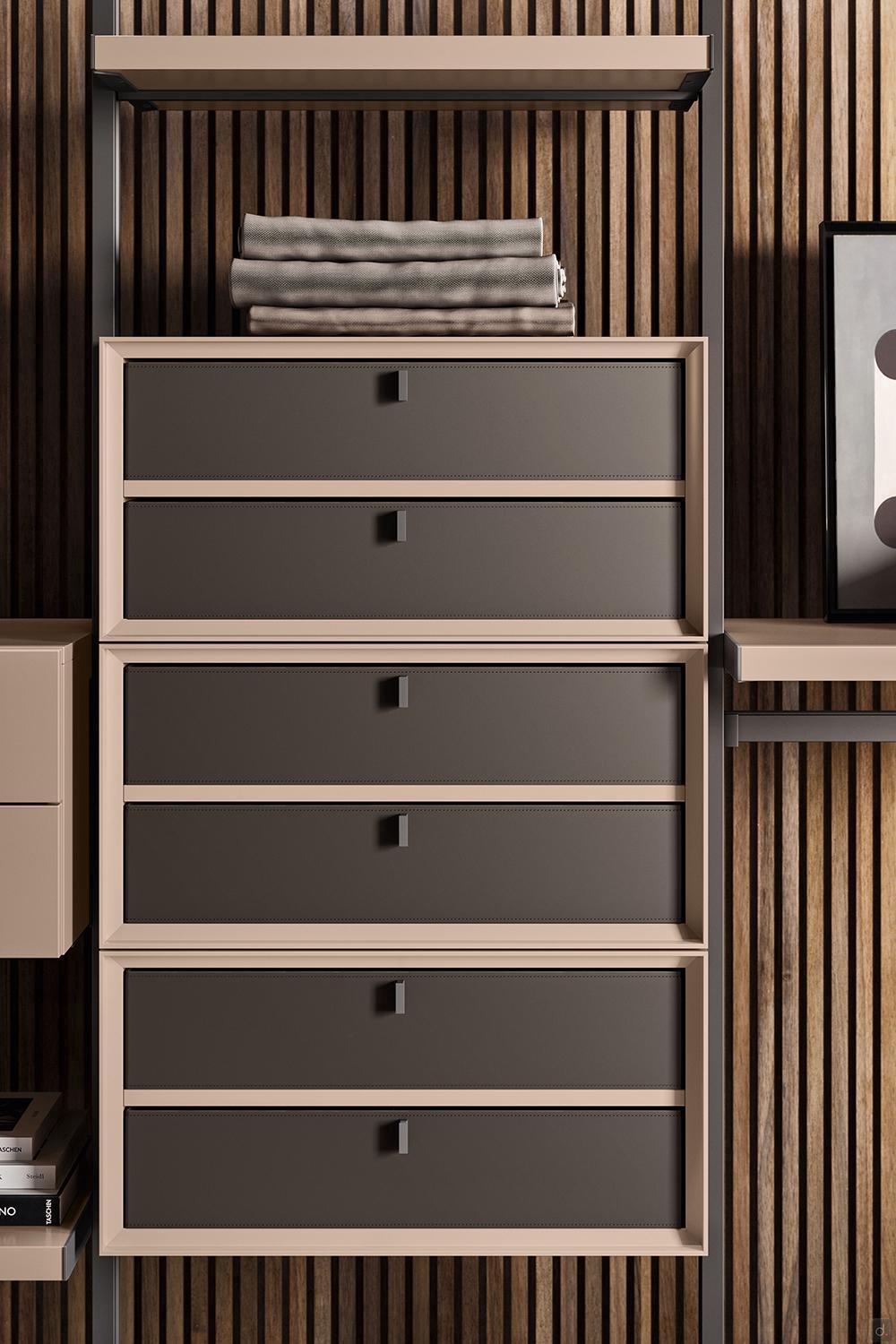

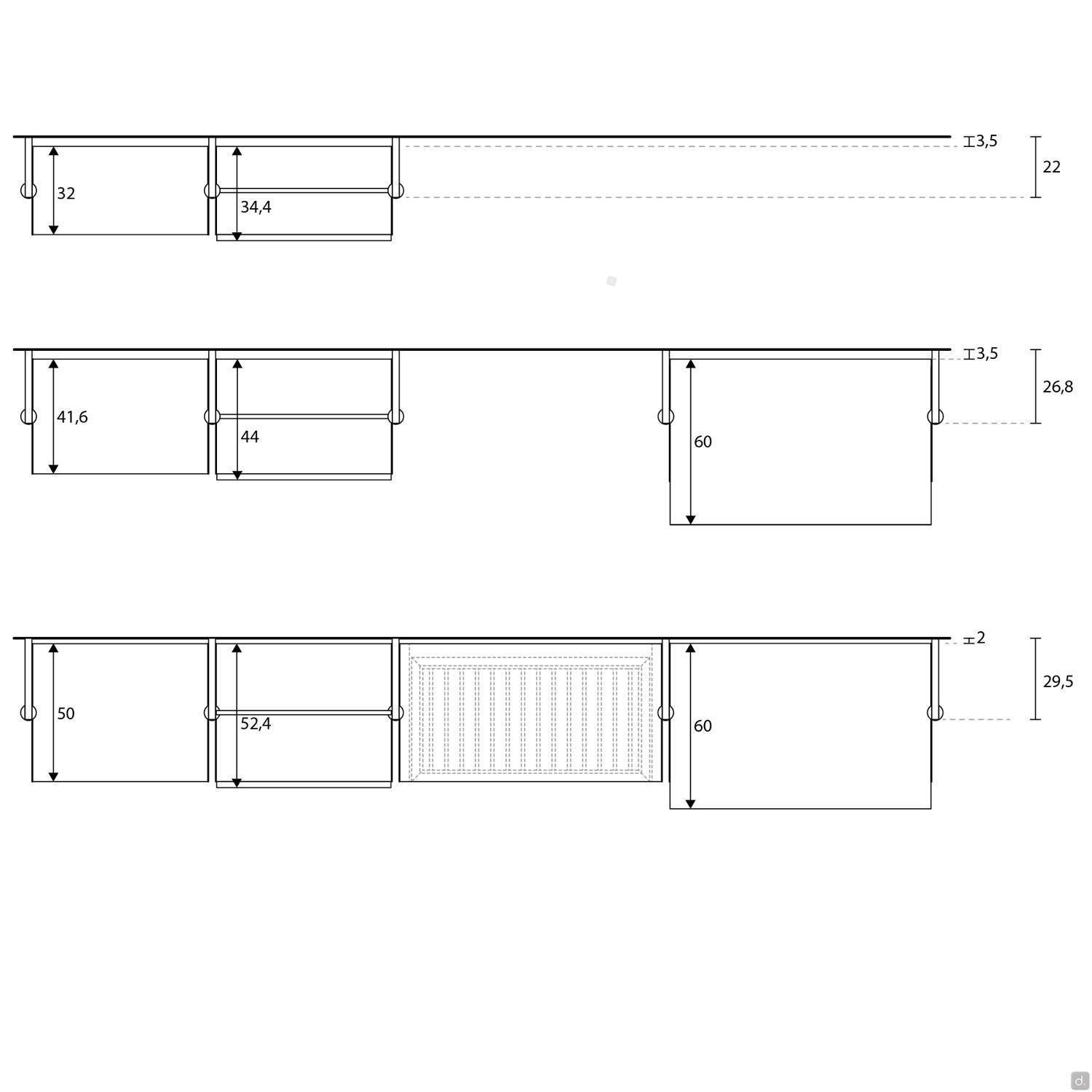

Storage box (for wall-mounted version): not finished at the back, equipped with a back panel which is 0,8cm thick (1,4 cm thick for open compartments). The lower storage container is finished at the bottom and features painted-metal brackets (Moka Shine / nickel finish) for fixing it to the uprights. The drawers are equipped with a standard soft-closing system. Please note:

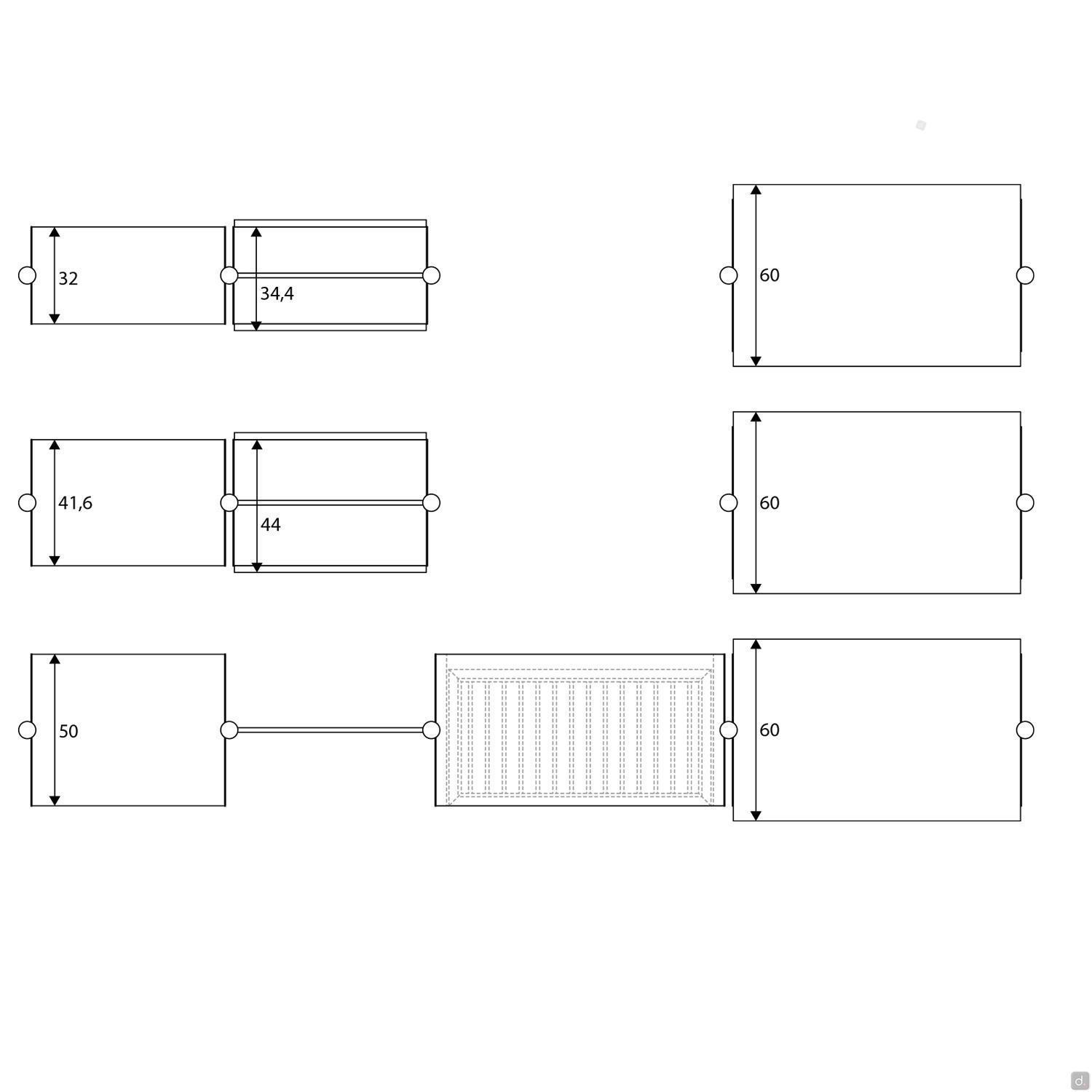

- the maximum number of d.34,4 / 44 cm storage boxes per gap is 4;
- the maximum number of d.52,4 cm storage boxes per gap is 2;
- p.52,4 cm storage boxes in consecutive gaps must be positioned at the same height (aligned at the bottom);
- a d.52,4 cm storage box and a desk positioned in consecutive gaps, cannot be positioned at the same height.

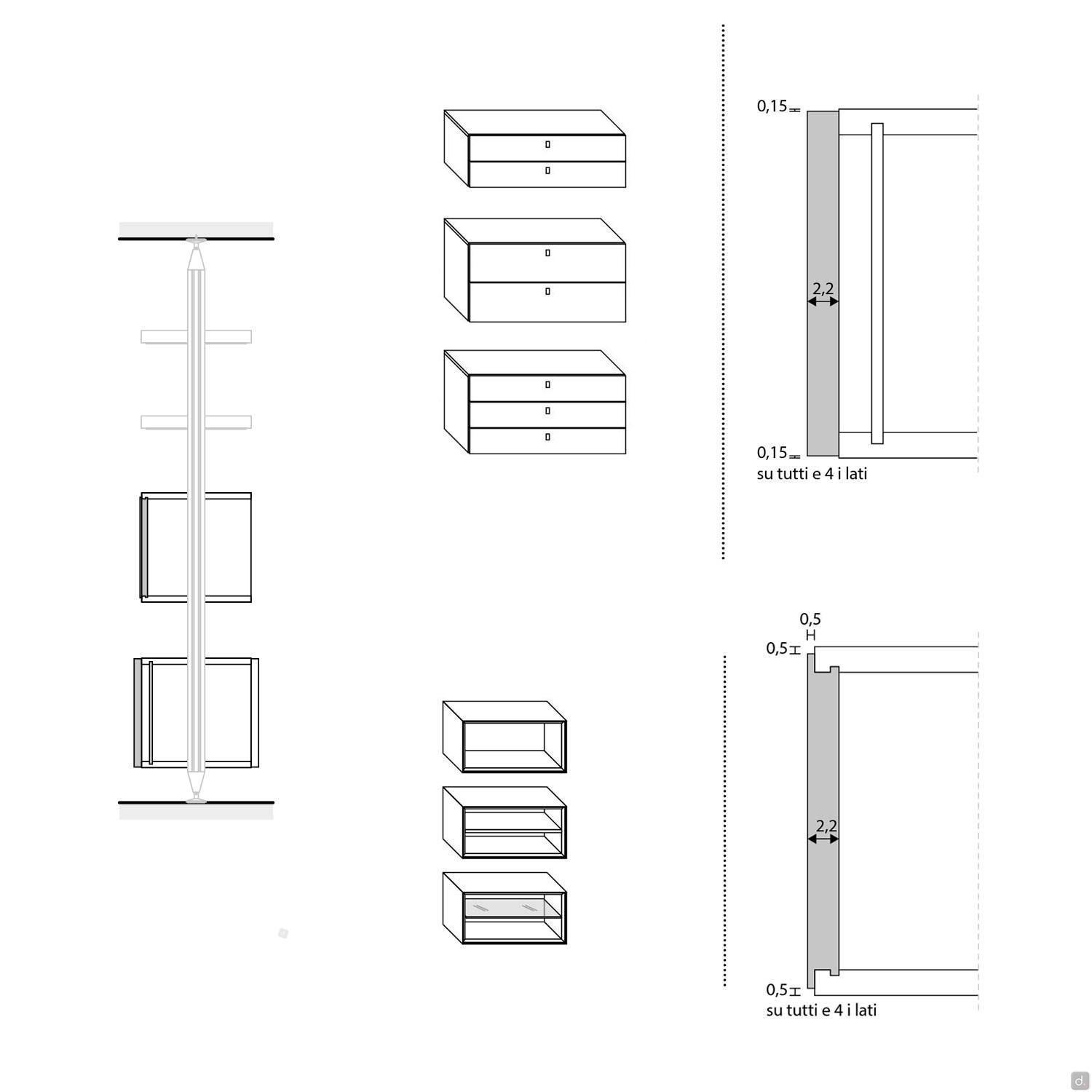

Storage box (for ceiling-mounted versions): finished at the back, equipped with a fixed back panel which is 2,2 cm thick, in addition to the internal back panel which is 0,8 cm thick (the open storage compartments are only equipped with a fixed back panel which is 2,2 cm thick). The lower storage container is finished at the bottom and features painted-metal brackets (Moka Shine / nickel finish) for fixing it to the uprights. The drawers are equipped with a standard soft-closing system.

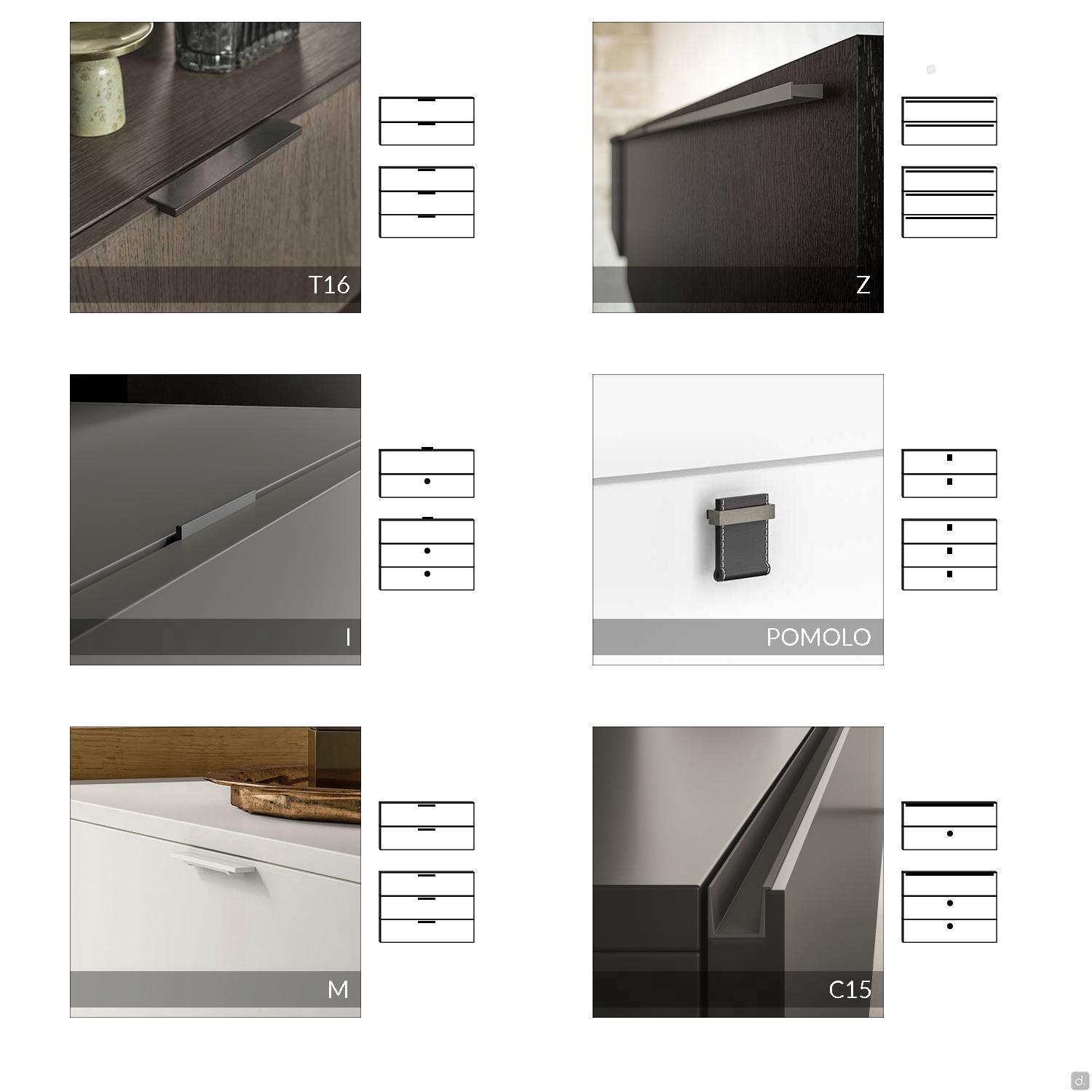

Opening type:

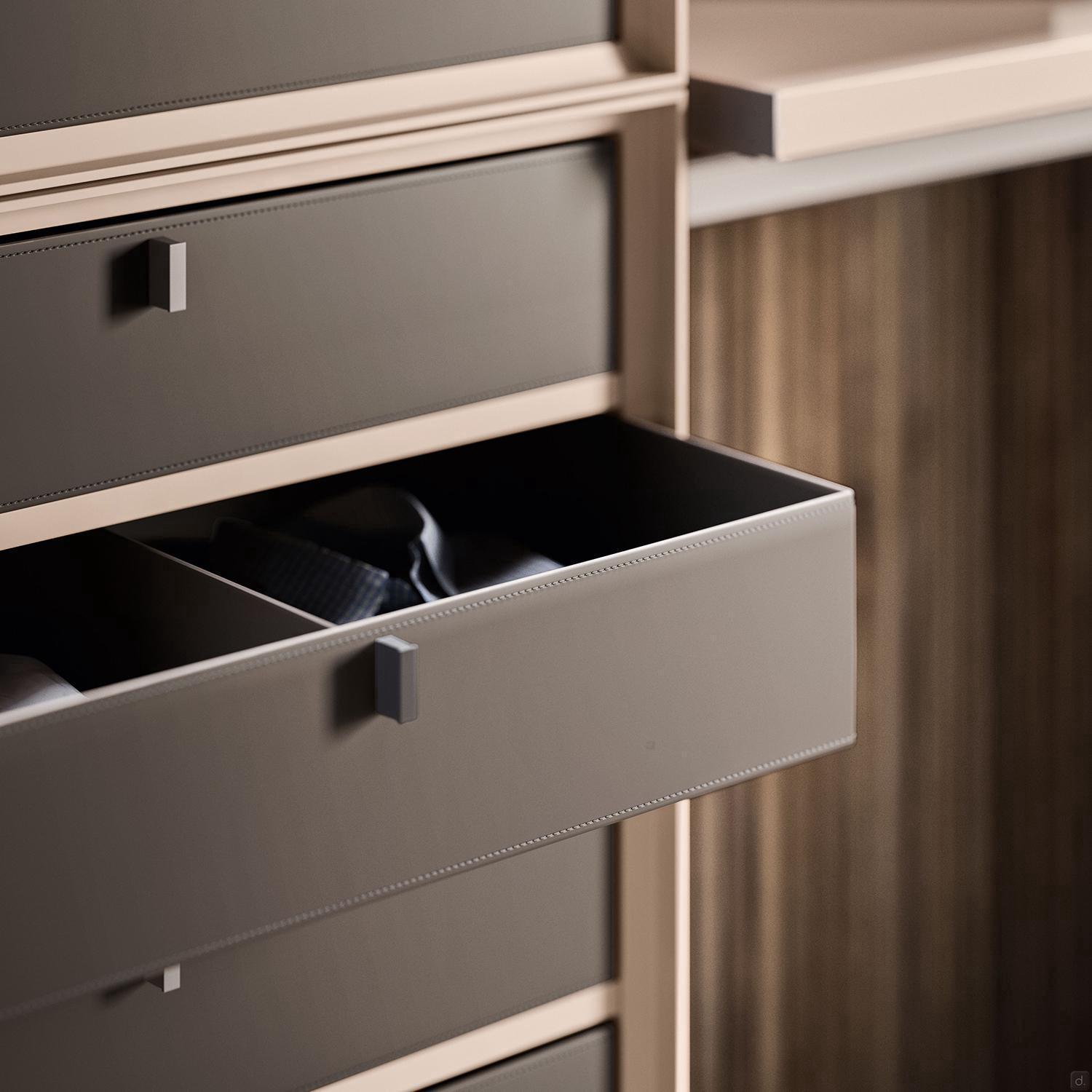

- handle I: cm 10 d.0,2 h.0,65 in Moka Shine, nickel, white painted metal or matt lacquer (only for upper drawer, lower drawer(s) equipped with a push-pull opening system);
- handle T16: cm 19 d.3,3 h.0,8 in Moka Shine, nickel, white painted metal or matt lacquer;
- handle M: cm 10,2 d.1,4 h.0,3 in Moka Shine, nickel, white painted metal or matt lacquer;
- handle Z: cm d.1,8 h.0,9 in Moka Shine, nickel, white painted metal or matt lacquer;
- knob handle: cm 4,1 d.1,6 h.4,1 in Moka Shine painted metal with knob handle covered in grey hide-leather;
- handle C15: cm d.1,7 h.1,4 in Moka Shine, nickel, white painted metal or matt lacquer (only for upper drawer, lower drawer(s) equipped with a push-pull opening system);
- push-pull.
Optional
total extraction: available for storage units with drawers.

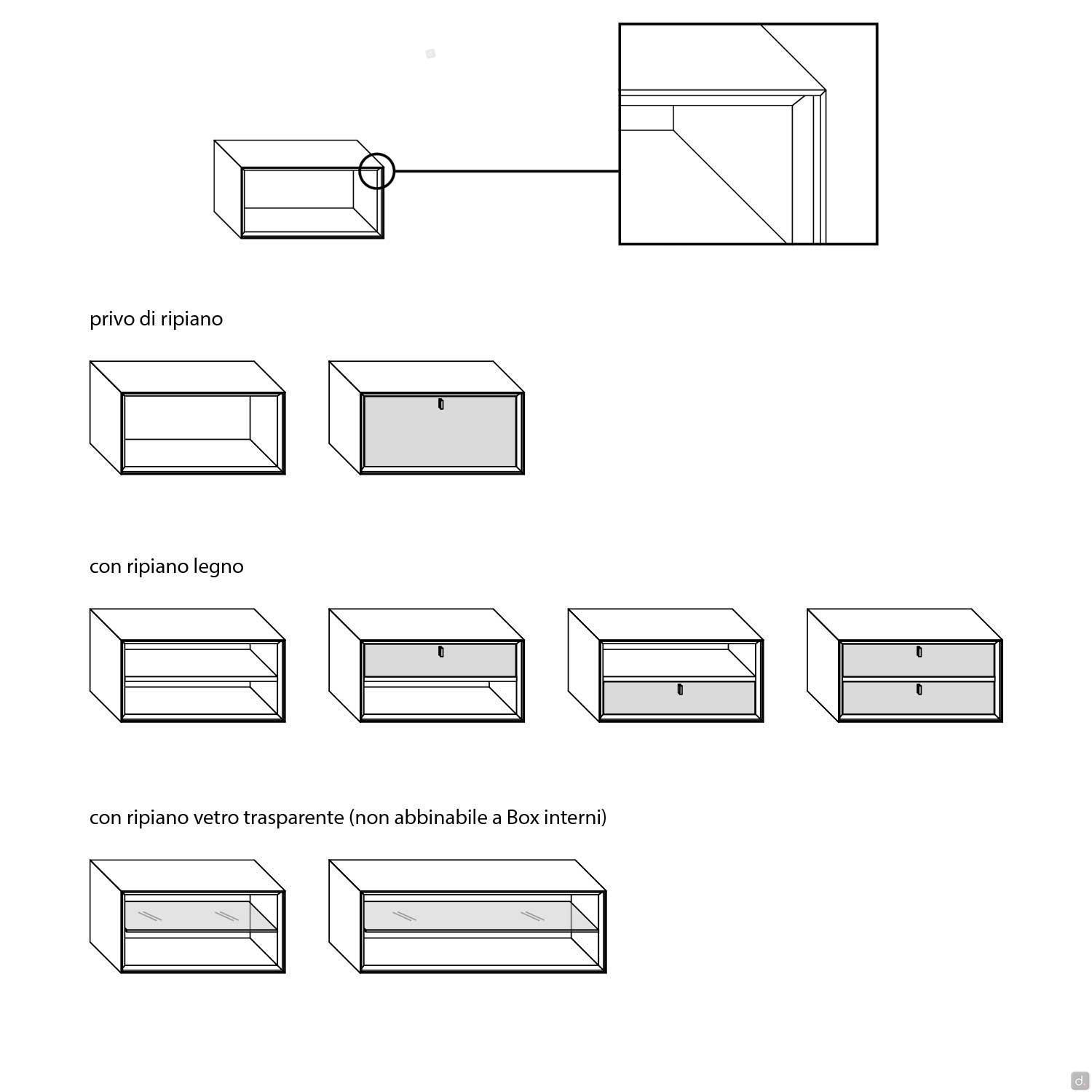

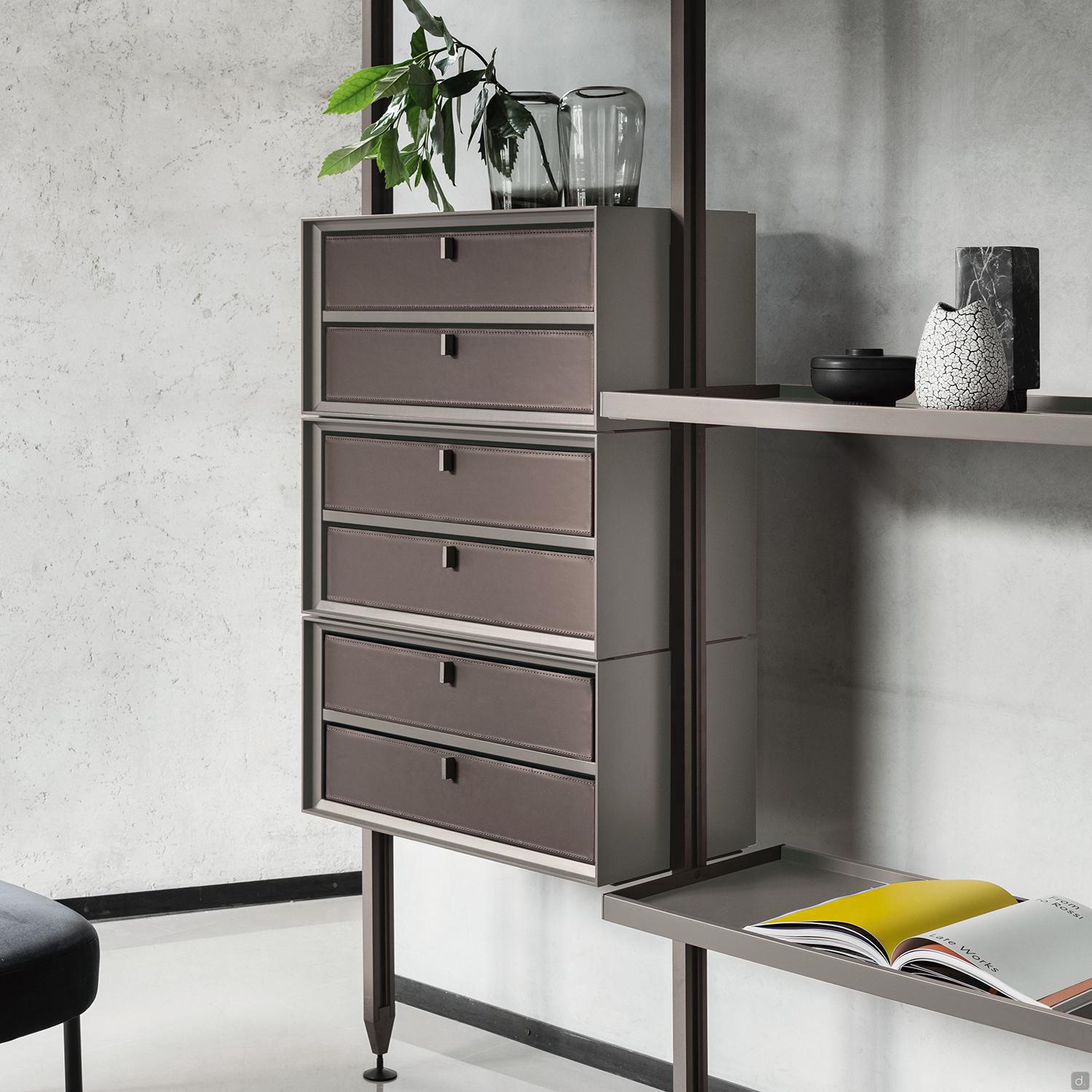

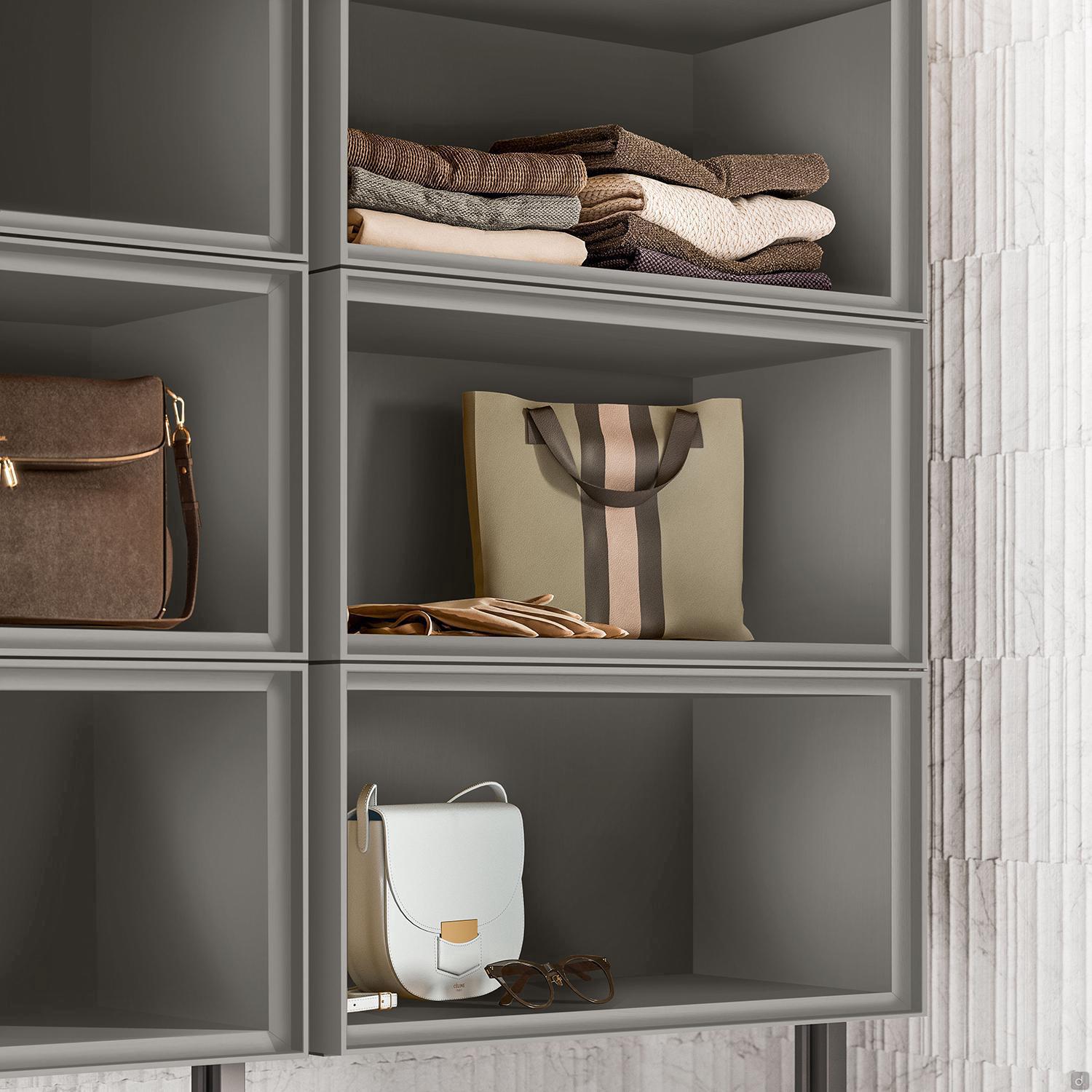

internal box: only available for open storage compartments (64,6 d.34,4 cm) without a shelf or with a wooden shelf. Covered in hide leather with a central handle in Moka Shine painted metal, available in the following measurements; cm 59 d.30,2 h.12,7 or cm 59 d.30,2 h.27,4.
set of cable holes: only available for open storage compartments. includes a rectangular cable hole (cm 18 x 5) with aluminum cover on the top and two round cable holes in black PVC (cm Ø 6) positioned one above the other in the centre of the back panel.
custom width: reduction in width for the cm th.3,5 shelf / cm th.1,4 shelf tray in folding finish / clothes rail / shoe-rack shelf / desk / storage box with drawers.
