Materials Specifications
Panel, shelf, uprights, floor panel: made with E1 class particle wood panel with low formaldehyde emission.

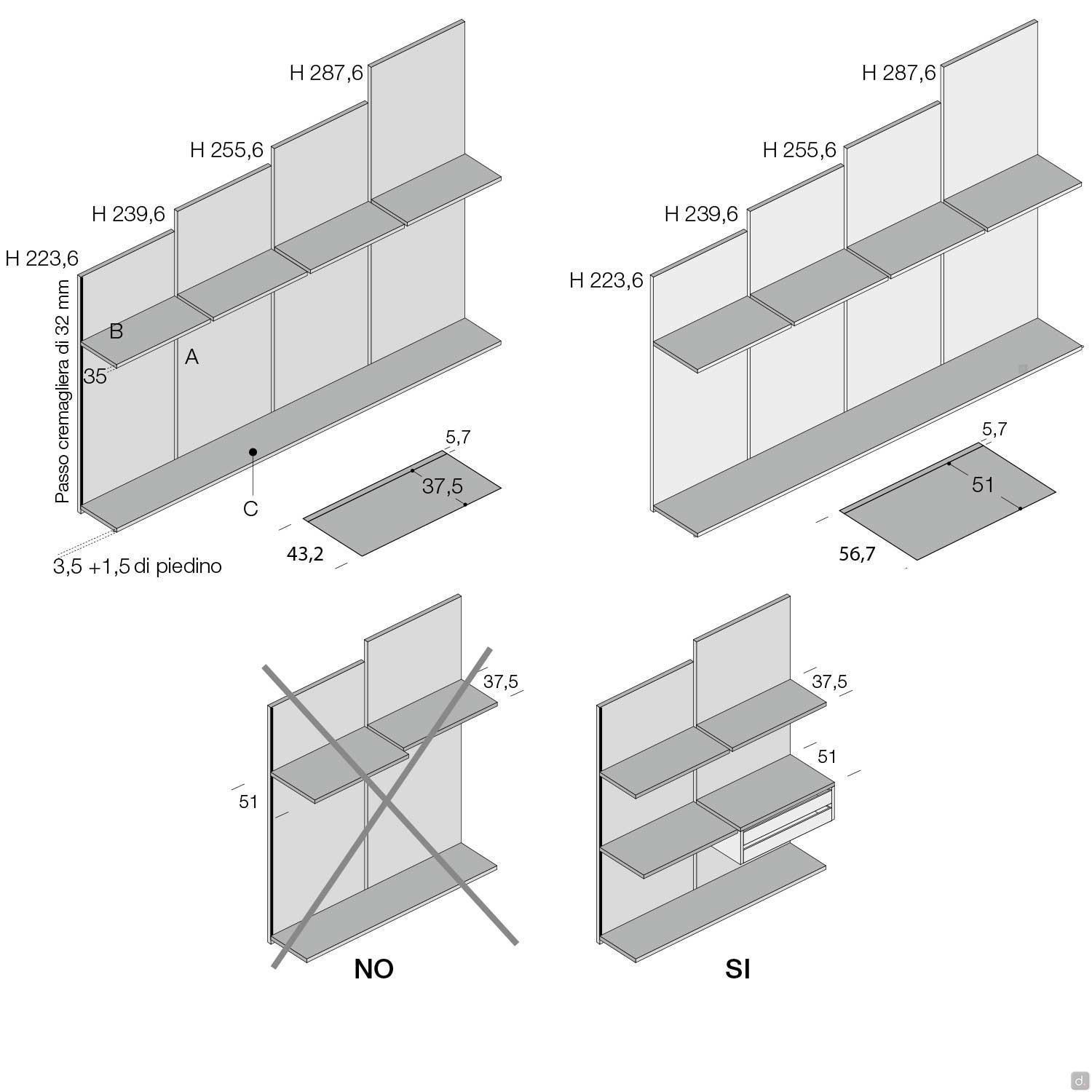

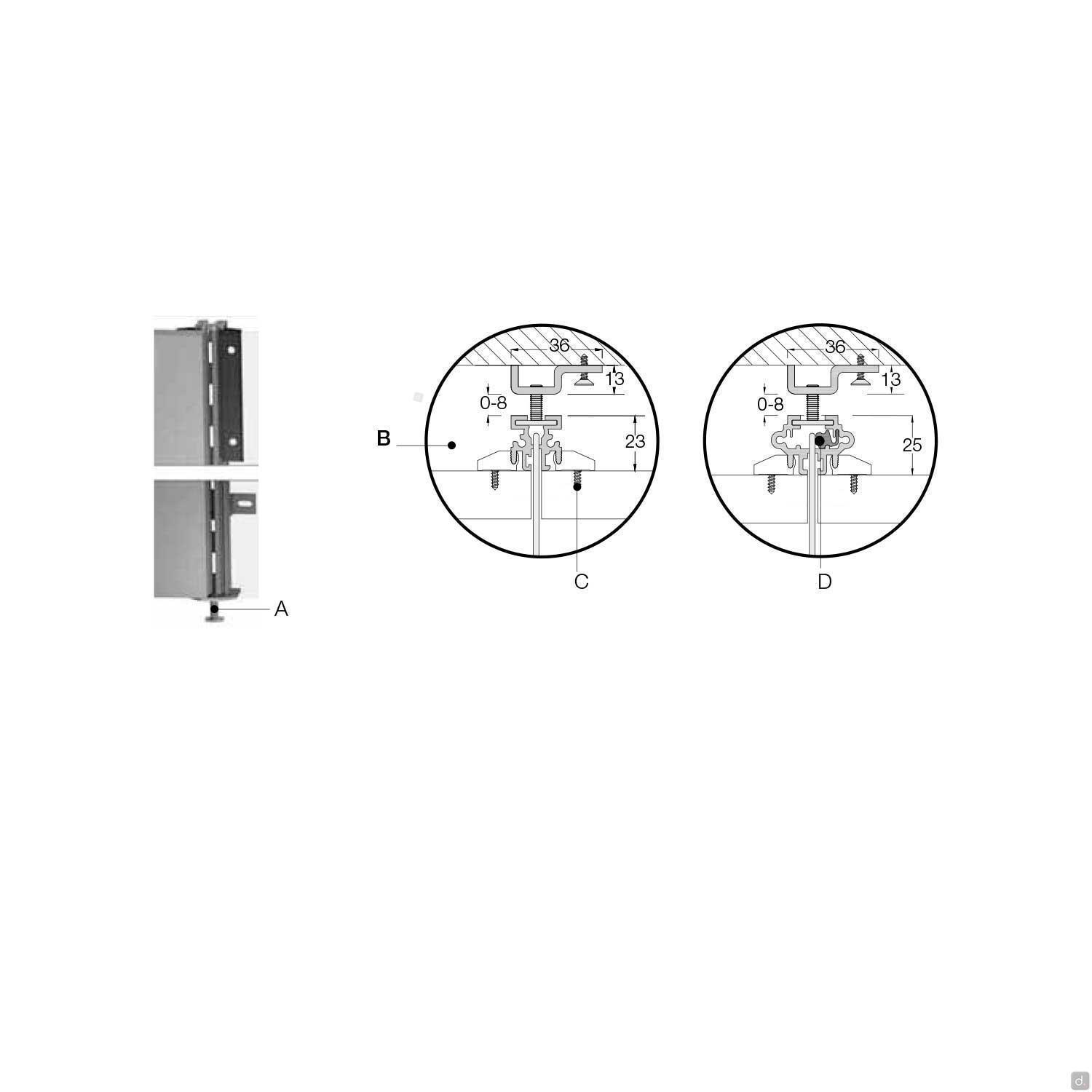

Profile with rack: anodized aluminium passage 32 mm.
Technical Specifications and Equipment

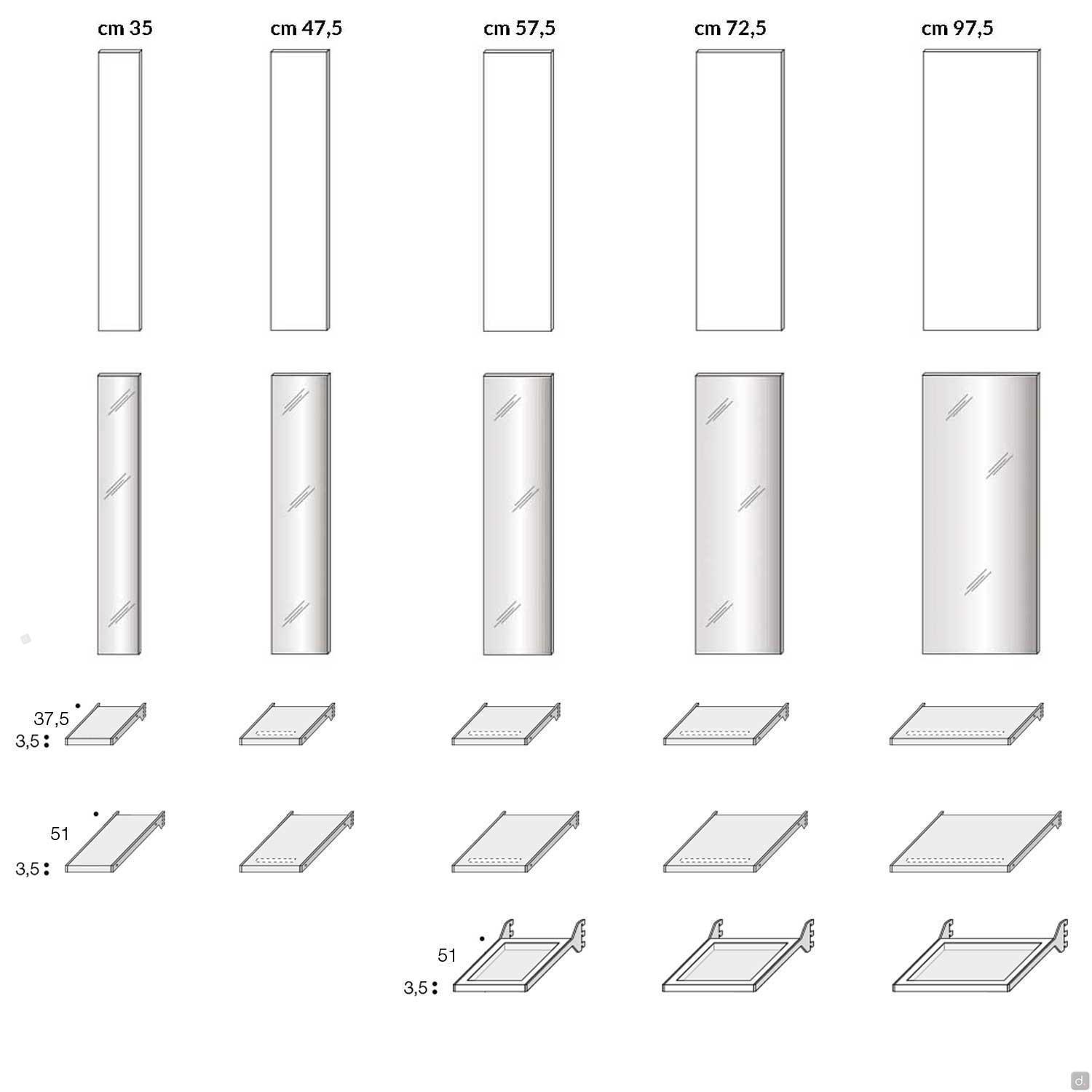

Panel: cm th.2.
- wood version: melamine or matt lacquer with polyurethane paints;
- mirror version: melamine panel with melamine paper th.1,5 + Silver or Dark mirror cm th.0,4.

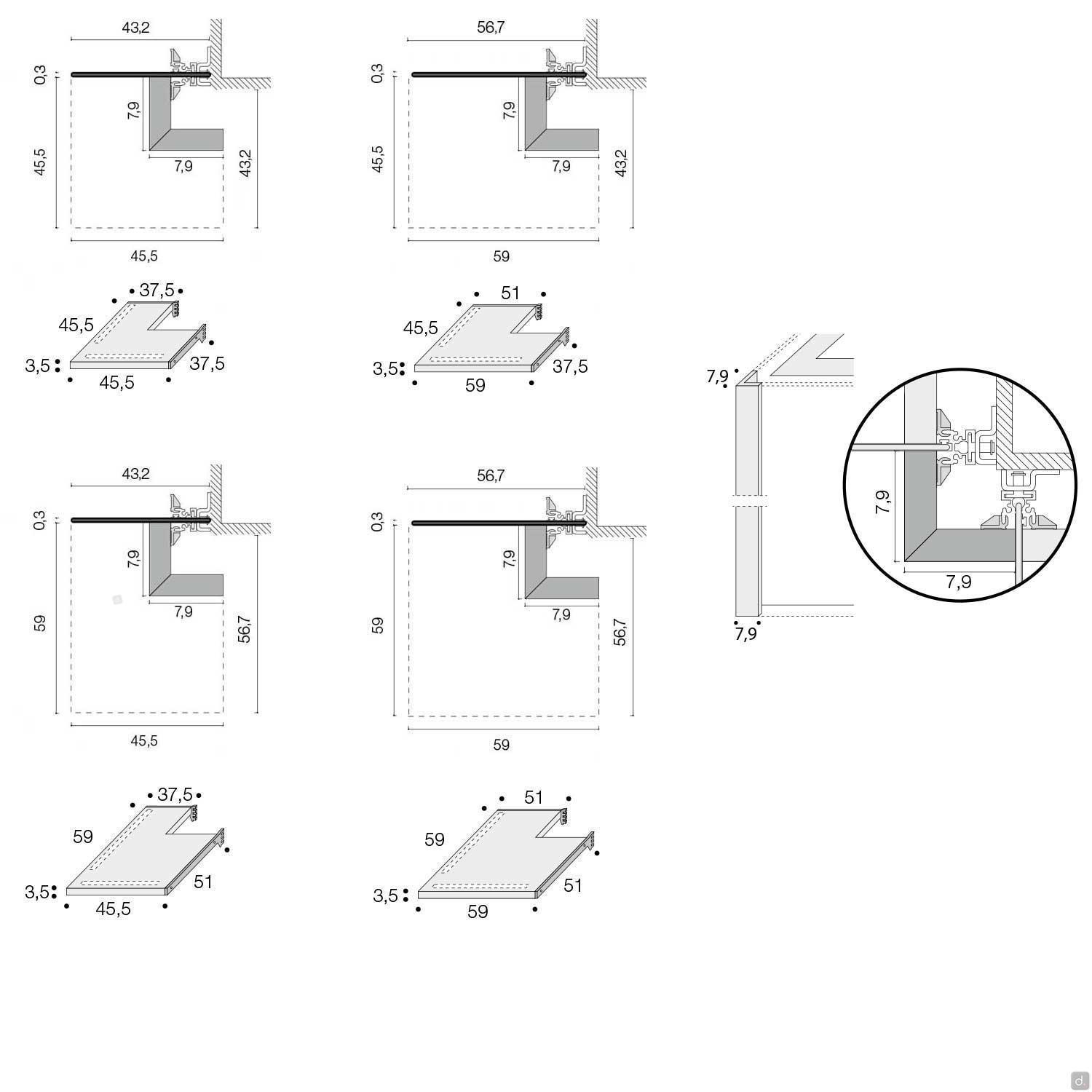

Shelf: panel equipable with n.1, 2 o 3 shelves cm th.3,5. With metal brackets.
- wood version: melamine or matt lacquer with polyurethane paints, board in ABS matching the panel;
- glass version: chassis 4 sides in aluminium cm 3,5 x 2,4 Titanium or Brown finish inside of which it's inserted a transparent tempered glass cm th.0,4 (only available for closet cm d.56,7).

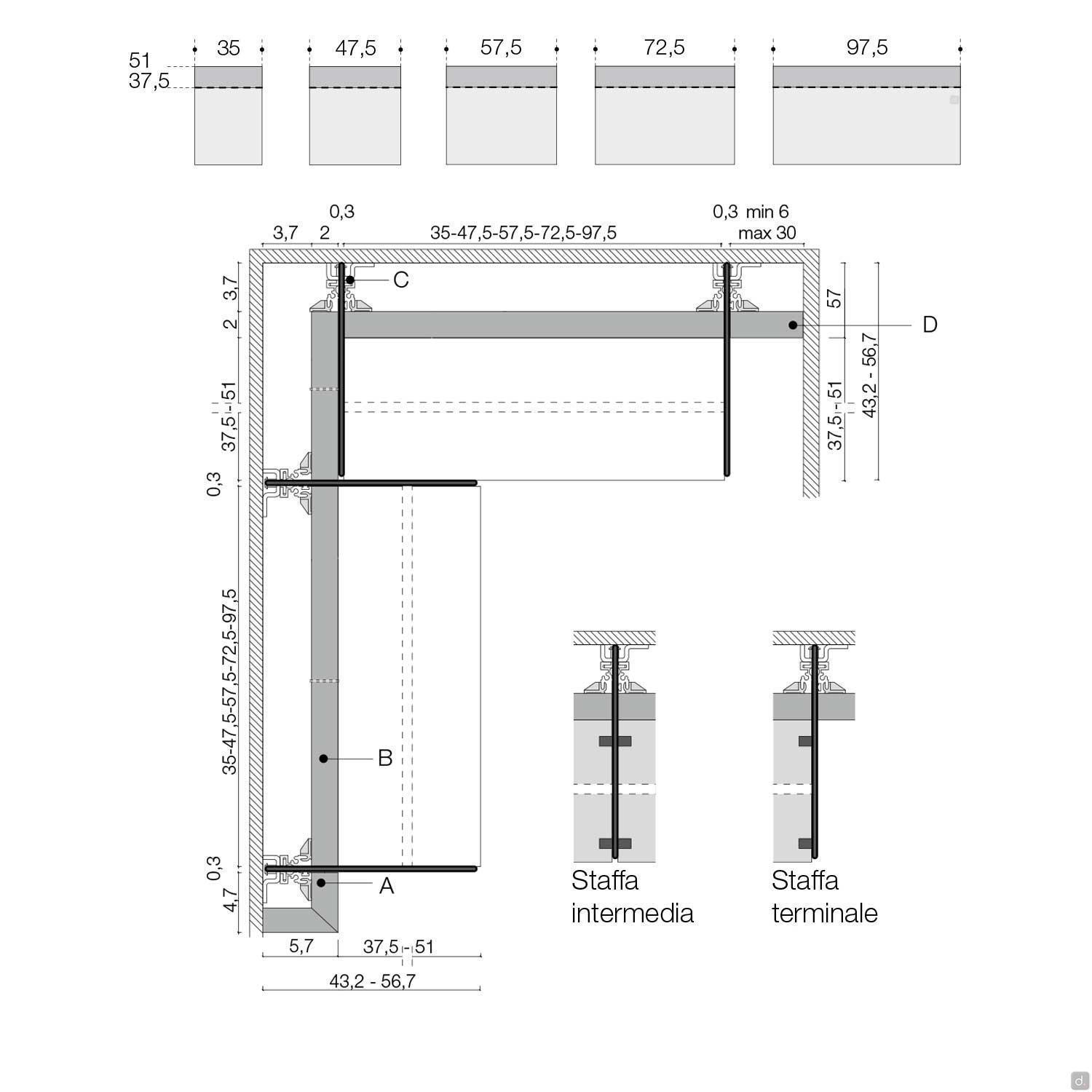

Shelf Brackets: cm th.0,3 metal with polyurethane paint and epoxied powder Titanium or Brown finish, with three-dimensional regulation.

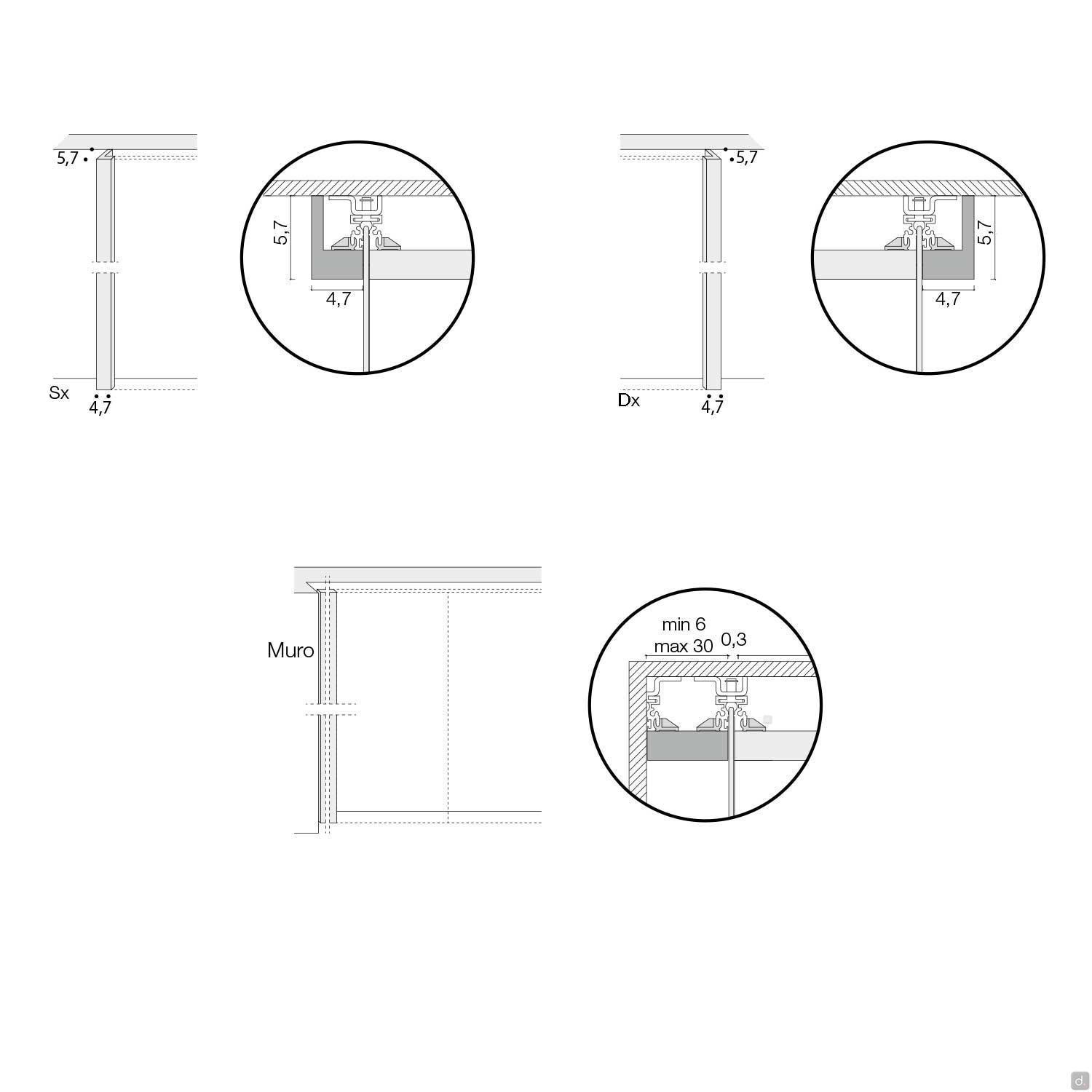

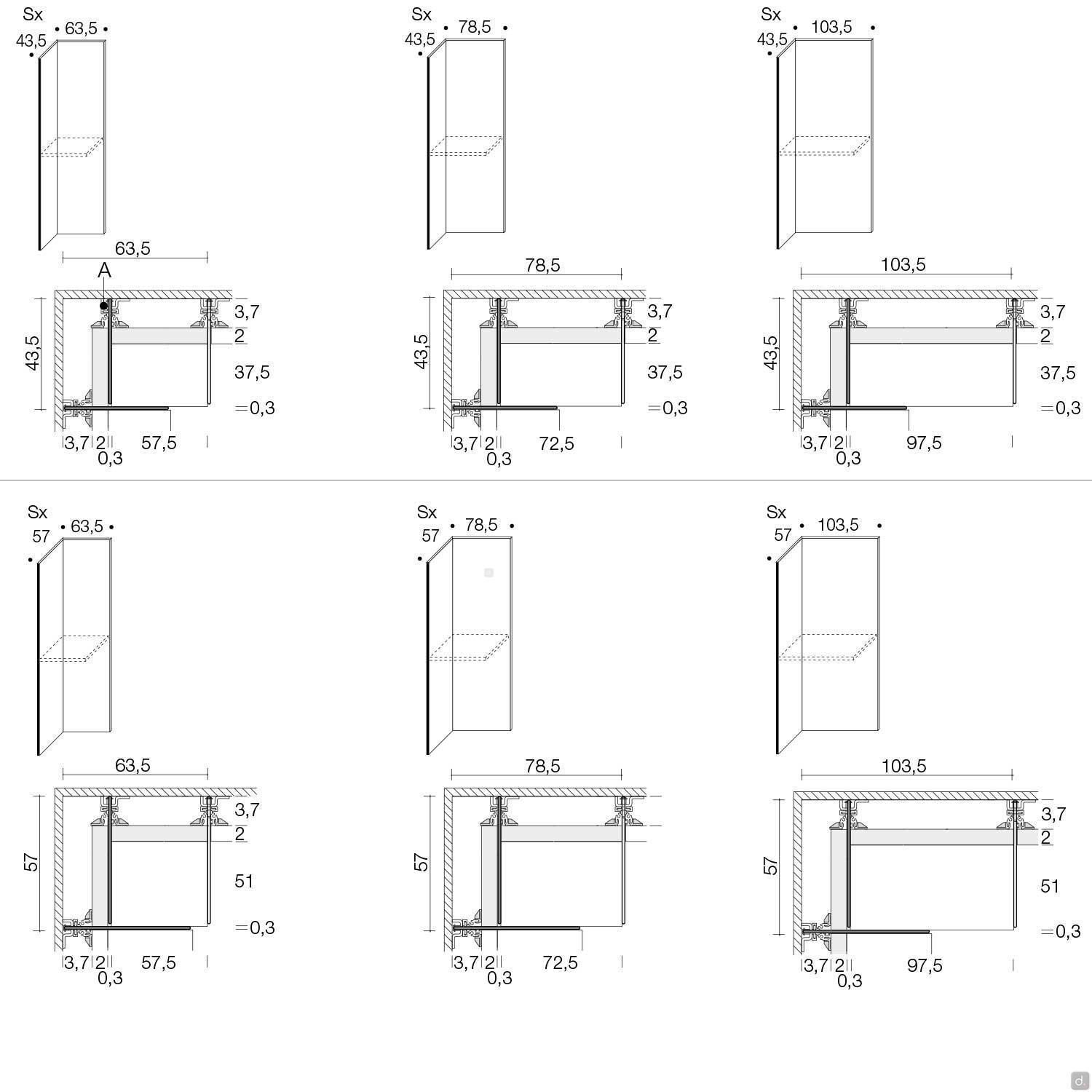

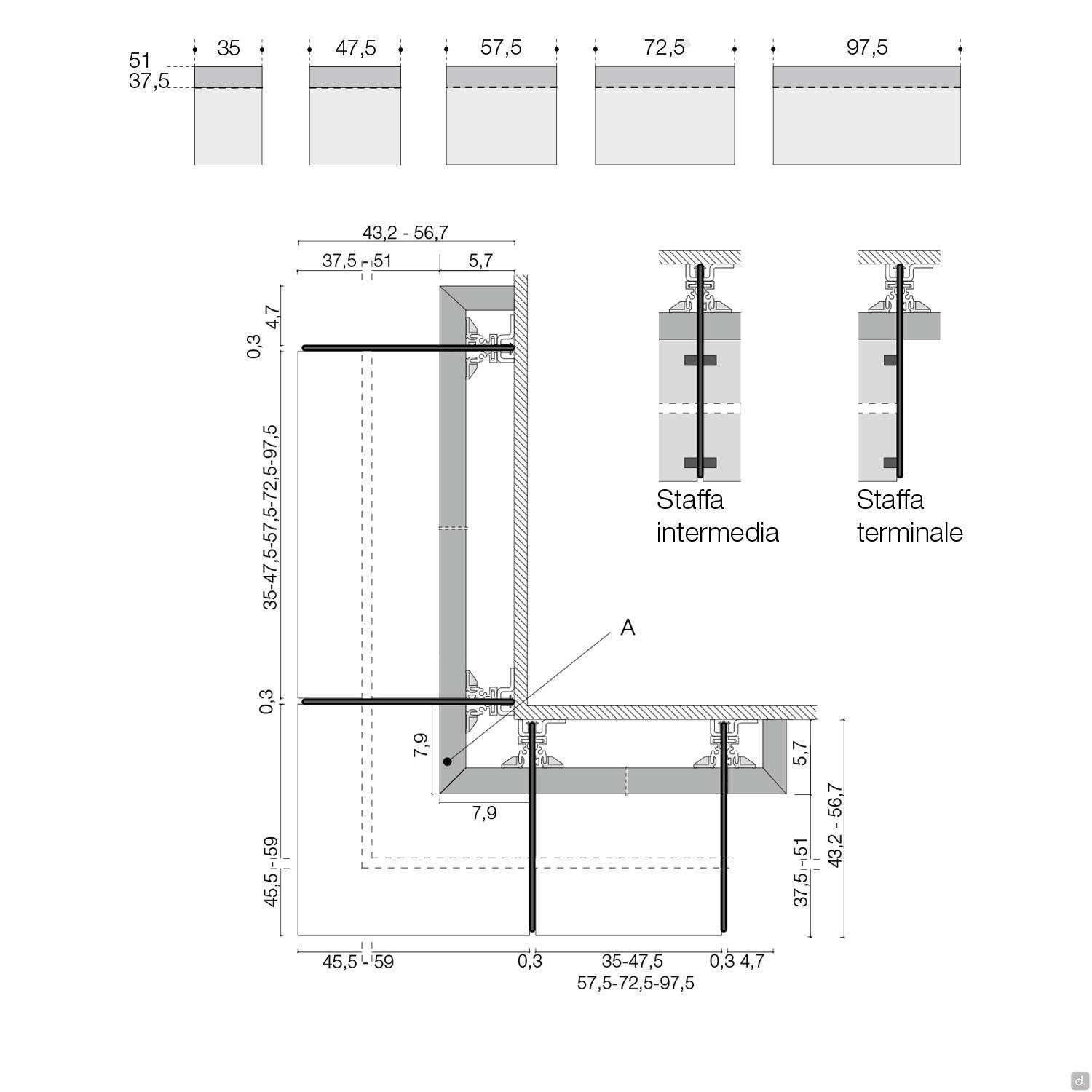

Infill Upright: cm d.5,7 to be placed at the initial and final point of the composition.
- standard: cm 4,7 melamine or matt lacquer with polyurethane paints;
- bespoke: min. cm 6 / max. cm 30 with panel cm th.2 melamine or matt lacquer with polyurethane paints; to be placed as infill band on the wall (instead of the standard or bespoke upright at the initial and final points).
Please note: final upright with profile with rack (+ cm 0,3).

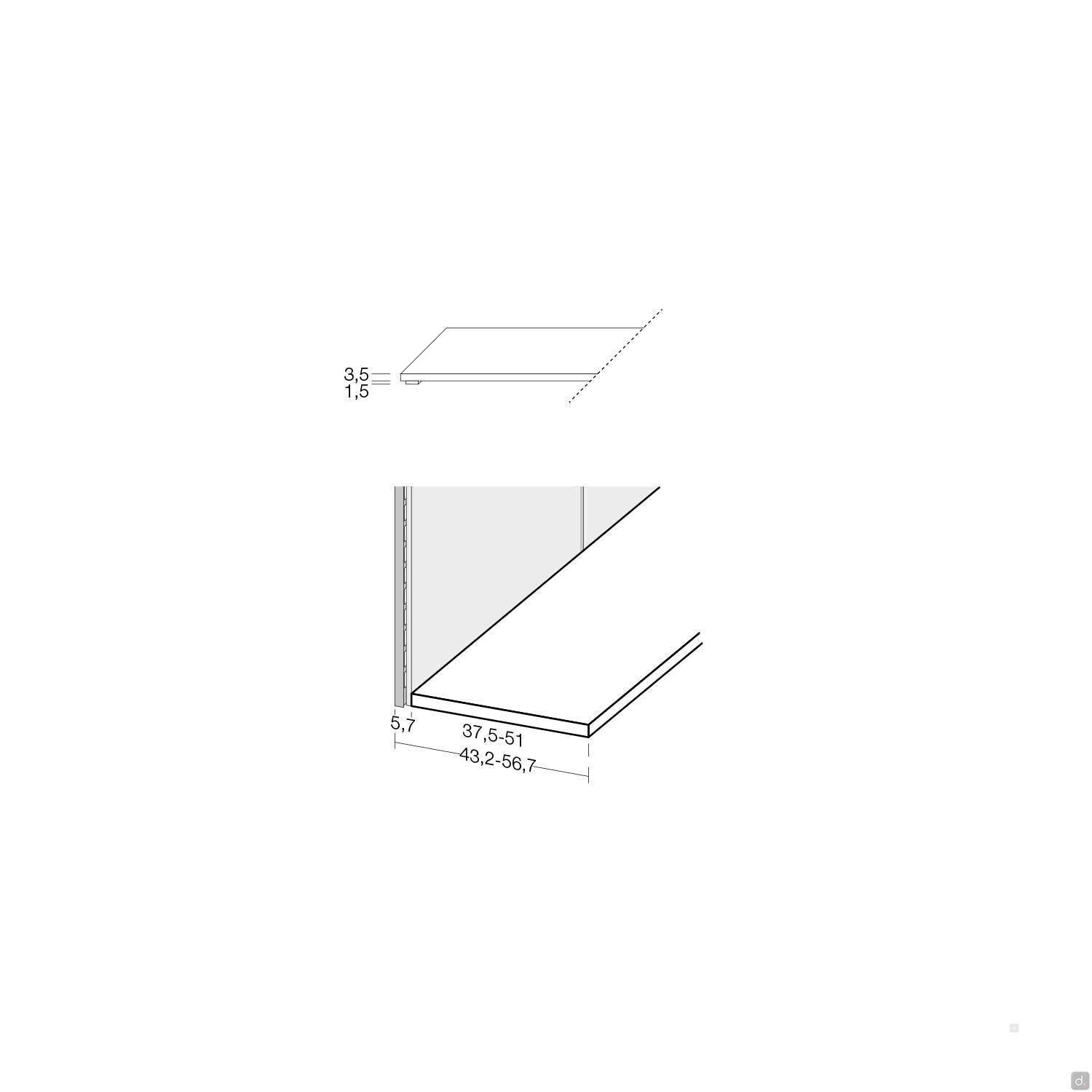

Floor Panel: bespoke width in melamine, matt lacquer or polyurethane paint, metallic lacquered or wood veneer. Thickness cm 3,5 with adjustable feet(+ cm h.1,5). Board in ABS matching the panel
Optional - Shelf
pull-out hanging rail: for closet cm d.43,2. Burnished aluminium guides and white pull-out hook.
hanging rail: for closet cm d.56,7. Rectangular section cm 3 x 1 in painted metal Titanium and Brown with transparent anti-slip rubber. Supporting metal tube cm 2,4 x 1 h.7,7.
LED bar: LED 3000 K, the electric impulse is transmitted through the stainless steel brackets of the shelf and the electrified rack profile, equipped with an electric cable that can be connected to the power supply (positioned in the gap between panel and wall)
Lights switching with connection to domestic power grid or with remote:
- remote kit (optional): remote kit is needed to use the radio-frequencies switching, it holds power supplies up to 3000 W. It can be used for all the lighting systems (if you use more than one power supply, consider buying a power strip).
