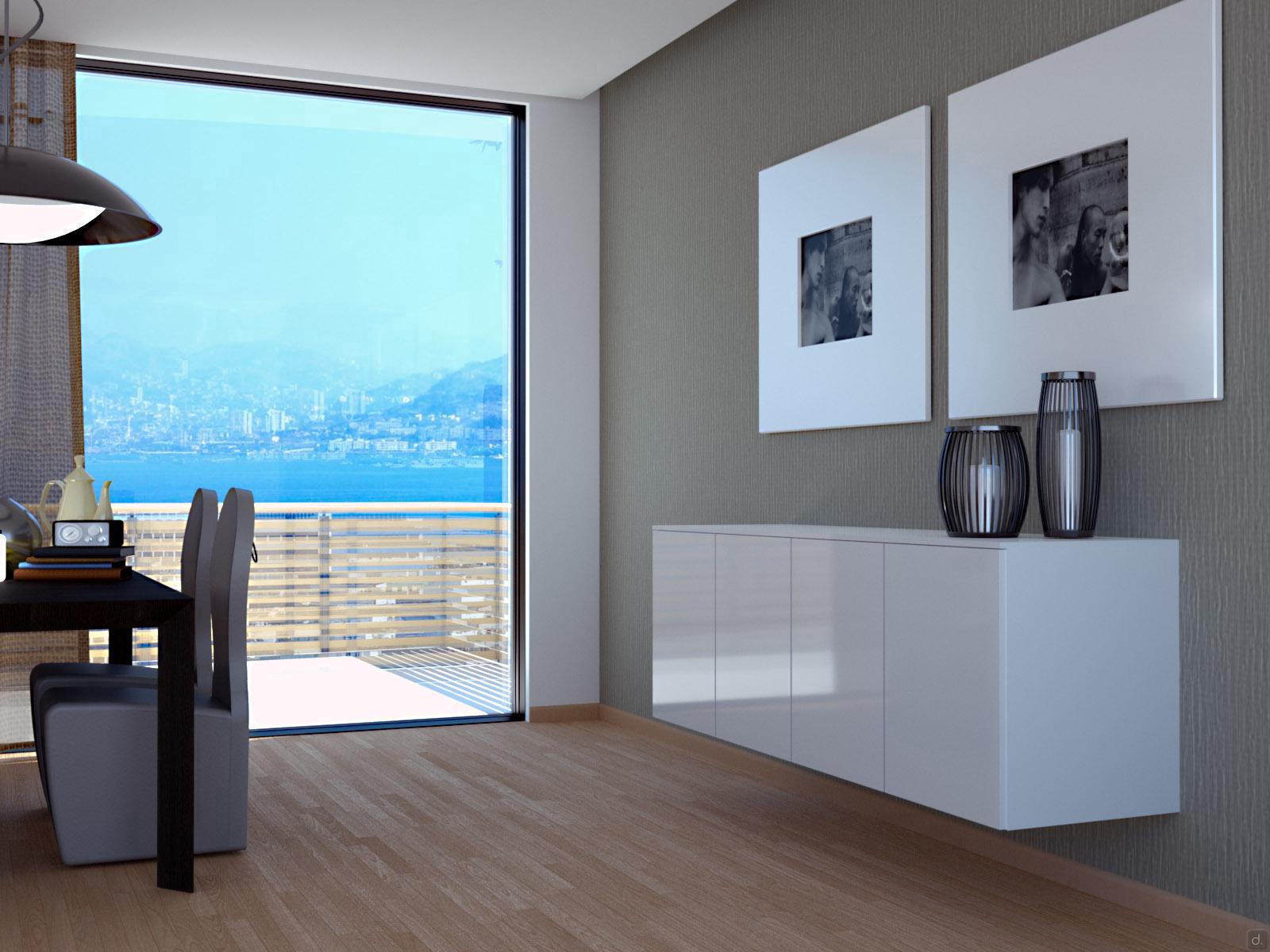

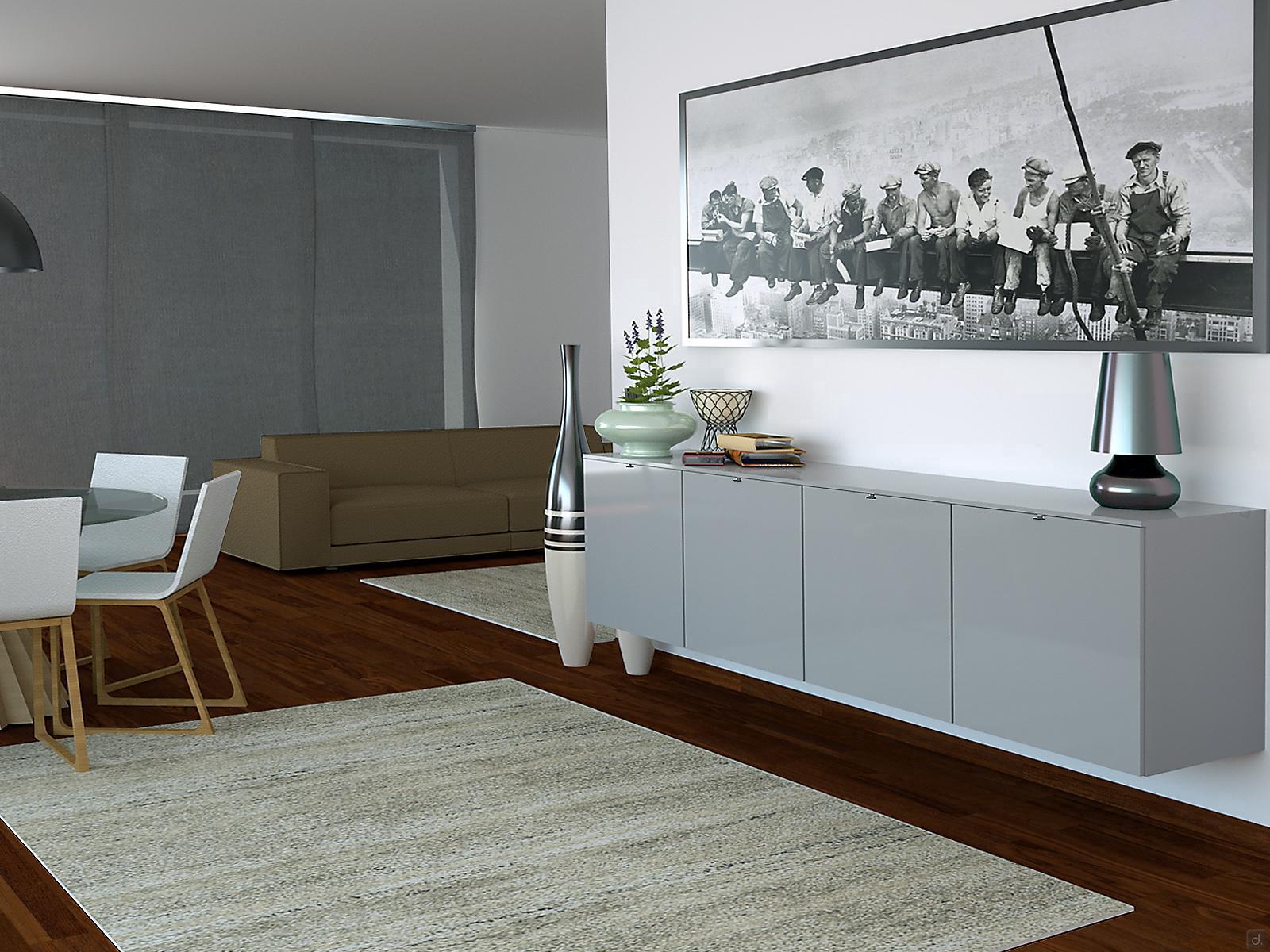

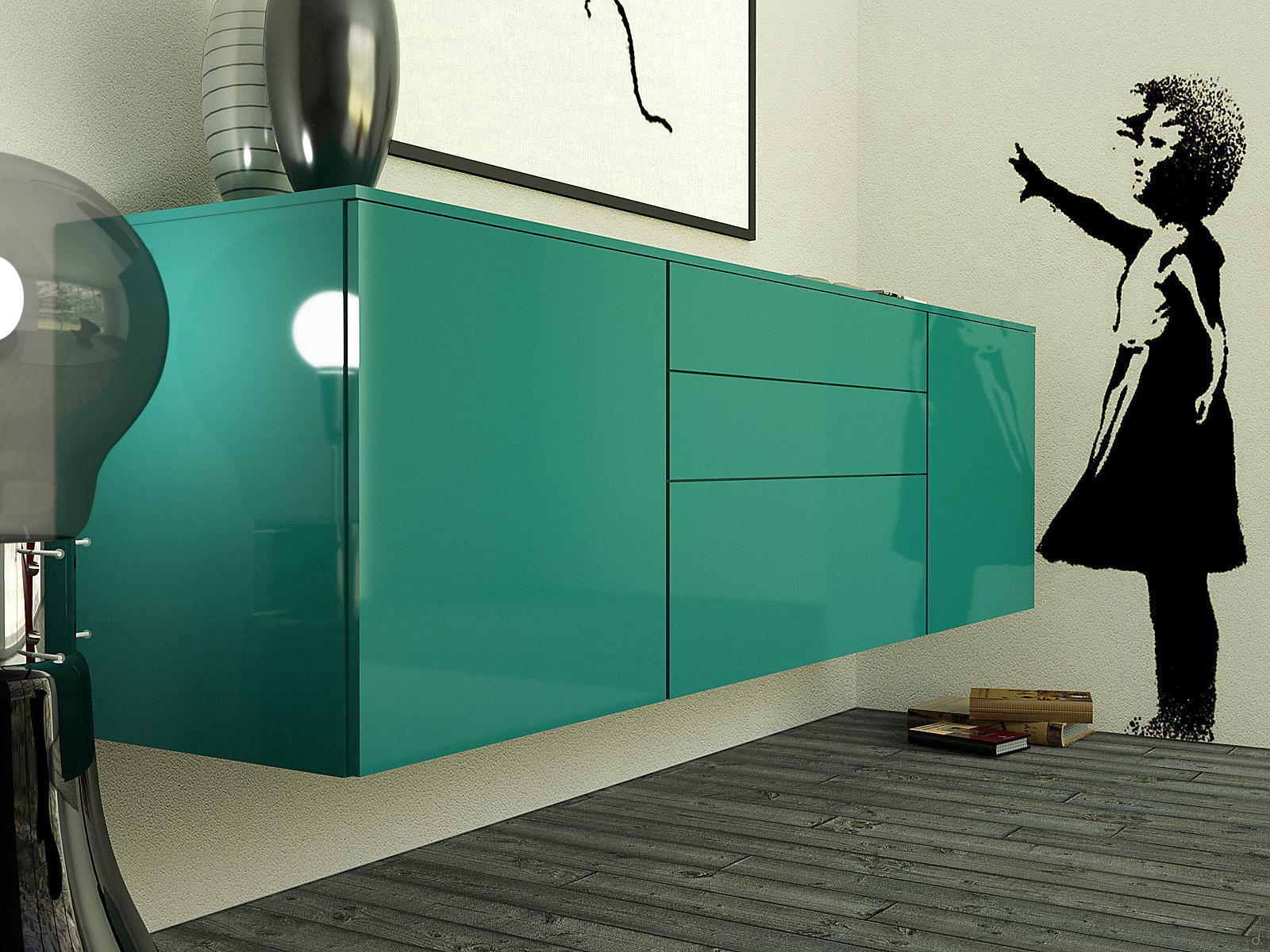

Plan lacquered hanging sideboard with 4 hinged doors

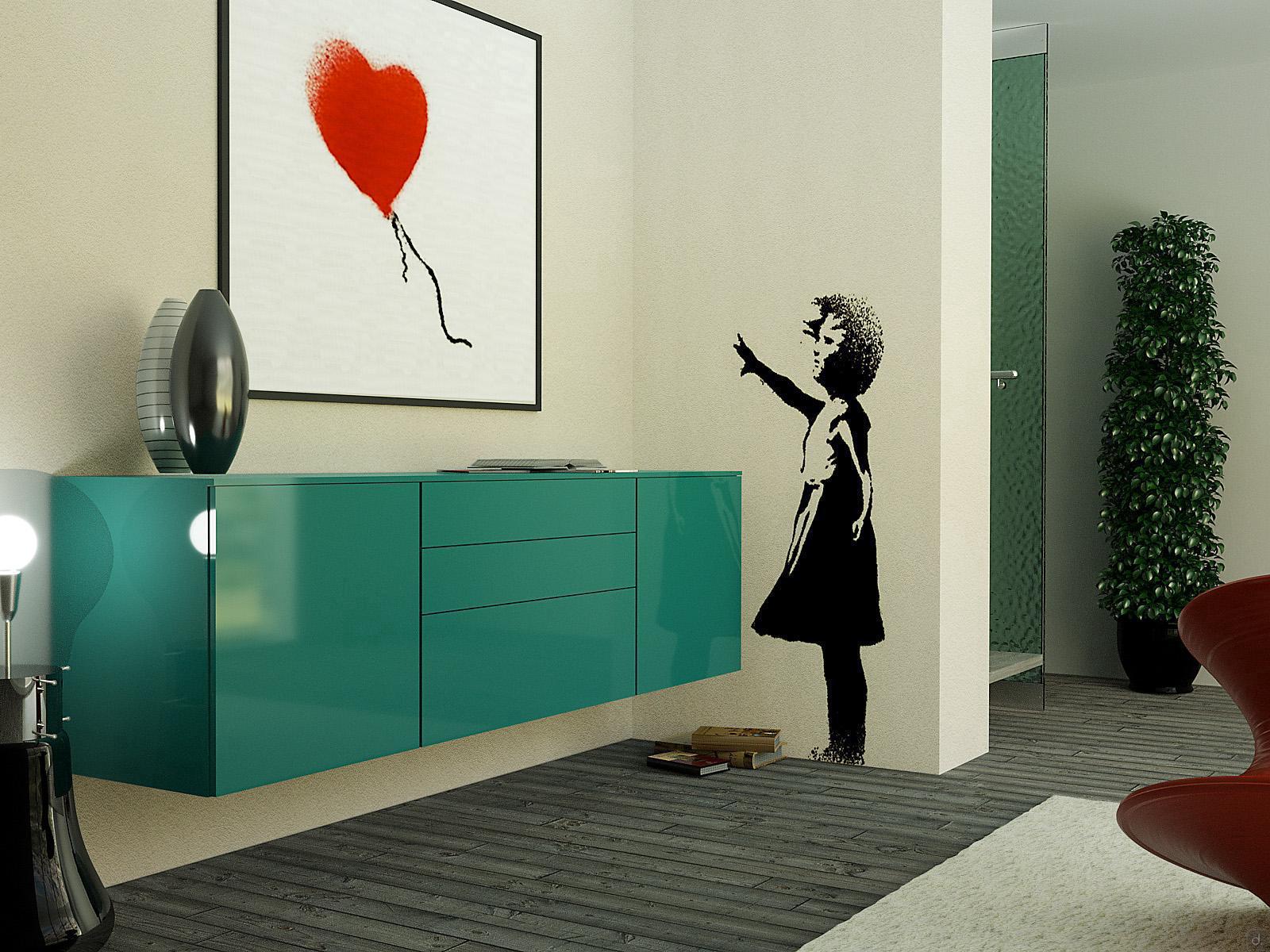

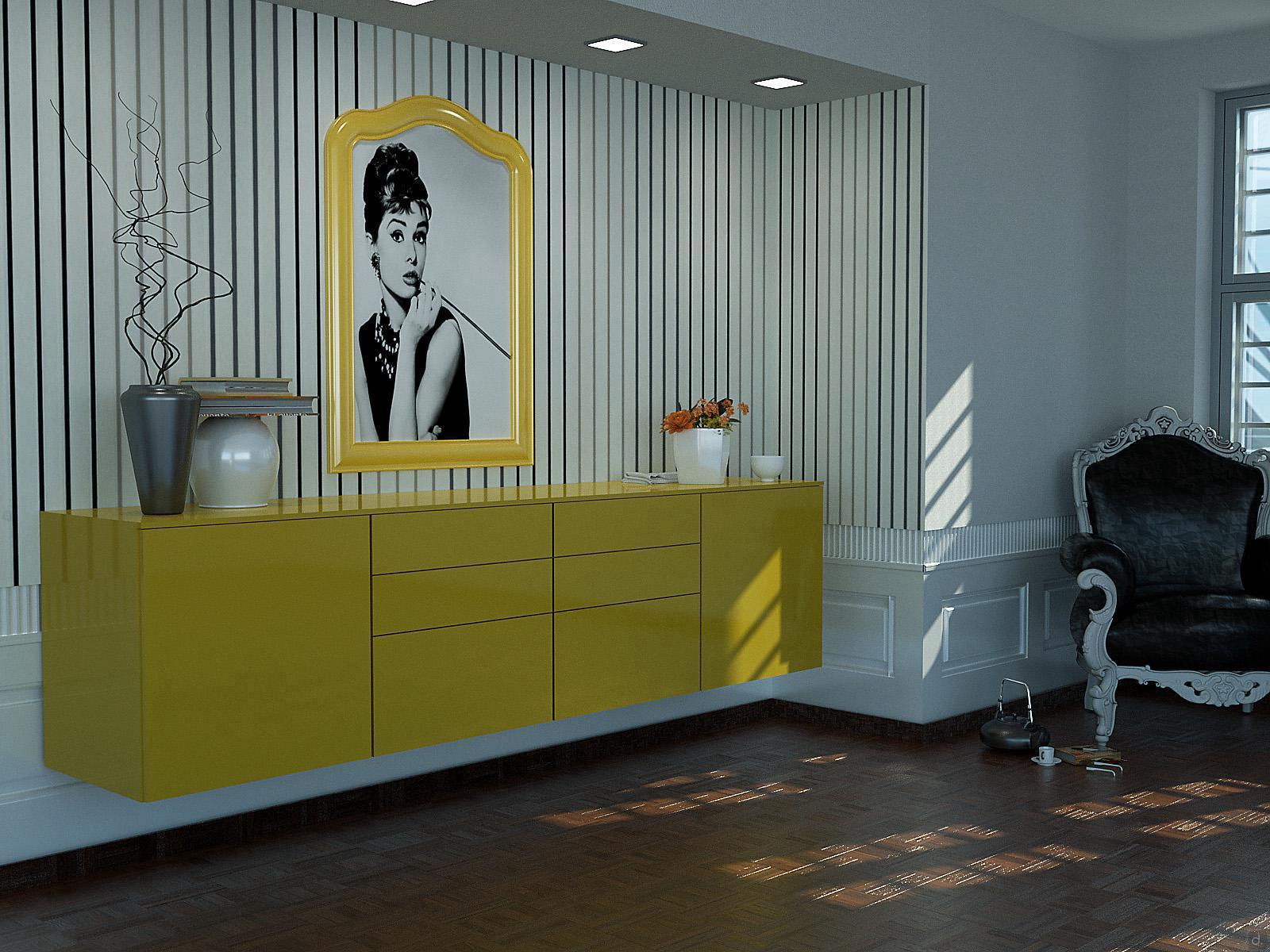

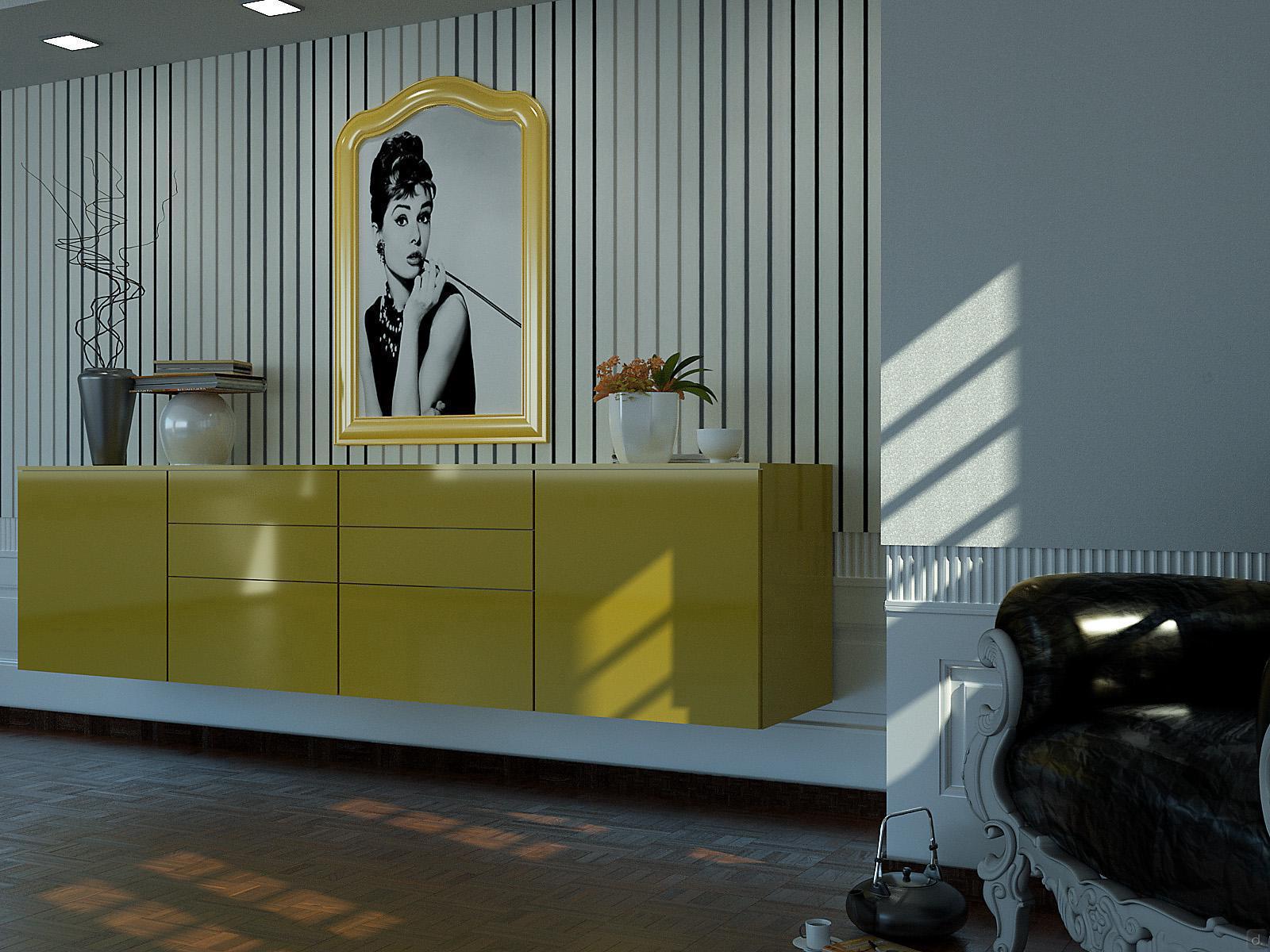

Plan sideboard with 2 hinged doors, 4 drawers and 2 big drawers

Wide range of finishes in melamine, wood veneer, matt lacquer, glossy lacquer and metallic

Opening through push-pull of the hinged doors, drawers and big drawers

Plan wall-mounted sideboard available with different handle models.

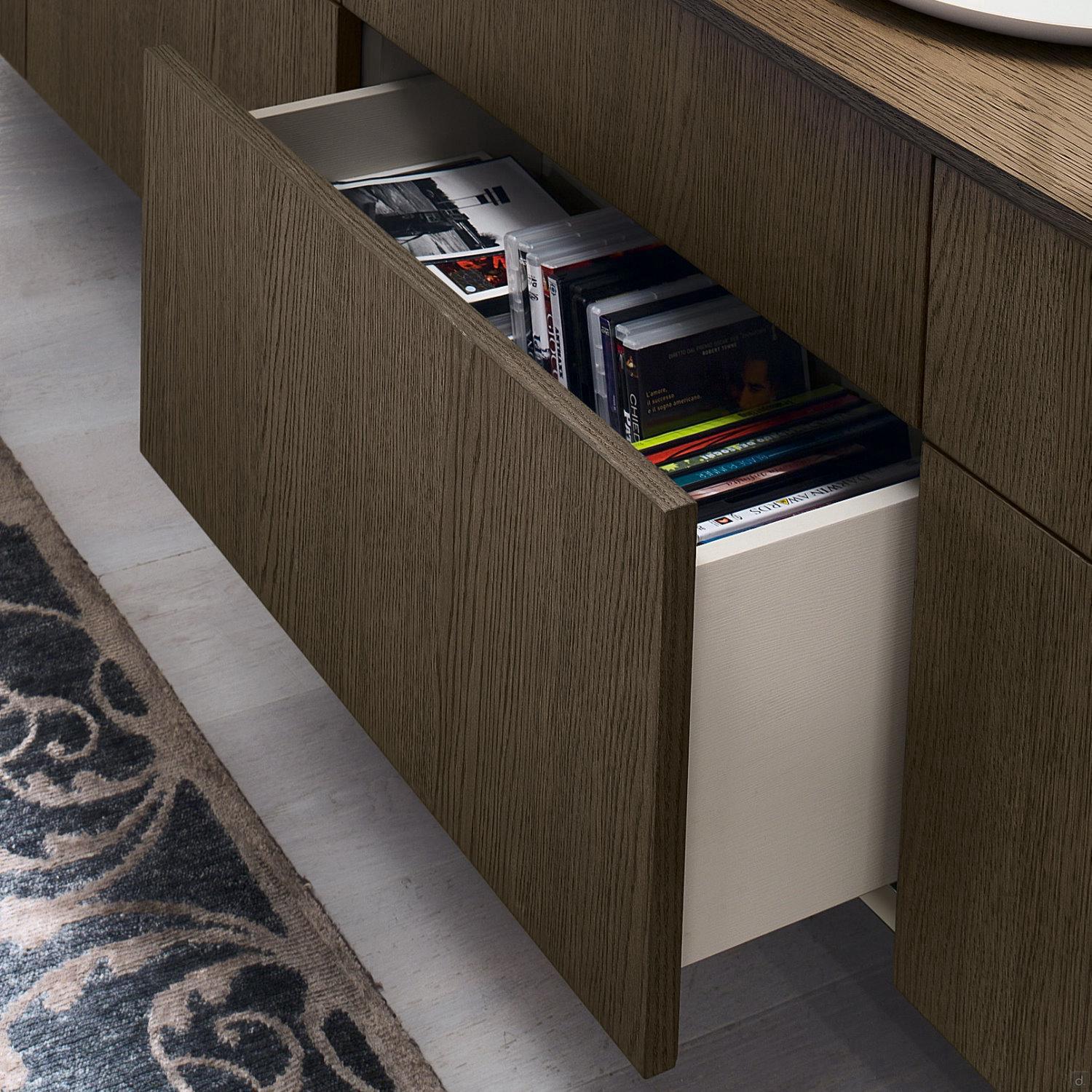

Drawers and big drawers with full-extension runners

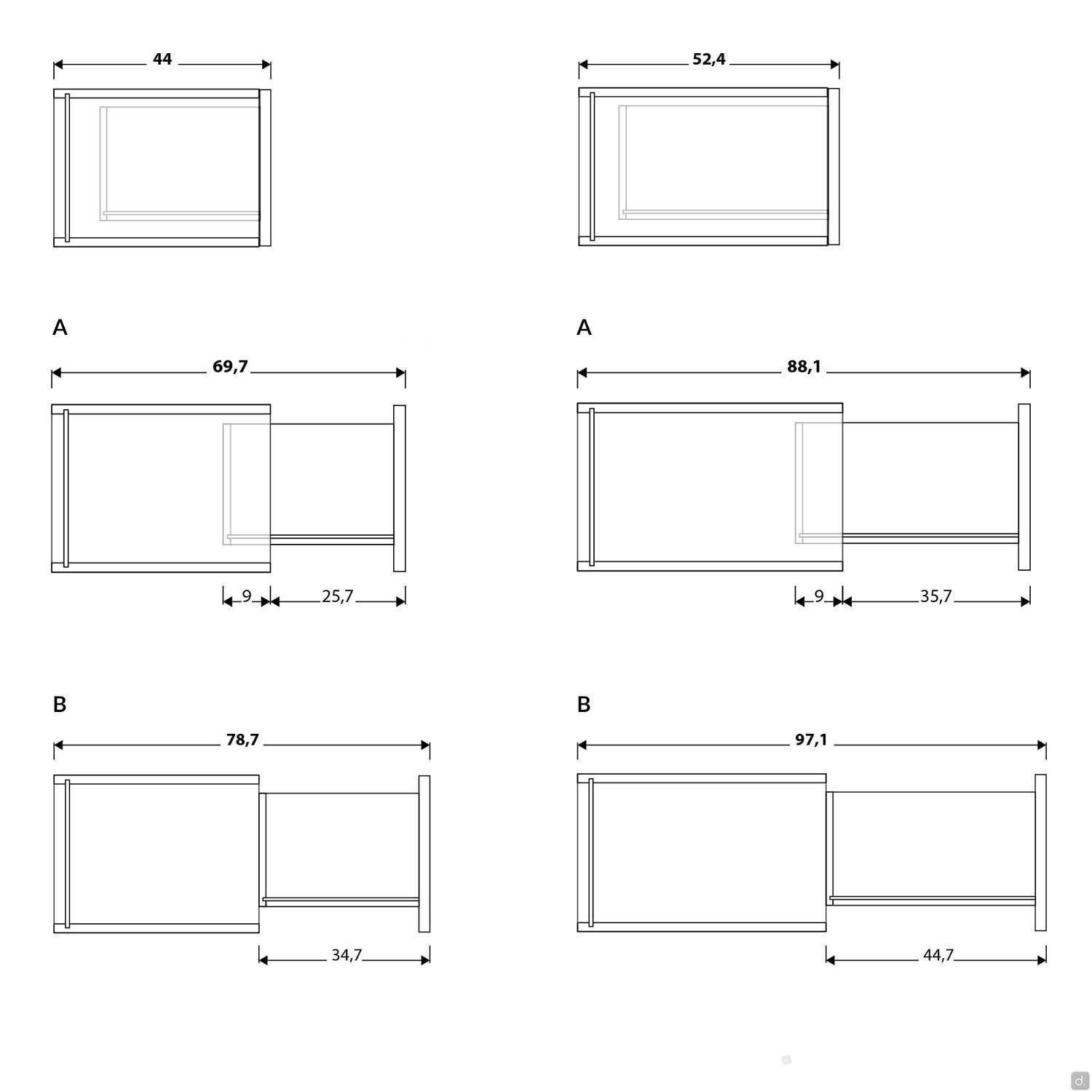

Plan hanging lacquered sideboard - Partial (A) / full (B) extension on drawers and big drawers

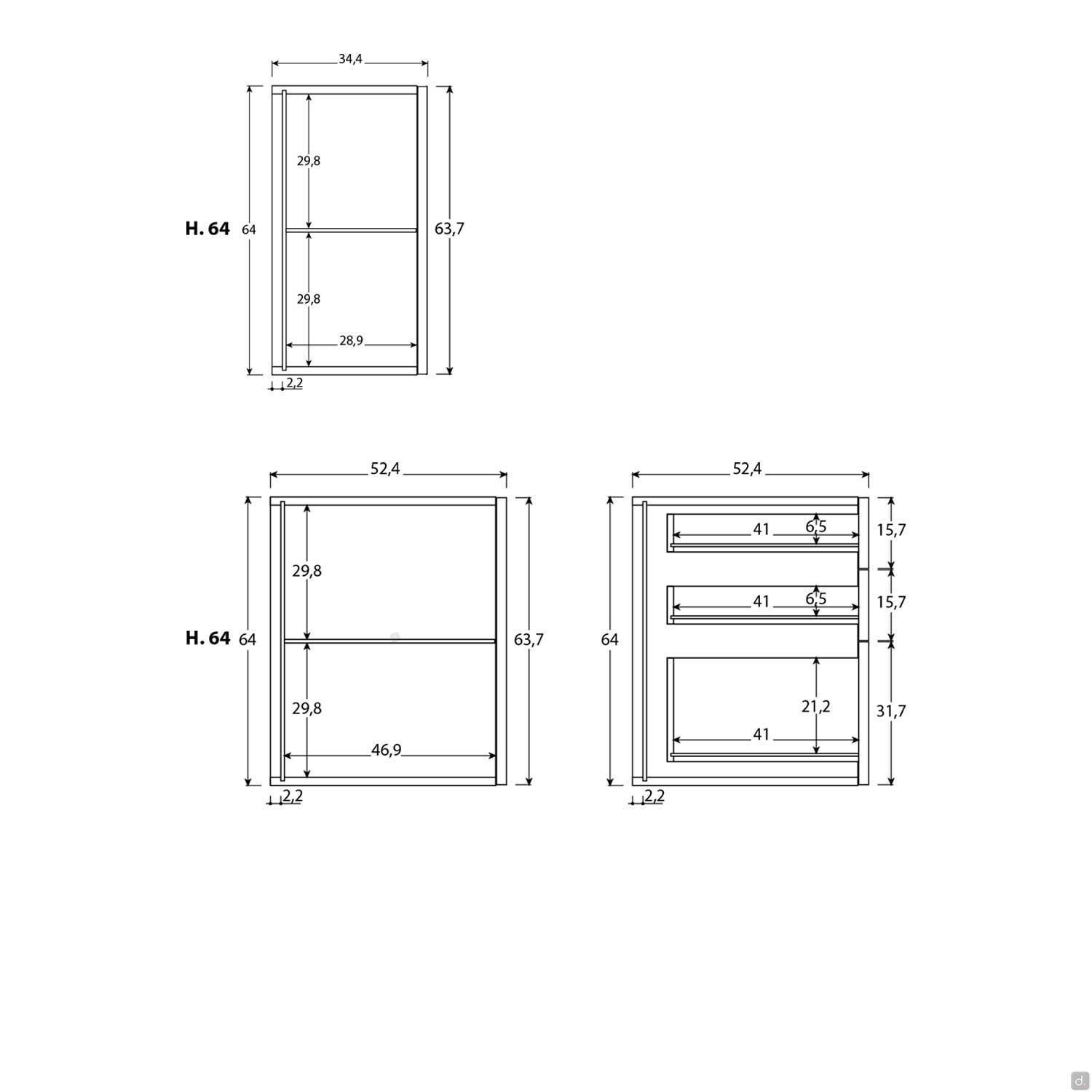

Plan hanging lacquered sideboard - Specific Measurements

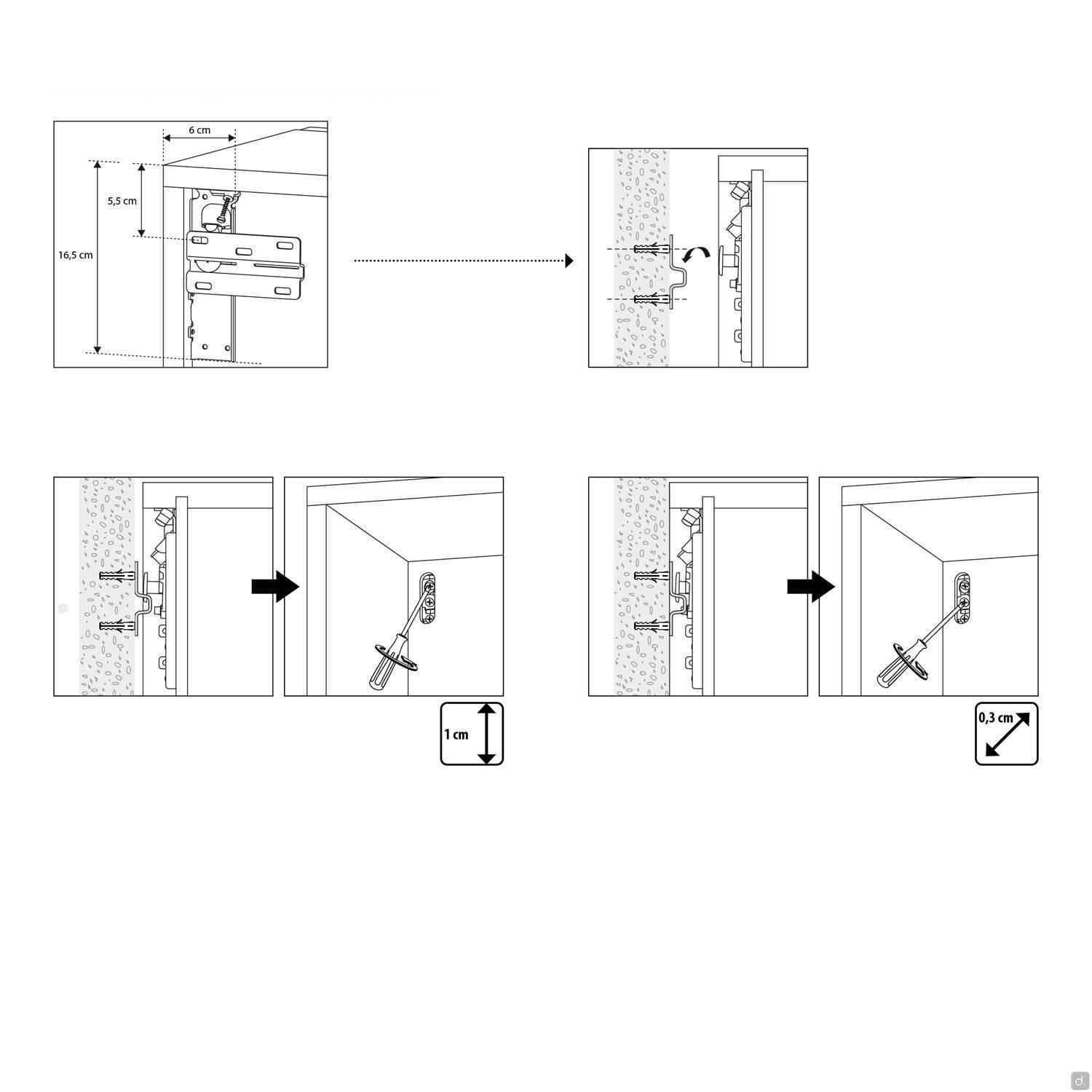

Plan hanging lacquered sideboard - Detail of the brackets and wall fixing

+ 7

MORE IMAGES

Plan Hanging Sideboard - Unique Separated Top
Wall Mounted Sideboard

Plan modern hanging lacquered sideboard with width from cm 128 to cm 256; also available in veneer or open pore lacquered oak wood.

* Required Fields

Width and Model *

Depth and Height (including UNIQUE TOP cm 1,4) *

Depth and Height (including UNIQUE TOP cm 1,4) *

----------- 2 doors 2 drawers 1 compartment
cm d.52,4 h.64

Layout *

1 element with 2 HINGED DOORS cm 128

Layout *

1 element with 2 HINGED DOORS cm 96 + 1 element with 2 HINGED DOORS cm 96

Layout *

1 element with 2 HINGED DOORS cm 96 + 1 element with 2 HINGED DOORS cm 96

Layout *

1 element with HINGED DOORS cm 32 (left side) + 2 elements with 2 overlapping DROP DOWN DOORS cm 128 + element with HINGED DOORS cm 32 (right side)

Layout *

1 element with 2 HINGED DOORS cm 128 + 1 element with 2 HINGED DOORS cm 128

Layout *

----------------- 144 d.34,4
1 element with HINGED DOOR cm 48 (left side) + 1 element with 2 HINGED DOORS cm 96
1 element with 2 HINGED DOORS cm 96 + 1 element with HINGED DOOR cm 48 (right side)

Central hinged door direction *

Finish *

Handles Model *

Handle Finish *

Handle Finish *

Handle Finish *

Handle Finish *

------------ Pomolo
matt lacquer

Pomolo (Knob) Cover *

------------ Pomolo
grey belting leather

Handles Colour Code Click to select the Colour

Hinged Doors Push-Pull Position *

lateral high, according to the opening side of the door
lateral in the middle, according to the door opening side

Drawers and Baskets Push-Pull Position *

middle high

Drop Down Doors Push-Pull Position *

middle high

Hinged Door Push-Pull Position *

lateral high (according to the opening side)

Hinged Doors Handles Position *

------- T16 / M / Pomolo
middle high
lateral high according to the opening side
lateral in the middle according to the opening side

Hinged Door Handle Position *

------- Z
horizontal on the top
vertical and lateral according to the opening side

Drop Down Door Handle Position *

------- T16 / M / Pomolo
middle high

Drawers and Baskets Handle Positioning *

------- Z
middle high

Drop Down Door Handle Position *

------- T16 / M / Pomolo
middle high

Drop Down Door Handle Position *

------- Z
horizontal on the top

Internal Finish *

matching melamine (with taupe decor melamine backrest)

Internal Finish *

taupe decor melamine

Internal Finish *

Optional

drawers and big drawer with full extension runners +€119.29
drawers and big drawer with full extension runners +€235.69

Quantity

From €387.69

View Samples

Wishlist

Description

Plan is an hanging lacquered sideboard realized in wood and in open pore lacquered oak wood, available with width from cm 128 to cm 256.
This storage cabinet offers a high customisation thanks to the possibility to mix together hinged doors, drawers, big drawers and drop down doors. The models with hinged doors are available also in a reduced depth of 34,4 cm perfect as sideboards for the hallways.

Characteristics
hanging sideboard that can be customised in multiple colours
two depths of 34,4 and 52,4 perfect for several areas of the house
opening through push-pull or handles
soft closing system

Model and Measurements
Models: with doors / with doors, drawers and big drawers / with drop down doors
Width: cm 128 / 144 / 160 / 176 / 192 / 224 / 256
Depth: cm 34,4 / 52,4
Height:
- storage units: cm 65,4

Materials and Finishes
- melamine
- wood veneer
- open pore lacquer
- matt / glossy / metallic lacquer

Technical study

Materials Specifications
The elements are realized with E1 class panels with low formaldehyde content according to the European Community rules.
Wooden finishes are made of an ultraviolet polymerisation painting.
Matt lacquered products are realized using almost totally a water-based paint; glossy lacquered finishes are brushed with a polyurethane polymerisation. Used painted products are high solids.

Technical Specifications and Equipment
Structure: thickness of cm 1,8. Equipped with adjustable brackets (maximum weight per bracket Kg 70).
Doors: thickness of cm 2,2, provided with a series of hinges with soft-closing mechanism. The storage units with one hinged door are equipped with 1 internal shelf; storages with two hinged doors come with 2 internal shelves.
Drawers / Compartments: fronts thickness cm 2,2; edges thickness cm 1,4. Equipped with roll-away runners with vertical adjustment integrated in the hook and with soft-losing mechanism. Dynamic weight load of the runners equal to Kg 30.
Drop down door: thickness cm 2,2.
Visible edge: wooden edge, abs wooden edge or abs lacquered wooden edge.
Top: one unique top will cover the entire length of the sideboard, thickness 1,4 cm (to be added to the height of the cabinets and feet/plinth). Matching finish and colour. The top sticks out by 0,3 mm on all compositions.
Opening type:
- handle T16: cm 19 d.33 h.0,8, in moka shine painted metal or matt lacquer;
- handle M: cm 10,2 d.1,5 h.0,3 in moka shine painted metal, white or matt lacquer;
- handle Z: cm d.1,5 h.0,7 in moka shine painted metal, white or matt lacquer;
- handle Pomolo (knob): cm 4,1 d.1,6 h.4,1 in moka shine painted metal with knob covered in grey belting leather;
- handle C15: cm d. 1,7 h.1,4 in moka shine painted metal, white or matt lacquer;
- push-pull

Optional:
full-extension runners: drawers and big drawers are equipped with full-extraction runners.

Maintenance Advice
Surfaces put in contact with water or other liquids can suffer some damage. The products do not tolerate excessive heat and humidity; it is therefore recommendable to position them far from any heat or humidity source.
To clean the materials it is necessary to use a wet cloth and neutral detergents, drying soon afterwards with a soft cloth. Do not use alkaline products, solvents and abrasive ones.

Additional Information

Area of Production
Italy

Approximate Time
8-9 working weeks for production

Assembling
Medium Assembling

Assembling Instructions
Download the Assembling Instructions

Cubic Metres
from 0,39 to 1,17 m³
