Model and Dimensions Specifications

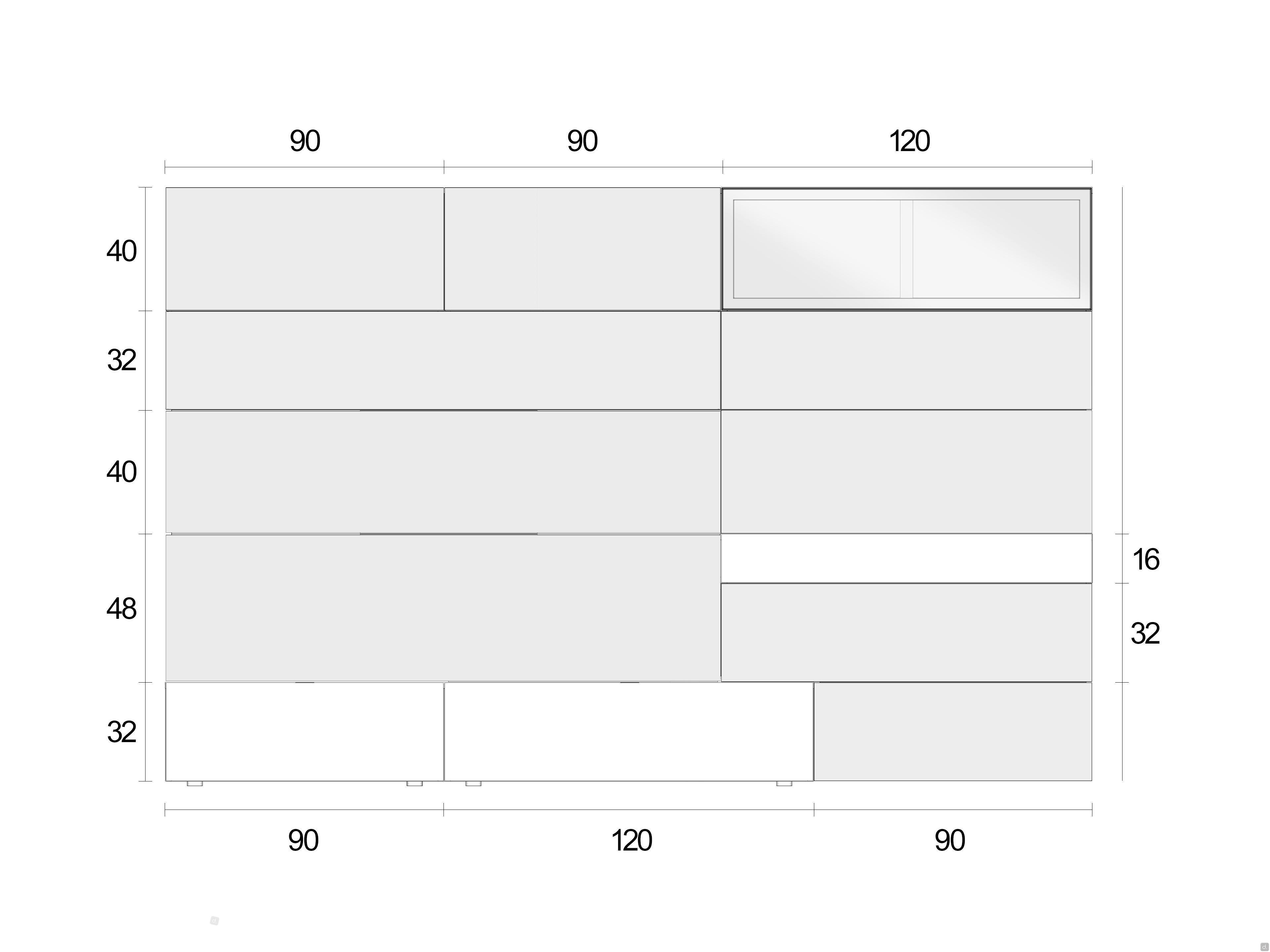

Model A (width: cm 300)
n.1 drop down base: cm 90 h.32 d.45
n.1 drop down base: cm 120 h.32 d.45
n.1 showcase wall unit with flip-up door: cm 120 h.40 d.35,4
n.1 desk with drawer: cm 120 h.16 d.45
n.2 metal shelves: cm 90 d.27 thk.0,3
n.2 wall panels: cm 89,7 h.39,7 thk.2,5
n.1 wall panel: cm 179,7 h.31,7 thk.2,5
n.1 wall panel : 179,7 cm h.39,7 cm thk.2,5
n.1 wall panel : 179,7 cm h.47,7 cm thk.2,5
n.2 wall panels: 119,7 cm h.31,7 cm thk.1 / 2,5
n.1 wall panel : cm 89,7 h.31,7 thk.2,5

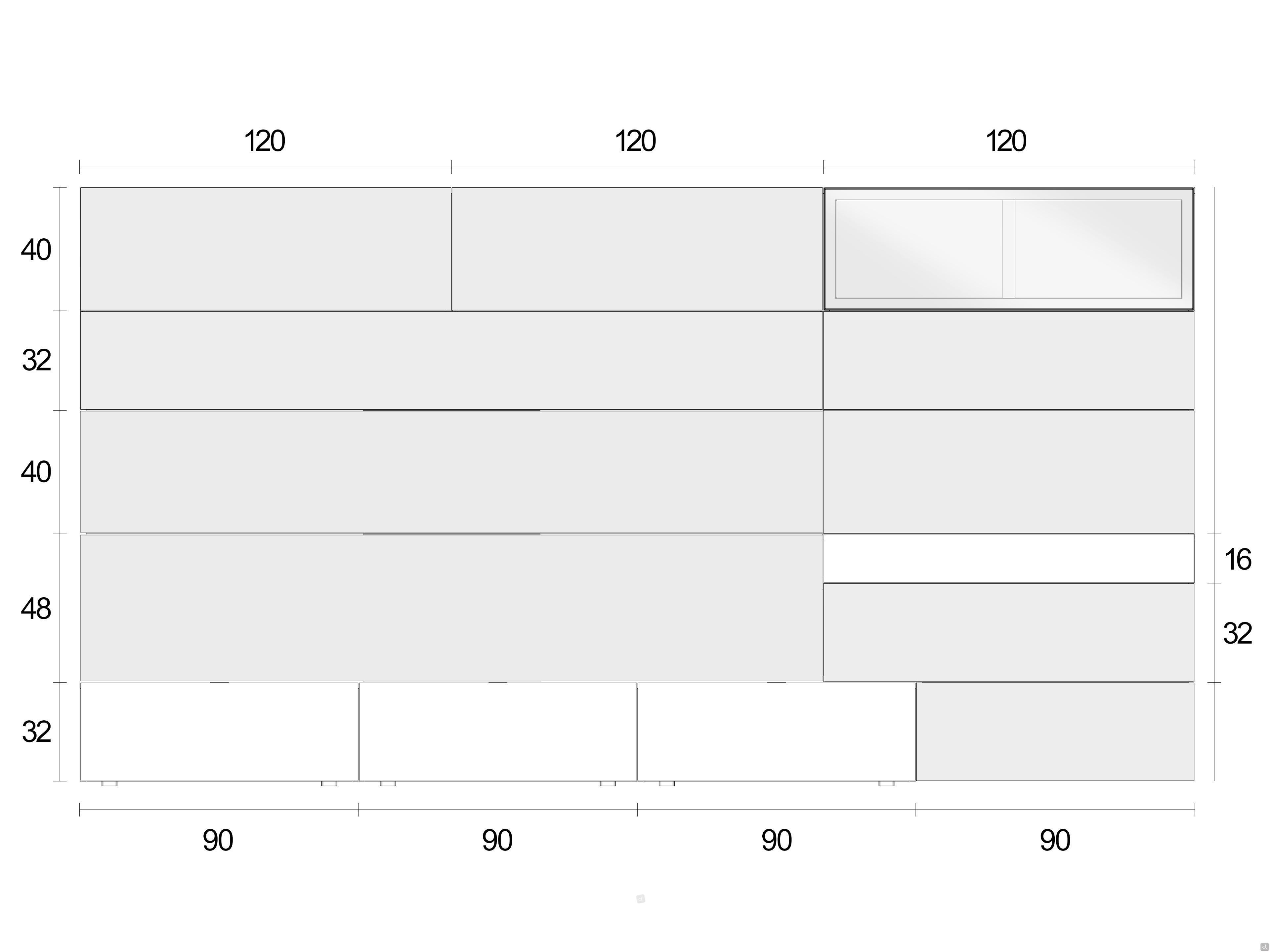

Model B (width: cm 360)
n.3 drop down bases: cm 90 h.32 d.45
n.1 showcase wall unit with flip-up door: cm 120 h.40 d.35,4
n.1 desk with drawer: cm 120 h.16 d.45
n.2 metal shelves: cm 120 d.27 thk.0,3
n.1 wall panel: cm 239,7 h.47,7 thk.2,5
n.1 wall panel : cm 239,7 h.31,7 thk.2,5
n.1 wallpanel : cm 239,7 h.39,7 thk.2,5
n.2 wall panels: 119,7 cm h.39,7 thk 2,5
n.2 wall panels: 119,7 cm h.31,7 cm thk.1 / 2,5
n.1 wall panel : cm 89,7 h.31,7 thk.2,5

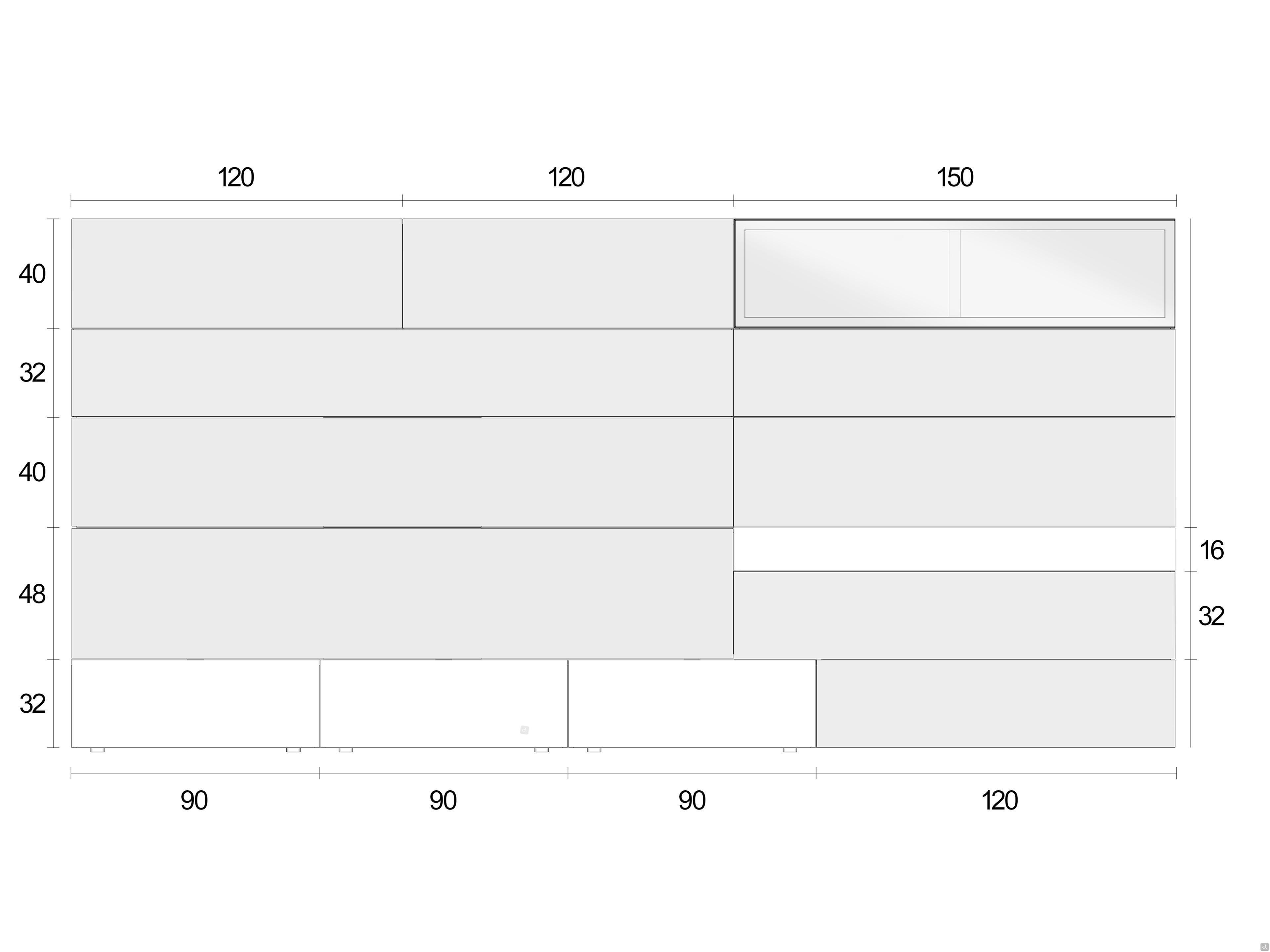

Model C (width: cm 390)
n.3 drop down bases: cm 90 h.32 d.45
n.1 showcase wall unit with flip-up door: cm 150 h.40 d.35,4
n.1 desk with drawer: cm 150 h.16 d.45
n.2 metal shelves: cm 120 d.27 thk..0,3
n.1 wall panel: cm 239,7 h.47,7 thk..2,5
n.1 wall panel : cm 239,7 h.31,7 thk..2,5
n.1 wall panel : cm 239,7 h.39,7 thk.2,5
n.2 wall panels: 119,7 cm h.39,7 cm thk.2,5
n.2 boiserie panels: 149,7 cm h.31,7 thk..1 / 2,5
n.1 boiserie panel : 119,7 cm h.31,7 thk..2,5
Technical Specifications and Equipment
Structure and Cabinet fronts: made of 2 cm thick particle board panels. Coated with synthetic melamine, also matt lacquered, glossy lacquered, metallic lacquered or with varnished wood veneer. The high-gloss structure only extends to the outside of the side panels and their perimeter edges. Interiors and backs are supplied in the corresponding matt lacquer colour. For elements with drawer the interior is always Sketch Rock. The front of the showcase wall unit is made with a structural aluminium frame, matt lacquered, metallised or epoxy lacquered. The glass is tempered, 0.4 cm thick.
Drop-down Base: equipped with special hinges for the rotation of the door with a 45° edge, embedded in the thickness of the structure and front. Also equipped with a mechanism to cancel the weight of the door when closing and guarantee minimum effort for the user during use.
Wall panels: made of 2.5 cm thick particle board, covered with synthetic melamine, also matt lacquered, metallised or with varnished wood veneer. Back panel in black MDF 1.9 cm thick, complete with fittings and hardware for fixing to the wall. The panel keeps the unit at a distance of 2.4 cm from the wall and is shaped from time to time, depending on the overall dimensions of the composition.
Shelves: in painted metal 0.3 cm thick fixed directly to the back panel, positioned in the groove between two wall panels.
Optional
Horizontal built-in Led Bar for Showcase Wall Unit: 11.7 W in the 120 cm version and 14.7 W in the 150 cm version, complete with power supply. Diffused 3000K light, recessed in the top of the wall unit. Remote control lighting available as an additional option.
Writing desk back LED bar: 11.6 W in the 120 cm version (115.7 cm luminaire) and 14.6 W in the 150 cm version (145.7 cm luminaire), complete with ballast. Mounted on the wall panel just above the back panel (2.5 cm thick), with LED recessed in the thickness of the panel and cable passing through the gap between panel and MDF back panel.
