Technical Specifications and Equipment
Structure and fronts: storage units made of class E1 particle wood panels with low formaldehyde emissions, 20 mm thick for the structure, 15 mm for the top and 35 mm for the fronts; coated in wood effect synthetic melamine for ash-wood effect finish, elm effect finish and matt lacquer on ash-wood melamine, synthetic layer with resin effect for Loto finish and white textured melamine for matt lacquer. They are made of brushed painted oak or heat-treated oak veneer with transparent varnish for all veneer finishes. All wood finishes have horizontal grains except heat-treated oak that comes with vertical grains.

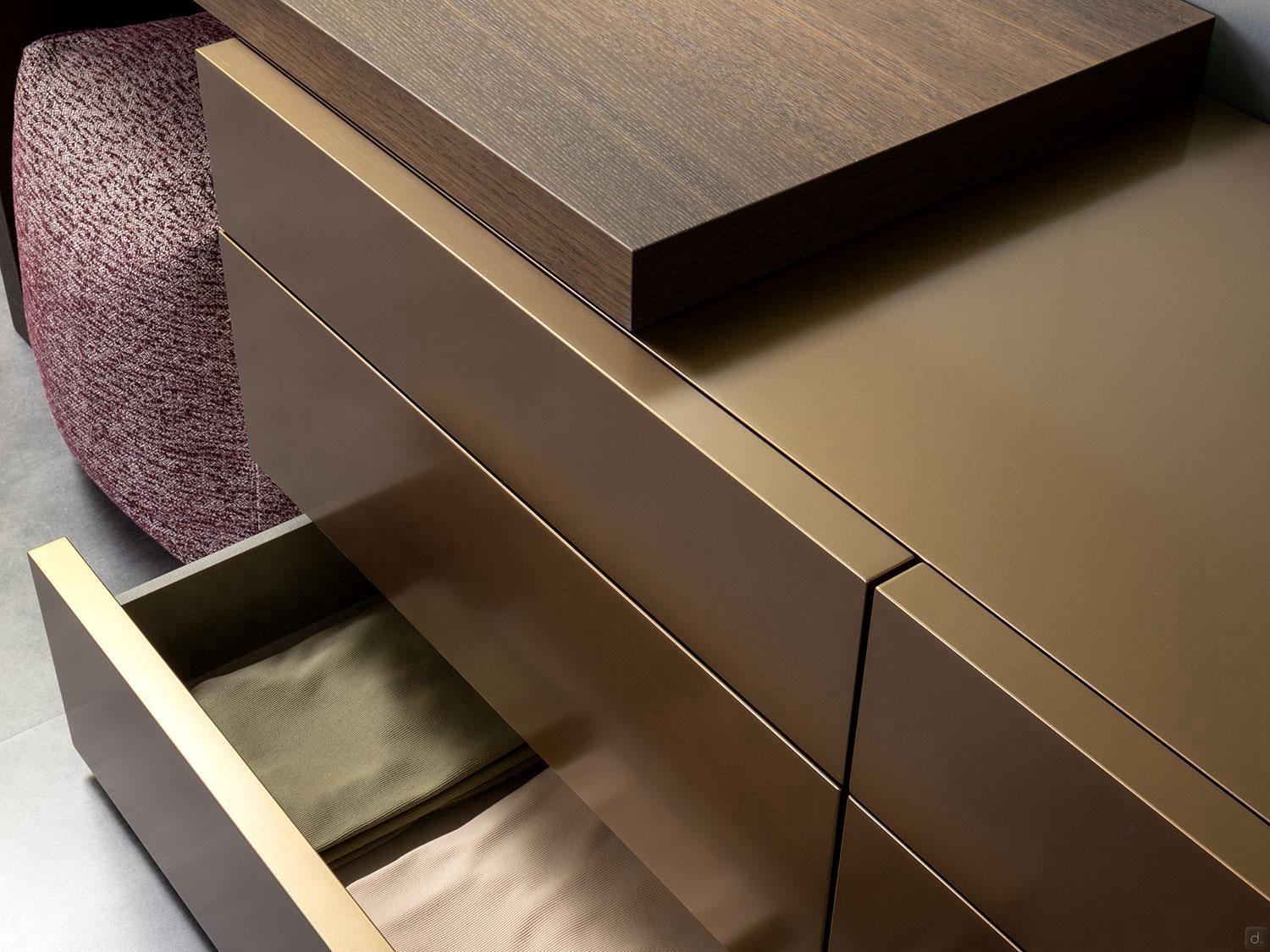

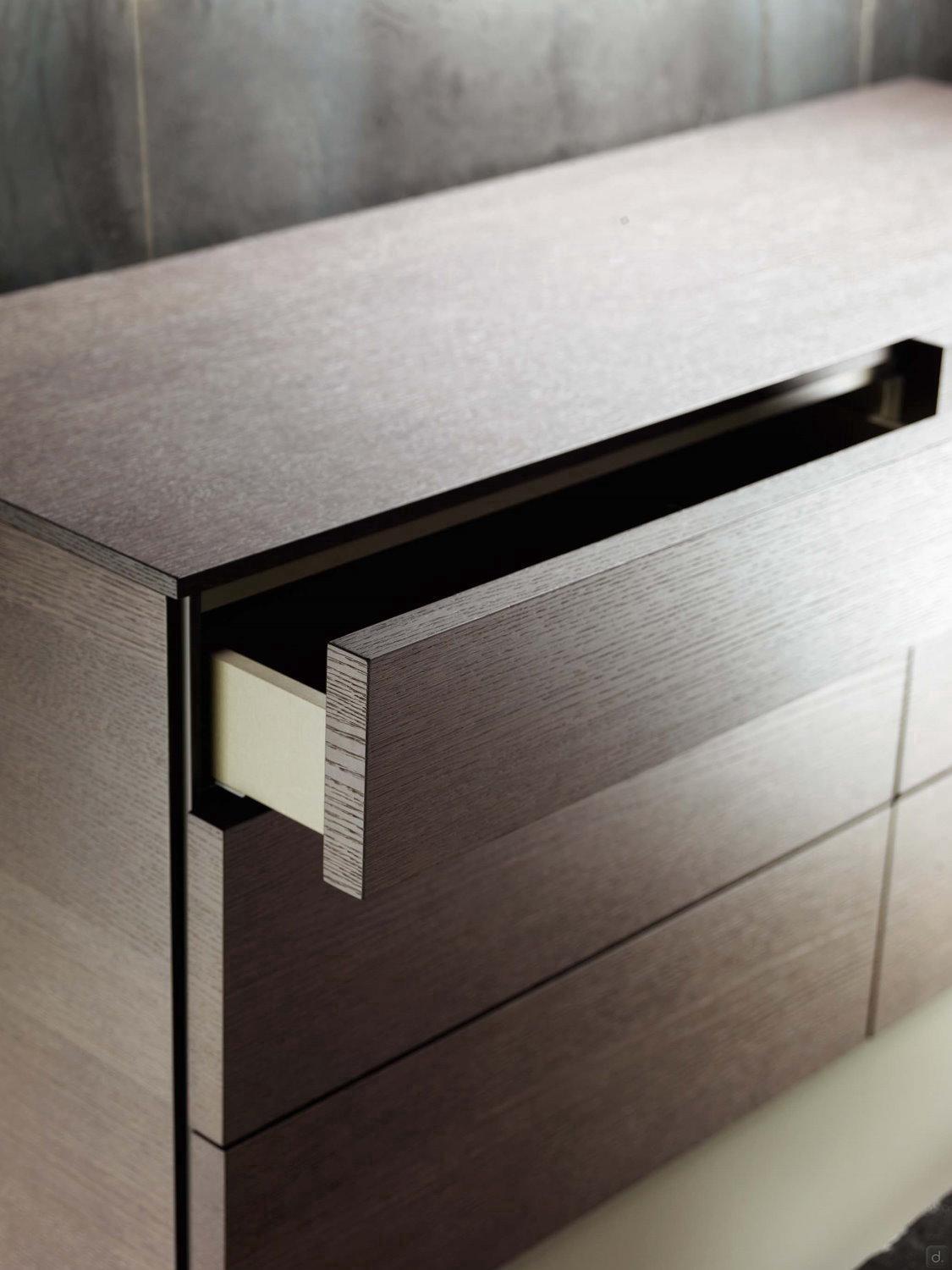

Drawer sides: made of 14 mm thick panels with synthetic coating in jute texture; bottom of the drawers is 8 mm thick. The opening is made through a side recess grip placed between side and front matching the structure (please refer to the chart below for the combination of veneers and Elm and Loto textured finishes).
Runners: with end of the line block and soft closing system with partial extension.
Feet: in black plastic material h.28 mm.
Chart for the matching between side recess grip and structure
Structure |
Side Recess Grip |
Clay Oak |
matt Clay |
Coal Oak |
matt Brown |
Ash Oak |
matt Slate |
Grey Oak |
matt Charcoal |
Natural knotty Oak |
matt Brown |
Caramel knotty Oak |
matt Brown |
Canaletto walnut |
matt Brown |
Medium Elm effect |
matt Canvas |
Dark Elm effect |
matt Brown |
Nature Loto textured |
matt Magnolia |
Taupe Loto textured |
matt Rope Grey |
Terra Loto textured |
matt Terranova |
Optional
full-extension runners:
- for d.56,9 elements, maximum extension 44,5 cm.
Wall mounting is mandatory, please use the supplied anti-tilt bracket.

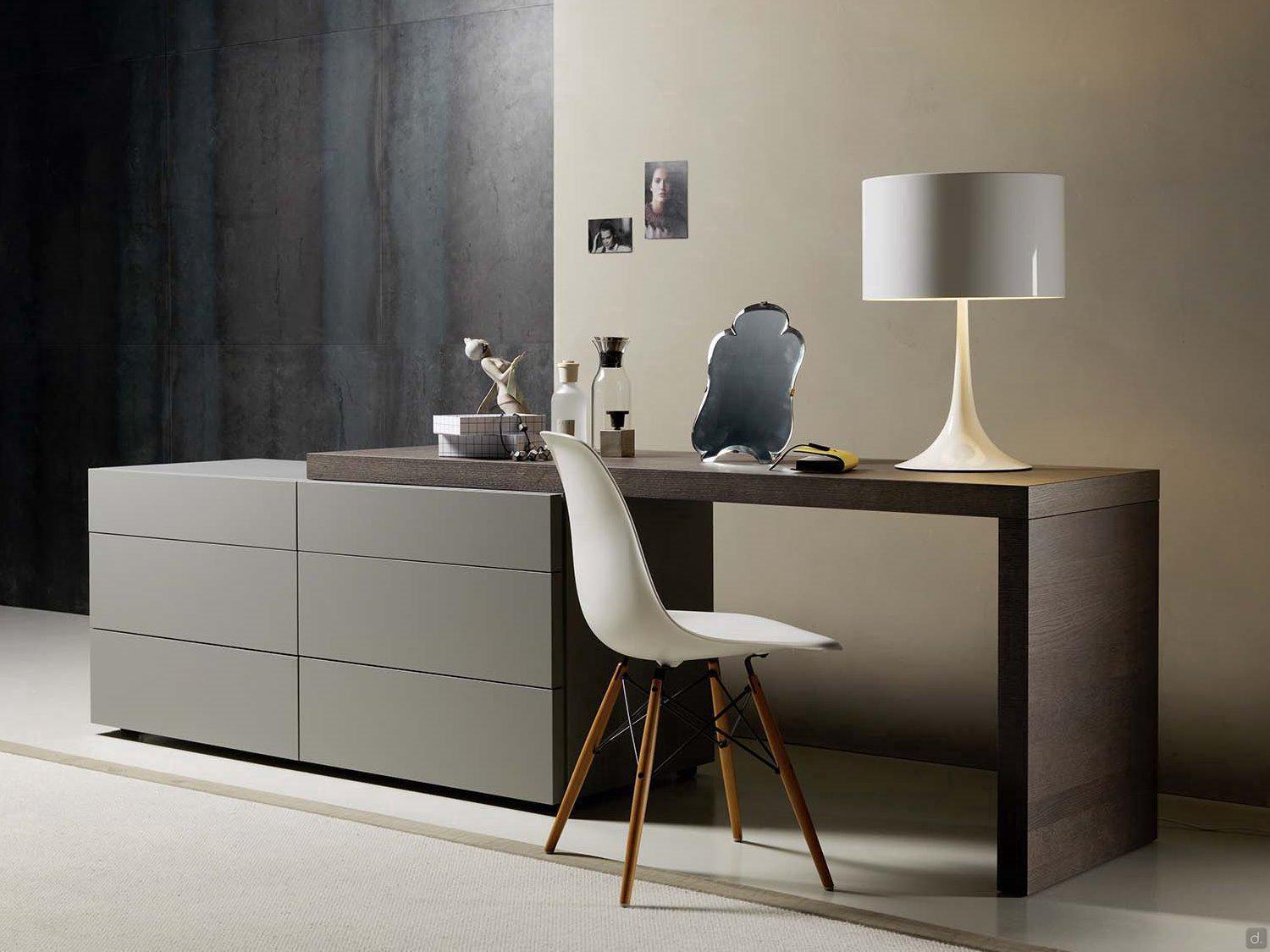

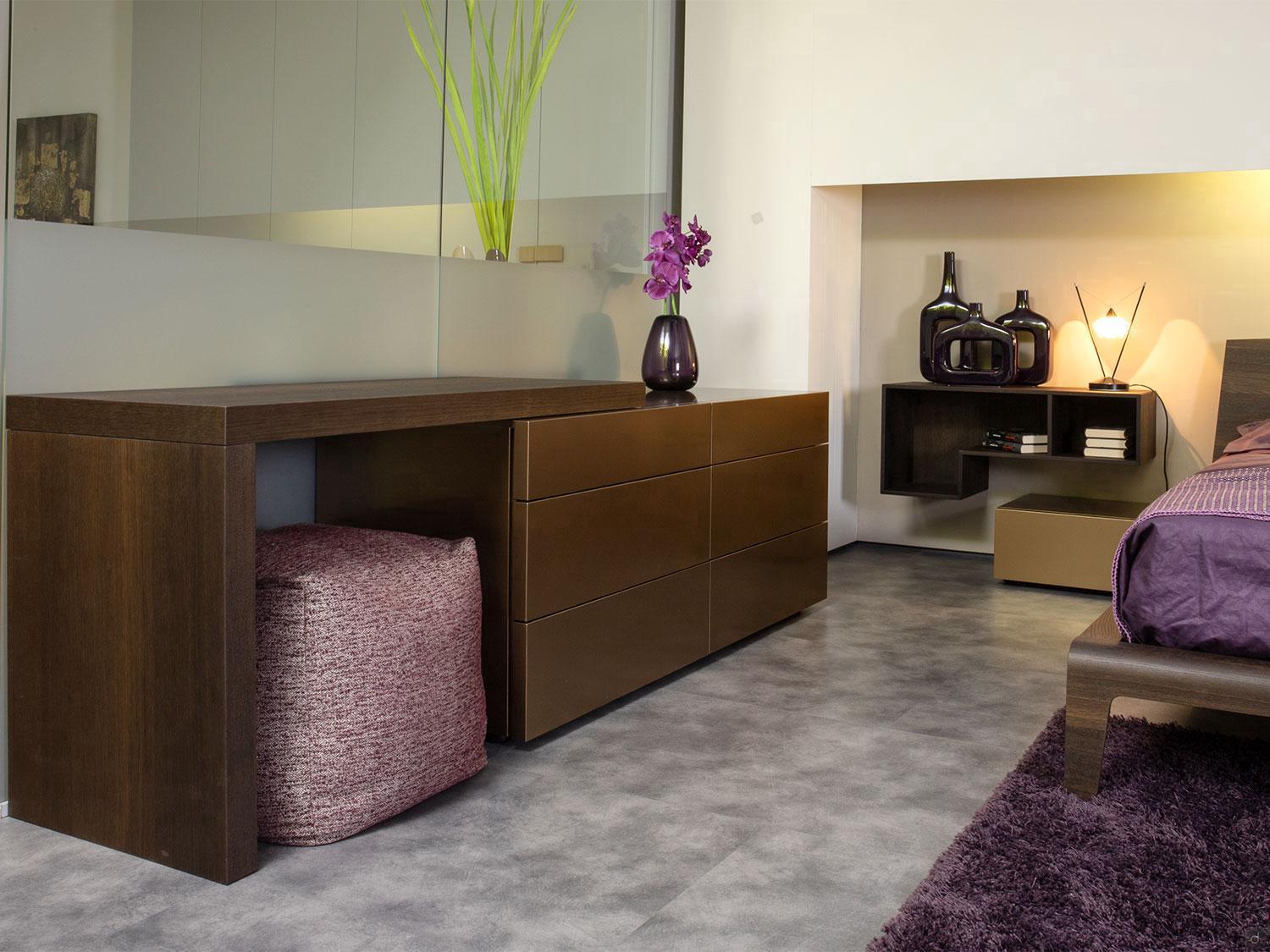

Desk:
- cm 120/150/180/210/240 d.53,3 h.72,3; thickness 60 mm.
It stands on top of h.66,3 dresser. Matt lacquer or wood veneer finish.
For more information...
Heat-treated Oak: this type of oak finish is characterised by the contrast between light grains and a dark background. This effect is given by the heat this veneer undergoes, resulting in a different shade between the harder and softer parts of wood, with a charming yet random play of light and dark areas.
