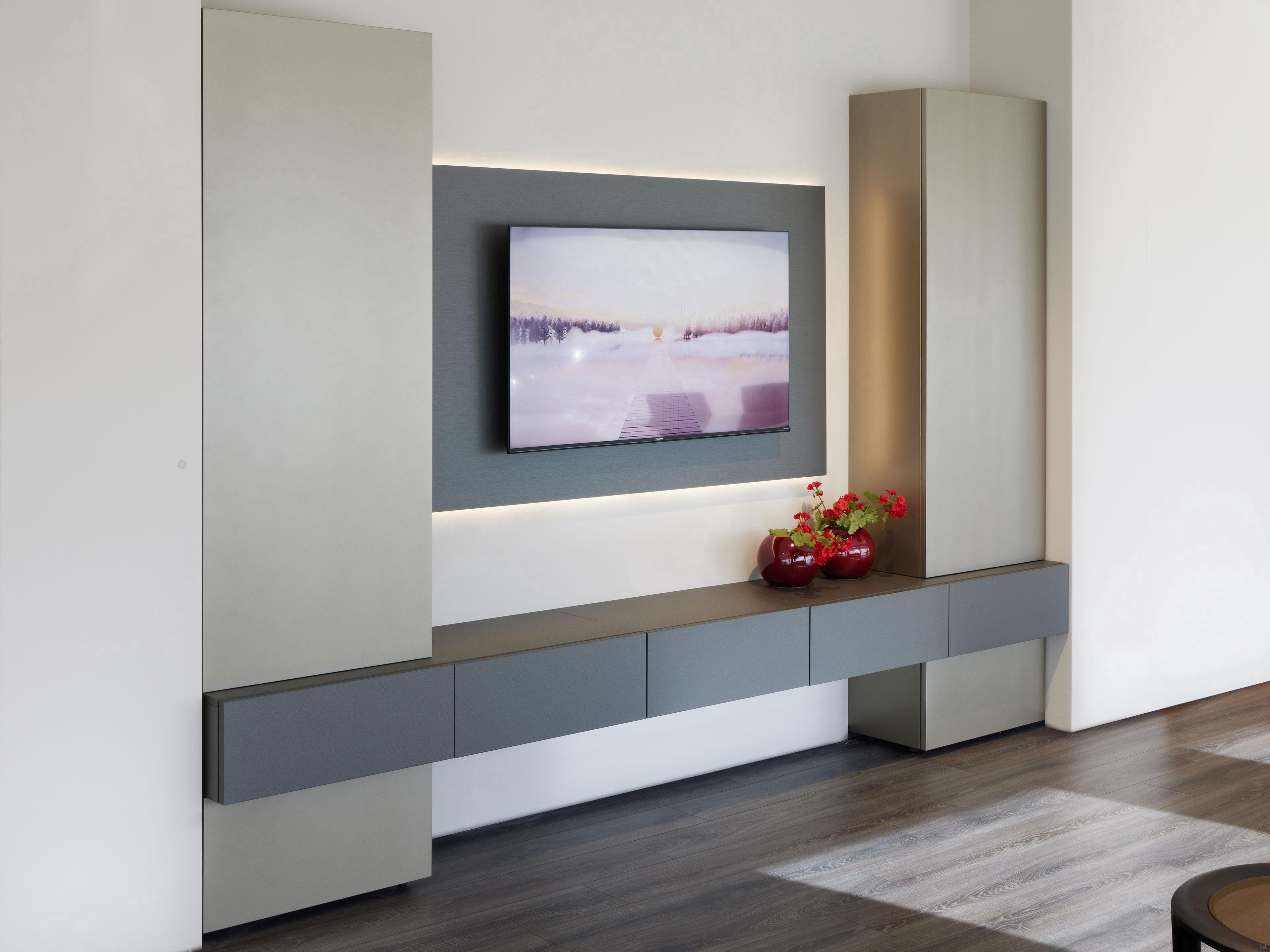

Plan 40 wall system with wall-mounted tall and base units, available in two sizes and always including large side columns

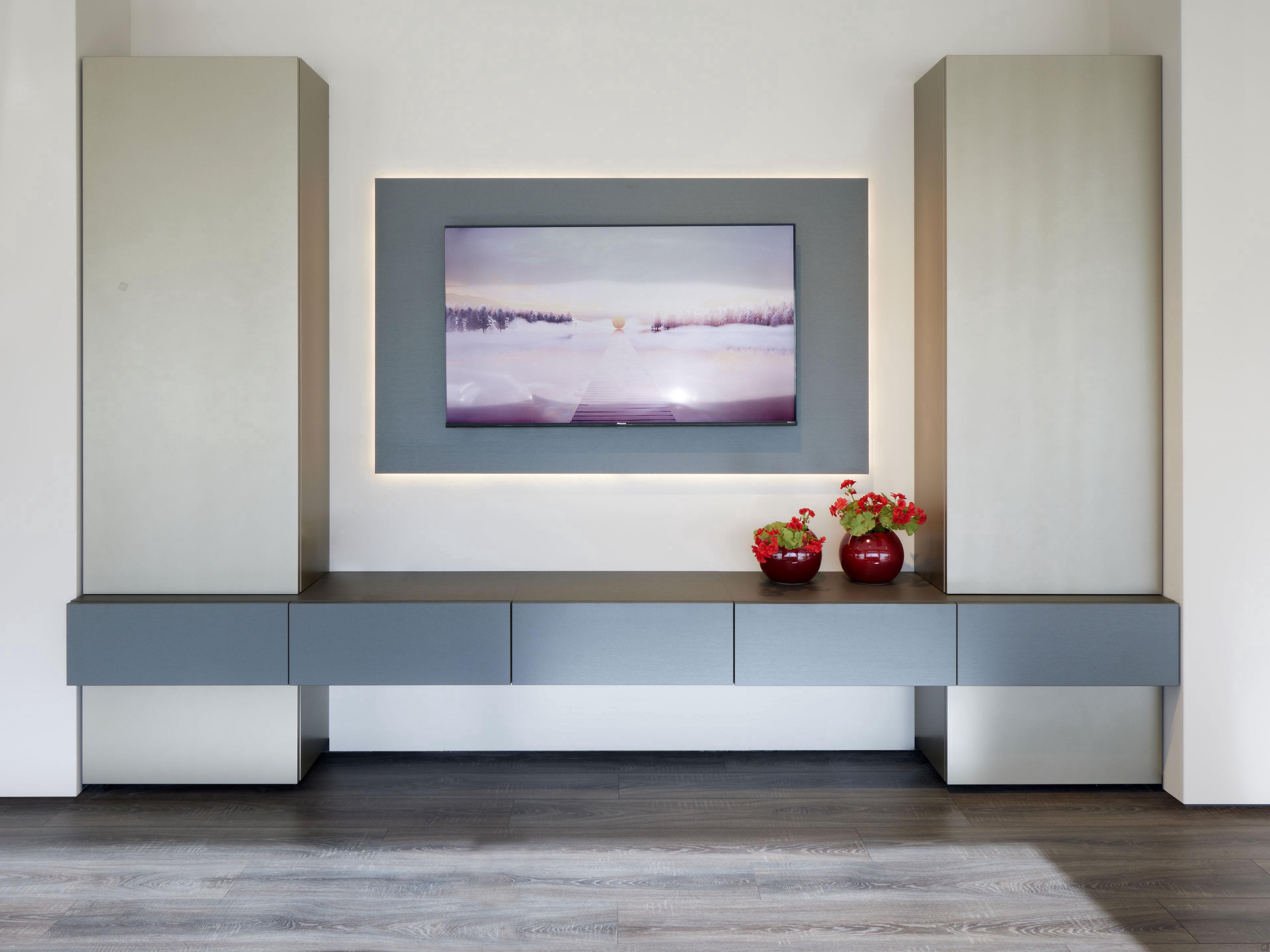

Plan 40 storage wall, complete with TV back panel with LED light at rear

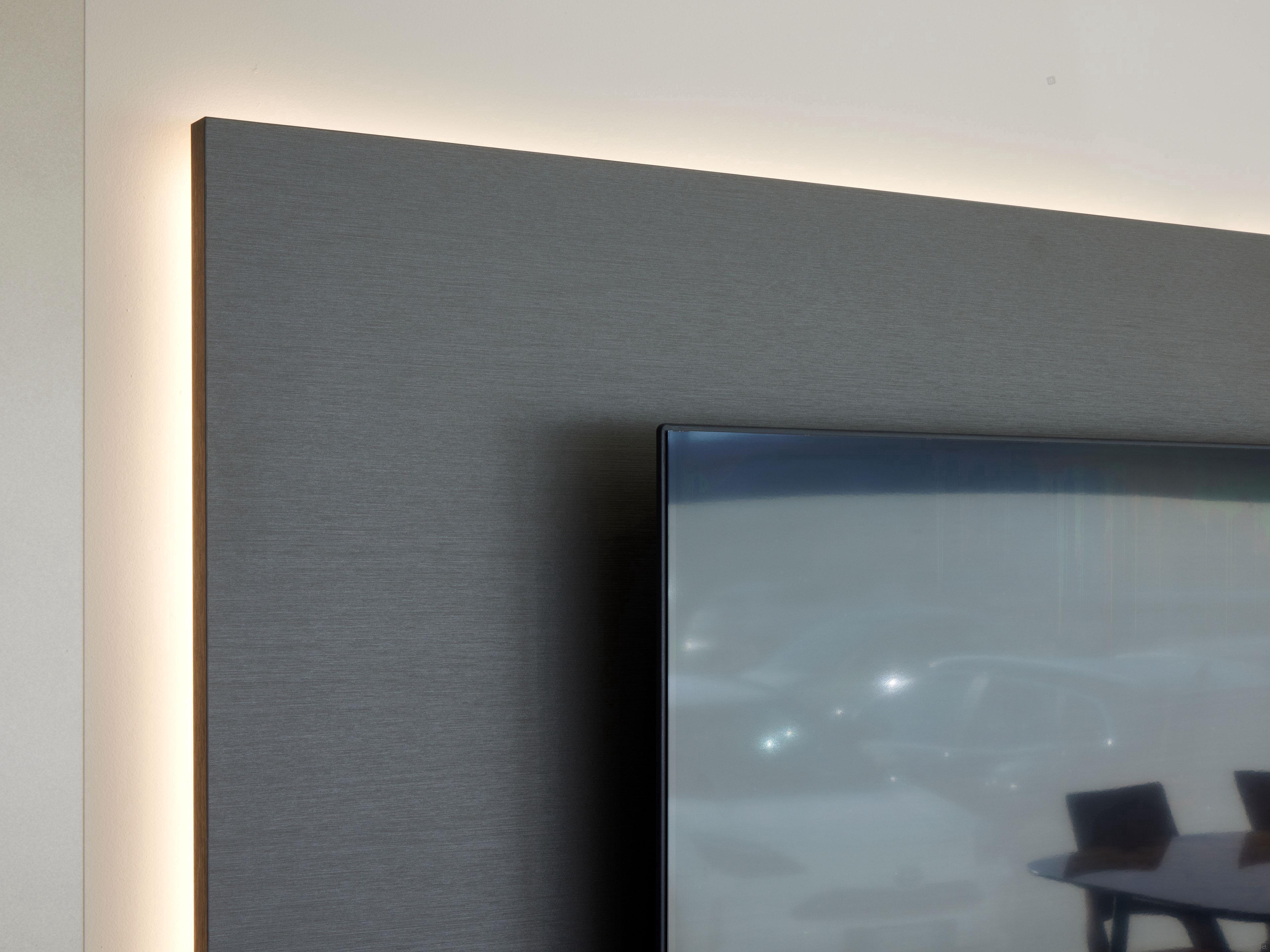

Detail of the central TV stand panel, in NMS Metal Smoke textured melamine finish and complete with rear LED

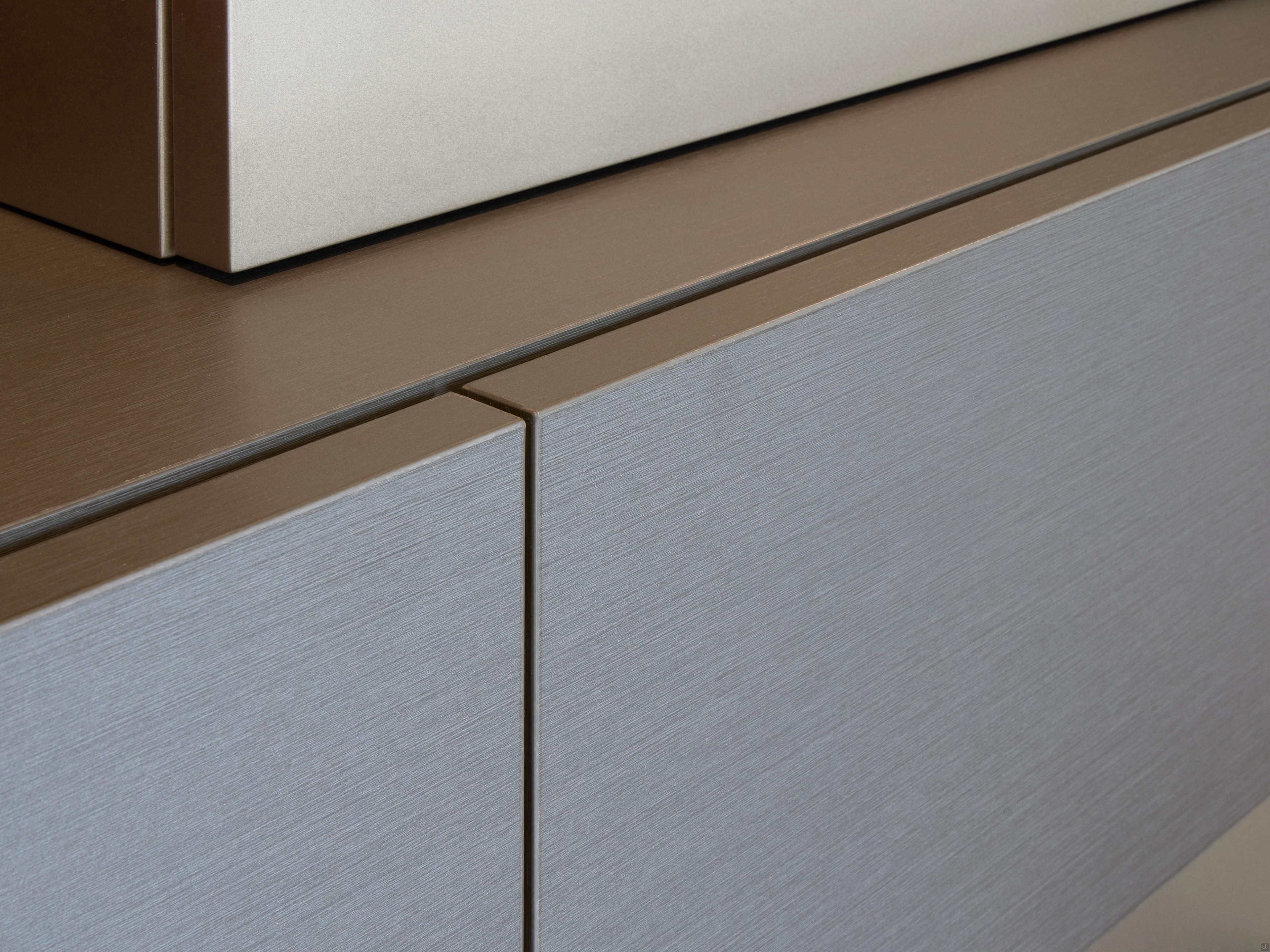

Suspended base unit fronts in NMS Metal Smoke textured melamine finish, with a special brushed effect

Each of the two columns of the Plan 40 wall unit comes complete with 4 clear glass shelves

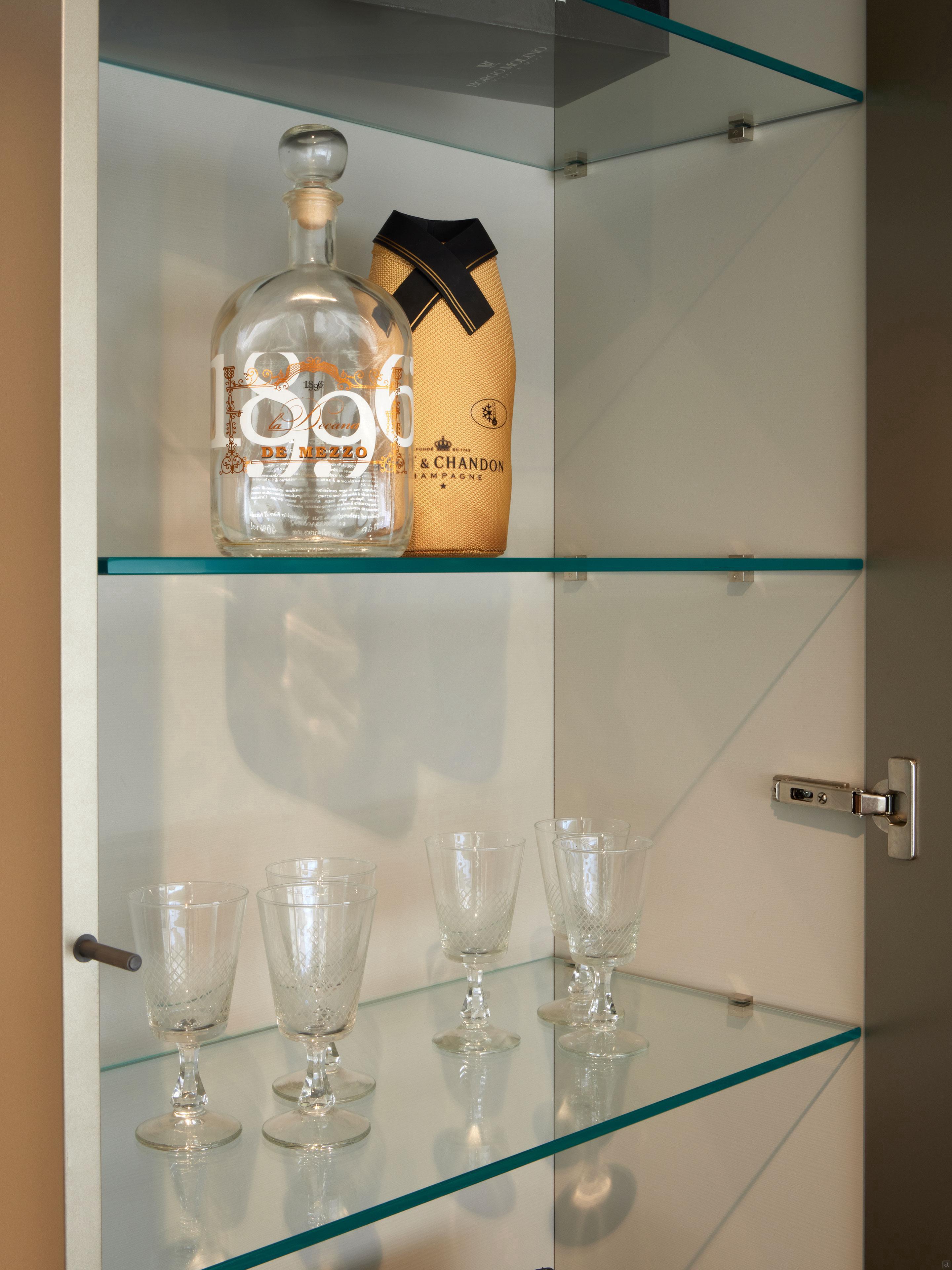

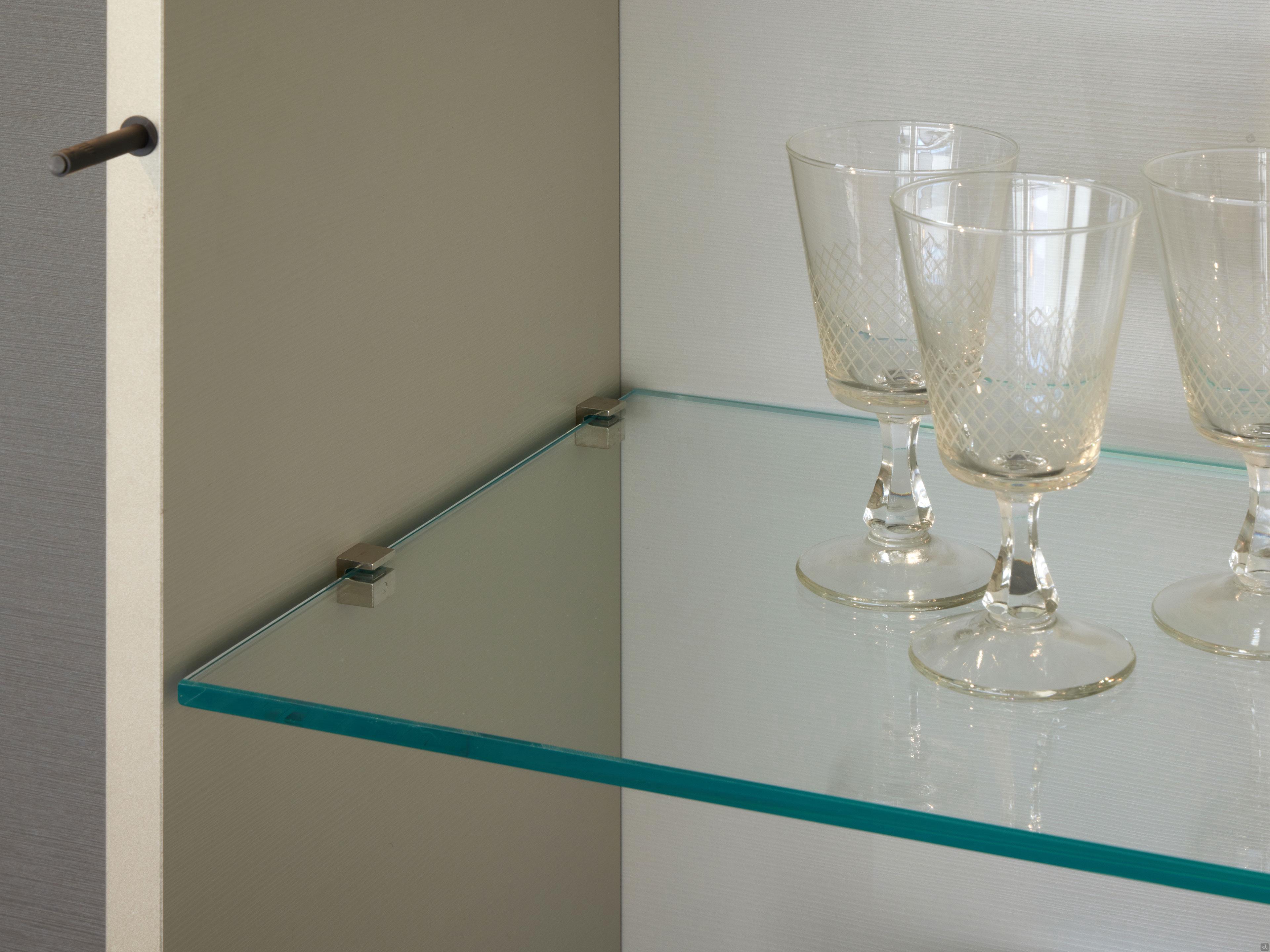

Detail of the glass shelves inside the side columns of the Plan 40 wall unit

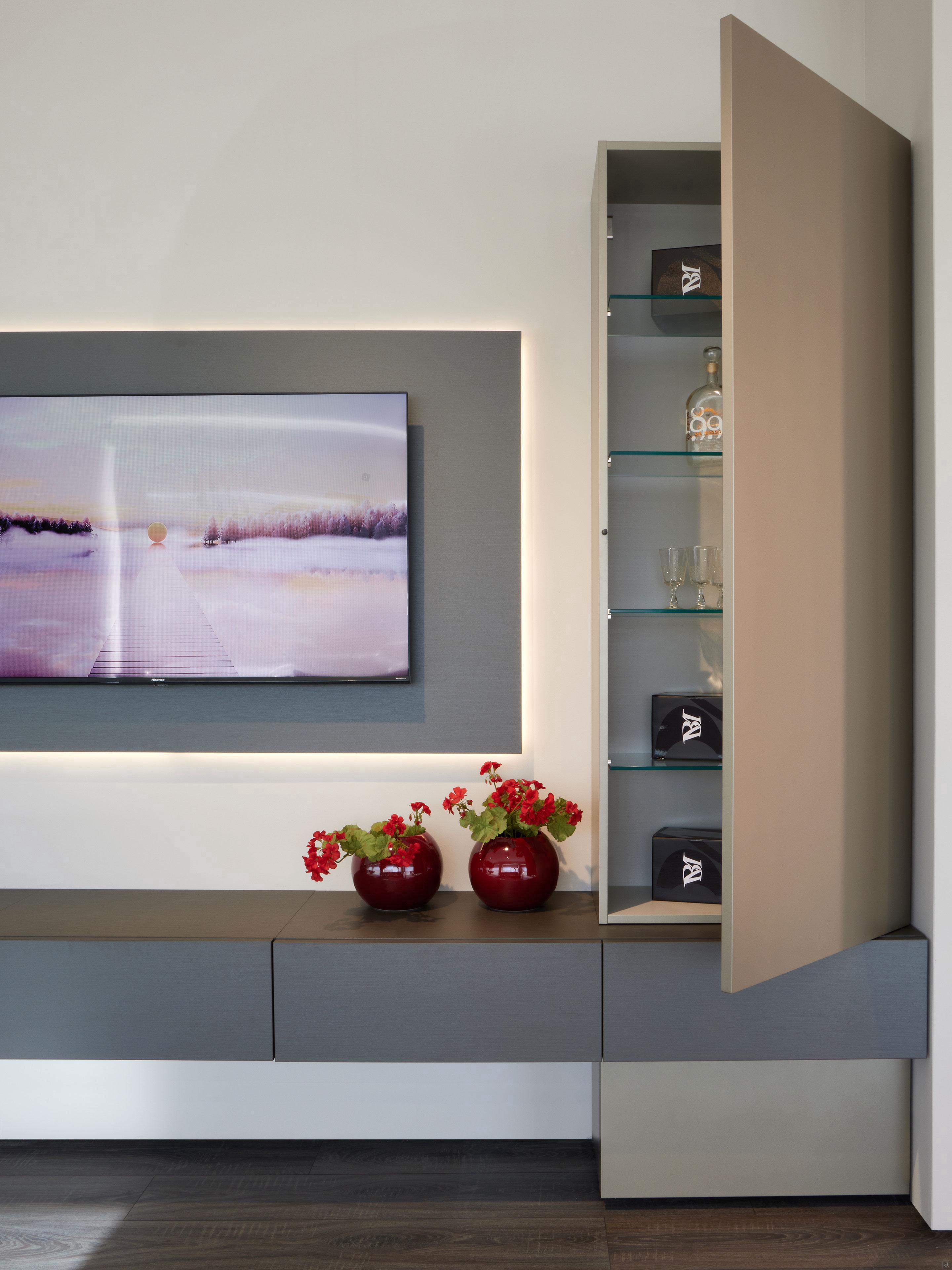

Side column of Plan 40 wall unit, complete with glass shelves

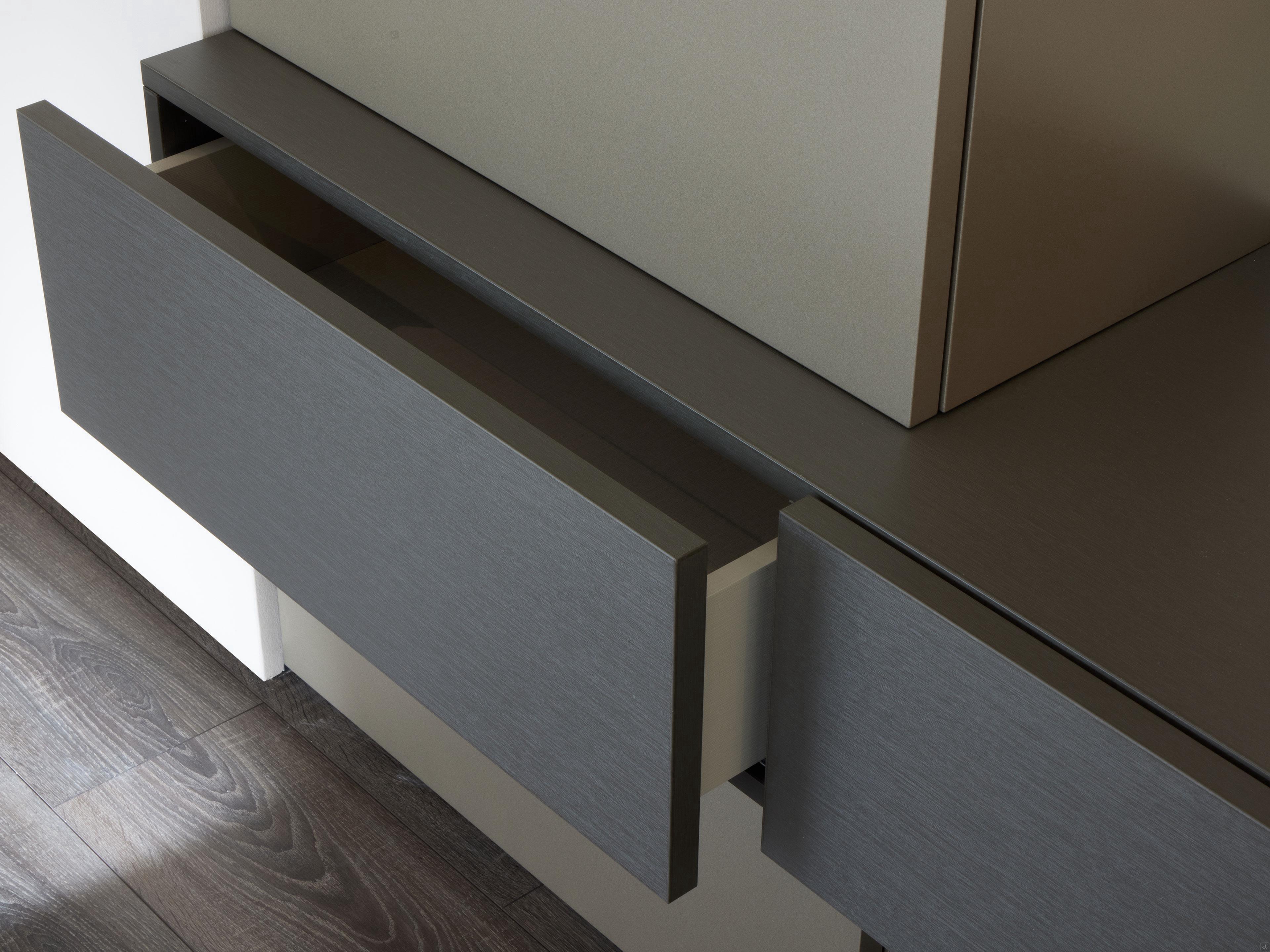

All drawers of the wall-hung base units are equipped with push-pull opening and mechanisms for slow closing

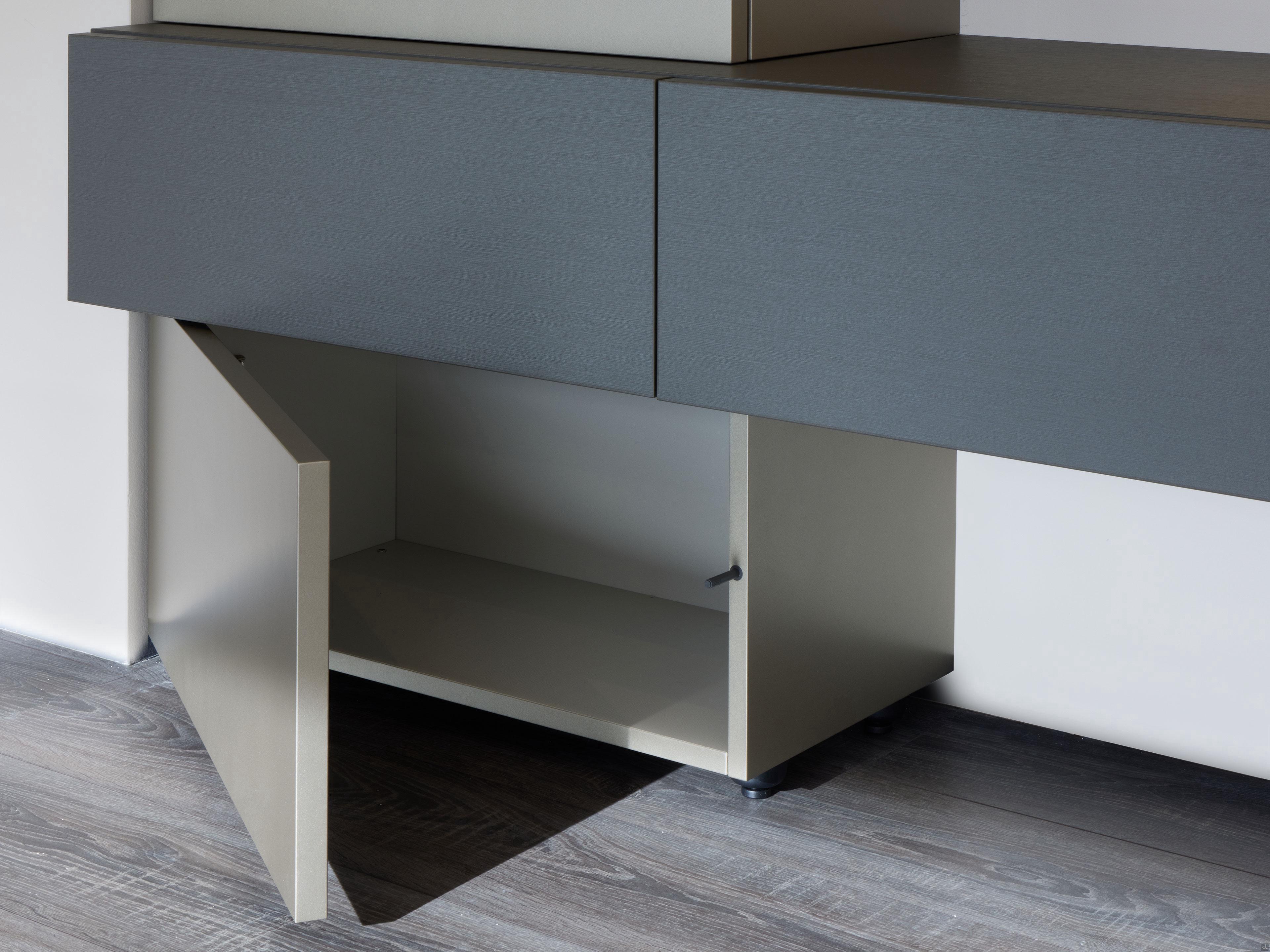

Each column ends with a small hinged compartment resting on the floor, providing extra storage space even under wall-hung base units

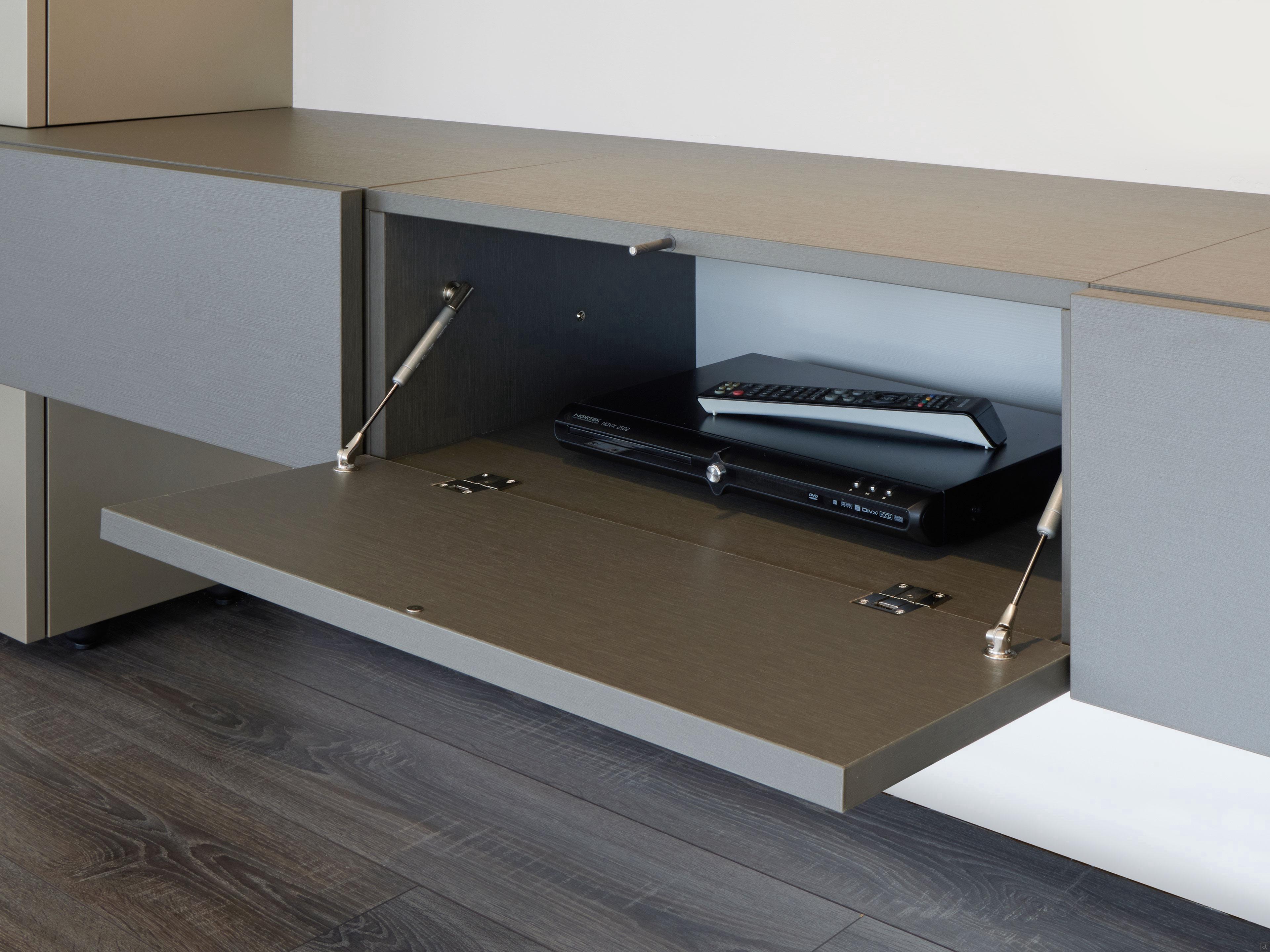

Central flap on Plan 40 wall, alternatively replaceable with a fifth drawer

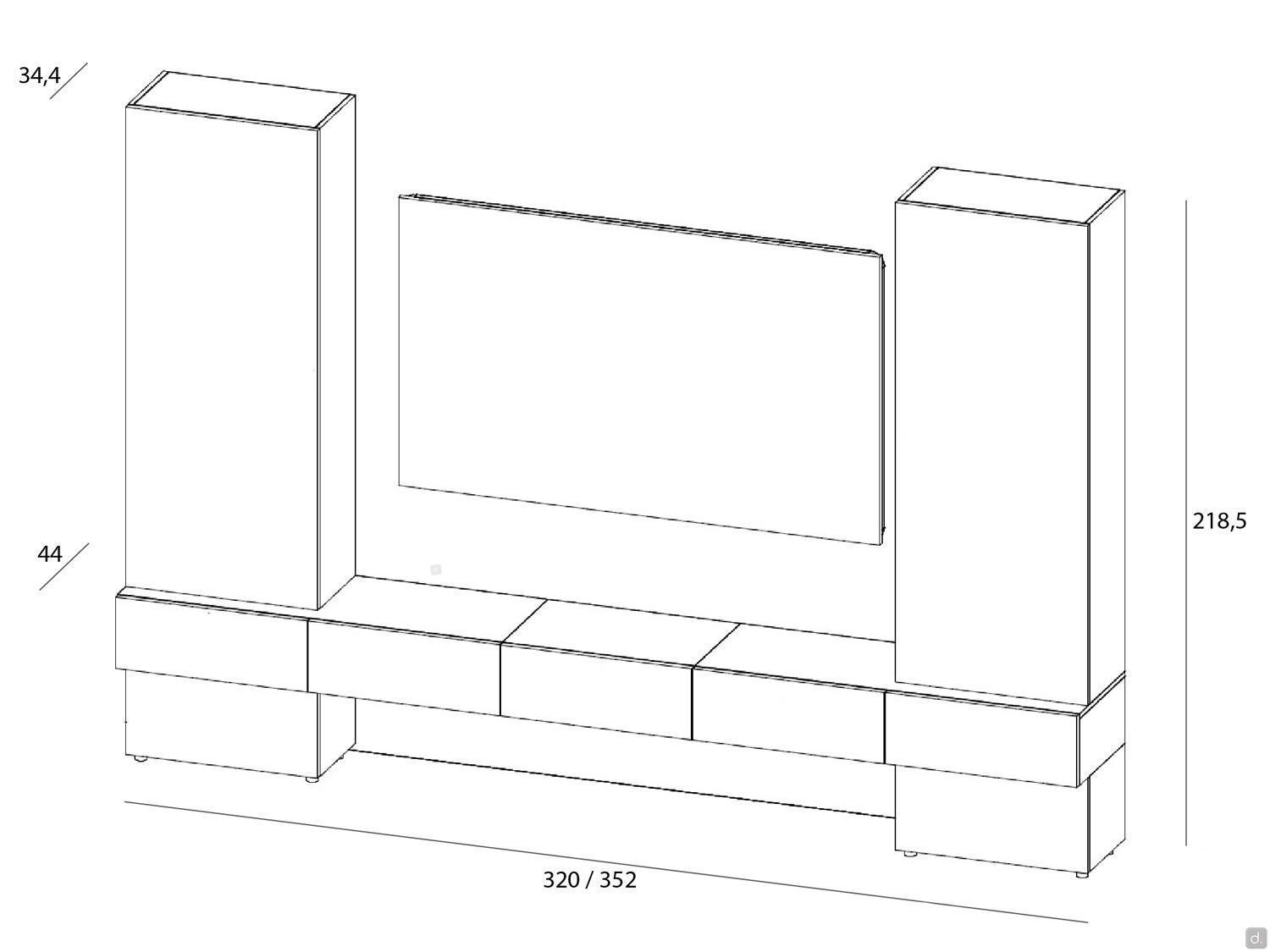

Plan 40 wall system with wall-hung pedestals and base units - Overview and overall dimensions

+ 8

MORE IMAGES

Plan 40
Wall System with Wall Tv

Wall unit with suspended columns and base units, with drawer or center flap. Suspended TV back with Led lighting, available widths 320 and 352 cm.

Quantity

From €2,371.20

View Samples

Wishlist

Description

Plan 40 is a wall unit with columns and suspended base units, symmetrically arranged around a TV stand panel that is also fixed to the wall behind and completed by an optional rear LED frame.
Customisable in terms of finishes and dimensions (configurable in two versions of 320 or 352 cm), the Plan 40 wall unit offers a large storage space, with columns of 4 shelves each and five base units of 24 cm in height; with the option of choosing whether to have a central flap or drawer base unit. In the case of a TV set resting on the base units, or fixed directly to the wall, it is possible to detach the TV panel, for a lighter look that does not compromise the functionality and the important internal compartments of the composition.

Features
wall in two sizes, 320 cm (60 cm central base unit) or 354 cm (92 cm central base unit)
double hinged column with 4 glass shelves, with push-pull opening mechanism
five 24 cm high suspended drawers, with the possibility of inserting a central flap
TV backrest for suspended screens, which can be completed with optional rear LED
customisable finishes, with a wide choice of melamine, lacquer and veneered woods

Dimensions
- cm 320 / 352 d.44 h.218,5

Materials and Finishes
Bases, Hanging Columns and Backs
- melamine
- stone effect melamine (only for Backs)
- fashion wood
- matt lacquered oak
- glossy / matt / mica lacquered
Interiors
- decor melamine

Technical study

Model and Dimensions Specifications
320 cm version:
Side Suspended Drawer Base Units: cm 128 d.44 h.24, two drawers each with push-pull opening.
Central Suspended Base Unit: cm 64 d.44 h.24, available with both drawer and flap, with push-pull opening.
Lateral Columns: cm 64 d.34,4 h.160; wall-mounted and standing on base units.
Hanging Wall Units: cm 64 d.34,4 h.32, placed underneath the side wall-hung base units. Including cm h.2,5 feet for ground support.
TV Stand: cm 160 h.96 sp.4,4, with optional LED perimeter frame. Suitable for TVs up to 65".

352 cm version:
Side Suspended Drawer Units: cm 128 d.44 h.24, two drawers each with push-pull opening.
Central Suspended Base Unit: cm 96 d.44 h.24, available with both drawer and flap, with push-pull opening.
Lateral Columns: cm 64 d.34,4 h.160; wall-mounted and standing on base units.
Hanging Wall Units: cm 64 d.34,4 h.32, placed underneath the side wall-hung base units. Including cm h.2,5 feet for ground support.
TV Stand: cm 192 h.96 sp.4,4, with optional LED perimeter frame. Suitable for TVs up to 70".

Technical Specifications and Equipment
Structure: particle board panel covered in melamine (class E1 low formaldehyde emission), wood or mdf (for glossy lacquer).
Back: wood particle board panel (class E1 - low formaldehyde emission) 2.2 cm thick; the back of the panel has a profile also made of 2.2 cm thick wood particle board covered in polymeric leaf with a matt black finish.
Shelves: glass, cm 0.8 thick. The hinged container cm 64 h.160 is equipped with 4 internal shelves.
Flap: door complete with pair of hydraulic pistons.
Container opening: push-pull.
Strip Led: 5.12 m (320 cm version) / 5.76 m (352 cm version); can be positioned on the back of the panel, in a consecutive manner, complete with transformer and switch.

Mounting Tips
The enclosures are fitted with wall-mounting brackets with an anti-release system. The wall plugs are adjustable from the inside by 1 cm in height and 0.3 cm in depth. The maximum load capacity of the containers is 80 kg per hanger.
The backrest is equipped with adjustable hangers with a maximum load capacity of approx. 80 kg each.

Additional Information

Area of Production
Italy

Approximate Time
9-10 working weeks for production

Assembling
Medium Assembling
